Ricoh B469, B468 Part List

B468/B469 FINISHER

PARTS LOCATION AND LIST

This section instructs you as to names and numbers of parts on this machine.

LOCATIONS OF UNITSLOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

1. EXTERIOR (B468/B469)

See Page 7

4. SHIFT TRANSFER SECTION 2 (B468/B469)

2. PAPER TRANSFER (B468/B469)

See Page 9

5. SHIFT TRANSFER SECTION 3 (B468/B469) 6. STAPLE TRANSFER SECTION 1 (B468/B469)

3. SHIFT TRANSFER SECTION 1 (B468/B469)

See Page 11

See Page 13

B468/B469 2 Parts Location and List

See Page 15

See Page 17

LOCATIONS OF UNITSLOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

7. STAPLE TRANSFER SECTION 2 (B468/B469)

See Page 19

10. STAPLE TRAY 3 (B468/B469)

8. STAPLE TRAY 1 (B468/B469)

See Page 21

11. STAPLE TRAY 4 (B468/B469)

9. STAPLE TRAY 2 (B468/B469)

See Page 23

12. PAPER CRIMP SECTION 1 (G468/B469)

See Page 25

B468/B469 3 Parts Location and List

See Page 27

See Page 29

LOCATIONS OF UNITSLOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

LOCATIONS OF UNITS

13. PAPER CRIMP SECTION 2 (G468/B469)

See Page 31

16. LOWER PAPER EXIT 2 (B468/B469)

14. UPPER PAPER EXIT (B468/B469)

See Page 33

17. DRIVE SECTION 1 (B468/B469)

15. LOWER PAPER EXIT 1 (B468/B469)

See Page 35

18. DRIVE SECTION 2 (B468/B469)

See Page 37

B468/B469 4 Parts Location and List

See Page 39

See Page 41

LOCATIONS OF UNITSLOCATIONS OF UNITS

LOCATIONS OF UNITSLOCATIONS OF UNITS

19. ELECTRICAL SECTION (B468/B469)

See Page 43

20. FRAME SECTION (B468/B469)

See Page 45

B468/B469 5 Parts Location and List

1.EXTERIOR (B468/B469)

B468/B469 6 Parts Location and List

1.EXTERIOR (B468/B469)

Index

No.

1 B468 1631 Rear Cover (B468) 1
1 B469 1631 Rear Cover (B469) 1
2 B468 1618 Connector Cover 1
3 B468 1616 Small Upper Cover 1
4 B468 1611 Upper Cover 1
5 B468 7812 Caution Decal - Tray Fall 1
6 B302 1164 Grounding Plate Bracket 1
7 B302 1163 Grounding Plate 1
8 A697 1144 Rear Joint Bracket 1
9 A697 1153 Front Joint Bracket 1
10 B468 6511 Spacer Cushion - 20mm 1
11 B468 1623 Upper Stopper 1
12 B468 1711 Upper Hinge 1
13 B468 1621 Front Cover 1
14 B468 7806 Decal - Misfeed Removal (B468) 1
14 B469 7808 Decal - Misfeed Removal (B469) 1
15 B468 1622 Front Grip 1
16 B468 7807 Decal - Staple Exchange 1
17 G020 2630 Magnetic Catch 1
18 B468 1626 Stopper - Door Lower 1
19 B468 1681 Inner Cover 1
20 B468 1651 Left Front Cover 1
21 B468 1721 Lower Hinge 1
22 B468 3211 Shift Tray 2
23 B468 3218 Slide Tray 2
24 B468 3215 Support Tray 2
25 B468 7813 Decal - Tray Rise 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0451 3008H Tapping Screw - M3x8
104 0451 4008H Tapping Screw - 4x8
105 0451 4014B Tapping Screw - M4x14

Part No.

Description

Q’ty Per

Assembly

B468/B469 7 Parts Location and List

2.PAPER TRANSFER (B468/B469)

B468/B469 8 Parts Location and List

2.PAPER TRANSFER (B468/B469)

Index

No.

1 5053 0447 Bushing - 6mm 1
2 B468 1612 Angle - Upper Cover 1
3 B302 7702 Decal - R2 1
4 AG07 0014 Magnet Catch 2
5 A859 3425 Spring Plate 4
6 B468 2255 Timing Pulley - T20 1
7 A859 3420 Middle Driven Roller 4
8 B468 2152 Upper Guide Plate 1
9 AW01 0089 Photosensor - GP2A28C 1
10 A697 2150 Lower Entrance Guide 1
11 A697 2145 Entrance Sensor Bracket 1
12 B468 2196 Upper Guide Plate 1
13 B408 2191 Guide Plate - Connecting Lower 1
14 B352 2610 Shift Transport Roller 1
15 A697 1151 Hopper Bracket 1
16 B408 1413 Coupling Stay 1
17 A697 1127 Joint Lever 1
18 A697 1125 Stepped Screw - Lever 2
19 B352 2500 Support Guide - Punch Unit 1
20 B352 7507 Punch Screw 1
21 B468 2122 Cushion - Gate Pawl 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0313 0100B Philips Pan Head Screw - M3x10
103 1105 0511 Harness Clamp - LWS-0306ZC
104 0805 0089 Retaining Ring - M4
105 0802 5276 Tapping Screw With Washer - M3x6
106 0720 0040B Retaining Ring - M4
107 0741 3506 Ball Bearing - 6x12x4 Mm

Part No.

Description

Q’ty Per

Assembly

B468/B469 9 Parts Location and List

3.SHIFT TRANSFER SECTION 1 (B468/B469)

B468/B469 10 Parts Location and List

3.SHIFT TRANSFER SECTION 1 (B468/B469)

Index

No.

1 B468 2816 Exit Mylar 1
2 B468 2815 Discharge Brush 1
3 AW01 0057 Registration Sensor 1
4 B468 5422 Exit Harness 1
5 B468 2811 Exit Guide Plate 1
6 B468 2832 Driven Exit Roller 2
7 B468 2831 Driven Shaft - Exit Roller 1
8 B468 2721 Lower Gate Pawl 1
9 A458 2251 Cushion - Bin Solenoid Lever 1
10 B468 2116 Lower Guide Plate 1
11 B302 7703 Decal - R3 1
12 AA06 3529 Pressure Spring - 14.5mm 4
13 B408 2175 Bushing - Roller Slide 2
14 B408 2174 Spring 2
15 B408 2173 Slide Roller 1
16 G012 1531 Magnet 1
17 AG07 0014 Magnet Catch 2
18 B468 2172 Guide Plate 1
19 AF02 2147 Driven Roller 1
20 B468 2117 Cushion - Gate Pawl 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0805 0089 Retaining Ring - M4
103 0720 0040B Retaining Ring - M4

Part No.

Description

Q’ty Per

Assembly

B468/B469 11 Parts Location and List

4.SHIFT TRANSFER SECTION 2 (B468/B469)

B468/B469 12 Parts Location and List

4.SHIFT TRANSFER SECTION 2 (B468/B469)

Index

No.

1 B408 2312 Bushing - Roller Slide 1
2 5053 0447 Bushing - 6mm 4
3 B468 2891 Switch Bracket 1
4 B468 5423 Guide Harness 1
5 AW02 0086 Photointerrupter 3
6 B468 2871 Sensor Bracket 1
7 B408 5520 Stepper Motor 1
8 B468 2851 Guide Plate Stay 1
9 5447 2681 Snap Ring 1
10 B468 2881 Guide Plate Link 1
11 B468 2882 Link Bushing 1
12 B468 2883 Compression Spring - Guide Plate 1
13 B468 2862 Guide Plate Cam 1
14 B468 2865 Worm Wheel - Z20 1
15 AA04 3054 Timing Belt - 142 P2M4 1
16 B468 2861 Worm Gear - T40P2M 1
17 B408 2311 Slide Roller 1
18 B468 2231 Transport Roller 1
19 B468 2128 Film - Exit Guide 1
20 AW01 0057 Registration Sensor 1
21 B468 2127 Guide Plate 1
22 B468 5422 Exit Harness 1
23 AB03 0374 Timing Pulley - 20Z 1
24 B408 2314 Arm - Roller Slide 1
25 A697 1605 Spacer - 6x10x15.2mm 1
26 B468 2255 Timing Pulley - T20 1
27 5875 2088 Shoulder Screw - M4 1
28 A353 3172 Actuator Bracket 1
29 B469 2892 Bracket - Paper Height Sensor 1
30 B469 5424 Relay Harness 1
31 B469 2895 Feeler Torsion Spring 1
32 B469 2891 Actuator - Paper Height Sensor 1
33 B468 2894 Bracket - Micro Switch Swivel 1
34 B468 2896 Tension Spring - 5N 1
35 B469 2894 Paper Sensor Bracket - Surface 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1105 0511 Harness Clamp - LWS-0306ZC
102 0451 3006B Tapping Screw - M3x6
103 0720 0040B Retaining Ring - M4
104 0741 3506 Ball Bearing - 6x12x4 mm
105 0313 0120B Philips Pan Head Screw - M3x12
106 1204 2233 Microswitch - AH715254N
107 1105 0487 Harness Clamp

Part No.

Description

Q’ty Per

Assembly

B468/B469 13 Parts Location and List

5.SHIFT TRANSFER SECTION 3 (B468/B469)

B468/B469 14 Parts Location and List

5.SHIFT TRANSFER SECTION 3 (B468/B469)

Index

No.

1 5053 0447 Bushing - 6mm 3
2 A697 2210 Lower Guide - Proof Tray 1
3 AW02 0079 Photointerrupter 1
4 B468 2911 Bracket - Photointerrupter 1
5 AW02 0049 Photointerrupter - OS - 580213-703 1
6 B468 5495 Relay Harness - Paper Exit 1
7 B468 2241 Exit Roller - Proof Tray 1
8 B302 2216 Exit Guide - Upper Exit Guide 1
9 AA12 0099 Antistatic Brush - 320mm 1
10 B468 2121 Film - Proof Tray 2
11 B468 2112 Upper Guide Plate 1
12 A697 2187 Pressure Spring - 14.1mm 2
13 AF02 2147 Driven Roller 2
14 B468 2711 Gate Pawl 1
15 B408 1413 Coupling Stay 2
16 A458 2251 Cushion - Bin Solenoid Lever 1
17 B468 2231 Transport Roller 2
18 B302 7701 Decal - R1 1
19 G012 1531 Magnet 1
20 B468 2145 Knob - Release Lever 1
21 A697 2140 Upper Entrance Guide 1
22 A680 1181 Magnetic Catch 1
23 A697 2144 Pressure Spring 2
24 A697 1606 Spacer - 6x12x2.7mm 1
25 AB03 0374 Timing Pulley - 20Z 1
26 B468 2255 Timing Pulley - T20 3
27 A697 1605 Spacer - 6x10x15.2mm 2
28 A697 1125 Stepped Screw - Lever 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0313 0040B Philips Pan Head Screw - M3x4
103 0741 3506 Ball Bearing - 6x12x4 Mm
104 1105 0328 Harness Clamp - ES-0505
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0805 0089 Retaining Ring - M4

Part No.

Description

Q’ty Per

Assembly

B468/B469 15 Parts Location and List

6.STAPLE TRANSFER SECTION 1 (B468/B469)

B468/B469 16 Parts Location and List

6.STAPLE TRANSFER SECTION 1 (B468/B469)

Index

No.

1 B468 2255 Timing Pulley - T20 3
2 A697 1605 Spacer - 6x10x15.2mm 1
3 B312 1521 Timing Pulley - 20T 1
4 5053 0447 Bushing - 6mm 4
5 C101 2360 Snap Ring 2
6 A612 2435 Support Plate 1
7 AA06 3529 Pressure Spring - 14.5mm 6
8 AF02 2147 Driven Roller 3
9 B468 2162 Guide Plate 1
10 AG07 1010 Magnet Catch 2
11 A697 5500 Decal - Replacement R4 1
12 B312 2174 Pressure Spring - 12mm 2
13 AA08 0242 Bushing - 4mm 2
14 B312 2172 Driven Roller 1
15 B312 2171 Middle Guide - Vertical Transport 1
16 B312 5700 Decal - R5 1
17 B312 2173 Support Plate 1
18 B312 2100 Pre-stack Gate 1
19 A458 2251 Cushion - Bin Solenoid Lever 1
20 B312 2166 Vertical Guide 1
21 B352 2610 Shift Transport Roller 2
22 B468 2231 Transport Roller 1
23 B468 2118 Lower Guide Plate 1
24 B312 2176 Transport Roller 1
25 AA08 0238 Bushing - M6 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0720 0040B Retaining Ring - M4
104 0741 3506 Ball Bearing - 6x12x4 Mm
105 0805 0089 Retaining Ring - M4

Part No.

Description

Q’ty Per

Assembly

B468/B469 17 Parts Location and List

7.STAPLE TRANSFER SECTION 2 (B468/B469)

B468/B469 18 Parts Location and List

7.STAPLE TRANSFER SECTION 2 (B468/B469)

Index

No.

1 B468 2221 Lower Exhaust Roller 1
2 B468 2224 Flange - Brush Roller 4
3 B302 2413 Brush Roller 2
4 A697 2132 Joint - Brush Roller 2
5 A697 2138 Brush Roller 2
6 B468 2222 Exit Roller 1
7 5053 0447 Bushing - 6mm 5
8 AA16 1099 Lever Cushion 1
9 A608 2813 Positioning Roller Arm 1
10 B468 2515 Spring - Gather Roller 1
11 5919 2127 Positioning Roller Pulley 1
12 5919 2132 Positioning Roller Belt 1
13 B478 2116 Reverse Roller - Stapler Tray 1
14 5447 2681 Snap Ring 1
15 A608 2816 Positioning Roller Shaft 1
16 B468 2255 Timing Pulley - T20 1
17 A697 2260 Pulley - 17T 1
18 A300 3851 Positioning Roller Bracket 1
19 B468 2187 Middle Guide - Stapler Tray 1
20 B468 2188 Both End Guide - Stapler Tray 2
21 AF02 2147 Driven Roller 1
22 AA06 3529 Pressure Spring - 14.5mm 2
23 B302 2451 Lower Guide Plate 1
24 B302 2459 Spring - 5x39mm 2
25 B302 7706 Decal - R6 1
26 AA12 0099 Antistatic Brush - 320mm 1
27 A697 2131 Antistatic Brush 1
28 B468 2131 Stapler Guide Plate 1
29 B408 1413 Coupling Stay 1
30 AW02 0049 Photointerrupter - OS - 580213-703 1
31 B468 1332 Exit Sensor Bracket 1
32 B468 2134 Stapler Guide 2

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0805 0089 Retaining Ring - M4
104 0720 0040B Retaining Ring - M4
105 0741 3506 Ball Bearing - 6x12x4 Mm
106 0805 0088 Retaining Ring - M6
107 0623 0120E Spring Pin - M3x12
108 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B468/B469 19 Parts Location and List

8.STAPLE TRAY 1 (B468/B469)

B468/B469 20 Parts Location and List

8.STAPLE TRAY 1 (B468/B469)

Index

No.

1 B468 4335 Protect Bracket 2
2 B468 4327 Bushing 4
3 B468 4322 Front Jogger Fence 1
4 B468 4332 Front Mylar 1
5 B468 4325 Long Shaft 2
6 B468 4328 Jogger Guide 4
7 B468 4381 Stopper - Timing Belt 2
8 B468 4371 Timing Belt - 900P2M4 1
9 A697 4170 Pulley - 32T 1
10 B408 4223 Belt Tensioner - Stapler 1
11 A697 1518 Spring - Oil Blade 1
12 5447 2681 Snap Ring 1
13 AW01 0057 Registration Sensor 1
14 B352 4261 Tightener - Exit Belt 1
15 B468 4326 Short Shaft 2
16 AW02 0086 Photointerrupter 1
17 B468 5443 Relay Harness - Stapler Unit 1
18 B468 4115 Guide Film (B468) 2
18 B469 4115 Guide Mylar (B469) 2
19 B468 4118 Upper Mylar - Stapler 2
20 B468 4152 Standard Fence 1
21 B468 4312 Rear Jogger Fence 1
22 B468 4116 Middle Stapler Film 1
23 B468 4331 Rear Mylar 1
24 B468 4158 Guide Rod 1
25 B468 4149 Stapler Tray Bracket 1
26 B468 4157 Guide Mylar 2
27 B468 4156 Standard Fence 1
28 B468 4154 Fence Slider 2
29 A300 3759 Spring 1
30 B468 4119 Front Mylar - Stapler 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0450 3008B Tapping Screw - M3x8
102 0720 0040B Retaining Ring - M4
103 0804 6075 Hexagonal Bolt - M3x8

Part No.

Description

Q’ty Per

Assembly

B468/B469 21 Parts Location and List

9.STAPLE TRAY 2 (B468/B469)

B468/B469 22 Parts Location and List

9.STAPLE TRAY 2 (B468/B469)

Index

No.

1 B468 4146 Exit Belt Guide 1
2 G020 4429 Exit Sensor 1
3 B468 4172 Sensor Bracket 1
4 A697 2131 Antistatic Brush 1
5 B468 4122 Stapler Stay 1
6 A353 2763 Washer - M5 2
7 B468 4144 Exit Belt Pawl 2
8 B468 4142 Exit Belt 1
9 A666 3180 Timing Pulley - Z32 2
10 B468 4117 Shaft - M6x24 1
11 B468 4111 Stapler Tray 1
12 B468 4161 Drive Shaft 1
13 B312 4140 Stepping Motor - 8.0W 1
14 B468 4341 Motor Bracket 1
15 A666 3270 Pulley - Z40 1
16 B468 4816 Timing Belt - 310P2M4 1
17 B468 4811 Motor Bracket 1
18 B468 5760 Stepper Motor 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0720 0040B Retaining Ring - M4
102 1105 0487 Harness Clamp
103 0451 3006B Tapping Screw - M3x6
104 0242 0035B Pan Head Screw - M2x3.5
105 0711 0020B Nut Plate Switch(100 Pcs/1 Set)
106 0805 3385 Bushing - 6mm
107 1105 0511 Harness Clamp - LWS-0306ZC

Part No.

Description

Q’ty Per

Assembly

B468/B469 23 Parts Location and List

10.STAPLE TRAY 3 (B468/B469)

B468/B469 24 Parts Location and List

10.STAPLE TRAY 3 (B468/B469)

Index

No.

1 B468 4211 Front Side Plate (B468) 1
1 B468 4212 Front Side Plate (B469) 1
2 B468 4231 Slide Rail Stay 1
3 B468 5442 Relay Harness - Stapler Cartridge 1
4 B468 4136 Middle Mylar 2
5 B468 4126 Entrance Mylar 2
6 B468 6200 Stapler 1
7 B468 4139 Jogger Fence Mylar 2
8 B468 4128 Stapler Guide 2
9 B468 4127 Small Stay 1
10 B468 4129 Upper Cover 1
11 B468 5441 Relay Harness - Stapler 1
12 A300 3151 Support Bracket 1
13 B468 4781 Sensor Bracket 1
14 AW02 0086 Photointerrupter 1
15 B468 4221 Rear Side Plate (B468) 1
15 B468 4222 Rear Side Plate (B469) 1
16 AG07 1010 Magnet Catch 1
17 B469 4133 Guide Plate - Stapler Tray 1
18 B469 4134 Guide Mylar - Stapler Tray 1
19 B468 6411 Adjusting Pin - Booklet Stapler 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0450 3008B Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6
103 0804 6075 Hexagonal Bolt - M3x8
104 1105 0487 Harness Clamp
105 1105 0488 Harness Clamp
106 1105 0514 Edge Saddle - EDS-0607l
107 1105 0489 Harness Clamp - LWS 1316

Part No.

Description

Q’ty Per

Assembly

B468/B469 25 Parts Location and List

11.STAPLE TRAY 4 (B468/B469)

B468/B469 26 Parts Location and List

11.STAPLE TRAY 4 (B468/B469)

Index

Index

No.

No.

1 B468 5444 Relay Harness - Stapler Tray 1
2 AX05 0148 Stepper Motor 1
3 B468 4551 Stapler Stay 1
4 AW02 0086 Photointerrupter 2
5 B468 4766 Tightener 1
6 A697 1518 Spring - Oil Blade 1
7 A697 1125 Stepped Screw - Lever 1
8 AB03 0278 Idler - 20Z 1
9 B302 4259 Timing Belt - 195PM6 1
10 B302 4256 Timing Pulley - 20Z/40Z 1
11 A300 3812 Spacer - 6x22x1.5 1
12 B302 4756 Timing Belt - 753P3M6 1
13 B468 4555 Stapler Guide Rod 1
14 AA13 2024 Spacer - M6 1
15 B468 4521 Turn Bracket 1
16 B468 4511 Fix Bracket 1
17 B468 4513 Stapler Guide 1
18 B352 4379 Lower Guide Plate 1
19 G565 4377 Upper Entrance Guide 1
20 AJ01 1018 Stapler 1
21 B468 4516 Inner Cover 1
22 B468 7805 Decal - S1 1
23 B468 5450 Stapler Harness 1
24 A697 4140 Sector Gear - 144Z 1
25 A376 1343 Original Pressure Roller 1
26 B408 5520 Stepper Motor 1
27 5053 0223 Bushing - 8mm 2
28 B352 4318 Bushing - Lower Slider 2
29 B468 4531 Moving Bracket 1
30 B468 4538 Standard Fence Plate 1
31 B302 4293 Belt Holder Bracket 1
32 B302 4292 Belt Holder 1
33 B468 4546 Hp Sensor Bracket 1
34 A300 2132 Guide Roller 1
35 5053 0447 Bushing - 6mm 2

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

Index

Index

No.

No.

36 A697 3215 Pulley - 19T 1
37 A697 3220 Timing Belt - B40S2M112 1

101 1105 0487 Harness Clamp
102 0452 3006B Tapping Screw - M3x6
103 0451 3006B Tapping Screw - M3x6
104 0720 0040B Retaining Ring - M4
105 1105 0511 Harness Clamp - LWS-0306ZC
106 0720 0060B Retaining Ring - M6
107 1607 0623 Ferrite Core - TFC-16-8-13

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

B468/B469 27 Parts Location and List

12.PAPER CRIMP SECTION 1 (B468/B469)

B468/B469 28 Parts Location and List

12.PAPER CRIMP SECTION 1 (B468/B469)

Index

No.

1 A697 1125 Stepped Screw - Lever 1
2 B468 4785 Knob 1
3 B468 4671 Knob 1
4 B468 4792 Mylar Guide 1
5 B468 7802 Decal - R8 1
6 B468 7801 Decal - R7 1
7 B468 7804 Decal - S2 1
8 B468 7803 Decal - R9 (B468) 1
8 B469 7813 Decal - R7 (B469) 1
9 B468 4911 Front Inner Cover 1
10 B468 4761 Drive Link 2
11 B468 4771 Slide Guide 2
12 B468 4711 Bracket 1
13 B468 4715 Guide Shaft 1
14 B468 4757 Gear - Z14 2
15 B468 4751 Stepper Motor Bracket 1
16 B468 5770 Stepper Motor 1
17 B468 4745 Middle Gear 1
18 5053 0223 Bushing - 8mm 2
19 B468 4742 Drive Gear 2
20 B468 4732 Shielding Plate Bracket 1
21 B468 4743 Link Shaft 2
22 B468 4744 Drive Shaft 1
23 B468 4791 Guide Plate 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0720 0040B Retaining Ring - M4
104 1105 0328 Harness Clamp - ES-0505
105 0720 0060B Retaining Ring - M6

Part No.

Description

Q’ty Per

Assembly

B468/B469 29 Parts Location and List

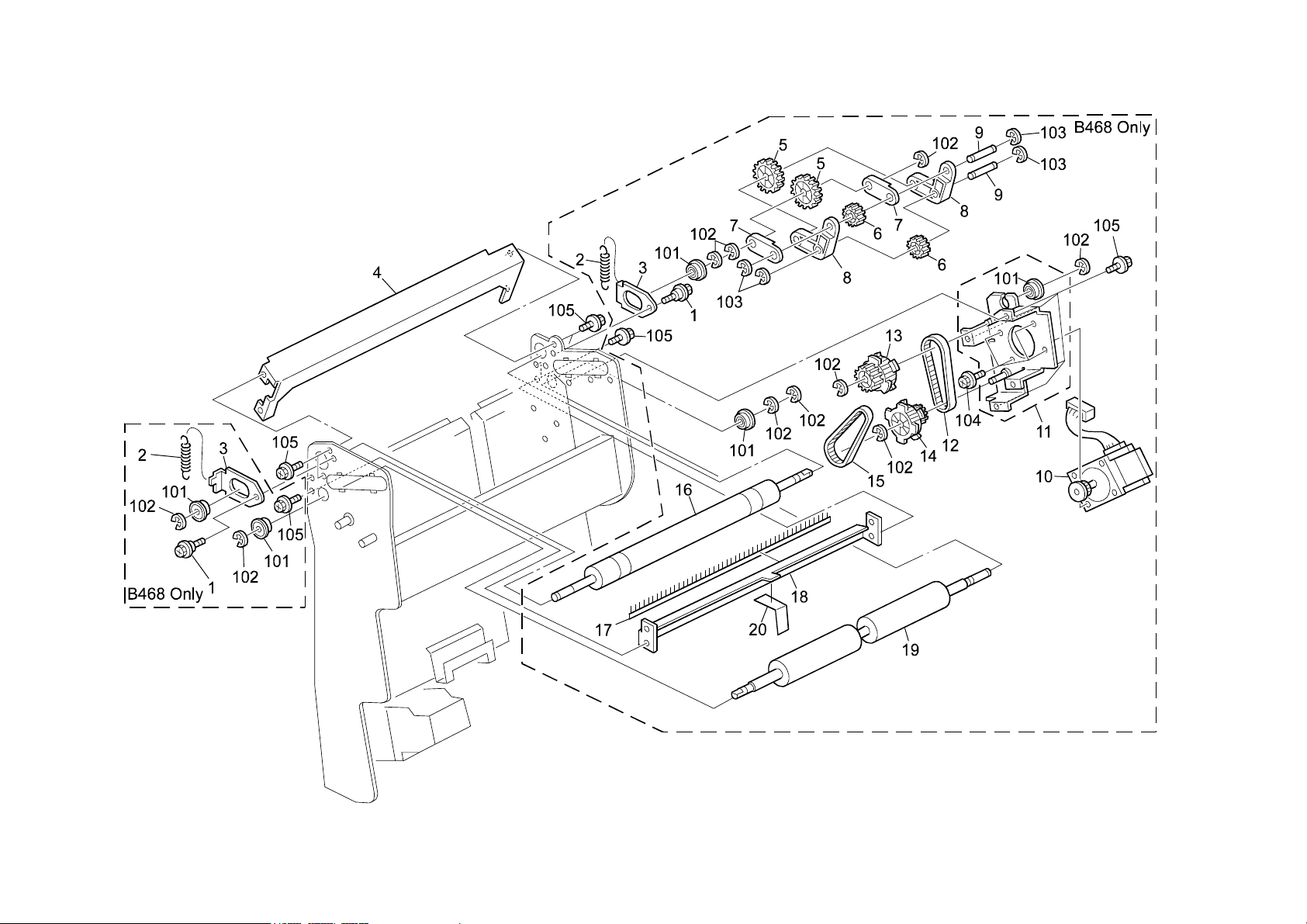

13.PAPER CRIMP SECTION 2 (B468/B469)

B468/B469 30 Parts Location and List

13.PAPER CRIMP SECTION 2 (B468/B469)

Index

No.

1 A697 1125 Stepped Screw - Lever 2
2 B468 4691 Tension Spring 2
3 B468 4617 Roller Bracket 2
4 B468 4666 Roller Guide Plate 1
5 B468 4651 Drive Gear 2
6 B468 4624 Gear - 18Z 2
7 B468 4622 Short Roller Arm 2
8 B468 4621 Roller Arm 2
9 B468 4623 Roller Shaft 2
10 B468 4640 Stepper Motor 1
11 B468 4635 Bracket 1
12 B468 4654 Timing Belt - 255P5M6 1
13 B468 4652 Pulley - T20P5MZ20 1
14 B468 4659 Idler Pulley - T1226P5M 1
15 B468 4653 Timing Belt - 215P5M6 1
16 B468 4615 Drive Roller 1
17 A681 2416 Antistatic Brush 1
18 B468 4662 Guide Plate 1
19 B468 4611 Drive Roller 1
20 B468 4663 Guide Film 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0741 3808 Ball Bearing - 8x16x5mm
102 0720 0060B Retaining Ring - M6
103 0720 0040B Retaining Ring - M4
104 0451 4008B Philips Tapping Screw - M4x8
105 0451 3006B Tapping Screw - M3x6

Part No.

Description

Q’ty Per

Assembly

B468/B469 31 Parts Location and List

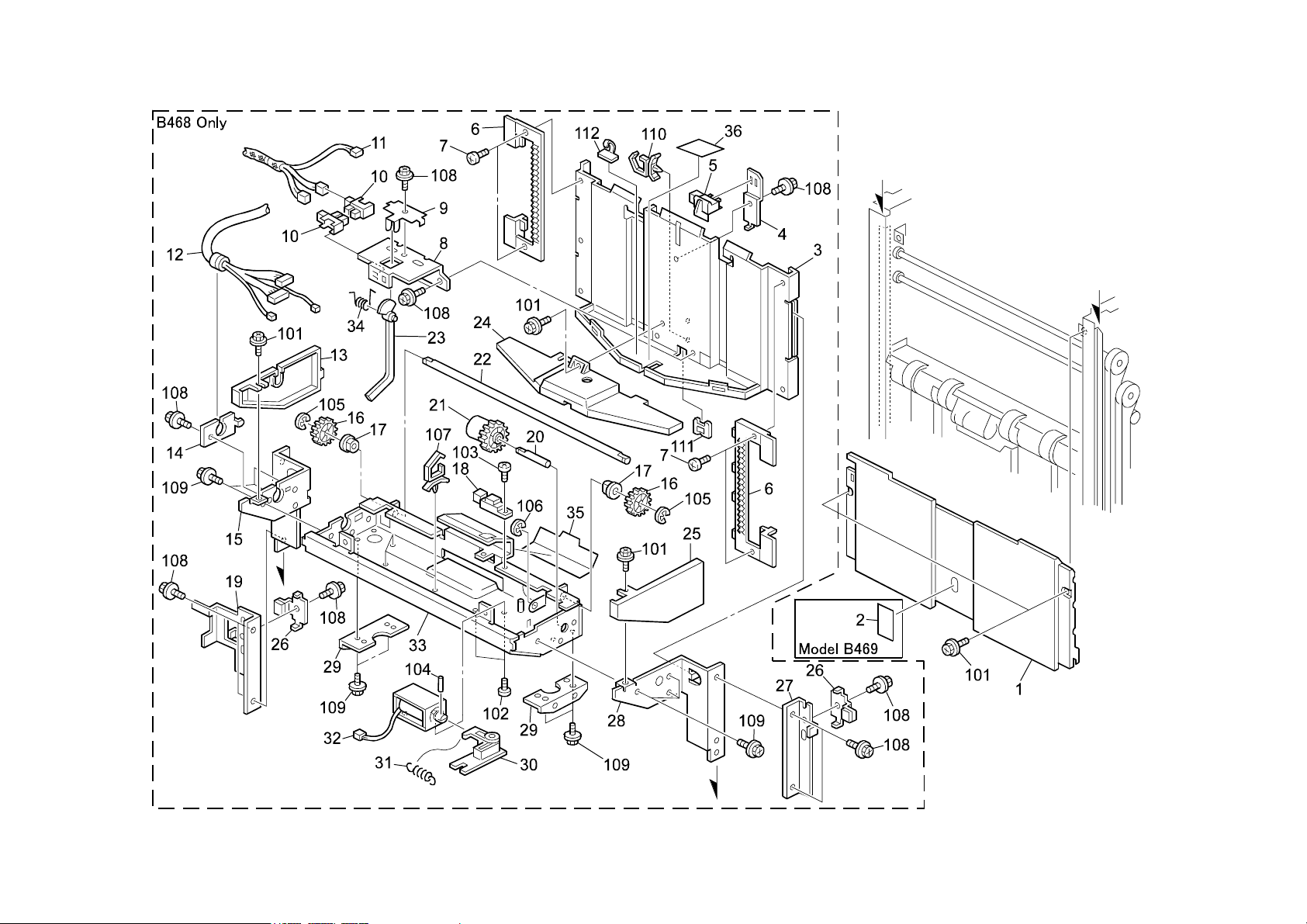

14.UPPER PAPER EXIT (B468/B469)

B468/B469 32 Parts Location and List

14.UPPER PAPER EXIT (B468/B469)

Index

Index

No.

No.

1 B468 1641 Left Upper Cover 1
1 B469 1641 Left Upper Cover 1
2 B469 1642 Mylar - Left Upper Cover 1
3 B468 3161 Upper End Fence 1
4 B468 3116 Upper Bracket - Paper Height Sensor 1
5 AW02 0129 Overflow Photointerrupter 1
6 B468 3168 Rack 2
7 5875 2088 Shoulder Screw - M4 4
8 B468 3141 Bracket - Paper Height Sensor 1
9 B468 3152 Lever Stay 1
10 AW02 0086 Photointerrupter 2
11 B468 5477 Relay Harness 1
12 B468 5470 Upper Tray Harness 1
13 B468 1666 Upper Cover - Shift Tray Rear 1
14 B468 3181 Stay 1
15 B468 3125 Rear Holder 1
16 B468 3138 Gear - End Fence 2
17 5053 0447 Bushing - 6mm 2
18 AW01 0088 Sensor GP2A200LCS - Assembly 1
19 B468 3131 Rear Stay - Timing Belt 1
20 B468 3142 Shaft - Spring Clutch 1
21 B468 3149 Spring Clutch - End Fence 1
22 B468 3137 Shaft - End Fence 1
23 B468 3151 Sensor Lever 1
24 B468 3175 Cover - Paper Height Sensor 1
25 B468 1661 Upper Cover - Shift Tray Front 1
26 B468 3135 Stopper - Timing Belt 2
27 B468 3132 Front Stay - Timing Belt 1
28 B468 3121 Front Holder 1
29 B468 3147 Support Plate 2
30 B468 3139 Release Lever 1
31 B468 3146 Tension Spring 1
32 AX11 0066 DC Solenoid - 24V 5.76W 1
33 B468 3133 Upper Stay 1
34 B468 3153 Torsion Spring 1

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

Index

Index

No.

No.

35 B468 3148 Upper Plate 1
36 G518 1237 Sheet - Shielding Plate 1

101 0451 3008H Tapping Screw - M3x8
102 0313 0040B Philips Pan Head Screw - M3x4
103 0313 0060B Philips Pan Head Screw - M3x6
104 0623 0100E Spring Pin - 3x10mm
105 0720 0040B Retaining Ring - M4
106 0720 0060B Retaining Ring - M6
107 1105 0487 Harness Clamp
108 0451 3006B Tapping Screw - M3x6
109 0802 5276 Tapping Screw With Washer - M3x6
110 1105 0511 Harness Clamp - LWS-0306ZC
111 1105 0328 Harness Clamp - ES-0505
112 1105 0109 Cord Keep

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

B468/B469 33 Parts Location and List

15.LOWER PAPER EXIT 1 (B468/B469)

B468/B469 34 Parts Location and List

15.LOWER PAPER EXIT 1 (B468/B469)

Index

No.

1 B468 3615 Pulley - M9 8
2 C203 5135 Bushing - 10x14x5.9 2
3 B468 3515 Long Spacer - MM10 1
4 A697 3170 Gear - 42Z 1
5 A697 3180 Pulley - 18T 2
6 5053 0223 Bushing - 8mm 2
7 B468 3541 Tightener Bracket 1
8 B468 3614 Gear - Z49 1
9 B468 3631 Rear Tightener 1
10 B468 3613 Timing Pulley - T30P3M 3
11 B468 3651 Timing Belt - 804P3M6 2
12 B468 3551 Timing Belt - 1615P5M6 2
13 A697 3185 Pulley - 18T 2
14 B468 3531 Tightener 1
15 B468 3245 Arm 2
16 B468 3641 Front Tightener 1
17 B468 5474 Lower Tray Harness 1
18 B468 1676 Lower Rear Cover 1
19 B468 3181 Stay 1
20 B468 3223 Lower Holder - Rear 1
21 B468 3231 Front Stopper 1
22 B468 3226 Lower Stay 1
23 B468 3221 Lower Holder - Front 1
24 B468 3232 Rear Stopper 1
25 B468 1671 Lower Front Cover 1
26 B468 3242 Arm Stay 1
27 B468 3261 Tension Spring 2
28 B468 3252 Roller - M6 2
29 B468 3251 Arm Plate 2
30 AW01 0088 Sensor GP2A200LCS - Assembly 1
31 B468 3611 Upper Shaft 1
32 B468 3511 Drive Shaft 1
33 B468 3516 Short Spacer - MM10 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3008H Tapping Screw - M3x8
102 0313 0060B Philips Pan Head Screw - M3x6
103 0450 3008B Tapping Screw - M3x8
104 0802 5276 Tapping Screw With Washer - M3x6
105 0451 3006B Tapping Screw - M3x6
106 1105 0487 Harness Clamp
107 0634 0200G Parallel Pin - 4x20
108 0720 0060B Retaining Ring - M6
109 0632 0120G Parallel Pin - 2x12
110 0720 0040B Retaining Ring - M4
111 0805 0088 Retaining Ring - M6

Part No.

Description

Q’ty Per

Assembly

B468/B469 35 Parts Location and List

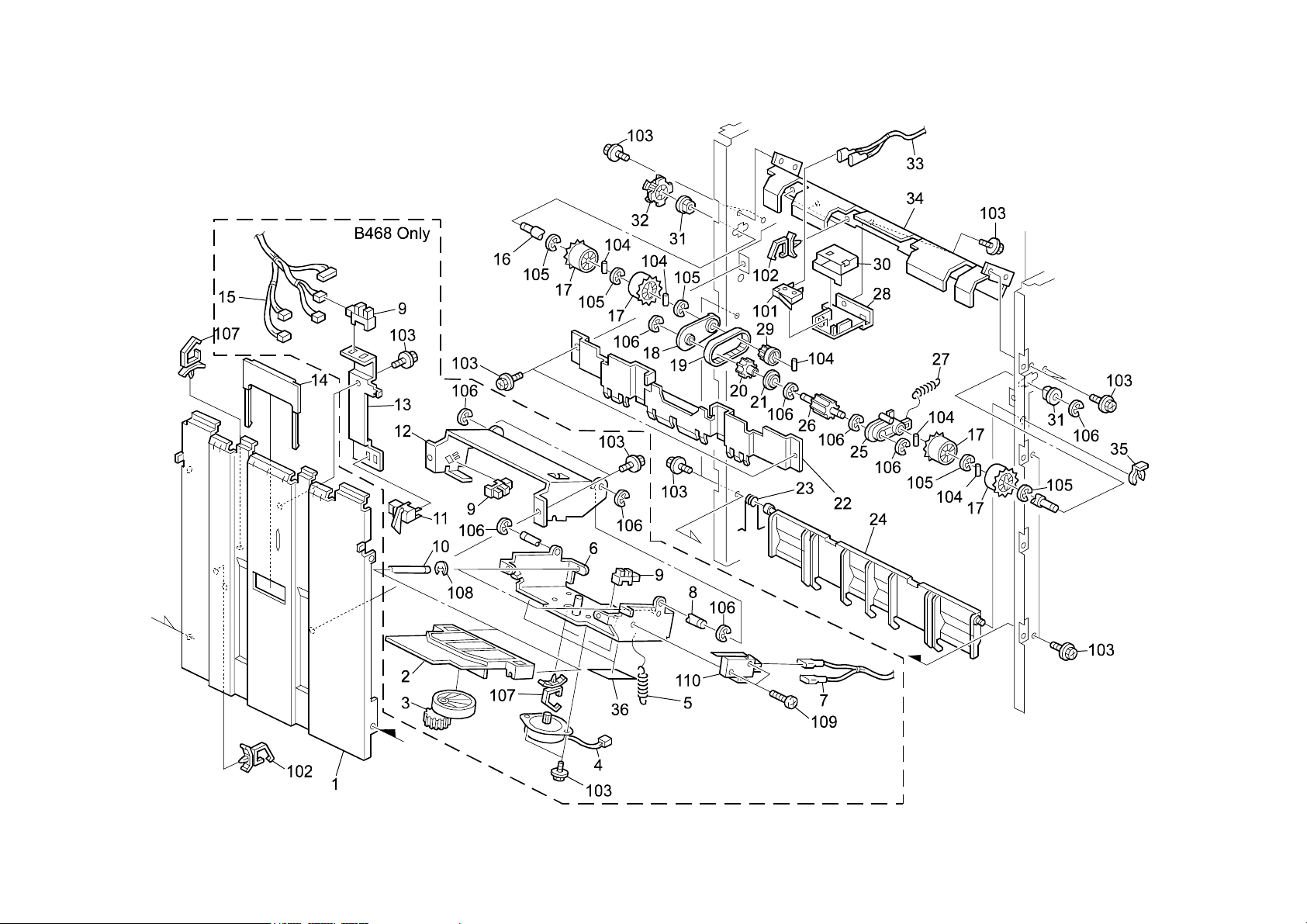

16.LOWER PAPER EXIT 2 (B468/B469)

B468/B469 36 Parts Location and List

16.LOWER PAPER EXIT 2 (B468/B469)

Index

Index

No.

No.

1 B468 3411 End Fence 1
2 B468 3841 Pressure Plate 1
3 B468 3835 Pressure Plate Cam 1
4 B408 5530 Stepper Motor - 11W 1
5 B468 3849 Tension Spring 1
6 B468 3831 Bracket 1
7 B468 5476 Switch Harness 1
8 B468 3848 Shaft 1
9 AW02 0086 Photointerrupter 3
10 B468 3845 Slide Shaft 2
11 AW02 0129 Overflow Photointerrupter 1
12 B468 3811 Pressure Plate Bracket 1
13 B468 3431 Middle Sensor Bracket 1
14 B468 3851 End Fence Cover 1
15 B468 5421 Lower Harness 1
16 B468 2312 Exit Roller Shaft 1
17 B468 2320 Exit Roller 4
18 B468 2332 Rear Arm 1
19 AA04 3181 Timing Belt - B40S2M80 1
20 B302 2318 Timing Pulley - 28Z 1
21 B302 2319 Stopper Ring 1
22 B468 3421 Small End Fence 1
23 B468 3716 Torsion Spring 1
24 B468 3712 End Fence 1
25 B468 2331 Front Arm 1
26 A379 2115 Reverse Roller 1
27 B468 2344 Tension Spring - Reverse Roller 1
28 B468 2138 Fix Stand - Reverse Switch 1
29 B302 2317 Timing Pulley - 20Z 1
30 B468 2139 Spring Plate - Lever Switch 1
31 5053 0447 Bushing - 6mm 2
32 B468 2341 Pulley - Exit Roller 1
33 B468 5473 Lower Motor Harness 1
34 B468 2136 Exit Guide Plate 1
35 5447 2681 Snap Ring 1

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

Index

Index

No.

No.

36 B468 3815 Stopper - Pressure Plate 2

101 1204 2544 Switch - DE2L-BJ23
102 1105 0511 Harness Clamp - LWS-0306ZC
103 0451 3006B Tapping Screw - M3x6
104 0633 0120G Parallel Pin - 3x12
105 0720 0060B Retaining Ring - M6
106 0720 0040B Retaining Ring - M4
107 1105 0487 Harness Clamp
108 0720 0030B Retaining Ring - M3
109 0313 0120B Philips Pan Head Screw - M3x12
110 1204 2233 Microswitch - AH715254N

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

B468/B469 37 Parts Location and List

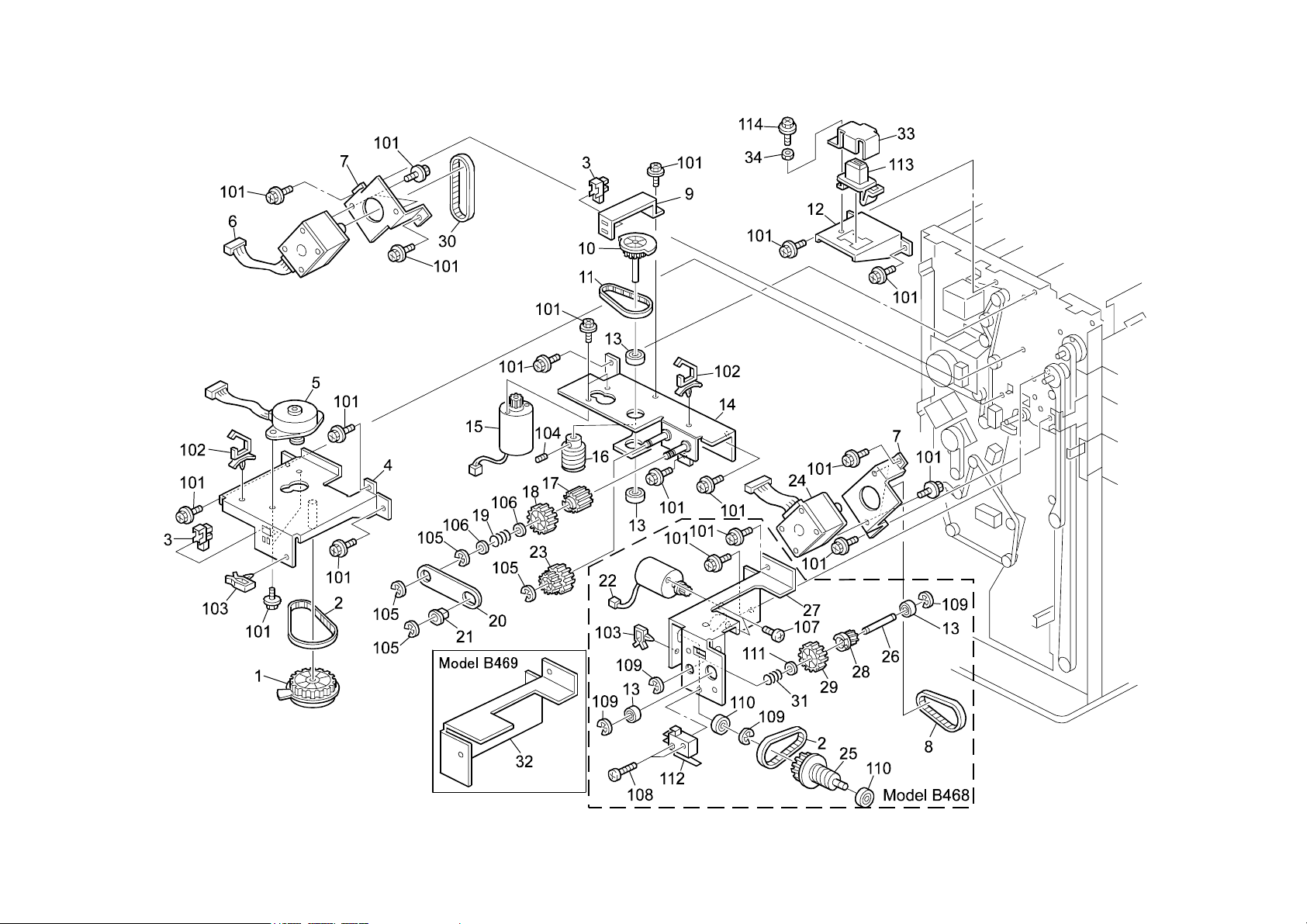

17.DRIVE SECTION 1 (B468/B469)

B468/B469 38 Parts Location and List

17.DRIVE SECTION 1 (B468/B469)

Index

Index

No.

No.

1 B468 2425 Drive Pulley 1
2 AA04 3054 Timing Belt - 142 P2M4 2
3 AW02 0086 Photointerrupter 2
4 B468 2421 Motor Bracket 1
5 B408 5520 Stepper Motor 1
6 B468 5755 Stepper Motor 1
7 B468 2691 Stepper Motor Bracket 2
8 B468 2631 Timing Belt - 186P2M4 1
9 B468 3526 Encoder Bracket 1
10 B468 3528 Shaft - Pulley T48P2M 1
11 B468 3529 Timing Belt - 164P2M4 1
12 B468 5995 Connector Bracket 1
13 A232 3562 Ball Bearing - 6x12x4mm 4
14 B468 3521 Lower Motor Bracket 1
15 AX06 0234 DC Motor - 25.1W 1
16 AB01 3709 Worm Gear 1
17 A697 3135 Gear - 18Z 1
18 A697 3140 Gear - 30Z 1
19 A353 3113 Pressure Spring 1
20 B468 3561 Lower Stay 1
21 H521 1311 Busing 1
22 AX05 0183 DC Motor - 8.9W 1
23 A697 3145 Gear - 36Z/18Z 1
24 B468 5750 Stepper Motor 1
25 A566 3741 Worm Pulley 1
26 B468 3623 Upper Stud 1
27 B468 3622 Upper Motor Bracket 1
28 A566 3751 Gear - 18Z 1
29 A566 3752 Gear - 25Z 1
30 B468 2611 Timing Belt - 219P3M4 1
31 A566 3753 Pressure Spring 1
32 B469 1732 Cover Bracket 1
33 B468 5998 Connector Cover 1
34 AA10 0006 Nut - M3.6 1

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

Index

Index

No.

No.

101 0451 3006B Tapping Screw - M3x6
102 1105 0487 Harness Clamp
103 1105 0511 Harness Clamp - LWS-0306ZC
104 0574 0040E Hexagon Headless Set Screw - M4x4
105 0720 0060B Retaining Ring - M6
106 0807 5056 Washer - 8.1mm
107 0313 0050B Philips Pan Head Screw - M3x5
108 0313 0120B Philips Pan Head Screw - M3x12
109 0720 0040B Retaining Ring - M4
110 0805 3383 Bushing - M5
111 0807 4118 Flat Washer
112 1204 2233 Microswitch - AH715254N
113 1102 8534 Connector - QR/P17-14S-B
114 0451 4006B Tapping Screw - 4x6

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per

Assembly

Assembly

B468/B469 39 Parts Location and List

18.DRIVE SECTION 2 (B468/B469)

B468/B469 40 Parts Location and List

18.DRIVE SECTION 2 (B468/B469)

Index

No.

1 B468 2631 Timing Belt - 186P2M4 1
2 B312 1524 Motor Bracket 1
3 AX04 0121 Stepping Motor - DC 6.5W 1
4 B468 5750 Stepper Motor 2
5 B468 2691 Stepper Motor Bracket 2
6 B468 2611 Timing Belt - 219P3M4 2
7 B468 2755 DC Solenoid 2
8 B468 2662 Timing Belt - 552P3M4 1
9 B468 2761 Bracket - Junction Gate Solenoid - 1
10 AA06 0092 Release Spring 3
11 B468 2621 Timing Belt - 681P3M4 1
12 A697 1518 Spring - Oil Blade 2
13 A697 1125 Stepped Screw - Lever 2
14 B312 1600 Tightener 1
15 B312 1610 Tightener 1
16 B468 2751 DC Solenoid Bracket 1
17 B468 2771 Bracket - Junction Gate Solenoid - 1
18 B468 2551 DC Solenoid Bracket 1
19 B468 2555 DC Solenoid - Gather Roller 1
20 A300 3865 Release Spring 1
21 B468 2775 DC Solenoid - Junction Gate 1
22 B312 1615 Tension Roller 2

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1105 0334 Edge - 17
102 1105 0328 Harness Clamp - ES-0505
103 0313 0040B Philips Pan Head Screw - M3x4
104 0451 3006B Tapping Screw - M3x6
105 0451 3008B Tapping Screw - M3x8
106 0453 3006B Tapping Screw - M3x6
107 1105 0488 Harness Clamp
108 1105 0511 Harness Clamp - LWS-0306ZC
109 1105 0231 Clamp
110 0313 0030B Philips Pan Head Screw - M3x3

Part No.

Description

Q’ty Per

Assembly

B468/B469 41 Parts Location and List

19.ELECTRICAL SECTION (B468/B469)

B468/B469 42 Parts Location and List

19.ELECTRICAL SECTION (B468/B469)

Index

No.

1 B468 3272 Sensor Bracket 1
2 AW02 0086 Photointerrupter 3
3 B468 3187 Bracket - Hp Sensor 1
4 B468 5993 Harness Bracket - Shift Tray 1
5 B468 5991 Harness Bracket 8
6 B468 1613 Upper Stay 1
7 B468 1731 Rear Cover Bracket 2
8 B352 1135 Bracket - Harness Clamp 1
9 B468 5420 Main Sensor Harness (B468) 1
9 B469 5420 Main Sensor Harness (B469) 1
10 B468 3192 Lower Bracket 1
11 B468 5992 Board Bracket 1
12 B468 5111 Main Control Board (B468) 1
12 B469 5111 Main Control Board (B469) 1
13 B468 5410 Main Motor Harness 1
14 B468 5490 Interface Harness - Option 1
15 B468 5460 Harness - Punch Unit 1
16 B468 5430 Motor Harness - Stapler Unit (B468) 1
16 B469 5430 Motor Harness - Stapler Unit (B469) 1
17 B468 5440 Sensor Harness - Stapler Unit (B468) 1
17 B469 5440 Sensor Harness - Stapler Unit (B469) 1
18 B468 5994 Interface Bracket 1
19 B468 5481 Interface Harness 1
20 B468 5478 Upper Motor Harness (B468) 1
20 B469 5472 Switch Harness (B469) 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 1105 0511 Harness Clamp - LWS-0306ZC
103 1105 0488 Harness Clamp
104 1106 0289 Bushing - SR-5N-1
105 1105 0487 Harness Clamp

Part No.

Description

Q’ty Per

Assembly

B468/B469 43 Parts Location and List

20.FRAME SECTION (B468/B469)

B468/B469 44 Parts Location and List

20.FRAME SECTION (B468/B469)

Index

No.

1 B468 3311 Support Tray 2
2 B469 1412 Slide Rail Bracket 2
3 A697 1120 Slide Rail 2
4 B468 1412 Slide Rail Bracket 2
5 A666 1315 Slide Rail 2
6 A697 1117 Base Plate Cap 2
7 AH01 2019 Caster 4
8 B468 1256 Safety Switch Lever 1
9 B468 1255 Safety Switch Bracket 1
10 B468 5750 Stepper Motor 1
11 B468 1257 Safety Switch Cover 1
12 B468 1214 Toner Hopper Film 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6
102 0802 5277 Tapping Screw
103 1204 2384 Interlock Switch
104 0453 3006B Tapping Screw - M3x6
105 1105 0489 Harness Clamp - LWS 1316
106 1105 0488 Harness Clamp
107 1105 0487 Harness Clamp

Part No.

Description

Q’ty Per

Assembly

B468/B469 45 Parts Location and List

21.MAIN CONTROL BOARD (B468)

B468/B469 46 Parts Location and List

21.MAIN CONTROL BOARD (B468)

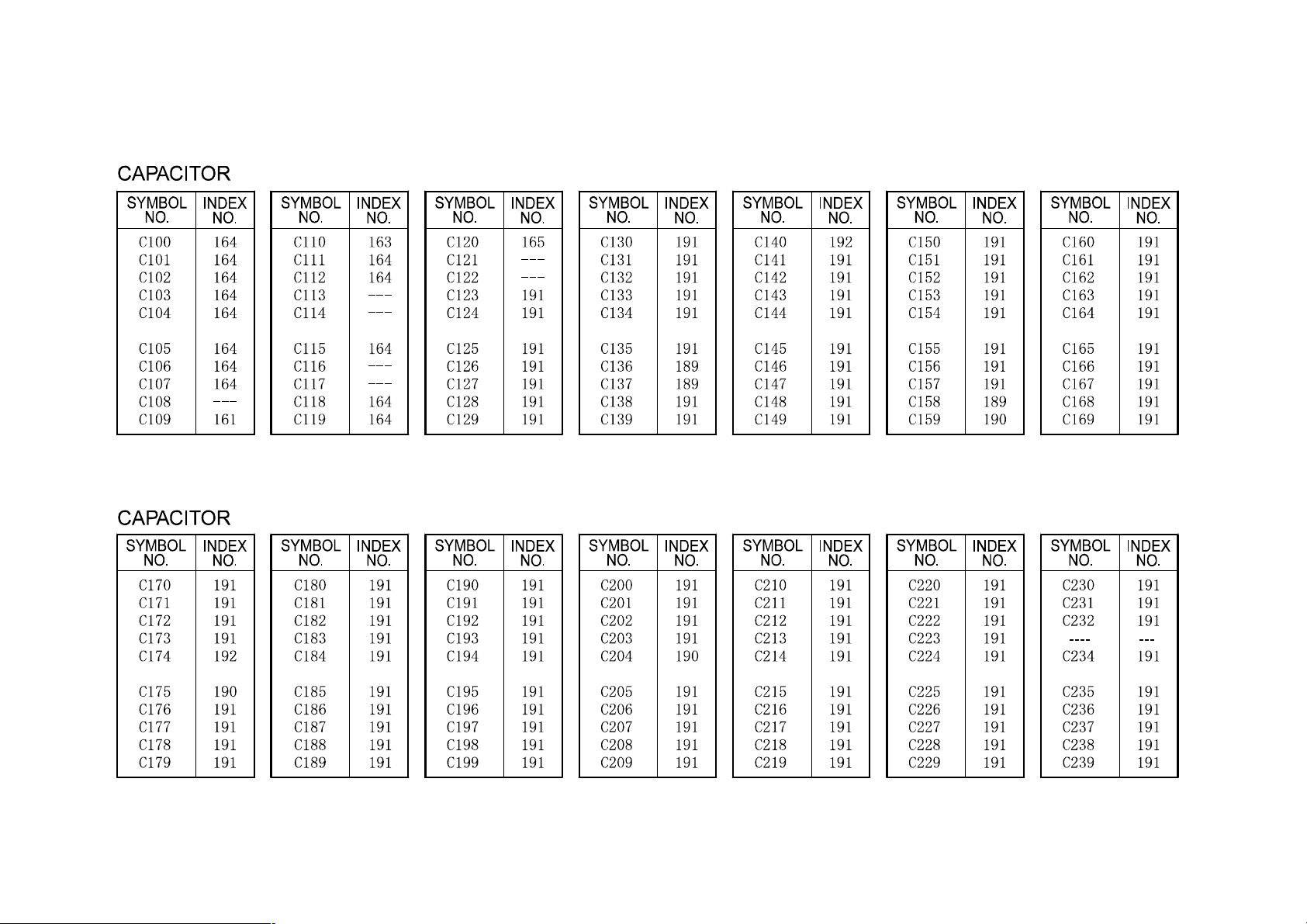

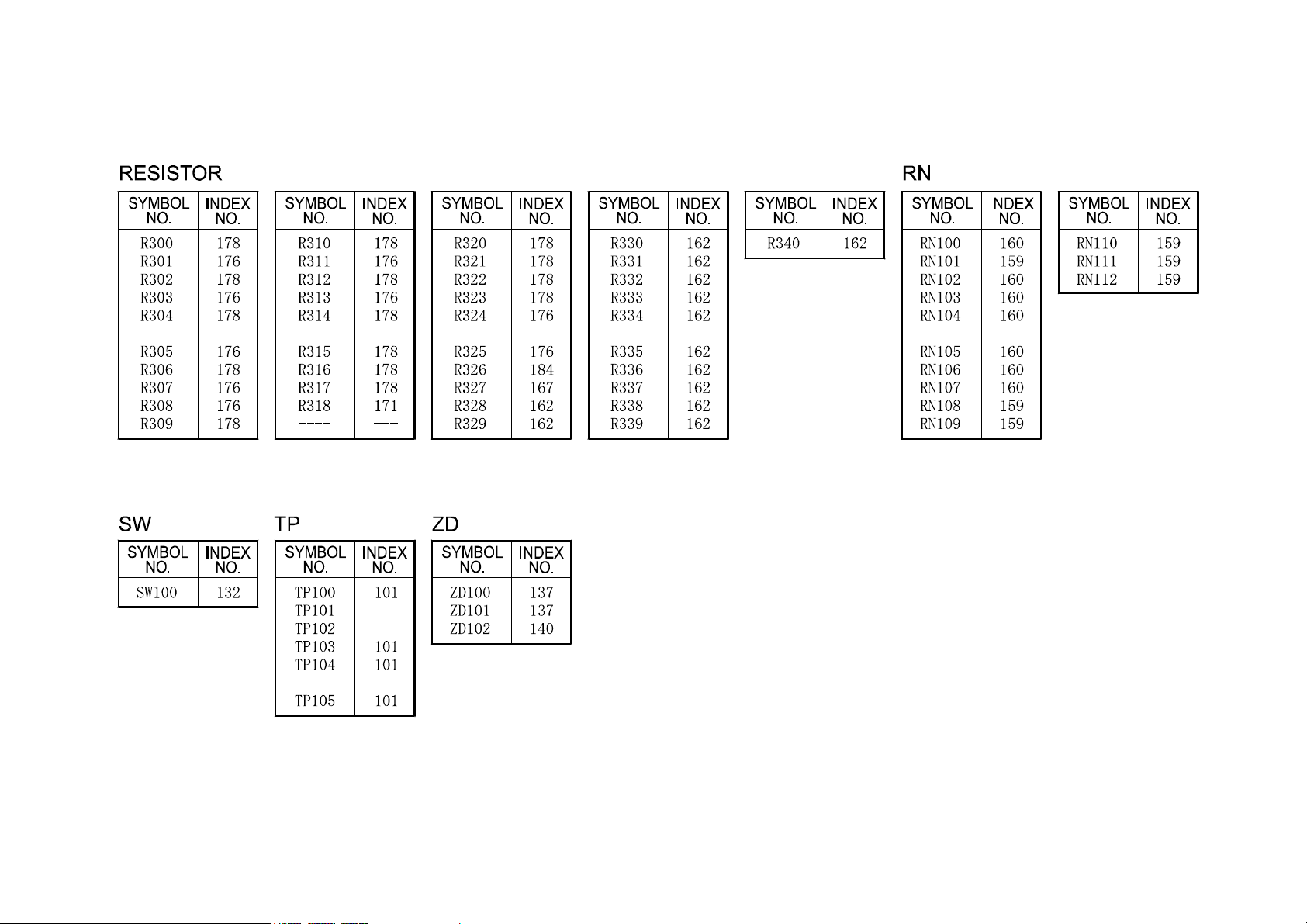

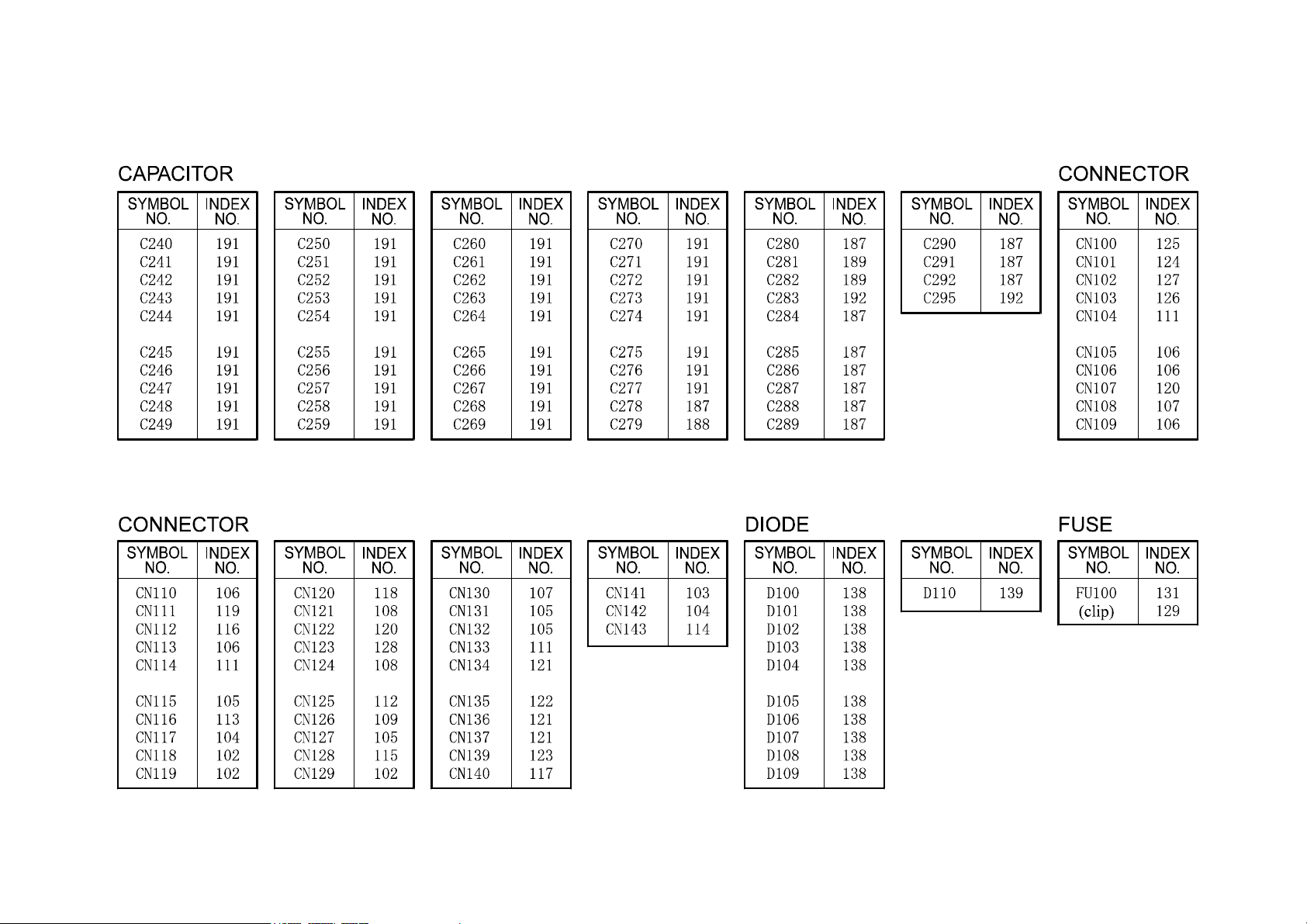

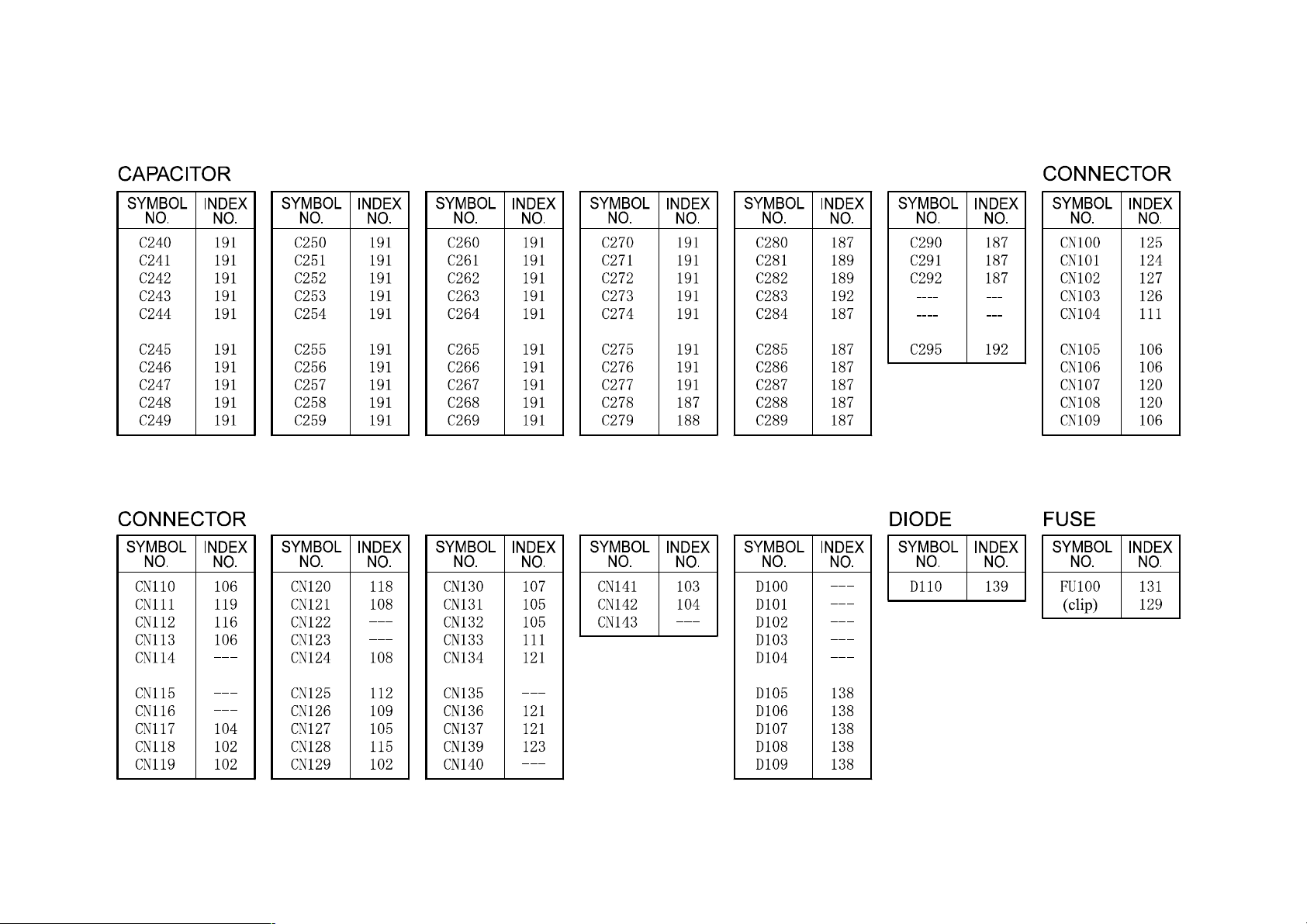

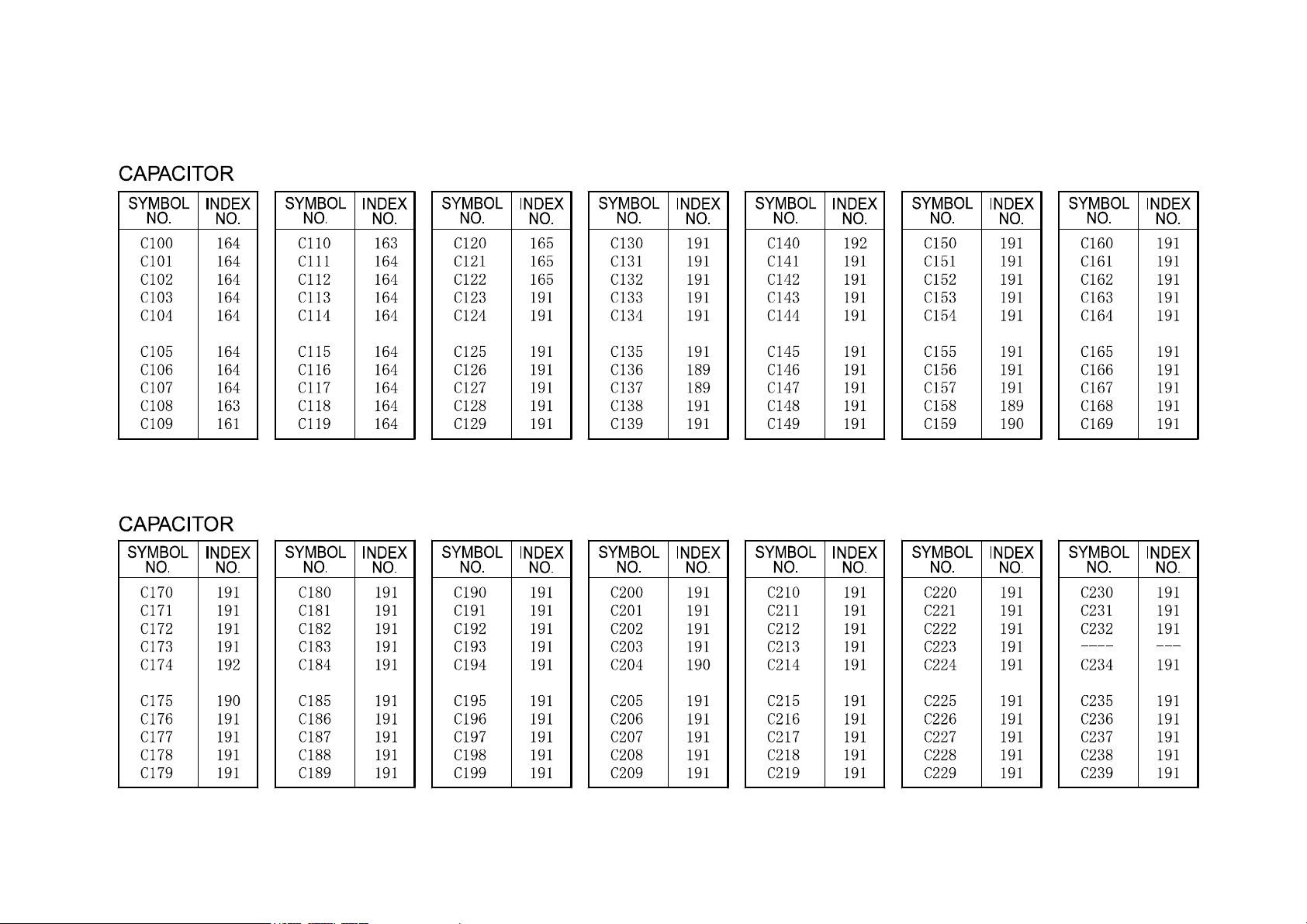

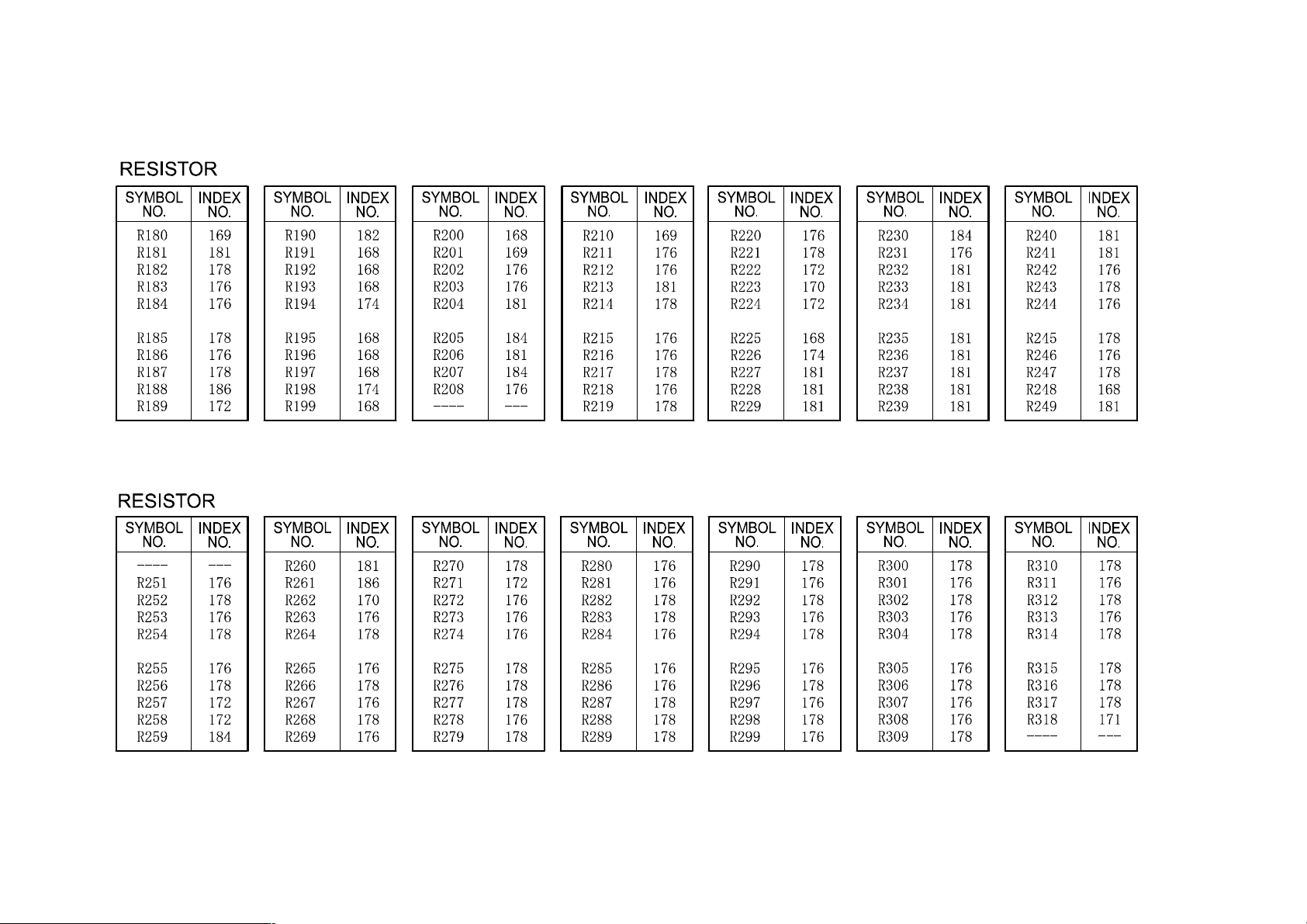

B468/B469 47 Parts Location and List

21.MAIN CONTROL BOARD (B468)

B468/B469 48 Parts Location and List

21.MAIN CONTROL BOARD (B468)

B468/B469 49 Parts Location and List

21.MAIN CONTROL BOARD (B468)

B468/B469 50 Parts Location and List

21.MAIN CONTROL BOARD (B468)

Index

No.

* B468 5200 Main Control Board 1
1 B468 5123 EPROM - Main Control 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1101 0328 Connector Pin Contact
102 1102 4201 Connector - 2P
103 1102 4202 Connector - 3P
104 1102 4203 CT Header - 4P
105 1102 4205 CT Header - 6P
106 1102 4206 Connector - 7P
107 1102 4207 Connector - 8P
108 1102 4208 Connector - 9P
109 1102 4209 CT Header - 10P
110 1102 4210 Connector - 11P
111 1102 4212 CT Header - 15P
112 1102 4497 Connector - 13P
113 1102 4619 Connector - 2P
114 1102 4620 CT Header - 3P
115 1102 4623 CT Connector - 6P
116 1102 4624 CT Connector - 7P
117 1102 4626 Connector - 9P
118 1102 4636 CT Connector
119 1102 4637 CT Connector - 8P
120 1102 5007 CT Header - 14P
121 1102 5301 Connector - 2P
122 1102 5302 Connector - 3P
123 1102 6295 Connector - 2P
124 1102 6301 Connector - 8P
125 1102 6302 Connector - 9P
126 1102 6315 Connector - 8P
127 1102 6316 Connector - 9P
128 1102 6957 Connector - 14P BLUE
129 1104 0333 Fuse Holder
130 1104 0589 DIP Socket - 32P
131 1107 1030 Fuse - 218005
132 1204 1422 DIP Switch - 51D-0401
133 1400 0398 Transistor - 2SC2412K
134 1400 0711 Transistor - 2SB1241
135 1400 0747 Transistor - 2SD1863

Part No.

Description

Q’ty Per

Assembly

B468/B469 50A Parts Location and List

Index

No.

136 1400 0748 Transistor - FMG1A
137 1402 0557 Diode - HZ24PB
138 1402 0828 Diode - ERB93-02
139 1402 1506 Diode - ERA15-02
140 1402 1507 Diode - UDZS8.2B
141 1403 0519 Photocoupler - TLP621
142 1407 1596 TTLIC - SN74LS14NS
143 1407 2218 TTLIC - SN74LS06NS
144 1407 2219 IC - TD62003AP
145 1407 2231 IC - TD62308AF
146 1407 3519 HCMOSIC - 74HC4040
147 1407 4726 IC - CXP2006M
148 1407 4754 IC - HD6413002F16
149 1407 5387 IC - SN74LV04ANS
150 1407 5393 IC - SN74LV541ANS
151 1407 5415 IC - SN74LV32ANS
152 1407 5744 IC - STK672-330
153 1408 0827 IC - TA8429H
154 1408 1200 IC - STK681-050
155 1408 1223 Detector - RN5VD42C
156 1408 1287 IC - SI-8501L
157 1503 0904 Ceramic Oscillator - 16MHz
158 1601 5438 Resistor - 1K Ω ±5% 1/2W
159 1601 7751 Resistor - 4.7KΩ ±5%
160 1601 7871 Resistor - 68Ω ±5% 1/16W
161 1604 4502 Capacitor - 330 µF±20% 10V
162 1634 0000 Resistor - 0 Ω 1/16W
163 1640 5100 Capacitor - 10µF+20% 50
164 1640 5101 Capacitor - 100µF±20% 50V
165 1640 5109 Capacitor - 1µF- ±20% - 50V
166 1650 4100 Resistor - 10Ω ±5% 1/10W
167 1650 4101 Resistor - 100Ω±5%1/10W
168 1650 4102 Resistor - 1KΩ ±5% 1/10W
169 1650 4103 Resistor - 10KΩ ±5% 1/10W
170 1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W

Part No.

Description

Q’ty Per

Assembly

Index

No.

171 1650 4122 Resistor - 1.2KΩ ±5% 1/10W
172 1650 4153 Resistor - 15K Ω ±5% 1/10W
173 1650 4161 Chip Resistor - 160Ω ± 5% 1/10W
174 1650 4202 Resistor - 2KΩ±5%1/10W
175 1650 4222 Resistor - 2.2KΩ±5%1/10W
176 1650 4223 Resistor - 22KΩ±5%1/10W
177 1650 4330 Chip Resistor - 33Ω ±5% 1/10W
178 1650 4332 Resistor - 3.3KΩ±5%1/10W
179 1650 4361 Resistor - 360Ω±5%1/10W
180 1650 4362 Resistor - 3.6KΩ±5%1/10W
181 1650 4472 Resistor - 4.7KΩ ±5% 1/10W
182 1650 4561 Resistor - 560Ω ±5% 1/10W
183 1650 4562 Resistor - 5.6KΩ ±5% 1/10W
184 1650 4680 Resistor - 68Ω±5%1/10W
185 1650 4681 Resistor - 680Ω ±5% 1/10W
186 1650 4751 Resistor - 750Ω ±5% 1/10W
187 1660 2101 Capacitor - 100pF - ±10% - 50V
188 1660 2221 Capacitor - 220pF +80-20% 50V
189 1660 2471 Capacitor - 470pF - ±5% - 50V
190 1660 4102 Capacitor - 1000pF ±10% 50V
191 1660 4103 Capacitor - 10000pF - ±10% - 50V
192 1660 8104 Capacitor - 0.1µF+80-20% 25V

Part No.

Description

Q’ty Per

Assembly

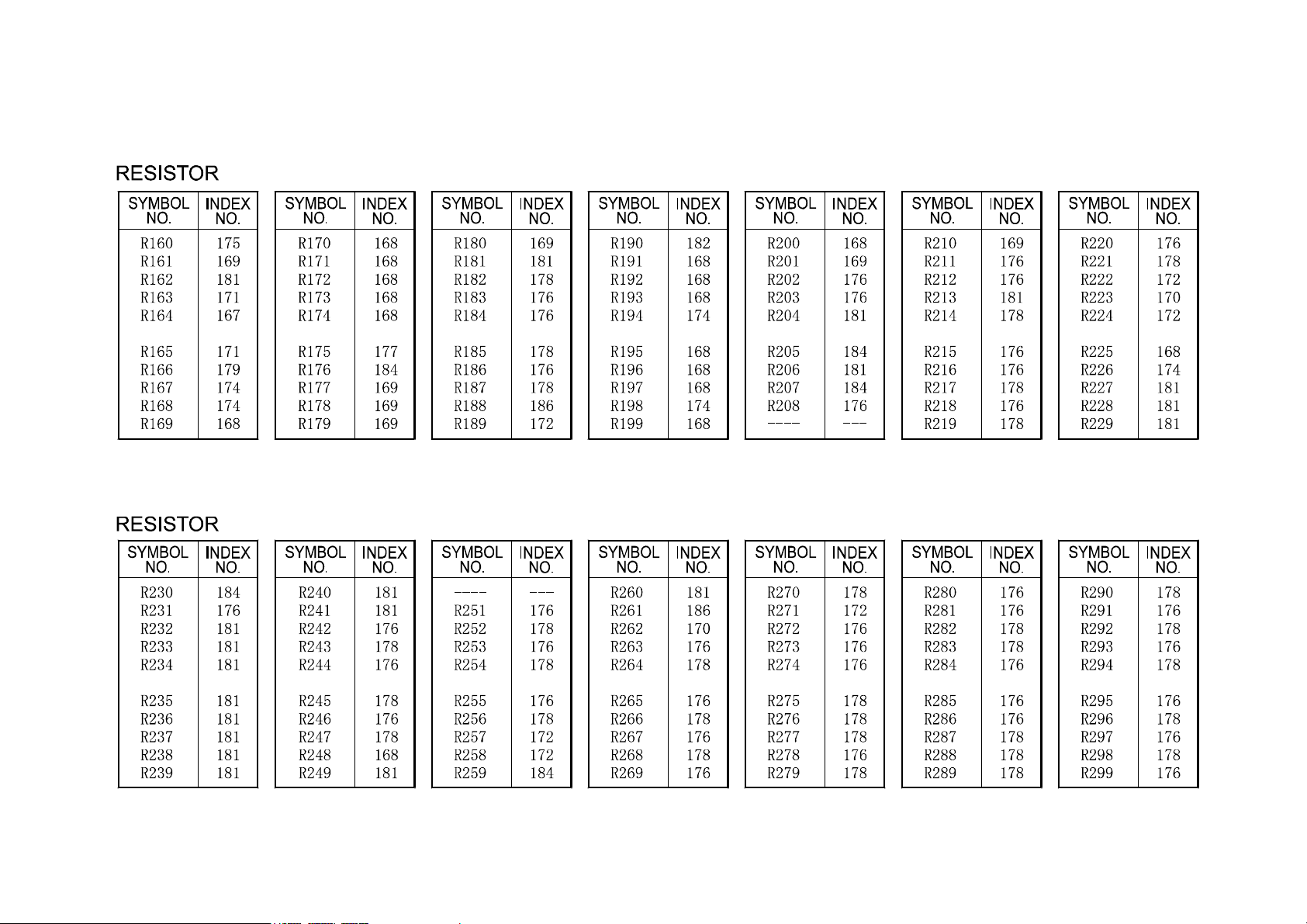

B468/B469 51 Parts Location and List

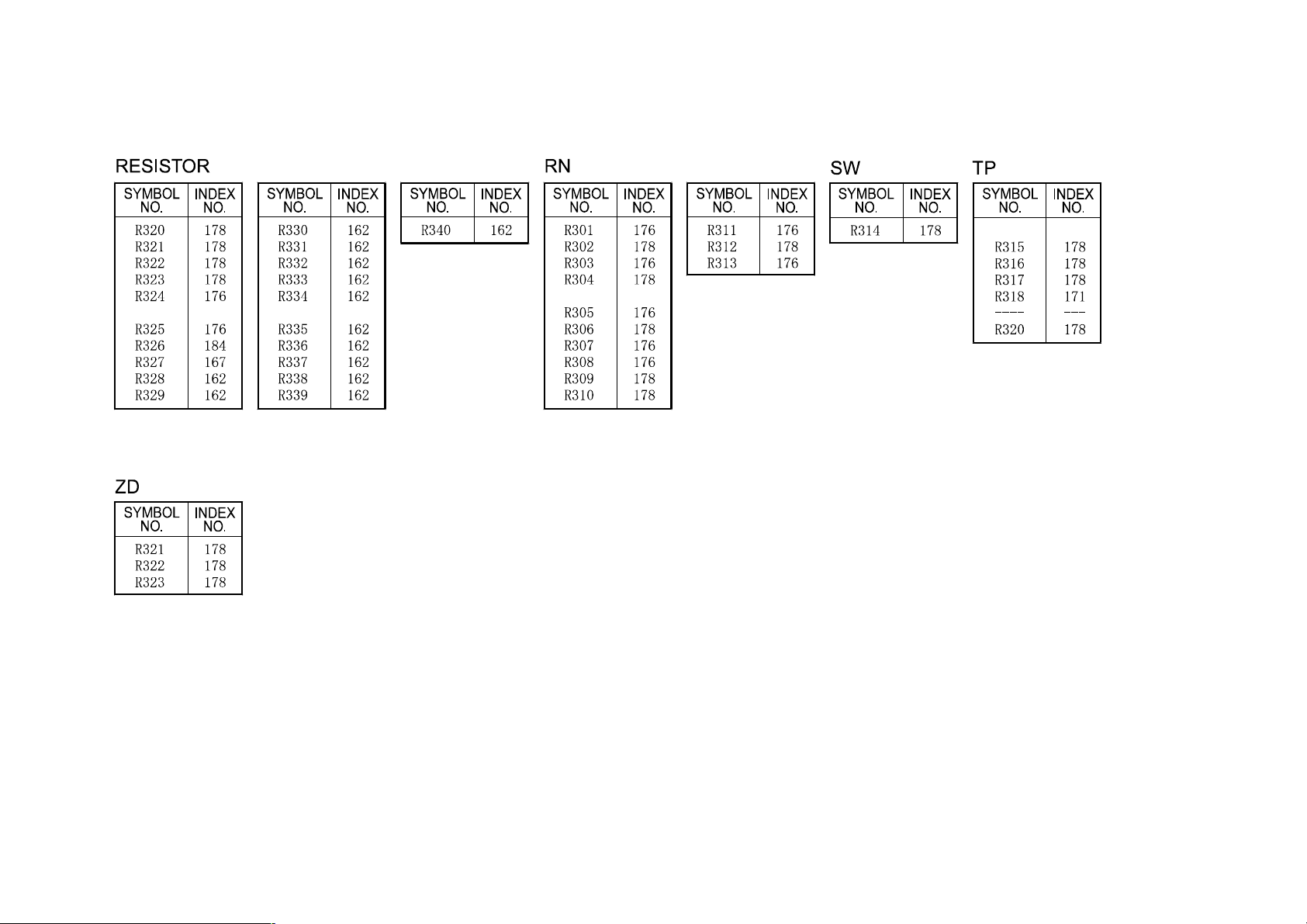

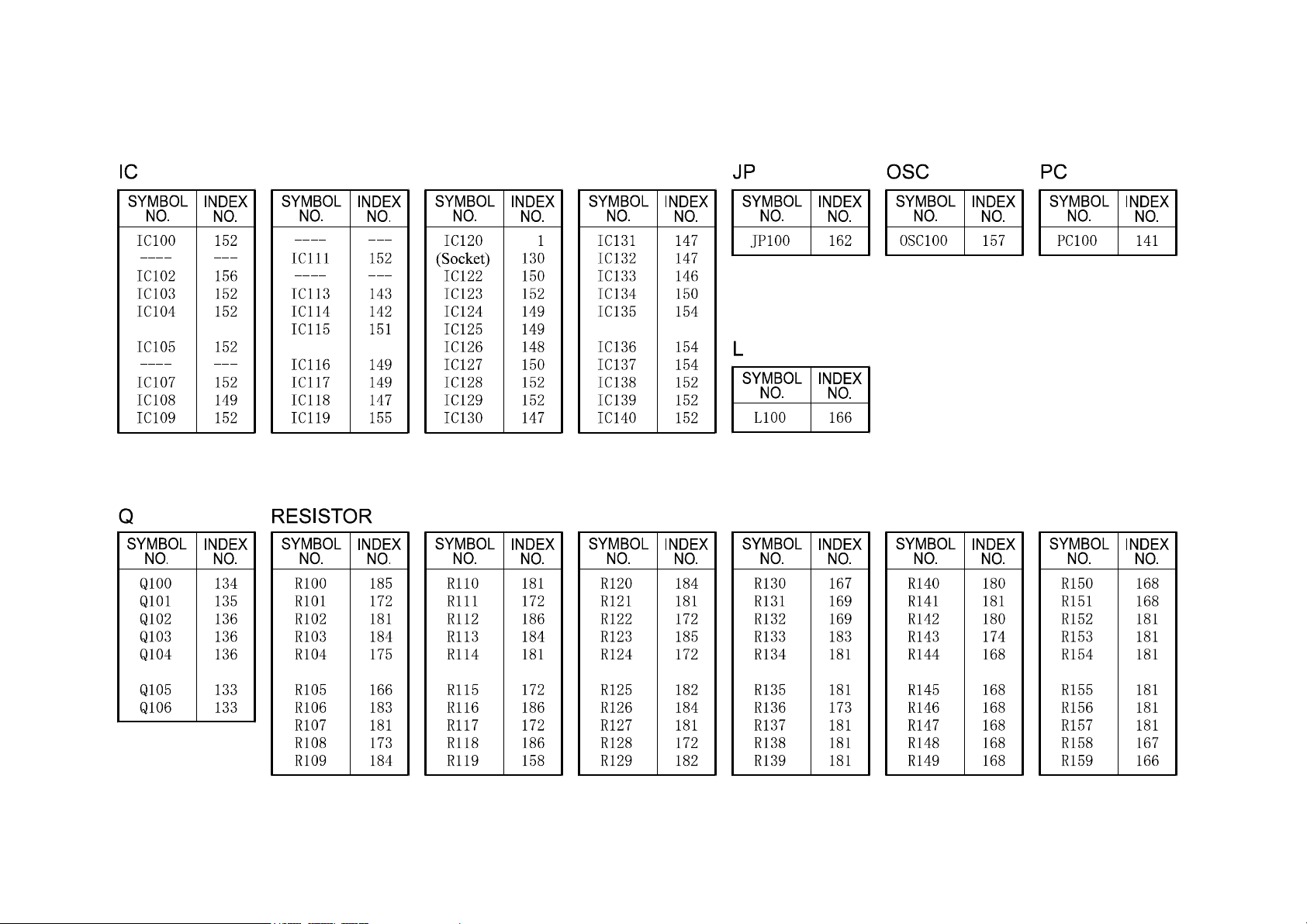

22.MAIN CONTROL BOARD (B469)

B468/B469 52 Parts Location and List

22.MAIN CONTROL BOARD (B469)

B468/B469 53 Parts Location and List

22.MAIN CONTROL BOARD (B469)

B468/B469 54 Parts Location and List

22.MAIN CONTROL BOARD (B469)

B468/B469 55 Parts Location and List

22.MAIN CONTROL BOARD (B469)

B468/B469 56 Parts Location and List

22.MAIN CONTROL BOARD (B469)

Index

No.

* B469 5200 Main Control Board 1
1 B468 5123 EPROM - Main Control 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 1101 0328 Connector Pin Contact
102 1102 4201 Connector - 2P
103 1102 4202 Connector - 3P
104 1102 4203 CT Header - 4P
105 1102 4205 CT Header - 6P
106 1102 4206 Connector - 7P
107 1102 4207 Connector - 8P
108 1102 4208 Connector - 9P
109 1102 4209 CT Header - 10P
110 1102 4210 Connector - 11P
111 1102 4212 CT Header - 15P
112 1102 4497 Connector - 13P
113 1102 4624 CT Connector - 7P
114 1102 4636 CT Connector
115 1102 4637 CT Connector - 8P
116 1102 5007 CT Header - 14P
117 1102 5301 Connector - 2P
118 1102 6295 Connector - 2P
119 1102 6301 Connector - 8P
120 1102 6302 Connector - 9P
121 1102 6315 Connector - 8P
122 1102 6316 Connector - 9P
123 1104 0333 Fuse Holder
124 1104 0589 DIP Socket - 32P
125 1107 1030 Fuse - 218005
126 1204 1422 DIP Switch - 51D-0401
127 1400 0398 Transistor - 2SC2412K
128 1400 0711 Transistor - 2SB1241
129 1400 0747 Transistor - 2SD1863
130 1400 0748 Transistor - FMG1A
131 1402 0557 Diode - HZ24PB
132 1402 0828 Diode - ERB93-02
133 1402 1506 Diode - ERA15-02
134 1402 1507 Diode - UDZS8.2B
135 1403 0519 Photocoupler - TLP621

Part No.

Description

Q’ty Per

Assembly

B468/B469 56A Parts Location and List

Index

No.

136 1407 1596 TTLIC - SN74LS14NS
137 1407 2218 TTLIC - SN74LS06NS
138 1407 2219 IC - TD62003AP
139 1407 2231 IC - TD62308AF
140 1407 3519 HCMOSIC - 74HC4040
141 1407 4726 IC - CXP2006M
142 1407 4754 IC - HD6413002F16
143 1407 5387 IC - SN74LV04ANS
144 1407 5393 IC - SN74LV541ANS
145 1407 5415 IC - SN74LV32ANS
146 1407 5744 IC - STK672-330
147 1408 0827 IC - TA8429H
148 1408 1200 IC - STK681-050
149 1408 1223 Detector - RN5VD42C
150 1408 1287 IC - SI-8501L
151 1503 0904 Ceramic Oscillator - 16MHz
152 1601 5438 Resistor - 1K Ω ±5% 1/2W
153 1601 7751 Resistor - 4.7KΩ ±5%
154 1601 7871 Resistor - 68Ω ±5% 1/16W
155 1604 4502 Capacitor - 330 µF±20% 10V
156 1634 0000 Resistor - 0 Ω 1/16W
157 1640 5100 Capacitor - 10µF+20% 50
158 1640 5101 Capacitor - 100µF±20% 50V
159 1640 5109 Capacitor - 1µF- ±20% - 50V
160 1650 4100 Resistor - 10Ω ±5% 1/10W
161 1650 4101 Resistor - 100Ω±5%1/10W
162 1650 4102 Resistor - 1KΩ ±5% 1/10W
163 1650 4103 Resistor - 10KΩ ±5% 1/10W
164 1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W
165 1650 4122 Resistor - 1.2KΩ ±5% 1/10W
166 1650 4153 Resistor - 15K Ω ±5% 1/10W
167 1650 4161 Chip Resistor - 160Ω ± 5% 1/10W
168 1650 4202 Resistor - 2KΩ±5%1/10W
169 1650 4222 Resistor - 2.2KΩ±5%1/10W
170 1650 4223 Resistor - 22KΩ±5%1/10W

Part No.

Description

Q’ty Per

Assembly

Index

No.

171 1650 4330 Chip Resistor - 33Ω ±5% 1/10W
172 1650 4332 Resistor - 3.3KΩ±5%1/10W
173 1650 4361 Resistor - 360Ω±5%1/10W
174 1650 4362 Resistor - 3.6KΩ±5%1/10W
175 1650 4472 Resistor - 4.7KΩ ±5% 1/10W
176 1650 4561 Resistor - 560Ω ±5% 1/10W
177 1650 4562 Resistor - 5.6KΩ ±5% 1/10W
178 1650 4680 Resistor - 68Ω±5%1/10W
179 1650 4681 Resistor - 680Ω ±5% 1/10W
180 1650 4751 Resistor - 750Ω ±5% 1/10W
181 1660 2101 Capacitor - 100pF - ±10% - 50V
182 1660 2221 Capacitor - 220pF +80-20% 50V
183 1660 2471 Capacitor - 470pF - ±5% - 50V
184 1660 4102 Capacitor - 1000pF ±10% 50V
185 1660 4103 Capacitor - 10000pF - ±10% - 50V
186 1660 8104 Capacitor - 0.1µF+80-20% 25V

Part No.

Description

Q’ty Per

Assembly

B468/B469 57 Parts Location and List

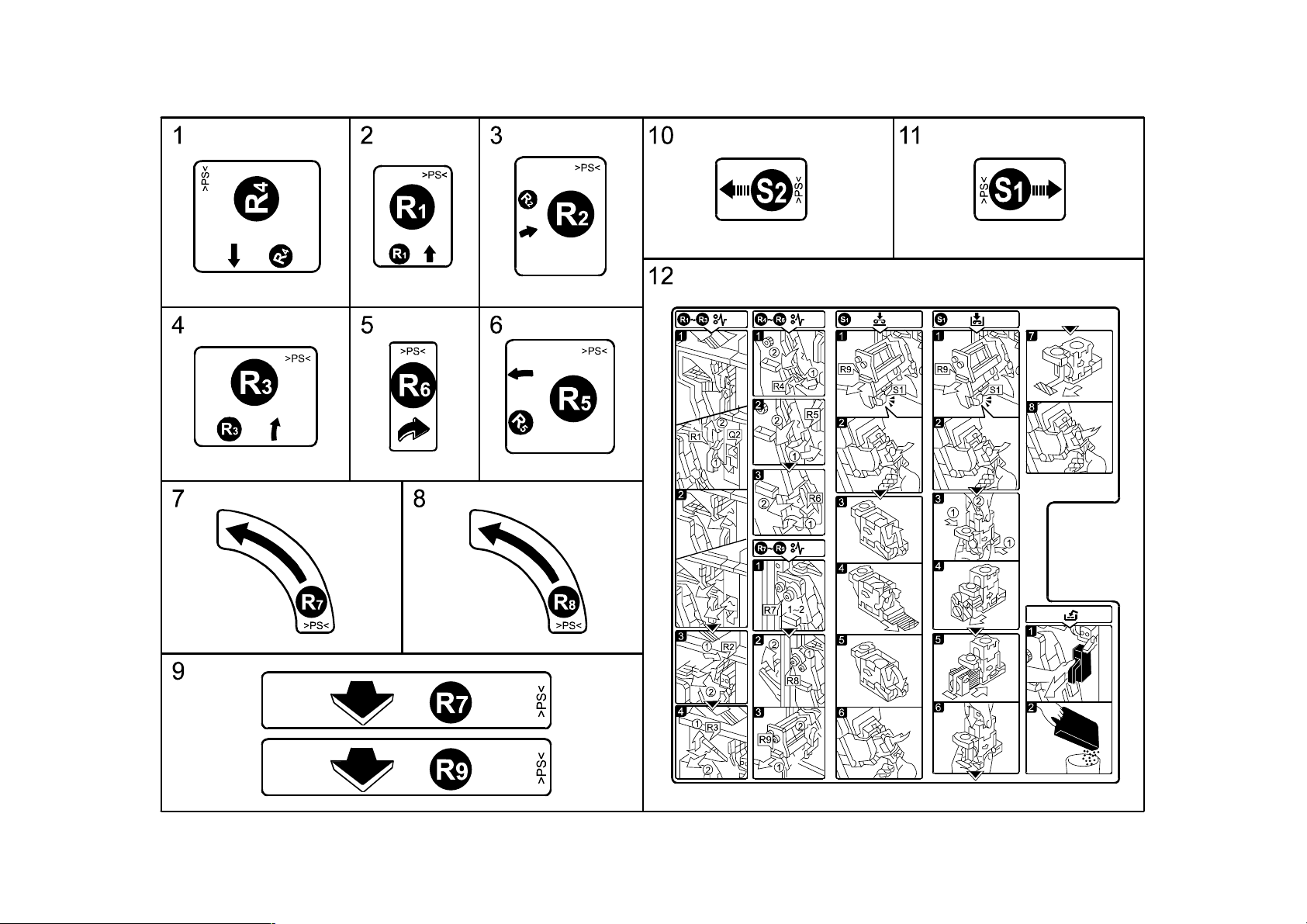

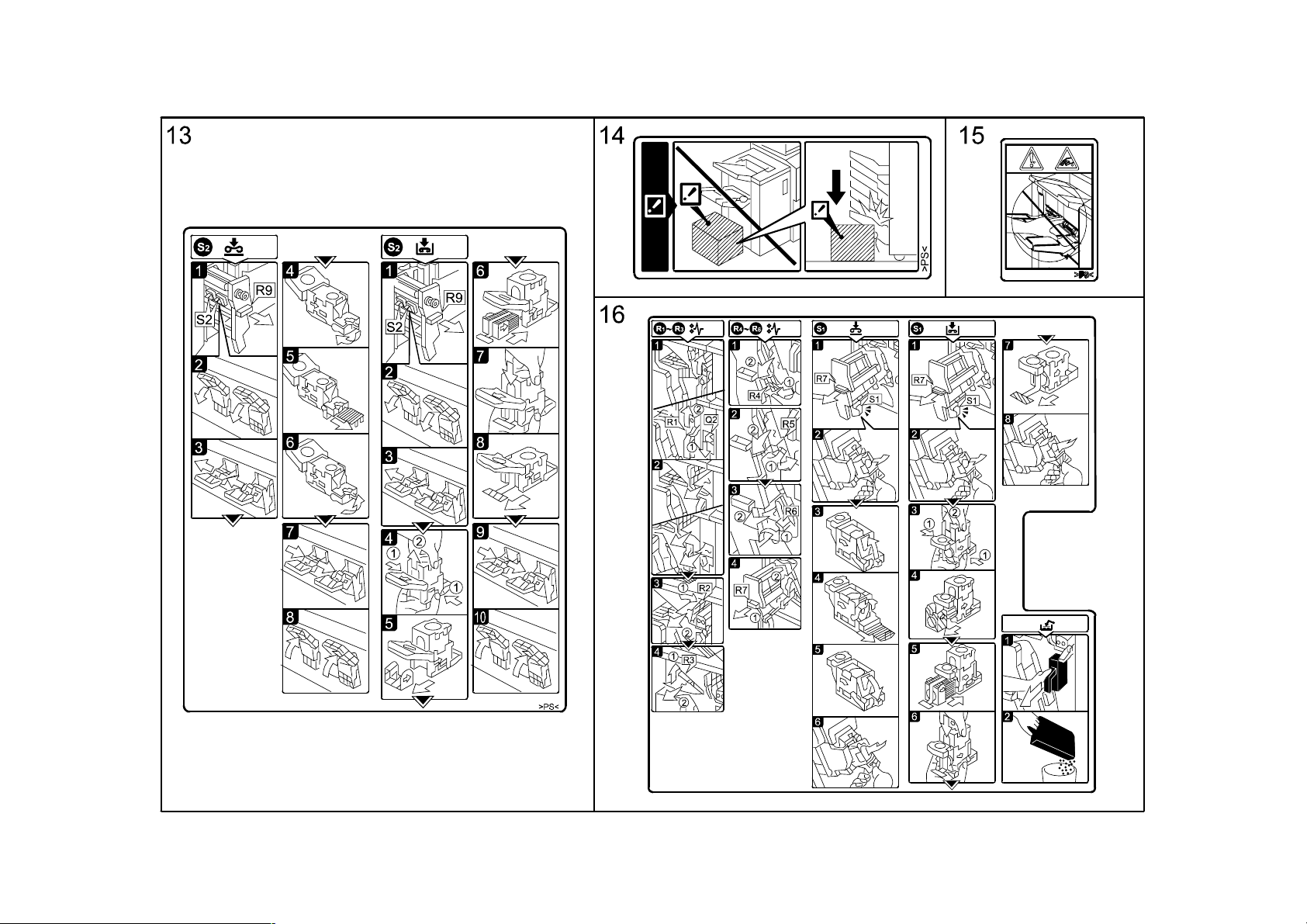

23.DECAL AND DOCUMENTS (B468/B469)

B468/469 58 Parts Location and List

23.DECAL AND DOCUMENTS (B468/B469)

B468/B469 59 Parts Location and List

23.DECAL AND DOCUMENTS (B468/B469)

Index

No.

1 A697 5500 Decal - Replacement R4 1
2 B302 7701 Decal - R1 1
3 B302 7702 Decal - R2 1
4 B302 7703 Decal - R3 1
5 B302 7706 Decal - R6 1
6 B312 5700 Decal - R5 1
7 B468 7801 Decal - R7 1
8 B468 7802 Decal - R8 1
9 B468 7803 Decal - R9 1
9 B469 7813 Decal - R7 1
10 B468 7804 Decal - S2 1
11 B468 7805 Decal - S1 1
12 B468 7806 Decal - Misfeed Removal 1
13 B468 7807 Decal - Staple Exchange 1
14 B468 7812 Caution Decal - Tray Fall 1
15 B468 7813 Decal - Tray Rise 1
16 B469 7808 Decal - Misfeed Removal 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

Part No.

Description

Q’ty Per

Assembly

B468/B469 60 Parts Location and List

B468/B469 FINISHER

PARTS LOCATION INDEX

This section instructs you as to the names and numbers of parts on this machine.

Parts Index

Part No.

Page and
Index No.

Part No.Description

Description

Page and
Index No.

B468 1214 Toner Hopper Film 45 - 12
B468 1255 Safety Switch Bracket 45 - 9
B468 1256 Safety Switch Lever 45 - 8
B468 1257 Safety Switch Cover 45 - 11
B468 1332 Exit Sensor Bracket 19 - 31
B468 1412 Slide Rail Bracket 45 - 4
B468 1611 Upper Cover 7 - 4
B468 1612 Angle - Upper Cover 9 - 2
B468 1613 Upper Stay 43 - 6
B468 1616 Small Upper Cover 7 - 3
B468 1618 Connector Cover 7 - 2
B468 1621 Front Cover 7 - 13
B468 1622 Front Grip 7 - 15
B468 1623 Upper Stopper 7 - 11
B468 1626 Stopper - Door Lower 7 - 18
B468 1631 Rear Cover (B468) 7 - 1
B468 1641 Left Upper Cover 33 - 1
B468 1651 Left Front Cover 7 - 20
B468 1661 Upper Cover - Shift Tray Front 33 - 25
B468 1666 Upper Cover - Shift Tray Rear 33 - 13
B468 1671 Lower Front Cover 35 - 25
B468 1676 Lower Rear Cover 35 - 18
B468 1681 Inner Cover 7 - 19
B468 1711 Upper Hinge 7 - 12
B468 1721 Lower Hinge 7 - 21
B468 1731 Rear Cover Bracket 43 - 7
B468 2112 Upper Guide Plate 15 - 11
B468 2116 Lower Guide Plate 11 - 10
B468 2117 Cushion - Gate Pawl 11 - 20
B468 2118 Lower Guide Plate 17 - 23
B468 2121 Film - Proof Tray 15 - 10
B468 2122 Cushion - Gate Pawl 9 - 21
B468 2127 Guide Plate 13 - 21
B468 2128 Film - Exit Guide 13 - 19

B468 2131 Stapler Guide Plate 19 - 28
B468 2134 Stapler Guide 19 - 32
B468 2136 Exit Guide Plate 37 - 34
B468 2138 Fix Stand - Reverse Switch 37 - 28
B468 2139 Spring Plate - Lever Switch 37 - 30
B468 2145 Knob - Release Lever 15 - 20
B468 2152 Upper Guide Plate 9 - 8
B468 2162 Guide Plate 17 - 9
B468 2172 Guide Plate 11 - 18
B468 2187 Middle Guide - Stapler Tray 19 - 19
B468 2188 Both End Guide - Stapler Tray 19 - 20
B468 2196 Upper Guide Plate 9 - 12
B468 2221 Lower Exhaust Roller 19 - 1
B468 2222 Exit Roller 19 - 6
B468 2224 Flange - Brush Roller 19 - 2
B468 2231 Transport Roller 17 - 22
B468 2231 Transport Roller 15 - 17
B468 2231 Transport Roller 13 - 18
B468 2241 Exit Roller - Proof Tray 15 - 7
B468 2255 Timing Pulley - T20 13 - 26
B468 2255 Timing Pulley - T20 17 - 1
B468 2255 Timing Pulley - T20 15 - 26
B468 2255 Timing Pulley - T20 9 - 6
B468 2255 Timing Pulley - T20 19 - 16
B468 2312 Exit Roller Shaft 37 - 16
B468 2320 Exit Roller 37 - 17
B468 2331 Front Arm 37 - 25
B468 2332 Rear Arm 37 - 18
B468 2341 Pulley - Exit Roller 37 - 32
B468 2344 Tension Spring - Reverse Roller 37 - 27
B468 2421 Motor Bracket 39 - 4
B468 2425 Drive Pulley 39 - 1
B468 2515 Spring - Gather Roller 19 - 10
B468 2551 DC Solenoid Bracket 41 - 18

B468/B469 2 Parts Index

Part No.

B468 2555 DC Solenoid - Gather Roller 41 - 19
B468 2611 Timing Belt - 219P3M4 41 - 6
B468 2611 Timing Belt - 219P3M4 39 - 30
B468 2621 Timing Belt - 681P3M4 41 - 11
B468 2631 Timing Belt - 186P2M4 41 - 1
B468 2631 Timing Belt - 186P2M4 39 - 8
B468 2662 Timing Belt - 552P3M4 41 - 8
B468 2691 Stepper Motor Bracket 39 - 7
B468 2691 Stepper Motor Bracket 41 - 5
B468 2711 Gate Pawl 15 - 14
B468 2721 Lower Gate Pawl 11 - 8
B468 2751 DC Solenoid Bracket 41 - 16
B468 2755 DC Solenoid 41 - 7
B468 2761 Bracket - Junction Gate Solenoid - 41 - 9
B468 2771 Bracket - Junction Gate Solenoid - 41 - 17
B468 2775 DC Solenoid - Junction Gate 41 - 21
B468 2811 Exit Guide Plate 11 - 5
B468 2815 Discharge Brush 11 - 2
B468 2816 Exit Mylar 11 - 1
B468 2831 Driven Shaft - Exit Roller 11 - 7
B468 2832 Driven Exit Roller 11 - 6
B468 2851 Guide Plate Stay 13 - 8
B468 2861 Worm Gear - T40P2M 13 - 16
B468 2862 Guide Plate Cam 13 - 13
B468 2865 Worm Wheel - Z20 13 - 14
B468 2871 Sensor Bracket 13 - 6
B468 2881 Guide Plate Link 13 - 10
B468 2882 Link Bushing 13 - 11
B468 2883 Compression Spring - Guide Plate 13 - 12
B468 2891 Switch Bracket 13 - 3
B468 2894 Bracket - Micro Switch Swivel 13 - 33
B468 2896 Tension Spring - 5N 13 - 34
B468 2911 Bracket - Photointerrupter 15 - 4
B468 3116 Upper Bracket - Paper Height Sensor 33 - 4
B468 3121 Front Holder 33 - 28

Page and
Index No.

Part No.Description

B468 3125 Rear Holder 33 - 15
B468 3131 Rear Stay - Timing Belt 33 - 19
B468 3132 Front Stay - Timing Belt 33 - 27
B468 3133 Upper Stay 33 - 33
B468 3135 Stopper - Timing Belt 33 - 26
B468 3137 Shaft - End Fence 33 - 22
B468 3138 Gear - End Fence 33 - 16
B468 3139 Release Lever 33 - 30
B468 3141 Bracket - Paper Height Sensor 33 - 8
B468 3142 Shaft - Spring Clutch 33 - 20
B468 3146 Tension Spring 33 - 31
B468 3147 Support Plate 33 - 29
B468 3148 Upper Plate 33 - 35
B468 3149 Spring Clutch - End Fence 33 - 21
B468 3151 Sensor Lever 33 - 23
B468 3152 Lever Stay 33 - 9
B468 3153 Torsion Spring 33 - 34
B468 3161 Upper End Fence 33 - 3
B468 3168 Rack 33 - 6
B468 3175 Cover - Paper Height Sensor 33 - 24
B468 3181 Stay 35 - 19
B468 3181 Stay 33 - 14
B468 3187 Bracket - Hp Sensor 43 - 3
B468 3192 Lower Bracket 43 - 10
B468 3211 Shift Tray 7 - 22
B468 3215 Support Tray 7 - 24
B468 3218 Slide Tray 7 - 23
B468 3221 Lower Holder - Front 35 - 23
B468 3223 Lower Holder - Rear 35 - 20
B468 3226 Lower Stay 35 - 22
B468 3231 Front Stopper 35 - 21
B468 3232 Rear Stopper 35 - 24
B468 3242 Arm Stay 35 - 26
B468 3245 Arm 35 - 15
B468 3251 Arm Plate 35 - 29

Description

Page and
Index No.

B468/B469 3 Parts Index

Part No.

B468 3252 Roller - M6 35 - 28
B468 3261 Tension Spring 35 - 27
B468 3272 Sensor Bracket 43 - 1
B468 3311 Support Tray 45 - 1
B468 3411 End Fence 37 - 1
B468 3421 Small End Fence 37 - 22
B468 3431 Middle Sensor Bracket 37 - 13
B468 3511 Drive Shaft 35 - 32
B468 3515 Long Spacer - MM10 35 - 3
B468 3516 Short Spacer - MM10 35 - 33
B468 3521 Lower Motor Bracket 39 - 14
B468 3526 Encoder Bracket 39 - 9
B468 3528 Shaft - Pulley T48P2M 39 - 10
B468 3529 Timing Belt - 164P2M4 39 - 11
B468 3531 Tightener 35 - 14
B468 3541 Tightener Bracket 35 - 7
B468 3551 Timing Belt - 1615P5M6 35 - 12
B468 3561 Lower Stay 39 - 20
B468 3611 Upper Shaft 35 - 31
B468 3613 Timing Pulley - T30P3M 35 - 10
B468 3614 Gear - Z49 35 - 8
B468 3615 Pulley - M9 35 - 1
B468 3622 Upper Motor Bracket 39 - 27
B468 3623 Upper Stud 39 - 26
B468 3631 Rear Tightener 35 - 9
B468 3641 Front Tightener 35 - 16
B468 3651 Timing Belt - 804P3M6 35 - 11
B468 3712 End Fence 37 - 24
B468 3716 Torsion Spring 37 - 23
B468 3811 Pressure Plate Bracket 37 - 12
B468 3815 Stopper - Pressure Plate 37 - 36
B468 3831 Bracket 37 - 6
B468 3835 Pressure Plate Cam 37 - 3
B468 3841 Pressure Plate 37 - 2
B468 3845 Slide Shaft 37 - 10

Page and
Index No.

Part No.Description

B468 3848 Shaft 37 - 8
B468 3849 Tension Spring 37 - 5
B468 3851 End Fence Cover 37 - 14
B468 4111 Stapler Tray 23 - 11
B468 4115 Guide Film (B468) 21 - 18
B468 4116 Middle Stapler Film 21 - 22
B468 4117 Shaft - M6x24 23 - 10
B468 4118 Upper Mylar - Stapler 21 - 19
B468 4119 Front Mylar - Stapler 21 - 30
B468 4122 Stapler Stay 23 - 5
B468 4126 Entrance Mylar 25 - 5
B468 4127 Small Stay 25 - 9
B468 4128 Stapler Guide 25 - 8
B468 4129 Upper Cover 25 - 10
B468 4136 Middle Mylar 25 - 4
B468 4139 Jogger Fence Mylar 25 - 7
B468 4142 Exit Belt 23 - 8
B468 4144 Exit Belt Pawl 23 - 7
B468 4146 Exit Belt Guide 23 - 1
B468 4149 Stapler Tray Bracket 21 - 25
B468 4152 Standard Fence 21 - 20
B468 4154 Fence Slider 21 - 28
B468 4156 Standard Fence 21 - 27
B468 4157 Guide Mylar 21 - 26
B468 4158 Guide Rod 21 - 24
B468 4161 Drive Shaft 23 - 12
B468 4172 Sensor Bracket 23 - 3
B468 4211 Front Side Plate (B468) 25 - 1
B468 4212 Front Side Plate (B469) 25 - 1
B468 4221 Rear Side Plate (B468) 25 - 15
B468 4222 Rear Side Plate (B469) 25 - 15
B468 4231 Slide Rail Stay 25 - 2
B468 4312 Rear Jogger Fence 21 - 21
B468 4322 Front Jogger Fence 21 - 3
B468 4325 Long Shaft 21 - 5

Description

Page and
Index No.

B468/B469 4 Parts Index

Part No.

B468 4326 Short Shaft 21 - 15
B468 4327 Bushing 21 - 2
B468 4328 Jogger Guide 21 - 6
B468 4331 Rear Mylar 21 - 23
B468 4332 Front Mylar 21 - 4
B468 4335 Protect Bracket 21 - 1
B468 4341 Motor Bracket 23 - 14
B468 4371 Timing Belt - 900P2M4 21 - 8
B468 4381 Stopper - Timing Belt 21 - 7
B468 4511 Fix Bracket 27 - 16
B468 4513 Stapler Guide 27 - 17
B468 4516 Inner Cover 27 - 21
B468 4521 Turn Bracket 27 - 15
B468 4531 Moving Bracket 27 - 29
B468 4538 Standard Fence Plate 27 - 30
B468 4546 Hp Sensor Bracket 27 - 33
B468 4551 Stapler Stay 27 - 3
B468 4555 Stapler Guide Rod 27 - 13
B468 4611 Drive Roller 31 - 19
B468 4615 Drive Roller 31 - 16
B468 4617 Roller Bracket 31 - 3
B468 4621 Roller Arm 31 - 8
B468 4622 Short Roller Arm 31 - 7
B468 4623 Roller Shaft 31 - 9
B468 4624 Gear - 18Z 31 - 6
B468 4635 Bracket 31 - 11
B468 4640 Stepper Motor 31 - 10
B468 4651 Drive Gear 31 - 5
B468 4652 Pulley - T20P5MZ20 31 - 13
B468 4653 Timing Belt - 215P5M6 31 - 15
B468 4654 Timing Belt - 255P5M6 31 - 12
B468 4659 Idler Pulley - T1226P5M 31 - 14
B468 4662 Guide Plate 31 - 18
B468 4663 Guide Film 31 - 20
B468 4666 Roller Guide Plate 31 - 4

Page and
Index No.

Part No.Description

B468 4671 Knob 29 - 3
B468 4691 Tension Spring 31 - 2
B468 4711 Bracket 29 - 12
B468 4715 Guide Shaft 29 - 13
B468 4732 Shielding Plate Bracket 29 - 20
B468 4742 Drive Gear 29 - 19
B468 4743 Link Shaft 29 - 21
B468 4744 Drive Shaft 29 - 22
B468 4745 Middle Gear 29 - 17
B468 4751 Stepper Motor Bracket 29 - 15
B468 4757 Gear - Z14 29 - 14
B468 4761 Drive Link 29 - 10
B468 4766 Tightener 27 - 5
B468 4771 Slide Guide 29 - 11
B468 4781 Sensor Bracket 25 - 13
B468 4785 Knob 29 - 2
B468 4791 Guide Plate 29 - 23
B468 4792 Mylar Guide 29 - 4
B468 4811 Motor Bracket 23 - 17
B468 4816 Timing Belt - 310P2M4 23 - 16
B468 4911 Front Inner Cover 29 - 9
B468 5111 Main Control Board (B468) 43 - 12
B468 5123 EPROM - Main Control 51 - 1
B468 5123 EPROM - Main Control 57 - 1
B468 5200 Main Control Board 51 - *
B468 5410 Main Motor Harness 43 - 13
B468 5420 Main Sensor Harness (B468) 43 - 9
B468 5421 Lower Harness 37 - 15
B468 5422 Exit Harness 11 - 4
B468 5422 Exit Harness 13 - 22
B468 5423 Guide Harness 13 - 4
B468 5430 Motor Harness - Stapler Unit (B468) 43 - 16
B468 5440 Sensor Harness - Stapler Unit (B468) 43 - 17
B468 5441 Relay Harness - Stapler 25 - 11
B468 5442 Relay Harness - Stapler Cartridge 25 - 3

Description

Page and
Index No.

B468/B469 5 Parts Index

Part No.

B468 5443 Relay Harness - Stapler Unit 21 - 17
B468 5444 Relay Harness - Stapler Tray 27 - 1
B468 5450 Stapler Harness 27 - 23
B468 5460 Harness - Punch Unit 43 - 15
B468 5470 Upper Tray Harness 33 - 12
B468 5473 Lower Motor Harness 37 - 33
B468 5474 Lower Tray Harness 35 - 17
B468 5476 Switch Harness 37 - 7
B468 5477 Relay Harness 33 - 11
B468 5478 Upper Motor Harness (B468) 43 - 20
B468 5481 Interface Harness 43 - 19
B468 5490 Interface Harness - Option 43 - 14
B468 5495 Relay Harness - Paper Exit 15 - 6
B468 5750 Stepper Motor 41 - 4
B468 5750 Stepper Motor 39 - 24
B468 5750 Stepper Motor 45 - 10
B468 5755 Stepper Motor 39 - 6
B468 5760 Stepper Motor 23 - 18
B468 5770 Stepper Motor 29 - 16
B468 5991 Harness Bracket 43 - 5
B468 5992 Board Bracket 43 - 11
B468 5993 Harness Bracket - Shift Tray 43 - 4
B468 5994 Interface Bracket 43 - 18
B468 5995 Connector Bracket 39 - 12
B468 5998 Connector Cover 39 - 33
B468 6200 Stapler 25 - 6
B468 6411 Adjusting Pin - Booklet Stapler 25 - 19
B468 6511 Spacer Cushion - 20mm 7 - 10
B468 7801 Decal - R7 59 - 7
B468 7801 Decal - R7 29 - 6
B468 7802 Decal - R8 59 - 8
B468 7802 Decal - R8 29 - 5
B468 7803 Decal - R9 (B468) 29 - 8
B468 7803 Decal - R9 59 - 9
B468 7804 Decal - S2 29 - 7

Page and
Index No.

Part No.Description

B468 7804 Decal - S2 59 - 10
B468 7805 Decal - S1 27 - 22
B468 7805 Decal - S1 59 - 11
B468 7806 Decal - Misfeed Removal 59 - 12
B468 7806 Decal - Misfeed Removal (B468) 7 - 14
B468 7807 Decal - Staple Exchange 59 - 13
B468 7807 Decal - Staple Exchange 7 - 16
B468 7812 Caution Decal - Tray Fall 7 - 5
B468 7812 Caution Decal - Tray Fall 59 - 14
B468 7813 Decal - Tray Rise 7 - 25
B468 7813 Decal - Tray Rise 59 - 15
B469 1412 Slide Rail Bracket 45 - 2
B469 1631 Rear Cover (B469) 7 - 1
B469 1641 Left Upper Cover 33 - 1
B469 1642 Mylar - Left Upper Cover 33 - 2
B469 1732 Cover Bracket 39 - 32
B469 2891 Actuator - Paper Height Sensor 13 - 32
B469 2892 Bracket - Paper Height Sensor 13 - 29
B469 2894 Paper Sensor Bracket - Surface 13 - 35
B469 2895 Feeler Torsion Spring 13 - 31
B469 4115 Guide Mylar (B469) 21 - 18
B469 4133 Guide Plate - Stapler Tray 25 - 17
B469 4134 Guide Mylar - Stapler Tray 25 - 18
B469 5111 Main Control Board (B469) 43 - 12
B469 5200 Main Control Board 57 - *
B469 5420 Main Sensor Harness (B469) 43 - 9
B469 5424 Relay Harness 13 - 30
B469 5430 Motor Harness - Stapler Unit (B469) 43 - 16
B469 5440 Sensor Harness - Stapler Unit (B469) 43 - 17
B469 5472 Switch Harness (B469) 43 - 20
B469 7808 Decal - Misfeed Removal (B469) 7 - 14
B469 7808 Decal - Misfeed Removal 59 - 16
B469 7813 Decal - R7 (B469) 29 - 8
B469 7813 Decal - R7 59 - 9

Description

Page and
Index No.

B468/B469 6 Parts Index

Part No.

A232 3562 Ball Bearing - 6x12x4mm 39 - 13
A300 2132 Guide Roller 27 - 34
A300 3151 Support Bracket 25 - 12
A300 3759 Spring 21 - 29
A300 3812 Spacer - 6x22x1.5 27 - 11
A300 3851 Positioning Roller Bracket 19 - 18
A300 3865 Release Spring 41 - 20
A353 2763 Washer - M5 23 - 6
A353 3113 Pressure Spring 39 - 19
A353 3172 Actuator Bracket 13 - 28
A376 1343 Original Pressure Roller 27 - 25
A379 2115 Reverse Roller 37 - 26
A458 2251 Cushion - Bin Solenoid Lever 17 - 19
A458 2251 Cushion - Bin Solenoid Lever 15 - 16
A458 2251 Cushion - Bin Solenoid Lever 11 - 9
A566 3741 Worm Pulley 39 - 25
A566 3751 Gear - 18Z 39 - 28
A566 3752 Gear - 25Z 39 - 29
A566 3753 Pressure Spring 39 - 31
A608 2813 Positioning Roller Arm 19 - 9
A608 2816 Positioning Roller Shaft 19 - 15
A612 2435 Support Plate 17 - 6
A666 1315 Slide Rail 45 - 5
A666 3180 Timing Pulley - Z32 23 - 9
A666 3270 Pulley - Z40 23 - 15
A680 1181 Magnetic Catch 15 - 22
A681 2416 Antistatic Brush 31 - 17
A697 1117 Base Plate Cap 45 - 6
A697 1120 Slide Rail 45 - 3
A697 1125 Stepped Screw - Lever 31 - 1
A697 1125 Stepped Screw - Lever 41 - 13
A697 1125 Stepped Screw - Lever 27 - 7
A697 1125 Stepped Screw - Lever 9 - 18

Page and
Index No.

Part No.Description

A697 1125 Stepped Screw - Lever 15 - 28
A697 1125 Stepped Screw - Lever 29 - 1
A697 1127 Joint Lever 9 - 17
A697 1144 Rear Joint Bracket 7 - 8
A697 1151 Hopper Bracket 9 - 15
A697 1153 Front Joint Bracket 7 - 9
A697 1518 Spring - Oil Blade 21 - 11
A697 1518 Spring - Oil Blade 27 - 6
A697 1518 Spring - Oil Blade 41 - 12
A697 1605 Spacer - 6x10x15.2mm 15 - 27
A697 1605 Spacer - 6x10x15.2mm 17 - 2
A697 1605 Spacer - 6x10x15.2mm 13 - 25
A697 1606 Spacer - 6x12x2.7mm 15 - 24
A697 2131 Antistatic Brush 23 - 4
A697 2131 Antistatic Brush 19 - 27
A697 2132 Joint - Brush Roller 19 - 4
A697 2138 Brush Roller 19 - 5
A697 2140 Upper Entrance Guide 15 - 21
A697 2144 Pressure Spring 15 - 23
A697 2145 Entrance Sensor Bracket 9 - 11
A697 2150 Lower Entrance Guide 9 - 10
A697 2187 Pressure Spring - 14.1mm 15 - 12
A697 2210 Lower Guide - Proof Tray 15 - 2
A697 2260 Pulley - 17T 19 - 17
A697 3135 Gear - 18Z 39 - 17
A697 3140 Gear - 30Z 39 - 18
A697 3145 Gear - 36Z/18Z 39 - 23
A697 3170 Gear - 42Z 35 - 4
A697 3180 Pulley - 18T 35 - 5
A697 3185 Pulley - 18T 35 - 13
A697 3215 Pulley - 19T 27 - 36
A697 3220 Timing Belt - B40S2M112 27 - 37
A697 4140 Sector Gear - 144Z 27 - 24
A697 4170 Pulley - 32T 21 - 9
A697 5500 Decal - Replacement R4 17 - 11

Description

Page and
Index No.

B468/B469 7 Parts Index

Part No.

A697 5500 Decal - Replacement R4 59 - 1
A859 3420 Middle Driven Roller 9 - 7
A859 3425 Spring Plate 9 - 5
B302 1163 Grounding Plate 7 - 7
B302 1164 Grounding Plate Bracket 7 - 6
B302 2216 Exit Guide - Upper Exit Guide 15 - 8
B302 2317 Timing Pulley - 20Z 37 - 29
B302 2318 Timing Pulley - 28Z 37 - 20
B302 2319 Stopper Ring 37 - 21
B302 2413 Brush Roller 19 - 3
B302 2451 Lower Guide Plate 19 - 23
B302 2459 Spring - 5x39mm 19 - 24
B302 4256 Timing Pulley - 20Z/40Z 27 - 10
B302 4259 Timing Belt - 195PM6 27 - 9
B302 4292 Belt Holder 27 - 32
B302 4293 Belt Holder Bracket 27 - 31
B302 4756 Timing Belt - 753P3M6 27 - 12
B302 7701 Decal - R1 15 - 18
B302 7701 Decal - R1 59 - 2
B302 7702 Decal - R2 9 - 3
B302 7702 Decal - R2 59 - 3
B302 7703 Decal - R3 59 - 4
B302 7703 Decal - R3 11 - 11
B302 7706 Decal - R6 19 - 25
B302 7706 Decal - R6 59 - 5
B312 1521 Timing Pulley - 20T 17 - 3
B312 1524 Motor Bracket 41 - 2
B312 1600 Tightener 41 - 14
B312 1610 Tightener 41 - 15
B312 1615 Tension Roller 41 - 22
B312 2100 Pre-stack Gate 17 - 18
B312 2166 Vertical Guide 17 - 20
B312 2171 Middle Guide - Vertical Transport 17 - 15
B312 2172 Driven Roller 17 - 14
B312 2173 Support Plate 17 - 17

Page and
Index No.

Part No.Description

B312 2174 Pressure Spring - 12mm 17 - 12
B312 2176 Transport Roller 17 - 24
B312 4140 Stepping Motor - 8.0W 23 - 13
B312 5700 Decal - R5 59 - 6
B312 5700 Decal - R5 17 - 16
B352 1135 Bracket - Harness Clamp 43 - 8
B352 2500 Support Guide - Punch Unit 9 - 19
B352 2610 Shift Transport Roller 9 - 14
B352 2610 Shift Transport Roller 17 - 21
B352 4261 Tightener - Exit Belt 21 - 14
B352 4318 Bushing - Lower Slider 27 - 28
B352 4379 Lower Guide Plate 27 - 18
B352 7507 Punch Screw 9 - 20
B408 1413 Coupling Stay 15 - 15
B408 1413 Coupling Stay 9 - 16
B408 1413 Coupling Stay 19 - 29
B408 2173 Slide Roller 11 - 15
B408 2174 Spring 11 - 14
B408 2175 Bushing - Roller Slide 11 - 13
B408 2191 Guide Plate - Connecting Lower 9 - 13
B408 2311 Slide Roller 13 - 17
B408 2312 Bushing - Roller Slide 13 - 1
B408 2314 Arm - Roller Slide 13 - 24
B408 4223 Belt Tensioner - Stapler 21 - 10
B408 5520 Stepper Motor 39 - 5
B408 5520 Stepper Motor 13 - 7
B408 5520 Stepper Motor 27 - 26
B408 5530 Stepper Motor - 11W 37 - 4
B478 2116 Reverse Roller - Stapler Tray 19 - 13
C101 2360 Snap Ring 17 - 5
C203 5135 Bushing - 10x14x5.9 35 - 2
G012 1531 Magnet 11 - 16
G012 1531 Magnet 15 - 19
G020 2630 Magnetic Catch 7 - 17
G020 4429 Exit Sensor 23 - 2

Description

Page and
Index No.

B468/B469 8 Parts Index

Part No.

G518 1237 Sheet - Shielding Plate 33 - 36
G565 4377 Upper Entrance Guide 27 - 19
H521 1311 Busing 39 - 21

Page and
Index No.

Part No.Description

AA04 3054 Timing Belt - 142 P2M4 13 - 15
AA04 3054 Timing Belt - 142 P2M4 39 - 2
AA04 3181 Timing Belt - B40S2M80 37 - 19
AA06 0092 Release Spring 41 - 10
AA06 3529 Pressure Spring - 14.5mm 17 - 7
AA06 3529 Pressure Spring - 14.5mm 19 - 22
AA06 3529 Pressure Spring - 14.5mm 11 - 12
AA08 0238 Bushing - M6 17 - 25
AA08 0242 Bushing - 4mm 17 - 13
AA10 0006 Nut - M3.6 39 - 34
AA12 0099 Antistatic Brush - 320mm 15 - 9
AA12 0099 Antistatic Brush - 320mm 19 - 26
AA13 2024 Spacer - M6 27 - 14
AA16 1099 Lever Cushion 19 - 8
AB01 3709 Worm Gear 39 - 16
AB03 0278 Idler - 20Z 27 - 8
AB03 0374 Timing Pulley - 20Z 13 - 23
AB03 0374 Timing Pulley - 20Z 15 - 25
AF02 2147 Driven Roller 11 - 19
AF02 2147 Driven Roller 15 - 13
AF02 2147 Driven Roller 17 - 8
AF02 2147 Driven Roller 19 - 21
AG07 0014 Magnet Catch 9 - 4
AG07 0014 Magnet Catch 11 - 17
AG07 1010 Magnet Catch 17 - 10
AG07 1010 Magnet Catch 25 - 16
AH01 2019 Caster 45 - 7
AJ01 1018 Stapler 27 - 20
AW01 0057 Registration Sensor 11 - 3
AW01 0057 Registration Sensor 21 - 13
AW01 0057 Registration Sensor 13 - 20
AW01 0088 Sensor GP2A200LCS - Assembly 33 - 18
AW01 0088 Sensor GP2A200LCS - Assembly 35 - 30

Description

Page and
Index No.

B468/B469 9 Parts Index

Part No.

AW01 0089 Photosensor - GP2A28C 9 - 9
AW02 0049 Photointerrupter - OS - 580213-703 19 - 30
AW02 0049 Photointerrupter - OS - 580213-703 15 - 5
AW02 0079 Photointerrupter 15 - 3
AW02 0086 Photointerrupter 25 - 14
AW02 0086 Photointerrupter 43 - 2
AW02 0086 Photointerrupter 13 - 5
AW02 0086 Photointerrupter 39 - 3
AW02 0086 Photointerrupter 37 - 9
AW02 0086 Photointerrupter 33 - 10
AW02 0086 Photointerrupter 27 - 4
AW02 0086 Photointerrupter 21 - 16
AW02 0129 Overflow Photointerrupter 37 - 11
AW02 0129 Overflow Photointerrupter 33 - 5
AX04 0121 Stepping Motor - DC 6.5W 41 - 3
AX05 0148 Stepper Motor 27 - 2
AX05 0183 DC Motor - 8.9W 39 - 22
AX06 0234 DC Motor - 25.1W 39 - 15
AX11 0066 DC Solenoid - 24V 5.76W 33 - 32

Page and
Index No.

Part No.Description

0242 0035B Pan Head Screw - M2x3.5 23 -104
0313 0030B Philips Pan Head Screw - M3x3 41 -110
0313 0040B Philips Pan Head Screw - M3x4 33 -102
0313 0040B Philips Pan Head Screw - M3x4 41 -103
0313 0040B Philips Pan Head Screw - M3x4 15 -102
0313 0050B Philips Pan Head Screw - M3x5 39 -107
0313 0060B Philips Pan Head Screw - M3x6 35 -102
0313 0060B Philips Pan Head Screw - M3x6 33 -103
0313 0100B Philips Pan Head Screw - M3x10 9 -102
0313 0120B Philips Pan Head Screw - M3x12 39 -108
0313 0120B Philips Pan Head Screw - M3x12 37 -109
0313 0120B Philips Pan Head Screw - M3x12 13 -105
0450 3008B Tapping Screw - M3x8 21 -101
0450 3008B Tapping Screw - M3x8 17 -102
0450 3008B Tapping Screw - M3x8 25 -101
0450 3008B Tapping Screw - M3x8 29 -102
0450 3008B Tapping Screw - M3x8 19 -102
0450 3008B Tapping Screw - M3x8 35 -103
0450 3008B Tapping Screw - M3x8 7 -102
0451 3006B Tapping Screw - M3x6 31 -105
0451 3006B Tapping Screw - M3x6 33 -108
0451 3006B Tapping Screw - M3x6 29 -101
0451 3006B Tapping Screw - M3x6 35 -105
0451 3006B Tapping Screw - M3x6 27 -103
0451 3006B Tapping Screw - M3x6 37 -103
0451 3006B Tapping Screw - M3x6 7 -101
0451 3006B Tapping Screw - M3x6 25 -102
0451 3006B Tapping Screw - M3x6 39 -101
0451 3006B Tapping Screw - M3x6 41 -104
0451 3006B Tapping Screw - M3x6 23 -103
0451 3006B Tapping Screw - M3x6 45 -101
0451 3006B Tapping Screw - M3x6 19 -101
0451 3006B Tapping Screw - M3x6 43 -101

Description

Page and
Index No.

B468/B469 10 Parts Index

Part No.

0451 3006B Tapping Screw - M3x6 17 -101
0451 3006B Tapping Screw - M3x6 9 -101
0451 3006B Tapping Screw - M3x6 11 -101
0451 3006B Tapping Screw - M3x6 13 -102
0451 3006B Tapping Screw - M3x6 15 -101
0451 3008B Tapping Screw - M3x8 41 -105
0451 3008H Tapping Screw - M3x8 35 -101
0451 3008H Tapping Screw - M3x8 33 -101
0451 3008H Tapping Screw - M3x8 7 -103
0451 4006B Tapping Screw - 4x6 39 -114
0451 4008B Philips Tapping Screw - M4x8 31 -104
0451 4008H Tapping Screw - 4x8 7 -104
0451 4014B Tapping Screw - M4x14 7 -105
0452 3006B Tapping Screw - M3x6 27 -102
0453 3006B Tapping Screw - M3x6 45 -104
0453 3006B Tapping Screw - M3x6 41 -106
0574 0040E Hexagon Headless Set Screw - M4x4 39 -104
0623 0100E Spring Pin - 3x10mm 33 -104
0623 0120E Spring Pin - M3x12 19 -107
0632 0120G Parallel Pin - 2x12 35 -109
0633 0120G Parallel Pin - 3x12 37 -104
0634 0200G Parallel Pin - 4x20 35 -107
0711 0020B Nut Plate Switch(100 Pcs/1 Set) 23 -105
0720 0030B Retaining Ring - M3 37 -108
0720 0040B Retaining Ring - M4 29 -103
0720 0040B Retaining Ring - M4 39 -109
0720 0040B Retaining Ring - M4 35 -110
0720 0040B Retaining Ring - M4 11 -103
0720 0040B Retaining Ring - M4 33 -105
0720 0040B Retaining Ring - M4 19 -104
0720 0040B Retaining Ring - M4 9 -106
0720 0040B Retaining Ring - M4 17 -103
0720 0040B Retaining Ring - M4 13 -103
0720 0040B Retaining Ring - M4 21 -102
0720 0040B Retaining Ring - M4 31 -103

Page and
Index No.

Part No.Description

0720 0040B Retaining Ring - M4 37 -106
0720 0040B Retaining Ring - M4 23 -101
0720 0040B Retaining Ring - M4 27 -104
0720 0060B Retaining Ring - M6 27 -106
0720 0060B Retaining Ring - M6 39 -105
0720 0060B Retaining Ring - M6 33 -106
0720 0060B Retaining Ring - M6 35 -108
0720 0060B Retaining Ring - M6 37 -105
0720 0060B Retaining Ring - M6 31 -102
0720 0060B Retaining Ring - M6 29 -105
0741 3506 Ball Bearing - 6x12x4 Mm 19 -105
0741 3506 Ball Bearing - 6x12x4 Mm 17 -104
0741 3506 Ball Bearing - 6x12x4 Mm 15 -103
0741 3506 Ball Bearing - 6x12x4 Mm 9 -107
0741 3506 Ball Bearing - 6x12x4 mm 13 -104
0741 3808 Ball Bearing - 8x16x5mm 31 -101
0802 5276 Tapping Screw With Washer - M3x6 35 -104
0802 5276 Tapping Screw With Washer - M3x6 33 -109
0802 5276 Tapping Screw With Washer - M3x6 9 -105
0802 5277 Tapping Screw 45 -102
0804 6075 Hexagonal Bolt - M3x8 25 -103
0804 6075 Hexagonal Bolt - M3x8 21 -103
0805 0088 Retaining Ring - M6 19 -106
0805 0088 Retaining Ring - M6 35 -111
0805 0089 Retaining Ring - M4 9 -104
0805 0089 Retaining Ring - M4 17 -105
0805 0089 Retaining Ring - M4 19 -103
0805 0089 Retaining Ring - M4 11 -102
0805 0089 Retaining Ring - M4 15 -106
0805 3383 Bushing - M5 39 -110
0805 3385 Bushing - 6mm 23 -106
0807 4118 Flat Washer 39 -111
0807 5056 Washer - 8.1mm 39 -106
1101 0328 Connector Pin Contact 57 -101
1101 0328 Connector Pin Contact 51 -101

Description

Page and
Index No.

B468/B469 11 Parts Index

Part No.

1102 4201 Connector - 2P 51 -102
1102 4201 Connector - 2P 57 -102
1102 4202 Connector - 3P 57 -103
1102 4202 Connector - 3P 51 -103
1102 4203 CT Header - 4P 57 -104
1102 4203 CT Header - 4P 51 -104
1102 4205 CT Header - 6P 57 -105
1102 4205 CT Header - 6P 51 -105
1102 4206 Connector - 7P 57 -106
1102 4206 Connector - 7P 51 -106
1102 4207 Connector - 8P 51 -107
1102 4207 Connector - 8P 57 -107
1102 4208 Connector - 9P 51 -108
1102 4208 Connector - 9P 57 -108
1102 4209 CT Header - 10P 51 -109
1102 4209 CT Header - 10P 57 -109
1102 4210 Connector - 11P 51 -110
1102 4210 Connector - 11P 57 -110
1102 4212 CT Header - 15P 57 -111
1102 4212 CT Header - 15P 51 -111
1102 4497 Connector - 13P 51 -112
1102 4497 Connector - 13P 57 -112
1102 4619 Connector - 2P 51 -113
1102 4620 CT Header - 3P 51 -114
1102 4623 CT Connector - 6P 51 -115
1102 4624 CT Connector - 7P 57 -113
1102 4624 CT Connector - 7P 51 -116
1102 4626 Connector - 9P 51 -117
1102 4636 CT Connector 51 -118
1102 4636 CT Connector 57 -114
1102 4637 CT Connector - 8P 51 -119
1102 4637 CT Connector - 8P 57 -115
1102 5007 CT Header - 14P 51 -120
1102 5007 CT Header - 14P 57 -116
1102 5301 Connector - 2P 57 -117

Page and
Index No.

Part No.Description

1102 5301 Connector - 2P 51 -121
1102 5302 Connector - 3P 51 -122
1102 6295 Connector - 2P 57 -118
1102 6295 Connector - 2P 51 -123
1102 6301 Connector - 8P 51 -124
1102 6301 Connector - 8P 57 -119
1102 6302 Connector - 9P 57 -120
1102 6302 Connector - 9P 51 -125
1102 6315 Connector - 8P 57 -121
1102 6315 Connector - 8P 51 -126
1102 6316 Connector - 9P 51 -127
1102 6316 Connector - 9P 57 -122
1102 6957 Connector - 14P BLUE 51 -128
1102 8534 Connector - QR/P17-14S-B 39 -113
1104 0333 Fuse Holder 51 -129
1104 0333 Fuse Holder 57 -123
1104 0589 DIP Socket - 32P 57 -124
1104 0589 DIP Socket - 32P 51 -130
1105 0109 Cord Keep 33 -112
1105 0231 Clamp 41 -109
1105 0328 Harness Clamp - ES-0505 33 -111
1105 0328 Harness Clamp - ES-0505 29 -104
1105 0328 Harness Clamp - ES-0505 41 -102
1105 0328 Harness Clamp - ES-0505 15 -104
1105 0334 Edge - 17 41 -101
1105 0487 Harness Clamp 23 -102
1105 0487 Harness Clamp 33 -107
1105 0487 Harness Clamp 13 -107
1105 0487 Harness Clamp 25 -104
1105 0487 Harness Clamp 43 -105
1105 0487 Harness Clamp 45 -107
1105 0487 Harness Clamp 39 -102
1105 0487 Harness Clamp 27 -101
1105 0487 Harness Clamp 37 -107
1105 0487 Harness Clamp 35 -106

Description

Page and
Index No.

B468/B469 12 Parts Index

Part No.

1105 0488 Harness Clamp 45 -106
1105 0488 Harness Clamp 41 -107
1105 0488 Harness Clamp 43 -103
1105 0488 Harness Clamp 25 -105
1105 0489 Harness Clamp - LWS 1316 45 -105
1105 0489 Harness Clamp - LWS 1316 25 -107
1105 0511 Harness Clamp - LWS-0306ZC 15 -105
1105 0511 Harness Clamp - LWS-0306ZC 13 -101
1105 0511 Harness Clamp - LWS-0306ZC 19 -108
1105 0511 Harness Clamp - LWS-0306ZC 9 -103
1105 0511 Harness Clamp - LWS-0306ZC 23 -107
1105 0511 Harness Clamp - LWS-0306ZC 37 -102
1105 0511 Harness Clamp - LWS-0306ZC 41 -108
1105 0511 Harness Clamp - LWS-0306ZC 43 -102
1105 0511 Harness Clamp - LWS-0306ZC 39 -103
1105 0511 Harness Clamp - LWS-0306ZC 27 -105
1105 0511 Harness Clamp - LWS-0306ZC 33 -110
1105 0514 Edge Saddle - EDS-0607l 25 -106
1106 0289 Bushing - SR-5N-1 43 -104
1107 1030 Fuse - 218005 57 -125
1107 1030 Fuse - 218005 51 -131
1204 1422 DIP Switch - 51D-0401 57 -126
1204 1422 DIP Switch - 51D-0401 51 -132
1204 2233 Microswitch - AH715254N 13 -106
1204 2233 Microswitch - AH715254N 37 -110
1204 2233 Microswitch - AH715254N 39 -112
1204 2384 Interlock Switch 45 -103
1204 2544 Switch - DE2L-BJ23 37 -101
1400 0398 Transistor - 2SC2412K 51 -133
1400 0398 Transistor - 2SC2412K 57 -127
1400 0711 Transistor - 2SB1241 51 -134
1400 0711 Transistor - 2SB1241 57 -128
1400 0747 Transistor - 2SD1863 51 -135
1400 0747 Transistor - 2SD1863 57 -129
1400 0748 Transistor - FMG1A 57 -130

Page and
Index No.

Part No.Description

1400 0748 Transistor - FMG1A 51 -136
1402 0557 Diode - HZ24PB 51 -137
1402 0557 Diode - HZ24PB 57 -131
1402 0828 Diode - ERB93-02 51 -138
1402 0828 Diode - ERB93-02 57 -132
1402 1506 Diode - ERA15-02 57 -133
1402 1506 Diode - ERA15-02 51 -139
1402 1507 Diode - UDZS8.2B 57 -134
1402 1507 Diode - UDZS8.2B 51 -140
1403 0519 Photocoupler - TLP621 51 -141
1403 0519 Photocoupler - TLP621 57 -135
1407 1596 TTLIC - SN74LS14NS 57 -136
1407 1596 TTLIC - SN74LS14NS 51 -142
1407 2218 TTLIC - SN74LS06NS 57 -137
1407 2218 TTLIC - SN74LS06NS 51 -143
1407 2219 IC - TD62003AP 57 -138
1407 2219 IC - TD62003AP 51 -144
1407 2231 IC - TD62308AF 57 -139
1407 2231 IC - TD62308AF 51 -145
1407 3519 HCMOSIC - 74HC4040 51 -146
1407 3519 HCMOSIC - 74HC4040 57 -140
1407 4726 IC - CXP2006M 57 -141
1407 4726 IC - CXP2006M 51 -147
1407 4754 IC - HD6413002F16 51 -148
1407 4754 IC - HD6413002F16 57 -142
1407 5387 IC - SN74LV04ANS 51 -149
1407 5387 IC - SN74LV04ANS 57 -143
1407 5393 IC - SN74LV541ANS 57 -144
1407 5393 IC - SN74LV541ANS 51 -150
1407 5415 IC - SN74LV32ANS 51 -151
1407 5415 IC - SN74LV32ANS 57 -145
1407 5744 IC - STK672-330 51 -152
1407 5744 IC - STK672-330 57 -146
1408 0827 IC - TA8429H 57 -147
1408 0827 IC - TA8429H 51 -153

Description

Page and
Index No.

B468/B469 13 Parts Index

Part No.

1408 1200 IC - STK681-050 57 -148
1408 1200 IC - STK681-050 51 -154
1408 1223 Detector - RN5VD42C 57 -149
1408 1223 Detector - RN5VD42C 51 -155
1408 1287 IC - SI-8501L 51 -156
1408 1287 IC - SI-8501L 57 -150
1503 0904 Ceramic Oscillator - 16MHz 57 -151
1503 0904 Ceramic Oscillator - 16MHz 51 -157
1601 5438 Resistor - 1K Ω ±5% 1/2W 57 -152
1601 5438 Resistor - 1K Ω ±5% 1/2W 51 -158
1601 7751 Resistor - 4.7KΩ ±5% 57 -153
1601 7751 Resistor - 4.7KΩ ±5% 51 -159
1601 7871 Resistor - 68Ω ±5% 1/16W 51 -160
1601 7871 Resistor - 68Ω ±5% 1/16W 57 -154
1604 4502 Capacitor - 330 µF ±20% 10V 57 -155
1604 4502 Capacitor - 330 µF ±20% 10V 51 -161
1607 0623 Ferrite Core - TFC-16-8-13 27 -107
1634 0000 Resistor - 0 Ω 1/16W 57 -156
1634 0000 Resistor - 0 Ω 1/16W 51 -162
1640 5100 Capacitor - 10µF +20% 50 51 -163
1640 5100 Capacitor - 10µF +20% 50 57 -157
1640 5101 Capacitor - 100µF ±20% 50V 51 -164
1640 5101 Capacitor - 100µF ±20% 50V 57 -158
1640 5109 Capacitor - 1µF - ±20% - 50V 57 -159
1640 5109 Capacitor - 1µF - ±20% - 50V 51 -165
1650 4100 Resistor - 10Ω ±5% 1/10W 51 -166
1650 4100 Resistor - 10Ω ±5% 1/10W 57 -160
1650 4101 Resistor - 100Ω±5%1/10W 51 -167
1650 4101 Resistor - 100Ω±5%1/10W 57 -161
1650 4102 Resistor - 1KΩ ±5% 1/10W 51 -168
1650 4102 Resistor - 1KΩ ±5% 1/10W 57 -162
1650 4103 Resistor - 10KΩ ±5% 1/10W 51 -169
1650 4103 Resistor - 10KΩ ±5% 1/10W 57 -163
1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W 51 -170
1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W 57 -164

Page and
Index No.

Part No.Description

1650 4122 Resistor - 1.2KΩ ±5% 1/10W 57 -165
1650 4122 Resistor - 1.2KΩ ±5% 1/10W 51 -171
1650 4153 Resistor - 15K Ω ±5% 1/10W 57 -166
1650 4153 Resistor - 15K Ω ±5% 1/10W 51 -172
1650 4161 Chip Resistor - 160Ω ±5% 1/10W 57 -167
1650 4161 Chip Resistor - 160Ω ±5% 1/10W 51 -173
1650 4202 Resistor - 2KΩ±5%1/10W 57 -168
1650 4202 Resistor - 2KΩ±5%1/10W 51 -174
1650 4222 Resistor - 2.2KΩ±5%1/10W 51 -175
1650 4222 Resistor - 2.2KΩ±5%1/10W 57 -169
1650 4223 Resistor - 22KΩ±5%1/10W 51 -176
1650 4223 Resistor - 22KΩ±5%1/10W 57 -170
1650 4330 Chip Resistor - 33Ω ±5% 1/10W 51 -177
1650 4330 Chip Resistor - 33Ω ±5% 1/10W 57 -171
1650 4332 Resistor - 3.3KΩ±5%1/10W 51 -178
1650 4332 Resistor - 3.3KΩ±5%1/10W 57 -172
1650 4361 Resistor - 360Ω±5%1/10W 57 -173
1650 4361 Resistor - 360Ω±5%1/10W 51 -179
1650 4362 Resistor - 3.6KΩ±5%1/10W 57 -174
1650 4362 Resistor - 3.6KΩ±5%1/10W 51 -180
1650 4472 Resistor - 4.7KΩ ±5% 1/10W 57 -175
1650 4472 Resistor - 4.7KΩ ±5% 1/10W 51 -181
1650 4561 Resistor - 560Ω ±5% 1/10W 57 -176
1650 4561 Resistor - 560Ω ±5% 1/10W 51 -182
1650 4562 Resistor - 5.6KΩ ±5% 1/10W 57 -177
1650 4562 Resistor - 5.6KΩ ±5% 1/10W 51 -183
1650 4680 Resistor - 68Ω±5%1/10W 51 -184
1650 4680 Resistor - 68Ω±5%1/10W 57 -178
1650 4681 Resistor - 680Ω ±5% 1/10W 51 -185
1650 4681 Resistor - 680Ω ±5% 1/10W 57 -179
1650 4751 Resistor - 750Ω ±5% 1/10W 51 -186
1650 4751 Resistor - 750Ω ±5% 1/10W 57 -180
1660 2101 Capacitor - 100pF - ±10% - 50V 51 -187
1660 2101 Capacitor - 100pF - ±10% - 50V 57 -181
1660 2221 Capacitor - 220pF +80-20% 50V 51 -188

Description

Page and
Index No.

B468/B469 14 Parts Index

Part No.

1660 2221 Capacitor - 220pF +80-20% 50V 57 -182
1660 2471 Capacitor - 470pF - ±5% - 50V 57 -183
1660 2471 Capacitor - 470pF - ±5% - 50V 51 -189
1660 4102 Capacitor - 1000pF ±10% 50V 57 -184
1660 4102 Capacitor - 1000pF ±10% 50V 51 -190
1660 4103 Capacitor - 10000pF - ±10% - 50V 57 -185
1660 4103 Capacitor - 10000pF - ±10% - 50V 51 -191
1660 8104 Capacitor - 0.1µF +80-20% 25V 57 -186
1660 8104 Capacitor - 0.1µF +80-20% 25V 51 -192

Page and
Index No.

Part No.Description

5053 0223 Bushing - 8mm 35 - 6
5053 0223 Bushing - 8mm 29 - 18
5053 0223 Bushing - 8mm 27 - 27
5053 0447 Bushing - 6mm 27 - 35
5053 0447 Bushing - 6mm 13 - 2
5053 0447 Bushing - 6mm 37 - 31
5053 0447 Bushing - 6mm 15 - 1
5053 0447 Bushing - 6mm 17 - 4
5053 0447 Bushing - 6mm 19 - 7
5053 0447 Bushing - 6mm 33 - 17
5053 0447 Bushing - 6mm 9 - 1
5447 2681 Snap Ring 37 - 35
5447 2681 Snap Ring 19 - 14
5447 2681 Snap Ring 21 - 12
5447 2681 Snap Ring 13 - 9
5875 2088 Shoulder Screw - M4 33 - 7
5875 2088 Shoulder Screw - M4 13 - 27
5919 2127 Positioning Roller Pulley 19 - 11
5919 2132 Positioning Roller Belt 19 - 12

Description

Page and
Index No.

B468/B469 15 Parts Index

B468/B469 FINISHER

PARTS INDEX

This section instructs you as to the names and numbers of parts on this machine.

Parts Index

Part No.

Page and
Index No.

Part No.Description

Description

Page and
Index No.

B468 1214 Toner Hopper Film 45 - 12
B468 1255 Safety Switch Bracket 45 - 9
B468 1256 Safety Switch Lever 45 - 8
B468 1257 Safety Switch Cover 45 - 11
B468 1332 Exit Sensor Bracket 19 - 31
B468 1412 Slide Rail Bracket 45 - 4
B468 1611 Upper Cover 7 - 4
B468 1612 Angle - Upper Cover 9 - 2
B468 1613 Upper Stay 43 - 6
B468 1616 Small Upper Cover 7 - 3
B468 1618 Connector Cover 7 - 2
B468 1621 Front Cover 7 - 13
B468 1622 Front Grip 7 - 15
B468 1623 Upper Stopper 7 - 11
B468 1626 Stopper - Door Lower 7 - 18
B468 1631 Rear Cover (B468) 7 - 1
B468 1641 Left Upper Cover 33 - 1
B468 1651 Left Front Cover 7 - 20
B468 1661 Upper Cover - Shift Tray Front 33 - 25
B468 1666 Upper Cover - Shift Tray Rear 33 - 13
B468 1671 Lower Front Cover 35 - 25
B468 1676 Lower Rear Cover 35 - 18
B468 1681 Inner Cover 7 - 19
B468 1711 Upper Hinge 7 - 12
B468 1721 Lower Hinge 7 - 21
B468 1731 Rear Cover Bracket 43 - 7
B468 2112 Upper Guide Plate 15 - 11
B468 2116 Lower Guide Plate 11 - 10
B468 2117 Cushion - Gate Pawl 11 - 20
B468 2118 Lower Guide Plate 17 - 23
B468 2121 Film - Proof Tray 15 - 10
B468 2122 Cushion - Gate Pawl 9 - 21
B468 2127 Guide Plate 13 - 21
B468 2128 Film - Exit Guide 13 - 19

B468 2131 Stapler Guide Plate 19 - 28
B468 2134 Stapler Guide 19 - 32
B468 2136 Exit Guide Plate 37 - 34
B468 2138 Fix Stand - Reverse Switch 37 - 28
B468 2139 Spring Plate - Lever Switch 37 - 30
B468 2145 Knob - Release Lever 15 - 20
B468 2152 Upper Guide Plate 9 - 8
B468 2162 Guide Plate 17 - 9
B468 2172 Guide Plate 11 - 18
B468 2187 Middle Guide - Stapler Tray 19 - 19
B468 2188 Both End Guide - Stapler Tray 19 - 20
B468 2196 Upper Guide Plate 9 - 12
B468 2221 Lower Exhaust Roller 19 - 1
B468 2222 Exit Roller 19 - 6
B468 2224 Flange - Brush Roller 19 - 2
B468 2231 Transport Roller 17 - 22
B468 2231 Transport Roller 15 - 17
B468 2231 Transport Roller 13 - 18
B468 2241 Exit Roller - Proof Tray 15 - 7
B468 2255 Timing Pulley - T20 13 - 26
B468 2255 Timing Pulley - T20 17 - 1
B468 2255 Timing Pulley - T20 15 - 26
B468 2255 Timing Pulley - T20 9 - 6
B468 2255 Timing Pulley - T20 19 - 16
B468 2312 Exit Roller Shaft 37 - 16
B468 2320 Exit Roller 37 - 17
B468 2331 Front Arm 37 - 25
B468 2332 Rear Arm 37 - 18
B468 2341 Pulley - Exit Roller 37 - 32
B468 2344 Tension Spring - Reverse Roller 37 - 27
B468 2421 Motor Bracket 39 - 4
B468 2425 Drive Pulley 39 - 1
B468 2515 Spring - Gather Roller 19 - 10
B468 2551 DC Solenoid Bracket 41 - 18

B468/B469 2 Parts Index

Part No.

B468 2555 DC Solenoid - Gather Roller 41 - 19
B468 2611 Timing Belt - 219P3M4 41 - 6
B468 2611 Timing Belt - 219P3M4 39 - 30
B468 2621 Timing Belt - 681P3M4 41 - 11
B468 2631 Timing Belt - 186P2M4 41 - 1
B468 2631 Timing Belt - 186P2M4 39 - 8
B468 2662 Timing Belt - 552P3M4 41 - 8
B468 2691 Stepper Motor Bracket 39 - 7
B468 2691 Stepper Motor Bracket 41 - 5
B468 2711 Gate Pawl 15 - 14
B468 2721 Lower Gate Pawl 11 - 8
B468 2751 DC Solenoid Bracket 41 - 16
B468 2755 DC Solenoid 41 - 7
B468 2761 Bracket - Junction Gate Solenoid - 41 - 9
B468 2771 Bracket - Junction Gate Solenoid - 41 - 17
B468 2775 DC Solenoid - Junction Gate 41 - 21
B468 2811 Exit Guide Plate 11 - 5
B468 2815 Discharge Brush 11 - 2
B468 2816 Exit Mylar 11 - 1
B468 2831 Driven Shaft - Exit Roller 11 - 7
B468 2832 Driven Exit Roller 11 - 6
B468 2851 Guide Plate Stay 13 - 8
B468 2861 Worm Gear - T40P2M 13 - 16
B468 2862 Guide Plate Cam 13 - 13
B468 2865 Worm Wheel - Z20 13 - 14
B468 2871 Sensor Bracket 13 - 6
B468 2881 Guide Plate Link 13 - 10
B468 2882 Link Bushing 13 - 11
B468 2883 Compression Spring - Guide Plate 13 - 12
B468 2891 Switch Bracket 13 - 3
B468 2894 Bracket - Micro Switch Swivel 13 - 33
B468 2896 Tension Spring - 5N 13 - 34
B468 2911 Bracket - Photointerrupter 15 - 4
B468 3116 Upper Bracket - Paper Height Sensor 33 - 4
B468 3121 Front Holder 33 - 28

Page and
Index No.

Part No.Description

B468 3125 Rear Holder 33 - 15
B468 3131 Rear Stay - Timing Belt 33 - 19
B468 3132 Front Stay - Timing Belt 33 - 27
B468 3133 Upper Stay 33 - 33
B468 3135 Stopper - Timing Belt 33 - 26
B468 3137 Shaft - End Fence 33 - 22
B468 3138 Gear - End Fence 33 - 16
B468 3139 Release Lever 33 - 30
B468 3141 Bracket - Paper Height Sensor 33 - 8
B468 3142 Shaft - Spring Clutch 33 - 20
B468 3146 Tension Spring 33 - 31
B468 3147 Support Plate 33 - 29
B468 3148 Upper Plate 33 - 35
B468 3149 Spring Clutch - End Fence 33 - 21
B468 3151 Sensor Lever 33 - 23
B468 3152 Lever Stay 33 - 9
B468 3153 Torsion Spring 33 - 34
B468 3161 Upper End Fence 33 - 3
B468 3168 Rack 33 - 6
B468 3175 Cover - Paper Height Sensor 33 - 24
B468 3181 Stay 35 - 19
B468 3181 Stay 33 - 14
B468 3187 Bracket - Hp Sensor 43 - 3
B468 3192 Lower Bracket 43 - 10
B468 3211 Shift Tray 7 - 22
B468 3215 Support Tray 7 - 24
B468 3218 Slide Tray 7 - 23
B468 3221 Lower Holder - Front 35 - 23
B468 3223 Lower Holder - Rear 35 - 20
B468 3226 Lower Stay 35 - 22
B468 3231 Front Stopper 35 - 21
B468 3232 Rear Stopper 35 - 24
B468 3242 Arm Stay 35 - 26
B468 3245 Arm 35 - 15
B468 3251 Arm Plate 35 - 29

Description

Page and
Index No.

B468/B469 3 Parts Index

Part No.

B468 3252 Roller - M6 35 - 28
B468 3261 Tension Spring 35 - 27
B468 3272 Sensor Bracket 43 - 1
B468 3311 Support Tray 45 - 1
B468 3411 End Fence 37 - 1
B468 3421 Small End Fence 37 - 22
B468 3431 Middle Sensor Bracket 37 - 13
B468 3511 Drive Shaft 35 - 32
B468 3515 Long Spacer - MM10 35 - 3
B468 3516 Short Spacer - MM10 35 - 33
B468 3521 Lower Motor Bracket 39 - 14
B468 3526 Encoder Bracket 39 - 9
B468 3528 Shaft - Pulley T48P2M 39 - 10
B468 3529 Timing Belt - 164P2M4 39 - 11
B468 3531 Tightener 35 - 14
B468 3541 Tightener Bracket 35 - 7
B468 3551 Timing Belt - 1615P5M6 35 - 12
B468 3561 Lower Stay 39 - 20
B468 3611 Upper Shaft 35 - 31
B468 3613 Timing Pulley - T30P3M 35 - 10
B468 3614 Gear - Z49 35 - 8
B468 3615 Pulley - M9 35 - 1
B468 3622 Upper Motor Bracket 39 - 27
B468 3623 Upper Stud 39 - 26
B468 3631 Rear Tightener 35 - 9
B468 3641 Front Tightener 35 - 16
B468 3651 Timing Belt - 804P3M6 35 - 11
B468 3712 End Fence 37 - 24
B468 3716 Torsion Spring 37 - 23
B468 3811 Pressure Plate Bracket 37 - 12
B468 3815 Stopper - Pressure Plate 37 - 36
B468 3831 Bracket 37 - 6
B468 3835 Pressure Plate Cam 37 - 3
B468 3841 Pressure Plate 37 - 2
B468 3845 Slide Shaft 37 - 10

Page and
Index No.

Part No.Description

B468 3848 Shaft 37 - 8
B468 3849 Tension Spring 37 - 5
B468 3851 End Fence Cover 37 - 14
B468 4111 Stapler Tray 23 - 11
B468 4115 Guide Film (B468) 21 - 18
B468 4116 Middle Stapler Film 21 - 22
B468 4117 Shaft - M6x24 23 - 10
B468 4118 Upper Mylar - Stapler 21 - 19
B468 4119 Front Mylar - Stapler 21 - 30
B468 4122 Stapler Stay 23 - 5
B468 4126 Entrance Mylar 25 - 5
B468 4127 Small Stay 25 - 9
B468 4128 Stapler Guide 25 - 8
B468 4129 Upper Cover 25 - 10
B468 4136 Middle Mylar 25 - 4
B468 4139 Jogger Fence Mylar 25 - 7
B468 4142 Exit Belt 23 - 8
B468 4144 Exit Belt Pawl 23 - 7
B468 4146 Exit Belt Guide 23 - 1
B468 4149 Stapler Tray Bracket 21 - 25
B468 4152 Standard Fence 21 - 20
B468 4154 Fence Slider 21 - 28
B468 4156 Standard Fence 21 - 27
B468 4157 Guide Mylar 21 - 26
B468 4158 Guide Rod 21 - 24
B468 4161 Drive Shaft 23 - 12
B468 4172 Sensor Bracket 23 - 3
B468 4211 Front Side Plate (B468) 25 - 1
B468 4212 Front Side Plate (B469) 25 - 1
B468 4221 Rear Side Plate (B468) 25 - 15
B468 4222 Rear Side Plate (B469) 25 - 15
B468 4231 Slide Rail Stay 25 - 2
B468 4312 Rear Jogger Fence 21 - 21
B468 4322 Front Jogger Fence 21 - 3
B468 4325 Long Shaft 21 - 5

Description

Page and
Index No.

B468/B469 4 Parts Index

Part No.

B468 4326 Short Shaft 21 - 15
B468 4327 Bushing 21 - 2
B468 4328 Jogger Guide 21 - 6
B468 4331 Rear Mylar 21 - 23
B468 4332 Front Mylar 21 - 4
B468 4335 Protect Bracket 21 - 1
B468 4341 Motor Bracket 23 - 14
B468 4371 Timing Belt - 900P2M4 21 - 8
B468 4381 Stopper - Timing Belt 21 - 7
B468 4511 Fix Bracket 27 - 16
B468 4513 Stapler Guide 27 - 17
B468 4516 Inner Cover 27 - 21
B468 4521 Turn Bracket 27 - 15
B468 4531 Moving Bracket 27 - 29
B468 4538 Standard Fence Plate 27 - 30
B468 4546 Hp Sensor Bracket 27 - 33
B468 4551 Stapler Stay 27 - 3
B468 4555 Stapler Guide Rod 27 - 13
B468 4611 Drive Roller 31 - 19
B468 4615 Drive Roller 31 - 16
B468 4617 Roller Bracket 31 - 3
B468 4621 Roller Arm 31 - 8
B468 4622 Short Roller Arm 31 - 7
B468 4623 Roller Shaft 31 - 9
B468 4624 Gear - 18Z 31 - 6
B468 4635 Bracket 31 - 11
B468 4640 Stepper Motor 31 - 10
B468 4651 Drive Gear 31 - 5
B468 4652 Pulley - T20P5MZ20 31 - 13
B468 4653 Timing Belt - 215P5M6 31 - 15
B468 4654 Timing Belt - 255P5M6 31 - 12
B468 4659 Idler Pulley - T1226P5M 31 - 14
B468 4662 Guide Plate 31 - 18
B468 4663 Guide Film 31 - 20
B468 4666 Roller Guide Plate 31 - 4

Page and
Index No.

Part No.Description

B468 4671 Knob 29 - 3
B468 4691 Tension Spring 31 - 2
B468 4711 Bracket 29 - 12
B468 4715 Guide Shaft 29 - 13
B468 4732 Shielding Plate Bracket 29 - 20
B468 4742 Drive Gear 29 - 19
B468 4743 Link Shaft 29 - 21
B468 4744 Drive Shaft 29 - 22
B468 4745 Middle Gear 29 - 17
B468 4751 Stepper Motor Bracket 29 - 15
B468 4757 Gear - Z14 29 - 14
B468 4761 Drive Link 29 - 10
B468 4766 Tightener 27 - 5
B468 4771 Slide Guide 29 - 11
B468 4781 Sensor Bracket 25 - 13
B468 4785 Knob 29 - 2
B468 4791 Guide Plate 29 - 23
B468 4792 Mylar Guide 29 - 4
B468 4811 Motor Bracket 23 - 17
B468 4816 Timing Belt - 310P2M4 23 - 16
B468 4911 Front Inner Cover 29 - 9
B468 5111 Main Control Board (B468) 43 - 12
B468 5123 EPROM - Main Control 51 - 1
B468 5123 EPROM - Main Control 57 - 1
B468 5200 Main Control Board 51 - *
B468 5410 Main Motor Harness 43 - 13
B468 5420 Main Sensor Harness (B468) 43 - 9
B468 5421 Lower Harness 37 - 15
B468 5422 Exit Harness 11 - 4
B468 5422 Exit Harness 13 - 22
B468 5423 Guide Harness 13 - 4
B468 5430 Motor Harness - Stapler Unit (B468) 43 - 16
B468 5440 Sensor Harness - Stapler Unit (B468) 43 - 17
B468 5441 Relay Harness - Stapler 25 - 11
B468 5442 Relay Harness - Stapler Cartridge 25 - 3

Description

Page and
Index No.

B468/B469 5 Parts Index

Part No.

B468 5443 Relay Harness - Stapler Unit 21 - 17
B468 5444 Relay Harness - Stapler Tray 27 - 1
B468 5450 Stapler Harness 27 - 23
B468 5460 Harness - Punch Unit 43 - 15
B468 5470 Upper Tray Harness 33 - 12
B468 5473 Lower Motor Harness 37 - 33
B468 5474 Lower Tray Harness 35 - 17
B468 5476 Switch Harness 37 - 7
B468 5477 Relay Harness 33 - 11
B468 5478 Upper Motor Harness (B468) 43 - 20
B468 5481 Interface Harness 43 - 19
B468 5490 Interface Harness - Option 43 - 14
B468 5495 Relay Harness - Paper Exit 15 - 6
B468 5750 Stepper Motor 41 - 4
B468 5750 Stepper Motor 39 - 24
B468 5750 Stepper Motor 45 - 10
B468 5755 Stepper Motor 39 - 6
B468 5760 Stepper Motor 23 - 18
B468 5770 Stepper Motor 29 - 16
B468 5991 Harness Bracket 43 - 5
B468 5992 Board Bracket 43 - 11
B468 5993 Harness Bracket - Shift Tray 43 - 4
B468 5994 Interface Bracket 43 - 18
B468 5995 Connector Bracket 39 - 12
B468 5998 Connector Cover 39 - 33
B468 6200 Stapler 25 - 6
B468 6411 Adjusting Pin - Booklet Stapler 25 - 19
B468 6511 Spacer Cushion - 20mm 7 - 10
B468 7801 Decal - R7 59 - 7
B468 7801 Decal - R7 29 - 6
B468 7802 Decal - R8 59 - 8
B468 7802 Decal - R8 29 - 5
B468 7803 Decal - R9 (B468) 29 - 8
B468 7803 Decal - R9 59 - 9
B468 7804 Decal - S2 29 - 7

Page and
Index No.

Part No.Description

B468 7804 Decal - S2 59 - 10
B468 7805 Decal - S1 27 - 22
B468 7805 Decal - S1 59 - 11
B468 7806 Decal - Misfeed Removal 59 - 12
B468 7806 Decal - Misfeed Removal (B468) 7 - 14
B468 7807 Decal - Staple Exchange 59 - 13
B468 7807 Decal - Staple Exchange 7 - 16
B468 7812 Caution Decal - Tray Fall 7 - 5
B468 7812 Caution Decal - Tray Fall 59 - 14
B468 7813 Decal - Tray Rise 7 - 25
B468 7813 Decal - Tray Rise 59 - 15
B469 1412 Slide Rail Bracket 45 - 2
B469 1631 Rear Cover (B469) 7 - 1
B469 1641 Left Upper Cover 33 - 1
B469 1642 Mylar - Left Upper Cover 33 - 2
B469 1732 Cover Bracket 39 - 32
B469 2891 Actuator - Paper Height Sensor 13 - 32
B469 2892 Bracket - Paper Height Sensor 13 - 29
B469 2894 Paper Sensor Bracket - Surface 13 - 35
B469 2895 Feeler Torsion Spring 13 - 31
B469 4115 Guide Mylar (B469) 21 - 18
B469 4133 Guide Plate - Stapler Tray 25 - 17
B469 4134 Guide Mylar - Stapler Tray 25 - 18
B469 5111 Main Control Board (B469) 43 - 12
B469 5200 Main Control Board 57 - *
B469 5420 Main Sensor Harness (B469) 43 - 9
B469 5424 Relay Harness 13 - 30
B469 5430 Motor Harness - Stapler Unit (B469) 43 - 16
B469 5440 Sensor Harness - Stapler Unit (B469) 43 - 17
B469 5472 Switch Harness (B469) 43 - 20
B469 7808 Decal - Misfeed Removal (B469) 7 - 14
B469 7808 Decal - Misfeed Removal 59 - 16
B469 7813 Decal - R7 (B469) 29 - 8
B469 7813 Decal - R7 59 - 9

Description

Page and
Index No.

B468/B469 6 Parts Index

Part No.

A232 3562 Ball Bearing - 6x12x4mm 39 - 13
A300 2132 Guide Roller 27 - 34
A300 3151 Support Bracket 25 - 12
A300 3759 Spring 21 - 29
A300 3812 Spacer - 6x22x1.5 27 - 11
A300 3851 Positioning Roller Bracket 19 - 18
A300 3865 Release Spring 41 - 20
A353 2763 Washer - M5 23 - 6
A353 3113 Pressure Spring 39 - 19
A353 3172 Actuator Bracket 13 - 28
A376 1343 Original Pressure Roller 27 - 25
A379 2115 Reverse Roller 37 - 26
A458 2251 Cushion - Bin Solenoid Lever 17 - 19
A458 2251 Cushion - Bin Solenoid Lever 15 - 16
A458 2251 Cushion - Bin Solenoid Lever 11 - 9
A566 3741 Worm Pulley 39 - 25
A566 3751 Gear - 18Z 39 - 28
A566 3752 Gear - 25Z 39 - 29
A566 3753 Pressure Spring 39 - 31
A608 2813 Positioning Roller Arm 19 - 9
A608 2816 Positioning Roller Shaft 19 - 15
A612 2435 Support Plate 17 - 6
A666 1315 Slide Rail 45 - 5
A666 3180 Timing Pulley - Z32 23 - 9
A666 3270 Pulley - Z40 23 - 15
A680 1181 Magnetic Catch 15 - 22
A681 2416 Antistatic Brush 31 - 17
A697 1117 Base Plate Cap 45 - 6
A697 1120 Slide Rail 45 - 3
A697 1125 Stepped Screw - Lever 31 - 1
A697 1125 Stepped Screw - Lever 41 - 13
A697 1125 Stepped Screw - Lever 27 - 7
A697 1125 Stepped Screw - Lever 9 - 18

Page and
Index No.

Part No.Description

A697 1125 Stepped Screw - Lever 15 - 28
A697 1125 Stepped Screw - Lever 29 - 1
A697 1127 Joint Lever 9 - 17
A697 1144 Rear Joint Bracket 7 - 8
A697 1151 Hopper Bracket 9 - 15
A697 1153 Front Joint Bracket 7 - 9
A697 1518 Spring - Oil Blade 21 - 11
A697 1518 Spring - Oil Blade 27 - 6
A697 1518 Spring - Oil Blade 41 - 12
A697 1605 Spacer - 6x10x15.2mm 15 - 27
A697 1605 Spacer - 6x10x15.2mm 17 - 2
A697 1605 Spacer - 6x10x15.2mm 13 - 25
A697 1606 Spacer - 6x12x2.7mm 15 - 24
A697 2131 Antistatic Brush 23 - 4
A697 2131 Antistatic Brush 19 - 27
A697 2132 Joint - Brush Roller 19 - 4
A697 2138 Brush Roller 19 - 5
A697 2140 Upper Entrance Guide 15 - 21
A697 2144 Pressure Spring 15 - 23
A697 2145 Entrance Sensor Bracket 9 - 11
A697 2150 Lower Entrance Guide 9 - 10
A697 2187 Pressure Spring - 14.1mm 15 - 12
A697 2210 Lower Guide - Proof Tray 15 - 2
A697 2260 Pulley - 17T 19 - 17
A697 3135 Gear - 18Z 39 - 17
A697 3140 Gear - 30Z 39 - 18
A697 3145 Gear - 36Z/18Z 39 - 23
A697 3170 Gear - 42Z 35 - 4
A697 3180 Pulley - 18T 35 - 5
A697 3185 Pulley - 18T 35 - 13
A697 3215 Pulley - 19T 27 - 36
A697 3220 Timing Belt - B40S2M112 27 - 37
A697 4140 Sector Gear - 144Z 27 - 24
A697 4170 Pulley - 32T 21 - 9
A697 5500 Decal - Replacement R4 17 - 11

Description

Page and
Index No.

B468/B469 7 Parts Index

Part No.

A697 5500 Decal - Replacement R4 59 - 1
A859 3420 Middle Driven Roller 9 - 7
A859 3425 Spring Plate 9 - 5
B302 1163 Grounding Plate 7 - 7
B302 1164 Grounding Plate Bracket 7 - 6
B302 2216 Exit Guide - Upper Exit Guide 15 - 8
B302 2317 Timing Pulley - 20Z 37 - 29
B302 2318 Timing Pulley - 28Z 37 - 20
B302 2319 Stopper Ring 37 - 21
B302 2413 Brush Roller 19 - 3
B302 2451 Lower Guide Plate 19 - 23
B302 2459 Spring - 5x39mm 19 - 24
B302 4256 Timing Pulley - 20Z/40Z 27 - 10
B302 4259 Timing Belt - 195PM6 27 - 9
B302 4292 Belt Holder 27 - 32
B302 4293 Belt Holder Bracket 27 - 31
B302 4756 Timing Belt - 753P3M6 27 - 12
B302 7701 Decal - R1 15 - 18
B302 7701 Decal - R1 59 - 2
B302 7702 Decal - R2 9 - 3
B302 7702 Decal - R2 59 - 3
B302 7703 Decal - R3 59 - 4
B302 7703 Decal - R3 11 - 11
B302 7706 Decal - R6 19 - 25
B302 7706 Decal - R6 59 - 5
B312 1521 Timing Pulley - 20T 17 - 3
B312 1524 Motor Bracket 41 - 2
B312 1600 Tightener 41 - 14
B312 1610 Tightener 41 - 15
B312 1615 Tension Roller 41 - 22
B312 2100 Pre-stack Gate 17 - 18
B312 2166 Vertical Guide 17 - 20
B312 2171 Middle Guide - Vertical Transport 17 - 15
B312 2172 Driven Roller 17 - 14
B312 2173 Support Plate 17 - 17

Page and
Index No.

Part No.Description

B312 2174 Pressure Spring - 12mm 17 - 12
B312 2176 Transport Roller 17 - 24
B312 4140 Stepping Motor - 8.0W 23 - 13
B312 5700 Decal - R5 59 - 6
B312 5700 Decal - R5 17 - 16
B352 1135 Bracket - Harness Clamp 43 - 8
B352 2500 Support Guide - Punch Unit 9 - 19
B352 2610 Shift Transport Roller 9 - 14
B352 2610 Shift Transport Roller 17 - 21
B352 4261 Tightener - Exit Belt 21 - 14
B352 4318 Bushing - Lower Slider 27 - 28
B352 4379 Lower Guide Plate 27 - 18
B352 7507 Punch Screw 9 - 20
B408 1413 Coupling Stay 15 - 15
B408 1413 Coupling Stay 9 - 16
B408 1413 Coupling Stay 19 - 29
B408 2173 Slide Roller 11 - 15
B408 2174 Spring 11 - 14
B408 2175 Bushing - Roller Slide 11 - 13
B408 2191 Guide Plate - Connecting Lower 9 - 13
B408 2311 Slide Roller 13 - 17
B408 2312 Bushing - Roller Slide 13 - 1
B408 2314 Arm - Roller Slide 13 - 24
B408 4223 Belt Tensioner - Stapler 21 - 10
B408 5520 Stepper Motor 39 - 5
B408 5520 Stepper Motor 13 - 7
B408 5520 Stepper Motor 27 - 26
B408 5530 Stepper Motor - 11W 37 - 4
B478 2116 Reverse Roller - Stapler Tray 19 - 13
C101 2360 Snap Ring 17 - 5
C203 5135 Bushing - 10x14x5.9 35 - 2
G012 1531 Magnet 11 - 16
G012 1531 Magnet 15 - 19
G020 2630 Magnetic Catch 7 - 17
G020 4429 Exit Sensor 23 - 2

Description

Page and
Index No.

B468/B469 8 Parts Index

Part No.

G518 1237 Sheet - Shielding Plate 33 - 36
G565 4377 Upper Entrance Guide 27 - 19
H521 1311 Busing 39 - 21

Page and
Index No.

Part No.Description

AA04 3054 Timing Belt - 142 P2M4 13 - 15
AA04 3054 Timing Belt - 142 P2M4 39 - 2
AA04 3181 Timing Belt - B40S2M80 37 - 19
AA06 0092 Release Spring 41 - 10
AA06 3529 Pressure Spring - 14.5mm 17 - 7
AA06 3529 Pressure Spring - 14.5mm 19 - 22
AA06 3529 Pressure Spring - 14.5mm 11 - 12
AA08 0238 Bushing - M6 17 - 25
AA08 0242 Bushing - 4mm 17 - 13
AA10 0006 Nut - M3.6 39 - 34
AA12 0099 Antistatic Brush - 320mm 15 - 9
AA12 0099 Antistatic Brush - 320mm 19 - 26
AA13 2024 Spacer - M6 27 - 14
AA16 1099 Lever Cushion 19 - 8
AB01 3709 Worm Gear 39 - 16
AB03 0278 Idler - 20Z 27 - 8
AB03 0374 Timing Pulley - 20Z 13 - 23
AB03 0374 Timing Pulley - 20Z 15 - 25
AF02 2147 Driven Roller 11 - 19
AF02 2147 Driven Roller 15 - 13
AF02 2147 Driven Roller 17 - 8
AF02 2147 Driven Roller 19 - 21
AG07 0014 Magnet Catch 9 - 4
AG07 0014 Magnet Catch 11 - 17
AG07 1010 Magnet Catch 17 - 10
AG07 1010 Magnet Catch 25 - 16
AH01 2019 Caster 45 - 7
AJ01 1018 Stapler 27 - 20
AW01 0057 Registration Sensor 11 - 3
AW01 0057 Registration Sensor 21 - 13
AW01 0057 Registration Sensor 13 - 20
AW01 0088 Sensor GP2A200LCS - Assembly 33 - 18
AW01 0088 Sensor GP2A200LCS - Assembly 35 - 30

Description

Page and
Index No.

B468/B469 9 Parts Index

Part No.

AW01 0089 Photosensor - GP2A28C 9 - 9
AW02 0049 Photointerrupter - OS - 580213-703 19 - 30
AW02 0049 Photointerrupter - OS - 580213-703 15 - 5
AW02 0079 Photointerrupter 15 - 3
AW02 0086 Photointerrupter 25 - 14
AW02 0086 Photointerrupter 43 - 2
AW02 0086 Photointerrupter 13 - 5
AW02 0086 Photointerrupter 39 - 3
AW02 0086 Photointerrupter 37 - 9
AW02 0086 Photointerrupter 33 - 10
AW02 0086 Photointerrupter 27 - 4
AW02 0086 Photointerrupter 21 - 16
AW02 0129 Overflow Photointerrupter 37 - 11
AW02 0129 Overflow Photointerrupter 33 - 5
AX04 0121 Stepping Motor - DC 6.5W 41 - 3
AX05 0148 Stepper Motor 27 - 2
AX05 0183 DC Motor - 8.9W 39 - 22
AX06 0234 DC Motor - 25.1W 39 - 15
AX11 0066 DC Solenoid - 24V 5.76W 33 - 32

Page and
Index No.

Part No.Description

0242 0035B Pan Head Screw - M2x3.5 23 -104
0313 0030B Philips Pan Head Screw - M3x3 41 -110
0313 0040B Philips Pan Head Screw - M3x4 33 -102
0313 0040B Philips Pan Head Screw - M3x4 41 -103
0313 0040B Philips Pan Head Screw - M3x4 15 -102
0313 0050B Philips Pan Head Screw - M3x5 39 -107
0313 0060B Philips Pan Head Screw - M3x6 35 -102
0313 0060B Philips Pan Head Screw - M3x6 33 -103
0313 0100B Philips Pan Head Screw - M3x10 9 -102
0313 0120B Philips Pan Head Screw - M3x12 39 -108
0313 0120B Philips Pan Head Screw - M3x12 37 -109
0313 0120B Philips Pan Head Screw - M3x12 13 -105
0450 3008B Tapping Screw - M3x8 21 -101
0450 3008B Tapping Screw - M3x8 17 -102
0450 3008B Tapping Screw - M3x8 25 -101
0450 3008B Tapping Screw - M3x8 29 -102
0450 3008B Tapping Screw - M3x8 19 -102
0450 3008B Tapping Screw - M3x8 35 -103
0450 3008B Tapping Screw - M3x8 7 -102
0451 3006B Tapping Screw - M3x6 31 -105
0451 3006B Tapping Screw - M3x6 33 -108
0451 3006B Tapping Screw - M3x6 29 -101
0451 3006B Tapping Screw - M3x6 35 -105
0451 3006B Tapping Screw - M3x6 27 -103
0451 3006B Tapping Screw - M3x6 37 -103
0451 3006B Tapping Screw - M3x6 7 -101
0451 3006B Tapping Screw - M3x6 25 -102
0451 3006B Tapping Screw - M3x6 39 -101
0451 3006B Tapping Screw - M3x6 41 -104
0451 3006B Tapping Screw - M3x6 23 -103
0451 3006B Tapping Screw - M3x6 45 -101
0451 3006B Tapping Screw - M3x6 19 -101
0451 3006B Tapping Screw - M3x6 43 -101

Description

Page and
Index No.

B468/B469 10 Parts Index

Part No.

0451 3006B Tapping Screw - M3x6 17 -101
0451 3006B Tapping Screw - M3x6 9 -101
0451 3006B Tapping Screw - M3x6 11 -101
0451 3006B Tapping Screw - M3x6 13 -102
0451 3006B Tapping Screw - M3x6 15 -101
0451 3008B Tapping Screw - M3x8 41 -105
0451 3008H Tapping Screw - M3x8 35 -101
0451 3008H Tapping Screw - M3x8 33 -101
0451 3008H Tapping Screw - M3x8 7 -103
0451 4006B Tapping Screw - 4x6 39 -114
0451 4008B Philips Tapping Screw - M4x8 31 -104
0451 4008H Tapping Screw - 4x8 7 -104
0451 4014B Tapping Screw - M4x14 7 -105
0452 3006B Tapping Screw - M3x6 27 -102
0453 3006B Tapping Screw - M3x6 45 -104
0453 3006B Tapping Screw - M3x6 41 -106
0574 0040E Hexagon Headless Set Screw - M4x4 39 -104
0623 0100E Spring Pin - 3x10mm 33 -104
0623 0120E Spring Pin - M3x12 19 -107
0632 0120G Parallel Pin - 2x12 35 -109
0633 0120G Parallel Pin - 3x12 37 -104
0634 0200G Parallel Pin - 4x20 35 -107
0711 0020B Nut Plate Switch(100 Pcs/1 Set) 23 -105
0720 0030B Retaining Ring - M3 37 -108
0720 0040B Retaining Ring - M4 29 -103
0720 0040B Retaining Ring - M4 39 -109
0720 0040B Retaining Ring - M4 35 -110
0720 0040B Retaining Ring - M4 11 -103
0720 0040B Retaining Ring - M4 33 -105
0720 0040B Retaining Ring - M4 19 -104
0720 0040B Retaining Ring - M4 9 -106
0720 0040B Retaining Ring - M4 17 -103
0720 0040B Retaining Ring - M4 13 -103
0720 0040B Retaining Ring - M4 21 -102
0720 0040B Retaining Ring - M4 31 -103

Page and
Index No.

Part No.Description

0720 0040B Retaining Ring - M4 37 -106
0720 0040B Retaining Ring - M4 23 -101
0720 0040B Retaining Ring - M4 27 -104
0720 0060B Retaining Ring - M6 27 -106
0720 0060B Retaining Ring - M6 39 -105
0720 0060B Retaining Ring - M6 33 -106
0720 0060B Retaining Ring - M6 35 -108
0720 0060B Retaining Ring - M6 37 -105
0720 0060B Retaining Ring - M6 31 -102
0720 0060B Retaining Ring - M6 29 -105
0741 3506 Ball Bearing - 6x12x4 Mm 19 -105
0741 3506 Ball Bearing - 6x12x4 Mm 17 -104
0741 3506 Ball Bearing - 6x12x4 Mm 15 -103
0741 3506 Ball Bearing - 6x12x4 Mm 9 -107
0741 3506 Ball Bearing - 6x12x4 mm 13 -104
0741 3808 Ball Bearing - 8x16x5mm 31 -101
0802 5276 Tapping Screw With Washer - M3x6 35 -104
0802 5276 Tapping Screw With Washer - M3x6 33 -109
0802 5276 Tapping Screw With Washer - M3x6 9 -105
0802 5277 Tapping Screw 45 -102
0804 6075 Hexagonal Bolt - M3x8 25 -103
0804 6075 Hexagonal Bolt - M3x8 21 -103
0805 0088 Retaining Ring - M6 19 -106
0805 0088 Retaining Ring - M6 35 -111
0805 0089 Retaining Ring - M4 9 -104
0805 0089 Retaining Ring - M4 17 -105
0805 0089 Retaining Ring - M4 19 -103
0805 0089 Retaining Ring - M4 11 -102
0805 0089 Retaining Ring - M4 15 -106
0805 3383 Bushing - M5 39 -110
0805 3385 Bushing - 6mm 23 -106
0807 4118 Flat Washer 39 -111
0807 5056 Washer - 8.1mm 39 -106
1101 0328 Connector Pin Contact 57 -101
1101 0328 Connector Pin Contact 51 -101

Description

Page and
Index No.

B468/B469 11 Parts Index

Part No.

1102 4201 Connector - 2P 51 -102
1102 4201 Connector - 2P 57 -102
1102 4202 Connector - 3P 57 -103
1102 4202 Connector - 3P 51 -103
1102 4203 CT Header - 4P 57 -104
1102 4203 CT Header - 4P 51 -104
1102 4205 CT Header - 6P 57 -105
1102 4205 CT Header - 6P 51 -105
1102 4206 Connector - 7P 57 -106
1102 4206 Connector - 7P 51 -106
1102 4207 Connector - 8P 51 -107
1102 4207 Connector - 8P 57 -107
1102 4208 Connector - 9P 51 -108
1102 4208 Connector - 9P 57 -108
1102 4209 CT Header - 10P 51 -109
1102 4209 CT Header - 10P 57 -109
1102 4210 Connector - 11P 51 -110
1102 4210 Connector - 11P 57 -110
1102 4212 CT Header - 15P 57 -111
1102 4212 CT Header - 15P 51 -111
1102 4497 Connector - 13P 51 -112
1102 4497 Connector - 13P 57 -112
1102 4619 Connector - 2P 51 -113
1102 4620 CT Header - 3P 51 -114
1102 4623 CT Connector - 6P 51 -115
1102 4624 CT Connector - 7P 57 -113
1102 4624 CT Connector - 7P 51 -116
1102 4626 Connector - 9P 51 -117
1102 4636 CT Connector 51 -118
1102 4636 CT Connector 57 -114
1102 4637 CT Connector - 8P 51 -119
1102 4637 CT Connector - 8P 57 -115
1102 5007 CT Header - 14P 51 -120
1102 5007 CT Header - 14P 57 -116
1102 5301 Connector - 2P 57 -117

Page and
Index No.

Part No.Description

1102 5301 Connector - 2P 51 -121
1102 5302 Connector - 3P 51 -122
1102 6295 Connector - 2P 57 -118
1102 6295 Connector - 2P 51 -123
1102 6301 Connector - 8P 51 -124
1102 6301 Connector - 8P 57 -119
1102 6302 Connector - 9P 57 -120
1102 6302 Connector - 9P 51 -125
1102 6315 Connector - 8P 57 -121
1102 6315 Connector - 8P 51 -126
1102 6316 Connector - 9P 51 -127
1102 6316 Connector - 9P 57 -122
1102 6957 Connector - 14P BLUE 51 -128
1102 8534 Connector - QR/P17-14S-B 39 -113
1104 0333 Fuse Holder 51 -129
1104 0333 Fuse Holder 57 -123
1104 0589 DIP Socket - 32P 57 -124
1104 0589 DIP Socket - 32P 51 -130
1105 0109 Cord Keep 33 -112
1105 0231 Clamp 41 -109
1105 0328 Harness Clamp - ES-0505 33 -111
1105 0328 Harness Clamp - ES-0505 29 -104
1105 0328 Harness Clamp - ES-0505 41 -102
1105 0328 Harness Clamp - ES-0505 15 -104
1105 0334 Edge - 17 41 -101
1105 0487 Harness Clamp 23 -102
1105 0487 Harness Clamp 33 -107
1105 0487 Harness Clamp 13 -107
1105 0487 Harness Clamp 25 -104
1105 0487 Harness Clamp 43 -105
1105 0487 Harness Clamp 45 -107
1105 0487 Harness Clamp 39 -102
1105 0487 Harness Clamp 27 -101
1105 0487 Harness Clamp 37 -107
1105 0487 Harness Clamp 35 -106

Description

Page and
Index No.

B468/B469 12 Parts Index

Part No.

1105 0488 Harness Clamp 45 -106
1105 0488 Harness Clamp 41 -107
1105 0488 Harness Clamp 43 -103
1105 0488 Harness Clamp 25 -105
1105 0489 Harness Clamp - LWS 1316 45 -105
1105 0489 Harness Clamp - LWS 1316 25 -107
1105 0511 Harness Clamp - LWS-0306ZC 15 -105
1105 0511 Harness Clamp - LWS-0306ZC 13 -101
1105 0511 Harness Clamp - LWS-0306ZC 19 -108
1105 0511 Harness Clamp - LWS-0306ZC 9 -103
1105 0511 Harness Clamp - LWS-0306ZC 23 -107
1105 0511 Harness Clamp - LWS-0306ZC 37 -102
1105 0511 Harness Clamp - LWS-0306ZC 41 -108
1105 0511 Harness Clamp - LWS-0306ZC 43 -102
1105 0511 Harness Clamp - LWS-0306ZC 39 -103
1105 0511 Harness Clamp - LWS-0306ZC 27 -105
1105 0511 Harness Clamp - LWS-0306ZC 33 -110
1105 0514 Edge Saddle - EDS-0607l 25 -106
1106 0289 Bushing - SR-5N-1 43 -104
1107 1030 Fuse - 218005 57 -125
1107 1030 Fuse - 218005 51 -131
1204 1422 DIP Switch - 51D-0401 57 -126
1204 1422 DIP Switch - 51D-0401 51 -132
1204 2233 Microswitch - AH715254N 13 -106
1204 2233 Microswitch - AH715254N 37 -110
1204 2233 Microswitch - AH715254N 39 -112
1204 2384 Interlock Switch 45 -103
1204 2544 Switch - DE2L-BJ23 37 -101
1400 0398 Transistor - 2SC2412K 51 -133
1400 0398 Transistor - 2SC2412K 57 -127
1400 0711 Transistor - 2SB1241 51 -134
1400 0711 Transistor - 2SB1241 57 -128
1400 0747 Transistor - 2SD1863 51 -135
1400 0747 Transistor - 2SD1863 57 -129
1400 0748 Transistor - FMG1A 57 -130

Page and
Index No.

Part No.Description

1400 0748 Transistor - FMG1A 51 -136
1402 0557 Diode - HZ24PB 51 -137
1402 0557 Diode - HZ24PB 57 -131
1402 0828 Diode - ERB93-02 51 -138
1402 0828 Diode - ERB93-02 57 -132
1402 1506 Diode - ERA15-02 57 -133
1402 1506 Diode - ERA15-02 51 -139
1402 1507 Diode - UDZS8.2B 57 -134
1402 1507 Diode - UDZS8.2B 51 -140
1403 0519 Photocoupler - TLP621 51 -141
1403 0519 Photocoupler - TLP621 57 -135
1407 1596 TTLIC - SN74LS14NS 57 -136
1407 1596 TTLIC - SN74LS14NS 51 -142
1407 2218 TTLIC - SN74LS06NS 57 -137
1407 2218 TTLIC - SN74LS06NS 51 -143
1407 2219 IC - TD62003AP 57 -138
1407 2219 IC - TD62003AP 51 -144
1407 2231 IC - TD62308AF 57 -139
1407 2231 IC - TD62308AF 51 -145
1407 3519 HCMOSIC - 74HC4040 51 -146
1407 3519 HCMOSIC - 74HC4040 57 -140
1407 4726 IC - CXP2006M 57 -141
1407 4726 IC - CXP2006M 51 -147
1407 4754 IC - HD6413002F16 51 -148
1407 4754 IC - HD6413002F16 57 -142
1407 5387 IC - SN74LV04ANS 51 -149
1407 5387 IC - SN74LV04ANS 57 -143
1407 5393 IC - SN74LV541ANS 57 -144
1407 5393 IC - SN74LV541ANS 51 -150
1407 5415 IC - SN74LV32ANS 51 -151
1407 5415 IC - SN74LV32ANS 57 -145
1407 5744 IC - STK672-330 51 -152
1407 5744 IC - STK672-330 57 -146
1408 0827 IC - TA8429H 57 -147
1408 0827 IC - TA8429H 51 -153

Description

Page and
Index No.

B468/B469 13 Parts Index

Part No.

1408 1200 IC - STK681-050 57 -148
1408 1200 IC - STK681-050 51 -154
1408 1223 Detector - RN5VD42C 57 -149
1408 1223 Detector - RN5VD42C 51 -155
1408 1287 IC - SI-8501L 51 -156
1408 1287 IC - SI-8501L 57 -150
1503 0904 Ceramic Oscillator - 16MHz 57 -151
1503 0904 Ceramic Oscillator - 16MHz 51 -157
1601 5438 Resistor - 1K Ω ±5% 1/2W 57 -152
1601 5438 Resistor - 1K Ω ±5% 1/2W 51 -158
1601 7751 Resistor - 4.7KΩ ±5% 57 -153
1601 7751 Resistor - 4.7KΩ ±5% 51 -159
1601 7871 Resistor - 68Ω ±5% 1/16W 51 -160
1601 7871 Resistor - 68Ω ±5% 1/16W 57 -154
1604 4502 Capacitor - 330 µF ±20% 10V 57 -155
1604 4502 Capacitor - 330 µF ±20% 10V 51 -161
1607 0623 Ferrite Core - TFC-16-8-13 27 -107
1634 0000 Resistor - 0 Ω 1/16W 57 -156
1634 0000 Resistor - 0 Ω 1/16W 51 -162
1640 5100 Capacitor - 10µF +20% 50 51 -163
1640 5100 Capacitor - 10µF +20% 50 57 -157
1640 5101 Capacitor - 100µF ±20% 50V 51 -164
1640 5101 Capacitor - 100µF ±20% 50V 57 -158
1640 5109 Capacitor - 1µF - ±20% - 50V 57 -159
1640 5109 Capacitor - 1µF - ±20% - 50V 51 -165
1650 4100 Resistor - 10Ω ±5% 1/10W 51 -166
1650 4100 Resistor - 10Ω ±5% 1/10W 57 -160
1650 4101 Resistor - 100Ω±5%1/10W 51 -167
1650 4101 Resistor - 100Ω±5%1/10W 57 -161
1650 4102 Resistor - 1KΩ ±5% 1/10W 51 -168
1650 4102 Resistor - 1KΩ ±5% 1/10W 57 -162
1650 4103 Resistor - 10KΩ ±5% 1/10W 51 -169
1650 4103 Resistor - 10KΩ ±5% 1/10W 57 -163
1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W 51 -170
1650 4112 Chip Resistor - 1.1KΩ ±5% 1/10W 57 -164

Page and
Index No.

Part No.Description

1650 4122 Resistor - 1.2KΩ ±5% 1/10W 57 -165
1650 4122 Resistor - 1.2KΩ ±5% 1/10W 51 -171
1650 4153 Resistor - 15K Ω ±5% 1/10W 57 -166
1650 4153 Resistor - 15K Ω ±5% 1/10W 51 -172
1650 4161 Chip Resistor - 160Ω ±5% 1/10W 57 -167
1650 4161 Chip Resistor - 160Ω ±5% 1/10W 51 -173
1650 4202 Resistor - 2KΩ±5%1/10W 57 -168
1650 4202 Resistor - 2KΩ±5%1/10W 51 -174
1650 4222 Resistor - 2.2KΩ±5%1/10W 51 -175
1650 4222 Resistor - 2.2KΩ±5%1/10W 57 -169
1650 4223 Resistor - 22KΩ±5%1/10W 51 -176
1650 4223 Resistor - 22KΩ±5%1/10W 57 -170
1650 4330 Chip Resistor - 33Ω ±5% 1/10W 51 -177
1650 4330 Chip Resistor - 33Ω ±5% 1/10W 57 -171
1650 4332 Resistor - 3.3KΩ±5%1/10W 51 -178
1650 4332 Resistor - 3.3KΩ±5%1/10W 57 -172
1650 4361 Resistor - 360Ω±5%1/10W 57 -173
1650 4361 Resistor - 360Ω±5%1/10W 51 -179
1650 4362 Resistor - 3.6KΩ±5%1/10W 57 -174
1650 4362 Resistor - 3.6KΩ±5%1/10W 51 -180
1650 4472 Resistor - 4.7KΩ ±5% 1/10W 57 -175
1650 4472 Resistor - 4.7KΩ ±5% 1/10W 51 -181
1650 4561 Resistor - 560Ω ±5% 1/10W 57 -176
1650 4561 Resistor - 560Ω ±5% 1/10W 51 -182
1650 4562 Resistor - 5.6KΩ ±5% 1/10W 57 -177
1650 4562 Resistor - 5.6KΩ ±5% 1/10W 51 -183
1650 4680 Resistor - 68Ω±5%1/10W 51 -184
1650 4680 Resistor - 68Ω±5%1/10W 57 -178
1650 4681 Resistor - 680Ω ±5% 1/10W 51 -185
1650 4681 Resistor - 680Ω ±5% 1/10W 57 -179
1650 4751 Resistor - 750Ω ±5% 1/10W 51 -186
1650 4751 Resistor - 750Ω ±5% 1/10W 57 -180
1660 2101 Capacitor - 100pF - ±10% - 50V 51 -187
1660 2101 Capacitor - 100pF - ±10% - 50V 57 -181
1660 2221 Capacitor - 220pF +80-20% 50V 51 -188

Description

Page and
Index No.

B468/B469 14 Parts Index

Part No.

1660 2221 Capacitor - 220pF +80-20% 50V 57 -182
1660 2471 Capacitor - 470pF - ±5% - 50V 57 -183
1660 2471 Capacitor - 470pF - ±5% - 50V 51 -189
1660 4102 Capacitor - 1000pF ±10% 50V 57 -184
1660 4102 Capacitor - 1000pF ±10% 50V 51 -190
1660 4103 Capacitor - 10000pF - ±10% - 50V 57 -185
1660 4103 Capacitor - 10000pF - ±10% - 50V 51 -191
1660 8104 Capacitor - 0.1µF +80-20% 25V 57 -186
1660 8104 Capacitor - 0.1µF +80-20% 25V 51 -192

Page and
Index No.

Part No.Description

5053 0223 Bushing - 8mm 35 - 6
5053 0223 Bushing - 8mm 29 - 18
5053 0223 Bushing - 8mm 27 - 27
5053 0447 Bushing - 6mm 27 - 35
5053 0447 Bushing - 6mm 13 - 2
5053 0447 Bushing - 6mm 37 - 31
5053 0447 Bushing - 6mm 15 - 1
5053 0447 Bushing - 6mm 17 - 4
5053 0447 Bushing - 6mm 19 - 7
5053 0447 Bushing - 6mm 33 - 17
5053 0447 Bushing - 6mm 9 - 1
5447 2681 Snap Ring 37 - 35
5447 2681 Snap Ring 19 - 14
5447 2681 Snap Ring 21 - 12
5447 2681 Snap Ring 13 - 9
5875 2088 Shoulder Screw - M4 33 - 7
5875 2088 Shoulder Screw - M4 13 - 27
5919 2127 Positioning Roller Pulley 19 - 11
5919 2132 Positioning Roller Belt 19 - 12

Description

Page and
Index No.

B468/B469 15 Parts Index

B468/B469 16 Parts Index
