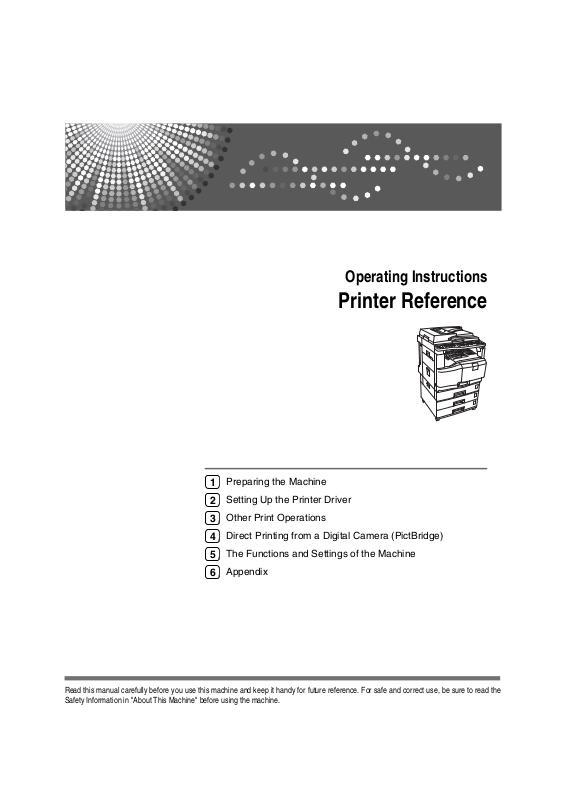

Page 1

Operating Instructions

Printer Reference

Preparing the Machine

Setting Up the Printer Driver

Other Print Operations

Direct Printing from a Digital Camera (PictBridge)

The Functions and Settings of the Machine

Appendix

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the

Safety Information in "About This Machine" before using the machine.

Page 2

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law:

bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its

completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.

Caution:

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Trademarks

Microsoft

, Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the

United States and/or other countries.

Adobe

, PostScript®, Acrobat®, PageMaker® and Adobe Type Manager are registered trademarks of

Adobe Systems Incorporated.

PCL

is a registered trademark of Hewlett-Packard Company.

Apple, AppleTalk, EtherTalk, Macintosh, Mac OS and True Type are trademarks of Apple Computer, Inc, registered in the U.S. and other countries.

Bonjour IPS-PRINT

is a trademark of Apple Computer Inc.

served. UNIX is a registered trademark in the United States and other countries, licensed exclusively through

X/Open Company Limited. The Bluetooth

word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks

by Ricoh Company, Ltd. is under license. NetWare is a registered trademark of Novell, Inc. UPnP is a trademark of the UPnP Implementers Corporation. PictBridge is a trademark. Other product names used herein are for identification purposes only and might be trademarks of their

respective companies. We disclaim any and all rights to those marks.

The proper names of the Windows operating systems are as follows:

• The product name of Windows

95 is Microsoft® Windows® 95

98 is Microsoft® Windows® 98

Me is Microsoft® Windows® Millennium Edition (Windows Me)

2000 are as follows: Microsoft® Windows® 2000 Professional Microsoft® Windows® 2000 Server Microsoft® Windows® 2000 Advanced Server

• The product name of Windows

XP are as follows: Microsoft® Windows® XP Home Edition Microsoft® Windows® XP Professional

• The product names of Windows Server

2003 are as follows: Microsoft® Windows ServerTM 2003 Standard Edition Microsoft® Windows ServerTM 2003 Enterprise Edition Microsoft® Windows ServerTM 2003 Web Edition

• The product name of Windows NT

4.0 are as follows: Microsoft® Windows NT® Workstation 4.0 Microsoft® Windows NT® Server 4.0

Notes

Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer.

Page 3

Manuals for This Machine

Refer to the manuals that are relevant to what you want to do with the machine.

❖ About This Machine

Be sure to read the Safety Information in this manual before using the machine. This manual provides an introduction to the functions of the machine. It also explains the control panel, preparation procedures for using the machine, how to enter text, and how to install the CD-ROMs provided.

❖ General Settings Guide

Explains User Tools settings, and Address Book procedures such as registering fax numbers, e-mail addresses, and user codes. Also refer to this manual for explanations on how to connect the machine.

❖ Trouble Shooting

Provides a guide to solving common problems, and explains how to replace paper, print cartridges, and other consumables.

❖ Security Reference

This manual is for administrators of the machine. It explains security functions that the administrators can use to protect data from being tampered, or prevent the machine from unauthorized use. Also refer to this manual for the procedures for registering administrators, as well as setting user and administrator authentication.

❖ Copy Reference

Explains Copier functions and operations. Also refer to this manual for explanations on how to place originals.

❖ Facsimile Reference

Explains Facsimile functions and operations.

❖ Printer Reference

Explains Printer functions and operations.

❖ Scanner Reference

Explains Scanner functions and operations.

❖ Network Guide

Explains how to configure and operate the machine in a network environment, and use the software provided. This manual covers all models, and includes descriptions of functions and settings that might not be available on this machine. Images, illustrations, and information about operating systems that are supported might also differ slightly from those of this machine.

Page 4

❖ Other manuals

• Manuals for This Machine

•Safety Information

• Quick Reference Copy Guide

• Quick Reference Fax Guide

• Quick Reference Printer Guide

• Quick Reference Scanner Guide

• PostScript 3 Supplement

•UNIX Supplement

• Manuals for DeskTopBinder Lite

• DeskTopBinder Lite Setup Guide

• DeskTopBinder Introduction Guide

•Auto Document Link Guide

Note

❒ Manuals provided are specific to machine types.

❒ Adobe Acrobat Reader/Adobe Reader must be installed in order to view the

manuals as PDF files.

❒ For “UNIX Supplement”, please visit our Web site or consult an authorized

dealer.

❒ “PostScript3 Supplement” and “UNIX Supplement” include descriptions of

functions and settings that might not be available on this machine.

Page 5

Manuals for This Machine ......................................................................................i

How to Read This Manual .....................................................................................1

Symbols .....................................................................................................................1

Display Panel..........................................................................................................2

Reading the Display and Using Keys.........................................................................3

Printer Features Menu ...........................................................................................4

Using the Bypass Tray ..........................................................................................8

Setting Paper on the Bypass Tray .............................................................................8

Setting the Paper Size and Paper Type of the Bypass Tray ....................................11

Using the One Sheet Bypass Tray .....................................................................16

Inserting Paper into the One Sheet Bypass Tray.....................................................16

Setting the Paper Size and Paper Type of the One Sheet Bypass Tray.................. 19

1. Preparing the Machine

Confirming the Connection Method...................................................................25

Network Connection.................................................................................................25

Local Connection .....................................................................................................28

Installing the Printer Driver.................................................................................29

Quick Install..............................................................................................................29

Installing the Printer Driver for the Selected Port.....................................................30

Using as a Windows Network Printer ................................................................40

Using as a NetWare Print Server / Remote Printer ...........................................42

Form Feed................................................................................................................44

Banner Page ............................................................................................................44

Printing after Resetting the Printer ...........................................................................44

Installing the Printer Driver Using USB .............................................................45

Windows Me - USB ..................................................................................................45

Windows 2000 - USB ...............................................................................................47

Windows XP, Windows Server 2003 - USB .............................................................48

Printing with Parallel Connection.......................................................................50

Installing the Printer Driver Using IEEE 1394 (SCSI print)...............................52

Windows 2000..........................................................................................................52

Windows XP, Windows Server 2003........................................................................54

Printing with Bluetooth Connection...................................................................56

Supported Profiles....................................................................................................56

Printing with Bluetooth Connection ..........................................................................57

Configuring Security Mode Settings.........................................................................58

Printing in the Security Mode ...................................................................................58

Making Option Settings for the Printer..............................................................59

Conditions for Bidirectional Communication ............................................................59

If Bidirectional Communication Is Disabled..............................................................61

Installing Font Manager 2000..............................................................................62

Using Adobe PageMaker Version 6.0, 6.5, or 7.0.............................................. 63

iii

Page 6

2. Setting Up the Printer Driver

PCL - Accessing the Printer Properties.............................................................65

Windows 95 / 98 / Me - Accessing the Printer Properties........................................65

Windows 2000 - Accessing the Printer Properties ...................................................67

Windows XP, Windows Server 2003 - Accessing the Printer Properties .................69

Windows NT 4.0 - Accessing the Printer Properties ................................................71

RPCS - Accessing the Printer Properties .......................................................... 73

Windows 95 / 98 / Me - Accessing the Printer Properties........................................73

Windows 2000 - Accessing the Printer Properties ...................................................75

Windows XP, Windows Server 2003 - Accessing the Printer Properties .................77

Windows NT 4.0 - Accessing the Printer Properties ................................................79

3. Other Print Operations

Printing a PDF File Directly.................................................................................81

Printing Method ........................................................................................................81

Using DeskTopBinder Lite .......................................................................................81

Using commands .....................................................................................................84

Unauthorized Copy Control ................................................................................85

Using [Data security for copying] .................................................................................86

Using [Mask type:] .....................................................................................................88

Important Notice.......................................................................................................89

Using the Print Job Function..............................................................................90

Printing from the Print Job Screen ....................................................................93

Sample Print.............................................................................................................93

Locked Print .............................................................................................................97

Hold Print ...............................................................................................................101

Stored Print ............................................................................................................104

Printing from the User ID Screen .....................................................................108

Printing the Selected Print Job...............................................................................108

Printing All Print Jobs .............................................................................................109

Form Feed...........................................................................................................111

Printing from a Selected Tray.................................................................................111

Canceling a Print Job .............................................................................................113

Canceling a Print Job ........................................................................................114

Canceling a Print Job Using the Control Panel ......................................................114

Windows - Canceling a Print Job from the computer.............................................115

Checking the Error Log .....................................................................................116

Spool Printing ....................................................................................................117

Collate .................................................................................................................118

Page 7

4. Direct Printing from a Digital Camera (PictBridge)

What is PictBridge? ...........................................................................................121

PictBridge Printing ............................................................................................122

What Can Be Done on This Machine................................................................124

Index Printing .........................................................................................................125

Trimming ................................................................................................................126

Date and File Name Printing ..................................................................................126

Paper Size..............................................................................................................127

Image Print Size.....................................................................................................128

Multi-Image-Layout ................................................................................................129

Printing Quality.......................................................................................................130

Color Matching .......................................................................................................130

Paper type Specification ........................................................................................131

Form Printing..........................................................................................................131

Camera Memo Printing ..........................................................................................131

Exiting PictBridge ..............................................................................................132

Other Reference Information ............................................................................133

5. The Functions and Settings of the Machine

Mainframe ...........................................................................................................135

Functions................................................................................................................135

Interface .................................................................................................................135

List of the Setting Items ....................................................................................136

Web Image Monitor................................................................................................136

telnet ......................................................................................................................141

Settings that can be used with PostScript 3...........................................................141

6. Appendix

Specifications.....................................................................................................143

Options...................................................................................................................145

INDEX....................................................................................................... 148

Page 8

Page 9

How to Read This Manual

Symbols

This manual uses the following symbols:

Indicates important safety notes.

Ignoring these notes could result in serious injury or death. Be sure to read these notes. They can be found in the “Safety Information” section of About This Machine.

Indicates important safety notes.

Ignoring these notes could result in moderate or minor injury, or damage to the machine or to property. Be sure to read these notes. They can be found in the “Safety Information” section of About This Machine.

Indicates points to pay attention to when using the machine, and explanations of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure to read these explanations.

Indicates supplementary explanations of the machine’s functions, and instructions on resolving user errors.

This symbol is located at the end of sections. It indicates where you can find further relevant information.

[ ]

Indicates the names of keys that appear on the machine’s display panel.

{ }

Indicates the names of keys on the machine’s control panel.

Page 10

Display Panel

This section describes configuration using the display panel when the printer function is selected.

AMO200S

1. Operational status or messages

Displays current machine status, such as “Ready”, “Offline”, and “Printing...”.

2. [JobReset]

Press to cancel the current print job. If you press it when the machine is offline and Hex Dump is selected, Hex Dump is canceled.

4. [Menu]

Press to display the menu to select the following options:

• [Show Error Log]

Displays the error logs of print jobs that are sent from a computer.

• [Form Feed]

Prints all the data left in the machine's input buffer.

3. [Prt.Jobs]

Press to display print jobs sent from a computer.

Note

❒ When the power is turned on, the copier display is shown. This is a factory

default. This initial setting can be changed. See “System Settings”, General Settings Guide.

Page 11

Reading the Display and Using Keys

This section explains how to read the display and using the selection key for the initial display.

AMO600S

1. Scroll keys

Press to move the cursor in each direction, step by step.

When the {U}, {T}, {V}, or {W} key appears in this manual, press the scroll key of the same direction.

2. {OK} key

Press to set a selected item or entered numeric value.

Note

3. {Escape} key

Press to cancel an operation or return to the previous display.

4. Selection keys

Correspond to the function items at the bottom line on the display. Example: Basic screen When the instruction “press [JobReset]” appears in this manual, press the left selection key.

❒ The Printer display is set as the default screen when the machine is turned on.

You can change the settings in [System Settings]. See General Settings Guide.

Page 12

Printer Features Menu

The following explains settings and meanings of functions on Printer Feature. Printer Feature screen appears when you press the {User Tools/Counter} key. For details, see “Printer Features”, General Settings Guide.

❖ List/Test Print

Menu Description

Multiple Lists You can print the configuration page and er-

ror log.

Config. Page You can print the machine's current configu-

ration values.

Error Log You can print error logs listing all errors that

occurred during printing.

Menu List You can print a Menu List showing the ma-

chine's function menus.

PCL Config./Font Page You can print the current configuration and

installed PCL font list.

PS Config./Font Page You can print the current configuration and

installed PostScript font list.

PDF Config./Font Page You can print the current configuration and

installed PDF font list.

This menu can be selected only when the optional PostScript 3 unit is installed.

Hex Dump You can print in the Hex Dump mode.

❖ Maintenance

Menu Description

Menu Protect This function lets you protect menu settings

from accidental change. It makes it impossible to change menu settings with normal procedures unless you perform the required key operations.

In a network environment, only administrators can make changes to menu settings.

List/Test Print Lock You can lock the [List/Test Print] menu.

Delete All Temporary Jobs You can delete all print jobs temporarily

stored in the machine.

Delete All Stored Jobs You can delete to delete all print jobs stored

in the machine.

Image Density You can adjust the image density.

Page 13

❖ System

Menu Description

Print Error Report You can print an error report when a printer

or memory error occurs.

Auto Continue You can select this to enable Auto Continue.

When it is On, printing continues after a system error occurs.

Memory Overflow Select this to have a memory overflow error

report printed.

Auto Delete Temporary Jobs You can select to automatically delete print

jobs temporarily stored in the machine.

Auto Delete Stored Jobs You can select to automatically delete print

jobs stored in the machine.

Memory Usage You can select the amount of memory used

in Font Priority or Frame Priority, according to paper size or resolution.

Duplex You can select to have print on both sides of

each page.

Copies You can specify the number of print sets.

This setting is disabled if the number of pages to print has been specified with the printer driver or another command.

Blank Page Print You can select whether or not to print blank

pages.

Printer Language You can specify the printer language.

Sub Paper Size You can enable the Auto Substitute Paper

Size (A4↔LT) feature.

Page Size You can select the default paper size.

Letterhead Setting You can rotate original images when printing.

When printing, original images are always rotated by 180 degrees. Therefore, output might not be as expected when printing onto letterhead or preprinted paper requiring orientation. Using this function, you can specify image rotation.

Bypass Tray Priority You can specify which of the two options,

(Printer) Driver / Command or Machine Settings, has priority for determining the paper size for the bypass tray.

Edge to Edge Print You can select whether or not to print on the

entire sheet.

Default Printer Lang. You can set the default printer language if

the machine cannot find the printer language automatically.

Tray Switching You can set to switch the paper tray.

RAM Disk You can change the settings of the RAM disk.

Page 14

❖ Host Interface

Menu Description

I/O Buffer You can set the size of the I/O Buffer. Nor-

mally it is not necessary to change this setting.

I/O Timeout You can set how many seconds the machine

should wait before ending a print job. If data from another port usually arrives in the middle of a print job, you should increase this timeout period.

❖ PCL Menu

Menu Description

Orientation You can set the page orientation.

Form Lines You can set the number of lines per page.

Font Source You can set the storage location of the de-

fault font.

Font Number You can set the ID of the default font you

want to use.

Point Size You can set the point size you want to use for

the selected font.

Font Pitch You can set the number of characters per

inch for the selected font.

Symbol Set You can specify the set of print characters for

the selected font. The available options are as follows:

Courier Font You can select a courier font type.

Ext. A4 Width You can extend the printing area width

when printing on A4 sheet with PCL.

Append CR to LF When set to On, a carriage return will follow

each line feed: CR=CR, LF=CR−LF, FF=CR−FF.

Resolution You can set the print resolution in dots per

inch.

❖ PS Menu (optional)

Menu Description

Data Format You can select a data format.

Resolution You can set the print resolution in dots per

inch.

Colour Setting You can make an RGB setting.

Colour Profile You can set the colour profile.

Page 15

❖ PDF Menu (optional)

Menu Description

Change PDF Password You can set the password for the PDF file ex-

ecuting PDF Direct Print.

PDF Group Password You can set the group password already

specified with DeskTopBinder Lite.

Resolution You can set the print resolution in dots per

inch.

Colour Setting You can make an RGB setting.

Colour Profile You can set the colour profile.

Note

❒ Depending on which optional units you have installed or the printer lan-

guage you have selected, some options are not displayed.

❒ Depending on the security settings, you might not be able to set certain op-

tions.

❒ If you are using the machine that does not have Function Upgrade Option

type C1500 installed, some options are not displayed.

Reference

For details, see “Printer Features”, General Settings Guide.

For more information about copier features and system settings, see Copy Reference and General Settings Guide.

Page 16

Using the Bypass Tray

Setting Paper on the Bypass Tray

This section gives instructions for setting paper on the bypass tray.

For details about paper size and paper type, see “Recommended Paper Sizes and Types”, About This Machine.

Important

❒ The following functions are disabled when printing from the bypass tray:

• Duplex printing

•Auto Tray Select

•Auto Tray Switching

• Rotating Collate

❒ When printing using the printer function, original images are always rotated

by 180 degrees (the orientation of images to be printed is opposite to that of the copier function). When printing onto paper with specific orientation requirements, such as envelopes and letterheads, be sure to rotate the paper feed orientation to 180 degrees.

❒ OHP transparencies cannot be printed from the bypass tray. Use the One

Sheet bypass tray.

❒ Paper that is thicker than 163 g/m

tray. Print from the One Sheet bypass tray when using paper of that thickness.

(max.) cannot be printed from the bypass

A Open the bypass tray.

ALZ023S

Page 17

B Lift up the paper guide release lever.

ALZ038S

C Adjust the paper guides to the paper size, and then gently insert paper face

up into the bypass tray.

ALZ024S

1. Extender

2. Paper guides

• Open out the extender to support paper sizes larger than A4 L, 8

• If the paper guides are not flush against the paper, skewing and misfeeds

might occur.

• Gently insert paper until it stops.

• Do not stack paper over the limit mark, otherwise a skewed image or mis-

feeds might occur.

• Fan the paper to get air between the sheets to avoid a multi-sheet feed.

/2 ×11

Page 18

D Push down the paper guide release lever.

ALZ039S

E Set the paper size using the printer driver or the control panel.

Note

❒ Paper within the following dimensions can be set in the bypass tray:

• Vertical: 90 - 305 mm (3.55 - 12 in.)

• Horizontal: 148 - 600 mm (5.83 - 23.62 in.)

❒ Be sure to set the paper with the side you want to print facing up in the by-

pass tray.

❒ The number of sheets that can be loaded in the bypass tray depends on the

paper type.

Reference

For details about setting the paper size, see p.11 “Setting the Paper Size and Paper Type of the Bypass Tray”.

For details about setting paper in the regular paper tray, see General Settings Guide.

When loading custom size paper, see p.12 “Setting Custom Size Paper”.

When loading thick paper (over 90.2 g/m and paper type. For details, see p.14 “Setting Thick Paper or Envelopes”.

When loading letterhead paper, pay attention to its orientation. See General Settings Guide.

) or envelopes, set paper size

Page 19

Setting the Paper Size and Paper Type of the Bypass Tray

This describes how to set paper size of the bypass tray. By default, use the printer driver for setting paper size. For details, see the printer driver Help.

Important

❒ If you select [Machine Settings] from [Bypass Tray Priority] in [System] of [Printer

Features], set the paper size using the control panel. For details, see General

Settings Guide.

Setting the Paper Size Using the Control Panel

This procedure describes how to set paper size of the bypass tray using the control panel. If you select the printer driver to set paper size, this procedure is not necessary.

A Press the {User Tools/Counter} key.

AMO601S

B Select [System Settings] using {T} or {U}, and then press the {OK} key.

C Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

Page 20

D Select [Printer Bypass Paper Size] using {T} or {U}, and then press the {OK}

key.

E Select the paper size using the scroll keys, and then press the {OK} key.

F Press the {User Tools/Counter} key to return to the default screen.

Reference

See the printer driver Help about the settings from the printer drivers.

When loading thick paper or envelopes, set paper type. For details, see p.14 “Setting Thick Paper or Envelopes”.

Setting Custom Size Paper

The following procedures are not required if you select the printer driver for the settings. In that case, set the paper size using the printer driver.

Important

❒ If you select [Machine Settings] from [Bypass Tray Priority] in [System] of [Printer

Features] (see “Printer Features”, General Settings Guide), the settings made

using the control panel have priority over the printer driver settings.

Setting the Custom Size Paper Using the Control Panel

A Press the {User Tools/Counter} key.

AMO601S

Page 21

B Select [System Settings] using {T} or {U}, and then press the {OK} key.

C Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

D Select [Printer Bypass Paper Size] using {T} or {U}, and then press the {OK}

key.

E Select [Custom Size] using the scroll keys, and then press the {OK} key.

F Enter the horizontal size of the paper using the number keys, and press

{q}.

Available size: 148 - 600 mm (5.83 - 23.62 in.)

G Enter the vertical size of the paper using the number keys, and press {q}.

Available size: 90 - 305 mm (3.55 - 12 in.)

Page 22

H Press the {User Tools/Counter} key to return to the default screen.

Note

❒ If the printer driver is not used, select [Machine Settings] from [Bypass Tray

Priority] in [System] of [Printer Features] (see “Printer Features”, General Set-

tings Guide). Set paper size using the control panel.

Reference

For printer driver settings, see the printer driver Help.

Setting Thick Paper or Envelopes

The following procedures are not required if you select the printer driver for the settings. In that case, set the paper size using the printer driver.

Important

❒ If you select [Machine Settings] from [Bypass Tray Priority] in [System] of [Printer

Features] (see “Printer Features”, General Settings Guide), the settings made

using the control panel have priority over the printer driver settings.

❒ Do not load OHP transparencies onto the bypass tray. Use the One Sheet By-

pass tray.

Setting Paper Type Using the Control Panel

A Press the {User Tools/Counter} key.

AMO601S

B Select [System Settings] using {T} or {U}, and then press the {OK} key.

C Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

Page 23

D Select [Paper Type: Bypass Tray] using {T} or {U}, and then press the {OK}

key.

E Select paper type from the menu using {T} or {U}, and then press the {OK}

key.

F Press the {User Tools/Counter} key to return to the default screen.

Note

❒ The settings made will remain valid until they are reset again. After print-

ing on thick paper or envelopes, be sure to clear settings for the next user.

❒ When printing onto envelopes, push down the Envelope lever to the Enve-

lope position. When printing is completed, push the Envelope lever up to the normal position. Do not move the lever up or down during printing.

AMO006S

Reference

For the printer driver settings, see the printer driver Help.

For details about printing onto envelopes, see “When copying onto envelopes”, Copy Reference.

Page 24

Using the One Sheet Bypass Tray

Inserting Paper into the One Sheet Bypass Tray

This section gives instructions for setting paper on the One Sheet bypass tray.

For details about paper size and paper type, see “Recommended Paper Sizes and Types”, About This Machine.

Important

❒ The following functions are disabled when printing from the One Sheet by-

pass tray:

• Duplex printing

•Auto Tray Select

•Auto Tray Switching

• Rotating Collate

❒ Use the One Sheet bypass tray to print OHP transparencies. Do not load onto

other paper trays.

❒ Be sure to open the One Sheet output tray. A sheet loaded on the One Sheet

bypass tray is printed from the One Sheet output tray only.

❒ Use the One Sheet Bypass tray to print on paper that is thicker than 163 g/m

(max. 220 g/m2). Do not use other trays, as paper jams and other malfunctions will occur.

❒ You cannot print or insert paper into the One Sheet Bypass tray during printing.

❒ Be sure not to leave any paper on the One Sheet Bypass tray or on the One

Sheet Output tray, as this will cause a malfunction. After each print job, be sure to remove any printed sheets from the One Sheet Output tray.

❒ Be sure to close the One Sheet bypass tray and the One Sheet output tray after

using them. If you do not close these trays, other trays cannot be used.

A Open the bypass tray.

ALZ037S

Page 25

B Open the One Sheet bypass tray.

ALZ030S

C Open the One Sheet output tray.

The sheet inserted into the One Sheet bypass tray is printed out only from the One Sheet output tray.

ALZ040S

D Adjust the paper guides to the paper size, and then gently insert a sheet

face up into the One Sheet bypass tray.

If the paper guides are not flush against the paper, skewing and misfeeds might occur.

AMO011S

1. Paper Guide

• Gently insert a sheet until the machine pulls it into the tray automatically.

If the sheet is not inserted straight, reinsert it.

• Do not insert multiple sheets. The One Sheet bypass tray is only available

for one sheet.

• If paper is left on the One Sheet output tray, you cannot insert paper into

the One Sheet bypass tray.

Page 26

E Set paper size using the printer driver and the control panel.

For details, see p.19 “Setting the Paper Size and Paper Type of the One Sheet Bypass Tray”.

Note

❒ Paper within the following dimensions can be set in the One Sheet bypass

tray:

• Vertical: 90 - 305 mm (3.55 - 12 in.)

• Horizontal: 148 - 600 mm (5.83 - 23.62 in.)

❒ Be sure to set the paper with the side you want to print facing up in the One

Sheet bypass tray.

❒ The number of sheets that can be loaded in the One Sheet bypass tray de-

pends on the paper type.

Reference

For details about setting paper in the regular paper tray, see General Settings Guide.

When loading custom size paper, see p.20 “Setting Custom Size Paper”.

When loading thick paper (over 90.2 g/m lopes, set paper size and paper type. For details, see p.22 “Setting Thick Paper, OHP Transparencies, or Envelopes”.

When loading letterhead paper, pay attention to its orientation. See General Settings Guide.

), OHP transparencies, or enve-

Page 27

Setting the Paper Size and Paper Type of the One Sheet Bypass Tray

This describes how to set paper size and paper type of the One Sheet bypass tray.

To print using the One Sheet Bypass tray, set the paper size and paper type using the printer driver and the control panel.

Important

❒ When setting the paper size and paper type for the One Sheet Bypass tray, set-

tings made using the printer driver and the control panel must be the same. If the settings for the printer driver and the machine do not correspond, printing is not possible.

Setting the Paper Size

A Set the paper size using the printer driver. B Press the {User Tools/Counter} key.

AMO601S

C Select [System Settings] using {T} or {U}, and then press the {OK} key.

D Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

Page 28

E Select [Paper Size: 1-Sheet Bypass] using {T} or {U}, and then press the {OK}

key.

F Select the paper size using the scroll keys, and then press the {OK} key.

G Press the {User Tools/Counter} key to return to the default screen.

Reference

See the printer driver Help about the settings from the printer drivers.

When loading thick paper, envelopes, or OHP transparencies, set paper type. For details, see p.22 “Setting Thick Paper, OHP Transparencies, or Envelopes”.

Setting Custom Size Paper

Important

❒ When setting the paper size for the One Sheet Bypass tray, the settings using

the printer driver and the control panel must be the same. If the settings for the printer driver and the machine do not correspond, printing cannot be done.

A Set the paper size using the printer driver. B Press the {User Tools/Counter} key.

AMO601S

Page 29

C Select [System Settings] using {T} or {U}, and then press the {OK} key.

D Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

E Select [Paper Size: 1-Sheet Bypass] using {T} or {U}, and then press the {OK} key.

F Select [Custom Size] using the scroll keys, and then press the {OK} key.

G Enter the horizontal size of the paper using the number keys, and press {q}.

Enter the same size as you set in the printer driver.

Available size: 148 - 600 mm (5.83 - 23.62 in.)

H Enter the vertical size of the paper using the number keys, and press {q}.

Enter the same size as you set in the printer driver.

Available size: 90 - 305 mm (3.55 - 12 in.)

Page 30

I Press the {User Tools/Counter} key to return to the default screen.

Reference

For printer driver settings, see the printer driver Help.

Setting Thick Paper, OHP Transparencies, or Envelopes

To print using the One Sheet Bypass tray, set the paper type using the printer driver and the control panel.

Important

❒ To set the paper type for the One Sheet Bypass tray, the settings using the

printer driver and the control panel must be the same. If the settings for the printer driver and the machine do not correspond, printing cannot be done.

❒ When loading an OHP transparency onto the One Sheet bypass tray, set the

sheet in the K direction. Do not try to set the sheet in the L direction.

❒ OHP Transparencies can only be printed in A4 K or 8

print on any other size.

❒ When printing OHP Transparencies, use the printer driver and control panel

to set the output colour. OHP Transparencies cannot be printed in B&W.

/2 × 11 K sizes. Do not

A Set paper type using the printer driver. B Press the {User Tools/Counter} key.

AMO601S

C Select [System Settings] using {T} or {U}, and then press the {OK} key.

D Select [Tray Paper Settings] using {T} or {U}, and then press the {OK} key.

Page 31

E Select [Paper Type: 1-Sheet Bypass] using {T} or {U}, and then press the {OK}

key.

F Select a paper type from the menu using {T} or {U}, and then press the

{OK} key.

G Press the {User Tools/Counter} key to return to the default screen.

Note

❒ The settings made will remain valid until they are reset again. After print-

ing on OHP transparencies, thick paper, or envelopes, be sure to clear settings for the next user.

❒ When printing onto envelopes, push down the Envelope lever to the Enve-

lope position. When printing is completed, push the Envelope lever up to the normal position. Do not move the lever up or down during printing.

AMO006S

Reference

For printer driver settings, see the printer driver Help.

For details about printing onto envelopes, see “When copying onto envelopes”, Copy Reference.

Page 32

Page 33

1. Preparing the Machine

Confirming the Connection Method

This machine supports network and local connection.

Before installing the printer driver, check how the machine is connected. Follow the driver installation procedure that is appropriate to the connection method.

Network Connection

This machine can be used as a Windows printing port or network printer.

Using This Machine as the Windows Printing port

Network connections can be established through Ethernet, IEEE 802.11b, and IEEE 1394 (IPv4 over 1394).

Available ports are determined based on the combination of Windows operating system version and connection method used.

❖ Windows 95 / 98

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

IEEE 1394 (IPv4 over 1394) None

ZZZ035S

Page 34

Preparing the Machine

❖ Windows Me

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

IEEE 1394 (IPv4 over 1394) SmartDeviceMonitor for Client port

❖ Windows 2000

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

Standard TCP/IP

LPR port

IEEE 1394 (IPv4 over 1394) None

❖ Windows XP

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

Standard TCP/IP

LPR port

IEEE 1394 (IPv4 over 1394) SmartDeviceMonitor for Client port

Standard TCP/IP

❖ Windows Server 2003

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

IEEE 1394 (IPv4 over 1394) SmartDeviceMonitor for Client port

❖ Windows NT 4.0

Connection Method Available Ports

Ethernet / IEEE 802.11b SmartDeviceMonitor for Client port

IEEE 1394 (IPv4 over 1394) None

Reference

See the explanation about how to install the printer driver for each type of port. For the SmartDeviceMonitor for Client port, see p.30 “Using the SmartDeviceMonitor for Client Port”.

For the Standard TCP/IP port, see p.36 “Using the Standard TCP/IP Port”.

For the LPR port, see p.38 “Using the LPR Port”.

Standard TCP/IP

LPR port

Standard TCP/IP

LPR port

Page 35

Confirming the Connection Method

Using as a network printer

This machine can be used as the Windows network printer, the NetWare print server, or the NetWare remote printer.

Note

❒ In an IPv6 environment, Netware servers cannot be used.

Reference

See the explanation about how to install the printer driver for each type of network printer.

For the Windows network printer, see p.40 “Using as a Windows Network Printer”.

For the NetWare print server and remote printer, see p.42 “Using as a NetWare Print Server / Remote Printer”.

ZZZ036S

Page 36

Preparing the Machine

Local Connection

Local connections can be established via parallel, USB, IEEE 1394 (SCSI print), and Bluetooth connections.

Windows operating system version determines the available connection methods.

•Windows 95: Parallel connections

• Windows 98: Parallel connections

• Windows 98 SE / Me: USB and Parallel connections

• Windows 2000: USB, Parallel, IEEE 1394 (SCSI print), and Bluetooth connections

•Windows XP: USB, Parallel, IEEE 1394 (SCSI print), and Bluetooth connections

• Windows Server 2003: USB, Parallel, IEEE 1394 (SCSI print), and Bluetooth connections

• Windows NT 4.0: Parallel connections

Reference

See the explanation about how to install the printer driver for each method of connection.

For the USB connection, see p.45 “Installing the Printer Driver Using USB”.

For the parallel connection, see p.50 “Printing with Parallel Connection”.

For the IEEE 1394 (SCSI print) connection, see p.52 “Installing the Printer Driver Using IEEE 1394 (SCSI print)”.

For the Bluetooth connection, see p.56 “Printing with Bluetooth Connection”.

Page 37

Installing the Printer Driver

This section explains how to install the printer driver. There are two ways to install the printer driver: using Quick Install, which installs the settings at once, or installing the appropriate driver according to the port you want to use.

Quick Install

Windows 95 / 98 / Me / 2000 / XP, Windows Server 2003, and Windows NT 4.0 users can easily install this software using the supplied CD-ROM.

Using Quick Install, the PCL printer driver and/or RPCS printer driver, DeskTopBinder Lite and SmartDeviceMonitor for Client are installed under network environment, and the TCP/IP port will be set.

Important

❒ To install printer driver under Windows 2000 / XP Professional, Windows

Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrator.

❒ If you connect using USB, refer to p.45 “Installing the Printer Driver Using

USB” and install the printer driver.

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

Auto Run may not work with certain operating system settings. If this happens, launch “Setup.exe” on the CD-ROM root directory.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [Quick Install].

The software license agreement appears in the [License Agreement] dialog box.

E After reading the agreement, click [I accept the agreement.], and then click

[Next >].

F Select the machine model you want to use in the [Select Printer] dialog box.

For network connection via TCP/IP, select the machine whose IP address is displayed in [Connect To].

For parallel connection, select the machine whose printer port is displayed in [Connect To].

G Click [Install].

The printer driver installation starts.

Page 38

Preparing the Machine

H Click [Finish].

A message about restarting the computer appears. Restart the computer to complete installation.

I Click [Exit] in the first dialog box of the installer, and then take out the CD-ROM.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. If this hap-

pens, launch “Setup.exe” on the CD-ROM root directory.

❒ Select a machine to whose IP address is displayed in [Connect To] to install

SmartDeviceMonitor for Client when using TCP/IP.

Reference

Quick Install is not available unless bidirectional communication between the machine and computer is enabled via parallel connection. See p.61 “If Bidirectional Communication Is Disabled” for details about bidirectional communication between the machine and computer.

Installing the Printer Driver for the Selected Port

Using the SmartDeviceMonitor for Client Port

Important

❒ To install SmartDeviceMonitor for Client under Windows 2000 / XP Profes-

sional, Windows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrator.

❒ Install SmartDeviceMonitor for Client before installing the printer driver

when using the SmartDeviceMonitor for Client port.

Installing SmartDeviceMonitor for Client

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [DeskTopBinder - SmartDeviceMonitor for Client]. E Select an interface language, and then click [Next >].

The default interface language is English.

Page 39

Installing the Printer Driver

F The message to quit all other applications appears. Quit all applications,

and then click [Next >].

G The software license agreement appears in the [License Agreement] dialog

box. After reading through its contents, click [Yes].

H Click [Full install] or [Custom Install].

[Full install] installs all required applications: DeskTopBinder Lite and Smart-

DeviceMonitor for Client.

[Custom Install] installs selected applications.

I Follow the instructions on the display and click [Next >] to proceed next step. J After the installation is completed, select one of the options to restart the

computer either now or later, and click [Complete].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. If this hap-

pens, launch “Setup.exe” on the CD-ROM root directory.

Changing the Port Settings for SmartDeviceMonitor for Client

Follow the procedure below to change the SmartDeviceMonitor for Client settings, such as TCP/IP timeout, recovery/parallel printing, and printer groups.

Windows 95 / 98:

A Open the [Printers] window from the [Start] menu. B In the [Printers] window, click the icon of the printer you want to use. On

the [File] menu, click [Properties].

C Click the [Details] tab, and then click [Port Settings].

The [Port Settings] dialog box appears.

Windows 2000 / Windows NT 4.0:

A Open [Printers] window from [Start] menu. B In the [Printers] window, click the icon of the printer you want to use. On

the [File] menu, click [Properties].

C On the [Ports] tab, click [Configure Port].

The [Configuration] dialog box appears.

Page 40

Preparing the Machine

Windows XP, Windows Server 2003:

A Open the [Printers and Faxes] window from the [Start] menu.

The [Printers and Faxes] window appears.

B Click the icon of the machine you want to use. On the [File] menu, click

[Properties]. The printer properties appear.

C Click the [Ports] tab, and then click [Configure Port].

The [Port Configuration] dialog box appears.

Note

❒ For TCP/IP, timeout setting can be configured. ❒ User, proxy, and timeout settings can be configured for IPP. ❒ If no settings on the [Recovery/Parallel Printing] tab are available, follow the

procedure below.

A Click [Cancel] to close the [Port Configuration:] dialog box. B Start SmartDeviceMonitor for Client, and then right-click the SmartDe-

viceMonitor for Client icon on the tasktray.

C Point to [Properties], and then click [Extended Features Settings]. D Select the [Set Recovery/Parallel Printing for each port] check box. E Click [OK] to close the [Extended Features Settings] dialog box.

Reference

For information about these settings, see “Using SmartDeviceMonitor for Client”, Network Guide, or SmartDeviceMonitor for Client Help.

Installing the PCL or RPCS Printer Driver (TCP/IP)

Important

❒ To install this printer driver under Windows 2000 / XP Professional, Win-

dows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

Page 41

Installing the Printer Driver

F Select the printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Click [Next >]. H Select the machine model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

I Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

J Click [Port:], and then click [Add]. K Click [SmartDeviceMonitor], and then click [OK]. L Click [TCP/IP], and then click [Search].

A list of printers using TCP/IP appears.

M Select the printer you want to use, and then click [OK].

Only printers that respond to a broadcast from the computer appear. To use a machine not listed here, click [Specify Address], and then enter the IP address or host name of the machine.

N Check that the port of the selected printer is displayed in [Port:]. O Set a user code, if necessary.

Up to 8 numeric characters can be entered. No alphabetic character or symbol can be entered.

P Select the [Default Printer] check box to configure the printer as default. Q Click [Continue].

Installation starts.

R After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ Setting a user code allows a SmartDeviceMonitor for Admin user to dis-

play and check statistics about the number of sheets which each user prints. For details, see SmartDeviceMonitor for Admin Help.

❒ Auto Run may not work with certain operating system settings. If this hap-

pens, launch “Setup.exe” on the CD-ROM root directory.

❒ Under Windows 95 / 98 / Me, you cannot add an IP address partially sim-

ilar to the one already used. For example, if “192.168.0.2” is in use, “192.168.0.2xx” cannot be used. Similarly, if “192.168.0.20” is in use, “192.168.0.2” cannot be used.

Page 42

Preparing the Machine

Reference

A message appears if there is a newer version of the printer driver already installed. If there is, you cannot install the printer driver using Auto Run. If you still want to install the printer driver, use [Add Printer]. See “When a Message Appears during Installation of the Printer Driver”, Trouble Shooting.

Installing the PCL or RPCS Printer Driver (IPP)

Important

❒ To install printer driver under Windows 2000 / XP Professional, Windows

Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

F Select a printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Select the machine model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

H Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

I Click [Port:], and then click [Add]. J Click [SmartDeviceMonitor], and then click [OK]. K Click [IPP].

Page 43

Installing the Printer Driver

L In the [Printer URL] box, enter “http://printer's address/printer” as the print-

er's address.

If the server authentication is issued, to enable SSL (a protocol for encrypted communication), enter “https://printer's address/printer” (Internet Explorer 5.01, or a higher version must be installed).

(example IP address: 192.168.15.16)

http://192.168.15.16/printer

https://192.168.15.16/printer

You can enter “http://printer's address/ipp” as the printer's address.

M Enter a name for identifying the printer in [IPP Port Name]. Use a name dif-

ferent from the one of any existing port.

If a name is not specified here, the address entered in the [Printer URL] box becomes the IPP port name.

N Click [Detailed Settings] to make necessary settings.

For information about the settings, see SmartDeviceMonitor for Client Help.

O Click [OK].

P Check that the port of the selected printer is displayed in [Port:]. Q Set a user code, if necessary.

Up to 8 numeric characters can be entered. No alphabetic characters or symbols can be entered.

R Select the [Default Printer] check box to configure the printer as default. S Click [Continue].

Installation starts.

T After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. In that

case, launch “Setup.exe” on the CD-ROM root directory.

❒ Setting a user code allows a SmartDeviceMonitor for Admin user to dis-

play and check the number of sheets each user prints. For details, see SmartDeviceMonitor for Admin Help.

Page 44

Preparing the Machine

Reference

Using the Standard TCP/IP Port

This describes how to install the PCL or RPCS printer driver using the TCP/IP port.

Important

❒ To install this printer driver under Windows 2000 / XP Professional, and

Windows Server 2003, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

❒ In an IPv6 environment, you cannot use the Standard TCP/IP Port. Use the

SmartDeviceMonitor for Client port.

Installing the PCL or RPCS Printer Driver

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

F Select a printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Click [Next >]. H Select the machine model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

I Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

J Click [Port:], and then click [Add].

Page 45

Installing the Printer Driver

K Click [Standard TCP/IP Port], and then click [OK].

Configure the Standard TCP/IP port settings, and then see Windows Help if [Standard TCP/IP Port] does not appear.

L Click [Next >] in the [Add Standard TCP/IP Printer Port Wizard] dialog box. M Enter the printer name or IP address in the [Printer Name or IP Address] box.

The [Port Name] text box automatically obtains a port name. Change this name if necessary.

When the device selection appears, select “RICOH NetworkPrinter Driver C Model”.

N Click [Next >]. O Click [Finish] in the [Add Standard TCP/IP Printer Port Wizard] dialog box.

The installation start dialog box reappears.

P Check that the port of the selected printer is displayed in [Port:]. Q Configure the default printer as necessary. R Click [Continue].

The printer driver installation starts.

S After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. In that

case, launch “Setup.exe” on the CD-ROM root directory.

Reference

Page 46

Preparing the Machine

Using the LPR Port

This describes how to install the PCL or RPCS printer driver using the LPR port.

Important

❒ To install this printer driver under Windows 2000 / XP Professional, Win-

dows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

Installing the PCL or RPCS Printer Driver

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

F Select a printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Select the machine model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

H Click [Next >]. I Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

J Click [Port:], and then click [Add]. K Click [LPR Port], and then click [OK].

If [LPR Port] does not appear, see Windows Help and install it.

L Enter the printer's IP address in the [Name or address of server providing lpd]

box.

M Enter “lp” in the [Name of printer or print queue on that server] box, and then click

[OK].

The port is added.

Page 47

Installing the Printer Driver

N Check that the port of the selected printer is displayed in [Port:]. O Configure the default printer as necessary. P Click [Continue].

The printer driver installation starts.

Q After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. In that

case, launch “Setup.exe” on the CD-ROM root directory.

Reference

Page 48

Preparing the Machine

Using as a Windows Network Printer

This describes how to install the PCL or RPCS printer driver when using the printer as a Windows network printer.

To use the print server, install the printer driver by selecting “Network printer server”, and then select the Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0 shared printer.

This section assumes that the client has already been configured to communicate with a Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0 print server. Do not begin the following procedure before the client is set up and configured correctly.

Important

❒ To install the printer driver under Windows 2000 / XP Professional, Win-

dows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

❒ If you print with a print server connected to the printer using the SmartDe-

viceMonitor port, Recovery Printing and Parallel Printing cannot be used from the client.

❒ If you print with a Windows XP or Windows Server 2003 print server, notifi-

cation functions of SmartDeviceMonitor may not be used with the client.

❒ If you print with a Windows NT 4.0 print server, install the printer driver be-

fore you connect the print server to the printer.

Installing the PCL or RPCS Printer Driver

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

F Select the printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Click [Next >].

Page 49

Using as a Windows Network Printer

H Select the [Printer Name] check box to select the printer models you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

I Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

J Click [Port:], and then click [Add]. K Click [Network Printer], and then click [OK]. L Double-click the computer name you want to use as a print server in the

[Browse for Printer] window.

M Select the printer you want to use, and then click [OK]. N Check that the port of the selected printer is displayed in [Port:]. O Configure the user code as necessary.

For an RPCS printer driver, a user code can be set after the printer driver installation. For information about user code, see the printer driver Help.

P Select the [Default Printer] check box to configure the printer as default. Q Click [Continue].

The printer driver installation starts.

R After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. In that

case, launch “Setup.exe” on the CD-ROM root directory.

Reference

Page 50

Preparing the Machine

Using as a NetWare Print Server / Remote Printer

This describes how to set up the Windows computer used as the NetWare client.

Important

❒ To install this printer driver under Windows 2000 / XP Professional, Win-

dows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

❒ In an IPv6 environment, Netware servers cannot be used.

The following explanation assumes NetWare Client is installed on the client computer and the NetWare server environment is correctly set up. Install all necessary client applications before following this procedure.

Set up the printer driver while logging on to the NetWare file server.

The following values are used in the example:

• Operating system: Windows 98

•NetWare version: 4.1

• File server name: CAREE

• Queue name: R-QUEUE

A Insert the CD-ROM into the CD-ROM drive.

The installer starts.

Auto Run may not work with certain operating system settings. In that case, launch “Setup.exe” on the CD-ROM root directory.

B Select an interface language, and then click [OK].

The default interface language is English.

C Click [PCL/RPCS Printer Drivers]. D The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

E Select the printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

F Click [Next >]. G Select the [Printer Name] check box to select the printer model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

H Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the

operating system, printer model, and port.

Page 51

Using as a NetWare Print Server / Remote Printer

I Click [Port:], and then click [Add]. J Click [Network Printer], and then click [OK]. K Double-click the name of the NetWare file server on the network tree.

The created queue is displayed.

L Select the print queue, and then click [OK]. M Check that the port of the selected printer is displayed in [Port:]. N Click [Continue].

The printer driver installation starts.

O Click [Finish] in the [Select Program] dialog box. P After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Q After restarting the computer, launch the [Printers] window, and then open

the printer properties.

Under Windows XP or Windows Server 2003, open the printer properties from the [Printers and Faxes] window.

R On the [Printer Settings] tab, clear the [Form Feed] and [Enable Banner] check

boxes.

Under Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0, click the [NetWare setting] tab.

Do not select these check boxes since they are automatically selected by the printer driver. If you select the check boxes, the printer may not print correctly.

S Click [OK] to close the printer properties dialog box.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ The protocol is set to inactive as default. Enable it using Web Image Mon-

itor or Telnet.

Page 52

Preparing the Machine

Form Feed

Do not use NetWare to configure form feed. Form feed is controlled by the printer driver on Windows. If NetWare form feed is configured, the printer may not print properly.

Follow the procedure below to disable form feed according to the operating system used:

• Under Windows 95 / 98 / Me, clear the [Form feed] check box on the [Printer Settings] tab in the printer properties dialog box.

• Under Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0, clear the [Form feed] check box on the [NetWare Settings] tab in the printer properties dialog box.

Banner Page

Do not use NetWare to configure a banner page.

Follow the procedure below to disable banner pages according to the operating system used:

• Under Windows 95 / 98 / Me, clear the [Enable banner] check box on the [Print- er Settings] tab in the printer properties dialog box.

• Under Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0, clear the [Enable banner] check box on the [NetWare Settings] tab in the printer properties dialog box.

Printing after Resetting the Printer

Printer to print server connection requires 30 - 40 seconds to resume after the printer is reset. During this period, jobs may be accepted (depending on NetWare specifications) but not printed.

To print after resetting the printer as the remote printer, check on the print server that the remote printer is disconnected, or wait for two minutes before trying to print.

Page 53

Installing the Printer Driver Using USB

This section explains how to install printer drivers using USB.

Before installing, check that only the operating system is running on the computer and no print jobs are in progress.

The printer drivers can be installed from the supplied CD-ROM provided with this machine.

Windows Me - USB

Important

❒ Installation via USB is not possible under Windows 95 / 98. Upgrade to Win-

dows Me or later.

❒ Download USB Printing Support for Windows Me from the supplier's Web site.

When USB is first used, the plug and play function starts and the [New Hardware Found], [Device Driver Wizard], or [Add New Hardware Wizard] dialog box appears, de- pending on the operating system.

If the printer driver has already been installed, plug and play is enabled, and the icon of the printer connected to the “USB” port is added to the [Printers] window.

A Download USB Printing Support from the supplier's Web site.

Use a search to find the model name, and then download USB Printing Support from the supplier's Web site.

Save it where you can locate it easily.

B Connect the machine to the computer using the USB cable.

Connect the USB cable firmly.

C In the Found New Hardware Wizard display, click [Search for a suitable driver

for my device [recommended]], and then click [Next >].

D Select the [Specify a location:] check box, and then click [Browse...].

The [Browse for Folder] dialog box appears.

E Specify the location where USB Printing Support is located, and then click

[Next >].

F Check the location, and then click [Next >].

USB Printing Support is installed.

G Click [Finish].

If the printer driver has already been installed, plug and play is enabled, and the icon of the printer connected to the “USB001” port is added to the [Printers] window.

Page 54

Preparing the Machine

H Insert the printer driver. Click [Search for the best driver for your device. [Recom-

mended]], and then click [Next >].

I Select the [Specify a location:] check box, and then click [Browse...].

The [Browse for Folder] dialog box appears.

J Insert the CD-ROM into the CD-ROM drive.

Note

❒ When Auto Run starts, click [Exit]. ❒ To disable Auto Run, press the {Shift} key when inserting the CD-ROM

into the drive and keep it pressed until the computer finishes reading from the CD-ROM.

K Specify the location where the source files of the printer driver are stored,

and then click [Next >].

If the CD-ROM drive is D, the source files of the printer driver are stored in the following location:

•RPCS

D:\DRIVERS\RPCS\WIN9X_ME\(Language)\DISK1

• PCL 5c (for colour printing)

D:\DRIVERS\PCL5C\WIN9X_ME\(Language)\DISK1

• PCL 5e (for B & W printing)

D:\DRIVERS\PCL5E\WIN9X_ME\(Language)\DISK1

•PCL 6

D:\DRIVERS\PCL6\WIN9X_ME\(Language)\DISK1

• PostScript 3 (“Scanner Driver and Utilities” CD-ROM)

D:\DRIVERS\PS\WIN9X_ME\(Language)\DISK1

L Check the location, and then click [Next >].

Add Printer Wizard starts.

M Click [Finish].

Installation is complete. If installation is successful, the icon of the printer connected to the “USB001” port is added to the [Printers] window.

Note

❒ The number after “USB” varies depending on the number of printers con-

nected.

❒ It is not necessary to reinstall USB Printing Support when connecting a dif-

ferent machine via USB interface when USB Printing Support is installed.

❒ After installing USB Printing Support, if the printer driver is not installed,

follow the plug-and-play instructions of the printer.

Page 55

Installing the Printer Driver Using USB

Windows 2000 - USB

Important

❒ Installing a printer driver requires Administrator permission. Log on using

an account that has Administrator permission.

When USB is first used, Found New Hardware Wizard starts, and USB Printing Support is installed automatically.

If the printer driver has already been installed, plug and play is enabled, and the icon of the printer connected to the “USB” port is added to the [Printers] window.

If the printer driver is not installed, follow the plug-and-play instructions of the printer to install it from the supplied CD-ROM.

A Connect the machine to the computer using the USB cable.

Connect the USB cable firmly.

B In the Found New Hardware Wizard display, click [Search for a suitable driver

for my device [recommended]], and then click [Next >].

C Select the [Specify location] check box, and then click [Next >]. D Insert the CD-ROM into the CD-ROM drive.

When Auto Run starts, click [Exit]. To disable Auto Run, press the left {Shift} key when inserting the CD-ROM

into the drive and keep it pressed until the computer finishes reading from the CD-ROM.

E Specify the location where the source files of the printer driver is stored.

If the CD-ROM drive is D, the source files of the printer driver are stored in the following location:

•RPCS

D:\DRIVERS\RPCS\WIN2K_XP\(Language)\DISK1

• PCL 5c (for colour printing)

D:\DRIVERS\PCL5C\WIN2K_XP\(Language)\DISK1

• PCL 5e (for B & W printing)

D:\DRIVERS\PCL5E\WIN2K_XP\(Language)\DISK1

•PCL 6

D:\DRIVERS\PCL6\WIN2K_XP\(Language)\DISK1

• PostScript 3 (“Scanner Driver and Utilities” CD-ROM)

D:\DRIVERS\PS\WIN2K_XP\(Language)\DISK1

F Check the printer driver location, and then click [OK]. G Click [Next >].

Page 56

Preparing the Machine

H Click [Finish].

If the printer driver has already been installed, plug and play is enabled, and the icon of the printer connected to the “USB001” port is added to the [Printers] window.

Note

❒ The number after “USB” varies depending on the number of printers con-

nected.

Windows XP, Windows Server 2003 - USB

Important

❒ Installing a printer driver requires Administrators permission. Log on using

an account that has Administrators permission.

When USB is first used, Found New Hardware Wizard starts, and USB Printing Support is installed automatically.

If the printer driver has already been installed, plug and play is enabled, and the icon of the printer connected to the “USB” port is added to the [Printers] window.

The printer drivers can be installed from the supplied CD-ROM provided with this machine.

If the printer driver is not installed, follow the plug-and-play instructions of the printer to install it from the supplied CD-ROM.

A Connect the machine to the computer using the USB cable.

Connect the USB cable firmly.

B In the Found New Hardware Wizard display, click [Search for a suitable driver

for my device [recommended]], and then click [Next >].

C Insert the CD-ROM into the CD-ROM drive.

If Auto Run starts, click [Cancel], and then [Exit]. To disable Auto Run, press the left {Shift} key when inserting the CD-ROM

into the drive and keep it pressed until the computer finishes reading from the CD-ROM.

Page 57

Installing the Printer Driver Using USB

D Select the [Include this location in the search] check box under [Search for the best

driver in these location], and then click [Browse] to select the printer driver lo-

cation.

If the CD-ROM drive is D, the source files of the printer driver are stored in the following location:

•RPCS

D:\DRIVERS\RPCS\WIN2K_XP\(Language)\DISK1

• PCL 5c (for colour printing)

D:\DRIVERS\PCL5C\WIN2K_XP\(Language)\DISK1

• PCL 5e (for B & W printing)

D:\DRIVERS\PCL5E\WIN2K_XP\(Language)\DISK1

•PCL 6

D:\DRIVERS\PCL6\WIN2K_XP\(Language)\DISK1

• PostScript 3 (“Scanner Driver and Utilities” CD-ROM)

D:\DRIVERS\PS\WIN2K_XP\(Language)\DISK1

E Check the printer driver location, and then click [Next >]. F Click [Continue].

G Click [Finish].

If installation is successful, the icon of the printer connected to the “USB001” port is added to the [Printers and Faxes] window.

Note

❒

The number after “USB” varies depending on the number of printers connected.

Page 58

Preparing the Machine

Printing with Parallel Connection

This describes how to install the PCL or RPCS printer driver when using the parallel port.

To use a machine connected using a parallel interface, click [LPT1] when installing the printer driver.

Important

❒ To install this printer driver under Windows 2000 / XP Professional, Win-

dows Server 2003, and Windows NT 4.0, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

Installing the PCL or RPCS Printer Driver

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Select an interface language, and then click [OK].

The default interface language is English.

D Click [PCL/RPCS Printer Drivers]. E The software license agreement appears in the [License Agreement] dialog box.

After reading the agreement, click [I accept the agreement.], and then click [Next >].

F Select the printer driver you want to use in the [Select Program] dialog box.

You can select several printer drivers.

G Click [Next >]. H Select the [Printer Name] check box to select the printer model you want to use.

The printer name can be changed in the [Change settings for 'Printer Name'] box.

I Double-click the printer name to display the printer settings.

The details shown in [Comment:], [Driver:], and [Port:] vary depending on the operating system, printer model, and port.

J Check that [LPT1:] is shown in [Port:]. K Select the [Default Printer] check box to configure the printer as default. L Click [Finish].

The printer driver installation starts.

Page 59

Printing with Parallel Connection

M After the installation is completed, select one of the options to restart the

computer either now or later, and then click [Finish].

Restart the computer to complete installation.

Note

❒ To stop installation of the selected software, click [Cancel] before installa-

tion is complete.

❒ Auto Run may not work with certain operating system settings. In that

case, launch “Setup.exe” on the CD-ROM root directory.

Reference

Page 60

Preparing the Machine

Installing the Printer Driver Using IEEE 1394 (SCSI print)

The printer drivers can be installed from the supplied CD-ROM provided with this machine.

Important

❒ Quit all applications currently running, and do not print during installation.

❒ Do not connect IEEE 1394 or USB devices to the computer or turn on another

printers during installation.

❒ Before uninstalling the printer driver, check that the IEEE 1394 interface cable

is disconnected from the computer.

❒ SCSI print must be set to “active” from the control panel. For details, see Net-

work Guide.

Note

❒ This machine can receive print data from one computer at a time only. A mes-

sage may appear if print jobs from different computers collide.

❒ If jobs collide, the first received job is printed first.

❒ When the printer driver is properly installed, connecting or disconnecting the

optional IEEE 1394 cable causes the printer icon to change.

Windows 2000

This describes how to install the printer driver to the computer with Windows 2000 installed, using IEEE 1394 (SCSI print).

Important

❒ If [Found New Hardware Wizard] appears every time the computer is started or

the cable is connected, disable the device. To install another printer driver after setting the “1394_00n” port, click [1394_00] as a port during the printer driver installation.

❒ Installing this printer driver requires Administrators permission. Log on us-

ing an account that has Administrators permission.

❒ The optional 1394 interface unit can be used only with Service Pack 1 (SP1) or

higher.

A Connect the machine to the computer using the IEEE 1394 interface cable. B Click [Next >] in the [Found New Hardware Wizard] dialog box. C When the message “This wizard will complete the installation for this De-

vice: Unknown” appears, click [Specify a location], and then click [Next >].

D When the message “Locate Driver Files” appears, select the [Optional search

locations.] check box, and then click [Specify a location], and then click [Next >].

Page 61

Installing the Printer Driver Using IEEE 1394 (SCSI print)

E Insert the CD-ROM into the CD-ROM drive.

• If Auto Run starts, click [Cancel], and then [Exit].

• To disable Auto Run, press the left {Shift} key when inserting the CD-ROM

into the drive and keep it pressed until the computer finishes reading from the CD-ROM.

F Click [Browse]. G Select the printer driver you want to use.

If the CD-ROM drive is D, the source files of the printer driver are stored in the following location:

•RPCS

D:\DRIVERS\RPCS\WIN2K_XP\(Language)\DISK1

• PCL 5c (for colour printing)

D:\DRIVERS\PCL5C\WIN2K_XP\(Language)\DISK1

• PCL 5e (for B & W printing)

D:\DRIVERS\PCL5E\WIN2K_XP\(Language)\DISK1

•PCL 6

D:\DRIVERS\PCL6\WIN2K_XP\(Language)\DISK1

• PostScript 3 (“Scanner Driver and Utilities” CD-ROM)

D:\DRIVERS\PS\WIN2K_XP\(Language)\DISK1

H Click [Open]. I Click [OK]. J Follow the on-screen instructions.

When installation is complete, the printer connected to “1394_00n” appears in the [Printers] window: (“n” shows the number of printers connected.)

If the printer driver has already been installed, the printer icon is added to the [Printers] window. In this case, printer driver installation is not necessary.

If printing does not work properly after the installation, delete the port and reinstall the printer driver. For details, see Trouble Shooting

Note

❒ If you do not want to install the printer when Found New Hardware Wiz-

ard starts under an operating system that supports SCSI print, disable the device by following the procedure below.

A When the [Found New Hardware Wizard] dialog box appears, click [Next >]. B When the message “This wizard will complete the installation for this

Device: Unknown” appears, select the [Search for a suitable driver for my device [recommended]] check box, and then click [Next >].

C When the message “Please choose your search and installation option.”

appears, clear all check boxes from [Search for the best driver in these loca- tions.], and then click [Next >].

D When the message “Driver Files Search Results” appears, select the [Dis-

able the device. The Add/Remove Hardware Wizard in the control Panel can be able to complete the driver installations.] check box, and then click [Finish].

Page 62

Preparing the Machine

Windows XP, Windows Server 2003

This describes how to install the printer driver to the computer with Windows XP or Windows Server 2000 installed, using IEEE 1394 (SCSI print).

Important

❒ SCSI print must be set to “active” from the control panel. For details, see Net-

work Guide.

❒ Installing this printer driver requires Administrators permission. Log on us-

ing an account that has Administrators permission.

A Connect the machine to the computer using the IEEE 1394 interface cable.

When the [Found New Hardware Wizard] dialog box appears, check that [This wiz- ard helps you install software for: (Unknown)] is displayed.

B Select the [Install from a list on specific location (Advanced)] check box, and then

click [Next >].

C When the message “Please choose your search and installation option.” ap-

pears, select the [Search for the best driver in these locations.] check box, select the [Include this location in the search:] check box, and then select the [Include this location in the search:] check box.

D Insert the CD-ROM into the CD-ROM drive.

If Auto Run starts, click [Cancel], and then [Exit]. To disable Auto Run, press the left {Shift} key when inserting the CD-ROM

into the drive and keep it pressed until the computer finishes reading from the CD-ROM.

E Specify the location where the source files of the printer driver is stored,

and then click [Next >].

If the CD-ROM drive is D, the source files of the printer driver are stored in the following location:

•RPCS

D:\DRIVERS\RPCS\WIN2K_XP\(Language)\DISK1

• PCL 5c (for colour printing)

D:\DRIVERS\PCL5C\WIN2K_XP\(Language)\DISK1

• PCL 5e (for B & W printing)

D:\DRIVERS\PCL5E\WIN2K_XP\(Language)\DISK1

•PCL 6

D:\DRIVERS\PCL6\WIN2K_XP\(Language)\DISK1

• PostScript 3 (“Scanner Driver and Utilities” CD-ROM)

D:\DRIVERS\PS\WIN2K_XP\(Language)\DISK1

When installation is complete, the printer connected to “1394_00n” appears in the [Printers and Faxes] window. (“n” shows the number of printers connected.)

Page 63

Installing the Printer Driver Using IEEE 1394 (SCSI print)

F Follow the on-screen instructions.

If the printer driver has already been installed, the printer icon is added to the [Printers and Faxes] window. In this case, printer driver installation is not necessary.

Even if the printer driver is already installed, the message “Found New Hardware Wizard” may appear when the machine is connected to the computer using the IEEE 1394 interface cable for the first time. In that case, install the printer driver.

Note

❒ This machine can receive print data from one computer at a time only. If a

print job from a computer collides with other data, a message may appear on the computer.

❒ To install another printer driver after setting the “1394_00n” port, click

[1394_00] as a port during the printer driver installation.

❒ When the printer driver is properly installed, connecting or disconnecting

the optional IEEE 1394 cable causes the printer icon to change.

❒ If printing does not work properly after the installation, delete the port and

reinstall the printer driver. For details, see Trouble Shooting.

❒ If you do not want to install the printer when Found New Hardware Wiz-

ard starts under an operating system that supports SCSI print, disable the device by following the procedure below:

A When the [Found New Hardware Wizard] dialog box appears, check that

[This wizard helps you install software for: Unknown] is displayed, select the [Install from a list on specific location (Advanced)] check box, and then click [Next >].

B When the message “Please choose your search and installation option.”

appears, clear all check boxes from [Search for the best driver in these loca- tions.], and then click [Next >].

C When the message “The wizard could not find the software on your

computer for..” appears, click [OK].

D When the message “Cannot Install this Hardware” appears, select the

[Don't prompt again to install the software] check box, and then click [Finish].

Page 64

Preparing the Machine

Printing with Bluetooth Connection

This describes how to print using with Bluetooth devices.

Supported Profiles

Refer the following supported profiles for Bluetooth connection.

❖ SPP, HCRP

• A maximum of two Bluetooth adaptor or Bluetooth-equipped computers

can be connected at the same time using the Bluetooth interface: one by SPP, one by HCRP.

• When connecting more than one Bluetooth adaptor or Bluetooth-equipped

computer at the same time, the first device that establishes connection is selected. When selecting the connection between the other devices, cancel the first established connection.

• SPP connection does not support bidirectional communications.

• HCRP connection supports bidirectional communications.

❖ BIP

• For BIP connection, a module including PostScript 3 must be installed in

the machine.

• Only one Bluetooth adaptor or Bluetooth-equipped computer can be con-

nected via BIP.

• Only JPEG images that can be printed using BIP.

• User codes are disabled for BIP.

You cannot print if print functions are restricted.

• Some printers do not support BIP.

Note

❒ In this manual, the instruction referred to print using SPP. To print using

HCRP or BIP, see the Help supplied with the Bluetooth adapter you use.

Page 65

Printing with Bluetooth Connection

To install the printer driver, follow the procedure used to install parallel interface.

Important

❒ To install the printer driver under Windows 2000 / XP Professional or Win-

dows Server 2003, you must have an account that has Manage Printers permission. Log on as an Administrators or Power Users group member.

A Start 3Com Bluetooth Connection Manager. B Check that the printer you want to use appears in 3Com Bluetooth Connec-

tion Manager.

C On the [Tool] menu, click [COM port]. D Check that the message “Bluetooth Serial Client (COMx) “ appears under

Client Ports. (X indicates the COM port number used by Bluetooth.)

E Click [Close]. F On the [Start] menu, point to [Settings], and then click [Printers].

The [Printers] window appears.

G Click the icon of the printer you want to use. H On the [File] menu, click [Properties]. I Click the [Ports] tab.

J Under [Port], select the [COMx:] check box. X indicates the COM port

number used by Bluetooth.

K Click [OK].

Close the [Printers] window.

Note

❒ To always use the same printer, select the [Always use for this connection]

check box.

❒ System requirements vary depending on the Bluetooth standard and spec-

ifications. For details, see the manuals supplied with each product.

❒ For information about setting up Bluetooth under other operating systems

or using it with different utilities, see the manuals supplied with those operating systems or utilities.

❒ If a dialog box appears while transmitting a print job, reestablish network

connection as follows:

A Select the printer you want to use in the [Printers and Faxes] box. B Click [Connect].

Reference

For details, see the manuals supplied with the Bluetooth adaptor or computer equipped with Bluetooth.

Page 66

Preparing the Machine

Configuring Security Mode Settings

This describes how to coufigure the security mode settings.

A Start 3Com Bluetooth Connection Manager. B On the [Tools] menu, click [Security Mode].

The [Security Mode] dialog box appears.

C Select the security mode in the [Security Mode:] list.

If you click [High], or [Custom], and specify [Link] in the [Custom Settings] dialog box, enter the Bluetooth password. For information about entering the password, see p.58 “Printing in the Security Mode”.

For all other security modes and custom settings, no password is required.

For information about each mode, see the manuals supplied with the utility.

D Click [OK].

Close the [Security Mode] dialog box.

Reference

For details about the security mode, see 3Com Bluetooth Connection Manager Help. For details about the password entry which is required to transmit print jobs, see p.58 “Printing in the Security Mode”.

Printing in the Security Mode

This describes how to print in the security mode.

A Send the print job to the printer in use.

Depending on the computer configuration, the [Connect] dialog box may appear. If it does, use it to establish the network connection.

B The [Authentication] dialog box appears. C Enter the Bluetooth password, and then click [OK].

As the Bluetooth password, enter the last four digits of the machine's serial number. You can find the serial number on the label attached to the back of the machine. For example, if the serial number is 00A0-001234, the Bluetooth password is 1234.

D The print job is sent.

Note

❒ The Bluetooth password differs for each machine and cannot be changed.

Page 67

Making Option Settings for the Printer

Make option settings for the machine using the printer driver when bidirectional communication is disabled.

Reference

For details about making option settings for the printer, see p.61 “If Bidirectional Communication Is Disabled”.

Conditions for Bidirectional Communication

Bidirectional communication allows information about paper size and feed direction settings to be automatically sent to the printer. You can check machine status from your computer.

• Bidirectional communication is supported by Windows 95 / 98 / Me / 2000 / XP, Windows Server 2003, and Windows NT 4.0.

• If you use the RPCS printer driver and bidirectional communication is enabled under Windows 2000, the [Change Accessories] tab is unavailable.

Note

❒ The RPCS printer driver supports bidirectional communications and updates

the machine status automatically.

❒ The PCL printer driver supports bidirectional communications. You can up-

date the machine status manually.

To support bidirectional communication, the following conditions must be met:

❖ When connected with parallel cables

• The computer must support bidirectional communication.

• The machine must support bidirectional communication.

• The interface cable must support bidirectional communication.

• The machine must be connected to the computer using the standard paral-

lel cables and parallel connectors.

• Under Windows 2000, [Enable bidirectional support] must be selected, and

[Enable printer pooling] must not be selected on the [Ports] tab with the RPCS printer driver.

Page 68

Preparing the Machine

❖ When connected with the network

• The machine must support bidirectional communication.

• SmartDeviceMonitor for Client included on the CD-ROM must be in-

stalled, and TCP/IP must be used.

• Under Windows 2000, [Enable bidirectional support] must be selected, and

[Enable printer pooling] must not be selected on the [Ports] tab with the RPCS printer driver.

• In addition to the above, one of the following conditions must also be met:

• The SmartDeviceMonitor for Client port and the TCP/IP protocol must be used.

• The standard TCP/IP port must be used without changing the default port name (for Windows 2000 / XP and Windows Server 2003).

• Microsoft TCP/IP print IP address must be specified for use (for Windows NT 4.0).

• IPP port name must include the IP address when using the IPP protocol.

❖ When connected with IEEE 1394

• The computer must support bidirectional communication.

• The machine must be connected to the IEEE 1394 connector of a computer using the IEEE 1394 interface cable.

• [Activate] must be selected in the SCSI print of IEEE 1394 and [Activate] must be selected in the Bidi-SCSI print.

• Under Windows 2000 / XP or Windows Server 2003, [Enable bidirectional support] must be selected, and [Enable printer pooling] must not be selected on the [Ports] tab with RPCS printer driver.

❖ When connected with USB

The machine must be connected to the computer's USB port using the USB interface cable. The computer must support bidirectional communication.

Note

❒ Install SmartDeviceMonitor for Client from the supplied CD-ROM.

Page 69

Making Option Settings for the Printer

If Bidirectional Communication Is Disabled

Set up option settings when bidirectional communications are disabled.

Important

❒ Under Windows 2000 / XP and Windows Server 2003, Manage Printers per-

mission is required to change the printer properties in the [Printers] folder. Log on as an Administrators or Power Users group member.

❒ Under Windows NT 4.0, Full Control permission is required to change the

printer properties in the [Printers] (Windows 2000) or [Printers and Faxes] (Windows XP / Windows Server 2003) folder. Log on as an Administrators or Power Users group member.

A On the [Start] menu, point to [Settings], and then click [Printers].

The [Printers] window appears.

When using Windows XP or Windows Server 2003, point to [Settings] on the [Start] menu, and then click [Printers and Faxes]. The [Printers and Faxes] window appears.

B Click the icon of the printer you want to use. C On the [File] menu, click [Properties]. D Click the [Change Accessories] tab.

If options in the [Change Accessories] tab are disabled, bidirectional connection is enabled. In this case, no change is necessary for option settings.

If you are using the RPCS printer driver, click the [Change Accessories] tab.

E Select options installed from the [Options] area, and then make the neces-

sary settings.

F Select the total amount of the memory in [Total memory:] when the optional

SDRAM module is added.

G Under [Paper source tray settings:], click and highlight the tray to be used, and

then select the appropriate size, position, and type for the tray. Select the [Do not use Auto Tray Select] check box to exclude the tray from the targets of automatic tray selection.

H Click [OK] to close the printer properties dialog box.

Page 70

Preparing the Machine

Installing Font Manager 2000

Important

❒ Under Windows 2000 / XP, Windows Server 2003, or Windows NT 4.0, in-

stalling applications by Auto Run requires administrator permission. To install a printer driver by Auto Run, log on using an account that has administrator permission.

A Quit all applications currently running. B Insert the CD-ROM into the CD-ROM drive.

The installer starts.

C Click [Font Manager 2000]. D Follow the instructions on the screen.

Page 71

Using Adobe PageMaker Version 6.0, 6.5, or 7.0

Under Windows 95 / 98 / Me / 2000 / XP, Windows Server 2003, or Windows NT 4.0 with Adobe PageMaker, you need to copy PPD files to the PageMaker folder.

PPD files have the .ppd extension in the folder “DRIVERS\PS\WIN9X_ME \(Language)\DISK1” on the CD-ROM.

The “WIN9X_ME” folder inside the “PS” folder is for Windows 95 / 98 / Me. Use the folder at this level that is appropriate for the operating system you are currently using.

The third folder “(Language)” may be substituted by an appropriate language name.

Copy the .ppd file to the PageMaker folder.

• For PageMaker 6.0 default installation The directory is “C:\PM6\RSRC\PPD4”.

• For PageMaker 6.5 default installation The directory is “C:\PM65\RSRC\USENGLISH\PPD4”. The “USENGLISH” may vary depending on your language selection.

• For PageMaker 7.0 default installation The directory is “C:\PM7\RSRC\USENGLISH\PPD4”. The “USENGLISH” may vary depending on your language selection.

Note

❒ If the driver is not set correctly after copying the “.ppd” file, printing may not

be performed properly.

❒ When using PageMaker, the optional features that can be selected by the

printer driver will not be active. The following procedure describes how to activate the optional printer features.

A On the [File] menu, click [Print].

The [Print Document] dialog box appears.

B Make the necessary settings in the [Features] box.

Page 72

Preparing the Machine

Page 73

2. Setting Up the Printer Driver

PCL - Accessing the Printer Properties

Windows 95 / 98 / Me - Accessing the Printer Properties

There are two methods to open the printer properties dialog box.

Making Printer Default Settings

To make the printer default settings, open the printer properties dialog box from the [Printers] window.

Important

❒ You cannot change the printer default settings for each user. Settings made in

the printer properties dialog box are applied to all users.

A On the [Start] menu, point to [Settings], and then click [Printers].

The [Printers] window appears.

B Click the icon of the printer you want to use. C On the [File] menu, click [Properties]. D Make the necessary settings, and then click [OK].

Note

❒ With some applications, the printer driver settings are not used, and the

application's own default settings are applied.

Reference

For details, see the printer driver Help.

Page 74

Setting Up the Printer Driver

Making Printer Settings from an Application

You can make printer settings for a specific application.

To make printer settings for a specific application, open the printer properties dialog box from that application. The following explains how to make settings for the WordPad application provided with Windows 95 / 98 / Me.

A On the [File] menu, click [Print].

The [Print] dialog box appears.

B Select the printer you want to use in the [Name] list, and then click [Properties].

The printer properties dialog box appears.

C Make the necessary settings, and then click [OK]. D Click [OK] to start printing.

Note

❒ The procedure to open the printer properties dialog box may vary depend-

ing on the application. For details, see the manuals provided with the application you use.

❒ With some applications, the printer driver settings are not used, and the

application's own default settings are applied.

❒ Any settings you make in the following procedure are valid for the current

application only.

❒ General users can change the properties displayed in the [Print] dialog box

of an application. Settings made here are used as defaults when printing from this application.

Reference

For details, see the printer driver Help.

Page 75

PCL - Accessing the Printer Properties

Windows 2000 - Accessing the Printer Properties

Making Printer Default Settings - The Printer Properties

Important
