4CEG"5ECPPGT"+PVGTEQO

YKVJ"2KV"%TGY"*GCFUGVU

20-285

MIC GAIN/OFF/MAX — Turn
clockwise until you hear a click to
turn on the intercom. Turn
towards MAX to increase the
volume or towards OFF to
decrease the volume. Turn to OFF
until you hear a click to turn off
the intercom.

Left Side Jacks (L) — Connect up
to two headsets to the L jacks for
the persons sitting on the left side.

"+/2146#06"

#

If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.

— Warning

Rý

Rý

RýRý

.... — Caution ±

— Important

#

#

°°°°

— Hint

± — Note

±±

±"016'"±"

• When you turn on the intercom, the green
LED lights. If the LED turns red, replace the
batteries.

• If you do not use the intercom for an
extended period of time, remove the
batteries.

• Disconnect the headset if it not being used.
Otherwise, if the microphone is placed near
the earpiece, it might cause a piercing
sound.

• Turn MIC GAIN/OFF/MAX off or to the
lowest level before connecting or
disconnecting the headset.

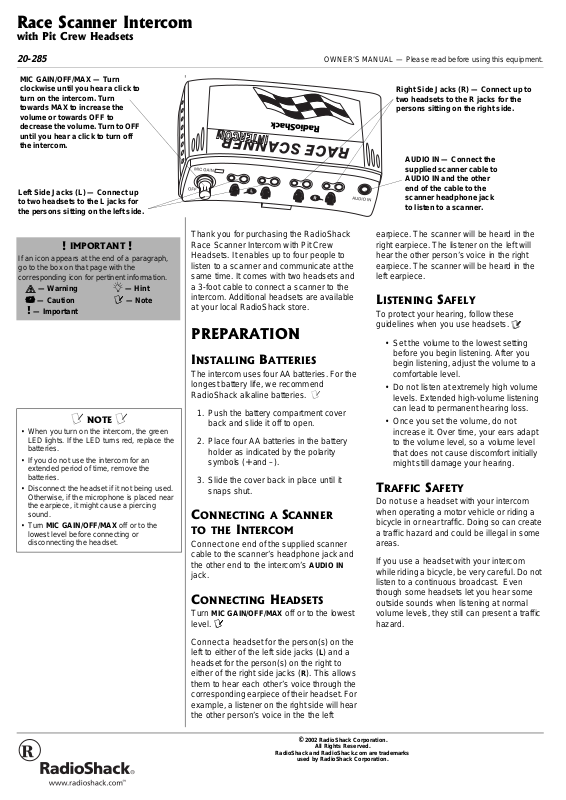

OWNER’S MANUAL — Please read before using this equipment.

Thank you for purchasing the RadioShack
Race Scanner Intercom with Pit Crew
Headsets. It enables up to four people to
listen to a scanner and communicate at the
same time. It comes with two headsets and
a 3-foot cable to connect a scanner to the
intercom. Additional headsets are available
at your local RadioShack store.

24'2#4#6+10

+056#..+0)"$#66'4+'5

The intercom uses four AA batteries. For the
longest battery life, we recommend
RadioShack alkaline batteries.

1. Push the battery compartment cover
back and slide it off to open.

2. Place four AA batteries in the battery
holder as indicated by the polarity
symbols (

3. Slide the cover back in place until it
snaps shut.

and –).

+

%100'%6+0)"#"5%#00'4"

61"6*'"+06'4%1/

Connect one end of the supplied scanner
cable to the scanner’s headphone jack and
the other end to the intercom’s
jack.

%100'%6+0)"*'#&5'65

Turn

MIC GAIN/OFF/MAX

level.

±±±±

±

AUDIO IN

off or to the lowest

Right Side Jacks (R) — Connect up to
two headsets to the R jacks for the
persons sitting on the right side.

AUDIO IN — Connect the
supplied scanner cable to
AUDIO IN and the other
end of the cable to the
scanner headphone jack
to listen to a scanner.

earpiece. The scanner will be heard in the
right earpiece. The listener on the left will
hear the other person’s voice in the right
earpiece. The scanner will be heard in the
left earpiece.

.+56'0+0)"5#('.;

To protect your hearing, follow these
guidelines when you use headsets.

• Set the volume to the lowest setting
before you begin listening. After you
begin listening, adjust the volume to a
comfortable level.

• Do not listen at extremely high volume
levels. Extended high-volume listening
can lead to permanent hearing loss.

• Once you set the volume, do not
increase it. Over time, your ears adapt
to the volume level, so a volume level
that does not cause discomfort initially
might still damage your hearing.

±±±±

64#((+%"5#('6;

Do not use a headset with your intercom
when operating a motor vehicle or riding a
bicycle in or near traffic. Doing so can create
a traffic hazard and could be illegal in some
areas.

If you use a headset with your intercom
while riding a bicycle, be very careful. Do not
listen to a continuous broadcast. Even
though some headsets let you hear some
outside sounds when listening at normal
volume levels, they still can present a traffic
hazard.

Connect a headset for the person(s) on the
left to either of the left side jacks (
headset for the person(s) on the right to
either of the right side jacks (R). This allows
them to hear each other’s voice through the
corresponding earpiece of their headset. For
example, a listener on the right side will hear
the other person’s voice in the the left

RadioShack and RadioShack.com are trademarks

) and a

L

2002 RadioShack Corporation.

©

All Rights Reserved.

used by RadioShack Corporation.

12'4#6+10

1. Turn on your scanner and set its volume
to the minimum.

2. Turn on the intercom.

3. Adjust the scanner’s volume to a
comfortable level. The scanner’s audio
is heard from both the left and right
earpieces.

4. To speak to another person, set

MIC GAIN/OFF/MAX

the minimum position and press the
push-to-talk button on the headset.
Speak into the microphone.

on the intercom to

%#4'

Keep the intercom dry; if it gets wet, wipe it
dry immediately. Use and store the intercom
only in normal temperature environments.
Handle the intercom carefully; do not drop it.
Keep the intercom away from dust and dirt,
and wipe it with a damp cloth occasionally to
keep it looking new.

If your intercom is not performing as it
should, take it to your local RadioShack
store for assistance. Modifying or tampering
with the intercom’s internal components can
cause a malfunction and might invalidate its
warranty.

5. Adjust the intercom’s

so the sound level of your voice is

MAX

MIC GAIN/OFF/

comfortable to the listener. The persons
on the left side hear the voice from the
right earpiece and the right side
persons hear the voice from the left
earpiece. The scanner is heard through
the other earpiece.

6. Release the push-to-talk button on the
headset when you finish speaking.

7. Turn
intercom to

MIC GAIN/OFF/MAX

to turn it off.

OFF

on the
