Ricoh 1018, B406 Part List

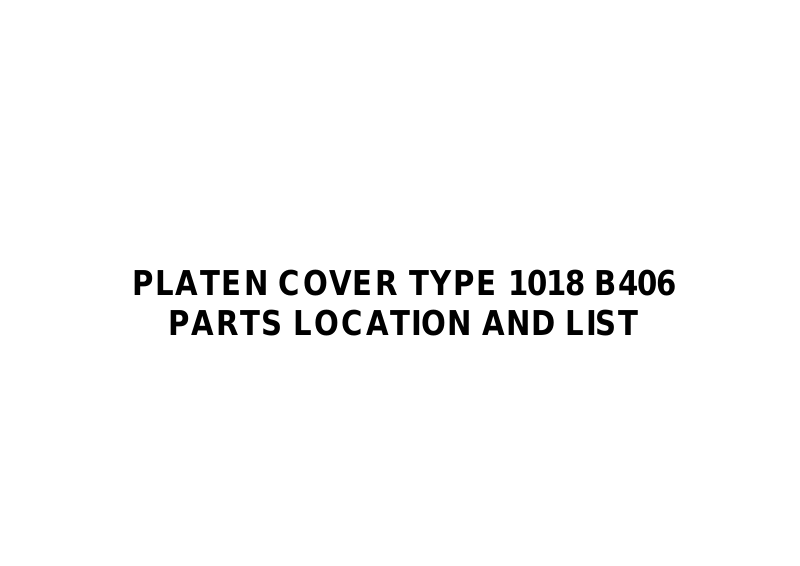

PLATEN COVER TYPE 1018 B406

PARTS LOCATION AND LIST

This section instructs you as to numbers and names of parts on this machine.

1.Platen Cover Type 1018 (B406)

B406 2 Parts Location and List

Q’ty Per

Index

Q’ty Per

Index

Rev. 11/21/2002

1.Platen Cover Type 1018 (B406)

No.

1 5448 2804 Platen Cover Sheet 1
2 AA16 2067 Platen Cover Pad 1
3 A053 1957 Flex Hinge - Platen Cover 2
4 B406 1387 Front Platen Cover 1
5 B406 1397 Original Holder 1
6 B406 1392 Rear Platen Cover 1
7 A193 1248 Platen Cover Hinge Assembly 1
8 B406 1384 Feeler - Platen Cover 1
9 A548 6121 Screw - M4 2
10 B406 1383 Bracket - Platen Cover 1

Part No.

Description

Assembly

No.

101 0450 4012B Tapping Screw - M4x12

Part No.

Description

Assembly

B406 3 Parts Location and List
