Ricoh 06424, 06576, 06577, 06581, 06583 User Manual

...

Download

Introduction

SLR Digital Camera

Operating Manual

Getting Started

Shooting

Playback

Settings

Appendix

To ensure the best performance from your camera, please read the Operating Manual before using the camera.

Checking the Contents of the Package

Hot shoe cover FK

(Installed on camera)

Battery charger

D-BC109

Start Guide

Lenses you can use

Lenses that can be used with this camera are DA, DA L, D FA and FA J lenses and lenses that have an 9 (Auto) position on the aperture ring. To use any other lens or accessory, see p.90.

Eyecup F

(Installed on camera)

AC plug cord Strap

Body mount cover

(Installed on camera)

O-ST132

Rechargeable Lithium-ion

Battery D-LI109

Software (CD-ROM)

S-SW151

Introducing the K-S1

Getting Started

Taking Pictures

Playback Functions

Changing the Settings

Appendix

How to Use This Manual

Introducing the PENTAX K-S1........... p.7

Gives you an overview of the K-S1. Read this and get to know your K-S1!

 Names and Functions

of the Working Parts ..................................... p.7

 How to Change Function Settings ................ p.16

 Menu List ...................................................... p.19

Getting Started......................................... p.27

Explains how to get your K-S1 ready for shooting as well as basic operations.

 Attaching the Strap ....................................... p.27

 Attaching a Lens ........................................... p.27

 Using the Battery and Charger ..................... p.28

 Inserting a Memory Card .............................. p.31

 Initial Settings ............................................... p.32

 Basic Shooting Operation ............................. p.35

 Reviewing Images ........................................ p.37

Taking Pictures ........................................ p.38

Once you’ve confirmed that the camera works properly, try out the camera and take lots of pictures!

 Configuring the Capture Settings .................. p.38

 Taking Still Pictures ......................................p.39

 Recording Movies ......................................... p.44

 Setting the Exposure .................................... p.46

 Using the Built-in Flash ................................. p.47

 Setting the Focus Method ............................. p.49

 Setting the Drive Mode ................................. p.53

 Setting the White Balance ............................ p.56

 Controlling the Image Finishing Tone ........... p.58

 Correcting Images ........................................ p.61

Playback Functions ................................ p.64

Explains various operations for playing back and editing images.

 Playback Mode Palette Items ....................... p.64

 Changing the Playback Method .................... p.65

 Connecting the Camera to a Computer ........ p.69

 Editing and Processing Images .................... p.70

Changing the Settings........................... p.77

Explains how to change other settings.

 Camera Settings ........................................... p.77

 File Management Settings ............................ p.81

Appendix..................................................... p.88

Provides various resources.

 Restrictions on Each Capture Mode ............. p.88

 Functions Available with Various Lenses ..... p.90

 Functions when Using an External Flash ..... p.93

 Using the GPS Unit ....................................... p.94

 Troubleshooting ............................................ p.95

 Main Specifications ....................................... p.98

 Index ............................................................. p.105

 For Using Your Camera Safely ..................... p.110

 Care to be Taken During Handling ............... p.112

 WARRANTY POLICY ................................... p.115

There is a possibility that the illustrations and the display screen of the monitor in this manual are different from the actual ones.

How to Use This Manual

Contents

How to Use This Manual ........................... 2

Contents

Introducing the PENTAX K-S1 .................. 7

Names and Functions of the Working Parts ...........7

Operating Controls ......................................................... 8

Monitor ......................................................................... 10

Viewfinder .................................................................... 15

How to Change Function Settings ........................16

Using the Direct Keys .................................................. 16

Using the Control Panel ............................................... 17

Using the Menus .......................................................... 18

Menu List ..............................................................19

Rec. Mode Menus ........................................................ 19

Movie Menu ................................................................. 22

Playback Menu ............................................................ 22

Set-up Menus .............................................................. 23

Custom Setting Menus ................................................ 25

Getting Started ........................................ 27

Attaching the Strap ...............................................27

Attaching a Lens ...................................................27

Using the Battery and Charger .............................28

Charging the Battery .................................................... 28

Inserting/Removing the Battery ................................... 29

Using the AC Adapter .................................................. 30

Inserting a Memory Card ......................................31

Initial Settings .......................................................32

Turning the Camera On ............................................... 32

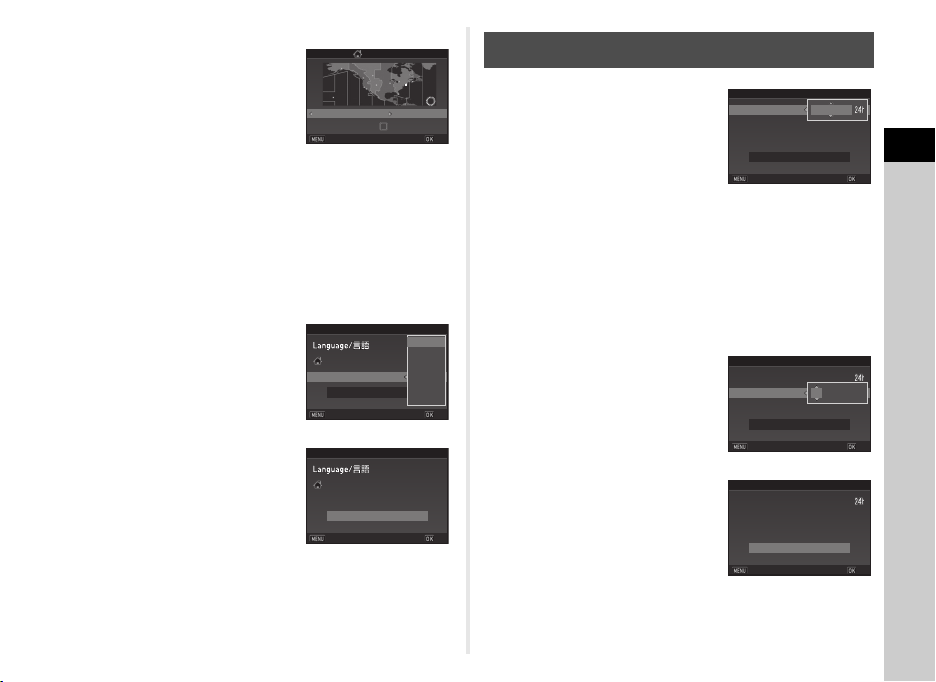

Setting the Display Language ...................................... 32

Setting the Date and Time ...........................................33

Setting the LCD Display ............................................... 34

Formatting a Memory Card .......................................... 34

Basic Shooting Operation .................................... 35

Shooting with Live View ............................................... 36

Reviewing Images ................................................ 37

Taking Pictures........................................ 38

Configuring the Capture Settings ......................... 38

Image Capture Settings ...............................................38

Movie Capture Settings ................................................ 38

Taking Still Pictures ............................................. 39

Scene Modes ............................................................... 39

Effects Modes .............................................................. 41

Exposure Modes .......................................................... 42

EV Compensation ........................................................ 43

Recording Movies ................................................ 44

Playing Back Movies .................................................... 45

Setting the Exposure ............................................ 46

Sensitivity ..................................................................... 46

AE Metering ................................................................. 47

Using the Built-in Flash ........................................ 47

Setting the Focus Method .................................... 49

Setting the AF Mode when Shooting

with the Viewfinder ....................................................... 49

Setting the AF Mode during Live View ......................... 51

AF Fine Adjustment ..................................................... 53

Setting the Drive Mode .........................................53

Continuous Shooting ................................................... 54

Self-timer ..................................................................... 54

Remote Control ............................................................ 55

Exposure Bracketing .................................................... 55

Setting the White Balance ....................................56

Adjusting the White Balance Manually ........................ 57

Adjusting the White Balance

with Color Temperature ............................................... 58

Controlling the Image Finishing Tone ...................58

Custom Image ............................................................. 58

Digital Filter .................................................................. 60

Correcting Images ................................................61

Brightness Adjustment ................................................. 61

Lens Correction ........................................................... 62

Anti-Aliasing Filter Simulator ........................................ 63

Playback Functions ................................. 64

Playback Mode Palette Items ...............................64

Changing the Playback Method ............................65

Displaying Multiple Images .......................................... 65

Displaying Images by Folder ....................................... 66

Displaying Images by Shooting Date ........................... 67

Playing Back Images Continuously (Slideshow) .......... 67

Displaying Rotated Images .......................................... 68

Connecting the Camera to an AV Device .................... 68

Connecting the Camera to a Computer ................69

Editing and Processing Images ............................70

Changing the Image Size ............................................ 70

Correcting Color Moiré ................................................. 71

Processing Images with Digital Filters ......................... 72

Editing Movies ............................................................. 73

RAW Development ...................................................... 75

Changing the Settings ............................. 77

Camera Settings .................................................. 77

Customizing the Button/E-dial Functions ..................... 77

Displaying the Local Date and Time

of the Specified City ..................................................... 80

Selecting Settings to Save in the Camera ................... 81

File Management Settings ................................... 81

Protecting Images from Deletion (Protect) ................... 81

Selecting the Folder/File Settings ................................82

Setting the Copyright Information ................................ 85

Using a Wireless Memory Card ...................................86

Appendix.................................................. 88

Restrictions on Each Capture Mode .................... 88

Restrictions on the Combinations

of Special Functions ..................................................... 89

Functions Available with Various Lenses ............. 90

Setting the Focal Length .............................................. 91

Using the Aperture Ring ............................................... 92

Functions when Using an External Flash ............. 93

Using the GPS Unit .............................................. 94

Shooting Celestial Bodies (ASTROTRACER) ............. 94

Troubleshooting ................................................... 95

Sensor Cleaning .......................................................... 96

Error Messages ............................................................ 97

Main Specifications .............................................. 98

Operating Environment for USB Connection

and Provided Software ............................................... 104

Index ..................................................................105

For Using Your Camera Safely .......................... 110

Care to be Taken During Handling ..................... 112

WARRANTY POLICY ........................................ 115

Contents

Regarding copyrights

Images taken with this camera that are for anything other

Contents

than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, performances or of items on display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also.

To users of this camera

• Do not use or store this camera in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the camera’s internal circuitry and cause camera misoperation.

• The liquid crystal panel used for the monitor is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image.

• In this manual, the generic term “computer(s)” refers to either a Windows PC or a Macintosh.

• In this manual, the term “battery(ies)” refers to any type of batteries used for this camera and its accessories.

Regarding User Registration

In order to better serve you, we request that you complete the user registration, which can be found on the CD-ROM supplied with the camera or on our website. Thank you for your cooperation.

Names and Functions of the Working Parts

Tripod socket

Battery/memory card cover

Remote control receiver

AF coupler

Mirror

Lens unlock button

Lens information

contacts

Strap lug

Hot shoe

Lens mount index

Speaker

Strap lug

AF assist light

Card access lamp

USB terminal (micro B)

Terminal cover

Diopter adjustment lever

HDMI terminal (type D)

Microphone

Image plane indicator

Viewfinder

Monitor

Built-in flash

Connection cable cover

Microphone

Battery/memory card cover unlock lever

Introduction

Operating Controls

e f

Introduction

1 EV Compensation button (J/J)

Press to change the exposure compensation value. (p.43) In K/L mode, use this button to switch the value to be changed between shutter speed and aperture value. In playback mode, the last JPEG image taken can also be saved in RAW format. (p.37)

2 Green button (M)

Resets the value being adjusted. Switches to [ISO AUTO] when adjusting the sensitivity. Also, you can assign other functions to this button. (p.78)

3 Shutter release button (0)

Press to capture images. (p.35) In playback mode, press halfway to switch to capture mode.

4 Main switch

Turns the power on/off, or switches to C (movie) mode. (p.32, p.44) When the camera is turned on, it enters A (still picture) mode and the lamp lights green. When the switch is turned to C, the camera enters C mode and the lamp lights red.

5 Grip lamps

The five lamps light up green during Self-timer shooting or shooting with a remote control unit, or when faces are detected during Live View. (p.52, p.54)

6 Lens unlock button

Press to detach the lens on the camera. (p.27)

7 Flash pop-up button (1)

Press to pop up the built-in flash. (p.48)

8 Focus mode switch

Turn to change the focus mode. (p.49)

9 Live View/Delete button (K/L)

Displays the Live View image. (p.36) In playback mode, press to delete images. (p.37)

0 Playback button (3)

Switches to playback mode. (p.37) Press the button again to switch to capture mode.

a MENU button (F)

Displays a menu. Press this button while the menu is displayed to return to the previous screen. (p.18)

b INFO button (G)

Changes the style of the display on the monitor. (p.10, p.13)

c E-dial (V)

Changes the values for camera settings such as exposure. (p.42) You can change the menu tabs when a menu screen is displayed. (p.18) You can change the camera settings when the control panel is displayed. (p.17) In playback mode, use this to magnify an image or display multiple images at the same time. (p.37, p.65)

d AF/AE Lock button (f)

Available for adjusting focus, instead of pressing 0 halfway, and for locking the exposure value before shooting. (p.49, p.77)

e Four-way controller (ABCD)

Displays the Sensitivity, White Balance, Flash Mode or Drive Mode setup menu. (p.16) When a menu or the control panel is displayed, use this to move the cursor or change the item to set. Press B in single image display of the playback mode to display the playback mode palette. (p.64)

f OK button (E)

When a menu or the control panel is displayed, press this button to confirm the selected item. Press this button when [AF Active Area] is set to E or 8, or when [Contrast AF] is set to g or h to change the focusing area. (p.50, p.51) When the power is turned on, the lamp lights blue. When the focusing area can be changed, the lamp turns off.

g Mode dial

Changes the capture mode. (p.35) When the power is turned on, the lamp lights white, and the icon of the set capture mode lights green on the dial.

About the indicator lamps

The main switch lamp, grip lamps, mode dial lamp and E lamp turn off in the following situations.

• From the time when 0 is pressed halfway until

the end of shooting

• While f is pressed

• During playback mode

• While a menu is displayed

• During Auto Power Off You can set the lamp lighting settings in [Indicator Lamps] of the D3 menu. (p.24)

About the four-way controller

In this manual, each button of the fourway controller is indicated as shown in the illustration on the right.

Introduction

Monitor

25 0

16 0 0

5.6

99 999

10: 23

99 999

25 0

16 0 0

5.6

99 999

Status Screen

Custom Image Bright

07/ 07/201 4

Standby mode

(Status screen)

Shooting Info Display selection screen

Control panel

25 0

16 0 0

5.6

12 345

5´ 0 0˝

+1 .0

G1 A1

Capture Mode

Introduction

With this camera, you can take pictures while looking through the viewfinder or while viewing the image on the monitor. When using the viewfinder, you can take pictures while checking the status screen displayed on the monitor and looking through the viewfinder. When not using the viewfinder, you can take pictures while viewing the Live View image displayed on the monitor. The camera is in “standby mode” when it is ready to shoot, such as when the status screen or Live View image is displayed. Press G in standby mode to display the “control panel” and change settings. (p.17) You can change the type of information displayed in standby mode by pressing G while the control panel is displayed. (p.12)

Custom Image

Status Screen

Custom Image Bright

Bright

07/07/2014

10:23

250

5.6

1600

99999

250

5.6

99999

Status Screen

250

5.6

1600

+1.0

G1A1

12345

5´ 00˝

1 Capture mode (p.39) 2 AE Lock (p.44) 3 Focus Method (p.49) 4 Custom Image (p.58) 5 Digital Filter (p.60)/HDR

Capture (p.62)

6 GPS positioning status

(p.94)

7 Wireless LAN status (p.86) 8 AE Metering (p.47) 9 Shake Reduction (p.20) 10 Battery level 11 E-dial guide 12 Shutter speed 13 Aperture value 14 EV Compensation (p.43)/

Exposure Bracketing (p.55)

45 678910

123

17 18 24

2523

19 2120

19 21 22

2726

15 EV bar scale 16 Sensitivity (p.46) 17 Flash Exposure

Compensation (p.48)

18 White Balance fine-tuning

(p.56)

19 Flash Mode (p.47) 20 Focusing area (AF point)

(p.50)

21 Drive Mode (p.53) 22 White Balance (p.56) 23 File Format (p.38) 24 Memory card 25 Image storage capacity 26 ASTROTRACER

maximum tracking duration (p.94)

27 Operation guide

1600

99999

Live View

+1. 7

200 0

F2. 8

160 0

99999

±0EV

200 0

F2. 8

160 0

99999

10: 23

12 345

Custom Image Bright

07/ 07/201 4

10: 23

12 345

07/ 07/201 4

Custom Image Bright

When shooting with Live View

10: 23

1: 23' 4 5"

07/ 07/201 4

Custom Image Bright

C mode

Control Panel

123456 91011

2000

F2.8

+1.7

1600

1 Capture mode (p.39) 2 Flash Mode (p.47) 3 Drive Mode (p.53) 4 White Balance (p.56) 5 Custom Image (p.58) 6 Digital Filter (p.60)/HDR

Capture (p.62)

7 GPS positioning status

(p.94)

8 Wireless LAN status (p.86) 9 AE Metering (p.47) 10 Shake Reduction (p.20)/

Movie SR (p.22)

11 Battery level

14 15

±0EV

99999

2000

22 2317 18 19 20 24

13 Histogram 14 EV Compensation (p.43) 15 EV bar scale 16 Operation guide 17 AE Lock (p.44) 18 Shutter speed 19 Aperture value 20 Sensitivity (p.46) 21 File Format (p.38) 22 Memory card 23 Image storage capacity 24 Face detection frame

(when [Contrast AF] is set to [Face Detection]) (p.51)

12 Temperature warning

t Memo

• In [Live View] of the A3 menu, you can change the settings

of the items displayed on the monitor during Live View. (p.20)

F2.8

1600

99999

A mode

Custom Image

Custom Image Bright

Bright

07/07/2014

Custom Image

Custom Image Bright

Bright

07/07/2014

Custom Image

Custom Image Bright

Bright

07/07/2014

10:23

12345

1:23'45"

1 Function name 2 Setting 3 Memory card 4 Number of recordable still

pictures/Movie recordable time

5 Custom Image (p.58)/

Scene Mode (p.39)/ Effects Mode (p.41)

1 2

657 11

27 28

1 2

657

27 28

1 2

6514

27 28

13 18 23

21 25

98 14 19 24

12 17 22

6 Digital Filter (p.60) 7 HDR Capture (p.62) 8 Highlight Correction (p.61) 9 Shadow Correction (p.61) 10 Distortion Correction

(p.62)

11 Lateral Chromatic

Aberration Adjustment (p.62)

Introduction

12 Peripheral Illumination

Correction (p.62)

13 Diffraction Correction

Introduction

(p.62)

14 AE Metering (p.47) 15 AF Mode (p.49)/Contrast

AF (p.51)

16 AF Active Area (p.50)/

Focus Peaking (p.52)

17 AF Assist Light (p.49) 18 High-ISO NR (p.46) 19 Slow Shutter Speed NR

(p.43)

20 File Format (p.38) 21 JPEG Recorded Pixels

(p.38)/Movie Recorded Pixels (p.38)

22 JPEG Quality (p.38) 23 Shake Reduction (p.20)/

Movie SR (p.22)

24 AA Filter Simulator (p.63) 25 Framerate (p.38) 26 Recording Sound Level

(p.45)

27 Current date and time 28 Destination (p.80)

t Memo

• The items that can be selected vary depending on the current camera setup.

• If no operations are made within 1 minute while the control panel is displayed, the camera returns to standby mode.

• You can change the display color of the status screen, control panel and menu cursor in [Display Color] of [LCD Display] in the D1 menu. (p.23)

Shooting Info Display

You can change the type of information displayed in standby mode by pressing G while the control panel is displayed. Use CD to select the type and press E.

When shooting with the viewfinder

Status Screen

Display Off Nothing is displayed on the monitor.

Electronic Compass

When shooting with Live View

Standard Information Display

No Information Display

Displays the settings for shooting with the viewfinder. (p.10)

The current latitude, longitude, altitude, direction, Coordinated Universal Time (UTC), capture mode, and exposure value are displayed. Turn the camera off and on again to return to the status screen. Available only when the optional GPS unit is attached to the camera and is operating. (p.94)

The Live View image and the settings for shooting with Live View are displayed. (p.11)

Certain icons, such as those for the capture mode and drive mode, are not displayed.

t Memo

• The status screen is always displayed when the camera is turned off and on again. If [Shooting Info Display] is set to [On] in [Memory] of the A4 menu, the screen selected on the Shooting Info Display selection screen appears when the camera is turned off and on again. (p.81)

Playback Mode

200 01/2000

F2. 8F2.8 200200 +0.3+0.3

100 -0001100-0001

200 01/2000

F2. 8F2.8 200200 +0.3+0.3

100 -0001100-0001

Standard Information DisplayStandard Information Display

Single image display

(Standard Information Display)

Playback Info Display

selection screen

The captured image and shooting information are displayed in single image display of the playback mode. Press G to change the type of information displayed in single image display. Use CD to select the type and press E.

t Memo

• The screen selected in the Playback Info Display selection screen is displayed in playback mode when the camera is turned off and on again. If [Playback Info Display] is set to [Off] in [Memory] of the A4 menu, the [Standard Information Display] always appears first when the camera is turned on. (p.81)

Introduction

Standard Information Display

Detailed Information Display

Histogram Display

RGB Histogram Display

No Information Display

Captured image, file format, exposure parameters, and operation guide indicators are displayed.

Detailed information on how and when the image was taken is displayed. (p.14)

Captured image and brightness histogram are displayed. (p.15) Not available during movie playback.

Captured image and RGB histogram are displayed. (p.15) Not available during movie playback.

Only the captured image is displayed.

Detailed Information Display

+1. 0

200 0

F2. 8

55. 0mm

160 0

500 0K

100 -0001

+1. 5

10: 30

10' 10"

125

F8. 0

G1A 1

100 -0001

0.0

160 0

G1A 1

10: 30

100 -0001 0m0m123 ° N 36°45 .410'

10: 00:00

ABCDEFGHIJKLMNOPQRSTUVWXYZ 123456

W14 0°02.0 00'

07/ 07/201 4

Still pictures

Movies

Page 2

Introduction

2000

1600

5000K

125

1600 5000K

07/07/2014 10:00:00

ABCDEFGHIJKLMNOPQRSTUVWXYZ 123456

1 Captured image 2 Rotation information (p.68) 3 Capture mode (p.39) 4 Digital Filter (p.60)/HDR

Capture (p.62)

5 Transferred via Wireless

LAN (p.86)

F2.8

G1A1

07/07/2014

F8.0

07/07/2014

+1.5

0.0

G1A1

100-0001

+1.0

55.0mm

10:30

100-0001

10'10"

55.0mm

10:30

100-0001

123°

N 36°45.410' W140°02.000'

12 13 14 17

21 23

25 26 28 29 3130 32 33 34

27 37

12 13 14 39

21 23

243725 40 28 29

6 Protect setting (p.81) 7 Folder number-File

number (p.82)

8 Drive Mode (p.53) 9 Flash Mode (p.47) 10 Flash Exposure

Compensation (p.48)

456 7

11351098

181615

456 7

388

181615

657

43 44

11 Color Moiré Correction

(p.71)

12 Shutter speed 13 Aperture value 14 Shake Reduction (p.20)/

Movie SR (p.22)

15 Sensitivity (p.46) 16 EV Compensation (p.43) 17 Focus Method (p.49) 18 AE Metering (p.47) 19 Focusing area (AF point)

(p.50)

20 White Balance (p.56) 21 White Balance fine-tuning

(p.56)

22 AA Filter Simulator (p.63) 23 Lens focal length 24 File Format (p.38) 25 JPEG Recorded Pixels

(p.38)/Movie Recorded Pixels (p.38)

26 JPEG Quality (p.38) 27 Color Space (p.26) 28 Highlight Correction (p.61) 29 Shadow Correction (p.61) 30 Distortion Correction

(p.62)

31 Lateral Chromatic

Aberration Adjustment (p.62)

32 Peripheral Illumination

Correction (p.62)

33 Diffraction Correction

(p.62)

34 Color Fringe Correction

(p.75)

35 Custom Image setting

(p.58)

36 Custom Image parameters 37 Shooting date and time 38 Length of time of the

recorded movie

39 Volume 40 Framerate (p.38) 41 Altitude (p.94) 42 Lens direction (p.94) 43 Latitude (p.94) 44 Longitude (p.94) 45 Universal Coordinated

Time

46 Information tampering

warning

47 Photographer (p.85) 48 Copyright Holder (p.85)

Histogram Display/RGB Histogram Display

100 -0001

200 0

F2. 8

200

+0. 3

100 -0001

200 0

F2. 8

200

+0. 3

Brightness histogram

RGB histogram

Use AB to switch between the Histogram Display and RGB Histogram Display.

134

100-0001

2000

F2.8

200

6 7 8 9 10

+0.3

2000

6 7 8 109

F2.8

3425

200

100-0001

+0.3

Viewfinder

When shooting with the viewfinder, the following information appears in the viewfinder.

Introduction

1 Histogram (Brightness) 2 Switch RGB histogram/

Brightness histogram

3 Protect setting 4 Folder number-File

number

5 Save RAW Data 6 File Format

7 Shutter speed 8 Aperture value 9 Sensitivity 10 EV Compensation 11 Histogram (R) 12 Histogram (G) 13 Histogram (B)

5 7 8 9

61011

1 AF frame (p.35) 2 Spot metering frame (p.47) 3 AF point (p.50) 4 Flash indicator (p.47) 5 Focus Method (p.49) 6 Shutter speed 7 Aperture value 8 Focus indicator (p.35) 9 EV bar scale 10 ISO/ISO AUTO 11 Sensitivity (p.46)/Exposure

compensation value

1716151413

12 AE Lock (p.44) 13 Change AF Point (p.50) 14 AE Metering (p.47) 15 Shake Reduction (p.20) 16 Flash Exposure

Compensation (p.48)

17 EV Compensation (p.43)/

Exposure Bracketing (p.55)

18 File Format (p.38)

t Memo

• The information is displayed in the viewfinder when 0

is pressed halfway, or during the meter operating time (default setting: 10 sec.).

• The AF point in use for autofocus appears in red

(Superimpose AF Area) when 0 is pressed halfway.

Introduction

You can set it to [Off] in [14 Superimpose AF Area] of the E2 menu.

• You can adjust the diopter in the viewfinder using the diopter adjustment lever. If it is difficult to adjust the diopter adjustment lever, lift up and remove the eyecup. Adjust the lever until the AF frame in the viewfinder looks sharp and clear.

How to Change Function Settings

The camera functions and their settings can be selected and changed by using the following ways.

Direct keys Press ABCD in standby mode.

Control panel

Menus Press F.

Using the Direct Keys

Press G in standby mode. (indicated with the v icon in this manual)

WXYZ

Sensitivity p.46

White Balance p.56

Flash Mode p.47

Drive Mode p.53

Using the Control Panel

10: 23

99 99 9

File Format

07/ 07 /20 14

File Format

Cancel

Use ABCD to select an item.

Use V to change settings.

Press F to cancel setting operation.

Press E to confirm the selected item and return to the control panel.

Press E to make detailed settings.

You can set frequently used shooting functions. Press G in standby mode.

Introduction

File Format

99999

07/07/2014

File Format

10:23

99999

Cancel

Using the Menus

GPS

PE F

Custom Image Image Capture Settings AF Settings AE Metering Digital Filter HDR Capture

Exit

Lens Correction D-Range Settings High-ISO NR Slow Shutter Speed NR

Exit

Lens Correction D-Range Settings High-ISO NR Slow Shutter Speed NR

Cancel

Custom Image Image Capture Settings AF Settings AE Metering

Exit

Digital Filter HDR Capture

File Format JPEG Recorded Pixels

Image Capture Settings

JPEG Quality RAW File Format

Use AB to select an item.

Press F to exit the menu screen.

Menu tabs

Press D to display the pop-up menu.

Press D to display the submenu.

Press E to confirm the selected item.

Press F to cancel the pop-up menu.

Press F to return to the previous screen.

Use AB to selec t an i tem.

Use V to switch between menu tabs.

Most functions are set from the menus. The functions that can be set on the control panel can also be set from the menus.

Introduction

Custom Image Image Capture Settings AF Settings AE Metering Digital Filter HDR Capture

Exit

Lens Correction D-Range Settings High-ISO NR Slow Shutter Speed NR GPS

Exit

t Memo

• For the Custom Setting menus (E1-4), you can show the setting screen of the next item in order of the menus on the monitor by turning V while the submenu of the currently selected item is displayed.

•Press F to display the first tab of the proper menus for the camera settings at that time. To display the menu tab last selected first, set in [23 Save Menu Location] of the E4 menu.

• Settings are returned to their default values with [Reset] of the D3 menu. To reset all the settings in the Custom Setting menus to the defaults, use [Reset Custom Functions] of the E4 menu. (Some settings do not apply.)

Lens Correction D-Range Settings High-ISO NR Slow Shutter Speed NR GPS

Cancel

Custom Image Image Capture Settings AF Settings AE Metering Digital Filter HDR Capture

Exit

Image Capture Settings

File Format JPEG Recorded Pixels JPEG Quality RAW File Format

PEF

Menu List

Rec. Mode Menus

Menu Item Function Default Setting Page

Sets the image finishing tone such as color and contrast before shooting an image.

Selects the scene mode that best suits the situation. (S mode)

Selects the special effects that can be added to pictures. (W mode)

Sets the file format of images.

Sets the recording size of images saved in JPEG format.

Sets the quality of images saved in JPEG format.

Selects the autofocus method when shooting with the viewfinder.

Selects the area to adjust the focus when shooting with

the viewfinder.

Sets whether to use the assist light when autofocusing

in dark locations.

Selects the part of the sensor to use for measuring brightness and determining exposure.

Applies a digital filter effect when taking pictures.

Sets the type of high dynamic range shooting. Off

Sets the amount to change the exposure. ±2EV

Bright p.58

Portrait p.39

Faded Color p.41

JPEG

p.38

Auto (11 AF

Points)

p.49

p.50

On p.49

Multi-segment p.47

No Filter p.60

p.62Bracket Value

Custom Image

Scene Mode

Effects Mode

File Format

Image Capture Settings

JPEG Recorded Pixels

JPEG Quality

RAW File Format Sets the RAW file format. PEF

AF Mode

AF Settings

AF Active Area

AF Assist Light

AE Metering

Digital Filter

HDR Capture

Auto Align Sets whether to automatically adjust the composition. On

*1 *4

*2 *4

*3 *4

Introduction

Menu Item Function Default Setting Page

Introduction

Distortion Correction

Lat-Chromatic-Ab

Lens Correction

Adj

Peripheral Illumin.

Corr.

Diffraction Correction

Highlight

D-Range Settings

Correction

Shadow Correction

High-ISO NR

Slow Shutter Speed NR

Reduces distortions occurring due to lens properties. Off

Reduces lateral chromatic aberrations occurring due to lens properties.

Reduces peripheral light fall-off occurring due to lens properties.

Corrects blur caused by diffraction when using a small aperture.

Expands the dynamic range and prevents overexposed areas from occurring.

Expands the dynamic range and prevents underexposed areas from occurring.

Sets the Noise Reduction setting when shooting with a high ISO sensitivity.

Sets the Noise Reduction setting when shooting with a slow

shutter speed.

GPS Sets the camera action when the optional GPS unit is used. – p.94

Sets the AF Mode for shooting with Live View. Face Detection p.51

Emphasizes the outline of the subject in focus and makes

it easier to check the focus.

Applies low-pass filter effects using the Shake Reduction mechanism.

Activates the Shake Reduction function. On –

Sets the focal length when using a lens of which focal length information cannot be obtained.

Live View

AA Filter Simulator

Shake Reduction

Input Focal Length

Contrast AF

Focus Peaking

Grid Display Displays the grid during Live View. Off

Highlight Alert Sets overexposed areas to blink red during Live View. Off

p.62

Off

Auto

p.61

Auto

Auto p.46

Auto p.43

Off p.52

p.11Histogram Display Displays the histogram during Live View. Off

Off p.63

35mm p.91

Menu Item Function Default Setting Page

Display Time Sets the Instant Review display time. 1sec.

Zoom Instant Review

Instant Review

Button Customization

Memory

*1 The function appears in modes other than S or W mode. *2 The function appears in S mode. *3 The function appears in W mode. *4 The functions can also be set from the control panel.

Save RAW Data Sets whether to save the RAW data during Instant Review. On

Delete

Histogram Display Displays the histogram during Instant Review. Off

Highlight Alert Sets overexposed areas to blink red during Instant Review. Off AF/AE-L Button Sets the function for when f is pressed. Enable AF1

AF/AE-L Button(Movie)

Green Button Sets the function for when M is pressed. Green Button

E-Dial Programming

Sets whether to magnify the image during Instant Review. On

Sets whether to allow deletion of the displayed image during Instant Review.

Sets the function for when f is pressed in C mode. Enable AF1

Reverses the direction of rotation to increase value when V is turned.

Determines which settings to save when the power is turned off.

Rotate Right

On for settings

other than Digital

Filter, HDR Capture, and Shooting Info

Display

p.35

p.77

p.81

Introduction

Movie Menu

Menu Item Function Default Setting Page

Introduction

*1 The functions can also be set from the control panel.

Movie Capture Settings

Recording Sound Level

Digital Filter

Movie SR

Sets the number of recorded pixels and the framerate of the

movie.

Sets the Recording Sound Level and the volume level for

recording.

Applies a digital filter effect when recording a movie. No Filter p.60

Activates the Movie Shake Reduction function. On –

u/30p p.38

Playback Menu

Menu Item Function Default Setting Page

Display Duration Sets an image display interval. 3sec.

Screen Effect Sets a transition effect when the next image is displayed. Off

Slideshow

Quick Zoom Sets the initial magnification when magnifying images. Off –

Highlight Alert

Auto Image Rotation

Protect All Images Protects all stored images at once. – –

Delete All Images Deletes all stored images at once. – –

Repeat Playback

Auto Movie Playback Plays back movies during the slideshow. On

Starts the slideshow again from the beginning after the last image is displayed.

Sets overexposed areas to blink red in Standard Information Display or Histogram Display in playback mode.

Rotates images which were captured with the camera held vertically or of which the rotation information has been changed.

Auto p.45

Off

Off –

On p.68

p.67

Set-up Menus

Menu Item Function Default Setting Page

Language/W Changes the display language. English p.32

Date Adjustment Sets the date and time and the display format. 01/01/2014 p.33

World Time

Text Size

Sound Effects

LCD Display

LCD Display Settings

USB Connection

HDMI Out

Folder Name Sets the folder name in which images are stored. Date p.82

Create New Folder Creates a new folder on the memory card. – p.83

File Name Sets the file name assigned to an image. IMGP/_IMG p.83

Guide Display

Display Color

Switches between the date and time display of your hometown city and that of a specified city.

Sets whether to magnify the text size when selecting amenuitem.

Switches the operation sound on/off and changes the volume for In-focus, AE-L, Self-timer, remote Control, Change AF Point, and One Push File Format operations.

Sets whether to display the operation guides when the capture mode is changed.

Sets the display color of the status screen, control panel and menu cursor.

Adjusts the brightness, saturation and the color of the monitor.

Sets the USB connection mode when connecting to a computer.

Sets the output format when connecting to an AV device with an HDMI input terminal.

Hometown p.80

Std. p.33

Volume 3/

All On

On p.35

1p.12

0–

MSC p.70

Auto p.69

–

Introduction

Menu Item Function Default Setting Page

Introduction

Sequential

File No.

Flicker Reduction

Auto Power Off

Indicator Lamps

Wireless Memory Card

Reset

Pixel Mapping

Dust Removal Cleans the CMOS sensor by shaking it. Off p.95

Sensor Cleaning

Format Formats a memory card. – p.34

Firmware Info/Options

Numbering

Reset File Number

Other Indicator Lamps

Remote Control

Sets whether to continue the sequential numbering for the file name when a new folder is created.

Resets the file number setting and returns to 0001 each time a new folder is created.

Sets the photographer and copyright information embedded in the Exif data.

Cuts down on the screen flicker by setting the power frequency.

Sets the time until the camera turns off automatically if no operations are made for a certain period of time.

Lights up the main switch lamp, mode dial lamp, E lamp, and grip lamps when the power is turned on.

Lights up the grip lamps during the countdown for Self-timer shooting.

Lights up the grip lamps when shooting with a remote control unit.

Sets the camera action for when an Eye-Fi card or a Flucard is used.

Resets the settings of the direct keys and for the items of the A menu, C menu, B menu, D menu, control panel, and playback mode palette.

Maps out and corrects any defective pixels on the CMOS sensor.

Locks the mirror in the up position for cleaning the CMOS sensor with a blower.

Displays the camera’s firmware version. You can check the current firmware version before running an update.

p.84

–

Off p.85

50Hz –

1min. p.32

High

–p.86

––

–p.95

–p.96

––

p.9Self-timer

Custom Setting Menus

Menu Item Function Default Setting Page

1 EV Steps Sets the adjustment steps for exposure. 1/3 EV Steps p.43

2 Sensitivity Steps Sets the adjustment steps for ISO sensitivity. 1 EV Step p.46

3 Meter Operating Time Sets the meter operating time. 10sec. –

4 AE-L with AF Locked

5 Link AE and AF Point

6 Auto EV Compensation

7 Bulb (B) Mode Options

8 Bracketing Order Sets the order for Exposure Bracketing shooting. 0 - + p.55

9 One-Push Bracketing

10 WB Adjustable Range

11 WB When Using Flash Sets the white balance setting for when using a flash.

12 AWB in Tungsten Light

13 Color Temperature Steps Sets the adjustment steps for color temperature. Kelvin p.58

14 Superimpose AF Area

Sets whether to lock the exposure value when the focus is locked.

Sets whether to link the exposure and AF point in the focusing area.

Sets whether to automatically compensate when the proper exposure cannot be determined.

Sets the camera operation when pressing 0 in M mode.

Sets whether to shoot all frames with one release when using Exposure Bracketing.

Sets whether to automatically fine-tune the white balance when the light source is specified for the white balance setting.

Sets the tungsten light color tone for when the white balance is set to [Auto White Balance].

Sets whether to display the active AF point in red in the viewfinder.

Off –

Off p.47

Off –

Type1 –

Off p.55

Fixed p.56

Auto White

Balance

Strong

Correction

On p.16

p.56

Introduction

Menu Item Function Default Setting Page

Sets the action priority for when the focus mode is set to x and 0 is fully pressed.

Sets the action priority for the first frame when the focus mode is set to y and 0 is fully pressed.

Sets the action priority during Continuous Shooting when the focus mode is set to y.

Sets whether to maintain the focus for a certain amount of time when the subject happens to move out of the selected focusing area after being focused.

Sets whether to use autofocus when shooting with a remote control unit.

Sets whether to release the shutter while the built-in flash is being charged.

Saves the last menu tab displayed on the monitor and displays it again the next time F is pressed.

Sets whether to enable Catch-in Focus shooting when a manual focus lens is attached. The shutter is released automatically when the subject comes into focus.

Allows you to precisely fine tune your lenses with the camera’s autofocus system.

Sets whether to enable the shutter to release when the lens aperture ring is set to a position other than 9 (Auto).

Resets all the settings of the Custom Setting menus to the defaults.

Focus-priority p.50

Release-priority p.50

Focus-priority p.50

Reset Menu

Location

Introduction

15 AF.S Setting

16 1st Frame Action in AF.C

17 Action in AF.C Continuous

18 Hold AF Status

19 AF with Remote Control

20 Release While Charging

21 Color Space Sets the color space to use. sRGB –

22 Save Rotation Info Sets whether to save rotation information when shooting. On p.68

23 Save Menu Location

24 Catch-in Focus

25 AF Fine Adjustment

26 Using Aperture Ring

Reset Custom Functions

Off p.50

Off p.55

Off p.48

p.18

Off –

Off p.53

Disable p.92

––

Attaching the Strap Attaching a Lens

1 Pass the end of the strap

through the strap lug and secure it on the inside of the clasp.

2 Attach the other end in the same manner.

1 Make sure that the camera is turned off. 2 Remove the body mount

cover (1) and lens mount cover (2).

After removing the cover, be sure to put the lens down with the lens mount side facing upward.

3 Align the lens mount index

(red dots: 3) on the camera and the lens, and secure by turning the lens clockwise until it clicks.

To remove the lens

Attach the lens cap, and then turn the lens counterclockwise while pressing the lens unlock button (4).

Getting Started

u Caution

Battery charger Indicator lamp

AC plug cord

• When attaching or removing the lens, choose an environment that is relatively free of dirt and dust.

• Keep the body mount cover attached on the camera when a lens is not attached.

• Be sure to attach the lens mount cover and lens cap to the lens after removing it from the camera.

• Do not insert your fingers inside the lens mount of the camera

Getting Started

or touch the mirror.

• The camera body and lens mount incorporate lens information contacts. Dirt, dust, or corrosion may damage the electrical system. Please contact your nearest service center for professional cleaning.

• We assume no responsibility nor liability for accidents, damages and malfunctions resulting from the use of lenses made by other manufacturers.

t Memo

• Refer to “Functions Available with Various Lenses” (p.90) for details on the functions of each lens.

Using the Battery and Charger

Use the battery D-LI109 and battery charger D-BC109 exclusively developed for this camera.

Charging the Battery

1 Connect the AC plug cord to the battery charger. 2 Plug the AC plug cord into the power outlet.

3 Face the A mark on the

battery up, and insert it into the battery charger.

Insert the battery into the battery charger at an angle, and then fit into place. The indicator lamp is lit while charging and turns off when the battery is fully charged.

u Caution

• Do not use the battery charger D-BC109 to charge batteries other than D-LI109. Charging other batteries may cause damage or heating.

• Replace the battery with a new one in the following cases:

• If the indicator lamp blinks or does not light after the battery

is inserted correctly

• If the battery starts to run down more quickly even after

being charged (the battery may have reached the end of its service life)

t Memo

• The maximum charging time is approximately 240 minutes (it depends on temperature and remaining battery power). Charge in a location where the temperature is between 0°C and 40°C (32°F and 104°F).

Inserting/Removing the Battery

u Caution

• Insert the battery correctly. If the battery is inserted incorrectly, it may not be removed.

• Wipe the electrodes of the battery with a soft dry cloth before inserting.

• Do not open the battery/memory card cover or remove the battery while the power is on.

• Be careful as the camera or battery may become hot after the camera has been used continuously for a long period of time.

• Remove the battery when you will not use the camera for a long time. The battery may leak and damage the camera if left installed during prolonged periods of non-use. If the removed battery will not be used for six months or longer, charge the battery for about 30 minutes before storing it. Be sure to recharge the battery every six to twelve months.

• Store the battery in a location where the temperature will remain at or below room temperature. Avoid locations with high temperatures.

• The date and time may be reset if you leave the battery out of the camera for long periods of time. If this happens, set the current date and time again.

1 Open the battery/memory

card cover.

Slide the battery/memory card cover unlock lever (1) before opening the cover.

Getting Started

2 Face the A mark on the

battery towards the lens, and insert the battery until it locks into place.

To remove the battery, push the

Getting Started

battery lock lever in the direction of 2.

3 Close the battery/memory

card cover.

t Memo

• The battery level may not be displayed properly if the camera is used at low temperatures or when performing Continuous Shooting for a long time.

• Battery performance temporarily decreases as the temperature decreases. When using the camera in cold climates, have extra batteries at hand and keep them warm in your pocket. Battery performance will return to normal at room temperature.

• Have extra batteries ready when traveling overseas, or taking a lot of pictures.

Using the AC Adapter

We recommend the use of the optional AC adapter kit K-AC128 when using the monitor for a long time or when connecting the camera to a computer or AV device.

1 Make sure that the camera is turned off. 2 Open the battery/memory card cover.

Remove the battery if it is inserted in the camera.

3 Pull out the connection cable

cover (1) on the right side of the battery/memory card cover.

4 Insert the DC coupler into

the battery chamber.

5 Close the battery/memory

card cover.

Make sure that the connection cable comes out from the connection cable cover section.

6 Connect the DC coupler and the AC adapter.

7 Connect the AC adapter to the AC plug cord,

and plug the cord into the power outlet.

u Caution

• Make sure that the camera is turned off before connecting or disconnecting the AC adapter.

• Make sure that connections are secure between the terminals. The memory card or data may be corrupted if the connection to the power supply is lost while the card is being accessed.

• After removing the DC coupler, return the connection cable cover to its original position.

• Be sure to read the manual of the AC adapter kit before using the AC adapter.

Inserting a Memory Card

The following memory cards can be used with this camera.

• SD Memory Card, SDHC Memory Card, and SDXC Memory Card

• Eye-Fi card

• Flucard compatible with this camera

In this manual, these cards are referred to as memory cards.

1 Make sure that the camera is turned off. 2 Open the battery/memory

card cover.

3 Insert the card all the way

into the memory card slot with the memory card label facing toward the monitor.

Push the memory card in once and release to remove.

Getting Started

4 Close the battery/memory

Text Size

Std.

New York

English

Initial Setting

Settings complete

Cancel

card cover.

Getting Started

u Caution

• Do not remove the memory card while the card access lamp (orange) is lit.

• If the battery/memory card cover is opened while the power is on, the camera turns off. Do not open the cover while the camera is in use.

• Use this camera to format (initialize) a memory card that is unused or has been previously used on other devices. (p.34)

• Use a high-speed memory card when recording movies. If the write speed cannot keep up with the recording speed, the writing may stop during recording.

t Memo

• When using an Eye-Fi card or a Flucard, refer to “Using a Wireless Memory Card” (p.86).

Initial Settings

Turn the camera on and make the initial settings.

Turning the Camera On

1 Turn the main switch to [ON].

The lamp lights up in green. The first time the camera is turned on after purchase, the [Language/W] screen appears.

t Memo

• The power automatically turns off when you do not perform any operations within a set period of time. (Default setting: 1min.) You can change the setting in [Auto Power Off] of the D3 menu. (p.24)

Setting the Display Language

1 Use ABCD to select the desired language

and press E.

The [Initial Setting] screen appears in the selected language. Proceed to Step 6 if F (Hometown) does not need to be changed.

New York

Text Size

Cancel

Initial Setting

Settings complete

English

Std.

2 Press B to move the frame to F and press D.

The [F Hometown] screen appears.

3 Use CD to select a city.

Hometown

New York DST

Cancel

Text SizeText Size

Std.Std. LargeLarge

New YorkNew York

Initial SettingInitial Setting

Settings completeSettings complete

CancelCancel

OKOK

Text Size

Std.

New York

English

Initial Setting

Settings complete

Cancel

Time

Date

Date Format

00:00

mm/dd/yy

01/01/2014

Date Adjustment

Settings complete

Cancel

TimeTime

DateDate

Date FormatDate Format

00:0000:00

mm/dd/yymm/dd/yy

01/01/201401/01/2014

Date AdjustmentDate Adjustment

Settings completeSettings complete

CancelCancel

OKOK

Time

Date

Date Format

10:00

mm/dd/yy

07/07/2014

Date Adjustment

Settings complete

Cancel

Hometown

Use V to change the region. Refer to “List of World Time Cities” (p.103) for cities that can be selected as a hometown.

New York DST

Cancel

4 Press B to select [DST] (daylight saving time),

and use CD to select Y or Z.

5 Press E.

The camera returns to the [Initial Setting] screen.

6 Press B to select [Text Size] and press D. 7 Use AB to select [Std.]

or [Large], and press E.

Selecting [Large] increases the text size of the selected menu items.

Setting the Date and Time

1 Press D, and use AB

to select the date format.

2 Press D, and use AB to select 24h or 12h. 3 Press E.

The frame returns to [Date Format].

4 Press B, and then press D.

The frame moves to the month if the date format is set to [mm/dd/yy].

5 Use AB to set the month.

Set the day, year and time in the same manner.

Date Format

Date

Time

Cancel

Date Adjustment

mm/dd/yy

01/01/2014

00:00

Settings complete

Getting Started

8 Press B to select [Settings

complete] and press E.

The [Date Adjustment] screen appears.

New York

Text Size

Cancel

Initial Setting

Settings complete

English

Std.

6 Press B to select [Settings

complete] and press E.

The [LCD Display] screen appears.

Date Format

Date

Time

Cancel

Date Adjustment

mm/dd/yy

07/07/2014

10:00

Settings complete

Setting the LCD Display

1/1/

250250

5.65.6

11Display ColorDisplay Color

LCD DisplayLCD Display

CancelCancel

OKOK

Format

All data will be deleted

Cancel

Formatting a Memory Card

1 Use CD to select a color.

Select the display color of the status screen, control panel and

menu cursor from colors 1 to 12.

Getting Started

2 Press E.

The camera switches to capture mode and is ready to take a picture.

t Memo

• You can change the language, text size, date and time,

and LCD display settings from the D1 menu. (p.23)

1 Press F.

The A1 menu appears.

2 Use V to display D4 menu. 3 Use AB to select [Format] and press D.

The [Format] screen appears.

4 Press A to select [Format]

and press E.

Formatting starts. When formatting is completed, the D4 menu reappears.

Format

All data will be deleted

Format Cancel

5 Press F twice.

u Caution

• Do not remove the memory card while formatting, or the card may be damaged.

• Formatting deletes all data, both protected and unprotected.

t Memo

• When a memory card is formatted, the volume label “K-S1” is assigned to the card. When the camera is connected to a computer, the memory card is recognized as a removable disk with the name “K-S1”.

Basic Shooting Operation

1/1/

250250

160 01600

5.65.6

---- ----

Auto PictureAuto Picture

Focus indicator

Take pictures using the Auto Picture (R) mode in which the camera automatically selects the optimal capture mode.

1 Remove the front lens cap by

pushing the top and bottom portions as indicated in the illustration.

2 Turn the camera on. 3 Set the focus mode switch

to v.

4 Turn the mode dial so that

R is at the top of the dial.

R lights up in green.

The selected capture mode is displayed on the monitor (Guide Display).

y Guide Display settings

(p.23)

5 Look through the viewfinder

to view the subject.

When using a zoom lens, turn the zoom ring to the right or left to change the angle of view.

6 Position the subject inside

the AF frame and press 0 halfway.

P appears and you will hear a beep when the subject comes into focus.

y Setting the Sound Effects

(p.23)

7 Press 0 fully.

The captured image is displayed on the monitor (Instant Review).

Available operations during Instant Review

Deletes the image.

Magnifies the image.

Saves the RAW data of the last JPEG image taken.

y Setting the display for Instant Review (p.21)

Getting Started

Shooting with Live View

200 0

F2. 8

160 0

99999

AF frame

1 Press K in Step 5 of “Basic

Shooting Operation” (p.35).

The Live View image is displayed

on the monitor.

Getting Started

2 Position the subject inside

the AF frame on the monitor and press 0 halfway.

The AF frame turns green and you will hear a beep when the subject comes into focus.

Available operations during Live View

Subsequent steps are the same as shooting with the viewfinder.

Magnifies the image. Use V to change the magnification (upto10×). Use ABCD to change t he are a to disp lay. Press M to return the display area to the center. Press E to return to 1× image display.

Exits the Live View shooting.

2000

F2.8

1600

t Memo

• You can use the f button to focus on the subject. (p.49)

• You can set the operation and display settings during Instant Review in [Instant Review] of the A4 menu. (p.21) When [Display Time] is set to y, Instant Review will be displayed until the next operation.

99999

Reviewing Images

200 0

F2. 8

200

0.0

100 -0001

Review the captured image on the monitor.

1 Press 3.

The camera enters playback mode and the most recently captured image is displayed (single image display).

2 Review the captured image.

Available operations

V to the right Magnifies the image (up to 16×).

Displays the previous image.

Displays the next image.

Deletes the image.

Use ABCD to change the area to display. Press M to return the display area to the center. Press E to return to the entire image display.

2000

F2.8

200

100-0001

0.0

V to the left Switches to the thumbnail display

(p.65).

Saves the RAW data (only when a JPEG image was taken and the data remains in the buffer).

Changes the type of information displayed (p.13).

Displays the playback mode palette (p.64).

t Memo

• When Jv is displayed on the monitor, the JPEG image that was just taken can also be saved in RAW format (Save RAW Data).

Getting Started

Configuring the Capture Settings

99 999

File Format

Cancel

99 999

5472x3648

JPEG Recorded Pixels

Cancel

1: 23' 45"

1920x1080

Recorded Pixels

Cancel

1: 23' 45"

Framerate

Cancel

Image Capture Settings

Set the file format, recorded pixels, and quality level for still pictures in the control panel or [Image Capture Settings] of the A1 menu.

Shooting

File Format

Cancel

File Name JPEG, RAW, RAW+

JPEG Recorded Pixels q, p, o, r

JPEG Quality m, l, k

RAW File Format PEF, DNG

t Memo

• When [File Format] is set to [RAW+], a JPEG image and a RAW image with the same file number are saved at the same time.

• [PEF] of [RAW File Format] is a PENTAX original RAW file format.

99999

JPEG Recorded Pixels

5472x3648

Cancel

v/A1

99999

Movie Capture Settings

Set the file format for movies in the control panel or [Movie Capture Settings] of the C1 menu.

Recorded Pixels 1920x1080

Cancel

Recorded Pixels Framerate

1:23'45"

Framerate

Cancel

30p, 25p, 24p

60p, 50p

v/C1

1:23'45"

Taking Still Pictures

Portrait

For capturing portraits. Reproduces a healthy and bright skin tone

Cancel

Scene Modes

Select the capture mode that suits the subject and shooting conditions. The following capture modes are available on this camera.

Capture Mode Application Page

Automatically selects the optimal

(Auto Picture modes)

(Scene modes)

(Effects modes)

G/H/I/J/ K/L/M

(Exposure modes)

capture mode from

a (Standard), b (Portrait), c (Landscape), d (Macro), e (Moving Object), f (Night Scene Portrait), g (Sunset), h (Blue Sky) or i (Forest).

Offers you various scene modes to choose from.

Takes images using various effects.

Changes the shutter speed, aperture value, and sensitivity.

t Memo

• The functions that can be set vary depending on the capture mode. Refer to “Restrictions on Each Capture Mode” (p.88) for details.

p.35

p.39

p.41

p.42

1 Set the mode dial to S.

The scene mode selection screen appears.

2 Select a scene mode.

Portrait

Landscape

Macro

Moving Object

Night Scene Portrait

Sunset

Blue Sky

For capturing portraits. Reproduces a healthy and bright skin tone.

For capturing landscape views. Reproduces the vivid green of trees.

For capturing tiny objects at close focus range like flowers, coins, jewelry, and more.

For capturing images of fast moving subjects.

For capturing images of people in low light conditions, such as dusk or at night.

For capturing sunrises or sunsets in beautiful, vivid color.

For capturing images of blue sky. Produces a more impressive deep blue.

Portrait

For capturing portraits. Reproduces a healthy and bright skin tone

Cancel

Shooting

Forest

Night Scene Used for shooting at night.

Night Scene

HDR

Night Snap

Food

Pet For capturing moving pets.

Kids

Surf & Snow

Backlight

Silhouette

Candlelight For capturing scenes in candlelight.

Stage

Lighting

Museum

Enhances colors of trees and sunbeams through foliage and produces a vivid color image.

Takes three consecutive images at three different exposure levels to create a single composite image from them.

For taking snapshots in poorly lit place.

For capturing images of food. Saturation will be rather high to make food look appetizing.

For capturing moving kids. Reproduces healthy and bright skin tone.

For capturing images of dazzling backgrounds, such as snowy mountains.

Produces a silhouette image of subject in backlight condition.

For capturing moving subjects in poorly lit place.

For capturing images in places where a flash is prohibited.

3 Press E.

The camera is in standby mode. Turn V to change the scene mode.

t Memo

• You can change the scene mode also from the control panel

or the A1 menu.

Effects Modes

Faded ColorFaded Color

CancelCancel

OKOK

Cancel

Check

Faded Color

1 Set the mode dial to W.

The effects mode palette appears.

2 Select an effects mode.

Faded Color Clear Tone Brilliant Color Unicolor Bold Vintage Color

Cross Processing Warm Fade Bold Monochrome Infrared Filter Vibrant Color Enhance

3 Press E.

The camera is in standby mode. Turn V to change the effects mode.

4 Press B to change the parameters.

The parameter setting screen appears.

6 Press E.

The camera returns to standby mode.

t Memo

• You can change the effects mode also from the control panel

or the A1 menu.

• During Live View, the design of the effects mode palette differs from the one shown in Step 2.

u Caution

• Since the W mode uses a specific combination of White Balance, Custom Image, and Digital Filter, you cannot set these settings by choice.

Shooting

5 Use CD to change the

parameters.

When shooting with the viewfinder, press M to display the preview. When shooting with Live View, the image is displayed with the selected effects applied.

Faded Color

Cancel

Check

Exposure Modes

100

4.5

99 999

F4. 5

100

99999

x: Available #: Restricted ×: Not available

Mode

Shooting

Program Automatic Exposure

Sensitivity Priority Automatic Exposure

Shutter Priority Automatic Exposure

Aperture Priority Automatic Exposure

Shutter & Aperture Priority Automatic Exposure

Manual Exposure

Bulb Exposure

*1 You can set the value to be changed in [Button Customization]

of the A4 menu. (p.79)

*2 [ISO AUTO] is not available. *3 Fixed to [ISO AUTO].

××

Change Shutter

Speed

Change Aperture

Value

*1# *1

xxx

1 Turn the mode dial to select the desired exposure

Change Sensitivity

EV Compensation

2 Turn V.

mode.

V appears on the status screen for the value that can be changed.

The value that can be changed is underlined in the viewfinder.

During Live View, D appears for the value that can be changed.

In K/L mode, press J to select the value to be changed.

4.5

100

99999

F4.5

100

99999

t Memo

250

160 0

5.6

99 999

• The settings for exposure can be specified in increments

of 1/3 EV steps. In [1 EV Steps] of the E1 menu, you can change the adjustment steps to 1/2 EV steps.

• A proper exposure may not be obtained with the selected shutter speed and aperture value when the sensitivity is set to a certain sensitivity.

•In L mode, the difference from the proper exposure is displayed on the EV bar scale while exposure is adjusted.

•In M mode, [Drive Mode] cannot be set to [Continuous Shooting] or [Exposure Bracketing].

• You can set the function of the M button for when the camera is in L/K mode. Set in [Button Customization] of the A4 menu. (p.79)

• When shooting with a low shutter speed, you can reduce image noise from the control panel or [Slow Shutter Speed NR] of the A2 menu.

Applies Noise Reduction according to the shutter

Auto

speed, sensitivity, and internal temperature of the camera.

Applies Noise Reduction when the shutter speed

is slower than 1 second.

Does not apply Noise Reduction at any shutter

Off

speed.

EV Compensation

The compensation value can be set between -5 and +5 EV (-2 and +2 EV in C mode).

1 Press J, and then turn V.

e and the compensation value are displayed on the status screen, Live View screen, and in the viewfinder during adjustment.

5.6

99999

250

1600

Shooting

Checking the Depth of Field (Preview)

When [Optical Preview] or [Digital Preview] is assigned to M in [Green Button] of [Button Customization] in the A4 menu, you can check the depth of field before taking pictures. (p.77)

Available operations

Starts/ends adjusting the compensation value.

Resets the adjustment value to the default

setting.

t Memo

10'30"

Sound

Recordable Time

• Exposure Bracketing shooting enables you to take pictures while automatically changing exposure. (p.55)

Locking the Exposure

To lock the exposure before shooting, use [AE Lock]. The AE Lock function can be used by assigning it to the f button. (p.77)

Shooting

Recording Movies

1 Turn the main switch to C.

The lamp lights red and the Live View image is displayed.

2 Turn the mode dial to select the desired capture

mode.

The following settings are available depending on the capture mode.

J/K/L

Other modes The camera operates in G mode.

Select an effects mode.

Set the exposure. (The aperture value can be set only before shooting. In L mode, the sensitivity can also be changed.)

10'30"

3 Focus on the subject.

10' 30"

100 -0001

In v mode, press 0 halfway.

4 Press 0 fully.

Movie recording starts. In the upper left area of the monitor, “REC” blinks and the size of the file being recorded is displayed.

5 Press 0 fully again.

Movie recording stops.

6 Return the main switch to the [ON] position to exit

C mode.

The camera returns to shooting with the viewfinder in A mode.

u Caution

• When recording a movie with sound, the camera operation sounds are also recorded.

• When recording a movie with an image processing function such as Digital Filter applied, the movie file may be saved with some frames omitted.

• If the internal temperature of the camera becomes high during recording, the recording may be terminated.

t Memo

• You can change the movie settings from the control panel or the C1 menu. (p.22)

• The sound level for the recording can be set from the control panel or [Recording Sound Level] of the C1 menu. When [Manual] is selected, [Volume] can be set from 0 to 5.

• You can record a movie continuously up to 4 GB or 25 minutes. When the memory card is full, recording stops.

Playing Back Movies

1 Display the movie to play

back in single image display of the playback mode.

10'30"

Available operations

Press and hold D Fast-forwards playback.

Press and hold C Fast-reverses playback.

t Memo

• In [Movie Edit] of the playback mode palette, movies can be divided or selected frames can be deleted. (p.73)

Plays back/pauses a movie.

Forwards a frame (when paused).

Reverses a frame (when paused).

Stops playback.

Adjusts the volume (6 levels).

Saves the displayed frame as a JPEG file (when paused).

100-0001

Shooting

Setting the Exposure

100100

320 03200

100100

CancelCancel

OKOK

High-ISO NR Auto

Cancel

100 200 400

800 1600 3200 6400

ISO ISO ISO ISO ISO ISO ISO

High-ISO NR

Reset

Noise Reduction when Shooting with a High ISO Sensitivity

v/A2

Sensitivity

1 Press A in standby mode. 2 Use AB to select an item.

Shooting

Sets the range to be adjusted

ISO

automatically.

AUTO

The upper limit can be changed.

Sets a fixed value

ISO

between ISO 100 to ISO 51200.

3 Use V to change the value. 4 Press E.

The camera returns to standby mode.

t Memo

• The adjustment steps for ISO sensitivity is 1 EV step. To adjust the sensitivity in accordance with the EV step setting for exposure, set from [2 Sensitivity Steps] of the E1 menu.

You can set the Noise Reduction setting when shooting with a high ISO sensitivity in the control panel or [High-ISO NR] of the A2 menu.

Auto

Low/ Medium/ High

Custom

Off

Applies Noise Reduction at optimally calculated levels throughout ISO range.

Applies Noise Reduction at constant chosen level throughout ISO range.

Applies Noise Reduction at user-defined levels for each ISO setting.

Does not apply Noise Reduction at any ISO setting.

When [Custom] is selected, the noise reduction level can be set according to the ISO sensitivity in the A2 menu.

High-ISO NR Auto

Cancel

High-ISO NR

100

ISO

200

ISO

400

ISO

800

ISO

1600

ISO

3200

ISO

6400

ISO

Reset

AE Metering

AE MeteringAE Metering Multi-segmentMulti-segment

CancelCancel

OKOK

0. 0

Auto Flash Discharge

Cancel

v/A1

Choose the part of the sensor to use for measuring brightness and determining exposure. Set in the control panel or [AE Metering] of the A1 menu.

Using the Built-in Flash

1 Press C in standby mode. 2 Select a flash mode.

Auto Flash Discharge

Meters the brightness in multiple different

Multisegment

zones of the sensor. In backlit locations, this mode automatically adjusts exposure.

Meters the brightness with an emphasis on

Centerweighted

the center of the sensor. The sensitivity increases at the center and no automatic adjustment is performed even in backlit conditions.

Meters the brightness only within a limited

Spot

area at the center of the sensor. Useful when the subject is small.

t Memo

• In [5 Link AE and AF Point] of the E1 menu, the metering point and the AF point can be linked.

Auto Flash

Discharge

Auto Flash

+Red-eye Reduction

Flash On Discharges a flash for each picture.

Flash

On+Red-eye Reduction

Slow-speed

Sync

Slow-speed

Sync+Redeye

Trailing

Curtain Sync

Manual Flash

Discharge

Automatically measures the ambient light and determines whether to use the flash.

Discharges a pre-flash for red-eye reduction before an automatic flash.

Discharges a pre-flash for red-eye reduction before the main flash and discharges a flash for each picture.

Sets to a slow shutter speed. Use this, for example, when shooting a portrait with the sunset in the background.

Discharges a pre-flash for red-eye reduction before the main flash is discharged with Slowspeed Sync.

Discharges a flash immediately before closing the shutter. Sets to a slow shutter speed. Captures moving objects as if they are leaving a light trail behind them.

Sets the amount of flash discharge between FULL and 1/128 power.

Cancel

0.0

Shooting

3 To compensate the flash

+1 .0+1.0

0. 00.0

Auto Flash DischargeAuto Flash Discharge

CancelCancel

OKOK

output or when K is selected, press B and then use V to adjust the value.

Press M to reset to the default setting.

4 Press E.

Shooting

The camera returns to standby mode.

5 Press 1.

The built-in flash is popped up.

t Memo

• The flash modes that can be selected vary depending on the capture mode.

Capture Mode Selectable Flash Mode

R, S W, G, H, J C, D, E, F, H, K

I, K, L, M

*1 The flash is not available in some scene modes. (p.88)

• You cannot take pictures while the flash is being charged. If you want to take pictures while charging the flash, set [20 Release While Charging] in the E3 menu.

• Depending on the lens being used, the use of the built-in flash may be limited. (p.91)

A, B, C, D

C, D, G, K

• When the built-in flash is used in J mode, the shutter speed

automatically changes over a range from 1/180 seconds to a slow shutter speed depending on the lens being used. The shutter speed is locked at 1/180 seconds when a lens other than a DA, DA L, D FA, FA J, FA or F lens is used.

• When the built-in flash is used in I, K or L mode, any

desired shutter speed of 1/180 seconds or slower can be set.

• The built-in flash is optimum for a subject at a distance from approx. 0.7 m to 5 m. Vignetting may occur when used at a distance closer than 0.7 m (this distance varies slightly depending on the lens being used and the sensitivity setting).

Sensitivity

ISO 100

ISO 200

ISO 400

ISO 800

ISO 1600

• For details on using an external flash, refer to “Functions when Using an External Flash” (p.93).

Guide

Number

Approx. 10

Approx. 14.1

Approx. 20

Approx. 28.3

Approx. 40

Sensitivity

ISO 3200

ISO 6400

ISO 12800

ISO 25600

ISO 51200

Guide

Number

Approx. 56.6

Approx. 80

Approx. 113

Approx. 160

Approx. 226

Setting the Focus Method

AF Mode

Cancel

Set the focus mode switch to v or w.

The autofocus method for shooting with the viewfinder differs from that for shooting with Live View.

TTL phase-matching autofocus: Select from x, y, or z mode which enables automatically

Shooting with the viewfinder

Shooting with Live View

t Memo

• You can use f to focus on the subject. The f button operation can be set in [Button Customization] of the A4 menu. (p.77)

switching between x and y. (p.49) Set the focusing area in [AF Active Area]. (p.50) Faster autofocus performance than “contrast detection AF” is possible.

Contrast detection AF: Face Detection and Tracking are available. (p.51)

Setting the AF Mode when Shooting with the Viewfinder

1 Press G in standby mode. 2 Select [AF Mode] and press E.

The [AF Mode] screen appears.

3 Select an autofocus mode

and press E.

Auto-select mode

Single mode

Continuous mode

The control panel reappears.

Switches automatically between x and y modes according to the subject.

When 0 is pressed halfway and the subject comes into focus, the focus is locked at that position. The AF assist light turns on as necessary.

The subject is kept in focus by continuous adjustment while 0 is pressed halfway. P appears in the viewfinder when the subject comes into focus. The shutter can be released even if the subject is not in focus.

AF Mode

Cancel

v/A1

Shooting

4 Press F.

AF Active Area Auto (11 AF Points)

Cancel

The camera returns to standby mode.

t Memo

• The following settings for autofocus operation can be set in the E3 menu.

15 AF.S Setting Focus-priority, Release-priority

16 1st Frame Action in AF.C

Shooting

17 Action in AF.C Continuous

18 Hold AF Status Off, Low, Medium, High

• In [18 Hold AF Status], you can set whether to immediately reactivate autofocus or to maintain the focus for a certain amount of time before activating autofocus when the subject happens to move out of the selected focusing area after being focused. The default setting is to immediately activate autofocus when focusing is unsuccessful.

•In S mode, [AF Mode] is fixed to x or y depending on the set scene. (p.88)

•In R mode, [AF Mode] is fixed to z.

Release-priority, Auto, Focus-priority

Focus-priority, Auto, FPS-priority

Selecting the Focusing Area (AF Point)

1 Press G in standby mode. 2 Select [AF Active Area] and press E.

The [AF Active Area] screen appears.

3 Select the desired focus

point selection mode and press E.

Auto (11 AF

Points)

Auto (5 AF

Points)

Select

Expanded

Area AF

Spot

The control panel reappears.

Out of the 11 AF points, the camera automatically selects the optimum focusing area.

Out of the 5 AF points, the camera automatically selects the optimum focusing area.

Sets the focusing area to the user selected point from 11 points.

Sets the focusing area to the user selected point from 11 points. When the subject happens to move out of the selected focusing area after being focused, 8 peripheral points are used as back-up points. Not available in x mode.

Sets the focusing area to the center of the 11 points.

AF Active Area Auto (11 AF Points)

Cancel

v/A1

4 Press F.

250

800

5.6

99 999

Contrast AF Face Detection

Cancel

The camera returns to standby mode. If you selected E or 8 in Step 3, proceed to Step 5.

5 Select the desired AF point.

Available operations

ABCD

Press and hold E Switches the function of the

t Memo

• When the AF point can be changed, the E lamp turns off.

• To change the AF point from the menu, set in [AF Active Area] of [AF Settings] in the A1 menu.

• You can also set the camera so that switching to the Change AF Point mode by pressing and holding E can be operated with M. (p.77)

Changes the AF point.

Returns the AF point to the center.

arrow keys (ABCD) to that for Change AF Point or the direct key operation.

99999

250

5.6

800

Setting the AF Mode during Live View

1 Press G in standby mode in Live View. 2 Select [Contrast AF] and press E.

The [Contrast AF] screen appears.

3 Select an autofocus mode

and press E.

Face Detection

Face Detection Assist

Tracking

Multiple AF Points

Detects and tracks faces of people. The main face detection frame for AF and AE is displayed in yellow.

Used when facing the camera toward yourself and taking a picture.

Tracks the subject in focus. The shutter can be released even if the subject is not in focus.

Sets the focusing area to the desired area. The sensor is divided into 35 areas (7 horizontal by 5 vertical), and you can select a wider or narrower focusing area by using 35, 25, 15, 9, or just 1 of those 35 areas available.

Contrast AF Face Detection

Cancel

v/A3

Shooting

Select Sets the focusing area by the pixel.

Spot

The control panel reappears.

Sets the focusing area to a limited area at the center.

4 Press F.

The camera returns to standby mode.

Shooting

If you selected g or h in Step 3, proceed to Step 5.

5 Press and hold E. 6 Select the AF area.

Use the frame that appears on the monitor to change the position and size of the AF area.

Available operations

ABCD

Changes the position of the AF area.

Increases/reduces the size of the AF area (when g is selected).

Returns the AF area to the center.

7 Press E.

The AF area is set.

u Caution

• When f is selected, the focus lock operation (composition adjustment with the half press of 0) does not work.

t Memo

• When set to j, the number of faces detected can be

confirmed by the number of lit grip lamps (0 to 5).

• To change the setting from the menu, set in [Contrast AF]

of [Live View] in the A3 menu.

• When [Focus Peaking] is set to [On] in the control panel or

[Live View] of the A3 menu, the outline of the subject in focus is emphasized and makes it easier to check the focus. This function works in both v and w modes.

AF Fine Adjustment

±0

AF Fine Adjustment

Apply One

Setting

Reset Individual Settings

Cancel

You can precisely fine tune your lenses with the camera’s autofocus system.

1 Select [25 AF Fine Adjustment] in E4 menu and

press D.

The [25 AF Fine Adjustment] screen appears.

2 Select [Apply All] or [Apply One] and press E.

Apply All Applies the same adjustment value to all lenses.

Apply One

Saves an adjustment value for the lens being used. (Up to 20 values)

3 Select [Setting] and adjust

the value.

Available operations

D/V to the right C/V to the left M

Adjusts the focus to a closer position.

Adjusts the focus to a farther position.

Resets the adjustment value to the default setting.

4 Press E.

The adjustment value is saved.

5 Press F twice.

The camera returns to standby mode.

AF Fine Adjustment

Apply One

Setting

Reset Individual Settings

Cancel

±0

Setting the Drive Mode

You can choose from the following drive modes.

Single Frame Shooting (L)

Continuous Shooting (Z/b)

Self-timer (O/P)

Remote Control

±0

(Q/R)

Exposure Bracketing

(T)

Normal capture mode

Continuously takes pictures while 0 is kept pressed. The framerate varies according to the shutter speed.

Releases the shutter about 12 seconds or 2 seconds after 0 is pressed.

Enables shooting with remote control. Select from [Remote Control] or [Remote Control (3 sec. delay)].

Takes three consecutive images at different exposure levels.

Shooting

u Caution

• There are restrictions on some drive modes when used in some capture modes or in combination with some other functions. (p.88)

t Memo

•Only 4 (Remote Control Off) or Q can be selected in C mode.

• The Drive Mode setting is saved even after the power is turned off. If [Drive Mode] is set to [Off] in [Memory] of the A4 menu, the setting returns to Single Frame Shooting when the power is turned off. (p.81)

• The Shake Reduction function is automatically turned off

Continuous Shooting (H)

Cancel

Self-timer (12 sec.)

Cancel

when Self-timer or Remote Control is selected.

• When the drive mode that employs the self-timer or remote control is selected, exposure may be affected by the light entering through the viewfinder. In such a case, use the AE Lock function. (p.44)

Continuous Shooting

Shooting

1 Press D in standby mode.

The Drive Mode screen appears.

2 Select Z and press B.

Continuous Shooting (H)

Cancel

3 Select Z or b and press E.

The camera returns to standby mode.

t Memo

•In x mode, the focus position is locked in the first frame.

Self-timer

1 Press D in standby mode.

The Drive Mode screen appears.

2 Select O and press B.

3 Select O or P and press E.

The camera returns to standby mode.

4 Press 0 halfway, then fully.

The grip lamps blink.

When the remaining time for the timer becomes 5 seconds or less, the number of blinking grip lamps changes in order from 5 to 0, according to the number of seconds remaining. The shutter will be released about 12 seconds or 2 seconds.

Self-timer (12 sec.)

Cancel

Remote Control

Remote ControlRemote Control

CancelCancel

OKOK

±0 EV

±0 .3EV

Exposure Bracketing

Cancel

Exposure Bracketing

1 Press D in standby mode.

The Drive Mode screen appears.

2 Select Q and press B.

3 Select Q or R and press E.

The camera returns to standby mode. The grip lamps blink. When se t to R, the number of blinking grip lamps changes in order from 3 to 0, according to the number of seconds remaining.

4 Press 0 halfway. 5 Point the remote control unit towards the remote

control receiver on the front of the camera, and press the shutter release button on the remote control unit.

t Memo

• The maximum operating distance of the remote control unit is approx. 4 m from the front of the camera.

• To adjust focus with remote control, set in [19 AF with Remote Control] of the E3 menu.

• When using the Remote Control Waterproof O-RC1, the autofocus system can be operated with the q button on the remote control unit. The r button cannot be used.

1 Press D in standby mode.

The Drive Mode screen appears.

2 Select T and press B. 3 Set the bracket value.

Available operations

J→V

Changes the bracket value (up to ±3 EV)

Adjusts the exposure compensation value.

Resets the adjustment value to the default setting.

Exposure Bracketing

Cancel

±0EV

±0.3EV

4 Press E.

The camera returns to standby mode.

t Memo

• You can set the bracketing order in [8 Bracketing Order]

of the E2 menu.

• The bracket value can be set in increments of 1/3 EV steps or 1/2 EV steps according to the [1 EV Steps] setting made in the E1 menu.

• Set [9 One-Push Bracketing] to [On] in the E2 menu to shoot the specified number of images with one press of 0.

Shooting

Setting the White Balance

Auto White Balance

Cancel

Check

±0

G3G3A2

Cancel

1 Press B in standby mode.

The White Balance setting screen appears.

2 Select the White Balance.

Shooting

g Auto White Balance

u Multi Auto White Balance

Daylight

Shade

Cloudy

q Fluorescent - Daylight Color r Fluorescent - Daylight White

s Fluorescent - Cool White t Fluorescent - Warm White

Tungsten

Flash

Color Temperature Enhancement

Manual White Balance

Color Temperature

Auto White Balance

Cancel

Check

Available operations when shooting with the viewfinder

Proceed to Step 5 if you do not need to fine-tune the white balance.

3 Press G.

The fine-tuning screen appears.

Available operations

Uses Digital Preview to preview the background image with the white balance setting applied.

Saves the preview image (only when the image can be saved).

±0

Cancel

Adjust: Green-Magenta

Adjust: Blue-Amber

Resets the adjustment value to the default setting.

4 Press E.

The screen of Step 2 reappears.

5 Press E.

The camera returns to standby mode.

t Memo

• When u is set, even if various light sources are present at the shooting location, the camera automatically adjusts the white balance according to the light source of each area.

• The following settings for the white balance can be set in the

Manual White Balance

Cancel

Adjust

Check

Cancel

E2 menu.

10 WB Adjustable Range Fixed, Auto Adjustment

11 WB When Using Flash

12 AWB in Tungsten Light

13 Color Temperature Steps Kelvin, Mired

Auto White Balance, Multi Auto White Balance, Flash, Unchanged

Strong Correction, Subtle Correction

Adjusting the White Balance Manually

You can measure the white balance at a selected location.

1 Select o in Step 2 of

“Setting the White Balance” (p.56).

Manual White Balance

Adjust

Cancel

Check

2 Under the light you wish to measure the white

balance of, select a white area as the subject, and press 0 fully.

The captured image is displayed.

3 Use ABCD to specify

the measuring area.

Shooting

Cancel

4 Press E.

The White Balance setting screen reappears. [The operation could not be completed correctly] appears when measuring is unsuccessful. Press E to remeasure the white balance and return to Step 3.

t Memo

• You can copy the white balance settings of a captured image and save them as manual white balance settings in [Save as Manual WB] of the playback mode palette. (p.64)

Adjusting the White Balance

Cancel

Bright

Cancel

Parameter Adj.

Check

with Color Temperature

Specify the white balance with the color temperature.

1 Select p in Step 2 of “Setting the White Balance”

(p.56).

Controlling the Image Finishing Tone

When you want to take pictures with a slightly different style, you can set the desired picture style before shooting. Try out the various settings, and find your best picture style.

2 Press G.

Shooting

3 Adjust th e color tempera ture.

Set the color temperature value within the range from 2500K to 10000K.

Available operations

ABCD

Changes the color temperature in increments of 100 Kelvin.

Fine-tunes the color temperature.

4 Press E.

The White Balance setting screen reappears.

t Memo

• Select [Mired] in [13 Color Temperature Steps] of the E2

menu to set the color temperature in increments of 20 Mired. However, figures are converted to and displayed in Kelvin.

Cancel

Custom Image

v/A1

1 Select [Custom Image] in the control panel,

and press E.

The Custom Image setting screen appears.

2 Select an image finishing

tone.

Bright Natural Portrait Landscape Vibrant Radiant

Muted Bleach Bypass Reversal Film Monochrome Cross Processing

Bright

Parameter Adj. Cancel

Check

Available operations when shooting with the viewfinder

Saturation

Cancel

100 -0001

Saves this image's Cross

Processing settings

Save as Favorite 1 Save as Favorite 2 Save as Favorite 3

Cancel

Proceed to Step 6 if you do not need to change the parameters.

3 Press G.

The parameter setting screen appears.

4 Set the parameters.

Available operations

5 Press E.

The screen of Step 2 reappears.

6 Press E.

The control panel reappears.

Uses Digital Preview to preview the background image with the selected setting applied.

Saves the preview image (only when the image can be saved).

Saturation

Cancel

Selects a parameter.

Adjusts the value.

Switches between [Sharpness] and [Fine Sharpness]. (Not available in C mode)

Resets the adjustment value to the default setting.

7 Press F.

The camera returns to standby mode.

u Caution

• This function is not available when in R, S, or W mode.

Saving the Cross Processing Settings of a Captured Image

The outcome of Cross Processing varies each time a picture is taken. If you take a cross processed image that you like, you can save the Cross Processing settings used in the image so that you can repeatedly use the same settings.

1 Press B in single image display of playback mode.

The playback mode palette appears.

2 Select j and press E.

The camera searches for cross processed images starting from the most recent image taken. [No cross processed image] appears if there are no cross processed images.

3 Use V to select a cross

processed image.

Saves this image's Cross

Cancel

4 Select the “Favorite” number 1, 2 or 3 to save

the settings, and press E.

The settings of the selected image are saved as your “Favorite” settings.

Processing settings

Save as Favorite 1 Save as Favorite 2 Save as Favorite 3

100-0001

Shooting

t Memo

Extract Color

Cancel

Parameter Adj.

Check

• The saved Cross Processing settings can be loaded by selecting [Cross Processing] in Step 2 of “Custom Image” (p.58), and selecting one of the Favorite settings 1 to 3 for the parameter.

Digital Filter

1 Select [Digital Filter] in the control panel,

and press E.

The Digital Filter setting screen appears.

v/A1

Shooting

2 Select a filter.

Select [No Filter] to not shoot with a digital filter.

Extract Color Replace Color Toy Camera Retro High Contrast

Available operations when shooting with the viewfinder

Proceed to Step 6 if you do not need to change the parameters.

Uses Digital Preview to preview the background image with the selected effect applied.

Saves the preview image (only when the image can be saved).

Shading Invert Color Unicolor Bold Bold Monochrome

Extract Color

Parameter Adj. Cancel

Check

3 Press G.

The parameter setting screen appears.

4 Set the parameters.

Extracted Color 1

Cancel

Check

Highlight Correction Auto

Cancel

Shadow Correction Auto

Cancel

Available operations

Selects a parameter.

Adjusts the value.

5 Press E.

The screen of Step 2 reappears.

6 Press E.

The control panel reappears.

7 Press F.

The camera returns to standby mode.

u Caution

• This function cannot be used in some capture modes or in combination with some other functions. (p.88)

• [Digital Filter] of the A1 menu cannot be selected in C mode. When in C mode, set from [Digital Filter] of the C1 menu.

• Depending on the filter used, it may take longer to save images.

t Memo

• Images can also be processed with digital filters in playback mode. (p.72)

Extracted Color 1

Cancel

Check

Correcting Images

Brightness Adjustment

Highlight Correction/Shadow Correction

Expands the dynamic range and enables a wider range of tones to be recorded by the CMOS sensor and reduces the occurrence of overexposed/underexposed areas. Set in the control panel or [D-Range Settings] of the A2 menu.

Highlight Correction Auto

Cancel

u Caution

• When the sensitivity is set to less than ISO 200, [Highlight Correction] cannot be set to [On].

t Memo

• [Highlight Correction] in C mode can be set to [Auto] or [Off].

Shadow Correction Auto

Cancel

v/A2

Shooting

HDR Capture

HDR Capture Auto

Cancel

Distortion CorrectionDistortion Correction

CancelCancel

OKOK

OnOn

Takes three consecutive images at three different exposure levels to create a single composite picture with them. Set in the control panel or [HDR Capture] of the A1 menu.

u Caution

Shooting

• This function cannot be used in some capture modes or in combination with some other functions. (p.88)

• [File Format] is fixed to [JPEG]. When [File Format] is set to [RAW] or [RAW+], the setting is changed to [JPEG].

• For HDR Capture, multiple images are combined together to create a single image, so it will take time to save the image.

HDR Capture Auto

t Memo

• When k of the scene modes is selected, specific HDR settings are used and HDR Capture cannot be set.

• If this function was set from the A1 menu, [On] and [Off] can be selected for [Auto Align].

Cancel

v/A1

Lens Correction

The following features can be set from the control panel or [Lens Correction] of the A2 menu.

Distortion Correction

Lat-Chromatic-Ab Adj

Peripheral Illumin. Corr.

Diffraction Correction

t Memo

• Corrections can only be made when a compatible lens is attached. (p.90) The features are disabled when using an accessory such as a rear converter that is attached between the camera and the lens.

• When [File Format] is set to [RAW] or [RAW+], correction information is saved as a RAW file parameter and you can select whether to apply the correction to the images when developing them. For the RAW Development function, [Color Fringe Correction] can also be set. (p.75)

Reduces distortions occurring due to lens properties.

Reduces lateral chromatic aberrations occurring due to lens properties.

Reduces peripheral light fall-off occurring due to lens properties.

Corrects blur caused by diffraction when narrowing the aperture.

v/A2

Anti-Aliasing Filter Simulator

99 999

AA Filter Simulator Off

Cancel

v/A3

By shaking the Shake Reduction unit, a moiré reduction effect simulating that of a low-pass filter can be achieved. Set in the control panel or [AA Filter Simulator] of the A3 menu.

AA Filter Simulator Off

99999

Type1

Takes pictures balancing the resolution and moiré reduction.

Type2 Prioritizes moiré reduction.

Takes consecutive images in order with [AA Filter

Bracketing

Simulator] set to [Off], [Type1], and [Type2] (3 images are taken with one press of 0).

u Caution

• This function cannot be used in the following situations.

• When [HDR Capture] is set

•In C mode

• [Bracketing] cannot be selected in the following situations.

• When e, o, or p of the scene modes is selected

•In M mode

• When [Drive Mode] is set to [Continuous Shooting] or [Exposure Bracketing]

• When the number of storable images is 2 or less

Cancel

Shooting

Playback Mode Palette Items

Image Rotation

Exit

Rotates captured images. Useful for image playback on TV and other display devices

Playback functions can be set from the playback mode palette as well as the B1 menu (p.22). Press B in single image display of the playback mode to display the playback mode palette.

Item Function Page

Image Rotation

Digital Filter

Color Moiré Correction

*1 *2

Resize

Cropping

Protect

Slideshow

Save as Manual

Playback

*1 *2

Changes the rotation

information of images.

Processes images

with digital filters.

Reduces color moiré in images.

Changes the number of recorded pixels of the image.

Crops out only the desired area of an image.

Protects images from being accidentally erased.

Plays back images one after another.

Saves the white balance settings of the captured image as Manual White Balance.

Image Rotation

Rotates captured images. Useful for image playback on TV and other display devices

Exit

p.68

p.72

p.71

p.70

p.71

p.81

p.67

p.57

Item Function Page

Save Cross

Processing

RAW

Development

Movie Edit

Eye-Fi Image

Transfer

*1 Not available when a movie is displayed. *2 Not available when a RAW image is displayed. *3 Available only when a RAW image is saved. *4 Available only when a movie is displayed. *5 Available only when an Eye-Fi card is inserted.

*1 *5

Saves the settings used for an image captured in Cross Processing mode of Custom Image as your “Favorite” settings.

Develops RAW images into JPEG images and saves them as a new file.

Divides a movie or deletes unwanted segments.

Transfers selected images wirelessly using an optional Eye-Fi card.

p.59

p.75

p.73

p.86

Changing the Playback Method

100 -0505

12 Thumbnail Display

100 -0505

001 /500

Displaying Multiple Images

You can display 6, 12, 20, 35 or 80 thumbnail images at the same time.

Deleting Selected Images

1 Press L in Step 1 of “Displaying Multiple Images”

(p.65).

2 Select the images to delete.

001/500

100-0505

1 Turn V to the left in playback

mode.

The multi-image display screen appears.

Available operations

ABCD

Moves the selection frame.

Shows the display style selection screen.

Deletes the selected images.

2 Press E.

The selected image appears in single image display.

100-0505

12 Thumbnail Display

100-0505

Available operations

ABCD

In the upper left area of the monitor, the number of selected images is displayed.

Moves the selection frame.

Confirms/cancels the selection of the image to delete.

Selects the range of images to delete.

Shows the selected image in single image display. Use CD to select a different image.

3 Press L.

The delete confirmation screen appears.

4 Select [Delete] and press E.

Playback

t Memo

100_ 0707

100

101

102

103

104

105

106

107

123

• You can select up to 500 images at a time.

• Protected images cannot be selected.

• You can delete the images selected individually along with the images selected by specifying the range to delete.

• Use the same steps to select multiple images for the following functions.

• RAW Development (p.75)

• Protect (p.81)

• Eye-Fi Image Transfer (p.86)

Displaying Images by Folder

1 Turn V to the left in Step 1 of

Playback

“Displaying Multiple Images” (p.65).

The folder display screen

100

104

appears.

Available operations

ABCD

Moves the selection frame.

Deletes the selected folder.

2 Press E.

The images in the selected folder are displayed.

Deleting a Folder

1 Select a folder to delete in Step 1 of “Displaying

Images by Folder” (p.66), and press L.

The delete confirmation screen appears.

2 Select [Delete] and press E.

The selected folder and all the images in it are deleted. When there are protected images in the folder, select [Delete all] or [Leave all].

100_0707

103

102

101

105

106

107

123

Displaying Images by Shooting Date

100 -0505

2/5

201 4.7

201 4.8

THU

SAT

MON

FRI

SUN

THU

TUE

Shooting date

Thumbnail

Playing Back Images Continuously (Slideshow)

Images are grouped and displayed by shooting date.

1 Press G in Step 1 of “Displaying Multiple

Images” (p.65).

The display style selection screen appears.

2 Select [Calendar Filmstrip

Display].

Available operations

V to the right Shows the selected image in single

Selects a shooting date.

Selects an image taken on the selected shooting date.

image display.

Deletes the selected image.

3 Press E.

The selected image appears in single image display.

2014.7

THU SAT MON FRI

2014.8

SUN

THU TUE

1 Select h in the playback mode palette.

Slideshow starts.

Available operations

10 12 21 25

3 14 26

100-0505

2/5

After all images are played back, the camera returns to single image display.

t Memo

• You can change the [Display Duration], [Screen Effect], [Repeat Playback] and [Auto Movie Playback] settings for slideshow in [Slideshow] of the B1 menu. Slideshow can be started from the Slideshow setting screen.

Pauses/resumes playback.

Displays the previous image.

Displays the next image.

Stops playback.

Adjusts the volume of the movie.

Playback

Displaying Rotated Images

Cancel

Connecting the Camera to an AV Device

When you take pictures with the camera held vertically, image rotation information is saved when shooting. When [Auto Image Rotation] in the B1 menu is set to [On], the image is automatically rotated based on the rotation information during playback (default setting). The rotation information of an image can be changed by following the procedure below.

1 Display the image to edit in single image display.

Playback

2 Select a in the playback mode palette.

The selected image is rotated in 90° increments and the four thumbnail images are displayed.

3 Use ABCD to select the

desired rotation direction and press E.

The image rotation information is saved.

u Caution

• When [22 Save Rotation Info] is set to [Off] in the E4 menu,

image rotation information is not saved when shooting.

• You cannot change the rotation information in the following cases.

• Protected images

• Images without a rotation information tag

• Movie files cannot be rotated.

Cancel

Connect to an AV device, such as a TV, equipped with an HDMI terminal to display Live View images while shooting or to play back images in playback mode. Make sure to have a commercially available HDMI cable equipped with an HDMI terminal (type D).

1 Turn the AV device and camera off. 2 Open the terminal cover of the camera, and connect

the cable to the HDMI terminal.

3 Connect the other end of the cable to the input

terminal on the AV device.

4 Turn the AV device and camera on.

The camera turns on in HDMI mode, and the camera information is displayed on the screen of the connected AV device.

u Caution

• While the camera is connected to an AV device, nothing is displayed on the camera monitor. Also, you cannot adjust the volume on the camera. Adjust the volume on the AV device.

t Memo

• Check the operating manual of the AV device and select a suitable input terminal for connecting the camera.

• If you intend to use the camera continuously for a long period, use of the optional AC adapter kit is recommended.

• By default, the maximum resolution supported by both the AV device and camera is automatically selected. If it fails to play back images properly, change the setting in [HDMI Out] of the D2 menu.

Connecting the Camera to a Computer

Connect the camera to a computer using an USB cable. Make sure to have a commercially available USB cable equipped with a micro B terminal.

1 Turn the computer on. 2 Turn the camera off. 3 Open the terminal cover

of the camera, and connect the USB cable to the USB terminal.

4 Connect the USB cable to the USB port

of the computer.

5 Turn the camera on.

The camera is recognized as a removable disk. The grip lamps of the camera blink slowly while the camera is connected with the computer via USB cable.

6 Save the captured images to the computer. 7 Disconnect the camera from the computer.

Playback

u Caution

CancelCancel

OKOK

• The camera cannot be operated while it is connected to a computer. To operate the camera, terminate the USB connection on the computer, then turn off the camera and remove the USB cable.

• If the “PENTAX K-S1” dialog appears on the computer screen in Step 5, select [Open folder to view files] and click the OK button.

t Memo

• Refer to “Operating Environment for USB Connection and Provided Software” (p.104) for system requirements to connect the camera to a computer and to use the software.

Playback

• The USB connection mode when connecting the camera to a computer can be set in [USB Connection] of the D2 menu. Normally, you do not need to change the default setting ([MSC]).

Editing and Processing Images

Changing the Image Size

u Caution

• Only JPEG images captured with this camera can be resized or cropped.

• Images already resized or cropped to the minimum file size cannot be processed.

Changing the Number of Recorded Pixels (Resize)

Changes the number of recorded pixels of the selected image, and saves it as a new file.

1 Display the image to edit in single image display. 2 Select d in the playback mode palette.

The screen to select the number of recorded pixels appears.

3 Use CD to select the

number of recorded pixels and press E.

You can select an image size smaller than that of the original image. The save confirmation screen appears.

4 Select [Save] and press E.

Cropping Out Part of the Image (Cropping)

Cancel

Correcting Color Moiré

Crops out only the desired area of the selected image and saves it as a new file.

1 Display the image to edit in single image display. 2 Select e in the playback mode palette.

The cropping frame to specify the size and position of the area to crop appears on the screen.

3 Specify the size and position

of the area to crop by using the cropping frame.

Available operations

ABCD

Changes the size of the cropping frame.

Moves the cropping frame.

Changes the aspect ratio or Image Rotation setting.

Rotates the cropping frame (only when possible).

4 Press E.

The save confirmation screen appears.

5 Select [Save] and press E.

Reduces color moiré in images.

1 Display the image to edit in single image display. 2 Select c in the playback mode palette.

If the image cannot be edited, [This image cannot be processed] appears.

3 Use CD to select the

correction level and press E.

The save confirmation screen appears.

Cancel

4 Select [Save] and press E.

u Caution

• The Color Moiré Correction function can be used only for the JPEG images captured with this camera.

Playback

Processing Images with Digital Filters

100 -0001

Base Parameter Adj

Stop

Parameter Adj.

Brightness

Cancel

1 Display the image to edit in single image display.

5 Set the parameters.

Brightness

2 Select b in the playback mode palette.

The screen to select a digital filter appears.

3 Select a filter.

Use V to select a different image.

Playback

Base Parameter Adj Extract Color Replace Color Toy Camera Retro High Contrast Shading Invert Color Unicolor Bold Bold Monochrome Tone Expansion

Proceed to Step 6 if you do not need to change the parameters.

4 Press G.

The parameter setting screen appears.

Base Parameter Adj

Parameter Adj. Stop

Sketch Water Color Pastel Posterization Miniature Soft Starburst Fish-eye Slim Monochrome

100-0001

Cancel

Available operations

Selects a parameter.

Adjusts the value.

6 Press E.

The screen of Step 3 reappears.

7 Press E.

The save confirmation screen appears.

8 Select [Apply additional filter(s)] or [Save]

and press E.

Select [Apply additional filter(s)] when you want to apply additional filters to the same image. The screen of Step 3 reappears.

u Caution

• Only JPEG and RAW images captured with this camera can be edited with the digital filters.

t Memo

• Up to 20 filters, including the digital filter used during shooting (p.60), can be applied to the same image.

Recreating Filter Effects

Applying the digital filter

Recreating filter effects

Searching for original image

100 -0001

20.

19.

18.

17.

16.

------

15.

14.

13.

12.

11.

10.

Reapplies following digital filter

effects from previous image

Details

100 -0001

Performs digital filter

processing to this image

00 '00 " 10 '00 "

Stop

Retrieves the filter effects of the selected image and applies the same filter effects to other images.

1 Display a filter-processed image in single image

display.

2 Select b in the playback mode palette. 3 Select [Recreating filter

effects] and press E.

The filter effects used for the selected image appear.

4 To check the parameter

details, press G.

Press G again to return to the previous screen.

Searching for original image

Reapplies following digital filter

effects from previous image

5 Press E.

The image selection screen appears.

6 Use V to select an image

for applying the same filter effects, and press E.

You can only select an image that has not been processed with a filter. The save confirmation screen appears.

Applying the digital filter

Recreating filter effects

100-0001

13.

Performs digital filter

processing to this image

14.

10.

15.

11.

16.----

12.

Details

100-0001

7 Select [Save] and press E.

t Memo

• If [Searching for original image] is selected in Step 3, the original image prior to digital filter application can be retrieved.

Editing Movies

1 Display the movie to edit in single image display.

2 Select l in the playback mode palette.

Playback

The movie editing screen appears.

3 Select the point where you

want to divide the movie.

The frame at the dividing point is

17.

18.

19.

20.

displayed at the top of the screen. Up to four points can be selected

Stop

to divide the original movie into five segments.

00' 00" 10' 00"

Available operations

00 '05 " 10 '00 "

Select segments for deletion

Press and hold D C

Press and hold C

Playback

Proceed to Step 7 if you do not want to del et e a ny segment.

4 Press L.

The screen to select segments to delete is displayed.

5 Use CD to move the

selection frame and press E.

The segments to delete are specified. (Multiple segments can be deleted at once.) Press E again to cancel the selection.

6 Press F.

The screen of Step 3 reappears.

7 Press E.

The save confirmation screen appears.

Plays back/pauses a movie.

Forwards a frame (when paused).

Fast-forwards playback.

Reverses a frame (when paused).

Fast-reverses playback.

Adjusts the volume.

Confirms/cancels a dividing point.

Select segments for deletion

00' 05" 10' 00"

8 Select [Save] and press E.

t Memo

• Select dividing points in chronological order from the beginning of the movie. When canceling the selected dividing points, cancel each of them in reverse order (from the end of the movie to the beginning). In an order other than specified, you can neither select dividing points nor cancel the selections of the dividing points.

RAW Development

100 -0001

001 /500

Develop images as shot

Develop images with

modified settings

100 -0001

Image Capture Settings

You can develop RAW images into JPEG images, and save them as a new file.

1 Select k in the playback mode palette.

The screen for selecting a RAW image processing option appears.

2 Select the desired option and press E.

Select single image

Select multiple images

Select a folder Develops up to 500 images in the

When [Select single image] is selected, proceed to Step 6. The image/folder selection screen appears.

Develops an image.

Develops up to 500 images with the same settings.

selected folder with the same settings.

3 Select the image(s) or a folder.

Refer to Step 2 of “Deleting Selected Images” (p.65) for how to select the image(s).

4 Press G.

The screen for selecting the parameter setting method appears.

5 Select the parameter setting

method and press E.

Develop images as shot

Develop images with modified settings

Allows you to change Image Capture Settings (File Format, JPEG Recorded Pixels, and JPEG Quality).

Allows you to change Image Capture Settings (File Format, Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space), Lens Correction (Distortion Correction, LatChromatic-Ab Adj, Peripheral Illumin. Corr., Diffraction Correction, Color Fringe Correction), Digital Filter, White Balance, Custom Image, Sensitivity, High-ISO NR, and Shadow Correction.

6 Set the parameters.

Available operations

Selects a parameter.

Changes the value.

Selects a different image (when in single

image display).

For Image Capture Settings and Lens Correction, press D and use AB to select an item. For Digital Filter, White Balance and Custom Image, press D to display the setting screen.

001/500

Develop images as shot

Develop images with

modified settings

Image Capture Settings

100-0001

Playback

7 Press E.

The save confirmation screen appears.

8 Select [Save] and press E.

When [Select single image] is selected, select [Continue] or [Exit], and press E.

u Caution

• Only RAW images captured with this camera can be developed.

• If the White Balance, Custom Image or Digital Filter settings of RAW images captured in W mode are modified

Playback

before developing, the information about the applied effects mode is deleted. In such a case, the capture mode is displayed as G in Detailed Information Display of the playback mode.

t Memo

• When [Select multiple images] or [Select a folder] is selected in Step 2, a folder with a new number is created, and the JPEG images are stored in it.

• With the provided software “Digital Camera Utility 5”, you can develop RAW files on a computer.

Camera Settings

Button Customization AF/AE-L Button AF/AE-L Button(Movie) Green Button E-Dial Programming

Customizing the Button/E-dial Functions

You can set the functions for when f or M is pressed or when V is turned.

1 Select [Button Customization] in A4 menu

and press D.

The [Button Customization] screen appears.

2 Select the desired item and

press D.

The screen to set the function for the selected item is displayed.

3 Select a function and press E.

The following functions can be assigned to each button.

Button Customization AF/AE-L Button AF/AE-L Button(Movie) Green Button E-Dial Programming

AF/AE-L Button

AF/AE-L Button (Movie)

Setting Function Page

Enable AF1

Enable AF2

Cancel AF

AE Lock

Autofocus is performed when f is pressed.

Autofocus is performed when f is pressed and not when 0 is pressed halfway.

While f is pressed,

the autofocus mode is set to w even when 0 is pressed halfway.

Locks the exposure setting.

p.49

p.44

Settings

Green Button

Cancel after 1 shot

One Push File Format

Cancel

Settings

E-Dial Programming

4 Press F.

The [Button Customization] screen reappears. Repeat Steps 2 to 4.

5 Press F twice.

Setting Function Page

Green Button

One Push File Format

Optical Preview

Digital Preview

AF Active Area

Rotate Right

Rotate Left

Resets the value being adjusted.

Temporarily changes the file format.

Activates the Optical Preview to check the depth of field with the viewfinder.

Activates the Digital Preview to check the composition, exposure and focus on the monitor. (The maximum display time: 60 seconds) You can magnify or save the preview image.

Enables changing the AF point.

Increases values when V is turned to the right (toward S).

Increases values when V is turned to the left (toward T).

–

p.78

p.43

p.51

–

Setting the One Push File Format

1 Set [Green Button] to [One Push File Format] in

Step 3 of “Customizing the Button/E-dial Functions” (p.77).

2 Select Z or Y for [Cancel after 1 shot].

The recording format returns to the original file

format after a picture is taken.

The setting is retained until any of the following operations is performed:

• When M is pressed again

• When 3 or F is pressed, or when the mode

dial or main switch is turned

3 For each file format, select the file format for when

M is pressed.

The left side is the [File Format] setting and the right side is the changed file format when M is pressed.

Green Button

One Push File Format

Cancel after 1 shot

Cancel

Setting the E-dial Operation in P Mode

Green Button

Action in M/TAv Mode E-dial in Program

Shifts combination of the aperture and shutter speed to obtain proper exposure

Cancel

Green Button

Action in M/TAv Mode E-dial in Program

Sets the aperture and shutter speed to the Program Line exposure

Cancel

Setting the Green Button Operation in M/TAv Mode

Set the value to be changed with V when in G mode.

1 Set [Green Button] to [Green Button] in Step 3 of

“Customizing the Button/E-dial Functions” (p.77).

2 Press B and select [E-dial in

Program], and change the setting.

G SHIFT Automatically adjusts the shutter speed and

GXI Adjusts the shutter speed (Shutter Priority

GXJ Adjusts the aperture value (Aperture Priority

OFF Disables the V operation when turned in G

t Memo

•If M is pressed after turning V in G mode, the setting returns to normal G mode.

aperture value to obtain a proper exposure (Program Shift).

Automatic Exposure).

mode.

Green Button

Action in M/TAv Mode E-dial in Program

Shifts combination of the aperture and shutter speed to obtain proper exposure

Cancel

Green Button

You can set the function of M when in L or K mode.

1 Set [Green Button] to [Green Button] in Step 3 of

“Customizing the Button/E-dial Functions” (p.77).

2 Press B and select [Action

in M/TAv Mode], and change the setting.

G LINE Adjusts the aperture value and shutter speed

SHIFT

J SHIFT

OFF Disables the M operation when pressed in L

to obtain a proper exposure according to the program line.

Adjusts the shutter speed while the aperture value remains fixed.

Adjusts the aperture value while the shutter speed remains fixed.

or K mode.

Action in M/TAv Mode E-dial in Program

Sets the aperture and shutter speed to the Program Line exposure

Green Button

Cancel

Settings

Selecting the Display Settings for Digital Preview

Green Button

Digital Preview

Zoom Instant Review Save Preview Image Histogram Display Highlight Alert

World Time

Time Setting

Destination

London

Hometown

New York

16:00

10:00

Destination

London DST

+6:00

16:00

Cancel

1 Set [Green Button] to [Digital Preview] in Step 3 of

“Customizing the Button/E-dial Functions” (p.77).

2 Press B and sel ect Y or Z

for each display item.

Settings

Green Button

Digital Preview

Zoom Instant Review Save Preview Image Histogram Display Highlight Alert

Displaying the Local Date and Time of the Specified City

The date and time set at the time of initial setting (p.32) serve as the date and time of your present location and are reflected in the shooting date and time for images. Setting the destination to a location other than your present location enables you to display the local date and time on the monitor when traveling abroad and also save images timestamped with the local date and time.

1 Select [World Time] in D1 menu.

The [World Time] screen appears.

2 Select the time you wish to

display in [Time Setting].

Select F (Hometown) or G (Destination).

World Time

Time Setting

Destination

London

Hometown

New York

16:00

10:00

3 Select [G Destination] and press D.

The [G Destination] screen appears.

4 Use CD to select a city.

Destination

Use V to change the region.

London DST

Cancel

16:00

+6:00

5 Select [DST] (daylight saving time), and use CD to

select Y or Z.

6 Press E.

Select image(s)

Select a folder

The [World Time] screen reappears.

t Memo

• Refer to “List of World Time Cities” (p.103) for cities that can be selected as a hometown or destination.

•Select [F Hometown] in Step 3 to change the city and DST settings for the hometown.

• G appears in the control panel when [Time Setting] is set to G.

File Management Settings

Protecting Images from Deletion (Protect)

You can protect images from being accidentally deleted.

u Caution

• Even protected images are deleted if the inserted memory card is formatted.

Selecting Settings to Save in the Camera

Most of the functions set on this camera are saved even if the camera is turned off. For the following function settings, you can select whether to save the settings (Z) or to return the settings to their default values (Y) when the camera is turned off. The default settings are Y for Digital Filter, HDR Capture and Shooting Info Display, and Z for the other functions. Set in [Memory] of the A4 menu.

Flash Mode Drive Mode White Balance Custom Image Sensitivity EV Compensation

t Memo

• When [Reset] of the D3 menu is performed, all Memory

settings return to the default values.

Flash Exposure Compensation Digital Filter HDR Capture Shooting Info Display Playback Info Display

1 Select f in the playback mode palette.

The screen for selecting the unit for processing appears.

2 Select [Select image(s)]

or [Select a folder] and press E.

Select image(s)

Select a folder

3 Select the image(s) or folder to protect.

Refer to Step 2 of “Deleting Selected Images” (p.65) for how to select the image(s). Proceed to Step 5 if [Select a folder] is selected.

4 Press G.

The confirmation screen appears.

5 Select [Protect] and press E.

Settings

t Memo

_MMD D

PENTX

Folder Name

Date

Cancel

Folder Name

PP EE NN TT XX

ABCDEFGH I JKLM NOPQR S TU VWXY Z 0123456789

Folder NameFolder Name

CancelCancel

ResetReset

EnterEnter

FinishFinish

Text selection cursor

Text input cursor

• To protect all images stored in the memory card, select

[Protect All Images] of the B1 menu.

Selecting the Folder/File Settings

Folder Name

When images are captured with this camera, a folder is automatically created and the captured images are stored in it. Each folder name consists of a sequential number from 100 to 999 and a string of 5 characters. The folder name can be changed.

Settings

1 Select [Folder Name] in D2 menu and press D.

The [Folder Name] screen appears.

2 Select a folder name and

press E.

Folder Name

_MMDD

Date PENTX

The two digits of the month and day on which the picture was taken are assigned after the folder number. The month and day appear according to the date

Date

format set in [Date Adjustment]. Example) 101_0125: for images taken on January 25th

The character string “PENTX” is assigned after the folder number.

PENTX

The character string can be changed arbitrarily. Example) 101PENTX

Proceed to Step 6 if you do not need to change the character string from “PENTX”.

3 Press B, and then press D.

The text-entry screen appears.

4 Change the text.

Enter 5 single-byte alphanumeric characters.

Cancel

Available operations

ABCD

Moves the text selection cursor.

Moves the text input cursor.

Resets the entered text to “PENTX”.

Enters a character selected with the text selection cursor at the position of the text input cursor.

5 After entering the text, move the text selection

IIMMGGP

IIMMG

File Name

cursor to [Finish], and press E.

The screen of Step 2 reappears.

6 Press F twice.

t Memo

• A folder with a new number is created when the folder name is changed.

• A maximum of 500 images (100 images for Eye-Fi card) can be stored in a single folder. When the number of captured images exceeds 500, a new folder is created with the number following the number of the folder currently being used. In Exposure Bracketing shooting, images will be stored in the same folder until shooting is completed.

• When [Create New Folder] is selected in the D2 menu, a folder is created with a new number when the next image is saved.

• When [Select multiple images] or [Select a folder] of [RAW Development] is selected, a folder with a new number is created, and the JPEG images are stored in it. (p.75)

u Caution

• The maximum folder number is 999. After the folder number reaches 999, you cannot capture new images if you attempt to change the folder name or create a new folder, or when the file name number reaches 9999.

File Name

One of the following string of characters is used as the file name prefix depending on the [21 Color Space] setting of the E3 menu.

Color Space File Name

sRGB IMGPxxxx.JPG

AdobeRGB _IMGxxxx.JPG

The first four characters can be changed to a character string of your choice.

1 Select [File Name] in D2 menu and press D.

The [File Name] screen appears.

2 Select A or C and

press D.

The text-entry screen appears.

File Name



JPG



JPG



MOV

3 Change the text.

Up to 4 single-byte alphanumeric characters can be entered. Refer to Steps 4 and 5 of “Folder Name” (p.82) for how to enter text.

4 Press F twice.

Settings

t Memo

File No.File No.

Sequential NumberingSequential Numbering Reset File NumberReset File Number

Uses sequential file numberUses sequential file number in new folder based on lastin new folder based on last number in previous foldernumber in previous folder

• When [Color Space] is [AdobeRGB], the file name prefix is “_” and first three characters of the entered character string becomes the file name.

• For movies, regardless of the [Color Space] setting, the file name is “IMGPxxxx.MOV” or the one with the entered string of characters.

Settings

File No.

Each file name consists of a string of 4 characters and a sequential number from 0001 to 9999. You can set whether to continue the sequential numbering for the file name even if a new folder is created in [Sequential Numbering] of [File No.] in the D2 menu.

Continues the sequential numbering for the file name

even if a new folder is created.

Returns the file number of the first image saved to

a folder to 0001 each time a new folder is created.

Select [Reset File Number] to reset the file number to its default value.

t Memo

• When the file number reaches 9999, a new folder is created and the file number is reset.

Setting the Copyright Information

Embed Copyright DataEmbed Copyright Data

PhotographerPhotographer

AABBC

DDEEFFGGHHIIJJKKLLMMNNOOPPQQR

SSTTUUVVWWXXYYZZ0011223344556677889

..,,(())[[]]<<>>@

++==$$%%‘‘““{{}

--__//::;;!!?

Photographer

Cancel

Delete One Character

Enter

Finish

Text selection cursor

Text input cursor

Sets the photographer and copyright information embedded in the Exif data.

1 Select [Copyright Information] in D2 menu

and press D.

The [Copyright Information] screen appears.

2 Use CD to set [Embed

3 Select [Photographer] or [Copyright Holder],

and press D.

The text-entry screen appears.

4 Change the text.

Up to 32 single-byte alphanumeric characters and symbols can be entered.

Does not embed copyright information in the Exif

data.

Embeds copyright information in the Exif data.

Photographer

Delete One Character

Cancel

Available operations

ABCD

Moves the text selection cursor.

Moves the text input cursor.

Switches between upper and lower case letters.

Deletes a character at the position of the text input cursor.

Enters a character selected with the text selection cursor at the position of the text input cursor.

5 After entering the text, move the text selection

cursor to [Finish], and press E.

The screen of Step 2 reappears.

Settings

6 Press F twice.

t Memo

• The Exif information can be checked using the provided software “Digital Camera Utility 5”.

R 9

}

Finish

Enter

Using a Wireless Memory Card

Wireless Memory Card

Action Mode Auto Resize Communication Info Firmware Info/Options

Automatically transfers unsent images from memory card

Cancel

A memory card with a built-in wireless LAN “Eye-Fi card” (Wi-Fi transmission) or a “Flucard” compatible with this camera can be used. By using these cards, images can be transferred from the camera to a computer or other device via wireless LAN. Select the camera action when using an Eye-Fi card or a Flucard.

1 Select [Wireless Memory Card] in D3 menu

and press D.

The [Wireless Memory Card] screen appears.

2 Select [Action Mode].

Settings

The items that can be set are displayed according to the type of card inserted.

Eye-Fi card

AUTO

SELECT

OFF Stops the communication function.

Transfers images automatically when there are any images that have not yet been transferred. Only mov ies wit h a s ize of 2 GB or less can be transferred.

Transfers images or folders that are selected in [Eye-Fi Image Transfer] of the playback mode. (p.64) Only JPEG and RAW images can be transferred.

Action Mode Auto Resize Communication Info Firmware Info/Options

Automatically transfers unsent images from memory card

Cancel

Wireless Memory Card

Flucard

ON Enables wireless data transfer with Flucard.

OFF Disables wireless data transfer with Flucard.

3 Select Y or Z for [Auto Resize].

When set to Z, JPEG images are saved to the Eye-Fi card or Flucard at the size of r.

4 Press F twice.

u Caution

• When an Eye-Fi card or a Flucard is not inserted, the camera action cannot be set.

• Set up a wireless LAN access point on a computer for the card connection.

• When using a Flucard, update it to the latest firmware before use.

• For RAW images, the success of transfer depends on

the specifications and settings of the Eye-Fi card in use.

• Images may not be transferred when the battery level is low.

• It may take time to transfer a large number of images. The camera may turn off if the internal temperature of the camera becomes high.

• For precautions on the Eye-Fi card, refer to “About Eye-Fi Cards” (p.112).

t Memo

• A smartphone can be used to operate this camera when a Flucard compatible with this camera is inserted. Refer to the Flucard manual for details on how to use the card.

• When an Eye-Fi card is used, 100 images can be stored in a single folder. For RAW+ images, two files are counted as one image.

• In Step 2, select [Communication Info] to check the Wireless LAN information, and [Firmware Info/Options] to check the firmware version of the cards.

• When [Reset Transfer Settings] is selected in Step 2, the [Action Mode] setting is returned to their default value.

Settings

Function

Appendix

Restrictions on Each Capture Mode

Capture Mode

Sensitivity

Flash

Continuous Shooting Z

Self-timer

Remote Control

Drive Mode

Exposure Bracketing

Focus Method

cdi

x*2y*2x*2x*2y

: Not available

ghj stv

k l p u

×× ×

W M

×× ×

××

××× ×

RAW/RAW+

File Format

Shake Reduction

White Balance

Custom Image

××

Capture Mode

Function

Digital Filter

HDR Capture

AA Filter Simulator *5

Save RAW Data

*1 [ISO AUTO] is not available. *2 Fixed to; the setting cannot be changed. *3 Fixed to a specific setting; the setting cannot be changed. *4 Specific settings are used. *5 [Bracketing] is not available.

cdi

ghj stv

k l p u

W M

××

×××

××

Restrictions on the Combinations of Special Functions

Drive Mode

Continuous

Shooting

Flash

File Format RAW/RAW+

Shake Reduction

Digital Filter

AA Filter Simulator *1 *1

Save RAW Data

*1 [Bracketing] is not available.

Self-timer Remote Control

××

Exposure

Bracketing

: Not available

HDR Capture

× ×

Appendix

Functions Available with Various Lenses

All capture modes are available when a DA, DA L, or FA J lens is used, or when a lens with an 9 position is used with the aperture ring set to the 9 position. When other lenses than above are used, or a lens with 9 position is used in a position other than 9, the following restrictions apply.

Function

Autofocus

(Lens only)

Appendix

(With AF adapter 1.7×)

Manual focus (With focus indicator) (With matte field)

Quick-shift focus #

Focus point selection mode [Auto]

AE Metering [Multi-segment]

G/H/I/J/K mode

L mode

P-TTL auto flash

Automatically obtaining the lens focal length information

Lens Correction x*5

x: Available #: Restricted ×: Not available

FA J

[Mount type]

Lens

DA L D FA

[KAF] [KAF2] [KAF3]

x–x–x

xxxxx

xxx

xxxx

xxx

F *6A M

[KAF]

[KAF] [KA] [K]

[KAF2]

––#–#

××××

×××

××

*1 Lenses with a maximum aperture of F2.8 or faster. Only available at

the 9 position.

*2 Lenses with a maximum aperture of F5.6 or faster. *3 Available when using the built-in flash, AF540FGZ, AF540FGZ II,

AF360FGZ, AF360FGZ II, AF200FG or AF160FC. *4 Only available with compatible lenses. *5 Distortion Correction and Peripheral Illumination Correction are

disabled when a DA FISH-EYE 10-17mm lens is used. *6 To use an FA SOFT 28mm F2.8 lens, FA SOFT 85mm F2.8 lens,

or F SOFT 85mm F2.8 lens, set [26 Using Aperture Ring] to [Enable]

in the E4 menu. Pictures can be taken with the aperture you set, but

only within a manual aperture range. *7 Only available with an FA 31mm F1.8 Limited, FA 43mm F1.9

Limited, or FA 77mm F1.8 Limited lens. *8 Fixed to [Spot]. *9 J with the aperture set to wide open. (The aperture ring has no

effect on the actual aperture value.)

u Caution

• When the aperture ring is set to a position other than 9 or

a lens without an 9 position or accessories such as an auto extension tube or auto bellows are used, the camera does not operate unless [26 Using Aperture Ring] is set to [Enable] in the E4 menu. Refer to “Using the Aperture Ring” (p.92) for details.

Lens Names and Mount Names

DA lenses with a motor and FA zoom lenses with power zoom use the K no AF coupler use the K FA single focal length lenses (non-zoom lenses), DA or DA L lenses without a motor, and D FA, FA J and F lenses use the K Refer to respective lens manuals for details.

AF2 mount. DA lenses with a motor and

AF3 mount.

AF mount.

Compatibility with the Built-in Flash

Depending on the lens being used, the use of the built-in flash may be limited.

Lens

DA FISH-EYE 10-17mm F3.5-4.5 ED (IF)/ DA 12-24mm F4 ED AL/ DA 14mm F2.8 ED (IF)/ DA 15mm F4 ED AL/

300mm F2.8 ED (IF)/

560mm F5.6 ED AW/

600mm F4 ED (IF)/

250-600mm F5.6 ED

FA (IF)

F FISH-EYE 17-28mm F3.5-4.5

DA 16-45mm F4 ED AL

16-50mm F2.8 ED

DA AL (IF) SDM

Restrictions when using

the built-in flash

The built-in flash is not available due to vignetting.

Vignetting may occur if the focal length is less than 20 mm.

When the focal length is less than 28 mm, or when the focal length is 28 mm and the shooting distance is 1 m or less, vignetting may occur.

When the focal length is 20 mm or less or when the focal length is 35 mm and the shooting distance is less than 1.5 m, vignetting may occur.

Lens

DA 17-70mm F4 AL (IF) SDM

DA 18-250mm F3.5-6.3 ED AL (IF)

DA 18-270mm F3.5-6.3 ED SDM

28-70mm F2.8 AL

FA SOFT 28mm F2.8/ FA SOFT 85mm F2.8

Setting the Focal Length

The Shake Reduction function operates by obtaining lens information such as focal length. Set the focal length when using a lens that the focal length information cannot be automatically obtained.

Restrictions when using

the built-in flash

When the focal length is less than 24 mm or when the focal length is 35 mm and the shooting distance is 1 m or less, vignetting may occur.

Vignetting may occur if the focal length is less than 35 mm.

Vignetting may occur if the focal length is less than 24 mm.

Vignetting may occur if the focal length is 28 mm and the shooting distance is less than 1 m.

The built-in flash always discharges fully.

1 Set [26 Using Aperture Ring] to [Enable] in the E4

menu.

2 Turn the camera off. 3 Attach a lens to the camera and turn the camera on.

The [Input Focal Length] screen appears.

Appendix

4 Use AB to set the focal

Input Focal Length

25251

1 2

Using Aperture Ring

Disable Enable

Shutter will release when aperture ring is not set to the "A" position

Cancel

length.

Press C to select a value from the list. When using a zoom lens, select the actual focal length to be used for shooting.

5 Press E.

The camera returns to standby mode.

t Memo

• The focal length setting can be changed in [Input Focal

Length] of the A3 menu.

• When using a lens without an 9 positio n or a lens with a n 9 position with the aperture ring set to a position other than 9, set [26 Using Aperture Ring] to [Enable] in the E4 menu. (p.92)

Appendix

Using the Aperture Ring

The shutter can be released even if the aperture ring of the D FA, FA, F or A lens is not set to the 9 position or a lens without an 9 position is attached. Select [Enable] in [26 Using Aperture Ring] of the E4 menu.

Disable

Enable

Shutter will release when aperture ring is not set to the "A" position

Cancel

Input Focal Length

Using Aperture Ring

The following restrictions apply depending on the lens being used.

Capture

Mode

The aperture remains open. The shutter speed changes in

relation to the open aperture but an exposure deviation may occur.

Restriction

D FA, FA, F, A, M

(lens only or with automatic diaphragm accessories such as auto extension tube K)

Lens Used

D FA, FA, F, A, M, S (with diaphragm accessories such as extension tube K)

Manual diaphragm lens such as reflex

Pictures can be taken with a set aperture value but an exposure deviation may occur.

lens (lens only)

FA SOFT 28mm/ FA SOFT 85mm/ F SOFT 85mm (lens only)

Pictures can be taken with a

set aperture value in the manual aperture range.

t Memo

• If the aperture ring is set to a position other than 9, the

camera operates in J mode regardless of the mode dial setting except when set to L or M mode.

• [F--] appears for the aperture indicator in the status screen,

Live View screen and viewfinder.

Functions when Using an External Flash

Using an optional external flash AF540FGZ, AF540FGZ II, AF360FGZ, AF360FGZ II, AF200FG or AF160FC enables a variety of flash modes, such as P-TTL auto flash mode.

Camera Function

Red-eye reduction flash

Auto Flash Discharge

Automatic switch to the flash sync speed

Automatic setting of the aperture value in G or I mode

P-TTL auto flash x

Slow-speed Sync flash

Flash Exposure Compensation

AF assist light of external flash

Trailing Curtain Sync flash

Contrast-control-sync flash #

Slave flash

High-speed Sync flash

x: Available #: Restricted ×: Not available

Flash

Built-in

Flash

AF540FGZ

AF540FGZ II

AF360FGZ

AF360FGZ II

xxx

× ×

AF200FG AF160FC

× ×

*1 Available only when using a DA, DA L, D FA, FA J, FA, F or A lens. *2 Shutter speed of 1/90 seconds or slower. *3 When combined with the AF540FGZ, AF540FGZ II, AF360FGZ, or

AF360FGZ II, 1/3 of the flash discharge can be output by the built-in flash and 2/3 can be output by the external flash.

*4 Available only when combined with the AF540FGZ, AF540FGZ II,

AF360FGZ, or AF360FGZ II.

u Caution

• Never press 1 on the camera when any external flash unit

is attached to the camera. The built-in flash will hit the external flash. If you want to use both at once, connect them using an extension cord.

• Flashes with the reversed polarity (the center contact on the hot shoe is minus) cannot be used due to the risk of damaging the camera and/or flash.

• Do not combine with accessories that have a different number of contacts, such as a Hot Shoe Grip, as a malfunction may occur.

• Combining with flashes from other manufacturers may cause equipment breakdown.

t Memo

• With the AF540FGZ, AF540FGZ II, AF360FGZ, or AF360FGZ II, you can use the high-speed sync flash to discharge the flash and take a picture at a shutter speed faster than 1/180 seconds. Select a capture mode (such as I) which allows you to set the shutter speed.

Appendix

Using the GPS Unit

250

F5. 6

160 0

0.0

10: 00:00

N 36° 45.410 ' W14 0°02.0 00' 89m

07/ 07/201 4

ASTROTRACER

Action in B Mode

Precise Calibration Timed Exposure Exposure Time GPS LED Indicators

The following functions are available when the optional GPS unit O-GPS1 is attached to this camera.

Displays the current latitude,

Electronic Compass

ASTROTRACER

Appendix

GPS Time Sync

t Memo

• Refer to the manual of the GPS unit for details on how to attach the unit and information on the unit’s functions.

• To display [Electronic Compass], refer to “Shooting Info Display” (p.12).

u Caution

• “Simple Navigation” cannot be used with this camera.

longitude, altitude, direction, Coordinated Universal Time (UTC), capture mode, and exposure value.

Tracks and captures celestial bodies. By matching the movement of the camera’s built-in Shake Reduction unit with the movement of celestial bodies, celestial bodies can be captured as individual points even when shooting with a long exposure setting. (p.94)

Automatically adjusts the camera’s date and time settings using information acquired from GPS satellites.

N 36°45.410' W140°02.000' 89m

07/07/2014 10:00:00

250

F5.6

1600

Shooting Celestial Bodies (ASTROTRACER)

1 Set the mode dial to M. 2 Select [GPS] in A2 menu and press D.

0°

The [GPS] screen appears.

3 Select [ASTROTRACER] and press D.

0.0

The [ASTROTRACER] screen appears.

4 Set [Action in B Mode] to a

and press E.

ASTROTRACER

Action in B Mode

Precise Calibration Timed Exposure

Exposure Time

GPS LED Indicators

5 To set the desired exposure time, first set [Timed

Exposure] to [ON].

You can set the exposure time between 0'10" and 5'00" in [Exposure Time].

6 Press F three times.

The camera returns to standby mode.

7 Press 0 fully.

Shooting starts.

8 Press 0 fully again.

Shooting stops. When [Timed Exposure] is enabled, shooting ends automatically after the set time has elapsed.

Troubleshooting

t Memo

• In rare cases, the camera may not operate correctly due to static electricity. This can be remedied by taking the battery out and putting it back in again. If the camera operates correctly, it does not require any repairs.

Problem Cause Remedy

The camera does not turn on.

The shutter cannot be released.

Autofocus does not work.

Battery is not installed properly. The battery power is low. The built-in flash is being charged. There is no available space on the memory card. Data is being processed. The lens aperture ring is set to a position other than

The subject is difficult to focus on.

The subject is too close.

Check the orientation of the battery.

Charge the battery.

Wait until charging is finished.

Insert a memory card with available space or delete unwanted images.

Wait until processing is finished.

Set the lens aperture ring to the 9 position or select [Enable] in [26 Using Aperture Ring] of the E4 menu. (p.92)

v cannot work well for lowcontrast objects (the sky, white walls, etc.), dark colors, intricate designs, rapidly-moving objects or scenery shot through a window or a net-like pattern. Lock focus on another object located at the same distance as your subject, then aim at the target and take a picture. Alternatively, use w. Move away from the subject and take a picture.

Problem Cause Remedy The focus cannot be locked.

The built-in flash does not discharge.

The camera is not recognized when it is connected to a computer.

Dust or dirt particles appear in images.

There are visible defects in a captured image, or parts in the display monitor that do not light up or remain lit.

AF Mode of Live View is set to f.

The flash mode is set to A or B.

The USB connection mode is set to [PTP].

The CMOS sensor is dirty or dusty.

There are defective pixels in the CMOS sensor.

Set [Contrast AF] to e, j, g, h or i. (p.51)

When the flash mode is set to A or B, the flash does not discharge if the subject is bright. Change the flash mode. (p.47)

Set [USB Connection] to [MSC] in the D2 menu.

Activate [Dust Removal] from the D4 menu. The Dust Removal function can be activated every

time the camera is turned on and off.

Refer to “Sensor Cleaning” (p.96) if the problem persists.

Activate [Pixel Mapping] from the D4 menu. It takes about 30 seconds to correct the defective pixels, so be sure to install a fully charged battery.

Appendix

Sensor Cleaning

Raise the mirror up and open the shutter when cleaning the CMOS sensor with a blower.

1 Turn the camera off and remove the lens. 2 Turn the camera on. 3 Select [Sensor Cleaning] in D4 menu and press D.

The [Sensor Cleaning] screen appears.

4 Select [Mirror Up] and press E.

The mirror pops up and the grip lamps blink.

5 Clean the CMOS sensor with a blower.

6 Turn the camera off.

Appendix

The mirror automatically returns to its original position.

u Caution

• Never use a spray blower or a blower with a brush. The CMOS sensor may be damaged. Do not wipe the CMOS sensor with a cloth.

• Do not put the tip of the blower inside the lens mount area. If the power is turned off, this may cause damage to the shutter, CMOS sensor and the mirror.

• When the battery level is low, the message [Not enough battery power remaining to clean sensor] is displayed on the monitor. Install a fully charged battery. If the battery capacity becomes low during cleaning, a warning beep will sound. In this case, stop cleaning immediately.

t Memo

• Please contact your nearest service center for professional cleaning as the CMOS sensor is a precision part.

• You can use the optional Image Sensor Cleaning Kit O-ICK1 when cleaning the CMOS sensor.

Error Messages

Error Messages Description

Memory card full

No image

This image cannot be

displayed

No card in the camera

Memory card error

Card is not formatted

Card is locked

This image cannot be

magnified

This image is protected

The memory card is full and no more images can be saved. Insert a new memory card or delete unwanted files.

There are no images that can be played back on the memory card.

You are trying to play back an image in a format not supported by this camera. You may be able to play it back on a computer.

There is no memory card inserted in the camera.

The memory card has a problem, and image capture and playback are impossible. You may be able to play it back on a computer.

Failed to initialize the Eye-Fi function when using the Eye-Fi card. Press E.

The memory card you have inserted is unformatted or has been previously used on another device and is not compatible with this camera. Use the card after formatting it with this camera.

The write-protect switch on the memory card you have inserted is locked. (p.112)

You are trying to magnify an image that cannot be magnified.

You are trying to delete an image that is protected. Remove protection from the image. (p.81)

Error Messages Description

Not enough battery power

remaining to activate Pixel

Mapping

Not enough battery power remaining to clean sensor

Not enough battery power

remaining to update the

firmware

Unable to update firmware. There is a problem with the

firmware update file

Image folder cannot be

created

Unable to store image

The operation could not be

completed correctly

No more images can be

selected

These messages appear when you try to perform Pixel Mapping or Sensor Cleaning, or to update the firmware if the battery level is insufficient. Install a fully charged battery.

Unable to update the firmware. The update file is damaged. Try downloading the update file again.

The maximum folder number (999) is being used, and no more images can be saved. Insert a new memory card or format the card.

The image could not be saved because of a memory card error.

The camera was unable to adjust the manual white balance. Try the operation again.

Failed to authenticate the wireless function when using the Flucard. Or, [Reset Transfer Settings] failed when using an Eye-Fi card or Flucard.

You are trying to select more than the maximum number of images for the following functions.

• Select & Delete

• RAW Development

•Protect

• Eye-Fi Image Transfer

Appendix

Error Messages Description

No image can be processed

This image cannot be

This function is not available

in the current mode

The camera will turn off to

prevent damage from

Appendix

Set the Eye-Fi

communication to “SELECT”

Image not found

No wireless memory card

Cannot be selected

processed

overheating

inserted

There are no images that can be processed using the Digital Filter or RAW Development function.

Appears when you try to perform Resize, Cropping, Digital Filter, Movie Edit, RAW Development, or Save as Manual WB for images captured with other cameras, or when you try to perform Resize or Cropping for minimum file size images.

You are trying to set a function that is not available for the capture mode that is set.

The camera will turn off because its internal temperature is too high. Leave the camera turned off until it has had time to cool down before turning on the camera again.

Images cannot be transferred when [Action Mode] is not set to [SELECT] in [Wireless Memory Card] of the D3 menu. (p.86)

There are no images that can be transferred when an Eye-Fi card is used.

You are trying to perform [Eye-Fi Image Transfer] with no Eye-Fi card inserted.

This folder cannot be selected because the number of files stored in this folder exceeds the maximum number allowed.

Main Specifications

Model Description

Type

Lens Mount

Compatible Lenses

Image Capture Unit

Image Sensor Primary color filter, CMOS, Size: 23.5 × 15.6 (mm)

Effective Pixels Approx. 20.12 megapixels

Total Pixels Approx. 20.42 megapixels

Dust Removal SP coating and CMOS sensor vibration

Sensitivity (Standard Output)

Image Stabilizer Sensor-shift Shake Reduction

AA Filter Simulator

File Formats

Recording Formats

Recorded Pixels

Quality Level

TTL autofocus, auto-exposure SLR digital camera with a built-in retractable P-TTL flash

PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)

KAF3, KAF2 (power zoom not compatible), KAF, KA mount lenses

ISO AUTO/100 to 51200 (EV steps can be set to 1 EV, 1/2 EV, or 1/3 EV)
