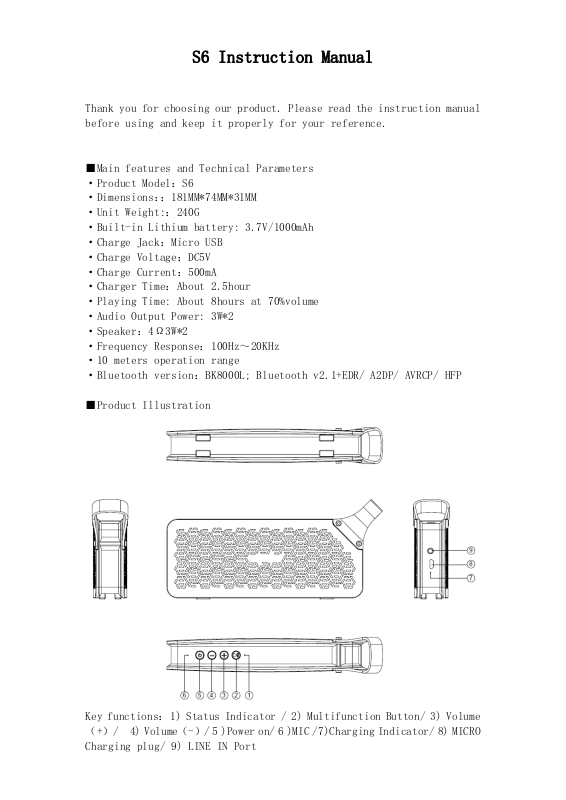

S6 Instruction Manual
Thank you for choosing our product. Please read the instruction manual
before using and keep it properly for your reference.
■Main features and Technical Parameters
·Product Model：S6
·Dimensions：：181MM*74MM*31MM
·Unit Weight:：240G
·Built-in Lithium battery: 3.7V/1000mAh
·Charge Jack：Micro USB
·Charge Voltage：DC5V
·Charge Current：500mA
·Charger Time：About 2.5hour
·Playing Time: About 8hours at 70%volume
·Audio Output Power: 3W*2
·Speaker：4Ω3W*2
·Frequency Response：100Hz～20KHz
·10 meters operation range
·Bluetooth version：BK8000L; Bluetooth v2.1+EDR/ A2DP/ AVRCP/ HFP
■Product Illustration
Key functions：1) Status Indicator / 2) Multifunction Button/ 3) Volume
（+）/ 4) Volume（-）/ 5 )Power on/ 6 )MIC /7)Charging Indicator/ 8) MICRO
Charging plug/ 9) LINE IN Port
■Operating Instructions
Power on：Long press for 2 seconds until one blue indicator is on
Power off：Long press for 3 seconds until one red indicator is on
Pairing：Long press for until red and blue light flash quickly
Bluetooth name:S6
Volume adjustment：Press and hold "+" button to increase the volume ；
Press and hold "-" button to decrease the volume
Song choosing：Press "+" button to play next music；
Press "-" button to play previous music
Play/Pause：Press to pause the music, press again to resume play
Answer /End the call：Press to answer the call, and press again to
end the call and resume play music，
Reject an incoming call：Long press for 2s
Tail number redial：
Press twice quickly, then it will dial the latest
dial number
■LED indictor
Low battery： When battery is lower than20%,
Charging：When the product is charging,
charging is finish,
Red light will on off.
red light will be on，when the
red light on
Bluetooth has connected： Blue light flash slowly
Bluetooth automatic connect ： Blue light is on
Bluetooth pair ： Red light and blue light flash
