Diagonal Desktop
Bluetooth® Speaker
Instruction Manual
7198-45GY

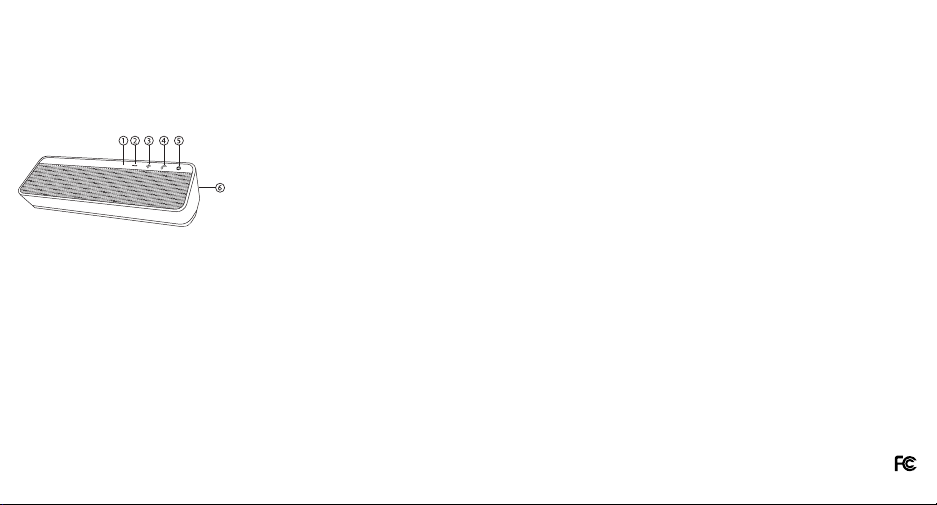

Functions:
1.
LED Indicator
2.
Vol-/Previous Track:
Vol- : Press and hold
Previous Track: Short press
3.
Vol+/Next Track:
Vol+: Press and hold
Next Track: Short press
4.
Play/Pause/Call Function
5.
ON/OFF Button
6.
3.5mm AUX Line-in/Speaker Reset
Charging Port
What’s included:
1 x Bluetooth® Speaker (7198-45GY)
1 x USB to Micro-USB Charging Cable
1 x 3.5mm Aux Line-in Cable
1 x Instruction Manual
Tech Specications
Playing time: up to 6 hrs at max volume
•
Charging time: up to 4 hrs
•
Pairing Name: “Diagonal BT”
•
Instructions:
(Be sure to fully charge the speaker before
using for the rst time).
Charging the Speaker
1.
Open rubber seal cover, Connect the
•
provided charging cable to a power
source and to the micro USB port on the
speaker (6).
The LED indicator light will glow red when
charging and turn off when fully charged.
Bluetooth® Setup:
2.
Press and hold ON/OFF Button, LED
•
Indictor will then ash BLUE and RED.
Turn on the Bluetooth function on mobile
•
device, Select “Diagonal BT” pairing name.
LED will ash BLUE if successfully paired
•
Speaker will automatically pair if the mobile
*
device has been paired before.
Press and hold ON/OFF button to turn off
•
the device
Call Function:
3.
Press (4) once to answer a incoming call,
•
press and press again to end call
Press and hold to reject the incoming call
•
Press (4) twice to redial last called number
•
from the speaker.
AUX Function:
4.
Open rubber seal cover(6) to nd the
•
speakers AUX-IN port, plug in supplied
3.5mm AUX cable into the port and
connect to the mobile device.
LED will turn BLUE when connected.
•
SAFETY PRECAUTIONS:
WARNING-When using this product, basic
•
precautions should always be followed:
Read all the instructions before use.
1.
Never store or use this product in
2.
temperatures below 32°F(0°C) or above
115°F(45°C).
The unit’s full performance is achieved
3.
only after 2 or 3 completed charge and
discharge cycles.
To reduce the risk of injury, close
4.
supervision is necessary when the product
is used near children.
Do not expose the device to moisture.
5.
Do not use the device in excess of its
6.
output rating. Overload outputs above
rating may result in a risk of re or injury.
Do not use the device if damaged or
7.
modied.
Damaged or modied batteries may exhibit
8.
unpredictable behavior resulting in re,
explosion or risk of injury.
Do not disassemble the device. For
9.
repairs, seek a qualied service
professional. Incorrect reassembly may
result in a risk of re or injury.
Do not expose the device to re or
10.
excessive temperature. Exposure to re
or temperatures above 104°F may cause
explosion.
Ensure that qualied service professionals
11.
use only identical replacement parts to
ensure product safety
FCC Statement:
Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment general uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions (1) this device may not cause
harmful interference, and (2)this device must
accept any interference received, including
interference that may cause undesired
operation.
MADE IN CHINA
