Richen Industrial Co.,Ltd

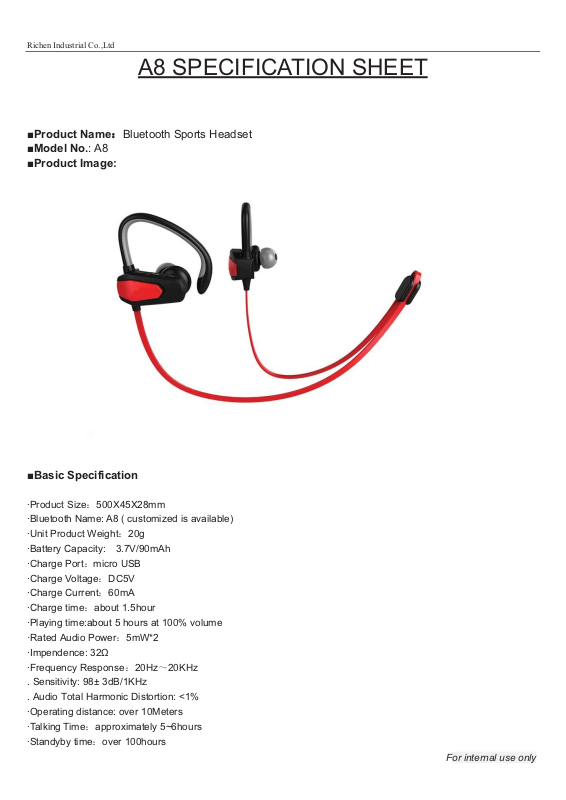

A8 SPECIFICATION SHEET
Product Name˖Bluetooth Sports Headset
Model No.: A8
Product Image:
Basic Specification
·Product Size˖500X45X28mm
·Bluetooth Name: A8 ( customized is available)
·Unit Product Weight˖20g
·Battery Capacity: 3.7V/90mAh
·Charge Port˖micro USB
·Charge Voltage˖DC5V
·Charge Current˖60mA
·Charge time˖about 1.5hour
·Playing time:about 5 hours at 100% volume
·Rated Audio Power˖5mW*2
·Rated Power˖5mW*2
·Impendence: 32
·Frequency Response˖20Hz20KHz
. Sensitivity: 98± 3dB/1KHz
. Audio Total Harmonic Distortion: <1%
·Operating distance: over 10Meters
·Talking Time˖approximately 5~6hours
·Standyby time˖over 100hours
For internal use only
Richen Industrial Co.,Ltd
CONTROLS–ILLUSTRATED
ķ Mircophone ĸHook ĹSilicon cushion ĺMirco USB Port
ĻLED indicator ļVolume Down / Previous Ľ Power Button/Play/Pause ľ Volume Up/Next
Operation Instruction
.Power On˖Press Power/Play/Pause button for 2 seconds, Blue light on.
.Pairing˖Press and hold the Power/Play/Pause button for 3 seconds to enter Bluetooth Pairing mode. the Led indicator light will quickly
flash blue and red
.Power off˖Press Power/Play/Pause button for 2 seconds, Red light on.
.Volume˖Press and hold "+" button to increase the volume level; Press and hold "-" button to decrease the volume level.
.Previous/Next Track: Press "+" button to play next music; Press "-" button to play previous music
.Reset˖Press “+” and “-” button for 5 seconds at the same time.
.Calling: Press the Power/Play/Pause button during an incoming call to activate 'Hands-Free' calling. The headset will continue playing
your track when the call has completed.To reject an incoming call press and hold 2 seconds.To redial the last number quickly press the
For internal use only
