Page 1

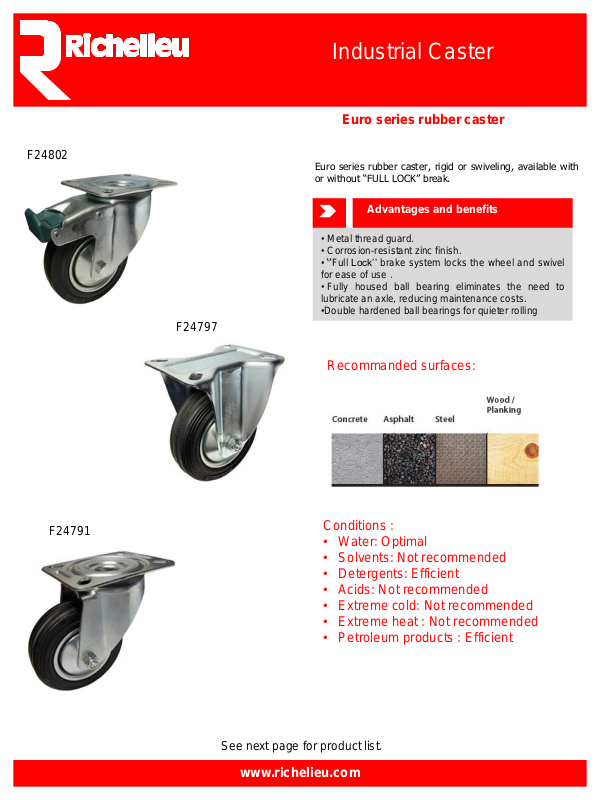

Industrial Caster

Euro series rubber caster

F24802

Euro series rubber caster, rigid or swiveling, available with or without “FULL LOCK” break.

Advantages and benefits

• Metal thread guard.

• Corrosion-resistant zinc finish.

• ‘’Full Lock’’ brake system locks the wheel and swivel

for ease of use .

• Fully housed ball bearing eliminates the need to

lubricate an axle, reducing maintenance costs.

•Double hardened ball bearings for quieter rolling

F24797

Recommanded surfaces:

F24791

Conditions :

• Water: Optimal

• Solvents: Not recommended

• Detergents: Efficient

• Acids: Not recommended

• Extreme cold: Not recommended

• Extreme heat : Not recommended

• Petroleum products : Efficient

See next page for product list.

www.richelieu.com

Page 2

Product list and technical information

Recommanded surfaces:

Industrial caster

Product number

F24790 80mm Swiveling caster

F24801 80mm, Swiveling caster w/“FULL

F24796 80mm Rigid caster

F24791 100mm Swiveling caster

F24802 100mm, Swiveling caster w/ “FULL

F24797 100mm Rigid caster

F24792 125mm Swiveling caster

F24803 125mm, Swiveling caster w/“FULL

F24798 125mm Rigid caster

F24788 160mm Swiveling caster

F24794 160mm Rigid caster

F24793 200mm Swiveling caster

F24799 200mm Rigid caster

Description Wheel Diameter Load Capacity Tread Width Overall Height

LOCK” break

80mm (3-1/8’’) 50 kg (110lbs) 25mm (1’’) 105mm (4-1/8’’)

80mm (3-1/8’’) 50 kg (110lbs)

100mm (4’’) 70 kg (154lbs) 30mm (1-3/16’’) 128mm (5-1/16’’)

125mm (5’’) 100 kg (220lbs) 37mm (1-7/16’’) 155mm (6-1/8’’)

160mm (6-5/16’’) 140 kg (309lbs) 40mm (1-9/16’’) 195mm (7-11/16’’)

200mm (7-7/8’’) 205 kg (452lbs) 50mm (2’’) 235mm (9-1/4’’)

25mm (1’’) 105mm (4-1/8’’)
