Summit SD-1150-WP
Dialysis Scale
Software Revision 11439
Technical
Manual
156445 - Rev B
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com or obtained
by calling 715-234-9171 and asking for the training department
1.0 Introduction and System Overview.............................................................................................. 1
2.0 Safety ........................................................................................................................................... 2
2.1 Safety Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3.0 Scale Installation......................................................................................................................... 3
4.0 Adjustments and Calibration ....................................................................................................... 6
5.0 Indicator Installation ................................................................................................................... 8
6.0 Scale Operation ........................................................................................................................... 9
7.0 Scale Configuration ................................................................................................................... 12
8.0 Test Menu................................................................................................................................... 18
9.0 RS-232 Communication............................................................................................................. 19
10.0 Troubleshooting and Testing ..................................................................................................... 26
11.0 Maintenance .............................................................................................................................. 26
12.0 Summit SD-1150-WP Scale Specifications .............................................................................. 29
For More Information ............................................................................................................................. 30
Warranty................................................................................................................................................. 31
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.2 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.3 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.4 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.5 Electrical Interface to Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.6 Pit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.1 Mechanical Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 Corner Correction/Trimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.3 Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.1 Indicator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.1 Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.2 Hold/Release Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.3 Preset Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.4 Toggle Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.5 Using the Body Mass Index (BMI) Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.1 Programming Mode Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.2 Default Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.3 Scale Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9.1 Push-Button Keypad Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9.2 Communication Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9.2.1 Escape Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9.2.2 Maintenance Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9.3 USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11.1 Basic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11.3 Load Cell Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11.3.1 Load Cell Wiring to Junction Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
© 2014 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice.
Rice Lake Weighing Systems is an ISO 9001 registered company.
Software revision 11439, September 2014 Rev. B
i
ii Summit SD-1150-WP Dialysis Scale Installation & Operation Manual
1.0 Introduction and System Overview
The Summit® SD-1150-WP Dialysis Scale is a heavy-duty scale that offers exceptional performance in dialysis
centers and hospitals. The patient simply walks, or is wheeled onto the weighing platform and is weighed.
The Summit SD-1150-WP Dialysis Scale is a fully electronic, low profile floor scale that measures 36 in x 36 in
(.91 m x .91 m), and has a capacity up to 1000 lb (500 kg). The SD-1150-WP uses four corner-mounted, alloy
steel shear beam load cells, with the cells recessed into the frame channels for protection. The SD-1150-WP is
designed to be mounted in a pit flush with the floor.
Load cell cables are run through the main channels, and held down with replaceable cable ties near each corner,
eliminating the possibility of cable damage. One threaded hole, located in the center of the deck, is another useful
feature which allows for placement of a removable eyebolt to lift the scale from above with chains. Because of
the possibility of foot and load cell damage from forklift tines, the scale should always be lifted from above with
chains through the eyebolt which is illustrated in
The adjustable feet are used to allow leveling the scale to make up for minor floor irregularities.
The Summit SD-1150-WP comes equipped with a large 1" LCD indicator display and 6 AA batteries for use
when power is not readily available. There is an optional 120/230V AC adapter which can be purchased.
This manual can be viewed and downloaded from the Rice Lake Weighing Systems web site at
www.ricelakehealth.com.
Figure 3-1 on page 3.
Figure 1-1. SD-1150-WP Scale
SD-1150-WP Installation & Operation Manual - Introduction and System Overview 1
2.0 Safety
WARNING
CAUTION
Important
WARNING
There are certain precautions that should be taken to prevent personal injury to the user and damage to your
scale.
2.1 Safety Signals
Safety Signal Definitions:
Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury.
Indicates information about procedures that, if not observed, could result in damage to
equipment.
2.2 Safety Precautions
Do not operate or work on this equipment unless you have read and understand
instructions in the manual. Failure to follow the instructions or heed the warnings could
result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement
manuals. Proper care is your responsibility.
Before attempting to operate this unit, make sure every individual who operates or works
with this unit has read and understands the following safety information. Please follow
these instructions carefully.
• Do not drop the scale or subject it to violent shocks.
• For accurate weighing, the scale must be placed on a flat, stable surface.
• Do not transport the scale while someone is standing on it.
• Weight exceeding the maximum capacity (1000 lb/500 kg) may damage your scale.
• Operating at voltages and frequencies other than specified could damage the equipment.
• If the LO Bat indicator activates, for accurate weighing, replace the batteries or connect the scale to an AC
power source as soon as possible.
• To avoid cross contamination, the scale should be cleaned regularly.
• Avoid contact with excessive moisture.
• Do not allow minors (children) or inexperienced persons to operate this scale.
• Do not jump up and down on the scale.
• Do not use in the presence of flammable materials.
• Do not make alterations or modifications to the scale.
• People with disabilities, or who are physically frail, should always be assisted by another person when
using this scale.
• Do not use the scale on slippery surfaces, such as a wet floor.
• Do not use this scale when your body/feet are wet, such as after taking a bath.
2 SD-1150-WP Installation & Operation Manual
3.0 Scale Installation
The following sections describe the correct installation procedures when installing the Summit SD-1150-WP
Dialysis Scale.
3.1 Overview
Standard installation of the Summit SD-1150-WP Dialysis Scale consists of the following steps:
1. Select a site.
2. Unpack the scale and pit frame.
3. Install the pit frame.
4. Lower the scale into pit frame.
5. Adjust the four leveling feet on the scale.
6. Connect cable to the indicator.
7. Calibrate the scale.
3.2 Site Preparation
The scale must not be loaded beyond its capacity, even momentarily. Avoid areas where the scale might receive
damaging side impacts from wheels, or shock damage from falling objects. Avoid areas where water may
damage a scale not meant for a washdown environment.
The interface cable between the scale and the indicator must be protected against crushing, cutting, or moisture
damage. If the chosen site has such potential dangers, some method of protection, such as running the cable in
conduit, is necessary.
In operation, the scale must be level within 1/4". Either choose a site where the floor is close to this standard to
avoid excessive shimming, or modify the floor at the chosen site to meet this standard.
3.3 Unpacking
Remove all packing material and visually inspect the scale and pit frame for visible damage caused during
shipment. The shipping container should contain the scale, pit frame, scale feet, this manual, the indicator, and a
10-ft length of load cell cable.
The Summit SD-1150-WP Dialysis Scale has one threaded eyebolt hole located in the center of the deck to allow
installation of an eyebolt hook for use when lifting the scale with chains. It’s recommended to use a 1/2 in-20NF
eyebolt to lift the scale.
Figure 3-1. Proper Lifting Technique
SD-1150-WP Installation & Operation Manual - Scale Installation 3
3.4 Assembly
Indicator
Ter m in a l
Location
For load cell protection during shipping, the scale feet are shipped separately from the floor scale.
Screw one foot into each load cell and turn all the way in until the foot touches either the load cell or the
underside of the deck. Then unscrew each foot three complete turns.
Place a spirit level on the deck. Adjust any “high” corners not in contact with the floor by further unscrewing the
feet on those corners until they just contact the floor surface. When all feet are in contact with the floor, check the
deck with the spirit level to be sure the scale is within 1/4 inch of level.
3.5 Electrical Interface to Indicator
Ten feet of 4-wire cable to connect the scale to the weight indicator is supplied with each scale. The junction box
is easily accessible through an access plate located on the side of the Summit SD-1150-WP. Use the following
steps to wire up the junction box.
1. Remove the two #10 x 3/8" screws.
2. Slide the junction box assembly out of the deck.
3. Open and remove the top of junction box.
4. Push the cable end into the junction box through a cord grip.
5. Connect the wires to the indicator terminal (Figure 3-2) as shown in Tab le 3-1.
6. Pull out excess and tighten the cord grip to hold the cable snugly.
Cable Color Code Junction Box
Red + Excitation
Black - Excitation
Green + Signal
White - Signal
Bare Shield
Table 3-1. Junction Box Connections
Figure 3-2. Junction Box Wiring Diagram
7. The cable must be routed to the indicator in a manner that will protect the cable from damage. This
method of cable protection in non-washdown applications are shown in
routing, leave a loose coil of excess cable under the scale to facilitate future lifting of the scale for
Figure 3-3. When planning cable
4 SD-1150-WP Installation & Operation Manual
servicing or cleaning.
SCALE FLOOR
LOAD CELL CABLE
Figure 3-3. Load Cell Protection
8. When the interface cable is protected and in its final position, complete connections to the indicator. See
the indicator installation manual for wiring information.
9. If necessary, trim corners as described in Section 4.2 on page 7.
10. Check all strain relief fittings for tightness.
11. Put the cover back onto the junction box assembly and slide the junction box back into the floor scale
cutout.
12. Secure the Summit SD-1150-WP side plate.
3.6 Pit Installation
The Summit SD-1150-WP Dialysis Scale can be installed in a shallow pit using the optional Summit
SD-1150-WP pit frame. Optional height-adjustment holes are available. The following site considerations and pit
frame drawings are meant only as a brief overview of the principles involved with mounting the scale in a
floor-level pit. The pit must be installed in a suitable poured-concrete foundation according to standard
construction practices.
Figure 3-4. Pit Frame Diagram
Site Considerations
Debris, floor sweepings, or material spills may accumulate in the pit and interfere with scale operation. You
should periodically clean the pit. The Summit SD-1150-WP has a threaded hole centrally located for eyebolts so
the scale can be easily lifted from the pit.
SD-1150-WP Installation & Operation Manual - Scale Installation 5
A 1:24 slope is recommended for the pit, with full grouting under the corner pads as shown in Figure 3-5.
4-01&
-0"%$&--
$61
'005 "44&.#-:
(3065
Figure 3-5. Section Showing Installed Summit SD-1150-WP and Pit Frame
6 SD-1150-WP Installation & Operation Manual
4.0 Adjustments and Calibration
Potentiometers
The following sections describe adjustments that need to be made to the Summit SD-1150-WP Dialysis Scale.
4.1 Mechanical Adjustments
To accommodate minor floor unevenness, the scale feet can be used to adjust scale height up or down a fraction
of an inch. Adjust the feet by hand (lift the scale corner slightly with a pry bar) until all feet are contacting the
floor equally. No jam nuts are supplied for locking the feet, as there is a slight decrease in accuracy when jam
nuts are tightened. However, if you feel that your application requires you to secure the feet, we suggest using
®
Teflon
When adjusting scale feet, use care to prevent the scale foot from bottoming out against the underside of the load
cell. Also, the foot stem can be damaged by bending or stripping threads if extended beyond the maximum height
adjustment.
When height adjustments are complete, recheck level of the deck with a spirit level. The deck must be level
within 1/4".
4.2 Corner Correction/Trimming
The assembled Summit SD-1150-WP scale is delivered with the junction box corner-trimmed. Corner trimming
is only necessary after replacing a load cell.
To calibrate the scale, the output from each load cell must be matched by adjusting the signals with
potentiometers at the junction box—a process known as trimming.
Remove the junction box cover and identify the correct load cell terminal corresponding to each corner (labeled
CELL 1, CELL 2, and so on). See
The indicator must be connected and calibrated approximately, but it need not indicate the exact weight value. A
test weight is required. The recommended test weight for the SD-1150-WP is 25% of scale capacity.
With no weight on the scale, zero the indicator. Then turn all four potentiometers (Figure 4-1) clockwise to
increase the reading until a clicking sound is heard from each potentiometer. This ensures the maximum signal
from each load cell.
tape or Loctite®.
Section 11.3.1 on page 28 for scale deck corner numbering.
Figure 4-1. Summing Board Diagram
Tef lo n® and Loctite® are both registered trademarks of E.I. DuPont.
SD-1150-WP Installation & Operation Manual - Adjustments and Calibration 7
With all potentiometers at full signal, place the test weight over one corner and record the indicated weight.
Repeat the process for each of the other three corners. The load cell with the lowest corner reading is used as a
reference point and will not be trimmed.
Next, place the test weight over one of the other three corners and use that cell’s potentiometer to adjust the cell
output down to the reference cell output. Repeat this procedure with the other two high corners.
Adjustments are somewhat interactive, and adjusting the three higher outputs may affect the reference cell
output, especially in smaller scale decks. Rezero the indicator and repeat the test until all corners read within
±.1% of the test weight used.
4.3 Calibration Procedure
It is recommended that the scale be “exercised” before calibration to be certain that everything is seated. Load
the scale to near capacity two or three times.
Then, with no load on the scale, place the indicator in its calibration mode and perform a zero calibration. Now
place test weights on the platform equal to 70% - 80% of the scale’s capacity. If several weights are used, they
should be evenly distributed around the platform. Perform a span calibration.
Remove the test weights and check the zero reading. Repeat the calibration process if necessary.
8 SD-1150-WP Installation & Operation Manual
5.0 Indicator Installation
Connect the optional
AC power source
here.
RS-232
Connection
USB2
Connection
Load cell connection
under the cover.
Note
5.1 Indicator Installation
The Summit SD-1150-WP Dialysis Scale has several connections on the back of the indicator. Connection points
include:
• AC power connection
• RS-232 port connection
• Scale connection port
• Adapter storage connection
AC Power Connection
The Summit SD-1150-WP Scale has an optional 120 VAC adapter or 230 VAC adapter to use when power is
readily available. The optional AC power adapter plugs into the back of the indicator as shown in
Figure 5-1.
The Summit SD-1150-WP Scale is capable of running its internal sealed lead-acid rechargeable battery if no
additional power source is available. Battery life is approximately 75 hours. If the
the display, recharge the battery or connect the scale to an AC power source as soon as possible for accurate
weighing.
Battery Charging
When the optional AC adapter is connected to a power source, the rechargeable battery goes into recharge mode.
The LED indicator light on the back of the scale housing will illuminate red during the charging period, and
change over to green when the battery becomes fully charged.
Load Cell Connections
Figure 5-1 illustrates where the load cell connection point is.

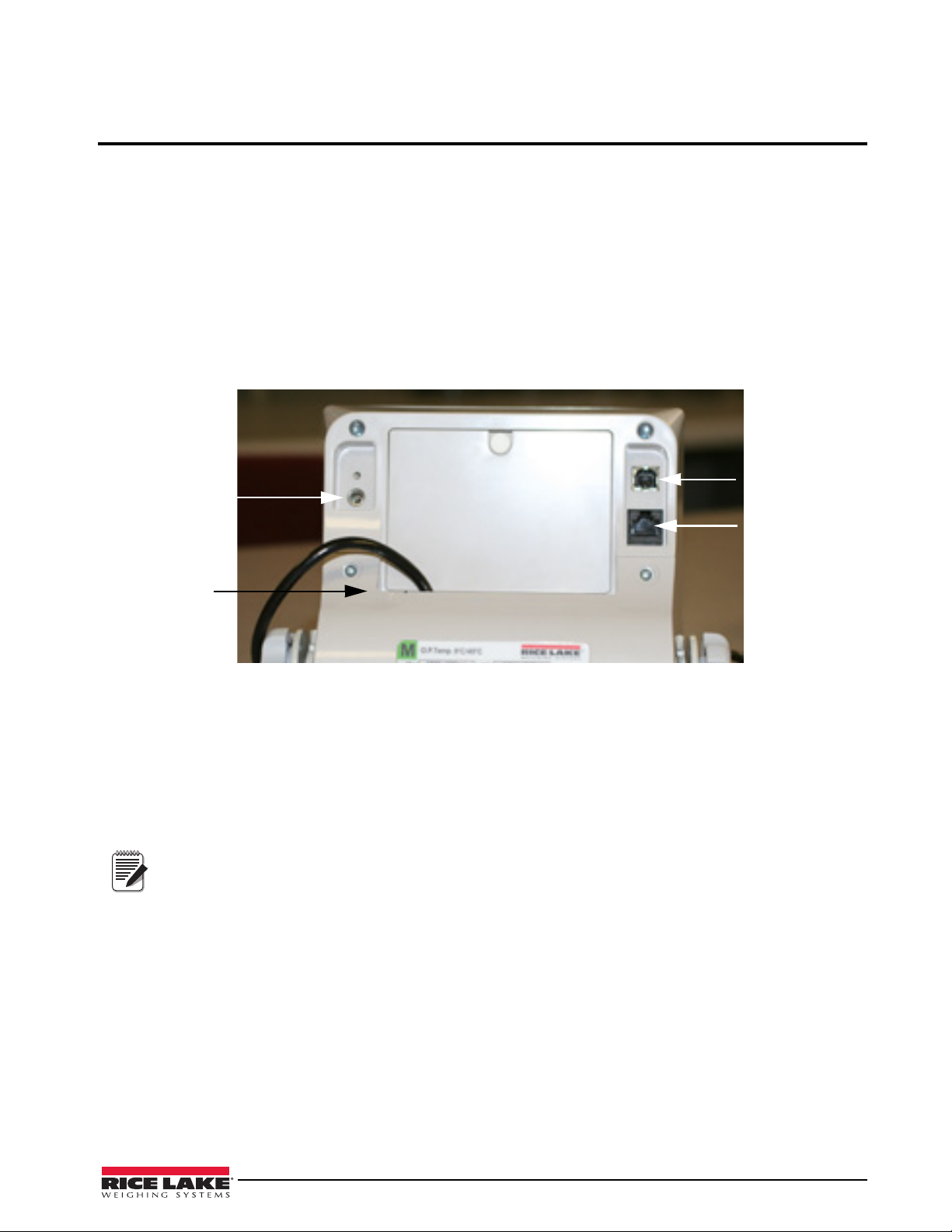

Figure 5-1. AC Power and Load Cell Connection Points
LO Bat indicator is showing on
To maintain battery longevity we recommend you charge it on a regular basis rather than waiting until it
is fully discharged.
SD-1150-WP Installation & Operation Manual - Indicator Installation 9
6.0 Scale Operation
On/Off
LB/KG
Print
Zero
Hold
Release
BMI
TARE
T
CLEAR
The Summit SD-1150-WP Dialysis Scale display has various front panel keys as shown in Figure 6-1.
Figure 6-1. Front Panel Display Keys
Key Descriptions
Table 6-1 describes each of the key functions.
Key Name Function
On/Off Switches the scale on or off.
Print
LB/KG
Zero Clears the weight off the scale and returns it to zero after three seconds.
Hold
Release
BMI Enables the user to access the BMI (Body Mass Index) function. This key
TAR E Used to subtract the weight off the scale, example: oxygen tank, other
CLEAR Allows the user to return to normal weighing when the BMI value is being
Print — A long key press will send data out from the RS-232 port.
LB/KG — A short key press allows the user to toggle between kilograms
and pounds providing that it’s enabled in configuration mode.
There is no toggling while in the BMI mode.
It works only if the current weight is stable and zero up to 2% of full weight.
Hold & Release — The first press holds the most current weight value shown
on the display.
A second press releases the weight value shown.
This key is not active while in BMI mode.
only works if there is a locked weight shown on the display and the BMI
function is turned on in the configuration mode.
equipment.
displayed.
While in BMI mode, the height display causes the value to return to the
default of 190.0 cm, 5 ft, 7.5 in.
Table 6-1. Summit SD-1150-WP Dialysis Scale Key Functions
10 SD-1150-WP Installation & Operation Manual
Key Name Function
ENTER
Caution
Note

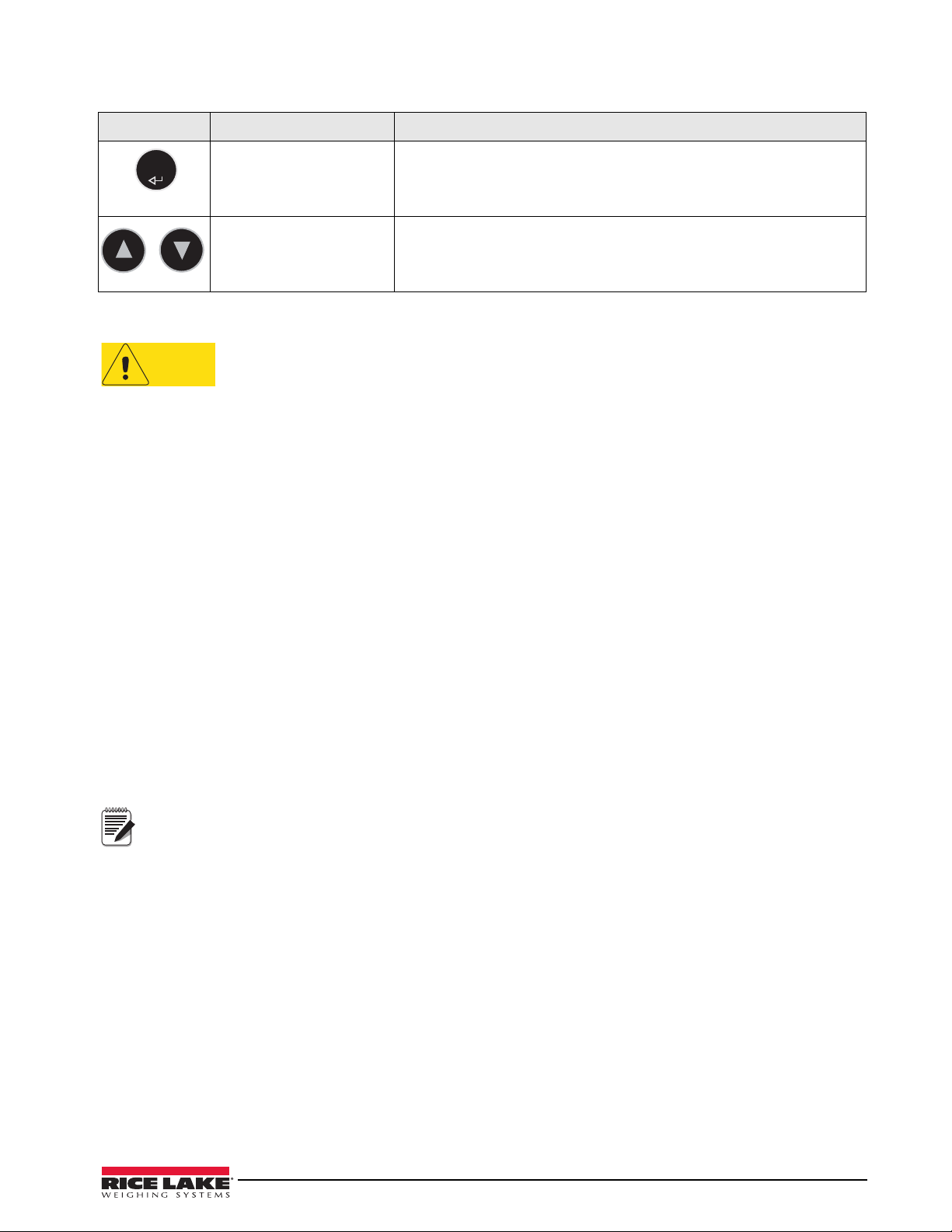

ENTER Used to accept height in BMI mode.
Accepts the value of the parameter last entered and moves to the next stage.
A long press of the ENTER key during the scale’s start up process will enter
the ID display (pre-parameter mode).
Up/Down Arrows Used to adjust height input (0.5 in/0.5 cm) while in BMI mode.
Adjusts the value of the flashing digit/number.
Table 6-1. Summit SD-1150-WP Dialysis Scale Key Functions
The keys on the front panel display are very sensitive so only a gentle pushing motion is required to
obtain results.
The scales have the capability of performing different operations beyond just calculating weight. The various
operating instructions are described below.
6.1 Weighing
Use the following steps to weigh a person.
1. Press the On/Off key to turn on the scale and 0.0 will appear on the display along with ZERO on the upper
display.
2. When the person steps on the scale the display shows the person’s weight. The LOCK annunciator is on in
the upper display and beeps to indicate the end of the weighing process.
3. To change the display from kg to lb and vice-versa, press the LB/KG key.
4. To turn off the scale, press and hold the On/Off key until OFF appears on the display.
6.2 Hold/Release Function
Use the following steps to use the Hold/Release function.
1. When the person is on the scale, press the Hold/Release key.
2. When the person steps off the scale, the weight and the HOLD & LOCK annunciator will remain on the
display.
3. At this stage the Zero key will not work. The only way to return to zero from here is to press the Hold/
Release key one more time.
Pressing the Hold key prior to a person getting on the scale will also work.
6.3 Preset Tare
Use the following steps to use the Preset Tare.
1. When the weight is set to 0.0, place the extra load on the scale. Press the TAR E key until the display
returns to
2. Remove the extra load from the scale. The weight will appear with a negative symbol to the left of it.
3. Ask the patient to step on the scale with the extra weight. The display shows the patient’s weight. The
NET annunciator is still on. The weight of the extra load remains stored in memory.
4. To cancel the tare weight, press and hold the TARE key until NET disappears from the display and the
display turns back to
0.0 and NET appears on the display.
0.0 and GROSS appears. Tare weight is also canceled when the scale is turned off.
SD-1150-WP Installation & Operation Manual - Scale Operation 11
6.4 Toggle Tare
Use the following steps to use the Toggle Tare function.
1. When the weight is set to 0.0, press the TAR E key.
2. The default tare value is displayed (default is programmed to be 33.0 lb/15.0 kg), while the zero is
flashing.
3. Use the Up/Down arrow keys to adjust the value.
4. Press ENTER to start the tare function and the NET annunciator will be turned on instead of the GROSS
annunciator.
6.5 Using the Body Mass Index (BMI) Function
Use the following steps in determining the BMI.
LB Mode
1. Ensure that the scale is at zero.
2. Have the person step on the scale to obtain a weight.
3. The LOCK annunciator is illustrated on the display.
4. Press the BMI key. The BMI and FT/IN annunciators are lit on the display and a default value of 5 feet
and 7.5 inches (5-07.5) is flashing.
5. Use the Up/Down arrow keys to adjust the height value, and press the ENTER key to move to the next
step.
6. The BMI value and BMI annunciator is shown on the display. Press CLEAR to return to the weighing
mode and the BMI function will be turned off.
KG Mode
1. Ensure that the scale is at zero.
2. Have the person step on the scale to obtain a weight.
3. The LOCK annunciator is illustrated on the display.
4. Press the BMI key. The BMI and CM annunciators are lit on the display and a default value of 170.0 cm
(170.0) is flashing.
5. Use the Up/Down arrow keys to adjust the height value, and press the ENTER key to move to the next
step.
6. The BMI value and BMI annunciator is shown on the display. Press the CLEAR key to return to the
weighing mode or step off the scale and the BMI function will be turned off.
12 SD-1150-WP Installation & Operation Manual
7.0 Scale Configuration
Remove four screws to access setup switch
Setup switch location
Battery
compartment
DEFCALIBPROG
DONE
Options and parameter setup are done through the scale configuration section and is used for setting values,
parameters, and options that are essential for the functioning of the scale. Access to the setup switch is located
under the tilt stand cover. Use a Phillips head screwdriver to remove the four screws holding the cover in place.
(shown in
Use the following steps to enter into configuration mode.
Figure 7-1— left photo).
Figure 7-1. Setup Switch Location
1. Make sure the scale is turned off.
2. Turn the scale on by simultaneously pressing the On/Off key and the ENTER key.
3. Continue to hold both keys until Id appears. The unit cycles through its startup function and continues to
display the software version.
4. Access the recessed setup switch located in the back of the indicator. You can use a small paper clip,
small screwdriver or other similar object to press the setup switch.
5. Once the setup switch is pressed, PROG appears on the display.
6. The scale can be configured using a series of menus accessed through the front panel when the scale is in
setup mode.
7. Press the BMI key to advance to the desired menu.
8. Press the ENTER key and advance in the manual to the related menu selection for further instructions.
Figure 7-2. Top Level Menu
SD-1150-WP Installation & Operation Manual - Scale Configuration 13
7.1 Programming Mode Menu
Power Off
Power On-Off
START Kg-Lb Key
0.000
Software Version
Round xx
Full xxx
A TOLXX
Drange
At
Press and
hold
A LEN X
MESS
A TImE XX
BAUD XX
OP1=X
SAVE
T-OFFX
DONE
OP2=X
OP4=X
OP3=X
OP5=X
OP7=X
OP6=X
OP8=X
Press and
hold the
Kg-Lb key
to advance
to option
2 through
option 8.
= DEF =
Software ID
SET=X
OP9=X
OP10=X
Various parameters can be set while in programming mode.
Those parameters are shown in Figure 7-3.
Figure 7-3. Programming Mode Menu Structure
Table 7-1 lists the various display messages and sequence when setting up the scale.
Parameter Description Choices Steps
If you don’t want to change the value, press the BMI key to
move to the next setting. Example: from FULL to LOAD. If you
want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the
numbers.
3. Press the BMI key to move to the left.
4. Use the
numbers.
5. Press the BMI key again to move to the left
6. Use the
numbers.
7. When done press the ENTER key to move to the
next parameter (LOAD).
Table 7-1. Configuration Mode Menu
Up/Down
Up/Down
Up/Down
arrow keys to increment/decrement
arrow keys to increment/decrement
arrow keys to increment/decrement
FULL Full capacity of the scale Value (1000 lb) The display toggles between a numeric value and FULL.
14 SD-1150-WP Installation & Operation Manual
Parameter Description Choices Steps
LOAD This is the amount of weight
applied during calibration.
Can also be changed in the
calibration menu.
ASTART Weight process start limit —
Maximum (full capacity)/10.
Determine when the weight
algorithm starts (when the
“----” is displayed), below this
value the scale will show live
weight.
ARW Auto Reweigh — Restarts the
weight algorithm if the weight
changed by more than this
value.
SAL Semi Auto Live —This value is
the interval between weight
displays during the algorithm
process.
Value (200 Lb) The display toggles between a numeric value and LOAD.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from LOAD to ASTART. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. Press the BMI key to move to the left.
4. Use the Up/Down arrow keys to increment/
decrement numbers.
5. When done, press the ENTER key to move to the
next parameter (ASTART).
Value (2.0) The display toggles between a numeric value and ASTART.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ASTART to ARW. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. Press the BMI key to move to the left.
4. Use the Up/Down arrow keys to increment/
decrement numbers.
5. When done, press the ENTER key to move to the
next parameter (ARW).
Value (4.0 Lb) The display toggles between a numeric value and ARW.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ARW to SAL. If you
want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. Press the BMI key to move to the left.
4. Use the Up/Down arrow keys to increment/
decrement numbers.
5. When done, press the ENTER key to move to the
next parameter (SAL).
Value (0.5) The display toggles between a numeric value and SAL.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from SAL to ROUND. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. When done, press the ENTER key to move to the
next parameter (ROUND).
Table 7-1. Configuration Mode Menu (Continued)
SD-1150-WP Installation & Operation Manual - Scale Configuration 15
Parameter Description Choices Steps
ROUND Scale Resolution —
Values in kg: 1, 2, 5, 10, 20,
50, 100
Values in lb: 1, 2, 5, 10, 20,
50, 100, 200
DISP 0.0
BAUD Baud rate 96
ATO L Algorithm initial tolerance —
Maximum value is 255.
Values above 255 will not let
you proceed and will return to
the previous value.
ALEN Algorithm initial exponent —
Maximum value 10.
Values above 10, will not let
you proceed and will return to
the previous value.
0.2
0.5
1.0
2.0
5.0
10.0
20.0
0.1
0
0.0000
0.000
0.00
48
1152
576
384
288
192
144
Value (10) The display toggles between a numeric value and ATOL
Value (8) The display toggles between a numeric value and ALEN.
The display toggles between a numeric value and ROUND.
The decimal point location is set to the DISP parameter
display decimal point location.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ROUND to DISP. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value.
2. Press the Up/Down arrow keys to change the
available parameters.
3. When done, press the ENTER key to move to the
next parameter (DISP).
The display toggles between a numeric value and DISP.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from DISP to BAUD. If you
want to change the value, use the following steps.
1. Press the ENTER key to change value.
2. Use the Up/Down arrow keys to change the
available parameters.
3. When done, press the ENTER key to move to the
next parameter (BAUD).
Note: Indicator display illustrates first two digits of baud rate
only.
The display toggles between a numeric value and baud.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from BAUD to ATOL.
If you want to change the value, use the following steps
1. Press the ENTER key to change value.
2. Use the Up/Down arrow keys to change the
available parameters.
3. When done, press the ENTER key to move to the
next parameter (ATOL).
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ATOL to ALEN. If you
want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. Press the BMI key to move to the left.
4. When done, press the ENTER key to move to the
next parameter (ALEN).
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ALEN to ATOUT. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. When done, press the ENTER key to move to the
next parameter (ATOUT).
Table 7-1. Configuration Mode Menu (Continued)
16 SD-1150-WP Installation & Operation Manual
Parameter Description Choices Steps
ATO UT Algorithm maximal exponent
— Maximum value is 15.
Values above 15, will not let
you proceed and will return to
the previous value.
TOFF Auto off timer — Measured in
minutes.
0 = always on.
Maximum is 9 minutes.
When using an external power
supply, this parameter is
irrelevant.
UNITS Units — Selects the unit of
measure. It can be either
Kg/Lb, Kg only or Lb only.
OP Binary options:
OP0 — Live weighing options
(0=disable, 1=enable)
OP1 — Communication
protocol (0=ESC,
1=maintenance)
OP2 — BMI menu (0=disable,
1=enable)
OP3 — RTC power
(0=disable, 1=enable)
OP4 - Semi-Auto-Live —
(0=disable, 1=enable)
OP5 - Full calculation —
(0=spatial, 1=multiply by
(0=disable, 1=enable
OP6 - Tare - (0=disable,
1=enable
OP7 - Bat type — (0=dry
batteries, 1=rechargeable
batteries)
OP8 — OIML mode (0=disable, 1=enable
Press the BMI key to cycle back to the top level menu choices, ie: PROG/CALIB/DEF/DONE/TEST
Value (10) The display toggles between a numeric value and ATOUT.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from ATOUT to TOFF. If
you want to change the value, use the following steps.
1. Press the ENTER key to change value starting with
the right most digit.
2. Use the Up/Down arrow keys to increment/
decrement numbers.
3. Press the BMI key to move to the left.
4. Use the Up/Down arrow keys to increment/
decrement numbers.
5. When done, press the ENTER key to move to the
next parameter (TOFF).
5
4
3
2
1
0
9
8
7
6
KG/LB
KG
LB
OP0
OP1
OP2
OP3
The display toggles between a numeric value and TOFF.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from TOFF to UNITS.
Press the ENTER key to move to the next parameter. (UNITS).
If you want to change the value, use the following steps.
1. Press the ENTER key to change values.
2. Use the Up/Down arrow keys to change the
available parameters.
3. When done, press the ENTER key to move to the
next parameter (UNITS).
The display toggles between unit of measurements and UNIT.
If you don’t want to change this value, press the BMI key to
move to the next setting. Example: from UNITS to OP. If you
want to change the value, use the following steps.
1. Press the ENTER key to change values.
1. Press the Up/Down arrow keys to change the value.
2. When done, press the ENTER key to move to the
next parameter (OP).
The display toggles between a binary option and POO-0.
If you don’t want to change this value, press the BMI key to
move to the next setting. If you want to change the value, use
the following steps.
1. Press ENTER to change parameters.
2. Use the Up/Down arrow keys to select the display
value you want to change.
3. Press the BMI key to move the flashing cursor.
3a. Use the
3b. Press the BMI key to move the flashing cursor.
4. Press the ENTER key to save all of the display
parameters. SAVE appears on the display.
5. Press the ENTER key again and DONE appears
indicating that you are now done entering all of the
parameters of the scale.
Up/Down
arrows to change the value.
Table 7-1. Configuration Mode Menu (Continued)
SD-1150-WP Installation & Operation Manual - Scale Configuration 17
7.2 Default Menu
DEFCALIBPROG
DONE
TEST
NO
YES
Note
Setup switch location
on back of indicator.
The default menu is used to return the scale back to its factory settings and is shown in Figure 7-4.
Figure 7-4. Default Menu
Use the following steps to return the settings back to their factory default.
1. Press the ENTER key. The display shows a default value of NO.
2. To change to YES, press the Up/Down arrow keys.
3. Press the ENTER key and the display shows DONE.
4. Press the BMI key to return to PROG/CALIB/DEF/DONE/TEST upper level menu.
Selecting YES and pressing the ENTER key will reset to factory defaults settings without changing the
calibration and will return you to weigh mode.
7.3 Scale Calibration
Use the following steps to calibrate the scale.
1. Turn on scale by pressing the On/Off key and the ENTER key simultaneously.
2. The unit cycles through its startup function and continues to display the software version. Continue to
hold both keys until
3. Access the setup key located in the back of the scale to enter the setup parameters for the scale. You can
use a small paper clip, small screwdriver or other similar object to press the setup key.
Id appears.
4. Prog appears on the display. Press the BMI key to toggle along the parameter menu.
5. Calib appears on the display and enter the calibration parameters.
6. Press the ENTER key and a numeric value is displayed which represents the amount of weight that is used
for calibration. Lb will be flashing. To switch between lb and kg, press the
display. Once a unit is selected, press
7. To change the calibration load value, use the Up/Down arrow keys to increment/decrement the flashing
digit.
8. Use the BMI key to move the flashing digit to the left or right.
18 SD-1150-WP Installation & Operation Manual
Figure 7-5. Setup Switch Location on Back of Indicator
ENTER and the right most digit will be flashing.
Up/Down arrow keys on the
9. Once all the digits have been entered, press the ENTER key and Clear is displayed.
Power On-Off
START REWEIGH Key
TEST
Version
BAT
A-D
FACTOR
At
Press and
hold
Power Off
Remove Config/
Calibr. Jumper
10. Make sure the scale platform is clear of weight and press the ENTER key again and ===== is displayed.
11. A request to put the chosen load on the platform is displayed by Put xxx.xx.
12. Put the chosen weight on the platform and press the ENTER key. ===== is displayed and then Save.
13. Press the ENTER again and the display indicates Done.
14. Press the BMI key three times to exit back out to the top level Done parameter.
15. Press the ENTER key to return to weigh mode.
To exit calibration without changing zero or span existing calibration, press the CLEAR key, then the BMI key.
8.0 Test Menu
To access the TEST menu, use the following steps.
1. Turn the scale on by pressing the On/Off key and the ENTER key simultaneously until ID flashes.
2. Press the ENTER key again.
3. Continue to press the BMI key to scroll through the various menu items.
4. Once complete, press the BMI key again and Done is displayed.
5. Press the ENTER key to start the weighing process.
Figure 8-1. Test Menu
Parameter Choice Description
VER Valu e Displays the current software version.
BAT Valu e Displays the current battery level.
VALUE Valu e Displays the actual value.
A2D Val ue Displays the actual raw counts of the scale.
Tes t Me n u
Table 8-1. Test Menu
SD-1150-WP Installation & Operation Manual - Test Menu 19
9.0 RS-232 Communication
The scale comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a
computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing
Systems.
The RS-232 parameters are 9600 baud (selectable in the programming mode), 8 data bits, 1 stop bit, no parity
and no handshaking.
There are three methods of communication:
9.1 Push-Button Keypad Print
With a stable, in-range weight, press and hold the LB/KG/Print key for at least three seconds, or until the scale
displays
either in motion, or out of range.
xxxxxxxxx<SP>uu<SP>mmmmm<SP><CR><LF>
Where:
Example:
Figure 5-1 on page 9 shows where the RS-232 connection is.
• Pushbutton keypad print
• Escape protocol
• Maintenance protocol
PRINT. Note that if the scale does not beep after five seconds, then release the button as the weight was
• If displaying weight and not BMI, the scale will send out the following 21 character string:
xxxxxxxxx is the weight with decimal point and " - " sign, if negative uu is the unit (lb or kg).
mmmmm is the mode (gross or net)
60.1 KG= <PATIENT><SP><WEIGHT><SP>-60.1<SP>KG<SP><CR><LF>
• In BMI mode (displaying the BMI value), the scale will send out the following data:
PATIENT WEIGHT 60.1 KG
PATIENT HEIGHT 170.0 CM
PATIENT BMI 20.8
Example in KG:
<PATIENT><SP><WEIGHT><SP>-60.1<SP>KG<SP><CR><LF>
<PATIENT><SP><HEIGHT><SP>-170.0<SP>CM<SP><CR><LF>
<PATIENT><SP><B><SP><M><SP><I><SP><SP><SP><20.8<SP><SP><SP><SP><CR><LF>
Example in LB:
<PATIENT><SP><WEIGHT><SP>132.4<SP>LB<SP><CR><LF>
<PATIENT><SP><HEIGHT><SP>-5-07.5<SP>FT<SP><CR><LF>
<PATIENT><SP><B><SP><M><SP><I><SP><SP><SP><20.4<SP><SP><SP><SP><CR><LF>
In case of under weight or over weight, the word Under or Over will be sent correspondingly.
20 SD-1150-WP Installation & Operation Manual
9.2 Communication Protocols
The Rice Lake Digital Wheelchair Scale has two communication protocols, escape and maintenance protocol.
9.2.1 Escape Protocol
An escape protocol is where the escape (0X1B or ASCII 27) is used to indicate that there is a command
following. On the PC side there must be a listener created by the vendor that will interpret this protocol. This
listener must also take care of all the issues regarding data integrity, etc. to make sure that the data that was sent
and received is valid.
Two examples include:
• Scale initiated communication
• PC initiated communication
Table 9-1 is what can be sent across communications lines.
PC Initiated ESC Value
Request current values/settings R
Diagnostics A
Send scale control messages C
PC Initiated ESC Value
Send single reading R
Send diagnostic response
Table 9-1. Escape Protocol Commands
Table 9-2 lists the ESC characters that will be used.
ESC value with
Name ESC character
Reading R R Tells the PC that the scale is sending a reading. Immediately following
Weight W Wnnn.n Is the patient weight (example: W02000 means 200.0). If the scale is
Height H Hnnn.n Patient height
BMI B Bnn.n Patient BMI
Units N Nc Indicates in which unit the values have been taken (m=metric,
End of Packet
(EOP)
Diagnostics
(request)
Diagnostics
(response)
Control (set a
value)
E E Indicates that the end of the command has been reached.
A Accc A request for a diagnostic test on certain parts of the scale (such as
Z Zccc This will be the response of the diagnostics done on the scale. Values
C Cccc=c Sets the value of the scale’s global settings. Example:
parameters
Description
this is the value that is sent. Example:
<ESC><R>ESC><W0200.0<ESC>Nm<ESC>E
overloaded or under loaded, the scale will return the value 999.99.
c=constitutional).
battery life, load cells).
will include error codes to indicate what is wrong with the scale, or all
zeros (Z000) to indicate that all is well.
<ESC><CUOM=m><ESC><E will set the unit of measurement.
Table 9-2. ESC Characters
Name of Control Identifier Unit
Unit of Measure (metric or constitutional) UOM c (m or c)
Table 9-3. Scale Global Values List and Identifiers
SD-1150-WP Installation & Operation Manual - RS-232 Communication 21
Samples of Escape Protocol
&4$3&4$&
3FBEJOH
SFRVFTU
&01
3#!,%0#
&01
6OJUPG.FBTVSF.FUSJD
&4$3&4$8&4$/N&4$&
3FBEJOH
$PNNBOE
8FJHIU
&4$"#"5&4$&
%JBHOPTFCBUUFSZ
&01
3#!,%0#
DIRECTIONOFCOMMUNICATION
&4$;&6&4$&
#BUUFSZJTPLBZ
OPFSSPST
&01
&4$;&-&4$&
#BUUFSZJTWFSZMPX
6OTUBCMF
&01
Figure 9-1 and 9-2 show what the diagrams will look like on the PC as the scale measures weight and sends over
this communications line:
Figure 9-1. Sample of Escape Protocol
Figure 9-2. Sample of Escape Protocol
When the user wants to diagnose the problems on the scale, it looks like the Figure 9-3 and 9-4.
Figure 9-3. Diagnose the Escape Protocol Diagram
22 SD-1150-WP Installation & Operation Manual
Figure 9-4. Diagnose Battery Protocol Diagram
9.2.2 Maintenance Protocol
USB Connection
RS-232 Connection
Table 9-4 lists the maintenance protocol commands.
Command Definition
R Reboot
V Firmware ID + development version
W Current weight
A Current AD
Z Zero the scale
F Show flash values (used for the first flash process)
L USB On/Off (not available on USB communication
Table 9-4. Maintenance Protocol Commands

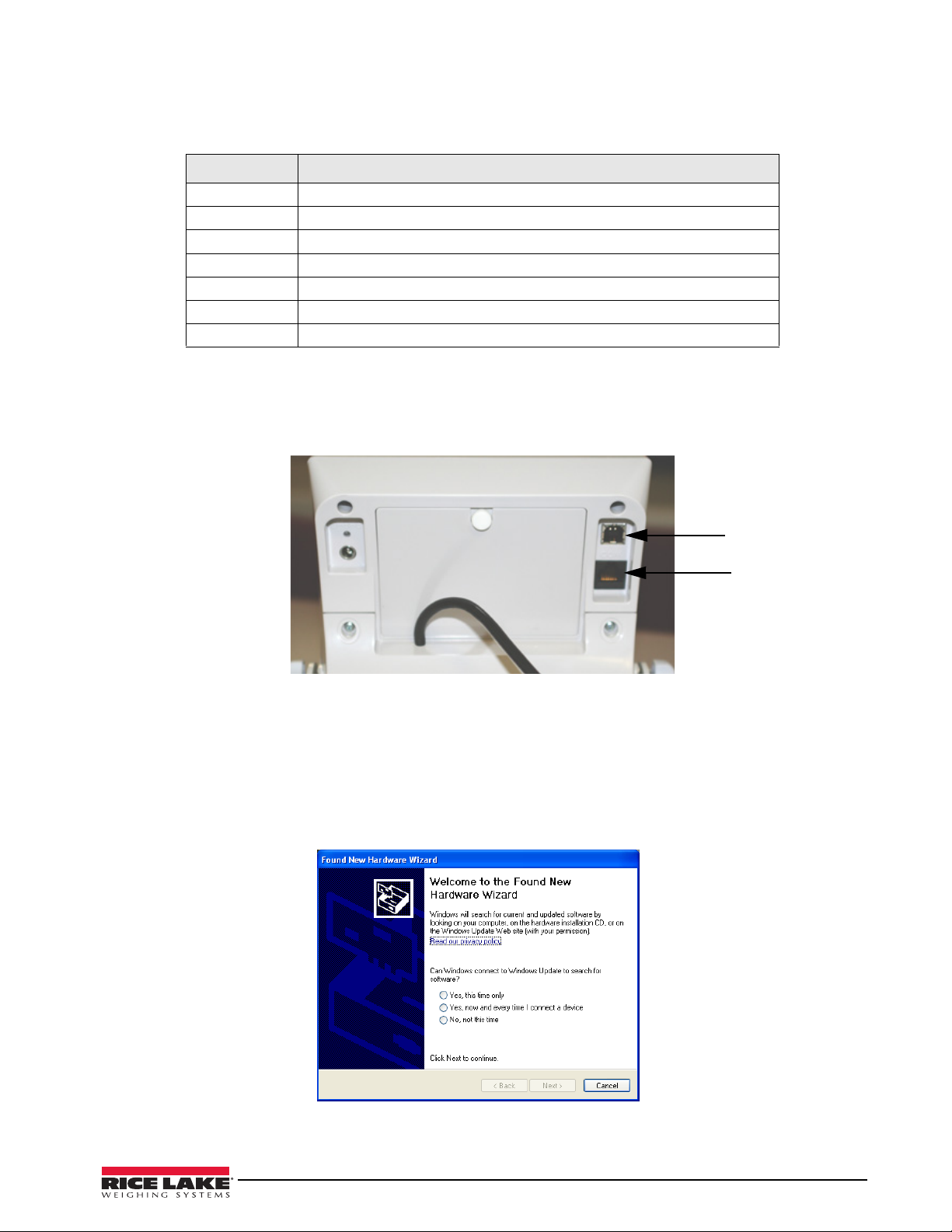

9.3 USB Connection
The Summit SD-1150-WP scale has the capability of connecting to a PC using a USB connection and a USB
cable (not included). That connection location is shown below.
Connecting software and downloads should be addressed by your IT department and can vary depending on what
type of computer platform you’re using. Basic information on USB driver installation using Windows
®
is
described in the following steps and serves only as an example. The USB driver can be downloaded from the
Rice Lake Weighing Systems website at the following location; http://www.ricelake.com/software.aspx
Select Medical/Health Scales, Software and Get Downloads. Opening any product will show a USB Driver
download. Click on Download to open and download the driver to your computer.
1. The graphic below shows the window that pops up when the USB cable is connected to the indicator and
the scale is turned on.

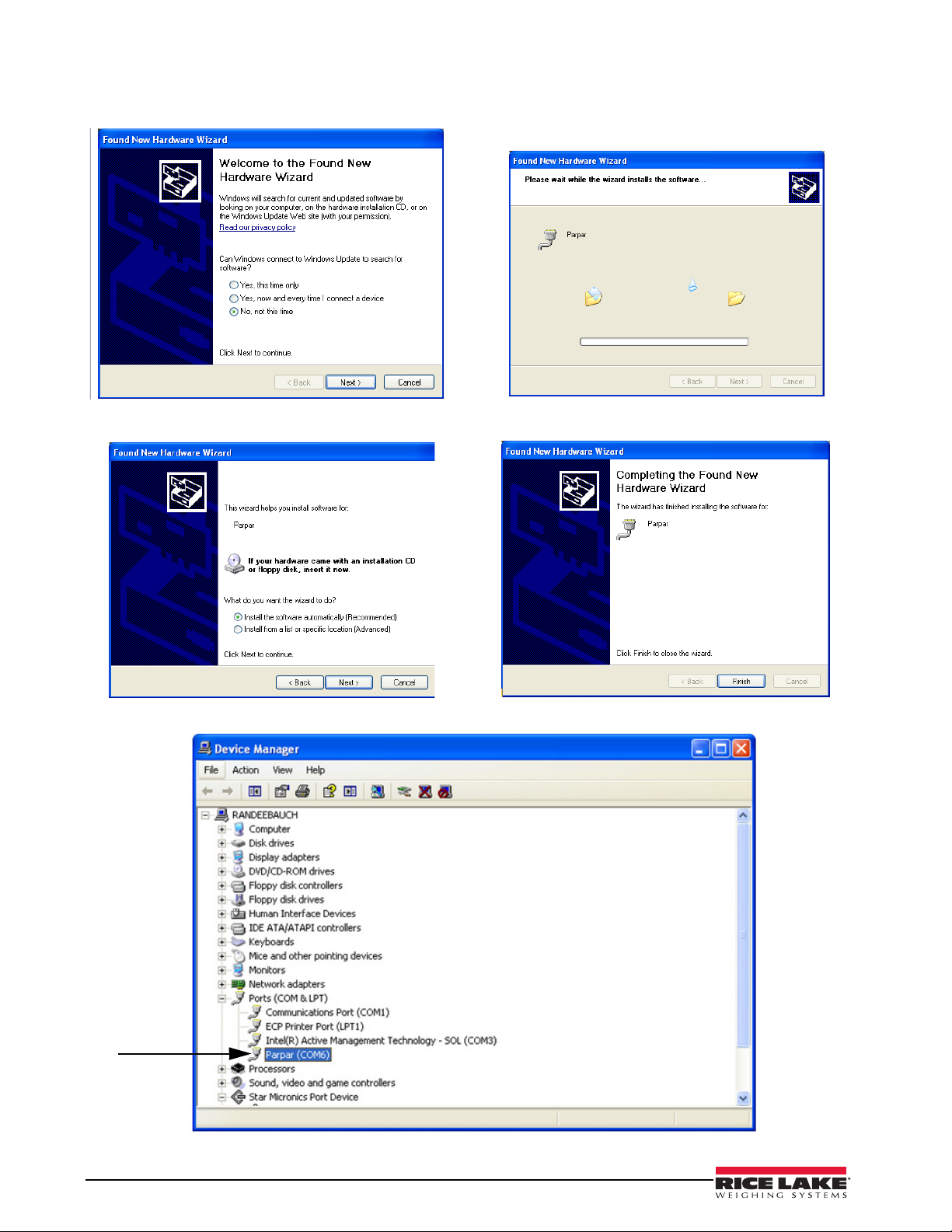

Follow the screen prompts to navigate through the screens below.
SD-1150-WP Installation & Operation Manual - RS-232 Communication 23
2. Select No, not this time and then select Next.
4. The following screen appears while the driver
is installing on to your system.
3. Select Install the software automatically, then
select
Next.
5. The following screen appears when installation is
complete. Click on
Finish
.
6. If you want to verify the installation, you can view the driver by looking at the device manager of your
system.
24 SD-1150-WP Installation & Operation Manual
7. To print a ticket using the USB driver, open the software driver (shown above) and the port assigned to
Note
that driver is shown.
8. Ensure that the USB cable is properly connected and unit is on.
9. Another terminal type program (such as Hyperterminal) needs to be opened and connected through the
USB driver to the indicator to be able to see the information being sent to the PC. A port needs to be
established so select the port that is assigned to Parpar and print the ticket. The following are example of
tickets that will print.
A single print ticket has four spaces after the “patient weight” and only one space between weight
and lb in the examples shown above. Then seven <CR><LF> after.
SD-1150-WP Installation & Operation Manual - RS-232 Communication 25
10.0 Troubleshooting and Testing
Refer to the following to check and correct any failure before contacting service personnel.
Symptom Possible Cause Corrective Action
Scale does not turn on Dead battery Connect the scale to a power source.
Faulty electrical outlet Use a different electrical outlet.
Bad power supply Replace adapter.
Questionable weight or the
scale does not zero
The display shows E messages as detailed below.
E06 Identifier - ADC AD too high
E07 AD too low
E10 Overload Scale has been overloaded. Remove load from scale.
E4L BAT
E4U
E11 CAL
Err 2 Low saturation state (low A/D) The load cell is not connected properly. Check the cables and mechanical
Err 3 High saturation state (high A/D) See Err 2.
Err 6 Unstable weight. Cannot
SAT Damaged load cell cable Replace load cell cable.
External object is interfering
with the scale.
Display did not show 0.0 before
weighing.
Scale is not placed on a level
floor.
Scale is out of calibration. Check the weight with a known weight value.
calibrate.
Remove the interfering object from the scale.
Help the patient off the scale, zero the scale and begin the weighing process
again.
Ensure the scale is level and begin the weighing process again.
Battery low but still useable — 1 bar left on the indicator display.
Battery low and unstable — no bars left on the indicator display.
Calibration Error — recalibrate the scale again.
connections. If the problem persists, replace the set of load cells.
Check the load cells’ mechanical surroundings and see that nothing touches
them and that the cables are properly welded.
Table 10-1. Troubleshooting Table for the Rice Lake Scale Line
11.0 Maintenance
The following section provides instructions for maintaining and cleaning the Rice Lake line of scales.
Maintenance operations other than those described in this section should be performed by qualified service
personnel.
11.1 Basic Maintenance
Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If
the scale does not operate correctly, contact qualified service personnel.
Go through the following steps for basic maintenance.
1. Check the overall appearance of the entire scale for any obvious signs of damage.
2. Inspect the condition of the AC adapter for cord cracking or fraying or for broken or bent prongs.
11.2 Cleaning
Proper care and cleaning is essential to ensure a long life of accurate and effective operation. Before beginning
the cleaning process, disconnect the scale from the AC power source.
1. Clean all external surfaces with a clean, damp cloth or tissue. Mild soap and water solution may be used.
Dry with a clean soft cloth.
2. Do not immerse the scale in cleaning or other liquid solutions.
3. Do not use isopropyl alcohol or other solutions to clean the display surface.
26 SD-1150-WP Installation & Operation Manual
11.3 Load Cell Replacement
CELL 4
CELL 3CELL 2
CELL 1
1 4
2 3
Replacement load cells can be ordered from Rice Lake Weighing Systems. To replace a load cell, lift the scale
with a chain and remove foot, then remove the defective load cell. Disconnect load cell cable from the junction
box and cut cable ties. When the cable is freed, pull cable out of the scale frame channels.
Figure 11-1. Load Cell Assembly
Follow the directions given below to install new load cells.
Lay out the four load cells near the corners where they are to be installed. Thread the cable from each load cell
through the conduit tubing in the frame and into the junction box according to the wiring diagram in
Note that in Figure 11-2 both the scale and the junction box are viewed from the bottom. To verify correct load
cell/junction box terminal matching, see the numbers on the terminals inside the junction box and the corner
numbering diagram in
Figure 11-4 28.
Figure 9-3.
Check that the threaded holes for the load cell screws are free of debris. Use compressed air to blow out holes if
Figure 11-2. Bottom View of Scale
necessary. Position load cells with alignment arrows pointed up toward the deck and loosely install the hex head
cap screws provided, as shown in
Figure 11-1. If the base is used with a pit frame or access ramp, position the
load cell to maintain the dimension shown in Figure 11-3. With the torque wrench, tighten all bolts to 75 ft-lb.
SD-1150-WP Installation & Operation Manual - Maintenance 27
Figure 11-3. Foot Pad - Side View
,o,NPEFMT
1
4
2
3
Route the load cell cables near each corner so that the
cable is free from possible contact with each foot.
Hold the cable in position with the supplied
adhesive-backed cable ties.
Do not cut load cell cables. Coil extra cable before it
enters the junction box, tie with cable ties, and insert
the coils into the channel near the junction box.
After coiling excess cable, pass each individual end of
load cell cable through its grommet in the junction
box cover (or through cable fittings in the NEMA 4X
junction box).
Corner correction trimming and calibration is
necessary after load cell replacement. Follow
instructions in
Section 4.2 on page 7.
11.3.1 Load Cell Wiring to Junction Box
The four load cells are each wired to their respective
terminals in the junction box according to the corner
numbering system shown in
coloring code in Table 11-1.
Pull excess cable out of the junction box enclosure
and tighten the cable grips with a wrench. To be
watertight, the cable grips must be tightened to the
point where the rubber sleeving begins to protrude out
of the hub. Finally, pull on each of the four cables to
make sure that they do not slip.
Figure 11-4. Corner Numbering - Top View
Cable Color
Code
Figure 11-4, and the
J-Box Terminal
Red +Excitation
Black -Excitation
Green +Signal
White -Signal
Table 11-1. Load Cell Wiring
28 SD-1150-WP Installation & Operation Manual
12.0 Summit SD-1150-WP Scale Specifications
Electrical Grounding
For systems where the scale is connected to a 115 VAC circuit, the indicator must be directly connected to an earth ground with
a ground interface cable of no more than 3W resistance throughout its length.
Load Cell Excitation
Rated Excitation: 10 VDC
Maximum Excitation: 15 VDC
Grade Level Requirements
The supporting surface for the four feet of the scale must be level within 1/4 inch of horizontal.
Safe Static Overloading Capacity
Maximum: 150% of scale capacity
Nominal Scale Height
3.0 inch (76 mm)
Indicator Specifications
Power
120 VAC-9VDC-50Hz / 230 VAC-9VDC-50Hz
Battery Type
Sealed lead acid battery
Battery Use
75 hours
Automatic power-off can be configured
Environmental
Operating Temperature
50 to +104°F (14 to 40°C)
Storage Temperature
32 to 158°F (0 to 70°C)
Humidity
85% relative humidity
Certifications and Approvals
RoHS Compliant
SD-1150-WP Installation & Operation Manual - Summit SD-1150-WP Scale Specifications 29
For More Information
Web Site
• http://www.ricelakehealth.com
Contact Information
Hours of Operation
Knowledgeable customer service representatives are available 6:30 a.m. - 6:30 p.m. Monday through Friday and
8 a.m. to 12 noon on Saturday. (CST)
Telephone
• Sales/Technical Support 800-472-6703
• Canada and Mexico Customers 800-321-6703
• International 715-234-9171
Fax
• Fax Number 715-234-6967
Email
• U.S. sales and product information at prodinfo@ricelake.com
• International (non-U.S.) sales and product information at intlsales@ricelake.com
Mailing Address
Rice Lake Weighing Systems
230 West Coleman Street
Rice Lake, WI 54868 USA
30 SD-1150-WP Installation & Operation Manual
SD-1150-WP Scale Limited Warranty
Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a
Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by
the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in
materials and workmanship for two years.
RLWS warrants that the equipment sold hereunder will conform to the current written specifications authorized
by RLWS. RLWS warrants the equipment against faulty workmanship and defective materials. If any equipment
fails to conform to these warranties, RLWS will, at its option, repair or replace such goods returned within the
warranty period subject to the following conditions:
• Upon discovery by Buyer of such nonconformity, RLWS will be given prompt notice with a detailed
explanation of the alleged deficiencies.
• Individual electronic components returned to RLWS for warranty purposes must be packaged to
prevent electrostatic discharge (ESD) damage in shipment. Packaging requirements are listed in a
publication, Protecting Your Components From Static Damage in Shipment, available from RLWS
Equipment Return Department.
• Examination of such equipment by RLWS confirms that the nonconformity actually exists, and was
not caused by accident, misuse, neglect, alteration, improper installation, improper repair or
improper testing; RLWS shall be the sole judge of all alleged non-conformities.
• Such equipment has not been modified, altered, or changed by any person other than RLWS or its
duly authorized repair agents.
• RLWS will have a reasonable time to repair or replace the defective equipment. Buyer is responsible
for shipping charges both ways.
• In no event will RLWS be responsible for travel time or on-location repairs, including assembly or
disassembly of equipment, nor will RLWS be liable for the cost of any repairs made by others.
THESE WARRANTIES EXCLUDE ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT
LIMITATION WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NEITHER
RLWS
RLWS AND BUYER AGREE THAT RLWS’S SOLE AND EXCLUSIVE LIABILITY HEREUNDER IS LIMITED TO
REPAIR OR REPLACEMENT OF SUCH GOODS. IN ACCEPTING THIS WARRANTY, THE BUYER WAIVES ANY AND
ALL OTHER CLAIMS TO WARRANTY.
SHOULD THE SELLER BE OTHER THAN RLWS, THE BUYER AGREES TO LOOK ONLY TO THE SELLER FOR
WARRANTY CLAIMS.
NO TERMS, CONDITIONS, UNDERSTANDING, OR AGREEMENTS PURPORTING TO MODIFY THE TERMS OF THIS
WARRANTY SHALL HAVE ANY LEGAL EFFECT UNLESS MADE IN WRITING AND SIGNED BY A CORPORATE
OFFICER OF RLWS AND THE BUYER.
NOR DISTRIBUTOR WILL, IN ANY EVENT, BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
© Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved.
RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 • USA
SD-1150-WP Installation & Operation Manual - Summit SD-1150-WP Scale Specifications 31
32 SD-1150-WP Installation & Operation Manual
230 W. Coleman St. Rice Lake, WI 54868 USA
U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0) 88 2349171
www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com
© Rice Lake Weighing Systems 09/2014 PN 156445, Rev B
Loading...
