Operating Instructions

Sartorius Moisture Analyzer

Model MA160

Electronic Moisture Analyzer

98648-019-98

Contents

User Information ....................................... 3

Safety Information

General View of the Equipment

Startup

................................................ 8

Transporting the Analyzer

Basic Principles

Operating the Moisture Analyzer

..................................... 4

......................... 7

............................. 12

........................................ 13

...................... 20

Switching the Analyzer On and Off (Standby) .......... 20

Setting the Language ................................ 21

Operating Concept .................................. 22

Menu .............................................. 23

Entering Numbers on the Number Pad ................ 24

Entering Text and Characters ......................... 24

Scrolling in the Display .............................. 25

System Settings (Setup Menu)

......................... 26

Opening the Menu and Changing the Settings ......... 26

List of Available Settings ............................. 27

Moisture Analysis

..................................... 36

Viewing and Changing Method Parameters ............ 36

Performing the Moisture Analysis ..................... 38

Creating and Managing Methods ..................... 42

MA Performance Test

................................. 52

Starting the Performance Test ........................ 52

Performance Test Measurement Not

Successfully Completed .............................. 54

Performance Test Successfully Completed ............. 54

Calibration and Adjustment

............................ 55

Viewing the Calibration Report ........................57

Weighing ........................................... 58

ISO/GLP-compliant Printout

USB Interface

......................................... 61

........................... 59

Communication with Peripheral Devices. . . . . . . . . . . . . . . 61

Interface Specification ............................... 64

Error Messages

Shipping the Analyzer

Care and Maintenance

Disposal

Specifications

Accessories

Analyzer Dimensions

Declaration of Conformity

........................................ 66

................................. 68

................................ 70

............................................... 74

......................................... 75

............................................ 76

................................... 77

............................. 78

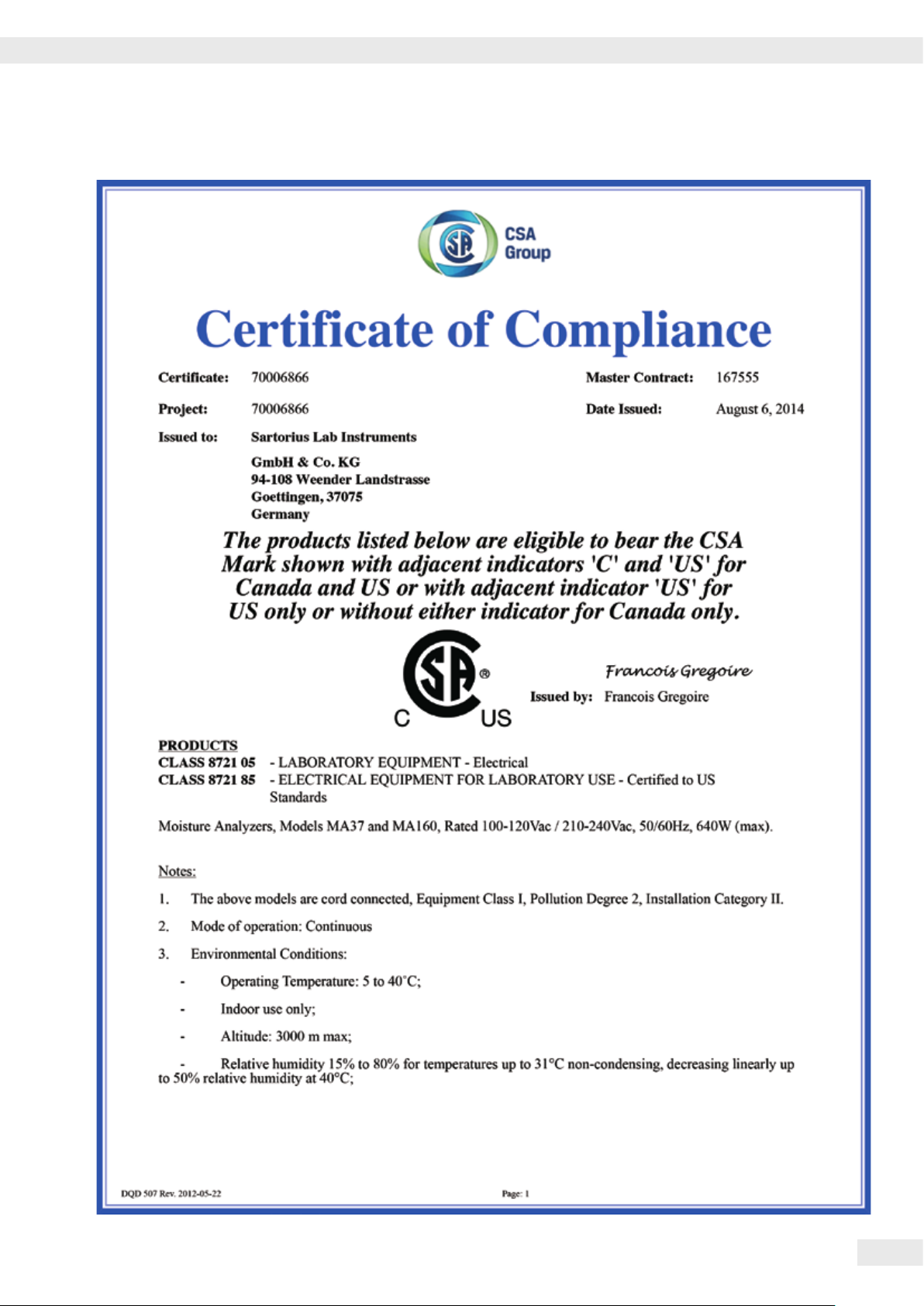

Certificate of Compliance

Operating Instructions Moisture Analyzer MA160

............................. 79

User Information

Warning/Danger Symbols Used in these Instructions:

These notes identify hazards which have a high probability of resulting in death

or serious physical injury if not avoided.

These notes identify hazards that can result in moderate or mild injuries if not

avoided.

These notes identify hazards associated with the risk of material damage.

Explanation of Symbols

The following symbols are used in this manual:

Useful information and tips

Hot surface: Warning – Risk of severe burns!

Note regarding device operation

When individual buttons are displayed, they should be pressed.

The following symbols are used in these instructions:

t Indicates a required action

y Describes what happens after you have performed a particular step

Perform steps in the specified order:

1. First action

2. Second action

3. … – Indicates an item in a list

Application Advice/Technical Support

Addresses for applications advice and technical support can be found on the website at: http://www.sartorius.com

Operating Instructions Moisture Analyzer MA160

Safety Information

Guidelines and General Information

– The analyzer complies with EU Directives and standards, among other

regulations, for electrical safety and electromagnetic compatibility*. Improper use or handling can, however, result in damage to objects and injury. Any improper use or operation of the analyzer that is not consistent with the instructions will result in forfeiture of all claims under the manufacturer’s warranty.

– Personnel need to have read and understood these installation instructions,

including the safety instructions.

– In the event of use in systems and ambient conditions which have greater

safety requirements, you must observe the requirements and provisions applicable in your country.

– Always keep the equipment and analyzer freely accessible.

Any improper installation of the analyzer that is not consistent with the instructions will result in forfeiture of all claims under the manufacturer’s warranty.

* = see “Specifications”

Danger of Explosion!

The analyzer must not be operated in potentially explosive atmospheres. Materials liable to catch fire or explode may not be used as samples for moisture analysis.

Danger of severe personal injury or property damage due to faulty analyzer

Danger of Electric Shock!

Before initial startup, ensure that the voltage rating printed on the manufacturer’s ID label of the analyzer matches the voltage of the local AC power.

Installation Instructions

components! Do not operate the analyzer if the housing or power supply cable, including any connections, is damaged. Immediately disconnect the damaged analyzer from the power by pulling the plug.

The analyzer has a power supply cable with a protective grounding conductor. Only standard-compliant extension cords with protective grounding conductors are permitted for use with the analyzer.

Do not expose the analyzer, its power supply cable, or accessories supplied by Sartorius to extreme temperatures, aggressive chemical vapors, moisture, shock, vibrations, or strong electromagnetic fields. Observe the conditions of operation described in the Specifications.

Operating Instructions Moisture Analyzer MA160

The operator shall be solely responsible for any modifications to the equipment and for connecting any cables or equipment not supplied by Sartorius. Information on operational quality is available upon request from Sartorius. Only use original Sartorius accessories!

Safety Information

Before cleaning the analyzer: Unplug the power supply cable from the socket.

Position the power cable so that it cannot touch the hot surfaces of the analyzer

– Flammable or explosive substances

– If in doubt, carry out a careful risk analysis.

Note the IP protection class of the analyzer! Do not allow liquid penetration. The protection class specifies the suitability of equipment for various environmental conditions (moisture, foreign bodies).

and is not a trip hazard. Disconnecting the grounding conductor is prohibited.

The device may only be opened by specialized personnel trained by Sartorius.

Danger due to Fire or Explosion!

– Substances containing solvents – Substances that release flammable or explosive gases or vapors during the drying

process: When working with these types of samples, use a drying temperature that is low enough to prevent a fire or explosion from occurring.

– Wear safety glasses. – Always work with small sample quantities.

Never leave the analyzer unattended in these cases.

No modifications are permitted to the analyzer.

Symbols Used on the Device

When setting up the moisture analyzer, leave enough space to prevent heat from

building up and to keep the analyzer from overheating: – 1m above the analyzer – 20cm around the analyzer

The vent above the sample must not be covered or modified in any other way. During operation do not open the hood, because the heating unit may be very hot.

Do not put any flammable substances on, under, or near the analyzer because the area around the heating unit will heat up.

Be careful when removing the sample: The sample itself, the heating unit, and the sample pans may still be extremely hot.

Observe the additional safety and danger information in the following chapters.

Operating Instructions Moisture Analyzer MA160

Safety Information

Personal Protective Equipment

When operating the analyzer, suitable protective equipment must be worn in order to minimize dangers to health. – During work, always wear the protective equipment needed for the task

at hand.

– Follow any instructions posted in the work area pertaining to personal

protective equipment.

Wear the following personal protective gear during all work:

Protective Clothing

Wear a laboratory coat. This lab coat protects the user from hazards due to the dangerous substances or is prescribed for your process.

Safety Glasses

Wear safety glasses to protect yourself from liquid spray and splashes, and substances escaping under high pressure.

Safety Gloves

Wear suitable safety gloves when handling chemicals or hazardous substances. Check that the gloves are not worn and do not have any holes or tears before putting them on.

Intended Use

The moisture analyzer can be used for quick and reliable determination of the moisture content of materials of liquid, pasty, and solid substances using the thermogravimetric method. Only use the analyzer for this purpose. Any other use outside the limits of the technical specifications is not permitted. Moisture analysis applications must be optimized by the user in accordance with local regulations. Appropriate containers must be used for each type of sample material.

All other applications are not considered the intended use. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

Operating Instructions Moisture Analyzer MA160

General View of the Equipment

Item Name and Function

1 Heating module 2 Heating element

3 Disposable sample pan

4 Pan support 5 Sample chamber bottom

6 Locking socket (bayonet)

7 Process status light 8 Unlocking handle for heating module

5 6

9 Power socket for country-specific power cable 10 Fastening point for an optional Kensington

key lock 11 Leveling feet 12 USB port for mini AB 13 Display and control unit (touch screen)

1311141511

11 12

14 SD card slot 15 Temperature sensor

Operating Instructions Moisture Analyzer MA160

Startup

Unpacking and Equipment Supplied

t Open the packaging, making sure to remove all parts carefully.

t After unpacking the analyzer, check it immediately for any external damage.

– If you detect any damage, proceed as directed in “Care and Maintenance.”

– Save the box and all parts of the packaging for any future transport. During

shipment, please do not leave cables plugged in!

The following parts are included in the equipment supplied:

– Moisture analyzer – Country-specific power cable – Pan support – Protective cover for the control panel – 80 disposable aluminum sample pans – Sample tongs – 80 glass-fiber filters – 3 ReproEasy pads – Operating instructions

Choosing a Location

t Select the proper setup location:

An optimal location guarantees accuracy and reliability. Ensure that the following ambient conditions are met: – Set up the analyzer on a stable, even surface that is not exposed to vibrations

(e.g., weighing stone). – Maintain free access to the analyzer at all times. – Make sure to choose a place where excessive heat cannot build up. – Leave enough space between it and materials that are affected by heat.

Choose a location that is not subject to the following negative influences: – Heat (heater or direct sunlight) – Drafts from open windows, AC systems, and doors – Extreme vibrations during measurement – Heavy traffic areas (personnel) – Extreme humidity – Electromagnetic fields

Acclimatization

Condensation from humidity can form on the surfaces of a cold device when it is brought into a substantially warmer area. You should therefore let a device that has been disconnected from its power source acclimatize for approximately 2 hours before reconnecting it to the power.

Operating Instructions Moisture Analyzer MA160

Startup

Setting Up the Analyzer

t Assemble the parts in the following order:

– Pan support

– Disposable sample pan

– The protective cover over the control panel is pre-assembled at the factory.

Compensating for Unevenness of the Setup Surface

t Twist the leveling feet until any slight unevenness in the setup surface is

rectified and the analyzer is stable.

Anti-theft Locking Device

– To protect against theft, the analyzer has a fastening point for a security lock

if required.

t A Kensington key lock can be installed at the fastening point on the back of

the analyzer if required.

Operating Instructions Moisture Analyzer MA160

Startup

Opening and Closing the Sample Chamber

t Open or close the sample chamber by hand. Always open the heating module

fully.

Power Connection (Power Supply)

– Using the wrong power cables may cause fatal electric shock and damage the equipment.

– Never plug the power cable into the socket when it is disconnected from the analyzer (danger of electrical shock).

– Only connect the analyzer to an AC socket with a protective grounding conductor.

– Only standard-compliant extension cords with protective grounding conductors are permitted for use with the analyzer.

– Intentionally disconnecting the analyzer from the protective grounding conductor is not permitted.

t Check the plug design of the power cable.

If the plug design of the power cable does not comply with your country’s

standard, please inform the nearest Sartorius representative or your dealer.

The power must be connected in accordance with the regulations applicable

in your country. In order to connect the equipment to the power supply

(protection class 1), use a correctly installed wall outlet with a protective

grounding conductor (PE) and a fuse of a maximum 16 A. The power plug or

another suitable disconnecting device for the power must be easily accessible

so that the analyzer can be disconnected from the AC power supply in the

event of an emergency.

t Connect the analyzer to the AC power.

t Position the cable so that it cannot be damaged or hinder the measurement

process.

Safety Precautions

If you use an electrical outlet that does not have a protective grounding

conductor, ensure that an equivalent protective conductor is installed by a

certified electrician (as specified in the applicable regulations for installation in

your country). The protective effect must not be negated by using an extension

cord without a protective grounding conductor.

Operating Instructions Moisture Analyzer MA160

Startup

Power Cable Versions

Item No. Region/Country 69 00900 Europe/EU (except the UK, Denmark, Italy, and Switzerland) 69 00901 USA, Canada, and Japan 69 00902 South Africa 69 00905 Australia, New Zealand 69 71945 UK 69 71972 Brazil 69 71973 India 69 71975 Israel 69 71976 Italy 69 71977 Argentina 69 71978 China 69 71979 Switzerland 69 71980 Denmark

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which

the receiver

– Consult the dealer or an experienced radio/TV technician for help

Warm-up Time

To return precise results, the analyzer must warm up for at least 30 minutes after initial connection to the power supply. Only after this time will the analyzer have reached the required operating temperature.

Operating Instructions Moisture Analyzer MA160

Transporting the Analyzer

Moving the Analyzer in the Lab

Avoid shocks and vibrations:

t Never lift and carry the analyzer by its heating module.

t Hold the analyzer under the housing, lift it up carefully, and carry it to its new

location.

Operating Instructions Moisture Analyzer MA160

Basic Principles

Purpose

The moisture analyzer can be used for quick and reliable determination of the moisture content of materials of liquid, pasty, and solid substances using the thermogravimetric method.

Material

The moisture of a sample is often mistakenly equated to its water content. In fact, the moisture of a material includes all of the volatile components which are emitted when the sample is heated, and lead to a reduction in its weight. Among such volatile substances are:

– Water – Fats – Oils – Alcohols – Organic solvents – Flavorings – Volatile components, products of decomposition (when a sample is overheated)

There are many methods for determining the moisture content of a substance. Basically, these methods can be divided into two categories:

When absolute methods are used, the moisture content is directly determined (for example, as a weight loss registered during the drying routine). These methods include oven drying, infrared drying, and microwave drying. All three of these methods are thermogravimetric.

When deductive methods are used, the moisture content is indirectly determined. A physical property related to the moisture in the substance is measured (e.g., conductivity). These methods include capacitive and spectroscopic processes.

Thermogravimetry is the process of determining the loss of mass that occurs when a substance is heated. In this process, the sample is weighed before and after being heated, and the difference between the two weights is calculated.

In a conventional drying oven, circulating hot air warms the sample from the outside to the inside. Efficiency is lost during drying because as the moisture evaporates, it cools the sample surface.

By contrast, infrared rays (IR rays) penetrate a sample without being impeded. Having reached the interior of a sample, they heat the sample directly.

IR-Strahlung

Wärmeenergie

Substanz

Operating Instructions Moisture Analyzer MA160

Basic Principles

The IR rays that do not heat the sample are either reflected from surface of the sample or absorbed unimpeded into the sample.

The color and surface characteristics of the sample determine how effective the heating process is. For example, dark substances absorb IR rays more effectively than light substances.

How the rays penetrate the sample depends on the permeability of the sample. If the degree of light-transmitting capacity is low, the rays can penetrate only the uppermost layers of the sample. The heat conductivity of the sample dictates the degree to which the heat can be transmitted to the underlying layers. The higher the conductivity, the faster and more uniformly the substance is heated.

The substance should be applied to the sample pan in a thin, even layer. A height of approximately 2–5 mm for 5–15 g substance weight has proved to be ideal. Otherwise, the sample will not be dried completely or the analysis time will be unnecessarily extended, a crust/skin will form on the surface of the sample or the sample will scorch, and the analysis results obtained will not be reproducible (and hence cannot be used).

While preparing substances for measurement, no processes may be used that generate heat. The heat generated may result in a loss of moisture prior to the measurement.

Perform initial analysis of a new substance to test how the IR rays are absorbed by the sample and converted into heat. A printout of the intermediate values of the drying process provides information on this at an early stage.

Due to the fact that the supply of IR rays results in intensive energy input into the sample, the temperature setting selected for infrared drying is usually lower than the temperature setting used when working with a drying oven.

In many cases, the fully automatic switch-off mode will meet your requirements. If the final result is higher or lower than expected, try varying the temperature setting before resorting to a different switch-off criterion.

When analyzing the samples that lose their moisture only very slowly or when operating a cold moisture analyzer, the fully automatic mode may end the drying routine too early since no analyzable progress in the drying routine can be detected. In this case, preheat the moisture analyzer for two to three minutes before starting the drying routine, or select a different switch-off criterion.

The Application Guide for the Sartorius Moisture Analyzer provides you with important information on the use of your moisture analyzer.

Operating Instructions Moisture Analyzer MA160

Basic Principles

Preparation

Before drying a sample, you must carry out the following preparations:

– Adjust against the existing measurement system – Prepare the sample – Set the drying program parameters

Adjusting against an Existing Measurement System

A moisture analysis method often replaces another drying method (such as oven drying method) because it is simple to use and requires shorter analysis time. In this case, you should adapt this method to that of the moisture analyzer in order to obtain values comparable to those yielded by your standard reference method.

Perform parallel measurements:

t Take a fresh sample and divide it in half t Determine the moisture content of the first half using your standard method

of analysis

t Determine the moisture content of the second half using the wizard

(see “Creating a New Method with the Wizard” on page 42).

Preparing the Sample

Select a sample:

t Select a representative part of the whole substance as a sample.

– Choose a representative number of individual samples for quality control – Choose enough samples to indicate a trend for in-process control

t If required, homogenize the product before a sample is taken by:

– Mixing or stirring – Taking several samples from different areas of the product – Taking several samples at defined intervals

t Take only one sample at a time for a given analysis and prepare it as quickly as

possible. In this way, it will not lose or gain moisture as a result of the ambient conditions.

t If several samples need to be taken simultaneously, the samples must be sealed

in airtight containers to ensure that the storage conditions do not alter the state

or condition of the samples: – Warm or highly volatile substances lose their moisture very quickly. – If you store the samples in a container, the moisture can condense on the walls

of the container.

– If the container is too big and not filled completely, the sample can exchange its

moisture with the air remaining in the container.

t Mix the condensed moisture back in with a sample if necessary.

Prepare the sample:

t When crushing a sample, avoid any contact with heat.

Heat results in moisture loss.

t Crush the sample using:

– Pestle – Lab mill

If the sample is liquid containing solids, use one of the following tools:

– Glass stirrer – Spoon – Magnetic stirrer

Operating Instructions Moisture Analyzer MA160

Basic Principles

t Use an appropriate tool for grinding the sample.

Use a disposable sample pan:

t Use only Sartorius disposable sample pans (inner diameter of 90 mm).

Reusing sample pans leads to poor repeatability of results:

– After cleaning, sample residues can still remain on the pan. – Residues from cleaning agents can evaporate during the next moisture

analysis.

– Scratches and grooves made during cleaning result in damage that forms

points of attack for hot, rising air produced during the drying process (more pronounced buoyancy).

Operating Instructions Moisture Analyzer MA160

Basic Principles

Apply the sample to the sample pan:

t Apply the sample to the sample pan in a thin, even layer (height: 2 to 5 mm,

weight: 5 to15 g); otherwise:

– A sample applied unevenly will result in a nonuniform distribution of heat – A sample will not be dried completely – The analysis time will be unnecessarily extended – The sample will burn or a crust/skin will form on its surface as a result of a

very thick layer

– The crust makes it difficult or impossible for moisture to escape from the

sample during the drying process

– An uncertain and unknown quantity of moisture will remain in the sample

t

Apply liquid samples, pasty samples, transparent samples, or samples that can

melt to a glass-fiber filter (order no. 6906940); this provides the following

benefits:

– Uniform distribution due to the capillary effect – Liquids are prevented from beading together and forming drops – With larger surfaces, the moisture can evaporate faster – Colorless/transparent samples do not reflect – Considerably more convenient than the “sea-sand method”

When drying samples containing sugar, a crust or skin can form and seal the surface. A glass-fiber filter is particularly useful in such cases. The moisture can evaporate downwards through the surface of the filter. Crust/skin formation can be prevented or limited by placing the glass-fiber filter on top of the sample.

t Cover solid, heat-sensitive samples with a glass-fiber filter (order no. 6906940);

this provides the following benefits:

– Gentle heating, because the sample surface is shielded from excessive heat – Higher temperature setting can be selected – Uniformity of the sample surface – Fast evaporation of the moisture – Excellent repeatability for samples containing fat

Heating Programs

Two heating programs are available for performing moisture analysis of a substance:

– Standard drying – Gentle drying

T [°C]

Standardtrocknung

t [s]

Standard drying: For standard drying, you need to enter the final temperature. The final temperature is reached using an overshoot if necessary. The maximum set temperature is 160°C.

Operating Instructions Moisture Analyzer MA160

Basic Principles

T [°C]

Gentle drying: For gentle drying, you need to enter the final temperature. The maximum set temperature is 160°C. The target temperature is reached more slowly and the measurement time is extended. Gentle drying is recommended for sensitive samples.

Standardtrocknung

t [s]

Standby Temperature

Temperature set to defined value when the sample chamber is closed. Heating only occurs when the analyzer is in a measurement cycle. The standby temperature is not the same as the measurement temperature.

The “Timeout Standby Temp.” can be set to 1 to 24 hours and is preset to 2 hours. To change the setting, see Chapter “System Settings (Setup Menu)”.

Initial Weight

The target weight (as a guide for applying a sample to the analyzer – not as a starting condition) can be entered by the user. The tolerance range can be freely selected, e.g., ± 0.5 g.

Print Lines

When print lines are activated (1 or 2 lines with 20 characters each), additional information about the method, entered by the user, appears on the report and printout.

Filter

The user has the option of selecting between 0, 1, or 2 filters. During taring a message appears indicating that the configured number of filters must be placed with the sample pan for taring.

Target Value

The user can enter a target value with a tolerance range. During analysis a progress bar appears, indicating the progress of the measurement. At the end of the analysis, you can see whether the value is within the tolerance range.

Operating Instructions Moisture Analyzer MA160

Weight

Moisture (steam)

Autom. stopping

Basic Principles

Starting the Analysis

– After closing the hood:

If the initial weight condition is met, the analyzer prompts you to close the hood. The start weight is accepted as soon as the sample chamber is closed and the measurement value is stable.

End of Analysis

– Fully automatic:

The analysis ends as soon as the weight loss per 24 s is below an automatically detected threshold.

– Semi-automatic, absolute:

The analysis ends as soon as the weight loss per the set interval is lower than a user-defined threshold (set in milligrams). The weight loss is entered by the user.

Time

– Semi-automatic, percentage:

The analysis ends as soon as the weight loss in percent is lower than a userdefined threshold (set in percent). The percentage is entered by the user.

– Time

The analysis ends as soon as the specified time has elapsed.

– Manual:

Switch off using the END key. The maximum analysis duration is 24 hours.

Operating Instructions Moisture Analyzer MA160

Operating the Moisture Analyzer

Switching the Analyzer On and Off (Standby)

Wednesday, 2014-01-08 16:50

Moisture in %M

Start new measurement

Standard

Coffee creamer

Oats

Washing powder

Starch

105 °C

Fully automatic

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The main screen appears after the moisture analyzer has been switched on.

– The default language for the display text is English. – You can change the language (see “Setting the Language” on page 21).

t To switch the moisture analyzer to standby, select the menu key at the bottom

left of the main screen on the display.

y The menu is displayed.

t Select the

j button in the menu.

y The moisture analyzer switches to standby mode.

t To switch the moisture analyzer on again: Select j on the display.

The moisture analyzer starts in the method most recently used before the analyzer was last switched off.

Operating Instructions Moisture Analyzer MA160

Operating the Moisture Analyzer

Setting the Language

The default language for the display text is English. To change the language, proceed as follows:

t Select the menu key at the bottom left of the main screen on the display.

Standard

Coffee creamer

Oats

Washing powder

Starch

Settings

Language

Date and time

Device information

Calibration/Adjustment

Language

English

Deutsch

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The menu is displayed.

t Select the

i (Setup) button in the menu.

y The Settings window appears.

t Select Language or the top entry in the list.

y The Language settings window appears.

t Select the desired language, such as Deutsch (German). t Select l to confirm.

y The display changes directly to the desired language.

t Select o to return to the menu.

Français

Operating Instructions Moisture Analyzer MA160

Operating the Moisture Analyzer

Operating Concept

This section explains the operating options available to you so that you can familiarize yourself with the moisture analyzer.

Operating and Display Elements

Sharp or pointed objects (such as ballpoint pens) can damage the device.

– The touch screen should only be operated by lightly pressing it using the tips of

your fingers. You can also operate the touch screen when wearing lab gloves.

Wednesday, 2014-01-08 16:50

Moisture in %M

Start new measurement

Standard

Fully automatic

105 °C

1 Current date and time 2 Selected result display for the method 3 Operate method, such as start moisture analysis 4 View settings for the selected method 5 Menu: Switch to the menu or method selection

Operating Instructions Moisture Analyzer MA160

Operating the Moisture Analyzer

Entering Numbers on the Number Pad

You can enter numeric values in the method parameters or system settings (such as the temperature setting for a heating program). A number pad appears on the display, which is always used in the same way.

t To enter numbers, select the desired numbers one after the other.

y The entered numbers appear at the top of the display.

t To correct the last entered number, select p.

y The number is deleted. Then enter the correct number.

t To clear the entire entered value, select C. t To confirm the entry, select l.

Entering Text and Characters

A keyboard will appear when you have to enter text and characters.

t Select the individual characters one after the other. The entered text appears

at the top of the display. If you hold down a character for longer, the special versions of that character (umlauts, accent marks) and special characters appear.

t Use the Shift key to switch the keyboard display between uppercase and

lowercase letters.

123

ABC

t Use the 123 key to switch the keyboard display from letters to numbers.

t Use the ABC key to switch the keyboard display from numbers to letters.

t Use the back arrow key to delete the last character.

t The

l key ends the process and saves character input.

Operating Instructions Moisture Analyzer MA160

Operating the Moisture Analyzer

Date and time

Scrolling in the Display

If more than one entry is available, you can scroll up and down through the display to select the desired entry.

Settings

Device information

Calibration/Adjustment

Printout

Signals

Settings

Calibration/Adjustment

Printout

Signals

Display brightness

t To scroll, place your finger on the display and drag it slowly either up or down.

y The entries on the display move in the corresponding direction. While you are

scrolling, a gray scroll bar appears on the right of the display, indicating where

you are in the list of options.

t Tap the desired entry to select it.

Operating Instructions Moisture Analyzer MA160

System Settings (Setup Menu)

Date and time

System Settings (Setup Menu)

The Settings (Setup) menu contains all basic settings for the moisture analyzer.

Opening the Menu and Changing the Settings

t Select the menu key on the main screen.

Standard

Coffee creamer

Oats

Washing powder

Starch

Settings

Language

Date and time

Device information

Calibration/Adjustment

Settings

Device information

Calibration/Adjustment

Printout

Signals

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The menu is displayed.

t Select the i (Setup) key in the menu.

y The Settings menu appears.

t To scroll, place your finger on the display and drag it slowly either up or down.

y The entries on the display move in the corresponding direction. While you are

scrolling, a gray scroll bar appears on the right of the display, indicating where you are in the list of options.

t Select a setting and make the desired change. Information about the available

settings can be found from page 27.

t Select l to confirm your changes.

Operating Instructions Moisture Analyzer MA160

t Select ; to return to the menu. The changed settings are active when you reach

the first level of the menu again.

List of Available Settings

This section contains information about all of the basic settings on the moisture analyzer, which can be defined in the Settings menu.

Language

System Settings (Setup Menu)

Language

The language of the display text can be set here. English is set as the default

language on the moisture analyzer (see “Setting the Language” on page 21).

English

The following languages are available:

Deutsch

Français

– English – German – French – Spanish – Italian – Japanese – Russian – Chinese – Polish – Portuguese – Turkish

Date and Time

Date and time

Date

Date format

Time

Time format

The date, time, and display format can be set here.

Under Date:

t To set the date, select t, enter the current date and confirm with l.

Under Date format:

t Select how the date is displayed and printed out.

– DD-MMM-YYYY:

The date is displayed in the order of day, month, then year.

– MMM-DD-YYYY:

The date is displayed in the order of month, day, then year.

– YYYY-MM-DD (ISO):

The date is displayed in the order of year, month, then day. (The time is always displayed in 24-hour format with this setting.)

Under Time:

t To set the time, select t, enter the current time and confirm with l.

Under Time format:

t Select how the time is displayed and printed out.

– 24h:

The time is displayed in 24-hour format. (This is the only available setting when the date is set to ISO format.)

– 12h (AM/PM)

The time is displayed in 12-hour format. The hours before noon are displayed with AM and the hours after noon are displayed with PM.

Operating Instructions Moisture Analyzer MA160

System Settings (Setup Menu)

Device Information

The manufacturer, model, serial number and software version of the moisture

Device information

Manufacturer: Sartorius Model: MA160-1 Serial number: 0034002458 Version BAC: 00-53-01.01 CN:1701 Version APC: 01-80-01.05 CN:0000 Version DOC: 07-40-03.00 CN:0000

analyzer are displayed here.

Calibration/Adjustment

MA performance test

Weighing system adjustment

Calibration report

The settings for calibration and adjustment of the moisture analyzer can be defined

here.

Under MA performance test: Test functions for different temperature ranges are available here. You can only use these functions with the ReproEasy pad (accessory).

Under Weighing system adjustment:

t Select the option of your choice.

– CAL-Extern: Carry out calibration with an external calibration weight

(see Chapter “Calibration and Adjustment”).

– Weighing only: Use the weighing function to use the moisture analyzer

as a simple lab balance (see Chapter “Calibration and Adjustment”, section “Weighing”).

Calibration report

MA performance test

Weighing system adjustment

Under Calibration report: Here you can access the most recent calibration reports for the MA performance tests and weighing system adjustments. Up to 99 reports are saved per day. Calibration reports older than 30 days are deleted.

Printout

You can configure the settings for printing and data output here. Some of

Printout

Printout measurement

Printout and report format

User-defined

the settings depend on the configuration of the USB interface (see Chapter “USB Interface” on page 31).

Printout measurement:

Under

t Select the settings for printing out the results on the connected lab printer.

– Printout measurement: The printout can be activated and deactivated

during the measurement here.

– Interim results: If the printout is activated, you can also activate the

output of intermediate values during the measurement here.

– Interval [sec]: Enter the desired interval in seconds for the output of the

intermediate results.

Under Printout and report format:

t Configure all settings for the output format.

– Result only: Only the result of the moisture analysis is output. – With GLP and method parameters: The GLP data and parameters used for

the moisture analysis are also output.

– User-defined: Activate the “User-defined” menu item.

Under User-defined:

t Select the data for output individually and confirm with l.

Operating Instructions Moisture Analyzer MA160

Signals

System Settings (Setup Menu)

Signals

Touch signals

Acoustic signal

Status light

The key tones, acoustic signals, and process status light can be switched on

and off here.

The following settings are available for each signal: – On: The signal is activated. – Off: The signal is deactivated.

Display Brightness

Display brightness

Bright

Medium

Eco mode

The brightness of the display can be set here.

The following brightness levels are available: – Bright – Medium – Eco mode: Energy-saving mode (factory setting): The brightness is reduced

after 2 min. of inactivity. To reactivate the normal brightness: Touch the screen or open the heating module. During measurement and during the results display, eco mode is deactivated.

Identifiers

Identifier

Device ID

Batch ID function

Sample ID function

The identifiers for the printout can be defined here.

– The Device ID identifier is entered here once. The device ID can be a maximum

of 14 characters long.

– The Batch ID and Sample ID functions can be activated here. The user must

then enter the batch and sample IDs before each measurement routine. Batch and sample IDs cannot exceed 20 characters.

Under Device ID: The device identifier (ID) is printed on the GLP report in the header.

t To set the device ID, select Device ID, enter the desired device ID and

confirm with l.

Under Batch ID function: The batch ID (L ID) is queried once at the beginning of the measurement routine.

t If you wish to print the batch ID, activate this option.

Under Sample ID function: The sampleID (S ID) is queried once at the beginning of the measurement routine.

t If you wish to print the sample ID, activate this option.

To enter and delete numbers and text, e.g., for the sample ID,

see “Entering Text and Characters” on page 24.

Operating Instructions Moisture Analyzer MA160

System Settings (Setup Menu)

Info

Model Number MA160

Serial Number 0000000000

Version Balance 00-53-99.98 CN:1701

Version Display 01-80-99.38 CN:0000!

Version Heater 07-40-95.00 CN:0000

Identifier

Set Device ID

Batch ID

Sample ID

Batch ID function OFF

Anzahl Filter 1

Measurement

Start weight +0.809g

Start date 2014-05-06

Measurement time 00:09 min

Start time 10:21

Result 0.25 %M

Final weight +0.807g

Status Measurement canceled

Methods

Sort order

Export

Import

You can define the sort order of the created methods in the menu and export the

created methods to or import them from an SD card.

Under Sort order:

t Select the desired sort order of the methods in the menu.

– Last used: Sort by frequency of use. The most recently used methods are

– A-Z: Alphabetical sorting in ascending order. – Z-A: Alphabetical sorting in descending order.

Under Export: Export all existing methods to the SD card. Under Import: Import methods from the SD card. All of the methods on the analyzer are overwritten in this case.

Results

Overview

Export

Delete

The analysis results can be viewed, exported, or deleted here.

Under Overview: The saved results can be viewed or printed by date here.

t Select the desired entry. t To print the displayed result, select a.

Under Export:

t Select this option to export the results. The data is exported in XML format.

Under Delete:

t Select this option to delete all saved results.

You are prompted to confirm.

t To delete the results, select YES.

at the top.

Viewing Exported Data

You can open the data exported to the SD card as XML files with a browser and

RESULT

Operating Instructions Moisture Analyzer MA160

view it there. The file is then displayed in table format in the browser (see figure on the left).

Timeout standby temp.

System Settings (Setup Menu)

Timeout Standby Te mp.

Time [h]

The timeout for the standby temperature can be set here.

t To set the time, select t, enter the desired time and confirm with l (entry in

hours from 1 h to 24 h).

USB port

Device / Protocol

RS232 Configuration

Decimal separator

Keyboard emulation

The settings for the data transfer to a peripheral device (such as a PC or printer)

can be defined here.

Depending on the cable and peripheral device connected to the moisture analyzer, various options are available in the menu. The moisture analyzer automatically detects the type of connection.

Sartorius order no.:

Mini-B

YCC04-D09

Type-A

PC-SBI PC spreadsheet format PC text format Off

USB Host (Master)

Device / Protocol

PC spreadsheet format

PC - SBI

PC text format

Off

Printer equipment

Mini-A Type-B

Mini-A

supplied

Sartorius order no.:

YCC03-D09

RS 232

9-pin

Printer YDP30, YDP40 Off

Printer YDP20-0CE USB-RS 232 SBI Off

There are several ways to connect the device via USB:

1) Connection to a PC via USB Cable (Mini-B to USB A)

Under Device/Protocol:

t Select the data format for the transfer to the PC.

– PC - SBI: Driver for PC required (CDC Virtual Com Port). The data is sent

via SBI protocol using a virtual serial interface. Additional information can be found in Chapter “USB Interface”, section “Direct Transfer of Data (PC)”.

– PC spreadsheet format: The analyzer transmits the data via keyboard

command (keyboard emulation) to the currently opened application on the PC in spreadsheet format.

– PC text format: The analyzer transmits the data via keyboard command

(keyboard emulation) to the currently opened application on the PC in text format.

– Off: Data transmission is deactivated.

USB Device (Slave)

Serial device with 9-pin SUB-D plug

Operating Instructions Moisture Analyzer MA160

System Settings (Setup Menu)

Under Decimal separator (also available when “PC spreadsheet format” has been selected): – Decimal point (default setting): The number value is transmitted with a

decimal point to the PC program (example: 99.963 g).

– Decimal comma: The value is transmitted with a decimal comma to the PC

program (example: 99,963 g).

Under Keyboard emulation (also available when “PC spreadsheet format” or “PC text format” has been selected): – Universal (Num Lock on) (default setting): Data is sent as special keyboard

characters in ASCII format (ALT + number pad). Requirement: Numbers lock must be turned on on the PC keyboard.

– English (USA): Data is sent according to a keyboard set to English (USA).

Requirement: For PC applications, such as MS Excel, the keyboard must be set to English (USA).

You can find more information in Chapter “USB Interface”.

2) Connection to Sartorius Lab Printer via the Supplied Printer Cable

Under Device/Protocol:

t Select the desired setting for the connection to the printer.

– YDP30/YDP40: The connected printer is detected automatically and the

connection is established.

– Off: The connection to the printer is deactivated.

3) Connection to a Serial Printer or Another External Serial Device via a 9-pin Serial Interface (USB Mini-A to RS-232)

Under Device/Protocol:

t Select the desired setting for the connection to the device.

– Printer YDP20-0CE – USB-RS232 SBI – Off: The connection is deactivated.

Check the settings for Printer YDP20-0CE:

t Set the printer to the default setting: 1200 baud, 7 bits, odd parity,

1 stop bit, CTS/RTS handshake

Under RS-232 Configuration: This option can be selected if under Device/Protocol the setting USB-RS232 SBI has been selected.

t Select the desired setting for the RS-232 interface.

– Baudrate: 600 to 19,200 (default setting: 9600) – Databits: 7 bits or 8 bits (default setting: 8 bits) – Parity: Odd, even, or none (default setting: odd) – Stopbits: 1 bit or 2 bits (default setting: 1 bit) – Handshake: Software (XON, XOFF), hardware (CTS, RTS), or off

[default setting: hardware (CTS, RTS)]

Operating Instructions Moisture Analyzer MA160

Data Backup

System Settings (Setup Menu)

Data backup

Export settings

Import settings

This function can be used to create a data backup of all settings. An SD card must

be inserted for this function.

t Select the desired option and follow the instructions that appear on the display.

y During the export and import, the process is shown on the display.

Export settings

File: 1 of 1 CONFIG\ SETTINGS

y If the data backup is canceled, the menu appears again.

Import settings

File: 1 of 1 CONFIG\ SETTINGS

Protected Mode

Protected mode

Set password

Password

Please input new password twice.

The moisture analyzer is equipped with password protection to ensure that only

authorized persons can make changes to the system settings.

t To define a password, select Set password.

t Select t.

Operating Instructions Moisture Analyzer MA160

System Settings (Setup Menu)

Passw. 1

Passw. 2

Password

Device has password protection.

t Enter a number as the password.

If you have made a mistake, you can correct your entry:

– k button: Delete individual characters in reverse order. – C button: Delete all characters.

t Enter the same password again to check your entry.

t Confirm with l.

y The message “Device has password protection.” appears. y The new password is only active once you have returned to the first level of the

menu.

Protected mode

Modify password

Delete password

t To change the password, select Modify password.

t Enter the desired password and confirm with l. t To delete the password, select Delete password and confirm with YES.

If you have forgotten the password, contact the Sartorius Service Center.

Service mode/Service access

This function is used by the Sartorius Service Center and can only be accessed by

Service access

Access code: xxxxxx

authorized service technicians.

Operating Instructions Moisture Analyzer MA160

Reset

All settings can be reset to the factory settings here.

t When the security prompt appears, select Yes, reset and confirm with l.

The moisture analyzer is reset and restarts.

System Settings (Setup Menu)

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Moisture in %M

Start new measurement

Standard

Fully automatic

105 °C

Wednesday, 2014-01-08 16:50

Customize parameters

No. of filters

Print lines

Off

Standby temperature Off

Moisture Analysis

Purpose: The moisture analyzer can be used to determine the moisture content of liquid,

pasty, or solid samples.

Accessories: Depending on the consistency of the sample, one or two filters are recommended in

order to distribute the sample optimally in the sample pan. – Liquid sample: Tare one filter with the sample pan, then distribute the sample

drop by drop onto the filter.

– Pasty sample: Tare two filters with the sample pan, then place the sample

between the two filters and press together evenly.

– Solid sample: Distribute the granulated sample evenly onto the sample pan

without a filter. Use one or two filters for solid samples that liquefy at high temperatures or contain fat or sugar, in order to prevent crusting.

Danger of poisoning or caustic burns!

Substances that contain poisonous or caustic ingredients may produce poisonous gases when dried, which can cause irritation (to the eyes, skin, or airways) or nausea and lead to serious injury or death. – These samples must only be dried in a laboratory hood.

Corrosion due to aggressive vapors!

Substances that emit aggressive vapors when heated may cause condensation to form on cooler housing parts and lead to corrosion. – Use small sample quantities of these substances.

Viewing and Changing Method Parameters

Before starting the moisture analysis, you can view the current parameters and

change them if necessary. – You can predefine up to 100 separate methods. You can change and save the

parameters for each method to suit your requirements.

The most important parameters (method name, temperature, switch-off criterion) are displayed.

t To check or view additional parameters, select the gray button at the bottom of

the main screen on the display.

y A summary of the current parameters is displayed.

If a lab printer is connected, you can print out the method parameters:

t Select the print symbol.

y The parameters are printed out.

t Select o to close the display.

t To change the parameters, select the menu key at the bottom left of the main

Operating Instructions Moisture Analyzer MA160

screen on the display.

Moisture Analysis

Standard

Coffee creamer

Oats

Washing powder

Starch

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The menu is displayed.

t Select the M button in the menu.

t Select the desired method in the method menu.

Heating program

End

Initial weight

Result display

Heating program

End

Initial weight

Result display

Customize parameters

Standard drying 105 °C

Fully automatic

Off

Moisture in %M

Customize parameters

Standard drying 105 °C

Fully automatic

Off

Moisture in %M

y The current method parameters are displayed.

t Select the parameter you wish to change, such as “Heating program.”

Heating program

Type Temperature [°C]

Standard drying

Gentle drying

110

125

t Set the parameters to suit your requirements.

Select t if necessary and enter the desired values (see “Entering Numbers on the Number Pad” in Chapter “Operating the Moisture Analyzer”).

t Select l to confirm.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Initial weight

Result display

Target value

Standby temperature

Customize parameters

Off

Moisture in %M

Off

Save changes

Temperature: 110 °C Initial weight: On Target value: On

Wednesday, 2014-01-08 16:50

Moisture in %M

Start new measurement

Standard

105 °C

Fully automatic

t Scroll through the list if necessary and change further parameters.

t When you are finished making changes, select o.

y The changed method parameters are displayed.

t Select the desired option:

– Make further changes: Select <. This takes you back to the list of

parameters. – Reject changes: Select NO. – Save changes: Select YES.

NOYES

y The menu is displayed.

t To return to the main screen, select k.

Performing the Moisture Analysis

When all parameters have been set to suit your requirements, you can start the

moisture analysis.

Observe the following instructions in order to ensure successful measurement: – Wear gloves for each measurement, so that the liquid in the sample is not

influenced by handling.

– Remove the sample directly from the process or keep it in an airtight and

watertight container until measurement.

– Ensure that the sample is representative for the product and is homogeneous

(shake, stir, or mix before measurement).

– If using a filter or filters, store the filters in airtight and watertight packaging.

t Select START on the main screen or open the hood.

If you selected START on the main screen:

Open hood

0.000 g

Operating Instructions Moisture Analyzer MA160

t Open the hood now.

y The next step is displayed when the hood is opened.

Moisture Analysis

;

Place pan and two filters, close

hood for taring

t Place an empty sample pan on the analyzer, along with one or two filters if

necessary. The number of filters depends on how many filters are set in the parameters for

+ 4.000 g

the current method.

t Close the hood.

y The moisture analyzer tares automatically.

Open hood

0.000 g

Fill in sample and close hood to

- 0.000 g

t Open the hood.

t Place the sample on the sample pan or filter(s).

start

Fill in sample

+ 1.929 g

2.000

Close hood to start

y If you have activated the “Initial weight” option in the method parameters,

a target value display appears.

t Add the sample to the sample pan slowly. When the sample quantity reaches

the preset range, the target value display turns green.

t Close the hood.

y The moisture analysis starts automatically.

+ 1.929 g

2.000

During the measurement, the process status light on the analyzer flashes, if the light has not been switched off in the menu.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

y The current measurement value and progress are shown on the display during

the moisture analysis.



Standard



Measurement completed

09:41 min

65.00

67.50 %M

Fully automatic

09:41 min

67.00

Fully automatic

11:18 min

67.53 %M

67.50 %M

– If a target value is set, the measurement process is displayed as a bar diagram.

The target value is marked and tolerance limits are displayed.

110 °C

– If no target value is set, the measurement process is displayed as a curve

diagram.

The following information is also shown on the display: – Information bar at the top right: measurement time expired – Function bar below: method name, target temperature, switch-off criterion

110 °C

t To cancel the moisture analysis before it is finished: Select <.

y When the moisture analysis is finished, the moisture content of the sample is

shown on the display. The process status light on the analyzer flashes three times and then goes out.

– If a target value is set, the moisture content is displayed as a bar diagram.

– Bar is green: Result is within the tolerance limits. – Bar is red: Result is not within the tolerance limits. – Bar is orange: Measurement was canceled.

Standard

Measurement completed

Standard

110 °C

Fully automatic

110 °C

Fully automatic

OK New

11:18 min

85.15 %M

OK New

– If no target value is set, the moisture content is displayed as a curve diagram.

t Select the desired option:

– To perform another moisture analysis using this method:

Select NEW. – To view the report and print it out if desired: Select n. – To exit the measurement: Select OK.

Operating Instructions Moisture Analyzer MA160

Printing Out the Analysis Report

If a lab printer is connected, you can print out the result of the moisture analysis.

Moisture Analysis

The settings for the analysis report can be configured in the system settings

t Select a.

y The analysis report is printed out.

(see section “Printout” in Chapter “System Settings”). Further information and an example of an analysis report can be found in Chapter “ISO/GLP-compliant Printout”.

Removing a Sample

Danger of burns due to hot sample pan!

The sample and sample pan may be very hot. – Do not touch the sample pan. – Use sample tongs (included in delivery) to remove the sample.

Remove sample

Remove old sample from sample chamber.

y When you have exited the measurement by selecting OK, you can remove the

sample from the moisture analyzer.

t Open the hood.

t Remove the sample pan from the moisture analyzer using sample tongs.

t Close the hood.

t Allow the sample to cool down and dispose of it properly.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Creating and Managing Methods

You can predefine up to 100 separate methods. You can change and save the parameters for each method to suit your requirements. A wizard for creating new methods is provided to guide you through the process step by step. You can create methods manually or import them from an SD card.

Opening the Method Menu

t Select the menu key at the bottom left of the main screen on the display.

Standard

Coffee creamer

Oats

Washing powder

Starch

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The menu is displayed.

The list displays all available methods.

t Select the M button in the menu.

Standard

Wood glue

Coffee creamer

Oats

Washing powder

105 °C Fully automatic

110 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

y The method menu appears.

This menu shows all created methods. Unavailable methods are marked in the method menu with a H symbol.

t To leave the method menu: Select k.

Creating a New Method with the Assistant

To create a new method quickly and ensure that all relevant parameters have been included, use the Assistant: The Assistant prompts you to configure all relevant parameters, provides a practical range of options, and prevents you entering implausible data.

t Select + in the method menu.

New method

Manual input

Assistant

Import

Operating Instructions Moisture Analyzer MA160

t Select Assistant.

Moisture Analysis

qwer tzuiop

asdfgh jkl_

yxcvbnm- /

123

;

Method name

Enter name for new method

y The Assistant appears.

First enter a name for the new method.

t Select t.

t Enter the desired name.

t Select l to confirm.

Result display

Select result display mode

In the next step, define how the result will be displayed:

t Select t.

Result display

Moisture in %M

Dry weight in %S

Atro in %M/S

Target value

Enter target value and tolerance for moisture portion of this sample

t Select the desired option:

– Moisture in %M (% Moisture) – Dry weight in %S (% Solids) – Atro in %M/S (% Moisture/Solids)

t Select l to confirm.

y Then enter the target value and tolerance.

t Select t.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

;

Target value

Target value [%M] +/- [%M]

2.00

50.00

90.00

Sample consistency

Enter consistency data of sample

Sample consistency

solid

fluid

pasty

0.20

0.10

0.50

t Select the desired target value and tolerance or press t and enter the values

using the keyboard.

t Select l to confirm.

y Then enter the sample consistency.

t Select t.

t Select the desired option:

– solid – fluid – pasty

t Select l to confirm.

Sample type

Specify sample type

organic

inorganic

unknown

y In the last step, enter the sample type.

t Select t.

t Select the desired option:

– organic – inorganic – unknown

t Select l to confirm.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

jkl_

y The method can then be tested.

Test the method

Method successfully created. Would you like to test the method now? Temperature: 105 °C

t Select the desired option:

– To test the method with the suggested temperature: Select YES. Moisture

analysis is then carried out with the set parameters (see „Performing the Moisture Analysis“ on page 38).

– To save the method without testing: Select NO and then o to return to the

NOYES

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Fully automatic

110 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

y The newly defined method now appears in the method menu. It is not available

method menu.

yet and therefore marked with an H symbol.

Creating a New Method Manually

To define each parameter for a method yourself, create the method manually:

t Select + in the method menu.

New method

Manual input

Assistant

Import

Method name

Enter name for new method

qwer tzuiop

asdfgh

t Select Manual input.

y First enter a name for the new method.

t Select t.

t Enter the desired name.

t Select l to confirm.

yxcvbnm- /

123

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

New method

Method name Ketchup

Heating program

End

Initial weight

New method

Method name Ketchup

Heating program

End

Initial weight

Save new method

Method name: Ketchup Type: Standard drying Temperature: 110 °C End: Fully automatic Initial weight: Off

Standard drying 105 °C

Fully automatic

Off

Standard drying 105 °C

Fully automatic

Off

y The new method is created and displayed with the default parameters.

t Select the parameters you wish to change and configure the desired settings.

t Scroll through the list if necessary and change further parameters.

t Select l to confirm.

y The parameters of the new method are displayed.

You can scroll through the list to view all parameters.

t Select the desired option:

– To change further parameters: Select <. This takes you back to the list of

parameters. – To discard the new method: Select NO.

NOYES

– To save the new method: Select YES.

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Fully automatic

110 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

y The newly defined method now appears in the method menu.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Importing Methods from an SD Card

You can import a new method from an SD memory card.

t Insert the SD card containing the desired method into the SD card slot on the

analyzer.

t Push the SD card into the slot as far as it will go.

To remove the card, press it against the resistance in the direction of the slot so that the card springs out.

t Select + in the method menu.

New method

Method name Coffee

Heating program

End

Initial weight

New method

Manual input

Assistant

Import

Grain coffee

Coffee

Cocoa powder

Potato flakes

Standard drying 85 °C

Fully automatic

Off

t Select Import.

y The list of methods on the SD card is displayed.

t Select the desired method from the list.

y The method is imported as a new method.

y The parameters of the method are displayed.

If the moisture analyzer’s memory already contains a method with the same name, a message appears, indicating that the imported method must be renamed.

t To accept the imported method, select l.

Save new method

Method name: Coffee Type: Standard drying Temperature: 85 °C End: Fully automatic Initial weight: Off

y The parameters of the new method are displayed.

t To save the method, select YES.

y The imported method now appears in the method menu. It is not available yet

and therefore marked with a H symbol.

NOYES

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Testing Methods

Evaluation

Result is within the tolerance range Result: 85.15 %M Target value: 85.00 %M Tolerance range: 84.50 %M - 85.50 %M Are you satisfied with this result?

y If the target value and initial weight options are activated, the measurement/

method is evaluated and the result of the evaluation is displayed.

t Select the desired option:

– If you are satisfied with the result, select YES. You can then unlock the

method. – If you are not satisfied with the result: Select NO and run the test again.

NOYES

t Select the desired option:

Test the method

Method successfully created. Would you like to test the method now? Temperature: 105 °C

– To test the method with the suggested temperature: Select YES. Moisture

analysis is then carried out with the set parameters (see „Performing the

Moisture Analysis“ on page 38). – To save the method without testing: Select NO and then o to return to the

method menu.

NOYES

Unlocking Methods

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Fully automatic

110 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

Methods must be unlocked (available) before they can be used.

Unavailable (locked) methods are marked in the method menu with an H symbol.

t Select the method you wish to unlock.

Method name Ketchup

Heating program

End

Initial weight

Customize parameters

Test

Release

Delete

Standard drying 110 °C

Fully automatic

Off

y The parameters of the method are displayed.

t Scroll all the way to the bottom.

t Select Release.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

t Select RELEASE to confirm.

Release method

Would you really like to release method “Ketchup”?

RELEASE

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Automatic

110 °C Automatic

100 °C Automatic

80 °C Automatic

y The unlocked method is then displayed in the method menu without an H

symbol. It is available for selection and can be used for moisture analysis.

Locking Methods

You can lock a method. It remains in the analyzer memory but is unavailable and cannot be used for moisture analysis as long as it is locked.

Standard

Ketchup

Wood glue

Coffee creamer

Oats

Customize parameters

Method name Ketchup

Heating program

End

Initial weight

Customize parameters

Test

105 °C Automatic

110 °C Automatic

100 °C Automatic

80 °C Automatic

Standard drying 110 °C

Fully automatic

Off

t Select the method you wish to lock in the method menu.

y The parameters of the method are displayed.

t Scroll all the way to the bottom.

t Select Lock (clear release).

Lock (clear release)

Delete

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

t Select LOCK to confirm.

Lock method

Would you really want to lock method “Ketchup”?

LOCK

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Fully automatic

110 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

y The locked method is then displayed in the method menu with an H symbol. It

is not available for selection and cannot be used for moisture analysis.

Deleting Methods

If a method is deleted, it is irreversibly removed from the memory of the moisture analyzer.

Standard

Ketchup

Wood glue

Coffee creamer

Oats

105 °C Automatic

110 °C Automatic

100 °C Automatic

80 °C Automatic

t Select the method you wish to delete in the method menu.

Method name Ketchup

Heating program

End

Initial weight

Customize parameters

Test

Release

Delete

Standard drying 110 °C

Fully automatic

Off

y The parameters of the method are displayed.

t Scroll all the way to the bottom.

t Select Delete.

Operating Instructions Moisture Analyzer MA160

Moisture Analysis

Delete method

Would you really want to delete method “Ketchup”?

t Select DELETE to confirm.

y The method is irreversibly deleted.

DELETE

Operating Instructions Moisture Analyzer MA160

MA Performance Test

The performance test can be used to check whether the analyzer has a fault or is ready for operation. During a performance test, both the heating unit and the weighing system are tested at the same time. You will need a ReproEasy pad (accessory) in order to carry out a performance test.

Starting the Performance Test



Calibration/Adjustment

MA performance test

Weighing system adjustment

Calibration report

Please ensure that the device has not been heated for at least one hour

MA performance test

The device is too warm for a performance test. The device is still cooling down.

t Select “MA performance test.”

y The display switches to a view with three heating temperatures.

before a performance test is carried out.

t Select “m” to confirm the message and start the performance test again later.

MA performance test

Temperature 70 °C

Temperature 100 °C

Temperature 130 °C

t Select one of the suggested temperatures given for the method you are using.

t Open the hood.

Open hood

0.000 g

Operating Instructions Moisture Analyzer MA160

y The next step is displayed when the hood is opened.

MA Performance Test

;

Place pan, close hood for taring

t Place a sample pan on the analyzer.

t Close the hood.

y The moisture analyzer tares automatically.

+ 4.000 g

Open hood

0.000 g

t Open the hood.

t Open the packaging of the ReproEasy pad (accessory) and remove the pad.

t Remove the protective wrapping.

t Affix the pad to the center of the sample pan, sticky side down.

t Place the ReproEasy pad reference sample (accessory) on the sample pan.

Fill in reference sample and

close hood to start

+ 2.513 g

Close hood to start

t Close the hood.

y The performance test starts automatically.

During the performance test, the process status light on the analyzer flashes,

+ 6.721 g

if the light has not been switched off in the menu.

Operating Instructions Moisture Analyzer MA160

MA Performance Test



00:13 min

MA performance test

Device is tested with reference sample. Temperature: 70 °C Duration: 05:00 min

MA performance test

Measurement canceled

MA performance test

Device is not OK. 5 MApi << 10 MApi Temperature 70 °C Please contact Sartorius service

y The display shows the progress of the test and the remaining time.

Performance Test Measurement Not Successfully Completed

y The message “Measurement canceled” appears.

t Select l to confirm.

y The display switches back to the menu.

If a fault has been detected:

y The message “Device is not OK” appears.

t Select m to confirm.

Contact Sartorius service if the message “Device is not OK” appears.

MA performance test

Device is OK. Result 10 MApi Temperature 70°C

Remove old sample

Performance Test Successfully Completed

y If the test is successful, the message “Device is OK” first appears. Then the

analyzer indicates that the sample can be removed.

t Select l to confirm. y You can remove the sample and return to the menu.

Operating Instructions Moisture Analyzer MA160

Calibration and Adjustment

Background During calibration, a calibration weight is used to determine how much the

displayed value deviates from the actual measurement value. This deviation is compared against a preset target value. The subsequent adjustment corrects this deviation or reduces the permissible error limits. Calibration and adjustment are combined in one process in the moisture analyzer. After each calibration the analyzer is automatically adjusted.

When and How Often The moisture analyzer must be calibrated and adjusted, for example:

– When the ambient conditions have changed (temperature, humidity, or air

pressure)

– When the moisture analyzer is set up in a different location or moved in its

current location.

An external calibration weight is required for calibration and adjustment (100 g).

Please note the tolerance of the calibration weight being used.

Calibrating the Moisture Analyzer

t Make sure that the pan support is empty.

t Select the menu key on the main screen.

Standard

Coffee creamer

Oats

Washing powder

Starch

t Select the i (Setup) key in the menu.

105 °C Fully automatic

100 °C Fully automatic

80 °C Fully automatic

85 °C 2 mg/24 sec

80 °C 2 mg/24 sec

y The menu is displayed.

Operating Instructions Moisture Analyzer MA160

Calibration and Adjustment

Settings

Language

Date and time

Device information

Calibration/Adjustment

MA performance test

Weighing system adjustment

Calibration report

y The Settings menu appears.

t Select Calibration/Adjustment.

t Select Weighing system adjustment.

t Select CAL-Extern to calibrate the analyzer using an external calibration

weight.

y The Calibration/Adjustment window appears.

t Close the hood and select l to confirm.

t The CAL-Extern window appears.

CAL-Extern

Please set balance to zero G - 0.401 g

t If necessary, please zero the integrated balance.

START

CAL-Extern

Please place on predefined weight. Close hood Stat - 100,000 g

y A message appears on the display, prompting you to place the calibration

weight (100 g) on the analyzer.

t Place the calibration weight on the pan support.

y Calibration starts automatically.

When calibration is complete, a report appears on the display. The report gives the deviation detected during calibration. You are asked whether the weighing system should be adjusted. After adjustment the report shows the result of the adjustment.

t Close the report: Select <.

y The moisture analyzer is now calibrated. If you have also carried out an

adjustment after calibration, the moisture analyzer is also now adjusted.

Operating Instructions Moisture Analyzer MA160

Viewing the Calibration Report

Calibration and Adjustment

Calibration/Adjustment

MA performance test

Weighing system adjustment

Calibration report

t To view the most recent calibration reports: Go to the Calibration/Adjustment

menu and select the Calibration report submenu. Here you can select the most recent reports for the MA performance tests or weighing system adjustments and then access the most recent calibration reports, which are sorted by date. Up to 99 entries per day are saved. Calibration reports older than 30 days are deleted.

y Menu Calibration report.

Calibration Report

MA performance test

Weighing system adjustment

Example of a Calibration Report:

-------------------2014-07-29 12:02 Sartorius Mod. MA160-1 SerNo. 0031710609 BAC: 00-53-01 APC: 01-80-01 DOC: 07-40-03

-------------------2014-04-30 12:02 External calibration Start: manually Set + 100.000 g Dev - 0.002 g External adjustment Dev 0.000 g Temp + 23.7 °C

-------------------Name:

--------------------

Operating Instructions Moisture Analyzer MA160

Calibration and Adjustment

Weighing

The moisture analyzer also has a simple weighing function which can be opened via the system menu.

t Select the i (Setup) key in the menu.

Settings

Language

Date and time

Device information

Calibration/Adjustment

MA performance test

Weighing system adjustment

Calibration report

y The Settings menu appears.

t Go to Calibration/Adjustment and select Weighing system adjustment.

t Select Weighing only.

y The weighing screen appears.

You can now use the moisture analyzer as a simple lab balance.

0.000

Weighing only

END

t To exit the weighing function, select END.

t Select ; multiple times to return to the menu.

Operating Instructions Moisture Analyzer MA160

ISO/GLP-compliant Printout

Features

You can have the device information, device ID, and the current date printed before (GLP header) and after (GLP footer) the values from the weighing series. The following data is printed:

GLP header: – Date, time at the start of a weighing series – Manufacturer – Model – Model serial number – Software version number of the device (BAC) – Software version number of the display (APC) – Software version number of the heating module (DOC) – Device ID with max. 14 characters (if activated under system settings)

ISO/GLP-compliant Printout

GLP footer: – Field for signature

Configuration

To print out the ISO/GLP report, define the following system settings (see Chapter “System Settings”, section “Printout”):

t Activate ISO/GLP-compliant printouts:

In the Printout menu under Printout and Report Format, activate the

With GLP and method parameters option.

Operation

t Print out the report after moisture analysis: Select a.

Operating Instructions Moisture Analyzer MA160

ISO/GLP-compliant Printout

Example of Analysis Report

--------------------

2014-05-12 09:46 Sartorius Mod. MA160-1 SerNo. 0000037919 BAC: 00-53-01 APC: 01-80-01 DOC: 07-40-03

--------------------

Method name Ketchup Type Standard drying Temperature 40 °C Standby Off Initial weight On Initial weight

8.94 g Tolerance +/-

0.20 g End Time Time

02.00 Result display Moisture in %M Target value On Target value

2.00 %M Tolerance target +/-

0.20 %M No. of filters 0 Start weight + 8.846 g Measurement time 01:15 min Result

8.16 %M Final weight + 8.124 g End of analysis

--------------------

Name:

--------------------

Operating Instructions Moisture Analyzer MA160

USB Interface

Communication with Peripheral Devices

Purpose: The interface is used to exchange data with connected peripheral devices: Measured

values and parameters are sent to a printer or PC. Control commands and data inputs can also be sent to the analyzer from connected devices such as a PC. The USB interface can be used to transmit data via the SBI protocol.

The following connections to peripheral devices are possible:

Sartorius order no.:

Mini-B

Mini-A Type-B

Mini-A

YCC04-D09

Type-A

Printer equipment

supplied

Sartorius order no.:

YCC03-D09

RS 232

9-pin

Direct Transfer of Data (PC)

Requirements:

– PC with Windows 7, Windows 8, Vista, Windows XP, or 2000 operating system – A to Mini-B USB connection cable from PC to moisture analyzer, Sartorius

order no.: YCC04-D09

– PC with internet connection

PC-SBI PC spreadsheet format PC text format Off

Printer YDP30, YDP40 Off

Printer YDP20-0CE USB-RS 232 SBI

Off

USB Host (Master)

USB Device (Slave)

Serial device with 9-pin SUB-D plug

The USB driver for the virtual interface is listed with Microsoft® and is available

online via the Microsoft® update service. PC without internet connection: To load the USB driver, please contact your local Sartorius Service Center.

Sartorius order no.:

Mini-B

YCC04-D09

Type-A

Operating Instructions Moisture Analyzer MA160

PC-SBI PC spreadsheet format PC text format Off

USB Host (Master)

USB Interface

(1) USB Connection as PC Keyboard without Additional Driver via a PC with Table or Spreadsheet Editor (e.g., Microsoft® Office or OpenOffice)

t Connect the moisture analyzer to your PC using the intended USB connection

cable.

t To open the system settings of the moisture analyzer, select i (Setup) in the

menu.

Device / Protocol

PC spreadsheet format

PC - SBI

PC text format

Off

t To open the PC spreadsheet format menu item on the moisture analyzer,

go to USB port and select Device/Protocol.

Setting Options:

t To change the moisture analyzer to suit your PC settings, define the following

system settings:

– Choose the character to be used as a decimal point for the spreadsheet

calculation.

– Set the PC keyboard to English (USA) instead of Universal (numbers lock on).

y Once data has been transferred to your PC, the following appears on the PC:

– When PC spreadsheet format is set on the moisture analyzer, e.g. with

Microsoft Excel open

  t Activate the cursor in the PC application.   t Then select a or n on the moisture analyzer for the respective

data output.

Operating Instructions Moisture Analyzer MA160

USB Interface

– When PC text format is set on the moisture analyzer, e.g. with Microsoft Excel

open

t Activate the cursor in the PC application. t Then select a or n on the moisture analyzer for the respective data output.

Operating Instructions Moisture Analyzer MA160

USB Interface

Connection with Sartorius Lab Printer YDP30, YDP40

Printer equipment

Mini-A Type-B

supplied

t Connect the moisture analyzer to the Sartorius printer using the supplied

USB connection cable.

y The moisture analyzer detects the printer automatically. No settings need

to be changed.

Printer YDP30, YDP40 Off

Connection for 9-pin RS-232 Configuration

Sartorius order no.:

Mini-A

YCC03-D09

RS 232

9-pin

t Connect the peripheral device to the moisture analyzer using the Sartorius

YCC03-D09 connection cable (RS-232, 9-pin, PC-compliant assignment).

t Define the desired settings: See Chapter “System Settings,” section “USB

Interface.”

Printer YDP20-0CE USB-RS 232 SBI

Off

USB Device (Slave)

Serial device with 9-pin SUB-D plug

Interface Specification

Data Output

The print command can be triggered by selecting a.

Data Output Formats

Values are always output with an ID; if more than 22 parameters are set, the values are printed on two lines. Intermediate values are also output in other formats; intermediate values are always printed on one line.

You can activate the printout in the Printout menu (see section “Printout” in Chapter “System Settings”) and select whether values only or values and intermediate values are printed.

Example: Intermediate value output 02:00 8.16 %M

Operating Instructions Moisture Analyzer MA160

Output Format

The characters are printed with the header. No more than 22 characters can be displayed in one line. Longer character sets are printed out on two lines. The printout is set to justified alignment. The following characters and abbreviations are used:

Space _ A space is indicated with an underscore: _

Carriage Return CR A carriage return (or line break) is abbreviated with “CR.”

Line Feed LF A line feed is abbreviated with “LF.”

Example 1 The first example has a 6-character header (columns 1 to 6) and can therefore be printed in one line. Column 7 is used for signs before values (+, -). Values are given in columns 8 to 16 with decimal points or text. The unit characters are given in columns 17 to 20.

USB Interface

If the unit “%M/S” is selected, use four characters to print out the units because no space is printed before a unit. In a print interval, however, one line is generated with the following: – Five characters for a header – One character for a space – Nine characters for the values including signs – One space – Four characters for the units

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 N _ _ _ _ _ + _ _ _ _ 6 7 . 8 7 _ g _ _ CR LF M o i s t _ + _ _ _ _ _ _ _ 2 2 _ % M _ CR LF 1 0 : 2 3 _ + _ _ _ _ 0 . 2 3 _ % M / S CR LF

Example 2 The second example has a longer header (columns 1 to 7) and can therefore be printed in one line:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 D e v _ _ _ + _ _ _ 5 6 7 . 8 7 _ g _ _ CR LF S t a n d b y _ _ _ _ _ _ _ _ _ O f f _ CR LF

Example 3 The third example requires more than 22 characters and must therefore be printed on two lines:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 D i s p l a y e d _ r e s u l t _ _ _ CR LF _ M o i s t u r e _ c o n t _ i n _ % M CR LF

Operating Instructions Moisture Analyzer MA160

Error Messages

Certain events cause a message to appear on the display:

1. Some error messages are displayed for approx. 3 seconds (e.g., CAL-Extern: calibration canceled).

2. Some error messages are displayed until they are acknowledged by pressing a key (e.g., “Incorrect access code” in “Service access”).

3. Information messages are displayed until they are acknowledged by pressing a key.

Deactivated Keys

To prevent operating errors, only relevant functions/keys are displayed depending on the situation. This prevents most operating errors from occurring. The following buttons are only available in specific circumstances:

Only if there is a measured value in the zero setting range before external calibration/adjustment.

Only if there is a measured value larger or smaller than “zero.”

Error Messages during Operation

“Value is too small.” When an entered value is too low for the parameter. “Value is too large.” When an entered value is too high for the parameter. “Passwords do not match.” When a password does not match the previous entry. “Wrong password” When password protection is enabled and the password

was entered incorrectly.

Error 46 When the max. heating temperature has been briefly

exceeded.

Error 401 to 407 Faulty heating element. Contact the Sartorius

Service Center.

Operating Instructions Moisture Analyzer MA160

Calibration/Adjustment Error Messages

“Weight is too low.” When a weight that is too light is placed during

external calibration.

“Weight is too high.” When a weight that is too heavy is placed during

external calibration.

“Not able to save cal. data.” When the memory is full.

Information about Analyzer Maintenance

“

Maintenance interval

expired.”

When the maintenance date set by the Sartorius Service Center has been exceeded.

USB Device Error Message

Error Messages

“The attached USB device is not supported.”

When a USB device (printer) that is not permitted by Sartorius has been connected.

Problems

Problem/Meaning Remedy

Selected temperature is too high and the sample is oxidized; sample is boiling or burning and the splashes are continuously changing the weight.

Measurement time too long – Increase temperature

Sample loses weight before it is analyzed – Remove the sample pan and apply

Sample is liquid or pasty – Use glass fiber filter

– Reduce drying temperature – Lay glass-fiber filter onto the sample – Reduce the sample quantity or apply

the sample more evenly

– Select a semi-automatic switch-off

criterion or select timer mode

– Reduce sample quantity – Preheat the analyzer by running a

drying process for 2 or 3 minutes with an empty sample pan, for example

the sample outside the analyzer

Sample has only a low moisture content – Increase sample quantity Insufficient heating output – Clean temperature sensor Place of installation unstable

(vibrations, etc.)

Operating Instructions Moisture Analyzer MA160

– Set up the scale in another area

Shipping the Analyzer

Please use the original packaging for shipping. You can order packaging from the Sartorius Service Center if necessary.

Avoid shocks and vibrations.

Prior to shipping, switch the analyzer to standby mode (see page 20) and then pull the plug.

t Remove the following parts from the analyzer:

– Disposable sample pan – Pan support

t Place the analyzer in one side of the packaging.

t Place the other side of the packaging over the analyzer:

Operating Instructions Moisture Analyzer MA160

Shipping the Analyzer

t Then put the packaged analyzer into the cardboard box and seal the box.

Operating Instructions Moisture Analyzer MA160

Care and Maintenance

Service

To ensure its continued weighing accuracy, we recommend performing regular servicing on your analyzer at least once a year. The Sartorius Service Center offers different service contracts for this purpose, which can be individually adapted to suit your needs (see also www.sartorius.com/service). Each service produces a calibration certificate. The analyzer and its connections must undergo a technical safety inspection on a regular basis carried out by an electrician (e.g., every 2 years).

Repairs

Repair work must only be carried out by trained service technicians. The analyzer must be unplugged during repair work. Unplug the power cable from the socket. Failure to do so may affect the measurement accuracy of your analyzer and pose aserious risk to the user. Contact the Sartorius Service Center or a Sartorius dealer to arrange for proper repairs.

Cleaning the Analyzer

Cleaning the Control Panel

Switch the display to standby mode to avoid modifying the settings for operation during cleaning.

t Select the menu key to switch to the method menu.

t If you then select j, the display is switched off.

t To switch the display back on: Select j at the bottom left of the display.

Themoisture analyzer starts in the application most recently used before the analyzer was last switched off.

Cleaning the Housing

Disconnect the analyzer from the power before cleaning. Disconnect any data cables from the moisture analyzer.

Never open the analyzer housing. The parts contained in the housing cannot be cleaned, repaired, or replaced by the operator.

– Make sure that no liquid or dust gets into the analyzer. – Remove the disposable sample pan and pan support from the analyzer. – Never use cleaning agents that contain solvents or abrasive ingredients, which

can ultimately damage the equipment.

t Clean the outside of the housing with a lint-free cloth and mild cleaning agent

(e.g., isopropanol).

t Then dry the analyzer with a soft cloth.

Operating Instructions Moisture Analyzer MA160

Care and Maintenance

Contaminated Equipment:

– Health risk from product contamination due to product deposits and the

collection of residue with microbial contamination. – Health risk from biological or microbiological substances. – Observe cleaning specifications. – Check the cleaning result closely.

Cleaning the Heating Module

Danger of Burns:

The inner part of the heating module and parts of the sample chamber may be extremely hot. Wait until the heating module has cooled completely.

Avoid touching the heating element. To remove spray residues or deposits from the heating element, use a weak solvent such as ethanol.

Unlocking the Heating Module

1) Open the heating module all the way.

2) Pull the unlocking handle at the back of the heating element to unlock the

heating element.

Removing the Heating Module

3) Pull the heating module up out of the guide.

Operating Instructions Moisture Analyzer MA160

Care and Maintenance

4) Clean the heating element and temperature sensor with a weak solvent such as

ethanol.

5) If necessary, pull the air extractor grate out of the heating module. Then clean

the heating module and grate in a dishwasher.

6) Once cleaning is complete, reassemble the heating module and reinstall in the analyzer, following the instructions in reverse order. The heating module must snap into place on the analyzer.

Cleaning the Bottom of the Sample Chamber

Danger of Burns:

Parts of the sample chamber may be extremely hot. Wait until the bottom of the sample chamber has cooled completely.

Removing the Sample Chamber Bottom

1) Unlock the “Locking socket (bayonet)” as in general view with a suitable coin.

Operating Instructions Moisture Analyzer MA160

Care and Maintenance

2) Remove the “Locking socket (bayonet)” as in general view and sample chamber bottom from the analyzer and clean in a dishwasher.

3) After cleaning, fix the sample chamber bottom into place again on the analyzer using the “Locking socket (bayonet)” as in general view.

Operating Instructions Moisture Analyzer MA160

Disposal

The packaging is made of environmentally friendly materials that can be used as secondary raw materials. If you no longer require the packaging, you can dispose of it free of charge in Germany through the VfW dual system (contract number D-59101-2009-1129). Otherwise you should dispose of the material in accordance with the waste disposal regulations that are applicable in your area. The equipment, including accessories and batteries, does not belong in your regular household waste. The EU legislation requires its Member States to collect electrical and electronic equipment and dispose of it separately from other unsorted municipal waste with the aim of recycling it. For more information regarding disposal and recycling, please contact our local service representatives. Our partners listed on the following website will also be able to provide assistance within the EU:

1) Go to http://www.sartorius.com/de.

2) Select the “Service” menu item.

3) Then select “Information on Disposal.”

4) Addresses for the local Sartorius disposal contacts can be found in the PDF files available for download on this page.

Sartorius will not take back equipment contaminated with hazardous materials

(ABC contamination) – either for repair or disposal.

Service Address Disposal:

Please refer to our website (www.sartorius.com) or contact the Sartorius Service Center for more detailed information regarding repair service addresses or the disposal of your device.

Operating Instructions Moisture Analyzer MA160

Specifications

Dryer Functions MA160-1

Temperature range and settings 40°C–160°C, in increments of 1°C; stand-by temperature selectable from 40–100°C

Sample heating

Heating programs Standard drying, gentle drying Switch-off criterion Optional:

Displayed result Moisture in %M and g; dry weight in %S and g; ATRO in %M/S Memory capacity for methods 100 Net weight, approx. 6.3 kg

Weighing Functions

Infrared heating using AURI heater, 600 W

– Fully automatic – Semi-automatic mg (1–50 mg/5–300 s) – Semi-automatic % (0.1–5.0%/5–300 s) – Time (2:00–99.59 min.) – Manual

Max. weighing capacity 200 g Repeatability, average For initial sample weight approx. > 1 g: ± 0.2%; for initial sample weight of approx. > 5 g: ± 0.05% Readability 1 mg; 0.01% Typical sample quantity 5–15 g External adjustment weight

(min. accuracy class)

Disposable sample pan dimensions d 90 mm Interface Mini USB: Automatic detection of Sartorius printers YDP30 and YDP40,

SD card Type: SD and SDHC, capacity: up to 32 GB, file system: FAT32

Power Supply

Input supply voltage

Protection class and standards

Power supply Using country-specific power cable from Sartorius only Power consumption Max. 640 W (typically)

Ambient Conditions

The specifications are valid for the following ambient conditions: Environment For indoor use only Ambient temperature +10°C to +30°C Operating temperature Operation guaranteed between +5°C and +40°C Storage and shipping -10°C to +60°C Height Up to 3000 m above sea level Relative humidity 15% to 80% for temperatures up to 31°C non-condensing,

Safety of Electrical Equipment

Electromagnetic Compatibility

Defined immunity to interference: Suitable for use in industrial areas Limitation of emissions: Class B [suitable for use in residential areas and areas that are connected to a low voltage network

100 g (E2)

direct data transfer to Microsoft

100–120 V AC and 210–240 V AC (automatic voltage detection), ±10%, 50/60 Hz Protection class I as per EN 61010-1/IEC 61010-1; up to 3000 m above sea level;

IP20 as per EN

decreasing linearly up to 50% relative humidity at 40°C and 20% at 50°C As per EN 61010-1/IEC 61010-1

Safety requirements for electrical equipment for measurement, control, and laboratory use — Part 1: General requirements

As per EN 61326-1/IEC 61326-1 Electrical equipment for measurement, control, and laboratory use — EMC requirements — Part 1: General requirements

that (also) supplies residential buildings]. Therefore, the analyzer can be used in both areas.

60529/IEC 60529

Windows programs without additional software

Operating Instructions Moisture Analyzer MA160

Accessories

Item Order no. Disposable sample pans, 80 pcs., aluminum, d 90 mm 6965542 Glass-fiber pad for analysis of pasty and fatty samples,

hard quality, 80 pcs., d 90 mm Glass-fiber pad for analysis of liquid and fatty samples,

soft quality, 200 pcs., d 90 mm ReproEasy pads for the performance test, 10 pcs. to verify

the repeatability of the analyzer External adjustment weight:

– 100 g, OIML class E2, with DKD certificate

Printers and Communication Premium GLP lab printer

– Printer paper for GLP lab printer paper – Continuous labels for GLP lab printer

Data cable for Mini USB/USB A YCC04-D09 Data cable for Mini USB/9-pin RS-232 YCC03-D09

Spare Parts Protective cover for the control panel Upon request Sample tongs Upon request

6906940

6906941

YHP01MA

YCW512-AC-02

YDP30 69Y03285 69Y03286

Operating Instructions Moisture Analyzer MA160

Analyzer Dimensions

MA160

All dimensions are given in millimeters

Analyzer Dimensions

Operating Instructions Moisture Analyzer MA160

Declaration of Conformity

Operating Instructions Moisture Analyzer MA160

Certificate of Compliance

Operating Instructions Moisture Analyzer MA160

Certificate of Compliance

Operating Instructions Moisture Analyzer MA160

Certificate of Compliance

Operating Instructions Moisture Analyzer MA160

Sartorius Lab Instruments GmbH & Co. KG Weender Landstrasse 94–108 37075 Goettingen, Germany

www.sartorius.com

Copyright by Sartorius, Goettingen, Germany. No part of this publication may be reprinted or translated in any form or by any means without prior written permission from Sartorius. All rights reserved by Sartorius in accordance with copyright law. The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

Status: August 2014, Sartorius Lab Instruments GmbH & Co. KG, Goettingen

Printed in the EU on paper bleached without chlorine. W_MA160 · KT Publication No.: WMA6069-e140801

Rice Lake MA160 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Sartorius Moisture Analyzer

Model MA160

98648-019-98

Contents

Certificate of Compliance

User Information

Safety Information

General View of the Equipment

Startup

Transporting the Analyzer

Basic Principles

Operating the Moisture Analyzer

Switching the Analyzer On and Off (Standby)

Setting the Language

Operating Concept

Menu

Entering Numbers on the Number Pad

Entering Text and Characters

Scrolling in the Display

System Settings (Setup Menu)

Opening the Menu and Changing the Settings

List of Available Settings

Moisture Analysis

Viewing and Changing Method Parameters

Performing the Moisture Analysis

Creating and Managing Methods

Starting the Performance Test

Performance Test Measurement Not Successfully Completed

Performance Test Successfully Completed

Calibration and Adjustment

Weighing

ISO/GLP-compliant Printout

USB Interface

Communication with Peripheral Devices

Interface Specification

Error Messages

Shipping the Analyzer

Care and Maintenance

Disposal

Specifications

Accessories

Analyzer Dimensions

Declaration of Conformity
