Page 1

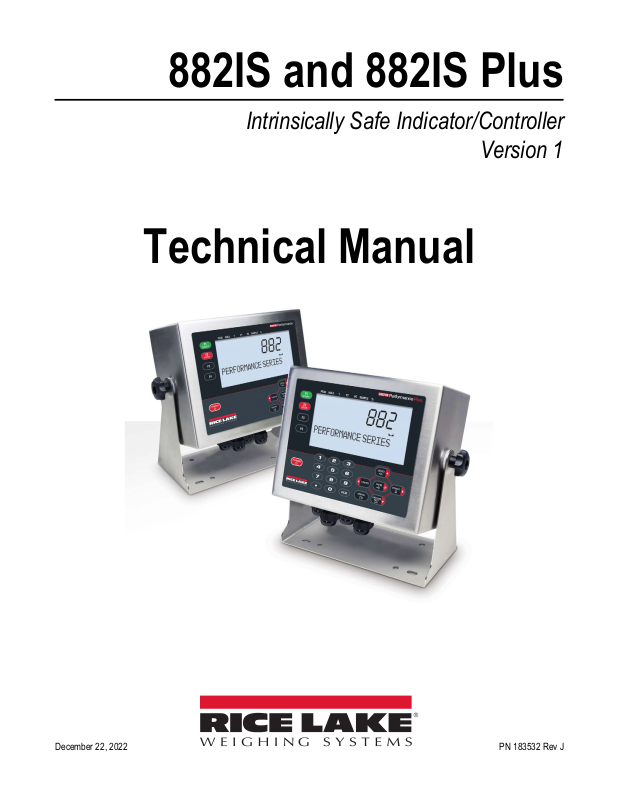

882IS and 882IS Plus

Intrinsically Safe Indicator/Controller

Version 1

Technical Manual

PN 183532 Rev JDecember 22, 2022

Page 2

Rice Lake Weighing Systems

is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete and

accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make

changes to the technology, features, specifications and design of the equipment without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Page 3

Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.

Revision History

This section tracks and describes the manual revisions for awareness of major updates.

Revision Date Description

– June 7, 2019 Initial manual release with the launch of the product; firmware version 1.0

I February 17, 2022 Revision history established after Rev I

J December 22, 2022 Updates made to clarify power saving modes and the 30-second sleep timer; cord grip specifications and

UKCA declaration of conformity added

Table i. Revision Letter History

Revision History

Page 4

882IS/882IS Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

Contents

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.3 FCC Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.4 FM Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.5 Hazardous Location Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.6 Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.7 Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.8 General Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.8.1 Edit Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.8.2 Alphanumeric Entry Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9 Indicator Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9.1 Toggle Gross/Net Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9.2 Toggle Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9.3 Zero Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9.4 Acquire Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.9.5 Remove Tare Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.9.6 Preset Tare (Keyed Tare) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.9.7 Print Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.9.8 Front Panel User Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.9.9 Displaying Audit Trail Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.9.10 Display Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.9.11 Clear the Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.9.12 Display Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.2 Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.3 Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.3.1 Backplate Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.4 Cable Connections on the 882IS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.4.1 Cord Grip Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.4.2 Power Supply to Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.4.3 AC Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.4.4 Battery Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.4.5 Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.4.6 Cable Shield Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.4.7 CPU Board Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.4.8 Serial Communications – Port 1 (COM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.5 CPU Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.6 Audit Trail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2.7 Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2.8 Backplate Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2.9 Legal for Trade Sealing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.10 IO Module Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.11 Rechargeable Battery Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.12 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4 Visit our website www.RiceLake.com

Page 5

Contents

3.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.1 Configuration Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.2 User Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.2.1 Audit Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.2.2 User ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.2.3 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.2.4 Scale Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.2.5 Scale Format Menu - if Split = Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.2.6 Scale Format Menu - if split = 2 RNG, 3 RNG, 2 INTVL, 3 INTVL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.2.7 Calibration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.2.8 Features Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.2.9 Region Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.2.10 Region - Regulation - Indust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3.2.11 Keylock Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3.2.12 Setup Ports Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3.2.13 Ports - Serial Ports Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3.2.14 Ports - Fiber Optics Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3.2.15 Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

3.2.16 Digital Inputs Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3.2.17 IO Module Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

3.2.18 Power Savings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.2.19 Version Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.3 Test Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.4 Time and Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.5 Accumulator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.6 Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4.1.1 Five-Point Linearization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.1.2 Rezero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.2 Last Zero. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.3 Temporary Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.4 Adjusting Final Calibration (Trimming) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.5 Gravity Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.6 EDP Command Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.7 Revolution® Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

5.0 Using Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

5.1 Communication With the Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

5.2 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5.2.1 New Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5.2.2 Open an Existing Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5.2.3 Saving a Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5.3 Revolution Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

6.0 EDP Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6.1 The EDP Command Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6.1.1 Key Press Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6.1.2 Reporting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

6.1.3 The RESETCONFIGURATION Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Page 6

882IS/882IS Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

6.1.4 Parameter Setting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

6.1.5 Scales Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

6.1.6 Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

6.1.7 Calibration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

6.1.8 Ports COM Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.1.9 Stream Tokens Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.1.10 Feature Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.1.11 Regulatory Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.12 Passwords Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.13 Keypad Lock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.14 Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.15 Digital I/O Configuration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

6.1.16 Weigh Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

6.1.17 Power Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

6.1.18 Setup Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

6.1.19 Analog Output Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

6.1.20 Analog Output Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

6.1.21 Test Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

7.0 Print Formatting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

7.1 Print Formatting Tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

7.2 Default Print Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7.3 Customizing Print Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7.3.1 Using the EDP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7.3.2 Using the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

7.3.3 Using Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

8.0 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

8.1 Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.2 Software Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.3 Connect the Fiber-Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.4 920i iRite Software Setup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.5 920i Setup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.6 882IS/882IS Plus Setup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.7 Setpoint Configuration Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.8 Setpoint Batching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.9 920i Batch Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.0 IO Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.1 IO Module Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.1.1 AC Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.1.2 RS-232/RS-422 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.2 USB Device Communications – Port 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.3 Ethernet Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.4 Updating IO Module Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

10.0 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

10.1 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

10.1.1 Displayed Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

10.2 Using the HARDWARE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

10.3 ERROR Commands Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

6 Visit our website www.RiceLake.com

Page 7

Contents

10.4 Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

10.5 TARE and ZERO Key Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

10.6 Data Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

10.6.1 Stream Serial Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

10.6.2 Print Output Serial Data Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

10.7 Custom Stream Formatting – Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

10.8 Stream Formatting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

10.8.1 Toledo 8142 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

10.8.2 Cardinal 738 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

10.8.3 Weightronix WI 120 Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

10.9 ASCII Character Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

10.10 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.10.1 Sample Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.10.2 Digital Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.11 Updating the 882IS/882IS Plus CPU Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.12 Analog Output Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

11.0 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

12.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Page 8

882IS/882IS Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

8 Visit our website www.RiceLake.com

Page 9

Introduction

1.0 Introduction

This manual provides information on installation, configuration, calibration and servicing of the 882IS and 882IS Plus indicator. The installer should be familiar with requirements for installation of equipment in hazardous areas. Refer to the 882IS/882IS Plus Conditions of Use document (PN 191698) for the intrinsic safety certification and classification, specific conditions of use and system limitations and restrictions for the 882IS/882IS Plus.

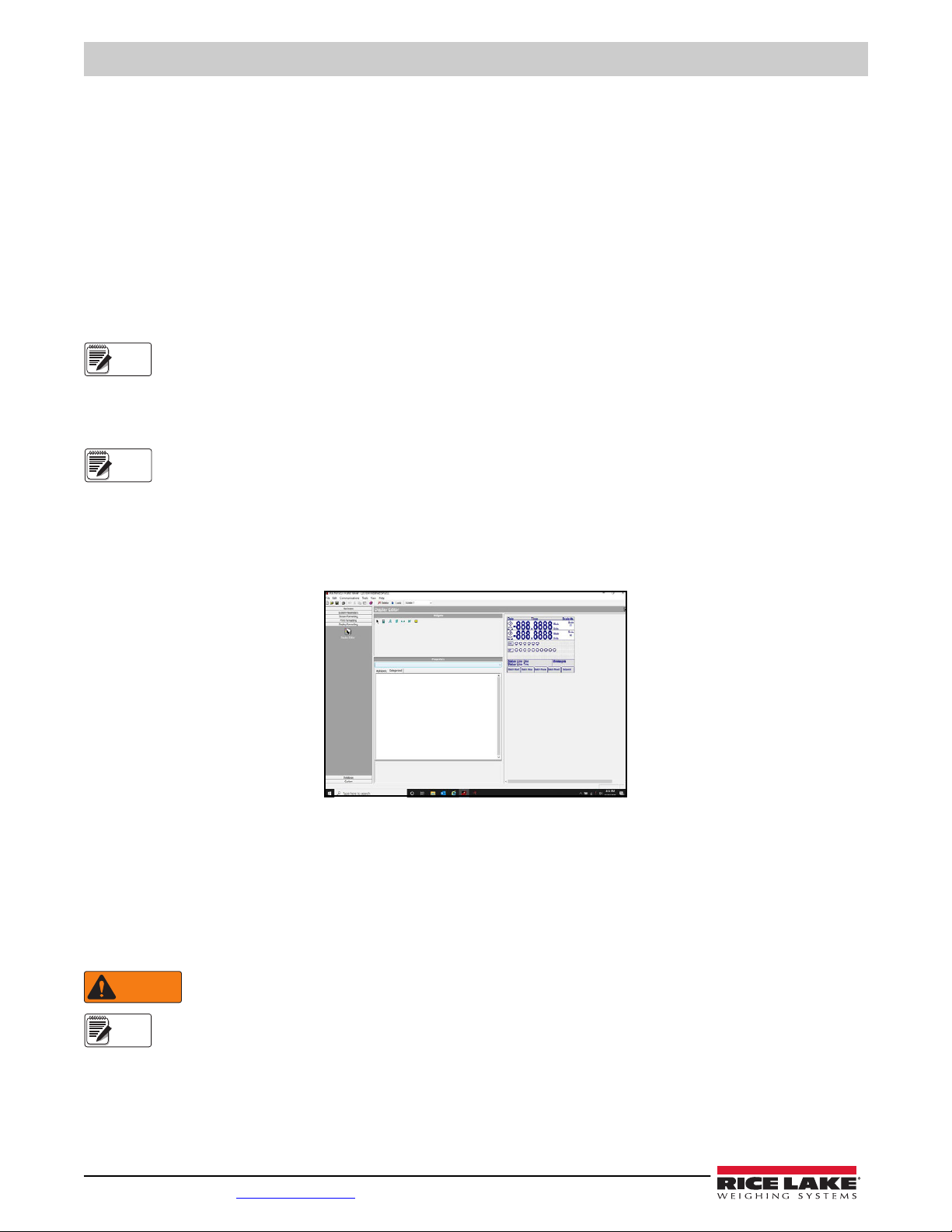

Configuration and calibration of the indicator can be accomplished using the indicator front panel keys, the EDP command set or Revolution

configuration utility. See Section 3.0 on page 29 for information about configuration methods.

Manuals and additional resources are available from the Rice Lake Weighing Systems website at Warranty information can be found on the website at www.ricelake.com/warranties

1.1 Options

Options and accessories are listed below.

Part No. Description

180831 Battery option, IS6V2 194191 Battery charger, IS6V2, 100-240 VAC NEMA 5-15 (NA plug) 194189 Battery charger, IS6V2, 100-240 VAC (EU plug) 194192 Battery charger, IS6V2, 100-240 VAC (UK plug) 197591 Battery charger, IS6V2, 100-240 VAC (Australian Plug) 180837 Power supply, 882IS mb-EPS-100-240-X2, dual output 6.8

VDC 200 mA

195109 Power supply, 882IS mb-EPS-100-240-X2, dual output 6.8

VDC 200 mA, 1/2'' NPT-M20 179668 Cable, M12 power 22'' hazardous location (for battery version) 179669 Cable, M12 power 10' hazardous location 179670 Cable, M12 power 50' hazardous location 179671 Cable, M12 power 100' hazardous location 190979 Lockout device for M12 device 163751 Tilt stand, 882IS 179678 Tilt stand, 882IS battery option 177850 Panel mount option, gasketed non-NEMA seal

Table 1-1. Options and Accessories

www.ricelake.com

Part No. Description

177709 Module, 882 Smart I/O interface 196166 Module, 882 Smart I/O (EU power cord) 196165 Module, 882 Smart I/O (UK power cord) 196769 Option, Fiber/RS232 6x6 FRP Enclosure, Fiber Optic-232

converter, External Power Supply

196770 Option, Fiber/RS422 6x6 FRP Enclosure, Fiber-RS422

converter, External Power Supply 78026 Cable, Plastic Optical 100' includes polishing kit 78027 Cable, Plastic Optical 200' includes polishing kit

197384 Kit, polishing POF cable

Option Cards

190528 Single analog output (0-10VDC, 0-20mA, 4-20mA) 190530 882 option, EtherNet/IP 190531 882 option, DeviceNet 190532 882 option, ProfiNet 190534 882 option, Profibus 190533 882 option, Modbus TCP

Remote Indicator for Setpoint Functionality

203343 920i universal indicator, 115 VAC, no A/D, with 882IS iRite

software for setpoints

203344 920i wall mount indicator, 115 VAC, no A/D, with 882IS iRtie

software for setpoints

Table 1-2. Optional I/O Module

Page 10

882IS/882IS Plus

DANGER

WARNING

CAUTION

IMPORTANT

WARNING

1.2 Safety

Safety Signal Definitions:

Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

Indicates information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data.

General Safety

Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

Failure to heed could result in serious injury or death.

Some procedures described in this manual require work inside the indicator enclosure. These procedures are to be performed by qualified service personnel only.

Do not allow minors (children) or inexperienced persons to operate this unit.

Do not operate without the enclosure completely assembled.

Do not use for purposes other than weight taking.

Do not place fingers into slots or possible pinch points.

Do not use this product if any of the components are cracked.

Do not exceed the rated specification of the unit (Section 12.0 on page 90).

Do not make alterations or modifications to the unit.

Do not remove or obscure warning labels.

Do not submerge.

1.3 FCC Compliance

United States

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.

10 Visit our website www.RiceLake.com

Page 11

Introduction

230 W. Coleman St., Rice Lake, WI 54868 USA

WARNING: POTENTIAL ELECTROSTATIC DISCHARGE HAZARD - DO NOT RUB WITH DRY CLOTH

ATTENTION: DANGER POTENTIEL DE DÉCHARGE ÉLECTROSTATIQUE – NE PAS ESSUYER AVEC UN CHIFFON SEC

Install per RLWS DWG 180948

Indicator: 882IS and 882IS Plus

Ta = -10˚C to +40˚C IP66

2809

USA: FM18US0195X

CANADA: FM18CA0092X

ATEX: FM18ATEX0047X

IEC: IECEx FMG 18.0018X

UK: FM22UKEX0061X

INTRINSICALLY SAFE Class I, II, III, Division 1, Groups ABCDEFG T4 Class I, Zone 0, AEx/Ex ia IIC T4 Ga Zone 21 AEx/Ex ib IIIC T135˚C Db

II 1 G Ex ia IIC T4 Ga II 2 D Ex ib IIIC T135˚C Db

CUS

1725

WARNING: BATTERIES MUST BE CHARGED IN A NONHAZARDOUS LOCATION ONLY

ATTENTION: LES BATTERIES DOIVENT ÊTRE CHARGÉES DANS UN ENDROIT NON DANGEREUX SEULEMENT

Install per RLWS DWG 186430

Ta = -10˚C to +40˚C

Battery: IS6V2

INTRINSICALLY SAFE Class I, II, III, Division 1, Groups ABCDEFG T4 Class I, Zone 0, AEx/Ex ia IIC T4 Ga Zone 21 AEx/Ex ib IIIC T135˚C Db

II 1 G Ex ia IIC T4 Ga II 2 D Ex ib IIIC T135˚C Db

USA: FM18US0195X

CANADA: FM18CA0092X

ATEX: FM18ATEX0047X

IEC: IECEx FMG 18.0018X

UK: FM22UKEX0061X

2809

CUS

230 W. Coleman St., Rice Lake, WI 54868 USA

1725

WARNING: NOT FOR USE IN ACIDIC ATMOSPHERES

ATTENTION: NE PAS UTILISER DANS LES ATMOSPHÈRES ACIDIQUE

Install per RLWS DWG 182301

Ta = -10˚C to +40˚C

Class I, II, III, Division 1, Groups ABCDEFG T4 with IS outputs for Class I, II, III, ABCDEFG Class I, Zone 1, AEx/Ex mb [ia Ga] IIC T4 Gb Zone 21, AEx/Ex mb [ia Da] IIIC T135˚C Db

II 2(1) G Ex mb [ia Ga] IIC T4 Gb II 2(1) D Ex mb [ia Da] IIIC T135˚C Db

Power Supply: mb-EPS-100-240-X2

USA: FM18US0195X

CANADA: FM18CA0092X

ATEX: FM18ATEX0047X

IEC: IECEx FMG 18.0018X

UK: FM22UKEX0061X

2809

CUS

230 W. Coleman St., Rice Lake, WI 54868 USA

1725

1.4 FM Approval

The 882IS/882IS Plus is a FM Entity approved for:

• Classes I, II and III

• Division 1

• Groups A, B, C, D, E, F and G

• Class I, Zone 0, AEx/EX ia IIC

• Zone 0/20

• Zone 20 AEx ia IIIC

• IP66

• T-rating T4 = 14–104°F (-10–40°C)

Only devices that have FM Entity Approval with proper entity parameters may be used unless specifically listed in this manual or control drawings (PN 77412, PN 180848 and PN 182301) as part of the Rice Lake Weighing Systems FM systems approval. Failure to comply with this voids the FM approval.

This classification of hazardous materials are different in the US and European standards, because of this, the safety class of the 882IS/882IS Plus is declared in the US standards: Class I, II, III, DIV1 and Groups A-G.

Substitution of components may impair intrinsic safety. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. Disconnect all power to this unit before installing, servicing or cleaning. Failure to do so could result in bodily harm and/or

property damage. The 882IS/882IS Plus has been certified by UL (U.S., Canada, ATEX and IECEx) with a temperature rating of 14–104°F

(-10–40°C) for use in hazardous environments where auto ignition temperature of the hazardous material is below the rating. Do not install, disconnect or perform any service on this equipment before power has been switched off or the area has been

secured as non-hazardous by personnel authorized to do so by the responsible person on-site.

1.5 Hazardous Location Labels

The following labels will be affixed to the 882IS/882IS Plus.

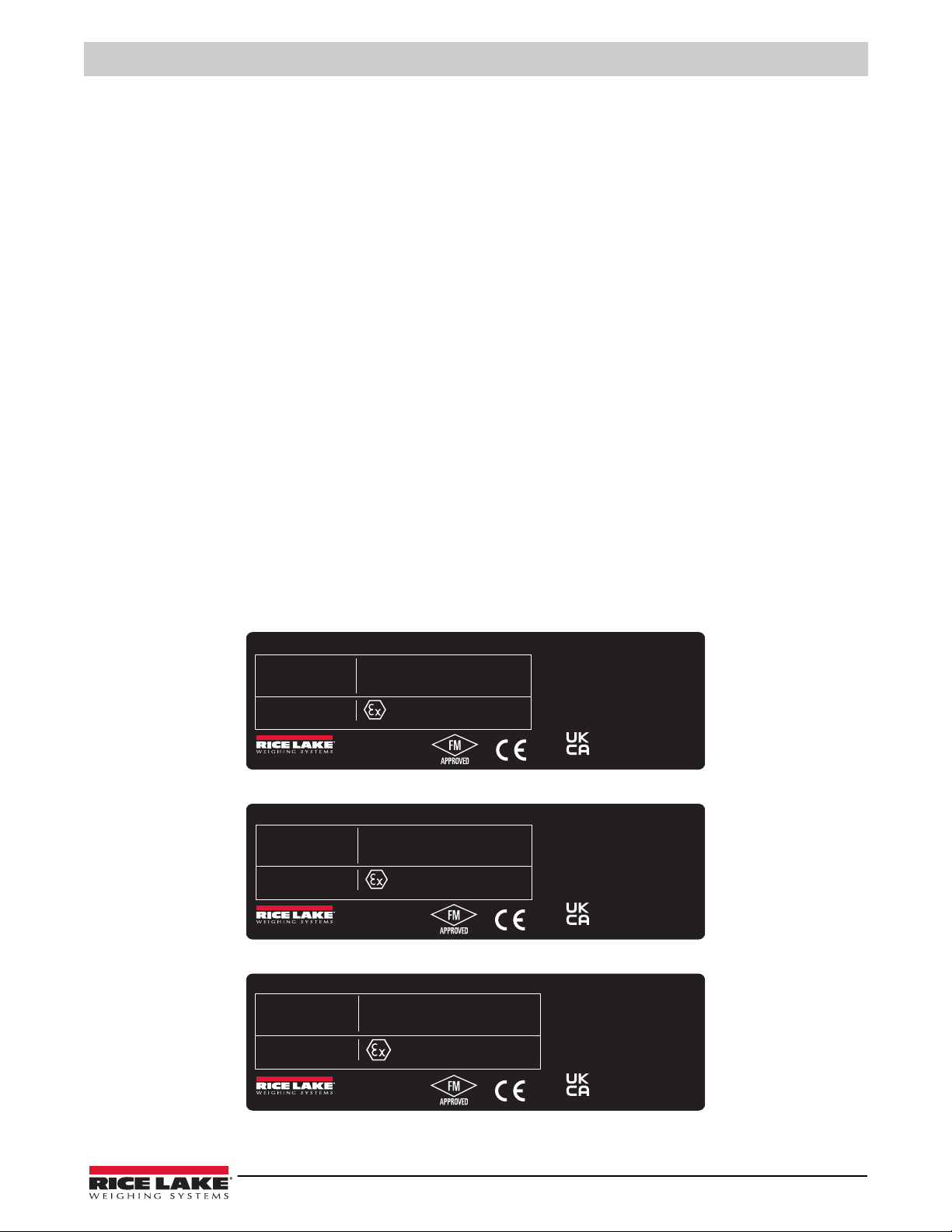

Figure 1-1. 882IS/882IS Plus Indicator Label

Figure 1-2. IS6V2 Battery Label

Figure 1-3. mb-EPS-100-240-X2 Power Supply Label

Page 12

882IS/882IS Plus

IMPORTANT

1.6 Operating Modes

The three modes of operation for the 882IS/882IS Plus are described below.

Weigh Mode

In this mode, the indicator displays gross or net weights to indicate the type of weight value displayed, and annunciators to indicate scale status.

Setup Mode

Most of the procedures described in this manual, including setup and calibration, require the indicator to be in Setup mode. To enter setup mode, remove the fillister head screw from the bottom of the enclosure. Insert a non-conductive tool into the access hole and press the setup switch once. the indicator display changes to show the word Scale.

Breaking the seal to enter the Configuration mode will void a Legal for Trade unit.

The 882IS/882IS Plus also has an Audit Trail that can track changes to setup and calibration, allowing the setup switch to be bypassed with Jumper JP4 on the CPU board. If Audit Trail is enabled, setup mode can then be accessed through the User Setup mode.

User Setup Mode

User Setup mode (accessed by pressing the ) is used to:

• View the audit trail, set time & date

• View or clear the accumulator value

• View the current tare value

• Enter Setup/Configuration mode (if audit trail is enabled)

12 Visit our website www.RiceLake.com

Page 13

Introduction

PTTHOLDPEAK PC SAMPLE %

882IS

ZERO

TARE

UNITS

GROSS

NET

B/N

POWER

START

STOP

882IS

PTTHOLDPEAK PC SAMPLE %

ZERO

TARE

UNITS

GROSS

NET

B/N

POWER

START

STOP

ZERO

GROSS

NET

B/N

POWER

START

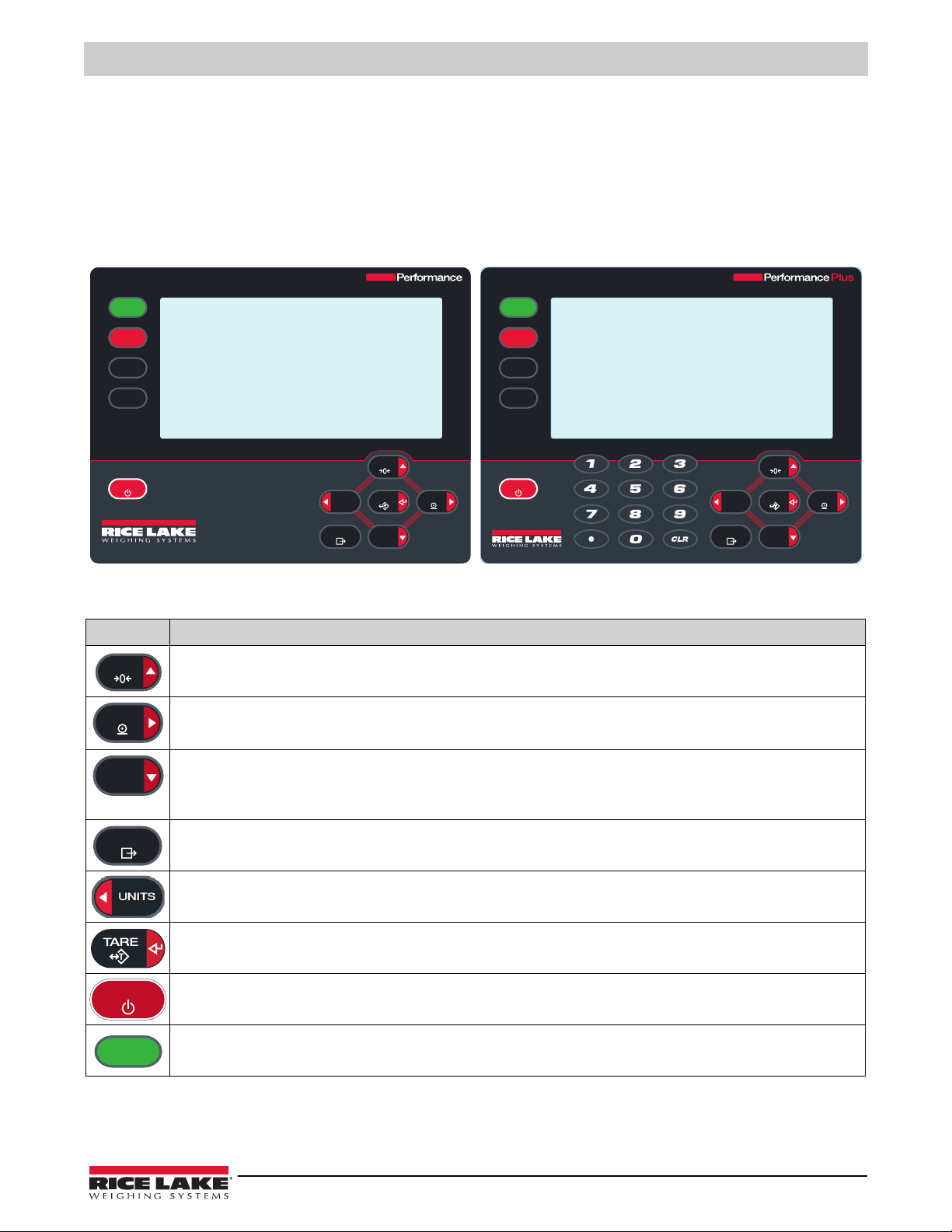

1.7 Front Panel Display

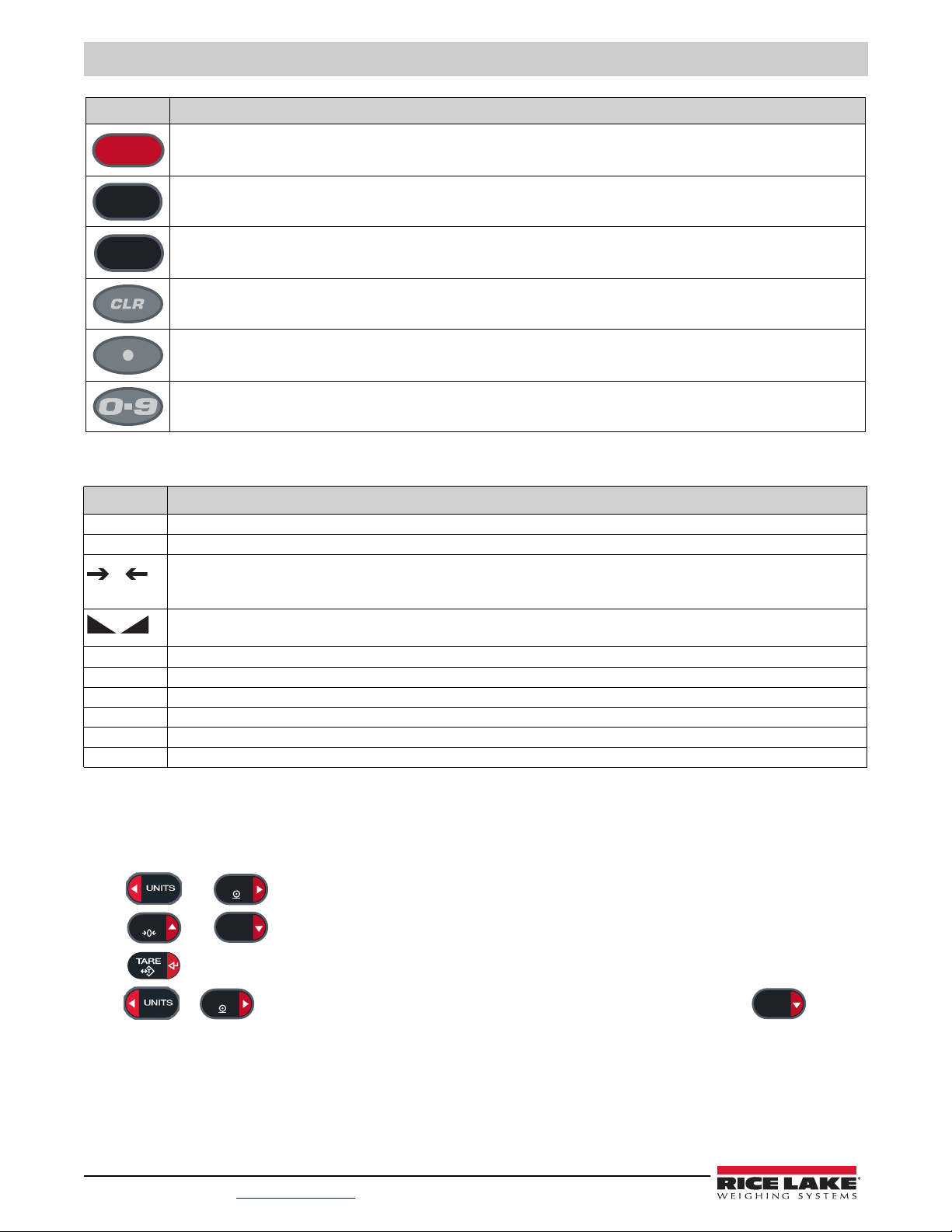

Figure 1-5 shows the iRev 4 front panel display and Table 1-3 describes the key functions.

The numeric or weight portion of the display consists of the seven-segmented LCD digits and below that, is a messaging area of the display which is the dot matrix and can display two-line non-configurable messages (ie: error messages).

The symbols on the keys in Figure 1-4 and Figure 1-5 (representing up, down, enter, left, right) describe the key functions when in Configuration/Setup mode. The keys are used to navigate through menus, select digits within numeric values, and increment/decrement values. See Section 3.2 on page 30 for information about using front panel keys in Configuration mode.

Figure 1-4. 882IS Front Panel Display Figure 1-5. 882IS Plus Front Panel Display

Key Function

The Zero key sets the current gross weight to zero; Also used as the up key to navigate menus

The Print key sends an on-demand print format out a communications port, provided the conditions for standstill are met; If enabled in configuration, Print may display while the unit prints; Also used as the right key to navigate menus or to select another digit when editing a value

The Gross/Net key toggles the weight display between Gross and Net mode; If a tare value has been entered or acquired, the net value is the gross weight minus the tare; Gross mode is shown by the Gross/Brutto annunciator; Net mode is shown by the net annunciator; Also used as the down key to navigate menus

The Menu key allows access the User Setup menu; This key also acts as the cancel key when editing parameter values, or as an exit key when in the Configuration or User Setup menus

The Units key switches the weight display to an alternate unit, defined in the format menu (Figure 3-7 on page 33); Units Available: lb, kg, oz, metric ton, ton, gram; Also used to navigate to different menus or to toggle to another digit when editing a value

The Tare key performs one of several predetermined Tare functions dependent on the mode of operation selected in the Tare Function parameter; This key also acts as the Enter key for numeric or parameter entry

The Power key turns the unit on or off; Press and hold to turn on, press momentarily to turn off

Future enhancement

Table 1-3. 882IS/882IS Plus Key Functions

Page 14

882IS/882IS Plus

STOP

ZERO

GROSS

NET

B/N

GROSS

NET

B/N

Key Function

Future enhancement

The Clear key clears the current value during a numeric entry (available in the 882IS Plus)

The Decimal Point key inserts a decimal point where necessary (available in the 882IS Plus)

The numeric keypad can be used to enter values (available in the 882IS Plus)

Table 1-3. 882IS/882IS Plus Key Functions (Continued)

Annunciator Function

Gross/Brutto Gross or Brutto weight mode Net Net weight mode

Center of Zero - Indicates that the current gross weight reading is within ± 0.25 display divisions of the acquired zero, or is within the center of zero band; A display division is a resolution of the displayed weight value, or the smallest incremental increase or decrease that can be displayed or printed

Standstill - The scale is at a standstill or within the specified motion band; Some operations including zero, tare and printing can only be

done when the standstill LCD is on Peak Hold Future enhancement T Indicates that a tare has been acquired and stored by the system PT Indicates that a preset tare weight has been keyed in or entered via the EDP command PC Future enhancement Sample Future enhancement % Future enhancement

Table 1-4. Annunciator Functions

1.8 General Navigation

The front panel keys are used to navigate through the menus in Configuration mode (Section 3.0 on page 29).

• and move left and right (horizontally) in a menu level

• and move up and down (vertically) to different menu levels

• serves as the

Press

or to scroll left or right until the desired menu group appears on the display. Press to move

down to the sub-menu or parameter to be edited. When moving through the menu parameters, the current selected value appears first on the display.

14 Visit our website www.RiceLake.com

Enter key for selecting parameter values within the menus

Page 15

Introduction

Display rst 20

characters of format

Display and edit

active character and

ASCII value

Delete active

character

Scroll right in format string.

Scroll left in format string.

Increment ASCII value of active character

Decrement ASCII value of active character.

Press to insert a space before the active character.

Press to accept the changes and return to the level above.

GROSS

NET

B/N

Note

ZERO

Note

1.8.1 Edit Parameter Values

To change a parameter value, scroll left or right to view the values for that parameter. When the desired value appears on the display, press to select the value and move back up one level. To edit numerical values, use the navigation keys to

select the digit and to increment or decrement the value. Alternatively, use the numeric keypad (882IS Plus), to enter the digits. The decimal point will begin flashing if a decimal value is allowed. Use the navigation keys, to move the decimal point left or

right. Press when done.

1.8.2 Alphanumeric Entry Procedure

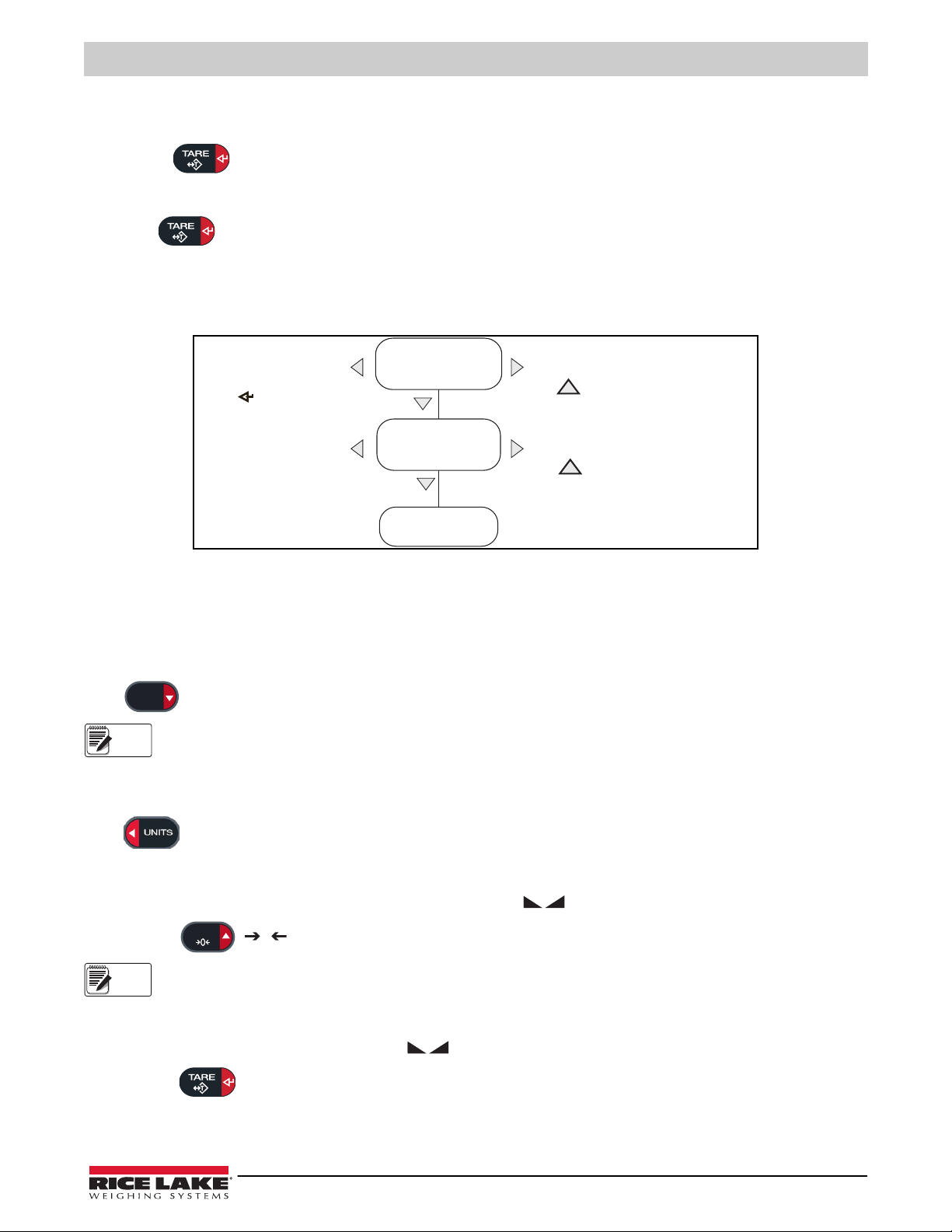

Use the following navigation path for alphanumeric entry when using the five button keypad.

Figure 1-6. Editing Procedure for Numeric Values

1.9 Indicator Operations

Basic 882IS/882IS Plus operations are summarized below.

1.9.1 Toggle Gross/Net Mode

Press to toggle the display mode between gross and net.

Net mode is available when a tare value has been entered or acquired (Net = Gross minus Tare). If a tare has not been entered or acquired, the display remains in the current mode.

1.9.2 Toggle Units

Press to switch between primary and secondary units. The current units are displayed on the LCD.

1.9.3 Zero Scale

1. In Gross mode, remove all weight from the scale and wait for to display.

2. Press . displays and indicates the scale is zeroed.

The scale must be stable and within the configured zero range for the scale to be zeroed. If the scale cannot be zeroed, No zero will display.

Gross mode. The B (Brutto), G (Gross) or NET icons on the LCD indicate

1.9.4 Acquire Tare

1. Place a container on the scale and wait for to display.

2. Press to acquire the tare weight of the container. The Net weight displays and the T annunciator displays to show the tare value is entered.

Page 16

882IS/882IS Plus

ZERO

Note

ZERO

GROSS

NET

B/N

Note

GROSS

NET

B/N

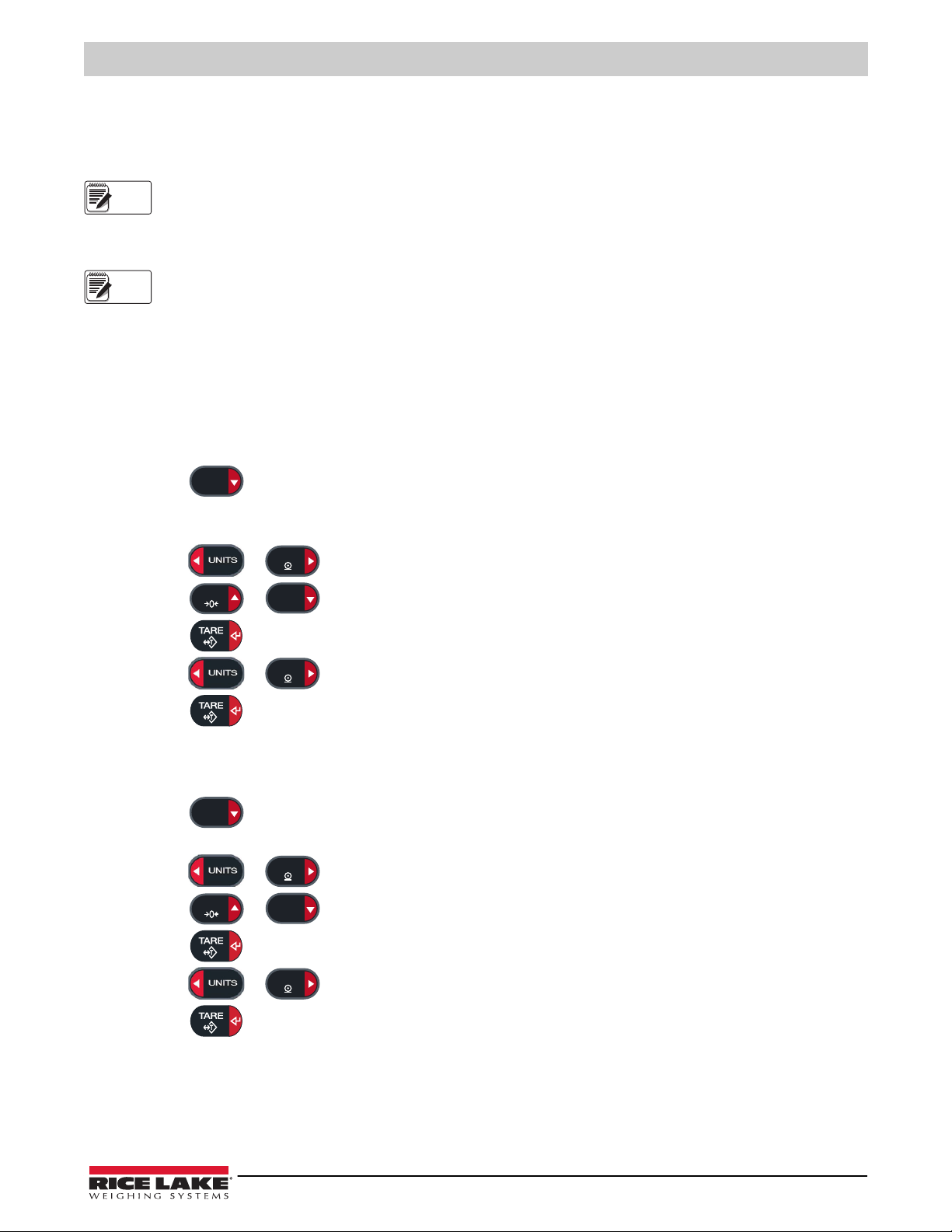

1.9.5 Remove Tare Value

1. Remove all weight from the scale and wait for . The display reads .

2. Press to zero the scale if needed.

3. Press (or in OIML mode). The display shifts to gross weight and the Gross icon is lit.

4. To clear the tare, press again.

1.9.6 Preset Tare (Keyed Tare)

If keyed tares are allowed, press to open the keyed tare prompt.

Tare mode must be set to keyed or both for the preset tare feature to function.

1. With scale empty and zero weight displayed, press . One flashing 0 displays with the focused digit flashing.

2. Key in the value using the keypad on the 882IS Plus (Section 1.9 on page 15).

• Press or to select the digit

• Press or to increment or decrement the value

• Press to move to the decimal point entry

• Press or to adjust the decimal point placement

• Press when the value is correct

The display will change to the Net mode and PT lights to show the preset tare was entered.

Entering a keyed tare of zero will remove the stored tare value.

1.9.7 Print Ticket

1. Wait for to light.

2. Press to send data to the configured communications port.

1.9.8 Front Panel User Setup

Press to enter User Setup mode. Use User Setup mode to:

• View audit trail information

• Enter Configuration mode if audit trail is enabled

• View or clear the accumulator

• View the current tare value

• Time and date

• Test menu

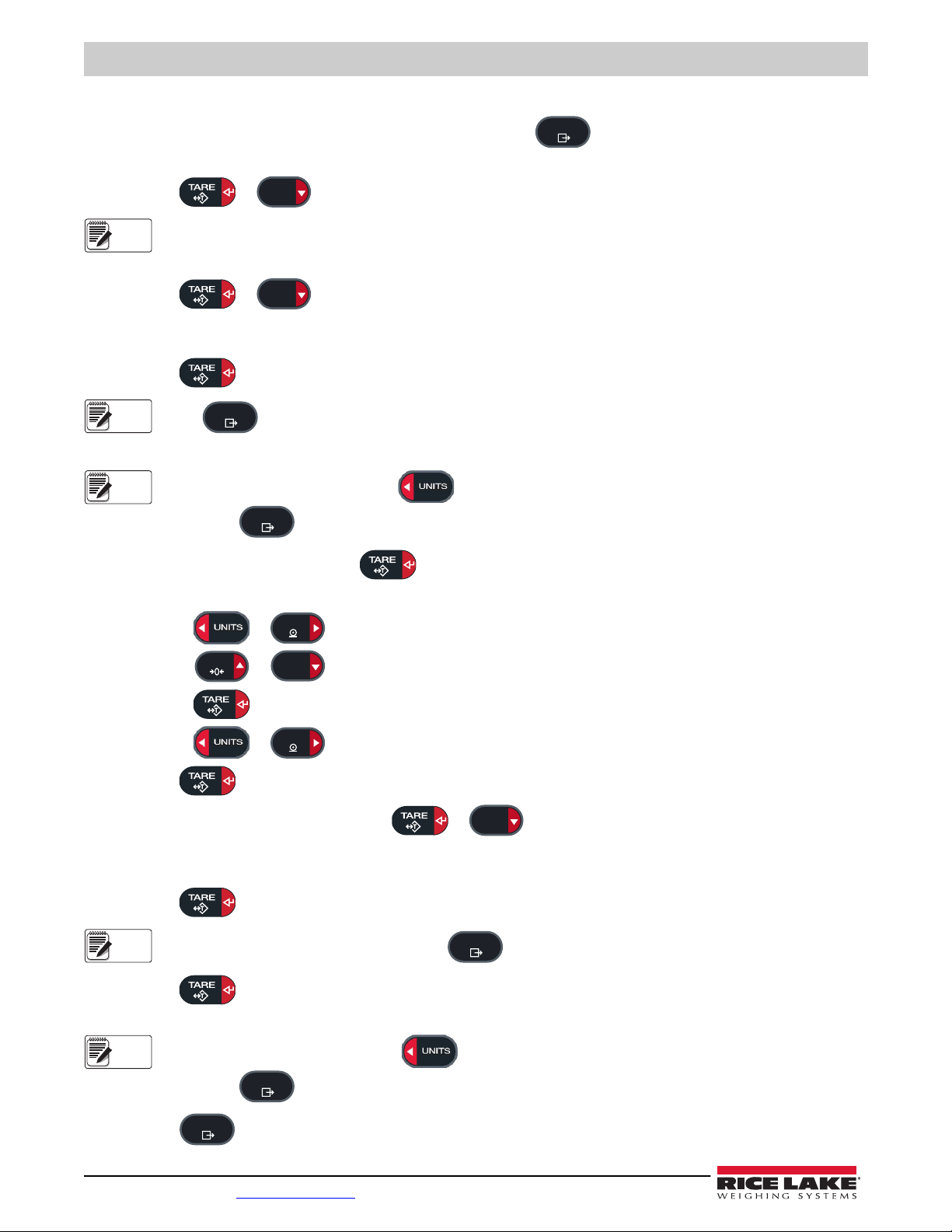

1.9.9 Displaying Audit Trail Information

The Audit Trail Configuration and Calibration counters can be viewed in User Setup mode.

1. Press . Audit displays.

2. Press to display the Legally Relevant Firmware version.

3. Press to display Calibration.

16 Visit our website www.RiceLake.com

Page 17

Introduction

GROSS

NET

B/N

GROSS

NET

B/N

Note

GROSS

NET

B/N

GROSS

NET

B/N

GROSS

NET

B/N

GROSS

NET

B/N

GROSS

NET

B/N

Note

4. Press to view the Calibration Counter.

5. Press to return to Calibration.

6. Press to display Configuration.

7. Press to view the Configuration Counter.

8. Press to return to Configuration.

9. Press to return to the Weigh mode.

1.9.10 Display Accumulator

Enable the accumulator before use in Weigh mode. Once enabled, weight (net weight if a tare is in the system) is accumulated whenever a print operation is performed using the below the threshold value before the next accumulation.

1. Press to enter the User Setup mode, Audit displays.

2. Press or until Accumulator displays.

Print key, digital input, or KPRINT EDP command. The scale must return to

Accumulator

is only displayed if the accumulator is enabled (Section 3.2.4 on page 31). The Print operation only performs one accumulation, and only if the weight is above the accumulator threshold. Weight must return to below the accumulator threshold value before another accumulation is allowed. The EDP command SC.THRESH#n is configured in the setup menu (Section 3.2.4 on page 31).

3. Press . View displays.

4. Press to view the current accumulator value.

5. While the accumulator value displays, press to print the value.

6. Press to return to the Weigh mode.

1.9.11 Clear the Accumulator

1. Press to enter the User Setup mode. Audit displays.

2. Press or until Accumulator displays.

3. Press , then press or until Clear Accumulator displays.

4. Press to clear the accumulator. Clear will display briefly and display returns to Clear Accumulator.

5. Press to return to the Weigh mode.

1.9.12 Display Tare

When a tare value displays, the Gross and Net icons will be off and is lit. To display a tare:

1. Press .

2. Press to Tare and press to view the current tare value.

3. Press twice to return to Weigh mode.

If there is not a tare in the system, the value displayed is zero and the Gross and Net icons are turned off.

Page 18

882IS/882IS Plus

WARNING

IMPORTANT

2.0 Installation

This section describes procedures for connecting power, load cells, digital inputs and data communications cables to the 882IS and 882IS Plus indicator.

* Use anti-static protection for grounding and to protect components from electrostatic discharge (ESD) when

working inside the indicator enclosure. * Procedures requiring work inside the indicator must be performed by qualified service personnel only. * Disconnect the indicator from power source before opening enclosure. * Component level repair, excluding board-swapping, is not permitted on FM Approved equipment by anyone other

than the manufacturer. It is mandatory to return unit to Rice Lake Weighing Systems for repairs. * The entire indicator must be shipped back to Rice Lake Weighing Systems for repair. Please contact a local dealer or

Rice Lake Weighing Systems to obtain a return material authorization (RMA). There are no user serviceable parts

within the unit except CPU board replacement. All repairs are to be performed by qualified service personnel only.

2.1 Unpacking and Assembly

Immediately after unpacking, visually inspect the unit to ensure all components are included and undamaged. The shipping carton should contain the indicator and manual. If any parts were damaged in shipment, notify Rice Lake

Weighing Systems and the shipper immediately.

2.2 Product Dimensions

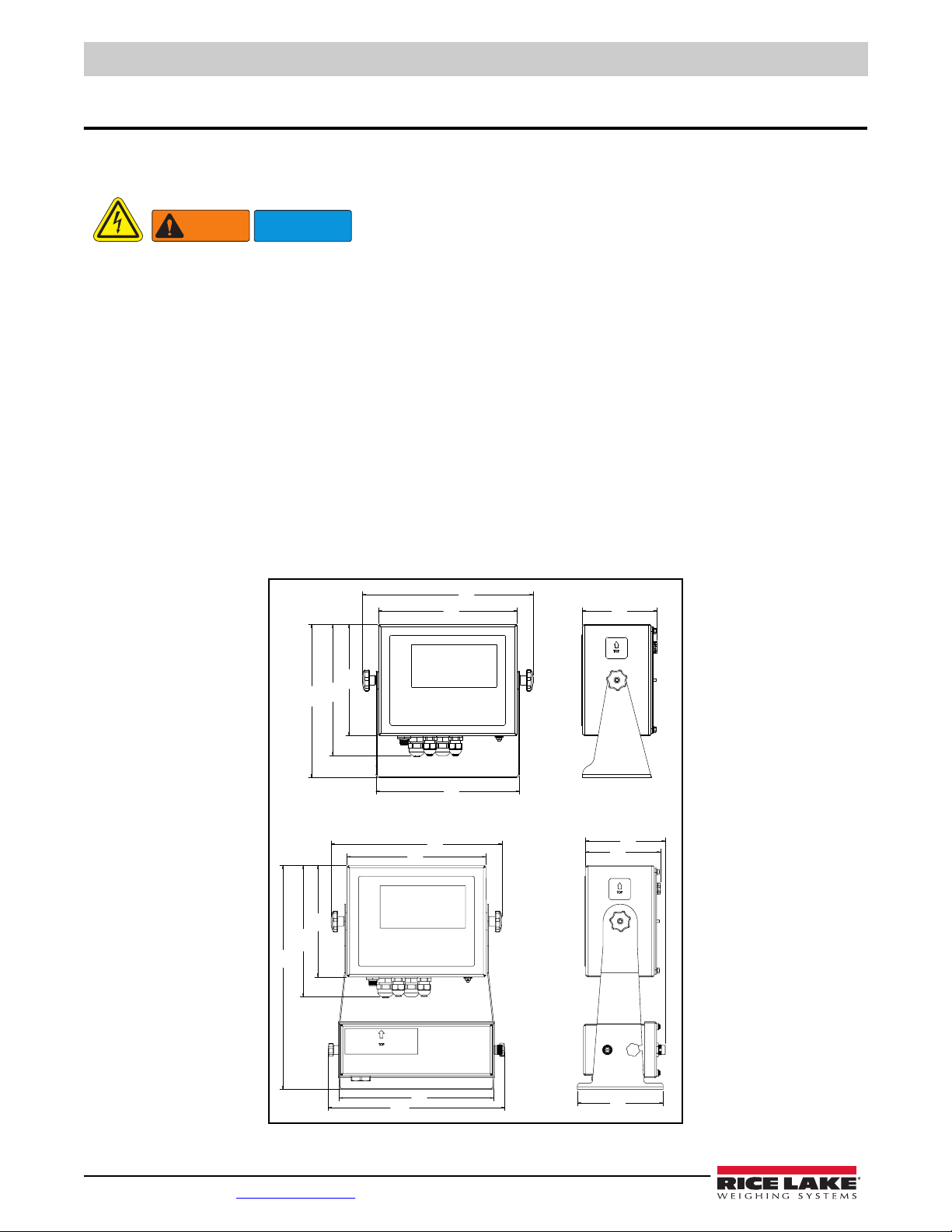

Figure 2-1. Product Dimensions (Universal and Optional Battery Versions Shown)

18 Visit our website www.RiceLake.com

Page 19

Installation

Dimensions Without Battery

A 8.94'' (227.1 mm) B 7.66'' (194.6 mm) C 6.50'' (165.1 mm) D 8.10'' (205.7 mm) E 9.96'' (253 mm) F 4.36'' (110.7 mm) G 8.37'' (212.6 mm)

Dimensions with Optional Battery and Tilt Stand

H 4.64'' (117.9 mm)

I 5.00'' (127 mm) J 9.03'' (229.4 mm) K 10.29'' (261.4 mm) L 13.06'' (331.7 mm)

Table 2-1. Product Dimensions

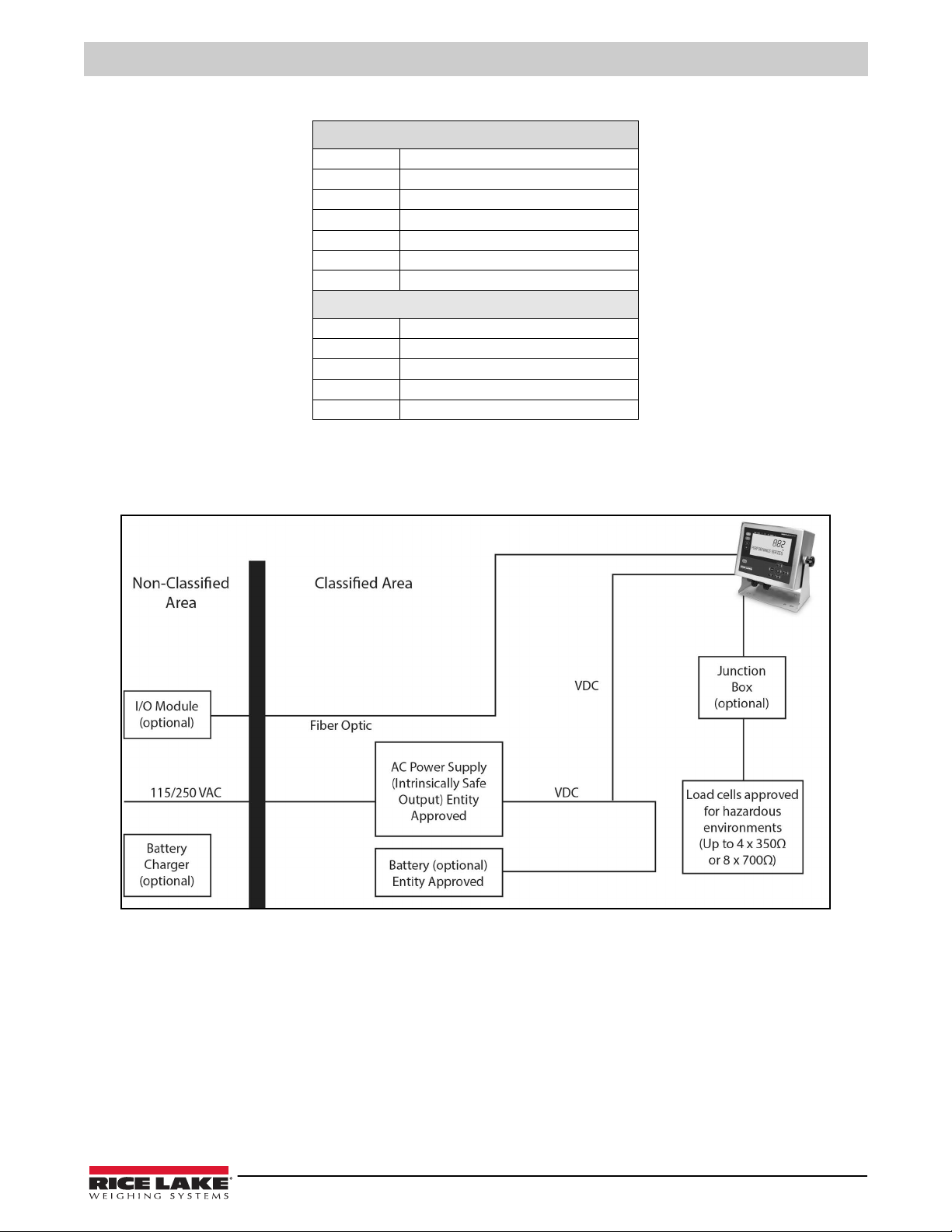

The following information is provided to help the installer with the correct installation of the 882IS/882IS Plus system. See the following diagram of a typical intrinsically safe system.

Figure 2-2. Intrinsically Safe System Diagram Example

Page 20

882IS/882IS Plus

Note

WARNING

2.3 Mounting Instructions

The 882IS/882IS Plus includes a universal mount. The universal mount can be mounted on a wall, tabletop or any flat surface.

The universal mount comes attached to the unit. Rice Lake Weighing Systems recommends removing the 882IS/882IS Plus from the universal mount prior to mounting.

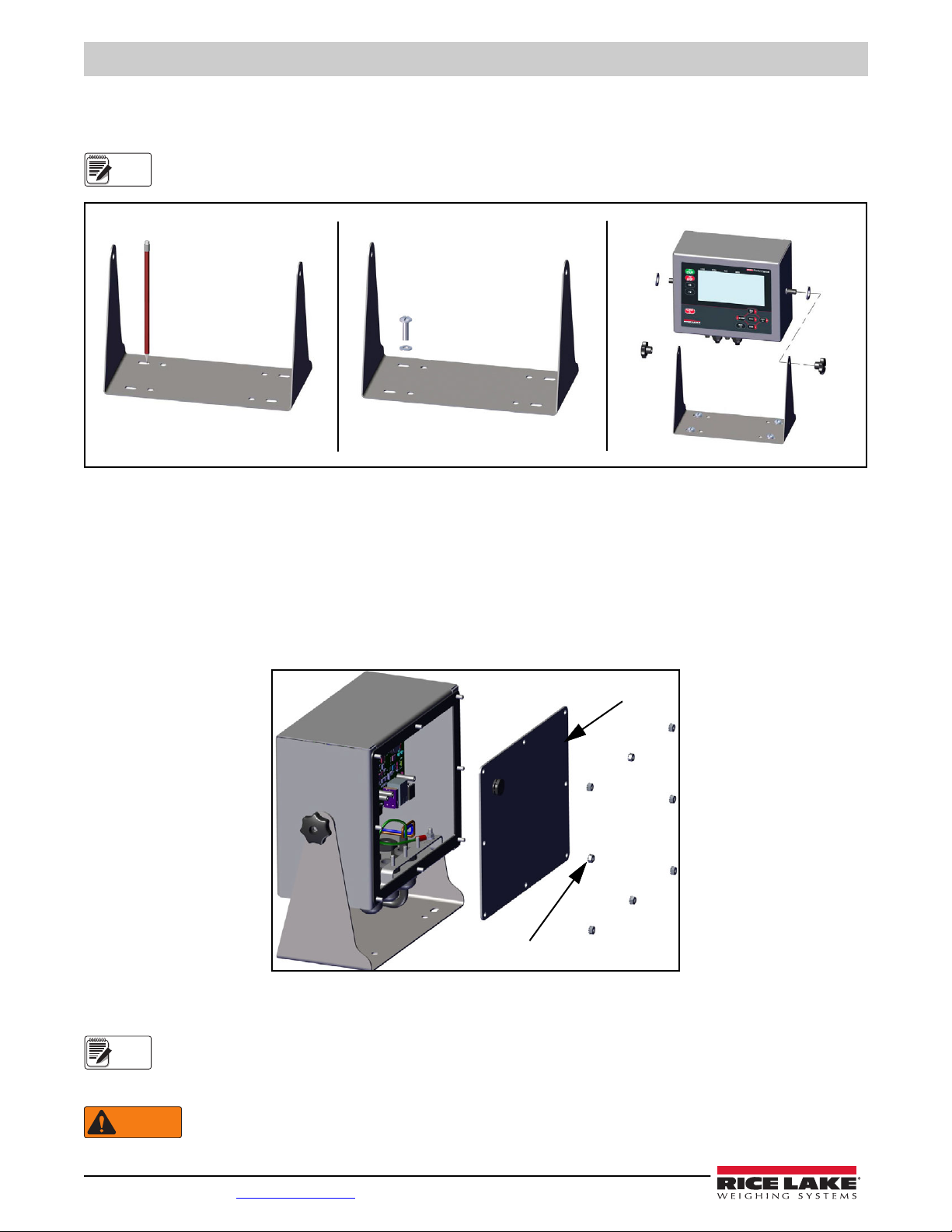

Figure 2-3. Mounting the 882IS/882IS Plus

1. Using the mount as a template, mark the screw locations.

2. Drill holes for the screws.

3. Secure the universal mount using the appropriate length 1/4'' or M6 hardware (not included).

4. Reattach the 882IS to the universal mount.

2.3.1 Backplate Removal

Remove the backplate of the universal mount assembly to gain access to the inside of the enclosure and CPU board.

Backplate

Backplate Nuts (8)

Figure 2-4. Remove Enclosure Backplate

1. Remove the nuts that attach the backplate to the enclosure.

The unit ships with Backplate Nut (4) installed.

2. Remove the backplate.

Disconnect power to the indicator prior to removing the backplate.

20 Visit our website www.RiceLake.com

Page 21

Installation

WARNING

Note

2.4 Cable Connections on the 882IS

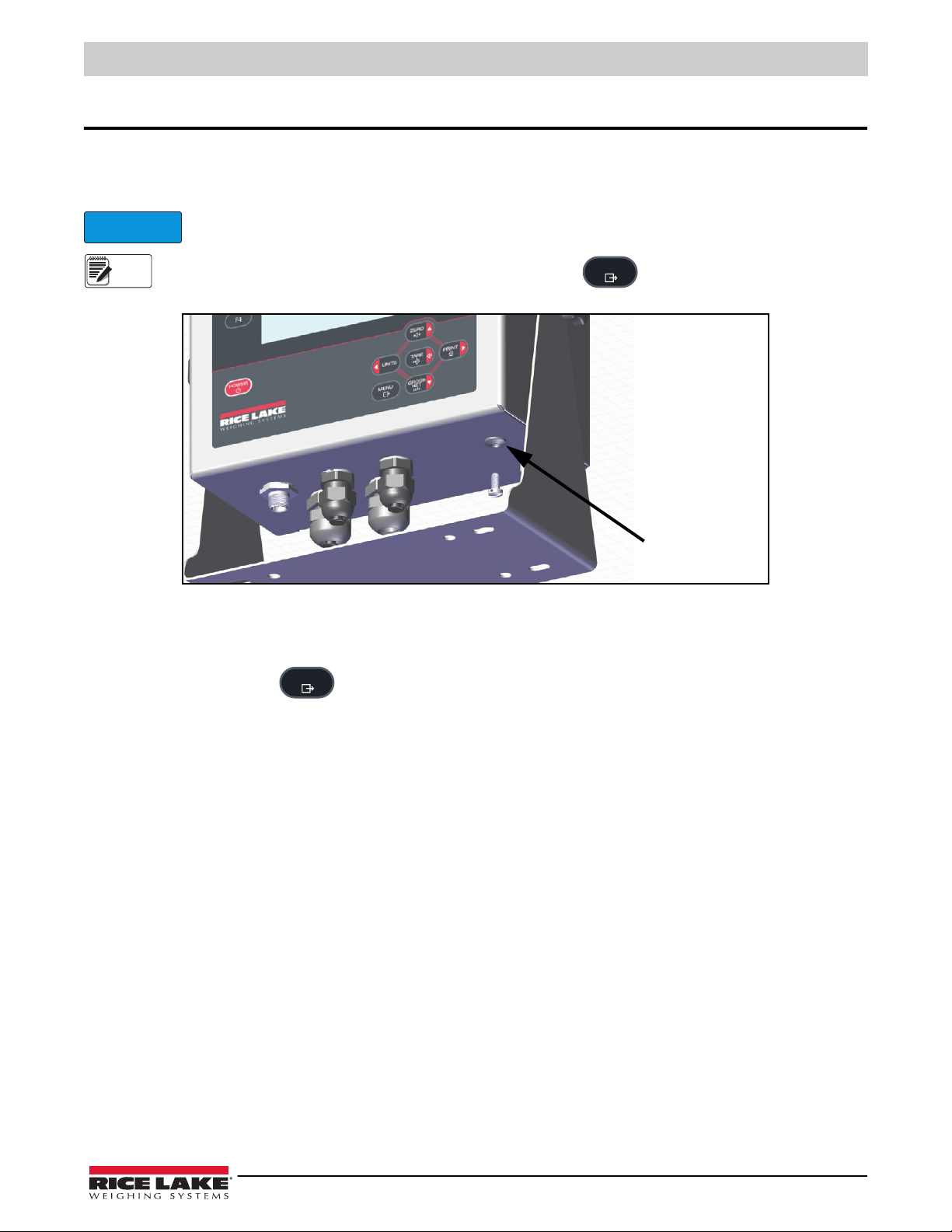

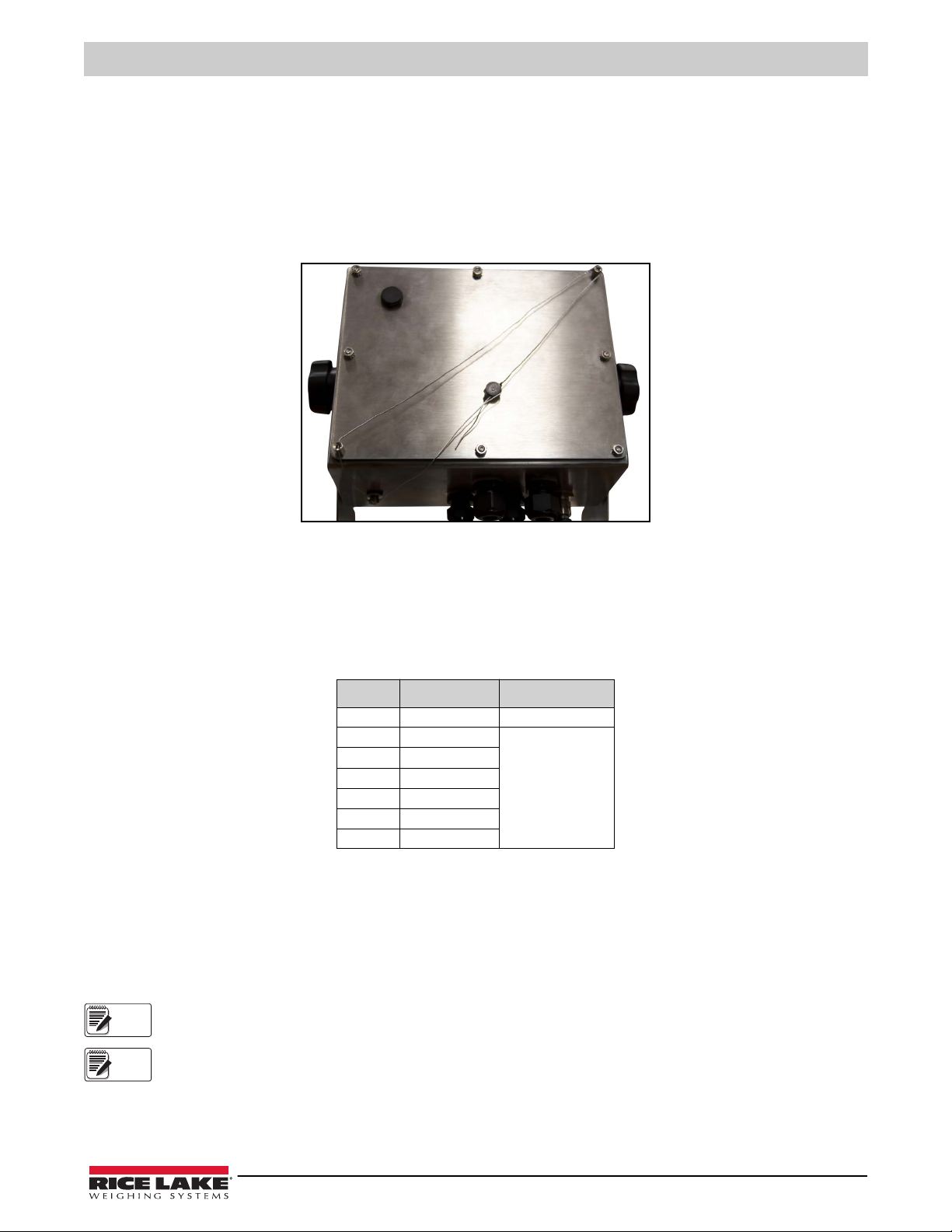

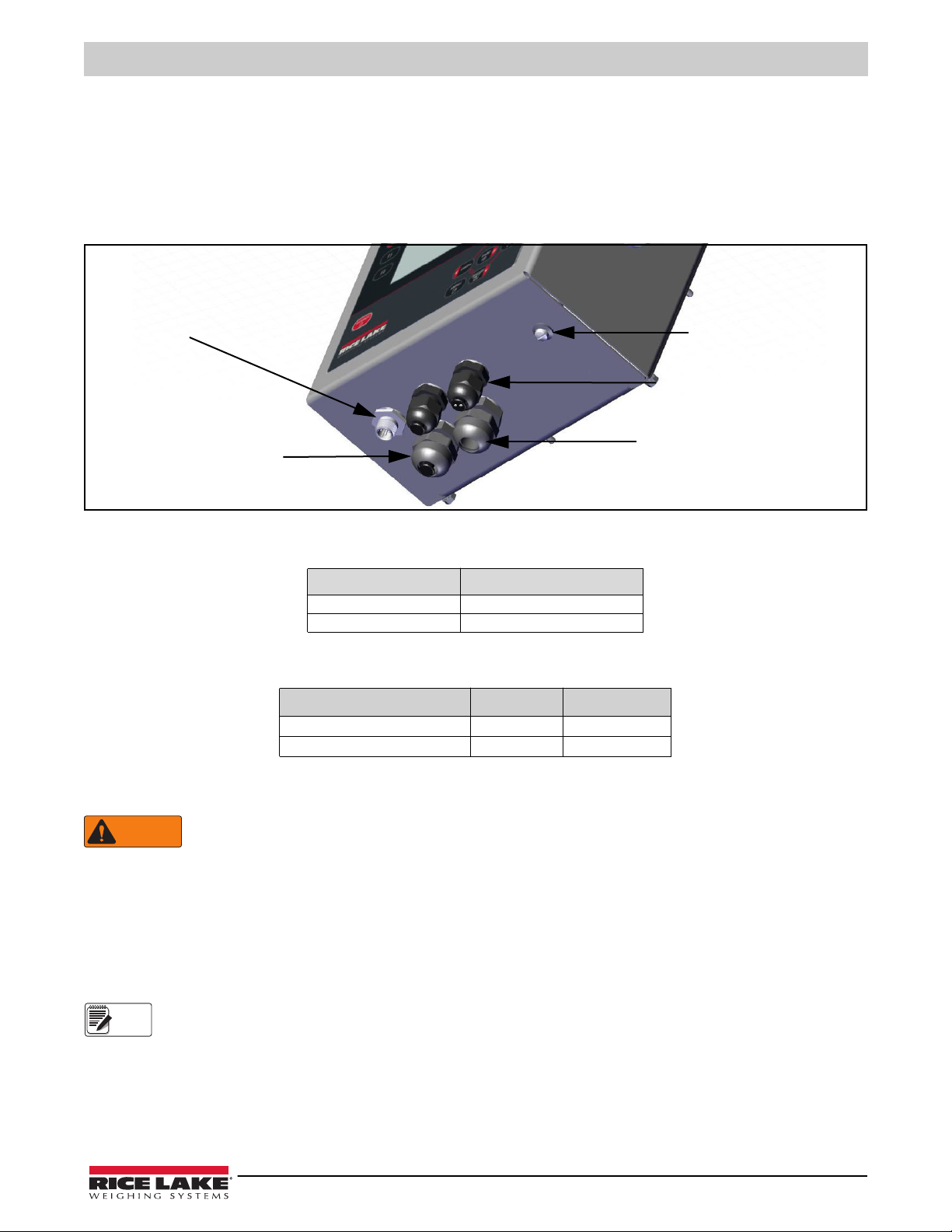

The 882IS has four cord grips at the bottom of the enclosure for cabling into the enclosure. One stainless steel cord grip is used for the power supply and other cord grips are for the load cell cable, communications and the fiber optic cable. Two of the four cord grips come with a plug installed to prevent moisture from entering the enclosure. Depending on the application, remove the plug from the cord grip that will be used and install cables as required. Figure 2-5 shows the recommended 882IS cord grip assignments.

To power supply

Communications cable cord grip

2.4.1 Cord Grip Specifications

Cord grip nut (to enclosure) 33 3.7 Cord grip dome nut (around cable) 22 2.5

Setup switch access screw

Fiber optic cord grip

Load cell cable cord grip

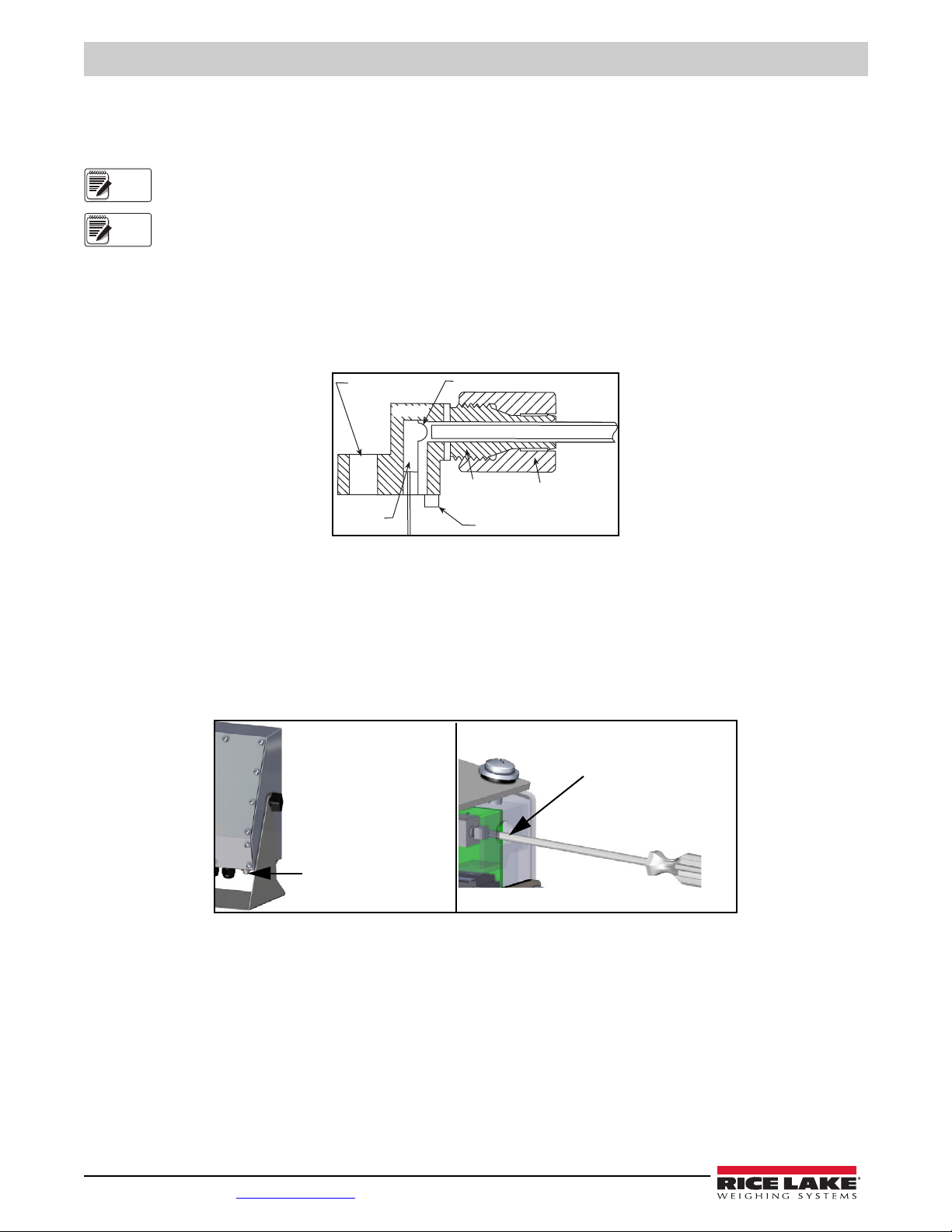

Figure 2-5. Recommended Cord Grip Assignments

Cord Grip Diameter Range

PG9 (PN 15626) 0.138 - 0.315'' (3.5 - 8 mm) PG11 (PN 68600) 0.197 - 0.394'' (5 - 10 mm)

Table 2-2. Cord Grip Diameter Ranges

Torque in-lb Nm

Table 2-3. Cord Grip Torque Values

2.4.2 Power Supply to Indicator

Do not under any circumstances, connect or disconnect the DC wire from the indicator while the AC power is applied to the power supply. This will cause the power supply fuse to blow.

The 882IS/882IS Plus must be powered by an FM-approved Rice Lake power supply or optional battery. The power requirements of the 882IS indicator are as follows:

• Minimum input voltage – 5.8 VDC

• Maximum input voltage – 7.9 VDC

• Peak current consumption – .25 W

• Average input current (with four load cells) – 100-175 mA

The DC power cable should be attached to connector J4 (Figure 2-9 on page 24).

2.4.3 AC Power Wiring

Units are powered by an FM-approved power supply. 100-240 VAC into Rice Lake Weighing Systems mb-EPS-100-240-X2 intrinsically safe power supply is recommended. See the mb-EPS-100-240-X2 Power Supply Instruction sheet (PN 194894) for information on wiring and power specifications.

Page 22

882IS/882IS Plus

Note

2.4.4 Battery Option

The optional IS6V2 battery (PN 180831) provides an intrinsically safe battery that can replace the power supply. The battery is approved for use in hazardous environments. A low battery error message displays on the 882IS to indicate that the battery needs to be recharged. A fully charged battery is one that has been charged for a minimum of 12 hours. The battery charger pilot lamp switches from amber color to off when the unit is approximately 40% charged. At that time, the charger switches over to a float charge mode.

To keep the battery at full capacity, it is recommended to leave the battery connected to the charger, in float charge mode, until ready to use. The battery can remain on the charger in float charge mode indefinitely without damaging the battery. See 882IS IS6VS Battery Instructions (PN 194893) for instructions on charging the battery.

Load Cell Size Quantity of Cells Estimated Operating Time

350 Ohm Load Cell 1 80-95 hours

4 60-80 hours

700 Ohm Load Cell 1 85-100 hours

4 70-90 hours

Table 2-4. Estimated Battery Operating Times

While connected to the DC battery pack with the indicator off, the 882IS still draws a small amount of current that will shorten battery run time. To preserve battery life, disconnect the battery when not in use.

2.4.5 Load Cells

To attach a cable from a load cell or junction box, route the cable to the J1 connector. Wire the load cell cable from the load cell or junction box to connector J1 as shown in Table 2-5. If using 6-wire load cell cable (with sense wires), open the unit (see

Section 2.3.1 on page 20) and remove jumpers JP1 and JP2.

For 4-wire installation, leave jumpers JP1 and JP2 on (Figure 2-10 on page 25).

Ensure Pins 3 and 4 are left empty for a 4-wire installation.

Connector Pin Function

J1 1 +SIG

2 –SIG 3 +SENSE 4 –SENSE 5 +EXC 6 –EXC

For 6-wire load cell connections, remove jumpers JP1 and JP2.

Table 2-5. J1 Pin Assignments

The shield wire will attach to the ground clamp on the backplate.

22 Visit our website www.RiceLake.com

Page 23

Installation

Silver

side out

Shield wire

Cut insulated jacket here for foil shielded cables

Length of foil before folding back on cable insulation

Note

2.4.6 Cable Shield Grounding

Except for the power cord, all cables routed through the cord grips must be shield grounded against the enclosure.

• Use hardware provided in the parts kit to install shielding clamps on the grounding studs at the bottom of the enclosure

• Install only the necessary amount of shielding clamps for the cord grips to be used; finger tighten nuts at this time

• Route cables through the cord grips and shielding clamps to determine the cable lengths required to reach the appropriate cable connectors

• Mark the cables to remove the insulated jackets and shielding as described in the next two sections

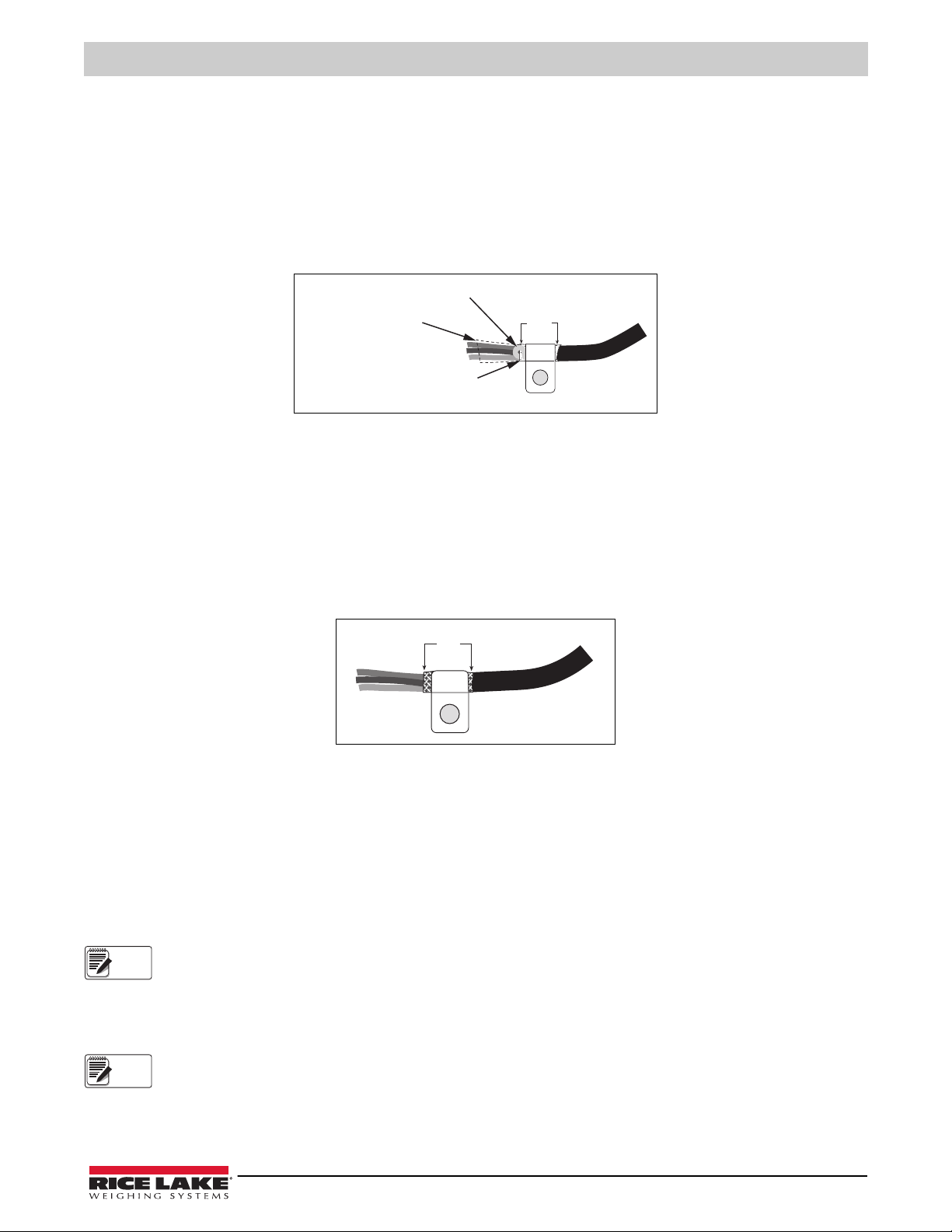

Foil Shielded Cable

Figure 2-6. Foil Shielded Cable

1. Strip the insulated jacket and foil 1/2'' (15 mm) past the shielding clamp.

2. Strip another 1/2'' of the insulated jacket, leaving the foil shielding exposed.

3. Fold the foil shielding back on the cable where the cable passes through the clamp.

4. Ensure the silver (conductive) side of the foil is turned outward.

5. Wrap the shield wire around the cable so it contacts the foil where the cable passes through the clamp.

6. Torque the shielding clamp nut to 10 in-lb (1.13 N-m) so the clamp is around the cable and contacting the shield wire.

Braid Shielded Cable

Figure 2-7. Braid Shielded Cable

1. Strip the insulated jacket and braided shielding from a point just past the shielding clamp.

2. Strip another 1/2'' (15 mm) of the insulated jacket, leaving the braid exposed where the cable passes through the clamp.

3. Tighten the shielding clamp nut.

2.4.7 CPU Board Replacement

1. Disconnect power to the indicator.

2. Remove the backplate from the enclosure (Section 2.3.1 on page 20).

Label connections for re-installation of board.

3. Disconnect cables from the CPU board.

4. Remove the four screws from the CPU board.

5. Lift the CPU board out of the enclosure.

To install the new board, reverse the above procedure. Be sure to reinstall cable ties to secure all cables inside the indicator enclosure.

Page 24

882IS/882IS Plus

DC Cable Grounding in 882IS

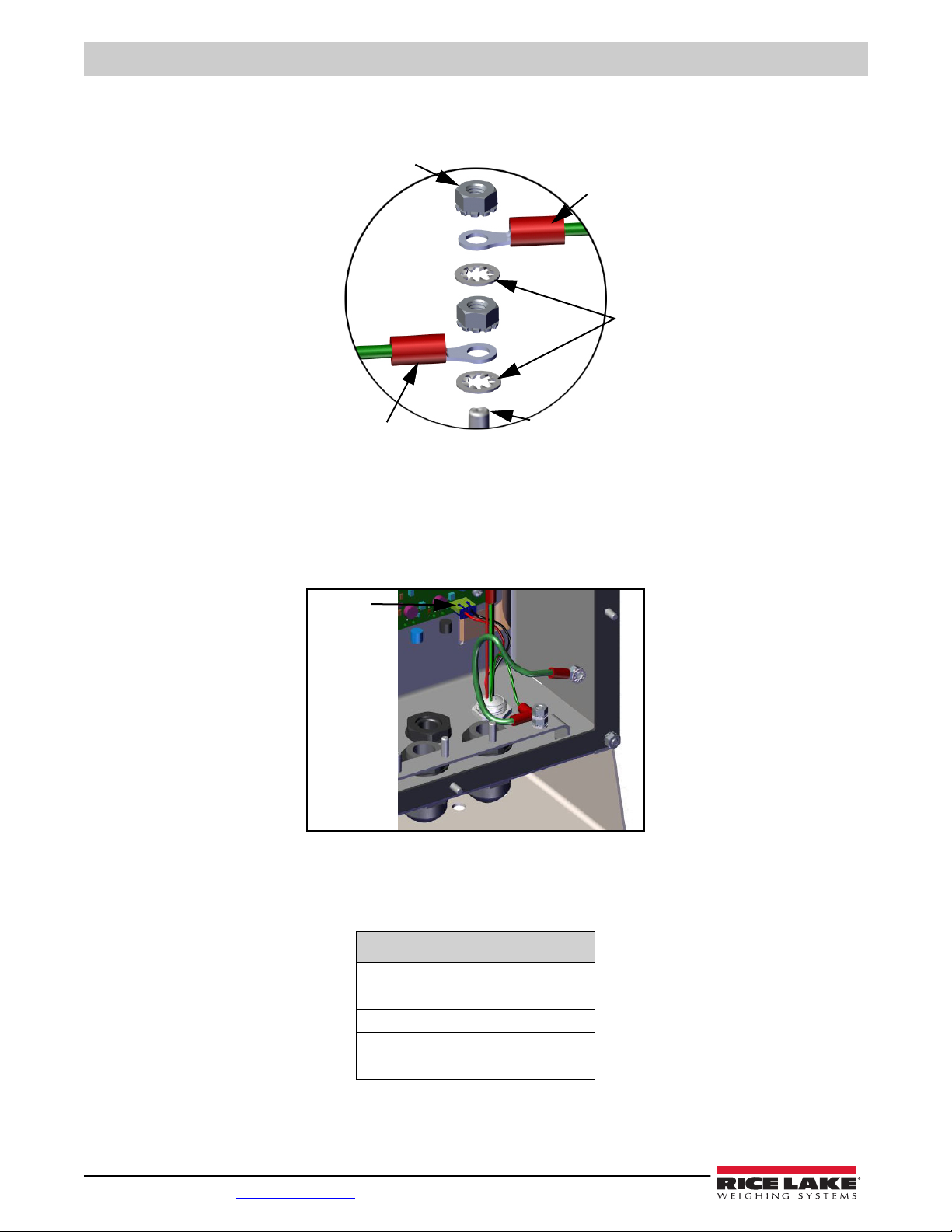

To ground the DC cable, see the following information:

M4 Nut

Backplate Ground

Lock Washer

Power Cord Ground

Figure 2-8. DC Grounding Stackup

Grounding Stud

1. Run DC power cable (not included) up through the cord grip.

2. Run three (not included) 22-16 AWG wires (5-10 mm diameter) up through the cord grip.

3. One wire will be terminated (grounded) at a stud near the cord grip using the grounding stackup (Figure 2-8).

4. Run the other two wires up the side of the indicator and connect the three pin plug (PN 15888) to the power supply

board as shown in Figure 2-9 and Table 2-6 on page 24.

J4 Power

Figure 2-9. Connect DC Wiring

2.4.8 Serial Communications – Port 1 (COM)

Connector J3A (Figure 2-10) provides connections for the four-wire RS-422 serial communications. Table 2-6 shows the pin assignments.

Pin RS-422

1 GND 2 DRX (-) 3 DRX (+) 4 DTX (-) 5 DTX (+)

Table 2-6. J3A Pin Assignments (Port 1 Serial Communications)

24 Visit our website www.RiceLake.com

Page 25

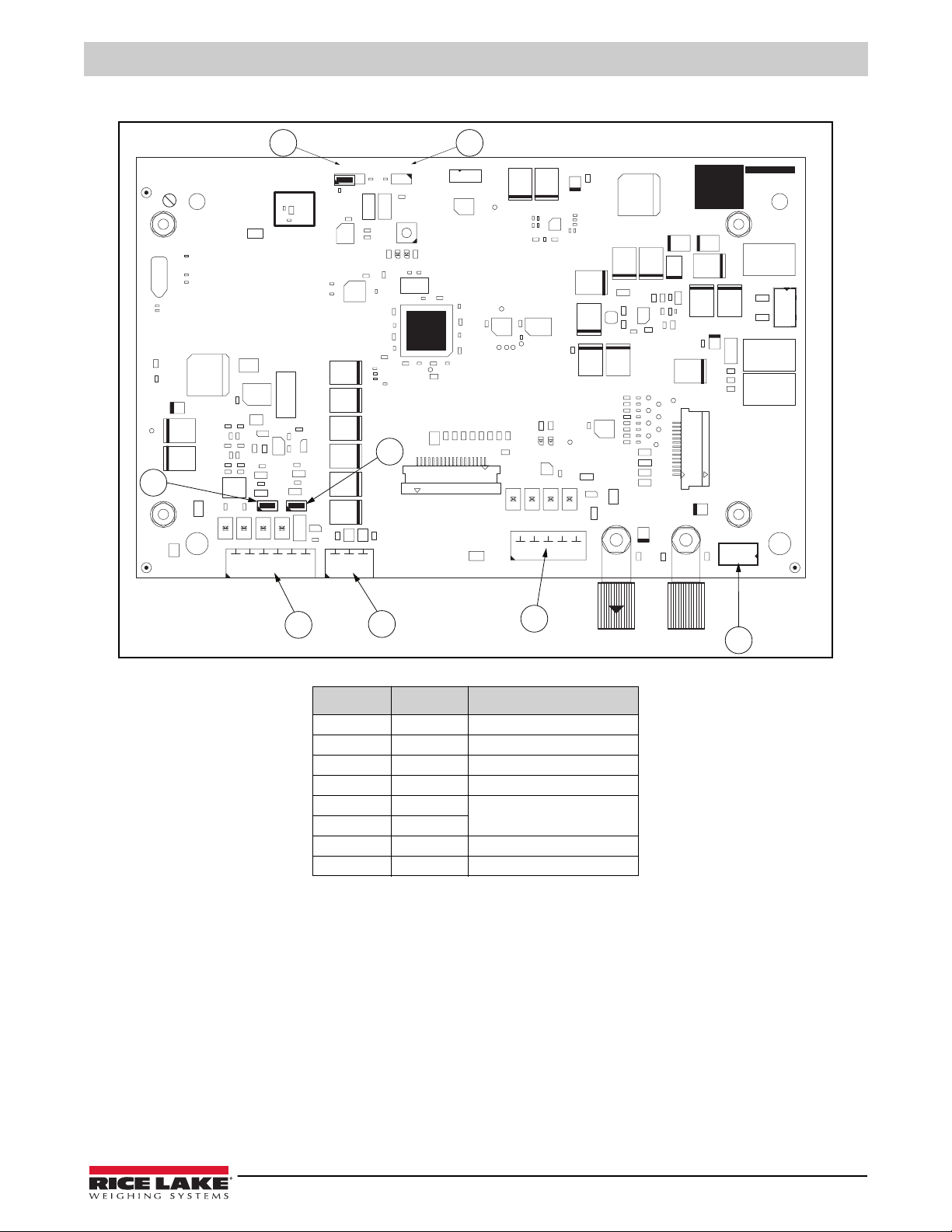

2.5 CPU Board

OPEN

LOCKED

OPEN

LOCKED

11 1

R39

RICE LAKE

MH1

NUT5

C10

C11

C17

C19

R15

R10

R11

R12

R13

C15

TP2

C12

C16

R21

C84

C21

RN1

R37

R33

R35

C14

R14

R20

C18

JP1

JP2

NUT3

Z12

TP1

Z10

Z11

R27

R19

TVS4

TP5

TVS2

MH3

TVS3

TVS1

R95

U17

R94

R93

G2F

R26

R48

C48

C36

C47

C49

C42

C34

C40

C41

C35

R32

D5D3

J3A

U16

TP13

TP15

R101

R59

R60

LED3

LED4

R100

C55

R81

C57

LD1

PD1

NUT2

R79

C69

R77

R80

R78

C54

U15

C80

NUT4

C81

MH4

R66

R63

R71

R70 R68

R69

R65

R61

R64

R73

R72

R76

R67

R62

R75

R74

TP23

TP21

TP16

TP25

P17

TP19

TP18

TP20

TP22

R108

C75

D10

D20

D14

D15

C77

C74

MH2

NUT6

R99

D17

R86

R85

R83

C83

D16

D18

R84

D13

R88

C66

R102

C82

D19

D11

C67

R82

R90

R89

R87

D12

R98

C78

R55

R56

R54

C76

R58

C68

R57

LB2

C79

C22

C26

C27

C31

C39

JP4

U13

LED2

R28

R29

R40

R41

R42

R43

LED1

C28

U12

R30

R92

JP3

R91

C33

R47

R46

C32

SW1

C46

TP11

R50

C53

TP14

R52

R53

R51

R103

C51

TVS5

LB1

R18

R24

TP3

R25

Coupon

C23

C24

C25

C29

C30

C37

C38

C43

C44

C45

C58

TP4

R104

R109

C20

NUT1

TP9

TP10

C50

R49

C52

TP6

TP12

U14

R45

R44

Installation

Figure 2-10. 882IS CPU Board

Item No. Connector Description

2 J2 Digital Input 3 J3A Communication RS-422 4 J3 Power Connection 5 JP1 Load Cell Sense 6 JP2 8 JP3 Configuration/Setup 9 JP4 Audit Trail

Table 2-7. CPU Board Connectors

1 J1 Load Cell Connection

Page 26

882IS/882IS Plus

C22

JP4

R45

R18

R24

C28

R44

R30

JP3

R25

R47

R46

Coupon

GND

CNFIG

OFF

AUDIT

2.6 Audit Trail

The 882IS includes an audit trail feature that keeps track of the calibration count and the configuration count. On the top of the CPU board is a 3-pin jumper (JP4) that enables or disables this feature. If the jumper is set to on, the 882IS

allows entry to the setup and calibration menus using only the front panel Menu key.

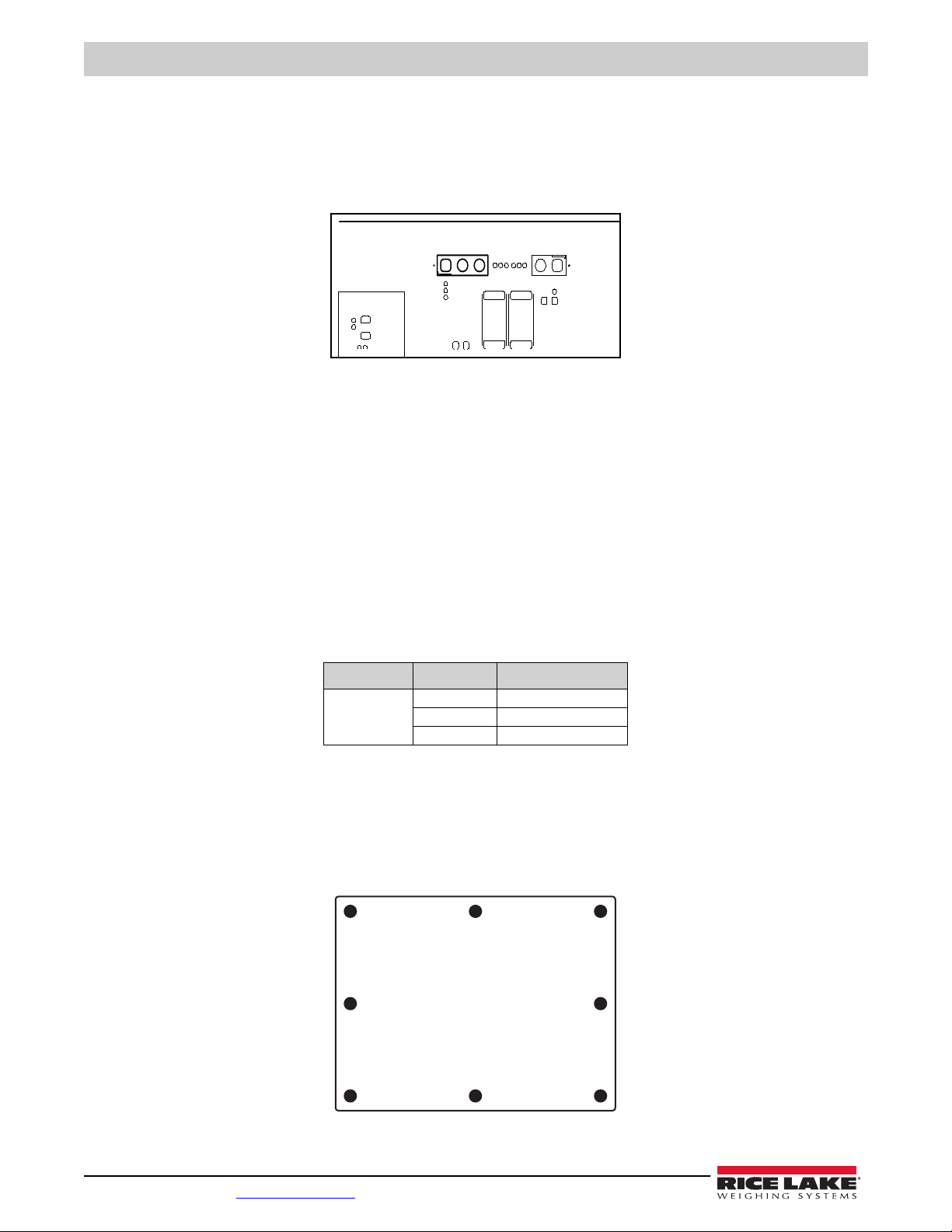

Figure 2-11. Audit Trail Jumper Position

• To use the audit trail and allow the use of the Menu key to enter the configuration and calibration mode, place the jumper in the On position

• To prevent the use of the Menu key to enter the configuration and calibration mode, instead requiring use of the externally seal-able setup switch located inside the enclosure (Figure 3-1 on page 29), place the jumper in the Off position

The audit trail counters operates in either position of the audit jumper.

2.7 Digital Inputs

Digital inputs can be set to provide many indicator functions, including all keypad functions except MENU. Digital inputs are active low (0 VDC) and inactive high (5 VDC). Use the Digital Inputs menu (Section 3.2.16 on page 43) to configure the digital inputs.

Table 2-8 shows the digital inputs pin assignments for connector J2.

Connector Pin Signal

J2 1 GND

2 DI2 3 DI1

Table 2-8. J2 Pin Assignments (Digital Inputs)

2.8 Backplate Attachment

Once cabling is complete, reattach the backplate ground wire to the backplate. Position the backplate over the enclosure and install the eight backplate nuts. Use the torque pattern shown in Figure 2-12 to prevent distorting the backplate gasket. Torque nuts to 15 in-lb (1.7 N-m).

26 Visit our website www.RiceLake.com

Figure 2-12. Torque Pattern

Page 27

Installation

Note

2.9 Legal for Trade Sealing

In certain Legal for Trade applications, it may be necessary to seal the indicator to restrict access from the setup switch. Use the following steps to seal the indicator.

1. Place the sealing wire through the fillister head screws on the backplate, then through the fillister head screw at the

bottom of the indicator, as shown in Figure 2-13.

2. Seal the wire to secure.

Figure 2-13. Sealing the Indicator

2.10 IO Module Option Cards

The following interfaces are available through an IO module connected to the 882IS via fiber optics. Connector J8 is reserved for the option cards. Table 2-9 lists the options available for the 882IS indicator. Each kit includes

instructions for installing and setting up the option.

Part No. Option Kit Manual Part No.

190528 Analog Output 156858 190535 EtherCat 195260 190530 EtherNet/IP 190532 ProfiNet 190533 Modbus TCP 190532 DeviceNet 190534 Profibus DP

Table 2-9. Available Option Cards

2.11 Rechargeable Battery Usage

The 882IS uses an optional, FM approved, rechargeable, IS6V2 battery (PN 180831). When the battery voltage on connector J3 reaches approximately 5.55 volts, the indicator display shows Low Battery Life Replace or Charge. Replace/recharge the battery when this warning displays to prevent data loss before a complete shutdown. Battery life will vary depending on use and power saving mode (Section 3.2.18 on page 49). To preserve battery life, disconnect the battery when not in use.

Even if the 882IS is turned off, the indicator still draws a small amount of power while connected.

For additional IS6V2 battery pack information, see the 882IS IS6VS Battery Instructions (PN 194893).

Page 28

882IS/882IS Plus

TO GROUND STUD

ON BACKPLATE

2.12 Replacement Parts

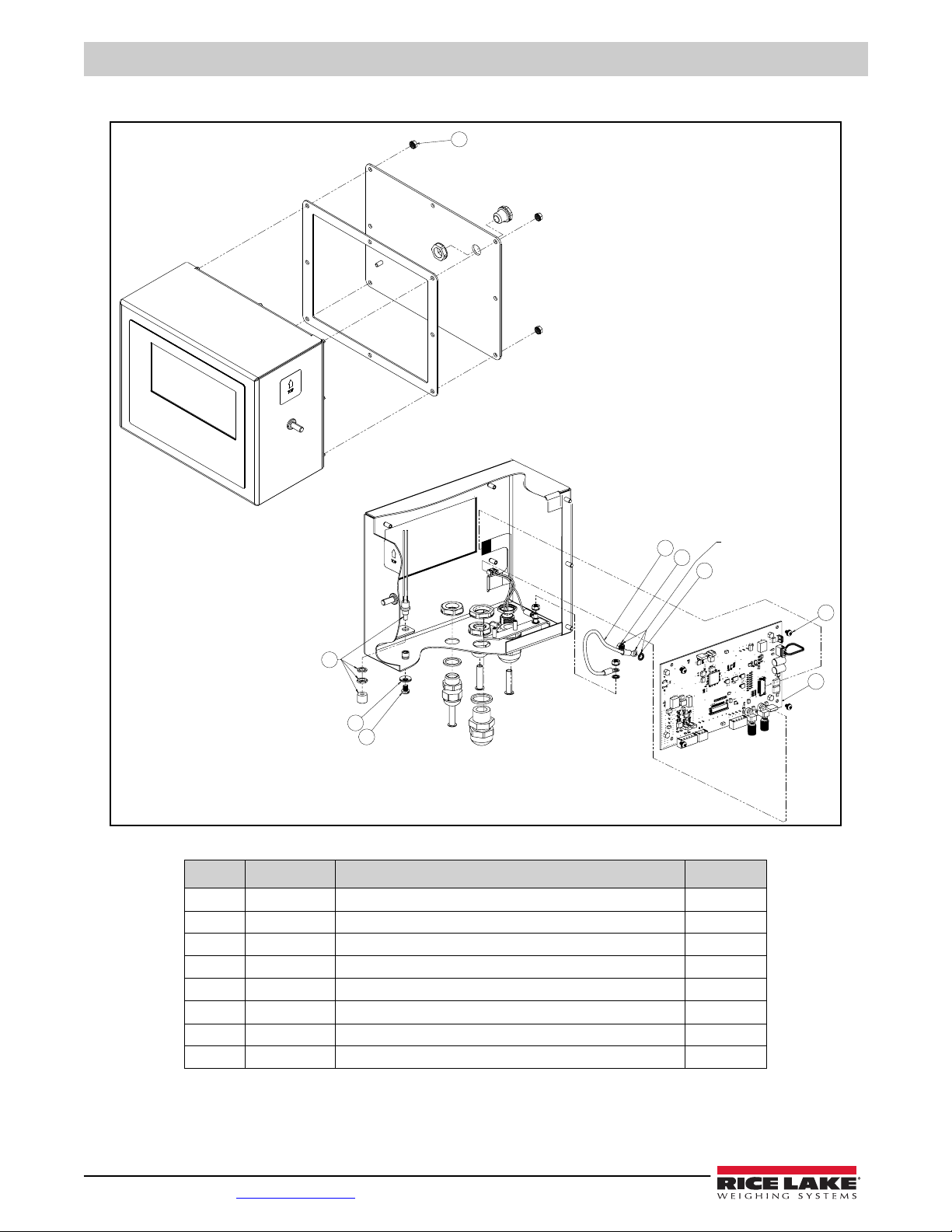

Figure 2-14. 882IS Indicator Parts Drawing

Item No. Part No. Description Qty.

1 174791 Board Assembly, CPU 882IS Display, ROHS Compliant 1 2 180824 Machine Screw, Phillips Pane Head 18-8 SST 4 3 44845 Setup Switch Assembly 1 4 180856 Washer, M4 Internal Tooth SST 3 5 180826 Nut, Kep External Tooth Lock Washer 18-8 SST 7 6 15601 Ground Wire 6'' with Number 8 Eye Connector 1 7 46381 #10 Bonded Sealing Washer, 18-8 Stainless Steel 1 8 180861 Screw, Machine Slotted Drilled Cheese Head, SST 1

Table 2-10. 882IS Replacement Parts for PN 177707 and PN 180829

28 Visit our website www.RiceLake.com

Page 29

Configuration

IMPORTANT

Note

3.0 Configuration

To configure the 882IS/882IS Plus indicator, the indicator must be placed in setup mode. The setup switch is accessed through a small hole on the bottom of the enclosure. Insert a non-conductive tool into the access hole and press the setup switch to put the indicator into setup mode.

Use caution when inserting the non-conductive tool into the bottom of the enclosure. Only press the tool in about 3/4'' (19 mm) to engage the setup switch. Do not use excessive force that may damage the switch.

If the audit trail is enabled, setup mode may be accessed by pressing .

Setup Switch Access

Figure 3-1. Bottom View – Setup Switch Access

When the indicator is placed in setup mode, the word Scale displays. The Scale menu is the first of eight second-level menus used for configuring the indicator. Detailed descriptions of these menus are given in Section 3.2.3 on page 31.

When setup is complete, press to return to the Weigh mode.

3.1 Configuration Methods

The 882IS/882IS Plus indicator can be configured by using the front panel keys to navigate through a series of configuration menus or by sending commands or configuration data to the data communication port. Configuration using the menus is described in Section 3.2 on page 30.

Configuration using a data communication port can be accomplished using either the EDP command set (Section 6.0 on

page 58) or the Revolution configuration utility (Section 5.2 on page 57).

Page 30

882IS/882IS Plus

Audit Setup Accumulator Tare

Test Time & Date

LRV1.00 Calibration

number

Configuration

number

Audit

00000000

3.2 User Setup Menu

The 882IS/882IS Plus indicator can be configured using a series of menus accessed through the indicator front panel.

Table 3-1 summarizes the functions of the User Setup menu.

Figure 3-2. 882IS/882IS Plus Menu Layout

Menu Description

Audit Audit Trail - Displays the (LRV) legally relevant firmware version, configuration count and calibration count (Section 3.2.1) ID Used to enter a User ID (Section 3.2.2) Setup Used to enter Configuration mode, if audit trail is enabled (Section 3.2.3 on page 31) Test System test functions (Section 3.3 on page 50) Time & Date Used to view or set time and date (Section 3.4 on page 50) Accumulator View, print or clear the current accumulator value, if enabled (Section 3.5 on page 50) Tare Views the current tare value (Section 3.6 on page 50)

Table 3-1. 882IS/882IS Plus Menu Summary

The following sections provide graphic representations of the 882IS/882IS Plus menu structures. In the actual menu structure, the settings under each parameter are arranged horizontally. To save page space, menu choices are shown in vertical columns. The factory default setting appears at the top of each column in bold letters. Parameters shown surrounded by a dotted-line box only appear under the special circumstances explained inside each box.

Most menu diagrams are accompanied by one or more tables that describe all parameters and parameter values associated with that menu.

3.2.1 Audit Menu

3.2.2 User ID

Menu Description

ID Enter User ID; The User ID is an alphanumeric string with a maximum of 16 characters

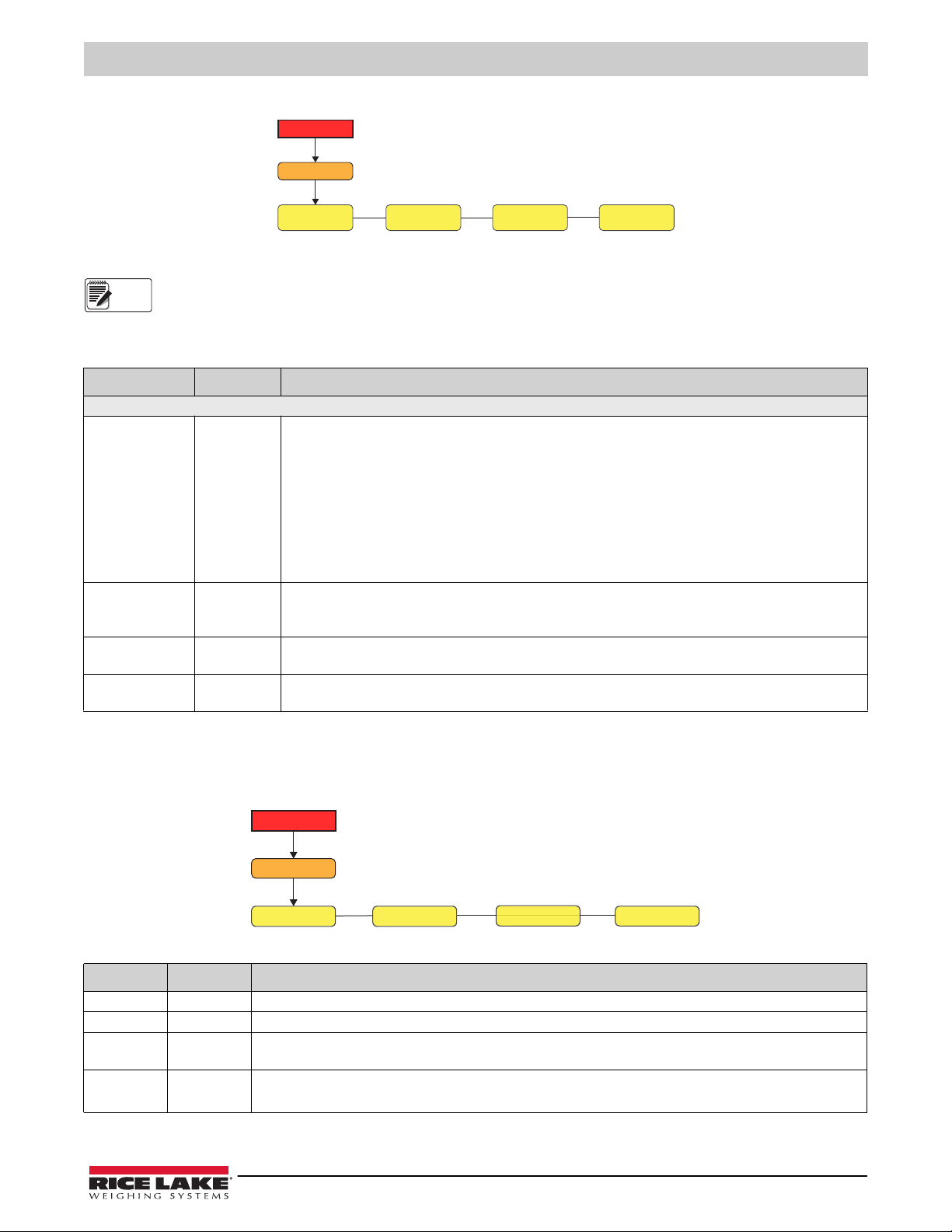

Figure 3-3. Audit Menu Structure

Menu Description

LRV Legally relevant firmware version (read only) Calibration Displays total calibration events (read only) Configuration Displays total configuration events (read only)

Table 3-2. Audit Menu Parameters

Figure 3-4. User ID Menu Structure

NOTE: The User ID does not survive a power cycle and is used only for printing a token in a print format.

Table 3-3. User ID Menu Parameter

30 Visit our website www.RiceLake.com

Page 31

Configuration

Scale

Setup

Digital Inputs IO Module VersionFeatures Ports Print Formats Power Savings

Graduations

Setup

Filter

Threshold

Filter

Sensitivity

Sample

Rate

Display

Rate

Stand Still

Time

Overload

Zero

Track Band

Scale

Split Format

Zero Range

Motion Band

Tare

Enable

Start

Mode

Accumulator Calibrate

3.2.3 Setup Menu

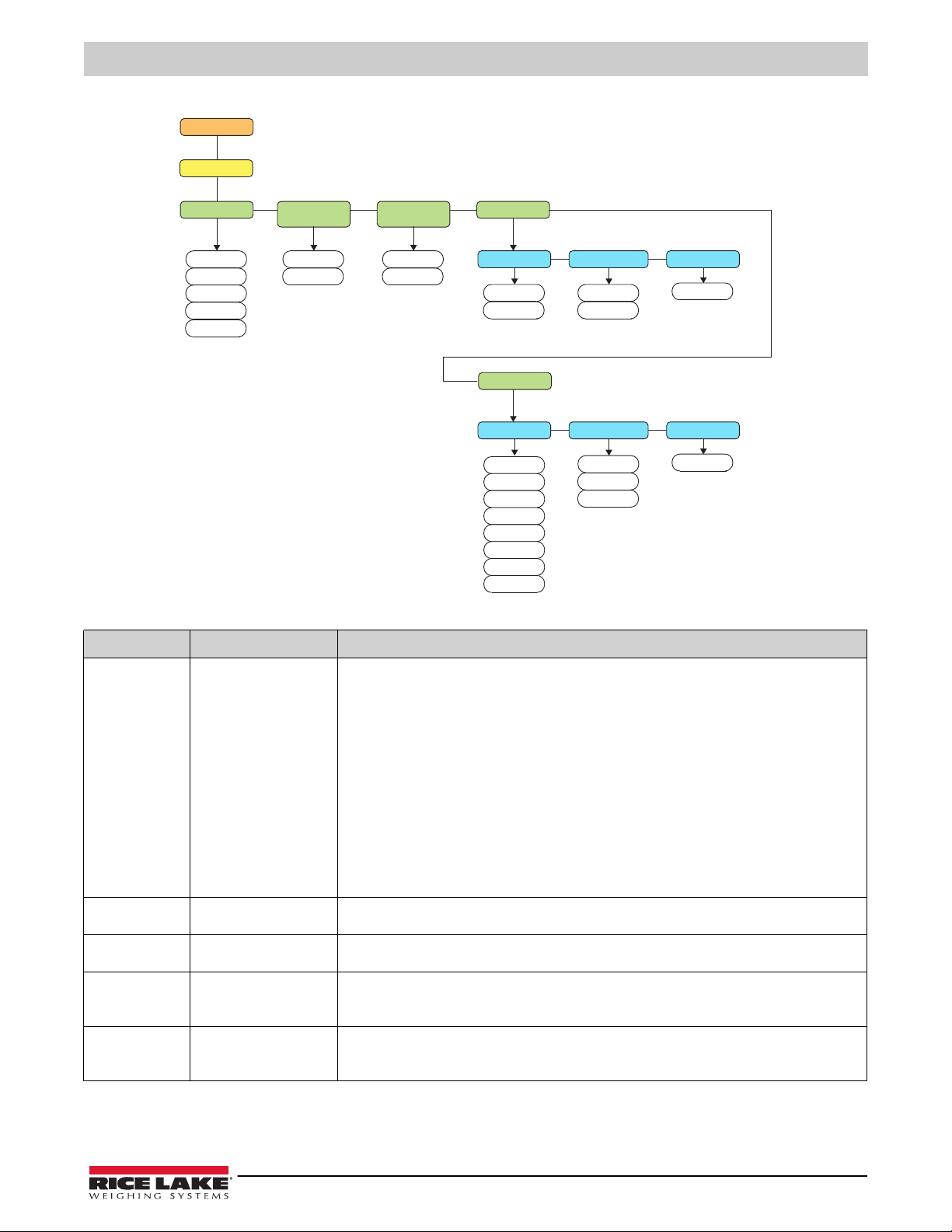

Figure 3-5. Setup Menu Structure

Menu Description

Scale Use the Scale menu to configure and calibrate the scale; See Figure 3-6 for the Scale menu structure Features Use the Features menu to set miscellaneous system attributes; See Figure 3-10 on page 36 for the Features menu structure Ports Use the Ports menu to configure communication ports; See Figure 3-14 on page 39 for the Ports menu structure Print Format Use the Print Format menu to set the print format used for header, gross, net and accumulator formats;

See Figure 3-17 on page 42 for the Print Format menu structure Digital Inputs Use the Digital Inputs menu to assign digital input functions; See Figure 3-18 on page 43 for the Digital Inputs menu structure IO Module

Use the

IO Module

menu to configure the IO module features (if installed); See

Figure 3-23 on page 49

for the

IO Module

menu structure Power Savings Use the Power Savings menu to configure the power saving mode, wake threshold, backlight control and battery support Version Use the Version menu to display the installed firmware version number; See Section 3.2.19 on page 49 for the Version menu structure

Table 3-4. Setup Menu Parameters

3.2.4 Scale Menu

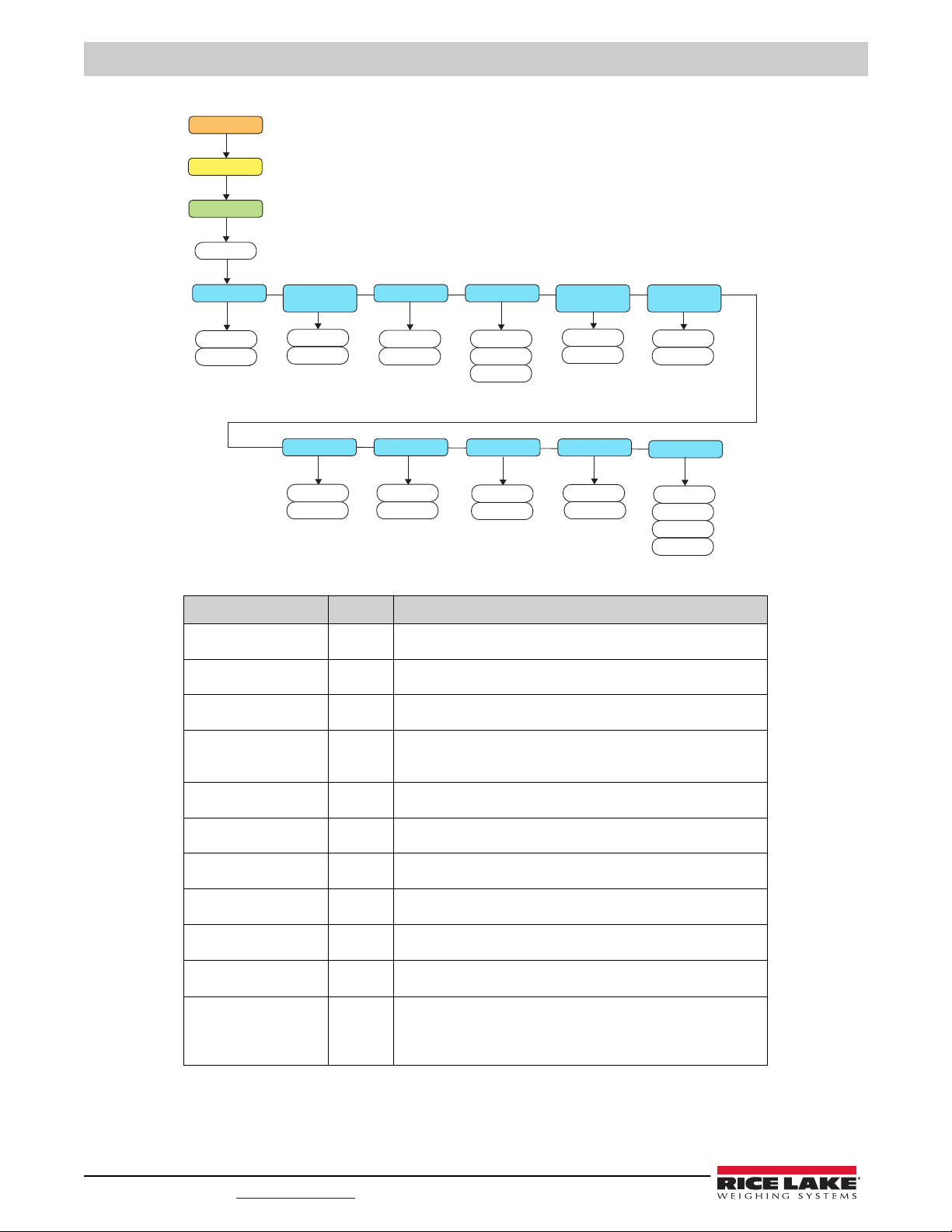

Figure 3-6. Scale Menu Structure

Menu Choices Description

Graduations 10000

1-100000

Split OFF

2RNG 3RNG 2INTVL 3INTVL

Format Primary

Format

Zero Track Band 0

0.0-100

Zero Range 1.900000

0.0-100

Graduations – Specifies the number of full scale graduations if Split=OFF; (for multi-range and multi-interval scales (SPLIT is not

Off), Graduations value is derived from capacity and display divisions specified for range or interval);

The value entered must be in the range 1–100000 and should be consistent with legal requirements and environmental limits on system resolution; To calculate Graduations, use the formula: Graduations = Capacity / Display Divisions; Display divisions are specified under the Format submenu

Multi-range/Interval – Specifies whether the scale is full-range (OFF), multi-range (2RNG, 3RNG), or multi-interval (2INTVL, 3INTVL); For multi-range and multi-interval scales, see the submenu shown in Figure 3-8 on page 34 and parameter descriptions in Table 3-7 on page 34

See Figure 3-8 on page 34 for menu structures; For standard scales see “If SPLIT = OFF”, for multi-range/interval scales see “If SPLIT = 2RNG, 3RNG, 2INTVL, or 3INTVL” or secondary format

Zero Track Band – Automatically zeros the scale when within the range specified, as long as the weight is within the Zero Range and scale is at standstill; Specify the zero tracking band in ± display divisions; The maximum legal value varies depending on local regulations

Zero Range – selects the range within which the scale can be zeroed; The 1.900000 default value is ±1.9% around the calibrated zero point, for a total range of 3.8%. Indicator must be at standstill to zero the scale; Maximum legal value varies depending on local regulations

Table 3-5. Scale Menu Parameters

Page 32

882IS/882IS Plus

Menu Choices Description

Motion Band 1

0-100

Overload FS+2%

FS+1D FS+9D FS FS+Percentage

Standstill Time 10

1-65535

Display Rate 1

1-80

Sample Rate 60HZ

120HZ

7.5HZ 15HZ 30HZ

Filter Sensitivity LIGHT

MEDIUM HEAVY

Filter Threshold 0

0-99999

Tare Enable BOTH

NOTARE PBTARE KEYED

Start Mode GO

DELAY

Accumulator OFF

Calibrate WZERO

WVAL WSPAN WLIN REZERO LAST TEMP

Motion Band – Sets the level, in display divisions, at which scale motion is detected; If motion is not detected for the time defined by the standstill parameter, the standstill symbol lights; Some operations, including print, tare, and zero, require the scale to be at standstill; Maximum legal value varies depending on local regulations; If this parameter is set to 0 the standstill annunciator is always lit; Operations normally requiring standstill (zero, tare, print) are performed regardless of scale motion; If 0 is selected, Zero Track Band must also be set to 0

Overload – Determines the point at which the display blanks and an out-of-range error message displays; Maximum legal value varies depending on local regulations

If FS+Percentage is selected, a sub-menu is enabled. At FS+Percentage, press the down arrow to access the Enter Percentage parameter; Press the down arrow at Enter Percentage to view the current value; Edit as needed; Values are 0.0 - 150.0

Standstill Time – Specifies the length of time the scale must be out of motion, in 0.1-second intervals, before the scale is considered to be at standstill

Display update rate – Specifies the display update rate, in the number of 100-millisecond intervals between updates

Sample rate – Selects measurement rate, in samples per second, of the analog-to-digital converter; Lower sample rate values provide greater signal noise immunity; A setting of 120 Hz may be too fast to provide the desired stability in some static weighing applications

Digital filtering sensitivity – The amount of influence the current A/D cycle has on the running averaged value; The Light setting will respond quicker to an applied weight to immediately impact the displayed value; Medium and Heavy settings are for applications where weighing times are longer and expected weight changes are larger

Digital filter cutout threshold – Controls the response of the filter and must be set above the noise disturbances in the system; Value is in grads If set to zero there is no filtering

Tare function – Enables or disables push-button and keyed tare;

BOTH – Both push-button and keyed tares are enabled NOTARE – No tare allowed (Gross mode only) PBTARE – Push-button tares enabled KEYED – Keyed tare enabled

Start mode;

GO – The indicator goes into operation immediately after a brief power up display test; DELAY – The indicator performs a power up display test, then enters a 30-second warm up period; If no motion

is detected during the warm up period, the indicator becomes operational when the warm up period ends; If motion is detected, the delay timer is reset and the warm up period repeated

Accumulator – Specifies if the scale accumulator is enabled or disabled; If enabled, accumulation occurs every time a print operation is performed, while the weight is above zero, as long as the weight returns to a value lower than the threshold between print operations

Calibration – See Figure 3-9 on page 35 for descriptions, and see Section 4.0 on page 51 for calibration procedures

Table 3-5. Scale Menu Parameters (Continued)

32 Visit our website www.RiceLake.com

Page 33

3.2.5 Scale Format Menu - if Split = Off

Scale

Format

Primary

Setup

2 D

5 D

Display

Divisions

Secondary

Decimal Point

888880

888888

8.88888

88.8888

888.888

8888.88

88888.8

Units

NONE

Display

Divisions

Decimal Point Units

2 D

5 D

888880

888888

8.88888

88.8888

888.888

8888.88

88888.8

NONE

OFF

Configuration

Figure 3-7. Format Menu Structure

Menu Choices Description

Primary Decimal Point

Display Divisions Units

Secondary Decimal Point

Display Divisions Units

Decimal Point 888888

888880

8.88888

88.8888

888.888

8888.88

88888.8

Display Divisions 1D

Units

LB KG

OZ TN T G NONE OFF

Primary Units – Settings determine the scale capacity and specifies the decimal point, display division and units used

Secondary Units – Settings determine the Secondary, or Alternate, units value, decimal location, and display division size

Decimal Point Location – when combined with the display divisions, specifies the location of the decimal point or dummy zeroed in the unit display

Defaults: Primary – 888888 Secondary – 88888.8

Display Divisions – when combined with the decimal point location, specifies the minimum division size for the displayed weight Example: (88888.8 X 1D) X 5000 grads = 500 lb scale, counting by 1 Defaults: Primary – 1D Secondary – 5D

Units – Specifies units for displayed and printed weight

LB = pound – Primary default KG = kilogram – Secondary default

OZ = ounces TN = short ton T = metric ton G = gram NONE = no units icon is shown on the display and no units text is included in print or stream output OFF = prevents the 882IS/882IS Plus from displaying secondary units

Table 3-6. Format Menu Parameters

Page 34

882IS/882IS Plus

Scale

Format

Decimal Point 1

Setup

Display Division1

Range 1 Max

Units

Decimal Point 2

Display Division2

Range 2 Max Decimal Point 3

Display Division3

Range 3 Max

3.2.6 Scale Format Menu - if split = 2 RNG, 3 RNG, 2 INTVL, 3 INTVL

Figure 3-8. Split Format Menu Structure

Menu Choices Description

Decimal Point-1 Decimal Point-2 Decimal Point-3

888888 888880

8.88888

88.8888

888.888

8888.88

88888.8

Display Divisions 1 Display Divisions 2 Display Divisions 3

Range 1 Max

1D 2D

Decimal Range Max - specifies the upper weight limit of the given interval or range Range 2 Max Range 3 Max

Units LB

NONE

Decimal Point Location – Specifies the location of the decimal point or dummy zeroed in the unit display Defaults: Decimal point 1 - 888888 Decimal point 2 - 88888.8 Decimal point 3 - 8888.88

Display Divisions – When combined with the decimal point location, specifies the minimum division size for the displayed weight Defaults: Display divisions 1 - 1D Display divisions 2 and display divisions 3 - 5D

Defaults: Range 1 max - 2000.0 Range 2 max - 5000.0 Range 3 max - 10000.0

Units – Specifies units for displayed and printed weight

LB = pound KG = kilogram

OZ = ounces TN = short ton T = metric ton G = gram NONE = no unit icon is shown on the display and no units text is included in print or stream format

34 Visit our website www.RiceLake.com

Table 3-7. Split Format Menu Parameters

Page 35

Configuration

Scale

Calibrate

Zero Calibration

Setup

Test Weight

Count Value Count Value Point 1 - 5 Count Value

Calibrate

Span Calibration

Linear Calibration

Rezero Last Zero

Temporary Zero

Count Value

Calibrate

Count Value

Calibrate

Decimal

Calibrate

Calibration

Point 1

Weigh Point 1

Decimal

Count Value

Calibrate

3.2.7 Calibration Menu

Figure 3-9. Calibration Menu Structure

Menu Choices Description

Zero Calibration — Press Enter to display previous A/D raw counts; Press Enter again to perform a zero calibration, press Menu to cancel Test Weight 0.00001 —

9999999.0 Span Calibration — Press Enter to display previous A/D raw counts; Press Enter again to perform a span calibration, press Menu to cancel Linear Calibration Point-1 —

Point-5

Rezero — Press Enter to remove an offset value from the zero and span calibrations

Last — Press Enter to recall the last established push button zero to allow calibration without removing weight from scale

Temporary Zero — Press Enter to temporarily zero the displayed weight from a loaded scale (Section 4.3 on page 54)

Press Enter to display and edit the test weight value

Press Enter to display and edit test weight and calibration values for up to five linearization points; Perform linear calibration only after Zero calibration and Span calibration have been performed

Note: Use Rezero only after Zero Calibration and Span Calibration have been set. See Section 4.1 on page 52 for more information about using Rezero

(Section 4.2 on page 54)

Table 3-8. Calibration Menu Parameters

Page 36

882IS/882IS Plus

Features

Setup

Region Unit ID

Consecutive

Number

Password Key Lock

Gravity

Compensation

Latitude Elevation

OFF

Integer

Hidden menus if gravity compensation is OFF

0-90 -9999 - 9999

Current Value Reset Value

User Setup

Alpha/ Numeric

Integer

0-999999

Integer

0-999999

Integer

0-999999

Integer

0-999999

3.2.8 Features Menu

Figure 3-10. Features Menu

Menu Choices Description

Region Regulation

Regulation Word Decimal Format

Unit ID 000000 Sets the unit ID, a string of up to 6 ASCII characters, which can be set via serial port or keypad; This will be used in

Consecutive Number

Current Value

Reset Value

Password User

Setup

Keylock Zero

Gross Net Units Print Tare Menu Numeric Keypad Function Key

Gravity Compensation

Off

Latitude 45

0–90

Elevation 345

-9999–9999

Selects regional settings; See Level 3 sub menus (Figure 3-11 on page 37)

place of the <UID> token in a print format; The default value is “1.” Allows sequential numbering for print operations; The consecutive number value is incremented following each print

operation that includes <CN> in the ticket format; When the consecutive number is reset, it is reset to the Reset value specified in the parameter

Sets a password to access the Setup menu, or certain sub-menus in the User menu; Specify a non-zero value to enable the password; The setup password protects the entire Setup menu, and when set is required even when attempting entry into the Setup menu using the setup switch; The user password restricts access to the Time/Date and Accumulator sub-menus in the User menu; Passwords can be overridden by loading new firmware, or entering 999999

Note: Overriding passwords will clear configuration and calibration settings. To preserve settings (i.e., ID information), use Revolution software to upload the data to a PC, then download it back to the 882IS/882IS Plus after the password override is performed

Disables the listed keys; Select Lock to disable the key, and Unlock to enable the key

Gravity compensation enable/disable

Press Enter to display and edit the latitude in degrees for gravity adjustment to calibration (Gravity compensation must be set to On)

Press Enter to display and edit the elevation in meters for gravity adjustment to calibration (Gravity Compensation must be set to On)

Table 3-9. Features Menu Parameters

36 Visit our website www.RiceLake.com

Page 37

3.2.9 Region Menu

Features

Region

Regulation

Word

Decimal

Format

Y2DDMM

Y2MMDD

MMDDY4

DDMM4

Y4MMDD

Y4DDMM

MMDDY2

DDMMY2

GROSS

BRUTTO

DOT

COMMA

OIML

NTEP

CANADA

INDUST

NONE

Time Format

Time

Time Separator Set

12HOUR

24HOUR

COLON

COMMA

000000

Date

Date Format Date Separator Set

SLASH

DASH

000000

SEMI

Configuration

Figure 3-11. Region Menu Structure

Menu Choices Description

Regulation OIML

NTEP

Canada Industrial None

Regulation Word Gross

Brutto

Decimal Format Dot

Comma

Time Time Format

Time Separator Set

Date Date Format

Date Separator Set

Regulatory mode – Specifies the regulatory agency having jurisdiction over the scale site;

Note: Value specified for Regulation affects the function of the front panel Tare and Zero keys.

• OIML, NTEP, and CANADA modes allow a tare to be acquired at any weight greater than zero; NONE allows tares to be acquired at any weight value

• OIML, NTEP, and CANADA modes allow a tare to be cleared only if the gross weight is at no load; NONE allows tares to be cleared at any weight value

• NTEP and OIML modes allow a new tare to be acquired even if a tare is already present; In CANADA mode, the previous tare must be cleared before a new tare can be acquired

• NONE, NTEP and CANADA modes allow the scale to be zeroed in either Gross or Net mode as long as the current weight is within the specified Zero Range; In OIML mode, the scale must be in Gross mode before it can be zeroed; Pressing the Zero key in Net mode will zero the scale and clear the tare, if weight is within the specified Zero Range

• Selecting a particular Regulation will default the sub-parameters items to match; The user can then change the sub-parameters as they wish

NOTE: Changing the sub-parameters may violate local regulations.

Sets the term displayed when weighing in Gross mode; Selecting BRUTTO replaces the Gross annunciator with Brutto

Specifies whether decimal numbers are displayed using a period (DOT) or a comma

Allows selection of time format and time separator character

Allows selection of date format and date separator character

Table 3-10. Region Menu Parameters

Page 38

882IS/882IS Plus

Features

Region

Regulation

INDUST

Remove Tare

on Zero

Snapshot Keyed Tare Negative/Zero

Tare

Multiple Tare

Clear of Tare/

Accum

Round Tare Print in Motion

Print PT Overload Base

Audit Agency

YES

DISPLAY

SCALE

YES

CALIB

SCALE

NTEP

CANADA

REPLAC

REMOVE

NOTHIN

NONE

OIML

3.2.10 Region - Regulation - Indust

Figure 3-12. Region Regulation Menu Structure

Menu Choices Description

Snapshot Display

Scale

Remove Zero Tare No

Yes

Keyed Tare Yes

Multiple Tare Replace

Remove Nothing

Negative/Zero Tare No

Yes

Clear of Tare/Accumulator Yes

Round Tare Yes

Print in Motion No

Yes

Print Preset Tare No

Overload Base Calibrate

Yes

Scale

Audit Agency NTEP

CANADA NONE OIML

Display or scale weight source

Remove tare on Zero

Always allow keyed tare

Replaces existing Tare when the Tare key is pressed

Allow negative or zero tare

Allow Clear key to clear tare/accumulator

Round semi-automatic (pushbutton) tare to the nearest display division

Allow print while in motion

Add PT to keyed tare print

Uses either the calibrated zero or the scale zero for overload calculation

Regulatory agencies

Table 3-11. Region Regulation Parameters

38 Visit our website www.RiceLake.com

Page 39

3.2.11 Keylock Menu

Features

Key Lock

Zero

Setup

Gross/Net Units

Tare Menu

Numeric Keypad Function Keys

Serial Port

Setup

Ports

Fiber Optic

Figure 3-13. Keylock Menu Structure

Menu Description

Zero Lock or unlock individual keys; Settings: UNLOCK (default), LOCK Gross/Net Units Print Tare Menu Numeric Keypad Function Keys

NOTE: The Numeric Keypad parameter locks or unlocks all of the numeric keys. The numeric keys cannot be individually controlled. The Function Keys parameter locks or unlocks all of the function keys. The function keys cannot be individually controlled.

Table 3-12. Keylock Menu Parameters

Configuration

3.2.12 Setup Ports Menu

See Section 3.2.13 on page 40 for Serial Ports menu choices and Section 3.2.14 on page 41 for Fiber Optic Ports menu choices.

Figure 3-14. Ports Menu Structure

Menu Description

Serial Port See Section 3.2.13 on page 40 for Serial Ports menu choices Fiber Optic See Section 3.2.14 on page 41 for Fiber Optic Ports menu choices

Table 3-13. Ports Menu Summary

Page 40

Ports

Serial Port

Trigger

Setup

Baud Bits Stop Bits Termination

Echo Response

End of Line Delay

Stream FormatPrint MessageType

882IS/882IS Plus

3.2.13 Ports - Serial Ports Menu

Figure 3-15. Serial Ports Menu Structure

Menu Choices Description

Trigger Command Setting Trigger to command allows operation of EDP commands and can print

Stream Industrial Stream Industrial scale data – Data is updated up to the configured sample rate;

Allows operation of EDP commands and printing

Stream Legal for Trade Stream Legal for Trade data – Data is updated at the configured display update rate;

Allows operation of EDP commands and printing

Remote Configures the serial port to operate as a serial scale input; When Trigger is set to REMOTE, the

stream format is re-purposed to be the format for the incoming data

Baud 9600

19200 28800 38400 57600 115200 1200 2400 4800

Bits 8None

7Even 7Odd

Stop Bits 1

Termination CR/LF

Echo On

Off

Response On

Off

End of Line Delay 0

0-255 Type 422 Specifies the physical type of serial Print Message On

Off Stream Format <2><P><W7.>

Port baud rate

Port data bits and parity

Stop Bits – Selects the number of stop bits transmitted and the number of stop bits expected to be received by the port

Termination – Selects the termination character(s) for data sent from the port carriage return (CR) line feed (LF)

Specifies whether characters received by the port are echoed back to the sending unit

Response – Specifies whether the port transmits replies to serial commands

End of Line Delay - Specifies, in 0.1 second intervals, the delay between transmitted lines of data

Print message – Displays a message when a print is transmitted on this port

Stream format – Specifies the stream format used for streaming output of scale data; When Trigger is set to REMOTE, the stream format is re-purposed to be the format for the incoming data

Table 3-14. Serial Ports Menu Parameters

40 Visit our website www.RiceLake.com

Page 41

Ports

Fiber Optic Port

Trigger

Setup

Baud Bits Stop Bits Termination

Echo Response

End of Line Delay

Print Message Stream Format

3.2.14 Ports - Fiber Optics Menu

Figure 3-16. Fiber Optics Menu Structure

Menu Choices Description

Trigger Command Setting Trigger to command allows operation of EDP commands and can print

Stream Industrial Stream Industrial scale – Data is updated up to the configured sample rate;

Allows operation of EDP commands and printing

Stream Legal for Trade

Remote Configures the fiber optic port to operate as a serial scale input; When Trigger is set to REMOTE, the stream

IO Module Enables port to communicate with the IO Module Setpoints Enables setpoints to function with the 920i indicator

Baud 9600

19200 28800 38400 57600 115200 1200 2400 4800

Bits 8None

7Even 7Odd

Stop Bits 1

Termination CR/LF

Echo On

Off

Response On

Off

End of Line Delay 0

0-255

Print Message Off

Stream Format <2><P><W7.>

Stream Legal for Trade – Data is updated at the configured display update rate; Allows operation of EDP commands and printing

format is re-purposed to be the format for the incoming data

Port baud rate

Port data bits and parity

Stop Bits – Selects the number of stop bits transmitted and the number of stop bits expected to be received by the port

Termination – Selects the termination character(s) for data sent from the port

Specifies whether characters received by the port are echoed back to the sending unit

Response – Specifies whether the port transmits replies to serial commands

End of Line Delay - Specifies, in 0.1 second intervals, the delay between transmitted lines of data

Print message – Displays a message when a print is transmitted on this port

Stream format – Specifies the stream format used for streaming output of scale data; When Trigger is set to REMOTE, the stream format is re-purposed to be the format for the incoming data

Table 3-15. Fiber Optics Menu Parameters

Configuration

Page 42

882IS/882IS Plus

Print Format

Gross Format

Net Format

Format

Setup

Accumulator Header Format

Port Format Port Format Port Format

Gross Format

String

IOCOM

COM

FIBER

Net Format

String

Accumulator

Format String

Header

Format String

ETHCLIENT

IOCOMUSB

ETHSERVER

OFF

IOCOM

COM

FIBER

ETHCLIENT

IOCOMUSB

ETHSERVER

IOCOM

COM

FIBER

ETHCLIENT

IOCOMUSB

ETHSERVER

OFF

3.2.15 Print Format Menu

See Section 7.3 on page 68 for information about custom print formatting.

Figure 3-17. Print Format Menu Structure

Menu Choices Description

Gross Format Format Alphanumeric, Max Length: 1000;

Weigh mode, no tare in system, GROSS<G><NL2><TD><NL>

Port

Net Format Format Alphanumeric, Max Length: 1000;

Port

Accumulator Format Alphanumeric, Max Length: 1000;

Port

Header Format Format Alphanumeric, Max Length: 300

The communications port the print data will be sent to: COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER, ETHCLIENT, OFF

Weigh mode, tare in system, GROSS<G><NL>TARE<SP><T><NL>NET<SP2><N><NL2><TD><NL> The communications port the print data will be sent to: COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER, ETHCLIENT, OFF

Accumulator enabled and displayed, ACCUM<A><NL><DA><TI><NL> The communications port the print data will be sent to: COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER, ETHCLIENT, OFF

Must be inserted into other print format; COMPANY NAME<NL>STREET ADDRESS<NL>CITY, ST ZIP<NL2>

Table 3-16. Print Format Menu Parameters

42 Visit our website www.RiceLake.com

Page 43

3.2.16 Digital Inputs Menu

Digital Inputs

Slot 0

Bit 1

Setup

Bit 2

Figure 3-18. Digital Inputs Menu Structure

Menu Choices Description

Level 2 submenu Slot 0 Bit 1

Bit 2 Slot 0 submenu Bit 1

Bit 2

Off

Zero

Tare

Units

Clear

DSPTAR

DSPACC

NT/GRS

CLRCN

KBDLOC

GROSS

NET

PRIM

SEC

CLRTAR

CLRACC

Select the bit to set the function

Specifies the function activated by Bits 1–2;

• PRINT, ZERO, TARE, UNITS, NT/GRS provide the same functions as the five front panel keys

• DSPTAR displays the tare

• DSPACC displays the current accumulator value

• CLRCN resets the consecutive number to the value specified on the Reset value parameter (Features menu)

• KBDLOC locks the keyboard

• GROSS, NET, PRIM and SEC select gross or net weight display, and primary or secondary units display modes

• CLRTAR clears the current tare

• CLRACC clears the accumulator

Table 3-17. Digital Input Menu Parameters

Configuration

Page 44

IO Module

Ports

Setup

IO Module

Communications

Port

Trigger Baud

Bits Stop Bits

Termination

Echo Response

End of Line Delay

Type

Print Message Stream Format

882IS/882IS Plus

3.2.17 IO Module Menu

IO Module - Ports Menu

Figure 3-19. IO Module Ports Menu Structure

Menu Choices Description

Trigger Command Setting Trigger to command allows operation of EDP commands and can print;

Stream Industrial Stream Industrial scale – Data is updated up to the configured sample rate;

Stream Legal for Trade Stream Legal for Trade – Data is updated at the configured display update rate;

Remote Configures the IO module port to operate as a serial scale input; When Trigger is set to REMOTE, the stream

Baud 9600

19200

28800

38400

57600

115200 Bits 8None

7Even

7Odd Stop Bits 1

2 Termination CR/LF

CR Echo On

Off Response On

Off End of Line

Delay

0-255 Type 232

422 Print Message Off

On Stream Format <2><P><W7.>

Allows operation of EDP commands and printing

format is re-purposed to be the format for the incoming data Port baud rate

Port data bits and parity

Stop Bits – Selects the number of stop bits transmitted and the number of stop bits expected to be received by the port

Termination – Selects the termination character(s) for data sent from the port

Specifies whether characters received by the port are echoed back to the sending unit

Response – Specifies whether the port transmits replies to serial commands

End of Line Delay – Specifies, in 0.1 second intervals, the delay between transmitted lines of data

Specifies the physical type of serial

Print message – Displays a message when a print is transmitted on this port

Stream format – Specifies the stream format used for streaming output of scale data; When Trigger is set to REMOTE, the stream format is re-purposed to be the format for the incoming data

Table 3-18. IO Module Ports Menu Parameters

44 Visit our website www.RiceLake.com

Page 45

IO Module - USB

IO Module

Ports

Setup

IO Module

USB

COMMUNICATIONS

Trigger Termination

Echo Response

End of Line Delay

Print Message Stream Format

Figure 3-20. IO Module USB Menu Structure

Menu Choices Description

Trigger Command Setting Trigger to command allows operation of EDP commands and can print

Stream Industrial Stream Industrial scale – Data is updated up to the configured sample rate;

Allows operation of EDP commands and printing

Stream Legal for

Trade

Remote Configures the IO module USB port to operate as a serial scale input; When Trigger is set to REMOTE, the stream

Termination CR/LF

CR Echo On

Off Response On

Off End of Line

Delay

0-255 Print Message Off

On Stream Format <2><P><W7.>

Stream Legal for Trade – Data is updated at the configured display update rate; Allows operation of EDP commands and printing

format is re-purposed to be the format for the incoming data Termination – Selects the termination character(s) for data sent from the port

Specifies whether characters received by the port are echoed back to the sending unit

Response – Specifies whether the port transmits replies to serial commands

End of Line Delay – Specifies, in 0.1 second intervals, the delay between transmitted lines of data

Print message – Displays a message when a print is transmitted on this port

Stream format – Specifies the stream format used for streaming output of scale data; When Trigger is set to REMOTE, the stream format is re-purposed to be the format for the incoming data

Table 3-19. IO Module USB Menu Parameters

Configuration

Page 46

882IS/882IS Plus

IO Module

Ports

Setup

IO Module

Ethernet

DHCP IP Address

Network Mask

Default Gateway

Primary DNS

Secondary DNS

EtherNet Server

Ethernet Client

MAC Address

Server

TCP Port

Server Trigger Termination

Server

EOL Delay

Server Timeout Stream Format Server Echo

Server

Response

Client Remote IP

Client Remote Port

Client Trigger Termination

Client EOL Delay

Client Timeout

Client Stream Format

Client Echo

Client Response

IO Module - Ethernet

DHCP Dynamic Host Configuration Protocol; Settings: ON (default), OFF;

IP Address IP address (000.000.000.000) Netmask Netmask (000.000.000.000) Default Gateway IP address for the Default Gateway; (000.000.000.000) Primary DNS IP address for the primary DNS server; (000.000.000.000) Secondary DNS IP address for the secondary DNS server; (000.000.000.000) Ethernet Server See sub-menu parameters below Ethernet Client See sub-menu parameters below Mac Address The MAC address for this device; (Read Only)

Client Remote IP Address Client only: The IP address of the remote server of the IO module is connecting to (000.000.000.000) Server TCP Port The port on the 882IS/882IS Plus IO module for a remote client to connect to Server Trigger Select the operation of the port; Settings:

Termination Selects the termination characters for data sent from the port

Figure 3-21. IO Module Ethernet Menu Structure

Menu Description

If DHCP is ON, the five parameters below are configured and set automatically by the network’s DHCP server; If DHCP is OFF, the five parameters below must be manually configured as needed

COMMAND (default) – allows operation of EDP commands and will print STRIND – stream industrial scale – data is transmitted up to the configured A/D sample rate; Will also accept EDP

commands and printing

Server/Client Sub-menu

STRLFT – stream legal for trade scale data is transmitted at the configured display update rate; Will also accept

EDP commands and printing

Table 3-20. IO Module Ethernet Menu Parameters

46 Visit our website www.RiceLake.com

Page 47

Configuration

Menu Description

Server EOL Delay Specifies, in 0.1 second intervals, the delay between transmitted lines of data Server Timeout The connection is closed if there is no activity before the set time - 0 disables the inactivity disconnect;

Enter value: 0-65535 seconds, 0 (default)

Stream Format Specifies the stream format used for streaming output of scale data (Trigger=Stream Legal for Trade or Stream industrial)

or specifies the expected input for a serial scale (Trigger=REMOTE) Server Echo Specifies whether characters received by the port are echoed back to the sending unit; Settings: OFF (default), ON Server Response Specifies whether the port transmits replies to serial commands; Settings: ON (default), OFF

NOTE: If an external device (such as a printer), that may transmit unexpected data (such as a paper low

message), is connected to the 882IS/882IS Plus the response parameter should be set to OFF to prevent a reply

from the 882IS/882IS Plus from confusing the external device.

Client Remote Port Client only: the TCP port number of the remote server of the IO module is connecting to; Enter value: 1-65535, 1 (default) Client Trigger Select the operation of the port; Settings:

COMMAND (default) – Allows operation of EDP commands and will print STRIND – Stream industrial scale – Data is transmitted up to the configured A/D sample rate; Will also accept EDP

STRLFT – Stream legal for trade scale data is transmitted at the configured display update rate; Will also accept

Termination Selects the termination character(s) for data sent from the port; Settings: CR/LF (default), CR Client End of Line Delay Specifies the delay between transmitted lines of data, in 0.1 second intervals; Enter value: 0-255, 0 (default) Client Timeout Connection is closed if there is no activity before the set time; 0 disables the inactivity disconnect;

Enter value: 0-65535 (seconds), 0 (default) Client Stream Format Specifies the client stream format used for streaming output of scale data (Trigger=Stream Legal for Trade or Stream

industrial) or specifies the expected input for a serial scale (Trigger=REMOTE). Client Echo Specifies whether characters received by the port are echoed back to the sending unit; Settings: OFF (default), ON Client Response Specifies whether the port transmits replies to serial commands; Settings: ON (default), OFF

NOTE: If an external device (such as a printer), that may transmit unexpected data (such as a paper low message), is connected to the 882IS/882IS Plus the response parameter should be set to OFF to prevent a reply from the 882IS/882IS Plus from confusing the external device.

commands and printing

EDP commands and printing

Table 3-20. IO Module Ethernet Menu Parameters (Continued)

Page 48

882IS/882IS Plus

IO Option Card

Setup

IO Module

Fieldbus Card

Fieldbus Swap

Mode

Minimum Value

Analog Output

Output Error Action

Minimum Negative

Maximum Value

Maximum Negative

Calibrate Zero Calibrate Span

DeviceNet Address

Profibus Address

IO Module - Option Card

Figure 3-22. IO Module Option Card Menu Structure

Menu Choice Description

Fieldbus Card Fieldbus Swap

DeviceNet Address Profibus Address

Analog Output Mode Mode – Specifies the weight data tracked by the analog output; Settings: GROSS (default), NET

Output 1-10V 0-20mA 4-20mA

Error Action Error Action – Specifies how the analog output responds to system error conditions; Settings:

Minimum Value Specifies the minimum weight value tracked by the analog output; Enter value: 0–9999999, 000000 (default) Minimum Negative Specify ON if the minimum weight (MIN parameter) is a negative value; Settings: OFF (default), ON Maximum Value Specifies the maximum weight value tracked by the analog output; Enter value: 0–9999999, 10000 (default) Maximum Negative Specify ON if the maximum weight (MAX parameter) is a negative value; Settings: OFF (default), ON Calibrate Zero Calibrate Zero – Edit the value to match the reading on the multimeter to perform a calibration Calibrate Span Calibrate Span – Edit the value to match the reading on the multimeter to perform a calibration

Specifies byte-swapping used for the fieldbus card; Settings: NONE, BYTE, WORD, BOTH (Default for DeviceNet is BYTE; Default for all other cards is NONE); Is the address given to a DeviceNet option card; Range 1-64, 63 (default); Is the address given to a Profibus option card; Range 1-126, 126 (default)

Selects whether the analog output supplies voltage (0-10 V - default), current (0-20mA) or current (4-20mA)

• FULLSC (default) – Set to full value (10 V or 20 mA)

• HOLD – Hold current value

• ZEROSC – Set to zero value (0 V or 4 mA)

Table 3-21. IO Module Analog Output Option Card Menu Parameters

48 Visit our website www.RiceLake.com

Page 49

Configuration

Power Saving

Mode

Setup

Wake

Threshold

Backlight

Control

Battery

Installed

Note

Version

Software

Setup

Regulation Default

IO Module

3.2.18 Power Savings Menu

Figure 3-23. Power Savings Structure

The conditions to enter Power Saving Mode vary depending upon the regulatory mode the unit is in (see Table 3-22). The countdown time to enter Power Saving Mode is 30 seconds. The 30-second countdown timer starts once the conditions are met, but restarts if the conditions are no longer met (scale motion, key press, serial command received). Refer to Section 3.2.9 on page 37 for additional details on the available regulatory modes.

Menu Choices Description

Level 2 submenu Power Saving Mode Off

Light

Medium

Aggressive

Wake Threshold 0.1 - 9999999.0 Once asleep, if the primary weight goes above the value, the indicator wakes; The wake threshold does not apply

Backlight Control On

Off

Battery Installed No

Yes

No power saving performed Turns off backlight

Weight must be stable and the 882IS/882IS Plus must be in Weigh Mode

Turns off backlight and blanks the display

OIML, Industrial or None: Weight must be stable and the 882IS/882IS Plus must be in Weigh Mode; NTEP or Canada: Weight must be stable at gross zero and the 882IS/882IS Plus must be in Weigh Mode

Turns off backlight, blanks the display and turns off the excitation

OIML, NTEP or Canada: Weight must be stable at gross zero and the 882IS/882IS Plus must be in Weigh Mode; A weight change will not wake the indicator; Only a key press or receipt of serial data will wake the indicator from Aggressive; Industrial or None: Weight must be stable and the 882IS/882IS Plus must be in Weigh Mode

for the Aggressive Power Saving Mode when configured for OIML, NTEP or CANADA regulatory mode; In that case, only a key press or serial command will wake the unit

Manually controls whether the backlight is on or off

Manually controls whether the indicator is being powered by a battery Power saving functionality is only activated if the battery installed is set to yes

Table 3-22. Power Savings Menu Parameters

3.2.19 Version Menu

Version

Software VX.XX.XX Displays firmware version number Regulation LVR X.XX Displays the Legally Relevant firmware version number IO Module None

Default No

menu is used to check the firmware version installed in the indicator and set the indicator configuration to factory defaults.

Figure 3-24. Version Menu Structure

Menu Choices Description

Signifies that it does not see the IO Module’

IO Version

Yes

Signifies that the indicator see the IO Module and responds with the firmware version of the IO Module Performs a reset of all the indicator parameters to factory default settings

IMPORTANT – All configuration and load cell calibration data will be lost

Table 3-23. Version Menu Parameters

Page 50

882IS/882IS Plus

Keypad Test

Test

Battery Counts

Key Text

Integer

Time

Time & Date

Date

000000

View

Accumulator

Clear

Accumulator

Tare Value

Tare

3.3 Test Menu

Figure 3-25. Test Menu Structure

Menu Choices Description

Keypad Test -- Allows the 882IS/882IS Plus keypad to be tested; Key presses are displayed and also transmitted on the COM port Battery Counts 35064 (5.8V =

3/4 charge after barrier)

View the current battery voltage as counts; The value shown at left is approximate; Expect the voltage to drop as it passes through the protection barrier; Count value is an estimate of the battery voltage as measured at J3 (after the protection barrier) and is therefore not equal to the true battery voltage as measured at the battery terminals (inside the sealed battery box)

Table 3-24. Test Menu Parameters

3.4 Time and Date

Menu Choices Description

Time - View or set the time Date - View or set the date

3.5 Accumulator Menu

Menu Choice Description

View - Views the current accumulator value, if enabled Clear Accumulator - Clears the current accumulator value, if enabled

3.6 Tare

Figure 3-26. Time and Date Menu Structure

Table 3-25. Time and Date Menu Parameters

Figure 3-27. Accumulator Menu Structure

Table 3-26. Accumulator Menu Parameters

Menu Choice Description

Tare - Views the current tare value

50 Visit our website www.RiceLake.com

Figure 3-28. Tare Menu Structure

Table 3-27. Tare Menu Parameter

Page 51

4.0 Calibration

Note

Scale

Calibrate

Zero Calibration

Setup

Test Weight

Count Value Count Value Point 1 - 5 Count Value

Calibrate

Span Calibration

Linear Calibration

Rezero Last Zero

Temporary Zero

Count Value

Calibrate

Count Value

Calibrate

Decimal

Calibrate

Calibration

Point 1

Weigh Point 1

Decimal

Count Value

Calibrate

The 882IS/882IS Plus can be calibrated using the front panel, EDP commands, or Revolution configuration utility. Calibration consists of the following steps:

• Zero calibration

• Entering the test weight value

• Span calibration

• Optional five-point linearization

• Optional rezero calibration for test weights using hooks or chains

• Optional last zero calibration

• Optional temporary zero calibration

The 882IS/882IS Plus requires the Zero Calibration and Span Calibration to be calibrated. The linearity points are optional; they must fall between zero and span, but must not duplicate zero or span. During calibration, Tare acts as a data entry confirmation key. Tare acts as an Enter key, and accepts the value if calibration was successful.

Calibration

Figure 4-1. Calibration Menu

Page 52

882IS/882IS Plus

GROSS

NET

B/N

Note

GROSS

NET

B/N

Note

ZERO

GROSS

NET

B/N

GROSS

NET

B/N

Note

4.1 Front Panel Calibration

1. Put the indicator in setup mode (Figure 3-1 on page 29) (or use if audit trail is enabled), and navigate to Calibrate (Figure 4-1 on page 51).

2. Press or to go to the Zero Calibration parameter.

Zero Calibration is used for most normal calibrations with an empty scale. If a special situation exists, where a Last Zero or Temporary Zero are used, refer to Section 4.2 on page 54 or Section 4.3 on page 54 for more information before performing a Zero Calibration.

3. Press or to view the previously captured A/D count value for zero.

Remove all weight from the scale. If the test weights require hooks or chains, place the hooks or chains on the scale

4. for zero calibration.

5. Press to perform zero calibration.

Press to leave without performing a calibration.

6. The indicator displays

Calibrating, Please Wait

while calibration is in progress. When complete,

Test Weight

displays.

To view the new zero A/D count, press then repeat Step 3, but instead of pressing Enter while viewing the

value, press to exit.

7. With Test Weight displayed, press to display the stored calibration weight value.

8. Edit the value using the keypad on the 882IS Plus or the numeric entry method for the 882IS/882IS Plus.

• Press or to select the digit

• Press or to increment or decrement the value

• Press when the value is correct

• Press or to move the decimal point position

9. Press to store the Test Weight value and advance to Span Calibration.

10. With Span Calibration displayed, press or to view the previously captured A/D count value for span.

11. Place calibration weights on the scale equal to test weight value.

12. Press to perform span calibration.

If calibration of span is not required, press to exit.

13. Press the indicator displays Calibrating, Please Wait while calibration is in progress. When complete, Linear Calibration displays.

To view the new span A/D count, press then repeat Step 9, but instead of pressing Enter while viewing the

value, press to exit.

14. Press when calibration is complete, to return to Weigh mode.

52 Visit our website www.RiceLake.com

Page 53

Calibration

Note

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

GROSS

NET

B/N

4.1.1 Five-Point Linearization

Five-point linearization (using the Linear Calibration parameter) provides increased scale accuracy by calibrating the indicator at up to five additional points between the zero and span calibrations. Linearization is optional: if choosing not to perform linearization, skip the Linear Calibration parameter; if linearization values have previously been entered, these values are reset to zero during zero calibration. To perform linearization, follow the procedure below.

Linear Calibration points must be less than the Span Calibration point.

1. With Linear Calibration displayed, press , Point-1 displays.

2. Press again, Weigh Point 1 displays.

3. Press to display the value of the weigh point.

4. Edit the value using the keypad on the 882IS Plus or the or the numeric entry method for the 882IS.

5. Press to confirm value. The indicator displays Calibration Point 1.

6. Place test weights on the scale and press . The indicator displays the previously captured A/D counts for the linearization point.

7. Press again to calibrate. The indicator displays Calibrating, Please Wait while calibration is in progress. When complete, Weight Point 1 displays.

8. Press to Point-1, then press to Point-2.

9. Repeat for up to five linearization points. To exit the linearization parameters, press to return to Linear Calibration.

10. Press when calibration is complete, to return to the Weigh mode.

4.1.2 Rezero

Rezero function is used to remove a calibration offset when hooks or chains are used to hang the test weights.

1. With Rezero displayed, press or to access the rezero function.

Remove all weight from the scale, including all hooks and chains. The indicator displays the AD count from the

previous zero calibration.

3. With all weight removed, press to rezero the scale. This function acquires a new ZERO calibration value. The indicator displays Calibrating, Please Wait while the zero and span calibrations are adjusted. When complete,

Last Zero displays.

4. Press to return to Weigh mode.

Page 54

882IS/882IS Plus

Note

4.2 Last Zero

Last zero (typically platform scales) replaces the original captured zero with the last push button zero prior to a calibration and does not need to remove the test weights.

To use this feature a pushbutton zero must have been taken while the scale was empty while in the Weigh mode.

Perform a normal calibration, except instead of using Zero Calibration to capture the zero point of an empty scale, select Last Zero to use the last pushbutton zero. The test weight does not need to be removed from the scale.

4.3 Temporary Zero

Temporary zero (typically tank scales) is only a reference for a span calibration, and allows the original zero to be retained after a span adjustment has been done.

This procedure assumes the previously calibrated zero point is still accurate.

Perform a normal calibration, except instead of using Zero Calibration to capture the zero point of an empty scale, select Temporary Zero. After calibrating the temporary zero, enter into Test Weight the value of the test weights added to the scale

(just the test weights, not the product loaded on the scale). Then perform the span calibration.

4.4 Adjusting Final Calibration (Trimming)

Calibration may be affected by environmental factors including wind, vibration, and angular loading. For example, if the scale is calibrated with 1000 lb, a strain test may determine that at 2000 lb the calibration is 3 lb high. In this case, final calibration can be adjusted by changing the test weight to 998.5 lb. This adjustment provides a linear correction of 1.5 lb per 1000 lb.

4.5 Gravity Compensation

This feature is used to compensate for the variance in gravitational pull from one location to another. To calibrate with gravity compensation, the Gravity Compensation parameter under the Features menu must be set to ON (Section 3.2.8 on page 36), and the Latitude and Elevation (elevation in meters, relative to sea level) parameters set before calibrating the indicator.

If the indicator is later installed at a different location, gravity compensation can be applied to a pre-calibrated indicator by adjusting the Latitude and Elevation parameters.

4.6 EDP Command Calibration

To calibrate the indicator using EDP commands an indicator or IO Module port must be connected to a terminal or personal computer. See Section 2.4 on page 21 for cable connections.

The indicator will respond with OK if the value of the parameter was valid, or the command executed properly. If the indicator responds with ??, then either the value for the parameter was invalid, or the command could not be executed.

Once the indicator is connected to the sending device, do the following:

1. Place the indicator in setup mode and remove all weight from the scale platform. If the test weights require hooks or chains, place the hooks or chains on the scale for zero calibration.

2. Send the SC.WZERO#1 command to calibrate zero. The indicator displays Calibrating, Please Wait while calibration is in progress.

3. Place test weights on the scale and use the SC.WVAL#1 command to enter the test weight value in the following format:

SC.WVAL#1=nnnnnn<CR>

4. Send the SC.WSPAN#1 command to calibrate span. The indicator displays Calibrating, Please Wait while calibration is in progress.

5. Up to five linearization points can be calibrated between the zero and span calibration values. Use the following commands to set and calibrate a single linearization point:

SC.WLIN.V1#1=nnnnn<CR> SC.WLIN.C1#1<CR>

The SC.WLIN.V1#1 command sets the test weight value (nnnnn) for linearization point 1. The SC.WLIN.C1#1 command calibrates the point. Repeat using the SC.WLIN.Vn#1 and SC.WLIN.Cn#1 (where 'n' is the linearity point number) commands as required for additional linearization points.

6. To remove an offset value, clear all weight from the scale, including the hooks or chains used to hang test weights, then send the SC.REZERO#1 command. The indicator displays Calibrating, Please Wait while the zero and span calibrations are adjusted.

7. Send the KMENU or KEXIT EDP command to return to Weigh mode.

54 Visit our website www.RiceLake.com

Page 55

Calibration

4.7 Revolution® Calibration

To calibrate indicator using Revolution, an indicator port must be connected to a PC running the Revolution configuration utility.

1. Place the indicator in Configuration mode (display reads Scale) and remove all weight from the scale platform.

1. Select New from the File menu.

2. The Select Indicator dialog box appears. Select the 882IS/882IS Plus icon and click OK.

3. Select Connect from the Communications menu.

4. Select Scale from the left-side menu and then click the Scale icon.

5. Select Calibration Wizard from the Tools menu and the Calibration Wizard window appears.

6. Select Standard Calibration (zero and span) or Standard with Multi-Point Linearization and then click Next to continue.

7. Enter the test weight used to calibrate the scale. If chains or hooks are used to hold the weights, check the box below the test weight value entry. This adds a Rezero step to the calibration sequence.

8. Remove all weights from the scale. If chains or hooks are used, place them on the scale. Click the Calibrate Zero button to perform the zero calibration. A message box appears when the process is complete.

9. Apply the test weights to the scale. Click the Calibrate Span button to perform the span calibration. A message box appears when the process is complete.

10. If the option for chains or hooks was selected in Step 7, the Rezero step displays. remove all weights from the scale including chains or hooks. Click the Re-Zero button to calibrate the zero offset.

11. If performing a multi-point linear calibration, up to five other calibration weight values can be entered on the display. The weights must be in ascending order and must not include zero or the span weight. Enter the weight values and click the Go button to calibrate each point.

12. Review the new calibration values and then click Finish to close the Calibration Wizard or click Cancel to restore the previous calibration values.

Page 56

882IS/882IS Plus

Note

5.0 Using Revolution

The Revolution utility provides functions used to support configuration, calibration, customizing and backup of the 882IS/882IS Plus configuration settings using a PC.

Calibration values, scale configuration and print ticket formatting can be configured, saved and restored to the 882IS/882IS Plus using Revolution.

Firmware updates for the 882IS/882IS Plus can be done without using Revolution. Independent steps are noted in

Section 10.11 on page 86.

882IS/882IS Plus IO Module firmware can be updated using Revolution. The link to begin this process is available on the Revolution home screen. Updating the firmware defaults configuration settings. For more information on jumper position and steps on updating firmware, see the 882IS/882IS Plus I/O Module Installation Manual (PN 194139).

For system requirements visit the Rice Lake Weighing Systems website at www.ricelake.com.

5.1 Communication With the Indicator

Communicating to the 882IS/882IS Plus can be accomplished in the following ways:

• Using a serial connection to the indicator serial (COM) port through J3

• Using a USB connection and Virtual Comm Port to the indicator’s USB Micro Device (USBCOM) port through J4

• Using a TCP/IP connection through the Ethernet Port (J6)

After making the physical connection to a PC, select the Options in the Tools menu and configure the communications settings as needed to match the communications method that is being used:

• RS-422 – Select the COM port that it will be connected to; Settings can be configured manually to match the indicator's

current settings, or check the box for “Auto Detect Settings” to have Revolution automatically detect the settings

• USB – Select RS-422 as the communication mode, the USB connection appears as a standard COM port to Revolution;

The comm port for the USB connection will only show in the list of available ports if the indicator is physically connected, and powered on. The settings for baud rate, data and stop bits, and parity do not apply for a USB connection, and do not need to be set to any specific value.

• TCP/IP – Requires the IP address and TCP Port of the indicator. Enter the IP Address and Port during the

communications connection.

To open the communication connection, click on Connect under the Communications menu, or the Connect button in the toolbar. Revolution will attempt to establish communications with the indicator.

If Revolution does not detect the indicator, check the:

Physical connections

Communications settings in Revolution

Current settings of the communications port in the indicator

Indicator communications port Trigger parameter is set to Command

If Revolution displays a Version Error, the indicator version of firmware does not match the module used in Revolution. A connection can be forced, but some parameters may not be enabled if they were not originally supported in that module.

56 Visit our website www.RiceLake.com

Page 57

Using Revolution

5.2 Configuration

The Revolution configuration utility provides the preferred method for configuring the 882IS/882IS Plus indicator. Revolution runs on a PC to set configuration parameters for the indicator. When Revolution configuration is complete, configuration data is downloaded to the indicator.

5.2.1 New Configuration File

1. Select New File on the toolbar (NEW under the file menu can also be used).

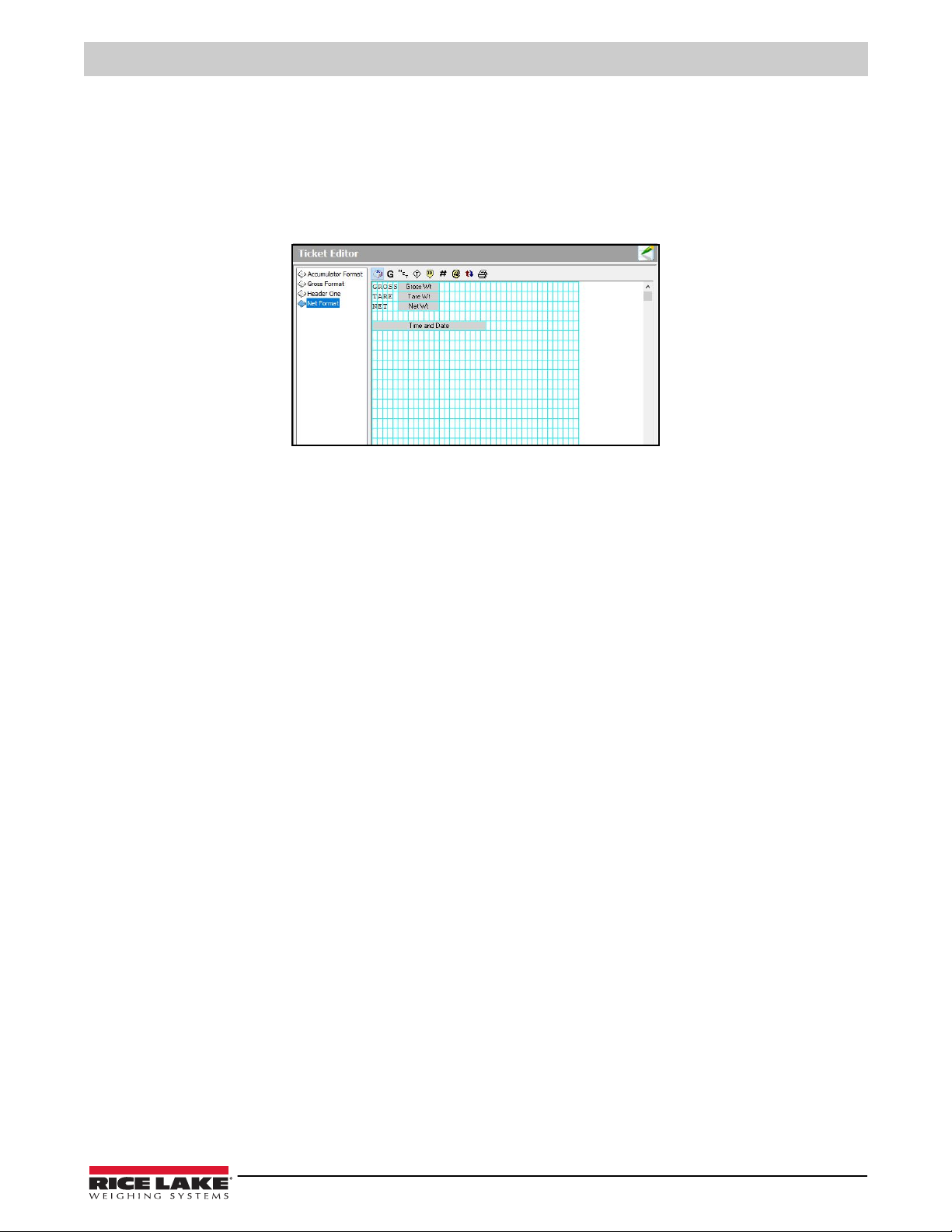

Figure 5-1. Revolution Main Screen

2. Select the icon for the indicator with the appropriate firmware version for which the configuration file is to be created.

3. Revolution will create a default configuration file. Edit the settings, upload the indicator’s current settings, or download the default settings to the indicator.

5.2.2 Open an Existing Configuration File

1. Select Open File on the tool bar (Open under the file menu can also be used).

2. Navigate to the *.rev file to open then click the

3. Revolution opens the file, selecting the correct indicator module to use with it. Edit the settings, or download the settings to the indicator.

OK button.

5.2.3 Saving a Configuration File

Select Save File on the tool bar (Save under the file menu can also be used).

• If the file is new, enter a name when requested.

• If the file already exists, confirm to overwrite the previous file.

• Select cancel to exit the save process without saving.

• Select Save As under the file menu if saving to a different file name.

Downloading to the Indicator

The Send Configuration to Device function in the Revolution Communications menu allows a Revolution configuration file (with or without scale calibration data) or ticket formats to be sent/downloaded to a connected indicator in Setup mode.

The Send Section to Device function in the Revolution Communications menu allows download of only the currently displayed section, such as the communications port configuration.

Because less data is transferred using Send Section to Device, it is typically faster than a full configuration download, but there is an increased possibility that the download may fail due to dependencies on other objects. If the download fails, try performing a complete download using the Send Configuration to Device function.

Uploading Configuration to Revolution

The Get Configuration from Device function in the Revolution Communications menu allows the existing configuration of a connected indicator to be saved to a file on the PC. Once saved, the configuration file provides a backup that can be quickly restored to the indicator if needed. Alternatively, the file can be edited within Revolution and sent back to the indicator.

5.3 Revolution Help

The menu bar in Revolution contains a Help system for further assistance in using Revolution software. The Help system contains an index of help topics and a search function. The search function allows the user to search with a

keyword. When a keyword is typed into the search text box, Help searches its Index and finds the closest related topic in the help system.

Page 58

882IS/882IS Plus

6.0 EDP Commands

The 882IS/882IS Plus indicator can be controlled by a personal computer or terminal using the EDP commands, which can simulate front panel key press functions, display and change setup parameters, and perform reporting functions.

6.1 The EDP Command Set

The EDP command set can be divided into seven groups: key press commands, reporting commands, the

RESETCONFIGURATION special function command, parameter setting commands, Weigh mode commands, error conditions

commands. When the indicator processes an EDP command, it responds with the message OK. The OK response verifies that the

command was received and has been executed. If the command is unrecognized or cannot be executed, the indicator responds with ??.

The following sections list the commands and command syntax used for each of these groups.

6.1.1 Key Press Commands

Key press EDP commands (Table 6-1) simulate pressing the keys on the front panel of the indicator. These commands can be used in both setup and weighing mode. Several of the commands serve as “pseudo” keys, providing functions that are not represented by a key on the front panel.

For example, to enter a 15-pound tare weight using EDP commands:

1. Type K1 and press

2. Type K5 and press

3. Type KTARE and press

Enter (or RETURN). Enter.

Enter.

Command Function

KMENU Press the Menu key KZERO Press the Zero key KUNITS Press the Units key KPRINT Press the Print key KTARE Press the Tare key KGROSSNET Press the Gross/Net key KGROSS Go to Gross mode KNET Go to Net mode KSDISPACCUM Display ACCUM (pseudo key) KDISPTARE Display Tare (pseudo key) KCLR Press the Clear key (pseudo key) KCLRTAR Clear tare from system (pseudo key) KLEFT In Menu mode, move left in menu KRIGHT In Menu mode, move right in menu KUP In Menu mode, move up in the menu KDOWN In Menu mode, move down in the menu

Table 6-1. EDP Key Press Commands

Command Function

KSAVE In Menu mode, saves the current configuration

(pseudo key)

KEXIT In Menu mode, save the current configuration then

exits to Weigh mode (pseudo key) K0-K9 Press number 0 (zero) through 9 KDOT Press the decimal point (.) KENTER Press the Enter key (pseudo key) KLOCK Lock specified front panel key. ie: to unlock the

Print key, enter KUNLOCK=KPRINT (pseudo key) KUNLOCK Unlock specified front panel key, ie: to unlock the

Print key, enter KUNLOCK=KPRINT (pseudo key) KESCAPE

KPRIM Change to primary units (pseudo key) KSEC Change to secondary units (pseudo key)

Exits selected parameter; Returns to

a parameter is not selected (functions identical to the

key in

mode) (pseudo key)

Weigh

mode if

58 Visit our website www.RiceLake.com

Page 59

EDP Commands

Note

6.1.2 Reporting Commands

Reporting commands (Table 6-2) send specific information to the EDP port. These commands can be used in both Configuration mode and Weigh mode.

Command Function

AUDITJUMPER Returns the state of the audit jumper; A response of OK indicates the jumper is in the On position;

A response of “??” indicates the jumper is in the Off position BUILD Returns the date and time of the software build DUMPALL Returns a list of all parameter values DUMPAUDIT Returns a list of audit trail information DUMPETH Returns a list of all parameter values pertaining to the Ethernet VERSION Returns the 882IS/882IS Plus firmware version P Returns the current displayed weight with units identifier IOMODULEVERSION Returns the IO module firmware version, if attached; If no IO module is attached/detected, NONE is returned

Table 6-2. EDP Reporting Commands

6.1.3 The RESETCONFIGURATION Command

The RESETCONFIGURATION command can be used in Configuration mode to restore all configuration parameters to their default values.

This command is equivalent to using the DEFAULT function in Configuration mode.

All load cell calibration settings are lost when the RESETCONFIGURATION command is run.

6.1.4 Parameter Setting Commands

Parameter setting commands allow the display or change of the current value for a particular configuration parameter (Table 6-3 on page 60 through Table 6-19 on page 66).

Current configuration parameter settings can be displayed in either Configuration mode or Weigh mode using the following syntax:

command

Most parameter values can be changed in Configuration mode only. Use the following command syntax when changing parameter values:

command

where value is the new value you want to assign to the parameter. Use no spaces before or after the equal (=) sign. If an incorrect command has been typed in, the response will be ??.

For example, to set the motion band parameter to 5, type the following:

SC.MOTBAND#1

For parameters with selectable values, enter the command and equal sign followed by a question mark:

command

to see a list of those values. The indicator must be in Configuration mode to use this function.

<CR>

=value<CR>

=5D<CR>

=?<CR>

Page 60

882IS/882IS Plus

6.1.5 Scales Menu

Command Menu Description Choices / Range

SC.ACCUM#1 Accumulator Accumulator of weighments OFF, ON SC.DFTHRH#1 Digital Filter Threshold Digital filter cutoff threshold 0-99999 SC.DSPRATE#1 Display Update Rate Display Update Rate (in 0.1 sec intervals) 1-80 SC.DFSENS#1 Digital Filter Sensitivity Digital filter cutoff sensitivity LIGHT,MEDIUM,HEAVY SC.GRADS#1 Graduations Graduations to determine capacity 1 - 100000 SC.MOTBAND#1 Motion Band Motion Band (in display divisions) 0-100 SC.OVRLOAD#1 Overload Overload point based on capacity FS+2%, FS+1D, FS+9D, FS SC.OVRLOAD_VAL#1 Enter Percentage Overload point based on percentage of capacity 0.0 - 150.0 SC.PWRUPMD#1 Powerup Mode Power Up Mode GO, DELAY SC.RANGE1.MAX#1 Range-1 Max Maximum weight for first range or interval 0.0 - 999999.0 SC.RANGE2.MAX#1 Range-2 Max Maximum weight for second range or interval 0.0 - 999999.0 SC.RANGE3.MAX#1 Range-3 Max Maximum weight for third range or interval 0.0 - 999999.0 SC.SMPRAT#1 Sample Rate Scale Sample Rate 7.5HZ, 15HZ, 30HZ, 60HZ, 120HZ,

240HZ, 480HZ, 960HZ SC.SPLIT#1 Multi Ranges Specifies full range, multi-range, or multi-interval OFF, 2RNG, 3RNG, 2INTVL, 3INTVL SC.SSTIME#1 Standstill Time Stand still time (in 0.1 sec intervals) 1 - 65535 SC.TAREFN#1 Tare Function Tare Function BOTH, NOTARE, PBTARE, KEYED SC.THRESH#1 Accumulator Threshold Accumulator Zero Threshold 0 - 999999 SC.ZRANGE#1 Zero Range Zero range (in %) 0.0 - 100.0 SC.ZTRKBND#1 Zero Track Band Zero track band (in divisions) 0.0 - 100.0

Table 6-3. Scale EDP Commands

6.1.6 Format Menu

Command Menu Description Choices / Range

If SPLIT = 2RNG, 3RNG, 2INTVL, 3INTVL SC.PRI.DECPNT#1 DP Location-1 Decimal point location for first range or interval 888888, 888880, 8.88888, 88.8888, 888.888,

8888.88, 88888.8

SC.SEC.DECPNT#1 DP Location-2 Decimal point location for second range or interval 888888, 888880, 8.88888, 88.8888, 888.888,

8888.88, 88888.8

SC.TER.DECPNT#1 DP Location-3 Decimal point location for third range or interval. Only avail-

able in 3RNG or 3INTVL SC.PRI.DSPDIV#1 Range-1 DD Range/Interval (1 division size) 1D, 2D, 5D SC.SEC.DSPDIV#1 Range-2 DD Range/Interval (2 division size) 1D, 2D, 5D SC.TER.DSPDIV#1 Range-3 DD Range/Interval (3 division size)

Only available in 3RNG or 3INTVL. If SPLIT = OFF SC.PRI.UNITS#1 Primary Units Specifies primary units for displayed and printed weight LB, KG, OZ, TN, T, G, NONE SC.SEC.UNITS#1 Secondary Units Specifies secondary units for displayed and printed weight LB, KG, OZ, TN, T, G, NONE

Table 6-4. Format EDP Commands

888888, 888880, 8.88888, 88.8888, 888.888,

8888.88, 88888.8

1D, 2D, 5D

60 Visit our website www.RiceLake.com

Page 61

EDP Commands

Note

6.1.7 Calibration Menu

Command Menu Description Choices / Range

SC.WZERO#1 Calibrate Zero Perform zero calibration – SC.WSPAN#1 Calibrate Span Perform span calibration – SC.LC.CD#1 Zero Counts Get/Set Calibration Zero value -8388607 to 8388607 SC.LC.CW#1 Gain Counts Get/Set Calibration Gain value -8388607 to 8388607 SC.LC.CZ#1 Zero Counts Get/Set Calibration Zero value -2147483646 to 2147483647 SC.REZERO#1 Rezero Perform Calibration Re-Zero – SC.WLIN.C1#1 Calibration Point - 1 Calibrate linearization point 1 – SC.WLIN.C2#1 Calibration Point - 2 Calibrate linearization point 2 – SC.WLIN.C3#1 Calibration Point - 3 Calibrate linearization point 3 – SC.WLIN.C4#1 Calibration Point - 4 Calibrate linearization point 4 – SC.WLIN.C5#1 Calibration Point - 5 Calibrate linearization point 5 – SC.WLIN.F1#1 MultiPoint Cal-1 Raw count value for linearization point 1 -2147483646 to 2147483647 SC.WLIN.F2#1 MultiPoint Cal-2 Raw count value for linearization point 2 -2147483646 to 2147483647 SC.WLIN.F3#1 MultiPoint Cal-3 Raw count value for linearization point 3 -2147483646 to 2147483647 SC.WLIN.F4#1 MultiPoint Cal-4 Raw count value for linearization point 4 -2147483646 to 2147483647 SC.WLIN.F5#1 MultiPoint Cal-5 Raw count value for linearization point 5 -2147483646 to 2147483647 SC.WLIN.V1#1 Cal Point-1 Weight Test weight value for linearization point 1 0.0 - 999999.0 SC.WLIN.V2#1 Cal Point-2 Weight Test weight value for linearization point 2 0.0 - 999999.0 SC.WLIN.V3#1 Cal Point-3 Weight Test weight value for linearization point 3 0.0 - 999999.0 SC.WLIN.V4#1 Cal Point-4 Weight Test weight value for linearization point 4 0.0 - 999999.0 SC.WLIN.V5#1 Cal Point-5 Weight Test weight value for linearization point 5 0.0 - 999999.0 SC.WVAL#1 Test Weight Test weight value for standard gain calibration 0.00001 - 999999.0

Table 6-5. Calibration EDP Commands

The menu items, CAL1 – CAL5 are used to do the calibration. A value cannot be keyed in. The SC.WLIN.Fx#1 EDP commands can be used to view and edit the value but they do not perform the calibration. Use the SC.WLIN.Cx#1 commands to perform the calibration.

Page 62

882IS/882IS Plus

6.1.8 Ports COM Menu

Command Menu Description Choices / Range

EDP.BAUD#1 Baud Port baud rate *1200, *2400, *4800, 9600, 19200,

28800, 38400, 57600, 115200

*not available on port 3

EDP.BITS#1 Bits Port data bits and parity 8NONE, 7EVEN, 7ODD EDP.ECHO#1 Echo Specifies whether characters received by the port are echoed

back to the sending unit EDP.EOLDLY#1 End of Line Delay Port end-of-line delay in 0.1 sec intervals Range: 0 - 255 EDP.TYPE#1 Type Specifies RS-232 or RS-422 communication 232, 422 EDP.PRNMSG#1 Print Message Print message OFF, ON EDP.RESPONSE#1 Response Response OFF, ON EDP.SFMT#1 Stream Format Stream format Alphanumeric, Max Length: 200 EDP.STOPBITS#1 Stop Bits Stop Bits 1, 2 EDP.TERMIN#1 Termination Termination character CR/LF, CR EDP.TRIGGER#1 Trigger Selects the operation of the port COMAND, STRLFT, STRIND, REMOTE

OFF, ON

Table 6-6. Ports (COM) EDP Commands

6.1.9 Stream Tokens Menu

Command Description Default Choices / Range

STR.GROSS String transmitted for the <M> token for gross weight G Alphanumeric, Max Length: 8 STR.INVALID String transmitted for the <S> token when weight is invalid I Alphanumeric, Max Length: 2 STR.MOTION String transmitted for the <S> token when scale is in motion M Alphanumeric, Max Length: 2 STR.NEG Character transmitted for the <P> token when the weight is negative - NONE, SPACE, STR.NET String transmitted for the <M> token for net weight N Alphanumeric, Max Length: 8 STR.OK String transmitted for the <S> token when the scale is ok “ ” Alphanumeric, Max Length: 2 STR.POS Character transmitted for the <P> token when the weight is positive SPACE NONE, SPACE, + STR.PRI String transmitted for the <U> token for primary units L Alphanumeric, Max Length: 8 STR.RANGE String transmitted for the <S> token when the scale is out of range O Alphanumeric, Max Length: 2 STR.SEC String transmitted for the <U> token for secondary units K Alphanumeric, Max Length: 8 STR.TARE String transmitted for the <M> token for tare weight T Alphanumeric, Max Length: 8 STR.ZERO String transmitted for the <S> token when the scale is at center of zero Z Alphanumeric, Max Length: 2 STR.ID String transmitted for the <ID> token for setting up a user id -- Alphanumeric, Max Length: 16

Table 6-7. Stream Tokens EDP Commands

6.1.10 Feature Menu

Command Menu Description Choices / Range

DATEFMT Date Format Date Format MMDDYY, DDMMYY, YYMMDD, YYDDMM, MMDDY4, DDMMY4,

Y4MMDD, Y4DDMM DECFMT Decimal Format Decimal Format DOT, COMMA GRAVADJ Gravity Adjust Must be enabled for latitude and elevation OFF, ON LAT.LOC Latitude Latitude (Gravity adjust must be set to ON) 0-90 ELEV.LOC Elevation Elevation (Gravity adust must be set to ON) -9999-9999 UID Unit ID Unit Identifier Alphanumeric, Max Length: 6 DATESEP Date Separator Date separator character SLASH, DASH, SEMI, TIMEFMT TIMEFMT Time Format Time format 12HOUR, 24HOUR TIMESEP Time Separator Time separator character COLON, COMMA

Table 6-8. Feature EDP Commands

62 Visit our website www.RiceLake.com

Page 63

EDP Commands

Note

6.1.11 Regulatory Menu

Command Menu Description Choices / Range

REGWORD Regulatory Word Term printed when weighing in Gross mode GROSS, BRUTTO REGULAT Regulatory Regulatory agency having jurisdiction over the scale site NONE, OIML, NTEP, CANADA, INDUST REG.AGENCY Audit Agency Audit trail agency format NONE, OIML, NTEP, CANADA REG.BASE Overload Base Zero preference for overload calculation

CALIB - Calibrated zero

SCALE - Pushbutton zero REG.CTARE Clear Tare CLEAR key – clear tare/accumulator while viewing NO, YES REG.RTARE Round Tare Round push button tare to nearest Display Division. YES,NO REG.KTARE Keyed Tare Keyed tare NO, YES REG.MTARE Multiple Tare Action Multiple tare action NOTHIN, REPLAC, REMOVE REG.NTARE Negative Tare Negative or zero tare NO, YES REG.PRTMOT Print Motion Print while in motion NO, YES REG.PRINTPT Add PT to Print Add “PT” to keyed tare print NO, YES REG.SNPSHOT Select Weight Source Selects display or scale weight source DISPLAY, SCALE REG.ZTARE Zero Tare Remove tare on ZERO NO, YES

CALIB, SCALE

Table 6-9. Regulatory EDP Commands

6.1.12 Passwords Menu

Command Menu Description Choices / Range

PWD.USER User Used to protect items in the top level menu Range: 0 - 999999 PWD.SETUP Setup Used to protect items in the setup menu Range: 0 - 999999

Table 6-10. Password EDP commands

The EDP commands can be used to set the passwords but they will not return the current password setting.

6.1.13 Keypad Lock Menu

Command Menu Description Choices / Range

KEYLCK.FUNCTION Function Keys Lock or unlocks the Function Keys LOCK, UNLOCK KEYLCK.GROSSNET Gross/Net Locks or unlocks the Gross/Net Key LOCK, UNLOCK KEYLCK.MENU Menu Locks or unlocks the Menu Key LOCK, UNLOCK KEYLCK.NUMERIC Numeric Keypad Locks or unlocks the Numeric Keypad Keys LOCK, UNLOCK KEYLCK.PRINT Print Locks or unlocks the Print Key LOCK, UNLOCK KEYLCK.TARE Tare Locks or unlocks the Tare Key LOCK, UNLOCK KEYLCK.UNITS Units Locks or unlocks the Units Key LOCK, UNLOCK KEYLCK.ZERO Zero Locks or unlocks the Zero Key LOCK, UNLOCK

Table 6-11. Keypad Lock EDP Commands

6.1.14 Print Format Menu

The Menu items (except for HDRFMT) are listed by the format and the sub-parameters.

Command Menu Description Choices / Range

ACC.FMT Accumulator | Format Accumulator enabled and displayed Alphanumeric, Max Length: 1000 ACC.PORT Accumulator | Port Accumulator print port COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER,

ETHCLIENT, OFF GFMT.FMT Gross Format | Format Weigh mode, no tare in system Alphanumeric, Max Length: 1000 GFMT.PORT Gross Format | Port Weigh mode, no tare in system, print port COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER,

ETHCLIENT, OFF HDRFMT1 Header Format Must be inserted into other print format Alphanumeric, Max Length: 300 NFMT.FMT Net Format | Format Weigh mode, tare in system Alphanumeric, Max Length: 1000 NFMT.PORT Net Format | Port Weigh mode, tare in system, print port COM, FIBER, IOCOM, IOCOMUSB, ETHSERVER,

ETHCLIENT, OFF

Table 6-12. Print Format EDP Commands

See Section 7.2 on page 68 for more detailed information on print format commands.

Page 64

882IS/882IS Plus

Note

6.1.15 Digital I/O Configuration Menu

Command Menu Choices / Range

DIO.b#s BIT x OFF, PRINT, ZERO, TARE, UNITS, CLEAR, DSPACC, DSPTAR, NT/GRS, CLRCN, OUTPUT, KBDLOC, GROSS,

NET, PRIM, SEC, CLRTAR, CLRACC

Table 6-13. Digital I/O Configuration EDP Commands

Digital inputs and outputs are specified by bit number (b = 1 or 2) and slot number (s = 0).

6.1.16 Weigh Mode Commands

Weigh mode commands (Table 6-14) transmit data to a data communications port on demand. SX, EX, and all the X weight retrieval commands are valid only in normal operating mode; all other commands are valid in either setup or Weigh mode.

See Section 10.3 on page 78 for error command definitions.

Command Function

AT Acquire tare DISPLAYMSG#n Displays a message on the indicated line (n); Example: DISPLAYMSG#3=abc SX#1 Start serial port streaming; If port is configured to stream on port #3; (3=Ethernet Server) SX Start serial port streaming for the port receiving the command, if port is configured to stream EX#1 Stop serial port streaming for the port receiving the command, if port is configured to stream; 1=COM, 2=FiberOptic EX Stop serial port streaming for the port receiving the command, if port is configured to stream RS Reset system; This is a soft reset; Used to reset the indicator without resetting the configuration to the factory defaults S Sends a single stream frame from the scale to the port in the format defined by the Stream Format parameter of the port receiving

the command XA#1 Transmit accumulator value in displayed units for scale n XA Transmit accumulator value in displayed units for selected scale XAP#1 Transmit accumulator value in primary units for scale n XAS#1 Transmit accumulator value in secondary units for scale n XG#1 Transmit gross weight in displayed units for scale n XG Transmit gross weight in displayed units for selected scale XG2 Transmit gross weight in non-displayed units for selected scale XGP#1 Transmit gross weight in primary units for scale n XGS#1 Transmit gross weight in secondary units for scale n XN#1 Transmit net weight in displayed units for scale n XN Transmit net weight in displayed units for selected scale XN2 Transmit net weight in non-displayed units for selected scale XNP#1 Transmit net weight in primary units for scale n XNS#1 Transmit net weight in secondary units for scale n XT#1 Transmit tare weight in displayed units for scale n XT Transmit tare weight in displayed units for selected scale XT2 Transmit tare weight in non-displayed units for selected scale XTP#1 Transmit tare weight in primary units for scale n XTS#1 Transmit tare weight in secondary units for scale n XE Returns a decimal representation of any error conditions XEH Returns a hexadecimal representation of any error conditions

Table 6-14. Weigh Mode EDP Commands

The 882IS/882IS Plus only supports one scale therefore X commands are displayed with a #1.

64 Visit our website www.RiceLake.com

Page 65

EDP Commands

Note

6.1.17 Power Commands

Command Menu Description Choices/Range

BACKLIGHT Backlight Control Manual control of whether the backlight is ON or OFF OFF, ON BATTERYINSTALLED Battery Installed Manual control of whether the indicator is being powered by a

battery (yes) or not (no)

POWERSAVINGMODE Power Saving Mode Selects which type of automatic power saving is to be performed

after 30 seconds of no activity (scale motion, keypress, or serial command received); the 30 second timer restarts if a condition of no activity happens;

OFF = none; LIGHT = turns off backlight; MEDIUM = turns off backlight and display; AGGRESSIVE = turns off backlight, excitation and display

WAKETHRESHOLD Wake Threshold Once asleep, if the primary weight goes above this value the

indicator will wake; A value of 0 will prevent indicator from waking due to a weight change - only a keypress or serial command will wake the unit

NO, YES

OFF, LIGHT, MEDIUM, AGGRESSIVE

0.0 - 9999999.0

Table 6-15. Power EDP Commands

6.1.18 Setup Mode Commands

Command Menu Description Choice/Range

RESETCONFIGURATION Default Resets all configuration parameters to their default values and

clears the scale calibration

Table 6-16. Setup Mode Commands

The RESETCONFIGURATION command can be used in Configuration mode to restore all configuration parameters to their default values.

This command is equivalent to using the DEFAULT function in Configuration mode.

–

All load cell calibration settings are lost when the RESETCONFIGURATION command is run.

6.1.19 Analog Output Parameters

Command Menu Description Choice/Range

ALG.ERRACT#n Error Action Specifies how the analog output responds to system

error conditions

ALG.MAX#n Maximum Value Specifies the maximum weight value tracked by the

analog output

ALG.MAXNEG#n Maximum Negative Specifies ON if the maximum weight (MAX parameter)

is a negative value

ALG.MIN#n Minimum Value Specifies the minimum weight value tracked by the

analog output

ALG.MINNEG#n Minimum Negative Specifies ON if the minimum weight (MIN parameter) is

a negative value

ALG.MODE#n Mode Specifies the weight data, Gross or Net, tracked by the

analog output

ALG.OUTPUT#n Output Specifies the output type: 0-10 V, 0-20 mA, or 4-20 mA

output NOTE: This parameter must be set before calibrating the analog output.

Table 6-17. Analog Output Parameters

FULLSC: Sets to full value (10 V or 20 mA) HOLD: Holds the last value ZEROSC: Sets to zero value (0 V or 4 mA)

0.000001 - 9999800.0

ON: The maximum valued is negative OFF: The maximum value is positive

0.0 - 9999800.0

ON: The minimum value is negative OFF: The minimum value is positive

GROSS: Tracks the gross weight NET: Tracks the net weight

0-10 V: 0-10 volt output 0-20 mA: 0-20 mA output 4-20 mA: 4-20 mA output

Page 66

882IS/882IS Plus

6.1.20 Analog Output Commands

Command Menu Description Choice/Range

ALG.ENTERSPANCAL#n – Enters the mode for calibrating the analog output span; This is needed

only if calibrating through EDP commands

ALG.EXITSPANCAL#n – Exits the mode for calibrating the analog output span; This is needed

only if calibrating through EDP commands; This must be done before the results of the calibration are implemented

ALG.ENTERZEROCAL#n – Enters the mode for calibrating the analog output span; This is needed

only if calibrating through EDP commands

ALG.EXITZEROCAL#n – Exits the mode for calibrating the analog output span; This is needed

only if calibrating through EDP commands. This must be done before the results of the calibration are implemented

ALG.SPAN#n Calibrate Span Enter the observed output value to calibrate the analog output span;

Use a multimeter to monitor the analog output value

ALG.ZERO Calibrate Zero Enter the observed output value to calibrate the analog output zero;

Use a multimeter to monitor the analog output value

OK or ??

0.0 - 30.0

Table 6-18. Analog Output Commands

6.1.21 Test Commands

Command Menu Description Choice/Range

BATTERYCOUNTS Battery Counts The A2D count value taken from the battery that is used as an

indicator of battery life

Table 6-19. Test Commands

32600 (5.45 V - critical error voltage) 36000 (6.05 V - fully charged battery) These count ranges are approximate

66 Visit our website www.RiceLake.com

Page 67

Print Formatting

Note

7.0 Print Formatting

The 882IS/882IS Plus provides four print formats. Formats Gross Format and Net Format will be printed based on the current mode of operation when the format using the <H1> formatting token. The Accumulator Format is printed if the accumulator is enabled and the print key is pressed while viewing the accumulator value.

Each print format can be customized to include up to 1000 characters of information (300 for Header Format), such as company name and address. Use the indicator front panel (Print Format menu), EDP commands, or the Revolution

configuration utility to customize the print formats.

7.1 Print Formatting Tokens

Table 7-1 lists tokens that can be used to format the 882IS/882IS Plus print formats. Tokens included in the format strings must

be enclosed between < and > delimiters. Any characters outside of the delimiters are printed as text. Text characters can include any ASCII character that can be printed by the output device.

Tokens Description

<G> Gross weight in displayed units (See notes 1 and 2 below) <N> Net weight in displayed units (See notes 1 and 2) <T> Tare weight in displayed units (See notes 1 and 2) <A> Accumulated weight in displayed units <AC> Number of accumulator event (5-digit counter) <AT> Time of last accumulator event <AD> Date of last accumulator event <TI> Time <DA> Date <TD> Time and date <UID> Unit ID number (See note 3) <CN> Consecutive number (See note 3) <H1> Ticket header (HDRFMT) <NLnn> New line (nn = number of termination (<CR/LF> or <CR>) characters) (See note 4) <nnn> ASCII character (nnn = decimal value of ASCII character); Used for inserting control characters (STX, for example) in the print stream <SPnn> Space (nn = number of spaces) (See note 4) <SU> Toggle weight data format (formatted/unformatted) (See note 5) <CR> Carriage return character <LF> Line feed character

1. Gross, net, and tare weights are 8 digits in length, including sign and decimal point, followed by a space and a one- to five-digit units identifier. Total field length with units identifier is 10-14 characters. Depending on what units are configured, the units identifier will be lb, kg, oz, tn, t, or g.

2. Gross, net, tare, and accumulator weights can be printed in any configured weight units by adding the following modifiers to the gross, net, tare, and accumulator weight commands: /P (primary units), /D (displayed units), /S (secondary units), /T (tertiary units). If not specified, the current displayed units (/D) is assumed. Example: To format a ticket to show net weight in secondary units, use the following command: <N/S>.

3. Unit ID and consecutive number (CN) fields are 1–6 characters in length, as required.

4. If nn is not specified, 1 is assumed. Value must be in the range 1–99.

5. After receiving an SU token, the indicator sends unformatted data until the next SU token is received. Unformatted data omits decimal points, leading and trailing characters.

Print key is pressed (Table 7-2 on page 68). Header Format can be inserted into any other print

Table 7-1. Print Format Tokens

Page 68

882IS/882IS Plus

Note

7.2 Default Print Formats

Table 7-2 shows default print formats for the 882IS/882IS Plus and lists the conditions under which each print format is used.

Format Default Used When

GROSS FORMAT | FMT GROSS<G><NL2><TD><NL> Weigh mode, no tare in system GROSS FORMAT| PORT COM Defines the communication port that the format will be sent to NET FORMAT | FMT GROSS<G><NL>TARE<SP><T><NL>NET<SP2>

<N><NL2><TD><NL> NET FORMAT | PORT COM Defines the communication port that the format will be sent to ACCUMULATOR FORMAT |

FORMAT

ACCUMULATOR FORMAT | PORT

HEADER FORMAT | FORMAT COMPANY NAME<NL> STREET

In OIML and CANADA modes, the letters PT (preset tare) are automatically inserted after the printed tare weight.

ACCUM<A><NL><DA> <TI><NL> Accumulator enabled and displayed

COM Defines the communication port that the format will be sent to

ADDRESS<NL>CITY,ST ZIP<NL2>

Table 7-2. Default Print Formats

Weigh mode, tare in system

The Header Format is used to specify header information that can be used by the other print formats; The contents of the Header Format can be inserted into any other print format using the <H1> formatting token

7.3 Customizing Print Formats

The following sections describe procedures for customizing print formats using the EDP commands, the front panel (Print Format menu), and the Revolution configuration utility.

7.3.1 Using the EDP Commands

With a personal computer, terminal, or remote keyboard attached to the 882IS/882IS Plus, the EDP command set can be used to customize the print format strings.

To view the current setting of a format string, type the name of the print format, followed by .FMT, and press to check the current configuration of the Gross Format, type GFMT.FMT and press

Enter. The indicator responds by sending

the current configuration for the gross format:

GROSS<G><NL2><TD><NL>

To change the format, use the format EDP command followed by an equals sign (=) and the modified print format string. For example, to add the name and address of a company to the gross format, send the following EDP command:

GFMT.FMT=RICE LAKE WEIGHING SYSTEMS<NL>230 W COLEMAN ST<NL>RICE LAKE WI 54868<NL2><G> GROSS<NL>

A ticket printed using this format might look like the following:

RICE LAKE WEIGHING SYSTEMS 230 W COLEMAN ST RICE LAKE WI 54868

1345 LB GROSS

The ticket above could also be formatted by specifying the company address information in the Header Format ticket format, then substituting the <H1> token for the address in the Gross Format ticket format:

HDRFMT1=RICE LAKE WEIGHING SYSTEMS<NL>230 W COLEMAN ST<NL>RICE LAKE WI 54868<NL2>GFMT=<AE><G> GROSS<NL>

Enter. For example,

The HDRFMT1 command does not require the .FMT.

68 Visit our website www.RiceLake.com

Page 69

Print Formatting

Note

7.3.2 Using the Front Panel

If there is no access to equipment for communication through the communication ports or when working at a site where such equipment cannot be used, the Print Format formats. Using the Print Format

menu, edit the print format strings by changing the decimal values of the ASCII characters in

menu (see Section 3.2.15 on page 42) can be used to customize the print

the format string.

Edit the format using the Alphanumeric Entry Procedure (Section 1.8.2 on page 15).

Some special characters cannot be displayed on the 882IS/882IS Plus front panel (see the ASCII character chart in

Section 10.9 on page 84) and are shown as blanks. The 882IS/882IS Plus can send or receive any ASCII character;

The character printed depends on the particular ASCII character set implemented for the receiving device.

7.3.3 Using Revolution

The Revolution configuration utility provides a print formatting grid with a tool bar. The grid allows the construction of the print format without the formatting tokens (<NL> and <SP>) required by the front panel or EDP command methods. Using Revolution, type text directly into the grid, then select weight value fields from the tool bar and place them where they are to appear on the printed ticket.

Figure 7-1 shows an example of the Revolution print formatting grid.

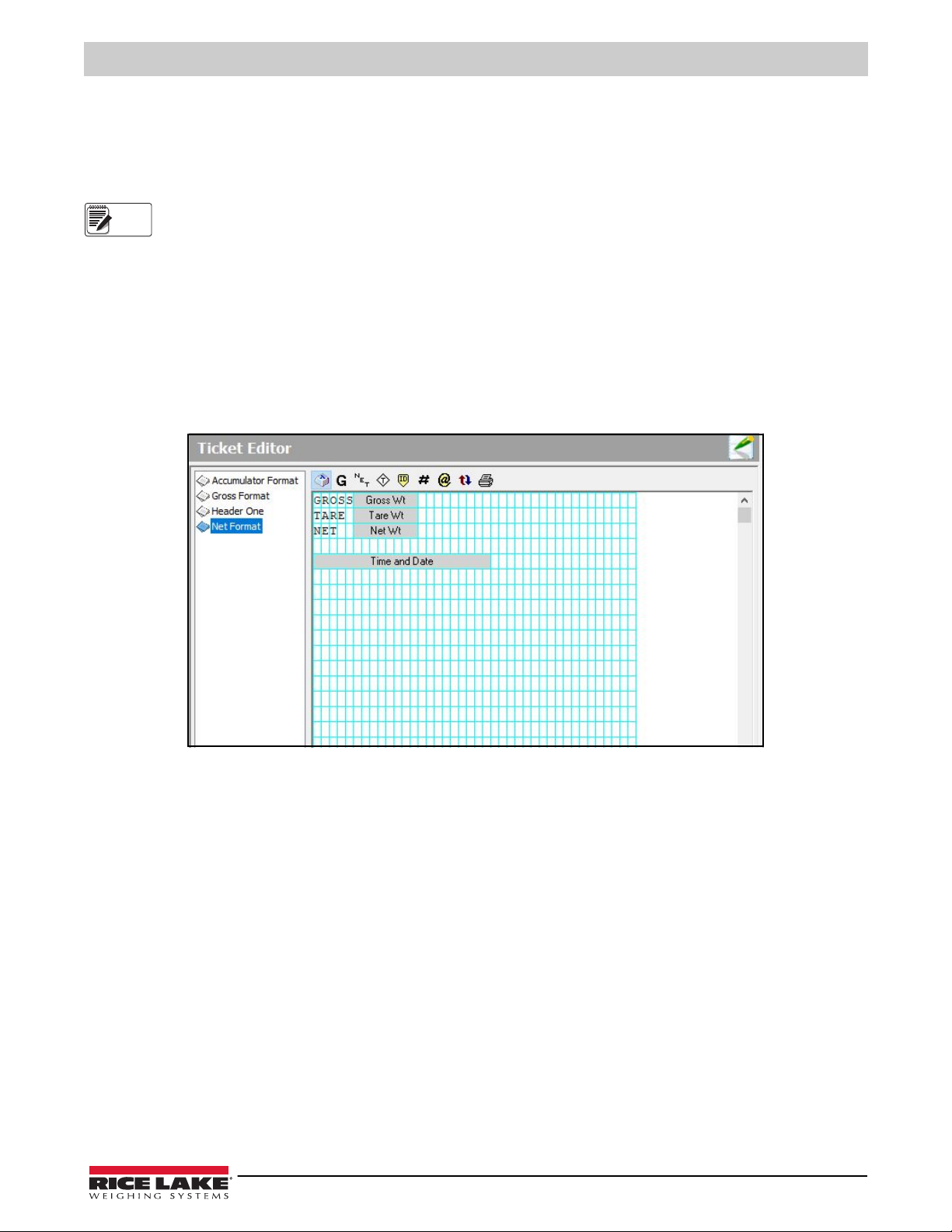

Figure 7-1. Revolution Print Format Grid

Page 70

882IS/882IS Plus

882IS

RS232 FIBER

TO SERIAL CONVERTER

FIBER OPTIC

CABLE

Make sure cable is

crossed (blue

connection to black

connection

J3 J4

+ 6 TO 24 DC

- 6 TO 24 DC

POWER

SUPPLY

920i

J11

J10

GND

TRANSMIT

MUST GO TO

RECEIVE

NOTE

Hazardous Area Safe Area

PN 196769

882IS

FIBER OPTIC

CABLE

Hazardous Area Safe Area

RS422 FIBER

TO SERIAL CONVERTER

RX-

TX+

RX+

TX-

920i

J10

RxD

TxD

RS485 A RS485 B

Make sure cable is

crossed (blue

connection to black

connection

PN 196770

POWER

SUPPLY

V- (GND)

V+ (6 V - 24V)

J11

Note

8.0 Setpoints

The 882IS/882IS Plus indicator is capable of controlling setpoint batching on a remote Rice Lake Weighing Systems 920i weight indicator. This capability enables an industrial batching engine to run in a safe environment, controlled by the 882IS/882IS Plus through a fiber-optic cable from a hazardous area. See Figure 8-1 to see examples of how this is set up. With a special iRite program, the 920i is capable of running as a serial scale with batching setpoints controlled by the 882IS/882IS Plus indicator.

The 882IS/882IS Plus has the ability to configure the value of setpoints 1-10, given the setpoints are already enabled on the 920i, for control of both indicator and external equipment functions. The 882IS/882IS Plus has the ability to control a batch operation that has been set up on a 920i (located in the safe area) and can support:

• Batch Start

• Batch Stop

• Batch Pause

• Batch Reset

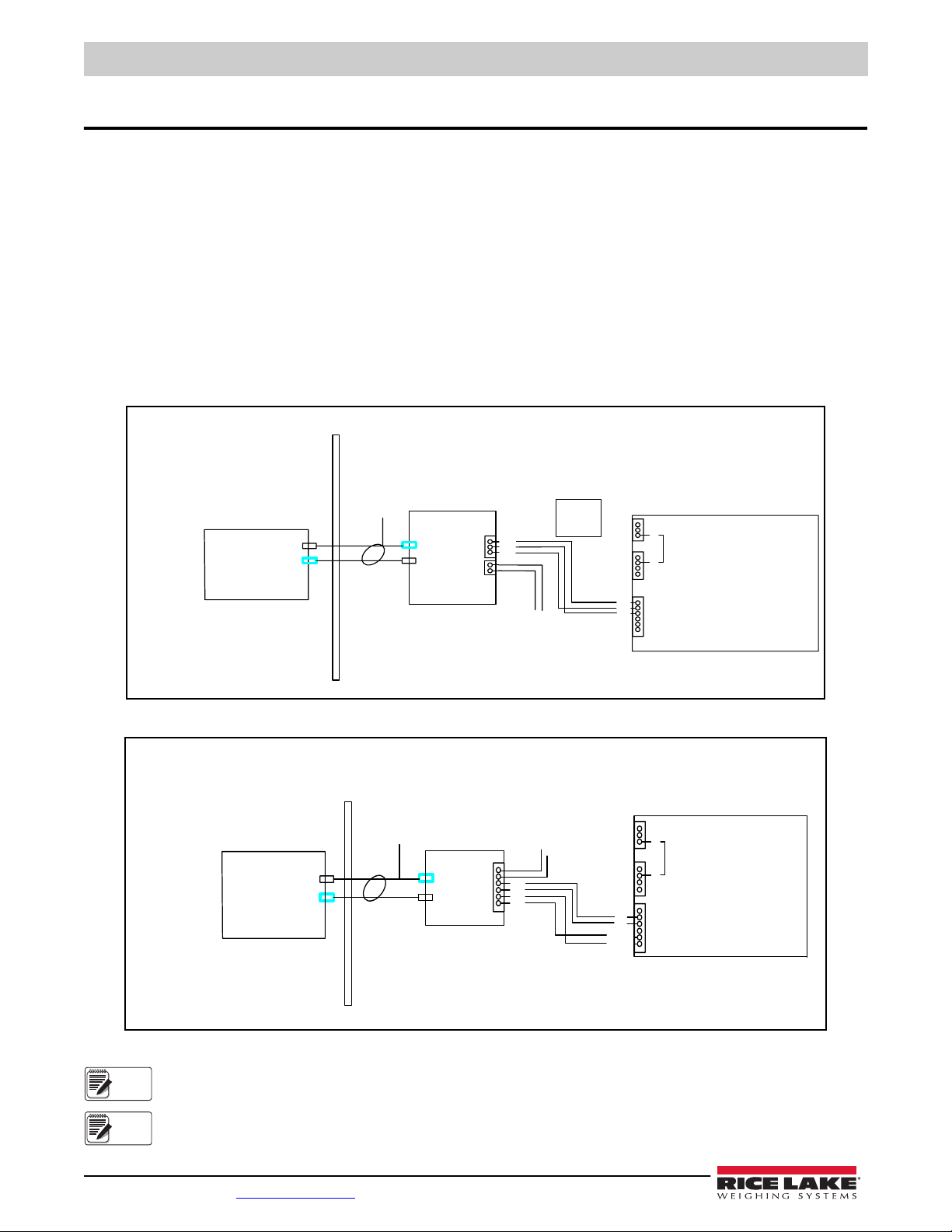

Figure 8-1. 882IS/882IS Plus Remote Setpoints RS-232 Hardware Model Example

Figure 8-2. 882IS/882IS Plus Remote Setpoints RS-422 Hardware Model Example

Weight-based setpoints are tripped by values specified in primary units only.

A jumper is required from J11 pin 3 to J9 pin 2.

70 Visit our website www.RiceLake.com

Page 71

Setpoints

Note

WARNING

IMPORTANT

POWER

CABLE

RS-232 CABLE

FIBER OPTIC

CABLES

FIBER OPTIC

CABLES

RS-422

CABLES

POWER CABLES

Note

8.1 Hardware Requirements

• 920i Digital Weight Indicator - Firmware version 4.0 or greater with fiber-optic port option

• 882IS/882IS Plus Digital Weight Indicator - Firmware version 1.05 or greater

• Fiber-optic cable for setpoint batching control

• Serial cable for 920i configuration - optional

• Fiber to serial converter (PN 196769 - RS-232) or (PN 196770 - RS-422)

• Serial jumper wire from 920i port 1 to port 3

8.2 Software Requirements

• iRite special program 201804.cod running inside the 920i

• iRev file 201804.920 loaded into the 920i - Firmware version 4.0 or newer

The iRite program must be running inside of the 920i before remote setpoints are available.

8.3 Connect the Fiber-Optic Cable

A fiber-optic cable is used to communicate between the 882IS/882IS Plus and a 920i fiber-optic converter option. Depending on the site requirements, the converter can be either:

• RS-232 fiber to serial converter box (PN 196769) (Figure 8-1 on page 70)

• RS-422 fiber to serial converter box (PN 196770) (Figure 8-2 on page 70)

Use anti-static protection for grounding and to protect components from electrostatic discharge (ESD) when working inside the enclosures.

Disconnect the fiber optic to serial converter box from power source before opening.

The fiber optic to RS-232 or RS-422 serial converter box is equipped with a duplex fiber-optic port for communicating with an 920i indicator located in the safe area. It provides electrical isolation and eliminates the use of IO barriers commonly used in intrinsically safe systems. The optical fibers are plastic and the terminated ends must be properly polished prior to installation. Refer to POF Polishing Kit (PN 197384), for complete instructions. See Figure 8-3 for the location of the duplex fiber-optic port in the fiber optic to RS-232 serial or the RS-422 serial converter box.

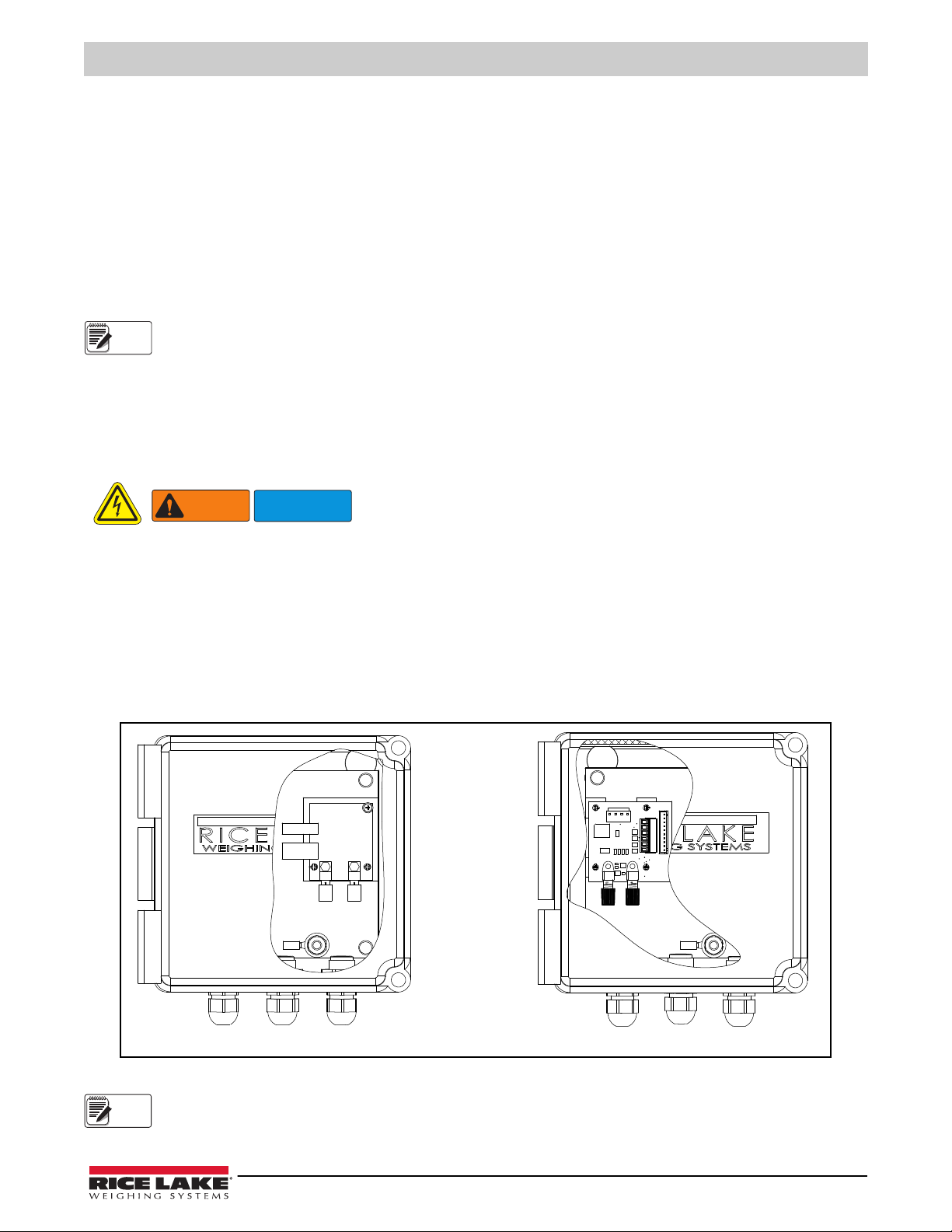

Figure 8-3. Fiber-optic Board Location (RS-232 Adapter Box PN 196769) and (RS-422 Adapter Box PN 196770)

The fiber-optic connections between the 882IS/882IS Plus and the RS-232 or RS422 converter needs to be cross-linked (blue connection to black connection). The optical output of the indicator should be attached to the input of the converter, and the indicator input to the module output.

Page 72

882IS/882IS Plus

Note

Optical Fiber

Locking Nut

Positioning Foot

Housing

Lens

Mounting Hole

Device

LED

Use the following steps for assembling the fiber-optic connectors of the fiber-optic to RS-232 serial or the RS-422 serial converter box:

1. Cut off the ends of the fiber-optic cable, with a proper cutting tool such as a fiber-optic hot knife (PN 85548).

Ensure there are no bends 90° or greater are in the fiber-optic cable.

The cut end of the fiber-optic cable must be cut flush so that the core and outside insulation are equal. Core exposure can lead to failure.

2. Polish the fiber ends per the fiber polishing kit.

3. Insert the fiber-optic cable through the locking nut and into the connector until the core tip seats against the internal micro-lens; then back it out 1/16" (1 mm).

4. Screw the connector locking nut down to a snug fit, locking the fiber-optic cable in place.

Figure 8-4. Fiber Optics Connector

5. Connect the power source for the fiber optic to serial converter box.

8.4 920i iRite Software Setup Procedure

Use the following steps to load the iRite software program into the 920i indicator.

1. Connect a serial cable between a PC and the 920i indicator.

2. Press the configuration switch on the 920i and verify that the 920i is in Configuration mode.

Insert non-conductive tool to press switch

Fillister Head Screw

Figure 8-5. 920i Configuration Switch Location

3. On the PC, launch iRev for the 920i, V4.0 or newer.

4. Press the Connect button in iRev to connect to the 920i.

5. Unzip the 201804.zip file.

6. Using iRev, download the configuration contained within the 201804.920 file and 201804.cod file to the 920i indicator which will configure the scales, serial ports, the display and some default setpoints.

72 Visit our website www.RiceLake.com

Page 73

8.5 920i Setup Procedure

Note

Use the following steps to set up the 920i indicator.

To edit a setpoint value, the setpoint must be already enabled in the 920i. The 920i setpoint must previously be configured active. The 920i batching process must be in reset state or not previously been started. A maximum of seven digits can be configured for each of the 10 setpoint values. Setpoint values on the 882IS/882IS Plus will not become active on the 920i indicator until the value is successfully entered on the 882IS/882IS Plus.

1. Wire up connections from the RS-232 Fiber Adapter to the 920i indicator (Figure 8-1 on page 70) for connections.

2. Wire port 1 on the 920i to port 3 on the 920i by jumpering TX and RX where scale 1 gets it input coming from port 3 on the 920i and scale 2 being the program scale which gets its weight from 882IS/882IS Plus and streams out of port 1.

3. Under setpoints, the 920i needs to have at least one or more setpoints active with an associated value and batching turned ON. Below are shown some examples:

Setpoint #1: GROSS, Value 1234.5, Batching ON Setpoint #2: GROSS, Value 2345.6, Batching ON Setpoint #3: GROSS, Value 3456.7, Batching ON Setpoint #4: GROSS, Value 4567.8, Batching ON Setpoint #5: GROSS, Value 5678.9, Batching ON

4. Download the configuration and setpoints with iRev then press Save and Exit on the 920i indicator to enable the serial scale and batching setpoints.

8.6 882IS/882IS Plus Setup Procedure

Use the following steps to set up the 882IS/882IS Plus indicator.

1. Configure the fiber-optic serial port Trigger=Setpoint.

2. Configure the fiber-optic serial port to 9600 baud, Echo=Off, Response=Off.

3. Save and exit Setup mode using the Menu key.

4. The 882IS/882IS Plus weight being displayed on the 920i verifies the 882IS/882IS Plus remote serial scale setpoint batcher is configured correctly and ready to go.

Setpoints

If using a decimal point in the 882IS/882IS Plus, an equivalent setting must be set for the 920i scale 2 format.

8.7 Setpoint Configuration Procedure

Use the following steps to configure the setpoints.

1. The 882IS/882IS Plus weight being displayed on the 920i verifies the 882IS/882IS Plus remote serial scale setpoint batcher is configured and wired correctly and is ready for operation.

2. To configure batching setpoints, a batch has to be not started or in Reset. Reset the batch by pressing the F4 key.

3. Configure a setpoint value by pressing the Menu key followed by one left arrow, Setpoints display on the 882IS/882IS Plus.

4. Press the down arrow. Setpoint #1 displays.

5. Right and left arrows can be used to navigate between Setpoint #1 and Setpoint #10.

6. Once the desired setpoint # is found, press the down arrow.

7. If the setpoint is configured to Off, the screen displays SP#n=OFF. This setpoint cannot be changed.

8. If the setpoint is configured to something other than Off, a setpoint value edit screen displays.

SP#1 Value =

9. The value appears.

SP#1 Value = 1234.500 with the leftmost digit blinking - meaning that it is ready to edit.

10. Use up or down arrows to increment or decrement the values.

If using the 882IS/882IS Plus, with numeric keypad, the value can be directly keyed in.

11. Right and left arrows move the blinking edit cursor.

Refer to the 882IS/882IS Plus Intrinsically Safe Indicator Technical Manual (PN 183532) for value edit procedures.

12. When editing the value is complete, press Enter (TARE). This operation sends the setpoint value to the 920i indicator. The 882IS/882IS Plus screen automatically advances to the next setpoint value #.

13. When all of the desired setpoint values have been edited, exit setup and go to Weigh mode by pressing the up-arrow key followed by the Menu key.

Page 74

882IS/882IS Plus

Note

WARNING

Note

8.8 Setpoint Batching

Use the 882IS/882IS Plus F-keys to control the 920i’s batching operation. The F-keys are as follows:

• F1 - Batch Start

• F2 - Batch Stop

• F3 - Batch Pause

• F4 - Batch Reset

When the F-keys are pressed on the 882IS/882IS Plus, the 920i displays the following:

• F1 - Batch Started

• F2 - Batch Stopped

• F3 - Batch Paused

• F4 - Batch Reset

The 920i will show Error Stopping Batch if the 882IS/882IS Plus F2 (stop) button is pushed with no batch currently running. The 882IS/882IS Plus will also display the current batch status: Batch Running, Batch Stopped, Batch Paused, Batch Complete.

8.9 920i Batch Operations

Once the 201804.cod and 201804.920 files are downloaded to the 920i, softkeys will be shown (Figure 8-6) and operate in normal batching operation.

Softkeys allow the operator control of batch operations from the 920i front panel (Figure 8-6) once the download of 201804.cod and 201804.920 files are complete.

Softkeys can be configured using iRev 4, serial commands or the FEATURE menu once the download of 201804.cod and

201804.920 files are complete.

Figure 8-6. 920i Batching Softkeys

Batch Start – Starts batch process. Batch Stop – Stops an active batch and turns off all associated digital outputs. Batch Pause – Pauses an active batch and turns off all digital outputs except those associated with concurrent and timer

setpoints. Processing is suspended until Batch Start is pressed again. Pressing Batch Start resumes the batch and re-energizes all digital outputs turned off by the Batch Pause.

Batch Reset – Stops and resets an active batch to the beginning of the process. Setpoint – Display or change assigned setpoints.

To prevent personal injury and equipment damage, software-based interrupts must always be supplemented by emergency stop switches and other safety devices necessary for the application.

When a batch is currently running and the 882IS/882IS Plus goes to an over-range condition, the 920i will pause the batch and show Paused - 882IS/882IS Plus Scale and both scale 1 and scale 2 will illustrate as dashes. When a batch is currently running and communication is lost between the 882IS/882IS Plus and the 920i, the 920i will pause the batch and show No Comm with 882IS/882IS Plus and both scale 1 and scale 2 will show as dashes.

Pausing a batch deactivates all digital outputs with the exception of those tied to Concur and/or Timer setpoints.

74 Visit our website www.RiceLake.com

Page 75

IO Module

WARNING

Note

9.0 IO Module

The 882IS/882IS Plus IO Module is an external device designed for use with the 882IS/882IS Plus digital weight indicators. When placed in the safe area, its fiber optic interface allows it to provide remote functions for indicators in hazardous

environments. The 882IS/882IS Plus IO Module provides access to the indicator through the following:

• USB device connection

• Ethernet

• One comm port (RS-232 or RS-422)

• One option card slot

9.1 IO Module Disassembly

The 882IS/882IS Plus IO module enclosure must be opened to connect cables for communications.

The IO module does not have an On/Off switch. Before opening the unit, ensure power to the unit is disconnected.

9.1.1 AC Wiring

The IO Module is to be permanently mounted (safe area) with a readily accessible disconnect device incorporated in the building installation wiring. All wiring is to be done in accordance with the National Electric Code (NEC).

9.1.2 RS-232/RS-422 Communications

To attach a PC or other device to the 882IS’ RS-232 or the two-wire RS-422 ports, select RS-422 standard in the indicator Serial menu for the IO Module. See Table 9-1 for information on connecting RS-422 communications.

Pin RS-232 RS-422

1 GND GND 2 RX B 3 TX A

Table 9-1. J3 Pin Assignments (Port 1 Serial Communications)

9.2 USB Device Communications – Port 2

The fiber optic port can be used to connect to the IO module. It can also:

• Connect to a PC or other indicator using fiber optics to RS-232 adapter

• Connect directly to another 882IS/882IS Plus when one of the units is being used as a serial scale

If using Windows 7 or later, and the PC is connected to the Internet, the operating system may be able to install the drivers without any interaction.

Before the USB Device Port can be used, drivers must be installed on the PC.

1. Have power applied to the PC and to the indicator.

2. Connect a USB cable from the PC to the micro USB connector (J4) on the 882IS/882IS Plus IO Module. The PC recognizes that a device has been connected and will attempt to install the drivers needed to make it work. Those drivers can be downloaded from the Rice Lake Weighing Systems website at

3. When the individual drivers are installed, a new COM Port designation is assigned for each physical USB port the 882IS/882IS Plus is connected to on the PC.

Example: If the PC already has two physical RS-232 COM Ports, they most likely are designated COM1 and COM2. When connecting the indicator to a USB port on the PC, it will be assigned the next available port designation, or in this case, COM3. When plugging into the same physical USB port on the PC, the port designation will again be COM3. If plugging into another physical USB port on the PC, it will be assigned the next available designation, in this case COM4.

After the drivers are installed, use Windows Device Manager to determine the COM Port designation that was assigned to the USB port. Or open the application that is to be used with the 882IS, such as Revolution, and see which ports are available.

Configuration of the USB Device Port is done in the USB Communications sub-menu under IO MODULE PORTS in Configuration mode (Section 3.2.14 on page 41).

www.ricelake.com.

Page 76

882IS/882IS Plus

Note

The port can be configured as either a demand port for EDP commands and printing, or a data streaming port. Other settings include the termination character(s); enabling echoes and responses; adjust the end-of-line delay; and whether or not the indicator displays a 'print' message when a print format sends data out the port.

If a computer application has an open communications connection through the USB Device Port, and the physical cable connection is interrupted, a soft reset is performed on the indicator or power is cycled to the indicator; the connection in the computer application must be disconnected and reconnected again before it will continue to communicate with the indicator.

For the USB Device Port, it does not matter what the settings are for Baud, Data Bits, Parity and Stop Bits in the computer software. The port will communicate in the same way regardless of these settings.

This port is not a host port and is not intended to be connected to other devices such as keyboards, memory sticks or printers.

9.3 Ethernet Communications

The 882IS/882IS Plus features Ethernet TCP/IP 10Base-T/100Base-TX communication using a standard RJ45 connector (J6 – Figure 9-1). It can support two simultaneous connections, one as a server, the other as a client. Through an Ethernet network, software applications are able to communicate with the 882IS/882IS Plus using the EDP command set (Section 6.0 on page 58), or data can be streamed continuously from the indicator, or printed on demand. The Ethernet port supports both DHCP and manual configuration of settings such as the IP and subnet. In addition, the TCP Port number, Primary and Secondary DNS, and the Default Gateway can be configured using the Ethernet sub-menu of the Ports setup menu. For more information on configuring the Ethernet port see Section 3.2.13 on page 40. Physical connection to the 882IS/882IS Plus Ethernet port can be made directly from a PC to the 882IS/882IS Plus (AdHoc Network), or through a network router or switch. The port supports auto-sensing MDI/MDIX cable configuration, so either straight-through or crossover cables can be used. The RJ45 Ethernet jack on the 882IS/882IS Plus houses two LEDs to indicate the status and speed of the connection.

Yellow LED

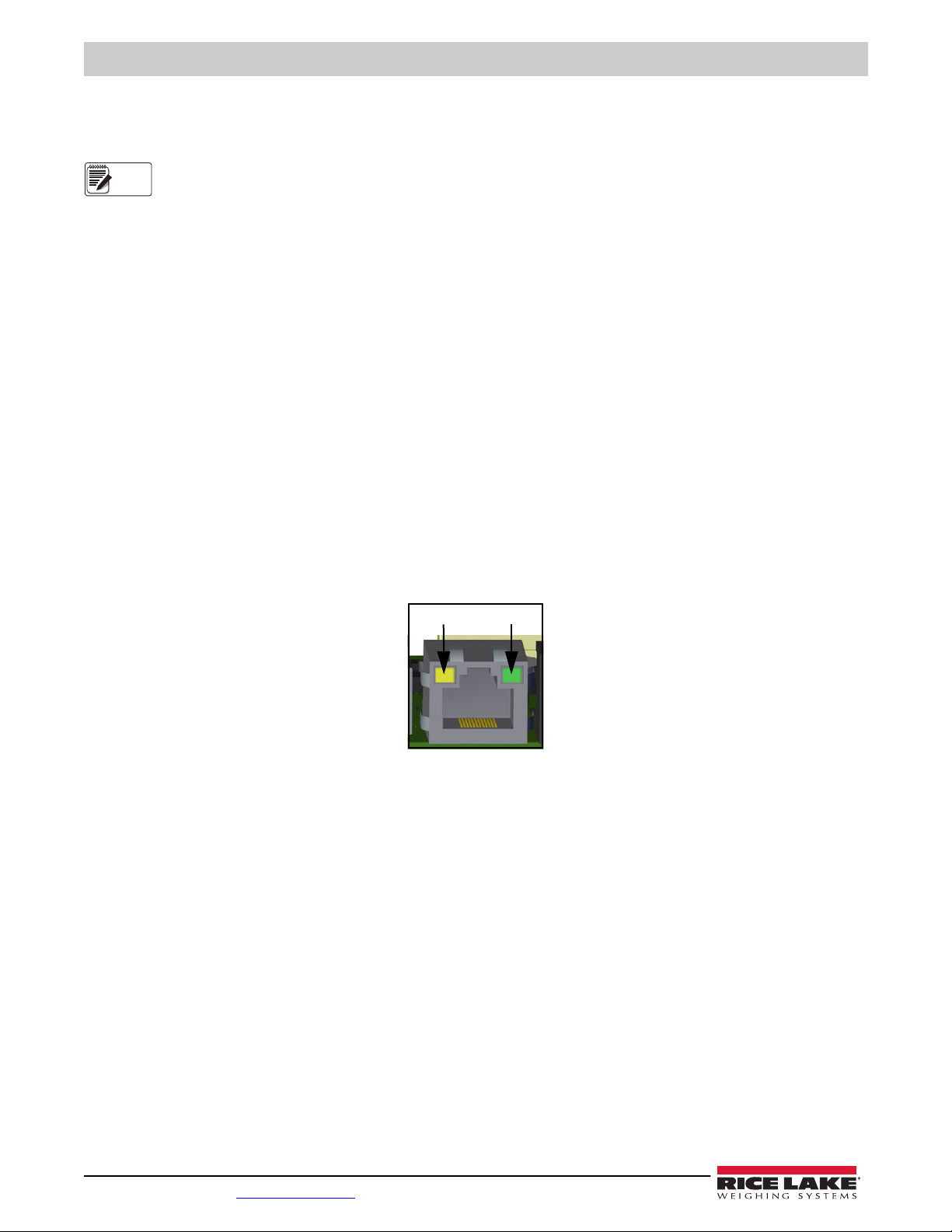

Figure 9-1. RJ45 Ethernet Jack

Green LED

Yellow LED (left) indicates the status of the connection:

• Off for no link

• On for a link

• Blinking if there is activity

Green LED (right) is:

• Off for a 10Base-T connection

• On for a 100Base-TX connection

9.4 Updating IO Module Firmware

Revolution is used to update the 882IS/882IS Plus IO module firmware. The link to begin this process is available on the Revolution home screen. Updating the firmware defaults configuration settings. For additional information on jumper position and steps on updating firmware, see the 882IS/882IS Plus I/O Module Installation Manual (PN 194139).

76 Visit our website www.RiceLake.com

Page 77

Appendix

10.0 Appendix

10.1 Error Messages

The 882IS/882IS Plus indicator provides a number of error messages. When an error occurs, the message is shown on the indicator display. Error conditions can also be checked remotely by using the XE EDP command as described in Section 10.3

on page 78.

10.1.1 Displayed Error Messages

The 882IS/882IS Plus provides a number of front panel error messages to assist in problem diagnosis. Table 10-1 lists these messages and their meanings.

Error Message Description Solution

¯ ¯ ¯ ¯ ¯ ¯

(center dashes)

CFGERR Configuration error on power up if there was an error loading con-

ERROR Internal program error Check configuration HWFERR Hardware failure error on failure to write to the EEPROM any

NOTARE Tare is prevented because of regulatory mode settings, the

RANGE A numeric value entered in configuration is out of the acceptable

NO ZERO Zero is prevented (due to regulatory mode settings, motion on the

Over range Check for improper load cell wiring, configuration, calibration, Under range

A/D out of range; Or if using local/remote (serial scale) - loss of serial scale data

figuration

error (except for a battery error or an accumulation over range error) when exiting the menu

configuration of the TAREFN parameter, motion on the scale, etc.

range; The error displays momentarily – then parameter being edited displays so the value can be corrected

scale, zero range settings)

scale hardware problems

Press the Enter key to reboot the indicator

Change regulatory mode settings or the TAREFN parameter

Re-enter a value that is in range for the parameter being edited

Check zero settings and for motion

Table 10-1. 882IS/882IS Plus Error Messages

10.2 Using the HARDWARE Command

The HARDWARE serial command can be used to verify that installed option cards are recognized by the system. The HARDWARE command returns a three-digit card code, representing the card installed:

Code Card Type

000 No card installed 153 Analog Output Card 170 Fieldbus Option Card

Table 10-2. HARDWARE Command Option Card Type Codes

If an installed card is not recognized (HARDWARE command returns code of 000), ensure that the card is seated properly. Reinstall the card, if necessary, then cycle the power to read the configuration again. If the card is still not recognized, try a different option card.

Page 78

882IS/882IS Plus

10.3 ERROR Commands Output

XE and XEH commands return a representation of any existing error conditions as described in the following table. If more than one error condition exists, the number returned is the sum of the values representing the error conditions. The XE command returns the value as a decimal representation and the XEH command returns the value as a hexadecimal representation.

XE Error Code (Decimal) Description XEH Error Code (Hexadecimal)

0 No Errors 0x00000000 1 Configuration Signature Error 0x00000001 2 Parameter Checksum Error 0x00000002 4 Loadcell Data Checksum Error 0x00000004 8 Print Format Checksum Error 0x00000008 64 Battery Power Low Voltage Error 0x00000040 32768 Gravity Compensation Error 0x00008000 65536 A/D Physical Error 0x00010000 131072 Tare Storage Checksum Error 0x00020000 262144 Accumulator Overflow Error 0x00040000

Table 10-3. Error Commands Output

10.4 Status Messages

The EDP command P can be used to provide status about the indicator.

P EDP command returns whatever is currently shown in the indicator’s primary display area.

• The

PPPPPPP uu

where:

• PPPPPPP is the information shown on the primary display

• uu is the 2-digit units annunciator

If indicator is in an underrange or overload condition, weight value is replaced with &&&&&& (overload) or :::::: (underrange).

10.5 TARE and ZERO Key Functions

The function of the front panel Tare and Zero keys depend on the value specified for the Regulation parameter in the Features menu (Figure 3-10 on page 36). Table 10-4 describes the function of these keys for each of the regulatory modes.

Front Panel TARE Key or KTARE command

Regulation

Parameter Value Weight on Scale Tare in System

NTEP Zero or negative No Keyed prompt (1) No action Keyed prompt (1) Zero

Yes Keyed prompt (2) Clear tare Keyed prompt (2) Zero

Positive No Keyed prompt (1) Tare Tare Zero

Yes Keyed prompt (2) Tare Tare Zero

CANADA Zero or negative No Keyed prompt (1) No action Keyed prompt (1) Zero

Yes Keyed prompt (2) Clear tare Keyed prompt (2) Zero

Positive No No Action Tare Tare Zero

Yes No Action No action No Action Zero

OIML Zero or negative No Keyed prompt (1) No action Keyed prompt (1) Zero

Yes Keyed prompt (2) Clear tare Keyed prompt (2) Zero and clear Tare (3)

Positive No Keyed prompt (1) Tare Tare Zero

Yes Keyed prompt (2) Tare Tare Zero and clear Tare (3)

NONE Zero or negative No Keyed prompt (1) Tare Keyed prompt (1) Zero

Yes Keyed prompt (2) Clear tare Keyed prompt (2) Zero

Positive No Keyed prompt (1) Tare Tare Zero

Yes Keyed prompt (2) Clear tare Clear tare Zero

NOTES:

1. Entering a Zero tare will cancel the entry. Any other value will be accepted as a Keyed Tare.

2. Entering a Zero tare will clear the current Tare. Any other value will be accepted as a Keyed Tare.

3. The indicator will Zero and Clear the Tare only if the gross weight is within Zero Range. No action is taken if the weight is outside of Zero Range.

(Tare Enable – Tare function setting)

KEYED PBONLY BOTH

Table 10-4. Tare and Zero Key Functions for REGULA Parameter Settings

Front panel ZERO

key or KZERO

command

78 Visit our website www.RiceLake.com

Page 79

Appendix

45910-XXXXXXX6/*5(/45&3.

"4$**

EFDJNBM

1PMBSJUZ TQBDF1PTJUJWF o/FHBUJWF

8FJHIUEJHJUTSJHIUKVTUJmFEEVNNZ [FSPFTEFDJNBMQPJOU XJUIOPMFBEJOH [FSPFTFYDFQUGPSMFBEJOH[FSPJNNFEJBUFMZ QSFDFEJOHUIF EFDJNBMQPJOU-FBEJOH [FSPFTUSBOTNJUUFEBTTQBDFT

-QPVOET ,LJMPHSBNT 5UPOT55/

-5

 0PVODFT (HSBNT TQBDF(/

530:0;530:-# PS/0/&

((SPTT

//FU

4UBUVT TQBDFWBMJE **OWBMJE ..PUJPO 00WFSVOEFSSBOHF

$3-'

PS$3

Note

Table 10-5 lists the sub-parameters available when configuring a scale using INDUST mode. The table includes the default

values of the INDUST sub-parameters and the effective (not configurable) values used by NTEP, CANADA, OIML and NONE regulatory modes

REGULA/INDUST Parameter Regulation Mode

Parameter Description INDUST NTEP CANADA OIML NONE

SNPSHT Display or Scale weight source DISPLAY DISPLAY DISPLAY DISPLAY SCALE ZTARE Remove tare on ZERO NO NO NO YES YES KTARE Always allow keyed tare YES YES NO YES YES MTARE Multiple Tare Action REPLAC REPLAC NOTHIN REPLAC REMOVE NTARE Allow negative tare NO NO NO NO YES CTARE Allow CLEAR tare to clear tare YES YES YES NO YES RTARE Round push button tare to nearest Display

Division. PRTMOT Allow print while in motion NO NO NO NO YES PRTPT Add PT to keyed tare print NO NO YES YES NO OVRBAS Zero base for overload calculation CALIB CALIB CALIB SCALE CALIB

YES YES YES NO YES

Table 10-5. REGULA/INDUST Mode Parameters, Comparison with Effective Values of Regulatory Modes

10.6 Data Formats

10.6.1 Stream Serial Data Format

If stream data transmission is configured for a port (STRLFT or STRIND), by default the 882IS/882IS Plus sends data using the Rice Lake Weighing Systems serial data format shown in Figure 10-1.

Figure 10-1. Stream Serial Data Format

Stream Format parameter default – <2><P><W7.><U><M><S><CR><LF>

Format can be changed (Section 10.7 on page 80).

The character values can be changed for the stream format tokens (Table 6-7 on page 62).

10.6.2 Print Output Serial Data Format

The 882IS/882IS Plus uses a data string format for a basic ticket printout. The print format is configured in the setup menu for the demand (print) port, and depends on the indicator configuration and mode. See Section 7.0 on page 67 for print formatting.

Use the EDP commands, Revolution or the front panel to fully customize the print to work with a wide variety of printers and other remote equipment.

Page 80

882IS/882IS Plus

10.7 Custom Stream Formatting – Input/Output

The format of the streamed data can be configured for any of the ports individually using the front panel, EDP commands or Revolution using the tokens in Table 10-6. Configuration is available for stream input/output tokens through EDP commands only; no front panel access is provided.

Format Identifier Defined By Description

<P[G | N | T]> STR.POS

STR.NEG

<U[P | S | T]> STR.PRI

STR.SEC STR.TER

<M[G | N | T]> STR.GROSS

STR.NET STR.TARE

<S> STR.MOTION

STR.RANGE STR.OK STR.INVALID STR.ZERO

<B [–]n,…> See descriptions

below B0 - Always 0 B1 - Always 1 B2 Configuration =1 if even parity B3 Dynamic =1 if MODE=NET B4 Dynamic =1 if COZ (center of zero) B5 Dynamic =1 if motion B6 Dynamic =1 if displayed gross or net weight is negative B7 Dynamic =1 if out of range B8 Dynamic =1 if secondary/tertiary* B9 Dynamic =1 if tare in system B10 Dynamic =1 if tare is keyed B11 Dynamic =00 if MODE=GROSS

B12 Dynamic =00 if UNITS=PRIMARY

B13 Configuration =00 (not used)

B14 Configuration =00 (not used)

B15 Configuration =00 (not used)

Polarity; Outputs the positive or negative polarity label for the current or specified (Gross/Net/Tare) weight on the source scale; Possible values are SPACE, NONE, + (for STR.POS), or – (for STR.NEG)

Units; Outputs the primary, secondary, or tertiary* units label for the current or specified (Primary/Secondary/ Tertiary*) weight on the source scale

Mode; Outputs the gross, net, or tare label for the current or specified weight (Gross/Net/Tare) on the source scale

Outputs the status for the source scale; Default values and meanings for each status: STR.MOTION M In motion STR.RANGE O Out of range STR.OK <space> OK STR.INVALID I Invalid STR.ZERO Z COZ

Bit fields; Comma-separated sequence of bit field specifiers; Must be exactly 8 bits; Minus sign ([–]) inverts the bit

=01 if MODE=NET =10 if UNITS=TERTIARY* =11 (not used)

=01 if UNITS=PRIMARY =10 if UNITS=PRIMARY =11 (note used)

=01 if current DSPDIV=1 =10 if current DSPDIV=2 =11 if current DSPDIV=5

=01 if primary DSPDIV=1 =10 if primary DSPDIV=2 =11 if primary DSPDIV=5

=01 if secondary DSPDIV=1 =10 if secondary DSPDIV=2 =11 if secondary DSPDIV=5

Table 10-6. Custom Stream Format Identifiers

80 Visit our website www.RiceLake.com

Page 81

Appendix

Format Identifier Defined By Description

B16 Configuration =00 (not used)

B17 Configuration =000 (not used)

B18 Configuration =000 (not used)

B19 Configuration =000 (not used)

B20 Configuration =000 (not used)

<CR> - Carriage return, hex 0x0D, ASCII decimal 13 <LF> - Line feed, hex 0x0A, ASCII decimal 10 <SPnn> - Space, nn = number of spaces;

<NLnn> TERMIN setting of

<nnn> - ASCII character (nnn = decimal value of ASCII character); Used for inserting control characters (<002> for an

* Tertiary (Range/Interval 3)

Scale weight Weight for the source scale. wspec is defined as follows:

the port

=01 if tertiary* DSPDIV=1 =10 if tertiary* DSPDIV=2 =11 if tertiary* DSPDIV=5

=001 if current DECPNT=888880 =010 if current DECPNT=888888 =011 if current DECPNT=88888.8 =100 if current DECPNT=8888.88 =101 if current DECPNT=888.888 =110 if current DECPNT=88.8888 =111 if current DECPNT=8.88888

=001 if primary DECPNT=888880 =010 if primary DECPNT=888888 =011 if primary DECPNT=88888.8 =100 if primary DECPNT=8888.88 =101 if primary DECPNT=888.888 =110 if primary DECPNT=88.8888 =111 if primary DECPNT=8.88888

=001 if secondary DECPNT=888880 =010 if secondary DECPNT=888888 =011 if secondary DECPNT=88888.8 =100 if secondary DECPNT=8888.88 =101 if secondary DECPNT=888.888 =110 if secondary DECPNT=88.8888 =111 if secondary DECPNT=8.88888

=001 if tertiary* DECPNT=888880 =010 if tertiary* DECPNT=888888 =011 if tertiary* DECPNT=88888.8 =100 if tertiary* DECPNT=8888.88 =101 if tertiary* DECPNT=888.888 =110 if tertiary* DECPNT=88.8888 =111 if tertiary* DECPNT=8.88888

wspec Indicates whether the weight is the current displayed weight (W, w), gross (G, g), net (N, n), or tare (T, t) weight; Upper-case letters specify right-justified weights; Lower-case are left-justified; Optional /P, /S, or /T suffixes can be added before the ending delimiter (>) to specify weight display in primary (/P), secondary;

(/S), or tertiary* (/T) units; [–] Enter a minus sign (–) to include sign for negative values; [0] Enter a zero (0) to display leading zeros; digit[[.][.]digit]; The first digit indicates the field width in characters – range is 1-7; Decimal point only indicates floating

decimal; Decimal point with following digit (range is 1-5) indicates fixed decimal with n digits to the right of the decimal; Two consecutive decimals send the decimal point even if it falls at the end of transmitted weight field

If nn is not specified, 1 is assumed; Value must be in the range 1-99 New line, nn = number of termination (<CR/LF> or <CR>) characters;

If nn is not specified, 1 is assumed; Value must be in the range 1-99;

NOTE: When streaming data, a configured End-of-Line Delay is performed after each New Line.

STX, for example) in the output

Table 10-6. Custom Stream Format Identifiers (Continued)

Page 82

882IS/882IS Plus

10.8 Stream Formatting Examples

10.8.1 Toledo 8142 Indicator

Sample string for Toledo 8142 indicator (with no checksum):

882IS/882IS Plus stream format configuration:

<02><B2, B0, B1, B13, B17><B2, B0, B1, B8, B5, B7, B6, B3><B2, B0, B1, B0, B0, B0, B0, B0><W6><T6><CR>

Identifier Description

<STX> The STX character is entered into the string using the <02> hex value. <Status Word A> Toledo status words are made up of various bit fields;

NOTE: Identifiers must be entered beginning with the high-order bit (bit 7–bit 0) of the Toledo status word.

Status Word A contains the following fields. Equivalent 882IS/882IS Plus format identifiers are shown in parentheses Bit 7: parity (B2) Bit 6: always 0 (B0) Bit 5: always 1 (B1) Bits 3–4: display divisions (B13) Bits 0–2: decimal format (B17)

<Status Word B> Status Word B contains the following fields; Equivalent 882IS/882IS Plus format identifiers are shown in parentheses

Bit 7: parity (B2) Bit 6: always 0 (B0) Bit 5: always 1 (B1) Bit 4: lb/kg units (B8) Bit 3: stable/motion (B5) Bit 2: in/out-of-range (B7) Bit 1: pos/neg (B6) Bit 0: gross/net (B3)

<Status Word C> Status Word C contains the following fields; Equivalent 882IS/882IS Plus format identifiers are shown in parentheses

Bit 7: parity (B2) Bit 6: always 0 (B0) Bit 5: always 1 (B1) Bits 0–4: always 0 (B0)

<wwwwww> The <W6> and <T6> indicate six digits of indicated weight and tare weight; Valid characters are W, w, G, g, T, t, N, or n

(lower case indicates left justified); W indicates current weight, G gross weight, N net weight, and T tare weight. /P and /S can be used to specify primary or secondary; Minus indicates sign inclusion, and (0) indicates leading zeros; First digit indicates field width in characters; Decimal indicates floating decimal point; Decimal with subsequent digit indicates fixed decimal with n digits to the right of the decimal;

Two consecutive decimals (for example, <W06..>); send the decimal point even if it falls at the end of the transmitted weight field. <tttttt> Tare weight; See description above <EOL> <CR> is entered at the end of the string as the end of line character in this example

Table 10-7. Toledo Sample String Identifiers

82 Visit our website www.RiceLake.com

Page 83

Appendix

10.8.2 Cardinal 738 Indicator

Sample string for the Cardinal 738 indicator:

882IS/882IS Plus stream format configuration:

Identifier Description

<CR> Carriage Return <POL> Cardinal uses + for positive and – for negative, so the stream polarity tokens need to reflect this; The EDP commands for the

882IS/882IS Plus are STR.POS=+ and STR.NEG= –

<wwwwwww> The <W07.> identifier that the 882IS/882IS Plus recognizes indicates seven digits of weight with a decimal and leading zeros, with

the decimal being sent at the end of the weight; Valid characters are W, w, G, g, T, t, N, or n (lower case indicates left justified); W indicates current weight, G gross weight, N net weight, T tare weight. /P and /S can be used to specify primary or secondary; Minus indicates sign inclusion, while (0) indicates leading zeros; First digit indicates field width in characters; Decimal indicates floating decimal point; Decimal with subsequent digit indicates fixed decimal with n digits to the right of the decimal; Two consecutive decimals (for example, <W06.>) send the decimal point even if it falls at the end of the transmitted weight field

<S> There are four possible tokens for status bits that can be used: motion, out-of-range, valid, and invalid; In the Cardinal, m

indicates motion, o indicates out-of-range, and a space is used for valid or invalid weights; The commands to set these tokens in the 882IS/882IS Plus are STR.MOTION=m, STR.RANGE=o, STR.OK= , STR.INVALID=

NOTE: Although it appears that there are no commands for OK and INVALID, there is a space entered with the keyboard before pressing the Enter key.

<SP> Space <units> The Cardinal uses two-character, lower-case units identifiers; The commands to set these tokens in the 882IS/882IS Plus include:

STR.PRI=lb (options: kg, g, tn, t , gr, oz, or sp), STR.SEC=kg (options: lb, g, tn, t , gr, oz, or sp) <SP> Space <G/N> The mode used for Cardinal is g for gross and n for net; These tokens are set using the STR.GROSS=g and STR.NET=n tokens <SP> Space <SP> Space <EOL> The end of line character is an ETX in this case so the hex value of <03> is entered in the string

Table 10-8. Cardinal Sample String Identifiers

10.8.3 Weightronix WI 120 Indicator

Sample string for the Weightronix WI120 indicator:

882IS/882IS Plus stream format configuration:

Identifier Description

<SP> Space <G/N> Mode used for Weightronix is G for gross and N for net; These tokens are set using the STR.GROSS=G and STR.NET=N tokens <POL> Since the Weightronix uses + for positive and – for negative, the polarity tokens need to reflect this; The EDP commands for the

882IS/882IS Plus are STR.POS=+ and STR.NEG= – <wwwwww> The <W06.> that the 882IS/882IS Plus recognizes indicates six digits of weight with a decimal and leading zeros; Valid characters

are W, w, G, g, T, t, N, or n (lower case indicates left justified); W indicates current weight, G gross weight, N net weight, and T tare

weight; /P and /S can be used to specify primary or secondary;

Minus indicates sign inclusion, while (0) indicates leading zeros; First digit indicates field width in characters; Decimal indicates

floating decimal point; Decimal with subsequent digit indicates fixed decimal with n digits to the right of the decimal;

Two consecutive decimals (for example, <W06.>) send the decimal point even if it falls at the end of the transmitted weight field <SP> Space <units> The Weightronix uses two-character, lower-case units identifiers; The commands to set these tokens in the 882IS/882IS Plus

include: STR.PRI=lb (options: kg, g, tn, t , gr, oz, or sp), STR.SEC=kg (options: lb, g, tn, t , gr, oz, or sp) <EOL> <CR> or <CR> and <LF>

Table 10-9. Weightronix Sample String Identifiers

Page 84

882IS/882IS Plus

10.9 ASCII Character Chart

Use the decimal values for ASCII characters listed in Table 10-10 and Table 10-11 on page 85 when specifying print format strings in the 882IS/882IS Plus Print Format menu or serial stream formats. The actual character printed depends on the character mapping used by the output device.

The 882IS/882IS Plus can send or receive any ASCII character value (decimal 0–255). Due to limitations of the indicator display, some characters cannot be shown.

Control ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex

Ctrl-@ NUL 00 00 space 32 20 @ 64 40 ` 96 60 Ctrl-A SOH 01 01 ! 33 21 A 65 41 a 97 61 Ctrl-B STX 02 02 “ 34 22 B 66 42 b 98 62 Ctrl-C ETX 03 03 # 35 23 C 67 43 c 99 63 Ctrl-D EOT 04 04 $ 36 24 D 68 44 d 100 64 Ctrl-E ENQ 05 05 % 37 25 E 69 45 e 101 65 Ctrl-F ACK 06 06 & 38 26 F 70 46 f 102 66 Ctrl-G BEL 07 07 ’ 39 27 G 71 47 g 103 67 Ctrl-H BS 08 08 ( 40 28 H 72 48 h 104 68 Ctrl-I HT 09 09 ) 41 29 I 73 49 i 105 69 Ctrl-J LF 10 0A * 42 2A J 74 4A j 106 6A Ctrl-K VT 11 0B + 43 2B K 75 4B k 107 6B Ctrl-L FF 12 0C , 44 2C L 76 4C l 108 6C Ctrl-M CR 13 0D - 45 2D M 77 4D m 109 6D Ctrl-N SO 14 0E . 46 2E N 78 4E n 110 6E Ctrl-O SI 15 0F / 47 2F O 79 4F o 111 6F Ctrl-P DLE 16 10 0 48 30 P 80 50 p 112 70 Ctrl-Q DC1 17 11 1 49 31 Q 81 51 q 113 71 Ctrl-R DC2 18 12 2 50 32 R 82 52 r 114 72 Ctrl-S DC3 19 13 3 51 33 S 83 53 s 115 73 Ctrl-T DC4 20 14 4 52 34 T 84 54 t 116 74 Ctrl-U NAK 21 15 5 53 35 U 85 55 u 117 75 Ctrl-V SYN 22 16 6 54 36 V 86 56 v 118 76 Ctrl-W ETB 23 17 7 55 37 W 87 57 w 119 77 Ctrl-X CAN 24 18 8 56 38 X 88 58 x 120 78 Ctrl-Y EM 25 19 9 57 39 Y 89 59 y 121 79 Ctrl-Z SUB 26 1A : 58 3A Z 90 5A z 122 7A Ctrl-[ ESC 27 1B ; 59 3B [ 91 5B { 123 7B Ctrl-\ FS 28 1C < 60 3C \ 92 5C | 124 7C Ctrl-] GS 29 1D = 61 3D ] 93 5D } 125 7D Ctrl-^ RS 30 1E > 62 3E ^ 94 Ctrl-_ US 31 1F ? 63 3F _ 95 5F DEL 127 7F

Table 10-10. ASCII Character Chart (Part 1)

5E ~ 126 7

84 Visit our website www.RiceLake.com

Page 85

Appendix

ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII

Ç 128 80 á 160 A0 192 C0 a 224 E0 Ç ü 129 81 í 161 A1 193 C1 b 225 E1 ü é 130 82 ó 162 A2 194 C2 G 226 E2 é â 131 83 ú 163 A3 195 C3 p 227 E3 â ä 132 84 ñ 164 A4 196 C4 S 228 E4 ä à 133 85 Ñ 165 A5 197 C5 s 229 E5 à å 134 86 ª 166 A6 198 C6 m 230 E6 å ç 135 87 º 167 A7 199 C7 t 231 E7 ç ê 136 88 ¿ 168 A8 200 C8 F 232 E8 ê ë 137 89 169 A9 201 C9 Q 233 E9 ë è 138 8A ¬ 170 AA 202 CA W 234 EA è ï 139 8B 1/2 171 AB 203 CB d 235 EB ï î 140 8C 1/4 172 AC 204 CC ¥ 236 EC î ì 141 8D ¡ 173 AD 205 CD f 237 ED ì Ä 142 8E « 174 AE 206 CE Î 238 EE Ä Å 143 8F » 175 AF 207 CF Ç 239 EF Å É 144 90 176 B0 208 D0 º 240 F0 É æ 145 91 177 B1 209 D1 ± 241 F1 æ Æ 146 92 178 B2 210 D2 ³ 242 F2 Æ ô 147 93 179 B3 211 D3 £ 243 F3 ô ö 148 94 180 B4 212 D4 ó 244 F4 ö ò 149 95 181 B5 213 D5 õ 245 F5 ò û 150 96 182 B6 214 D6 ¸ 246 F6 û ù 151 97 183 B7 215 D7 » 247 F7 ù ÿ 152 98 184 B8 216 D8 ° 248 F8 ÿ Ö 153 99 185 B9 217 D9 · 249 F9 Ö Ü 154 9A 186 BA 218 DA 250 FA Ü ¢ 155 9B 187 BB 219 DB 251 FB ¢ £ 156 9C 188 BC 220 DC 252 FC £ ¥ 157 9D 189 BD 221 DD Pts 158 9E 190 BE 222 DE 254 FE Pts ƒ 159 9F 191 BF 223 DF 255 FF ƒ

253 FD ¥

Table 10-11. ASCII Character Chart (Part 2)

Page 86

882IS/882IS Plus

10.10 Digital Filtering

Digital filtering can be used to create a stable scale reading in challenging environments. The 882IS/882IS Plus has two filtering methods that can be set; Sample rate and Digital filter.

10.10.1 Sample Rate

The Sample rate should be set first. Better stability is achieved with a lower sample rate setting, so 7.5 Hz is more stable than 120 Hz.

10.10.2 Digital Filter

The digital filter is an adaptive filter that has two parameters to set the filter settling and response times: sensitivity and threshold.

Digital Filtering Sensitivity

Digital filtering sensitivity controls the stability and settling time of the scale. The sensitivity parameter can be set to heavy, medium, or light. A heavy setting will result in an output that is more stable and will settle more slowly than that of light. However, small changes in weight data (a few grads) on the scale base will not be seen as quickly.

If the difference in typical subsequent weight values on the scale will be only a few grads, use a light setting. If using a truck scale where the changes in subsequent weight values will be 100s of grads, a heavy setting will be more appropriate.

Digital Filtering Threshold

With the digital filter threshold set at zero, determine the amount of instability that is present. Convert this instability to display divisions. The number of display divisions of instability will be used to set the threshold of the digital filter. The digital filter can be set to Off by entering 0 in the Filter Threshold

Digital filtering threshold should be set for the amount of observed noise in the system. This parameter can be set in the range of 0 to 99999 display divisions. When a new sampled weight value is acquired, the adaptive filter compares the new value to the previous (filtered) output value. If the difference between the new value and the previous output value is greater than the Filter Threshold parameter (displayed division) the adaptive filter output is reset. The newly acquired sample value replaces the filtered output. If the difference between the new value and the previous output value is less than the Filter Threshold parameter, the two values are averaged together using a weighted average. The weighed average is based on the amount of the difference, time the system has been stable, and selected Filter Sensitivity value.

parameter.

10.11 Updating the 882IS/882IS Plus CPU Firmware

The firmware for the 882IS/882IS Plus CPU can be updated using a PC. Use the following steps to update the firmware for the 882IS/882IS Plus.

1. Power off the 882IS.

2. Connect a standard USB connector to the computer and connect the USB micro end to the 882IS.

3. Power up the indicator while pressing the

4. Release the

5. The Upload Disk drive window will appear on the PC.

6. Drag and drop the unzipped bin file to UPLOAD_DISK.

7. When the transfer is complete, the drive will go away and the 882IS/882IS Plus will reboot into the Weigh mode application.

8. Disconnect the USB cable.

F4 key after a few seconds of seeing a blank screen.

F4 key on the front of the indicator.

86 Visit our website www.RiceLake.com

Page 87

Appendix

Note

GROSS

NET

B/N

ZERO

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

GROSS

NET

B/N

10.12 Analog Output Calibration

See Table 3-17 on page 43 for Analog Output parameters. The following calibration procedure requires a multimeter to measure voltage or current output from the analog output module. If the option is not already installed, install it in according to the instructions included with the option.

The analog output must be calibrated after the indicator itself has been configured (Section 3.0 on page 29) and calibrated (Section 4.0 on page 51).

1. Enter Configuration mode and go to the Analog Output menu.

• Set OUTPUT as desired for 0-10V, 0-20mA, or 4-20mA output

The minimum calibration occurs at 0.5V and 1mA for a 0-10V and 0-20mA output respectively.

• Set the minimum value to lowest weight value to be tracked by the analog output

• Set the maximum value to highest weight value to be tracked by the analog output

2. Connect multimeter to connector J1 on the analog output board:

• For voltage output, connect voltmeter leads to pins 3 and 4 (-V, +V)

• For current output, connect ammeter leads to pins 1 and 2 (-mA, +mA)

3. Adjust zero calibration:

• Scroll to the Calibrate Zero parameter

• Press , 000000 displays

• Check voltage or current reading on multimeter

• Set the parameter to match the reading from the multimeter

• Press or to select the digit

• Press or to increment or decrement the value

• Press to move to the decimal point entry

• Press or to adjust the decimal point placement

• Press to accept the displayed value

• CAL displays while the calibration is being performed.

4. Adjust span calibration:

• Scroll to the Calibrate Span parameter

• Press , 000000 displays

• Set the parameter to match the reading from the multimeter

• Press or to select the digit

• Press or to increment or decrement the value

• Press to move to the decimal point entry

• Press or to adjust the decimal point placement

• Press to accept the displayed value

• CAL will be displayed while the calibration is being performed

5. Verify calibration:

• Return to the Calibrate Zero/Calibrate Span parameter and verify that the calibration has not drifted.

• Repeat calibration if needed

6. Return to Weigh mode. Analog output function can be verified using test weights.

Page 88

882IS/882IS Plus

5LFH/DNH:HLJKLQJ6\VWHPV

 :HVW &ROHPDQ 6WUHHW

5LFH /DNH :LVFRQVLQ 

8QLWHG 6WDWHV RI $PHULFD

6LJQDWXUH __________________________

3ODFH

7\SH1DPH 'DWH

7LWOH

5LFKDUG6KLSPDQ

4XDOLW\0DQDJHU

(8DECLARATIONOF

CONFORMITY

("#+,.$-#0#(1

#/  (    #&1

(88'LUHFWLYH &HUWLILFDWHV

6WDQGDUGVV8VHGG1RWLILHGG%RG\\,QYROYHPHQWW

__________________________

5LFH/DNH:,86$

__________________________

7\SH7\S7\SH

(QJOLVK :H GHFODUHXQGHU RXUVROH UHVSRQVLELOLW\WKDWWKH SURGXFWVWRZKLFK WKLVGHFODUDWLRQ UHIHUVWR LV LQFRQIRUPLW\ ZLWKWKHIROORZLQJ

VWDQGDUGV RURWKHUUHJXODWLRQVGRFXPHQWV

'HXWVFK :LUHUNOlUHQ XQWHUXQVHUHU DOOHLQLJHQ9HUDQWZRUWXQJ GDVV GLH 3URGXNWHDXIGLH VLFKGLHVH (UNOlUXQJ EH]LHKW GHQIROJHQGHQ1RUPHQ

XQG 5HJXOLHUXQJVEHVWLPPXQJHQHQWVSUHFKHQ

)UDQFDLV 1RXVGpFODURQVVRXVQRWUHUHVSRQVDELOLWpTXHOHVSURGXLWVDX[TXHOVVHUDSSRUWHODSUpVHQWHGpFODUWLRQVRQWFRQIRUPHVjODDX[QRUPHV

VXLYDQWHRXDXDX[GRFXPHQWVQRUPDWLIVVXLYDQWV

_______________________

11.0 Compliance

882IS/882IS Plus indicator, mb-EPS-100-240-X2 power supply and IS6V2 battery module, IO module

2014/30/EU EMC

2014/35/EU LVD

2011/65/EU RoHS

EN 61326-1:2013, EN 55011:2009+A1:2010

Applicable to: / Aufwendbar auf: / Applicable a: IO module EN 60950-1:2006+A11:2009/A1:2010/A12:2011/A2:2013

EN 50581:2012

2014/34/EU ATEX

FM18ATEX0047X

Applicable to: / Aufwendbar auf: / Applicable a: Indicator,power supply and battery module EN 60079-0:2012+A11:2013, EN 60079-11:2012, EN 60079-18:2015, EN 60529:1991 +A1:2000/A2:2013 Notified Body involved with module B and D: / Benannte Stelle, die an Modul B und D beteiligt ist: / Organisme notifié impliqué dans les modules B et D: FM Approvals Europe Ltd. - 2809

May 3, 2019

88 Visit our website www.RiceLake.com

Page 89

Compliance

5LFH/DNH:HLJKLQJ6\VWHPV

:HVW&ROHPDQ6WUHHW

5LFH/DNH:LVFRQVLQ

8QLWHG6WDWHVRI$PHULFD

6LJQDWXUH

3ODFH

1DPH 'DWH

7LWOH

8.DECLARATION OFCONFORMITY

8..5HJXODWLRQV &HUWLILFDWHV

6WDQGDUGVV8VHGG$SSURYHGG%RG\\,QYROYHPHQWW

7\SH

(QJOLVK :H GHFODUHXQGHU RXUVROHUHVSRQVLELOLW\ WKDW WKHSURGXFWVWR ZKLFKWKLVGHFODUDWLRQUHIHUVWR LVLQFRQIRUPLW\ ZLWKWKHIROORZLQJ

VWDQGDUGV RURWKHUUHJXODWLRQVGRFXPHQWV

)RUP5HY

BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

$SSURYHGE\4XDOLW\'HSDUWPHQW

BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBBBBB

882IS/882IS Plus Indicator, mb-EPS-100-240-X2 power supply, and IS6V2 battery module, IO module

2016/1101 Low Voltage

2016/1091 EMC

2012/3032 RoHS

2016/1107 ATEX

FM22UKEX0061X

Applicable to: / Aufwendbar auf:/ Applicable a: IO module EN $&

EN 61326-1:2013, EN 55011:2009+A1:2010

EN 50581:2012

Applicable to: / Aufwendbar auf:/ Applicable a: Indicator, power supply, and battery module EN 60079-0:2018, EN 60079-11:2012, EN 60079-18:2015+A1:2017, EN 60529:1991 +A1:2000/A2:2013 Notified Body inYovled with module B and D: / Benannte Stelle, die an Modul B und D beteiligt ist: / Organisme notifié impliqué dans les modules B et D: FM Approvals Ltd. - 1725

Brandi Harder

Rice Lake, WI USA

BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

'HFHPEHU, 20

BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

Quality Manager

Page 90

882IS/882IS Plus

CERTIFIED

NAWI

12.0 Specifications

Load Cell Excitation

3.0 VDC at 87.5 Ω, 4.6 VDC at 700 Ω

Load Cell Current

34 mA (4 x 350 Ω load cells) or (8 x 700 Ω load cells)

Load Cell Cabling

Four and six-wire with remote sensing (recommended)

Analog Signal Input Range

0.6 mV/V - 4.0 mV/V

Analog Signal Sensitivity

0.2 μV/graduation minimum

1.5 μV/graduation recommended

Conversion Rate

60 updates/second

Resolution

10,000 displayed graduations (NTEP Certified), 1,000,000 expanded The maximum number of allowed graduations will vary by application

Display Increments

1, 2, 5

Display

Seven-digit, seven-segment LCD display 121 x 24 dot matrix messaging area with white LED backlight

Decimal Point

Configurable with dead zeros

Unit Switching

Configurable for two units of measurement with front panel operation with conversion for tare and setpoint values

Front Panel Control Switches

882IS: Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop 882IS Plus: Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop, Full numeric keypad

Front Panel

Ten-button plus power button flat membrane panel

Front Panel Annunciators

Center Zero, Gross, Net, Motion, lb, kg, oz, g

Motion Band

Configurable to ± 1 or ± 3 graduations, 1 second delay (or Off)

Power Input

5.8-7.9 VDC, 100-175 mA Maximum power consumption 0.25 watts

Operating Temperature

14°F to 104°F (-10°C to 40°C) legal

Electrical Operating Temperature

14° F to 104° F (-10° C to 40° C) legal

Rating/Material

Stainless steel IP66 enclosure

Optional Battery

Operating times: 4 x 350 Ω = 60 hrs 1 x 350 Ω = 80-100 hrs. Charging times: 8-10 hrs

Weight

6.1 lb (2.8 kg)

Warranty

One-year limited warranty

Intrinsic Safety

FM/cFM: Class I,II,III, Division 1, Groups ABCDEFG T4 Class I, Zone 0 AEx/Ex ia IIC T4 Ga Zone 20 AEx/Ex ia IIIC T135°C Da Ta = -10°C to +40°C (14°F to 104°F) ATEX/IECEx: II 1 G Ex ia IIC T4 Ga II 1 D Ex ia IIIC T135°C Da

Certifications and Approvals

NTEP

CC Number: 19-015 Class: III/III L n

Measurement Canada Approval: AM-6124C Accuracy Class: III / IIIHD; n

EU NAWI

Certificate No. T11166

OIML File Number: R76/2006-A-NL1-21.11

FM Approved

FM18US0195X FM18CA0092X

EU-Type Examination Certificate

FM18ATEX0047X

IECEx Certificates

IECEx FMG 18.0018X

max

: 10 000

max

: 10000

90 Visit our website www.RiceLake.com

Page 91

Page 92

230 W. Coleman St. • Rice Lake, WI 54868 • USA

U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319

www.ricelake.com

PN 183532 Rev JDecember 22, 2022
