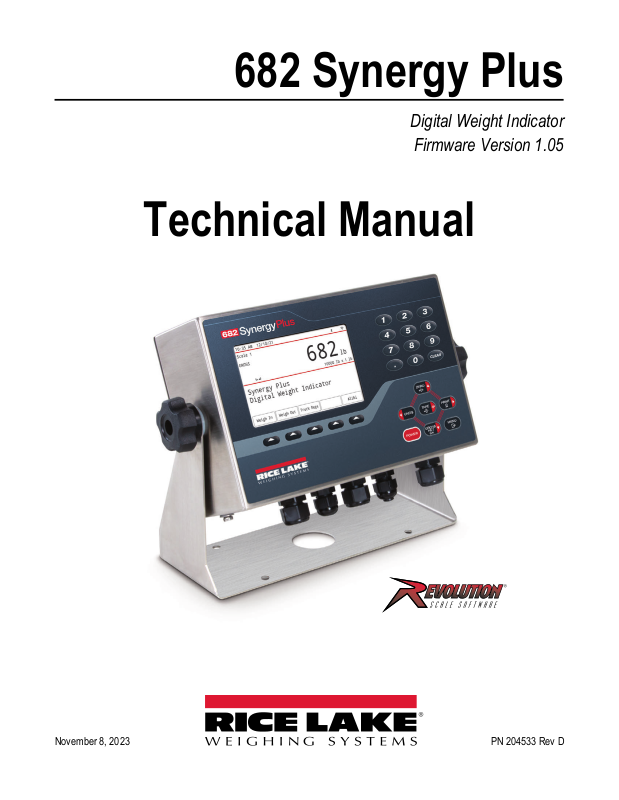

682 Synergy Plus

Digital Weight Indicator

Firmware Version 1.05

Technical Manual

PN 204533 Rev DNovember 8, 2023

Page 2

Rice Lake Weighing Systems

is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete and

accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make

changes to the technology, features, specifications and design of the equipment without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Page 3

Revision History

Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.

Revision History

This section tracks and describes manual revisions for awareness of major updates.

Revision Date Description

A April 8, 2022 Initial manual release with the launch of the product; firmware version 1.00 B October 28, 2022 Softkey descriptions, custom stream format procedure example and cord grip cable diameter ranges added;

print format table and User menu updated; AC/DC models now use same parts kit; firmware version 1.02

C December 28, 2022 Content updates for DC power cable wiring and batching switch wiring; OIML certificate number added;

firmware version 1.03

D November 8, 2023 Firmware version 1.05; Regulatory parameters and EPD commands expanded; Added power cord details;

Updated serial scale input capacities; Added CPU board updates; Updated replacement parts list

Table i. Revision Letter History

Page 4

682 Synergy Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

Contents

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2 FCC Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.3 Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.4 Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.5 RJ45 Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.1 Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

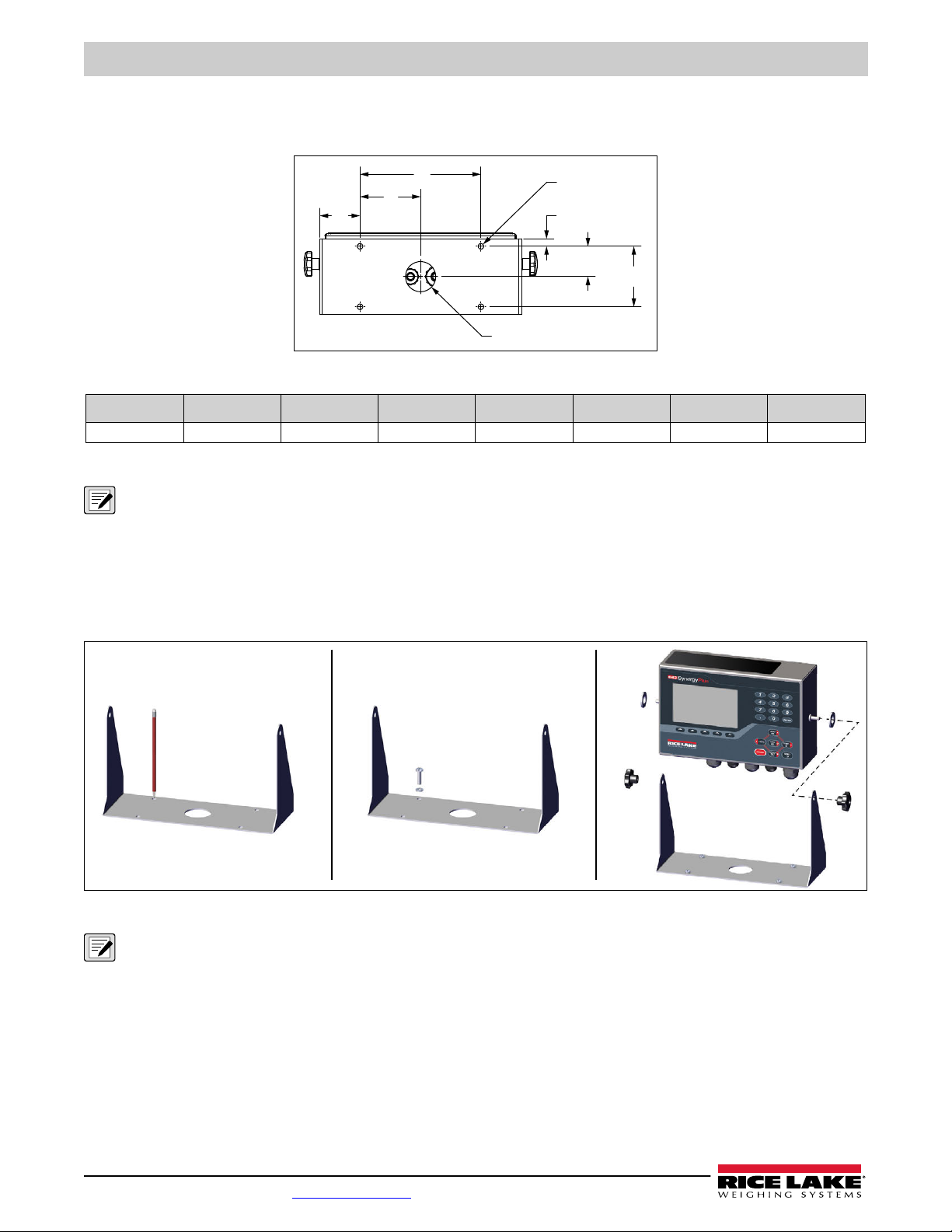

2.2 Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

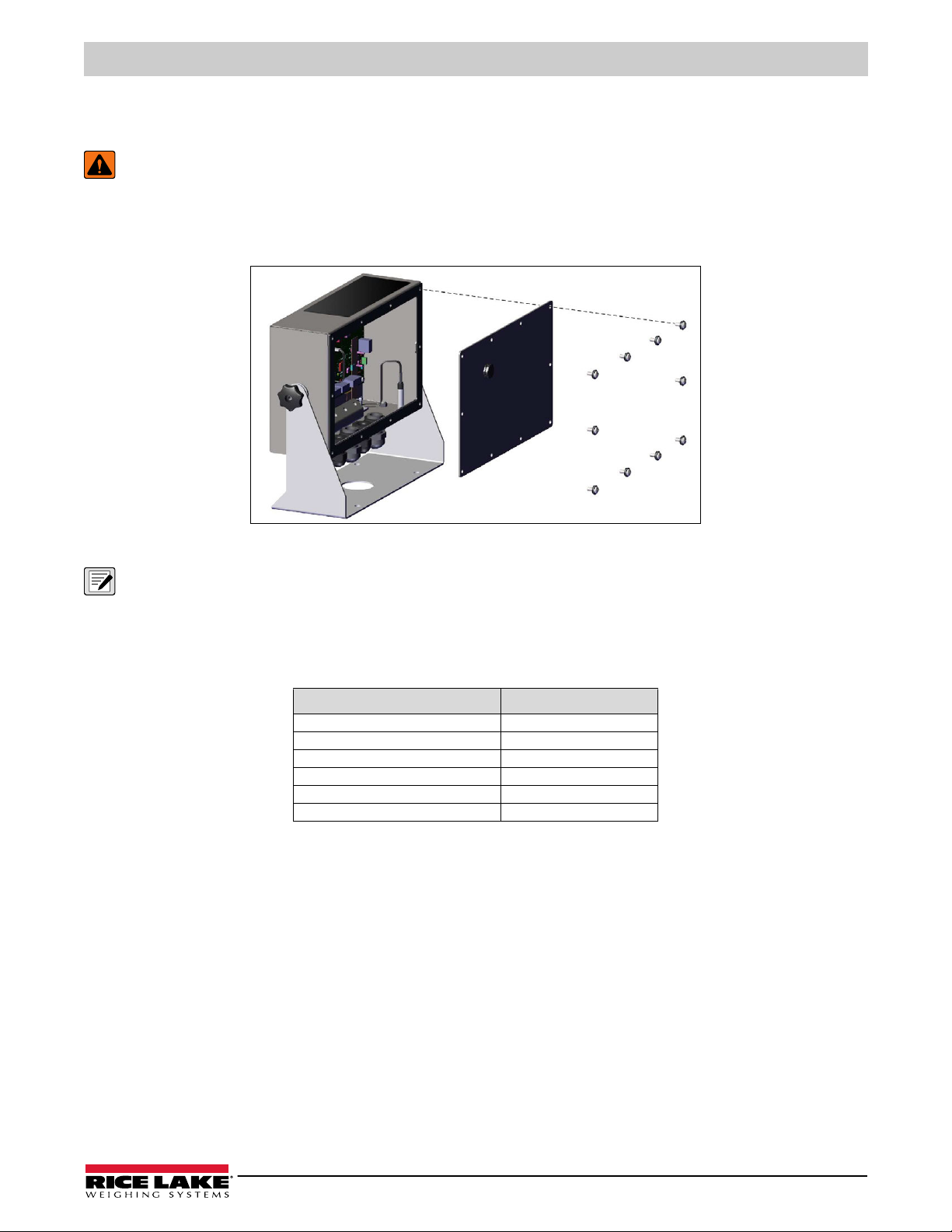

2.3 Backplate Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.4 Torque Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.5.1 Cable Diameter Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

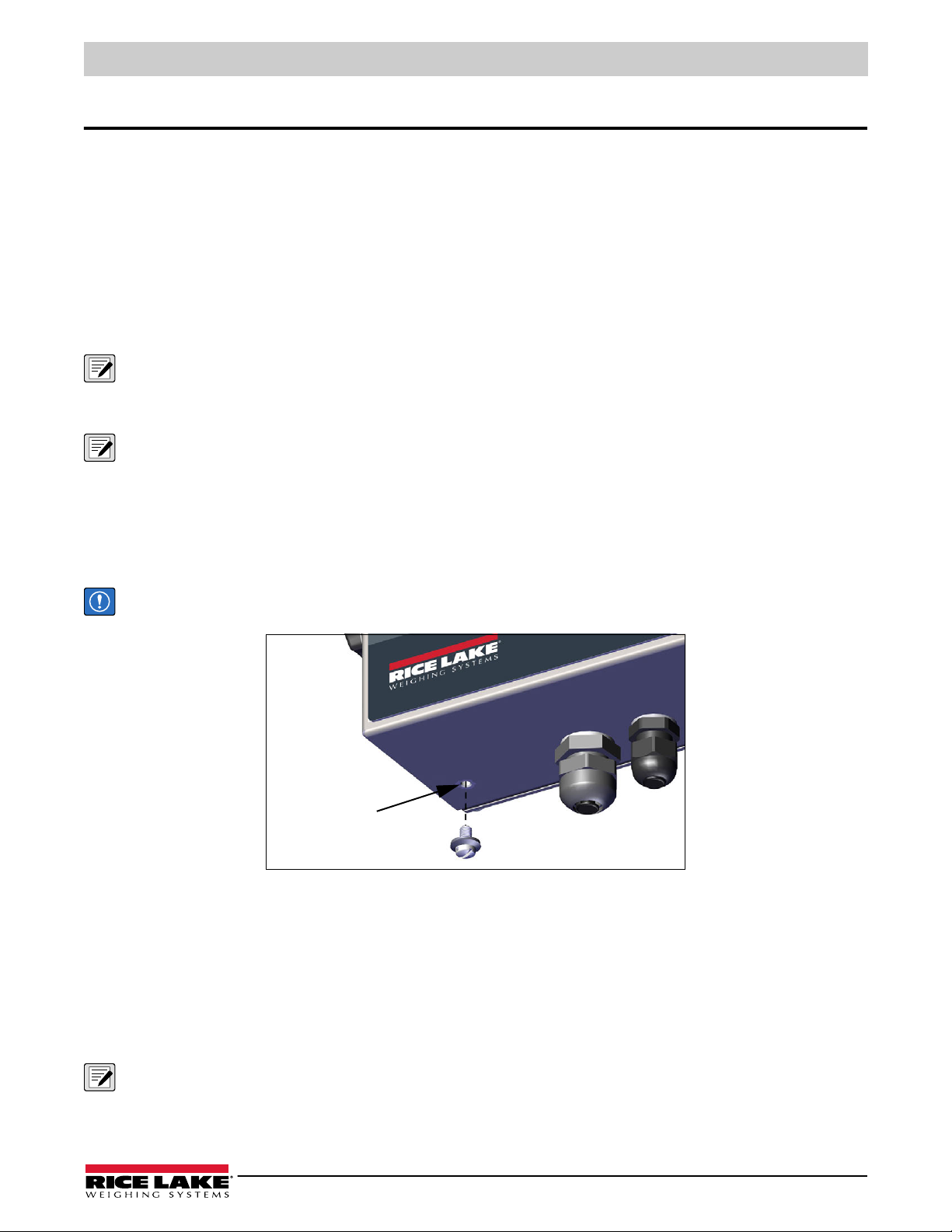

2.5.2 Cable Shield Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

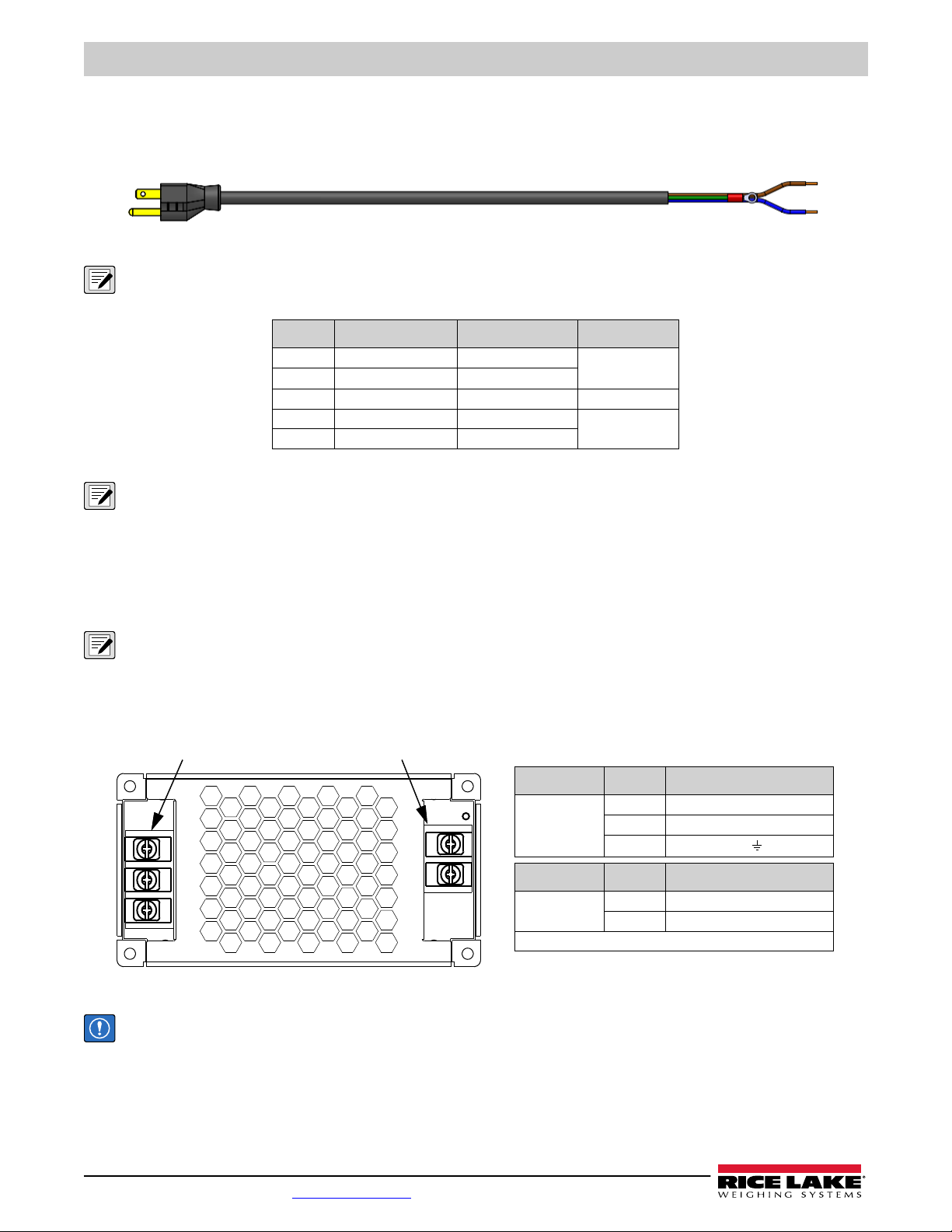

2.5.3 AC Power Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.5.4 DC Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.5.5 Load Cell Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.6 RS-232 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.7 RS-485/422 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.8 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.5.9 Memory Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.5.10 Micro USB Device Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

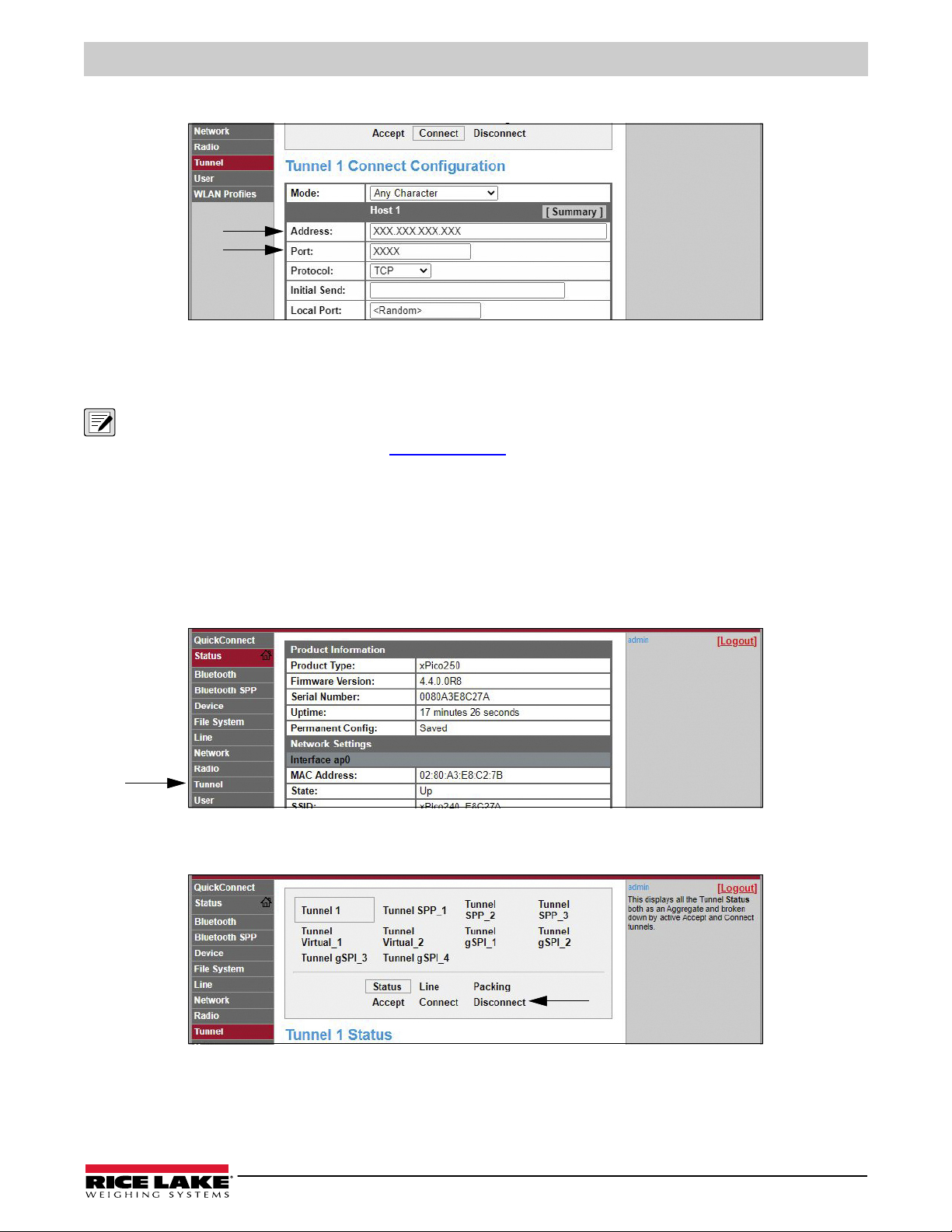

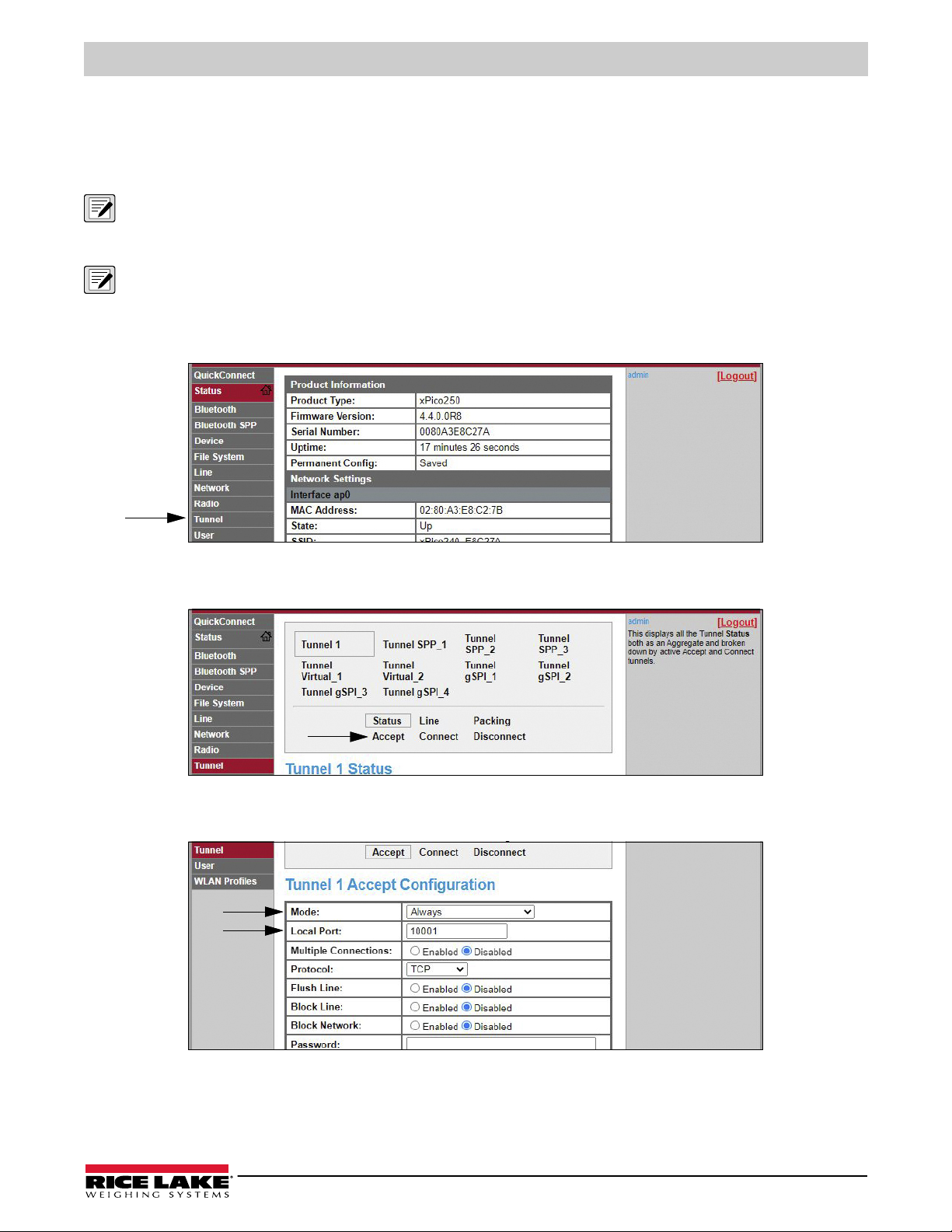

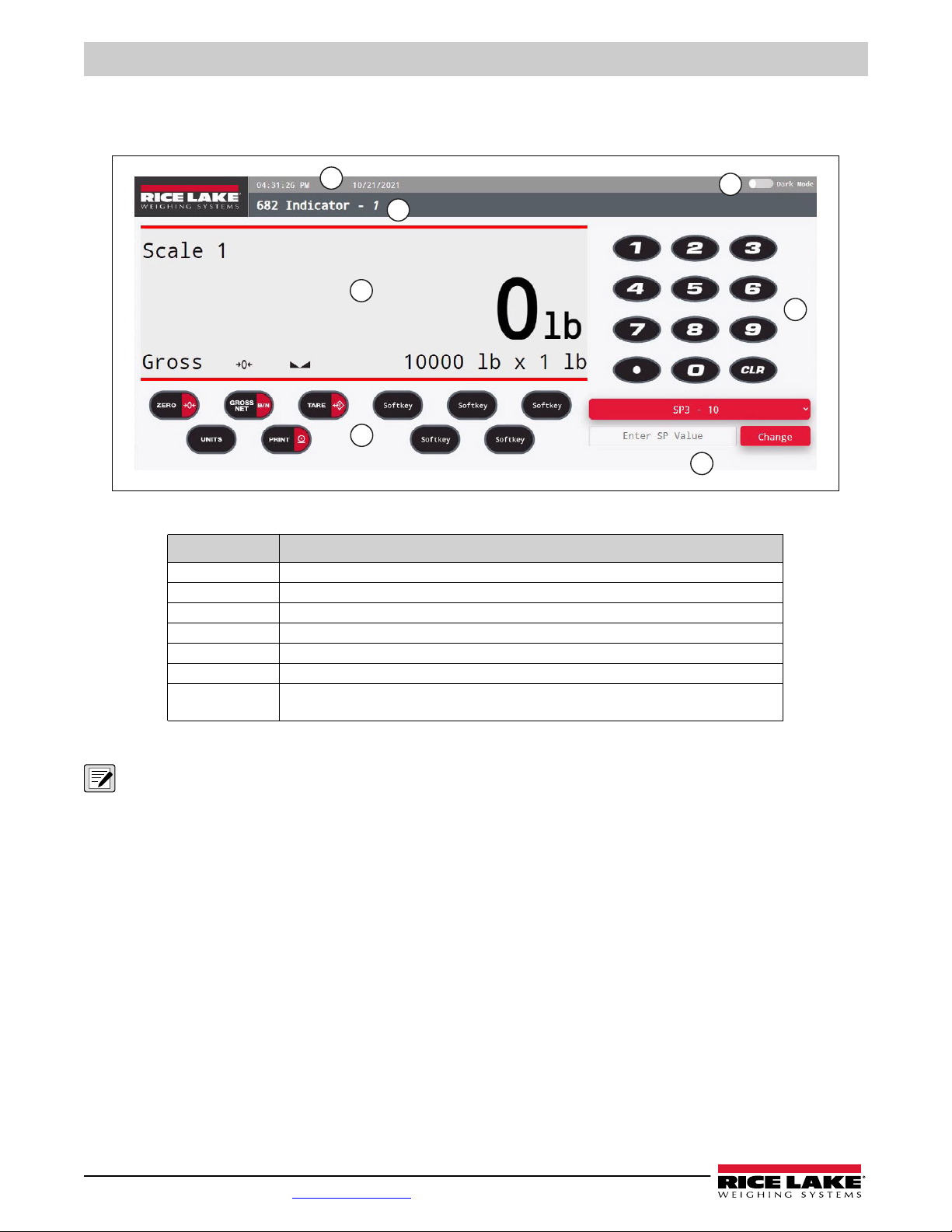

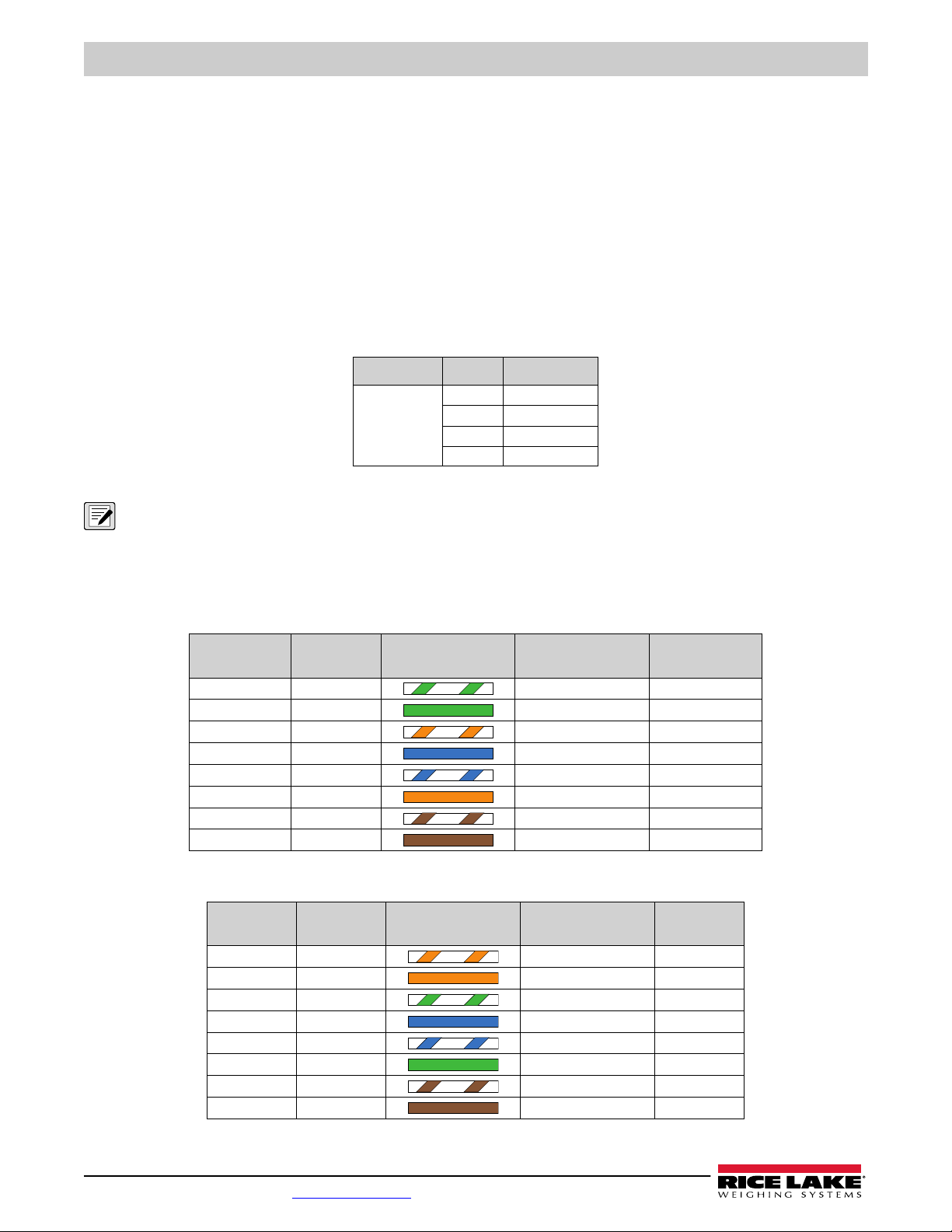

2.5.11 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

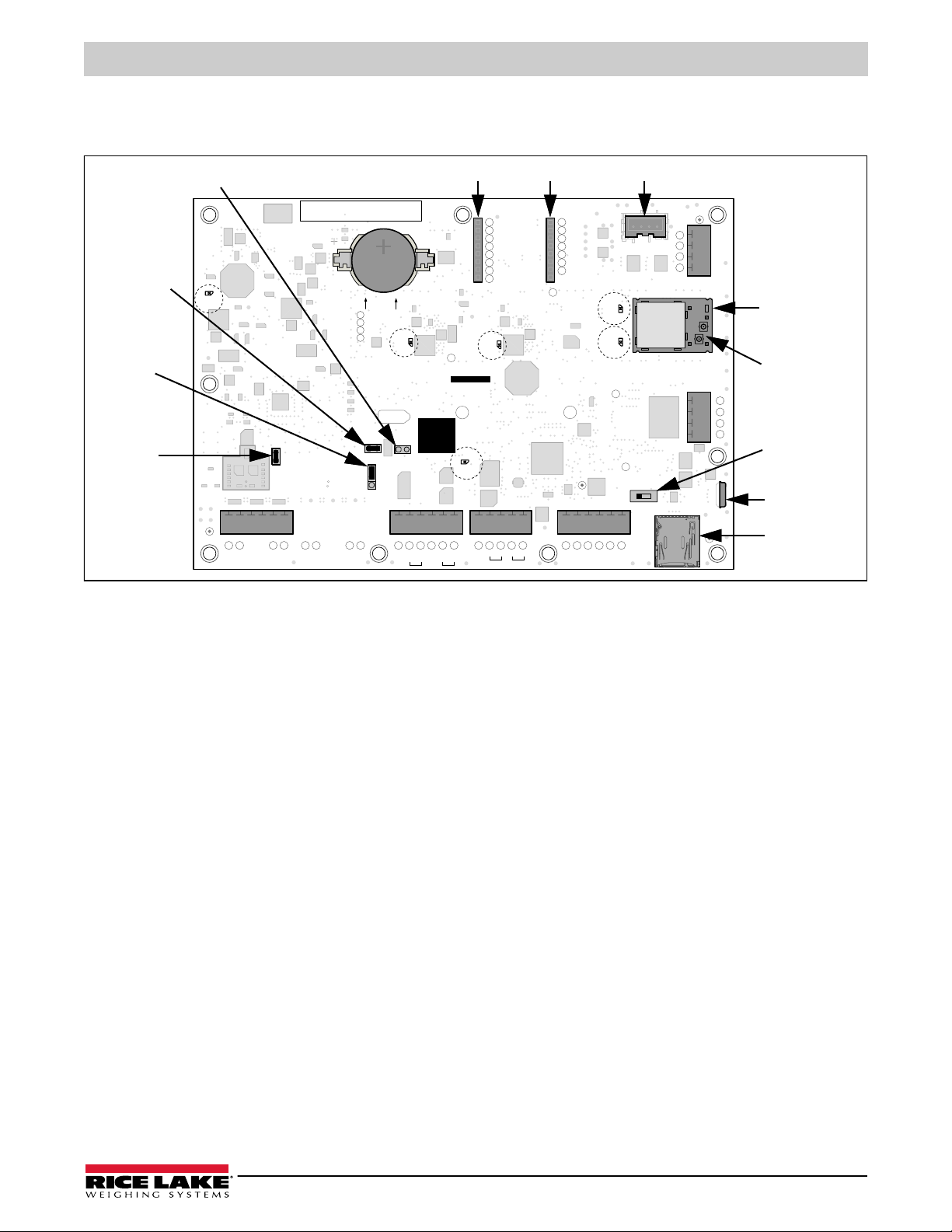

2.6 CPU Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.6.1 Option Card Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.6.2 Load Cell Compensation Jumper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.7 Backplate Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.8 Sealing the Indicator (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.9 Parts Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.10 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

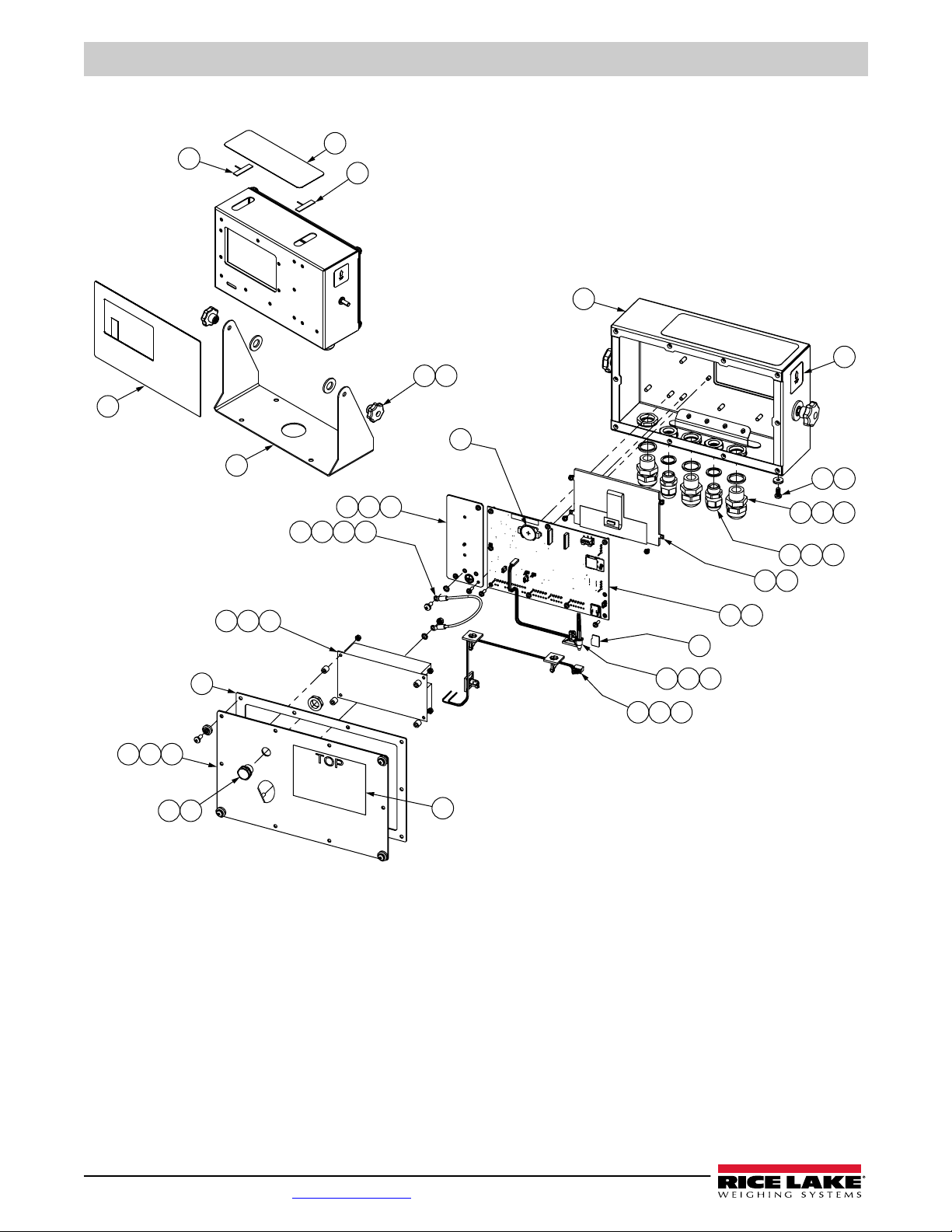

2.10.1 682 AC Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.10.2 682 DC Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.0 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

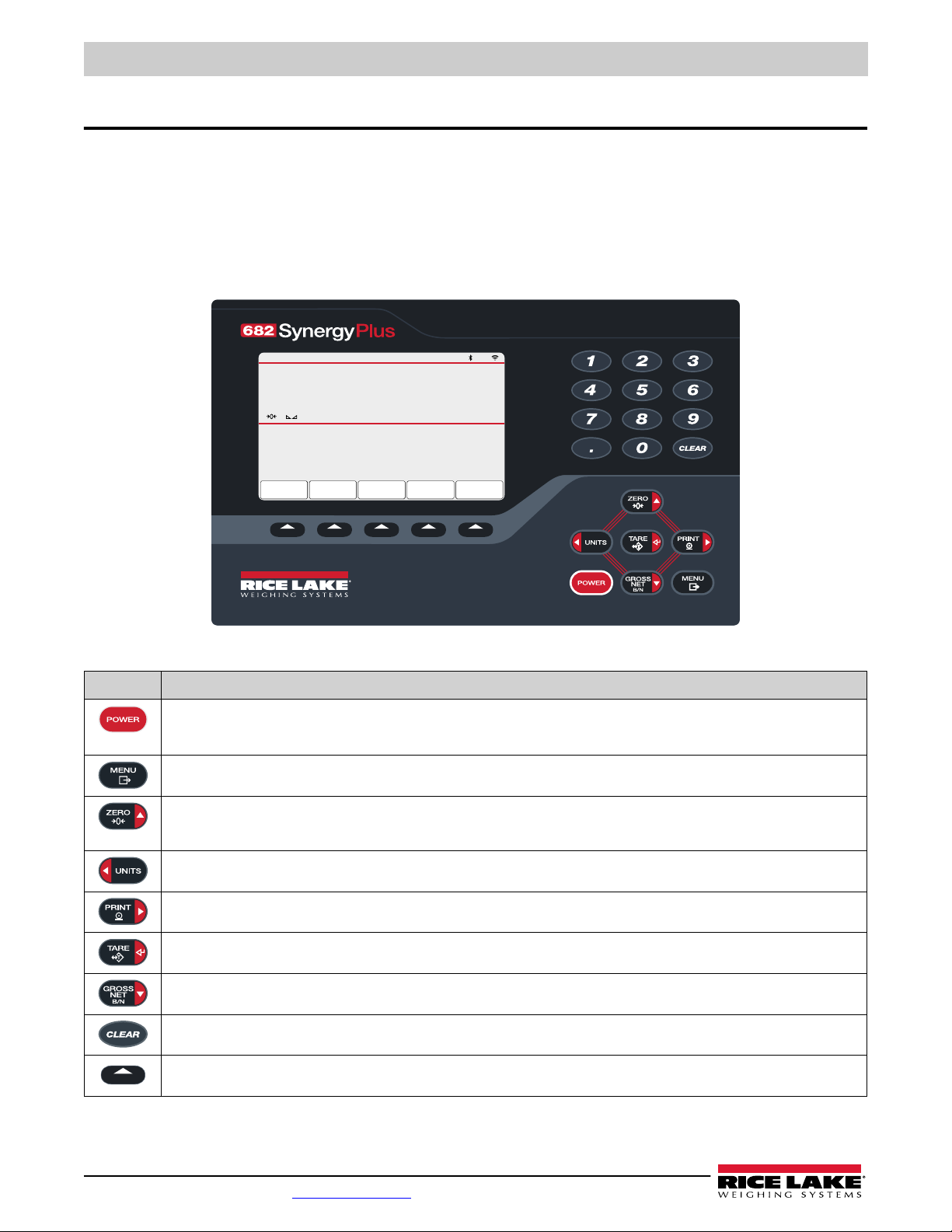

3.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.2 Status Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

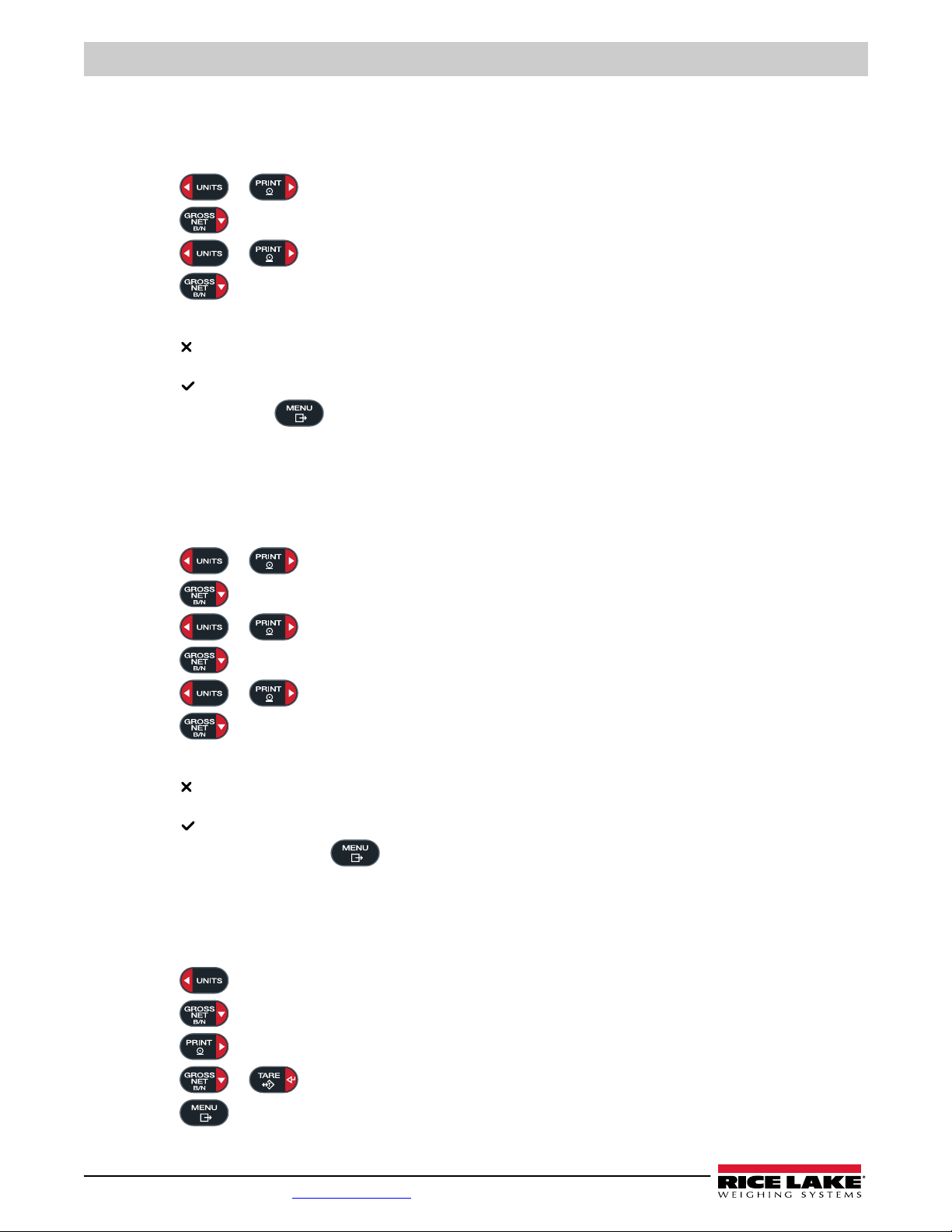

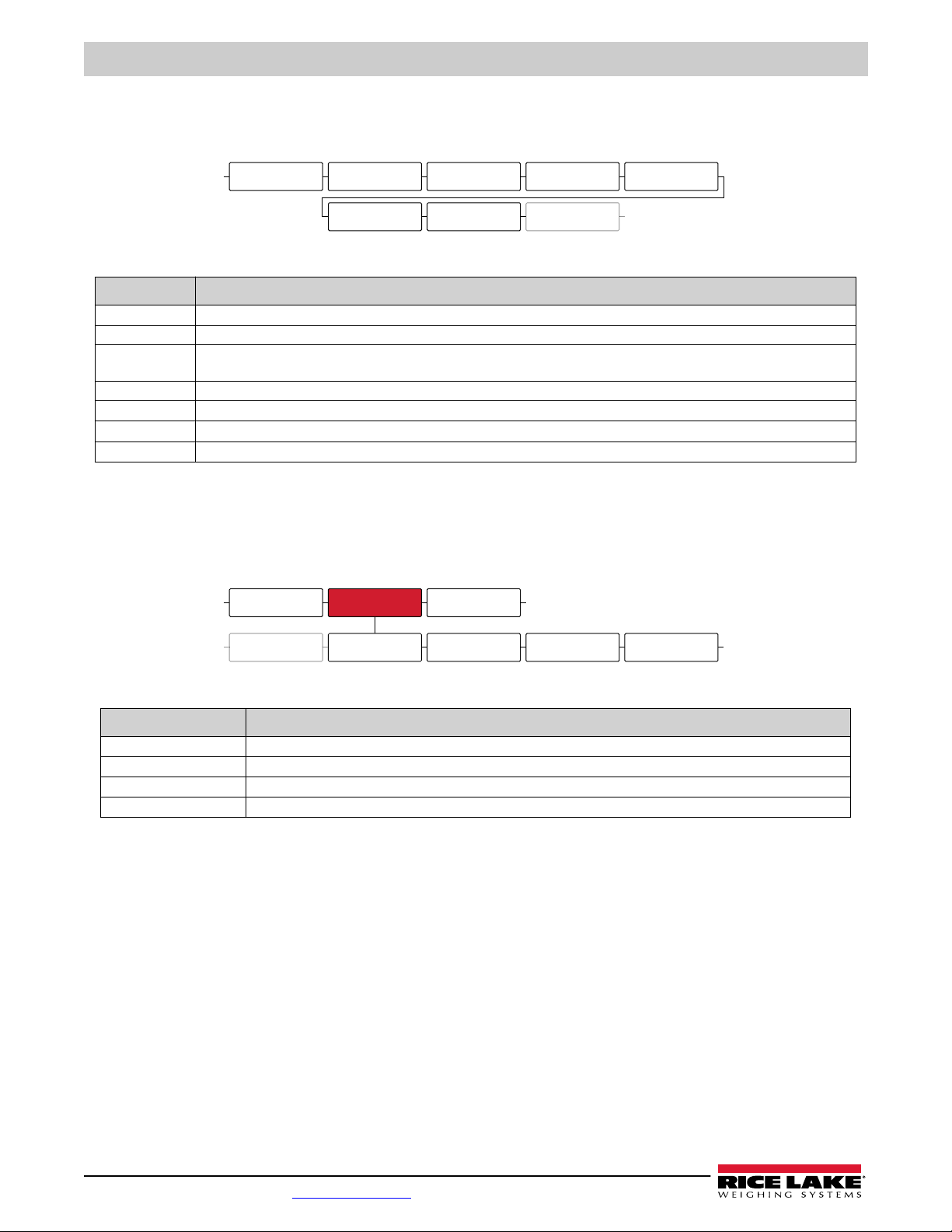

3.3 General Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.3.1 Numeric Value Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

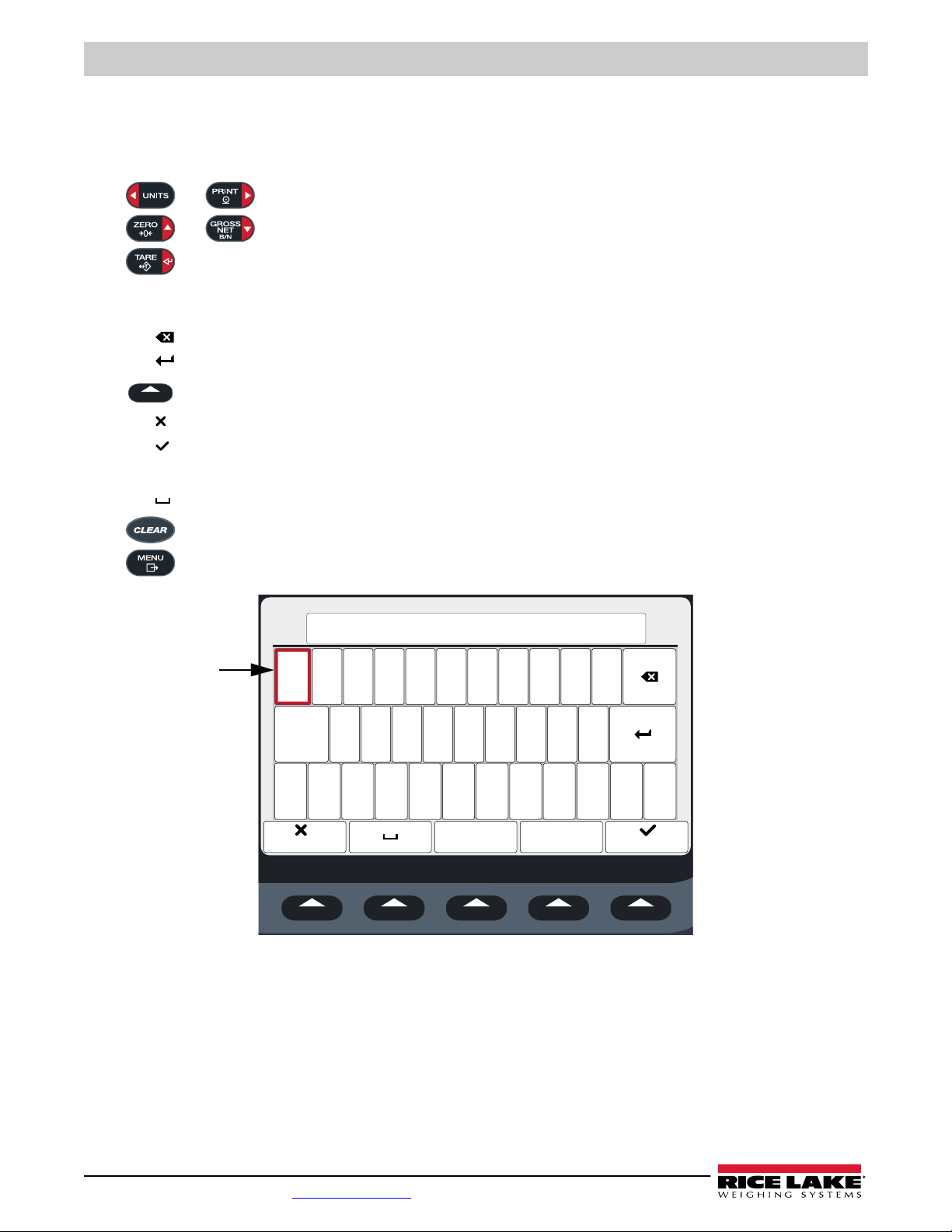

3.3.2 Alphanumeric Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4 General Indicator Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.1 Zero Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.2 Print Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.3 Toggle Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.4 Toggle Gross/Net Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.5 Acquire Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.6 Remove Stored Tare Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4 Visit our website www.RiceLake.com

Page 5

Contents

3.4.7 Preset Tare (Keyed Tare) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4.8 Display a Stored Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4.9 Clear a Stored Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4.10 View Audit Trail Counters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4.11 View Legally Relevant Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.4.12 Display Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.4.13 Print Accumulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.4.14 Clear Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.4.15 View and Edit Time Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.4.16 View and Edit Date Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.17 Ethernet, Wi-Fi and Bluetooth® MAC IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.4.18 View Configured Setpoint Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.4.19 Configure Softkeys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.4.20 Alibi Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.4.21 Enter New Unit ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3.4.22 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3.4.23 Reset Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.1 Setup Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.1.1 Audit Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.2 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.3 Audit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.4 User Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.4.1 Accumulator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.5 Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.5.1 Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.5.2 Scale Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.5.3 Calibration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.5.4 Communications Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.5.5 Program Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4.5.6 Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

4.5.7 Stream Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4.5.8 Setpoint Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

4.5.9 Digital I/O Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

4.5.10 Analog Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

4.5.11 Softkey Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

4.6 Tare Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

5.0 Split Mode Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.1 Configure a Multi-Range or Multi-Interval Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

6.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.1.1 Span Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.1.2 Linear Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.2 Alternative Zero Calibrations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.2.1 Last Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.2.2 Temporary Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.2.3 Rezero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.3 EDP Command Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Page 6

682 Synergy Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

7.0 Truck Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

7.1 Using the Truck Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

7.2 Using the Truck Register Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

7.3 Weigh-In Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

7.4 Weigh-Out Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

7.5 Single-Transaction Tare Weights and IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.0 HTTP Web Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.1 Access Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.2 Browser Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.0 Wi-Fi & Bluetooth® Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.1 Bluetooth® Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.2 Wi-Fi Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.2.1 Wi-Fi Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.2.2 Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.2.3 Client Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.2.4 Timeout Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.3 Wireless Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

10.0 Fieldbus Options Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

10.1 Fieldbus Option Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

10.2 682 Fieldbus Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

10.3 EtherNet/IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.3.1 EDS File Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.3.2 Generic Module Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.4 PROFINET Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10.5 Data From the PLC to the Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

10.5.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

10.6 Data From the Indicator to the PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

10.6.1 Onboard Digital I/O Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.6.2 Calibration Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.6.3 Command Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.6.4 Scale Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

10.6.5 Scale Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

10.7 Standard Calibration Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

11.0 Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.1 Connecting to the Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.2 Saving and Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.2.1 Saving Indicator Data to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.2.2 Downloading Configuration Data from PC to Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

11.3 Updating Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

12.0 EDP Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

12.1 Key Press Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

12.2 Reporting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

12.3 SD Card Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

12.4 Reset Configuration Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

12.5 Scale Parameter Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

6 Visit our website www.RiceLake.com

Page 7

Contents

12.6 Serial Port Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

12.6.1 Serial Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

12.7 Ethernet and USB Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

12.8 Wi-Fi and Bluetooth® Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

12.9 Fieldbus Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

12.10 Alibi Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

12.11 Truck Mode Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

12.12 Stream Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

12.13 Program Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

12.14 Regulatory Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

12.15 Setpoint Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

12.16 Batching Control Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

12.17 Print Format Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

12.18 Digital I/O Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

12.19 Analog Output Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

12.20 Softkey Setting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

12.21 Weigh Mode Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

13.0 Print Formatting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

13.1 Print Formatting Tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

13.2 Customizing Print Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

13.3 Non-Human Readable Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

14.0 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

14.1 Continuous and Batch Setpoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

14.2 Batch Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

14.2.1 Batching Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

14.3 Batching Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

14.3.1 Example 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

14.3.2 Example 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

15.0 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.1 Maintenance Checkpoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.2 Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.3 Troubleshooting Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

15.4 Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

15.5 Board Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

16.0 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

16.1 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

16.1.1 Displayed Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

16.2 Audit Trail Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

16.3 Unit Conversion Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

16.4 ZZ EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

16.5 Continuous Data (Stream) Output Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

16.5.1 Rice Lake Weighing Systems Stream Format (RLWS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

16.5.2 Cardinal Stream Format (Cardinal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

16.5.3 Avery Weigh-Tronix Stream Format (Weigh-Tronix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

16.5.4 Mettler Toledo Stream Format (Toledo). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

16.5.5 Minebea Stream Format (Minebea) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Page 8

682 Synergy Plus

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

16.6 Custom Stream Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

16.7 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

16.7.1 Digital Rolling Average Filter (Average Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

16.7.2 Adaptive Filter (Adaptive Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

16.7.3 Damping Filter (Damping Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

16.8 Regulatory Mode Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

16.9 ASCII Character Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

17.0 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

18.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

8 Visit our website www.RiceLake.com

Page 9

Introduction

1.0 Introduction

This manual is intended for use by service technicians responsible for installing and servicing 682 digital weight indicators.

Configuration and calibration of the indicator can be accomplished using the Revolution front panel keys. See Section 4.0 on page 39 and Section 6.0 on page 67 for information about configuration and calibration.

configuration utility or the indicator

Manuals are available from Rice Lake Weighing Systems at

www.ricelake.com/manuals

Warranty information is available at www.ricelake.com/warranties

1.1 Safety

Safety Signal Definitions:

DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes hazards that are exposed when guards are removed.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes hazards that are exposed when guards are removed.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

IMPORTANT: Indicates information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data.

General Safety

Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

WARNING: Failure to heed could result in serious injury or death.

Some procedures described in this manual require work inside the indicator enclosure. These procedures are to be performed by qualified service personnel only.

Do not allow minors (children) or inexperienced persons to operate this unit.

Do not operate without the enclosure completely assembled.

Do not place fingers into slots or possible pinch points.

Do not use this product if any of the components are cracked.

Do not make alterations or modifications to the unit.

Do not remove or obscure warning labels.

Do not submerge.

Do not use solvents or aggressive substances to clean the indicator.

Do not exceed the rated specification of the unit.

Only connect unit to equipment certified to IEC 60950, IEC 62368, IEC 61010 or similar.

Do not use for purposes other than weight taking.

Before opening the unit, ensure the power cord is disconnected from the power source.

Disconnect all power before servicing. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.

Pluggable units must be installed near the socket/outlet and be easily accessible.

Use copper or copper-clad aluminum conductors only.

Never remove or obscure warning labels (PN 219129).

Page 10

682 Synergy Plus

1.2 FCC Compliance

United States

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.

1.3 Operating Modes

Weigh Mode

Weigh mode is the default mode of the indicator. The indicator displays gross or net weights as required.

User Mode

User mode is accessible by pressing on the front panel. Access to the Audit, User, Tare, MAC ID, Fieldbus Version and Version menus is available when in User mode. Access to the User menu can be password protected (Section 3.4.22 on

page 38). The User menu includes the Setpoint (limited), Accumulator, Time and Date menus.

Setup Mode

Many of the procedures described in this manual, require the indicator to be in Setup mode. See Section 4.0 on page 39 for the procedure to enter Setup mode and the parameters available. Setup mode is accessible by

pressing the setup switch or by pressing on the front panel when the audit jumper is in the ON position. Access to the Setup menu can also be password protected (Section 3.4.22 on page 38).

NOTE: See Section 4.5.5 on page 52 for the menu location and description of the password parameters.

1.4 Option Cards

The 682 has a single option card slot which can support the Synergy Series Option Cards. The Synergy Series Option Card kits include instructions for installation and setup.

• Single Analog Output Option Card Kit (PN 195084)

• Relay Option Card Kit (PN 211709)

• Dual Serial Option Card Kit (PN 211710)

1.5 RJ45 Option

The 682 is available with an external RJ45 option. This external RJ45 connector is located on the backplate of the 682 and provides quick access to Ethernet TCP/IP 10Base-T/100Base-TX communication (Section 2.5.11 on page 20).

682 indicators without the RJ45 option access Ethernet using the J8 connector on the CPU board inside of the enclosure.

10 Visit our website www.RiceLake.com

Page 11

2.0 Installation

Installation

This section describes procedures for connecting power, load cells, digital I/O and data communication cables to a 682 indicator. An assembly drawing and parts list are included for the service technician.

WARNING

AVERTISSEMENT

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to state and local regulations.

ATTENTION: Risque d’explosion si la batterie est remplacée par un type incorrect. Mattre au rebus les batteries usagées selon les règlements d'état et locaux.

WARNING: Failure to heed the following statements could result in serious injury or death.

• Procedures requiring work inside the product enclosure must be performed by qualified service personnel only.

• Use a grounding wrist strap to protect components from electrostatic discharge (ESD) damage when working inside the product enclosure.

• The power outlet must be near the equipment and must be easily accessible.

Risk of electrical shock. Risque de choc.

Disconnect power before servicing. Débranchez l’alimentation avant l’entretien.

2.1 Unpacking

Immediately after unpacking, visually inspect the 682 to ensure all components are included and undamaged. The shipping carton contains the indicator, this manual and a parts kit. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.

2.1.1 Product Dimensions

This section includes exterior product dimensions of the 682 enclosure and universal stand.

682 with Optional RJ45 Connector

Figure 2-1. Product Dimensions Diagram

A B C D E F G H

11.6 in (294.7 mm) 9.5 in (241.3 mm) 10.0 in (254.0 mm) 6.0 in (152.4 mm) 8.6 in (218.5 mm) 3.5 in (88.9 mm) 4.0 in (101.6 mm) 4.5 in (114.3 mm)

Table 2-1. Product Dimensions

Page 12

682 Synergy Plus

2.2 Mounting Instructions

The 682 includes a universal mount stand. The stand can be mounted on a wall, tabletop or a flat surface.

Figure 2-2. Mounting Dimensions Diagram

A B C D E F G H

6.0 in (152.4 mm) 3.01 in (76.5 mm) 2.01 in (51.1 mm) Ø 1.5 in (38.1 mm) 3.0 in (76.2 mm) 1.51 in (38.4 mm) 0.37 in (9.4 mm) Ø 0.28 in (7.1 mm)

Table 2-2. Mounting Dimensions

NOTE: The universal mount stand comes attached to the 682. Rice Lake Weighing Systems recommends removing the 682 from the stand prior to mounting.

1. Using the mount as a template, mark the screw locations.

2. Drill holes for the screws.

3. Secure the universal mount using the appropriate 1/4-inch or M6 hardware (not included).

4. Reattach the 682 to the universal mount stand.

Figure 2-3. Mounting the Indicator

NOTE: The parts kit includes rubber grommets to insert into the four screw holes of the universal mount stand for a non-mounted application.

12 Visit our website www.RiceLake.com

Page 13

2.3 Backplate Removal

Remove the backplate of the 682 to connect cables and gain access to the 682 board and power supply.

WARNING: Before opening the unit, ensure the power cord is disconnected from the power outlet.

1. Place the 682 facedown on an anti-static work mat.

2. Remove the screws holding the backplate to the enclosure.

3. Lift the backplate away from the enclosure and disconnect the ground wire from the backplate.

Installation

Figure 2-4. Removing the Backplate

NOTE: The 682 ships with only four screws securing the backplate. The remaining backplate screws are included in the parts kit. For reassembly, torque backplate screws to 12 in-lb (1.4 N-m).

2.4 Torque Ratings

Refer to Table 2-3 throughout installation and use of product to maintain proper torque ratings for 682 components.

Component Torque Rating

Backplate Screw 12 in-lb (1.4 N-m) Setup Screw 10 in-lb (1.1 N-m) Power Supply Bracket 4 in-lb (0.46 N-m) Cord Grip Nut (to enclosure) 33 in-lb (3.7 N-m) Cord Grip Dome Nut (around cable) 22 in-lb (2.5 N-m) Optional RJ45 Panel Nut 20 in-lb (2.3 N-m)

Table 2-3. Component Torque Ratings

Page 14

682 Synergy Plus

2.5 Cable Connections

The 682 provides five cord grips at the bottom of the enclosure for cabling into the indicator. One of the cord grips is used for the power supply and the other four are used to accommodate the load cell cable and the serial, digital inputs and outputs, Ethernet, micro USB or the optional analog output communications cables. A version of the 682 with an external RJ45 connector and cap is available. Cable plugs are included in the parts kit and must be installed in open cord grips to prevent moisture from entering the enclosure. Use the attached cap to seal the optional RJ45 connector when not in use. See the following sections to install cables as required for the application. The recommended cable strip length is 0.25 in (7 mm) for all 682 connectors. See Figure 2-5 for the recommended assignments for the 682 cord grips.

IMPORTANT: Prohibit open/bare wires outside of enclosure. Ensure stripped portion of cables are entirely inside cord grips. Properly seal cord grips to prevent moisture damage inside of the enclosure. Cable plugs must be installed in unused cord

grips. Cord grip dome nuts, around a cable or a plug, must be torqued to 22 in-lb (2.5 N-m). The cord grip nut against the enclosure must be torqued to 33 in-lb (3.7 N-m).

WARNING: Only connect unit to equipment certified to IEC 60950, IEC 62368, IEC 61010 or similar.

Cord grips for communication cables (PG-11|PG-9|PG-11)

Access screw for setup switch

RJ45 connector (available option)

Figure 2-5. Recommended Cord Grip Assignments

NOTE: The recommended cable strip length is 0.25 in (7 mm) for all 682 connectors.

2.5.1 Cable Diameter Ranges

Refer to Table 2-4 for minimum and maximum cable diameter sizes for use with the 682 cord grips.

Cord Grip Diameter Range

PG-9 (PN 15626) 0.138 - 0.315 in (3.5 - 8 mm) PG-11 (PN 68600) 0.197 - 0.394 in (5 - 10 mm)

Table 2-4. Cord Grip Cable Diameter Ranges

Power cord (PG-11)

Cord grip for load cell cable (PG-9)

14 Visit our website www.RiceLake.com

Page 15

Installation

2.5.2 Cable Shield Grounding

Except for the power cord, all cables routed through the cord grips must be shield grounded against the enclosure.

• Use hardware provided in parts kit to install shielding clamps on the grounding bracket at the bottom of the enclosure.

• Install only the necessary amount of shielding clamps for the cord grips to be used.

• Remove the insulated jackets and shielding per the following instructions.

Shielding Procedure

1. Install the shielding clamps on the grounding rail using the clamp screws. Finger tighten the screws at this time.

2. Route the cables through the cord grips and the shielding clamps to determine the cable lengths required to reach the appropriate cable connectors.

3. Mark cables to remove the insulated jacket as described below for Foil Shielded Cables and Braid Shielded Cables.

Foil Shielded Cables

Use the following procedure to shield ground foil shielded cables.

Shield wire

Length of foil before folding back on cable insulation

Cut insulated jacket here for foil shielded cables

Figure 2-6. Foil Shielded Cable

Silver

side out

1. Strip the insulated jacket and foil 1/2 in (15 mm) past the shielding clamp.

2. Strip another 1/2 in (15 mm) of the insulated jacket, leaving the foil shielding exposed.

3. Fold the foil shielding back on the cable where the cable passes through the clamp.

4. Ensure the silver (conductive) side of the foil is turned outward.

5. Wrap the shield wire around the cable, ensuring it contacts the foil where the cable passes through the clamp.

6. Torque shielding clamp screw to 10 in-lb (1.1 N-m), ensuring clamp is around the cable and contacting the shield wire.

Braid Shielded Cables

Use the following procedure to shield ground braid shielded cables.

Braid

Cut insulated jacket here

Figure 2-7. Braid Shielded Cable

1. Strip the insulated jacket and braided shielding from a point just past the shielding clamp.

2. Strip another 1/2 in (15 mm) of the insulated jacket, leaving braid exposed where the cable passes through the clamp.

3. Torque shielding clamp screw to 10 in-lb (1.1 N-m), ensuring the clamp is contacting the braided shielding of the cable.

Page 16

682 Synergy Plus

I/P

O/P

LED

2.5.3 AC Power Cable

AC versions of the 682 are shipped with the AC power cable already installed.

Figure 2-8. AC Power Cable

NOTE: The AC power cable is grounded to the threaded grounding hole on the back panel of the enclosure between the cord grip and the power supply connections rather than using Pin 3. This is a UL requirement.

Pin Description Wire Color Cable Part No.

1 120 VAC (Line In) Brown or Black 180842 2 AC Neutral Blue or White 3 Ground N/C or Green/Yellow – 4 DC Out (-V) Black 199514 5 DC Out (+V) Red

Table 2-5. AC Power Supply Pin Assignments

NOTE: Colors may vary depending on manufacturer of AC power cable. Utilize testing procedures to ensure proper installation.

2.5.4 DC Power Cable

DC models of the 682 do not include a power supply cable. Use the following steps to ground and connect a DC power cable.

1. Insert a 3-wire power cable (not included) into the enclosure through the power cable cord grip (

NOTE: The recommended wire gauge range for the power supply cable is 8-18 AWG. The recommended cable strip length is 0.25 in (7 mm) for all 682 connectors. See Section 2.4 on page 13 for proper torque ratings for the power cable cord grip and Section 2.5.1 on page 14 for the allowed cable diameter range.

2. Connect the three wires of the power cable to the DC power supply board input screw terminal (I/P). See Table 2-6 for the input terminal (I/P) pin assignments.

DC Power Input

Figure 2-9. DC Power Supply Board (PN 209417)

DC Power Output

Connector Pin Function

Input Terminal

(I/P)

Connector Pin Function

Output Terminal

(O/P)

Pre-installed wiring connects power supply board to CPU board.

Table 2-6. DC Power Pin Assignments

1 DC Input V+ 2 DC Input V3

1 DC Output V2 DC Output V+

Section 2.5 on page 14

Ground (FG)

IMPORTANT: A 3-wire power cable is required and the ground wire must be connected to the specified pin assignment on the DC power supply board.

16 Visit our website www.RiceLake.com

Page 17

2.5.5 Load Cell Cables

To attach the cable from a load cell or junction box, route cable to the J1 connector ( cable is included in the parts kit. See

A snap-on ferrite core from the parts kit must be applied to the load cell cable within 1 in (25 mm) of the load cell or within 1 in (25 mm) of the junction box on the homerun cable. The cable must be sent through the ferrite core twice

NOTE: The Sense parameter is set to 4-wire by default and must be configured to match the load cell cable to function properly.

For a 4-wire installation leave pins 3 and 4 empty on the connector. For a 6-wire installation set the Sense parameter to 6-WIRE in the Configuration menu (Section 4.5.1 on page 42).

Table 2-7

for wiring the load cell cable from the load cell or junction box to connector.

Connector Pin Function

J1 1 +SIG

2 –SIG 3 +SENSE 4 –SENSE 5 +EXC 6 –EXC

IMPORTANT: For 4-wire connections on Rev J2 CPU boards, short pin 3 to 5 and pin 4 to 6.

Table 2-7. J1 Pin Assignments (Load Cell)

Section 2.6 on page 21

). Connector for the

Installation

2.5.6 RS-232 Serial Communications

The J3 connector (Section 2.6 on page 21) provides a connection point for RS-232 serial communications. Two RS-232 ports are available. See Table 2-8 for the pin assignments for the J3 connector.

Connector Pin RS-232 Port 1 RS-232 Port 2

J3 1 GND –

2 RX1 – 3 TX1 – 4 – GND 5 – RX2 6 – TX2

Table 2-8. J3 Pin Assignments (RS-232)

2.5.7 RS-485/422 Serial Communications

The J4 connector (Section 2.6 on page 21) provides a connection point for RS-485/422 serial communications. Both full duplex (four-wire) and half duplex (two-wire) are supported through the J4 connector. See Table 2-9 for the pin assignments for the J4 connector.

Connector Pin 4-Wire (Full Duplex) 2-Wire (Half Duplex)

J4 1 GND GND

2 A 3 B 4 Y Y 5 Z Z

Table 2-9. J4 Pin Assignments (RS-485/422)

– –

The Duplex parameter in the Serial menu (Section 4.5.4.1 on page 46) defaults to FULL and must be set to HALF for half duplex applications.

Page 18

682 Synergy Plus

2.5.8 Digital I/O

The Digital I/O port, J5 connector (Section 2.6 on page 21), provides a connection to both digital inputs and outputs. Digital inputs can be set to provide many functions, including most keypad functions except MENU, numeric keypad and

softkeys. Digital inputs are active low (0 VDC) and inactive high (5 VDC). Use the Digital I/O menu to configure the digital inputs. Digital outputs are used to control relays which drive other equipment. Outputs are designed to sink, rather than source current.

Each output is an open collector circuit, capable of sinking 20 mA when active. Digital outputs are active when low or at 0 VDC, with reference to the 5 VDC supply.

Use the Digital I/O menu to set the function of the Digital I/O pins to OUTPUT and then use the Setpoints menu to configure the digital outputs. See Table 2-10 for the pin assignments for the J5 connector.

Connector Pin Signal

J5 1 5 VDC, 250 mA max

2 GND 3 DIO1 4 DIO2 5 DIO3 6 DIO4

Table 2-10. J5 Pin Assignments (Digital I/O)

2.5.9 Memory Card Slot

The memory card slot, J6 connector (Section 2.6 on page 21), accepts microSD cards and provides storage space for configuration settings (Section 12.3 on page 96) and Truck IDs. The 682 comes with an 8 GB microSD card (PN 164939) and the memory card slot supports up to a 2 TB microSD card.

NOTE: The microSD card only functions with the 682. It is not formatted in FAT32 and will not be recognized by a PC. Ensure indicator firmware versions match before transferring a microSD card from one indicator to another.

18 Visit our website www.RiceLake.com

Page 19

Installation

2.5.10 Micro USB Device Communications

The Micro USB port, J7 connector (Section 2.6 on page 21), provides a connection point to a PC only. It appears as a Virtual COM Port and is assigned a “COMx” designation. Applications communicate through the port like a standard RS-232 communications port.

The driver must be installed on the PC before the Micro USB device port can be used. With the PC and 682 powered on, connect a USB cable from the PC to the Micro USB connector (J7) on the 682. The PC recognizes if a device has been connected, and attempts to install the driver needed to make it work. The driver can also be downloaded from

NOTE: With a PC connected to the Internet and running Windows 7 or later, the operating system may install the necessary drivers automatically.

www.ricelake.com

When the individual drivers are installed, a new COM Port designation is assigned for each physical USB port the 682 is connected to on the PC.

For example, if the PC has two physical RS-232 COM Ports, they most likely are designated COM1 and COM2. When connecting the 682 to a USB port on the PC, it is assigned the next available port designation, or in this case, COM3. When plugging into the same physical USB port on the PC, the port designation is again COM3. If plugging into another physical USB port on the PC, it is assigned the next available designation, in this case COM4.

After the drivers are installed, use Windows

Device Manager to determine the COM Port designation which was assigned to

the USB port, or open an application to be used with the 682, such as Revolution, to see which ports are available. Configuration of the Micro USB port is done in the USB sub-menu under Communications when in Setup mode. The port’s input trigger can be configured as either a command port for EDP commands and printing, or as a data streaming

port. Other settings include line terminator, end-of-line delay, echo, and response (Section 4.5.4.2 on page 48).

NOTE: If a computer application has an open communications connection through the Micro USB device port and the physical cable connection is interrupted, a soft reset must be performed on the 682 or the power must be cycled to the 682; the connection in the computer application must be disconnected and then reconnected before it continues to communicate with the 682.

NOTE: For the Micro USB device port, it does not matter what the settings are for baud, data bits, parity and stop bits in the computer software. The port communicates in the same way regardless of these settings.

NOTE: This port is not a host port and is not to be connected to other devices such as keyboards, memory sticks or printers.

Page 20

682 Synergy Plus

2.5.11 Ethernet

The 682 features Ethernet TCP/IP 10Base-T/100Base-TX communication using the J8 connector (Section 2.6 on page 21), and can support two simultaneous connections, one as a server, the other as a client. An external RJ45 option is available.

Through an Ethernet network, software applications can communicate with the 682 using the EDP command set (Section 12.0

on page 95), the web server (Section 8.0 on page 73) allows for remote viewing and the use of certain function keys, or data

can be streamed continuously from the 682, or printed on demand. The Ethernet port supports both DHCP and manual configuration of settings such as the IP and netmask. In addition, the TCP

Port number and the Default Gateway can be configured using the Ethernet sub-menu under Communications when in Setup mode. For more information on configuring the Ethernet port see Section 4.5.4.3 on page 49.

Physical connection to the 682 Ethernet port can be made directly from a PC to the 682 (AdHoc Network), or through a network router or switch. The port supports auto-sensing MDI/MDIX cable configuration, allowing either straight-through or crossover cables to be used. See Table 2-11 for the pin assignments for the J8 connector.

Connector Pin Signal

J8 1 TX+

2 TX 3 RX+ 4 RX

Table 2-11. J8 Pin Assignments (Ethernet)

NOTE: When looking into the enclosure from the backside of the indicator, pin 1 of the J8 connector is at the bottom.

See Table 2-12 and Table 2-13 for the pin assignments when connecting an RJ45 Ethernet cable to the J8 connector. There are two Ethernet wire standards (T568A and T568B). If the type of cable is unknown, use the wiring option in Table 2-12. The auto-sensing feature of the Ethernet port allows either of the wiring options to work. Trim the unused wires to get them out of the way.

Wire Color

RJ45 Pin

1 White/Green Transmit+ 1 2 Green Transmit 3 White/Orange Receive+ 3 4 Blue Unused NA 5 White/Blue Unused NA 6 Orange Receive 7 White/Brown Unused NA 8 Brown Unused NA

(T568A)

Table 2-12. Ethernet Cable Pin Assignments for T568A

Wire Color

RJ45 Pin

1 White/Orange Transmit+ 1 2 Orange Transmit 3 White/Green Receive+ 3 4 Blue Unused NA 5 White/Blue Unused NA 6 Green Receive 7 White/Brown Unused NA 8 Brown Unused NA

(T568B)

Wire Diagram

(T568A)

Wire Diagram

(T568B)

10Base-T Signal

100Base-TX Signal

10Base-T Signal

100Base-TX Signal

J8 Pin

Table 2-13. Ethernet Cable Pin Assignments for T568B

20 Visit our website www.RiceLake.com

Page 21

2.6 CPU Board

J1 J3 J4 J5

INSERT

SIDE UP

CR2032

J25

J24

J29

RICE LAKE

Mac Addr ess Label

ASSY

PN/Rev

REMOTE DISPLAY

RESET

SETUP

AUDIT

OFF

J30

POWER IN

RS-232

OPTION CARD

DIO

RS-485/422

WI-FI

BLUETOOTH

MicroSD

SW1

RUN UPDATE

10/100Base-T

USB

USB MICRO

LED3

LED4

LED1

LED2

LED20

LED21

SIG1+

SIG1-

SEN1+

SEN1-

EXC1+

EXC1-

GND

RX1

TX1

GND

RX2

TX2

GND

ABY

RX TX

250mA

+5V

GND

DIO1

DIO2

DIO3

DIO4

TX+ TX- RX+ RX-

HGND

HPWR

SDA

SCL

GND

12V

This section identifies the locations of the connectors and status LEDs on the 682 CPU board.

Installation

Reset Header (J30)

Setup Switch Header (J25)

Audit Jumper

(J24)

Load Cell Compensation Jumper (J29)

J22

Figure 2-10. CPU Board

J23

J10

Wi-Fi / Bluetooth® Module

Antenna Connection Points

Firmware Update Switch

Micro USB (J7)

Memory Card Slot (J6)

Connectors

• Load Cell (J1) • Digital I/O (J5) • Micro USB (J7) • Power (J10)

• RS-232 1-2 (J3) • Memory Card Slot

• RS-485/422 (J4) • Antenna 1-2

(J6) – microSD

• Ethernet (J8) • Option Slot (J22/J23)

Status LEDs

• 3.3V Power (LED1) •-5V Power (LED3) • Wi-Fi/Bluetooth® Power (LED20)

• +5V Power (LED2) • Heartbeat (LED4) • Wi-Fi/Bluetooth® Active (LED21)

2.6.1 Option Card Port

The 682 has a single option card slot which uses the J22 and J23 connectors. Instructions to install, setup or replace an option card are provided with the option card.

Page 22

682 Synergy Plus

2.6.2 Load Cell Compensation Jumper

The load cell compensation jumper, J29 (Section 2.6 on page 21), must be set ON for load cells with balanced bridges and set to OFF for load cells with unbalanced bridges. When OFF, the compensation jumper has the effect of lowering the excitation voltage. Uncompensated unbalanced load cells can cause instability or calibration errors.

Use the following procedure to determine the correct jumper position if the load cell type is unknown.

1. Disconnect load cell from indicator and use an ohmmeter to measure the following:

• +EXC to +SIG, +EXC to –SIG

• –EXC to +SIG, –EXC to –SIG

NOTE: Measured values between the excitation line and each of the signal lines should be within 2–3 Ω.

2. If the +EXC measurements are ≥ 5% larger than the –EXC measurements, set the compensation jumper in the OFF position to compensate for the unbalanced load cell.

If the +EXC measurements are < 5% greater (or are less) than the –EXC measurements, set the jumper in the ON position for the balanced load cell.

2.7 Backplate Attachment

Once work inside of the enclosure is complete, reattach the backplate ground wire to the backplate. Position the backplate over the enclosure and install the ten backplate screws. Use the torque pattern in Figure 2-11 to prevent distorting the backplate gasket. Torque screws to 12 in-lb (1.4 N-m).

Figure 2-11. Backplate Torque Pattern

NOTE: Torqued screws may become less tight as the gasket is compressed during the torque pattern; a second torque is required using the same pattern and torque value.

22 Visit our website www.RiceLake.com

Page 23

Installation

2.8 Sealing the Indicator (Optional)

Insert a lead wire seal through three fillister screws. This restricts access of the setup switch, electronics, electrical contacts and Legal for Trade configuration parameters.

NOTE: The audit jumper (J24) must be set to off to require pressing the setup switch for access to configuration parameters. See Section 2.6 on page 21 for the location of the audit jumper on the CPU board.

Figure 2-12. Sealing the Indicator – No Access

1. Reposition the two fillister head backplate screws to the lower right and lower right-center screws locations.

2. Torque the two backplate screws and setup screw as specified in Section 2.4 on page 13.

3. Navigate the sealing wire through the fillister head screws on the backplate and the fillister head screw at the bottom of the enclosure, as shown in Figure 2-12.

4. Seal the wire to secure.

2.9 Parts Kit Components

Part No. Description Qty.

15631 Cable tie, 3 inch nylon 4

15650 Mount, cable tie 3/4 inch 2 193230 Screw, machine M4-0.7 x 10 Phillips pan head SST 4 194219 Screw, machine M4-0.7 x 10 Phillips drilled cheese head SST 2 194446 Ferrite core, snap on Fair-Rite 220 ohm 1

19538 Post plug, slotted black plastic stem, 1/4 x 1, seals inside cord grip 3 195993 Connector, 6 position screw terminal pluggable 3.50 mm black 3 195995 Connector, 4 position screw terminal pluggable 3.50 mm black 1 195998 Connector, 5 position screw terminal pluggable 3.50 mm black 1 214338

42149 Bumper, rubber grommet 0.50 (OD) x 0.281 (ID) 4

53075 Clamp, ground cable shield, radius 0.078 inch 4

67550 Clamp, ground cable shield, radius 0.125 inch 2

75062 Washer, bonded sealing #8 7/16 (0.4375) OD SST 6

94422 Label, capacity 0.40 x 5.00 1

Screw, machine M4-0.7 x 10 Phillips pan head, zinc with external tooth washer SEMS

Table 2-14. AC and DC Models Parts Kit (PN 194477)

Page 24

682 Synergy Plus

181420

222324

422322

293635

543

876

109

1411

171615

171625

3334

4645

4344

Backplate with RJ45 Option Connects to Ethernet Port (J8) on CPU Board

2.10 Replacement Parts

2.10.1 682 AC Models

Figure 2-13. 682 AC Models Replacement Parts Diagram

24 Visit our website www.RiceLake.com

Page 25

Ref# Part# Description

1 190231 Enclosure, 682 Plus indicator LCD display 2 190232 Overlay, 682 Plus membrane switch with numeric keys 3 68600 Cord grip, PG-11 4 68599 Seal ring, PG-11 5 68601 Nut, PG-11, Black nylon 6 15626 Cord grip, PG-9, plastic 7 30375 Seal ring, PG-9 nylon 8 15627 Lock nut, PG-9, plastic 9

202248 Display, 5-inch LCD, 500 NIT, 800 X 480

10 199474

Machine screw M3-0.5 X 5 Phillips head, zinc SEMS with external tooth washer

 CPU board assemblyXJUICBUUFSZBOENFNPSZDBSEJOTUBMMFE ROHS

71408 Battery, CR2032 3V lithium

164939 Memory, 8G NicroSDHC Class 4

14 206442

Machine screw, M3-0.5 x 10 Phillips head, zinc SEMS with external tooth washer

193108 Setup switch assembly 16 15650 Mount, cable tie, 3/4 inch 17 15631 Cable tie, 3 inch nylon 18 192439 Bracket, power supply 19 193281 Power supply, 12V, 15W 20 16892 Label, ground protective earth IEC 21 15601 Ground wire, 6 inch w/ no. 8 eye connector 22

180856 Washer, M4 internal tooth



Machine screw, M4-0.7 x 10 Phillips head,

zinc SEMS with external tooth washer

180826 Nut, KEP M4 x 0.7 external tooth lock washer 25

193337 Cable assembly, power harness, 2 position, flying lead 26

206509 Antenna, 2.4/5 GHz strip RF, PCB trace 100 mm cable 27

206510 Antenna, 2.4/5 GHz strip RF, PCB trace 200 mm cable 28

207345 Overlay, 682 antenna cover black 29

192562 Backplate with GORE vent hole 30 84388 Gasket, backplate 31 88733 Vent, breather sealed Gortex membrane 32 88734 Nut, breather vent M12 x 1 thread 33 46381 Washer, bonded sealing SST #10 x 0.50 OD 34 180861 Machine screw, M5 x 0.8 x 10 mm slotted drilled cheese head 35 193230 Machine screw, M4 x 0.7 x 10 Phillips pan head 36 75062 Washer, bonded sealing #8,

7/16 OD 37 29635 Tilt stand, SST 38 103988 Washer, nylon 0.515 - 0.52 39 180825 Knob, M6 x 1 threaded, 32mm diameter 40 53307 Label, 4.0 x 2.875 41 53308 Label, 1.25 x 1.25 8000T 42

180842 Power cord assembly, N&." 5-15 180850 Power cord assembly, Europe CEE7/7 196900 Power cord assembly, UK plug BS1363, pigtail w/ring terminal

196901

Power cord assembly, Australia/New Zealand 3112 plug, pigtail w/ring terminal

Additional Parts Speciﬁc to 682 Indicator with RJ45 Option

43 198676

Backplate with GORE vent hole, RJ45 option

NOTE: Replaces 192562 in RJ45 option

44 200296

RJ45 cable assembly, RJ45 bulkhead to four position 3.50 mm spacing connector

180856 Washer, M4 internal tooth

46 180826 Nut, KEP M4 x 0.7 external tooth lock washer



Table 2-15. 682 AC Models Replacement Parts List

Installation

Page 26

682 Synergy Plus

22735

332834

414342

132329

191517

181416

2710

393820

393821

2224

2.10.2 682 DC Models

Figure 2-14. 682 DC Models Replacement Parts Diagram

26 Visit our website www.RiceLake.com

Page 27

Ref# Part# Description

1 190231 Enclosure, 682 Plus indicator LCD display 2 192439 Bracket, power supply

3 199474

Machine screw M3-0.5 X 5 Phillips head,

zinc SEMS with external tooth washer 4 202248 Display, 5-inch LCD, 500 NIT, 800 X 480 5 84388 Gasket, backplate 6 190232 Overlay, 682 Plus membrane switch with numeric keys 7 29635 Tilt stand, SST 8 103988 Washer, nylon 0.515 - 0.52 9

180825 Knob, M6 x 1 threaded, 32mm diameter 10 211701 CPU board assembly with battery and memory card installed, ROHS 11 71408 Battery, CR2032 3V lithium 12 207345 Overlay, 682 antenna cover black 13 211928 Backplate,682 DC with Gore vent hole 14 30375 Seal ring, PG-9 15 68599 Seal ring, PG-11 16 15626 Cord grip, PG-9 17 68600 Cord grip, PG-11 18 15627 Lock nut, PG-9 19 68601 Lock nut, PG-11 20 193108 Setup switch assembly 21 193337 Cable assembly, power harness, 2 position, ﬂying lead 22 46381 Washer, bonded sealing SST #10 x 0.50 OD 23 75062 Washer, bonded sealing #8, 7/16 OD 24 180861 Machine screw, M5 x 0.8 x 10 mm slotted drilled cheese head 25 88733 Vent, breather sealed Gortex membrane 26 88734 Nut, breather vent M12 x 1 thread

27 206442

Machine screw, M3-0.5 x 10 Phillips head, zinc SEMS with external tooth washer



Machine screw, M4-0.7 x 10 Phillips head, zinc SEMS with external tooth washer

29 193230 Machine screw, M4 x 0.7 x 10 Phillips pan head 30 206510 Antenna, 2.4/5 GHz strip RF, PCB trace 200 mm cable 31 206509 Antenna, 2.4/5 GHz strip RF, PCB trace 100 mm cable 32 15601 Ground wire, 6 inch w/ no. 8 eye connector 33 180856 Washer, M4 internal tooth 34 180826 Nut, KEP M4 x 0.7 external tooth lock washer 35 16892 Label,

ground protective earth IEC

1127(&XUUHQWFDVHVKDYHDJURXQGV\PEROHQJUDYHGRQWKHEDFNSODFHLQVWHDGRID GHFDO

36 53307 Label, 4.0 x 2.875 37 53308 Label, 1.25 x 1.25 8000T 38 15650 Mount, cable tie, 3/4 inch 39 15631 Cable tie, 3 inch nylon 40

164939 Memory, 8G NicroSDHC Class 4 41 209417 Power supply, DC/DC +12V, 9-36VDC input 30 watt 42 202064 Spacer, round nylon M3x0.250 OD x 0.260 43 202061 Nut, M3x0.5 hex KEP SST



Table 2-16. 682 DC Models Replacement Parts List

Installation

Page 28

682 Synergy Plus

10:35 AM 12/10/21

8888888

10000 lb x 1 lb

Scale 1

NET

Up to three lines of text can go in this area. Up to three lines of text can go in this area.

PT 100 lb

SoftkeySoftkey SoftkeySoftkeySoftkey

3.0 Operation

The front panel consists of a full color LCD display with 0.5-in (12.7-mm) tall weight digits. The front panel also includes 24 flat membrane panel, tactile feel buttons, which include six primary scale function buttons, a numeric keypad, five configurable softkeys and a power button. The message area of the display can hold up to three lines of text, which can include process, error or system messages.

3.1 Front Panel

This section provides an example of the 682 front panel and describes all the buttons and their functions.

Button Function

Turns the unit ON/OFF:

If ON, press and hold for eight seconds to turn unit OFF If OFF, press and hold for two seconds to turn unit ON

The Menu button is used to access User mode. See Section 4.1.1 on page 39 for more information on setting up the Menu button to access Setup mode parameters.

Sets the current gross weight to zero, provided the amount of weight to be removed or added is within the specified zero range and the scale is not in motion. The zero band is defaulted to 1.9% of full scale, but can be configured for up to 100% of full scale. Also used as the up button to navigate menus.

Switches the weight display to an alternate unit. The alternate unit is defined in the Configuration menu, and could be kg, g, lb, oz, tn or t. Also used as the left button to navigate menus or to toggle to another digit when editing a value.

Sends on-demand print format out the configured port, provided the conditions for standstill are met. RS-232 Port 1 (RS232-1) is the default print port. Also used as the right button to navigate menus or to toggle to another digit when editing a value.

Performs one of several predetermined tare functions dependent on the mode of operation selected in the TARE FN parameter. Also acts as an enter button for numeric or parameter entry.

Switches the display mode from gross to net, or from net to gross. If a tare value has been entered or acquired, the net value is the gross weight minus the tare. Used as the down button to navigate menus.

Clears current value in a numeric entry or clears the currently selected digit in an alphanumeric entry.

Configurable softkeys that can be set to perform a variety of functions. See Section 3.4.19 on page 37 to configure softkeys. Also used to select the bottom row of keyboard options located above the softkeys.

Figure 3-1. Front Panel Example

Table 3-1. Front Panel Buttons and Descriptions

28 Visit our website www.RiceLake.com

Page 29

3.2 Status Annunciators

The 682 display uses status annunciators to provide additional information about the value being displayed.

Item Description

Operation

GROSS

NET

Units

Gross displays at the left side of the numeric weight area when indicator is in gross weight display mode.

Net displays at the left side of the numeric weight area when indicator is in net weight display mode.

The center of zero annunciator indicates the current gross weight reading is within ± 0.25 display divisions of the acquired zero, or is within the center of zero band. A display division is the resolution of the displayed weight value, or the smallest incremental increase or decrease which can be displayed or printed.

The standstill annunciator indicates the scale is at standstill or within the specified motion band. Some operations, including zero, tare and print, can only be done when the standstill annunciator is displayed.

The current unit displays at the right side of the numeric weight area and specifies which unit of measure is being used.

T Tare (T) annunciator indicates a push-button tare weight has been acquired and stored in memory.

PT Preset Tare (PT) annunciator indicates a preset tare weight has been keyed in or entered and stored in memory.

Wi-Fi annunciator displays at the top right of the display when the Enabled parameter in the WiFi & Bluetooth menu (Section 4.5.4.4 on

page 50) is set to WiFi or Both.

Bluetooth® annunciator displays at the top right of the display when the Enabled parameter in the WiFi & Bluetooth menu (Section 4.5.4.4 on

page 50) is set to Bluetooth or Both.

Table 3-2. Display Status Annunciators

3.3 General Navigation

The front panel scale function buttons are also used to navigate through the menu structure.

•

and move left and right (horizontally) in a menu level

and move up and down to different menu levels

• enters a menu or parameter and selects/saves highlighted parameter settings or values

• exits a parameter and selects/saves highlighted parameter settings or values

• to access User mode, to leave a parameter without making changes, or to return to Weigh mode

• Use the numeric keypad to enter a value and press to accept the value (Section 3.3.1)

3.3.1 Numeric Value Entry

Several parameters in the menu structure require the entry of a numeric value rather than the making of a selection. Follow this procedure to enter a numeric value:

1. Press or to enter into a parameter. The current parameter value displays.

2. Press to clear the current value.

3. Use the numeric keypad to enter a new value.

4. If necessary, press to toggle the value between negative and positive.

5. Press to save the new value. The next parameter in the menu displays.

NOTE: Pressing also saves the new value, but the indicator returns up to the current parameter, rather than to the next parameter in the menu.

Page 30

682 Synergy Plus



abc

QWERTYUIOP

ASDFGHJKL

<>ZXCVB :,.MN



Cancel

Save

Parameter Name

3.3.2 Alphanumeric Entry

Several parameters in the menu structure require the entry of an alphanumeric value rather than the making of a selection. When these parameters are entered a full keyboard appears on the display. The front panel scale function buttons are used to navigate the keyboard and select alphanumeric options. The softkeys are used to interact with keyboard options.

•

and move left and right (horizontally) on the keyboard

and move up and down (vertically) on the keyboard

• selects the keyboard option that is highlighted and adds it to the alphanumeric string at the top of the display

1# – Changes keyboard view to numbers and special characters abc/ABC – Capitalize or lowercase keyboard letters; also switches keyboard view from numbers back to letters

– Deletes individual digit in the alphanumeric string – Return key is not used for the 682

• selects the keyboard option located above the softkey

Cancel – Exits back to menu without saving changes

Save – Save changes and exits back to menu

and – Moves cursor left and right within the alphanumeric string



– Inserts a space into the alphanumeric string

• deletes the entire alphanumeric string

• leaves the parameter without saving the changes

Current

Selection Box

Figure 3-2. Full Keyboard

30 Visit our website www.RiceLake.com

Page 31

Operation

3.4 General Indicator Operation

This section provides procedures for basic 682 operations.

3.4.1 Zero Scale

1. In Gross mode, remove all weight from the scale and wait for to display.

2. Press , displays to indicate the scale is zeroed.

NOTE: The scale must be stable and within the configured zero range for the scale to be zeroed.

3.4.2 Print Ticket

1. Wait for to display.

2. Press to send data to the configured port(s). The default print destination is RS-232 Port 1.

If does not display and is pressed, the print action only occurs if the scale comes out of motion within three

seconds. If the scale stays in motion for over three seconds, the press is ignored.

NOTE: Auxiliary Format 1-4 can be printed using softkeys (Section 3.4.19 on page 37) or by pressing the corresponding format number on the numeric keypad, followed by the PRINT key. For example, to print Auxiliary Format 2, press the 2 key, followed by the PRINT key.

3.4.3 Toggle Units

Press to toggle between primary, secondary and tertiary units, if configured. The current unit displays.

3.4.4 Toggle Gross/Net Mode

NET mode is available when a tare value has been entered or acquired (Net = Gross minus Tare). If tare has not been entered or acquired, the display remains in GROSS mode. GROSS or NET is indicated on the left side of the display to indicate the current mode. If a tare has been applied, the current tare weight displays in the lower middle of the weight display area.

Press to toggle the display mode between GROSS mode and NET mode.

3.4.5 Acquire Tare

1. Place a container on the scale and wait for to display.

2. Press to acquire the tare weight of the container. The net weight displays and the Net is indicated on the left side of the display. A “T” displays in the lower middle of the weight display area, followed by the current Tare weight.

3.4.6 Remove Stored Tare Value

1. Remove all weight from the scale and wait for to display. The display reads the negative tare value and displays.

NOTE: Press to zero the scale, if is not displayed.

2. Press (or in OIML mode). Display changes to gross weight and Gross is indicated on the display.

Page 32

682 Synergy Plus

3.4.7 Preset Tare (Keyed Tare)

Tare Function (Section 4.5.1 on page 42) must be set to Keyed Tare or Both for the preset tare feature to function.

1. Remove all weight from the scale and wait for and to display.

2. With the scale displaying zero weight, use the numeric keypad to enter the tare weight value and press .

3. The display changes to net weight and Net is indicated on the display. A “PT” displays in the lower middle of the weight display area, followed by the current Preset Tare weight.

NOTE: Press again while displays, or enter a keyed tare of zero to remove the preset tare value.

3.4.8 Display a Stored Tare

1. Press . Audit displays.

2. Press or until

3. Press .

Display Tare displays.

Tare displays.

4. Press . The stored tare value displays.

5. Press twice to return to Weigh mode.

NOTE: If there is not a tare in the system, the value displayed is zero.

3.4.9 Clear a Stored Tare

1. Press . Audit displays.

2. Press or until

3. Press .

4. Press .

Display Tare displays.

Clear Tare displays.

5. Press or to clear the stored tare value.

Tare displays.

OK displays.

6. Press twice to return to Weigh mode.

3.4.10 View Audit Trail Counters

The audit trail calibration and configuration counters can be viewed in User mode.

1. Press .

2. Press .

3. Press .

Audit displays.

Legally Relevant Version displays.

Calibration Counter displays.

4. Press . The audit trail calibration counter number displays.

5. Press .

6. Press .

Calibration Counter displays.

Configuration Counter displays.

7. Press . The audit trail configuration counter number displays.

8. Press twice to return to Weigh mode.

32 Visit our website www.RiceLake.com

Page 33

3.4.11 View Legally Relevant Version

1. Press . Audit displays.

Operation

2. Press .

Legally Relevant Version displays.

3. Press . The current version number displays.

4. Press twice to return to Weigh mode.

3.4.12 Display Accumulator

1. Press . Audit displays.

2. Press .

3. Press .

4. Press or until

5. Press .

User displays.

Setpoint displays.

Accumulator displays.

Display Accumulator displays.

6. Press . The accumulator value displays.

7. Press twice to return to Weigh mode.

3.4.13 Print Accumulator

1. Press . Audit displays.

2. Press .

User displays.

3. Press .

4. Press or until

5. Press .

6. Press .

Setpoint displays.

Accumulator displays.

Display Accumulator displays.

Print Accumulator displays.

7. Press or to print the accumulator value.

8. Press twice to return to Weigh mode.

3.4.14 Clear Accumulator

1. Press . Audit displays.

2. Press .

3. Press .

4. Press or until

5. Press .

6. Press .

7. Press or to clear the accumulator value.

User displays.

Setpoint displays.

Accumulator displays.

Display Accumulator displays.

Clear Accumulator displays.

OK displays.

8. Press twice to return to Weigh mode.

Page 34

682 Synergy Plus

Set System Time (24 hour)

Minutes

Hours (24) Seconds

10 36 42

DateCancel Done

3.4.15 View and Edit Time Value

To view and edit the current time:

1. Press .

2. Press .

3. Press .

4. Press or until

Audit displays.

User displays.

Setpoint displays.

Time displays.

5. Press to view the current set time.

Current

Selection Box

Figure 3-3. Set System Time

6. To edit the time value use the following method:

•

and to move left and right through the time settings

•

and to edit the currently highlighted time setting number

• Use available softkeys:

Cancel – Exit without saving

◦ ◦

Date – Switch to view date value

◦

Done – Save and exit time value

7. Once back to the menu, press to return to Weigh mode.

NOTE: Time is backed up by the internal battery and is not lost if the main power is interrupted. See Section 4.5.5 on page 52 for time formatting options.

34 Visit our website www.RiceLake.com

Page 35

3.4.16 View and Edit Date Value

Set System Date

Day

Month Year

02 22 22

TimeCancel Done

To view and edit the current date:

Operation

1. Press .

2. Press .

3. Press .

4. Press or until

Audit displays.

User displays.

Setpoint displays.

Date displays.

5. Press to view the current set date.

Current

Selection Box

Figure 3-4. Set System Date

6. To edit the date value use the following method:

•

and to move left and right through the date settings

•

and to edit the currently highlighted date setting number

• Use available softkeys:

Cancel – Exit without saving

◦ ◦

Time – Switch to view time value

◦

Done – Save and exit date value

7. Once back to the menu, press to return to Weigh mode.

NOTE: Date is backed up by the internal battery and is not lost if the main power is interrupted. See Section 4.5.5 on page 52 for date formatting options.

Page 36

682 Synergy Plus

3.4.17 Ethernet, Wi-Fi and Bluetooth® MAC IDs

The Ethernet MAC ID, Wi-Fi MAC ID and Bluetooth® MAC ID can be viewed through the top-level menu (Section 4.2 on

page 40). MAC addresses display in the following format:

1. Press . Audit displays.

88:88:88:88:88:88.

2. Press or until

3. Press .

Ethernet MAC ID displays.

MAC ID displays.

4. Press to view the Ethernet MAC ID.

5. Press .

WiFi MAC ID displays.

6. Press to view the Wi-Fi MAC ID.

7. Press .

Bluetooth MAC ID displays.

8. Press to view the Bluetooth® MAC ID.

9. Press twice to return to Weigh mode.

3.4.18 View Configured Setpoint Values

See Section 14.0 on page 111 more information.

1. Press .

2. Press .

3. Press .

4. Press . The lowest configured setpoint number displays (e.g.

5. Press or to navigate to the desired setpoint number (1-8).

Audit displays.

User displays.

Setpoint displays.

Setpoint 1).

NOTE: Only configured setpoint numbers display. See Section 4.5.8 on page 58 for the complete setpoint menu.

6. Press . Value displays.

7. Press again to view the current configured setpoint value.

NOTE: Displayed setpoints are editable by default, since Access defaults to On. Change Access settings if Setpoint value needs to be read only (Access = Off) or hidden (Access = Hidden).

8. To edit the setpoint value use the following method:

• Press to clear the current value

• Use the numeric keypad to enter the new value

• Press to accept the new value once correct

9. Press to return to Weigh mode.

36 Visit our website www.RiceLake.com

Page 37

Operation

Alibi Storage

ReprintPage Up Cancel

02:23 PM 03/24/22

08:37 AM 03/26/22

12:46 PM 03/28/22

10:12 AM 04/01/22

03:21 PM 04/01/22

GROSS

1015 lb

3210 lb

4535 lb

980 lb

2255 lb

Page Down

Purge Oldest

3.4.19 Configure Softkeys

Up to 15 softkeys can be configured to perform a variety of functions. See Section 4.5.11 on page 63 for softkey configuration and softkey descriptions. Configuring softkeys requires access to Setup mode (Section 4.1 on page 39).

1. Navigate to the Configuration menu within the Setup menu.

Configuration displays.

2. Press or until

3. Press .

Softkey 1 displays.

Softkey displays.

4. Press or to navigate to the desired softkey number (1-15).

5. Press . The current softkey setting is highlighted.

6. Press or to navigate to the desired softkey setting, if necessary.

7. Press to accept the highlighted softkey setting.

8. Repeat steps for all needed softkeys.

NOTE: If 6 or more softkeys are enabled, left and right arrows appear in the outside softkey locations to allow navigation between available softkeys.

9. Press to return to Weigh mode.

3.4.20 Alibi Storage

Alibi storage is a database of past print transactions listed by date. It allows previous print transactions to be recalled and reprinted. Alibi storage is enabled in the Program menu (Section 4.5.5 on page 52) while the indicator is in Setup mode. Print transactions can be viewed from the front panel of the 682 by configuring a softkey (Section 3.4.19) to Alibi. Pressing the Alibi softkey displays the Alibi Storage screen.

Alibi storage is saved in the board’s flash memory (no external memory is required) and data is validated with a cyclic redundancy check (CRC). There is space for 128 KB of data or 2000 print transactions. If the space limit is hit, the first 4 KB of print transactions are deleted to free up space.

Current

Selection Box

Figure 3-5. Alibi Storage Screen

Alibi Storage Softkeys

Page Up – Returns to the previous five print transactions

•

Page Down – Advances to the next five print transactions

•

Reprint – Prints the selected print transaction

•

Purge Oldest – Deletes the oldest 4 KB of print transactions

•

Cancel – Exits the Alibi Storage screen and returns to Weigh mode

•

Page 38

682 Synergy Plus

3.4.21 Enter New Unit ID

Entering a new Unit ID requires access to Setup mode (Section 4.1 on page 39).

1. Navigate to the Configuration menu within the Setup menu.

Configuration displays.

2. Press or until

3. Press .

Power Up Mode displays.

4. Press or until

Program displays.

Unit ID displays.

5. Press . The current unit ID value displays with the on-screen keyboard.

6. Edit the value using the alphanumeric entry procedure (Section 3.3.2 on page 30).

7. Press

Cancel

softkey to exit without saving.

- Or Press

Save softkey to save and exit when the value is correct.

Once back to the menu, press to return to Weigh mode.

3.4.22 Passwords

The User and Setup menus and can be password protected. See Section 1.3 on page 10 for a description of the User and Setup modes and what menus are included in each. Use the follow procedure to configure passwords:

1. Navigate to the Configuration menu within the Setup menu.

2. Press or until

3. Press .

Power Up Mode displays.

4. Press or until

Program displays.

Password displays.

Configuration displays.

5. Press .

User displays.

6. Press or to navigate to the desired password.

7. Press . The current password displays with the on-screen keyboard.

8. Edit the value using the alphanumeric entry procedure (Section 3.3.2 on page 30).

9. Press

Cancel

softkey to exit without saving.

- Or Press

Save softkey to save and exit when the value is correct.

10. Once back to the menu, press to return to Weigh mode.

3.4.23 Reset Configuration

Defaulting the 682 configuration requires access to Setup mode (Section 4.1 on page 39).

1. Navigate to the Configuration menu within the Setup menu.

2. Press .

3. Press .

4. Press .

Default Configuration displays.

No displays.

Yes displays.

5. Press or to reset the configuration setting.

Configuration displays.

OK displays.

6. Press twice to return to Weigh mode.

38 Visit our website www.RiceLake.com

Page 39

Configuration

4.0 Configuration

There are two types of configuration parameters in the 682, Setup mode parameters (or Legal for Trade configuration) and User mode parameters (or non-legal configuration). Setup mode parameters are accessed by pressing the setup switch User mode parameters are accessed by pressing the menu button and do not require pressing the setup switch. Some User mode parameters can be password protected (Section 3.4.22 on page 38).

The following sections provide graphic representations of the 682 menu structures. Most menu diagrams are accompanied by a table which describes all parameters and parameter values associated with the menu. The factory default setting appears at the top of each column in bold type.

The Audit, User, Tare, MAC ID, Fieldbus Version and Version menus can be accessed by pressing the MENU button. The Audit, Tare, MAC ID, Fieldbus Version and Version menus are read only. The Setpoint (limited), Accumulator, Time and Date menus are available in the User menu and can be password protected (Section 3.4.22 on page 38).

NOTE: The User mode setpoints menu displays the setpoint value of configured setpoints and is accessible with the menu button. Complete configuration of setpoints is available in Setup mode within the Setup menu.

The Setup menu is accessed by pressing the setup switch (Section 4.1) and can also be password protected.

NOTE: All weight related parameters must be configured prior to calibrating the unit.

4.1 Setup Switch

In order to configure the 682, it must be placed in Setup mode with the setup switch or with the audit jumper ( The setup switch is accessed through a small hole on the bottom of the enclosure. Remove the setup switch screw and insert a non-conductive tool into the access hole to press the setup switch.

IMPORTANT: Use caution when inserting the non-conductive tool into the enclosure. Insert the tool about 3/4 in (19 mm), until the switch is engaged. Do not use excessive force which could damage the switch.

(Section 4.1).

Section 4.1.1

Setup Switch

Access

Figure 4-1. Setup Switch Access

When the 682 is placed in Setup mode, the Setup menu is accessed and Configuration displays. See Section 4.5 on

page 42 for a detailed breakdown of this menu. Torque the setup switch screw to 10 in-lb (1.1 N-m) when reinserting.

4.1.1 Audit Jumper

The audit jumper (J24) turns Setup mode access through the menu ON and OFF. Access to Setup mode is allowed without pressing the setup switch when the audit jumper is in the ON position. Access to Setup mode requires pressing the setup switch when the audit jumper is in the OFF position. See

NOTE: In certain Legal for Trade applications it is necessary to seal the indicator to restrict access to the setup switch (Section 2.8 on page 23). Breaking of the seal terminates the Legal for Trade status of the indicator.

Section 2.6 on page 21

for the location of the audit jumper on the CPU board.

Page 40

682 Synergy Plus

Audit Setup MAC IDUser Tare

Fieldbus Version Version

4.2 Main Menu

This section provides a flow chart and descriptions for the 682 top-level Main menu.

Audi

Figure 4-2. Main Menu

Menu Description

Audit Displays the legally relevant firmware version and allows access to view/print audit trail information; see Section 4.3 User See Section 4.4 on page 41 for menu structure and parameter descriptions of the User menu Setup See Section 4.5 on page 42 for menu structure and parameter descriptions of the Setup menu; only accessible by pressing the

Tare Displays and clears stored tare value; see Section 4.6 on page 64 MAC ID Displays the MAC addresses for Ethernet, Wi-Fi and Bluetooth® (read only) Fieldbus Version Displays the connected Fieldbus module’s firmware version (read only); displays V0.00.00 if no Fieldbus module is connected Version Displays the installed firmware version number (read only)

setup switch, or through the menu if the audit jumper is in the ON position

Table 4-1. Main Menu Descriptions

4.3 Audit Menu

This section provides a flow chart and descriptions for the Audit menu.

Version

ump Audi

Parameter Description

Legally Relevant Version Legally relevant firmware version number (read only) Calibration Counter Displays total number of calibration events (read only) Configuration Counter Displays total number of configuration events (read only) Dump Audit Sends the audit parameters to the configured audit destination ports (Section 4.5.6 on page 55)

Audit User

Legally Relevant

Version

Calibration

Counter

Figure 4-3. Audit Menu

Table 4-2. Audit Menu Descriptions

Configuration

Counter

Dump Audit

40 Visit our website www.RiceLake.com

Page 41

Configuration

User Setup

Audit

Setpoint Accumulator DateTime

Date

Accumulator TimeSetpoint

User Setup

Audit

Display

Accumulator

Print Accumulator

ClearAccumulator

Clear Accumulator

4.4 User Menu

This section provides a flow chart and descriptions for the User menu. The User menu and can be password protected. See Section 3.4.22 on page 38 for the procedure to set a User menu password.

Figure 4-4. User Menu

Parameter Description

Setpoint Displays the setpoint value of configured setpoints; read only unless access parameter for the setpoint is set to ON;

Setpoint menu is empty if no setpoints are configured; setpoints are fully configurable in the setup menu while the

indicator is in Setup mode Accumulator Displays, prints and clears accumulated weight value; see Section 4.4.1 Time Displays the current set time; allows the time to be edited (24-hour) using the navigation keys and softkeys;

see Section 3.4.15 on page 34 for editing procedure Date Displays the current set date; allows the date to be edited using the navigation keys and softkeys;

see Section 3.4.16 on page 35 for editing procedure

Table 4-3. User Menu Descriptions

4.4.1 Accumulator Menu

This section provides a flow chart and descriptions for the Accumulator menu.

Figure 4-5. Accumulator Menu

Parameter Description

Display Accumulator Displays the accumulator value (read only) Print Accumulator Prints the accumulator value using the Accumulator Format (ACCFMT)

Clear Accumulator Clears the accumulator value

print format to the specified port(s)

Table 4-4. Accumulator Menu Parameters

Page 42

682 Synergy Plus

Print Format

Softkey

Stream Format Setpoint

Setup Tare

User

Configuration

Analog OutputDigital I/O

Scale Format CommunicationsCalibration Program

Default

Conf

Default

Configuration

Digital Filter

Sensitivity

RattleTrap

Digital Filter

Threshold

Adaptive Filter

Sensitivity

Damping Value

Adaptive Filter

Threshold

Overload

Tare Function Standstill Time

Digital Filter

Stage 3

Sample Rate

Filter Chain Type

Capacity

Digital Filter

Stage 2

Digital Filter

Stage 1

Zero Track Band

Initial Zero

Range (%)

Zero Range (%) Motion Band

Sense

Setup Tare

User

Configuration Scale Format

Default

Configuration

Sense

4.5 Setup Menu

This section provides a flow chart and descriptions for the Setup menu. The Setup menu and can be password protected. See

Section 3.4.22 on page 38 for the procedure to set a Setup menu password.

iguration

Figure 4-6. Setup Menu

Menu Description

Configuration See Section 4.5.1 for menu structure and parameter descriptions of the Configuration menu Scale Format See Section 4.5.2 on page 44 for menu structure and parameter descriptions of the Scale Format menu Calibration See Section 4.5.3 on page 45 for menu structure and parameter descriptions of the Calibration menu Communications See Section 4.5.4 on page 46 for menu structure and parameter descriptions of the Communications menu Program See Section 4.5.5 on page 52 for menu structure and parameter descriptions of the Program menu Print Format See Section 4.5.6 on page 55 for menu structure and parameter descriptions of the Print Format menu Stream Format See Section 4.5.7 on page 57 for menu structure and parameter descriptions of the Stream Format menu Setpoint See Section 4.5.8 on page 58 for menu structure and parameter descriptions of the Setpoint menu Digital I/O See Section 4.5.9 on page 62 for menu structure and parameter descriptions of the Digital I/O menu Analog Output See Section 4.5.10 on page 62 for menu structure and parameter descriptions of the Analog Output menu Softkey See Section 4.5.11 on page 63 for menu structure and parameter descriptions of the Softkey menu Default Configuration See Section 3.4.23 on page 38 for instructions to reset the configuration settings

Table 4-5. Setup Menu Descriptions

4.5.1 Configuration Menu

This section provides a flow chart and descriptions for the Configuration menu.

Figure 4-7. Configuration Menu

Menu Description

Capacity Maximum rated capacity of the scale; Enter value: 0.0000001–9999999.0, 10000.0 (default) Zero Track Band Automatically zeros the scale when within the range specified, as long as the input is within the Zero Range (%) and scale is

at standstill; When weight is within the zero band, the center of zero annunciator displays; Max legal value depends on local

Zero Range (%) The total amount the scale can be zeroed; Zero range represents a percentage of capacity; The default value of 1.9

regulations; Specify the zero tracking band in ± display divisions; Enter value: 0.0–100.0, 0.0 (default)

represents ±1.9% around the calibrated zero point, for a total range of 3.8%; A value of 0.0 prevents zeroing; Maximum legal value depends on local regulations; Enter value: 0.0–100.0, 1.9 (default)

Table 4-6. Configuration Menu Descriptions

42 Visit our website www.RiceLake.com

Page 43

Configuration

Menu Description

Initial Zero Range (%)

Motion Band Sets the level, in display divisions, at which scale motion is detected; If motion is not detected for the time defined by Standstill

Overload Determines the point at which the display blanks and the overload error message displays (^^^^^^^); Maximum legal value

Sample Rate

Filter Chain Type Sets the filter type to be used; Settings:

Digital Filter Stage 1-3

Digital Filter Sensitivity

Digital Filter Threshold

Adaptive Filter Sensitivity

Adaptive Filter Threshold

Damping Value Sets the damping time constant (in 0.1 sec intervals); Enter value: 1–2560, 10 (default) RattleTrap Enables RattleTrap filtering; Effective at eliminating vibration effects, environmental influences and mechanical interference

Tare Function Enables or disables push-button and keyed tare; Settings:

Standstill Time Specifies the length of time the scale must be out of motion, before the scale is considered to be at standstill (in 0.1 sec

Sense Specifies the type of load cell cable connected to the J1 connector (Section 2.5.5 on page 17); this parameter must be set

When the indicator is turned on and the weight value is between the ± percent range specified by Calibrated Zero, the indicator automatically zeros off the weight; Enter value: 0.0–100.0, 0.0 (default)

Time, the standstill symbol lights; Some operations, including print, tare and zero, require the scale to be at standstill; Maximum legal value varies depending on local regulations; If this parameter is set to 0, the standstill annunciator is always lit and operations requiring standstill are performed regardless of scale motion; If 0 is selected, Zero Track Band must also be set to 0; Enter value: 0–100, 1 (default)

varies depending on local regulations; Settings: Full Scale + 2% (default), Full Scale + 1D, Full Scale + 9D, Full Scale Selects measurement rate, in samples per second, of the analog-to-digital converter; Lower sample rate values provide greater

signal noise immunity; Settings: 6.25HZ, 7.5HZ, 12.5HZ, 15HZ, 25HZ, 30HZ (default), 50HZ, 60HZ, 100HZ, 120HZ

Average Only (default) – Digital Rolling Average Filter (Section 16.7.1 on page 126); Uses Digital Filter Stage 1-3, Digital Filter Sensitivity and Digital Filter Threshold

Adaptive Only – Adaptive Filter (Section 16.7.2 on page 127); Uses Adaptive Filter Sensitivity and Adaptive Filter Threshold

Damping Only – Damping Filter (Section 16.7.3 on page 128); Uses Damping Value Raw – No filtering

Sets the digital filtering rate used to reduce the effects of environmental influences from the immediate area of the scale; Settings indicate the number of A/D conversions per update which are averaged to obtain the displayed reading; a higher number gives a more accurate display by minimizing the effect of a few noisy readings, but slows down the response time of the indicator; Settings: 1, 2, 4 (default), 8, 16, 32, 64, 128, 256

Specifies the number of consecutive A/D readings which fall outside the Filter Threshold before filtering is suspended;

Settings: 2OUT (default), 4OUT, 8OUT, 16OUT, 32OUT, 64OUT, 128OUT

Sets a threshold value, in display divisions; when a number of consecutive A/D readings (Digital Filter Sensitivity) falls outside of this threshold value (when compared to the output of the filter), filtering is suspended and the A/D value is sent straight through the filter; Filtering is not suspended if the threshold is set to NONE; Settings: NONE (default), 2D, 5D, 10D, 20D, 50D,

100D, 200D, 250D Controls the stability and response time of the scale; Settings:

Light (default) – Fastest response to small weight changes, but less stable Medium – Has a quicker response time than heavy, but more stable than light Heavy – Results in an output which is more stable but settles slowly; small changes in weight data (a few grads) on the

scale base are not seen quickly

Sets the adaptive filter weight threshold value (in display divisions); a weight change exceeding the threshold resets the filtered values; must be set above the noise disturbances in the system (if set to zero, the filter is disabled);

Enter value: 0–2000, 10 (default)

from nearby machinery, may increase response time over standard digital filtering; Settings: Off (default), On

Both (default) – Both push button and keyed tares are enabled

No Tare – No tare allowed (gross mode only) Push Button Tare – Push button tares enabled Keyed Tare – Keyed tares enabled

intervals); Enter value: 0–600, 10 (default)

correctly to match the actual load cell cable connection to ensure the load cell functions properly with the indicator;

Settings: 4-WIRE (default), 6-WIRE

Table 4-6. Configuration Menu Descriptions (Continued)

Page 44

682 Synergy Plus

Primary

Secondary Custom Unit 1Tertiary Custom Unit 2

Custom Unit 3

Setup Tare

User

Scale FormatConfiguration Calibration

Custom Unit 3

4.5.2 Scale Format Menu

This section provides a flow chart and descriptions for the Scale Format menu.

Figure 4-8. Scale Format Menu

Parameter Description

Primary

Secondary and Tertiary

Custom Unit 1-3

Scale format and units settings for the Primary format; Sub-Parameters:

Format – Sets the decimal point and the display divisions for the Primary display weight format;

Settings: 8888881 (Primary default), 8888882, 8888885, 8888810, 8888820, 8888850, 8888100, 8888200, 8888500,

88.88881, 88.88882, 88.88885, 888.8881, 888.8882, 888.8885, 8888.881, 8888.882, 8888.885, 88888.81, 88888.82,

88888.85, 888888.1, 888888.2, 888888.5

For example, select 8888.885 if a count by of 0.005 is needed or select 8888820 if a count by of 20 is needed

(the 8s serve as placeholders and show a breakdown of how digits will display); Units – Sets the units type; Settings: LB (Primary default), KG, OZ, TN, T, G, NONE Split Mode – See Section 5.0 on page 65 for more information; Only displays under Primary;

Settings: Off (default), Multi-Range, Multi-Interval

Scale format and units settings for the Secondary and Tertiary format; Sub-Parameters:

Format – Sets the decimal point and the display divisions for the Secondary and Tertiary display weight format;

Settings: 8888881, 8888882, 8888885, 8888810, 8888820, 8888850, 8888100, 8888200, 8888500, 88.88881, 88.88882,

88.88885, 888.8881, 888.8882, 888.8885, 8888.881, 8888.882, 8888.885, 88888.81, 88888.82, 88888.85, 888888.1,

888888.2, 888888.5 (Secondary and Tertiary default)

For example, select 8888.885 if a count by of 0.005 is needed or select 8888820 if a count by of 20 is needed

(the 8s serve as placeholders and show a breakdown of how digits will display); Units – Sets the units type; Settings: LB, KG (Secondary and Tertiary default), OZ, TN, T, G, NONE Enabled – Enables the front panel UNITS button to toggle between the Primary, Secondary and Tertiary formats; Only

displays under Secondary and Tertiary; Settings: ON (Secondary default), OFF (Tertiary default)

Available custom units that can be set as the Secondary and Tertiary units to convert weight of the Primary unit; Sub-Parameters:

Label – Available to enter a name for custom units; maximum length is 2 alphanumeric characters; blank by default Multiplier – Conversion factor/multiplier applied to the primary units to convert weight for custom units; 1.0 (default)

For example, to configure a custom unit to gallons (with primary units set to lb), set the custom unit multiplier to 8

Table 4-7. Scale Format Menu Parameters

44 Visit our website www.RiceLake.com

Page 45

4.5.3 Calibration Menu

Point 3

Point 2Point 1

Linear Calibration

Rezero

Temp Zero

Point 4

Last Zero

Zero Calibration

Zero Counts Span CalibrationTest Weight Span Counts

Setup Tare

User

CalibrationScale Format Communications

This section provides a flow chart and descriptions for the Calibration menu.

emp Zer

Point

Figure 4-9. Calibration Menu

Parameter Description

Zero Calibration Zero Counts

Test Weight Span Calibration Span Counts

Linear Calibration

Rezero Last Zero

Temp Zero

Executes the zero calibration process (Section 6.1 on page 67) Displays the raw count value at the zero weight; A zero calibration generates this raw count value; Manually changing this count value

changes the zero weight and negates the zero calibration Sets the test weight value for the span calibration (

Section 6.1 on page 67

Executes the span calibration process (Section 6.1.1 on page 67) Displays the raw count value at the span weight; A span calibration generates this raw count value; Manually changing this count value

changes the span weight and negates the span calibration Linear or multi-point calibration is performed by entering up to four additional calibration points ( Points 1-4 have the following sub-parameters:

Linear Point # Weight – Sets the test weight value for the linear calibration point Calibrate Linear Point # – Executes the linear calibration process for the point; generates the raw count value for the test weight

value for Point #

Linear Point # Counts – Displays the raw count value at the linear point weight; A linear calibration generates this raw count

value; Manually changing this count value changes the linear point weight and negates the linear calibration for the point

Removes an offset value from the zero and span calibrations (Section 6.2.3 on page 68) Takes last push button zero in the system (from Weigh mode) and uses it as the new zero reference point, after which a new span

calibration must be performed; this calibration cannot be performed when calibrating a scale for the first time ( Temporarily zeros the displayed weight of a non-empty scale, after a span calibration was performed;

The difference between the temporary zero and the previously calibrated zero value is used as an offset (Section 6.2.2 on page 68)

Table 4-8. Calibration Menu Parameter

Configuration

); Enter value: 0.000001–9999999.999999, 10000.0 (default)

Section 6.1.2 on page 68

Section 6.2.1 on page 68

);

)

Page 46

682 Synergy Plus

Serial

USB WiFi & BluetoothEthernet

eldbus

Setup Tare

User

CommunicationsCalibration Program

Fieldbus

RS-232 Port 1 RS-232 Port 2 RS-485

Serial USBFieldbus

CommunicationsCalibration Program

Serial Option

Card Port 1

Serial Option

Card Port 2

4.5.4 Communications Menu

This section provides a flow chart and descriptions for the Communications menu.

Figure 4-10. Communications Menu

Menu Description

Serial Supports RS-232 and RS-485/422 serial communications (Section 4.5.4.1) USB Intended to be connected to a PC only; appears as a Virtual COM Port and is assigned a “COMx” designation;

Ethernet Features Ethernet TCP/IP 10Base-T/100Base-TX communication and can support two simultaneous connections, one as a

WiFi & Bluetooth Supports Wi-Fi and Bluetooth® communications (Section 4.5.4.4 on page 50) Fieldbus Supports Fieldbus network protocol communications if Fieldbus module is connected (Section 4.5.4.5 on page 51)

Applications communicate through the port like a standard RS-232 communications port (Section 4.5.4.2 on page 48)

server, the other as a client (Section 4.5.4.3 on page 49)

Table 4-9. Communications Menu Descriptions

4.5.4.1 Serial Menu

This section provides a flow chart and descriptions for the Serial menu.

rialption

rd Port 2

Figure 4-11. Serial Menu

Parameter Description

Configurable parameters for RS-232 serial communications ports; Sub-Parameters:

Trigger – Sets the input trigger type; Settings:

Command (default) – Allows operation of EDP commands and printing Stream Industrial – Scale data is updated up to configured sample rate; Allows operation of EDP commands and

printing

Stream Legal for Trade – Scale data is updated at configured display update rate; Allows operation of EDP commands

and printing

Remote – Configures the port to operate as a serial scale input

NOTE: When in STRIND, STRLFT or REMOTE, if the COMM port is set to RS485, the port does not stream data.

Baud – Sets the transmission speed for the port; Settings: 1200, 2400, 4800, 9600 (default), 19200, 28800, 38400,

57600, 115200

Bits – Sets number of data bits transmitted or received by the port and specifies the parity bit to odd, even or none;

Settings: 8NONE (default), 8EVEN, 8ODD, 7EVEN, 7ODD

Stop Bits – Sets the number of stop bits transmitted or received by the port; Settings: 1 (default), 2 Line Terminator – Sets the termination character for data sent from the port; Settings: CR/LF (default), CR End of Line Delay – Sets the delay period from when a formatted line is terminated to the beginning of the next formatted

Table 4-10. Serial Menu Parameters

RS-232 Port 1-2

46 Visit our website www.RiceLake.com

Page 47

Parameter Description

RS-485

Serial Option Card Port 1-2

Configurable parameters for RS-485/422 serial communications port; Sub-Parameters:

Trigger – Sets the input trigger type; Settings:

Command (default) – Allows operation of EDP commands and printing

Stream Industrial – Scale data is updated up to configured sample rate; Allows operation of EDP commands and

printing

Stream Legal for Trade – Scale data is updated at configured display update rate; Allows operation of EDP commands

and printing

Remote – Configures the port to operate as a serial scale input

Fieldbus – Configures the port to operate for Fieldbus; Automatically configures all port parameters for Fieldbus and

hides the port parameters in the menu

NOTE: When in Stream Industrial (STRIND), Stream Legal for Trade (STRLFT) and REMOTE, the port only

streams data if the Address is set to 0 (RS-422 mode).

Baud – Sets the transmission speed for the port; Settings: 1200, 2400, 4800, 9600 (default), 19200, 28800, 38400,

57600, 115200

Bits – Sets number of data bits transmitted or received by the port and specifies the parity bit to odd, even or none;

Settings: 8NONE (default), 8EVEN, 8ODD, 7EVEN, 7ODD

serial output (0.1-second intervals); Enter value: 0–255, 0 (default) Echo – Specifies if characters received by the port are echoed back to the sending unit; Settings: On (default), Off Response – Specifies if the port transmits replies to serial commands; Settings: On (default), Off Address – Specifies address used to connect to the port; Must be set to 0 for RS-422; Enter value: 0–255, 0 (default) Duplex – Specifies FULL (4-wire) or HALF (2-wire) duplex used to connect to the port; Settings: FULL (default), HALF

Configurable parameters for the serial option card ports; Sub-Parameters:

Port Type – Sets the serial port type; Settings: RS-232 (default), RS-485 Trigger – Sets the input trigger type; Settings:

Command (default) – Allows operation of EDP commands and printing

Stream Industrial – Scale data is updated up to configured sample rate; Allows operation of EDP commands and

printing

Stream Legal for Trade – Scale data is updated at configured display update rate; Allows operation of EDP commands

and printing

Remote – Configures the port to operate as a serial scale input

Fieldbus – Configures the port to operate for Fieldbus; Automatically configures all port parameters for Fieldbus and

hides the port parameters in the menu

Baud – Sets the transmission speed for the port; Settings: 1200, 2400, 4800, 9600 (default), 19200, 28800, 38400,

57600, 115200

Bits – Sets number of data bits transmitted or received by the port and specifies the parity bit to odd, even or none;

Settings: 8NONE (default), 8EVEN, 8ODD, 7EVEN, 7ODD

Enter value: 0–255, 0 (default)

Duplex – Specifies FULL (4-wire) or HALF (2-wire) duplex used to connect to the port (RS-485 only);

Settings: FULL (default), HALF

Table 4-10. Serial Menu Parameters (Continued)

Configuration

Page 48

682 Synergy Plus

Trigger Line Terminator

End of Line Delay

USB

EthernetSerial

Setup Tare

User

CommunicationsCalibration Program

Echo Response

4.5.4.2 USB Menu

This section provides a flow chart and descriptions for the USB menu.

esponse

Figure 4-12. USB Menu

Parameter Description

Trigger Sets the input trigger type; Settings:

Command (default) – Sets input trigger to command; allows operation of EDP commands and can print Stream Industrial – Scale data is updated up to configured sample rate; allows operation of EDP commands and printing Stream Legal For Trade – Scale data is updated at configured display update rate; allows operation of EDP commands and

printing

Remote – Configures the port to operate as a serial scale input

Line Terminator Sets the termination character for data sent from the port; Settings: CR/LF (default), CR End of Line Delay Sets the delay period from when a formatted line is terminated to the beginning of the next formatted serial output (0.1-second

Echo Specifies if characters received by the port are echoed back to the sending unit; Settings: On (default), Off Response Specifies if the port transmits replies to serial commands; Settings: On (default), Off

intervals); Enter value: 0–255, 0 (default)

Table 4-11. USB Menu Parameters

48 Visit our website www.RiceLake.com

Page 49

4.5.4.3 Ethernet Menu

Ethernet MAC ID DHCP Enabled

Ethernet

WiFi & Bluetooth

USB

Setup Tare

User

CommunicationsCalibration Program

IP Address

Gateway Ethernet Server

Http ServerEthernet Client

Subnet

This section provides a flow chart and descriptions for the Ethernet menu.

ttp Serve

Figure 4-13. Ethernet Menu

Parameter Description

Ethernet MAC ID Displays the Ethernet MAC address (read only): 00:00:00:00:00:00 DHCP Dynamic Host Configuration Protocol (static allocation of IP address when OFF); Settings: On (default), Off Enabled Enables Ethernet communications; Settings: Off (default), On IP Address IP Address; Enter value: 0.0.0.0 (default) Subnet Subnet Mask; Enter value: 255.255.255.0 (default) Gateway Default Gateway; Enter value: 0.0.0.0 (default) Ethernet Server Allows the 682 to receive external EDP commands; Sub-parameters:

Trigger – Sets the input trigger type; Settings: Command (default), Stream Industrial, Stream Legal For Trade, Remote Port – Specifies IP Address port to open to establish communications; Enter value: 1025–65535, 10001 (default) Name – Host name for Ethernet Server; Enter characters: Alphanumeric entry up to 30 characters, 0 (default) Line Terminator – Sets the termination character for data sent from the port; Settings: CR/LF (default), CR Echo – Specifies if characters received by the port are echoed back to the sending unit; Settings: Off (default), On Response – Specifies if the port transmits replies to serial commands; Settings: On (default), Off

Ethernet Client Allows the 682 to send EDP commands to external devices; Sub-parameters:

Trigger – Sets the input trigger type; Settings: Command (default), Stream Industrial, Stream Legal For Trade, Remote Remote IP Address – Sets the remote IP Address; Enter value: 0.0.0.0 (default) Remote Port – Specifies IP Address port to look for to establish communications; Enter value: 1025–65535, 10001 (default) Line Terminator – Sets the termination character for data sent from the port; Settings: CR/LF (default), CR Echo – Specifies if characters received by the port are echoed back to the sending unit; Settings: On (default), Off Response – Specifies if the port transmits replies to serial commands; Settings: On (default), Off End of Line Delay – Sets the delay period from when a formatted line is terminated to the beginning of the next formatted

serial output (0.1-second intervals); Enter value: 0–255, 0 (default) Disconnect Time – Sets the disconnect timeout (in seconds); Enter value: 0–60, 0 (default)

Http Server Enables the remote HTTP web server (Section 8.0 on page 73); Settings: Off (default), On

Table 4-12. Ethernet Menu Parameters

Configuration

Page 50

682 Synergy Plus

Enabled Trigger Line Terminator

WiFi & Bluetooth

FieldbusUSB

Setup Tare

User

CommunicationsCalibration Program

End of Line Delay

ResponseEcho

4.5.4.4 WiFi & Bluetooth Menu

This section provides a flow chart and descriptions for the Wi-Fi and Bluetooth® menu.

esponse

Figure 4-14. WiFi & Bluetooth Menu

Parameter Description

Enabled Enables the wireless module and specifies Wi-Fi and/or Bluetooth® communication; Settings: OFF (default), WiFi, Bluetooth, Both Trigger Sets the input trigger type; Settings: Settings: Command (default), Stream Industrial, Stream Legal For Trade, Remote

Command (default) – Sets the input trigger to command; allows operation of EDP commands and can print Stream Industrial – Scale data is updated up to configured sample rate; allows operation of EDP commands and printing Stream Legal for Trade – Scale data is updated at configured display update rate; allows operation of EDP commands and printing Remote – Configures the port to operate as a serial scale input

intervals); Enter value: 0–255, 0 (default)

Table 4-13. WiFi & Bluetooth Menu Parameters

50 Visit our website www.RiceLake.com

Page 51

Configuration

Network Protocol

eters

Fieldbus

Serial

WiFi & Bluetooth

Setup Tare

User

CommunicationsCalibration Program

Byte/Word Swap

EtherNet/IP

Parameters

Modbus Parameters

PROFIBUS

Parameters

PROFINET

Parameters

CANopen

Parameters

DeviceNet

Parameters

EtherCAT

Parameters

Protocol parameters are available when protocol

is selected for the Network Protocol parameter.

Network Protocol defaults to EtherNet/IP.

4.5.4.5 Fieldbus Menu

This section provides a flow chart and descriptions for the Fieldbus menu. The Fieldbus menu specifies the Network Protocol and associated settings. Fieldbus is enabled in the Serial menu (Section 4.5.4.1 on page 46).

rNet/IP

ram

Figure 4-15. Fieldbus Menu

Parameter Description

Network Protocol Byte/Word Swap

EtherNet/IP Parameters

Modbus TCP Parameters

PROFIBUS Parameters

PROFINET Parameters

CANopen Parameters

DeviceNet Parameters

EtherCAT Parameters

Enables network protocol Enables Byte or Word swap, Both enables Byte and Word

Settings:

None (default), Byte, Word, Both

; Settings: EtherNet/IP (default), Modbus, PROFIBUS, PROFINET, CANopen, DeviceNet, EtherCAT

; If values are not being returned this parameter could possibly correct it;

Sub-Parameters:

Auto IP – Automatically get network parameters from the network ( IP Address – Subnet – Gateway –

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Hidden if Auto IP is set to On; Enter value: 255.255.255.0 (default)

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Sub-Parameters:

Auto IP – Automatically get network parameters from the network ( IP Address – Subnet – Gateway –

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Hidden if Auto IP is set to On; Enter value: 255.255.255.0 (default)

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Sub-Parameters:

Node Address –

Enter value: 1-126, 1 (default)

Sub-Parameters:

Auto IP – Automatically get network parameters from the network ( IP Address – Subnet – Gateway –

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Hidden if Auto IP is set to On; Enter value: 255.255.255.0 (default)

Hidden if Auto IP is set to On; Enter value: 0.0.0.0 (default)

Sub-Parameters:

Node Address – Node Rate –

Enter value: 1-128, 1 (default)

Settings: 1 MB (default), 10 KB, 20 KB, 50 KB, 100 KB, 125 KB, 250 KB, 500 KB, 800 KB

Sub-Parameters:

Node Address – Node Rate –

Enter value: 1-64, 1 (default)

Settings: 125 KB, 250 KB, 500 KB (default)

Sub-Parameters:

None –

No sub-parameters are needed for EtherCAT

Table 4-14. Fieldbus Menu Parameters

DHCP); Settings: Off (default), On

Page 52

682 Synergy Plus

Power Up Mode Language

Industrial

Settings

Regulatory Mode

Truck Program

ote

atio

Setup Tare

User

Program

Print FormatCommunications

Destination

Elevation

Origin Latitude

Destination

Latitude

Origin Elevation

Number of

Weighments

Weighment Threshold

Consecutive

Number Start

Unit ID AccumulatorContact

Consecutive Number

Persistent Tare

Remote Print

Destination

Displays if Locale is set to On

Displays if Regulatory Mode

is set to Industrial

Keyboard Lock

Time

Origin Gravity

Destination

Gravity

Displays if Locale is set to Factor

Key Hold

Date

Alibi

Password

Locale

Lock All Keys

Except Zero

Date of Maximum

Weight

Maximum Weight

Return to Zero

Grads

Displays if Accumulator is set to On

4.5.5 Program Menu

This section provides a flow chart and descriptions for the Program menu.

Rem

Prin

Figure 4-16. Program Menu

Parameter Description

Power Up Mode When the indicator is turned on, it performs a display test, then enters a warm up period; Settings:

GO (default) – Performs display test, then enters Weigh mode after brief warm up period DELAY – Performs display test, then enters a warm up period of 30 seconds

• If no motion is detected during warm up period, indicator enters Weigh mode when warm up period ends

• If motion is detected, the 30 second timer is reset and the warm up period is repeated

Language Specifies the text language for the 682 indicator; Applies to Weigh mode only; Settings: English (default), Spanish, French,

Regulatory Mode

Industrial Settings Displays when Regulatory Mode parameter is set to Industrial; See Section 4.5.5.1 on page 54 Alibi Alibi can be toggled On/Off; if On, print transactions are stored in the Alibi Storage database (data validated with CRC) and

Truck Program Configurable parameters for Truck In/Out applications; Sub-Parameters:

German, Dutch, Portuguese, Italian

Specifies the regulatory agency having jurisdiction over the scale site; the value specified for this parameter affects the function of the front panel tare and zero keys; Settings: NTEP (default), OIML, Measurement Canada, Australia, Industrial, None

OIML, NTEP, Measurement Canada and Australia modes allow a tare to be acquired at a weight greater than zero; None allows tares to be acquired at any weight value

OIML, NTEP, Measurement Canada and Australia modes allow a tare to be cleared only if the gross weight is at no load; None allows tares to be cleared at any weight value

NTEP, OIML and Australia modes allow a new tare to be acquired even if a tare is already present; In Measurement Canada mode, the previous tare must be cleared before a new tare can be acquired

None, NTEP and Measurement Canada modes allow the scale to be zeroed in either gross or net mode as long as the current weight is within the specified Zero Range (%); In OIML and Australia modes, the scale must be in gross mode before it can be zeroed; pressing the ZERO key in net mode clears the tare

Australia mode does not display capacity and count-by with the weight value Industrial provides a set of sub-parameters to allow customization of tare, clear and print functions in non-Legal for Trade

scale installations

can be viewed from the front panel of the 682 by configuring a softkey (Section 3.4.19 on page 37) to Alibi; if Off, print transactions are not stored; Alibi data is stored in flash memory, no external memory is required; there is space for 128 KB of data or up to approximately 2000 print transactions; if the limit is hit, the first 4 KB of print transactions are deleted to free up space; Settings: Off (default), On

Mode – Truck modes track Truck IDs and weights with keyed tares and value swapping features in six preset modes;

See Section 7.0 on page 70; Settings: Off (default), Mode 1, Mode 2, Mode 3, Mode 4, Mode 5, Mode 6

ID Overwrite – Allows duplicate Truck IDs to replace stored Truck IDs when enabled; Settings: Disable (default), Enable

Table 4-15. Program Menu Parameters

52 Visit our website www.RiceLake.com

Page 53

Configuration

Parameter Description

Password Configurable passwords to secure the User and Setup menus; ensure the audit jumper (J24) is in the ON position when using

Consecutive Number Allows sequential numbering for print operations; the value is incremented following each print operation that includes <CN>

Consecutive Number Start Specifies the initial consecutive number value used when the consecutive number is reset by activating Clear Consecutive

Unit ID Specifies the unit identification with an alphanumeric value; Enter characters: Up to 8 alphanumeric characters, 1 (default) Contact Contact Information; See Section 4.5.5.2 on page 55 Accumulator Accumulation can be toggled On/Off; if On, accumulation occurs on print operation; if Off, an accumulation does not occur;

Return to Zero Grads Number of graduations from the zero base at which the accumulator re-arms itself; only visible if the Accumulator parameter is

Weighment Threshold Number of Weighments Displays the total number of weighments (read only) Maximum Weight Displays the maximum weight/weighment achieved (read only) Date of Maximum Weight Displays the date and time the maximum weight/weighment occurred (read only) Date Allows setting of the date format and date separator character

Time Allows setting of the time format and the separator character

Keyboard Lock Disables the keyboard except for the menu and power key; Settings: Off (default), On Lock All Keys

Except Zero Key Hold Allows setting of the key hold time and interval

Locale Enables location gravity compensation; Settings:

Origin Latitude Origin latitude (to nearest degree) for gravity compensation; displays when Locale parameter is set to On;

Origin Elevation Origin elevation (in meters) for gravity compensation; displays when Locale parameter is set to On;

Destination Latitude Destination latitude (to nearest degree) for gravity compensation; displays when Locale parameter is set to On;

Destination Elevation Destination elevation (in meters) for gravity compensation; displays when Locale parameter is set to On;

Origin Gravity

Destination Gravity

Persistent Tare Tare persists through a power cycle; Settings: Off (default), On

Remote Print Destination Specifies if the 682 (Local) or another indicator (Remote) handles the print key; Settings: Remote (default), Local

the Setup password; 999999 can be entered to overwrite either password if forgotten, overwriting the password clears configuration and calibration settings (use Revolution to backup settings before overwriting); Sub-Parameters:

User – User menu password secures the user menu with configured password;

Enter characters: Up to 16 alphanumeric characters

Setup – Setup menu password secures the setup menu with configured password;

Enter characters: Up to 16 alphanumeric characters

in the ticket format; Enter value: 0–9999999, 0 (default)

Number digital input or sending KCLRCN EDP command; Enter value: 0–9999999, 0 (default)

Settings: Off (default), On

set to On; Enter value: 0.0–100.0, 0.4 (default) Weight value that must be exceeded for the weight to be counted as a weighment; Enter value: 0.0–9999999.0, 1000.0 (default)

Date Format – Settings: MMDDYY (default), DDMMYY, YYMMDD, YYDDMM Date Separator – Settings: Slash (default), Dash, Semi, Dot

Time Format – Settings: 12HOUR (default), 24HOUR Time Separator – Settings: Colon (default), Comma, Dot

Disables the keyboard except for the zero, menu and power keys; Settings: Off (default), On

Key Hold Time – How long a key needs to be held before a key hold action is initiated (in tenths of a second);

20 equals 2 seconds; Enter value: 10–50, 20 (default) Key Hold Interval – The amount of time between increments during a key hold (in twentieths of a second); 2 equals a tenth of a second (10 increments per second during a key hold); Enter value: 1–100, 2 (default)

Off (default) – gravity compensation disabled On – calculates gravity compensation using the origin and destination latitudes and elevations Factor – uses origin and destination gravity factors to find gravity compensation

Enter value: 0–90, 45 (default)

Enter value: -9999–9999, 345 (default)

Enter value: 0–90, 45 (default)

Enter value: -9999–9999, 345 (default)

Origin gravity factor (in m/s

) for gravity compensation; displays when Locale parameter is set to Factor;

Enter value: 9.00000–9.99999, 9.80665 (default)

Destination gravity factor (in m/s

) for gravity compensation; displays when Locale parameter is set to Factor;

Enter value: 9.00000–9.99999, 9.80665 (default)

Table 4-15. Program Menu Parameters (Continued)

Page 54

682 Synergy Plus

Audit Agency

Weight Source for

Setup Tare

User

Program Print FormatCommunications

Zero Base for

Overload

Allow Clear Tare

Key

Negative Total

Add PT to Keyed

Tare Print

Allow Print in

Motion

Allow Negative

Tare

Industrial

Settings

Truck Program

Regulatory Mode

Underload WeightZero in Motion

Auto-Zero

Tracking on Net

Zero

Tare in Motion

Manual Clear Tare

Multiple Tare

Action

Remove Tare on

Zero

Allow Keyed Tare

4.5.5.1 Industrial Settings Menu

This section provides a flow chart and descriptions for the Industrial Settings menu. The Industrial Settings menu only displays if the Regulatory Mode parameter is set to Industrial.

Underload Weig

Figure 4-17. Industrial Settings Menu

Parameter Description

Audit Agency Audit trail display agency format; Settings: NTEP (default), Measurement Canada, None, OIML Weight Source for Print Display or scale weight source for print; Settings: Display (default), Captured Scale Zero Remove Tare on Zero Remove tare on zero; Settings: No (default), Yes Allow Keyed Tare Always allow keyed tare; Settings: Yes (default), No Multiple Tare Action Replaces existing tare when the tare key is pressed; Settings: Replace (default), Remove, Nothing Allow Negative Tare Allow negative or zero tare; Settings: No (default), Yes Allow Clear Tare Key Allow clear key to clear tare or accumulator when displayed; Settings: Yes (default), No Negative Total Allow total scale to display negative value; Settings: No (default), Yes Allow Print in Motion Allow print while in motion; Settings: No (default), Yes Add PT to Keyed Tare Print Add preset tare (PT) to keyed tare print; Settings: Yes (default), No Zero Base for Overload Zero base for overload calculation; Settings: Calibrated Zero (default), Captured Scale Zero Auto-Zero Tracking on Net Zero Perform auto zero tracking on net zero; Settings: No (default), Yes Manual Clear Tare Allow manual clearing of the tare value; Settings: Yes (default), No Tare in Motion Allow tare in motion; Settings: No (default), Yes Zero in Motion Allow scale to be zeroed while in motion; Settings: No (default), Yes Underload Weight Underload weight value in display divisions; Enter value: 1–9999999, 20 (default)

Table 4-16. Industrial Settings Menu Parameters

54 Visit our website www.RiceLake.com

Page 55

4.5.5.2 Contact Information Menu

Name 2

Company

Address 1 Address 3Address 2 Name 1

Calibratio

Setup Tare

User

Program Print FormatCommunications

Next CalibrationLast Calibration

Phone 1 Phone 2 EmailPhone 3Name 3

Contact Accumulator

UID

This section provides a flow chart and descriptions for the Contact Information menu.

Configuration

Figure 4-18. Contact Information Menu

Parameter Description

Company Contact company name; Enter characters: Alphanumeric entry up to 30 characters Address 1-3 Contact company address lines; Enter characters: Alphanumeric entry up to 20 characters (for each line) Name 1-3 Contact names; Enter characters: Alphanumeric entry up to 30 characters (for each line) Phone 1-3 Contact phone numbers; Enter characters: Alphanumeric entry up to 20 characters (for each line) Email Contact email address; Enter characters: Alphanumeric entry up to 40 characters Last Calibration Last calibration date; Enter value: 8-digit number (MMDDYYYY) Next Calibration Next calibration date; Enter value: 8-digit number (MMDDYYYY)

Table 4-17. Contact Information Menu Parameters

4.5.6 Print Format Menu

This section provides a flow chart and descriptions for the Print Format menu.

User

Setup Tare

Print FormatProgram Stream Format

Truck Weigh Ou

Auxiliary Format 1

Gross Format

Net Format

Auxiliary Format 4Auxiliary Format 3Auxiliary Format 2

Figure 4-19. Print Format Menu

Parameter Description

Gross Format Gross demand print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters, GROSS<G><NL2><TD><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Net Format Net demand print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters,

GROSS<G><NL>TARE<SP><T><NL>NET<SP2><N><NL2><TD><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Table 4-18. Print Format Menu Parameters

Accumulator Format

Truck Format

Setpoint Format

Truck Weigh In

Format

Header FormatAudit Format

Truck Weigh Out

Format

Page 56

682 Synergy Plus

Parameter Description

Audit Format Audit destination print ports where the audit parameters are sent when an Audit Dump is done

Destination Port 1-2 – Dump audit destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485,

TCP Client 1, TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Accumulator Format Accumulator print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters, ACCUM <A><NL><DA> <TI><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Setpoint Format Setpoint print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters, <SCV><SP><SPM><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Header Format Ticket header format strings

Header Format 1 – Header 1 Format String; Enter characters: Alphanumeric entry up to 1,000 characters,

COMPANY NAME<NL>STREET ADDRESS<NL>CITY, ST ZIP<NL2> (default) Header Format 2 – Header 2 Format String; Enter characters: Alphanumeric entry up to 1,000 characters,

COMPANY NAME<NL>STREET ADDRESS<NL>CITY, ST ZIP<NL2> (default)

Auxiliary Format 1-4 Auxiliary print format strings

Format 1-4 – Enter characters: Alphanumeric entry up to 1,000 characters, GROSS<G><NL2><TD><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

NOTE: Auxiliary Formats can be printed using softkeys (Section 3.4.19 on page 37) or by pressing the corresponding format

number on the numeric keypad, followed by the PRINT key. For example, to print Auxiliary Format 2, press the 2 key, followed by the PRINT key.

Truck Format Truck print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters, REG ID: <TID>: <TR2> <TD><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Truck Weigh In Format

Truck Weigh Out Format

Truck weigh in print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters,

<NL>ID<SP><TID><NL2>GROSS<SP><TR1><NL2><DA><SP><TI><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Truck weigh out print format string

Format – Enter characters: Alphanumeric entry up to 1,000 characters,

<NL6>ID<SP><TID><NL2>GROSS<TR1><NL>TARE<SP><TR2><NL>NET<SP2><TR3><NL2><DA><SP><TI><NL> (default) Destination Port 1-2 – Destination ports; Settings: RS-232 Port 1 (Port 1 default), RS-232 Port 2, RS-485, TCP Client 1,

TCP Server, USB, Serial Option Card Port 1, Serial Option Card Port 2, WiFi & Bluetooth, None (Port 2 default)

Table 4-18. Print Format Menu Parameters (Continued)

56 Visit our website www.RiceLake.com

Page 57

Configuration

Forma t

Custom Tare TokenGross Token

Setup Tare

User

Stream FormatPrint Format Setpoint

Net Token

Secondary TokenPrimary TokenNegative Token

Tertiary Token Zero Token

Positive Token

Invalid TokenOk Token

Outof RangeToken

Motion Token

Units

4.5.7 Stream Format Menu

This section provides a flow chart and descriptions for the Stream Format menu.

Invalid Toke

Figure 4-20. Stream Format Menu

Parameter Description

Format Specifies the stream format used for streaming output of scale data or specifies the expected input for a serial scale; Settings:

RLWS (default) – Rice Lake Weighing Systems stream format (Section 16.5.1 on page 122) Cardinal – Cardinal stream format (Section 16.5.2 on page 122) Weigh-Tronix – Avery Weigh-Tronix stream format (Section 16.5.3 on page 123) Toledo – Mettler Toledo stream format (Section 16.5.4 on page 123) Minebea – Minebea stream format (Section 16.5.5 on page 124) Custom – Custom stream format

NOTE: Custom parameter is for input only. When set to remote, the port does not stream data (see Table 4-10

on page 46)

Units Specifies whether the streaming unit tokens remain static or dynamically updated with the configured units; Static uses set

Custom Specifies the custom stream format; only displays if SFORMAT is set to CUSTOM; see Section 16.6 on page 124 for available

Gross Token Mode token when streaming the gross weight; Enter characters: Alphanumeric entry up to 8 characters, G (default) Tare Token Mode token when streaming the tare weight; Enter characters: Alphanumeric entry up to 8 characters, T (default) Net Token Mode token when streaming the net weight; Enter characters: Alphanumeric entry up to 8 characters, N (default) Positive Token Polarity token when the weight is positive; Settings: Space (default), None, + Negative Token Polarity token when the weight is negative; Settings: Space, None, – (default) Primary Token Units token when streaming primary units; Enter characters: Alphanumeric entry up to 8 characters, L (default) Secondary Token Tertiary Token Zero Token Motion Token Status token when the weight is in motion; Enter characters: Alphanumeric entry up to 2 characters, M (default) Out of Range Token Status token when the weight is out of range; Enter characters: Alphanumeric entry up to 2 characters, O (default) Ok Token Status token when the weight is OK (not invalid, out-of-range, at zero or in-motion);

Invalid Token Status token when streaming an invalid weight; Enter characters: Alphanumeric entry up to 2 characters, I (default)

Primary/Secondary unit tokens and Dynamic defaults to configured units of the scale; Settings: STATIC (default), DYNAIMIC

stream format tokens; Enter characters: Alphanumeric entry up to 1,000 characters

Units token when streaming secondary units; Enter characters: Alphanumeric entry up to 8 characters, K (default) Units token when streaming tertiary units; Enter characters: Alphanumeric entry up to 8 characters, K (default) Status token when the weight is at center of zero; Enter characters: Alphanumeric entry up to 2 characters, Z (default)

Enter characters: Alphanumeric entry up to 2 characters (default is a space)

Table 4-19. Stream Format Menu Parameters

Page 58

682 Synergy Plus

Setpoint

Configuration

Batching

Setup TareUser

Setpoint Digital I/OStream Format

Setpoint 1 Setpoint 2-8

Kind

In RangeAuto-Jog In MotionCenter of Zero

AccumulateOff

Gross Negative GrossNet Negative Net

Counter

Wait

Standstill

Negative Relative

Percent

Relative

DelayPause

Positive Relative

Batch in

Process

ConcurrentTimer

AlwaysTime of Day Never

4.5.8 Setpoint Menu

The following sections provide flow charts and descriptions for the Setpoint menu.

atchin

etpoint 8

Kin

Section 4.5.8.2

on page 59

Section 4.5.8.2

on page 59

Section 4.5.8.1 on page 59

Kin

Section 4.5.8.1 on page 59

Section 4.5.8.3

on page 60

Section 4.5.8.3 on page 60

Figure 4-21. Setpoint Menu

Parameter Description

Setpoint Configuration

Batching Batch sequence runs when set to Auto or Manual; Settings:

Access to configuration parameters and settings for up to eight setpoints; Settings: Setpoint 1-8

Kind – Setpoint Kind; Settings: Off (default), Gross, Net, Negative Gross, Negative Net, Accumulate, Positive Relative,

Negative Relative, Percent Relative, Pause, Delay, Wait Standstill, Counter, Auto-Jog, Center of Zero, In Motion, In Range, Batch in Process, Timer, Concurrent, Time Of Day, Always, Never

Off (default) Auto – Allows the batch sequence to repeat automatically once it has been started Manual – Requires a Batch Start input/command to run the batch sequence

Table 4-20. Setpoints Menu Parameters

Section 4.5.8.2 on page 59

Section 4.5.8.3

on page 60

Section 4.5.8.3

on page 60

Section 4.5.8.3 on page 60

58 Visit our website www.RiceLake.com

Page 59

Configuration

Setpoint

Configuration

Batching

Setup TareUser

Setpoint Digital I/OStream Format

Setpoint 1 Setpoint 2-8

Push TareClear Tare Push Print

Push Accumulate

PreactKind Value Band ValueTrip Hysteresis

Clear Accumulator

Alarm

Preact Adjust (%)

Preact Stability

(seconds)

Relative Setpoint

Number

Preact CountPreact Value

Digital Output

Slot

Sense

Digital Output

BranchBatch Enable Access Alias

If Trip = Inband

or Outband

If Trip = Higher

or Lower

If Preact =

On or Learn

If Preact = Learn

Based on Digital I/O

set as Output

If Batch = On

If Kind = Positive Relative,

Negative Relative or Percent Relative

Setpoint

Configuration

Batching

Setup Tare

User

Setpoint Digital I/OStream Format

Setpoint 1 Setpoint 2-8

Branch

Digital Output Batch

Sense

DurationKind Value Band ValueTrip Time

Digital Output

Slot

Push Tare

Clear Accumulator

Clear Tare Push Print

Push AccumulateAlarm

Enable

Alias

Access

If Trip = Inband

or Outband

If Kind = Accumulate,

Delay or Wait Stanstill

If Kind =

Accumulate

If Batch = On, and Kind = Accumulate

If Kind = Accumulate

or Time Of Day

If Kind = Accumulate

or Delay

If Kind =

Accumulate

If Kind = Time Of Day

4.5.8.1 If Kind = Gross, Net, Negative Gross, Negative Net, Positive Relative, Negative Relative, Percent Relative

atchin

etpoint 8

Ali

Figure 4-22. Setpoints Parameter Group A

4.5.8.2 If Kind = Accumulate, Delay, Wait Standstill, Auto-Jog, Time Of Day

atchin

etpoint 8

Ali

Figure 4-23. Setpoints Parameter Group B

Page 60

682 Synergy Plus

Setpoint

Configuration

Batching

Setup Tare

User

Setpoint Digital I/OStream Format

Setpoint 1 Setpoint 2-8

Digital OutputKind Value EndStart

Digital Output

Slot

Branch

Access

AliasSense

If Kind = Counter

If Kind = Counter,

Timer or Concurrent

If Kind = Timer

or Concurrent

4.5.8.3 If Kind = Pause, Counter, Center of Zero, In Motion, In Range, Batch in Process, Timer, Concurrent

atchin

etpoint 8

Ali

Figure 4-24. Setpoints Parameter Group C

Parameter Description

Value For weight-based setpoints: Enter value: 0.0–9999999.0, 0.0 (default)

For time-based setpoints: Enter value: 0.0–65535.0, 0.0 (default) For Counter setpoints: Enter value: 0.0–65535.0, 0.0 (default)

Trip Specifies whether the setpoint is satisfied when the weight is higher or lower than the setpoint value, within a band established around the

Band Value For setpoints with Trip = Inband or Outband, specifies a weight equal to half the band width; The band established around the setpoint

Hysteresis Specifies a band around the setpoint value which must be exceeded before the setpoint, once off, can trip

Preact Allows the digital output associated with a setpoint to shut off before the setpoint is satisfied to allow for material in suspension; Settings:

Start Specifies starting setpoint number; do not specify number of the Timer or Concurrent setpoint itself; Timer or Concurrent setpoint begins

End Specifies ending setpoint number; do not specify number of the Timer or Concurrent setpoint itself; Timer or Concurrent setpoint stops

Time For Time Of Day setpoints, specifies the time at which the setpoint becomes active; the format used to enter the time (12hour or 24hour)

Duration For Time Of Day setpoints; specifies the length of time the digital output associated with this setpoint changes state; value is entered in

Preact Value Specifies the preact value for setpoints with Preact set to On or Learn; depending on the Trip setting specified for the setpoint, the setpoint

Preact Adjust (%)

Preact Stability (seconds)

Preact Count Setpoints with Preact set to Learn, specifies the number of batches after which the preact value is recalculated; the default value, 1,

value, or outside of the band; in a batch sequence with Trip = Higher, the associated digital output is active until the setpoint value is reached or exceeded; with Trip = Lower, the output is active until the weight goes below the setpoint value;

Settings: Higher (default), Lower, Inband, Outband

value is Value ± Band Value; Enter value: 0.0–9999999.0, 0.0 (default)

on again; Enter value: 0.0–9999999.0, 0.0 (default)

Off (default) On – Adjusts setpoint trip value up or down (depending on the Trip parameter setting) from setpoint value using a fixed value

specified on the Preact Value parameter Learn – Can be used to automatically adjust the Preact value after each batch; it compares the actual weight at standstill to the

target setpoint value and adjusts the Preact Value by the Preact Adjust (%) value times the difference after each batch

when starting setpoint begins; Enter value: 1–8, 1 (default)

when ending setpoint begins; Enter value: 1–8, 1 (default)

is based on the value specified for the Time Format parameter in the Program menu (HHMM); Enter value: 0000 (default)

hours, minutes and seconds (HHMMSS); Enter value: 000000 (default)

trip value is adjusted up or down by the Preact Value; Enter value: 0.0–9999999.0, 0.0 (default) Setpoints with Preact set to Learn, specifies a decimal representation of the percentage of error correction applied (50.0 = 50%, 100.0 =

100%) each time a Preact adjustment is made; Enter value: 0.0–100.0, 50.0 (default) Setpoints with Preact set to Learn, specifies the time, in 0.1-sec intervals, to wait for standstill before adjusting the Preact value; setting

this parameter to a value greater than zero disables the learn process if standstill is not achieved in the specified interval (in tenths of a second); Enter value: 0–65535, 0 (default)

recalculates the preact value after every batch cycle; Enter value: 1–65535, 1 (default)

Table 4-21. Kind Parameter Descriptions

60 Visit our website www.RiceLake.com

Page 61

Configuration

Parameter Description

Relative Setpoint

Number

Alarm Specify On to display the word Alarm on the primary display while the setpoint is active (batch setpoints) or while the setpoint is not

Clear Accumulator

Clear Tare Specify On to clear the tare when the setpoint is satisfied; Settings: Off (default), On Push

Accumulator Push Print Specify On to perform a print operation when the setpoint is satisfied; specify Wait Standstill to wait for standstill after setpoint is satisfied

Push Tare Specify On to perform an acquire tare operation when the setpoint is satisfied; Settings: Off (default), On

Digital Output Slot

Digital Output Lists all digital output bit numbers available for the specified Digital Output Slot; this parameter is used to specify the digital output bit

Sense Specifies whether the value of the digital output associated with this setpoint is inverted when the setpoint is satisfied;

Batch Specifies whether the setpoint is used as a batch (On) or continuous (Off) setpoint; Settings: Off (default), On Branch Specifies the setpoint number to which the batch sequence is to branch, if the current setpoint is not satisfied upon initial evaluation

Enable Specifies if setpoint parameters display in User mode; Settings: On (default), Off Access Specifies the access allowed to setpoint parameters in User mode; Settings:

Alias Name for the setpoint; Enter characters: Alphanumeric entry up to 8 characters, SETPT# (default)

For relative setpoints, specifies the number of the relative setpoint; Enter value: 1–8, 1 (default) Target weight for this setpoint is determined as follows:

Positive Relative setpoints, the value of the relative setpoint plus the value (Value parameter) of the Positive Relative setpoint Negative Relative setpoints, the value of the relative setpoint minus the value of the Negative Relative setpoint Percent Relative setpoints, the percentage (specified on Value parameter of the Percent Relative setpoint) of the target value of the

relative setpoint

tripped (continuous setpoints); Settings: Off (default), On Specify On to clear the accumulator when the setpoint is satisfied; Settings: Off (default), On

Specify On to update the accumulator and perform a print operation when the setpoint is satisfied; specify On Quiet to update the accumulator without printing; Settings: Off (default), On, On Quiet

before printing; Settings: Off (default), On, Wait Standstill

NOTE: Push Tare acquires the tare regardless of the value specified for the Regulatory Mode parameter in the Program menu

Lists all available digital I/O slots; this parameter specifies the slot number of the digital I/O card referenced by the Digital Output setpoint; Slot 0 for on-board DIO, Slot 1 for Optional Relay Board; Settings: None (default), 0, 1

associated with this setpoint; use the Digital I/O menu to assign bit function to Output; Enter value: 1–4, 1 (default)

NOTE: For continuous setpoints, the digital output becomes active (low) when the condition is met; for batch setpoints, the digital output is active until the setpoint condition is met

Settings: Normal (default), Invert

(0 = do not branch); Enter value: 0–8, 0 (default)

On (default) – Values can be displayed and changed

HIDE – Values cannot be displayed or changed OFF – Values can be displayed but not changed

Table 4-21. Kind Parameter Descriptions (Continued)

Page 62

682 Synergy Plus

Slot 0

0 0

Setup Tare

User

Digital I/OSetpoint Analog Output

Source

Mode

Setup Tare

User

Analog OutputDigital I/O Softkey

Output

Minimum Weight Maximum Weight Tweak SpanTweak Zero

Error Action

Displays if Regulatory Mode is set to Industrial

4.5.9 Digital I/O Menu

This section provides a flow chart and descriptions for the Digital I/O menu.

Figure 4-25. Digital I/O Menu

Parameter Description

Bit 1-4 Digital I/O Bit 1-4 – Specifies the mode and function of the digital I/O pins; Settings: Off (default), Print, Zero, Tare, Units,

Primary, Secondary, Clear, Display Accumulator, Display Tare, Clear Accumulator, Clear Tare, Net/Gross, Gross, Net, Clear Consecutive Number, Keyboard Lock, Batch Run, Batch Start, Batch Pause, Batch Reset, Batch Stop, Output, Softkey 1-15

Table 4-22. Digital I/O Menu Parameters

4.5.10 Analog Output Menu

This section provides a flow chart and descriptions for the Analog Output menu. The Analog Output menu is only functional if the analog output option card is installed. If the option card is not installed, the menu is visible, but not functional. If the analog output option card is installed, configure all other indicator functions and calibrate the indicator before configuring the analog output. Instructions to install and setup the analog output option card are provided with the option card kit (PN 195084).

Tweak Span

Figure 4-26. Analog Output Menu

Parameter Description

Source Specifies the scale tracked by the analog output; Only appears if the Regulatory Mode parameter is set to Industrial;

Mode Specifies the weight data, gross or net, tracked by the analog output when the Source parameter is assigned to a scale;

Output Specifies the type/range of the output; Settings: 0-10V (default), 0-20MA, 4-20MA Error Action Specifies how the analog output responds to system error conditions; Settings:

Minimum Weight

Maximum Weight

Tweak Zero Adjusts the offset of the analog output zero value; Enter value: 0–65535, 0 (default) Tweak Span Adjusts the offset of the analog output span value; Enter value: 0–65535, 59515 (default)

Settings: Scale 1 (default), Remote

Settings: Gross (default), Net

Full Scale (default) – Set to full scale (10 V or 20 mA) Hold – Holds current value Zero Scale – Sets to zero value (0 V, 0 mA or 4 mA)

Specifies the minimum weight value tracked by the analog output; Enter value: ±9999999.0, 0.0 (default)

Specifies the maximum weight value tracked by the analog output; Enter value: ±9999999.0, 10000.0 (default)

Table 4-23. Analog Output Menu Parameters

62 Visit our website www.RiceLake.com

Page 63

Configuration

Softkey 1

Softkey 2-15

Setup Tare

User

SoftkeyAnalog Output

Default

Configuration

4.5.11 Softkey Menu

This section provides a flow chart and descriptions for the Softkey menu. Softkeys are configured to provide additional operator functions. Configured softkeys are at the bottom of the display and are activated by the physical key directly below them. If six or more softkeys are enabled, left and right arrows appear in the outside softkeys to allow navigation between available softkeys. See Section 3.4.19 on page 37 for softkey configuration procedure.

oftkey 1

Figure 4-27. Softkey Menu

Parameter Description

Softkey 1-15 Specifies the operator function assigned to each available softkey; see Section 3.4.19 on page 37 to configure softkeys;

Settings: Blank (default), Time Date, Display Tare, Display Accumulator, Setpoint, Batch Stop, Batch Start, Batch Pause, Batch Reset, Display UID, Alibi, Weigh In, Weigh Out, Truck Regs, Auxiliary Format 1-4

Table 4-24. Softkey Menu Parameters

Softkey Description

Blank No softkey configured (default selection for all); a blank softkey can be used to create separation between other softkeys Time/Date Displays Set System Time with the ability to view and edit the current time value (Section 3.4.15 on page 34); pressing the

middle softkey causes the Set System Date (Section 3.4.16 on page 35) to display Display Tare Displays the tare value in the message area of the front panel display Display Accumulator Displays the accumulator value and count; accumulator can be turned On in the Program menu (Section 4.5.5 on page 52) Setpoint Displays the User Setpoint menu (Section 4.4 on page 41), which includes the setpoint value of configured setpoints; Read only

unless access parameter for the setpoint is set to ON; menu is empty if no setpoints are configured Batch Stop Stops an active batch and turns off all associated digital outputs; requires a Batch Start to resume processing Batch Start Starts a batch from the current step if a Batch Run digital input is active or not defined; if a Batch Run digital input is defined and

inactive, Batch Start resets the batch to the first step Batch Pause Pauses an active batch and turns off all digital outputs except those associated with Concurrent and Timer setpoints; processing

is suspended until the indicator receives a Batch Start signal; pressing the Batch Start softkey, BATSTRT digital input or

BATSTART serial command resumes the batch and re-energizes all digital outputs turned off by the Batch Pause Batch Reset Stops an active batch and resets the current step to the first batch step; all digital outputs associated with batch setpoints are

deactivated; if a batch is stopped or paused, Batch Reset resets the current step to the first step Display UID Displays the Unit ID in the message area of the front panel display Alibi Displays Alibi Storage and allows previous print transactions to be reprinted; Alibi parameter must be set to On in the

Program menu (Section 4.5.5 on page 52) Weigh In Displays the keyboard truck ID entry screen to log a truck weigh in (Section 7.3 on page 72) Weigh Out Displays the keyboard truck ID entry screen to log a truck weigh out (Section 7.4 on page 72) Truck Regs Displays the Truck Register (Section 7.2 on page 71) Auxiliary Format 1-4 Prints using the configured auxiliary print format string to the configured destination port (Section 4.5.6 on page 55)

Table 4-25. Softkey Descriptions

Page 64

682 Synergy Plus

Display Tare Clear Tare

Tare MAC ID

Setup

4.6 Tare Menu

This section provides a flow chart and descriptions for the Tare menu.

Figure 4-28. Tare Menu

Parameter Description

Display Tare Displays the current tare value (read only) Clear Tare Clears the current tare value

Table 4-26. Tare Menu Parameters

64 Visit our website www.RiceLake.com

Page 65

Split Mode Configuration

Primary

Setup Tare

User

Scale FormatConfiguration Calibration

atnits

Range 1 Capacity

Range 1 Format

Split Mode

Range 2 Capacity Range 2 Format

Displays if Split Mode is set to Multi-Range or Multi-Interval

Displays if Range 1 Capacity is set to a value greater than 0

5.0 Split Mode Configuration

The 682 supports multi-range and multi-interval scales of either two or three ranges or intervals. The full scale capacity is the second range/interval when just Range 1 is set or the third range/interval when Range 1 and Range 2 are set.

m Unit

plit Mode

econdar

Figure 5-1. Setup – Scale Format Menu – Split Mode

Mode Description

Multi-Range Provides two or three ranges, each extending to the maximum capacity specified for each range; the scale display division changes

Multi-Interval Divides the scale capacity into two or three partial weighing intervals, each with different display divisions; the intervals extend to the

Off Disables split mode

as the applied weight increases, but does not reset to lower display divisions until the scale returns to center of zero

maximum capacity specified for each interval; the display divisions change with both increasing and decreasing loads

Table 5-1. Split Mode Options

Parameter Description

Range 1 Capacity (MRMI)

Range 1 Format Sets the Range 1 units format (decimal point and display divisions); Settings: 8888881 (default), 8888882, 8888885, 8888810,

Range 2 Capacity (MRMI)

Range 2 Format

Sets the capacity of Range 1 for the scale in primary units; this parameter must be set for Range 2 Capacity and Range 2 Format to display; Enter value: 0.0-9999999.0, 0.0 (default)

8888820, 8888850, 8888100, 8888200, 8888500, 88.88881, 88.88882, 88.88885, 888.8881, 888.8882, 888.8885, 8888.881,

8888.882, 8888.885, 88888.81, 88888.82, 88888.85, 888888.1, 888888.2, 888888.5

Sets the capacity of Range 2 for the scale in primary units; only displays if Range 1 Capacity is set to a value greater than 0;

Enter value: 0.0-9999999.0, 0.0 (default)

Sets the Range 2 units format (decimal point and display divisions); only displays if Range 1 Capacity is set to a value greater than 0;

Settings: 8888881 (default), 8888882, 8888885, 8888810, 8888820, 8888850, 8888100, 8888200, 8888500, 88.88881,

88.88882, 88.88885, 888.8881, 888.8882, 888.8885, 8888.881, 8888.882, 8888.885, 88888.81, 88888.82, 88888.85,

888888.1, 888888.2, 888888.5

NOTE: In multi-range or multi-interval mode, the Format, Units and Capacity parameters define max range of the scale. If Range 1 Capacity is set and Range 2 Capacity is disabled (set to 0), range 2 is configured automatically. If Range 2 Capacity is set then range 3 is automatically configured.

Table 5-2. Split Mode – Sub-Parameters

Page 66

682 Synergy Plus

10:35 AM 12/10/21

R1 100lbx1lb

Scale 1

GROSS

10:36 AM 12/10/21

102

R2 500lbx2lb

Scale 1

GROSS

10:37 AM 12/10/21

505

R3 10000 lbx5lb

Scale 1

GROSS

5.1 Configure a Multi-Range or Multi-Interval Scale

Access to Setup mode (Section 4.1 on page 39) is required.

1. Navigate to the Configuration menu within the Setup menu.

2. Press .

3. Press .

4. Press .

5. Press .

Scale Format displays.

Primary displays.

Format displays.

Split Mode displays.

Configuration displays.

6. Press . The setting options for split mode displays.

7. Press

8. Press .

and to select Multi-Range or Multi-Interval.

Range 1 Capacity displays. See Section 5.0 on page 65 for more information on split mode.

9. Press . The current Range 1 weight value displays.

10. Use the numeric keypad to enter a new value, if necessary.

11. Press to accept value.

Range 1 Format displays.

12. Press . The current Range 1 Format setting displays.

13. Use

14. Press to accept format setting.

NOTE: A Range 1 Capacity must be set for a Range 2 Capacity to appear as an option. The full scale capacity is the second range/interval when just Range 1 is set or the third range/interval when Range 1 and Range 2 are set.

and to move to a new setting, if necessary.

Range 2 Capacity displays.

66 Visit our website www.RiceLake.com

15. Repeat previous steps for Range 2, if necessary.

16. Press to return to Weigh mode.

Range 1: Up to 100 with count by of 1

• Format > Primary > Range 1 Capacity = 100

• Format > Primary > Range 1 Format = 8888881

Range 2: 100 to 500 with count by of 2

• Format > Primary > Range 2 Capacity = 500

• Format > Primary > Range 2 Format = 8888882

NOTE: When using Multi-Range, the last range/count by reached is held until returning to zero, even when descending through other ranges. When using Multi-Interval, range/count by changes both when ascending and descending.

Figure 5-2. Split Mode Multi-Range Example

Range 3: 500 to Capacity with count by of 5

• Configuration > Capacity = 10000

• Format > Primary > Format = 8888885

Page 67

Calibration

Point 3

Point 2Point 1

Linear Calibration

Rezero Temp Zero

Point 4

Last Zero

Zero Calibration

Zero Counts Span CalibrationTest Weight Span Counts

Setup Tare

User

CalibrationScale Format Communications

6.0 Calibration

The 682 can be calibrated using the front panel and EDP commands. The following sections describe the procedures required for these calibration methods.

NOTE: The 682 requires a Zero Calibration and Span Calibration to be calibrated. The Linear Calibration points are optional; they must fall between zero and span, but must not duplicate zero or span.

emp Zer

Point

Figure 6-1. Setup – Calibration Menu

6.1 Front Panel Calibration

6.1.1 Span Calibration

Use the following procedure to perform a standard span calibration on a connected scale. Access to Setup mode (Section 4.1

on page 39) is required.

1. Navigate to the Configuration menu within the Setup menu.

2. Press twice.

3. Press .

NOTE: See Section 6.2 on page 68 if the application requires a rezero, last zero or temporary zero.

Calibration displays.

Zero Calibration displays.

4. Ensure there is no weight on the scale.

5. Press to perform a zero calibration.

Please Wait

displays.

6. Press .

7. Press .

Zero Counts displays. See Section 4.5.3 on page 45 for more information on zero counts.

Test Weight displays.

8. Press . The current test weight value displays.

9. Use the numeric keypad to enter a new value, if necessary.

10. Press to accept value.

Span Calibration displays and the indicator is ready for test weight.

Configuration displays.

displays briefly and then Zero Calibration Complete

11. Place the specified amount of test weight on the scale.

12. Press to perform a span calibration.

Please Wait

displays briefly and then Span Calibration Complete

displays.

13. Press .

NOTE: Span calibration is complete. To continue with a linear calibration, see Section 6.1.2 on page 68 before returning to

Span Counts displays. See Section 4.5.3 on page 45 for more information on span counts.

Weigh mode.

14. Press to return to Weigh mode.

Page 68

682 Synergy Plus

6.1.2 Linear Calibration

Linear calibration points provide increased scale accuracy by calibrating the indicator at up to four additional points between the zero and span calibrations. Access to Setup mode (Section 4.1 on page 39) is required.

1. Complete steps 1–13 in Section 6.1.1 on page 67.

2. Press .

3. Press .

4. Press .

Linear Calibration displays.

Point 1 displays.

Linear Point 1 Weight displays.

5. Press . The current test weight value for point 1 displays.

6. Use the numeric keypad to enter a new value, if necessary.

7. Press to accept value.

Calibrate Linear Point 1 displays and the indicator is ready for test weight.

8. Place the specified amount of test weight on the scale.

9. Press to perform a linear point calibration.

Complete

10. Press .

displays.

Linear Point 1 Counts displays. See Section 4.5.3 on page 45 for more information on linear point

Please Wait

counts.

11. Press .

12. Press .

Point 1 displays.

Point 2 displays.

13. Repeat previous steps for points 2-4, if necessary.

NOTE: The linear calibration for a point is saved once point is calibrated.

displays briefly and then Point Calibration

14. Press to return to Weigh mode.

6.2 Alternative Zero Calibrations

During a calibration, the zero value can be replaced with a temporary zero or last zero. A rezero can be done after calibration. See below for information on alternative zeros.

6.2.1 Last Zero

This takes the last push-button zero in the system (from Weigh mode) and uses it as the new zero reference point, after which a new span calibration must be performed. This calibration cannot be performed when calibrating a scale for the first time.

A last zero calibration is typically used on truck scales to allow a scale verification to become a calibration without having to remove the test weights.

6.2.2 Temporary Zero

A temporary zero calibration temporarily zeros the displayed weight of a non-empty scale. After span calibration, the difference between the temporary zero and the previously calibrated zero value is used as an offset.

A temporary zero calibration is typically used on hopper scales to calibrate the span without losing the original zero calibration.

6.2.3 Rezero

A rezero calibration is needed to remove a calibration offset when hooks or chains are required to suspend the test weights. Once a span calibration is complete, remove the hooks or chains and the test weights from the scale. With all the weight

removed, a rezero calibration is used to adjust the zero and span calibration values.

68 Visit our website www.RiceLake.com

Page 69

Calibration

6.3 EDP Command Calibration

Use the following instructions to calibrate the 682 using EDP commands. For information on the EDP commands of the 682, see Section 12.0 on page 95. Access to Setup mode (Section 4.1 on page 39) is required.

NOTE: The indicator must respond with OK after each step or the calibration procedure must be done again. For commands ending with #s, s is the scale number (1).

1. Put the indicator in Setup mode (Section 4.1 on page 39).

2. For a standard calibration, remove all weight from scale (except hooks or chains which are needed to attach weights).

3. Send the command SC.WZERO#s to perform a standard calibration of the zero point.

• Send SC.TEMPZERO#s to perform a temporary zero calibration

• Send SC.LASTZERO#s to perform a last zero calibration

4. Apply the span calibration weight to the scale.

5. Send the command SC.WVAL#s=xxxxx, where xxxxx is the value of the span calibration weight applied to the scale.

6. Send the command SC.WSPAN#s to calibrate the span point. Continue on to step 7 to calibrate additional linear points, or proceed to step 11.

7. Apply weight equal to the first linear point to the scale.

8. Send the command SC.WLIN.Vn#s=xxxxx, where n is the linear point number (1-4) and xxxxx is the exact value of the weight applied.

9. Send the command SC.WLIN.Cn#s to calibrate the linear point, where n is the linear point number (1-4).

10. Repeat steps 7–9 for up to four total linear points.

11. If hooks or chains were used to attach the weights, remove all weight, including the hooks and chains, and send the command SC.REZERO#s to remove the zero offset.

12. Send the command KSAVEEXIT to return to Weigh mode.

Page 70

682 Synergy Plus

secutive

ber

dustrial

Truck Program

ote

atio

Setup Tare

User

Program Print FormatCommunications

Mode ID Overwrite

ite

7.0 Truck Modes

The truck in/out modes are used to handle multiple truck IDs and weights. Truck IDs can be up to 16 alphanumeric characters in length. Six available truck modes combine stored truck IDs, keyed tares and value swapping features in various ways.

NOTE: A microSD card must be installed in the memory card slot (J6) in order for the indicator to store truck IDs in a truck mode. The 682 indicator comes with an 8 GB microSD card installed.

Rem

Prin

Power Up Mode

anguage

Regulatory Mode

ettings

D Overwr

Figure 7-1. Program Menu – Truck Program

Mode Stored IDs Keyed Tares Value Swapping

Mode 1 No Yes Yes Mode 2 No No Yes Mode 3 Yes Yes Yes Mode 4 Yes No Yes Mode 5 Yes Yes No Mode 6 Yes No No

Off

Table 7-1. Available Truck Modes

Stored IDs – Keeps a database of truck IDs and weigh-in weights in the indicator’s memory. The indicator can automatically store up to 1,000 truck IDs and tares or it can clear the information after printing a weigh-out ticket. For example, if the same truck seldom crosses the scale, it may not be practical to save its truck ID and weigh-in weight. However, if that same truck crosses the scale many times each day, it’s more convenient to store the information in the indicator memory and recall it when needed. Stored truck IDs and weights are available in modes 3, 4, 5 and 6.

NOTE: By default, Stored IDs can not be entered a second time for duplicate weigh-ins. The ID Overwrite parameter can be Enabled to allow duplicate Truck IDs to replace Stored IDs.

Keyed Tares – Allows manual entering of the tare weight using the numeric keypad and the Tare key. Keyed tares are available in modes 1, 3 and 5. To use keyed tares, an incoming truck must be empty at weigh-in, full at weigh-out.

NOTE: Some local regulations require the tare weight to be read from the scale. If so, don’t use the keyed tares feature.

Value Swapping – Ensures that the lowest of the two associated weight values of a truck ID is used as the tare weight. For example, if a truck crosses the scale fully loaded at weigh-in, then unloads and crosses the scale empty at weigh-out, the indicator automatically assigns the lesser (empty truck) weight as the tare. Value swapping is available in modes 1, 2, 3 and 4.

7.1 Using the Truck Modes

Configuring a truck in/out mode requires access to Setup mode (Section 4.1 on page 39).

1. Navigate to the Configuration menu within the Setup menu.

2. Press or until

70 Visit our website www.RiceLake.com

3. Press .

4. Press or until

Power Up Mode displays.

Program displays.

Truck Program displays.

Configuration displays.

Page 71

5. Press . Mode displays.

Weigh OutWeigh In Truck Regs

10:35 AM 12/10/21

45260

200000 lb x 20 lb

Scale 1

GROSS

ACME 155

CancelPage Up Delete All

Truck IDs

Page Down Delete

: 45120 lb

10:50 AM 11/11/21

ACME 160 : 32240 lb

02:32 PM 12/09/21

Green 11 : 32320 lb

08:55 AM 10/14/21

RLWS 123 : 41420 lb

12:24 PM 10/28/21

Truck 01 : 34560 lb

09:08 AM 12/02/21

10:38 AM 12/10/21

6. Press . The current truck mode setting is highlighted.

7. Press or to navigate to the desired truck mode, if necessary.

8. Press to accept the highlighted truck mode.

Truck Modes

9. Press twice to navigate back up to the Setup menu level.

10. Press or until

Softkey displays.

Program displays.

11. Press and configure softkeys to Weigh In, Weigh Out and Truck Regs. See Section 3.4.19 on page 37 for procedure on configuring softkeys. These three softkeys are required when using the truck modes.

NOTE: Softkey 2 and Softkey 4 must be set to Blank in order to achieve the softkey arrangement in Figure 7-2.

Figure 7-2. Truck Mode Softkeys

12. Once softkeys are configured, press to return to Weigh mode.

7.2 Using the Truck Register Display

The Truck Regs display is shown by pressing the Truck Regs softkey in Weigh mode. The display contains an alphabetical list of stored truck IDs, weigh-in weights (in primary units), and the time and date of the weigh-in transaction.

Softkeys shown at the bottom of the Truck Regs display are described below.

• Page Up – Displays previous page of the truck register.

• Page Down – Displays next page of the truck register.

• Cancel – Exits to Weigh mode.

The truck register, for the highlighted entry, can be printed to an attached printer by pressing the Print key while the Truck Regs display is shown. The printed register uses the Truck Format print format (Section 4.5.6 on page 55).

• Delete – Deletes the highlighted truck ID from the truck register.

• Delete All – Deletes all truck IDs from the truck register.

Figure 7-3. Truck Register Display

Page 72

682 Synergy Plus

7.3 Weigh-In Procedure

In modes 1 and 2, the indicator erases truck ID numbers and tare weights from memory after the transaction. In modes 3–6,the truck ID and weigh-in weight values are saved after the weigh-out ticket has been processed.

The general weigh-in procedure is as follows:

1. The empty truck moves onto the scale for weigh-in.

2. Press the Weigh In softkey. The keyboard truck ID entry screen displays.

3. Enter the truck ID (up to 16 characters) using the alphanumeric entry procedure (Section 3.3.2 on page 30).

NOTE: The numeric keypad can be used to enter numbers for truck IDs.

4. Press Cancel softkey to exit without saving.

- Or Press

5. Display returns to Weigh mode and the indicator prints a weigh-in ticket.

ID 304812 GROSS 15000 LB INBOUND 01/14/2022 10:24 AM

6. Truck leaves the scale.

Save softkey to save and exit when the truck ID is correct.

7.4 Weigh-Out Procedure

The general weigh-out procedure is as follows:

1. The loaded truck moves onto the scale for weigh-out.

2. If truck ID is known, press the Weigh Out softkey, enter the truck ID, and press If truck ID is not known, press the Truck Regs softkey to view list of stored truck IDs (Figure 7-3 on page 71). Scroll to

the correct truck ID, note the truck ID, then press the Cancel softkey to return to the Weigh mode. From Weigh mode, press Weigh Out softkey, key in the truck ID, then press

3. Display returns to Weigh mode and the indicator prints a weigh-out ticket. In modes 1 and 2, the truck ID is deleted once the weigh-out ticket is processed.

Save softkey.

7.5 Single-Transaction Tare Weights and IDs

One-time transactions are supported in all modes that can be configured to use stored Truck IDs (modes 3–6). This function allows one-time weighing of trucks without adding the truck ID and weigh-in weight to the permanent truck register.

To use this function, press the Weigh In or Weigh Out softkey, then enter a truck ID containing a decimal point. Truck IDs entered with a decimal point as part of the truck ID are erased from the truck register when the transaction is complete.

72 Visit our website www.RiceLake.com

Page 73

HTTP Web Server

8.0 HTTP Web Server

The 682 web server allows for remote viewing of the current 682 Weigh mode values through a web browser. The web server also allows for the use of certain 682 function keys and the ability to view and update active setpoint values.

8.1 Access Procedure

Configuring the HTTP Web Server requires access to Setup mode (Section 4.1 on page 39).

1. Connect the 682 Ethernet port (J8) directly to a PC or through a network router or switch.

NOTE: The web server is not available through Wi-Fi.

2. Navigate to the Configuration menu within the Setup menu. Configuration displays.

3. Press .

4. Press or until

5. Press .

6. Press .

7. Press . The current setting for Http Server is highlighted. Make sure On is selected and press .

8. Press or until

9. Press . The current setting for Enabled is highlighted. Make sure On is selected and press .

10. Press to return to Weigh mode to allow the indicator to initialize the updated settings.

11. Reenter the Setup menu in Setup mode and navigate to the Communications menu.

12. Press .

13. Press or until

14. Press .

15. Press or until

16. Press . The current IP Address displays.

Serial displays.

Ethernet displays.

Ethernet MAC ID displays.

Http Server displays.

Enabled displays.

Communications displays.

Serial displays.

Ethernet displays.

Ethernet MAC ID displays.

IP Address displays.

17. Type the current IP Address into a web browser to access the 682 web server.

18. Press twice to return to Weigh mode.

Page 74

682 Synergy Plus

8.2 Browser Display

This section provides an example of the 682 web server browser display and describes all the features and their functions.

Figure 8-1. Web Server Browser Display

Item No. Description

1 Current time and date 2 Unit ID location 3 Dark mode display option toggle; adjusts display for lowlight or nighttime viewing 4 Current 682 weight display area 5 Remote numeric keypad 6 Remote function keys and softkeys 7 Ability to view and update setpoint values if Access is set to On for the selected setpoint, otherwise

selecting the Change button has no effect

Table 8-1. Web Server Display Descriptions

NOTE: Text that appears in the message display area of the 682 is not shown via the web server.

74 Visit our website www.RiceLake.com

Page 75

9.0 Wi-Fi & Bluetooth® Communications

Wi-Fi & Bluetooth® Communications

The 682 is a Wi-Fi and/or Bluetooth® device. and describe the procedures required to configure these features.

The 682 features a Lantronix Guide for detailed instructions on the module.

NOTE: The use of a web browser on a computer or handheld device is needed to access the wireless module’s built-in Web Manager. See Section 3.4.17 on page 36 to view the Wi-Fi and Bluetooth® MAC Addresses from the 682 display.

Soft AP (Access Point) Details

• Name: RLWS_XXXXXX

• Password: PASSWORD

• Configuration Page: http://192.168.0.1

NOTE: The Soft AP only shows up as a 5-GHz network. The connecting device must be capable of using the 5 GHz band to connect to the Soft AP. Setup → Communications → WiFi & Bluetooth → Enabled defaults to Off and must be set to WiFi, Bluetooth or Both to enable Wi-Fi & Bluetooth communications and allow the Soft AP to be available.

xPico 200 Series wireless module. Visit www.lantronix.com to view the xPico 200 Series User

The following sections provide details on Wi-Fi and Bluetooth® communications

9.1 Bluetooth® Communications

To enable Bluetooth® for the 682 indicator, navigate to Setup → Communications → WiFi & Bluetooth → Enabled, and select Bluetooth or Both. This parameter is only accessible in Setup mode (Section 4.1 on page 39).

Once enabled, scan for available Bluetooth® devices on the device that is intended to be paired with the 682 and pair the intended Bluetooth® device with the 682 wireless module’s Bluetooth® connection. The 682 wireless module’s Bluetooth® device name is RLWS_XXXXXXXXXXXX.

NOTE: The X’s in the name represent the entire Bluetooth® MAC address.

9.2 Wi-Fi Communications

The 682 creates a Wi-Fi network that can be connected to with a computer or the location’s network. Configuration of the wireless settings is done through the built-in Web Manager. The Web Manager can be accessed through the built-in Soft AP (Access Point). The Soft AP can be used to connect to a location’s network using the Web Manager. In applications that don’t have a local network to connect to or if the network is not in range, the Soft AP connection can also be used to talk to a 682 by connecting to IP 192.168.0.1, port 10001.

9.2.1 Wi-Fi Setup

The following procedure is for setting up the Wi-Fi network using the wireless module’s built-in Web Manager.

1. Power on the 682 indicator.

2. To enable the wireless module and specify wireless communications in the 682 menu:

• In Setup mode (Section 4.1 on page 39), navigate to Setup → Communications → WiFi & Bluetooth → Enabled,

and set to WiFi or Both.

• Return to Weigh mode to allow the change to initialize.

Page 76

682 Synergy Plus

3. Scan for available Wi-Fi networks using a computer or handheld device and connect to the Soft AP. It might take a few attempts before the Soft AP appears on the computer or device.The Soft AP only shows up as a 5-GHz network.

• Soft AP Name: RLWS_XXXXXX

• Soft AP Password: PASSWORD

IMPORTANT: It is recommended to change default passwords to limit access and for security.

Figure 9-1.

NOTE: The X’s in the name represent the last 6 digits of the Wi-Fi MAC address. The serial number on the wireless module’s label is almost the same, other than the last digit being one number/character less than the Wi-Fi MAC address.

FOR EXAMPLE: If the module’s serial number is "0080A3E8C27A", then the SSID would be "RLWS_E8C27B". The MAC address is a Hexadecimal value, so the letter A follows the number 9, and this continues to F before incrementing the next most significant digit and returning to 0.

NOTE: The wireless module’s serial number is the same as the Bluetooth® MAC address.

4. Once connected to the Soft AP, use a web browser and enter 192.168.0.1 as the URL address and press Enter.

NOTE: Once connected to a network, a web browser on that network can connect to the Web Manager by simply navigating to the wireless module's IP Address (available on the Status page of the Web Manager).

5. Enter the default login credentials for the Web Manager.

• Username: admin

• Password: PASSWORD

IMPORTANT: It is recommended to change default passwords to limit access and for security.

Figure 9-2.

6. Press Sign in. The Web Manager loads in the browser and the Status page appears.

7. Click QuickConnect at the top of the left navigation panel.

76 Visit our website www.RiceLake.com

Figure 9-3.

Page 77

Wi-Fi & Bluetooth® Communications

8. A list of wireless networks appear. Click the network name intended to connect the wireless module’s Wi-Fi network to.

NOTE: If the necessary network does not display, click the Scan button again. It may take a few tries to show the network. If the network is hidden, enter the network name in the box provided.

Figure 9-4.

NOTE: The Web Manager provides notes and information related to the current page in the far right column. Descriptions for options and settings are also provided when hovering over the item in question.

9. The wireless network information page appears. Enter the network password (if applicable).

NOTE: Contact location’s IT administrator to obtain network credentials as needed based on the security in place.

Figure 9-5.

10. Click Submit to apply and save the settings. A message displays at the top of the page to indicate if the new network’s Profile saved successfully. It does not necessarily mean it is connected to the network.

NOTE: The Apply button only applies the settings for the current session, but does NOT save them.

11. To verify wireless module is connected to the location’s network, click Status near the top of the left navigation panel.

Figure 9-6.

Page 78

682 Synergy Plus

12. The Status page displays the network connections on the device under Network Settings.

Figure 9-7.

• If Connected: Interface wlan0 is listed with Connection State showing Connected and the IP Address populated.

NOTE: The “/24” at the end of the IP Address indicates the number of bits set for the network subnet mask and is not part of the IP Address itself. There are 32 bits in a subnet mask and “/24” indicates the subnet mask is 255.255.255.0.

• If Not Connected: First try refreshing the browser to see if the information populates, then click WLAN Profiles at

the bottom of the left navigation panel to change the network settings and try again.

13. Connecting to the wireless module’s server with a remote client is now possible.

14. Using a Terminal Emulation program, such as PuTTY, as a remote client connection to the wireless module’s server over Telnet is possible using the IP Address that was noted in Step 12 and the Local Port number, which by default is 10001.

Figure 9-8. PuTTY Example

NOTE: If the card's IP address changed and there is no longer access to the card through the location’s wireless network, connect to the Soft AP and use the Web Manager to learn the new IP Address.

For more information on features of this card, visit www.lantronix.com

to view the xPico 200 Series User Guide.

78 Visit our website www.RiceLake.com

Page 79

Wi-Fi & Bluetooth® Communications

9.2.2 Server Configuration

The wireless module is configured to be a server by default, with the ability to accept the connection of a client to it.

• A Server is waiting to Accept a connection from a Client.

• A Client is looking to Connect to a remote Server (host).

NOTE: Even though a device can be set up for both, typically it is only set up as one or the other.

The following procedure shows where the wireless module’s server settings are found using the Web Manager.

NOTE: Making changes to the Tunnel 1 Accept Configuration settings may impact the wireless module’s connection to the location’s network, established in Wi-Fi Setup (Section 9.2.1 on page 75).

1. Refer to Steps 1-6 in Section 9.2.1 on page 75 to sign in to the Web Manager.

2. Click Tunnel in the left navigation panel.

Figure 9-9.

3. Click Accept towards the top of the Tunnel 1 Status page.

Figure 9-10.

4. Change the Mode and Local Port settings if needed.

Figure 9-11.

5. Click Submit at the bottom of the page to apply and save the settings. A message displays at the top of the page to confirm the changes have been saved permanently.

Page 80

682 Synergy Plus

9.2.3 Client Configuration

The wireless module is configured to be a server by default, with the ability to accept the connection of a client to it.

• A Server is waiting to Accept a connection from a Client.

• A Client is looking to Connect to a remote Server (host).

The following procedure is for configuring the wireless module as a client, using the Web Manager, to be able to connect the wireless module to an available server connection.

1. Refer to Steps 1-6 in Section 9.2.1 on page 75 to sign in to the Web Manager.

2. Click Tunnel in the left navigation panel.

Figure 9-12.

3. Click Connect towards the top of the Tunnel 1 Status page.

Figure 9-13.

4. Use the drop-down to change the Mode setting, and then click [ Edit ] to display available Host 1 settings.

80 Visit our website www.RiceLake.com

Figure 9-14.

Page 81

Wi-Fi & Bluetooth® Communications

5. Set the Address and Port as needed to connect to the intended available server connection.

Figure 9-15.

6. Click Submit at the bottom of the page to apply and save the settings. A message displays at the top of the page to confirm the changes have been saved permanently.

NOTE: While the wireless module’s server is still available, it is necessary to adjust the server and client mode settings to allow both to function in unison. Even though a device can be set up for both, typically it is only set up as one or the other. Refer to the xPico 200 Series User Guide at www.lantronix.com

for more information.

9.2.4 Timeout Configuration

The wireless module has an optional Disconnect feature that can be configured to break a connection after a set amount of time. This feature applies to both server and client connections.

The following procedure shows where the wireless module’s timeout setting is found using the Web Manager.

1. Refer to Steps 1-6 in Section 9.2.1 on page 75 to sign in to the Web Manager.

2. Click Tunnel in the left navigation panel.

Figure 9-16.

3. Click Disconnect towards the top of the Tunnel 1 Status page.

Figure 9-17.

Page 82

682 Synergy Plus

4. Enter the desired value in milliseconds for the Timeout setting. A value entry of 0 disables the Disconnect feature.

Figure 9-18.

5. Click Submit at the bottom of the page to apply and save the settings. A message displays at the top of the page to confirm the changes have been saved permanently.

9.3 Wireless Module Specifications

The 682 features a Lantronix® xPico 200 Series wireless module. Visit www.lantronix.com to view the latest list of technical specifications on the wireless module.

Wireless Specifications

• IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps

• 20 and 40 MHz channel width with optional SGI

• Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3

• Supports IEEE 802.11 d/h/i

• Bluetooth®/WLAN Coexistence

• 802.11r fast roaming

Bluetooth® Specifications

• Compliant to Bluetooth® Core Specification version 4.2 (BR/EDR/Bluetooth® LE)

• Bluetooth® LE Central and Peripheral Roles

• Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile

• Serial Port Profile (SPP)

Data Communication

• TruPort® Serial Technology – TCP and UDP Server Mode, TCP and UDP Client Mode, Multi-host Connect; TLS Client and Server

• TruPort® Socket – Multi-host Client and Server Modes, HTTP(S), Sockets, TLS

• Authenticated SMTP Support – Send email directly from device

Security and Authentication

• TruPort® Security Software ◦ Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates ◦ Secure Key Storage, Encrypted Configuration ◦ Secure Connections with SSL/TLS, HTTPS ◦ Software Controlled Network Service Ports Enable/Disable ◦ Role Based Access Control

• AES/CCMP and TKIP encryption, WPA/WPA2 Personal

• WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)

• SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys)

• AES Algorithm, 256-bit, 192-bit, 128-bit

82 Visit our website www.RiceLake.com

Page 83

Wi-Fi & Bluetooth® Communications

Wireless Module Specifications Continued

Management Interfaces

• Lantronix ConsoleFlow™ Cloud Software Platform, REST, MQTT

• Lantronix Discovery Protocol (77FE)

• Serial Port, Internal Web Server (HTTP/HTTPS)

• XML Configuration and XML Status (CLI, API)

• Secure Firmware Upgrade via HTTPS, ConsoleFlow™

Protocol Support

• DHCP Client, Server (Soft AP), HTTP Server/Client

• IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS

• SNMP v1/v2

• IPv6

Wireless Features

• Concurrent Soft AP + STA (Client), Client, Soft AP

• Up to 5 simultaneous client connections to Soft AP interface

• Up to 4 in Concurrent Mode

• Connect to multiple WLAN networks, WLAN QuickConnect

Certifications & Compliance

• Type Approvals: USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC), AU/NZS

• Safety: IEC 62368 EN 62368, EN 62311, UL 60950

• RoHS, REACH

• FCC ID: R68XPICO200

• Canada IC: 3867A-XPICO200

• CMIIT ID: 2017AJ6663(M)

Page 84

682 Synergy Plus

10.0 Fieldbus Options Configuration

The 682 can be connected to SCT-2200 Fieldbus options to allow the 682 to communicate with a PLC with the necessary network protocol. configure the available network protocols.

NOTE: The SCT-2200 Fieldbus options must be running firmware version 1.25 or higher to communicate with the 682.

10.1 Fieldbus Option Installation

The following sections provide details on Fieldbus communications and describe the procedures required to

Part No. Description

182591 Fieldbus, SCT-2200 EtherNet/IP Module 182592 Fieldbus, SCT-2200 PROFINET Module 212772 Fieldbus, SCT-2200 PROFIBUS DP Module 182596 Fieldbus, SCT-2200 DeviceNet Module 182597 Fieldbus, SCT-2200 CANopen Module 182598 Fieldbus, SCT-2200 EtherCAT Module 196694 Fieldbus, SCT-2200 Modbus TCP Module

Table 10-1. Available SCT-2200 Fieldbus Options for the 682 Indicator

1. Remove the backplate of the 682 (Section 2.3 on page 13).

2. Wire an RJ45 to blunt-end cable (not provided) to the J4 connector on the 682 CPU board (Section 2.6 on page 21).

NOTE: Maximum RJ45 cable length is 4,000 ft.

682 J4 Pins

1-3 (Not Used) 6-8 (Not Used) – –

4 (Y) 5 (B-) White/Blue

5 (Z) 4 (A+) Blue

– 1-3 (Not Used) – –

SCT-2200 Fieldbus

Module RJ45 Pins

Table 10-2. Pin Assignments

Wire Color Wire Diagram

3. Connect the other end of the cable to one of the RS-485 RJ45 ports on the SCT-2200 Fieldbus module.

Pin RJ45 Ports

6-8 Not Used

5 B 4 A+

1-3 Not Used

Figure 10-1. SCT-2200 Fieldbus Module Wiring

84 Visit our website www.RiceLake.com

Page 85

Fieldbus Options Configuration

10.2 682 Fieldbus Configuration

The following procedure details how to configure the 682 for Fieldbus. Once the necessary 682 parameters are configured and installation complete, communication with the SCT-2200 Fieldbus option (firmware version 1.25 or higher) is ready.

1. Navigate to the Communications menu in Setup mode (Section 4.1 on page 39).

2. Press .

3. Press .

4. Press or until

5. Press .

Serial displays.

RS-232 Port 1 displays.

RS-485 displays.

Trigger displays.

Communications displays.

6. Press . The current setting for the RS-485 Trigger is highlighted.

7. Ensure Fieldbus is selected and press .

NOTE: The Trigger parameter for the Serial Option Card Port would be set to Fieldbus when using a serial option card.

8. Press twice. Serial displays.

9. Press .

10. Press .

Fieldbus displays.

Network Protocol displays.

11. Press . The current set Network Protocol is highlighted. Select needed protocol and press .

12. Press .

Protocol Parameters displays. Edit the protocol specific parameters if necessary.

13. Press to return to Weigh mode.

IMPORTANT: If the Fieldbus option is not communicating the correct data, adjust the Byte/Word Swap parameter in the indicator. See Section 4.5.4.5 on page 51 for the Fieldbus menu structure and parameter descriptions.

682 Fieldbus Troubleshooting

After configuring the 682 parameters, cycle power to the module if it is wired to the 682.

The EtherNet/IP, Modbus TCP, PROFINET, DevicNet, and CANopen modules have three status LEDs:

• Green LED = Power — Green Power LED is on when there is power to the module

• Yellow LED = Status — Yellow Status LED is the RS-485 communication to the 682

If the module is not communicating, the yellow LED blinks rapidly for ~15 seconds then turns off for 1 second. If the module is communicating with the 682, the yellow LED blinks rapidly and does not turn off after ~15 seconds.

• Red LED = Error — Red Error LED blinks until PLC is connected and communicating with the module, then turns off

The PROFIBUS module has four status LEDs that function differently than the above modules:

• Red LED = Power — Red Power LED stays on when there is power to the module

• Yellow LED = PROFIBUS — Yellow PROFIBUS LED stays on once module is connected to the PLC

If the module is not connected to the 682, the Yellow PROFIBUS LED blinks rapidly for ~15 seconds, then the Green RX LED blinks 3 times, followed by the Yellow TX LED blinking 3 times. This cycle repeats until module connects.

• Green LED = RX — Green RX LED and Yellow TX LED blink alternately when module is communicating with the 682

• Yellow LED = TX — Yellow TX LED and Green RX LED blink alternately when module is communicating with the 682

Page 86

682 Synergy Plus

10.3 EtherNet/IP Configuration

NOTE: The 682 must be configured for Fieldbus and EtherNet/IP:

• Setup → Communications → Serial → RS-485 or Serial Option Card Port set to Fieldbus

• Setup → Communications → Fieldbus → Network Protocol set to EtherNet/IP

10.3.1 EDS File Setup

This procedure walks through setting up the EtherNet/IP with an EDS file, preferred method. Use RXLogix to import EDS files.

1. Select the Module Type Vendor Filter.

2. Select Hilsher GmbH.

3. Select the catalog number NIC 52-RE/EIS and click Change.

4. Select Exclusive Owner from the drop down list and click OK.

10.3.2 Generic Module Setup

Use the following settings to setup a generic module.

• Comm Format: Data - DINT

• Input: Assembly Instance: 101 | Size: 33

• Output: Assembly Instance: 100 | Size: 32

• Configuration: Assembly Instance: 8 | Size: 0

10.4 PROFINET Configuration

NOTE: The 682 must be configured for Fieldbus and PROFINET:

• Setup → Communications → Serial → RS-485 or Serial Option Card Port set to Fieldbus

• Setup → Communications → Fieldbus → Network Protocol set to PROFINET

Download GSDML files from the Rice Lake Weighing Systems website and configure PROFINET based on Figure 10-2.

Figure 10-2. PROFINET Device Overview

NOTE: The following sections apply for both EtherNet/IP and PROFINET.

86 Visit our website www.RiceLake.com

Page 87

10.5 Data From the PLC to the Indicator

0 Command Register 3 0

1 1 2

2 Parameter 1 3 4

3 1 6

4 Parameter 2 3 8

5 1 10

6 Parameter 3 3 12

7 1 14

8 Capacity 3 16

9 1 18

10 Units 3 20

11 1 22

12 Format 3 24

13 1 26

14 Calibration Point 3 28

15 1 30

16 Calibration Weight 3 32

17 1 34

Table 10-3. PLC to Indicator Data

Fieldbus Options Configuration

2 1

0 3

2 5

0 7

2 9

0 11

2 13

0 15

2 17

0 19

2 21

0 23

2 25

0 27

2 29

0 31

2 33

0 35

Page 88

682 Synergy Plus

10.5.1 Commands

Command Decimal Description

No Command 0 No action Zero Scale 1 Zero the scale Tare Scale 2 Tare the current weight if parameter 1=0, otherwise tare

the value that is in parameter 1 Clear Tare 3 Clear a tare if one exists Display Net Mode 4 Switch the scale from gross mode to net mode Display Gross Mode 5 Switch the scale from net mode to gross mode Write Setpoint 10 Parameter 1 = setpoint # parameter 2 = value Read Setpoint 11 Parameter 1 = setpoint # Read IO Points 12 Parameter 1 = IO slot number Set Output On 24 Parameter 1 = slot parameter 2 = bit Set Output Off 25 Parameter 1 = slot parameter 2 = bit Write Setup 27 Write calibration settings and enter calibration mode Restart Instrument 34 Restarts the indicator Perform Zero Calibration 35 Performs a zero calibration Perform Span Calibration 36 Performs a span calibration Point Calibration 37 Point value found in parameter 1 (1-3) Save Calibration 38 Save the calibration and exit calibration mode Abort Calibration 39 Aborts a calibration and clears any errors Keyboard Enable/Disable 40 Disable keys (parameter 1 = 0)

Enable keys (parameter 1 = 1) Read Accumulator 41 Multivalue 1 = returned accumulator value

Table 10-4. Command Values

88 Visit our website www.RiceLake.com

Page 89

Fieldbus Options Configuration

10.6 Data From the Indicator to the PLC

NOTE: For EtherNet/IP options ONLY, if a generic module is setup, Header information occupies the first four bytes of data and pushes other data registers down.

0 Gross Weight 3 0

2 1

1 1 2

0 3

2 Net Weight 3 4

2 5

3 1 6

0 7

4 Scale Status 3 8

2 9

5 1 10

0 11

6 Onboard Digital I/O Status 3 12

2 13

7 1 14

0 15

8 Last Command Processed 3 16

2 17

9 1 18

0 19

10 Command Status 3 20

2 21

11 1 22

0 23

12 Calibration Status 3 24

2 25

13 1 26

0 27

14 Multi-use Value 1 3 28

2 29

15 1 30

0 31

16 Multi-use Value 2 3 32

2 33

17 1 34

0 35

Table 10-5. Indicator to PLC Data

Page 90

682 Synergy Plus

10.6.1 Onboard Digital I/O Status

10.6.2 Calibration Status

10.6.3 Command Status

Bit Description Bit Status

0 Digital I/O Bit 0 = Off 1 = On 1 2 3

4-31 Future Use

Table 10-6. Onboard Digital I/O Status

Value Description

0 Calibration not started 1 Calibration Acquisition in process 2 Calibration Acquisition OK 3 Calibration error

Table 10-7. Calibration Status

Bytes Description

0-3 Current command status result

Table 10-8. Command Status

The following values named Result of last command received, needs updating after the last command processed value is updated.

Value Description

0 Command successfully performed 1 Not a valid command 2 General error; Trying to tare or zero while scale is in motion 3 Setpoint number does not exist; When trying to read or write to a setpoint but the setpoint

value does not exist

4 Setpoint Kind set to OFF; When trying to read or write to a setpoint, but that setpoint is

not configured

5 Setpoint not enabled; When trying to read or write to a setpoint but the setpoint is not

enabled 6 Invalid IO; When trying to set any output on or off and that output is not configured 7 Not in Setup mode; When trying to use write setup, zero calibration, span calibration,

point calibration, save calibration or abort calibration commands 8 Wrong command; Non-calibration command used during calibration 9 Invalid unit selection

10 Invalid decimal selection 11 Invalid display division selection 12 Calibration point out of range (1–4) 13 Invalid grads value 14 Calibration not allowed for MRMI or serial scale 15 Calibration weight out of range 16 Accumulator is not enabled 17 Audit trail is not enabled; Check the jumper to see that it is in the correct position

Table 10-9. Command Descriptions

90 Visit our website www.RiceLake.com

Page 91

Unit Values

Decimal Point Values

Fieldbus Options Configuration

Value Unit

0 Use configured unit 1 Lb 2 Kg 3 Oz 4 Tn 5 T 6 G 7 None

Table 10-10. Unit Values

Value Decimal Point

0 Use configured

decimal point 1 88.88881 2 88.88882 3 88.88885 4 888.8881 5 888.8882 6 888.8885 7 8888.881 8 8888.882 9 8888.885

10 88888.81 11 88888.82 12 88888.85 13 888888.1 14 888888.2 15 888888.5 16 8888881 17 8888882 18 8888885 19 8888810 20 8888820 21 8888850 22 8888100 23 8888200 24 8888500

Table 10-11. Decimal Point Values

Page 92

682 Synergy Plus

10.6.4 Scale Status

Bit Description Bit Status

0 Net Weight Polarity 0 = Positive 1 = Negative 1 Gross Weight Polarity 2 Weight Stability 0 = Stable 1 = Motion 3 Underload Condition 0 = OK 1 = Under 4 Overload Condition 0 = OK 1 = Under 5 Push Button Tare Condition 0 = No 1 = Yes 6 Keyed Tare Condition 0 = No 1 = Yes 7 Gross Center of Zero 0 = COZ** 1 = COZ** 8 Display Mode 0 = Net 1 = Gross

9 Current Units 0 = Primary 1 = Other 10 Heartbeat - delay of 500 ms between on and off 0 = Off 1 = On 11 Scale Error 0 = Error 1 = OK 12 Accumulator Weight Polarity 0 = Positive 1 = Negative

12-31 Future Use

** Center of Zero

Table 10-12. Status Descriptions

10.6.5 Scale Error

NOTE: The scale error bit is always set to 1 unless one of the following errors occurs. At that time, the error bit is set to 0 until the error is cleared.

Error Condition

Configuration signature error General configuration checksum error Load cell data checksum error Backup battery voltage low Battery backed memory corrupt Load cell A/D error Tare data checksum error Accumulator overflow error Unable to write to non-volatile memory

Table 10-13. Error Conditions

92 Visit our website www.RiceLake.com

Page 93

Fieldbus Options Configuration

10.7 Standard Calibration Process

Refer to Table 10-3 on page 87 for parameter data information and Table 10-4 on page 88 for descriptions of calibration commands. See Section 10.6.2 on page 90 and Section 10.6.3 on page 90 for possible command responses during the calibration process.

The standard calibration process requires access to Setup mode (Section 4.1 on page 39).

1. Set Capacity, Units and Format parameter data values (Table 10-3 on page 87).

2. Send command 27 to write Capacity, Units and Format parameter data values.

NOTE: No external button presses are needed to put the indicator into calibration mode with command 27 as long as the Audit Jumper is in the ON position (Section 4.1.1 on page 39).

3. Remove all weight from the scale.

4. Send command 35 to perform a zero calibration.

5. Set the Calibration Weight parameter data value to the needed span weight.

6. Set the Calibration Point parameter data value to 1.

7. Place the specified calibration weight on the scale.

8. Send command 36 to perform a span calibration.

9. Send command 38 to save and exit calibration mode.

Page 94

682 Synergy Plus

11.0 Revolution

The Revolution utility provides a suite of functions used to support configuration, calibration, customization and backup of the 682 software.

Calibration values and scale configuration can both be saved and restored to the 682 using Revolution.

NOTE: For system requirements visit the Revolution product page on Rice Lake Weighing Systems website.

11.1 Connecting to the Indicator

Connect the PC serial port to a 682 comm port, then click Connect in the toolbar. Revolution attempts to establish communications to the indicator. If communication settings need to be adjusted, select Options… from the Tools menu.

Downloading to the Indicator

The Send Configuration to Device function in the Revolution Communications menu allows a Revolution configuration file (with or without scale calibration data) or ticket formats to be sent/downloaded to a connected indicator in Setup mode.

The Send Section to Device function in the Communications menu allows the download of only the currently displayed object, such as a scale configuration.

Because less data is transferred using the Send Section to Device, it is typically faster than a full configuration download, but there is an increased possibility the download fails due to dependencies on other objects. If the download fails, try performing a complete download using the Send Configuration to Device function.

Uploading Configuration to Revolution

The Get Configuration from Device function in the Revolution Communications menu allows the existing configuration of a connected indicator to be saved to a file on the PC. Once saved, the configuration file provides a backup which can be quickly restored to the indicator if needed. Alternatively, the file can be edited within Revolution and sent back to the indicator.

11.2 Saving and Transferring Data

NOTE: Revolution has a module to save and transfer data. It is the preferred method over using ProComm or Hyper Terminal.

11.2.1 Saving Indicator Data to a PC

Configuration data can be saved to a computer connected to the selected port. The PC must be running a communications program such as PROCOMMPLUS When configuring the indicator, ensure the values set for the baud and bits parameters on the serial menu match the baud rate,

bits and parity settings configured for the serial port on the PC. To save all configuration data, first put the communications program into data capture mode, then

mode and send the DUMPALL command to the indicator. The 682 responds by sending all configuration parameters to the PC as ASCII-formatted text.

11.2.2 Downloading Configuration Data from PC to Indicator

Configuration data saved on a PC or disc can be downloaded from the PC to an indicator. This procedure is useful when a number of indicators with similar configurations are set up or when an indicator is replaced.

To download configuration data, connect the PC to the selected port as described in Section 11.2.1. Place the indicator in Setup mode and use the PC communications software to send the saved configuration data to the indicator. When transfer is complete, calibrate the indicator as described in Section 6.0 on page 67.

place the indicator in Setup

11.3 Updating Firmware

Revolution is used to update the firmware of the 682 indicator. The link to begin this process is available on the Revolution home screen. Updating the firmware defaults the configuration settings.

94 Visit our website www.RiceLake.com

Page 95

EDP Commands

12.0 EDP Commands

The 682 indicator can be controlled by a personal computer connected to one of the indicator communication ports. Control is provided by a set of commands which can simulate front panel key press functions, return and change setup parameters, and perform reporting functions. The commands provide the capability to print configuration data or to save data to an attached personal computer. This section describes the EDP command set and procedures for saving and transferring data using the communication ports. The EDP command set is divided into several groups.

When the indicator processes a command, it either responds with a value (for reporting commands, or when querying parameter settings), or with the message OK. The OK response verifies the command was received and has been executed. If the command is unrecognized, the indicator responds with ?? invalid command. If the command cannot be executed in the current mode, the indicator responds with ?? invalid mode. If the command is recognized, but the value is out of range or an invalid type, the indicator responds with ?? followed by the type and the range.

12.1 Key Press Commands

Key press serial commands simulate pressing keys on the front panel of the indicator. These commands can be used in both setup and Weigh mode. Several of the commands serve as pseudo keys, providing functions which are not represented by a key on the front panel.

For example, to enter a 15 lb tare weight using serial commands:

1. Type K1 and press

2. Type K5 and press

3. Type KTARE and press

Enter (or Return). Enter.

Enter.

Command Function

KZERO In Weigh mode, this command acts like pressing the Zero key KGROSSNET In Weigh mode, this command acts like pressing the Gross/Net key KGROSS Displays Gross mode (pseudo key) KNET Displays Net mode (pseudo key) KTARE In Weigh mode, this command acts like pressing the Tare key KUNITS In Weigh mode, this command acts like pressing the Units key KPRIM Displays primary units (pseudo key) KSEC Displays secondary units (pseudo key) KTER Displays tertiary units (pseudo key) KPRINT In Weigh mode, this command acts like pressing the Print key KSOFT1–5 In Weigh mode, this command acts like pressing the associated softkey KPRINTACCUM Prints the accumulator value KDISPACCUM Displays the accumulator value KDISPTARE Displays the tare value KCLR In Weigh mode, this command acts like pressing the Clear key KCLRCN Clears consecutive number KCLRTAR Clears the tare from the system (pseudo key) KLEFT In Setup mode, this command moves Left in the menu KRIGHT In Setup mode, this command moves Right in the menu KUP In Setup mode, this command moves Up in the menu KDOWN In Setup mode, this command moves Down in the menu KEXIT In Setup mode, this command exits to Weigh mode KSAVE In Setup mode, this command saves the current configuration KSAVEEXIT In Setup mode, this command saves the current configuration and exits to Weigh mode KTIME Displays the Set System Time screen KDATE Displays the Set System Date screen KTIMEDATE Displays the Set System Time screen KCLRACCUM Clears the accumulator

Table 12-1. Key Press Commands

Page 96

682 Synergy Plus

Command Function

Kn This command acts like pressing numbers 0 (zero) through 9 KDOT This command acts like pressing the decimal point (.) KENTER This command acts like pressing the Enter key KLOCK=x In Weigh mode, this command locks specified front panel key; x = KPRINT, KUNITS, KTARE, KGROSSNET, KZERO,

K0-K9, KDOT, KCLEAR (example: to lock the Zero key, enter KLOCK=KZERO)

KUNLOCK=x In Weigh mode, this command unlocks specified front panel key; x = KPRINT, KUNITS, KTARE, KGROSSNET, KZERO,

K0-K9, KDOT, KCLEAR (example: to unlock the Print key, enter KUNLOCK=KPRINT)

Table 12-1. Key Press Commands (Continued)

12.2 Reporting Commands

Reporting commands send specific information to the communications port. The commands listed in Table 12-2 can be used in either Setup mode or Weigh mode.

Command Function

DUMPALL Returns a list of all parameter values DUMPAUDIT Returns the Audit Trail information KDUMPAUDIT Returns the Audit Trail information on the same port which the EDP command was sent AUDIT.LRVERSION Returns the legally relevant firmware version AUDIT.CONFIG Returns the number of times configuration has changed AUDIT.CALIBRATE Returns the number of calibrations AUDITJUMPER Returns the position of the audit jumper: OK (if the audit jumper is ON) or ?? (if the audit jumper is OFF) SPDUMP Returns a list of the setpoint parameter values VERSION Returns the installed firmware version FIELDBUS.VERSION Returns the connected Fieldbus module’s firmware version; returns V0.00.00 if no Fieldbus module is connected BUILD Returns the firmware version and build number HARDWARE Returns the option card installed HWSUPPORT Returns the CPU board part number RTCBATTERYSTATUS Returns the status of the real time clock battery: GOOD or BAD

Table 12-2. Reporting Commands

12.3 SD Card Commands

The following commands can be used to store or restore a backup copy of the indicator configuration to a microSD card. Indicator must be in Setup mode.

NOTE: A microSD card must be installed when using SD Card commands to back up or restore indicator configuration.

Command Function

SDCARD.STORE Store (back up) the current configuration to the installed microSD card; Answers OK if successful SDCARD.LOAD Loads a stored backup configuration from the installed microSD card; Answers OK if successful

Table 12-3. Reset Configuration Command

96 Visit our website www.RiceLake.com

Page 97

EDP Commands

12.4 Reset Configuration Command

The following command can be used to reset the configuration parameters of the 682.

Command Function

RESETCONFIGURATION Restores all configuration parameters to default values (Setup mode only)

Table 12-4. Reset Configuration Command

NOTE: All scale calibration settings are lost when the RESETCONFIGURATION command is run.

12.5 Scale Parameter Setting Commands

Parameter setting commands allow the current value for a configuration parameter to be displayed or changed. Current configuration parameter settings can be displayed in Setup mode or Weigh mode using the following syntax:

command<ENTER>

Most parameter values can be changed in Setup mode only; setpoint parameters listed in Table 12-15 on page 103 can be changed when in normal Weigh mode.

NOTE: The user must stop the current batch for new values to take effect.

Use the following command syntax when changing parameter values: command=value<ENTER>, where value is either a number or a parameter value. Use no spaces before or after the equal (=) sign. If an incorrect command is typed or an invalid value is specified, the indicator returns ?? followed by the error message.

Example: to set the motion band parameter on Scale #1 to 5 divisions, type the following:

SC.MOTBAND#1=5<ENTER>

To return a list of the available values for parameters with specific values, enter the command and equal sign, followed by a question mark (command=?<ENTER>). The indicator must be in Setup mode to use this function.

After changes are made to configuration parameters using EDP commands, use the KSAVE or KSAVEEXIT commands to commit the changes to memory.

Command Description Values

SC.CAPACITY#n Scale capacity 0.0000001–9999999.0, 10000.0 (default) SC.ZTRKBND#n Zero track band (in display divisions) 0.0–100.0, 0.0 (default) SC.ZRANGE#n Zero range (%) 0.0–100.0, 1.9 (default) SC.SPLIT#n Enables Multi-Range or Multi-Interval modes OFF (default), MULTIRANGE, MULTIINTERVAL SC.RANGE1#n

SC.RANGE2#n SC.RANGE1.FMT#n

SC.RANGE2.FMT#n

SC.MOTBAND#n Motion band (in display divisions) 0–100, 1 (default) SC.SSTIME#n Standstill time (in 0.1 second intervals; 10 = 1 second) 0–600, 10 (default) SC.SENSE#n Sets the type of load cell cable connected 4-WIRE (default), 6-WIRE SC.OVERLOAD#n Overload FS+2% (default), FS+1D, FS+9D, FS SC.WMTTHRH#n Weighment threshold 0.0–9999999.0, 1000.0 (default) SC.NUMWEIGH#n Number of weighments (read only) 0–4294967295 SC.MAX_WEIGHT#n Maximum weighment (read only) -9999999–9999999 SC.MAX_DATE#n Date of maximum weighment (read only) Up to 25 alphanumeric characters For commands ending with #n, n is the scale number (1)

Sets the capacity of Range 1-2 for the scale in primary units

Sets the Range 1-2 units format (decimal point and display divisions)

0.0-9999999.0, 0.0 (default)

8888100, 8888200, 8888500, 8888810, 8888820, 8888850, 8888881 (default), 8888882, 8888885, 888888.1, 888888.2,

888888.5, 88888.81, 88888.82, 88888.85, 8888.881,

8888.882, 8888.885, 888.8881, 888.8882, 888.8885,

88.88881, 88.88882, 88.88885

Table 12-5. Scale Parameter Setting Commands

Page 98

682 Synergy Plus

Command Description Values

SC.DIGFLTR1#n SC.DIGFLTR2#n SC.DIGFLTR3#n

SC.DFSENS#n Digital filter cutout sensitivity 2OUT (default), 4OUT, 8OUT, 16OUT, 32OUT, 64OUT, 128OUT SC.DFTHRH#n Digital filter cutout threshold NONE (default), 2D, 5D, 10D, 20D, 50D, 100D, 200D, 250D SC.RATLTRAP#n Rattletrap filtering OFF (default), ON SC.SMPRAT#n Scale A/D sample rate 6.25HZ, 7.5HZ, 12.5HZ, 15HZ, 25HZ, 30HZ (default), 50HZ,

SC.PWRUPMD#n Power up mode GO (default), DELAY SC.TAREFN#n Tare function BOTH (default), KEYED, NOTARE, PBTARE SC.PRI.FMT#n Primary units format (decimal point and

SC.PRI.UNITS#n Primary units LB (default), KG, OZ, TN, T, G, NONE SC.SEC.FMT#n Secondary units format (decimal point and

SC.SEC.UNITS#n Secondary units LB, KG (default), OZ, TN, T, G, CUSTOM1, CUSTOM2,

SC.SEC.ENABLED#n Enable the Secondary Units ON (default), OFF SC.TER.FMT#n Tertiary units format (decimal point and

SC.TER.UNITS#n Tertiary units LB, KG (default), OZ, TN, T, G, CUSTOM1, CUSTOM2,

SC.TER.ENABLED#n Enable the Tertiary Units OFF (default), ON SC.CUNITS1#n

SC.CUNITS2#n SC.CUNITS3#n

SC.CUNITSMULT1#n SC.CUNITSMULT2#n SC.CUNITSMULT3#n

SC.FILTERCHAIN#n Defines what filter to use AVGONLY (default), ADPONLY, DMPONLY, RAW SC.DAMPINGVALUE#n Sets the damping time constant 1–2560 (in 0.1 second intervals), 10 (default) SC.ADTHRESHOLD#n Adaptive filter weight threshold value 0–2000 (in display divisions), 10 (default) SC.ADSENSITIVITY#n Adaptive filter sensitivity LIGHT (default), MEDIUM, HEAVY SC.ACCUM#n Accumulator enable OFF (default), ON SC.WZERO#n Perform zero calibration — SC.TEMPZERO#n Perform temporary zero calibration — SC.LASTZERO#n Perform last zero calibration — SC.WVAL#n Test weight value 0.000001–9999999.999999, 10000.0 (default) SC.WSPAN#n Perform span calibration — SC.WLIN.F1#n–

SC.WLIN.F4#n For commands ending with #n, n is the scale number (1)

Number of A/D samples averaged for the individual stages (1-3) of the three stage digital filter

display divisions)

Sets label for available custom units; maximum length is 2 alphanumeric characters

Sets conversion factor/multiplier applied to the primary units to convert weight for custom units

Actual raw count value for linear points 1–4 0–16777215, 0 (default)

1, 2, 4 (default), 8, 16, 32, 64, 128, 256

60HZ, 100HZ, 120HZ

8888100, 8888200, 8888500, 8888810, 8888820, 8888850, 8888881 (default), 8888882, 8888885, 888888.1, 888888.2,

888888.5, 88888.81, 88888.82, 88888.85, 8888.881,

8888.882, 8888.885, 888.8881, 888.8882, 888.8885,

88.88881, 88.88882, 88.88885

8888100, 8888200, 8888500, 8888810, 8888820, 8888850, 8888881, 8888882, 8888885, 888888.1, 888888.2,

888888.5 (default), 88888.81, 88888.82, 88888.85,

8888.881, 8888.882, 8888.885, 888.8881, 888.8882,

888.8885, 88.88881, 88.88882, 88.88885

CUSTOM3, NONE

8888100, 8888200, 8888500, 8888810, 8888820, 8888850, 8888881, 8888882, 8888885, 888888.1, 888888.2,

888888.5 (default), 88888.81, 88888.82, 88888.85,

8888.881, 8888.882, 8888.885, 888.8881, 888.8882,

888.8885, 88.88881, 88.88882, 88.88885

CUSTOM3, NONE

“blank” (default)

0.0000001 to 9999999.0, 1.0 (default)

Table 12-5. Scale Parameter Setting Commands (Continued)

98 Visit our website www.RiceLake.com

Page 99

EDP Commands

Command Description Values

SC.WLIN.V1#n– SC.WLIN.V4#n

SC.WLIN.C1#n– SC.WLIN.C4#n

SC.LC.CD#n Deadload coefficient raw count value 0–16777215, 8386509 (default) SC.LC.CW#n Span coefficient raw count value 0–16777215, 2186044 (default) SC.LC.CZ#n Temporary zero raw count value 0–16777215, 2186044 (default) SC.REZERO#n Perform the Rezero calibration function — SC.INITIALZERO#n Initial Zero range in % of full scale 0.0–100.0, 0.0 (default) SC.RTZGRAD#n Number of graduations from the zero base at which the

For commands ending with #n, n is the scale number (1)

Test weight value for linear points 1–4 (A setting of 0 indicates the linear point is not used)

Perform linear calibration on points 1–4 —

accumulator re-arms itself

0.000001–9999999.999999, 0.0 (default)

0.0–100.0, 0.4 (default)

Table 12-5. Scale Parameter Setting Commands (Continued)

12.6 Serial Port Setting Commands

The following commands can be used to configure serial port parameters.

Command Description Values

EDP.TRIGGER#p Port serial input trigger function CMD (default), STRIND, STRLFT, REMOTE EDP.BAUD#p Port baud rate 1200, 2400, 4800, 9600 (default), 19200, 28800, 38400, 57600, 115200 EDP.BITS#p Port data bits/parity 8NONE (default), 8EVEN, 8ODD, 7EVEN, 7ODD EDP.TERMIN#p Port line termination character CR/LF (default), CR EDP.STOPBITS#p Port stop bits 1 (default), 2 EDP.ECHO#p Port echo ON (default), OFF EDP.RESPONSE#p Port response ON (default), OFF EDP.EOLDLY#p Port end-of-line delay 0–255 (0.1-second intervals), 0 (default) EDP.ADDRESS#p Port RS-485 address (ports 3-5 only) 0–255, 0 (default) EDP.DUPLEX#p Port duplex setting for RS-485 ports

(ports 3-5 only)

EDP.TYPE#p Serial option card port type

(ports 4-5 only)

For commands ending with #p, p is the port number (1-5)

Table 12-6. Serial Port Commands

FULL (default), HALF

RS232 (default), RS485

12.6.1 Serial Ports

• Ports 1 and 2 are the two RS-232 ports

• Port 3 is the RS-485/422 port

• Port 4 and 5 are the two RS-232 or RS-485/422 ports on the optional Dual Serial Option Card

Page 100

682 Synergy Plus

12.7 Ethernet and USB Setting Commands

The following commands can be used to configure Ethernet and USB parameters.

Command Description Values

WIRED.MACID Ethernet hardware MAC ID (read only) xx:xx:xx:xx:xx:xx WIRED.DHCP Enable Ethernet DHCP ON (default), OFF WIRED.ENABLED Enable wired Ethernet adapter ON, OFF (default) WIRED.IPADDR Ethernet IP address Valid IP xxx.xxx.xxx.xxx*, 0.0.0.0 (default) WIRED.SUBNET Ethernet subnet mask Valid IP xxx.xxx.xxx.xxx*, 255.255.255.0 (default) WIRED.GATEWAY Ethernet gateway Valid IP xxx.xxx.xxx.xxx*, 0.0.0.0 (default) TCPC1.ECHO TCP Client 1 echo ON (default), OFF TCPC1.EOLDLY TCP Client 1 end-of-line delay 0–255 (in 0.1 sec intervals), 0 (default) TCPC1.IPADDR TCP Client 1 remote server IP Valid IP xxx.xxx.xxx.xxx*, 0.0.0.0 (default) TCPC1.LINETERM TCP Client 1 line termination CR/LF (default), CR TCPC1.PORT TCP Client 1 remote server port 1025–65535, 10001 (default) TCPC1.RESPONSE TCP Client 1 response ON (default), OFF TCPC1.TRIGGER TCP Client 1 input trigger type CMD (default), STRIND, STRLFT, REMOTE TCPC1.DISCTIME TCP Client 1 disconnect time (in seconds) 0–60 (0 = do not disconnect), 0 (default) TCPS.PORT TCP Server port number 1025–65535, 10001 (default) TCPS.HOSTNAME TCP Server host name Up to 30 alphanumeric characters, 0 (default) TCPS.TRIGGER TCP Server input trigger type CMD (default), STRIND, STRLFT, REMOTE TCPS.ECHO TCP Server echo ON (default), OFF TCPS.LINETERM TCP Server line termination CR/LF (default), CR TCPS.RESPONSE TCP Server response ON (default), OFF USB.TRIGGER USB input trigger type CMD (default), STRIND, STRLFT, REMOTE USB.LINETERM USB line terminator CR/LF (default), CR USB.ECHO USB echo ON (default), OFF USB.RESPONSE USB response ON (default), OFF USB.EOLDLY USB end of line delay (in 0.1 second intervals) 0–255, 0 (default) * A valid IP consists of four numbers, in the range of 0 to 255, separated by a decimal point (127.0.0.1 and 192.165.0.230 are valid IP addresses)

Table 12-7. Ethernet TCP/IP and USB Commands

12.8 Wi-Fi and Bluetooth® Setting Commands

The following commands can be used to configure Wi-Fi and Bluetooth® parameters.

Command Description Values

WIFIBT.ENABLED Enables the wireless module and sets Wi-Fi and/or Bluetooth® OFF (default), WIFI, BLUETOOTH, BOTH WIFIBT.TRIGGER Wi-Fi/Bluetooth® input trigger type CMD (default), STRIND, STRLFT, REMOTE WIFIBT.TERMIN Wi-Fi/Bluetooth® line terminator CR/LF (default), CR WIFIBT.ECHO Wi-Fi/Bluetooth® echo ON (default), OFF WIFIBT.RESPONSE Wi-Fi/Bluetooth® response ON (default), OFF WIFIBT.EOLDLY Wi-Fi/Bluetooth® end of line delay 0–255 (in 0.1 second intervals), 0 (default) BLUETOOTH.MACID Returns MAC address of the Bluetooth® radio (read only) xx:xx:xx:xx:xx:xx WIFI.MACID Returns MAC address of the Wi-Fi radio (read only) xx:xx:xx:xx:xx:xx

Table 12-8. Wi-Fi and Bluetooth® Commands

100 Visit our website www.RiceLake.com
