380/380X/381

Synergy Series

Battery Powered Digital Weight Indicators

Technical Manual

380 Synergy Series Digital Weight Indicator

380X Synergy Series Digital Weight Indicator

381 Synergy Series Digital Weight Indicator

PN 201481 Rev HApril 22, 2024

Page 2

Rice Lake Weighing Systems

is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete and

accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make

changes to the technology, features, specifications and design of the equipment without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Page 3

Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.

Revision History

This section tracks and describes manual revisions for awareness of major updates.

Revision Date Description

D August 10, 2022 Revision history established; clarified configuration section and general formatting updates. E November 3, 2022 Added cord grip diameter ranges. F April 19, 2023 Added the 381 indicator models to the manual. G August 16, 2023 Added clarifying note about startup H April 22, 2024 Added the 380X indicator model to the manual

Table i. Revision Letter History

Revision History

Page 4

380/380x/381 Synergy Indicator

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

Contents

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.3 Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.4 FCC Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5 Lithium-Ion Battery Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

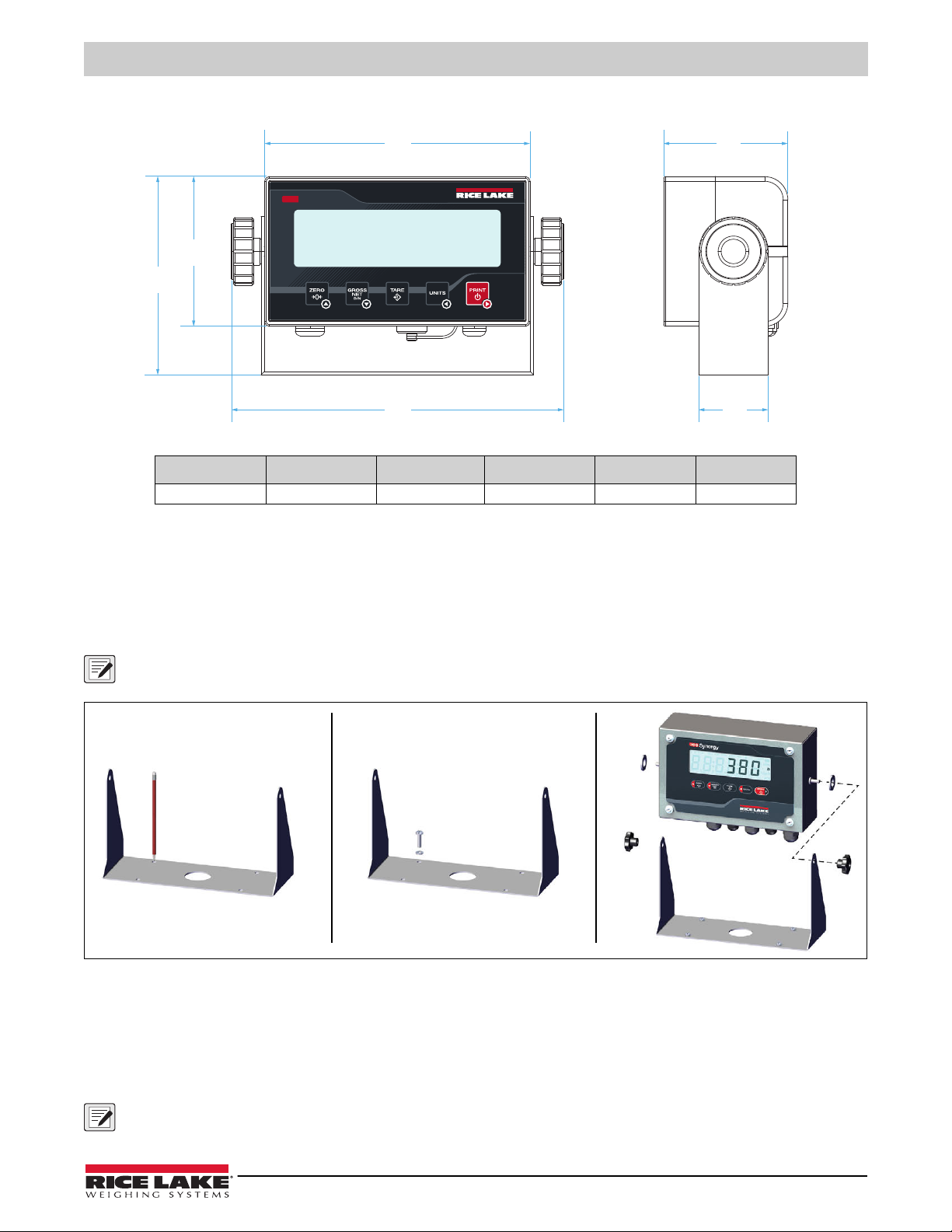

2.2 380/380X Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 381 Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5 Open Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

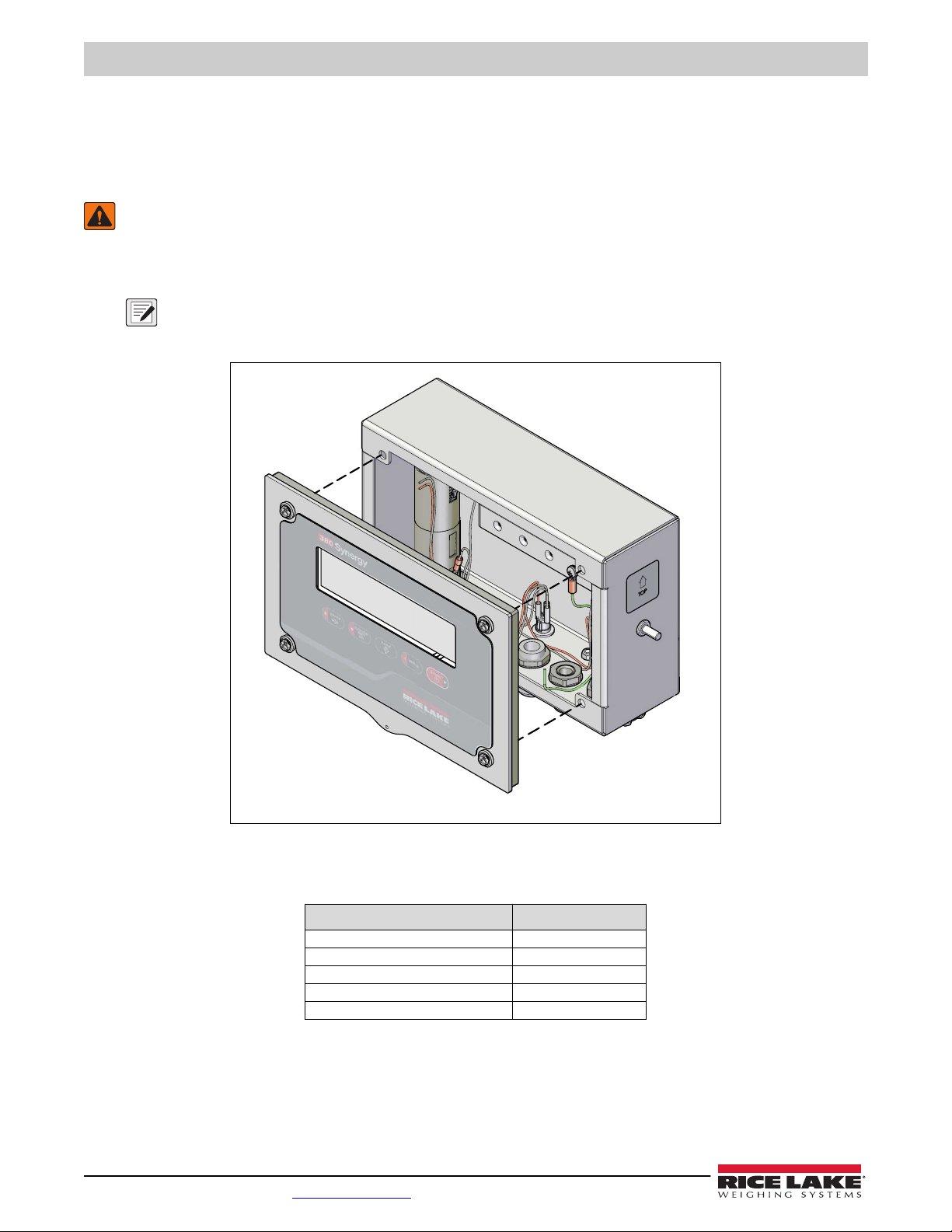

2.5.1 380/380X Front Plate Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5.2 381 Back Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.6 Cord Grip Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

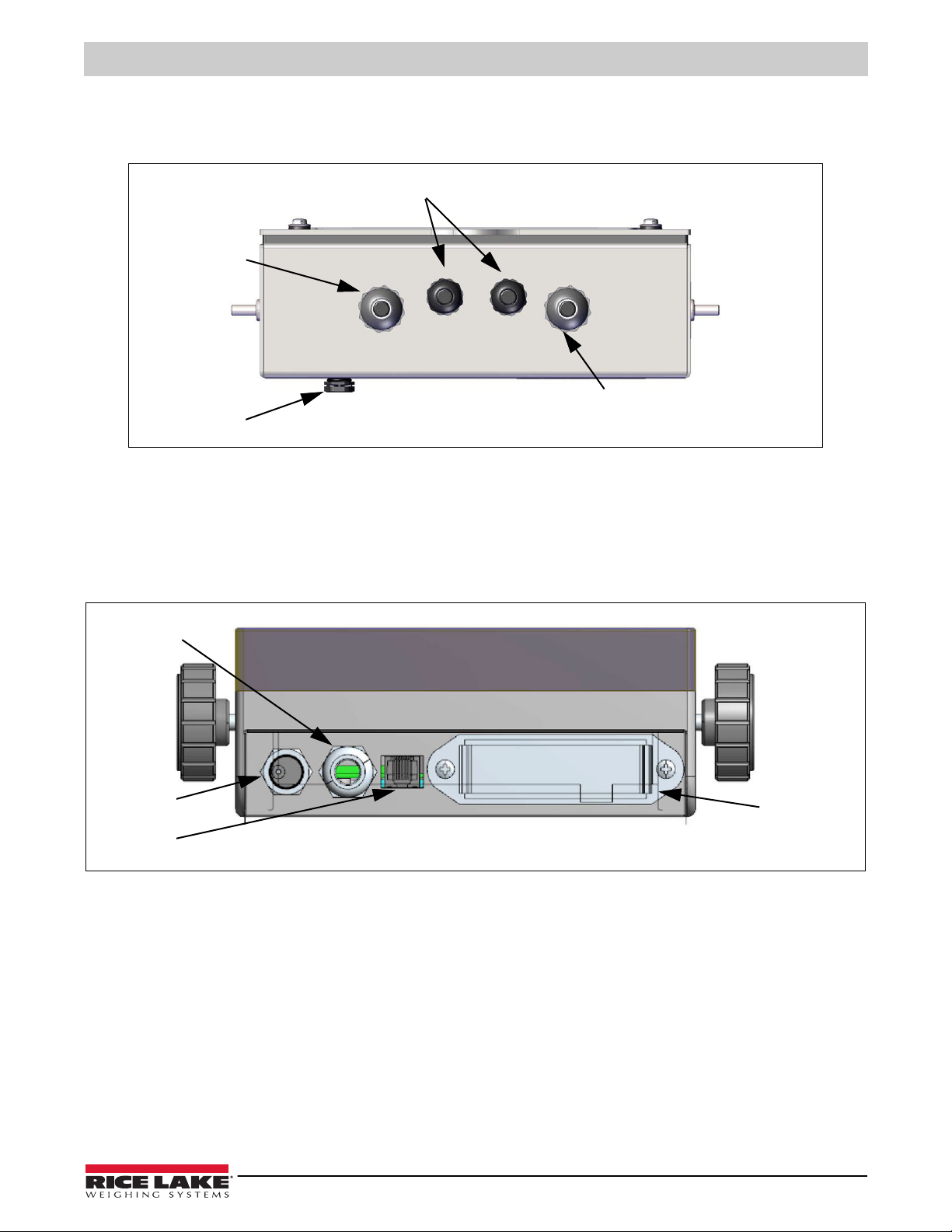

2.6.1 380 Cord Grip Connections (PN 202711) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

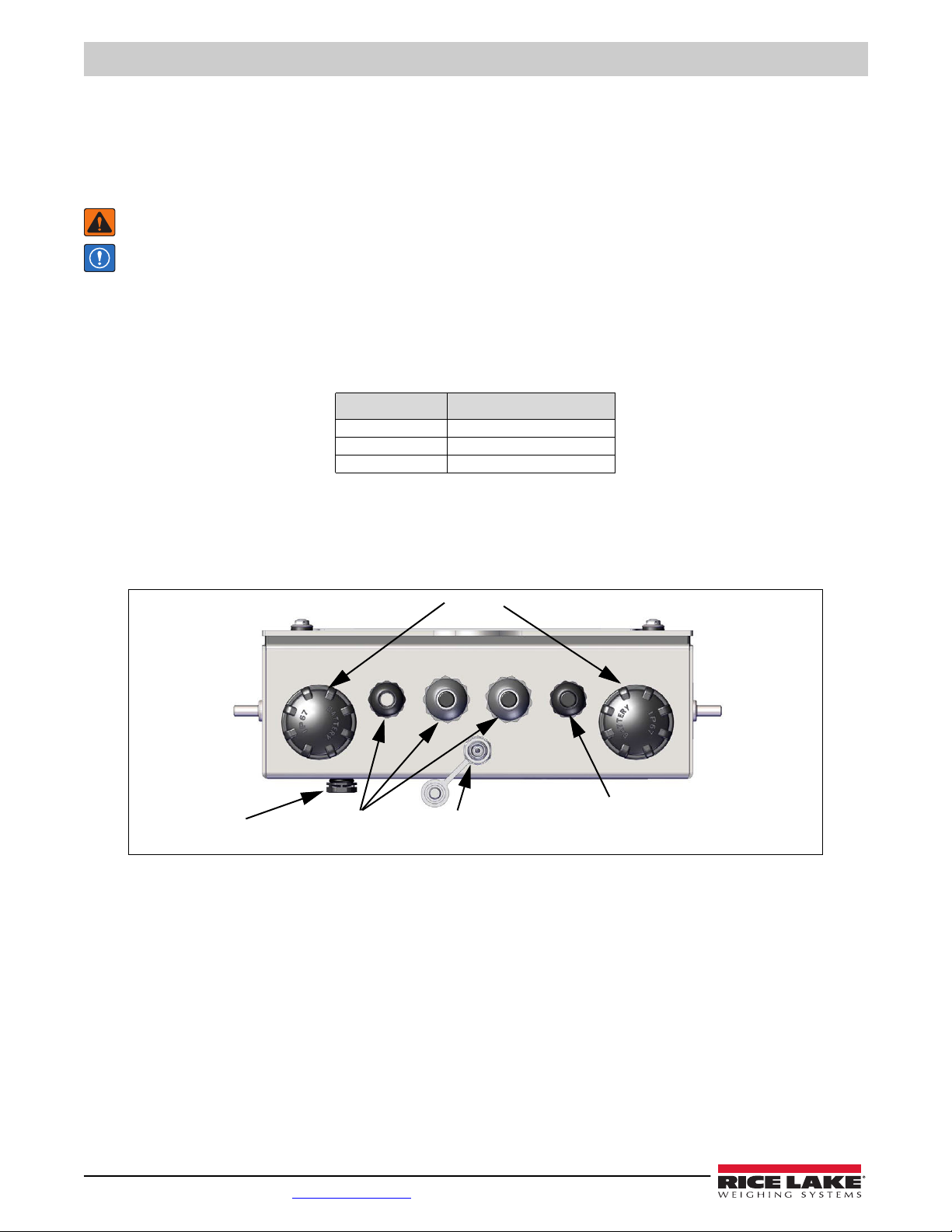

2.6.2 380X Cord Grip Connections (PN 214337) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

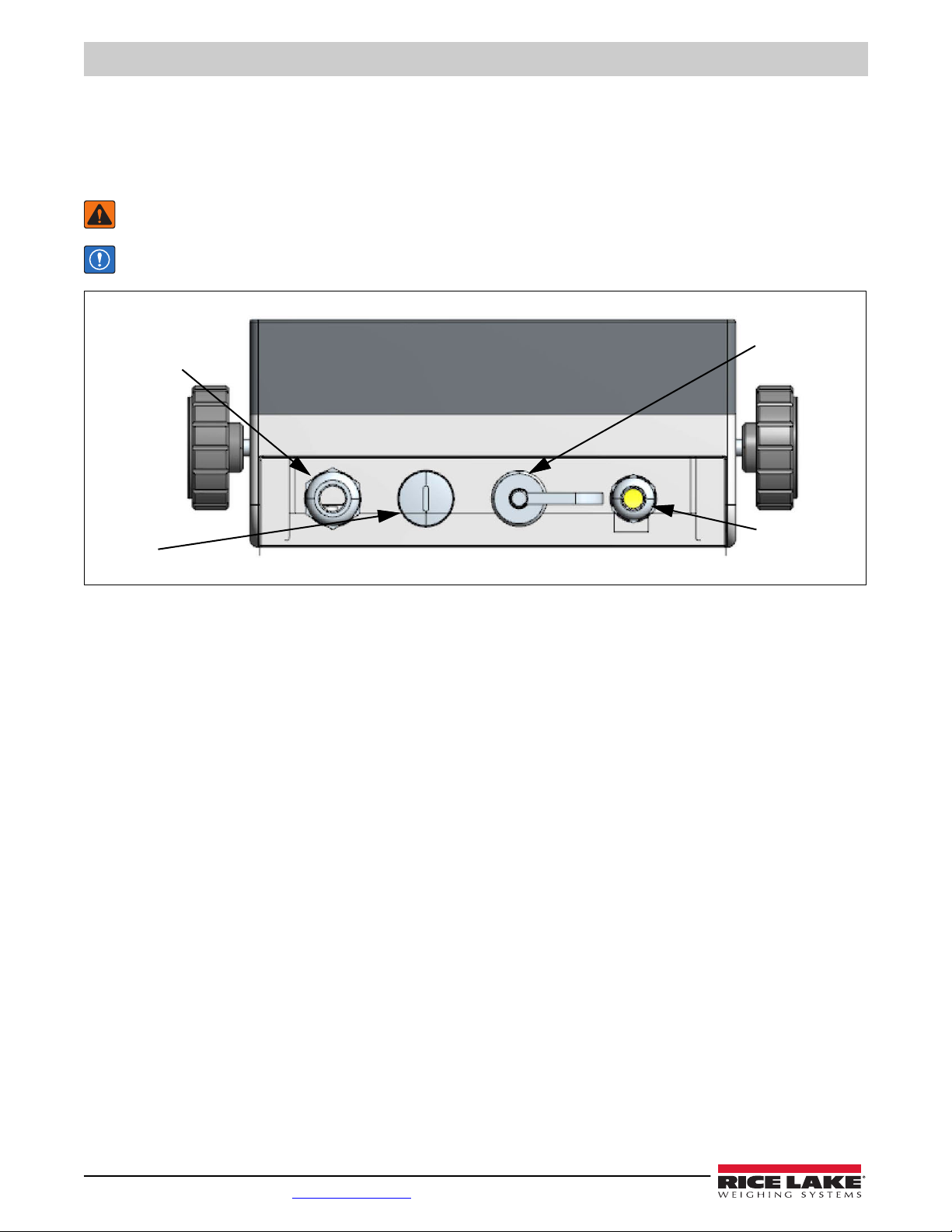

2.6.3 381-AA Cord Grip Connections (PN 215695) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.4 381-NiMH Cord Grip Connections (PN 215696) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

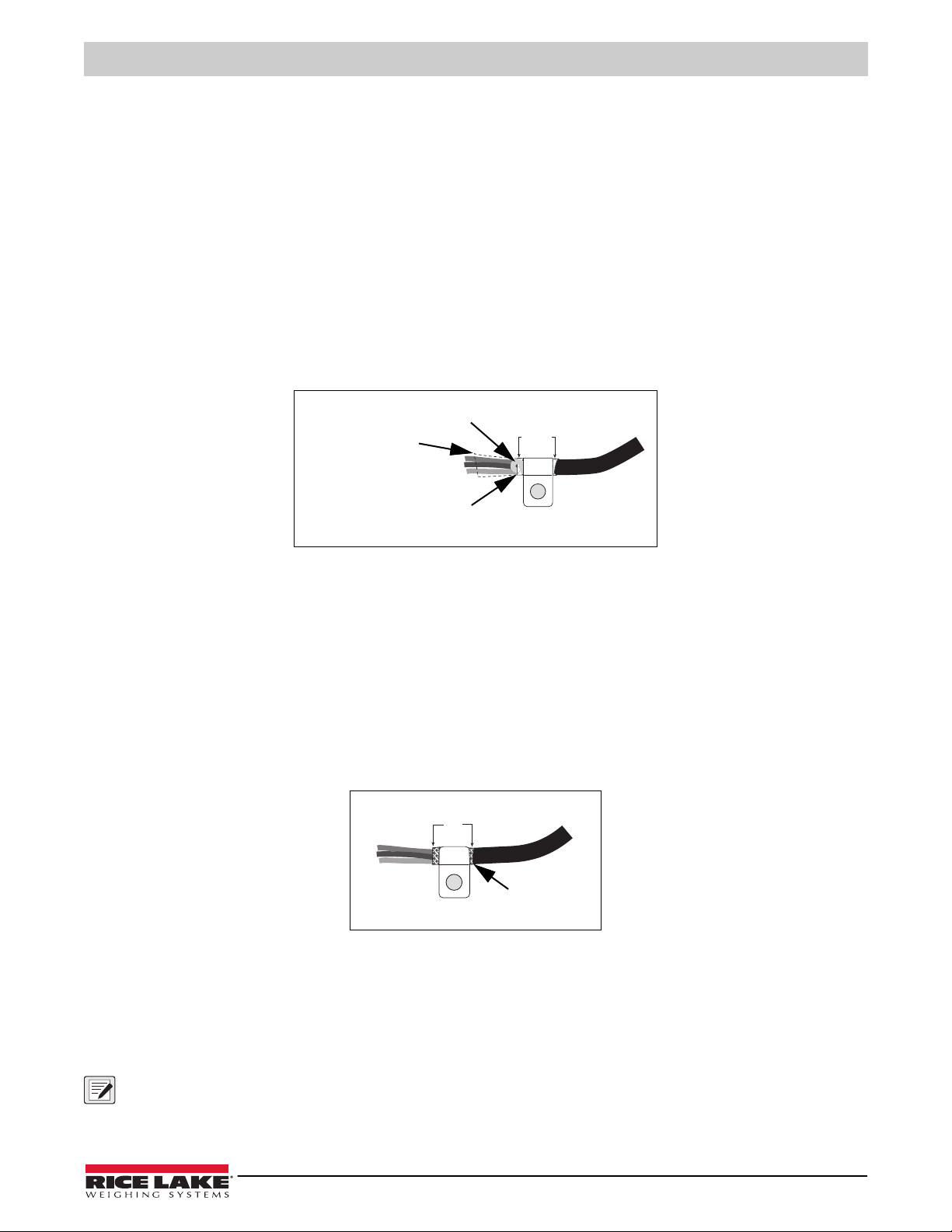

2.7 380/380X Cable Shield Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

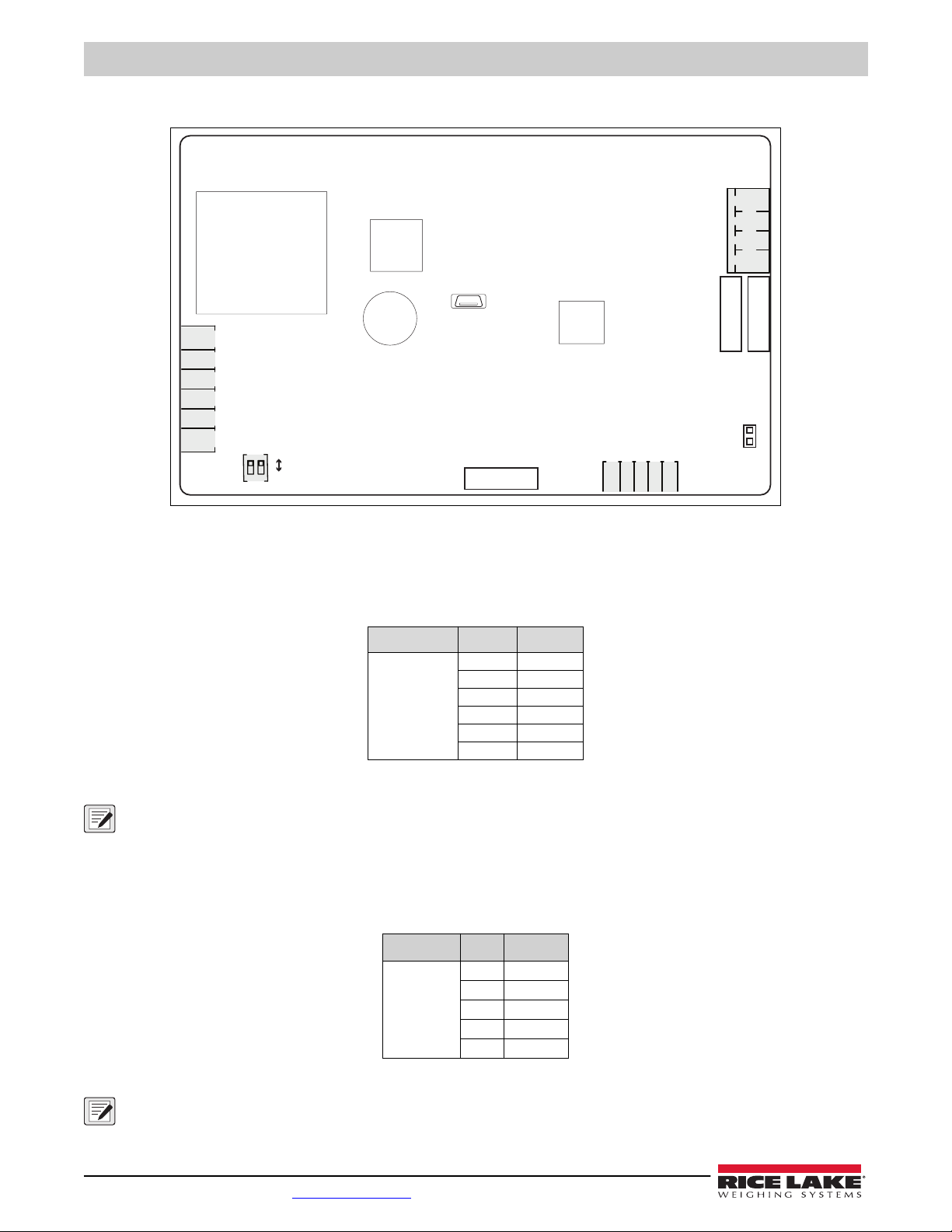

2.8 CPU Board Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.8.1 Load Cell Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.8.2 380/380X RS-232 Serial Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.9 Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.9.1 380 Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

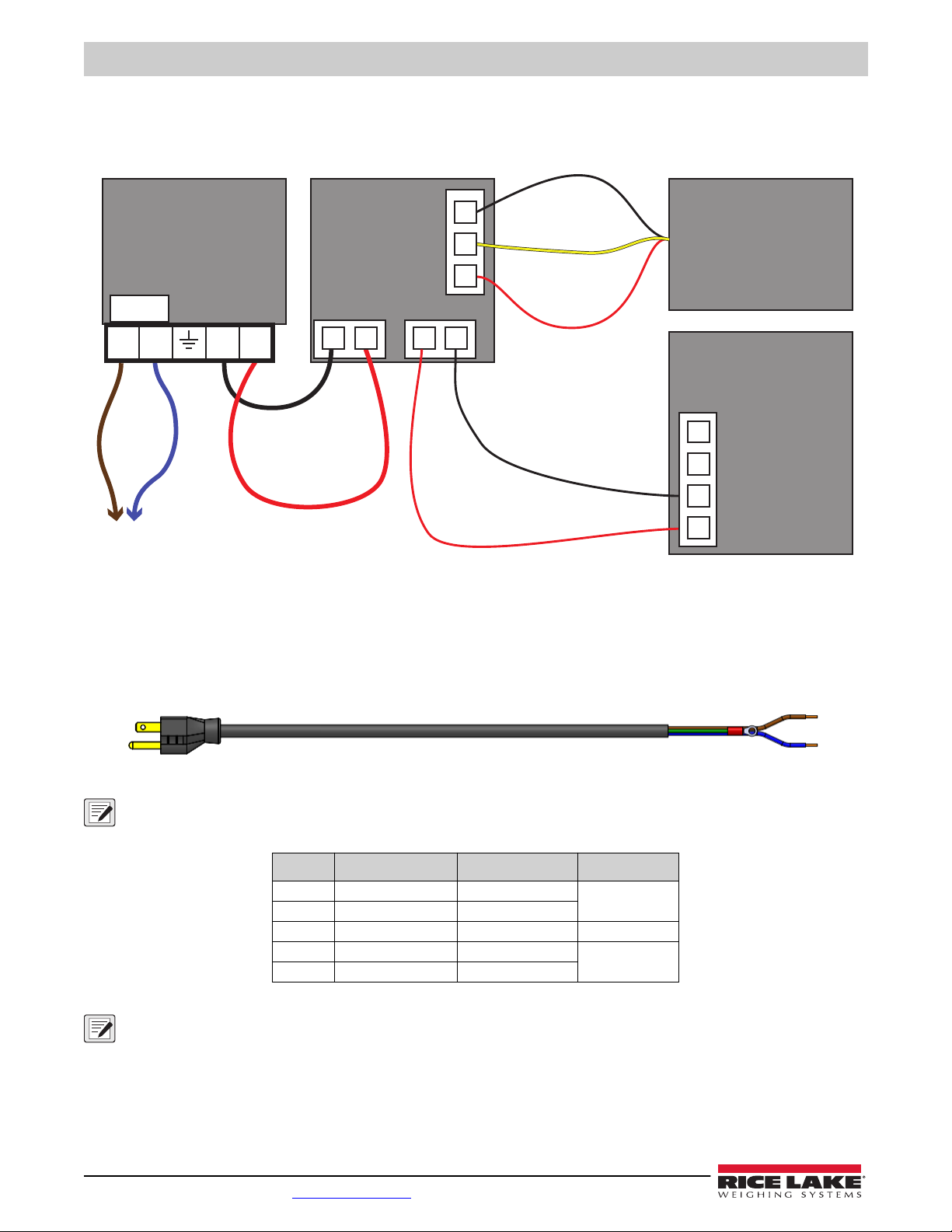

2.9.2 380X Power Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

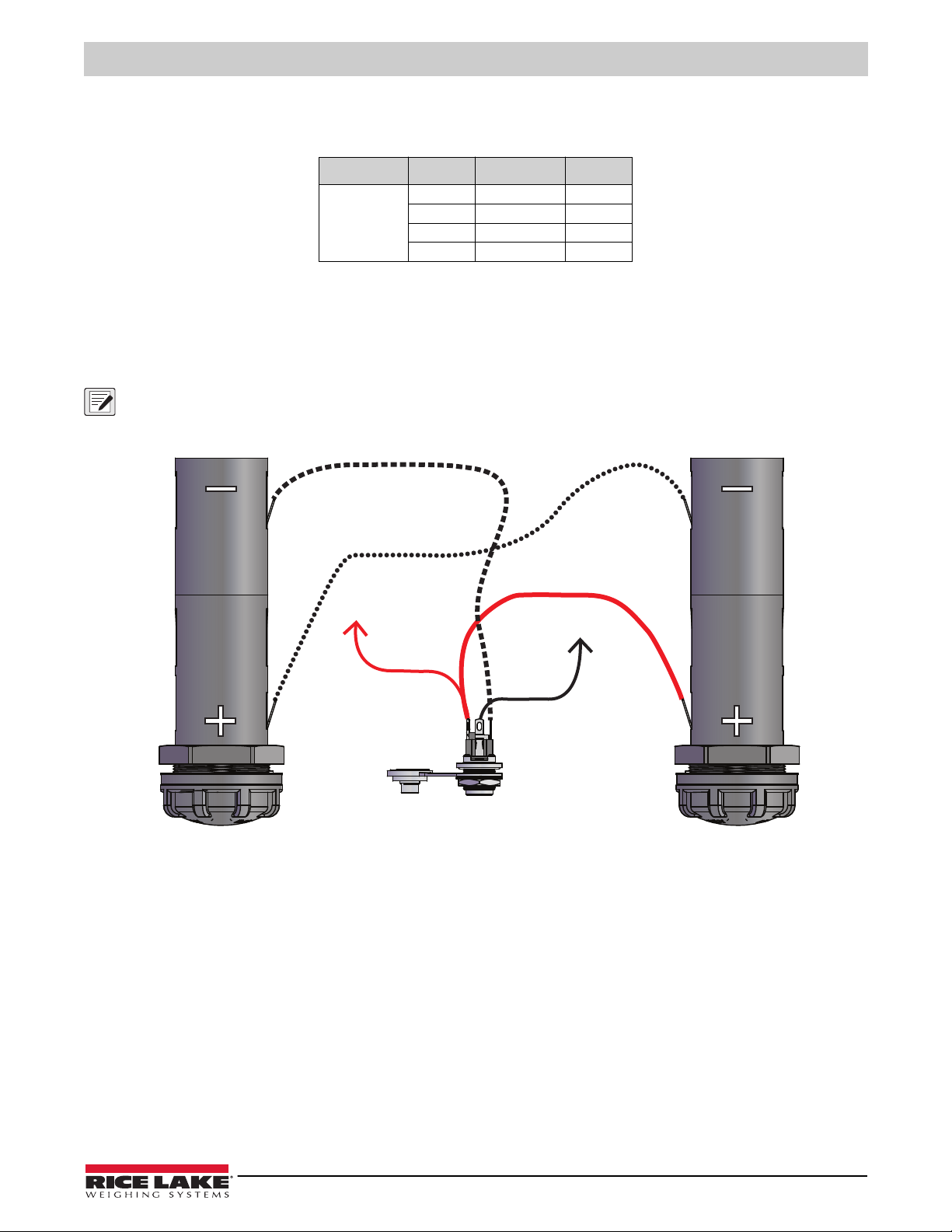

2.9.3 381-AA Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.9.4 381-NiMH Power Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.10 Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.10.1 380/380X Front Plate Reattachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.10.2 381 Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

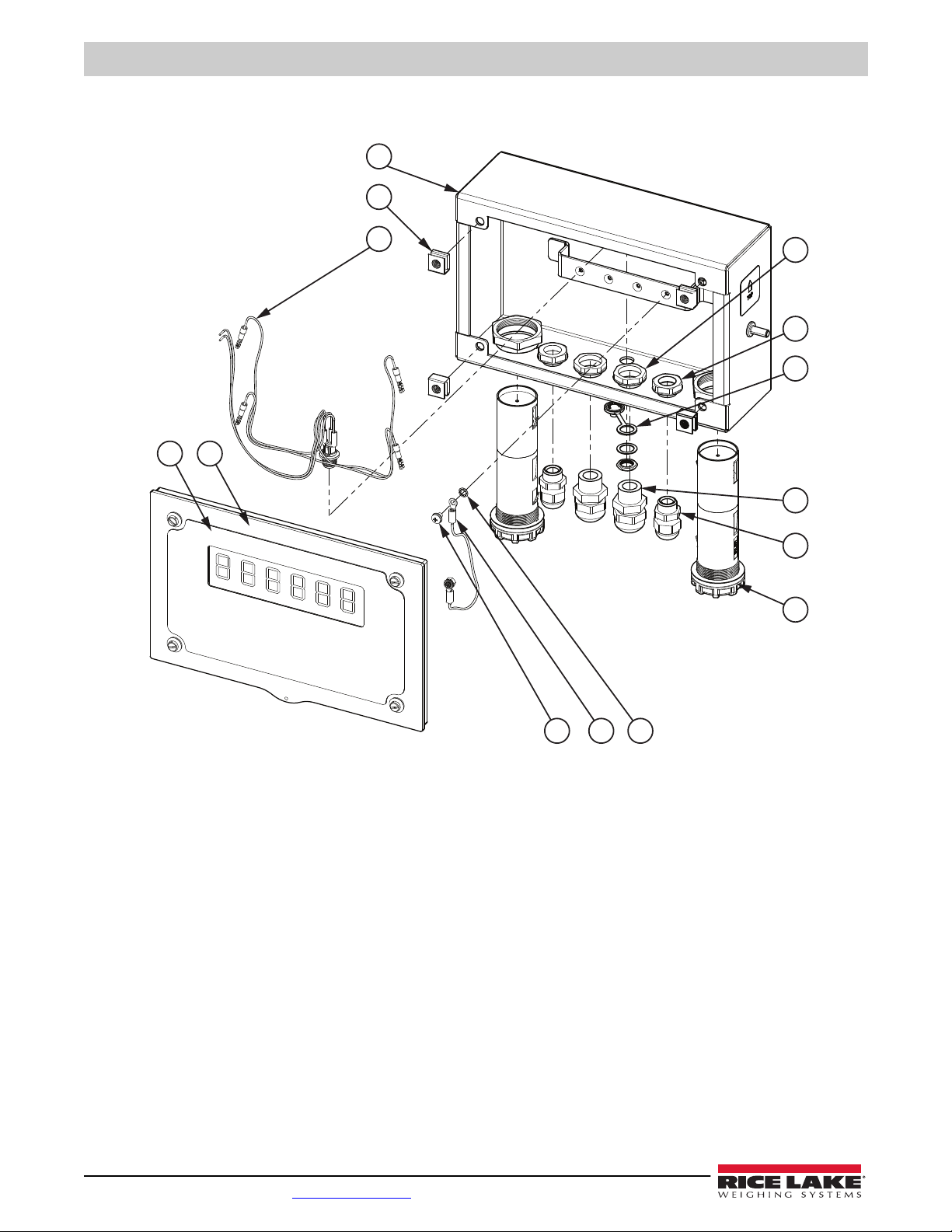

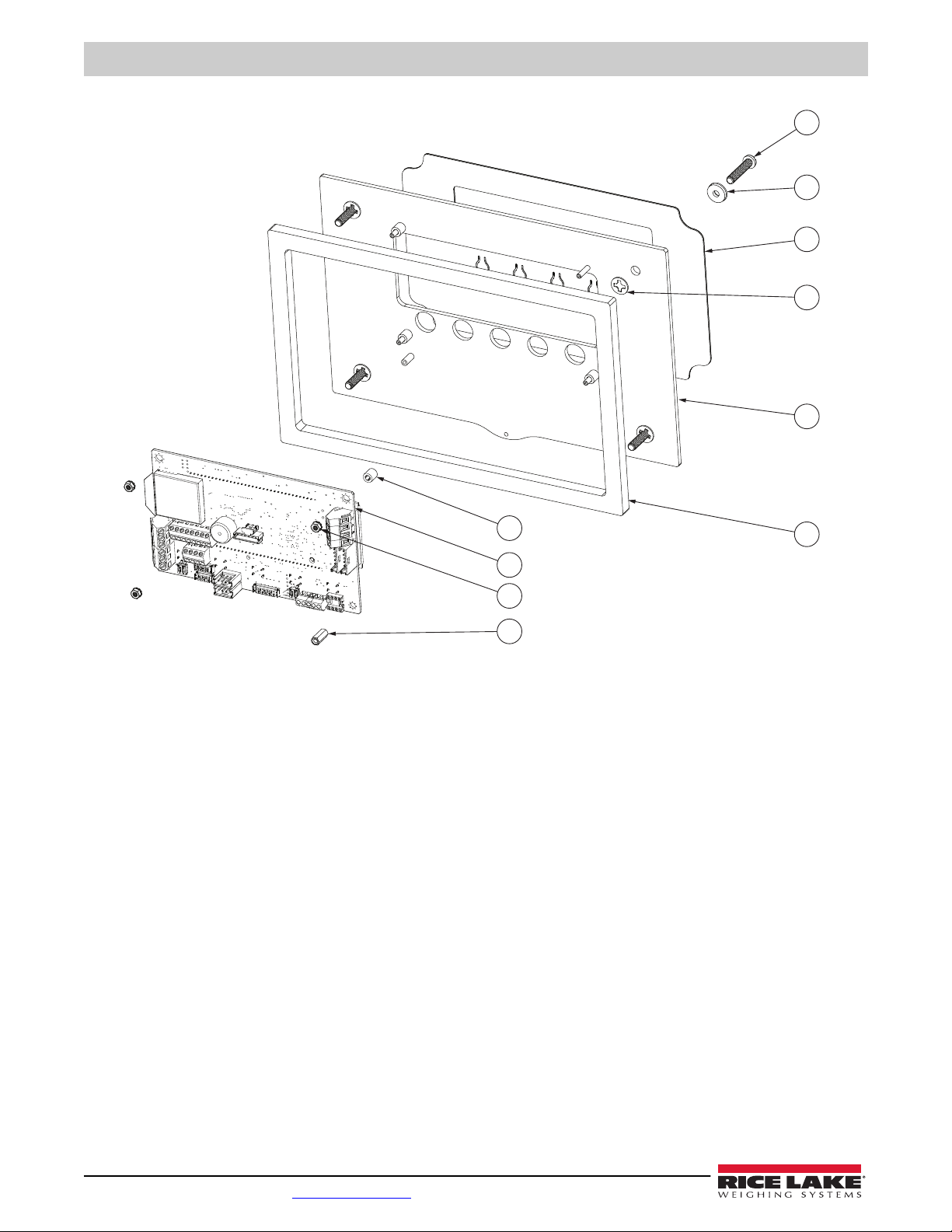

2.11 380/380X Parts Kit Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

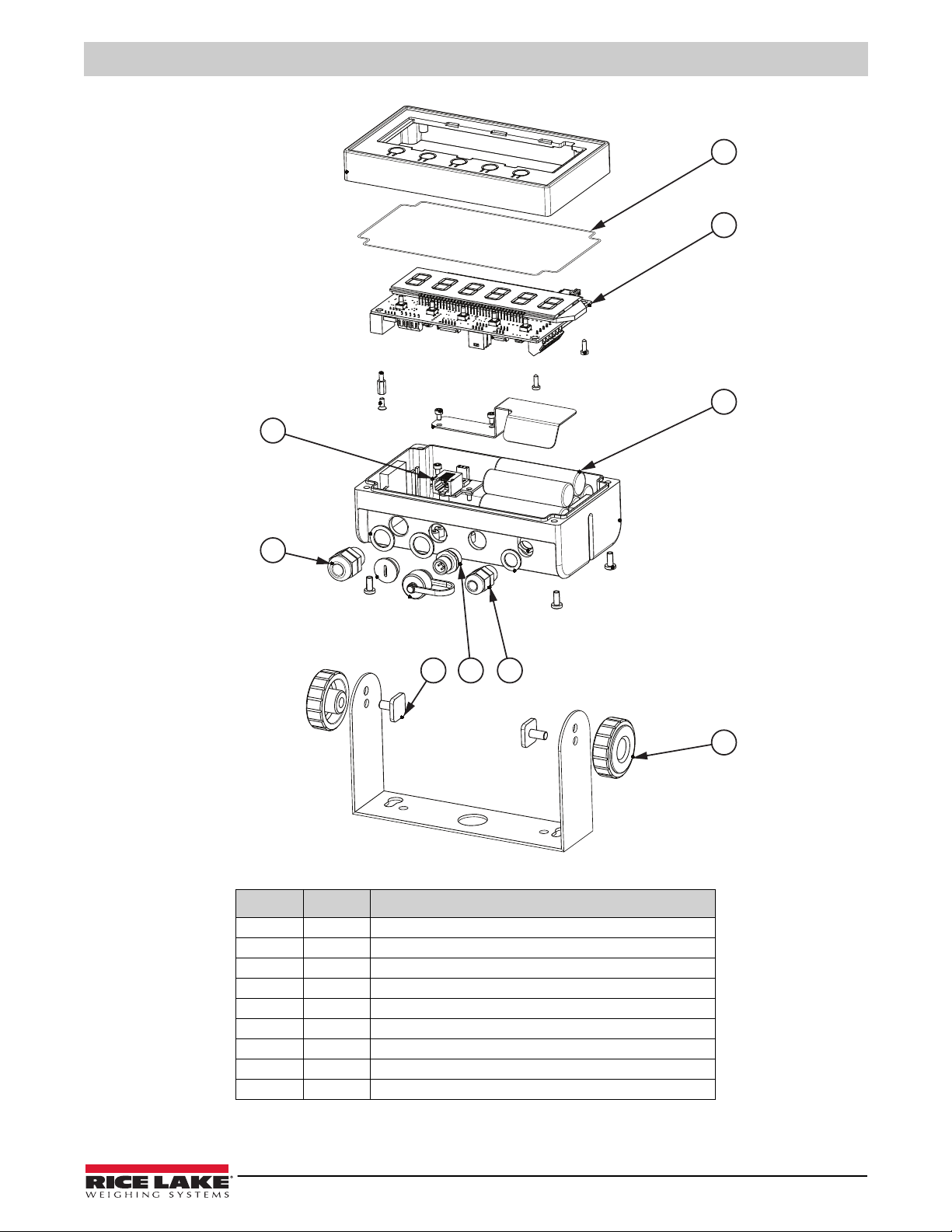

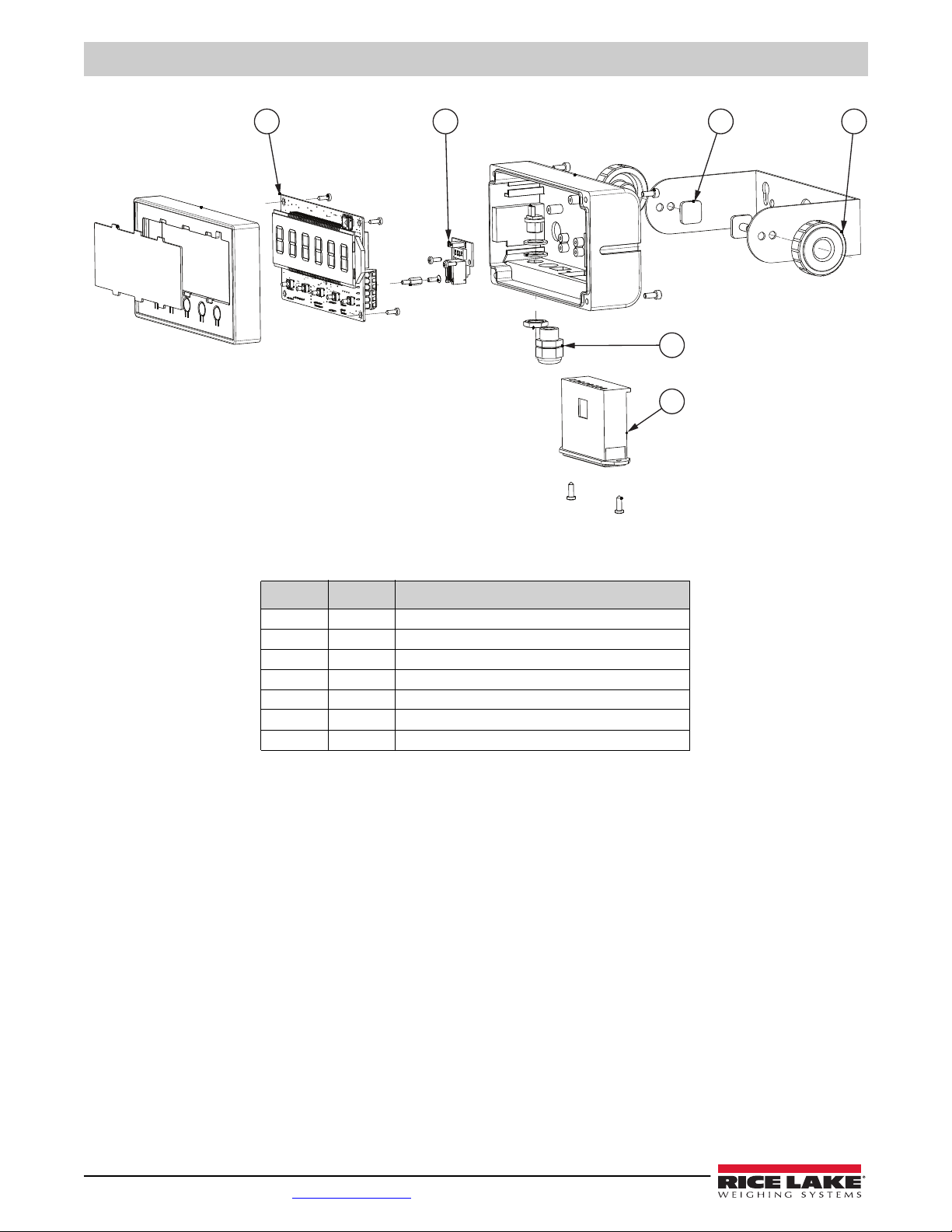

2.12 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.0 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

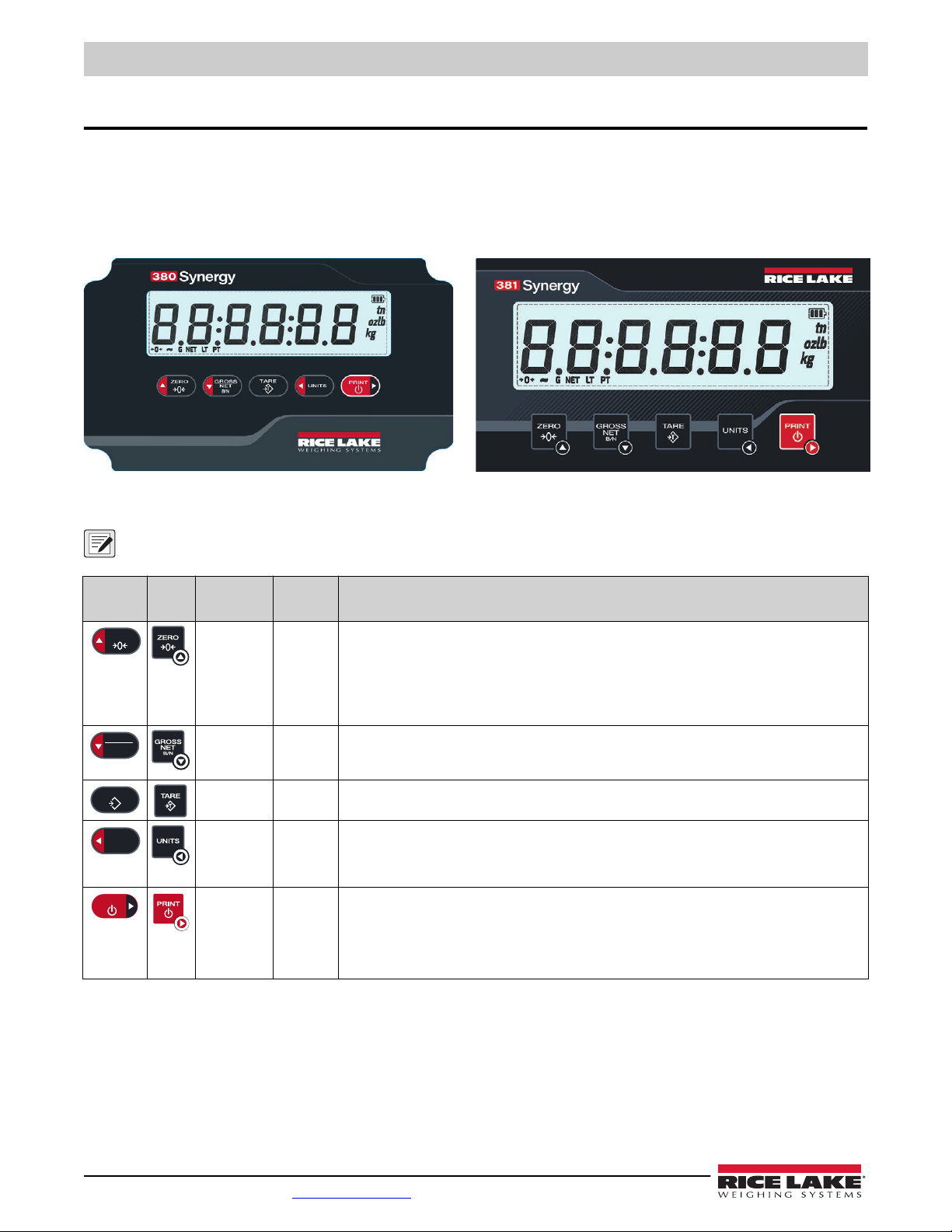

3.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

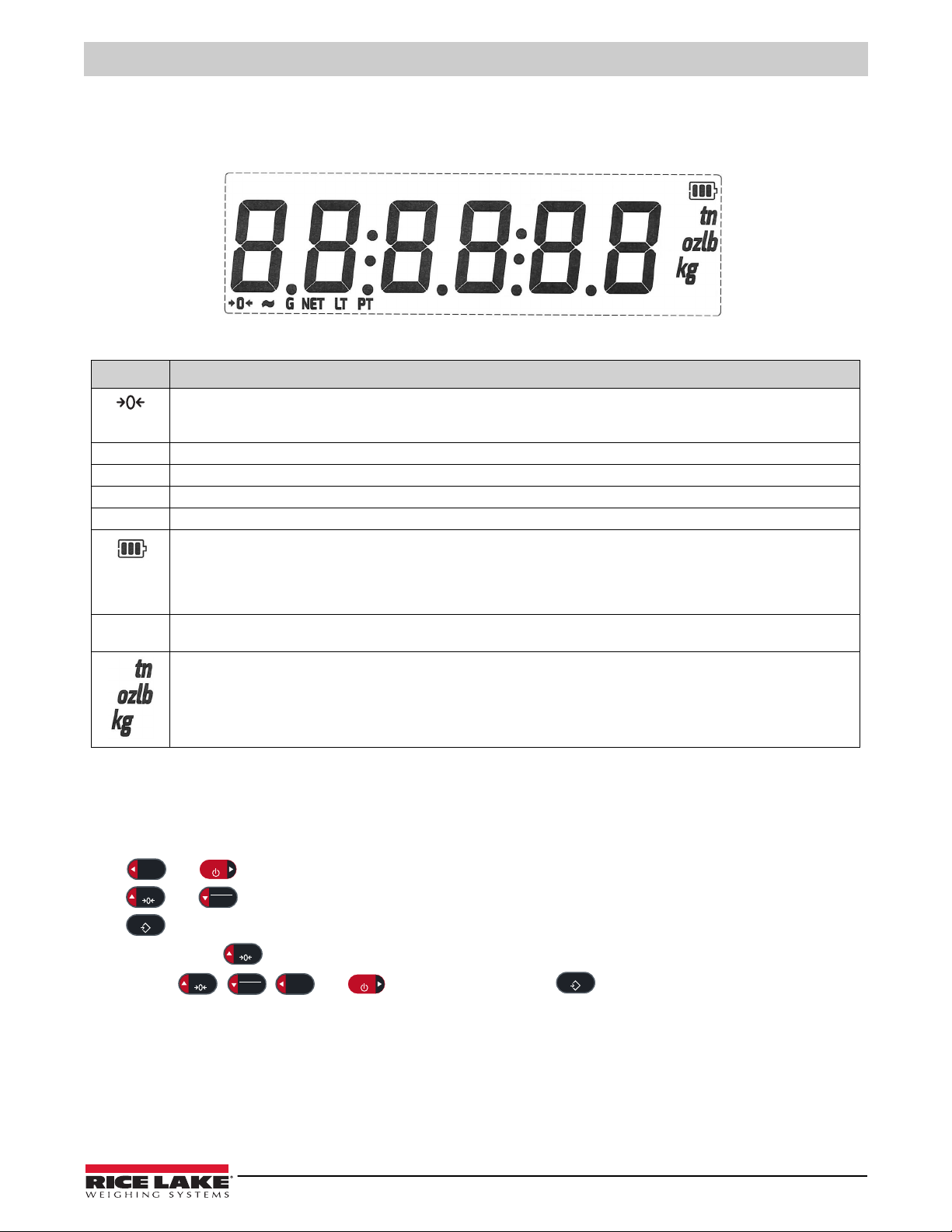

3.2 LCD Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.3 General Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.3.1 Numeric Value Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.3.2 Alphanumeric Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.4 Weigh Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.1 Zero Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.2 Print Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.3 Toggle Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.4 Toggle Gross/Net Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.5 Acquire Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.6 Remove Tare Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.4.7 Preset Tare (Keyed Tare) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4 Visit our website www.RiceLake.com

Page 5

Contents

3.5 User Mode Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.5.1 Display a Stored Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.5.2 Clear a Stored Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.5.3 View Legally Relevant Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.5.4 Display Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.5.5 Print Accumulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.5.6 Clear Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.6 Reset (Default) Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.1 Seal the Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

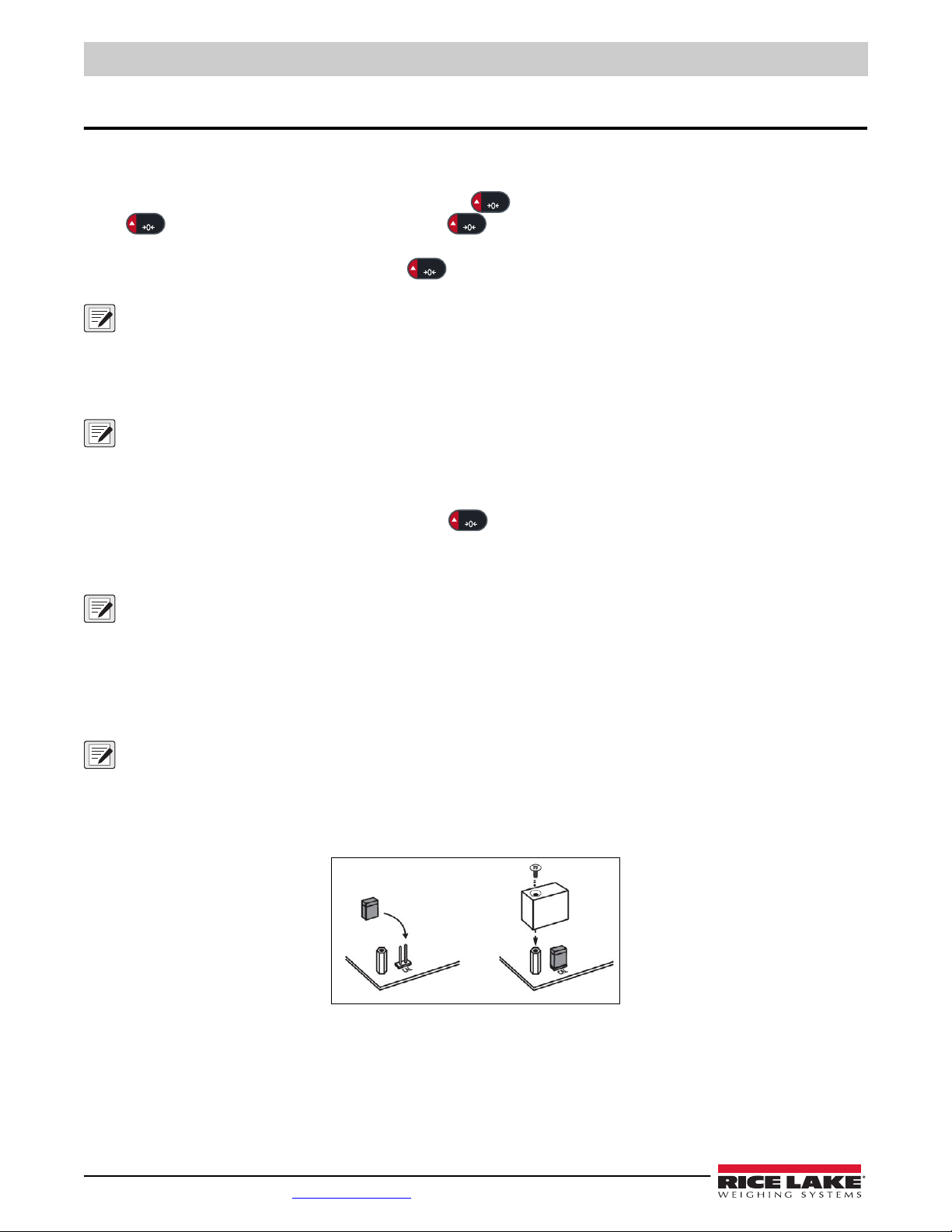

4.1.1 Close the CAL Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.1.2 Seal the 380/380X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.1.3 Seal the 381 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

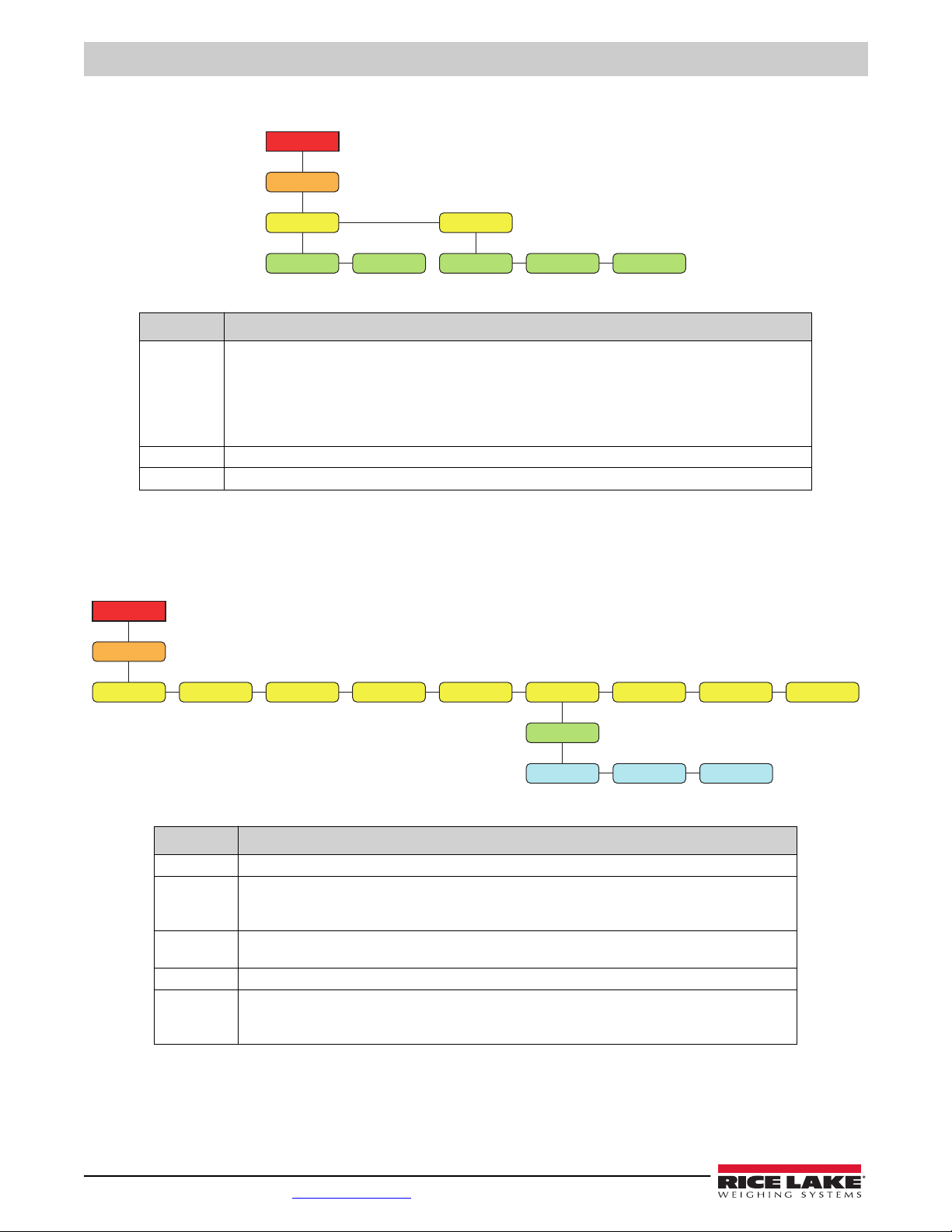

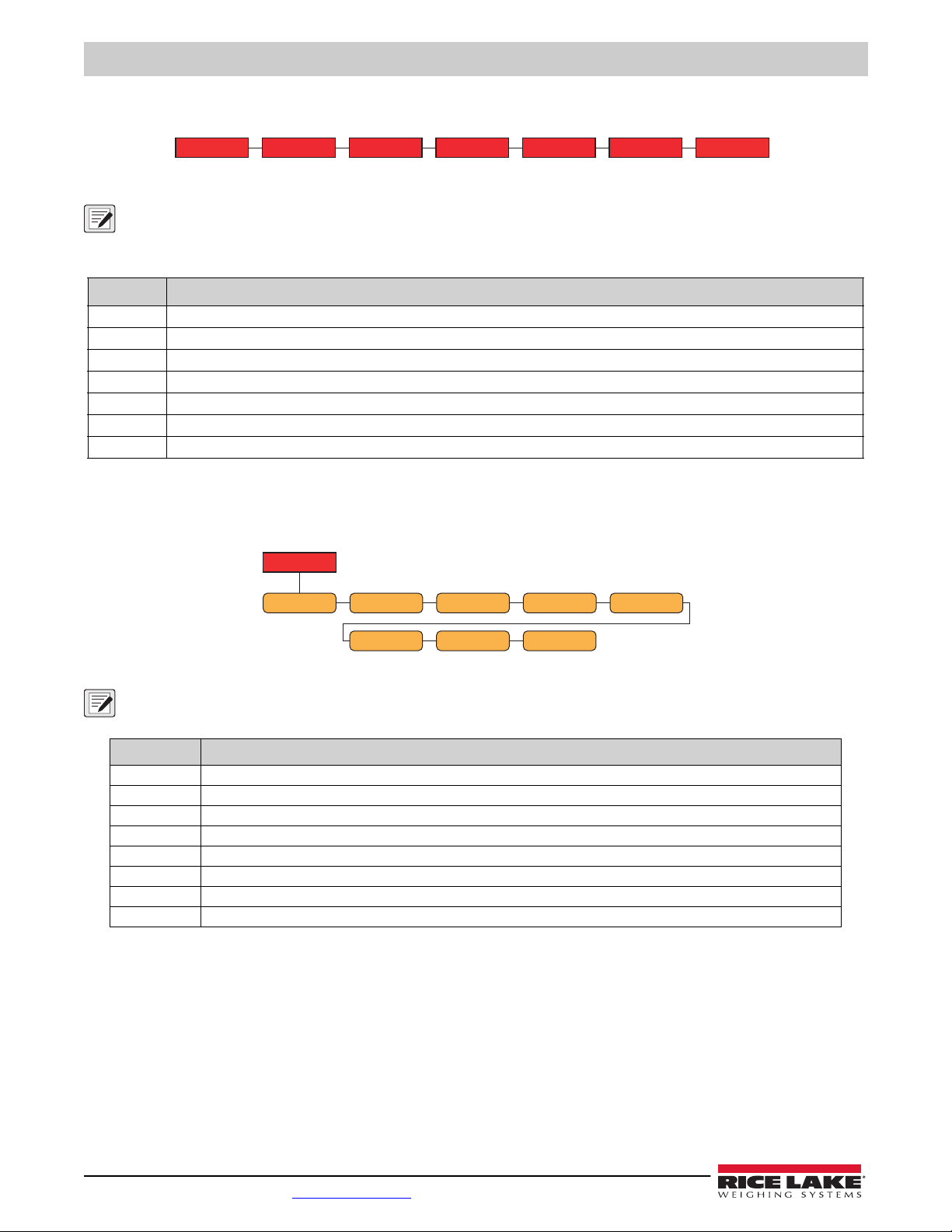

4.2 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.3 Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.3.1 Setup – Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.3.2 Setup – Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.3.3 Setup – Calibration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.3.4 Setup – Communication Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4.3.5 Setup – Program Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.3.6 Setup – Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.3.7 Setup – Stream Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.4 Accumulator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.5 Tare Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4.6 Audit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5.1.1 Span Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5.1.2 Linear Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.2 Alternative Zero Calibrations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.2.1 Last Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.2.2 Temporary Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.2.3 Rezero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.3 EDP Command Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6.0 Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.1 Connecting to the Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2 Saving and Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2.1 Saving Indicator Data to a Personal Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2.2 Downloading Configuration Data from PC to Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

7.0 EDP Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.1 Key Press Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.2 Reporting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.3 Reset Configuration Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.4 Parameter Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.5 USB Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.6 EDP Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

7.7 Stream Setting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Page 6

380/380x/381 Synergy Indicator

Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars

7.8 Feature Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

7.9 Print Format Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.10 Weigh Mode Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.0 Print Formatting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.1 Print Formatting Tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.2 Customizing Print Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.3 Non-Human Readable Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

9.0 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.1 Maintenance Checkpoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.2 Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.4 Board Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.5 Updating Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.5.1 With Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.5.2 Without Revolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

10.0 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

10.1 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

10.2 ZZ EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

10.3 Continuous Data (Stream) Output Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

10.3.1 Rice Lake Weighing Systems Stream Format (RLWS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

10.3.2 Cardinal Stream Format (crdnal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

10.3.3 Avery Weigh-Tronix Stream Format (wtrnix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

10.3.4 Mettler Toledo Stream Format (toledo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

10.4 Conversion Factors for Secondary Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

10.5 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

10.5.1 Digital Rolling Average Filter (AVGONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

10.5.2 Regulatory Mode Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

10.6 ASCII Character Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

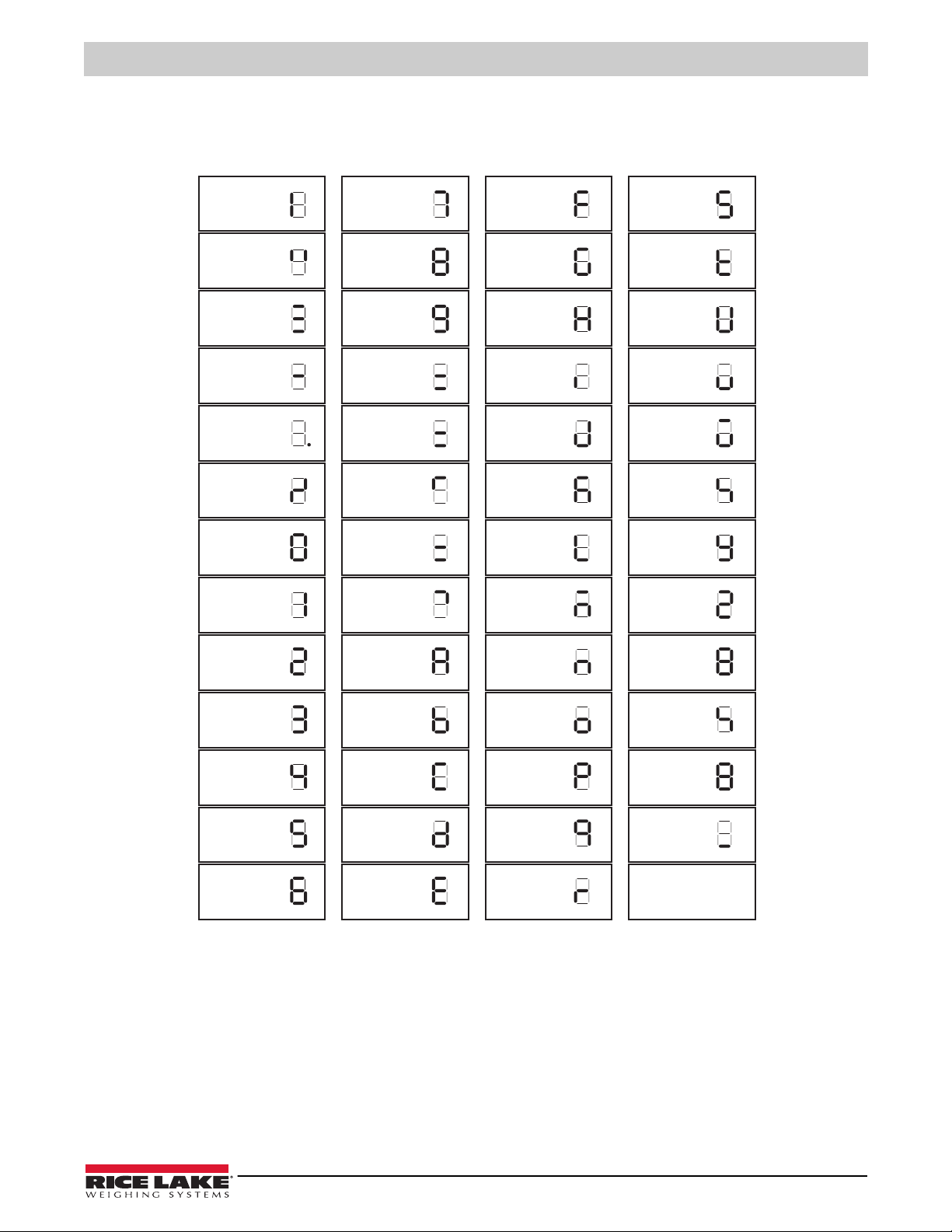

10.7 Front Panel Display Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

11.0 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

6 Visit our website www.RiceLake.com

Page 7

Introduction

1.0 Introduction

This manual is intended for use by service technicians responsible for installing and servicing 380/380X/381 digital weight indicators.

Configuration and calibration of the indicator can be accomplished using the Revolution front panel keys. See Section 4.0 on page 38 and Section 5.0 on page 48 for information about configuration and calibration.

configuration utility or the indicator

Manuals and additional resources are available from Rice Lake Weighing Systems at

www.ricelake.com/manuals

Warranty information can be found on the website at www.ricelake.com/warranties

1.1 Safety

Safety Definitions:

DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes hazards that are exposed when guards are removed.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes hazards that are exposed when guards are removed.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

IMPORTANT: Indicates information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data.

General Safety

Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

WARNING

Failure to heed could result in serious injury or death.

Some procedures described in this manual require work inside the indicator enclosure. These procedures are to be performed by qualified service personnel only.

Ensure the power source is disconnected from the outlet before opening the unit.

Do not allow minors (children) or inexperienced persons to operate this unit.

Do not operate without the enclosure completely assembled.

Do not use for purposes other than weight taking.

Do not place fingers into slots or possible pinch points.

Do not use this product if any of the components are cracked.

Do not exceed the rated specification of the unit.

Only connect unit to equipment certified to IEC 60950, IEC 62368, IEC 61010 or similar.

Do not make alterations or modifications to the unit.

Do not remove or obscure warning labels.

Do not use solvents or aggressive substances to clean the indicator.

Do not submerge.

Page 8

380/380x/381 Synergy Indicator

ZERO

1.2 Options

The 380/380X/381 Synergy indicator includes several factory installed options. Some features in this manual are not available in all models.

Synergy Series Models

Stainless Steel Model

• 380 (PN 202711)

― Universal alkaline C-cell battery powered (Adapter sold separately)

• 380X (PN 214337) ― Universal washdown rechargeable lithium ion battery powered (AC internal power supply)

Plastic Models

• 381-AA (PN 215695)

― Universal alkaline AA-cell battery powered (Adapter included)

• 381-NiMh (PN 215696) ― Universal rechargeable nickel metal hydride battery powered (Charger included)

Available Options

• RTC Option (PN 204258) ― Adds date and time functionality to the indicator; time is backed by an independent battery.

1.3 Operating Modes

Weigh Mode

Weigh mode is the default mode of the indicator. The indicator displays gross or net weights as required, using the annunciators to indicate scale status and the type of weight value displayed.

User Mode

User mode is accessible by pressing and holding for five seconds on the front panel while in weigh mode. The indicator displays the audit, accumulator, tare and version menus when in user mode.

Setup Mode

Setup mode is accessible by pressing momentarily on the front panel during the startup sequence. Only press once. Do not press and hold or double press . All menus in this section can be accessed from within Setup mode.Most of

the procedures described in this manual, including calibration, require the indicator to be in setup mode. See Section 4.0 on page 38 for the procedure to enter setup mode and the parameters available.

1.4 FCC Compliance

United States

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.

8 Visit our website www.RiceLake.com

Page 9

1.5 Lithium-Ion Battery Safety

The following warnings apply to 380X (PN 214337) indicators with a lithium-ion battery.

Handling Instructions

Read and observe the following warnings and precautions to ensure lithium-ion batteries' correct and safe use.

DANGER: Failure to observe the following precautions will result in battery leakage, overheating, explosion and/ or fire..

• Do not immerse the battery in water or allow it to get wet.

• Do not use or store the battery near heat sources such as a fire or heater.

• Do not connect the battery directly to wall outlets or car cigarette-lighter sockets.

• Do not put the battery on fire or apply direct heat.

• Do not short-circuit the battery by connecting wires or other metal objects to the positive(+) and negative(-)terminals.

• Do not carry or put the battery together with necklaces, hairpins or other metal objects.

• Do not strike, throw or subject the battery to severe physical shock.

• Do not pierce the battery casing with a nail or sharp object, break it open with a hammer, or step on it.

• Do not directly solder the battery terminals.

• Do not attempt to disassemble or modify the battery in any way.

• Do not recharge the battery near a fire or in extremely hot conditions.

WARNING: Failure to observe the following precautions may result in battery leakage, overheating, explosion and/ or fire.

• Do not place the battery in a microwave oven or pressurized container.

• Do not use the battery if it gives off an odor, generates heat, becomes discolored or deformed, or appears abnormal.

• If the battery leaks or emits an odor, immediately remove it from the proximity of any exposed flame. The leaking electrolyte can ignite and cause a fire or explosion.

• If the battery leaks and electrolyte gets in the eyes, do not rub them. Instead, rinse them with clean running water and immediately seek medical attention. If left as is, electrolytes can cause eye injury.

Introduction

CAUTION: Do not use or store the battery exposed to extremely hot, such as under window of a car in direct sunlight in a hot day. Otherwise, the battery may be overheated. Heat can also reduce battery performance and shorten service life.

Use the battery only under the following environmental conditions. Failure to do so can reduce performance or shorten service life. Recharging the battery outside of these temperatures can cause the battery to overheat, explode or catch fire.

Operating environment:

• When charging the battery: 32° to 113° F (0° to 45° C)

• When discharging the battery: -4° to 140° F (-20° to 60° C)

• Battery may not function outside of temperature guidelines.

If the battery leaks and the electrolyte contacts skin or clothing, rinse the affected area with clean running water. If left as is, skin inflammation can occur.

Delivery Condition

Partial charged condition. Battery voltage: 7.65~7.95V.

Battery Maintenance

The following guidelines will optimize battery life:

• Battery should maintain more than 85% of its charge after one year of storage

• If a device is unused for an extended period, the battery should be removed and stored in a cool, dry place. Otherwise, reduced performance may occur.

• If storing for longer than 1 month, it is recommended to keep battery charge between 30 and 50 percent.

• The battery should be charged and discharged once every six months to maintain optimal capacity during long-term storage.

• The battery should have an approximate cycle life of 500 to 1000 charges.

Page 10

380/380x/381 Synergy Indicator





TARE

ZERO

GROSS

NET

B/N

UNITS

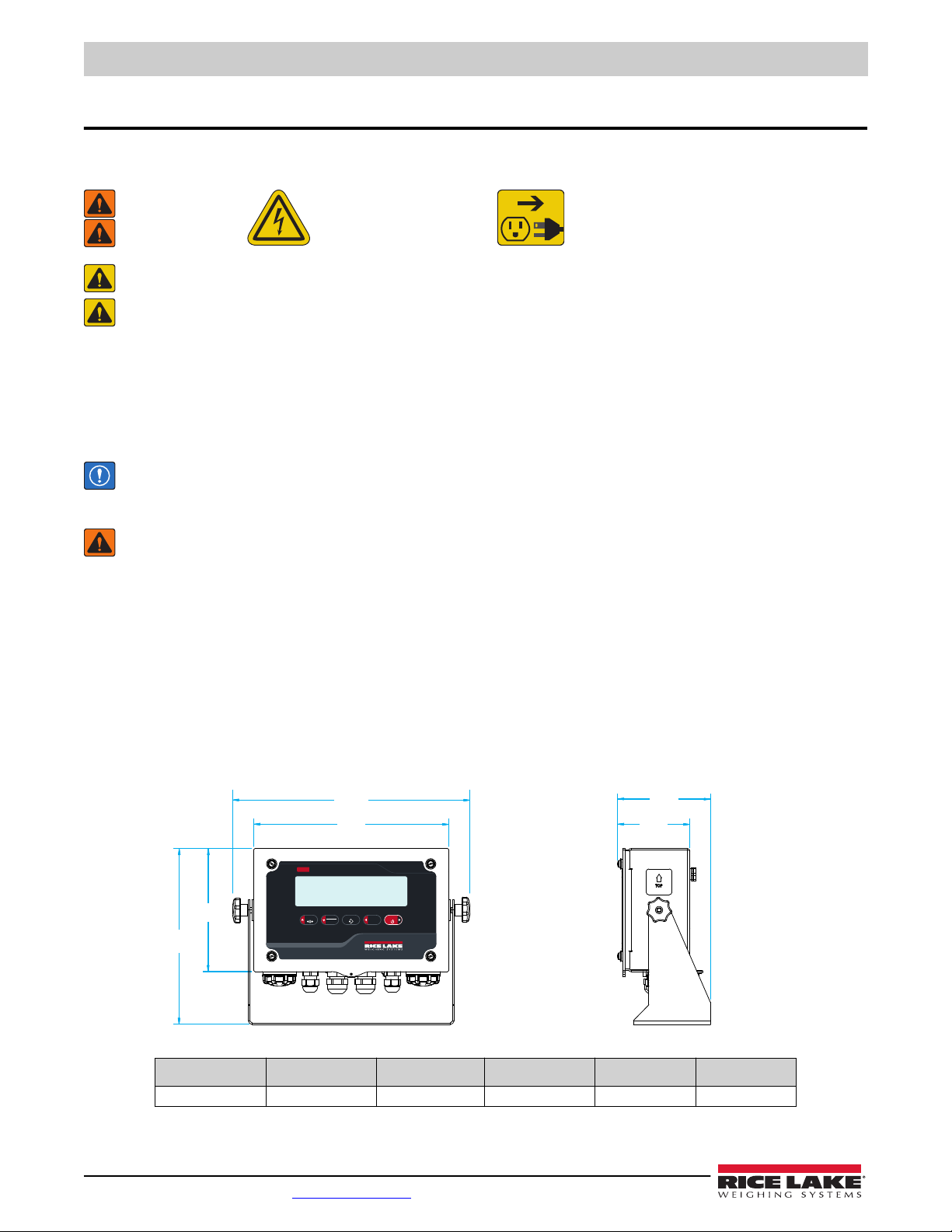

2.0 Installation

This section describes procedures for connecting power, load cells and data communication cables to a 380/380X/381 Synergy Series indicator.

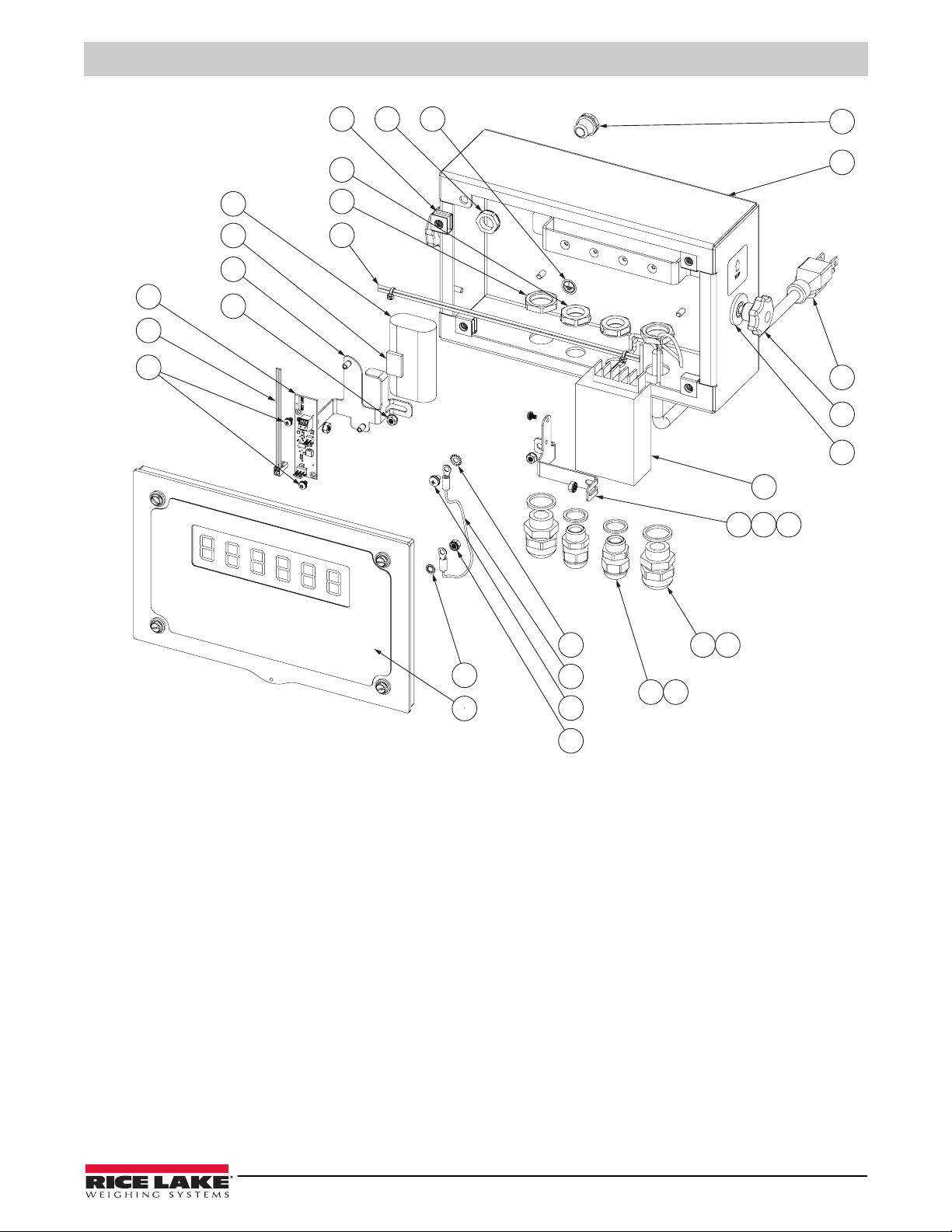

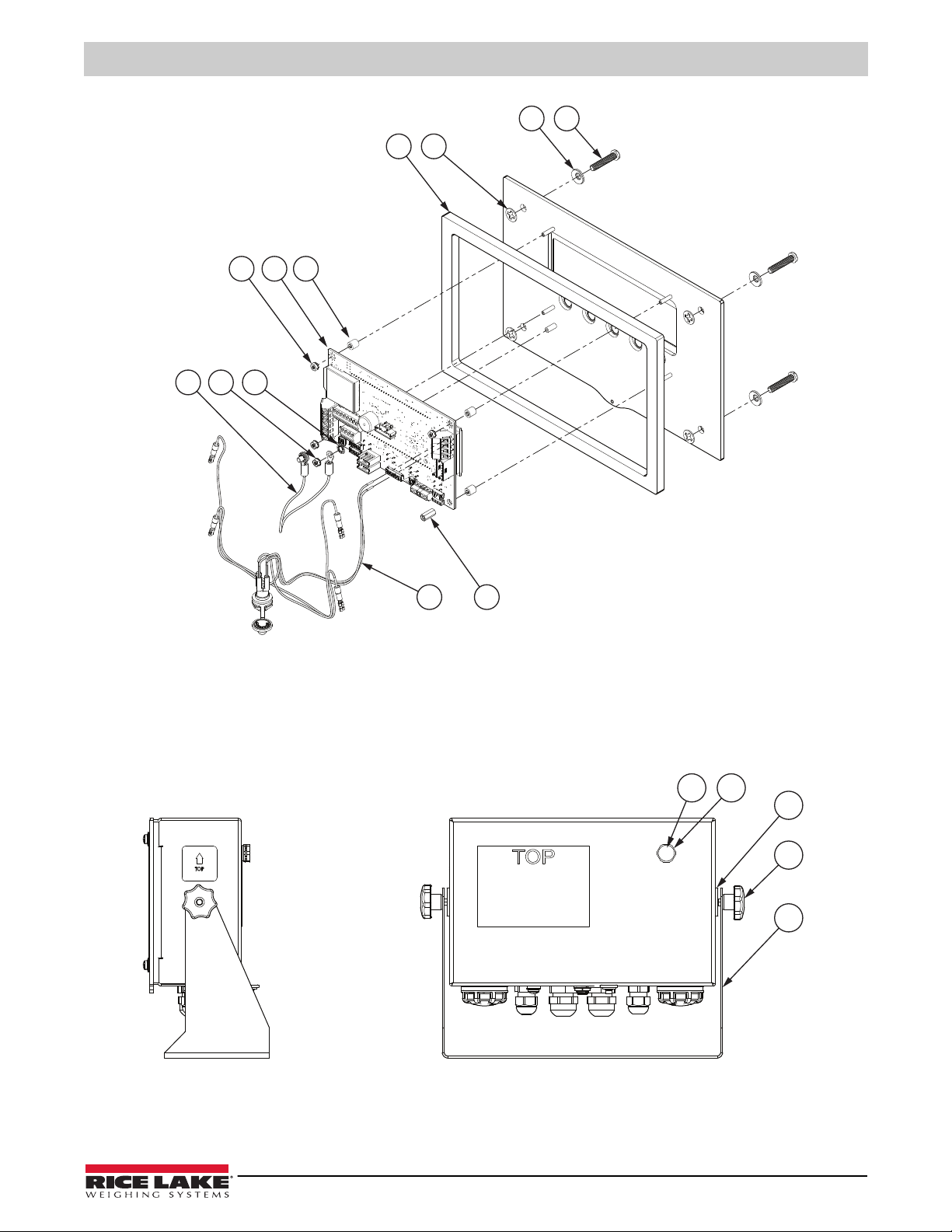

An assembly drawing and parts list are included for the service technician.

WARNING

AVERTISSEMENT

Risk of electrical shock. Risque de choc.

Disconnect power before servicing. Débranchez l’alimentation avant l’entretien.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to state and local regulations.

ATTENTION: Risque d’explosion si la batterie est remplacée par un type incorrect. Mattre au rebus les batteries usagées selon les règlements d'état et locaux.

Specified optional power adapters are the only external power sources allowed to be used for the 380/380X/381 Synergy Series indicators.

• 380 ― (PN 206433)

• 380X ― Built in power supply. No optional external source.

• 381-AA ― (PN 215734)

• 381-NiMh ― (PN 185064) The 381-NiMh cannot be powered on with the adapter connected

IMPORTANT: Leaving the charger attached to the 381-NiMh while not plugged in will discharge the battery even if the indicator is powered off.

The 381-NiMh loses its IP rating when the charger is attached.

WARNING: Failure to heed the following statements could result in serious injury or death.

• Procedures requiring work inside the product enclosure must be performed by qualified service personnel only.

• Use a grounding wrist strap to protect components from electrostatic discharge (ESD) damage when working inside the

product enclosure.

• The power outlet must be near the equipment and must be easily accessible.

2.1 Unpacking

Immediately after unpacking, visually inspect the 380/ 380/

380X

shipping carton contains the indicator, this manual and a parts kit (Section 2.11 on page 23). The 381 shipping carton contains a power adapter, the stand and a quick start guide. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.

380X/

381 to ensure all components are included and undamaged. The

2.2 380/380X Product Dimensions

10 Visit our website www.RiceLake.com

9.50 in (241 mm) 6.00 in (152 mm) 8.57 in (218 mm) 11.58 in (294 mm) 4.53 in (115 mm) 3.53 in (90 mm)

A B C D E F

Figure 2-1. 380 Product Diagram

Table 2-1. 380/380X Product Dimensions

Page 11

2.3 381 Product Dimensions





A B C D E F

6.77 in (172 mm) 3.82 in (97 mm) 5.06 in (129 mm) 8.50 in (216 mm) 3.17 in (81 mm) 1.77 in (45 mm)

Installation

Figure 2-2. 381 Product Diagram

Table 2-2. 381 Product Dimensions

2.4 Mounting Instructions

All 380/ holes. The stand can be mounted on a wall, tabletop or a flat surface. The instructions below are to be used as an example for all models. Holes in the 380/380X universal mount stand are configured differently than the 381. The 381 universal mount stand supports additional mounting options.

380X

/381 Synergy Series indicators include a universal mount stand. The 380/

NOTE: The universal mount stand comes attached to the 380/380X. Rice Lake Weighing Systems recommends removing the indicator from the stand prior to mounting.

Figure 2-3. Mounting the Indicator

1. Using the mount as a template, mark the screw locations.

2. Drill holes for the screws.

3. Secure the universal mount using the appropriate length 1/4 in or M6 hardware (not included).

4. Reattach the 380/

NOTE: The 380/380X parts kit includes rubber grommets to insert into the four screw holes of the universal mount stand for a non-mounted application.

380X

/381 to the universal mount stand.

380X/381

universal mount stand has 4

Page 12

380/380x/381 Synergy Indicator

2.5 Open Enclosure

This section includes information on opening the 380/

2.5.1 380/380X Front Plate Removal

Remove the front plate of the 380/

WARNING: Before opening the unit, ensure batteries are removed and the optional power cord is disconnected from the power outlet.

1. Place the indicator face-up on an anti-static work mat.

2. Unscrew the screws holding the front plate to the enclosure.

NOTE: Screws are held in place with retaining washers and cannot be entirely removed.

3. Lift the front plate away from the enclosure and disconnect the ground wire from the front plate.

380X

to connect cables and to gain access to the 380/

380X/

381 enclosures.

380X

board.

Figure 2-4. Removing the Front Plate

380/380X Torque Ratings

Refer to Table 2-3 throughout installation and use of product to maintain proper torque ratings for 380/

Component Torque Rating

Front Plate Screw 10 in-lb (1.1 N-m) Cord Grip Nut (to enclosure) 33 in-lb (3.7 N-m) Cord Grip Dome Nut (around cable) 22 in-lb (2.5 N-m) Grounding wire 10 in-lb (1.1 N-m) Standoff Nuts 4 in-lb (0.45 N-m)

Table 2-3. Component Torque Ratings

12 Visit our website www.RiceLake.com

380X

components.

Page 13

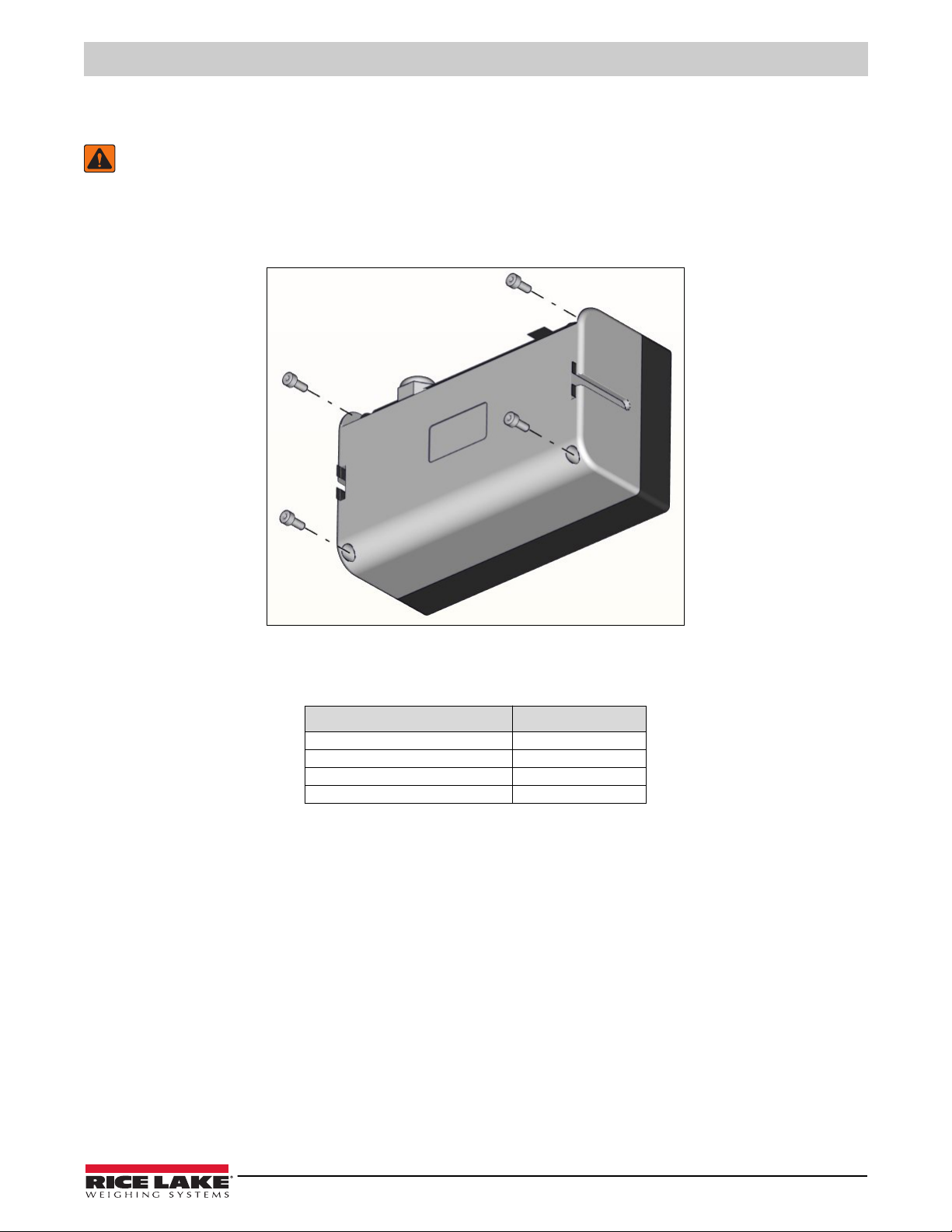

2.5.2 381 Back Cover Removal

Remove the back cover of the 381 to connect cables and to gain access to the 381 board.

WARNING: Before opening the unit, ensure power cord is disconnected from the power outlet.

1. Place the indicator face-down on an anti-static work mat.

2. Remove the screws holding the back cover to the enclosure with a 3mm hex key (PN 216647).

3. Lift the back cover away from the enclosure.

Installation

Figure 2-5. Removing the Back Cover

381 Torque Ratings

Refer to Table 2-4 throughout installation and use of product to maintain proper torque ratings for 381 components.

Component Torque Rating

Back Cover Screw 13 in-lb (1.5 N-m) Cord Grip Nut (to enclosure) 33 in-lb (3.7 N-m) Cord Grip Dome Nut (around cable) 22 in-lb (2.5 N-m) Standoff Nuts 4 in-lb (0.45 N-m)

Table 2-4. Component Torque Ratings

Page 14

380/380x/381 Synergy Indicator

2.6 Cord Grip Connections

Each of the models in the 380/ the 380/

380X

are included in the parts kit and must be installed in open cord grips to prevent moisture from entering the enclosure. Depending on the application, install cables as required. Cord grip plugs for the 381 are already installed. The recommended cable strip length is 0.25 in (7 mm) for all 380/

WARNING: Only connect unit to equipment certified to IEC 60950, IEC 62368, IEC 61010 or similar.

IMPORTANT: Do not have open/bare wires outside of the enclosure. Make sure no stripped portion of cable is on the outside of the cord grips.

IMPORTANT: Properly seal cord grips to prevent moisture damage inside of the enclosure. Cable plugs must be installed in unused cord grips. Cord grip dome nuts, around a cable or a plug, must be torqued to 22 in-lb. The cord grip nut against the enclosure must be torqued to 33 in-lb.

Cable Diameter Ranges

Refer to Table 2-5 for minimum and maximum cable sizes for use with cord grips.

380X

/381 Synergy Series indicator line utilizes a different cord grip configuration. Cable plugs for

380X

/381 connectors.

Cord Grip Diameter Range

PG7 (PN 58983) 0.098 - 0.256 in (2.5 - 6.5mm) PG9 (PN 15626) 0.138 - 0.315 in (3.5 - 8mm) PG11 (PN 68600) 0.197 - 0.394 in (5 - 10 mm)

Table 2-5. Allowable Cable Diameter Ranges

2.6.1 380 Cord Grip Connections (PN 202711)

The 380 provides four cord grips at the bottom of the enclosure for cabling into the indicator. One of the cord grips is used for the load cell and the other three are used to accommodate the serial connection and other future connections. See Figure 2-6 for the recommended assignments for the 380 cord grips.

Batteries

Cord grip for

Breather Vent

Cord grips for

communication cables

Figure 2-6. Recommended Cord Grip Assignments

Power Jack

load cell cable

14 Visit our website www.RiceLake.com

Page 15

Installation

2.6.2 380X Cord Grip Connections (PN 214337)

The 380X provides four cord grips at the bottom of the enclosure for cabling into the indicator. See Figure 2-7 for the recommended assignments for the 380X cord grips.

Cord grips for

communication cables

Cord grip for

load cell cable

Cord Grip for Power

Breather Vent

Figure 2-7. Recommended Cord Grip Assignments

2.6.3 381-AA Cord Grip Connections (PN 215695)

The 381-AA provides one cord grip, a power jack and an RJ-11 jack at the bottom of the enclosure for cabling into the indicator. The cord grip is used for the load cell and the other connections are for power and serial connection. See Figure 2-8 for the recommended assignments for the 381-AA connections.

Cord grip for

load cell cable

Power Jack

RJ-11 Jack

Figure 2-8. Recommended Connection Assignments

Battery Door

Page 16

380/380x/381 Synergy Indicator

2.6.4 381-NiMH Cord Grip Connections (PN 215696)

The 381-NiMH provides two cord grips and two other connections at the bottom of the enclosure for cabling into the indicator. One of the cord grips is used for the load cell and the other three connections are used to accommodate the serial connection, the battery charger and other future connections. See Figure 2-9 for the recommended assignments for the 381-NiMH connections.

WARNING: Only connect unit to equipment certified to IEC 60950, IEC 62368, IEC 61010 or similar.

IMPORTANT: Removal of the RJ-11 cover and the charger cap invalidate the IP rating of the unit.

Battery charger

Cord grip for

load cell cable

connector

RJ-11 Serial

connection

cover

Cord grip for

optional

connectivity

Figure 2-9. Recommended Connection Assignments

16 Visit our website www.RiceLake.com

Page 17

Installation

2.7 380/380X Cable Shield Grounding

All cables routed through the cord grips on the 380/

• Use M4 screws provided in the parts kit to install shielding clamps on the grounding rail at the back of the enclosure

• Install only the necessary amount of shielding clamps for the cord grips to be used

• Remove the insulated jackets and shielding per the following instructions

Shielding Procedure

1. Install the shielding clamps on the grounding rail using the clamp screws. Finger tighten the screws at this time.

2. Route the cables through the cord grips and the shielding clamps to determine the cable lengths required to reach the appropriate cable connectors.

3. Mark cables to remove the insulated jacket as described below for Foil Shielded Cables and Braid Shielded Cables.

Foil Shielded Cables

380X

must be shield grounded against the grounding rail in the enclosure.

Shield wire

Length of foil before folding back on cable insulation

Cut insulated jacket here for foil shielded cables

Figure 2-10. Foil Shielded Cable

Silver

side out

1. Strip the insulated jacket and foil 1/2 in (15 mm) past the shielding clamp.

2. Strip another 1/2 in of the insulated jacket, leaving the foil shielding exposed.

3. Fold the foil shielding back on the cable where the cable passes through the clamp.

4. Ensure the silver (conductive) side of the foil is turned outward.

5. Wrap the shield wire around the cable, ensuring it contacts the foil where the cable passes through the clamp.

6. Torque the shielding clamp screw to 10 in-lb (1.1 N-m), ensuring the clamp is around the cable and contacting the shield wire.

Braid Shielded Cables

Braid

Cut insulated jacket here

Figure 2-11. Braid Shielded Cable

1. Strip the insulated jacket and braided shielding from a point just past the shielding clamp.

2. Strip another 1/2 in (15 mm) of the insulated jacket, leaving the braid exposed where the cable passes through the clamp.

3. Torque the shielding clamp screw to 10 in-lb (1.1 N-m), ensuring the clamp is contacting the braided shielding of the cable.

NOTE: The recommended cable strip length is 0.25 in (7 mm) for all 380/380X/381 connectors.

Page 18

380/380x/381 Synergy Indicator

+SIG

-SIG

+SEN

MICRO-USB

-SEN

+EXC

-EXC

YC3

SW2

RTC

CN2

CN1

CN4

JP3

CN3

CN10

COM1 - RS-232

COM1

CAL

N/A

GND

+Vin

CN9

SENSE

N/A

GND

OFF

1 2

2.8 CPU Board Connections

Figure 2-12. CPU Board Connections

2.8.1 Load Cell Cable

To attach the cable from a load cell or junction box, route cable to the YC3 connector. See from the load cell or junction box to connector.

Connector Pin Function

YC3 1 +SIG

2 –SIG 3 +SEN 4 –SEN 5 +EXC 6 –EXC

Table 2-6. YC3 Pin Assignments (Load Cell)

NOTE: For a 4-wire installation leave pins 3 and 4 empty on the connector. For a 6-wire installation set SW2 to all positions “off”, for 4-wire installation set all positions to “on.”

Table 2-6

for wiring the load cell cable

2.8.2 380/380X RS-232 Serial Communications

The CN10 connector is intended to provide a connection point for the RS-232 serial communications. One RS-232 port is available. See Table 2-7 for the pin assignments for the CN10 connector.

Connector Pin RS-232

CN10 1 TX1

Table 2-7. CN10 Pin Assignments (RS-232)

NOTE: This connection is available on the outside of the 381 enclosure via an RJ-11 connector and optional cable (PN 215273). The serial connection can be made directly to the CN10 connector if the RJ-11 connection is not wanted.

18 Visit our website www.RiceLake.com

2 RX1 3 GND 4 N/A 5 N/A

Page 19

Installation

2.9 Power Connections

Power is connected to the power supply and the CPU board through the power harness.

Connector Pin Wire Power

CN1 1 Red +Vin

2 Black GND 3 N/A N/A 4 N/A N/A

Table 2-8. CN1 Power Pin Assignments (Power Supply)

2.9.1 380 Power Connections

The 380 Synergy Indicator is powered by 4 C-Cell Batteries or an optional 12 V adapter (PN 206433). When the adapter is inserted into the power jack, indicator power is disconnected from the battery holders and batteries no longer drain. The Power adapter does not charge the batteries.

NOTE: Optional power adapter (PN 206433) is the only external power source allowed to be used. Ensure that battery covers are screwed finger tight. If covers are not fully secured, the indicator will not function.

Black wire to GND

Black Jumper Wire

Red wire to CN1 Pin 1

Table 2-8

Figure 2-13. 380 Battery Cell Wiring

Red Wire to Pin

Black wire to CN1

Pin 2

Table 2-8

Page 20

380/380x/381 Synergy Indicator

Charger Board

CPU Board

Li-Ion Battery

CN1

2 2

Power supply

(AC)

N-V+V

2.9.2 380X Power Connections

The 380X Synergy Indicator is powered by a rechargeable lithium-ion battery and a built in power supply. Power to the CPU board is routed through the charger board.

Black Wire to charger board J2 - Pin 3

Yellow Wire to charger board J2 - Pin 2

Red Wire to charger board J2 - Pin 1

Brown wire AC power to power supply L - Pin 1

Blue wire AC power to power supply N - Pin 2

Power Cable

AC versions of the 380X are shipped with the AC power cable already installed.

NOTE: The AC power cable is grounded to the threaded grounding hole on the back panel of the enclosure between the cord grip and the power supply connections rather than using Pin 3. This is a UL requirement.

NOTE: Colors may vary depending on manufacturer of AC power cable. Utilize testing procedures to ensure proper installation.

Black wire power supply -V Pin4 to charger board J4 - Pin 1

Red wire power supply +V Pin5 to charger board J4 - Pin 2

Pin Description Wire Color Cable Part No.

1 120 VAC (Line In) Brown or Black 180842 2 AC Neutral Blue or White 3 Ground N/C or Green/Yellow – 4 DC Out (-V) Black 199514 5 DC Out (+V) Red

Table 2-9. AC Power Supply Pin Assignments

Black Wire charger board J3 - Pin 2 to CPU Board CN1 - Pin 2

Red Wire charger board J3 - Pin 1 to CPU Board CN1 - Pin 1

Figure 2-14. Battery Cell Wiring

Figure 2-15. AC Power Cable

20 Visit our website www.RiceLake.com

Page 21

Installation

Battery Pack

NiMH Battery

CN1

2.9.3 381-AA Power Connections

The 381-AA Synergy Indicator is powered by 4 AA Batteries or an optional 12 V adapter (PN 215734). When the adapter is inserted into the power jack, indicator power is disconnected from the battery holders and batteries no longer drain. The power adapter does not charge the batteries.

Black wire to GND

Red wire to CN1

Pin 1

Table 2-8 on page 19

Red Jumper Wire

Black wire to CN1

Pin 2

Table 2-8 on page 19

Red Wire to + on Battery Pack

Note: Factory installed power harness crimps to CN1 at PCB. When battery is replaced, connector must also be replaced to reconnect all wires.

Figure 2-16. 381-AA Battery Cell Wiring

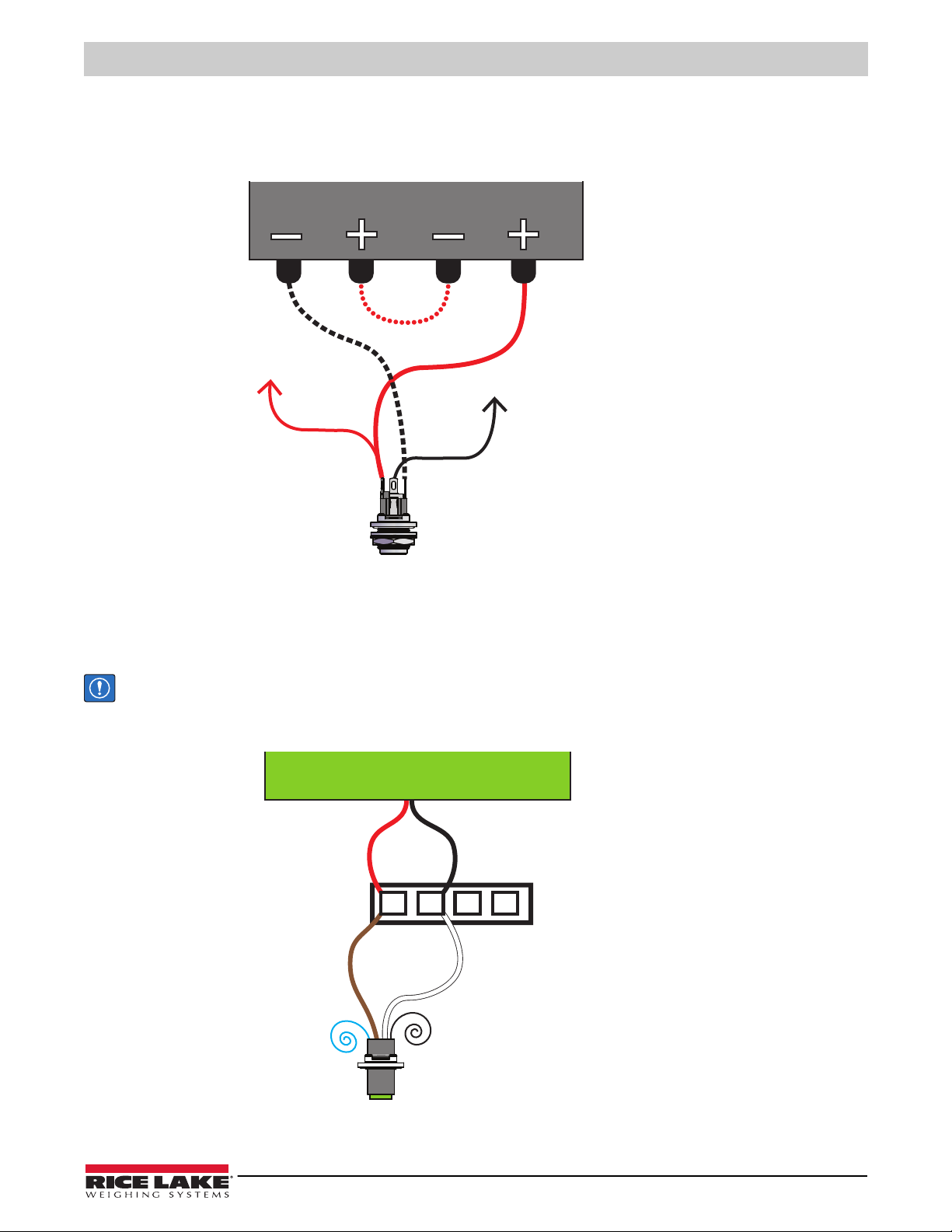

2.9.4 381-NiMH Power Connections

The 381-NiMH Synergy Indicator is powered by a rechargable NiMH battery. The Power adapter (PN 185064) charges the battery.

IMPORTANT: The 381-NiMH must not be powered on while battery is charging.

Leaving the charger attached to the 381-NiMh while not plugged in will discharge the battery even if the indicator is powered off.

Red Wire to CN1 - Pin 1

Brown wire to CN1 - Pin 1

Black wire to CN1 - Pin 2

Note: Factory installed power harness and battery both crimp to CN1 at PCB. When battery is replaced, connector must also be replaced to reconnect all wires.

White wire to CN1 - Pin 2

Black wire and Blue Wire not used

Figure 2-17. 381-NiMH Battery Cell Wiring

Page 22

380/380x/381 Synergy Indicator

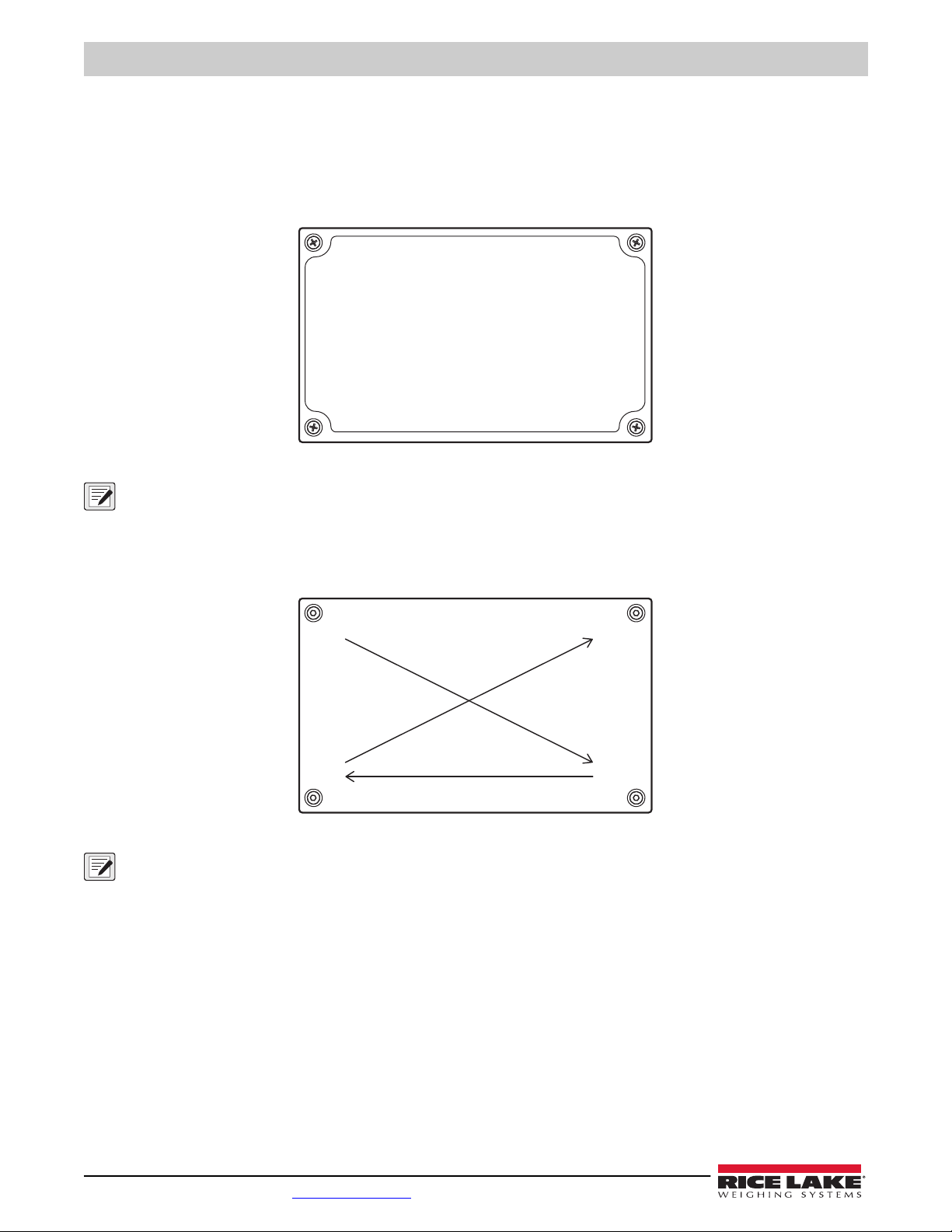

2.10 Reassembly

Once work inside of the enclosure is complete, reattach the front plate ground wire to the front plate.

2.10.1 380/380X Front Plate Reattachment

Position the front plate over the enclosure and install the four front plate screws with a Philips head screw driver. Use the torque pattern in Figure 2-18 to prevent distorting the front plate gasket. Torque screws to 10 in-lb (1.1 N-m).

Figure 2-18. 380/380X Front Plate Torque Pattern

NOTE: Torqued screws may become less tight as the gasket is compressed during the torque pattern; a second torque is required using the same pattern and torque value.

2.10.2 381 Reassembly

Position the Back cover over the enclosure and install the four screws with a 3mm hex key (PN 216647). Use the torque pattern in Figure 2-19 to prevent distorting the gasket on the 381-NiMH. Torque screws to 13 in-lb (1.5 N-m).

Figure 2-19. 381 Torque Pattern

NOTE: Torqued screws may become less tight as the gasket is compressed during the torque pattern; a second torque is required using the same pattern and torque value.

22 Visit our website www.RiceLake.com

Page 23

2.11 380/380X Parts Kit Components

Part No. Description Qty.

108945 SCREW, M3 x 0.5 x 8 mm Phillips Flat Countersunk Stainless Steel Machine Screw 1 15631 CABLE TIE, 3 in Nylon 4 15650 MOUNT, 3/4 in Cable Tie Mount 2 15664 GLAND, Reducing 9 mm-3/8NPT 2 192586 FRAME, Jumper Protection 1 19538 POST PLUG, 1/4 in x 1.00 Slotted Black Plastic 3 202140 SCREW, M4 x 0.7 x 10 Phillips Pan Head Zinc Finish Steel SEMS Screw with External Tooth Washer 3 28325 30632 42149 BUMPER, 0.50 OD x 0.281 ID Rubber Grommet 4 53075 CLAMP, Ø 0.078 in Ground Cable Shield 4 67550 CLAMP, Ø 0.125 in Ground Cable Shield 2 94422 LABEL, 0.40 x 5.00 Capacity Label 1

BAG, 2 x 3 2-Mil Write On, Ziploc Style Plastic Bag BAG, 5 x 8 2-Mil Ziploc Style Plastic Bag

Table 2-10. 380/380X Parts Kit (PN 205840) Components

Installation

1 1

Page 24

380/380x/381 Synergy Indicator

6 1

222423

2.12 Replacement Parts

Figure 2-20. 380 Replacement Parts Diagram, Front View

24 Visit our website www.RiceLake.com

Page 25

Installation

1413

3215

222124

19 20

25 26

Figure 2-21. 380 Replacement Parts Diagram, Rear View

Figure 2-22. 380 Replacement Parts Diagram, Side View

Page 26

380/380x/381 Synergy Indicator

Item No. Part No. Description Qty.

1 201041 FRONT COVER, 380 Universal Battery Powered 1 2 206406 BOARD ASSEMBLY, Replacement 380 CPU, RoHS Compliant 1 3 202064 SPACER, M3 x Ø0.250 x 0.260 Round Nylon 4 4 205136 HOLDER, BATTERY 2C, C-Size Battery Holder, Front Panel, IP67 2 5 201040 ENCLOSURE, 380 Universal Battery Powered 1 6 202824 OVERLAY, 380 Synergy Indicator 1 7 203691 GASKET, 380 Synergy Battery Powered Indicator 1 8 15626 CORD GRIP, PG9 Plastic 2

9 15627 LOCKNUT, PG9 Plastic 2 10 68600 CORD GRIP, PG11 2 11 68601 NUT, PG11 Black Nylon 2 12 205800 NUT, M5 x 0.8 Clip on Floating Hex Zinc Plated 4 13 46381 WASHER, #10 18-8 Bonded Sealing Stainless Steel 4 14 205687 SCREW, M5 x 0.8 x 25 mm Phillips Drilled Cheese Head Stainless Steel Machine Screw 4 15 202061 NUT, M3 x 0.5 Hex Kep Stainless Steel 3 16 29635 STAND, Stainless Steel Tilt 1 17 103988 WASHER, 0.515-0.52 Nylon 2 18 180825 KNOB, 32 mm Diameter, Nylon Knob, M6 x 1 Threaded Thru, Stainless Stee 2 19 204557 CABLE ASSEMBLY, 380 Synergy Power Harness 1 20 205753 STANDOFF, M3 x 0.5 x 12 mm F/F Nickel Plated Brass 1 21 180826 NUT, M4 x 0.7 Kep Nut with 18-8 Stainless Steel External Tooth Lock Washer 1 22 180856 WASHER, M4 Internal Tooth Stainless Steel 2 23 194488 SCREW, M4 x 0.7 x 6 Phillips Pan Head Zinc Finish Steel External Tooth Washer Sems Machine Screw 1 24 40672 WIRE, 9 in Ground Wire with #8 Eye Connector 1 25 88733 VENT, Black Plastic Gortex Sealed Breather 1 26 88734 NUT, M12 x 1 Thread Breather Vent 1 31 205294 SEAL, Power Jack Seal Cap 1 32 205884 WASHER, M5 x 0.177 ID x 0.453 OD x 0.032 Nylon Self-Retaining 4

Table 2-11. 380 Replacement Parts

26 Visit our website www.RiceLake.com

Page 27

Installation

9 10

6 7

534

Figure 2-23. 380X Replacement Parts Diagram, Front View

Page 28

380/380x/381 Synergy Indicator

Figure 2-24. 380X Replacement Parts Diagram, Inside Back View

28 Visit our website www.RiceLake.com

Page 29

Installation

Item No. Part No. Description Qty.

1 214653 ENCLOSURE, 380X Universal 1

2 88733 VENT, Black Plastic Gortex Sealed Breather 1

3 88734 NUT, M12 x 1 Thread Breather Vent 1

4 205800 NUT, M5 x 0.8 Clip on Floating Hex Zinc Plated 4

5 16892 LABEL, Ground Protective Earth Adhesive IEC 60417-5019 1

6 68600 CORD GRIP, PG11 2

7 68599 SEAL RING, Nylon PG-11 2

8 68601 NUT, PG11 Black Nylon 2

9 15626 CORD GRIP, PG9 Plastic 2 10 30375 SEAL RING, Nylon PG9 2 11 15627 LOCKNUT, PG9 Plastic 2 12 180842 POWER CORD ASSY, NEMA 5-15 UL Certified 1 13 215762 CABLE ASSY, Power Supply 380X to Charge Board 1 14 92463 POWER SUPPLY, 12 V, 25 W 1 15 214665 BRACKET, Power Supply 380X 1 16 180824 MACH SCREW,M3X0.5X5MM Phillips Pan head SEMS 18-8 3 17 180826 NUT, M4 x 0.7 Kep Nut with 18-8 Stainless Steel External Tooth Lock Washer 5 18 215873 BATTERY, Lithium Ion 7.2V 2000MAH 1 19 57822 GASKET, 12 in 1/2 in 20 214666 BRACKET, Battery 380X 1 21 203486 BRD ASSY, LIION CHRGR,SNGL Battery Power Connectivity Board, Single Li-Ion 1 22 15133 WASHER, Lock No 8 Type A 1 23 40672 WIRE, 9 in Ground Wire with #8 Eye Connector 1 24 194488 SCREW, M4 x 0.7 x 6 Phillips Pan Head Zinc Finish Steel External Tooth Washer Sems Machine Screw 1 25 180856 WASHER, M4 Internal Tooth Stainless Steel 1 26 201041 FRONT COVER, 380 Universal Battery Powered 1 27 214339 OVERLAY, 380X 1 28 203691 GASKET, 380 Synergy Battery Powered Indicator 1 29 205687 SCREW, M5 x 0.8 x 25 mm Phillips Drilled Cheese Head Stainless Steel Machine Screw 4 30 46381 WASHER, #10 18-8 Bonded Sealing Stainless Steel 4 31 205884 WASHER, M5 x 0.177 ID x 0.453 OD x 0.032 Nylon Self-Retaining 4 32 202064 SPACER, M3 x Ø0.250 x 0.260 Round Nylon 4 33 206406 BOARD ASSEMBLY, Replacement 380 CPU, RoHS Compliant 1 34 202061 NUT, M3 x 0.5 Hex Kep Stainless Steel 3 35 205753 STANDOFF, M3 x 0.5 x 12 mm F/F Nickel Plated Brass 1 36 215763 CABLE ASSY, Power Supply 380X Charge Board to Main Board 1 37 103988 WASHER, 0.515-0.52 Nylon 2 38 180825 KNOB, 32 mm Diameter, Nylon Knob, M6 x 1 Threaded Thru, Stainless Steel 2

29635 STAND, Stainless Steel Tilt (not shown) 1

Table 2-12. 380X Replacement Parts

Page 30

380/380x/381 Synergy Indicator

1 2 5 6

Power harness not shown. See Figure 2-16 on page 21 for wiring details.

Figure 2-25. 381-AA Replacement Parts Diagram

Item No. Part No. Description

1 206406 CPU board 2 216782 BOARD ASSY, Serial RJ-11 381 Synergy 3 15626 PG-9 Cord Grip 4 216780 TRAY, Removable, Batt Holder 381 Synergy AA 5 216784 INSERT, Side Knob 381 Synergy (metal insert) 6 216783 KNOB, Side 381 Synergy {black cap)

216779 CABLE ASSY, Power Harness 381 Synergy AA

Table 2-13. 381-AA Replacement Parts

30 Visit our website www.RiceLake.com

Page 31

Installation

Note: Power harness not shown. See Figure 2-17 on page 21 for wiring details.

Figure 2-26. 381-NiMH Replacement Parts Diagram

Item No. Part No. Description

1 216781 BATTERY, NiMH, Internal 6 V 4.5 Ah, 381 Synergy 2 216778 CABLE ASSY, Power Harness 381 Synergy NiMH 3 58983 CORD GRIP, PG-7 4 216783 KNOB, Side 381 Synergy (black cap) 5 216814 GASKET,

Seal 381 Enclosure IP68 8 206406 CPU board 9 216782 BOARD ASSY, Serial RJ-11 381 Synergy

10 15626 CORD GRIP, PG-9 11 216784 INSERT, Side Knob 381 Synergy (metal insert)

Table 2-14. 381-NiMH Replacement Parts

Page 32

380/380x/381 Synergy Indicator

ZERO

GROSS

NET

B/N

TARE

UNITS

3.0 Operation

The front panel consists of a seven-segment LCD display with six 1.0 in (25 mm) tall digits. A negative number displays as five digits plus the negative symbol. The front panel also includes five flat panel keys, backed by tactile primary scale function buttons with an integrated power button. There are annunciators built into the LCD screen that show units and scale functions.

3.1 Front Panel

380/380X Synergy Front Panel

Figure 3-1. 380/380X/381 Synergy Series Front Panels

381 Synergy Front Panel

NOTE: All procedures in this manual use the 380 keys to illustrate functions. When operating a 381 Synergy product, use the corresponding buttons below.

380/380X

Key

381

Key

Navigation

Move UP

structure

Move DOWN

structure

- Confirm

Move LEFT

in menu

structure

Move RIGHT

in menu

structure

Numeric

Entry Weigh Mode Function

Increase

digit value

Decrease

digit value

Delete

current

digit and

move left

Move right

one digit

Sets the current gross weight to zero, provided the amount of weight to be removed or added is within the specified zero range and the scale is not in motion; the zero band is defaulted to 1.9% of full scale,

by 1

but can be configured for up to 100% of full scale;

hold five seconds to enter user mode when unit is already powered on

IMPORTANT: Do not hold during power up. Indicator enters update firmware mode if power is held during power up (Section 9.5.2 on page 60)

Switches the display mode from gross to net, or from net to gross; If a tare value has been entered or

acquired, the net value is the gross weight minus the tare; gross mode is represented by the G annunci-

by 1

ator; net mode is represented by the NET annunciator Performs one of several predetermined Tare functions dependent on the mode of operation selected in

digit

the TARE FN parameter;

Switches the weight display to an alternate unit; The alternate unit is defined in the Configuration menu, and could be kg, g, lb, oz, tn or t;

Turns the unit ON/OFF:

If ON, press and hold for five seconds to turn unit OFF If OFF, press and hold for two seconds to turn unit ON

Press momentarily to send on-demand print format out the configured port, provided the conditions for standstill are met; RS-232 is default port

Table 3-1. Buttons and Descriptions

32 Visit our website www.RiceLake.com

Page 33

Operation

UNITS

ZERO

GROSS

NET

B/N

TARE

ZERO

GROSS

NET

B/N

UNITS

TARE

3.2 LCD Annunciators

The 380/380X/381 display uses LCD annunciators to provide additional information about the value being displayed and battery status.

Figure 3-2. LCD Display

LCD Description

The Center of Zero annunciator – Indicates the current gross weight reading is within ± 0.25 display divisions of the acquired zero;

A display division is the resolution of the displayed weight value, or the smallest incremental increase or decrease which can be dis-

played or printed

Net

LT PT

Gross annunciator - Gross weight display mode Net annunciator – Net weight display mode Tare annunciator – Indicates a push-button tare weight has been acquired and stored in memory Preset Tare annunciator – Indicates a preset tare weight has been keyed in or entered and stored in memory Battery annunciator – Indicates remaining battery capacity

• 3 bars - >95% capacity remaining

• 2 bars - 5-95% capacity remaining

• 1 bar - 1-5% capacity remaining

• 0 bars - <1% capacity remaining

Unstable annunciator – Scale is unstable or outside the specified motion band; Some operations, including zero, tare and print, can only

be done when the unstable annunciator is off Unit displayed annunciator – Displays which unit of measure is being used; units available are lb (pounds), kg (kilograms), t (tonnes),

g (grams), tn (short ton), oz (ounce)

Table 3-2. LCD Annunciators

3.3 General Navigation

The front panel scale function buttons are also used to navigate through the menu structure.

• and move left and right (horizontally) in a menu level

• and move up and down to different menu levels and to exit a menu

• enters a menu or parameter and selects/saves parameter settings or values if in a value entry mode

• Press and hold for five seconds to access user mode

• Use the , , and to enter a value and press to accept the value

Page 34

380/380x/381 Synergy Indicator

GROSS

NET

B/N

UNITS

ZERO

GROSS

NET

B/N

TARE

UNITS

TARE

ZERO

GROSS

NET

B/N

UNITS

TARE

GROSS

NET

B/N

GROSS

NET

B/N

UNITS

ZERO

3.3.1 Numeric Value Entry

Several parameters in the menu structure require the entry of a numeric value rather than the making of a selection. Numbers are entered in two steps. First the numeric digits are entered, then the decimal point is positioned.

Follow this procedure to enter a numeric value:

1. Press

to enter into a parameter. The current parameter value displays. The current position in the string

continuously blinks.

2. Press and to change location of flashing digit. Adjust digit as follows until desired number is selected.

3. Press and to change the flashing digit.

4. Press to save numeric digits. Decimal position slowly flashes.

5. Press and to change the location of the decimal.

6. Press to confirm the new value and exit editor. The next parameter in the menu displays.

NOTE: Pressing also saves the new value. The next parameter in the menu displays.

NOTE: There is no decimal place to the right of the right-most digit.

3.3.2 Alphanumeric Entry

Several parameters in the menu structure require the entry of an alphanumeric value rather than the making of a selection.

NOTE: The end of the alphanumeric character string is indicated by the “_” character symbol.

Follow this procedure to enter an alphanumeric value:

1. Press continuously blinks.

2. Press

3. Perform one of the following actions:

to enter into a parameter. The current parameter entry displays. The current position in the string

or to change the blinking character to be edited.

• Press to add a new character or space to the left of the blinking character

• Press

twice to delete blinking character

• Press once to edit blinking character; Proceed to next step

4. Press

5. Press

or to scroll through available ASCII characters (Table 10-4 on page 66).

to accept character edit. The next character to the right continuously blinks.

6. Repeat the previous steps until alphanumeric entry is complete.

7. Press to confirm current string and exit editor. The next parameter in the menu displays.

34 Visit our website www.RiceLake.com

Page 35

Operation

ZERO

UNITS

GROSS

NET

B/N

TARE

ZERO

TARE

ZERO

TARE

TARETTARE

TARE

3.4 Weigh Mode Operation

This section summarizes basic 380/380X/381 operations.

3.4.1 Zero Scale

1. In gross mode, remove all weight from the scale and wait for the "~" annunciator to turn off.

2. Press . The displays to indicate the scale is zeroed.

NOTE: The scale must be stable and within the configured zero range for the scale to be zeroed. If the scale cannot be zeroed, see Section 10.1 on page 61.

3.4.2 Print Ticket

1. Wait for the "~" annunciator to turn off.

2. Press to send data to the configured port. The default print port is RS-232.

"~" annunciator is displayed when the is pressed, the print action only occurs if the scale comes out of motion within

If the three seconds. If the scale stays in motion for over three seconds, the press is ignored.

3.4.3 Toggle Units

Press to toggle between primary and secondary units. The LCD annunciator representing the current unit is displayed.

3.4.4 Toggle Gross/Net Mode

Net mode is available when a tare value has been entered or acquired (Net = Gross minus Tare). If tare has not been entered or acquired, the display remains in gross mode. The LCD annunciator G or NET indicates the current mode.

Press to toggle the display mode between gross and net.

3.4.5 Acquire Tare

1. Place a container on the scale and wait for the "~" annunciator to turn off.

2. Press to acquire the tare weight of the container. Then Net weight displays, and the Net and LT annunciators are displayed.

3.4.6 Remove Tare Value

1. Remove all weight from the scale and wait for the "~" annunciator to turn off. The display reads the negative tare value.

2. Press to zero the scale, if needed.

3. Press (or in OIML mode). Display changes to gross weight and the Gross annunciator turns on.

3.4.7 Preset Tare (Keyed Tare)

Tare mode must be set to keyed or both for the preset tare feature to function.

1. Remove all weight from the scale and wait for the the

2. Press and hold for five seconds. Indicator will enter numeric entry mode.

3. Use the navigation keys to enter the tare weight value. See Section 3.3.1 on page 34.

4. Press to terminate numeric entry mode; press a second time to terminate preset tare entry mode.

5. The display changes to net weight, the Net and PT annunciators display.

NOTE: Press again while the "~" annunciator is off, or enter a keyed tare of zero to remove the preset tare value.

"~" annunciator to turn off and annunciator to display.

Page 36

380/380x/381 Synergy Indicator

ZERO UNITS

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

ZERO UNITS

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

ZERO UNITS

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

3.5 User Mode Menu

User Menu provides access to all menus in Section 4.0 on page 38 except for the Setup menu. For more information on each of the menus, see the following sections:

• Audit Menu - Section 4.3 on page 40

• Accumulator Menu - Section 4.5 on page 47

• Tare Menu - Section 4.5 on page 47

3.5.1 Display a Stored Tare

1. Press for five seconds to enter user mode. Audit displays.

2. Press or until tare displays.

3. Press to enter tare menu. dsptar displays.

4. Press to display the stored tare value.

5. Press four times to return to weigh mode.

If there is not a tare in the system, the value displayed is zero.

3.5.2 Clear a Stored Tare

1. Press for five seconds to enter user mode. Audit displays.

2. Press or until tare displays.

3. Press to enter tare menu. dsptar displays.

4. Press . clrtar displays.

5. Press to clear the stored tare value. ok displays.

6. Press three times to return to weigh mode.

3.5.3 View Legally Relevant Version

1. Press for five seconds to enter user mode. Audit displays.

2. Press . lrv displays.

3. Press . The legally relevant version displays.

4. Press three times to return to weigh mode.

3.5.4 Display Accumulator

1. Press for five seconds to enter user mode. Audit displays.

2. Press or until accum displays.

3. Press . dspacm displays.

4. Press . The accumulator value displays.

5. Press three times to return to weigh mode.

36 Visit our website www.RiceLake.com

Page 37

3.5.5 Print Accumulator

ZERO UNITS

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

ZERO UNITS

GROSS

NET

B/N

UNITS

GROSS

NET

B/N

ZERO

GROSS

NET

B/N

UNITS

GROSS

NET

B/N

GROSS

NET

B/N

ZERO

TARE

ZERO

1. Press for five seconds to enter user mode. Audit displays.

2. Press or until accum displays.

3. Press . dspacm displays.

4. Press . prtacm displays.

5. Press to print the accumulator value. ok displays.

6. Press three times to return to weigh mode.

3.5.6 Clear Accumulator

1. Press for five seconds to enter user mode. Audit displays.

2. Press or until accum displays.

3. Press . dspacm displays.

4. Press . clracm displays.

5. Press to clear the accumulator value. ok displays.

6. Press three times to return to weigh mode.

3.6 Reset (Default) Configuration

Perform the following to reset the indicator to factory settings:

NOTE: In order to reset the indicator to factory configured settings, the indicator must be in the Setup Menu (see

Section 4.0 on page 38) and the CAL jumper must be removed (see Section 4.1 on page 38).

Operation

1. Access setup mode by pressing once during the startup sequence. SETUP displays.

NOTE: When accessing Setup mode, only press once. Do not press and hold or double press .

2. Press . ConFig displays.

3. Press .

4. Press .

5. Press .

6. Press to reset the configuration.

7. Press or .

dEflt displays.

no displays.

yes displays.

ok displays.

no displays.

8. Press three times to return to weigh mode.

Page 38

380/380x/381 Synergy Indicator

ZERO

4.0 Configuration

There are two types of configuration parameters in the 380

/380X

/381, setup mode parameters (or Legal for Trade configuration)

and user mode parameters (or non-legal configuration).

• The Setup mode parameters are accessed by pressing momentarily during the startup sequence. Only press

once. Do not press and hold or double press . All menus in this section can be accessed from within Setup

mode.

• The User mode can be accessed by pressing for five seconds. User mode includes all menus in this section other

than the setup menu.

NOTE: The key press must end before start-up is complete.

NOTE: CAL jumper must be removed to access Setup mode parameters (see Section 4.1).

The following sections provide graphic representations of the 380/380X/381 menu structures. Most menu diagrams are accompanied by a table which describes all parameters and parameter values associated with the menu. The factory default setting appears in bold type.

NOTE: All weight related parameters must be configured prior to calibrating the unit.

4.1 Seal the Indicator

Access to setup mode is typically allowed through for Trade applications it is necessary to restrict access to setup mode. This restriction is accomplished in two steps. First the

firmware access to Setup mode must be restricted by shorting the JP3/CAL jumper on the CPU board. Then the enclosure must be secured with tamper proof seal. The 380/380X/381 all use the same method to restrict access.

NOTE: In certain Legal for Trade applications it is necessary to seal the indicator to restrict access to the CAL jumper. Breaking of the seal terminates the Legal for Trade status of the indicator because the seal limits access to the configuration menu.

pressing momentarily during the power up sequence. In certain Legal

4.1.1 Close the CAL Jumper

With the jumper open, the 380/380X/381 can be calibrated and configured. The jumper must be installed before the 380/380X/381 is sealed for legal for trade applications.See Figure 2-12 on page 18 for the location of the CAL jumper on the CPU board.

NOTE: Always place jumper onto JP3 directly aligned with the pins. If jumper is rotated or mis-aligned, the jumper will be damaged.

To restrict firmware access to the 380

1. Short the CAL jumper to restrict access to setup mode.

2. Install the cover over the CAL jumper to protect access to the jumper. (Optional)

/380X

/381 indicator for Legal for trade applications:

Figure 4-1. Closing the CAL Jumper

38 Visit our website www.RiceLake.com

Page 39

Configuration





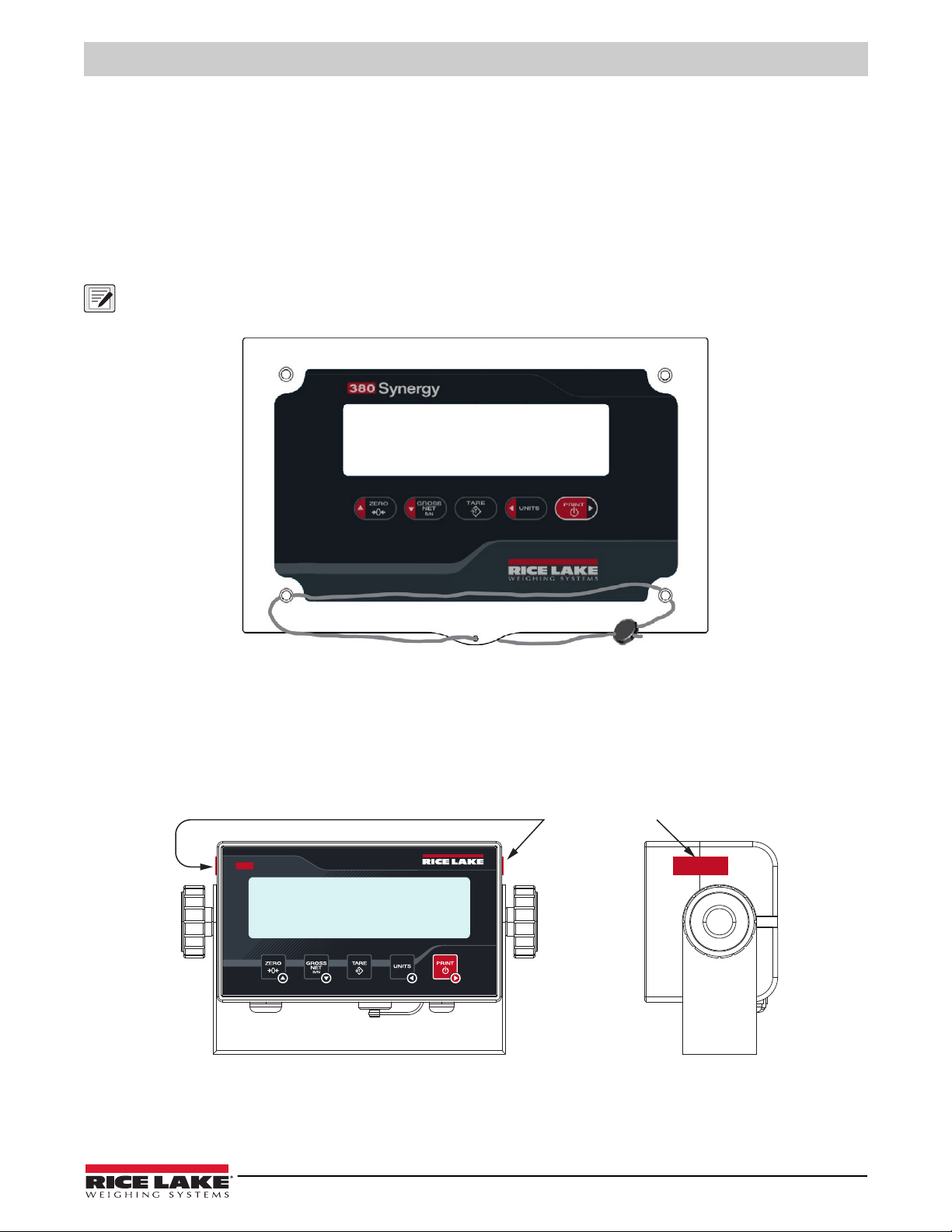

4.1.2 Seal the 380/380X

To seal the 38/380X indicator to restrict access of the CAL jumper, electronics, electrical contacts and Legal for Trade configuration parameters:

1. Short the CAL jumper to restrict access to setup mode. (Figure 4-1 on page 38)

2. Torque the four front plate screws to 10 in-lb (1.1 N-m).

3. Navigate the lead sealing wire through the lower two fillister head screws on the front plate and the hole at the bottom center of the front plate, as shown in Figure 4-2.

4. Seal the wire to secure.

NOTE: CAL jumper must be in place to prevent access to Setup mode at startup (Figure 4-1 on page 38).

Figure 4-2. Sealing the 380/380X Indicator – No Access

4.1.3 Seal the 381

The 381 is sealed with a self-destructive adhesive label (PN 162882) placed over the seam between the two halves of the indicator. The seal prevents the front and back from being separated and prohibits access to the jumper .

1. Short the CAL jumper to restrict access to setup mode. (Figure 4-1 on page 38)

2. Seal 381 with two self destructive adhesive labels placed over the seam between the two halves of the indicator.

Tamper Proof Label

Figure 4-3. Sealing the 381 Indicator – No Access

Page 40

380/380x/381 Synergy Indicator

AuditSetup Accum Tare time date Vers

Setup

Config Format Calibr Comm Progrm

sFormt DEFLTpformt

4.2 Main Menu

Figure 4-4. Main Menu

NOTE: * Only visible in setup mode.

NOTE: ** Only visible with RTC option installed.

Parameter Description

Setup

Accum

Tare

time

date

Vers

Audit

Setup – Set configuration parameters for indicator (only visible in setup mode); see Section 4.3 Accumulator – Displays, prints and clears accumulated weight value; see Section 4.4 on page 46 Tare – Displays and clears stored tare value; see Section 4.5 on page 47 Time – Displays the time and allows the time to be edited (24-hour) (Only visible with RTC option installed) Date – Displays the date and allows the date to be edited (Only visible with RTC option installed) Version – Displays the installed firmware version number Audit – Displays the legally relevant firmware version number; see Section 4.6 on page 47

Table 4-1. Main Menu Descriptions

4.3 Setup Menu

Figure 4-5. Setup Menu

NOTE: Setup menu is only visible in setup mode.

Parameter Description

Config Format Calibr Comm Progrm Pformt sformt deflt

Configuration – See Section 4.3.1 on page 41 for menu structure and parameter descriptions of the Configuration menu Format – See Section 4.3.2 on page 42 for menu structure and parameter descriptions of the Format menu Calibration – See Section 4.3.3 on page 42 for menu structure and parameter descriptions of the Calibration menu Communication – See Section 4.3.4 on page 43 for menu structure and parameter descriptions of the Communication menu Program – See Section 4.3.5 on page 44 for menu structure and parameter descriptions of the Program menu Print Format – See Section 4.3.6 on page 45 for menu structure and parameter descriptions of the Print Format menu Stream Format – See Section 4.3.7 on page 46 for menu structure and parameter descriptions of the Stream Format menu Default Configuration – Resets settings to indicator default

Table 4-2. Setup Menu Descriptions

40 Visit our website www.RiceLake.com

Page 41

Setup

Config

Capcty

fltchn

digfl1 digfl2

digfl3

dfsens dfthrh

Ztrkbn Zrange Intzro motban ovrloa smprat

rtltrp

tarefn sstime

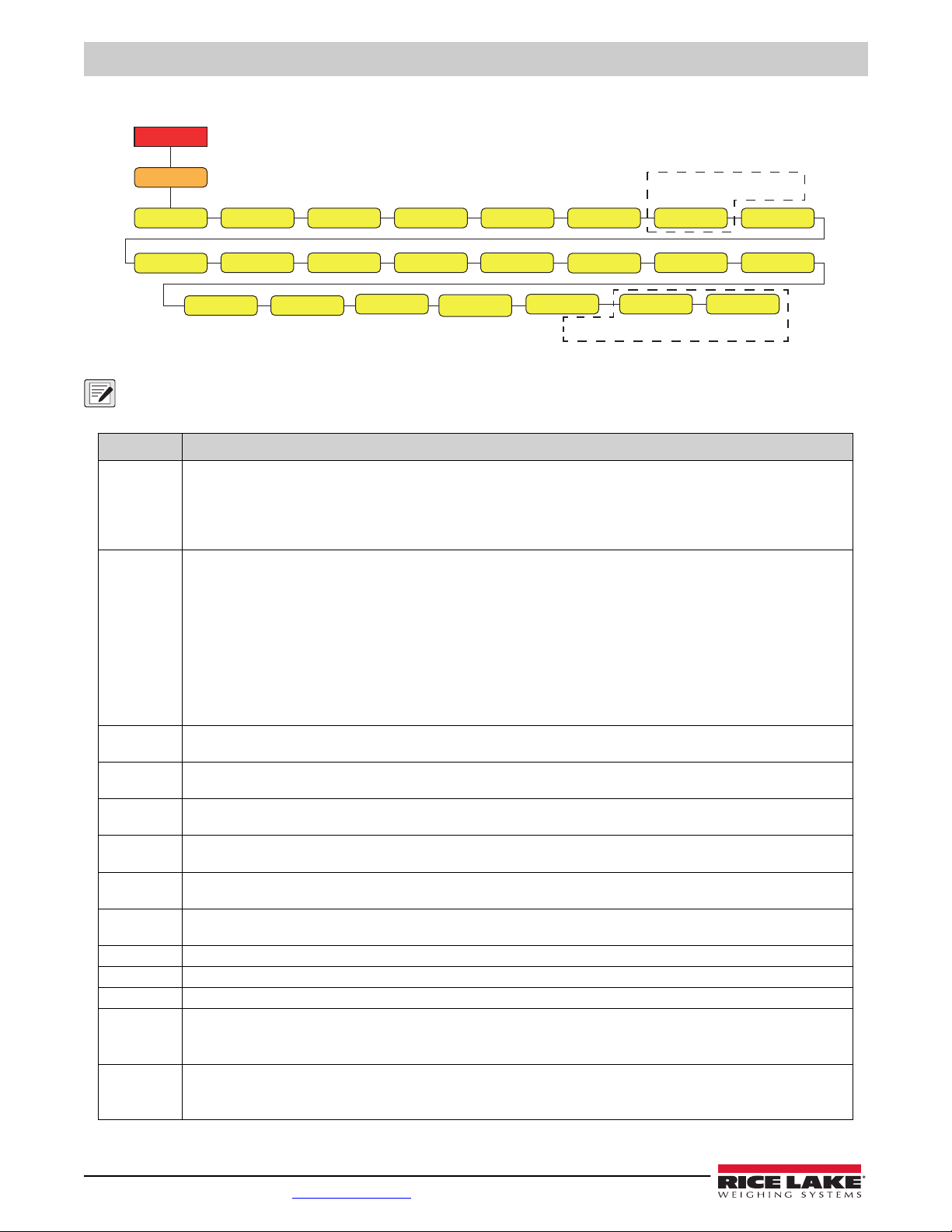

4.3.1 Setup – Configuration Menu

Figure 4-6. Setup – Configuration Menu

Parameter Description

capcty

Ztrkbn

Zrange

Intzro

Motban

Ovrloa

Smprat

fltchn

digfl1-3

Dfsens

Dfthrh

RTLTRP

Tarefn

Sstime

Capacity – Maximum rated capacity of the scale; Enter value: 0.000001–99999.0, 10000.0 (default) Zero Track Band – Automatically zeros the scale when within the range specified, as long as the input is within the zrange and

scale standstill; Max legal value depends on local regulations; Specify the zero tracking band in ± display divisions; Enter value:

0.0–100.0, 0.0 (default)

Zero Range – The total amount the scale can be zeroed; Zero range represents a percentage of capacity; The default value of

1.9 represents ±1.9% around the calibrated zero point, for a total range of 3.8%; A value of 0.0 prevents zeroing; Maximum legal value depends on local regulations; Enter value: 0.0–100.0, 1.9 (default)

Initial Zero Range – When the indicator is turned on and the weight value is between the ± percent range specified of Calibrated Zero, the indicator automatically zeros off the weight; Enter value: 0.0–100.0, 0.0 (default)

Motion Band – Sets the level, in display divisions, at which scale motion is detected; If motion is not detected for the time defined by

ss time, the motion annunciator is not displayed; Some operations, including print, tare, and zero, require the scale to be at

standstill; Maximum legal value varies depending on local regulations; If this parameter is set to 0, the motion annunciator is never lit and operations requiring standstill are performed regardless of scale motion; If 0 is selected, set to 0; Enter value: 0–100, 1 (default)

Overload – Determines the point at which the display blanks and the overload error message displays (^^^^^^); Maximum legal value varies depending on local regulations; Settings: FS+2% (default), FS+1D, FS+9D, FS

Sample Rate – Selects measurement rate, in samples per second, of the analog-to-digital converter; Lower sample rate values provide greater signal noise immunity; Settings: 5HZ, 6HZ, 10HZ, 12HZ, 20HZ, 25HZ (Default), 40HZ, 50HZ, 80HZ, 100HZ

Filter Chain Type – Sets the filter type to be used; Settings:

AVGONLY (default) – Digital Rolling Average Filter (Section 10.5.1 on page 64); Uses DIGFL1-3, DFSENS and DFTHRH RAW – No filtering

Digital Filters – Sets the digital filtering rate used to reduce the effects of environmental influences from the immediate area of the scale; Settings indicate the number of A/D conversions per update which are averaged to obtain the displayed reading; a higher number gives a more accurate display by minimizing the effect of a few noisy readings, but slows down the response time of the indicator; Settings: 1, 2, 4 (default), 8, 16, 32, 64, 128, 256

Digital Filter Sensitivity – Specifies the number of consecutive A/D readings which fall outside the Filter Threshold before filtering is suspended; Settings: 2OUT (default), 4OUT, 8OUT, 16OUT, 32OUT, 64OUT, 128OUT

Digital Filter Threshold – Sets a threshold value, in display divisions; when a number of consecutive A/D readings (Digital Filter Sensitivity) falls outside of this threshold value (when compared to the output of the filter), filtering is suspended and the A/D value is sent straight through the filter; Filtering is not suspended if the threshold is set to NONE; Settings: NONE (default), 2D,

5D, 10D, 20D, 50D, 100D, 200D, 250D

RattleTrap – Enables RattleTrap filtering; Effective at eliminating vibration effects, environmental influences and mechanical interference from nearby machinery, may increase response time over standard digital filtering; Settings: OFF (default), ON

Tare Function – Enables or disables push-button and keyed tare; Settings:

BOTH (default) – Both push-button and keyed tare are enabled NOTARE – No tare allowed (gross mode only) PBTARE – Push-button tares enabled KEYED – Keyed tare enabled

Standstill Time – Specifies the length of time the scale must be out of motion, before the scale is considered to be at standstill (in

0.1 sec intervals); Enter value: 0–600, 10 (default)

Table 4-3. Setup – Configuration Menu Descriptions

Configuration

ztrkbnd must also be

Page 42

380/380x/381 Synergy Indicator

Setup

Format

FORMAT UNITS

PRIMAR

FORMAT UNITS ENABLE

SECNDR

Setup

Calibr

zrocntWZERO WVAL spncntWSPAN

Point 1-4

WLIN REZERO

Wlinv1-4 wlinc1-4 wlinf1-4

lstzro tmpzro

4.3.2 Setup – Format Menu

Parameter Description

format

Units

ENABLE

Format – Sets the decimal point and the display divisions for the Primary (primar) and Secondary (secndr) display weight format; For example, select 888.885 if a count by of 0.005 is needed or select 888820 if a count by of 20 is needed (the 8s serve as placeholders and show a breakdown of how digits will display);

Settings: 888881 (Primary default), 888882, 888885, 888810, 888820, 888850, 888100, 888200, 888500, 8.88881,

8.88882, 8.88885, 88.8881, 88.8882, 88.8885, 888.881, 888.882, 888.885, 8888.81, 8888.82, 8888.85, 88888.1,

88888.2, 88888.5 (Secondary default)

Units – Sets the units type; Settings: LB (Primary default), KG (Secondary default), OZ, TN, T, G, NONE Enabled – Enables UNITS button to toggle between the primary and secondary units; Settings: ON (default), OFF

Figure 4-7. Format – Primary and Secondary Menus

Table 4-4. Format – Primary and Secondary Menu Description

4.3.3 Setup – Calibration Menu

For more information on Calibration procedures, see Section 5.0 on page 48.

Figure 4-8. Setup – Calibration Menu

Parameter Description

wzero

ZROCNT

wval

wspan

SPNCNT

Zero Calibration – Executes the zero calibration process; Zero Calibration Count – Displays the raw count value at the zero weight; A zero calibration (WZERO)

generates this raw count value; Manually changing this count value changes the zero weight and negates the zero calibration

Test Weight Value – Sets the weight value for the span calibration;

Enter value: 0.000001–999999.999999, 10000.0 (default)

Span Calibration – Executes the span calibration process; Span Calibration Count – Displays the raw count value at the span weight; A span calibration (WSPAN)

generates this raw count value; Manually changing this count value changes the span weight and negates the span calibration

Table 4-5. Setup – Calibration Menu Description

42 Visit our website www.RiceLake.com

Page 43

Parameter Description

Setup

Comm

SERIAL

trigge BAUD

RS232

BITS StpBIT TERMIN EOLDLY ECHO ReSPNS

trigge TERMIN EOLDLYECHO ReSPNS

usb

wlin

rezero

LSTZRO

TMPZRO

Linear Calibration – A linear or multi-point calibration is performed by entering up to four additional calibration points;

WLIN V# – Sets the test weight value for linear calibration point WLIN C# – Executes the linear calibration process for the point; generates the raw count value (F) for

the test weight value (V) WLIN F# – Displays the raw count value at the linear point weight; A linear calibration (WLIN C#)

generates this raw count value; Manually changing this count value changes the linear point weight and

negates the linear calibration for the point Rezero – Removes an offset value from the zero and span calibrations Last Zero – Takes the last pushbutton zero in the system (from weigh mode) and uses it as the new zero

reference point, after which a new span calibration must be performed; This calibration cannot be performed when calibrating a scale for the first time

Temporary Zero – Temporarily zeros the displayed weight of a non-empty scale, after a span calibration was performed; The difference between the temporary zero and the previously calibrated zero value is used as an offset

Table 4-5. Setup – Calibration Menu Description (Continued)

4.3.4 Setup – Communication Menu

Serial Port supports RS-232 serial communication. USB port supports USB virtual COM port.

Configuration

Figure 4-9. Communication – Serial Port Menu

Parameter Description

trigge

baud

bits

STPBIT

termin

eoldly

echo

RESPNS

Trigger – Sets the input trigger type; Settings:

CMD (default) – Command: allows operation of EDP commands and printing STRIND – Stream Industrial Scale Data: data is updated up to the configured sample rate; allows operation of

EDP commands and printing

STRLFT – Stream Legal for Trade Data: data is updated at the configured display update rate; allows operation of

EDP commands and printing

Baud Rate – Sets the transmission speed for the port (RS-232 only); Settings: 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200

Data Bits – Sets number of data bits transmitted or received by the port and specifies the parity bit to odd, even or none (RS-232 only); Settings: 8NONE (default), 7EVEN, 7ODD

Stop Bits – Sets the number of stop bits transmitted or received by the port (RS-232 only); Settings: 1 (default), 2 Outgoing Line Termination – Sets the termination characters for data sent from the port; Settings: CR/LF (default), CR End of Line Delay – Sets the delay period from when a formatted line is terminated to the beginning of the next

formatted serial output (measured in 0.1 second intervals); Enter value: 0–255, 0 (default) Echo – Specifies if characters received by the port are echoed back to the sending unit; Settings: ON (default), OFF

Response – Specifies if the port transmits replies to serial commands; Settings: ON (default), OFF

Table 4-6. Communication – Serial Port Menu Description

Page 44

380/380x/381 Synergy Indicator

Setup

Progrm

Pwrupm Regula Consnu Uidconstu

date time

rtzgrd wmtthr

maxwgh kybdlk zeronl

bright

numwgh

Accum

Locale grvorg grvdst

keyhld

autoff

Batery

pwrsav

maxdat

Displays if ACCUM is ON

Displays if

locale is set to Factor

** ** **

4.3.5 Setup – Program Menu

NOTE: ** Only visible with RTC option installed.

Parameter Description

pwrupm

regula

consnu

constu

uid

accum

rtZGrd

WMTTHR

NUMWGH MAXWGH MAXDAT date

time

Power Up Mode – When the indicator is turned on, it performs a display test, then enters a warm up period; Settings:

GO (default) – Performs display test, then enters weigh mode after brief warm up period DELAY – Performs display test, then enters a warm up period of 30 seconds

• If no motion is detected during warm up period, indicator enters weigh mode when warm up period ends

• If motion is detected, the 30 second timer is reset and the warm up period is repeated

Regulatory Mode – Specifies the regulatory agency having jurisdiction over the scale site; the value specified for this parameter affects the function of the front panel tare and zero keys; Settings: NTEP (default), OIML, CANADA, NONE

• OIML, NTEP, and CANADA modes allow a tare to be acquired at a weight greater than zero; NONE allows tares to be acquired at any weight value

• OIML, NTEP, and CANADA modes allow a tare to be cleared only if the gross weight is at no load; NONE allows tares to be cleared at any weight value

• NTEP and OIML modes allow a new tare to be acquired even if a tare is already present; In CANADA mode, the previous tare must be cleared before a new tare can be acquired

• NONE, NTEP and CANADA modes allow the scale to be zeroed in either gross or net mode as long as the current weight is within the specified ZRANGE; In OIML mode, the scale must be in gross mode before it can be zeroed; pressing the ZERO key in net mode clears the tare

Consecutive Numbering – Allows sequential numbering for print operations; the value is incremented following each print operation which includes <CN> in the ticket format; Enter value: 0–999999, 0 (default)

Consecutive Number Startup Value – Specifies the initial consecutive number (CONSNU) value used when the consecutive number is reset by sending KCLRCN EDP serial command; Enter value: 0–999999, 0 (default)

Unit ID – Specifies the unit identification string with an alphanumeric value;

Enter characters: Up to 8 alphanumeric characters, 1 (default)

Accumulator – Accumulation can be toggled ON/OFF; if ON, accumulation occurs on print operation; if OFF, an accumulation does not occur; Settings: OFF (default), ON

Return to Zero Grads – When the weight (in display graduations) falls below the value set, the accumulator is rearmed;

Enter Value: 0.0-100.0,

Weighment Threshold – When the weight exceeds the value set, the number of weighments counter is incremented;

Enter value: 0.0–999999.0, 1000.0 (default)

Number of Weighments – Displays the total number of weighments; Read only Maximum Weighment – Displays the maximum weighment made; Read only Date/Time of Max Weight – Displays the date the maximum weighment occurred; Read only (only available when RTC is installed) Date – Allows setting of the date format and date separator character; (only available when RTC is installed)

DATEFMT – Date Format; Settings: DATESEP – Date Separator; Settings:

Time – Allows setting of the time format and the separator character; (only available when RTC is installed)

TIMEFMT – Time Format; Settings: TIMESEP – Time Separator; Settings:

0.4

44 Visit our website www.RiceLake.com

Figure 4-10. Setup – Program Menu

(default)

MMDDYY

12HOUR

Table 4-7. Setup – Program Menu Description

(default), DDMMYY, YYMMDD, YYDDMM

SLASH

(default), DASH, SEMI, DOT

(default), 24HOUR

COLON

(default), COMMA, DOT

Page 45

Parameter Description

Setup

Pformt

format dest 1

Nfmt

format dest 1

Gfmt

Format dest 1

Acmfmt

format dest 1

Nfmt

keyhld

kybdlk Keyboard Lock – Disables the keyboard except power; settings: zeronl Zero Only – Disables the keyboard except Zero and Power; settings: bright Brightness of Back Light; settings: Batery Battery – Power supply via battery

pwrsav Power Saving mode – Energy saving for battery operation

autoff Auto Off Time – Time (in minutes) at zero weight after which the scale will power off. A setting of 0 will not power off;

locale

grvorg

grvdst

Key Hold – Allows setting of the key hold time and interval

HLDTME – Key hold time (in tenths of a second); 20 equals 2 seconds; Enter value: 10–50, 20 (default) INTRVL – Key hold time interval; the amount of time between increments during a key hold (in twentieths of a second); 2 equals a tenth of a second (10 increments per second during a key hold); Enter value: 1–100, 2 (default)

OFF

(Default), ON

OFF

(Default), ON

LOW

(default), MED, HIGH, OFF

NONE – No battery ALK – Alkaline battery (non-rechargable) NIMH – Nicken Metal Hydrade LITHIM – Lithium Ion

NONE

(default) LOW – Turns off backlight after 30 seconds of no activity; changing weight or a button press will illuminate the backlight HIGH – Turns off backlight and load cell after 30 seconds at zero weight; any button must be pressed to wake up indicator

Settings: 0 (default) - 60 Location Gravity Compensation – Enables gravity compensation; Settings:

OFF (default) – gravity compensation disabled FACTOR – uses origin and destination gravity factors to find gravity compensation

Gravity of Origin – Original gravity factor (in m/s2) for gravity compensation; displays when LOCALE parameter is set to FACTOR;

Enter value: 9.00000–9.99999, 9.80665 (default)

Gravity of Destination – Destination gravity factor (in m/s2) for gravity compensation; displays when LOCALE parameter is set to FACTOR; Enter value: 9.00000–9.99999, 9.80665 (default)

Table 4-7. Setup – Program Menu Description (Continued)

Configuration

4.3.6 Setup – Print Format Menu

Parameter Description

gfmt

nfmt

ACMFMT

Gross Format – Gross demand print format string

FORMAT – Enter characters: Alphanumeric entry up to 300 characters, DEST 1 – Destination ports; Settings: RS-232, USB, NONE

Net Format – Net demand print format string

FORMAT – Enter characters: Alphanumeric entry up to 300 characters,

Gross<g><nl>Tare<sp><t><nl>Net<sp2><n><nl2>

DEST 1 – Destination ports; Settings: RS-232, USB, NONE

Accumulator Format – Accumulator print format string

FORMAT – Enter characters: Alphanumeric entry up to 300 characters,

Accum <a><nl>

DEST 1 – Destination ports; Settings: RS-232, USB, NONE

Figure 4-11. Setup – Print Format Menu

(default)

Table 4-8. Setup – Print Format Menu Description

Gross<g><nl2>

(default)

Page 46

380/380x/381 Synergy Indicator

Setup

sformt

sfmt

ACCUM

dspacm

prtACm CLRACm

4.3.7 Setup – Stream Format Menu

Parameter Description

SFMT

Stream Format – Specifies the stream format used for streaming output of scale data;

Settings:

RLWS (default) – Rice Lake Weighing Systems stream format; see Section 10.3.1 on page 62 CRDNAL – Cardinal stream format; see Section 10.3.2 on page 62 WTRNIX – Avery Weigh-Tronix stream format; see Section 10.3.3 on page 63 TOLEDO – Mettler Toledo stream format; see Section 10.3.4 on page 63

Table 4-9. Setup – Stream Format Menu Description

4.4 Accumulator Menu

Figure 4-12. Setup – Stream Format Menu

Figure 4-13. Accumulator Menu

Parameter Description

dspacm

prtacm

clracm

Display Accumulator – Displays the accumulator value; Read Only Print Accumulator – Prints the accumulator value to specified port, if setup Clear Accumulator – Clears the accumulator value

Table 4-10. Accumulator Menu Description

46 Visit our website www.RiceLake.com

Page 47

4.5 Tare Menu

TARE

dsptar

CLRTAR

Audit

LRV

4.6 Audit Menu

Figure 4-14. Tare Menu

Parameter Description

dsptar

clrtar

Display Tare – Displays the current tare value; Read Only Clear Tare – Clears the current tare value

Table 4-11. Tare Menu Description

Figure 4-15. Audit Menu

Configuration

Parameter Description

Lrv

LRV – Legally relevant firmware version

Table 4-12. Audit Menu Description

Page 48

380/380x/381 Synergy Indicator

Setup

Calibr

zrocntWZERO WVAL spncntWSPAN

Point 1-4

WLIN REZERO

Wlin v1-4 wlin c1-4 wlin f1-4

lstzro tmpzro

ZERO

GROSS

NET

B/N

GROSS

NET

B/N

TARE

GROSS

NET

B/N

TARE

ZERO

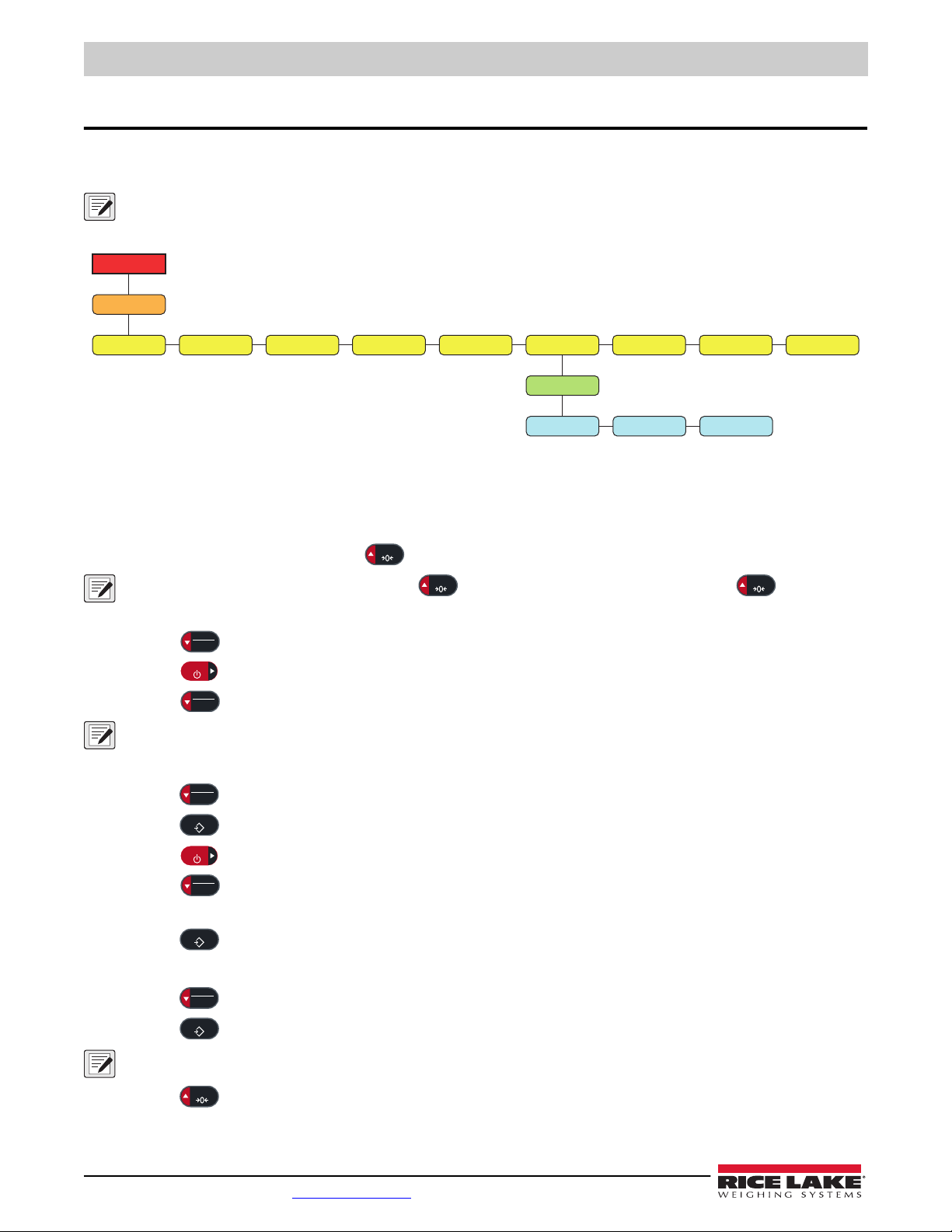

5.0 Calibration

The 380/380X/381 can be calibrated using the front panel or EDP commands. The following sections describe the procedures required for these calibration methods.

NOTE: CAL jumper must be removed to perform calibration. NOTE: The 380/380X/381 requires a WZERO and WSPAN points to be calibrated. The linear calibration points are optional;

they must fall between zero and span, but must not duplicate zero or span.

Figure 5-1. Calibration Menu

5.1 Front Panel Calibration

5.1.1 Span Calibration

Use the following steps to perform a standard span calibration on a connected scale.

1. Access the setup menu by pressing momentarily during power up.

Setup displays.

NOTE: When accessing Setup mode, only press once. Do not press and hold or double press .

NOTE: CAL jumper must be removed to perform calibration (see Section 4.1 on page 38).

2. Press once. config displays

3. Press twice.

4. Press .

NOTE: See Section 5.2 on page 49 if the application requires a rezero, last zero or temporary zero.

Calibr displays.

wzero displays.

5. Ensure there is no weight on the scale.

GROSS

6. Press to perform a zero calibration.

7. Press .

8. Press .

NET

B/N

ZROCNT displays. See Section 4.3.3 on page 42 for more information on ZROCNT.

wval displays.

ok displays.

9. Press . The current test weight value displays.

10. Enter a new value, if necessary. See Section 3.3.1 on page 34 for more information on numeric entry.

11. Press to accept value.

wSpan displays.

12. Place the specified amount of test weight on the scale.

GROSS

13. Press to perform a span calibration.

NET

B/N

ok displays.

14. Press .

SPNCNT displays. See Section 4.3.3 on page 42 for more information on SPNcnt.

NOTE: Span calibration is complete. To continue with a linear calibration, proceed to Section 5.1.2 on page 49 .

15. Press three times to return to weigh mode.

48 Visit our website www.RiceLake.com

Page 49

Calibration

GROSS

NET

B/N

GROSS

NET

B/N

GROSS

NET

B/N

TARE

ZERO

5.1.2 Linear Calibration

Linear calibration points provide increased scale accuracy by calibrating the indicator at up to four additional points between the zero and span calibrations.

1. Complete steps 1–14 in Section 5.1.1 on page 48.

2. Press .

3. Press .

4. Press .

wlin displays.

point1 displays.

wlin v1 displays.

5. Press . The current test weight value for point 1 displays.

6. Enter a new value, if necessary. See Section 3.3.1 on page 34 for more information on numeric entry.

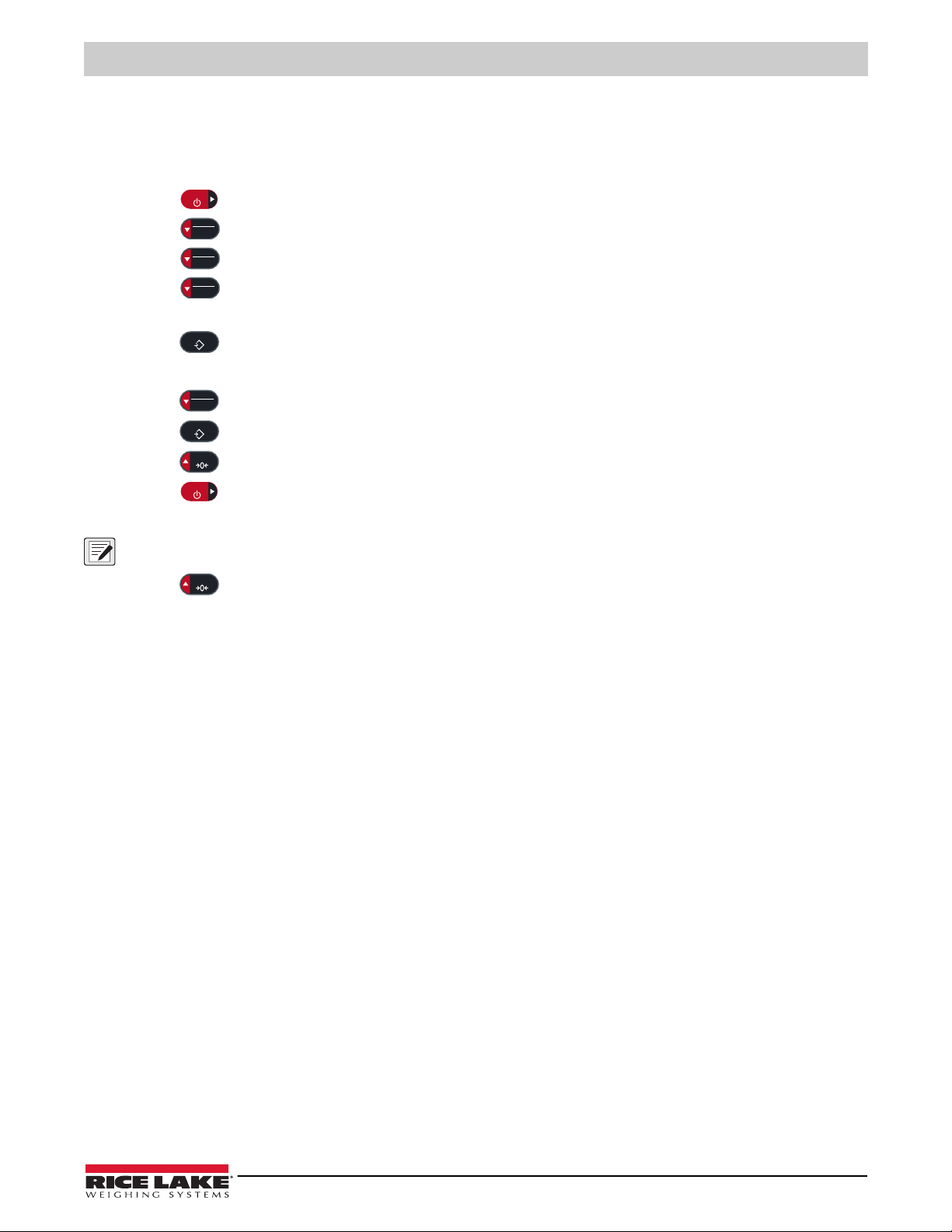

7. Press to accept value.

wlin c1 displays.

8. Place the specified amount of test weight on the scale.

GROSS

9. Press to perform a linear point calibration.

10. Press .

11. Press .

12. Press .

NET

B/N

wlin f1 displays. See Section 4.3.3 on page 42 for more information on WLIN F#.

Point1 displays.

Point 2 displays.

ok displays.

13. Repeat previous steps for points 2-4, if necessary.

NOTE: The linear calibration for a point is saved once point is calibrated.

14. Press three times to return to weigh mode.

5.2 Alternative Zero Calibrations

During a calibration, the zero value (wzero) can be replaced with a temporary zero (TMPZRO) or last zero (LSTZRO). A rezero

rezero) can be done after calibration. See below for information on these alternative zeros.

(

5.2.1 Last Zero

This takes the last push-button zero in the system (from weigh mode) and uses it as the new zero reference point, after which a new span calibration must be performed. This calibration cannot be performed when calibrating a scale for the first time.

A last zero calibration is typically used on truck scales to allow a scale verification to become a calibration without having to remove the test weights.

5.2.2 Temporary Zero

A temporary zero calibration temporarily zeros the displayed weight of a non-empty scale. After span calibration, the difference between the temporary zero and the previously calibrated zero value is used as an offset.

A temporary zero calibration is typically used on hopper scales to calibrate the span without losing the original zero calibration.

5.2.3 Rezero

A rezero calibration is needed to remove a calibration offset when hooks or chains are required to suspend the test weights. Once a span calibration is complete, remove the hooks or chains and the test weights from the scale. With all the weight

removed, a rezero calibration is used to adjust the zero and span calibration values.

Page 50

380/380x/381 Synergy Indicator

5.3 EDP Command Calibration

Use the following instructions to calibrate the 380/380X/381 using EDP commands. For information on the EDP commands of the 380/380X/381, see Section 7.0 on page 52.

NOTE: The indicator must respond with OK after each step or the calibration procedure must be done again. For commands ending with #s, s is the scale number (1).

1. Enter setup mode (Section 4.1 on page 38).

NOTE: CAL jumper must be removed to perform calibration.

2. For a standard calibration, remove all weight from scale (except hooks or chains which are needed to attach weights).

3. Send the command SC.WZERO#s to perform a standard calibration of the zero point.

• Send SC.TEMPZERO#s to perform a temporary zero calibration

• Send SC.LASTZERO#s to perform a last zero calibration

4. Apply the span calibration weight to the scale.

5. Send the command SC.WVAL#s=xxxxx, where xxxxx is the value of the span calibration weight applied to the scale.

6. Send the command SC.WSPAN#s to calibrate the span point. Continue on to step 7 to calibrate additional linearization points, or proceed to step 11.

7. Apply weight equal to the first linearization point to the scale.

8. Send the command SC.WLIN.Vn#s=xxxxx, where n is the linearization point number (1-4) and xxxxx is the exact value of the weight applied.

9. Send the command SC.WLIN.Cn#s to calibrate the linearization point, where n is the linearization point number (1-4).

10. Repeat steps 7–9 for up to four total linearization points.

11. If hooks or chains were used to attach the weights, remove all weight, including the hooks and chains, and send the command SC.REZERO#s to remove the zero offset.

12. Send the command KSAVEEXIT to return to weigh mode.

50 Visit our website www.RiceLake.com

Page 51

Revolution

6.0 Revolution

The Revolution utility provides a suite of functions used to support configuration, calibration, customization, backing up configuration settings and updating firmware.

Calibration values and scale configuration can both be saved from and restored to the 380/380X/381 using Revolution.

NOTE: For system requirements visit the Revolution product page on Rice Lake Weighing Systems website.

6.1 Connecting to the Indicator

Connect the PC serial port to com 1 of the 380/380X/381, then click Connect in the toolbar. Revolution attempts to establish communications to the indicator. If communications settings need to be adjusted, select Options… from the Tools menu.

Downloading to the Indicator

The Send Configuration to Device function in the Revolution Communications menu allows a Revolution configuration file (with or without scale calibration data) or ticket formats to be downloaded to a connected indicator in setup mode.

The Send Section to Device function on the Communications menu allows the download of only the currently displayed object, such as a scale configuration.

Because less data is transferred using the Send Section to Device, it is typically faster than a full configuration download, but there is an increased possibility the download fails due to dependencies on other objects. If the download fails, try performing a complete download using the Send Configuration to Device function.

Uploading Configuration to Revolution

The Get Configuration from Device function in the Revolution Communications menu allows the existing configuration of a connected indicator to be saved to a file on the PC. Once saved, the configuration file provides a backup which can be quickly restored to the indicator if needed. Alternatively, the file can be edited within Revolution and downloaded back to the indicator.

6.2 Saving and Transferring Data

NOTE: Revolution has a module to save and transfer data. It is the preferred method over using ProComm or Hyper Terminal.

6.2.1 Saving Indicator Data to a Personal Computer

Configuration data can be saved to a computer connected to the selected port. The PC must be running a terminal emulator such as Tera Term or PuTTY.

When configuring the indicator, ensure the values set for the baud and bits parameters on the serial menu match the baud rate, bits and parity settings configured for the serial port on the PC.

To save all configuration data, first put the terminal emulator into data capture mode, then send the DUMPALL command to the indicator. The 380/380X/381 responds by sending all configuration parameters to the PC as ASCII-formatted text.

6.2.2 Downloading Configuration Data from PC to Indicator

Configuration data saved on a PC or disc can be downloaded from the PC to an indicator. This procedure is useful when a number of indicators with similar configurations are set up or when an indicator is replaced.

To Send Configuration to the Device, connect the PC to the selected port as described in Section 6.2.1. Place the indicator in setup mode and use the PC communications software to send the saved configuration data to the indicator. When transfer is complete, calibrate the indicator as described in Section 5.0 on page 48.

place the indicator in setup mode and

Page 52

380/380x/381 Synergy Indicator

7.0 EDP Commands

The 380/380X/381 indicator can be controlled by a personal computer connected to one of the indicator communication ports. Control is provided by a set of commands which can simulate front panel key press functions, return and change setup parameters, and perform reporting functions. The commands provide the capability to print configuration data or to save data to an attached personal computer. This section describes the EDP command set and procedures for saving and transferring data using the communication ports. The EDP command set is divided into several groups.

When the indicator processes a command, it either responds with a value (for reporting commands, or when querying parameter settings), or with the message OK. The OK response verifies the command was received. If the command is unrecognized, the indicator responds with ?? invalid command. If the command cannot be executed in the current mode, the indicator responds with ?? invalid mode. If the command is recognized, but the value is out of range or the invalid type, the indicator responds with ?? followed by the type and the range.

7.1 Key Press Commands

Key press serial commands simulate pressing keys on the front panel of the indicator. These commands can be used in both setup and weigh mode. Several of the commands serve as pseudo keys, providing functions which are not represented by a key on the front panel.

For example, to enter a 15 lb tare weight using serial commands:

1. Type K1 and press

2. Type K5 and press

3. Type KTARE and press

Enter (or Return). Enter.

Enter.

Command Function

KZERO In weigh mode, this command acts like pressing the Zero key KGROSSNET In weigh mode, this command acts like pressing the Gross/Net key KGROSS Displays Gross mode (pseudo key) KNET Displays Net mode (pseudo key) KTARE In weigh mode, this command acts like pressing the Tare key KUNITS In weigh mode, this command acts like pressing the Units key KPRIM Displays primary units (pseudo key) KSEC Displays secondary units (pseudo key) KPRINT In weigh mode, this command acts like pressing the Print key KPRINTACCUM Prints the accumulated weight (pseudo key) KDISPACCUM Displays the accumulator value (pseudo key) KDISPTARE Displays the tare value (pseudo key) KCLR Clears number (pseudo key) KCLRCN Clears consecutive number (pseudo key) KCLRTAR Clears the tare from the system (pseudo key) KLEFT In setup mode, this command moves Left in the menu KRIGHT In setup mode, this command moves Right in the menu KUP In setup mode, this command moves Up in the menu KDOWN In setup mode, this command moves Down in the menu KEXIT In setup mode, this command exits to weigh mode (pseudo key) KSAVE In setup mode, save the current configuration (pseudo key) KSAVEEXIT In setup mode, save the current configuration then exit to normal mode (pseudo key) KCLRACCUM Clears the accumulator (pseudo key) Kn This command acts like pressing numbers 0 (zero) through 9 (pseudo key) KDOT This command acts like pressing the decimal point (.) (pseudo key) KENTER This command acts like pressing the Enter key (pseudo key) KLOCK=x In setup mode, this command locks specified front panel key; x = KPRINT, KUNITS, KTARE, KGROSSNET, KZERO

KUNLOCK=x In setup mode, this command unlocks specified front panel key; x = KPRINT, KUNITS, KTARE, KGROSSNET, KZERO

(example: to lock the Zero key, enter KLOCK=KZERO

(example: to unlock the Print key, enter KUNLOCK=KPRINT

Table 7-1. Key Press Commands

52 Visit our website www.RiceLake.com

Page 53

EDP Commands

7.2 Reporting Commands

Reporting commands return specific information to the communications port. The commands listed in Table 7-2 can be used in either setup mode or weigh mode.

Command Function

DUMPALL Returns a list of all parameter values AUDIT.LRVERSION Returns the legally relevant firmware version VERSION Returns the firmware version BUILD Returns the firmware version and build number HWSUPPORT Returns the CPU board part number HARDWARE Returns C1 if the RTC Option is installed, or FF if no option is installed

Table 7-2. Reporting Commands

7.3 Reset Configuration Command

The following command can be used to reset the configuration parameters of the 380/380X/381.

Command Function

RESETCONFIGURATION Restores all configuration parameters to default values (setup mode only)

Table 7-3. Reset Configuration Command

NOTE: All scale calibration settings are lost when the RESETCONFIGURATION command is run.

7.4 Parameter Setting Commands

Parameter setting commands allow the current value for a configuration parameter to be displayed or changed. Current configuration parameter settings can be displayed in setup mode or weigh mode using the following syntax:

command<ENTER>

Most parameter values can be changed in setup mode only. Use the following command syntax when changing parameter values: command=value<ENTER>. Use no spaces before or

after the equal (=) sign. If an incorrect command is typed or an invalid value is specified, the indicator returns ?? followed by the error message.

Example: to set the motion band parameter on Scale #1 to 5 divisions, type the following:

SC.MOTBAND#1=5<ENTER>

To return a list of the available values for parameters, enter the command and equal sign, followed by a question mark (command=?<ENTER>). The indicator must be in setup mode to use this function.

After changes are made to configuration parameters using EDP commands, use the KSAVE or KSAVEEXIT commands to commit the changes to memory.

Command Description Values

SC.CAPACITY#n Scale capacity 0.000001–999999.0, 10000.0 (default) SC.ZTRKBND#n Zero track band (in display divisions) 0.0–100.0, 0.0 (default) SC.ZRANGE#n Zero range in % of Full Scale (capacity) 0.0–100.0, 1.9 (default) SC.INITIALZERO#n Initial Zero range in % of full scale 0.0–100.0, 0.0 (default) SC.MOTBAND#n Motion band (in display divisions) 0–100, 1 (default) SC.SSTIME#n Standstill time (in 0.1 second intervals; 10 = 1 second) 0–600, 10 (default) SC.OVERLOAD#n Overload FS+2% (default), FS+1D, FS+9D, FS SC.MAX_WEIGHT#n Maximum weighment (read only) -999999–999999 SC.NUMWEIGH#n Number of weighments (read only) 0–4294967295 For commands ending with #n, n is the scale number (1)

Table 7-4. Scales Commands

Page 54

380/380x/381 Synergy Indicator

Command Description Values

SC.MAX_DATE#n Date of maximum weighment (read only) Up to 25 alphanumeric characters (Only available if RTC option

SC.WMTTHRH#n Weighment threshold 0.0–999999.0, 1000.0 (default) SC.DIGFLTR1#n

SC.DIGFLTR2#n SC.DIGFLTR3#n

SC.DFSENS#n Digital filter cutout sensitivity 2OUT (default), 4OUT, 8OUT, 16OUT, 32OUT, 64OUT, 128OUT SC.DFTHRH#n Digital filter cutout threshold NONE (default), 2D, 5D, 10D, 20D, 50D, 100D, 200D, 250D SC.SMPRAT#n Scale A/D sample rate 5HZ, 6HZ, 10HZ, 12HZ, 20HZ, 25HZ (default), 40HZ, 50HZ,

SC.PWRUPMD#n Power up mode GO (default), DELAY SC.TAREFN#n Tare function BOTH (default), KEYED, NOTARE, PBTARE SC.PRI.FMT#n Primary units format (decimal point and

SC.PRI.UNITS#n Primary units LB (default), KG, OZ, TN, T, G, NONE SC.SEC.FMT#n Secondary units format (decimal point and

SC.SEC.UNITS#n Secondary units LB, KG (default), OZ, TN, T, G, NONE SC.SEC.ENABLED#n Enable the Secondary Units ON (default), OFF SC.FILTERCHAIN#n Defines what filter to use AVGONLY (default), RAW SC.RTZGRAD#n Number of graduations from the zero base at which the

SC.ACCUM#n Accumulator enable OFF (default), ON SC.WZERO#n Perform zero calibration — SC.TEMPZERO#n Perform temporary zero calibration — SC.LASTZERO#n Perform last zero calibration — SC.WVAL#n Test weight value 0.000001–999999.999999, 10000.0 (default) SC.WSPAN#n Perform span calibration — SC.WLIN.F1#n–

SC.WLIN.F4#n SC.WLIN.V1#n–

SC.WLIN.V4#n SC.WLIN.C1#n–

SC.WLIN.C4#n SC.LC.CD#n Zero (deadload) coefficient raw count value 0–16777215, 8386509 (default) SC.LC.CW#n Span coefficient raw count value 0–16777215, 2186044 (default) SC.LC.CZ#n Temporary zero raw count value 0–16777215, 2186044 (default) SC.REZERO#n Perform the Rezero calibration function — For commands ending with #n, n is the scale number (1)

Number of A/D samples averaged for the individual stages (1-3) of the three stage digital filter

display divisions)

accumulator re-arms itself

Actual raw count value for linearization points 1–4 0–16777215, 0 (default)

Test weight value for linearization points 1–4 (A setting of 0 indicates the linearization point is not used)

Perform linearization calibration on points 1–4 —

is installed)

1, 2, 4 (default), 8, 16, 32, 64, 128, 256

80HZ, 100HZ

888100, 888200, 888500, 888810, 888820, 888850, 888881 (default), 888882, 888885, 88888.1, 88888.2, 88888.5,

8888.81, 8888.82, 8888.85, 888.881, 888.882, 888.885,

88.8881, 88.8882, 88.8885, 8.88881, 8.88882, 8.88885

888100, 888200, 888500, 888810, 888820, 888850, 888881, 888882, 888885, 88888.1, 88888.2, 88888.5 (default), 8888.81,

8888.82, 8888.85, 888.881, 888.882, 888.885, 88.8881,

88.8882, 88.8885, 8.88881, 8.88882, 8.88885

0.0–100.0, 0.4 (default)

0.000001–999999.999999, 0.0 (default)

Table 7-4. Scales Commands (Continued)

7.5 USB Setting Commands

Command Description Values

USB.TRIGGER USB serial function CMD (default), STRIND, STRLFT USB.LINETERM USB line termination characters CR/LF (default), CR USB.ECHO USB echo ON, OFF (default) USB.RESPONSE USB response ON (default), OFF USB.EOLDLY USB end-of-line delay 0–255 (0.1-second intervals), 0 (default)

Table 7-5. USB Port Commands

54 Visit our website www.RiceLake.com

Page 55

7.6 EDP Setting Commands

Command Description Values

EDP.TRIGGER#p Port serial function CMD (default), STRIND, STRLFT EDP.BAUD#p Port baud rate 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200 EDP.BITS#p Port data bits/parity 8NONE (default), 7EVEN, 7ODD EDP.TERMIN#p Port line termination characters CR/LF (default), CR EDP.STOPBITS#p Port stop bits 1 (default), 2 EDP.ECHO#p Port echo ON (default), OFF EDP.RESPONSE#p Port response ON (default), OFF EDP.EOLDLY#p Port end-of-line delay 0–255 (0.1-second intervals), 0 (default) For commands ending with #p, p is the port number (1); This is a 1-port device

Table 7-6. Serial Port Commands

7.7 Stream Setting Commands

Command Description Values

STRM.FORMAT#n Stream format RLWS (default), CRDNAL, WTRNIX, TOLEDO For commands ending with #n, n is the stream format number (1)

Table 7-7. Stream Formatting Commands

EDP Commands

7.8 Feature Commands

Command Description Values

DATEFMT Date format ** MMDDYY (default), DDMMYY, YYMMDD, YYDDMM DATESEP Date separator ** SLASH (default), DASH, SEMI, DOT TIMEFMT Time format ** 12HOUR (default), 24HOUR TIMESEP Time separator ** COLON (default), COMMA, DOT BRIGHTNESS Brightness of the backlight OFF, LOW (default), MED, HIGH AUTOFFTIME Auto off time 0-60 seconds, 0=Always On (default) BATTERYINSTALLED Power source NONE, NiMH, Liion ALK (default) POWERSAVEMODE Power save mode NONE (default), LOW, HIGH CONSNUM Consecutive numbering 0–999999, 0 (default) CONSTUP Consecutive number start-up value 0–999999, 0 (default) UID ID of the indicator Up to 8 alphanumeric characters, 1 (default) KYBDLK Keyboard lock (disable keypad except power) OFF (default), ON ZERONLY Disable all keys except ZERO and power OFF (default), ON KHOLDTIME Key hold time (in tenths of a second); 20 equals 2 seconds 10–50, 20 (default) KHOLDINTERVAL Key hold time interval; the amount of time between increments

LOCALE Enable gravity compensation OFF (default), FACTOR GRAV.LOC DEST.GRAV.LOC ** Date/time functions only available with RTC option

during a key hold (in twentieths of a second); 2 equals a tenth of a second (10 increments per second during a key hold)

Origin gravity factor (in m/s Destination gravity factor (in m/s

) for gravity compensation

Table 7-8. Feature Commands

1–100, 2 (default)

9.00000–9.99999, 9.80665 (default)

Page 56

380/380x/381 Synergy Indicator

7.9 Print Format Commands

Command Description Values

GFMT GFMT.PORT

NFMT NFMT.PORT

ACCFMT ACC.PORT

Gross demand print format string For the .PORT commands, specify the port name as RS232-1, USB, NONE

Net demand print format string

Accumulator print format string

Example: To send the Gross format out RS-232, send:

GFMT.PORT=RS232-1

See Section 8.0 on page 57 for information about demand print format strings

Table 7-9. Print Format Commands

7.10 Weigh Mode Commands

These commands function in the weigh mode. Non weight related commands work in setup mode.

Command Description Values

P Returns what the indicator is currently displaying -ZZ Returns what the indicator is currently displaying;

as well as an additional number representing the

currently displayed annunciators CONSNUM Returns current consecutive number value 0–999999, 0 (default) UID Sets or returns the unit ID Up to 8 alphanumeric characters, 1 (default) SD Sets or returns the current system date ** MMDDYY, DDMMYY, YYMMDD, or YYDDMM. Enter six-digit date using the

ST Sets or returns the current system time ** HHMM (enter using 24-hour format)

STS Sets or returns the current system time with sec-

onds ** RS Resets system Soft reset; Used to perform a power up reset of the indicator without resetting the

SX Starts all serial data streams -EX Stops all serial data streams -SX#p Starts serial data stream for port p OK or ?? EX#p Stops serial data stream for port p

SF#n Returns a single stream frame from scale n using

the standard Rice Lake format. XA#n Returns the accumulator value in displayed units nnnnnnnnnn UU XAP#n Returns the accumulator value in primary units XAS#n Returns the accumulator value in secondary units XG#n Returns the gross weight in displayed units nnnnnnnnnn UU XGP#n Returns the gross weight in primary units XGS#n Returns the gross weight in secondary units XN#n Returns the net weight in displayed units nnnnnnnnnn UU XNP#n Returns the net weight in primary units XNS#n Returns the net weight in secondary units XT#n Returns the tare weight in displayed units nnnnnnnnnn UU XTP#n Returns the tare weight in primary units XTS#n Returns the tare weight in secondary units For commands ending with #n, n is the scale number (1); For commands ending with #p, p is the port number (1) ** Date/time functions only available with RTC option

Table 7-10. Weigh Mode Commands

See Section 10.2 on page 61

year-month-day order specified for the DATEFMT parameter, using only the last two digits of the year; The current system date is returned by only sending SD

The current system time is returned by only sending ST HHMMSS (enter using 24-hour format)

The current system time is returned by only sending STS

configuration to the factory defaults

An EX command sent while in setup mode does not take effect until the indicator is returned to weigh mode

56 Visit our website www.RiceLake.com

Page 57

Print Formatting

8.0 Print Formatting

The 380/380X/381 provides three print formats, GFMT, NFMT and ACCFMT, which determine the format of the printed output when the

Each print format can be customized to include information, such as company name and address, on printed tickets. The print format is programmed using a combination of print formatting tokens (as in Table 8-1) and ASCII characters. The configuration may contain a total of up to 300 characters. The output sent to the printer may contain up to 400 characters. Use the print format menu through front panel of the indicator or revolution to customize the print format.

8.1 Print Formatting Tokens

Table 8-1 lists tokens which can be used to configure the print formats. Tokens included in the format strings must be enclosed

between < and > delimiters. Characters outside of the delimiters are printed as text on the ticket. Text characters can include ASCII characters which can be printed by the output device.

Print key is pressed. If a tare has been entered or acquired, NFMT is used; otherwise, GFMT is used.

NOTE: Press the down arrow to view the ASCII character decimal value on the second menu level. NOTE: See Section 10.6 on page 66 to view the ASCII character chart.

Token Description

<G> Gross weight in displayed units <G/P> Gross weight in Primary units <G/S> Gross weight in Secondary units <N> Net weight in displayed units <N/P> Net weight in Primary units <N/S> Net weight in Secondary units <T> Tare weight in displayed units <T/P> Tare weight in Primary units <T/S> Tare weight in Secondary units <A> Accumulated weight in displayed units <AC> Number of accumulator events (5 digit counter) ** <AD> Date of last accumulator event ** *** <AT> Time of last accumulator event ** *** <UID> Unit ID number (up to 8 characters) <CN> Consecutive number (up to 8 numeric digits) <NLnn> New line (nn = number of termination (<CR/LF> or <CR>) characters)* <SPnn> Space (nn = number of spaces)* <SU> Toggle weight data format (formatted/unformatted) <TI> Time *** <DA> Date (prints 4 digit year) *** <TD> Time & Date *** <nnn> ASCII character (nnn=decimal value of ASCII character); used for inserting control characters

(STX, for example) in the print stream

Gross, net, and tare weights are 9 digits in length, including sign (10 digits with decimal point) followed by a space and a two-digit units identifier. Total field length with units identifier is 12 (or 13) characters.

For tare weights only, PT is added to the output if the Tare is a Keyed tare, adding 3 additional characters to the total field length.

UID and consecutive number (CN) fields are up to 8 characters in length. * If nn is not specified, 1 is assumed. Value must be in the range 1–99. ** Accumulator events print 0 unless the accumulator is turned on *** Date and time function only available with RTC option installed

Table 8-1. Print Format Tokens

Page 58

380/380x/381 Synergy Indicator

Table 8-2 lists the default 380/380X/381 print formats:

Format Default Format String When Used

GFMT GROSS<G><NL2>

NFMT GROSS<G><NL>TARE<SP><T><NL>NET<SP2><N>

<NL2>

ACCFMT ACCUM <A> Accumulator demand print format string

Table 8-2. Default Print Formats

NOTE: The <G/P>, <N/P> and <T/P> tokens (Table 8-1 on page 57) print the gross, net and tare weights in primary units.

NOTE: The <G/S>, <N/S> and <T/S> tokens (Table 8-1 on page 57) print the gross, net and tare weights in secondary units.

NOTE: The 400 character limit of each print format string includes the output field length of the print formatting tokens, not the token length. For example, if the indicator is configured to display a decimal point, the <G> token generates an output field of 13 characters: the 10 character weight value (including decimal point), one space, and a two-digit units identifier. Configured print format string including tokens is limited to 300 characters.

NOTE: PT (preset tare) is added to the tare weight if tare was keyed in.

Weigh mode

– no tare in system – tare in system

8.2 Customizing Print Formats

The GFMT, NFMT and ACCFMT formats can be customized using the print format menu (PForMT) via the front panel. See

Section 4.3.6 on page 45 for the print format menu structure. To access the print format menu the indicator must be in setup

mode (Section 1.3 on page 8).

Using the Front Panel

Use the print format menu to customize the print formats and to edit the print format strings by changing the ASCII characters in the format string. See Section 3.3.2 on page 34 for the alphanumeric entry procedure to edit the print format string.

NOTE: Some characters cannot be displayed on the 380/380X/381 front panel, see the ASCII character chart in Section 10.6

on page 66 for available characters. The 380/380X/381 can send or receive many ASCII characters; the character printed

depends on the particular ASCII character set implemented for the receiving device.

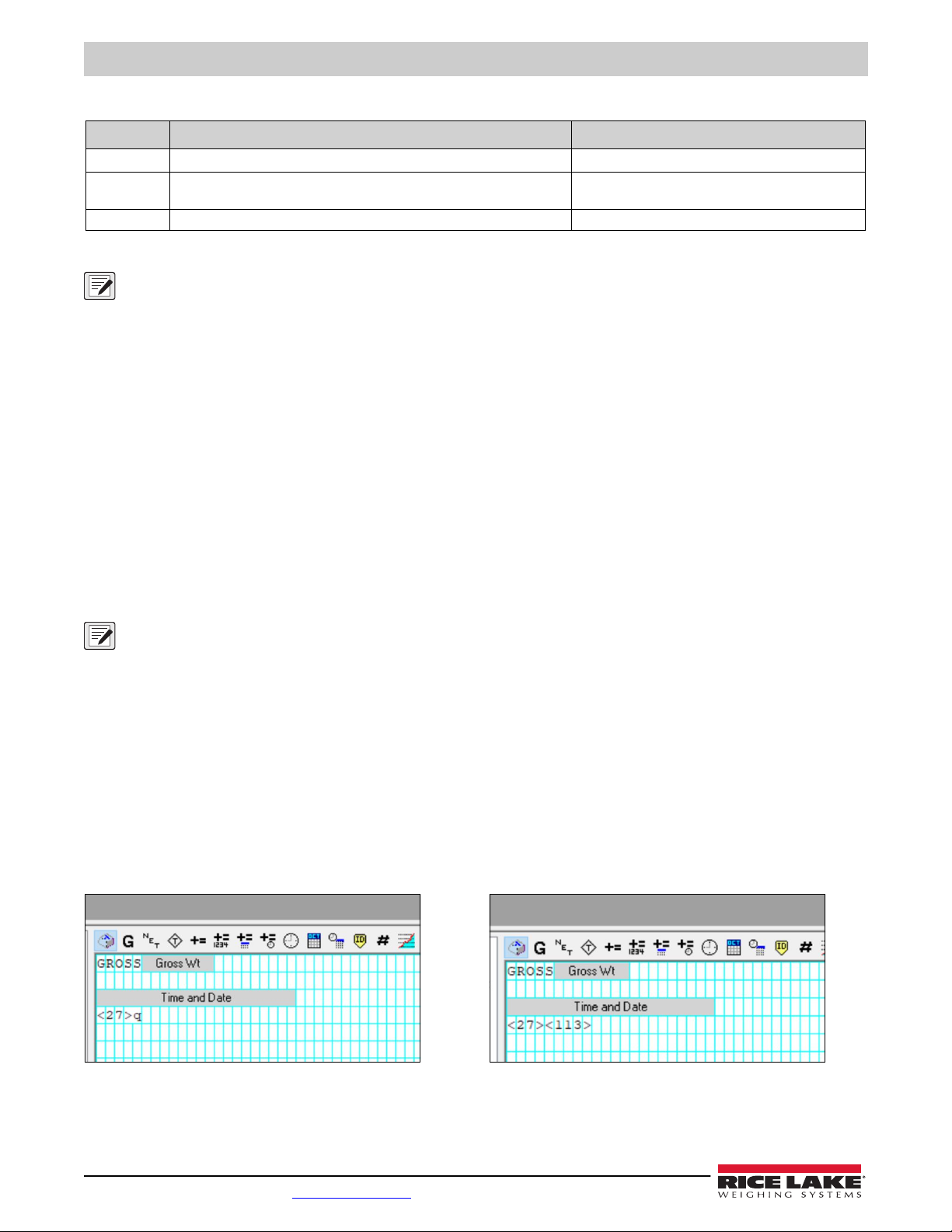

8.3 Non-Human Readable Characters

ASCII characters 0 through 31 are non-human readable characters. Since these characters are not visible, they do not appear as selectable options in a 380/380X/381 print format. To include a special character in a print format, the decimal equivalent needs to be used. For example, the special character Esc would be <27> or 60, 50, 55, 62 (less the commas).

Examples of a print release command for a TMU295 in the GROSS format:

Print Format:

GROSS<G><NL2><TD><NL><27>q

In Revolution:

Print Format:

GROSS<G><NL2><TD><NL><27><113>

In Revolution:

58 Visit our website www.RiceLake.com

Page 59

Maintenance

9.0 Maintenance

The maintenance information in this manual is designed to cover aspects of maintaining and troubleshooting the 380/380X/381 indicator. Contact the local Rice Lake Weighing Systems dealer if a problem requires technical assistance.

NOTE: Have the scale or indicator model number and serial number available when calling for assistance.

9.1 Maintenance Checkpoints

The scale must be checked frequently to determine when a calibration is required. It is recommended a zero calibration be checked every other day and a calibration checked every week for several months after installation. Observe the results and change the period between calibration checks, depending upon the accuracy desired.

NOTE: Establish a routine inspection procedure. Report changes in the scale function to the individual or department responsible for the scale’s performance.

9.2 Field Wiring

If a problem with the wiring is suspected, check the electrical portion of the scale.

• Check for proper interconnections between the components of the system

• Check wiring meets all specifications in the installation drawings

• Check all wiring and connections for continuity, shorts and grounds using an ohmmeter with the scale off

• Check for loose connections, poor solder joints, shorted or broken wires and unspecified grounds in wiring; these issues cause erratic readings and shifts in weight readings

• Check all cable shields to ensure grounding is made at only the locations specified in the installation drawings

9.3 Troubleshooting

Table 9-1 lists general troubleshooting tips for hardware and software error conditions

Symptom Possible Cause Remedy

380/380X/381 does not power up

vvvvvvv

Serial port not responding Configuration error Ensure port TRIGGER parameter is set to CMD for command input; Software to check syntax A/D scale out of range Scale operation

Discharged Batteries Test batteries,

• 380 – Test each cell; If individual cells are < 1 VDC, or the total is < 4 VDC – replace all batteries

• 380X – If the battery measures < 6.5 VDC, plug in the indicator to charge. – If Battery depletes rapidly, replace the battery pack.

• 381-AA – Test each cell; If individual cells are < 1 VDC, or the total is < 4 VDC – replace all batteries

• 381-NiMh – If the battery measures < 5 VDC, plug in the indicator to charge – If Battery depletes rapidly, replace the battery pack.

Bad power supply Check power supply;

• Check presence of AC power – breaker tripped or unit unplugged

• 380 and 381-AA – power supply outputs around 12 VDC – replace if not

• 380X – internal power supply supplies 12 VDC to charger board – replace if not

• 381-NiMH – charger supplies variable voltage; Voltage starts as 5.8 VDC and increases to over 7 VDC. If this does not happen, charger may need to be replaced

In Bootmode Remove and reapply power or fix cause for firmware update failure and repeat update Over or under range

scale condition

Load cell connection Bad load cell

Check scale; For out-of -range conditions in total scale display, check all scale inputs for positive weight values

Check source scale for proper mechanical operation Check load cell and cable connection Check 380/380X/381 operation with load cell simulator Check status of sense settings

Table 9-1. Basic Troubleshooting

Page 60

380/380x/381 Synergy Indicator

ZERO

9.4 Board Replacement

IMPORTANT: Use anti-static protection for grounding and to protect components from electrostatic discharge (ESD) when working inside the 380/380X/381 enclosure. Procedures requiring work inside the 380/380X/381 must be performed by qualified service personnel only.

To replace a 380/380X/381 board, use the following procedure:

1. Remove the batteries or disconnect the external power to the indicator if being used.

CAUTION: Disconnecting the external power at the 380/380X/381 will activate the batteries if they are installed.

2. Remove front plate as described in Section 2.5 on page 12.

3. Label connections for re-installation to board.

4. Disconnect all connections from the board.

5. Remove the three corner nuts and one standoff securing the board and remove the board.

6. Place the replacement board onto the front plate and secure with previously removed nuts and standoff.

7. Reconnect all connections to the board. See Figure 2-12 on page 18 for details on the board connectors.

8. Replace the front plate and secure the screws as in Section 2.10 on page 22.

IMPORTANT: Always verify indicator has been returned back to a safe state with the proper installation of all connections and a complete functions test before reinstalling the front plate and returning the indicator back to service.

9.5 Updating Firmware

There are two ways to update the firmware; By using the Revolution software and a .bef file or by using a direct connection to the PC and an .exe file.

NOTE: Use Revolution version 3.33 or later.

NOTE: CAL jumper must be removed to update firmware. If CAL jumper is not removed, update will fail and message “The CPU board is in LEGAL state!” will display.

NOTE: Updating firmware defaults configuration settings.

9.5.1 With Revolution

Revolution is used to update the firmware of the 380/380X/381 indicator. The link to begin this process is available on the Revolution home screen. Connect to the indicator as in Section 6.1 on page 51.

9.5.2 Without Revolution

NOTE: All versions of the Synergy indicators use the same 380* firmware.

1. Download the new firmware from www.ricelake.com/380. Package will include two files with filenames that begin with ‘380_PN202264_Vx.xx’.

2. Connect indicator to computer via one of the following:

• Micro USB (Figure 2-12 on page 18)

• Serial connecter CN10 on the 380/380X (Section 2.8.2 on page 18)

• External RJ-11 on the 381

3. Turn off indicator.

4. Press and hold while powering on the indicator. The display will remain off, but if indicator is connected to the PC via the USB, the PC will emit a sound indicating a USB connection to the PC is configured.

5. Run the * .exe file.

6. Select the COM port on the PC that is associated with the USB or RS-232 port.

7. Select Program and wait for

Firmware Updated Successfully to display. When update process is complete, the 380/

380X/381 indicator turns off.

60 Visit our website www.RiceLake.com

Page 61

Appendix

10.0 Appendix

10.1 Error Messages

The 380/380X/381 provides a number of front panel error messages to assist in problem diagnosis. Table 10-1 lists these messages and their meanings.

Error Message Description

------- Overflow error – Weight value too large to be displayed

vvvvvvv

vvvvvvv Gross < underload limit – Gross value exceeds underload limit

tare in motion not allowed Scrolls across display when attempting to perform a tare while weight is in motion, if in motion tares are not allowed negative tare not allowed Scrolls across display when attempting to perform a negative tare, if a negative tare is not allowed keyed tare not allowed Scrolls across display when attempting to perform a keyed tare, if a keyed tare is not allowed

tare larger than capacity not allowed

tare already in system Scrolls across display when attempting to perform a tare if a tare is already in the system, if tare is not configured to

initial zero failed Scrolls across display when an attempt to perform an initial zero fails, only possible at startup please wait Scrolls across display when calibrating

Gross > overload limit – be caused by input signal > 45 mV or common mode voltage > 950 mV

Scrolls across display when attempting to perform a tare larger than capacity, if it is not allowed

replace or remove

Gross value exceeds overload limit; Check configuration or signal input level; Overload can

Table 10-1. Error Messages

10.2 ZZ EDP Command

The ZZEDP command can be used to remotely query whatever is being displayed on the LCD Display, along with a decimal number representing the annunciators currently lit. The format on the returned value is WWWWWW UU NNN in weight display modes, and VVVVVV NNN in non-weight display modes. NNN is a number between 0 and 4095, and is the sum of values representing the different annunciators (Table 10-2).

Example:

If the annunciator status value returned for the ZZ command is 0145, the gross, standstill and lb annunciators are on. The number 0145 represents the sum of the values for the gross mode annunciator (16), the standstill annunciator (128) and the lb annunciator (1).

Decimal Value Annunciator

1 lb units 2 kg units 4 Tare entered

8 Keyed tare entered 16 Gross 32 Net 64 Center of zero

128 Standstill 256 oz units

512 tn units 1024 t units 2048 g units

Table 10-2. Status Codes Returned on the ZZ Command

NOTE: Standstill bit is set when the In-Motion annunciator is NOT lit.

Page 62

380/380x/381 Synergy Indicator

ASCII 002

Polarity: <space> = Positive <–> = Negative

Weight: 7 digits, right-justied, dummy zeroes, decimal point with no leading zeroes except for leading zero immediately preceding the decimal point. Leading zeroes transmitted as spaces.

L = pounds K = kilograms T = tons G = grams O = ounces

G = Gross N = Net

Status: <space> = valid I = Invalid M = Motion O = Over/under range Z = COZ

Carriage Return

Polarity: <+> for positive "–" for negative

Six digits, right justiﬁed, ﬂoating decimal (follows weight if not embeded), leading zeroes are present.

g for Gross n for Net

Hex value of <03> is entered in string

lb = pound kg = kilogram g = gram tn = ton (short) t = ton (metric) oz = ounce <space> = none

Space Character

Space character

(2)

Space Character

Status: <space> = valid or invalid m = motion o = over/under range

10.3 Continuous Data (Stream) Output Formats

When the trigger setting for a port is set to STRIND or STRLFT, data is continuously streamed from the appropriate port in one of the four fixed format options.

Fixed Format Options:

• Rice Lake Weighing Systems (Section 10.3.1)

• Cardinal (Section 10.3.2)

• Avery Weigh-Tronix (Section 10.3.3 on page 63)

• Mettler Toledo (Section 10.3.4 on page 63)

10.3.1 Rice Lake Weighing Systems Stream Format (RLWS)

Figure 10-1. Rice Lake Weighing Systems Stream Data Format

10.3.2 Cardinal Stream Format (crdnal)

62 Visit our website www.RiceLake.com

Figure 10-2. Cardinal Stream Data Format

Page 63

10.3.3 Avery Weigh-Tronix Stream Format (wtrnix)

Space

Polarity:

<+> for positive

"–" for negative

Six digits, right justiﬁed, ﬂoating decimal, leading zeros are present

g for Gross n for Net

lb = pound

kg = kilogram

g = gram

tn = ton (short)

t = ton (metric)

oz = ounce

<space> = none

Space

ASCII 002

Status Word A

<CR> entered at end of string.

Status Word B

Status Word C

MUL1 MUL0Parity

DP2 DP1 DP0 Fixed Zero/Dec. Pt. Location 0 0 0 x 100 (2 ﬁxed zeroes) 0 0 1 x 10 (1 ﬁxed zero) 0 1 0 x 1 (No decimal point) 0 1 1 x 0.1 (1 decimal place) 1 0 0 x 0.01 (2 decimal places) 1 0 1 x 0.001 (3 decimal places) 1 1 0 x 0.0001 (4 decimal places) 1 1 1 x 0.00001 (5 decimal places)

Disp. Div.

MUL1

MUL0

Multiplier 0 1 x 1 1 0 x 2 1 1 x 5

Even parity bit. Requires EDP Port setup.

Status Word A:

Status Word C: ASCII 20h (space)

Even parity bit: Requires EDP Port setup.

Status Word B:

0 = Gross Display Mode 1 = Net Display Mode

0 = Positive indicated weight value 1 = Negative indicated weight value

0 = In range 1 = Out of range

0 = Stable 1 = Motion

0 = lb 1 = kg

Even parity bit: Requires EDP Port setup.

Six digits, right justiﬁed, dummy zeros, decimal point with no leading zeroes except for immediately preceding the decimal point. Leading zeroes transmitted as spaces.

Tare Weight: Six digits, right justiﬁed, dummy zeros, decimal point with no leading zeroes except for immediately preceding the decimal point. Leading zeroes transmitted as spaces.

76543210

DP2 DP1 DP010

Parity

76543210

1000000

Parity

76543210

Figure 10-3. Avery Weigh-Tronix Stream Data Format

10.3.4 Mettler Toledo Stream Format (toledo)

Appendix

Figure 10-4. Mettler Toledo Stream Data Format

Page 64

380/380x/381 Synergy Indicator

10.4 Conversion Factors for Secondary Units

The 380/380X/381 has the capability to mathematically convert a weight into another unit of measurement and display the result with the press of the Units key. Available units are pounds (lb), kilograms (kg), tonnes (t), grams (g), short ton (tn) and ounces (oz).

Secondary units can be specified on the Format menu using the SECNDR parameter.

NOTE: Multipliers are preconfigured within the indicator. NOTE: Ensure the secondary decimal point position is set appropriately for the scale capacity in the secondary units.

10.5 Digital Filtering

Digital filtering is used to create a stable scale reading in challenging environments. Th Digital Rolling Average Filtering ( layout and the location of

The scale’s sample rate effects all types of filtering. The A/D sample rate is selected by the SMPRAT scale parameter. The A/D sample rate is the number of weight readings the indicator takes per second (SMPRAT). This can be 5, 6, 10, 12, 20, 25, 40, 50, 80, or 100 hertz (readings per second). Set the A/D sample rate to the lowest setting required for the application. Lower settings result in better stability.

FLTCHN

Section 10.5.1

parameter.

) or

RAW

(no filtering).

See

Section 4.3.1 on page 41

10.5.1 Digital Rolling Average Filter (AVGONLY)

The digital rolling average filter uses mathematical averaging with three stages. These configurable stages control the effect of a single A/D reading on the displayed weight. When an A/D reading outside of a predetermined band (defined by the DFSENS and DFTHRH parameters) is encountered, the digital rolling average filter is overridden and the display jumps directly to the new value.

e 380/380X/381 a

llows selection of

for configuration menu

Digital Filter Stages (DGFLTR1-3)

The filter stages can each be set to a value of 1–256. The value assigned to each stage sets the number of readings received from the preceding filter stage before averaging. Setting the filter stages to 1 effectively disables the rolling filter.

A rolling average is passed to successive filtering stages for an overall filtering effect which is effectively a weighted average of the product of the values assigned to the filter stages (DGFLTR1 x DGFLTR2 x DGFLTR3) within a time frame corresponding to the sum of the values (DGFLTR1 + DGFLTR2 + DGFLTR3).

Digital Filter Sensitivity (DFSENS) and Threshold (DFTHRH)

The rolling averaging filter can be used by itself to eliminate vibration effects, but heavy filtering also increases settling time. The DFSENS and DFTHRH parameters can be used to temporarily override filter averaging and improve settling time.

• DFSENS specifies the number of consecutive A/D readings which must fall outside the filter threshold (DFTHRH) before filtering is suspended

• DFTHRH sets a controlling threshold delta value, in display divisions; the indicator monitors both the incoming filtered and unfiltered A/D values; DFTHRH is the maxim allowable difference between the filtered and unfiltered A/D values for which the filter will remain engaged; filtering is suspended when the difference between the filtered and unfiltered A/D values is greater than the DFTHRH value for more than the specified number (DFSENS) of consecutive readings; filtering is reengaged when two consecutive A/D readings are within the DFTHRH threshold delta value; Set DFTHRH to NONE to turn off the filter override

64 Visit our website www.RiceLake.com

Page 65

Appendix

Digital Rolling Average Filter Procedure

1. In setup mode, set the rolling filter stage parameters (DGFLTR1-3) to 1.

2. Set DFTHRH to NONE.

3. Return to weigh mode.

4. Remove all weight from scale, then watch the indicator to determine the magnitude of vibration effects on the scale.

5. Record weight below which all but a few readings fall. This value is used to calculate the DFTHRH parameter in step 8.

Example – if a heavy-capacity scale (10000 x 5 lb) produces vibration-related readings of up to 50 lb, with occasional spikes up to 75 lb, record 50 as the threshold weight value.

6. Place the indicator in setup mode and set the filter stage parameters (DGFLTR1-3) to eliminate the vibration effects on

the scale (leave DFTHRH set to NONE).

7. Find the lowest effect value for the DGFLTR1-3 parameters.

If needed, the digital filter cutout sensitivity (DFSENS) and the digital filter cutout threshold (DFTHRH) can be used to reset the digital rolling average filter so the response to a rate change is faster.

8. Calculate the DFTHRH parameter value by converting the weight value recorded in step 5 to display divisions

(Threshold_Weight_Value / Display_Divisions).

In the example in step 5, with a threshold value of 50, and a display divisions value of 5, set the DFTHRH parameter to 10 display divisions.

9. Set the DFSENS parameter high enough to ignore transient peaks. Longer transients (typically caused by lower

vibration frequencies) causes more consecutive out-of-band readings; set the DFSENS parameter higher to counter low frequency transients.

10.5.2 Regulatory Mode Functions

Regulatory

Parameter

NTEP Zero No “000000” Zero

Negative No No action Zero

Positive No Tare Zero

Canada Zero No “000000” Zero

Negative No No action Zero

Positive No Tare Zero

OIML Zero No “000000” Zero

Negative No No action Zero

Positive No “000000” Zero

None Zero No “000000” Zero

Negative No No action Zero

Positive No Tare Zero

Table 10-3. Tare and Zero Key Functions for REGULA Parameter Settings

Weight On

Scale

Tare In

System

Yes Clear tare Zero

Yes Tare Zero

Yes Clear tare Clear tare

Yes No action Clear tare

Yes Clear tare Zero and Clear tare

Yes Tare Zero and Clear Tare

Yes Clear tare Clear tare

Front Panel

Key Tare

Front Panel

Key Zero

Page 66

380/380x/381 Synergy Indicator

10.6 ASCII Character Chart

Use the decimal values for ASCII characters listed in Table 10-4 when specifying print format strings on the 380/380X/381 PFORMT menu (Section 4.3.6 on page 45). The actual character printed depends on the character mapping used by the output device.

The 380 uppercase, 381 LCD display.

/380X

/381 can send or receive ASCII character values (decimal 0–255), but the indicator display is limited to numbers,

unaccented letters and a few special characters. See Section 10.7 on page 67 for information about the 380/380X/

Control ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex

Ctrl-@ NUL 00 00 space 32 20 @ 64 40 ` 96 60 Ctrl-A SOH 01 01 ! 33 21 A 65 41 a 97 61 Ctrl-B STX 02 02 “ 34 22 B 66 42 b 98 62 Ctrl-C ETX 03 03 # 35 23 C 67 43 c 99 63 Ctrl-D EOT 04 04 $ 36 24 D 68 44 d 100 64 Ctrl-E ENQ 05 05 % 37 25 E 69 45 e 101 65 Ctrl-F ACK 06 06 & 38 26 F 70 46 f 102 66 Ctrl-G BEL 07 07 ’ 39 27 G 71 47 g 103 67 Ctrl-H BS 08 08 ( 40 28 H 72 48 h 104 68 Ctrl-I HT 09 09 ) 41 29 I 73 49 i 105 69 Ctrl-J LF 10 0A * 42 2A J 74 4A j 106 6A Ctrl-K VT 11 0B + 43 2B K 75 4B k 107 6B Ctrl-L FF 12 0C , 44 2C L 76 4C l 108 6C Ctrl-M CR 13 0D - 45 2D M 77 4D m 109 6D Ctrl-N SO 14 0E . 46 2E N 78 4E n 110 6E Ctrl-O SI 15 0F / 47 2F O 79 4F o 111 6F Ctrl-P DLE 16 10 0 48 30 P 80 50 p 112 70 Ctrl-Q DC1 17 11 1 49 31 Q 81 51 q 113 71 Ctrl-R DC2 18 12 2 50 32 R 82 52 r 114 72 Ctrl-S DC3 19 13 3 51 33 S 83 53 s 115 73 Ctrl-T DC4 20 14 4 52 34 T 84 54 t 116 74 Ctrl-U NAK 21 15 5 53 35 U 85 55 u 117 75 Ctrl-V SYN 22 16 6 54 36 V 86 56 v 118 76 Ctrl-W ETB 23 17 7 55 37 W 87 57 w 119 77 Ctrl-X CAN 24 18 8 56 38 X 88 58 x 120 78 Ctrl-Y EM 25 19 9 57 39 Y 89 59 y 121 79 Ctrl-Z SUB 26 1A : 58 3A Z 90 5A z 122 7A Ctrl-[ ESC 27 1B ; 59 3B [ 91 5B { 123 7B Ctrl-\ FS 28 1C < 60 3C \ 92 5C | 124 7C Ctrl-] GS 29 1D = 61 3D ] 93 5D } 125 7D Ctrl-^ RS 30 1E > 62 3E ^ 94 Ctrl-_ US 31 1F ? 63 3F _ 95 5F DEL 127 7F

Table 10-4. ASCII Character Chart

5E ~ 126 7

66 Visit our website www.RiceLake.com

Page 67

Appendix

! 7 Ff Ss

" 8 Gg Tt

+ 9 Hh Uu

-:IiVv

;JjWw

/ < Kk Xx

0 = Ll Yy

1 > Mm Zz

2AaNn[

3BbOo\

4 CcPp]

5DdQq_

6EeRr

10.7 Front Panel Display Characters

Refer to Figure 10-5 for the seven-segment LCD character set used on the 380/380X/381 front panel display for alphanumeric characters.

Figure 10-5. Display Characters

Page 68

380/380x/381 Synergy Indicator

DECLARATIONOF

CONFORMITY

380 Indicator Series

2014/35/EU LVD

2014/30/EU EMC

2014/53/EU RED

2011/65/EU RoHS

IEC 62368-1:2014

IEC 61326-1:2020, IEC 61000-3-3:2013, IEC 61000-3-2:2018

EN 300 328:2019, EN 301 489-17:2020

EN 50581:2012

Rice Lake, WI. USA

Derrick Bender

April 19, 2024

Compliance Engineer

11.0 Compliance

68 Visit our website www.RiceLake.com

Page 69

DECLARATIONOF

CONFORMITY

380X Indicator Series

2014/35/EU LVD

2014/30/EU EMC

2011/65/EU RoHS

IEC 62368-1:2014

IEC 61326-1:2020, IEC 61000-3-3:2013, IEC 61000-3-2:2018

EN 50581: 2012

Rice Lake, WI USA

Derrick Bender

April 19, 2024

Compliance Engineer

Compliance

Page 70

380/380x/381 Synergy Indicator

DECLARATIONOF

CONFORMITY

381 Indicator Series

2014/35/EU LVD

2014/30/EU EMC

2011/65/EU RoHS

EN 61326-1:2020

EN 61326-1:2020, EN 61000-3-2013, EN 61000-3-2:2018

EN 50581: 2012

Rice Lake, WI. USA

Derrick Bender

June 30, 2023

Compliance Engineer

70 Visit our website www.RiceLake.com

Page 71

DECLARATION

OFCONFORMITY

380 Indicator Series

2016/1101 Low

Voltage

2016/1091 EMC

2017/1206 Radio

2012/3032 RoHS

IEC 62368-1:2014

IEC 61326-1:2020, IEC 61000-3-3:2013, IEC-3-2:2018

EN 300 328: 2019, EN 301 489-17:2020

EN 50581:2012

Rice Lake, WI. USA

Derrick Bender

April 19, 2024

Compliance Engineer

Compliance

Page 72

380/380x/381 Synergy Indicator

DECLARATION

OFCONFORMITY

380X Indicator Series

2016/1101 Low

Voltage

2016/1091 EMC

2012/3032 RoHS

IEC 62368-1:2014

IEC 61326-1:2020, IEC 61000-3-3:2013, IEC 61000-3-2:2018

EN 50581: 2012

Rice Lake, WI. USA

Derrick Bender

April 19, 2024

Compliance Engineer

72 Visit our website www.RiceLake.com

Page 73

DECLARATION

OFCONFORMITY

381 Indicator Series

2016/1101 Low

Voltage

2016/1091

EMC

2012/3032

RoHS

EN 61326-1:2020

EN 61326-1:2020, EN 61000-3:2013, EN 61000-3-2:2018

EN50581: 2012

Rice Lake, WI. USA

Derrick Bender

June 30, 2018

Compliance Engineer

Compliance

Page 74

380/380x/381 Synergy Indicator

12.0 Specifications

380 (PN 202711)

Power

Four Alkaline C-Cell Batteries Optional 115/230 VAC to 12 V adapter

Power Consumption

6 W max with optional external power adapter

Battery Life

100 hours, one 350Ω load cell, no backlight 45 hours, four 350Ω load cells, low backlight 20 hours, eight 350Ω load cells, low backlight

Temperature Range

Legal: 14 to 104°F (-10 to 40°C) Industrial: 14 to 122°F (-10 to 50°C)

Rating/Material

Rating: IP66 Material: Stainless Steel

Weight

6.25 lb (3 kg)

Warranty

Two-year limited warranty

Excitation Voltage

5 VDC, 8 x 350Ω or 16 x 700Ω load cells

Analog Signal Input Range

-0.3 mV to +30 mV Common Mode Voltage 0.7 V to 3.3 V

Analog Signal Sensitivity

1 µV/graduation recommended

A/D Sample Rate

Software Selectable (Hz) 5, 6, 10, 12, 20, 25, 40, 50, 80, 100

Resolution

Internal: 8,000,000 counts Display: 100,000

System Linearity

Within 0.01% full scale

Communication Ports

One full-duplex RS-232 (three-wire) One USB 2.0

Status Annunciators

g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

EMC Immunity

10 V/m

Certifications and Approvals

380 Universal

NTEP

CoC Number: 21-051 Accuracy Class: III / IIIL; n

Measurement

Canada

Approved

Measurement Canada

Approval Number: AM-6184 Accuracy Class: III / IIIHD; n

UL File Number: E151461

: 10 000d

max

: 10 000

Display

Six 1.0 in (25 mm) tall, LCD digits

Keys / Buttons

Five tactile buttons

Dimensions (L x W x H)

11.58 x 74.53 x 8.57 in (294 x 115 x 218 mm)

74 Visit our website www.RiceLake.com

Page 75

Specifications

380X (PN 214337)

Power

Battery: Lithium Ion Charger: 120VAC Internal

Power Consumption

25 W max with internal power

Battery Life

45 hours, one 350Ω load cell, no backlight 15 hours, four 350Ω load cells, no backlight 10 hours, eight 350Ω load cells, backlight

Excitation Voltage

5 VDC, 8 x 350Ω or 16 x 700Ω load cells

Analog Signal Input Range

-0.3 mV to +30 mV Common Mode Voltage 0.7 V to 3.3 V

Analog Signal Sensitivity

1 µV/graduation recommended

A/D Sample Rate

Software Selectable (Hz) 5, 6, 10, 12, 20, 25, 40, 50, 80, 100

Weight

6.25 lb (3 kg)

Warranty

One-year limited warranty on Battery Two-year limited warranty on Indicator and Parts

EMC Immunity

10 V/m

Certifications and Approvals

NTEP

CoC Number: 21-051

Measurement

Canada

Approved

Accuracy Class: III / IIIL; n

Measurement Canada

Approval Number: AM-6184 Accuracy Class: III / IIIHD; n

max

: 10 000

Resolution

Internal: 8,000,000 counts Display: 100,000

System Linearity

Within 0.01% full scale

Communication Ports

One full-duplex RS-232 (three-wire) One USB 2.0

Status Annunciators

g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display

Six 1.0 in (25 mm) tall, LCD digits

Keys / Buttons

Five tactile buttons

Dimensions (L x W x H)

11.58 x 4.53 x 8.57 in (294 x 115 x 218 mm)

Temperature Range

Legal: 14 to 104°F (-10 to 40°C) Industrial: 14 to 122°F (-10 to 50°C)

Rating/Material

Rating: IP69K Material: 304 Stainless Steel

Page 76

380/380x/381 Synergy Indicator

381-AA (PN 215695) / 381-NiMH (PN 215696)

Power

Battery: AA or Nickel Metal Hydride (NiMH) 381-AA Adapter: 115/230 VAC to 12 VDC 381-NiMH Charger: 115/230 VAC

Power Consumption

AA: input 0.8 A (6 W while using AC adapter) NiMH: input of 0.35 A

Battery Life

AA: 40 hours, one 350Ω load cell, low backlight 20 hours, four 350Ω load cell, low backlight 12 hours, eight 350Ω load cell, low backlight NiMH: 35 hours, one 350Ω load cell, low backlight 18 hours, four 350Ω load cell, low backlight 10 hours, eight 350Ω load cell, low backlight

Excitation Voltage

5 VDC, 8 x 350Ω or 16 x 700Ω load cells

Analog Signal Input Range

-0.3 mV to +30 mV common mode voltage 0.7 V to 3.3 V

Dimensions (L x W x H)

8.50 x 3.17 x 5.06 in (215.8 x 80.5 x 128.5 mm)

Temperature Range

Legal: 14 to 104°F (-10 to 40°C) Industrial: 14 to 122°F (-10 to 50°C)

Rating/Material

AA Battery: IP54, ABS NiMH Battery: IP66, ABS

Warranty

One-year limited warranty on Battery Two-year limited warranty on Indicator and Parts

EMC Immunity

10 V/m

Certifications and Approvals

NTEP

CoC Number: 21-051

Measurement

Canada

Approved

Accuracy Class: III / IIIL; n

Measurement Canada

Approval Number: AM-6184 Accuracy Class: III / IIIHD; n

max

: 10 000

Analog Signal Sensitivity

1 µV/graduation recommended

A/D Sample Rate

Software Selectable (Hz) 5, 6, 10, 12, 20, 25, 40, 50, 80, 100

Resolution

Internal: 8,000,000 counts Display: 100,000

System Linearity

Within 0.01% full scale

Communication Ports

One full-duplex RS-232 (three-wire) One USB 2.0

Status Annunciators

g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display

Six 1.0 in (25 mm) tall, LCD digits

Keys / Buttons

Five tactile buttons

76 Visit our website www.RiceLake.com

Page 77

Page 78

230 W. Coleman St. • Rice Lake, WI 54868 • USA

U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319

www.ricelake.com

PN 201481 Rev HApril 22, 2024
