8900 Series
8900 8920 8905
8955 8925
O w n e r ’ s M a n u a l
Contents
IMPORTANT SAFETY INSTRUCTIONS |
2 |
Polarization instructions |
3 |
Thermal fuse protection |
4 |
Description of the vacuum |
5 |
Assembly & Operation |
|

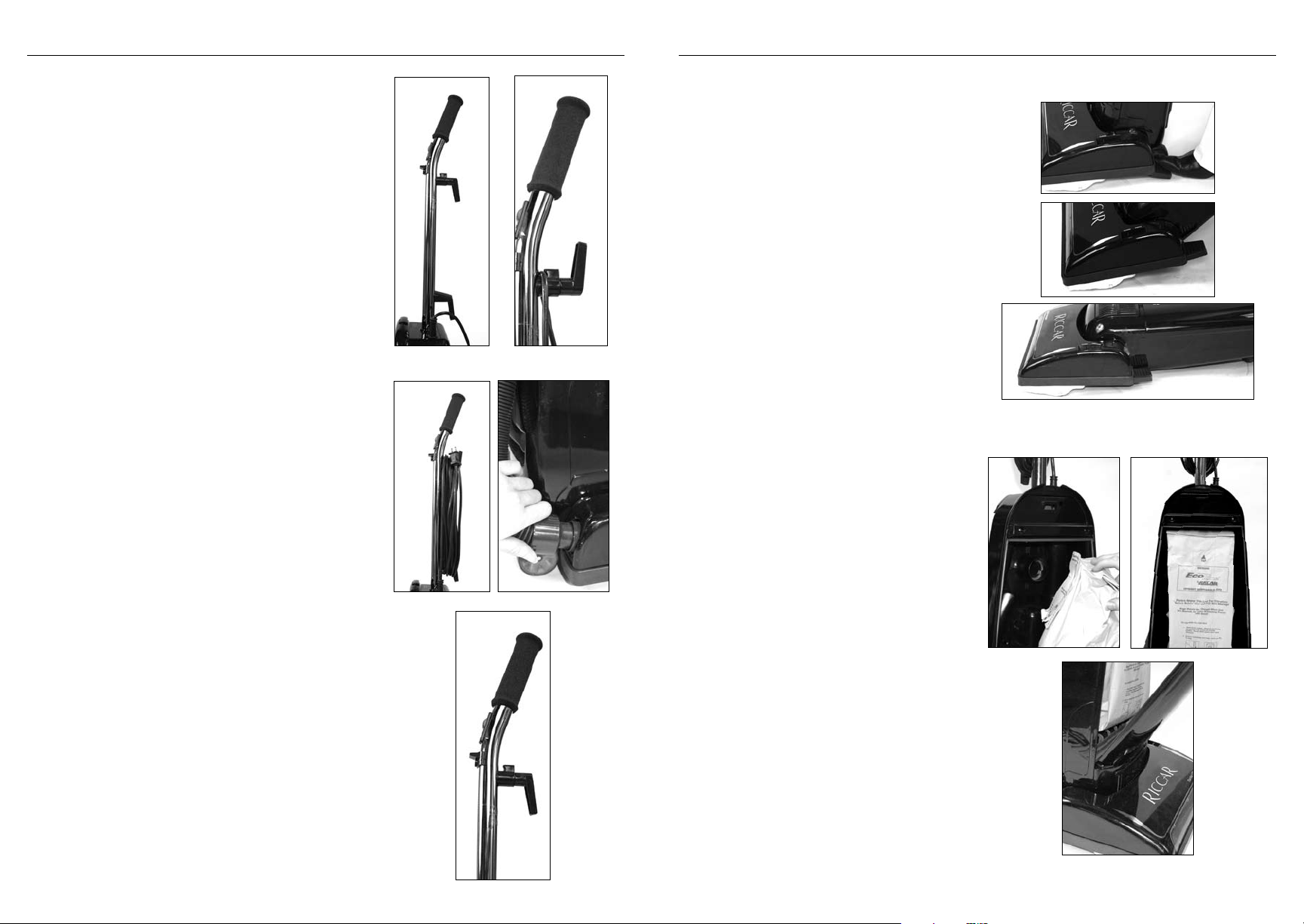

Attaching the handle |
6 |
Install hose assembly |
6 |
Release the power cord |
6 |
On/Off switch |
6 |
Handle adjustments |
7 |
Replacing vacuum bag |
7 |

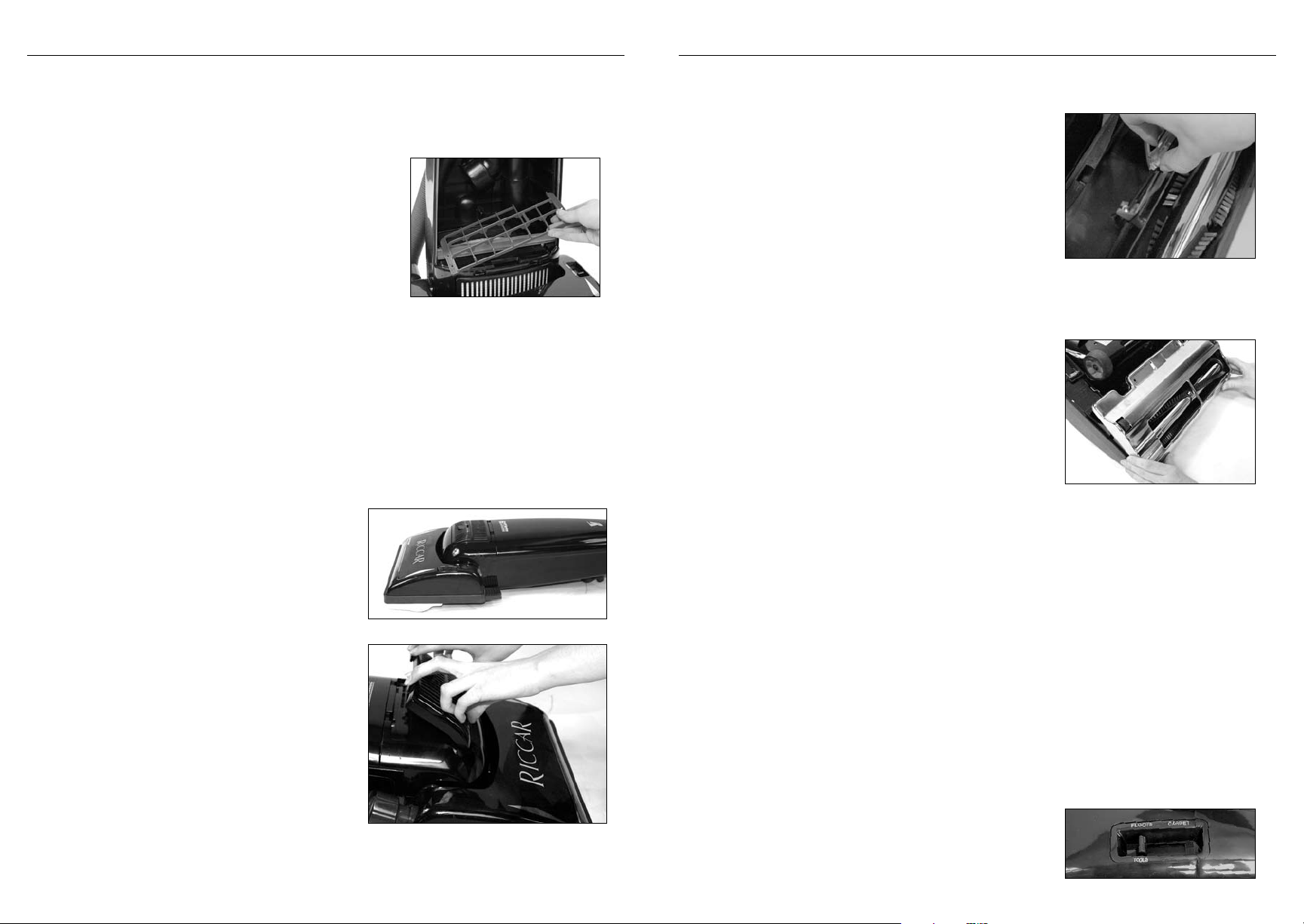

Replacing secondary filter |
8 |
Replacing post filter |
8 |
Replacing headlight bulb |
9 |
Removing and reinstalling bottom plate |
9 |
Edge cleaning feature |
9 |
Automatic self adjusting rug nozzle |
9 |
Carpet floor selector |
9 |

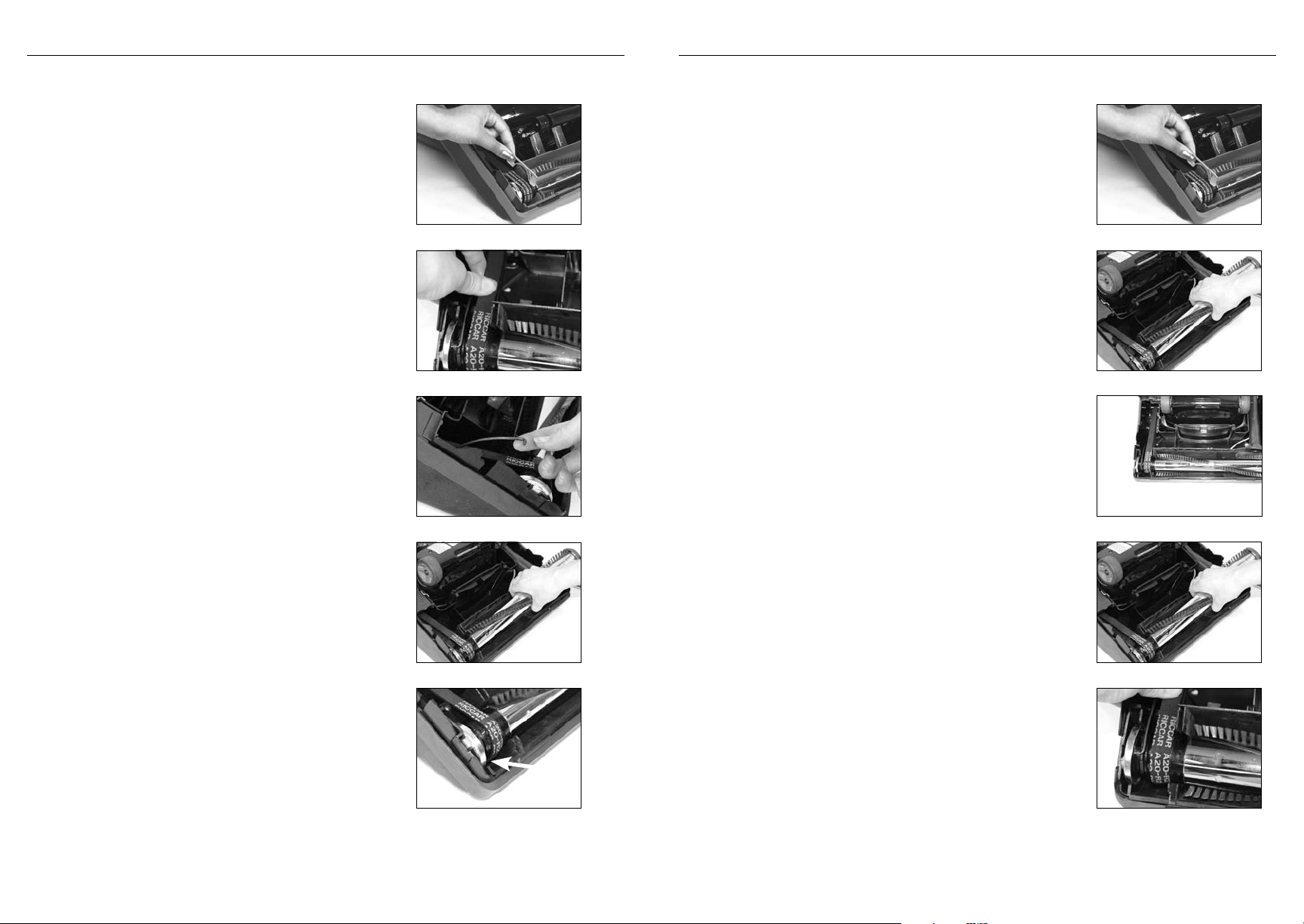

Replacing agitator belt |
10 |

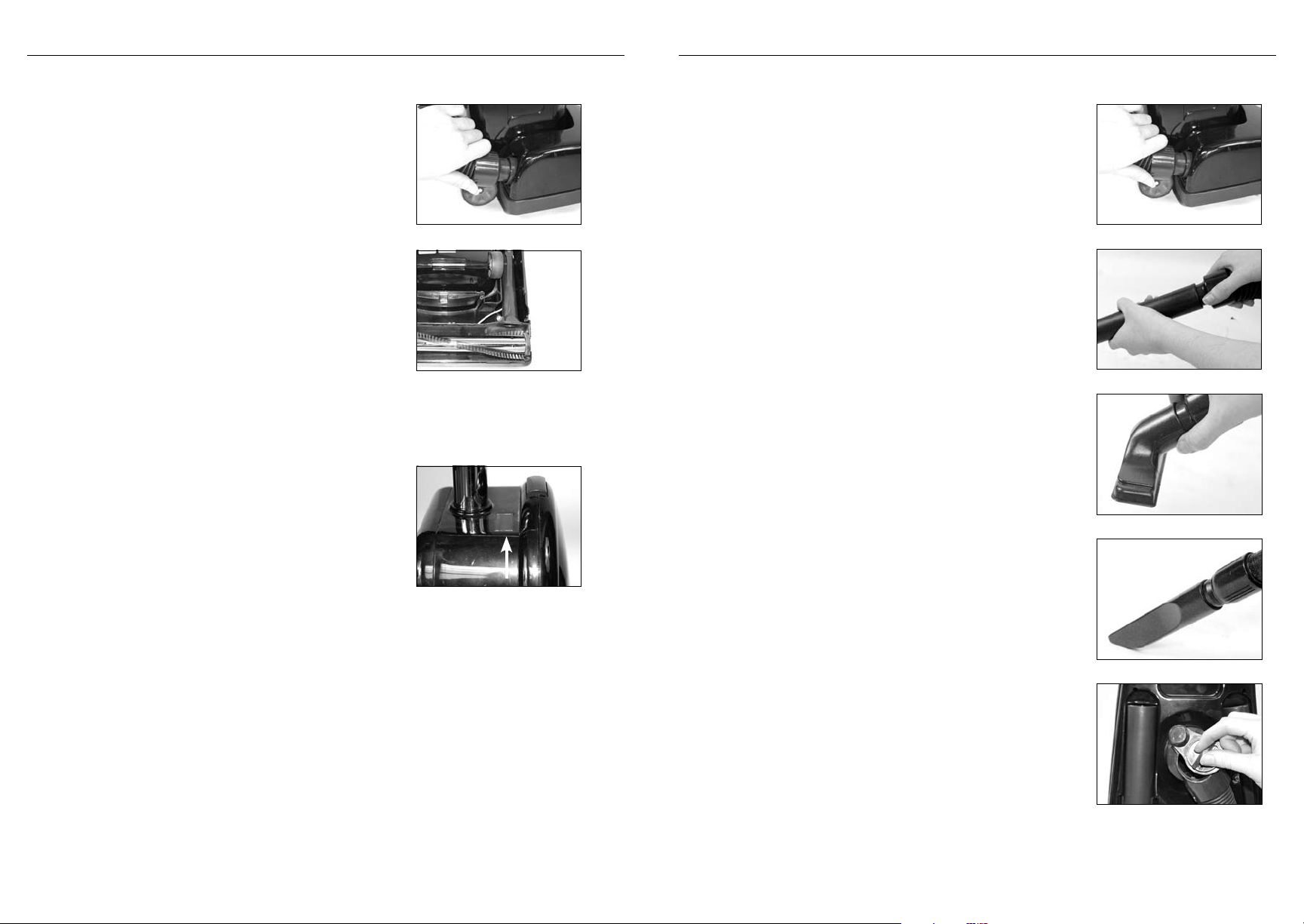

Unclogging nozzle and hose |
12 |
Full bag indicator light |
12 |
Tools |
|
On-board cleaning tools |
13 |
Suction control dial |
13 |

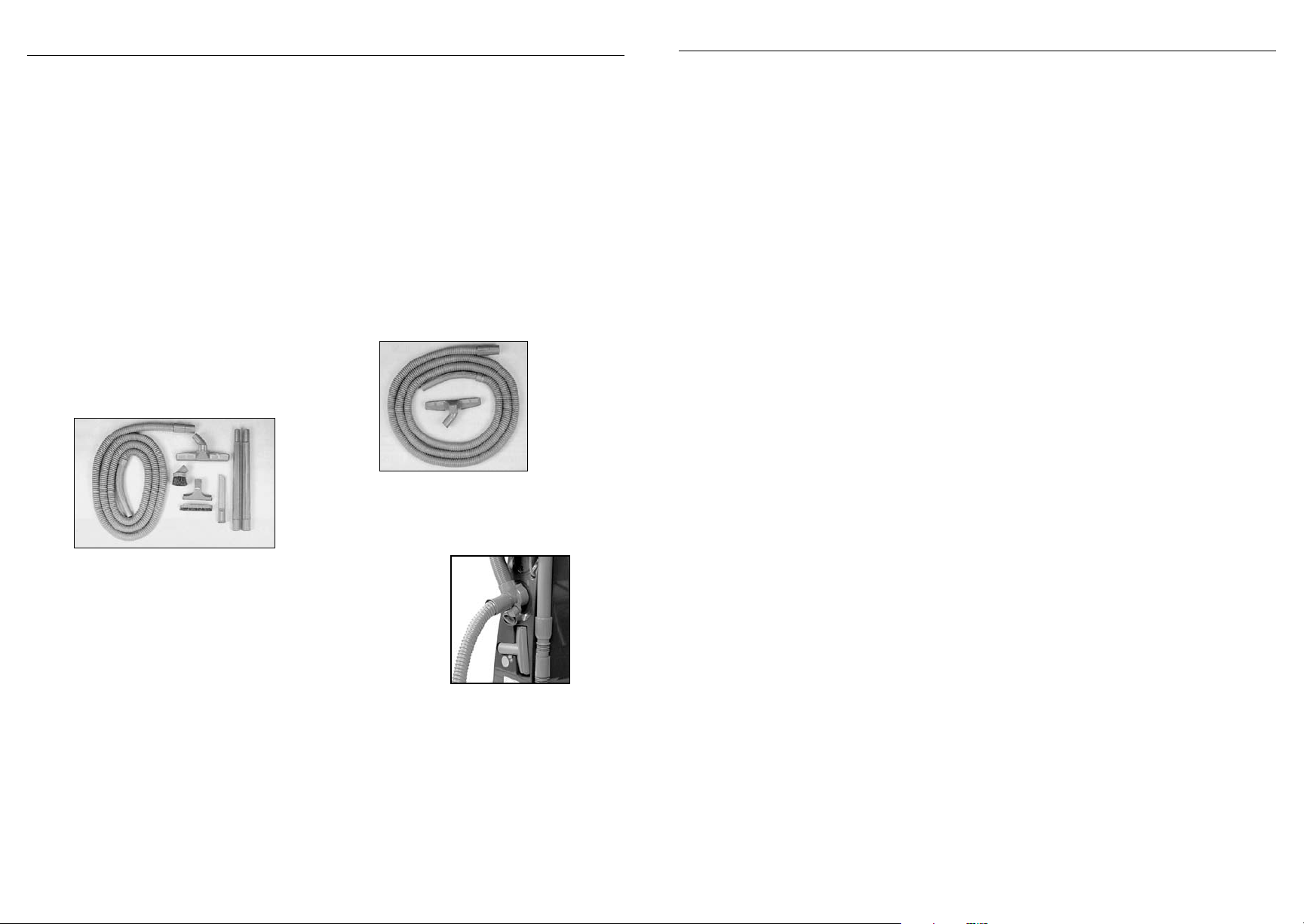

Optional cleaning tools |
14 |
Warranty |
15 |
Owner’s information |
17 |
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
WARNING: The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the
instructions, or for uses other than those for which it was intended.
To reduce the risk of fire, electric shock or injury:
•Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
•WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES.
•Do not allow to be used as a toy. Close attention is necessary when used by or near children.
•Use only as described in this manual. Use only manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Retailer for service.
•Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle plug or appliance with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
•Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
•Do not use without vacuum bag and/or filters in place.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
•Do not attempt to service the unit while appliance is plugged in.
•Do not use vacuum to pick up water or any wet materials.
•Use extra care when cleaning on stairs. To avoid injury and damage, vacuum should remain at base of stairs while in use.
SAVE THESE INSTRUCTIONS.
Polarization instructions
Power Cord - 2-Wire Polarized
Household models 8955, 8905, 8900 Only
To reduce the risk of electric shock this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Grounding Instructions
Model 8925 and 8920 Only
This vacuum cleaner must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This vacuum cleaner is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This vacuum cleaner is for use on a nominal 120-volt circuit and has a ground plug (see illustration). Make sure that the vacuum is connected to an outlet having the same condiagramuration as the plug. No adapter should be used with this vacuum.
WARNING – Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the vacuum – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Grounded
Outlet
Grounded
Outlet Box
Grounding
Thermal fuse protection
Your Riccar vacuum cleaner comes equipped with a Manual Reset Thermal Fuse Protector. This thermal protector is designed to protect your vacuum cleaner from overheating due to a restriction in airflow (i.e. clogged hose, operating the vacuum without a bag). Should this situation occur, the thermal fuse protector will safely shut off the vacuum cleaner to avoid any potential damage.
NOTE: To determine it was the thermal fuse protector that turned off your vacuum
cleaner, please refer to the vacuum cleaner's headlight. If the headlight is on while the motor is off, then the thermal fuse protector did safely shut down the motor. If both the headlight and motor are off, then there is some reason other than the thermal protector (i.e. pulled plug) your vacuum is off.
To reset the thermal fuse:
1.Unplug the vacuum cleaner
2.Check for problem – over–filled bag, clog in hose, clogged filters, etc.
3.Correct problem
4.Locate "tripped" fuse – the small white button located on the bottom of the back side of the main body (roughly one inch to the right of the left wheel)
5.Using a pencil, paper clip or other pointed object, push the reset button in
6.Plug vacuum cleaner in and resume use
Please contact your Authorized Riccar Retailer with any questions.
Description of the vacuum
Handle grip |
|
(On-board tools |
|
select models only) |
|
|
|
On/Off switch (Models 8920, 8925, 8955)
|
Handle tube |
Quick cord release |
Power cord |
|||
|
|
|
||||
|
|
|
|
|
||
|
Bag compartment |
|
|
Easy-carry handle |
||
|
cover release button |
|
|
|||
Bag compartment |
|
|
Accessory |
|||
|
|
attachment |
||||
cover |
|
|
Telescopic wand |
|
||
|
|
|
opening |
|||
|
|
|||||
|
|
|
|
|
||
|
|
|
|
|
Crevice tool |
|
|
|
|
Dusting brush |
|
Upholstery tool |
|
|
|
|
|
|
||
|
|
|
|
|
Stretch hose |
|
Nozzle inlet |
|
|
|
|||
|
|
|
Rug/floor selector |
|
|
|
Headlight |
(select models) |
|
|
|||
|
|
|
||||
Furniture guard |
|
|
|
|||
|
|
|
Foot pedal release |
Thermal reset button |
||
|
|
|
Self adjusting nozzle |
|||
|
|
|
|
|
||
|
|
|
Riccar Replacement Parts |
|
|
|
Genuine Riccar High Flow |
Vacuum Agitator Belt |
Post Filter |
|
|||
HEPA Vacuum Bags |
A20-R2P |
RF89-2 |
|
|||
|
|
|
2 per pkg |
|
||
C15H-6 |
2 per pkg |
|
||||
Models 8900, 8905, |
||||||
6 per pkg |
|
|||||
|
8920, 8925 |
|||||
|
|
|
Secondary Charcoal Filter |
|||
Genuine Riccar Eco Pure |
RF8900P-1 |
|
||||
RCFT89-2 |
|
|||||
Vacuum Filter Bags |
1 per pkg |
|
||||
Models 8905, 8925, 8955 |
|
|||||
|
|
|
Model 8955 |
|
||
C15-6 |
|
|
||||
RCF89-2 |
|
|
||||
6 per pkg |
Light Bulb Xenon |
|||||
Models 8900, 8920 |
||||||
|
|
|
||||
|
|
|
|
A350-0000 |
|
Wedge Base, 0.917 amp
T 3 1/4 Xenon
