Page 1
RQNJ
Parts List
01-December-2016
This parts list is current as of the above revision date.
See http://www.rheempartslists.net/92-42800-RQNJ.pdf for the current revision.
Package Heat Pumps
Page 2
Table of Contents
Model Explanation................................................................................................................... Page 3
Parts Numbers
Panels - Miscellaneous 024-042 ................................................................................. Page 4
Panels - Miscellaneous 042-060 ................................................................................. Page 5
Electrical Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Fan Group....................................................................................................... Page 7
Blower Group.................................................................................................... Page 7
Coil Parts ....................................................................................................... Page 8
Compressor Group .............................................................................................. Page 8
Heater Kits ...................................................................................................... Page 9
Accessories ..................................................................................................... Page 9
Drawings/Photographs
Exploded View ................................................................................................. Page 10
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Blower Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Coil Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Compressor and Refrigeration Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Notes/Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Page 2 of 15
01-December-2016
92-42800-RQNJ
Page 3
R Q N J - A 024 J K 010
1 2 3 4 5 6 7 8 9
1 TRADEBRAND 7 ELECTRICAL DESIGNATION
J = 208-230/1/60
2 PRODUCT CLASSIFICATION C = 208-230/3/60
3 EFFICIENCY DESIGNATION 8 DRIVE PACKAGE
N = 13 SEER K = Direct Drive
4 DESIGN SERIES 9 HEATING CAPACITY (ELECTRIC HEAT)
J = Horizontal Discharge 000 = No Resistance Heat
005 = 5 KW
5 TECHNICAL VARIATION 007 = 7 KW
010 = 10 KW
6 COOLING CAPACITY (BTU/HR) 015 = 15 KW
024 = 24,000 020 = 20 KW
030 = 30,000
036 = 36,000
042 = 42,000
048 = 48,000
060 = 60,000
7 1 5 4 F 2 7 0 4 9 9 9 9 9
1 COMPRESSOR IDENTIFICATION NUMBER
2 PRODUCTION LOCATION
F = FORT SMITH, AR
3 WEEK OF PRODUCTION
4 YEAR OF PRODUCTION
5 PRODUCTION NUMBER
1 2 3 4 5
MODEL NUMBER EXPLANATION
SERIAL NUMBER EXPLANATION
Page 3 of 15
01-December-2016
92-42800-RQNJ
Page 4
MODEL
No. Notes
1 Louver Panel AE-100830-02 AE-100830-02 AE-100830-02 AE-100830-02 AE-100830-04
2 Corner Post AE-100822-01 AE-100822-01 AE-100822-01 AE-100822-01 AE-100822-02
3 Front Post AE-100821-01 AE-100821-01 AE-100821-01 AE-100821-01 AE-100821-02
4 Louver Panel AE-100830-01 AE-100830-01 AE-100830-01 AE-100830-01 AE-100830-03
5 Insulation Retainer AE-100831-02 AE-100831-02 AE-100831-02 AE-100831-02 AE-100831-03
6 Front Access Panel AE-100823-01 AE-100823-01 AE-100823-01 AE-100823-01 AE-100823-02
7 Drainpan See Coil Group
8 Air Stop - Drainpan AE-100825-01 AE-100825-01 AE-100825-01 AE-100825-01 AE-100825-01
9 Air Stop - Drainpan AE-100825-02 AE-100825-02 AE-100825-02 AE-100825-02 AE-100825-02
10 Drainpan Tray AE-100809-01 AE-100809-01 AE-100809-01 AE-100809-01 AE-100809-01
11 Control Access Panel AE-100824-01 AE-100824-01 AE-100824-01 AE-100824-01 AE-100824-02
12 Control Panel Assembly AS-100807-01 AS-100807-01 AS-100807-01 AS-100807-01 AS-100807-02
13 Base Rail (2) AE-100803-01 AE-100803-01 AE-100803-01 AE-100803-01 AE-100803-01
14 Base Rail (2) AE-100803-02 AE-100803-02 AE-100803-02 AE-100803-02 AE-100803-02
15 Base Pan AE-100804-01 AE-100804-01 AE-100804-01 AE-100804-01 AE-100804-01
16 Right Panel Assembly AS-100820-01 AS-100820-01 AS-100820-01 AS-100820-01 AS-100820-02
17 Blower Support AE-100818-02 AE-100818-02 AE-100818-02 AE-100818-02 AE-100818-02
Insulation Retainer (2) AE-100831-01 AE-100831-01 AE-100831-01 AE-100831-01 AE-100831-01
Duct Ring - 14 in. 58-100850-01 58-100850-01 58-100850-01 58-100850-01 58-100850-01
18 Transition Bottom AE-100815-01 AE-100815-01 AE-100815-01 AE-100815-01 AE-100815-01
19 Transition Top AE-100815-02 AE-100815-02 AE-100815-02 AE-100815-02 AE-100815-02
20 Block Off Plate AE-100816-01 AE-100816-01 AE-100816-01 AE-100816-01 AE-100816-01
21 Rear Panel Assembly AS-100814-01 AS-100814-01 AS-100814-01 AS-100814-01 AS-100814-02
22 Rear Air Stop AE-100810-01 AE-100810-01 AE-100810-01 AE-100810-01 AE-100810-02
23 Top Panel Assembly (Indoor) AS-100828-01 AS-100828-01 AS-100828-01 AS-100828-01 AS-100828-01
24 Top Panel (Outdoor) AE-100829-01 AE-100829-01 AE-100829-01 AE-100829-01 AE-100829-01
25 Grille 95-100833-01 95-100833-01 95-100833-01 95-100833-01 95-100833-01
28 Blower Support AE-100818-01 AE-100818-01 AE-100818-01 AE-100818-01 AE-100818-01
29 Bulkhead Cap Assembly AS-100826-01 AS-100826-01 AS-100826-01 AS-100826-01 AS-100826-01
30 Bulkhead Assembly AS-100812-01 AS-100812-01 AS-100812-01 AS-100812-01 AS-100812-02
38 Low Voltage Mount AE-100839-01 AE-100839-01 AE-100839-01 AE-100839-01 AE-100839-01
39 Low Voltage Cover AE-100839-02 AE-100839-02 AE-100839-02 AE-100839-02 AE-100839-02
44 Heater Kit Delete Plate (Mounted in Control Box) AE-100842-01 AE-100842-01 AE-100842-01 AE-100842-01 AE-100842-01
51 Gaugeport Enclosure AE-101352-01 AE-101352-01 AE-101352-01 AE-101352-01 AE-101352-01
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
PANELS, MISCELLANEOUS PARTS
RQNJ
A
024
J
000-010
RQNJ
A
030
J
000-015
RQNJ
A
036
C
000-015
RQNJ
A
036
J
000-015
RQNJ
A
042
C
000-020
Page 4 of 15
01-December-2016
92-42800-RQNJ
Page 5
MODEL
No. Notes
1 Louver Panel AE-100830-04 AE-100830-04 AE-100830-04 AE-100830-04 AE-100830-04
2 Corner Post AE-100822-02 AE-100822-02 AE-100822-02 AE-100822-02 AE-100822-02
3 Front Post AE-100821-02 AE-100821-02 AE-100821-02 AE-100821-02 AE-100821-02
4 Louver Panel AE-100830-03 AE-100830-03 AE-100830-03 AE-100830-03 AE-100830-03
5 Insulation Retainer AE-100831-03 AE-100831-03 AE-100831-03 AE-100831-03 AE-100831-03
6 Front Access Panel AE-100823-02 AE-100823-02 AE-100823-02 AE-100823-02 AE-100823-02
7 Drainpan See Coil Group
8 Air Stop - Drainpan AE-100825-01 AE-100825-01 AE-100825-01 AE-100825-01 AE-100825-01
9 Air Stop - Drainpan AE-100825-02 AE-100825-02 AE-100825-02 AE-100825-02 AE-100825-02
10 Drain PanTray AE-100809-01 AE-100809-01 AE-100809-01 AE-100809-01 AE-100809-01
11 Control Access Panel AE-100824-02 AE-100824-02 AE-100824-02 AE-100824-02 AE-100824-02
12 Control Panel Assembly - Before F3206 AS-100807-02 AS-100807-02 AS-100807-02 AS-100807-03 AS-100807-03
12 Control Panel Assembly - After F3206 AS-100807-02 AS-100807-02 AS-100807-02 AS-100807-02 AS-100807-02
13 Base Rail (2) AE-100803-01 AE-100803-01 AE-100803-01 AE-100803-01 AE-100803-01
14 Base Rail (2) AE-100803-02 AE-100803-02 AE-100803-02 AE-100803-02 AE-100803-02
15 Base Pan AE-100804-01 AE-100804-01 AE-100804-01 AE-100804-01 AE-100804-01
16 Right Panel Assembly AS-100820-02 AS-100820-02 AS-100820-02 AS-100820-02 AS-100820-02
17 Blower Support AE-100818-02 AE-100818-02 AE-100818-02 AE-100818-02 AE-100818-02
Insulation Retainer (2) AE-100831-01 AE-100831-01 AE-100831-01 AE-100831-01 AE-100831-01
Duct Ring - 14 in. 58-100850-01 58-100850-01 58-100850-01 58-100850-01 58-100850-01
18 Transition Bottom AE-100815-01 AE-100815-01 AE-100815-01 AE-100815-01 AE-100815-01
19 Transition Top AE-100815-02 AE-100815-02 AE-100815-02 AE-100815-02 AE-100815-02
20 Block Off Plate AE-100816-01 AE-100816-01 AE-100816-01 AE-100816-01 AE-100816-01
21 Rear Panel Assembly AS-100814-02 AS-100814-02 AS-100814-02 AS-100814-02 AS-100814-02
22 Rear Air Stop AE-100810-02 AE-100810-02 AE-100810-02 AE-100810-02 AE-100810-02
23 Top Panel Assembly (Indoor) AS-100828-01 AS-100828-01 AS-100828-01 AS-100828-01 AS-100828-01
24 Top Panel (Outdoor) AE-100829-01 AE-100829-01 AE-100829-01 AE-100829-01 AE-100829-01
25 Grille 95-100833-01 95-100833-01 95-100833-01 95-100833-01 95-100833-01
28 Blower Support AE-100818-01 AE-100818-01 AE-100818-01 AE-100818-01 AE-100818-01
29 Bulkhead Cap Assembly AS-100826-01 AS-100826-01 AS-100826-01 AS-100826-01 AS-100826-01
30 Bulkhead Assembly AS-100812-02 AS-100812-02 AS-100812-02 AS-100812-02 AS-100812-02
38 Low Voltage Mount AE-100839-01 AE-100839-01 AE-100839-01 AE-100839-01 AE-100839-01
39 Low Voltage Cover AE-100839-02 AE-100839-02 AE-100839-02 AE-100839-02 AE-100839-02
44 Heater Kit Delete Plate (Mounted in Control Box) AE-100842-01 AE-100842-01 AE-100842-01 AE-100842-01 AE-100842-01
51 Gaugeport Enclosure AE-101352-01 AE-101352-01 AE-101352-01 AE-101352-01 AE-101352-01
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
PANELS, MISCELLANEOUS PARTS
RQNJ
A
042
J
000-020
RQNJ
A
048
C
000-020
RQNJ
A
048
J
000-020
RQNJ
A
060
C
000-020
RQNJ
A/B
060
J
000-020
Page 5 of 15
01-December-2016
92-42800-RQNJ
Page 6
MODEL
No. Notes

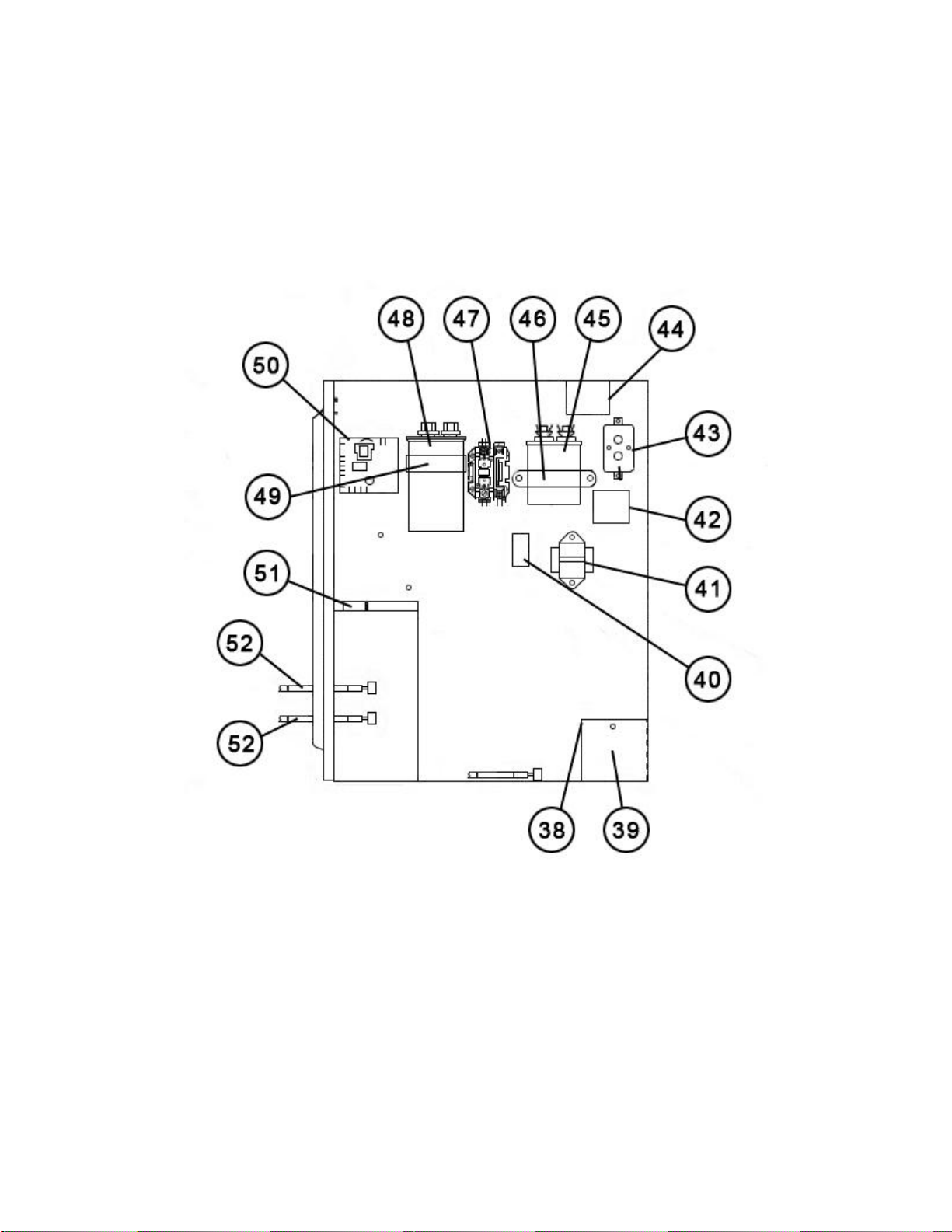

CONTROL BOX COMPONENTS:
40 Terminal Strip 45-23591-01 45-23591-01 45-23591-01 45-23591-01 45-23591-01 45-23591-01
41 Stk Transformer 46-100836-01 46-100836-01 46-100836-01 46-100836-01 46-100836-01 46-100836-01
42 Stk BlowerTime Delay 47-23433-05 47-23433-05 47-23433-05 47-23433-05 47-23433-05 47-23433-05
43 Stk Relay 42-101208-01 42-101208-01 42-101208-01 42-101208-01 42-101208-01 42-101208-01
45 Stk Capacitor - Blower Motor See Blower Group
46 Capacitor Strap - Blower Motor Capacitor AE-50892-01 AE-50892-01 AE-50892-01 AE-50892-01 AE-50892-01 AE-50892-01
47 Stk Contactor 42-42728-03 42-42728-03 42-22464-01 42-42728-03 42-22464-01 42-42728-03
48 Stk Capacitor - Compressor/Fan See Compressor Group
49 Capacitor Strap (Compressor/Fan) AE-50892-56 AE-50892-56 AE-50892-01 AE-50892-56 AE-50892-01 AE-50892-56
50 Stk Defrost Control Board 47-21517-18 47-21517-18 47-21517-18 47-21517-18 47-21517-18 47-21517-18
No. Notes
CONTROL BOX COMPONENTS:
40 Terminal Strip 45-23591-01 45-23591-01 45-23591-01 45-23591-01 45-23591-01 45-23591-01
41 Stk Transformer 46-100836-01 46-100836-01 46-100836-01 46-100836-01 46-100836-01 46-100836-01
42 Stk BlowerTime Delay 47-23433-05 47-23433-05 N/A N/A N/A N/A
43 Stk Relay 42-101208-01 42-101208-01 N/A 42-21571-08 N/A 42-21571-08
45 Stk Capacitor - Blower Motor See Blower Group
46 Capacitor Strap - Blower Motor Capacitor AE-50892-01 AE-50892-01 N/A N/A N/A N/A
47 Stk Contactor 42-22464-01 42-42728-03 42-22464-01 42-22464-01 42-42728-03 42-42478-02
48 Stk Capacitor - Compressor/Fan See Compressor Group
49 Capacitor Strap (Compressor/Fan) AE-50892-01 AE-50892-56 AE-50892-01 AE-50892-01 AE-50892-56 AE-50892-56
50 Stk Defrost Control Board 47-21517-18 47-21517-18 47-21517-18 47-21517-18 47-21517-18 47-21517-18
ECM Wiring Harness - 16 pin to 4 terminals N/A N/A 45-24258-11 N/A 45-24258-11 N/A
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
ECM Wiring Harness - 5 pin to 2 quick connect and 1
ring terminal.
RQNJ
A
024
J
000-010
ELECTRICAL GROUP
RQNJ
A
048
C
000-020
ELECTRICAL GROUP
N/A N/A 45-24258-12 N/A 45-24258-12 N/A
RQNJ
A
030
J
000-010
RQNJ
A
048
J
000-020
RQNJ
A
036
C
000-015
RQNJ
A
060
C
000-020
RQNJ
A
036
J
000-015
RQNJ
B
060
C
000-020
RQNJ
A
042
C
000-020
RQNJ
A
060
J
000-020
RQNJ
A
042
J
000-020
RQNJ
B
060
J
000-020
Page 6 of 15
01-December-2016
92-42800-RQNJ
Page 7
MODEL
No. Notes
Note:The fan and motor part numbers below may be different than originally supplied on the equipment. This fan and motor combination was changed
to enhance the sound characteristics of the unit. Fan blade should be positioned on the shaft such that the highest point on the blade is two inches
below the uppermost point on the motor housing while allowing a minimum of 1/8 inch clearance between the motor and fan. CAUTION:When
replacing either the fan or the motor, both components must be matched in the combination shown below. In order to ensure correct performance, do
not change one component only without verifying that the combination is correct.
26 Stk FanMotor 51-100998-24 51-100998-24 51-100998-24 51-100998-24 51-100998-25 51-100998-25
48 Capacitor - Fan Motor See Compressor Group
27 Stk FanBlade 70-100580-08 70-100580-08 70-100580-08 70-100580-08 70-102345-01 70-102345-01
Note:The fan blade listed below is of a new design to further enhance sound characteristics and may be substituted for the above fan where
applicable.
27 Stk FanBlade - New Design N/A N/A N/A N/A 70-100580-09 70-100580-09
No. Notes
Note:The fan and motor part numbers below may be different than originally supplied on the equipment. This fan and motor combination was changed
to enhance the sound characteristics of the unit. Fan blade should be positioned on the shaft such that the highest point on the blade is two inches
below the uppermost point on the motor housing while allowing a minimum of 1/8 inch clearance between the motor and fan. CAUTION:When
replacing either the fan or the motor, both components must be matched in the combination shown below. In order to ensure correct performance, do
not change one component only without verifying that the combination is correct.
26 Stk FanMotor 51-100998-25 51-100998-25 51-100998-25 51-100998-25
48 Capacitor - Fan Motor See Compressor Group
27 Stk FanBlade 70-102345-01 70-102345-01 70-102345-01 70-102345-01
Note:The fan blade listed below is of a new design to further enhance sound characteristics and may be substituted for the above fan where
applicable.
27 Stk FanBlade 70-100580-09 70-100580-09 70-100580-09 70-100580-09
No. Notes
Stk Blower Assembly AS-100841-01 AS-100841-02 AS-100841-03 AS-100841-03 AS-100841-04 AS-100841-04
53 Blower Housing w/Wheel 70-100840-01 70-100840-01 70-100840-01 70-100840-01 70-100840-02 70-100840-02
Stk Blower Wheel 703017 703017 703017 703017 703016 703016
54 Motor Band 70-19927-03 70-19927-03 70-19927-03 70-19927-03 70-19927-03 70-19927-03
55 Blower Arm Assembly 70-19929-09 70-19929-09 70-19929-09 70-19929-09 70-19929-09 70-19929-09
56 Stk Blower Motor 51-100837-01 51-100837-02 51-100837-03 51-100837-03 51-100837-04 51-100837-04
45 Stk Capacitor - Blower Motor 43-100496-09 43-100496-39 43-100496-46 43-100496-46 43-100496-42 43-100496-42
No. Notes
Stk Blower Assembly AS-100841-05 AS-100841-05 AS-100841-07 AS-100841-08 AS-100841-07 AS-100841-08
53 Blower Housing w/Wheel 70-100840-02 70-100840-02 70-100840-02 70-100840-02 70-100840-02 70-100840-02
Stk Blower Wheel 703016 703016 703016 703016 703016 703016
54 Motor Band 70-19927-03 70-19927-03 70-19927-03 70-19927-03 70-19927-03 70-19927-03
55 Arm Assembly 70-19929-09 70-19929-09 70-19929-09 70-19929-09 70-19929-09 70-19929-09
56 Stk Blower Motor 51-100837-05 51-100837-05 51-24376-16 51-101984-04 51-24376-16 51-101984-04
45 Stk Capacitor - Blower Motor 43-100496-42 43-100496-42 N/A N/A N/A N/A
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATING CAPACITY
RQNJ
A
024
J
000-010
FANGROUP
RQNJ
A
048
C
000-020
FANGROUP
RQNJ
A
024
J
000-010
BLOWER GROUP
RQNJ
A
048
C
000-020
BLOWER GROUP
RQNJ
A
030
J
000-010
RQNJ
A
048
J
000-020
RQNJ
A
030
J
000-010
RQNJ
A
048
J
000-020
RQNJ
A
036
C
000-015
RQNJ
A/B
060
C
000-020
RQNJ
A
036
C
000-015
RQNJ
A
060
C
000-020
RQNJ
A
036
J
000-015
RQNJ
A/B
060
J
000-020
RQNJ
A
036
J
000-015
RQNJ
B
060
C
000-020
RQNJ
A
042
C
000-020
RQNJ
A
042
C
000-020
RQNJ
A
060
J
000-020
RQNJ
A
042
J
000-020
RQNJ
A
042
J
000-020
RQNJ
B
060
J
000-020
Page 7 of 15
01-December-2016
92-42800-RQNJ
Page 8
No. Notes
CONDENSER COIL:
32 Stk
Distributor Assembly - On or After F0709 83-100844-01 83-100844-01 83-100844-02 83-102272-04 83-102272-04 83-102272-05
32 Stk Condenser Coil (Outdoor Coil) - Before F0709 AS-100793-12 AS-100793-13 AS-100793-10 AS-100793-11 AS-100793-11 AS-100793-04
Distributor Assembly (Before F0709) 83-100844-01 83-100844-01 83-100844-02 83-102272-05 83-102272-05 83-102272-05
EVAPORATOR COIL:
33 Stk
34 Distributor Assembly - On or After F2407 83-102278-01 83-102278-01 83-102278-02 83-102278-03 83-102278-03 83-100844-03
33 Stk Evaporator Coil (Indoor Coil) - Before F2407 AS-100792-01 AS-100792-01 AS-100792-02 AS-100792-04 AS-100792-04 AS-100792-05
34 Distributor Assembly - Before F2407 83-100844-01 83-100844-01 83-100844-02 83-100844-03 83-100844-03 83-100844-03
35 Draintrap Assembly 68-100846-02 68-100846-02 68-100846-02 68-100846-02 68-100846-02 68-100846-02
7 Stk Drain Pan - Evaporator Coil 68-100808-02 68-100808-02 68-100808-02 68-100808-02 68-100808-02 68-100808-02
37 Stk TXV 61-21922-103 61-21922-104 61-21922-105 61-21922-105 61-21922-106 61-21922-101
TXV Bulb Strap Kit 64-101357-01 64-101357-01 64-101357-01 64-101357-01 64-101357-01 64-101357-01
REFRIGERATION GROUP:
36 Stk ReversingValve w/Coil 61-101684-02 61-101684-02 61-101684-02 61-101684-02 61-101684-03 61-101684-03
Stk Solenoid Coil for Reversing Valve 61-101713-01 61-101713-01 61-101713-01 61-101713-01 61-101713-01 61-101713-01
Stk Wiring Harness for ReversingValve 61-26149-01 61-26149-01 61-26149-01 61-26149-01 61-26149-01 61-26149-01
52 Gaugeport Manifold - Valve Body (2) 61-22369-04 61-22369-04 61-22369-04 61-22369-04 61-22369-04 61-22369-04
52 Gaugeport Manifold - Valve Core (2) 61-18551-01 61-18551-01 61-18551-01 61-18551-01 61-18551-01 61-18551-01
No. Notes
Compressor ID: 7239 7240 7245 7241 7246 7242
31 Stk Compressor 55-100835-13S 55-100835-16S 55-100835-24S 55-100835-23S 55-100835-21S 55-100835-15S
48 Stk Run Capacitor - Fan/Compressor 43-26261-44 43-26261-09 43-100496-04 43-26261-41 43-100496-12 43-101665-37
57 Stk Compressor Wiring Harness (Molded Plug) 45-100834-80 45-100834-80 45-100834-80 45-100834-80 45-100834-80 45-100834-80
No. Stk
Compressor ID: 7247 7243 7248 7473 7244 7472
31 Stk Compressor 55-100835-28S 55-100835-27S 55-100835-19S 55-100835-19S 55-100835-06S 55-100835-06S
48 Stk Run Capacitor - Fan/Compressor 43-100496-12 43-26261-39 43-100496-12 43-100496-12 43-101665-30 43-101665-30
57 Stk Compressor Wiring Harness (Molded Plug) 45-100834-80 45-100834-80 45-100834-80 45-100834-80 45-100834-80 45-100834-80
MODEL
TECHNICALVARIATION
COOLING CAPACITY
Condenser Coil (Outdoor Coil) - On or After
F0709
Evaporator Coil (Indoor Coil) - On or After
F2407
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
RQNJ
A
024
AS-100793-12 AS-100793-13 AS-100793-10 AS-100793-20 AS-100793-20 AS-100793-04
AS-100792-14 AS-100792-14 AS-100792-15 AS-100792-16 AS-100792-16 AS-100792-05
RQNJ
A
024
J
COMPRESSOR GROUP
RQNJ
A
048
C
COMPRESSOR GROUP
RQNJ
A
030
COIL GROUP
RQNJ
A
030
J
RQNJ
A
048
J
RQNJ
A
036
RQNJ
A
036
C
RQNJ
A
060
C
RQNJ
A
042
RQNJ
A
036
J
RQNJ
B
060
C
RQNJ
A
048
RQNJ
A
042
C
RQNJ
A
060
J
RQNJ
A/B
060
RQNJ
A
042
J
RQNJ
B
060
J
Page 8 of 15
01-December-2016
92-42800-RQNJ
Page 9
MODEL
No. Notes
Heater Kit (5 kW) RXQJ-C05J RXQJ-C05J RXQJ-C10C RXQJ-C05J RXQJ-C10C
Heater Kit (7 kW) RXQJ-C07J RXQJ-C07J RXQJ-C15C RXQJ-C07J RXQJ-C15C
Heater Kit (10 kW) RXQJ-C10J RXQJ-C10J N/A RXQJ-C10J RXQJ-C20C
Heater Kit (15 kW) N/A RXQJ-C15J N/A RXQJ-C15J N/A
Heater Kit (20 kW) N/A N/A N/A RXQJ-C20J N/A
No. Notes
Heater Kit (5 kW) RXQJ-C05J RXQJ-C10C RXQJ-C05J RXQJ-C10C RXQJ-C05J
Heater Kit (7 kW) RXQJ-C07J RXQJ-C15C RXQJ-C07J RXQJ-C15C RXQJ-C07J
Heater Kit (10 kW) RXQJ-C10J RXQJ-C20C RXQJ-C10J RXQJ-C20C RXQJ-C10J
Heater Kit (15 kW) RXQJ-C15J N/A RXQJ-C15J N/A RXQJ-C15J
Heater Kit (20 kW) RXQJ-C20J N/A RXQJ-C20J N/A RXQJ-C20J
No. Notes
Outdoor Thermostat RXPT-A01
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATER KITS
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ELECTRICAL DESIGNATION
HEATER KITS
MODEL
TECHNICALVARIATION
COOLING CAPACITY
ACCESSORIES
RQNJ
A
024
J
RQNJ
A
042
J
RQNJ
A/B
ALL
RQNJ
A
030
J
RQNJ
A
048
C
RQNJ
A
036
C
RQNJ
A
048
J
RQNJ
A
036
J
RQNJ
A/B
060
C
RQNJ
A
042
C
RQNJ
A/B
060
J
Page 9 of 15
01-December-2016
92-42800-RQNJ
Page 10
Exploded View
Page 10 of 15
01-December-2016
92-42800-RQNJ
Page 11
Control Panel
Page 11 of 15
01-December-2016
92-42800-RQNJ
Page 12
Blower Assembly
Page 12 of 15
01-December-2016
92-42800-RQNJ
Page 13
Coil Assembly
Page 13 of 15
01-December-2016
92-42800-RQNJ
Page 14
Compressor and Refrigeration Group
Page 14 of 15
01-December-2016
92-42800-RQNJ
Page 15
NOTES
Stk It is recommended that stock be maintained for this part.
N/A Not Applicable
DISCLAIMER: This document is intended to provide general replacement parts information to aid qualified
service personnel in the repair of these models. The complete Model and Serial Number of the unit under repair
should be specified when selecting and ordering replacement parts. Specifications and illustrations are subject
to change without notice. Document 92-42800-RQNJ supersedes all previous parts lists for these models. See
http://www.rheempartslists.net/92-42800-RQNJ for the latest revision of this document. The manufacturer
assumes no obligation for errors or omissions. Service personnel must verify the proper and safe operation of
equipment after the replacement of any original components.
P.O. Box 17010
Fort Smith, AR 72917-7010
Loading...
