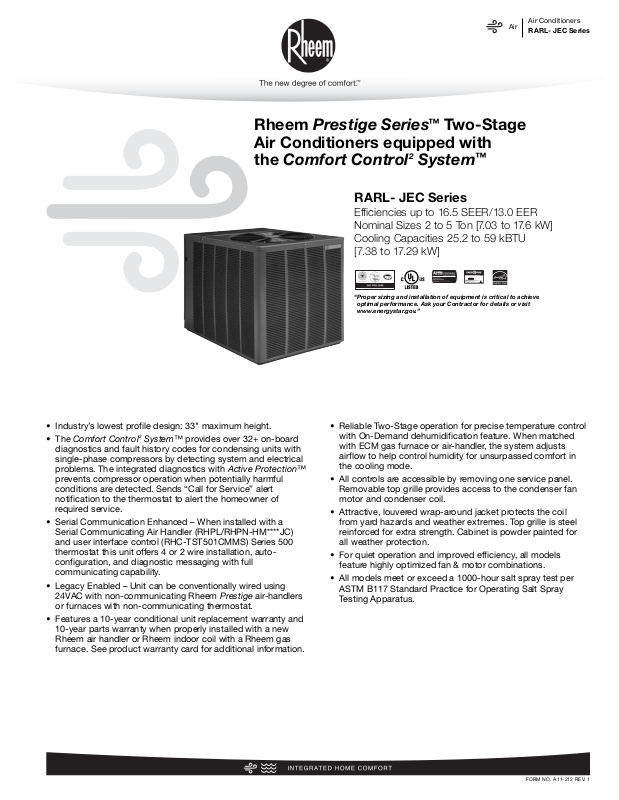

Page 1

Air Conditioners

RARL- JEC Series

Rheem Prestige Series™Two-Stage Air Conditioners equipped with the Comfort Control

System

™

FORM NO. A11-212 REV. 1

RARL- JEC Series

Efficiencies up to 16.5 SEER/13.0 EER Nominal Sizes 2 to 5 Ton [7.03 to 17.6 kW] Cooling Capacities 25.2 to 59 kBTU [7.38 to 17.29 kW]

• Industry’s lowest profile design: 33" maximum height.

• The Comfort Control

System™ provides over 32+ on-board

diagnostics and fault history codes for condensing units with single-phase compressors by detecting system and electrical problems. The integrated diagnostics with Active Protection™ prevents compressor operation when potentially harmful conditions are detected. Sends “Call for Service” alert notification to the thermostat to alert the homeowner of required service.

• Serial Communication Enhanced – When installed with a Serial Communicating Air Handler (RHPL/RHPN-HM****JC) and user interface control (RHC-TST501CMMS) Series 500 thermostat this unit offers 4 or 2 wire installation, autoconfiguration, and diagnostic messaging with full communicating capability.

• Legacy Enabled – Unit can be conventionally wired using 24VAC with non-communicating Rheem Prestige air-handlers or furnaces with non-communicating thermostat.

• Features a 10-year conditional unit replacement warranty and 10-year parts warranty when properly installed with a new Rheem air handler or Rheem indoor coil with a Rheem gas furnace. See product warranty card for additional information.

• Reliable Two-Stage operation for precise temperature control with On-Demand dehumidification feature. When matched with ECM gas furnace or air-handler, the system adjusts airflow to help control humidity for unsurpassed comfort in the cooling mode.

• All controls are accessible by removing one service panel. Removable top grille provides access to the condenser fan motor and condenser coil.

• Attractive, louvered wrap-around jacket protects the coil from yard hazards and weather extremes. Top grille is steel reinforced for extra strength. Cabinet is powder painted for all weather protection.

• For quiet operation and improved efficiency, all models feature highly optimized fan & motor combinations.

• All models meet or exceed a 1000-hour salt spray test per ASTM B117 Standard Practice for Operating Salt Spray Testing Apparatus.

Air

“Proper sizing and installation of equipment is critical to achieve

optimal performance. Ask your Contractor for details or visit www.energystar.gov.”

16.0

Page 2

Air

Table of Contents

RARL- JEC Series

TABLE OF CONTENTS

Model Features ........................................................................................................3

Model Number Identification ............................................................................4

Accessories....................................................................................................4

Scroll Compressor ..........................................................................................4

Performance Data ......................................................................................5-28

Electrical & Physical Data ..............................................................................29

Unit Dimensions............................................................................................30

Refrigerant Line Size Information ..............................................................31-33

Limited Warranty ..........................................................................................34

Page 3

Air

Model Features

RARL- JEC Series

■

The Rheem exclusive Dual 7-Segment LED Display easily shows system operating status codes and diagnostic codes.

■

A Sealed Switch replaces the standard

contactor and features optical control and latching mechanism. The sealed

switch prevents infiltration of insects and dust. A minimal switching arc, by the optical control, offers greater reliability. The latching mechanism consumes less power while reducing chatter.

■

The Status Indication and System Diagnostics feature thermostat communication capability, built-in diagnostics, cur rent sensing and high & low pressure switch monitoring. The

thermostat communication capability alerts the homeowner to any necessary service requirements. Faster, more accurate service is provided by the built-in diagnostics, by providing the HVAC professional with dependable information. In addition, high and low pressure-switch monitoring prevents the system from operating outside of its normal parameters.

■

The fault recall feature will allow for the last six fault-codes to be displayed, and will retain these codes even if power failure occurs.

■

Built-in short-cycle protection allows the compressor to restart easily without oil removal.

■

A 30-second minimum run-time for every compressor call allows the oil to return to the compressor.

■

Active Protection monitors the system to prevent nuisance lockouts and prevents compressor operation when potentially harmful conditions are detected.

■

The compressor and fan are controlled independently, which reduces the starting load and light dimming.

■

A manual push-button is offered to operate the compressor and fan for 5 seconds to allow for an operation check.

■

In order to save time and money, replacement automotive fuses can be utilized instead of replacing the entire control board.

Standard Features

RARL- JEC Condensing Units

1. Scroll compressor is hermetically sealed and incorporates internal high temperature motor overload protection, and durable insulation on the motor windings. It is externally mounted on rubber grommets to reduce vibration and noise.

2. Compressors have an internal pressure relief assembly to protect against excessive pressure differential.

3. All refrigerant connections are on the exterior of the unit, located close to the ground for neat appearing installations.

4. Cabinet is constructed of powder painted galvanized steel. The full wrap-around louvered grille protects the coil from damage.

5. Sound Blanket-enhanced compressor sound blanket is standard.

6. Copper tube—aluminum fin coils are used on all models.

7. The control box is located in the top corner of the cabinet

providing for easy access through a service panel.

8. Service valves are standard on all models.

9. Field connections for power and control wiring are kept

separate.

10. Every unit is factory charged and run-tested.

11. Separate compressor compartment for easy service access.

12. Drawn, painted base pan for extra corrosion resistance and

sound reduction.

13. The RARL- JEC has a 10-year limited parts warranty, plus a 10-year conditional unit replacement warranty. Refer to the General Terms of Limited Warranty for details.

14. Hard Start Kits—Standard on all JEC models.

15. Control Box Cover.

16. The RARL- JEC is shipped with a liquid line filter drier, and

also features factory-installed low and high pressure controls, and time delay control.

17. The 2, 3 and 4 ton models feature an 8-pole motor with a 3-blade outdoor fan. The 5 ton model features the GE

ECM

two-speed motor with a 3-blade outdoor fan.

The

Comfort Control2System

™

Features:

Scroll Two-Stage Ultra Tech

™

Compressor

The 2-Stage Scroll UltraTech™compressor is the key to efficiency for this Rheem model. It’s the latest in high-efficiency compressor technology. The advanced scroll compressor offers low noise and vibration characteristics and features tolerance to liquid refrigerant and system contamination. The Scroll UltraTech™ also has low start torque, eliminating start problems in the field. And its unique design enables the RARL- JEC condensing unit to perform efficiently, quietly and reliably.

All controls and compressor

are accessible for servicing by

removal of the service panel.

Page 4

Air

Model I.D./Accessories/Compressor

RARL- JEC Series

Model Number Identification

R A R L 024

COOLING

CAPACITY

025 = 24,000 BTU/HR [7.03 kW] 038 = 36,000 BTU/HR [10.55 kW] 049 = 48,000 BTU/HR [14.07 kW] 061 = 60,000 BTU/HR [17.6 kW]

J EC

RHEEM REMOTE

CONDENSING

UNIT

16-SEER DESIGN

SERIES

DESIGN SERIES

ELECTRICAL

DESIGNATION

J = 208/230V-1-60

EC = EQUIPPED WITH

THE

COMFORT

CONTROL

SYSTEM

™

—

Accessories

• Low Ambient Control (RXAD-A08)

• Crankcase Heater

• Communicating 2 Wire Kit

* Photos are representative. Actual models may vary.

For detailed thermostat match-up information, see specification sheet form number T11-001.

300-Series *

Deluxe Programmable

400-Series *

Special Applications/ Programmable

500-Series *

Communicating/ Programmable

200-Series *

Programmable

Scroll®Compressor

The reliable scroll compressor is the key to efficiency for this Rheem model. It’s the latest in high-efficiency compressor technology. The advanced scroll compressor offers low noise and vibration characteristics and features tolerance to liquid refrigerant and system contamination. The scroll compressor also has low start torque, reducing start problems in the field. And its unique design enables air conditioners to perform efficiently and quietly.

[ ] Designates Metric Conversions

Thermostats

Important:

The Comfort Control2Systems™require a communicating RHPL/RHPN-HM***JC Air Handler and a 500-Series Thermostat.

Page 5

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

025JEC

RCSN-H*2421

➀

RHPN-HM2421

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

1 - dehumid 11400 [3.3] 5000 [1.5] 450 [212]

2 - dehumid 17100 [5.0] 6700 [2.0] 675 [319]

RCFL-H*2417

RGFE-06?MCK?

1 16000 [4.7] 4200 [1.2]

24800 [7.3] 15.5 12.5

575 [271] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGFE-07?MCK?

1 16300 [4.8] 4100 [1.2]

24600 [7.2] 16 13

600 [283] 71

2 18100 [5.3] 6500 [1.9] 825 [389] 74

RGFG-06?MCK?

1 16000 [4.7] 4200 [1.2]

24800 [7.3] 15.5 12.5

575 [271] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGFG-07?MCK?

1 16300 [4.8] 4100 [1.2]

24600 [7.2] 16 12.5

600 [283] 71

2 18100 [5.3] 6500 [1.9] 850 [401] 74

RGGE-06?MCK?

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 16 13

625 [295] 71

2 18300 [5.4] 6500 [1.9] 825 [389] 74

RGGE-07?MCK?

1 16000 [4.7] 4200 [1.2]

24800 [7.3] 15.5 12.5

575 [271] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGJF-06?MCK?

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 16 13

625 [295] 71

2 18300 [5.4] 6500 [1.9] 825 [389] 74

RGJF-07?MCK?

1 16000 [4.7] 4200 [1.2]

24800 [7.3] 15.5 12.5

575 [271] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGLE-07?AMK?

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 16 13

600 [283] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGPE-05?BMK?

1 16000 [4.7] 4200 [1.2]

24800 [7.3] 15.5 12.5

575 [271] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RGPE-07?AMK?

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 16 13

625 [295] 71

2 18300 [5.4] 6500 [1.9] 825 [389] 74

RGRM-04?MAE?

1 15800 [4.6] 4200 [1.2]

24600 [7.2] 15.5 12.5

575 [271] 71

2 18100 [5.3] 6500 [1.9] 800 [378] 74

RGRM-06?MAE?

1 16300 [4.8] 4100 [1.2]

24600 [7.2] 16 12.5

600 [283] 71

2 18100 [5.3] 6500 [1.9] 825 [389] 74

RGRM-07?MAE?

1 16300 [4.8] 4100 [1.2]

24400 [7.1] 15.5 12.5

625 [295] 71

2 17900 [5.2] 6500 [1.9] 850 [401] 74

RGTM-06?MAE?

1 17200 [5.0] 3800 [1.1]

24600 [7.2] 15.5 12.5

750 [354] 71

2 18100 [5.3] 6500 [1.9] 825 [389] 74

ROCA-070E03

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 16 13

600 [283] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

ROLA-070E03

1 16300 [4.8] 4100 [1.2]

24800 [7.3] 15.5 12.5

600 [283] 71

2 18300 [5.4] 6500 [1.9] 800 [378] 74

RCFL-H*2417+RXMD-C06 Coil Only

1 15800 [4.6] 4100 [1.2]

24200 [7.1] 14 11.5

625 [295] 71

2 17700 [5.2] 6500 [1.9] 825 [389] 74

RCFL-H*2617

RGFE-06?MCK?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16.5 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGFE-07?MCK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

RGFG-06?MCK?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16.5 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 6

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

025JEC

RCFL-H*2617

RGFG-07?MCK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 850 [401] 74

RGGE-06?MCK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

625 [295] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

RGGE-07?MCK?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16.5 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGJF-06?MCK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

625 [295] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

RGJF-07?MCK?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16.5 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGLE-07?AMK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGPE-05?BMK?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16.5 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGPE-07?AMK?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

625 [295] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

RGRM-04?MAE?

1 16400 [4.8] 4200 [1.2]

25600 [7.5] 16 13

575 [271] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RGRM-06?MAE?

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

RGRM-07?MAE?

1 16700 [4.9] 4100 [1.2]

25400 [7.4] 16 13

625 [295] 71

2 18700 [5.5] 6700 [2.0] 850 [401] 74

RGTM-06?MAE?

1 17800 [5.2] 3800 [1.1]

25600 [7.5] 16 13

750 [354] 71

2 18900 [5.5] 6700 [2.0] 825 [389] 74

ROCA-070E03

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

ROLA-070E03

1 16900 [5.0] 4100 [1.2]

25600 [7.5] 16.5 13

600 [283] 71

2 18900 [5.5] 6700 [2.0] 800 [378] 74

RCFL-H*2617+RXMD-C06 Coil Only

1 16300 [4.8] 4100 [1.2]

25000 [7.3] 14.5 12

625 [295] 71

2 18300 [5.4] 6700 [2.0] 825 [389] 74

RCFL-H*2621

RGFE-06?MCK?

1 16200 [4.7] 4200 [1.2]

25400 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RGFE-07?MCK?

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6500 [1.9] 825 [389] 74

RGFG-06?MCK?

1 16200 [4.7] 4200 [1.2]

25400 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RGFG-07?MCK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18700 [5.5] 6500 [1.9] 850 [401] 74

RGGE-06?MCK?

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6500 [1.9] 825 [389] 74

RGGE-07?MCK?

1 16400 [4.8] 4200 [1.2]

25400 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RGJF-06?MCK?

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6500 [1.9] 825 [389] 74

RGJF-07?MCK?

1 16400 [4.8] 4200 [1.2]

25400 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 7

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

025JEC

RCFL-H*2621

RGLE-07?AMK?

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RGPE-05?BMK?

1 16400 [4.8] 4200 [1.2]

25400 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RGPE-07?AMK?

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6500 [1.9] 825 [389] 74

RGRM-04?MAE?

1 16200 [4.7] 4200 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18700 [5.5] 6500 [1.9] 800 [378] 74

RGRM-06?MAE?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18700 [5.5] 6500 [1.9] 825 [389] 74

RGRM-07?MAE?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16 13

625 [295] 71

2 18700 [5.5] 6500 [1.9] 850 [401] 74

RGTM-06?MAE?

1 17700 [5.2] 3700 [1.1]

25400 [7.4] 16.5 13

750 [354] 71

2 18900 [5.5] 6500 [1.9] 825 [389] 74

ROCA-070E03

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

ROLA-070E03

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

RCFL-H*2621+RXMD-C06 Coil Only

1 16200 [4.7] 4000 [1.2]

24800 [7.3] 14.5 12

625 [295] 71

2 18300 [5.4] 6500 [1.9] 825 [389] 74

RCFN-H*2417

RGFE-06?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGFE-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

RGFG-06?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGFG-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 850 [401] 74

RGGE-06?MCK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGGE-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGJF-06?MCK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGJF-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGLE-07?AMK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGPE-05?BMK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGPE-07?AMK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGRM-04?MAE?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGRM-06?MAE?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 8

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

025JEC

RCFN-H*2417

RGRM-07?MAE?

1 17100 [5.0] 3900 [1.1]

24800 [7.3] 16 12.5

625 [295] 71

2 18500 [5.4] 6300 [1.8] 850 [401] 74

RGTM-06?MAE?

1 18200 [5.3] 3600 [1.1]

25000 [7.3] 16.5 13

750 [354] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

ROCA-070E03

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

ROLA-070E03

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RCFN-H*2417+RXMD-C06 Coil Only

1 16700 [4.9] 3900 [1.1]

24600 [7.2] 14 12

625 [295] 71

2 18300 [5.4] 6300 [1.8] 825 [389] 74

RCFN-H*2421

RGFE-06?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGFE-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

RGFG-06?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGFG-07?MCK?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 850 [401] 74

RGGE-06?MCK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGGE-07?MCK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGJF-06?MCK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGJF-07?MCK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGLE-07?AMK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGPE-05?BMK?

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

575 [271] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RGPE-07?AMK?

1 17300 [5.1] 3900 [1.1]

25200 [7.4] 16.5 13

625 [295] 71

2 18900 [5.5] 6300 [1.8] 825 [389] 74

RGRM-04?MAE?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

575 [271] 71

2 18700 [5.5] 6300 [1.8] 800 [378] 74

RGRM-06?MAE?

1 16800 [4.9] 4000 [1.2]

25000 [7.3] 16.5 13

600 [283] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

RGRM-07?MAE?

1 17100 [5.0] 3900 [1.1]

24800 [7.3] 16 12.5

625 [295] 71

2 18500 [5.4] 6300 [1.8] 850 [401] 74

RGTM-06?MAE?

1 18200 [5.3] 3600 [1.1]

25000 [7.3] 16.5 13

750 [354] 71

2 18700 [5.5] 6300 [1.8] 825 [389] 74

ROCA-070E03

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

ROLA-070E03

1 16800 [4.9] 4000 [1.2]

25200 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6300 [1.8] 800 [378] 74

RCFN-H*2421+RXMD-C06 Coil Only

1 16700 [4.9] 3900 [1.1]

24600 [7.2] 14 12

625 [295] 71

2 18300 [5.4] 6300 [1.8] 825 [389] 74

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 9

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

025JEC

RCQD-2417

RBHM-17J

1 17500 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

600 [283] 71

2 20100 [5.9] 5500 [1.6] 825 [389] 74

RGFE-06?MCK?

1 17000 [5.0] 3600 [1.1]

25600 [7.5] 16.5 13

575 [271] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

RGFE-07?MCK?

1 17500 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

600 [283] 71

2 20100 [5.9] 5500 [1.6] 825 [389] 74

RGFG-06?MCK?

1 17000 [5.0] 3600 [1.1]

25600 [7.5] 16.5 13

575 [271] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

RGFG-07?MCK?

1 17500 [5.1] 3500 [1.0]

25400 [7.4] 16.5 13

600 [283] 71

2 19900 [5.8] 5500 [1.6] 850 [401] 74

RGJF-06?MCK?

1 17500 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

625 [295] 71

2 20100 [5.9] 5500 [1.6] 825 [389] 74

RGJF-07?MCK?

1 17000 [5.0] 3600 [1.1]

25600 [7.5] 16.5 13

575 [271] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

RGPE-05?BMK?

1 17000 [5.0] 3600 [1.1]

25600 [7.5] 16.5 13

575 [271] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

RGPE-07?AMK?

1 17500 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

625 [295] 71

2 20100 [5.9] 5500 [1.6] 825 [389] 74

RGRM-04?MAE?

1 17000 [5.0] 3600 [1.1]

25400 [7.4] 16 13

575 [271] 71

2 19900 [5.8] 5500 [1.6] 800 [378] 74

RGRM-06?MAE?

1 17500 [5.1] 3500 [1.0]

25400 [7.4] 16.5 13

600 [283] 71

2 19900 [5.8] 5500 [1.6] 825 [389] 74

RGRM-07?MAE?

1 17300 [5.1] 3500 [1.0]

25400 [7.4] 16 13

625 [295] 71

2 19900 [5.8] 5500 [1.6] 850 [401] 74

RGTM-06?MAE?

1 18500 [5.4] 3100 [0.9]

25600 [7.5] 16.5 13

750 [354] 71

2 20100 [5.9] 5500 [1.6] 825 [389] 74

ROCA-070E03

1 17500 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

600 [283] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

ROLA-070E03

1 17300 [5.1] 3500 [1.0]

25600 [7.5] 16.5 13

600 [283] 71

2 20100 [5.9] 5500 [1.6] 800 [378] 74

RCQD-2417+RXMD-C06 Coil Only

1 16900 [5.0] 3500 [1.0]

25000 [7.3] 14.5 12

625 [295] 71

2 19500 [5.7] 5500 [1.6] 825 [389] 74

RCSL-H*2621 RHPL-HM2421

1 16800 [4.9] 4000 [1.2]

25400 [7.4] 16.5 13

600 [283] 71

2 18900 [5.5] 6500 [1.9] 800 [378] 74

038JEC

RCSN-H*3624

➀

RHPN-HM3624

1 22400 [6.6] 8600 [2.5]

38000 [11.1] 16.5 13

925 [437] 71

2 27500 [8.1] 10500 [3.1] 1125 [531] 72

1 - dehumid 19000 [5.6] 7400 [2.2] 750 [354]

2 - dehumid 25900 [7.6] 11700 [3.4] 950 [448]

RCFL-H*3617

RGFE-06?MCK?

1 18900 [5.5] 9300 [2.7]

34400 [10.1] 14 11

875 [413] 71

2 23500 [6.9] 10900 [3.2] 1200 [566] 72

RGFE-07?MCK?

1 18900 [5.5] 9300 [2.7]

34400 [10.1] 14 11

875 [413] 71

2 23600 [6.9] 10800 [3.2] 1225 [578] 72

RGFG-06?MCK?

1 17900 [5.2] 9700 [2.8]

33800 [9.9] 14 11.5

725 [342] 71

2 22100 [6.5] 11700 [3.4] 1000 [472] 72

RGFG-07?MCK?

1 18500 [5.4] 9500 [2.8]

33800 [9.9] 14 11.5

800 [378] 71

2 22100 [6.5] 11700 [3.4] 1000 [472] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 10

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCFL-H*3617

RGGE-06?MCK?

1 17900 [5.2] 9700 [2.8]

34200 [10.0] 14.5 11.5

725 [342] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGGE-07?MCK?

1 18200 [5.3] 9600 [2.8]

34000 [10.0] 14.5 11.5

750 [354] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

RGJF-06?MCK?

1 17900 [5.2] 9700 [2.8]

34200 [10.0] 14.5 11.5

725 [342] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGJF-07?MCK?

1 18200 [5.3] 9600 [2.8]

34000 [10.0] 14.5 11.5

750 [354] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

RGLE-07?AMK?

1 18200 [5.3] 9600 [2.8]

34200 [10.0] 14.5 12

750 [354] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGPE-05?BMK?

1 19500 [5.7] 9100 [2.7]

34600 [10.1] 14 11

900 [425] 71

2 23700 [6.9] 10900 [3.2] 1200 [566] 72

RGPE-07?AMK?

1 17900 [5.2] 9700 [2.8]

34000 [10.0] 14.5 11.5

725 [342] 71

2 22300 [6.5] 11700 [3.4] 1000 [472] 72

RGRM-04?MAE?

1 18000 [5.3] 9600 [2.8]

34000 [10.0] 14 11.5

750 [354] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

RGRM-06?MAE?

1 18200 [5.3] 9600 [2.8]

33800 [9.9] 14 11.5

775 [366] 71

2 22100 [6.5] 11700 [3.4] 1000 [472] 72

RGRM-07?MAE?

1 18300 [5.4] 9500 [2.8]

33800 [9.9] 14 11

800 [378] 71

2 22200 [6.5] 11600 [3.4] 1025 [484] 72

RGTM-06?MAE?

1 19500 [5.7] 9100 [2.7]

34000 [10.0] 14 11.5

900 [425] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

ROCA-070E03

1 18500 [5.4] 9500 [2.8]

34000 [10.0] 14.5 12

800 [378] 71

2 22300 [6.5] 11700 [3.4] 1000 [472] 72

ROCA-070E04

1 18500 [5.4] 9500 [2.8]

34000 [10.0] 14.5 12

800 [378] 71

2 22300 [6.5] 11700 [3.4] 1000 [472] 72

ROLA-070E03

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 23800 [7.0] 11000 [3.2] 1175 [554] 72

ROLA-070E04

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 23800 [7.0] 11000 [3.2] 1175 [554] 72

RCFL-H*3617+RXMD-C06 Coil Only

1 18900 [5.5] 9100 [2.7]

34200 [10.0] 13 11

925 [437] 71

2 23000 [6.7] 11200 [3.3] 1075 [507] 72

RCFL-H*3621

RGFE-06?MCK?

1 18900 [5.5] 9300 [2.7]

34400 [10.1] 14 11

875 [413] 71

2 23500 [6.9] 10900 [3.2] 1200 [566] 72

RGFE-07?MCK?

1 18900 [5.5] 9300 [2.7]

34400 [10.1] 14 11

875 [413] 71

2 23600 [6.9] 10800 [3.2] 1225 [578] 72

RGFE-09?ZCM?

1 19100 [5.6] 9300 [2.7]

34800 [10.2] 14.5 11.5

875 [413] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

RGFE-10?ZCM?

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 24000 [7.0] 10800 [3.2] 1225 [578] 72

RGFG-06?MCK?

1 18900 [5.5] 9300 [2.7]

34400 [10.1] 14 11

875 [413] 71

2 23500 [6.9] 10900 [3.2] 1200 [566] 72

RGFG-07?MCK?

1 18500 [5.4] 9500 [2.8]

33800 [9.9] 14.5 11.5

800 [378] 71

2 22100 [6.5] 11700 [3.4] 1000 [472] 72

RGFG-09?ZCM?

1 19100 [5.6] 9300 [2.7]

34800 [10.2] 14.5 11.5

875 [413] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 11

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC RCFL-H*3621

RGFG-10?ZCM?

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

RGGE-06?MCK?

1 17900 [5.2] 9700 [2.8]

34200 [10.0] 14.5 11.5

725 [342] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGGE-07?MCK?

1 18200 [5.3] 9600 [2.8]

34200 [10.0] 14.5 11.5

750 [354] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGGE-09?ZCM?

1 19100 [5.6] 9300 [2.7]

35000 [10.3] 14.5 11.5

875 [413] 71

2 24200 [7.1] 10800 [3.2] 1225 [578] 72

RGGE-10?ZCM?

1 19100 [5.6] 9300 [2.7]

34800 [10.2] 14.5 11.5

875 [413] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

RGJF-06?MCK?

1 17900 [5.2] 9700 [2.8]

34200 [10.0] 14.5 11.5

725 [342] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGJF-07?MCK?

1 18200 [5.3] 9600 [2.8]

34200 [10.0] 14.5 11.5

750 [354] 71

2 22600 [6.6] 11600 [3.4] 1025 [484] 72

RGJF-09?ZCM?

1 19100 [5.6] 9300 [2.7]

35000 [10.3] 14.5 11.5

875 [413] 71

2 24200 [7.1] 10800 [3.2] 1225 [578] 72

RGJF-10?ZCM?

1 19100 [5.6] 9300 [2.7]

34800 [10.2] 14.5 11.5

875 [413] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

RGLE-07?AMK?

1 19100 [5.6] 9300 [2.7]

34800 [10.2] 14.5 11.5

875 [413] 71

2 23900 [7.0] 10900 [3.2] 1200 [566] 72

RGLE-07?BRQ?

1 19500 [5.7] 9100 [2.7]

35200 [10.3] 14.5 12

925 [437] 71

2 24400 [7.1] 10800 [3.2] 1225 [578] 72

RGLE-10?BRM?

1 19100 [5.6] 9300 [2.7]

35200 [10.3] 15 12

875 [413] 71

2 24300 [7.1] 10900 [3.2] 1200 [566] 72

RGPE-05?BMK?

1 19500 [5.7] 9100 [2.7]

34600 [10.1] 14 11.5

900 [425] 71

2 23700 [6.9] 10900 [3.2] 1200 [566] 72

RGPE-07?AMK?

1 17900 [5.2] 9700 [2.8]

34000 [10.0] 14.5 12

725 [342] 71

2 22300 [6.5] 11700 [3.4] 1000 [472] 72

RGPE-07?BRQ?

1 19500 [5.7] 9100 [2.7]

35200 [10.3] 14.5 12

900 [425] 71

2 24400 [7.1] 10800 [3.2] 1225 [578] 72

RGPE-10?BRM?

1 19700 [5.8] 9100 [2.7]

35200 [10.3] 15 12

900 [425] 71

2 24400 [7.1] 10800 [3.2] 1225 [578] 72

RGRM-04?MAE?

1 18000 [5.3] 9600 [2.8]

34000 [10.0] 14 11.5

750 [354] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

RGRM-06?MAE?

1 18200 [5.3] 9600 [2.8]

33800 [9.9] 14.5 11.5

775 [366] 71

2 22100 [6.5] 11700 [3.4] 1000 [472] 72

RGRM-07?MAE?

1 18300 [5.4] 9500 [2.8]

33800 [9.9] 14 11

800 [378] 71

2 22200 [6.5] 11600 [3.4] 1025 [484] 72

RGRM-07?YBG?

1 18700 [5.5] 9300 [2.7]

34200 [10.0] 13.5 10.5

850 [401] 71

2 23300 [6.8] 10900 [3.2] 1200 [566] 72

RGTM-06?MAE?

1 19500 [5.7] 9100 [2.7]

34000 [10.0] 14.5 11.5

900 [425] 71

2 22400 [6.6] 11600 [3.4] 1025 [484] 72

RGTM-07?RBG?

1 18500 [5.4] 9500 [2.8]

34400 [10.1] 14.5 12

800 [378] 71

2 22900 [6.7] 11500 [3.4] 1050 [495] 72

RGTM-09?ZAJ?

1 19800 [5.8] 9000 [2.6]

35000 [10.3] 14.5 11.5

975 [460] 71

2 24200 [7.1] 10800 [3.2] 1225 [578] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 12

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCFL-H*3621

ROCA-070E03

1 18500 [5.4] 9500 [2.8]

34200 [10.0] 14.5 12

800 [378] 71

2 22500 [6.6] 11700 [3.4] 1000 [472] 72

ROCA-070E04

1 18500 [5.4] 9500 [2.8]

34200 [10.0] 14.5 12

800 [378] 71

2 22500 [6.6] 11700 [3.4] 1000 [472] 72

ROLA-070E03

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 23800 [7.0] 11000 [3.2] 1175 [554] 72

ROLA-070E04

1 19500 [5.7] 9100 [2.7]

34800 [10.2] 14.5 11.5

900 [425] 71

2 23800 [7.0] 11000 [3.2] 1175 [554] 72

ROLA-115E05

1 19500 [5.7] 9100 [2.7]

35000 [10.3] 14.5 12

900 [425] 71

2 24100 [7.1] 10900 [3.2] 1200 [566] 72

RCFL-H*3621+RXMD-C06 Coil Only

1 18900 [5.5] 9100 [2.7]

34200 [10.0] 13 11

925 [437] 71

2 23000 [6.7] 11200 [3.3] 1125 [531] 72

RCFL-H*3821

RGFE-06?MCK?

1 17800 [5.2] 10000 [2.9]

34600 [10.1] 14.5 12

725 [342] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

RGFE-07?MCK?

1 17800 [5.2] 10000 [2.9]

34600 [10.1] 14.5 12

725 [342] 71

2 22800 [6.7] 11800 [3.5] 1025 [484] 72

RGFE-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 15 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGFE-10?ZCM?

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

900 [425] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGFG-06?MCK?

1 17800 [5.2] 10000 [2.9]

34600 [10.1] 14.5 12

725 [342] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

RGFG-07?MCK?

1 18400 [5.4] 9800 [2.9]

34400 [10.1] 14.5 12

800 [378] 71

2 22500 [6.6] 11900 [3.5] 1000 [472] 72

RGFG-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 15 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGFG-10?ZCM?

1 19600 [5.7] 9400 [2.8]

35400 [10.4] 15 12

900 [425] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGGE-06?MCK?

1 17800 [5.2] 10000 [2.9]

34800 [10.2] 14.5 12

725 [342] 71

2 23000 [6.7] 11800 [3.5] 1025 [484] 72

RGGE-07?MCK?

1 18100 [5.3] 9900 [2.9]

34600 [10.1] 14.5 12

750 [354] 71

2 22800 [6.7] 11800 [3.5] 1025 [484] 72

RGGE-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35600 [10.4] 15 12

875 [413] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGGE-10?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 14.5 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGJF-06?MCK?

1 17800 [5.2] 10000 [2.9]

34800 [10.2] 14.5 12

725 [342] 71

2 23000 [6.7] 11800 [3.5] 1025 [484] 72

RGJF-07?MCK?

1 18100 [5.3] 9900 [2.9]

34600 [10.1] 14.5 12

750 [354] 71

2 22800 [6.7] 11800 [3.5] 1025 [484] 72

RGJF-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35800 [10.5] 15 12

875 [413] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGJF-10?ZCM?

1 19000 [5.6] 9600 [2.8]

35600 [10.4] 14.5 12

875 [413] 71

2 24500 [7.2] 11100 [3.3] 1200 [566] 72

RGLE-07?AMK?

1 18100 [5.3] 9900 [2.9]

34800 [10.2] 15 12

750 [354] 71

2 23000 [6.7] 11800 [3.5] 1025 [484] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 13

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCFL-H*3821

RGLE-07?BRQ?

1 18400 [5.4] 9800 [2.9]

35000 [10.3] 15.1 12.5

775 [366] 71

2 23200 [6.8] 11800 [3.5] 1025 [484] 72

RGLE-10?BRM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15.1 12.5

875 [413] 71

2 24700 [7.2] 11100 [3.3] 1200 [566] 72

RGPE-05?BMK?

1 19400 [5.7] 9400 [2.8]

35200 [10.3] 14.5 11.5

900 [425] 71

2 24100 [7.1] 11100 [3.3] 1200 [566] 72

RGPE-07?AMK?

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 14.5 12

900 [425] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGPE-07?BRQ?

1 19600 [5.7] 9400 [2.8]

35800 [10.5] 15.1 12.5

900 [425] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGPE-10?BRM?

1 19600 [5.7] 9400 [2.8]

35800 [10.5] 15.1 12.5

900 [425] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGRM-04?MAE?

1 18100 [5.3] 9900 [2.9]

34600 [10.1] 14.5 11.5

750 [354] 71

2 22800 [6.7] 11800 [3.5] 1025 [484] 72

RGRM-06?MAE?

1 18400 [5.4] 9800 [2.9]

34400 [10.1] 14.5 12

775 [366] 71

2 22500 [6.6] 11900 [3.5] 1000 [472] 72

RGRM-07?MAE?

1 18400 [5.4] 9800 [2.9]

34400 [10.1] 14.5 11.5

800 [378] 71

2 22600 [6.6] 11800 [3.5] 1025 [484] 72

RGRM-07?YBG?

1 18800 [5.5] 9600 [2.8]

34800 [10.2] 14 11

850 [401] 71

2 23700 [6.9] 11100 [3.3] 1200 [566] 72

RGRM-09?ZAJ?

1 19400 [5.7] 9400 [2.8]

35400 [10.4] 14.5 11.5

950 [448] 71

2 24400 [7.1] 11000 [3.2] 1225 [578] 72

RGRM-10?ZAJ?

1 19000 [5.6] 9600 [2.8]

35000 [10.3] 14.5 12

875 [413] 71

2 23600 [6.9] 11400 [3.3] 1150 [543] 72

RGTM-06?MAE?

1 19400 [5.7] 9400 [2.8]

34600 [10.1] 14.5 12

900 [425] 71

2 22800 [6.7] 11800 [3.5] 1025 [484] 72

RGTM-07?RBG?

1 18600 [5.4] 9800 [2.9]

35000 [10.3] 15 12.5

800 [378] 71

2 23300 [6.8] 11700 [3.4] 1050 [495] 72

RGTM-09?ZAJ?

1 19900 [5.8] 9300 [2.7]

35600 [10.4] 15 12

975 [460] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

ROCA-070E03

1 18600 [5.4] 9800 [2.9]

34600 [10.1] 15 12

800 [378] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

ROCA-070E04

1 18600 [5.4] 9800 [2.9]

34600 [10.1] 15 12

800 [378] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

ROLA-070E03

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

900 [425] 71

2 24400 [7.1] 11200 [3.3] 1175 [554] 72

ROLA-070E04

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

900 [425] 71

2 24400 [7.1] 11200 [3.3] 1175 [554] 72

ROLA-115E05

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15.1 12.5

900 [425] 71

2 24500 [7.2] 11100 [3.3] 1200 [566] 72

RCFL-H*3821+RXMD-C06 Coil Only

1 18800 [5.5] 9400 [2.8]

34800 [10.2] 13 11.5

925 [437] 71

2 23400 [6.9] 11400 [3.3] 1125 [531] 72

RCFL-H*3824

RGFE-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 14.5 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGFE-10?ZCM?

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

900 [425] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 14

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC RCFL-H*3824

RGFE-12?RCM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15 12

875 [413] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGFG-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 14.5 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGFG-10?ZCM?

1 19600 [5.7] 9400 [2.8]

35400 [10.4] 15 12

900 [425] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGFG-12?RCM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15 12

875 [413] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGGE-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35600 [10.4] 15 12

875 [413] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGGE-10?ZCM?

1 19000 [5.6] 9600 [2.8]

35400 [10.4] 14.5 12

875 [413] 71

2 24300 [7.1] 11100 [3.3] 1200 [566] 72

RGGE-12?RCM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15.1 12.5

875 [413] 71

2 24700 [7.2] 11100 [3.3] 1200 [566] 72

RGJF-09?ZCM?

1 19000 [5.6] 9600 [2.8]

35800 [10.5] 15 12

875 [413] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGJF-10?ZCM?

1 19000 [5.6] 9600 [2.8]

35600 [10.4] 14.5 12

875 [413] 71

2 24500 [7.2] 11100 [3.3] 1200 [566] 72

RGJF-12?RCM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15.1 12.5

875 [413] 71

2 24700 [7.2] 11100 [3.3] 1200 [566] 72

RGLE-07?BRQ?

1 18400 [5.4] 9800 [2.9]

35000 [10.3] 15.1 12.5

775 [366] 71

2 23200 [6.8] 11800 [3.5] 1025 [484] 72

RGLE-10?BRM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15.1 12.5

875 [413] 71

2 24700 [7.2] 11100 [3.3] 1200 [566] 72

RGLE-12?ARM?

1 19600 [5.7] 9400 [2.8]

36000 [10.5] 15.1 12.5

925 [437] 71

2 25000 [7.3] 11000 [3.2] 1225 [578] 72

RGPE-07?BRQ?

1 19600 [5.7] 9400 [2.8]

35800 [10.5] 15.1 12.5

900 [425] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGPE-10?BRM?

1 19600 [5.7] 9400 [2.8]

35800 [10.5] 15.1 12.5

900 [425] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

RGPE-12?ARM?

1 19200 [5.6] 9600 [2.8]

35800 [10.5] 15.1 12.5

875 [413] 71

2 24700 [7.2] 11100 [3.3] 1200 [566] 72

RGRM-07?YBG?

1 18800 [5.5] 9600 [2.8]

34800 [10.2] 14 11

850 [401] 71

2 23700 [6.9] 11100 [3.3] 1200 [566] 72

RGRM-09?ZAJ?

1 19400 [5.7] 9400 [2.8]

35400 [10.4] 14.5 11.5

950 [448] 71

2 24400 [7.1] 11000 [3.2] 1225 [578] 72

RGRM-10?ZAJ?

1 19000 [5.6] 9600 [2.8]

35000 [10.3] 14.5 12

875 [413] 71

2 23600 [6.9] 11400 [3.3] 1150 [543] 72

RGRM-12?RAJ?

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

925 [437] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGTM-07?RBG?

1 18600 [5.4] 9800 [2.9]

35000 [10.3] 15 12.5

800 [378] 71

2 23300 [6.8] 11700 [3.4] 1050 [495] 72

RGTM-09?ZAJ?

1 19900 [5.8] 9300 [2.7]

35600 [10.4] 15 12

975 [460] 71

2 24600 [7.2] 11000 [3.2] 1225 [578] 72

RGTM-10?RBJ?

1 19900 [5.8] 9300 [2.7]

35800 [10.5] 15 12

975 [460] 71

2 24800 [7.3] 11000 [3.2] 1225 [578] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 15

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCFL-H*3824

ROCA-070E03

1 18400 [5.4] 9800 [2.9]

34600 [10.1] 15 12

800 [378] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

ROCA-070E04

1 18400 [5.4] 9800 [2.9]

34600 [10.1] 15 12

800 [378] 71

2 22700 [6.7] 11900 [3.5] 1000 [472] 72

ROLA-070E03

1 19600 [5.7] 9400 [2.8]

35400 [10.4] 15 12

900 [425] 71

2 24200 [7.1] 11200 [3.3] 1175 [554] 72

ROLA-070E04

1 19600 [5.7] 9400 [2.8]

35400 [10.4] 15 12

900 [425] 71

2 24200 [7.1] 11200 [3.3] 1175 [554] 72

ROLA-115E05

1 19600 [5.7] 9400 [2.8]

35600 [10.4] 15 12

900 [425] 71

2 24500 [7.2] 11100 [3.3] 1200 [566] 72

RCFL-H*3824+RXMD-C06 Coil Only

1 18800 [5.5] 9400 [2.8]

34800 [10.2] 13 11.5

925 [437] 71

2 23400 [6.9] 11400 [3.3] 1125 [531] 72

RCFN-H*3624

RGFE-06?MCK?

1 20300 [5.9] 9300 [2.7]

37200 [10.9] 16 12.5

725 [342] 71

2 26100 [7.6] 11100 [3.3] 1000 [472] 72

RGFE-07?MCK?

1 20300 [5.9] 9300 [2.7]

37200 [10.9] 16 12.5

725 [342] 71

2 26200 [7.7] 11000 [3.2] 1025 [484] 72

RGFE-09?ZCM?

1 21800 [6.4] 8800 [2.6]

38000 [11.1] 16 12.5

875 [413] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGFE-10?ZCM?

1 22200 [6.5] 8600 [2.5]

38500 [11.3] 16 12.5

900 [425] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGFE-12?RCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGFG-06?MCK?

1 20300 [5.9] 9300 [2.7]

37200 [10.9] 16 12.5

725 [342] 71

2 26100 [7.6] 11100 [3.3] 1000 [472] 72

RGFG-07?MCK?

1 20900 [6.1] 9100 [2.7]

37000 [10.8] 16 12.5

800 [378] 71

2 25900 [7.6] 11100 [3.3] 1000 [472] 72

RGFG-09?ZCM?

1 21800 [6.4] 8800 [2.6]

38000 [11.1] 16 12.5

875 [413] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGFG-10?ZCM?

1 22200 [6.5] 8600 [2.5]

38000 [11.1] 16 12.5

900 [425] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGFG-12?RCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGGE-06?MCK?

1 20500 [6.0] 9300 [2.7]

37400 [11.0] 16 13

725 [342] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

RGGE-07?MCK?

1 20600 [6.0] 9200 [2.7]

37400 [11.0] 16 12.5

750 [354] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

RGGE-09?ZCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16 13

875 [413] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGGE-10?ZCM?

1 21800 [6.4] 8800 [2.6]

38000 [11.1] 16 13

875 [413] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGGE-12?RCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28300 [8.3] 10200 [3.0] 1200 [566] 72

RGJF-06?MCK?

1 20500 [6.0] 9300 [2.7]

37400 [11.0] 16 13

725 [342] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

RGJF-07?MCK?

1 20600 [6.0] 9200 [2.7]

37400 [11.0] 16 12.5

750 [354] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 16

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC RCFN-H*3624

RGJF-09?ZCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16 13

875 [413] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGJF-10?ZCM?

1 21800 [6.4] 8800 [2.6]

38000 [11.1] 16 13

875 [413] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGJF-12?RCM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28300 [8.3] 10200 [3.0] 1200 [566] 72

RGLE-07?AMK?

1 20600 [6.0] 9200 [2.7]

37400 [11.0] 16 13

750 [354] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

RGLE-07?BRQ?

1 22200 [6.5] 8600 [2.5]

38500 [11.3] 16.5 13

925 [437] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGLE-10?BRM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28300 [8.3] 10200 [3.0] 1200 [566] 72

RGLE-12?ARM?

1 22400 [6.6] 8600 [2.5]

38500 [11.3] 16.5 13

925 [437] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGPE-05?BMK?

1 22200 [6.5] 8600 [2.5]

38000 [11.1] 16 12.5

900 [425] 71

2 27800 [8.1] 10200 [3.0] 1200 [566] 72

RGPE-07?AMK?

1 20500 [6.0] 9300 [2.7]

37400 [11.0] 16 13

725 [342] 71

2 26300 [7.7] 11100 [3.3] 1000 [472] 72

RGPE-07?BRQ?

1 22400 [6.6] 8600 [2.5]

38500 [11.3] 16.5 13

900 [425] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGPE-10?BRM?

1 22400 [6.6] 8600 [2.5]

38500 [11.3] 16.5 13

900 [425] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGPE-12?ARM?

1 21800 [6.4] 8800 [2.6]

38500 [11.3] 16.5 13

875 [413] 71

2 28300 [8.3] 10200 [3.0] 1200 [566] 72

RGRM-04?MAE?

1 20600 [6.0] 9200 [2.7]

37200 [10.9] 16 12.5

750 [354] 71

2 26200 [7.7] 11000 [3.2] 1025 [484] 72

RGRM-06?MAE?

1 20900 [6.1] 9100 [2.7]

37000 [10.8] 16 12.5

775 [366] 71

2 25900 [7.6] 11100 [3.3] 1000 [472] 72

RGRM-07?MAE?

1 20900 [6.1] 9100 [2.7]

37000 [10.8] 15.5 12

800 [378] 71

2 26000 [7.6] 11000 [3.2] 1025 [484] 72

RGRM-07?YBG?

1 21300 [6.2] 8900 [2.6]

37600 [11.0] 15.5 12

850 [401] 71

2 27400 [8.0] 10200 [3.0] 1200 [566] 72

RGRM-09?ZAJ?

1 22200 [6.5] 8600 [2.5]

38000 [11.1] 16 12.5

950 [448] 71

2 27900 [8.2] 10100 [3.0] 1225 [578] 72

RGRM-10?ZAJ?

1 21800 [6.4] 8800 [2.6]

37800 [11.1] 16 12.5

875 [413] 71

2 27300 [8.0] 10500 [3.1] 1150 [543] 72

RGRM-12?RAJ?

1 22200 [6.5] 8600 [2.5]

38500 [11.3] 16 13

925 [437] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGTM-06?MAE?

1 22200 [6.5] 8600 [2.5]

37400 [11.0] 16 12.5

900 [425] 71

2 26400 [7.7] 11000 [3.2] 1025 [484] 72

RGTM-07?RBG?

1 22200 [6.5] 8600 [2.5]

38500 [11.3] 16 13

950 [448] 71

2 28700 [8.4] 9800 [2.9] 1275 [602] 72

RGTM-09?ZAJ?

1 22500 [6.6] 8500 [2.5]

38500 [11.3] 16 13

975 [460] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

RGTM-10?RBJ?

1 22700 [6.7] 8500 [2.5]

38500 [11.3] 16 13

975 [460] 71

2 28400 [8.3] 10100 [3.0] 1225 [578] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 17

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCFN-H*3624

ROCA-070E03

1 21100 [6.2] 9100 [2.7]

37400 [11.0] 16 13

800 [378] 71

2 26300 [7.7] 11100 [3.3] 1000 [472] 72

ROCA-070E04

1 21100 [6.2] 9100 [2.7]

37400 [11.0] 16 13

800 [378] 71

2 26300 [7.7] 11100 [3.3] 1000 [472] 72

ROLA-070E03

1 22200 [6.5] 8600 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 27700 [8.1] 10300 [3.0] 1175 [554] 72

ROLA-070E04

1 22200 [6.5] 8600 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 27700 [8.1] 10300 [3.0] 1175 [554] 72

ROLA-115E05

1 22200 [6.5] 8600 [2.5]

38500 [11.3] 16.5 13

900 [425] 71

2 28300 [8.3] 10200 [3.0] 1200 [566] 72

RCFN-H*3624+RXMD-C06 Coil Only

1 21400 [6.3] 8600 [2.5]

37400 [11.0] 14 12

925 [437] 71

2 26900 [7.9] 10500 [3.1] 1125 [531] 72

RCQD-3621

RGFE-06?MCK?

1 19900 [5.8] 9100 [2.7]

36600 [10.7] 15.5 12.5

725 [342] 71

2 25600 [7.5] 11000 [3.2] 1000 [472] 72

RGFE-07?MCK?

1 19900 [5.8] 9100 [2.7]

36600 [10.7] 15.5 12.5

725 [342] 71

2 25700 [7.5] 10900 [3.2] 1025 [484] 72

RGFE-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGFE-10?ZCM?

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 12.5

900 [425] 71

2 27600 [8.1] 10000 [2.9] 1225 [578] 72

RGFG-06?MCK?

1 19900 [5.8] 9100 [2.7]

36600 [10.7] 15.5 12.5

725 [342] 71

2 25600 [7.5] 11000 [3.2] 1000 [472] 72

RGFG-07?MCK?

1 20500 [6.0] 8900 [2.6]

36400 [10.7] 15.5 12.5

800 [378] 71

2 25400 [7.4] 11000 [3.2] 1000 [472] 72

RGFG-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGFG-10?ZCM?

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 12.5

900 [425] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGJF-06?MCK?

1 21600 [6.3] 8400 [2.5]

37400 [11.0] 15.5 12.5

925 [437] 71

2 27300 [8.0] 10100 [3.0] 1200 [566] 72

RGJF-07?MCK?

1 20200 [5.9] 9000 [2.6]

36600 [10.7] 15.5 12.5

750 [354] 71

2 25700 [7.5] 10900 [3.2] 1025 [484] 72

RGJF-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37800 [11.1] 15.5 12.5

875 [413] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGJF-10?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGPE-05?BMK?

1 21600 [6.3] 8400 [2.5]

37400 [11.0] 15.5 12

900 [425] 71

2 27300 [8.0] 10100 [3.0] 1200 [566] 72

RGPE-07?AMK?

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 12.5

900 [425] 71

2 27600 [8.1] 10000 [2.9] 1225 [578] 72

RGPE-07?BRQ?

1 21800 [6.4] 8400 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 28000 [8.2] 10000 [2.9] 1225 [578] 72

RGPE-10?BRM?

1 21800 [6.4] 8400 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 28000 [8.2] 10000 [2.9] 1225 [578] 72

RGRM-04?MAE?

1 20200 [5.9] 9000 [2.6]

36600 [10.7] 15.5 12.5

750 [354] 71

2 25700 [7.5] 10900 [3.2] 1025 [484] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 18

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCQD-3621

RGRM-06?MAE?

1 20500 [6.0] 8900 [2.6]

36400 [10.7] 15.5 12.5

775 [366] 71

2 25400 [7.4] 11000 [3.2] 1000 [472] 72

RGRM-07?MAE?

1 20500 [6.0] 8900 [2.6]

36400 [10.7] 15 12

800 [378] 71

2 25500 [7.5] 10900 [3.2] 1025 [484] 72

RGRM-07?YBG?

1 20900 [6.1] 8700 [2.5]

37000 [10.8] 15 11.5

850 [401] 71

2 26900 [7.9] 10100 [3.0] 1200 [566] 72

RGRM-09?ZAJ?

1 21600 [6.3] 8400 [2.5]

37600 [11.0] 15.5 12.5

950 [448] 71

2 27600 [8.1] 10000 [2.9] 1225 [578] 72

RGRM-10?ZAJ?

1 21200 [6.2] 8600 [2.5]

37000 [10.8] 15.5 12.5

875 [413] 71

2 26600 [7.8] 10400 [3.0] 1150 [543] 72

RGTM-06?MAE?

1 21600 [6.3] 8400 [2.5]

36600 [10.7] 15.5 12.5

900 [425] 71

2 25700 [7.5] 10900 [3.2] 1025 [484] 72

RGTM-07?RBG?

1 20500 [6.0] 8900 [2.6]

37000 [10.8] 15.5 13

800 [378] 71

2 26200 [7.7] 10800 [3.2] 1050 [495] 72

RGTM-09?ZAJ?

1 22100 [6.5] 8300 [2.4]

37800 [11.1] 15.5 12.5

975 [460] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

ROCA-070E03

1 20500 [6.0] 8900 [2.6]

36600 [10.7] 15.5 13

800 [378] 71

2 25600 [7.5] 11000 [3.2] 1000 [472] 72

ROCA-070E04

1 20500 [6.0] 8900 [2.6]

36600 [10.7] 15.5 13

800 [378] 71

2 25600 [7.5] 11000 [3.2] 1000 [472] 72

ROLA-070E03

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 13

900 [425] 71

2 27400 [8.0] 10200 [3.0] 1175 [554] 72

ROLA-070E04

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 13

900 [425] 71

2 27400 [8.0] 10200 [3.0] 1175 [554] 72

ROLA-115E05

1 21800 [6.4] 8400 [2.5]

37800 [11.1] 16 13

900 [425] 71

2 27700 [8.1] 10100 [3.0] 1200 [566] 72

RCQD-3621+RXMD-C06 Coil Only

1 21000 [6.2] 8400 [2.5]

36800 [10.8] 14 12

925 [437] 71

2 26400 [7.7] 10400 [3.0] 1125 [531] 72

RCQD-3624

RBHM-24J

1 21800 [6.4] 8400 [2.5]

37800 [11.1] 16 13

900 [425] 71

2 27600 [8.1] 10200 [3.0] 1175 [554] 72

RBHN-24J

1 21800 [6.4] 8400 [2.5]

38000 [11.1] 16.5 13

925 [437] 71

2 27800 [8.1] 10200 [3.0] 1175 [554] 72

RGFE-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGFE-10?ZCM?

1 21800 [6.4] 8400 [2.5]

37800 [11.1] 16 12.5

900 [425] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGFE-12?RCM?

1 21400 [6.3] 8600 [2.5]

37800 [11.1] 16 13

875 [413] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGFG-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGFG-10?ZCM?

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 15.5 12.5

900 [425] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGFG-12?RCM?

1 21400 [6.3] 8600 [2.5]

37800 [11.1] 16 13

875 [413] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGJF-09?ZCM?

1 21200 [6.2] 8600 [2.5]

37800 [11.1] 15.5 13

875 [413] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 19

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

038JEC

RCQD-3624

RGJF-10?ZCM?

1 21200 [6.2] 8600 [2.5]

37600 [11.0] 15.5 12.5

875 [413] 71

2 27500 [8.1] 10100 [3.0] 1200 [566] 72

RGJF-12?RCM?

1 21400 [6.3] 8600 [2.5]

37800 [11.1] 16 13

875 [413] 71

2 27700 [8.1] 10100 [3.0] 1200 [566] 72

RGPE-07?BRQ?

1 21800 [6.4] 8400 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 28000 [8.2] 10000 [2.9] 1225 [578] 72

RGPE-10?BRM?

1 21800 [6.4] 8400 [2.5]

38000 [11.1] 16 13

900 [425] 71

2 28000 [8.2] 10000 [2.9] 1225 [578] 72

RGPE-12?ARM?

1 21400 [6.3] 8600 [2.5]

37800 [11.1] 16 13

875 [413] 71

2 27700 [8.1] 10100 [3.0] 1200 [566] 72

RGRM-07?YBG?

1 20900 [6.1] 8700 [2.5]

37000 [10.8] 15 11.5

850 [401] 71

2 26900 [7.9] 10100 [3.0] 1200 [566] 72

RGRM-09?ZAJ?

1 21600 [6.3] 8400 [2.5]

37600 [11.0] 15.5 12.5

950 [448] 71

2 27600 [8.1] 10000 [2.9] 1225 [578] 72

RGRM-10?ZAJ?

1 21200 [6.2] 8600 [2.5]

37200 [10.9] 15.5 12.5

875 [413] 71

2 26800 [7.9] 10400 [3.0] 1150 [543] 72

RGRM-12?RAJ?

1 21800 [6.4] 8400 [2.5]

37800 [11.1] 16 12.5

925 [437] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGTM-07?RBG?

1 20500 [6.0] 8900 [2.6]

37000 [10.8] 15.5 13

800 [378] 71

2 26200 [7.7] 10800 [3.2] 1050 [495] 72

RGTM-09?ZAJ?

1 22100 [6.5] 8300 [2.4]

37800 [11.1] 15.5 12.5

975 [460] 71

2 27800 [8.1] 10000 [2.9] 1225 [578] 72

RGTM-10?RBJ?

1 22100 [6.5] 8300 [2.4]

38000 [11.1] 16 13

975 [460] 71

2 28000 [8.2] 10000 [2.9] 1225 [578] 72

ROCA-070E03

1 20500 [6.0] 8900 [2.6]

36800 [10.8] 15.5 13

800 [378] 71

2 25800 [7.6] 11000 [3.2] 1000 [472] 72

ROCA-070E04

1 20500 [6.0] 8900 [2.6]

36800 [10.8] 15.5 13

800 [378] 71

2 25800 [7.6] 11000 [3.2] 1000 [472] 72

ROLA-070E03

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 16 13

900 [425] 71

2 27400 [8.0] 10200 [3.0] 1175 [554] 72

ROLA-070E04

1 21800 [6.4] 8400 [2.5]

37600 [11.0] 16 13

900 [425] 71

2 27400 [8.0] 10200 [3.0] 1175 [554] 72

ROLA-115E05

1 21800 [6.4] 8400 [2.5]

37800 [11.1] 16 13

900 [425] 71

2 27700 [8.1] 10100 [3.0] 1200 [566] 72

RCQD-3624+RXMD-C06 Coil Only

1 21000 [6.2] 8400 [2.5]

36800 [10.8] 14 12

925 [437] 71

2 26400 [7.7] 10400 [3.0] 1125 [531] 72

RCSL-H*3621 RHPL-HM3621

1 19700 [5.8] 9100 [2.7]

35200 [10.3] 15 12

925 [437] 71

2 24400 [7.1] 10800 [3.2] 1225 [578] 72

RCSL-H*3821 RHPL-HM3821

1 19600 [5.7] 9400 [2.8]

35400 [10.4] 15 12

950 [448] 71

2 24000 [7.0] 11400 [3.3] 1150 [543] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 20

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC

RCSN-H*4824

➀

RHPN-HM4824

1 30400 [8.9] 12100 [3.5]

50000 [14.6] 16.5 13

1250 [590] 72

2 36700 [10.8] 13300 [3.9] 1600 [755] 72

1 - dehumid 26400 [7.7] 9800 [2.9] 1050 [495]

2 - dehumid 34300 [10.0] 14700 [4.3] 1350 [637]

RCFL-H*4821

RGFE-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGFE-10?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28400 [8.3] 16100 [4.7] 1425 [672] 72

RGFG-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGFG-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGGE-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11.5

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGGE-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11.5

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGJF-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11.5

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGJF-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11.5

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGLE-07?BRQ?

1 23700 [6.9] 14300 [4.2]

45000 [13.2] 15.5 11.5

1025 [484] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGLE-10?BRM?

1 24300 [7.1] 14200 [4.2]

45000 [13.2] 15.5 12

1050 [495] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGPE-07?BRQ?

1 23800 [7.0] 14200 [4.2]

45000 [13.2] 15.5 11.5

1050 [495] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGPE-10?BRM?

1 25700 [7.5] 13300 [3.9]

45500 [13.3] 15.5 11.5

1225 [578] 72

2 30400 [8.9] 15100 [4.4] 1625 [767] 72

RGRM-07?YBG?

1 23600 [6.9] 14200 [4.2]

43500 [12.7] 14 10.5

1050 [495] 72

2 27200 [8.0] 16300 [4.8] 1400 [661] 72

RGRM-09?ZAJ?

1 23900 [7.0] 14100 [4.1]

44500 [13.0] 15 11

1075 [507] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGRM-10?ZAJ?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28400 [8.3] 16100 [4.7] 1425 [672] 72

RGTM-07?RBG?

1 24600 [7.2] 13900 [4.1]

45000 [13.2] 15 11.5

1125 [531] 72

2 29200 [8.6] 15800 [4.6] 1475 [696] 72

RGTM-09?ZAJ?

1 24500 [7.2] 14000 [4.1]

44500 [13.0] 15 11.5

1100 [519] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

ROCA-070E04

1 25000 [7.3] 13500 [4.0]

44500 [13.0] 14.5 11

1200 [566] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

ROLA-070E04

1 24800 [7.3] 13700 [4.0]

45000 [13.2] 15 11

1175 [554] 72

2 29900 [8.8] 15100 [4.4] 1600 [755] 72

ROLA-115E05

1 23800 [7.0] 14200 [4.2]

45000 [13.2] 15 11.5

1050 [495] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RCFL-H*4821+RXMD-C06 Coil Only

1 25200 [7.4] 13300 [3.9]

45500 [13.3] 14 11

1250 [590] 72

2 30400 [8.9] 15100 [4.4] 1475 [696] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 21

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC RCFL-H*4824

RGFE-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGFE-10?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28400 [8.3] 16100 [4.7] 1425 [672] 72

RGFE-12?RCM?

1 23700 [6.9] 14300 [4.2]

45000 [13.2] 15 11.5

1025 [484] 72

2 29000 [8.5] 16000 [4.7] 1450 [684] 72

RGFG-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGFG-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGFG-12?RCM?

1 23700 [6.9] 14300 [4.2]

45000 [13.2] 15 11.5

1025 [484] 72

2 29000 [8.5] 16000 [4.7] 1450 [684] 72

RGGE-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11.5

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGGE-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11.5

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGGE-12?RCM?

1 25500 [7.5] 13500 [4.0]

45500 [13.3] 15 11.5

1200 [566] 72

2 30400 [8.9] 15100 [4.4] 1575 [743] 72

RGJF-09?ZCM?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11.5

1025 [484] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGJF-10?ZCM?

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11.5

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGJF-12?RCM?

1 25500 [7.5] 13500 [4.0]

45000 [13.2] 15 11.5

1200 [566] 72

2 29900 [8.8] 15100 [4.4] 1575 [743] 72

RGLE-07?BRQ?

1 23700 [6.9] 14300 [4.2]

45000 [13.2] 15.5 11.5

1025 [484] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGLE-10?BRM?

1 24300 [7.1] 14200 [4.2]

45000 [13.2] 15.5 12

1050 [495] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGLE-12?ARM?

1 24400 [7.1] 14100 [4.1]

45000 [13.2] 15.5 12

1075 [507] 72

2 28900 [8.5] 16100 [4.7] 1425 [672] 72

RGPE-07?BRQ?

1 23800 [7.0] 14200 [4.2]

45000 [13.2] 15.5 11.5

1050 [495] 72

2 28700 [8.4] 16300 [4.8] 1400 [661] 72

RGPE-10?BRM?

1 25700 [7.5] 13300 [3.9]

45500 [13.3] 15.5 11.5

1225 [578] 72

2 30400 [8.9] 15100 [4.4] 1625 [767] 72

RGPE-12?ARM?

1 24400 [7.1] 14100 [4.1]

45000 [13.2] 15.5 12

1075 [507] 72

2 28900 [8.5] 16100 [4.7] 1425 [672] 72

RGRM-07?YBG?

1 23600 [6.9] 14200 [4.2]

43500 [12.7] 14 10.5

1050 [495] 72

2 27200 [8.0] 16300 [4.8] 1400 [661] 72

RGRM-09?ZAJ?

1 23900 [7.0] 14100 [4.1]

44500 [13.0] 15 11

1075 [507] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGRM-10?ZAJ?

1 23700 [6.9] 14300 [4.2]

44500 [13.0] 15 11

1025 [484] 72

2 28400 [8.3] 16100 [4.7] 1425 [672] 72

RGRM-12?RAJ?

1 23900 [7.0] 14100 [4.1]

45000 [13.2] 15 11.5

1075 [507] 72

2 28900 [8.5] 16100 [4.7] 1425 [672] 72

RGTM-07?RBG?

1 24600 [7.2] 13900 [4.1]

45000 [13.2] 15 11.5

1125 [531] 72

2 29200 [8.6] 15800 [4.6] 1475 [696] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 22

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC

RCFL-H*4824

RGTM-09?ZAJ?

1 24500 [7.2] 14000 [4.1]

44500 [13.0] 15 11.5

1100 [519] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RGTM-10?RBJ?

1 24600 [7.2] 13900 [4.1]

45000 [13.2] 15 11.5

1125 [531] 72

2 28900 [8.5] 16100 [4.7] 1425 [672] 72

ROCA-070E04

1 25000 [7.3] 13500 [4.0]

44500 [13.0] 14.5 11

1200 [566] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

ROLA-070E04

1 24800 [7.3] 13700 [4.0]

45000 [13.2] 15 11

1175 [554] 72

2 29900 [8.8] 15100 [4.4] 1600 [755] 72

ROLA-115E05

1 23800 [7.0] 14200 [4.2]

44500 [13.0] 15 11.5

1050 [495] 72

2 28200 [8.3] 16300 [4.8] 1400 [661] 72

RCFL-H*4824+RXMD-C06 Coil Only

1 25200 [7.4] 13300 [3.9]

45500 [13.3] 14 11

1250 [590] 72

2 30400 [8.9] 15100 [4.4] 1425 [672] 72

RCFN-H*4824

RGFE-09?ZCM?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16.5 12

1025 [484] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGFE-10?ZCM?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16.5 12

1025 [484] 72

2 34000 [10.0] 14500 [4.2] 1425 [672] 72

RGFE-12?RCM?

1 27700 [8.1] 13300 [3.9]

49000 [14.4] 16.5 12.5

1025 [484] 72

2 34700 [10.2] 14300 [4.2] 1450 [684] 72

RGFG-09?ZCM?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16.5 12

1025 [484] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGFG-10?ZCM?

1 27800 [8.1] 13200 [3.9]

48500 [14.2] 16 12

1050 [495] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGFG-12?RCM?

1 27700 [8.1] 13300 [3.9]

49000 [14.4] 16.5 12.5

1025 [484] 72

2 34700 [10.2] 14300 [4.2] 1450 [684] 72

RGGE-09?ZCM?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16.5 12.5

1025 [484] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGGE-10?ZCM?

1 27800 [8.1] 13200 [3.9]

48500 [14.2] 16.5 12

1050 [495] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGGE-12?RCM?

1 29600 [8.7] 12400 [3.6]

49500 [14.5] 16.5 12.5

1200 [566] 72

2 36200 [10.6] 13300 [3.9] 1575 [743] 72

RGJF-09?ZCM?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16.5 12.5

1025 [484] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGJF-10?ZCM?

1 27800 [8.1] 13200 [3.9]

48500 [14.2] 16.5 12

1050 [495] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGJF-12?RCM?

1 29600 [8.7] 12400 [3.6]

49500 [14.5] 16.5 12.5

1200 [566] 72

2 36200 [10.6] 13300 [3.9] 1575 [743] 72

RGLE-07?BRQ?

1 27700 [8.1] 13300 [3.9]

49000 [14.4] 16.5 12.5

1025 [484] 72

2 34400 [10.1] 14600 [4.3] 1400 [661] 72

RGLE-10?BRM?

1 27800 [8.1] 13200 [3.9]

49000 [14.4] 16.5 12.5

1050 [495] 72

2 34400 [10.1] 14600 [4.3] 1400 [661] 72

RGLE-12?ARM?

1 28500 [8.4] 13000 [3.8]

49000 [14.4] 16.5 12.5

1075 [507] 72

2 34500 [10.1] 14500 [4.2] 1425 [672] 72

RGPE-07?BRQ?

1 27800 [8.1] 13200 [3.9]

49000 [14.4] 16.5 12.5

1050 [495] 72

2 34400 [10.1] 14600 [4.3] 1400 [661] 72

RGPE-10?BRM?

1 28500 [8.4] 13000 [3.8]

49000 [14.4] 16.5 12.5

1075 [507] 72

2 34400 [10.1] 14600 [4.3] 1400 [661] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 23

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC

RCFN-H*4824

RGPE-12?ARM?

1 28500 [8.4] 13000 [3.8]

49000 [14.4] 16.5 12.5

1075 [507] 72

2 34500 [10.1] 14500 [4.2] 1425 [672] 72

RGRM-09?ZAJ?

1 28000 [8.2] 13000 [3.8]

49000 [14.4] 16 12

1075 [507] 72

2 34400 [10.1] 14600 [4.3] 1400 [661] 72

RGRM-10?ZAJ?

1 27700 [8.1] 13300 [3.9]

48500 [14.2] 16 12

1025 [484] 72

2 34000 [10.0] 14500 [4.2] 1425 [672] 72

RGRM-12?RAJ?

1 28000 [8.2] 13000 [3.8]

48500 [14.2] 16.5 12.5

1075 [507] 72

2 34000 [10.0] 14500 [4.2] 1425 [672] 72

RGTM-07?RBG?

1 28700 [8.4] 12800 [3.8]

48500 [14.2] 16.5 12.5

1125 [531] 72

2 34400 [10.1] 14100 [4.1] 1475 [696] 72

RGTM-09?ZAJ?

1 28600 [8.4] 12900 [3.8]

48500 [14.2] 16.5 12.5

1100 [519] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RGTM-10?RBJ?

1 28700 [8.4] 12800 [3.8]

49000 [14.4] 16.5 12.5

1125 [531] 72

2 34500 [10.1] 14500 [4.2] 1425 [672] 72

ROCA-070E04

1 29100 [8.5] 12400 [3.6]

48500 [14.2] 16 12

1200 [566] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

ROLA-070E04

1 29000 [8.5] 12500 [3.7]

49000 [14.4] 16 12

1175 [554] 72

2 35700 [10.5] 13300 [3.9] 1600 [755] 72

ROLA-115E05

1 27800 [8.1] 13200 [3.9]

48500 [14.2] 16.5 12.5

1050 [495] 72

2 33900 [9.9] 14600 [4.3] 1400 [661] 72

RCFN-H*4824+RXMD-C06 Coil Only

1 29400 [8.6] 12100 [3.5]

49000 [14.4] 15 12

1250 [590] 72

2 35700 [10.5] 13300 [3.9] 1600 [755] 72

RCQD-4821

RGFE-09?ZCM?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 16 11.5

1025 [484] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGFE-10?ZCM?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 15.5 11.5

1025 [484] 72

2 32800 [9.6] 13700 [4.0] 1425 [672] 72

RGFG-09?ZCM?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 16 11.5

1025 [484] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGFG-10?ZCM?

1 28900 [8.5] 11600 [3.4]

47500 [13.9] 15.5 11.5

1200 [566] 72

2 35300 [10.3] 12200 [3.6] 1650 [779] 72

RGJF-09?ZCM?

1 27000 [7.9] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGJF-10?ZCM?

1 27600 [8.1] 12400 [3.6]

46500 [13.6] 16 12

1050 [495] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGPE-07?BRQ?

1 29600 [8.7] 11400 [3.3]

47500 [13.9] 16 12

1225 [578] 72

2 35000 [10.3] 12500 [3.7] 1600 [755] 72

RGPE-10?BRM?

1 29600 [8.7] 11400 [3.3]

47500 [13.9] 16 12

1225 [578] 72

2 35000 [10.3] 12500 [3.7] 1625 [767] 72

RGRM-09?ZAJ?

1 27700 [8.1] 12300 [3.6]

46500 [13.6] 15.5 11.5

1075 [507] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGRM-10?ZAJ?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 15.5 11.5

1025 [484] 72

2 32800 [9.6] 13700 [4.0] 1425 [672] 72

RGTM-07?RBG?

1 28000 [8.2] 12000 [3.5]

47000 [13.8] 16 12

1125 [531] 72

2 33600 [9.8] 13400 [3.9] 1475 [696] 72

RGTM-09?ZAJ?

1 27900 [8.2] 12100 [3.5]

47000 [13.8] 16 12

1100 [519] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 24

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC

RCQD-4821

ROCA-070E04

1 28900 [8.5] 11600 [3.4]

46500 [13.6] 15.5 11.5

1200 [566] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

ROLA-070E04

1 27500 [8.1] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33000 [9.7] 14000 [4.1] 1375 [649] 72

ROLA-115E05

1 27600 [8.1] 12400 [3.6]

47000 [13.8] 16 12

1050 [495] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RCQD-4821+RXMD-C06 Coil Only

1 28600 [8.4] 11400 [3.3]

47500 [13.9] 14.5 11.5

1250 [590] 72

2 35000 [10.3] 12500 [3.7] 1550 [731] 72

RCQD-4824

RBHM-25J

1 29400 [8.6] 11600 [3.4]

48500 [14.2] 16.5 13

1200 [566] 72

2 36000 [10.5] 12500 [3.7] 1600 [755] 72

RGFE-09?ZCM?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 16 12

1025 [484] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGFE-10?ZCM?

1 27000 [7.9] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33300 [9.8] 13700 [4.0] 1425 [672] 72

RGFE-12?RCM?

1 27500 [8.1] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33400 [9.8] 13600 [4.0] 1450 [684] 72

RGFG-09?ZCM?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 16 12

1025 [484] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGFG-10?ZCM?

1 27600 [8.1] 12400 [3.6]

46500 [13.6] 16 12

1050 [495] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGFG-12?RCM?

1 27500 [8.1] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33400 [9.8] 13600 [4.0] 1450 [684] 72

RGJF-09?ZCM?

1 27500 [8.1] 12500 [3.7]

47000 [13.8] 16 12

1025 [484] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGJF-10?ZCM?

1 27600 [8.1] 12400 [3.6]

47000 [13.8] 16 12

1050 [495] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGJF-12?RCM?

1 28900 [8.5] 11600 [3.4]

48000 [14.1] 16 12

1200 [566] 72

2 35500 [10.4] 12500 [3.7] 1575 [743] 72

RGPE-07?BRQ?

1 27600 [8.1] 12400 [3.6]

47000 [13.8] 16 12.5

1050 [495] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGPE-10?BRM?

1 27700 [8.1] 12300 [3.6]

47000 [13.8] 16.5 12

1075 [507] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGPE-12?ARM?

1 27700 [8.1] 12300 [3.6]

47500 [13.9] 16.5 12.5

1075 [507] 72

2 33800 [9.9] 13700 [4.0] 1425 [672] 72

RGRM-09?ZAJ?

1 27700 [8.1] 12300 [3.6]

46500 [13.6] 15.5 11.5

1075 [507] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

RGRM-10?ZAJ?

1 27000 [7.9] 12500 [3.7]

46500 [13.6] 16 11.5

1025 [484] 72

2 32800 [9.6] 13700 [4.0] 1425 [672] 72

RGRM-12?RAJ?

1 27700 [8.1] 12300 [3.6]

47000 [13.8] 16 12

1075 [507] 72

2 33300 [9.8] 13700 [4.0] 1425 [672] 72

RGTM-07?RBG?

1 30200 [8.8] 11100 [3.3]

48500 [14.2] 15.5 11.5

1325 [625] 72

2 36200 [10.6] 12200 [3.6] 1675 [790] 72

RGTM-09?ZAJ?

1 27900 [8.2] 12100 [3.5]

47000 [13.8] 16 12

1100 [519] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RGTM-10?RBJ?

1 28500 [8.4] 12000 [3.5]

47000 [13.8] 16 12

1125 [531] 72

2 33300 [9.8] 13700 [4.0] 1425 [672] 72

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 25

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

049JEC

RCQD-4824

ROCA-070E04

1 28900 [8.5] 11600 [3.4]

46500 [13.6] 15.5 11.5

1200 [566] 72

2 32600 [9.6] 13900 [4.1] 1400 [661] 72

ROLA-070E04

1 28700 [8.4] 11800 [3.5]

47500 [13.9] 16 11.5

1175 [554] 72

2 35000 [10.3] 12500 [3.7] 1600 [755] 72

ROLA-115E05

1 27600 [8.1] 12400 [3.6]

47000 [13.8] 16 12

1050 [495] 72

2 33100 [9.7] 13900 [4.1] 1400 [661] 72

RCQD-4824+RXMD-C06 Coil Only

1 28600 [8.4] 11400 [3.3]

47500 [13.9] 14.5 11.5

1250 [590] 72

2 35000 [10.3] 12500 [3.7] 1600 [755] 72

RCSL-H*4824 RHPL-HM4824

1 26200 [7.7] 13300 [3.9]

46000 [13.5] 16 12

1250 [590] 72

2 30900 [9.1] 15100 [4.4] 1625 [767] 72

061JEC

RCSN-H*6024

➀

RHPN-HM6024

1 34100 [10.0] 14900 [4.4]

59000 [17.3] 16 13

1325 [625] 76

2 42700 [12.5] 16300 [4.8] 1775 [838] 78

1 - dehumid 29000 [8.5] 12500 [3.7] 1050 [495]

2 - dehumid 39300 [11.5] 18200 [5.3] 1450 [684]

RCFL-H*6024

RGFE-09?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGFE-10?ZCM?

1 32400 [9.5] 15600 [4.6]

57000 [16.7] 16 12

1225 [578] 76

2 39200 [11.5] 17800 [5.2] 1600 [755] 78

RGFE-12?RCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGFG-09?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGFG-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 40100 [11.7] 17400 [5.1] 1650 [779] 78

RGFG-12?RCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGGE-09?ZCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGGE-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGGE-12?RCM?

1 34400 [10.1] 14600 [4.3]

58500 [17.1] 16 12

1375 [649] 76

2 42100 [12.3] 16400 [4.8] 1750 [826] 78

RGJF-09?ZCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGJF-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGJF-12?RCM?

1 34400 [10.1] 14600 [4.3]

58500 [17.1] 16 12

1375 [649] 76

2 42100 [12.3] 16400 [4.8] 1750 [826] 78

RGLE-07?BRQ?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12.5

1225 [578] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGLE-10?BRM?

1 32800 [9.6] 15700 [4.6]

58000 [17.0] 16 12.5

1200 [566] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

RGLE-12?ARM?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

RGPE-07?BRQ?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 26

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

061JEC

RCFL-H*6024

RGPE-10?BRM?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40400 [11.8] 17600 [5.2] 1625 [767] 78

RGPE-12?ARM?

1 32800 [9.6] 15700 [4.6]

58000 [17.0] 16 12.5

1200 [566] 76

2 40400 [11.8] 17600 [5.2] 1625 [767] 78

RGRM-07?YBG?

1 31800 [9.3] 15700 [4.6]

56000 [16.4] 15 11

1200 [566] 76

2 38000 [11.1] 18000 [5.3] 1575 [743] 78

RGRM-09?ZAJ?

1 32400 [9.5] 15600 [4.6]

57000 [16.7] 15.5 11.5

1225 [578] 76

2 39400 [11.5] 17600 [5.2] 1625 [767] 78

RGRM-10?ZAJ?

1 31500 [9.2] 16000 [4.7]

57000 [16.7] 16 11.5

1150 [543] 76

2 39200 [11.5] 17800 [5.2] 1600 [755] 78

RGRM-12?RAJ?

1 32400 [9.5] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGTM-07?RBG?

1 34100 [10.0] 14900 [4.4]

58000 [17.0] 16 12

1325 [625] 76

2 40800 [12.0] 17200 [5.0] 1675 [790] 78

RGTM-09?ZAJ?

1 33100 [9.7] 15400 [4.5]

57500 [16.8] 16 12

1250 [590] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGTM-10?RBJ?

1 33200 [9.7] 15300 [4.5]

58000 [17.0] 16 12.5

1275 [602] 76

2 40800 [12.0] 17200 [5.0] 1675 [790] 78

ROCA-070E04

1 32300 [9.5] 15700 [4.6]

56500 [16.6] 16 12

1200 [566] 76

2 37100 [10.9] 19400 [5.7] 1400 [661] 78

ROLA-070E04

1 32100 [9.4] 15900 [4.7]

57500 [16.8] 16 12

1175 [554] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

ROLA-115E05

1 32800 [9.6] 15700 [4.6]

57500 [16.8] 16 12.5

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RCFL-H*6024+RXMD-C06 Coil Only

1 33100 [9.7] 14900 [4.4]

58000 [17.0] 15 12

1325 [625] 76

2 40800 [12.0] 17200 [5.0] 1675 [790] 78

RCFN-H*6024

RGFE-09?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGFE-10?ZCM?

1 32400 [9.5] 15600 [4.6]

57000 [16.7] 16 12

1225 [578] 76

2 39200 [11.5] 17800 [5.2] 1600 [755] 78

RGFE-12?RCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGFG-09?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGFG-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 40100 [11.7] 17400 [5.1] 1650 [779] 78

RGFG-12?RCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGGE-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGGE-12?RCM?

1 34400 [10.1] 14600 [4.3]

58500 [17.1] 16 12

1375 [649] 76

2 42200 [12.4] 16300 [4.8] 1750 [826] 78

RGJF-09?ZCM?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGJF-10?ZCM?

1 32300 [9.5] 15700 [4.6]

57500 [16.8] 16 12

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 27

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

061JEC

RCFN-H*6024

RGJF-12?RCM?

1 34400 [10.1] 14600 [4.3]

58500 [17.1] 16 12

1375 [649] 76

2 42200 [12.4] 16300 [4.8] 1750 [826] 78

RGLE-07?BRQ?

1 32900 [9.6] 15600 [4.6]

57500 [16.8] 16 12.5

1225 [578] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RGLE-10?BRM?

1 32800 [9.6] 15700 [4.6]

58000 [17.0] 16 12.5

1200 [566] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

RGLE-12?ARM?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

RGLR-07?BRQ?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40400 [11.8] 17600 [5.2] 1625 [767] 78

RGPE-07?BRQ?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40200 [11.8] 17800 [5.2] 1600 [755] 78

RGPE-10?BRM?

1 32900 [9.6] 15600 [4.6]

58000 [17.0] 16 12.5

1225 [578] 76

2 40400 [11.8] 17600 [5.2] 1625 [767] 78

RGPE-12?ARM?

1 32800 [9.6] 15700 [4.6]

58000 [17.0] 16 12.5

1200 [566] 76

2 40400 [11.8] 17600 [5.2] 1625 [767] 78

RGRM-10?ZAJ?

1 31500 [9.2] 16000 [4.7]

57000 [16.7] 16 11.5

1150 [543] 76

2 39200 [11.5] 17800 [5.2] 1600 [755] 78

RGRM-12?RAJ?

1 32400 [9.5] 15600 [4.6]

57500 [16.8] 16 12

1225 [578] 76

2 39900 [11.7] 17600 [5.2] 1625 [767] 78

RGTM-09?ZAJ?

1 33100 [9.7] 15400 [4.5]

57500 [16.8] 16 12

1250 [590] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

ROCA-070E04

1 34000 [10.0] 14500 [4.2]

57000 [16.7] 15 12

1400 [661] 76

2 39200 [11.5] 17800 [5.2] 1600 [755] 78

ROLA-070E04

1 32100 [9.4] 15900 [4.7]

57500 [16.8] 16 12

1175 [554] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

ROLA-115E05

1 32800 [9.6] 15700 [4.6]

57500 [16.8] 16 12.5

1200 [566] 76

2 39700 [11.6] 17800 [5.2] 1600 [755] 78

RCFN-H*6024+RXMD-C06 Coil Only

1 33100 [9.7] 14900 [4.4]

58000 [17.0] 15 12

1325 [625] 76

2 40800 [12.0] 17200 [5.0] 1675 [790] 78

RCQD-6024

RBHM-25J

1 30400 [8.9] 15100 [4.4]

54500 [16.0] 15.5 12.5

1200 [566] 76

2 37400 [11.0] 17100 [5.0] 1600 [755] 78

RBHM-26J

1 30900 [9.1] 14600 [4.3]

55000 [16.1] 16 12.5

1275 [602] 76

2 38700 [11.3] 16300 [4.8] 1700 [802] 78

RGFE-09?ZCM?

1 29900 [8.8] 15100 [4.4]

53500 [15.7] 14.5 11.5

1200 [566] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RGFE-10?ZCM?

1 30100 [8.8] 14900 [4.4]

53000 [15.5] 14.5 11

1225 [578] 76

2 35900 [10.5] 17100 [5.0] 1600 [755] 78

RGFE-12?RCM?

1 30100 [8.8] 14900 [4.4]

53500 [15.7] 15 11.5

1225 [578] 76

2 36600 [10.7] 16900 [5.0] 1625 [767] 78

RGFG-09?ZCM?

1 29900 [8.8] 15100 [4.4]

53500 [15.7] 14.5 11.5

1200 [566] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RGFG-10?ZCM?

1 29900 [8.8] 15100 [4.4]

53500 [15.7] 14.5 11.5

1200 [566] 76

2 36800 [10.8] 16700 [4.9] 1650 [779] 78

RGFG-12?RCM?

1 30100 [8.8] 14900 [4.4]

53500 [15.7] 15 11.5

1225 [578] 76

2 36600 [10.7] 16900 [5.0] 1625 [767] 78

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 28

Air

Performance Data

RARL- JEC Series

Outdoor

Unit

RARL-

Model Numbers

Stage

AHRI Cooling Performance

80°F [26.5°C] / 67°F [19.5°C] WB Indoor Air

95°F [35°C] DB Outdoor Air

Net

Sensible

BTU/H [kW]

Net

Latent

BTU/H [kW]

AHRI Ratings

Indoor Airflow

CFM [L/s]

Sound Rating

ID Coil ID Air Mover

Total Capacity

BTU/H [kW]

SEER EER

061JEC

RCQD-6024

RGJF-09?ZCM?

1 30100 [8.8] 14900 [4.4]

53500 [15.7] 15 11.5

1225 [578] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RGJF-10?ZCM?

1 29900 [8.8] 15100 [4.4]

53500 [15.7] 15 11.5

1200 [566] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RGJF-12?RCM?

1 31900 [9.3] 14100 [4.1]

54500 [16.0] 15 11.5

1375 [649] 76

2 38800 [11.4] 15700 [4.6] 1750 [826] 78

RGPE-07?BRQ?

1 30100 [8.8] 14900 [4.4]

54000 [15.8] 15 12

1225 [578] 76

2 36900 [10.8] 17100 [5.0] 1600 [755] 78

RGPE-10?BRM?

1 30100 [8.8] 14900 [4.4]

54000 [15.8] 15 12

1225 [578] 76

2 37100 [10.9] 16900 [5.0] 1625 [767] 78

RGPE-12?ARM?

1 29900 [8.8] 15100 [4.4]

54000 [15.8] 15.5 12

1200 [566] 76

2 37100 [10.9] 16900 [5.0] 1625 [767] 78

RGRM-07?YBG?

1 29400 [8.6] 15100 [4.4]

52000 [15.2] 13.5 10

1200 [566] 76

2 34800 [10.2] 17200 [5.0] 1575 [743] 78

RGRM-09?ZAJ?

1 30100 [8.8] 14900 [4.4]

53000 [15.5] 14.5 11

1225 [578] 76

2 36100 [10.6] 16900 [5.0] 1625 [767] 78

RGRM-10?ZAJ?

1 29200 [8.6] 15300 [4.5]

53000 [15.5] 14.5 11

1150 [543] 76

2 35900 [10.5] 17100 [5.0] 1600 [755] 78

RGRM-12?RAJ?

1 30100 [8.8] 14900 [4.4]

53500 [15.7] 15 11.5

1225 [578] 76

2 36600 [10.7] 16900 [5.0] 1625 [767] 78

RGTM-07?RBG?

1 31100 [9.1] 14400 [4.2]

54000 [15.8] 14.5 11.5

1325 [625] 76

2 37500 [11.0] 16500 [4.8] 1675 [790] 78

RGTM-09?ZAJ?

1 30200 [8.8] 14800 [4.3]

53500 [15.7] 15 11.5

1250 [590] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RGTM-10?RBJ?

1 30900 [9.1] 14600 [4.3]

54000 [15.8] 15 11.5

1275 [602] 76

2 37500 [11.0] 16500 [4.8] 1675 [790] 78

ROCA-070E04

1 31600 [9.3] 13900 [4.1]

53000 [15.5] 14 11

1400 [661] 76

2 35900 [10.5] 17100 [5.0] 1600 [755] 78

ROLA-070E04

1 29800 [8.7] 15200 [4.5]

53500 [15.7] 15 11.5

1175 [554] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

ROLA-115E05

1 29900 [8.8] 15100 [4.4]

53500 [15.7] 15 11.5

1200 [566] 76

2 36400 [10.7] 17100 [5.0] 1600 [755] 78

RCQD-6024+RXMD-C06 Coil Only

1 30600 [9.0] 14400 [4.2]

54500 [16.0] 14 11.5

1325 [625] 76

2 38800 [11.4] 15700 [4.6] 1775 [838] 78

RCSL-H*6024 RHPL-HM6024

1 35000 [10.3] 14500 [4.2]

59000 [17.3] 16 13

1400 [661] 76

2 41900 [12.3] 17100 [5.0] 1700 [802] 78

Rev.

5/8/2012

➀ Highest sales volume tested combination required by D.O.E. test procedures. [ ] Designates Metric Conversions

Performance Data @ AHRI Standard Conditions—Cooling

Page 29

Air

Electrical and Physical Data

RARL- JEC Series

Model

Number

RARL

ELECTRICAL PHYSICAL

Phase

Frequency (Hz)

Voltage (Volts)

Compressor

Fan Motor

Full Load

Amperes

(FLA)

Minimum

Circuit

Ampacity

Amperes

Fuse or HACR

Circuit Breaker

Outdoor Coil

Refrig.

Per Circuit Oz. [g]

Weight

Rated Load

Amperes

(RLA)

Locked Rotor

Amperes

(LRA)

Minimum

Amperes

Maximum

Amperes

Face Area

Sq. Ft. [m

]

No.

Rows

CFM [L/s]

Net

Lbs. [kg]

Shipping Lbs. [kg]

Rev. 5/8/2012

025JEC 1-60-208/230 11.7/11.7 58.3 0.75 16/16 20/20 25/25 15.82 [1.47] 1 2285 [1078] 104 [2948] 197 [89.4] 210 [89.4]

038JEC 1-60-208/230 15.3/15.3 83 1 21/21 25/25 35/35 23.01 [2.14] 1 3400 [1604] 186 [5273] 216 [98] 229 [98]

049JEC 1-60-208/230 21.2/21.2 104 1 28/28 35/35 45/45 23.01 [2.14] 1 3400 [1604] 180 [5103] 252 [114.3] 265 [120.2]

061JEC 1-60-208/230 28.8/28.8 152.9 2.8 39/39 50/50 60/60 23.01 [2.14] 2 3500 [1652] 243 [6889] 283 [128.4] 296 [128.4]

NOTE: Factory Refrigerant Charge includes refrigerant for 15 feet of standard line set.

[ ] Designates Metric Conversions

Electrical and Physical Data

Page 30

Air

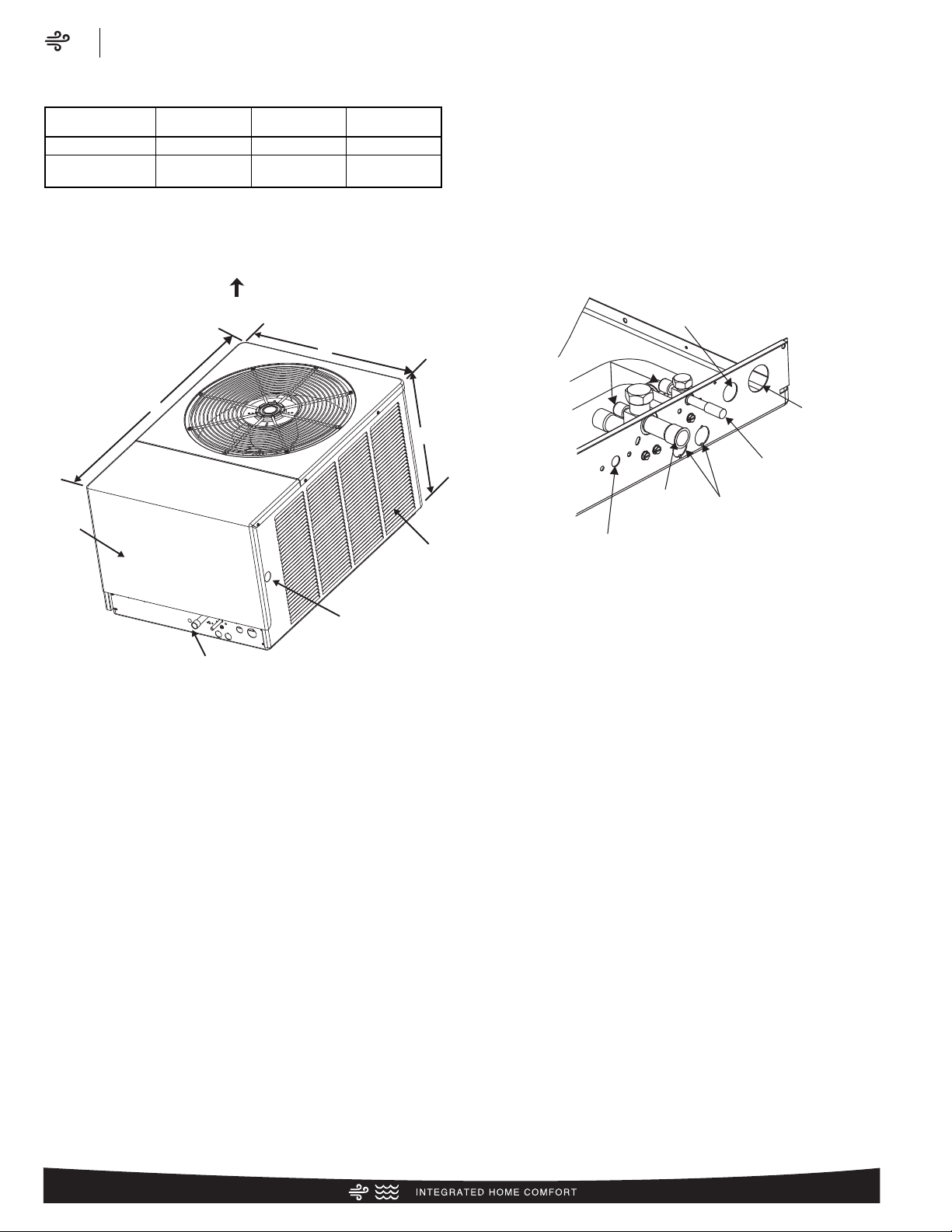

Unit Dimensions

RARL- JEC Series

Unit Dimensions

Model Number

RARL-

Height “H”

(Inches) [mm]

Length “L”

(Inches) [mm]

Width “W”

(Inches) [mm]

025JEC 23 [584] 443/8 [1127] 311/2 [800]

038JEC/049JEC/

061JEC

33 [838] 443/8 [1127] 311/2 [800]

[ ] Designates Metric Conversions

ACCESS PANEL

AIR DISCHARGE

ALLOW 60 [1524 mm] CLEARANCE

ALLOW 24 [610 mm] ACCESS CLEARANCE

ALTERNATE HIGH VOLTAGE CONNECTION (KNOCKOUT)

/32 [34 mm]

AIR INLETS (LOUVERS) ALLOW 6 [152 mm] MIN. CLEARANCE 3 SIDES

SERVICE FITTINGS

HIGH PRESSURE CONTROL MANUAL RESET (FIELD INSTALLED ACCESSORY)

VAPOR LINE CONNECTION

LOW VOLTAGE CONNECTION

/80 [22 mm]

LIQUID LINE CONNECTION

/80 [73 mm] DIA.

2 ACCESSORY KNOCKOUTS

HIGH VOLTAGE CONNECTION

/320 [34 mm]

SERVICE ACCESS TO ELECTRICAL & VALVES ALLOW 240 [610 mm] CLEARANCE ONE SIDE

Page 31

LIQUID LINE SIZE – OUTDOOR UNIT BELOW INDOOR COIL

R-410A System

Capacity

Model

Line Size

Connection

Size

(Inch I.D.)

[mm]

Line Size

(Inch O.D.)

[mm]

Liquid Line Size

Outdoor Unit Below Indoor Coil

(Cooling Only – Does not apply to Heat Pumps)

Total Equivalent Length—Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [38.10] 150 [45.72]

Maximum Vertical Separation—Feet [m]

2 Ton 3/8" [9.53]

1/4" [6.35]* 19 [5.79] N/A N/A N/A N/A N/A

5/16" [7.93]* 25 [8.84] 25 [7.62] 22 [6.71] 19 [5.79] 16 [4.88] 12 [3.66]

3/8" [9.52]* 25 [9.45] 30 [9.14] 29 [8.84] 27 [8.23] 26 [7.93] 25 [7.62]

3 Ton 3/8" [9.53]

5/16" [7.93]* N/A N/A N/A N/A N/A N/A

3/8" [9.52]* N/A N/A N/A N/A N/A N/A

1/2" [12.70]* 10 [3.05] 9 [2.74] 9 [2.74] N/A N/A N/A

4 Ton 3/8" [9.53]

5/16" [7.93]* 25 [9.14] 17 [5.18] N/A N/A N/A N/A

3/8" [9.52]* 25 [11.89] 35 [10.67] 30 [9.14] 25 [7.62] 21 [6.40] 16 [4.88]

1/2" [12.70]* 25 [13.11] 42 [12.80] 41 [12.50] 40 [12.19] 39 [11.89] 38 [11.58]

5 Ton 3/8" [9.53]

3/8" [9.52]* 25 [7.62] 19 [5.79] 14 [4.27] 9 [2.74] N/A N/A

1/2" [12.70]* 25 [8.84] 28 [8.53] 27 [8.23] 26 [7.93] 25 [7.62] 24 [7.32]

*Standard line size.

NOTE: N/A = Application not recommended.

[ ] Designates Metric Conversions

LIQUID LINE SIZE – OUTDOOR UNIT ABOVE INDOOR COIL

R-410A System

Capacity

Model

Line Size

Connection

Size

(Inch I.D.)

[mm]

Line Size

(Inch O.D.)

[mm]

Liquid Line Size

Outdoor Unit Above Indoor Coil

(Cooling Only – Does not apply to Heat Pumps)

Total Equivalent Length—Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [38.10] 150 [45.72]

Minimum Vertical Separation—Feet [m]

2 Ton 3/8" [9.53]

1/4" [6.35]* 0 0 10 [3.05] 37 [11.28] 64 [19.51] 91 [27.74]

5/16" [7.93]* 0 0 0 0 0 0

3/8" [9.52]* 0 0 0 0 0 0

3 Ton 3/8" [9.53]

5/16" [7.93]* 0 3 [0.91] 10 [3.05] 16 [4.88] 23 [7.01] 30 [9.14]

3/8" [9.52]* 0 0 0 0 1 [0.31] 4 [1.22]

1/2" [12.70]* 0 0 0 0 0 0

4 Ton 3/8" [9.53]

5/16" [7.93]* 0 0 0 11 [3.35] 34 [10.36] 58 [17.68]

3/8" [9.52]* 0 0 0 0 0 0

1/2" [12.70]* 0 0 0 0 0 0

5 Ton 3/8" [9.53]

3/8" [9.52]* 0 0 0 0 0 2 [0.61]

1/2" [12.70]* 0 0 0 0 0 0

Air

Refrigerant Line Size Information

RARL- JEC Series

Condensing Unit Refrigerant Line Size Information

Page 32

Air

Refrigerant Line Size Information

RARL- JEC Series

SUCTION LINE SIZE – OUTDOOR UNIT BELOW INDOOR COIL

R-410A System

Capacity

Model

Line Size

Connection Size

(Inch I.D.)

[mm]

Line Size

(Inch O.D.)

[mm]

Suction Line Size

Outdoor Unit BELOW Indoor Coil

(Cooling Only – Does not apply to Heat Pumps)

Total Equivalent Length—Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [38.10] 150 [45.72]

2 Ton 3/4" [19.05]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

7/8" [22.23]

3 Ton 3/4" [19.05]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

Same as Liquid Line Size Table NA

7/8" [22.23]

Same as Liquid Line Size Table NA

4 Ton 7/8" [22.22]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

Same as Liquid Line Size Table

7/8" [22.23]

Same as Liquid Line Size Table NA

5 Ton 7/8" [22.22]

3/4" [19.05]

Same as Liquid Line Size Table

7/8" [22.23]

Same as Liquid Line Size Table

1-1/8" [28.58]

SUCTION LINE SIZE – OUTDOOR UNIT ABOVE INDOOR COIL

R-410A System

Capacity

Model

Line Size

Connection Size

(Inch I.D.)

[mm]

Line Size

(Inch O.D.)

[mm]

Suction Line Size

Outdoor Unit ABOVE Indoor Coil

(Cooling Only – Does not apply to Heat Pumps)

Total Equivalent Length—Feet [m]

25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [38.10] 150 [45.72]

2 Ton 3/4" [19.05]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

7/8" [22.23]

3 Ton 3/4" [19.05]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

7/8" [22.23]

4 Ton 7/8" [22.22]

5/8" [15.88]

Same as Liquid Line Size Table

3/4" [19.05]

Same as Liquid Line Size Table

7/8" [22.23]

5 Ton 7/8" [22.22]

3/4" [19.05]

Same as Liquid Line Size Table

7/8" [22.23]

Same as Liquid Line Size Table

1-1/8" [28.58]

*Standard line size.

NOTE: N/A = Application not recommended. Using suction line larger than recommended will result in poor oil return.

[ ] Designates Metric Conversions

Condensing Unit Refrigerant Line Size Information (Cont.)

Page 33

RARL-

Unit Vapor Line

Connection Size (Inches I.D.) [mm]

25' [7.62]

50' [15.24]

75' [22.86]

100' [30.48]

Optional Standard Optional

025

1.00

1.00 N/A

0.99

1.00 N/A

0.98

0.99 N/A

0.97 N/A N/A

3/4" [19.05]

Standard

3/4" [19.05]

Standard

038

0.98

1.00 N/A

0.96

0.99 N/A

0.96

0.98 N/A

0.94 N/A N/A

3/4" [19.05]

Standard

049

0.98

1.00

1.02

0.96

0.99

1.00

0.94

0.96

1.00

0.92

0.98 N/A

7/8" [22.23]

Standard

061

0.99

1.00 N/A

0.97

0.99 N/A

0.96

0.99 N/A

0.95

0.98 N/A

5/8" [15.88]

Optional

5/8" [15.88]

Optional

5/8" [15.88]

Optional

3/4" [19.05]

Optional

Vapor Line Run Feet [m]

Vapor Line Diameter (inches O.D.) [mm]

3/4" [19.05]

I.D. Sweat

3/4" [19.05]

I.D. Sweat

7/8" [22.23]

I.D. Sweat

7/8" [22.23]

I.D. Sweat

125' [38.10]

Optional Standard Optional

0.97 N/A N/A

0.93 N/A N/A

0.90

0.97 N/A

0.94

0.97 N/A

150' [45.72]

Optional Standard Optional

0.96 N/A N/A

0.92 N/A N/A

0.88

0.96 N/A

0.93

0.97 N/A

——

7/8" [22.23]

Optional

—

Air

Refrigerant Line Size Information

RARL- JEC Series

Vapor Line Capacity Multiplier

NOTES:

1. Do NOT exceed the limits in the liquid and suction line sizing charts.

2. Do NOT use 7/8 OD suction lines in 2 or 3-ton applications.

3. Do NOT use 1-1/8 OD suction line in ANY application.

4. 2 and 3-ton line sets over 75 feet MUST use the optional suction line.

[ ] Designates Metric Conversions

Page 34

Air

Limited Warranty

RARL- JEC Series

GENERAL TERMS OF LIMITED WARRANTY*

Rheem will furnish a replacement for any part of this product which fails in normal use and service within the applicable period stated, in accordance with the terms of the limited warranty.

*For complete details of the Limited and Conditional Warranties, including

applicable terms and conditions, contact your local contractor or the Manufacturer for a copy of the product warranty certificate.

Conditional Unit Replacement

(Registration Required)...............................Ten (10) Years

Parts............................................................Ten (10) Years

Page 35

Air

Notes

RARL- JEC Series

Page 36

The new degree of comfort.

™

Rheem Heating, Cooling & Water Heating • P.O. Box 17010

Fort Smith, Arkansas 72917 • www.rheem.com

In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.

PRINTED IN U.S.A 04/13 QG FORM NO. A11-212 REV. 1

Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1

Brampton, Ontario • L6Y 0P5

Rheem RARLJEC Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
