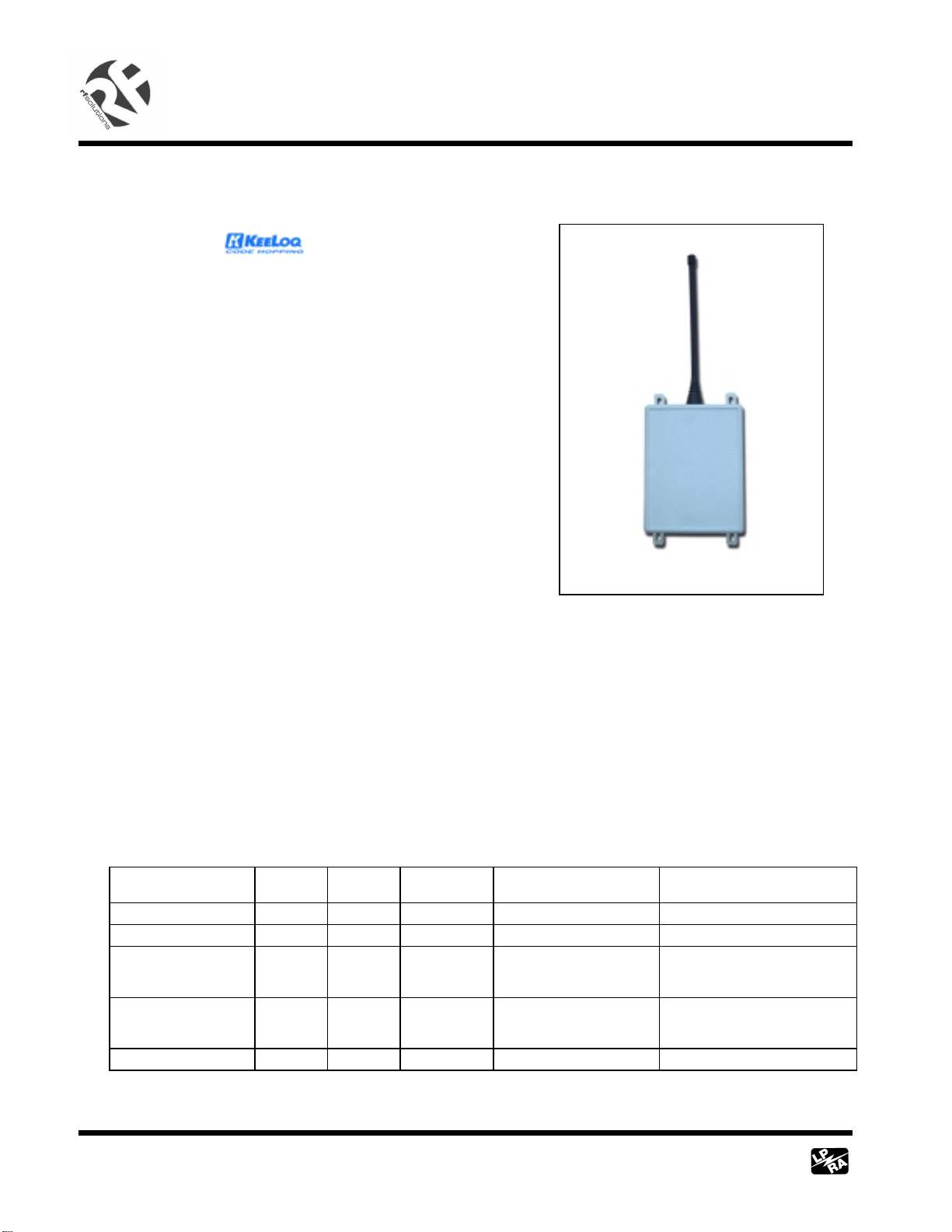

RF SOLUTIONS 008 Technical data

‘008’ S

ERIES RADIO RECEIVER DECODERS

• FM Remote Receiver Decoder

•

High Security Protocol

• ‘Ea s y Learn’ Tx Encoder Feature

•

Momentary or Latching Relay Outputs

• Led Indication of Data Reception

• En closure Rated IP65

•

Rx Decoder Can Learn up to 50 Tx Encode r s

• 315 / 433 / 868 / 915 MHz Available

•

12 / 24V Power Supply

• Relay Rated 12A

at 230Vac

pk

• Requires No Radio Licence

Description

The 008 range of general purpose radio receiver decoders. When used with a matching Keeloq Transmitter
encoder, a compl ete Remote control system is generated.

Each Rx decoder incorpor ates an ‘eas y learn’ feature enabling it to le arn the Tr ansmitte r encoder sign ature code
as it is tr ansm itted. Each 008 deco der is able to learn up to 50 individual Tr ansm itter enc oders ( mem oris ed even
if the power is removed).

Supplied in a tough ABS enclos ure rated IP65, The 008 decoder requires connections to the power and output
relays only (via screw terminals)

The relay outputs ar e eac h rat ed 1A @ 50Vdc and ma y be set t o either m om enta ry or latching by two links on the
circuit board.

Part Numbering

Part Number

008-315FR1 4 315 150 FM wideband 102C-433F series
008-433FR4 4 433.92 200 FM wideband 102C-433F series

008-433QR1 4 433.92 200 QM wideband

008C4-075FR1 4 434.75 400 FM Narrowband

008C4-915FR1 4 914.50 100 FM Narrowband 102C-915F series

** Range stated is optimum, direc t line of sight. In worst conditions this can be reduced by over 50%

Relay

Outputs

Freq

(MHz)

Optimum

Range (m)

Description

Compatible RFSL

Encoders

102C-433Q series

FM-103C-433 series

FM-107 Series

102C-075F series

FM-103C-433,
FM-107 Series

DS098-3 Feb ‘02

2002 REG No 277 4001, England.



Page 1

‘008’ S

ERIES RADIO RECEIVER DECODERS

Relay Operation Table

Each of the switches on the encoder maps directly to the relay outputs. (sw1 ot rly1, sw2 to rly2 etc)
Relay 1 is rated 5A (peak) 2.5 A continuous at 230Vac
Relay 2-4 are rated 2A at 12Vdc

Link 1 (Lk1) Link2 (Lk2) Relay 1 Relay 2 Relay 3 Relay 4

Open Open Momentary Momentary Momentary Momentary

Open Connected Momentary Momentary Latch Latch
Connected Open Momentary Latch Latch Latch
Connected Connected Latch Latch Latch Latch

Note : In momentary mode t he relay will operate for as long as the transmitter switch is held on.

Learning a new Transmitt er Encoder

1. Press the progra mming switch on the Rx decoder once ( SW1)

2. The learn LED will illumina te

3. Press one of the switches on the Tx encoder once, learn LED on the Rx decoder will extinguish

4. Press one of the switches on the Tx encoder again, learn LED will flash

5. When the learn LED has stopped flashing this Tx encoder will now operate the system

Erasing Transmitter Encoders form Memory

1. To completely erase all T x encoders, press SW1 on the Rx de coder for 10 second s.

2. The learn LED will turn off after the 10 seconds to indicate the Tx encoder(s) have been erased

Technical Specifications

Dimensions:

Storage Temperature; -10 to +70o Celsius. Operating Temperature; 0 to +55o Celsius.

ELECTRICAL CHARACTERISTICS MIN TYPICAL MAX DIMENSION

Supply Voltage for +12 v 9 12.0 16 V
Supply Voltage for +24 v 20 24.0 28 V
Supply Current :

Time delay from Tx on Switch to Rx Relay operation 100 mS
Time delay from Tx sw relax to Rx Relay release 300 MS
