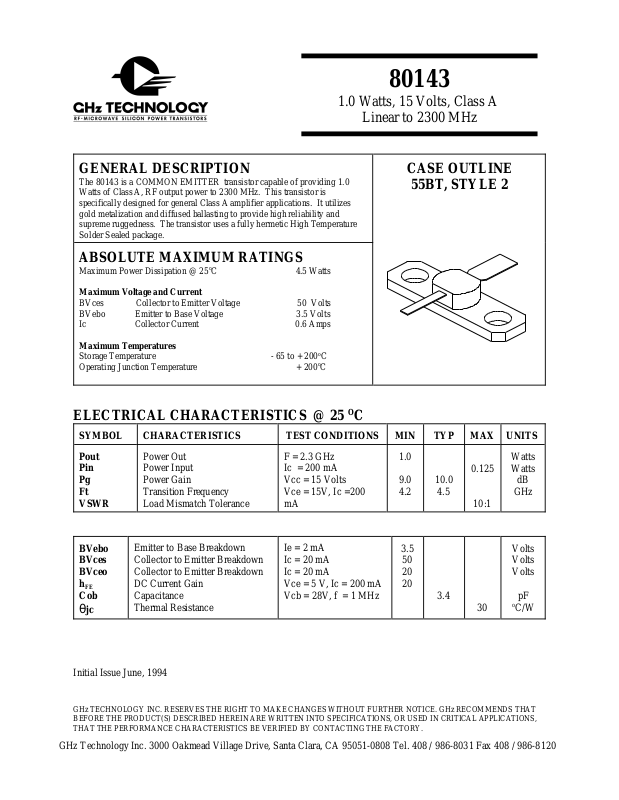

80143

1.0 Watts, 15 Volts, Class A Linear to 2300 MHz

GENERAL DESCRIPTION

The 80143 is a COMMON EMITTER transistor capable of providing 1.0 Watts of Class A, RF output power to 2300 MHz. This transistor is specifically designed for general Class A amplifier applications. It utilizes gold metalization and diffused ballasting to provide high reliability and supreme ruggedness. The transistor uses a fully hermetic High Temperature Solder Sealed package.

ABSOLUTE MAXIMUM RATINGS

Maximum Power Dissipation @ 25 C 4.5 Watts

Maximum Voltage and Current

BVces Collector to Emitter Voltage 50 Volts BVebo Emitter to Base Voltage 3.5 Volts Ic Collector Current 0.6 Amps

Ma xi mum Te mperatures

Storage Temperature - 65 to + 200 C Operating Junction Temperature + 200 C

ELECTRICAL CHARACTERISTICS @ 25 C

o o

CASE OUTLINE

55BT, STYLE 2

SYMBOL CHARACTERISTICS TEST CONDITIONS MIN TYP MAX UNITS Pout

Pin Pg Ft VSWR

Power Out Power Input Power Gain Transition Frequency Load Mismatch Tolerance

F = 2.3 GHz Ic = 200 mA Vcc = 15 Volts Vce = 15V, Ic =200 mA

1.0

9.0

4.2

10.0

4.5

0.125

10:1

Watts Watts

GHz

BVebo BVces BVceo h

Cob

Emitter to Base Breakdown Collector to Emitter Breakdown Collector to Emitter Breakdown DC Current Gain Capacitance Thermal Resistance

Ie = 2 mA Ic = 20 mA Ic = 20 mA Vce = 5 V, Ic = 200 mA Vcb = 28V, f = 1 MHz

3.5 50 20 20

3.4 30

Volts Volts Volts

C/W

Initial Issue June, 1994

GHz TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. GHz RECOMMENDS THAT BEFORE THE PRODUCT(S) DESCRIBED HEREIN ARE WRITTEN INTO SPECIFICATIONS, OR USED IN CRITICAL APPLICATIONS, THAT THE PERFORMANCE CHARACTERISTICS BE VERIFIED BY CONTACTING THE FACTORY.

GHz Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120

Page 2

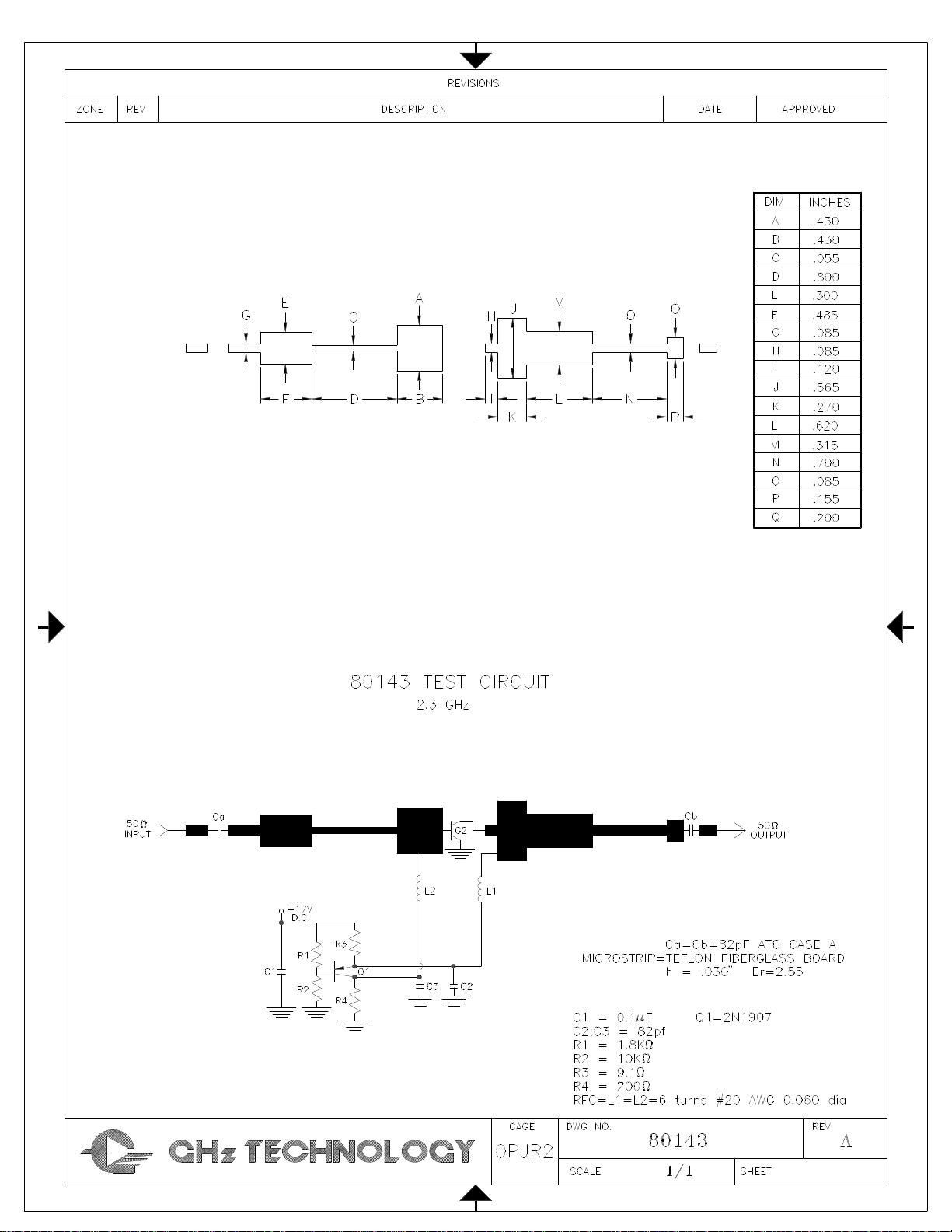

80143

Page 3

80143-1 (15V, 200mA)

MMICAD for Windows Fri Aug 26 16:33:49 1994 CIRCUIT: MES

FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --- MHz MAG ANG MAG ANG MAG ANG MAG ANG

0.100 0.74523 -139.072 23.1569 122.888 0.02130 38.6374 0.63665 -59.3430

0.200 0.83904 -160.387 13.2482 102.204 0.02481 21.9060 0.41262 -79.9929

0.300 0.86349 -169.532 9.16285 88.7446 0.02580 16.4347 0.33897 -90.5201

0.400 0.86945 -175.151 6.95469 80.6123 0.02656 14.7851 0.31507 -97.6573

0.500 0.87126 -179.220 5.58335 74.7734 0.02687 14.2935 0.31273 -103.182

0.600 0.87258 177.456 4.65226 68.6924 0.02714 13.6292 0.32109 -107.892

0.700 0.87336 174.600 3.98221 61.9474 0.02780 13.7272 0.33588 -112.258

0.800 0.87406 172.167 3.47879 56.5060 0.02858 14.7467 0.35353 -116.149

0.900 0.87451 169.727 3.09034 51.3262 0.02910 14.9821 0.37354 -119.802

1.000 0.87453 167.348 2.78319 46.4507 0.02988 15.5773 0.39486 -123.289

1.100 0.87250 165.042 2.52784 41.6152 0.03071 15.8776 0.41654 -126.688

1.200 0.87116 162.788 2.31762 36.8549 0.03160 15.8605 0.43867 -129.991

1.300 0.86967 160.535 2.13966 32.1575 0.03283 16.4435 0.45927 -133.270

1.400 0.86986 158.314 1.98768 27.4928 0.03400 16.6297 0.47936 -136.529

1.500 0.86824 155.918 1.85641 22.8336 0.03539 17.2656 0.49878 -139.661

1.600 0.86604 153.421 1.74081 18.2254 0.03715 17.0624 0.51780 -142.847

1.700 0.86184 150.901 1.63766 13.6683 0.03858 17.1415 0.53552 -145.989

1.800 0.85937 148.379 1.54533 9.18261 0.04023 16.2272 0.55225 -149.096

1.900 0.85612 145.720 1.46274 4.78123 0.04221 16.4217 0.56783 -152.155

2.000 0.85458 143.071 1.39093 0.39241 0.04425 15.7298 0.58247 -155.087

2.100 0.85286 140.202 1.32681 -4.05113 0.04756 14.6697 0.59834 -158.056

2.200 0.84763 137.149 1.26508 -8.50524 0.04983 12.8878 0.61184 -161.166

2.300 0.84009 133.993 1.20767 -12.7453 0.05193 10.6982 0.62395 -163.961

2.400 0.83220 131.013 1.15845 -16.8963 0.05368 8.83368 0.63750 -166.655

2.500 0.82465 128.048 1.11640 -20.9442 0.05551 7.95492 0.65178 -169.272

2.600 0.82067 124.938 1.07896 -25.1542 0.05751 6.83706 0.66487 -172.024

2.700 0.81483 121.427 1.04441 -29.3750 0.06047 5.84021 0.67664 -174.598

2.800 0.80880 117.847 1.01308 -33.6115 0.06346 4.53989 0.68926 -177.140

2.900 0.79979 114.017 0.98350 -37.9183 0.06665 2.84239 0.70128 -179.771

3.000 0.79177 110.076 0.95667 -42.2425 0.07059 1.12060 0.71196 177.606
