Page 1

Form RZ-NA-C-UH (Version F)

UNIT HEATER

CATALOG

Page 2

BACKGROUND

Reznor was founded in 1888 to manufacture the “Reznor” reflector heater, which used a luminous flame gas burner developed by George Reznor. This technological breakthrough was an immediate success and hastened the expansion of gas heating in residential and commercial applications. Technological development and innovation have been the hallmark of Reznor products through the years. The development of the forced air gas unit heater, the modular Thermocore heat exchanger, and the high-efficiency, V3® Series unit heaters have kept Reznor products at the forefront of technological advances in commercial and industrial gas heating. As a result of this pioneering role in the heating, makeup air, and ventilating equipment field, the products offered today are the most advanced in engineering design to satisfy a wide variety of applications.

PRODUCT SCOPE

Well-equipped engineering laboratories for both product development and testing can be found at many of the manufacturing sites. All domestic lab sites are agency approved.

Reznor Products include a complete line of heating, makeup air and ventilating systems, using gas, oil, hot water/steam, or

electric heat sources. Reznor heater catalogs are designed to aid the engineer, architect or contractor in specifying the correct equipment for all standard and special applications. Complete data is presented on unit heaters, duct furnaces, infrared heaters, makeup air systems, pre-engineered custom-designed systems, and evaporative cooling modules. Consult your local Reznor Sales Representative for further assistance in specifying Reznor Equipment for your specific application.

FACILITIES

Reznor heaters were first manufactured and sold in Mercer, Pennsylvania (70 miles north of Pittsburgh) in 1888. Over the years, the company has grown and expanded. Today, with sales worldwide, Reznor products are being manufactured at facilities throughout North America and Europe.

SERVICES

Product service requirements are handled through contractors and/or distributors, with backup from local representatives and factory-based service team. Replacement parts inventories for both warranty and non-warranty requirements are maintained at service centers throughout the country and at the manufacturing facilities.

See back cover for the Reznor Representative in your area. Or call 800-695-1901.

Page 3

UNIT HEATERS

Table of Contents

Model Description Page

GAS-FIRED

OIL-FIRED

APPLICATION

AND

INSTALLATION

UDAS

UDAP Gas fired, up to 83% efficient, power-vented unit for

UDBS Gas fired, up to 83% efficient, separated combustion,

UDBP Gas fired, up to 83% efficient, power-vented,

SHE Gas fired, 93% efficient, separated combustion,

F Gravity-vented, propeller fan-type ..................................................... 20

B Gravity-vented, centrifugal blower-type ............................................ 22

OH Gravity-vented, propeller fan-type ..................................................... 24

OB Gravity-vented, centrifugal blower-type ............................................ 24

Throw and Floor Coverage ................................................................................. 26

Sound Data ......................................................................................................... 31

Blower Charts for Model UDBP & UDBS ........................................................... 32

Blower Curves and Charts for Model B with Drive Motor ................................... 36

Blower Motor FLA Table ...................................................................................... 40

Installation .......................................................................................................... 41

Gas fired, up to 83% efficient, separated combustion unit for

commercial/industrial or residential use ...................................... 2

commercial/industrial or residential use ...................................... 6

high static unit for commercial/industrial use ............................ 10

high static unit for commercial/industrial use ............................ 14

condensing unit heater ............................................................. 18

Warnings and General .......................................................................... 41

Venting - Optional Power Venting of Models F and B........................... 41

Venting - Separated-Combustion.......................................................... 42

Pilot, Gas Controls, and Air Controls - Gas-Fired Units ..................................... 44

OPTIONS

AND

ACCESSORIES

SAMPLE SPECIFICATIONS ..................................................................................................................... 48

WARRANTY ............................................................................................................................................... 53

Optional Accessories .......................................................................................... 44

Stepdown Transformers........................................................................ 44

Polytube Adapter .................................................................................. 45

Downturn Nozzles ................................................................................ 47

Oil Fuel Tank - Model OT250 ................................................................ 47

ELECTRIC UNIT HEATERS..................................... See Electric Heating Catalog

HYDRONIC UNIT HEATERS ..........................See the Hydronic Unit Heater Catalog

IMPORTANT: Specifications are subject to change without notice. This guide is intended to provide specifications and technical information only.

This guide is not intended to be an instruction manual. When installing heating and ventilating equipment, you must check and conform to all local and national building codes. Improper installation of heating and ventilating equipment could be dangerous. Consult manufacturer's installation manual for instructions and important warnings.

Page 4

CQS

CSA 2.6b

DESCRIPTION

Reznor

Series Model UDAS gas-fired separated com-

ANSI Z83.8b

bustion unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input. Sizes 30-125 are approved for residential application. All sizes are approved for commercial/industrial installations. Model UDAS heaters are designed for 82-83% thermal efficiency and are approved for installation in the United States and Canada by the Canadian Standards Association (CSA).

Reznor

Series unit heaters have a refreshing new appearance with a glossy white cabinet finish and less visible hardware. Each size cabinet is easily suspended from either 2 or 4 suspension points. Or, an optional hanger kit for Sizes 30-125 allows for ceiling mounting. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a “G” terminal to the low voltage strip, along with the new design of the circuit board, allows for fan only operation (without adding relays). All units have a factory installed gas line nipple to the exterior of the cabinet for easy gas service connection.

The preeminent new internal feature is the TCORE

2 ®

heat exchanger and single burner combustion system. Other standard features include a single-stage gas valve, multi-try direct spark ignition with 100% lockout, pressure switch to verify vent flow, resiliently isolated venter motor, venter wheel with improved housing, resiliently isolated axial fan and motor assembly, a high temperature limit control, interlock door switch, and a built-in disconnect switch. Sizes 30-125 also include a flame rollout safety switch. Operation is controlled through an integrated circuit board. The circuit board monitors heater operation and has LED diagnostic indicator lights to identify abnormalities in control functions.

The 1ST ever separated combustion system in the com- mercial/industrial heating industry was introduced on a Reznor heater in the 1960’s, and that proven technology is continued in this new separated combustion product. Model UDAS separated combustion units require installation of a specially designed combustion air/vent system including the unique concentric adapter box that allows for only one building penetration for both the vent and combustion air.

The new

Series unit heaters are designed to provide all the features you expect in a Reznor heater plus improved efficiency, easier installation, and a new look

and out.

Form RZ-NA-C-UH Page 2

~ both inside

Page __________ of __________

Model UDAS

Separated Combustion, Low Static Unit Heaters

for Residential and Commercial/Industrial Use

Sizes 30-125

approved for utility applications

such as residential garages

under CSA International Requirement 10.96 U.S.

STANDARD FEATURES

● Sizes 30-125 certified for residential heating application

● Sizes 30-400 certified for commercial/industrial heating application

● 82-83% Thermal efficient ~

● 50-60°F Rise range

●

NEW NEW

2 ®

TCORE

titanium stabilized aluminized steel heat exchanger

patented** TCORE

a one-piece burner assembly

● 115/1/60 Supply voltage

● 115 Volt open fan motor with internal overload protection

● Transformer for 24-volt controls

● Integrated circuit board with diagnostic indicator lights

● Multi-try direct ignition with 100% lockout

● Fan relay (included on the circuit board)

● Single-stage natural gas valve (field adjustable for operation to 9,000

ft elevation)

● Vibration/noise isolated fan and venter motors

● Sealed control compartment houses all electrical components

● 2-pt

and

4-pt Suspension ~

● Built-in disconnect switch (20A @ 115V Rating)

● External terminal strip for 24-volt wiring

● Sealed junction box for supply wiring

● External gas connection

● Fully gasketed door panel with safety door switch

● Full fan guard ~

engineered for safety

● Improved cabinet design with less visible hardware and a

Reznor appearance

OPTIONAL FEATURES - FACTORY INSTALLED

● Single-stage, propane gas valve (field adjustable for operation to

9,000 ft elevation)

● Two-stage natural gas or propane gas valve - Sizes 60-400

● 409 or 316 Stainless steel heat exchangers

● 208 or 230 Single phase voltage

● Totally enclosed fan motor (Sizes 30-250, 115V only)

ACCESSORIES - FIELD INSTALLED

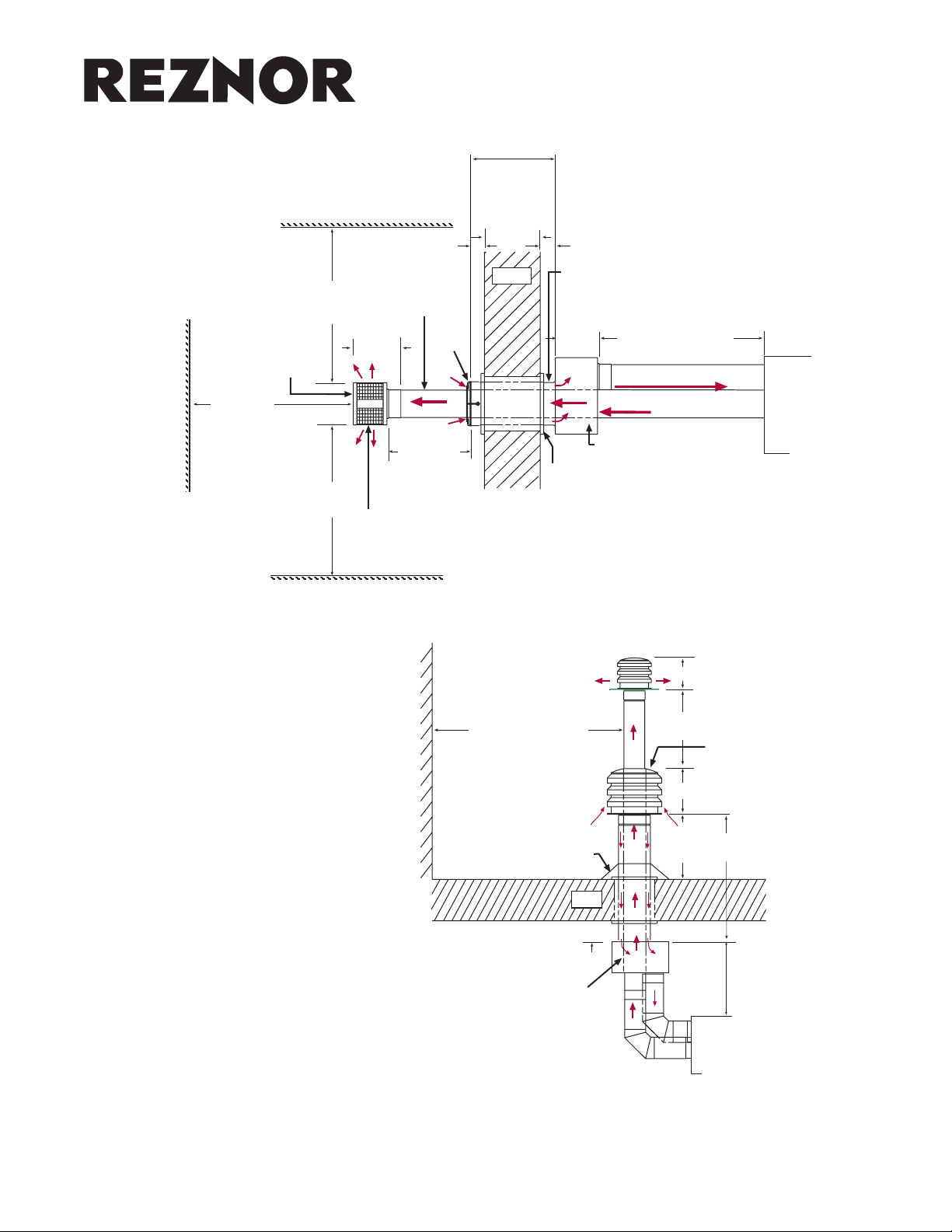

● *Horizontal or Vertical Combustion Air/Vent Kit including concentric

adapter

● Thermostat

● Thermostat guard with locking cover

● Vertical louvers ~

● Downturn nozzle kits ~

● Gas conversion kits (natural and propane)

● Master/Slave controls for zoning up to six units

● Ceiling suspension kit - Sizes 30-125

● Hanger kits for 1” pipe

● Stepdown transformer (for 230/3 & 460/3 voltage)

● Manual shutoff valves

* Selection of either a horizontal or vertical combustion

air/vent kit is required.

** U.S. Patent No. 6,889,686

new design

TOP in its class!

2 ®

single burner combustion system including

standard on all sizes

NEW

new design

Page 5

Page __________ of __________

MODEL UDA S TECHNICAL DATA - Sizes 30 - 125

Size 30 45 60 75 100 125

In put Heatin g Cap acit y Thermal Efficiency (%) 828383838383

Output Heating Capacity

Gas Connection (inches) Vent Connection

Combustion Air Inlet

(inches diameter)

(inches diameter) Control Amps (24 volt) 1.0 1.0 1.0 1. 0 1.0 1. 0 Full Load A mps (115 volt) 1.9 2.4 2.4 3. 3 3.9 5. 1 Maximum Over Curr ent Prot ecti o n ( 11 5V) Normal P owe r Co nsumpt ion (wat ts) 109 155 155 217 276 354 Discharge Air Temperature Rise (°F) 50 55 60 60 60 60

Air Volume

Dischar ge Ai r O p en in g Ar e a

Output Velocity

Fan Motor HP

Fan M otor RPM 1550 1550 1550 1550 1050 1050 Fan Diameter inches 10 10 12 12 16 16 Sound Lev el dba @ 15 ft 40 40 40 49 54 55

A p pr oximate Net W eig ht

A p pr oximate Shi p Weig ht

BTUH 30,000 45,000 60,000 75,000 105,000 120,000

kw/h 8.8 13.2 17.6 22.0 30.8 35.2

BTUH 24,600 37,350 49,800 62,250 87,150 99,600

kw/h 7.2 11.0 14.6 18.3 25.6 29.2

Natural 1/2 1/2 1/2 1/2 1/2 1/2

Propane 1/2 1/2 1/2 1/2 1/2 1/2

444444 444444

CFM 456 6 29 7 69 9 61 1345 1537

/minute

15 15 15 15 15 15

12.9 17.8 21.8 27 .5 36 .7 45.9

0.96 0.96 1.25 1.25 2.01 2.01

0.09 0.09 0.12 0.12 0.19 0.19

FPM 475 656 616 770 668 7 63

M/minute 145 200 188 238 196 245

Open 0.02 0.03 0.03 0.06 1/30 1/20

Enclosed N.A. N.A. N.A. N.A. 1/4 1/4

lbs 5560687397102

kg 25 27 31 33 44 46

lbs 63687681120125

kg 29 31 34 37 54 57

CSA rating for altitudes to 2000 ft.

Size shown is for gas connection to a single stage gas valve, not supply line size.

Smaller and/or larger vent and combustion air pipe diameters may be allowed; refer to the Venting Installation Manual for Separated Combustion Units, Form I-V-SC. If vent diameter is different from vent connection, reducer/enlargers will be field-required.

MODP = 2.25 x (largest motor FLA) + smallest motor FLA. Answer is rounded to the nearest commercially available circuit breaker. E All other information in this table is based on a heater equipped with a standard 115 volt open fan motor.

MODEL UDAS TECHNICAL DATA Sizes 150 - 400

Size 150 175 200 225 250 300 350 400

Input Heating Capacity Thermal Efficiency (%) 8383838383838383 Output Heating Capacity

Gas Connection (inches) Vent Connection

Combustion Air Inlet

(inches diameter)

(inches diameter) Cont r o l Amps (24 volt) 1. 0 1. 0 1.0 1. 0 1. 0 1.0 1. 0 1. 0 Full Load A mps (115 volt) 3.8 3.8 4.6 7.5 7.5 11.0 11.0 11.0

Maximum Over Curren t Pr otecti on (1 15 V) Normal P owe r Co nsumptio n ( w att s) 392 392 491 747 747 1086 1086 1086 Discharge Air Temperature Rise (°F) 60 60 60 60 60 60 60 60

Air Volume

Dischar ge Ai r O p en in g Ar e a

Output Velocity

Fan Motor HP

Fan M otor RPM 1050 1050 1050 1050 1050 1050 1050 1050 Fan Diameter inches 18 18 18 20 20 24 24 24 Sound Lev el dba @ 15 ft 51 52 53 56 56 59 61 62

A p pr oximate Net Weig ht

A p pr oximate Shi p Weig ht

BTUH 150,000 175,000 200,000 225,000 250,000 300,000 350,000 400,000

kw/h 43.9 51.2 58.6 65.9 73.2 87 .8 10 2.5 117.1

BTUH 124,500 145,250 166,000 186,750 207,500 249,000 290,500 332,000

kw/h 36.4 42.5 48.6 54.7 60.8 72 .9 85 .1 97 .2

Natural1/21/21/23/43/43/43/43/4

Propane 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

55555666 66666666

CFM 1921 2242 2562 2882 3202 3843 4483 512 3

/minute

15 15 15 15 15 20 20 20

54.4 63.5 72.5 81 .6 90 .7 108.8 126.9 145.1

2.56 2.56 2.56 3.51 3.51 4.79 4.79 4.79

0.24 0.24 0.24 0.33 0.33 0.45 0.45 0.45

FPM 752 877 1003 820 911 8 02 9 36 1069

M/minute 229 267 306 250 278 244 2 85 3 26

Open 1/61/61/61/41/41/21/21/2

Enclosed 1/4 1/4 1/4 1/4 1/4 1/2 1/2 1/2

lbs 173 188 188 204 216 270 2 95 3 07

kg 78 85 85 93 98 122 134 139

lbs 206 221 221 247 259 323 3 48 3 60

kg 93 100 100 112 117 1 47 1 58 1 63

Form RZ-NA-C-UH Page 3

Page 6

SCV

Model UDAS - GENERAL ARRANGEMENT AND DIMENSIONS

M and N - Hanger Dimensions

for both 2-pt and 4-pt Suspension

R - Hanger Dimension for 2-pt Suspension

Page __________ of __________

Combustion Air Connection

(see Technical Data for size)

P and Q -

Hanger

Dimensions

for 4-pt

Suspension

TOP VIEW

3/8-16 Female Thread

Thermostat

Connection

(30-45, 150-400

60-125 Vertical)

Horizontal;

REAR

VIEW

- all suspension points

Line Voltage

Inlet (connects in

sealed electrical box)

External Gas Connection

Vent Connection

(see Technical Data for size)

RIGHT SIDE

VIEW

FRONT

VIEW

(Access Panel)

MODEL UDAS DIMENSIONS (± 1/16")

Size

30, 45

100

125 150, 175,

200 225,

250 300, 350,

400

For Metric Dimensions, see next page.

Form RZ-NA-C-UH Page 4

ABCD EF G H J K M NPQ R S T

12-1/8 26-5/8 10 13-13/16 26 21-9/16 5-3/16 6-1/2 2-11/16 3-7/8 17-3/8 11/16 4-5/16 13 9-9/16 2-15/16 2-15/16

15-1/8 26-5/8 13 13-13/16 27 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 3-1/4 2-15/16

15-1/8 26-5/8 13 13-13/16 27-5/8 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 3-1/4 2-15/16 23-1/8 26-5/8 21 13-13/16 28-5/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 4-5/8 2-15/16 23-1/8 26-5/8 21 13-13/16 29-3/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 4-5/8 2-15/16

20-1/8 38-3/16 16 23 42 35-3/8 8-1/2 8-1/4 5-7/16 6-1/2 25-11/16 1-3/8 8-3/16 22-3/16 16-3/8 4-1/8 8-5/16

26-1/8 38-3/16 22 23 42 35-3/8 13-1/16 8-13/16 9 6-1/2 25 -11/16 1-3/8 8-3/16 22-3/16 15-5/8 5-9/16 8-5/16

34-1/8 41 30 23 42 35-3/8 17-1/16 9 11-13/16 7-5/16 27-11/16 1-3/8 8-3/16 22-3/16 16-3/16 9-1/16 8-9/16

Page 7

Page __________ of __________

Model UDAS - GENERAL ARRANGEMENT AND DIMENSIONS (cont'd)

MODEL UDAS DIMENSIONS (± 2mm)

Size A B C D E F G H J K M N P Q R S T

30, 45

75 100 125

150, 175,

200

225,

250

300, 350,

400

308 676 254 351 660 548 132 165 68 98 441 17 110 330 243 384 676 330 351 686 548 200 165 140 98 441 17 110 330 267 384 676 330 351 702 548 200 165 140 98 441 17 110 330 267 587 676 533 351 727 548 368 165 222 98 441 17 110 330 267 587 676 533 351 746 548 368 165 222 98 441 17 110 330 267

511 970 406 584 1067 899 216 210 138 165 652 35 208 564 416

664 970 559 584 1067 899 332 224 229 165 652 35 208 564 397 141 21 1

867 1041 762 584 1067 899 433 229 300 186 703 35 208 564 411 230 217

75 75 89 75

89 75 117 75 117 75

105 211

CLEARANCES

Size

30-125

150-400

*Suspend the heater s o that the bottom is a minimum of 5' (1.5M ) above the floor.

Top Fl ue Conne ctor Access Panel Non-Access Side

inc hes mm inches mm inc hes mm inches mm inches mm inches mm

1 25 6 152 18 457 1 25 1 25 18 457 4 102 6 152 18 457 2 51 1 25 18 457

Refer to page 42 & 43 for venting/inlet air

requirements for

Reznor Separated Combustion Units

Bottom* Rear

Form RZ-NA-C-UH Page 5

Page 8

CSA 2.6b

ANSI Z83.8b

CQS

DESCRIPTION

Reznor® Series Model UDAP gas-fired unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input. Sizes 30-125 are approved for residential application. All sizes are approved for commercial/industrial installations. Model UDAP heaters are designed for 82-83% thermal efficiency and are approved for installation in the United States and Canada by the Canadian Standards Association (CSA).

Reznor new appearance with a glossy white cabinet finish and less visible hardware. Each size cabinet is easily suspended from either 2 or 4 suspension points. Or, an optional hanger kit for Sizes 30-125 allows for ceiling mounting. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a “G” terminal to the strip, along with the new design of the circuit board, allows for fan only operation (without adding relays). All units have a factory installed gas line nipple to the exterior of the cabinet for easy gas service connection.

The new vide all the features you expect in a Reznor heater plus improved efficiency, easier installation, and a new look

~ both inside and out.

Form RZ-NA-C-UH Page 6

Series unit heaters have a refreshing

2 ®

Series unit heaters are designed to pro-

Page __________ of __________

Model UDAP

Power Vented, Low Static Axial Fan Unit Heaters

for Residential and Commercial/Industrial Use

Sizes 30-125

approved for utility applications

such as residential garages

under CSA International Requirement 10.96 U.S.

STANDARD FEATURES

● Sizes 30-125 certified for residential heating application

● Sizes 30-400 certified for commercial/industrial heating application

● 82-83% Thermal efficient ~

● 50-60°F Rise range

●

NEW NEW

2 ®

TCORE

titanium stabilized aluminized steel heat exchanger

patented** TCORE

piece burner assembly

● 115/1/60 Supply voltage

● 115 Volt open fan motor with internal overload protection

● Transformer for 24-volt controls

● Integrated circuit board with diagnostic indicator lights

● Multi-try direct spark ignition with 100% lockout

● Fan relay (included on the circuit board)

● Single-stage natural gas valve (field adjustable for operation to 9,000 ft

elevation)

● Vibration/noise isolated fan and venter motors ~

designed for low noise operation

● 2-pt

and

4-pt Suspension ~

● External terminal strip for 24-volt wiring

● External gas connection

● Full fan guard ~

engineered for safety

● Improved cabinet design with less visible hardware and a

appearance

OPTIONAL FEATURES - FACTORY INSTALLED

● Single-stage, propane gas valve (field adjustable for operation to 9,000 ft

elevation)

● Two-stage natural gas or propane gas valve - Sizes 60-400

● 409 or 316 Stainless steel heat exchangers

● 208 or 230 Single phase voltage

● Totally enclosed fan motor (Sizes 30-250, 115V only)

● Common venting with other gravity vented Category I appliance(s) (Sizes

30-100)

ACCESSORIES - FIELD INSTALLED

● Vent cap

● Thermostat

● Thermostat guard with locking cover

● Vertical louvers ~

● Downturn nozzle kits ~

● Gas conversion kits (natural and propane)

● Master/Slave controls for zoning up to six units

● Ceiling suspension kit - Sizes 30-125

● Hanger kits for 1” pipe

● Stepdown transformer (for 230/3 and 460/3 supply voltage)

● Manual shutoff valves

** U.S. Patent No. 6,889,686

new design

TOP in its class!

2 ®

single burner combustion system including a one-

standard on all sizes

NEW

Reznor

new design

Page 9

Page __________ of __________

MODEL UDAP TECHNIC AL DATA - Sizes 30 - 125

Size 30 45 60 75 100 125

Input Heating Cap aci ty Thermal Efficiency (%) 828383838383

Output Heating Cap ac ity

Gas Connecti on (i nc hes) Vent Connection Size

(inches diameter) Cont r ol Amps (24 volt) 1.0 1.0 1.0 1. 0 1.0 1.0 Full Load Amps (115 volt) 1.9 2.4 2.4 3.3 3.9 5.1 Maximum Ov er Current Protect ion (115V) Normal P ower C onsumption (watts) 109 155 155 217 276 354 Discharge Air T emperature Rise (°F) 50 55 6 0 60 60 60

Air Volume

Discharg e Ai r O p enin g Ar ea

Output Velocity

Fan Motor HP

Fan Motor RPM 155015501550155010501050 Fan D iameter (inches) 10 10 12 12 16 16 Sound Lev el dba @ 15 ft 40 40 40 49 54 55

A pp r oximate N et W eigh t

A pp r oximate Ship W e ight

BTUH 30,000 45,000 60,000 75,000 105,000 120,000

kw/h 8.8 13.2 17.6 22.0 30.8 35.2

BTUH 24,600 37,350 49,800 62,250 87,150 99,600

kw/h 7.2 11.0 14.6 18.3 25.6 29.2

Natural 1/2 1/2 1/2 1/2 1/2 1/2

Propane 1/2 1/2 1/2 1/2 1/2 1/2

444444

CFM 456 629 769 961 1345 1537

/minute

15 15 15 15 15 15

12.9 17.8 21.8 27.5 36.7 45.9

0.96 0.96 1.25 1.25 2.01 2.01

0.09 0.09 0.12 0.12 0.19 0.19

FPM 475 656 616 770 668 763

M/minute 145 200 188 238 196 245

Open 0.02 0.03 0.03 0.06 1/30 1/20

Enclosed N.A. N.A. N.A. N.A. 1 /4 1/4

lbs 5459677296101

kg 24 27 30 33 44 46

lbs 61 66 74 79 118 123

kg 27 30 33 36 54 56

CSA rating for altitudes to 2000 ft.

Size shown is for gas connection to a single stage gas valve, not supply line size.

Smaller or larger vent pipe diameters may be allowed; refer to the Venting Installation Manual, Form I-V-PV. If vent diameter is different from vent connection, reducer/enlargers will be field-required.

MODEL UDAP TECHNIC AL DATA Sizes 15 0 - 400

Size 150 175 200 225 250 300 350 400

Input Heating Cap aci ty Thermal Efficiency (%) 8383838383838383 Output Heating Cap ac ity

Gas Connecti on (i nc hes) Vent Connection Size

(inches diameter) Cont r ol Amps (24 volt) 1.0 1.0 1.0 1. 0 1.0 1.0 1.0 1.0 Full Load Amps (115 volt) 3.8 3.8 4.6 7.5 7.5 11.0 11.0 11.0

Maximum Ov er Current Protect ion (115V) Normal P ower C onsumption (watts) 392 392 491 747 747 1086 1086 1086 Discharge Air T emperature Rise (°F) 60 60 6 0 60 60 60 60 60

Air Volume

Discharg e Ai r O p enin g Ar ea

Output Velocity

Fan Motor HP

Fan Motor RPM 10501050105010501050105010501050 Fan Diameter (inches) 1818182020242424 Sound Level dba @ 15 ft 51 52 53 56 56 59 61 62

A pp r oximate N et W eigh t

A pp r oximate Ship W e ight

BTUH 150,000 175,000 200,000 225,000 250,000 300,000 350,000 400,000

kw/h 43.9 51.2 58.6 65.9 73.2 87.8 102.5 117.1

BTUH 124,500 145,250 166,000 186,750 207,500 249,000 290,500 332,000

kw/h 36.4 42.5 48.6 54.7 60.8 72.9 85.1 97.2

Natural 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

Propane 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

55555666

CFM 19212242256228823202384344835123

/minute

15 15 15 15 15 20 20 20

54.4 63.5 72.5 81.6 90.7 108.8 126.9 145.1

2.56 2.56 2.56 3.51 3.51 4.79 4.79 4.79

0.24 0.24 0.24 0.33 0.33 0.45 0.45 0.45

FPM 752 877 1003 820 911 802 936 1069

M/minute 229 267 306 250 278 244 285 326

Open 1/6 1/6 1/6 1/4 1/4 1/2 1/2 1/2

Enclosed 1/4 1/4 1/4 1/4 1/4 1/2 1/2 1/2

lbs 172 187 187 203 215 269 294 306

kg 78 85 85 92 98 122 133 139

lbs 204 219 219 245 257 321 346 358

kg 93 100 100 111 117 146 157 163

Form RZ-NA-C-UH Page 7

Page 10

Model UDAP - GENERAL ARRANGEMENT AND DIMENSIONS

ppp

Page __________ of __________

P and Q -

Hanger

Dimensions

for 4-pt

Suspension

TOP VIEW

3/8-16 Female Thread

- all suspension points

R - Hanger Dimension for 2-pt Suspension

Combustion Air Inlet

Thermostat

Connection

(30-125 Vertical;

150-400 Horizontal)

Line Voltage

Inlet (connects

at circuit board)

REAR

VIEW

External Gas Connection

Vent Connection

(see Technical Data for size)

Form RZ-NA-C-UH Page 8

FRONT

VIEW

REZNOR

RIGHT SIDE

VIEW

(Access Panel)

Page 11

Page __________ of __________

Model UDAP - GENERAL ARRANGEMENT AND DIMENSIONS (cont'd)

MODEL UDAP DIMENSIONS (± 1/16")

Size

30, 45

75 100 125

150, 175,

200

225,

250

300, 350,

400

ABC D E F G H J K MNPQ R

12-1/8 26-5/8 10 13-13/16 26 21-9/16 5-3/16 6-1/2 2-11/16 3-7/8 17-3/8 11/16 4-5/16 13 9-9/16 15-1/8 26-5/8 13 13-13/16 27 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 15-1/8 26-5/8 13 13-13/16 27-5/8 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 23-1/8 26-5/8 21 13-13/16 28-5/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 23-1/8 26-5/8 21 13-13/16 29-3/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2

20-1/8 38-3/16 16 23 42 35-3/8 8-1/2 8-1/4 5-7/16 6-1/2 25- 11/16 1-3/8 8- 3/16 22-3/16 16-3/8

26-1/8 38-3/16 22 23 42 35-3/8 13-1/16 8-13/16 9 6-1/2 25-11/16 1-3/8 8- 3/16 22-3/16 15-5/8

34-1/8 41 30 23 42 35-3/8 17-1/16 9 11-13/16 7-5/16 27-11/16 1-3/8 8-3/16 22-3/16 16-3/16

MODEL UDAP DIMENSIONS (± 2mm)

Size A B C D E F G H J K M N P Q R

30, 45

100 125

150, 175,

200

225,

250

300, 350,

400

308 676 254 351 660 548 132 165 68 98 441 17 110 330 243

384 676 330 351 686 548 200 165 140 98 441 17 110 330 267

384 676 330 351 702 548 200 165 140 98 441 17 110 330 267 587 676 533 351 727 548 368 165 222 98 441 17 110 330 267 587 676 533 351 746 548 368 165 222 98 441 17 110 330 267

511 970 406 584 1067 899 216 210 138 165 652 35 208 564 416

664 970 559 584 1067 899 332 224 229 165 652 35 208 564 397

867 1041 762 584 1067 899 433 229 300 186 703 35 208 564 411

CLEARANCES

Size

30-125

150-400

Top Fl ue Connector Access P a ne l Non-Access S ide

inches mm inches mm inc hes mm inches mm inches mm inches mm

1 25 6 152 18 457 1 25 1 25 18 457 4 102 6 152 18 457 2 51 1 25 18 457

*Suspend the heat er so t hat t he bot t om is a mi nim um of 5' (1.5M) above the floor.

Bottom* Rear

Form RZ-NA-C-UH Page 9

Page 12

CQS

ANSI Z83.8

CSA 2.6

DESCRIPTION

Reznor combustion unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input. Model UDBS heaters are designed for 82-83% thermal efficiency and are approved for commercial/industrial installations in the United States and Canada by the Canadian Standards Association (CSA).

Reznor appearance with a glossy white cabinet finish and less visible hardware. Each size cabinet is easily suspended from four suspension points. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a “G” terminal to the low voltage strip, along with the new design of the circuit board, allows for blower only operation (without adding relays). All units have a factory installed gas line nipple to the exterior of the cabinet for easy gas service connection.

The preeminent new internal feature is the TCORE exchanger and single burner combustion system. Other standard features include a single-stage gas valve, multitry direct spark ignition with 100% lockout, pressure switch to verify vent flow, resiliently isolated venter motor, venter wheel with improved housing, a high temperature limit control, interlock door switch, and a built-in disconnect switch. Sizes 30-125 are equipped with a centrifugal blower and direct drive motor with multispeed taps. Sizes 30 and 45 are capable of handling up to .5” w.c. of external static pressure; Sizes 60-125 will handle up to .75” w.c. of external static pressure. Sizes 150-400 are equipped with a centrifugal blower with an adjustable belt drive and motor. All units are designed for use with optional 30° and 60° downturn nozzles with horizontal and vertical louvers. Operation is controlled through an integrated circuit board. The circuit board monitors heater operation and has LED diagnostic indicator lights to identify abnormalities in control functions.

The 1ST ever separated combustion system in the com- mercial/industrial heating industry was introduced on a Reznor heater in the 1960’s, and that proven technology is continued in this new separated combustion product. Model UDBS separated combustion units require installation of a specially designed combustion air/vent system including the unique concentric adapter box that allows for only one building penetration for both the vent and combustion air.

The new Series unit heaters are designed to provide all the features you expect in a Reznor heater plus improved efficiency, easier installation, and a new look

inside and out.

Form RZ-NA-C-UH Page 10

Series Model UDBS gas-fired separated

Series unit heaters have a refreshing new

2 ®

heat

~ both

Page __________ of __________

Model UDBS

Separated Combustion, High Static Blower

Type Unit Heaters for Commercial/

Industrial Use

STANDARD FEATURES

● Certified for commercial/industrial heating applications

● 82-83% Thermal efficient ~

● 45-75°F Rise range - Sizes 30-350

50-80°F Rise range - Size 400

●

NEW NEW

2 ®

TCORE

titanium stabilized aluminized steel heat exchanger

patented** TCORE

piece burner assembly

● 115/1/60 Supply voltage

● 115 Volt open dripproof blower motor with internal overload protection - Sizes

30-125

● 115 Volt open dripproof blower motor with internal overloads and definite

purpose motor contactor - Sizes 150-400

● Direct drive blower with multispeed taps - Sizes 30-125

● Adjustable belt drive blower - Sizes 150-400

● Transformer for 24-volt controls

● Integrated circuit board with diagnostic indicator lights

● Blower relay (included on the circuit board)

● Multi-try direct spark ignition with 100% lockout

● Single-stage natural gas valve (field adjustable for operation to 6,000 ft

elevation)

● Vibration/noise isolated venter motors

● Sealed compartment houses all electrical components

● 4-pt Suspension

● Built-in disconnect switch - Sizes 30-125, 20A@115V rating; Sizes 150-400

30A@115V rating

● External terminal strip for 24-volt wiring

● Sealed junction box for supply wiring

● External gas connection

● Fully gasketed door panel with safety door switch

● Improved cabinet design with less visible hardware and a

appearance

OPTIONAL FEATURES - FACTORY INSTALLED

● Equipped for propane gas

● Single stage propane gas valve (field adjustable for operation to 6,000 ft

elevation)

● Two-stage (70% low fire) natural or propane gas valve - Sizes 60-400

● 409 or 316 Stainless steel heat exchanger

● 208 and 230 Single phase voltage; 208, 230, 480, and 575 Three phase

voltage - Sizes 150-400 (step down transformer shipped separate for field installation for 480 and 575 units)

● Adjustable belt drive and motor for up to .5” w.c. external static pressure -

Sizes 150-400

● Totally enclosed blower motor - Sizes 150-250

● Belt and blower guards

ACCESSORIES - FIELD INSTALLED

● *Horizontal or Vertical Combustion

Air/Vent Kit including concentric adapter

● Thermostat

● Thermostat guard with locking

cover

● Vertical louvers ~

● Downturn nozzle (30° or 60°

deflection, with and without vertical louvers) ~

● Gas conversion kits

* Selection of either a horizontal or vertical combustion air/vent kit

is required.

** U.S. Patent No. 6,889,686

new design

TOP in its class!

2 ®

single burner combustion system including a one-

NEW

Reznor

● Manual shutoff valves

● High altitude kits (above 6,000 ft to

9,000 ft)

● Master/Slave controls for zoning

up to six units

● Duct flange

● Polytube adapters

● Blower and belt guards

● Hanger kits for 1” pipe

● Stepdown transformer for 230 or

460 voltage - Sizes 30-125

Page 13

Page __________ of __________

MODEL UDBS TECHNICAL DATA - Sizes 30 - 125

Size 30 45 60 75 100 125

Input Heat ing Capacity

BTUH 30,000 45,000 60,000 75,000 105,000 120,000

kw/h 8.8 13.2 17.6 22.0 30.8 35.2

Ther mal Efficienc y (%) 82 82 82 82 83 83 Out put Heating Capac it y

Gas Connection (inc hes) Vent Connection

Combustion Air I nlet

(inches diameter)

(inches diameter) Control Amps (24 v olt) Full Load Amps (with standard HP 115V motor) M aximum Over Cur rent P rot ect i on (115V )

Normal Power Consumption (wat ts @ full load, medium speed) M inimum Discharge Air Temperatur e Rise °F M aximum Discharge Air T emperature Rise °F

Maximu m Air Vol ume

Minim um Air Volume

Discharge Air Opening Area

Maximum Output Velocity Mini m um Out put V el ocity

Standard Blower Motor HP Blower Size inches

Approx im at e Net Weight Approx im at e S hip Wei ght

BTUH 24,600 36,900 49,200 61,500 87,150 99,600

kw/h 7.2 10.8 14.4 18.0 25.6 29.2

Natural 1/2 1/2 1/2 1/2 1/2 1/2

Propane 1/2 1/2 1/2 1/2 1/2 1/2

444444 444444

1.0 1.0 1.0 1.0 1.0 1.0

3.7 3.7 7.1 7.1 13.0 13.0 15 15 15 15 30 30

215 215 447 447 537 537

45 45 45 45 45 45 75 75 75 75 75 75

CFM

M3/minute

CFM

M3/minute

506 759 1012 1265 1793 2049

14.3 21.5 28.7 35.8 50.8 58.0 304 456 607 759 1076 1230

8.6 12.9 17.2 21.5 30.5 34.8

0.96 0.96 1.25 1.25 2.01 2.01

0.09 0.09 0.12 0.12 0.19 0.19

FPM 527 791 810 1012 892 1020

M/minute 159 239 239 299 267 305

FPM 316 475 486 607 535 612

M/minute 96 143 143 179 160 183

1/6 1/6 1/3 1/3 3/4 3/4

9 X 6 9 X 6 9 X 6 9 X 6 10 X 10 10 X 10

lbs

72 77 89 94 131 136 33 35 40 43 59 62 90 95 110 115 176 181 41 43 50 52 80 82

MODEL UDBS TECHNICAL DATA Sizes 150 - 4 0 0

Size 150 175 200 225 250 300 350 400

Input Heat ing Capacity Ther mal Efficienc y (%) 83 83 83 83 83 83 83 82 Out put Heating Capac it y

Gas Connection (inc hes) Vent Connection

Combustion Air I nlet

(inches diameter)

(inches diameter) Control Amps (24 v olt) 1.0 1.0 1.0 1.0 1. 0 1.0 1.0 1.0 Full Load Amps (w/std HP 115V motor) 5.9 6.3 10.5 12.7 12.7 17.7 27.3 27.3

M aximum Over Cur rent P rot ect i on (115V ) Normal Power Consumption (wat ts) 230 415 485 675 675 1260 1635 1635 M inimum Discharge Air Temperatur e Rise (°F) M aximum Discharge Air T emperature Rise (°F)

Maximu m Air Vol ume

Minim um Air Volume

Discharge Air Opening Area

Maximum Output Velocity

Minimum Output Velocity St andard Open 115V Blower Motor HP 1/4 1/2 1/2 3/4 3/4 1-1/2 2 2

Blower Size inches 12 x 12 12 x 12 12 x 12 15 x 11 15 x 11 15 x 15 15 x 15 15 x 15 Approximate Net Weight

Approximate Ship Weight

CSA rating for altitudes to 2000 ft. B Size shown is for gas connection to a single stage gas valve, not supply line size. C Smaller and/or larger vent and combustion air pipe diameters may be allowed; refer to the Venting Installation Manual for Separated Combustion Units, Form I-V-SC. If vent diameter is different from vent connection, reducer/enlargers will be field-required. D MODP = 2.25 x (largest motor FLA) + smallest motor FLA. Answer is rounded to the nearest commercially available circuit breaker.

BTUH 150,000 175,000 200,000 225,000 250,000 300,000 350,000 400,000

kw/h 43.9 51.2 58.6 65.9 73.2 87.8 102.5 117.1

BTUH 124,500 145,250 166,000 186,750 207,500 249,000 290,500 328,000

kw/h 36.4 42.5 48.6 54.7 60.8 72.9 85.1 96.0

Natural 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

Propane 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

5 5 555666 6 6 666666

15 15 25 30 30 40 60 60

45 45 45 45 45 45 45 50 75 75 75 75 75 75 75 80

CFM 2562 2989 3416 3843 4270 5123 5977 6185

/minute

CFM 1537 1793 2049 2306 2562 3074 3586 4100

/minute

72.5 84.6 96.7 108.8 120.9 145.1 169.2 175.1

43.5 50.8 58.0 65.3 72.5 87.0 101.5 116.1

2.56 2.56 2.56 3.51 3.51 4.79 4.79 4.79

0.24 0.24 0.24 0.33 0.33 0.45 0.45 0.45

FPM 1001 1168 1334 1095 1217 1070 1248 1291

M/minute 305 356 407 334 371 326 380 393

FPM 600 700 800 657 730 642 749 856

M/minute 183 213 244 200 223 196 228 261

lbs 255 275 275 320 335 375 410 425

kg 116 125 125 145 152 1 70 186 193

lbs 315 335 335 400 415 475 510 525

kg 143 152 152 181 188 2 15 231 238

Form RZ-NA-C-UH Page 11

Page 14

Model UDBS - GENERAL ARRANGEMENT AND DIMENSIONS

SCV

Combustion Air Collar (see

Technical Data for size)

Thermostat Connection

(30-45 horizontal;

60-400 vertical)

K**

3/8-16 Female

suspension points

in Hanger Bars

TOP VIEW

Thread - four

Page __________ of __________

REAR VIEW

Vent Connection (see Technical Data for size)

1/2 NPT External Gas Connection

2-1/2

H**

Hanger Bar

Direct Drive

Blower attached to

the Cabinet

- Sizes 30-75

T (Hanger Bar Length)

RIGHT SIDE VIEW

FRONT

VIEW

1-1/4

(Access Panel)

Direct Drive

Blower with

Blower Back

on the Cabinet

- Sizes 100-125

Belt Drive Blower with Blower Back on the Cabinet

- Sizes 150-400

MODEL UDBS DIMENSIONS (± 1/16")

Size

30, 45

100 125

150,

175 200

225,

250 300, 350,

400

A B C D E* F G H** J K** L M N P Q R S T

26-5/8 12-1/8 13-13/16 10 16-3/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 6-1/2 9-3/16 5-3/16 2-11/16 2-7/8 3-7/8 6-1/2 31

26-5/8 15-1/8 13-13/16 13 17-7/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 6-1/2 11-7/8 7-7/8 5-1/2 2-7/8 3-7/8 6-1/2 31

26-5/8 15-1/8 13-13/16 13 17-7/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 5-1/2 11-7/8 7-7/8 5-1/2 2-7/8 3-7/8 6-1/2 31 26-5/8 23-1/8 13-13/16 21 23-1/4 43-5/8 21-9/16 17-3/8 11/16 22-1/2 8-1/2 18-1/2 14-1/2 8-3/4 2-7/8 3-7/8 6-7/16 31 26-5/8 23-1/8 13-13/16 21 23-1/4 43-5/8 21-9/16 17-3/8 11/16 22-1/2 7-1/2 18-1/2 14-1/2 8-3/4 2-7/8 3-7/8 6-7/16 31

38-1/8 20-1/8 23 16 30-9/16 60-1/8 35-3/8 25-5/8 1-5/16 24-1/2 3-7/8 13-1/2 8-1/2 5-7/16 4-1/4 6-1/2 8-1/4 42 38-1/8 20-1/8 23 16 30-9/16 60-1/8 35-3/8 25-5/8 1-5/16 24-1/2 3-7/8 14-9/16 9-9/16 5-7/16 4-5/16 6-1/2 8-5/16 42 38-1/8 26-1/8 23 22 39-5/8 63-7/16 35-3/8 25-5/8 1-5/16 24-1/2 5-7/8 18-1/16 13-1/16 9 4-5/16 6-1/2 8-5/16 42

40-7/8 34-1/8 23 30 42-5/8 63-7/16 35-3/8 27-5/8 1-5/16 23-1/2 3-7/8 22-1/16 17-1/16 11-13/16 4-1/2 7-1/4 8-1/2 42

NOTES: * Sizes 150-400 - Dimension E varies with motor selection and belt adjustment.

** Dimensions H and K are the heater suspension points.

For Metric Dimensions, see next page.

Form RZ-NA-C-UH Page 12

Page 15

Page __________ of __________

Model UDBS - GENERAL ARRANGEMENT AND DIMENSIONS (cont'd)

MODEL UDBS DIMENSIONS (± 2mm)

Size A B C D E* F G H** J K** L M N P Q R S T

30, 45

676 511 351 254 416 918 548 441 17 572 165 233 132 68 73 98 165 787

676 384 351 330 454 918 548 441 17 572 165 302 200 140 73 98 165 787

676 384 351 330 454 918 548 441 17 572 140 302 200 140 73 98 165 787

100

676 587 351 533 591 1108 548 441 17 572 216 470 368 222 73 98 164 787

125

676 587 351 533 594 1108 548 441 17 572 191 470 368 222 73 98 164 787

150,

968 511 584 406 776 1527 899 651 33 622 98 343 216 138 108 165 210 1067

175 200

968 511 584 406 776 1527 899 651 33 622 98 370 243 138 110 165 211 1067

225,

968 664 584 559 1006 1611 899 651 33 622 149 459 332 229 110 165 211 1067

250 300, 350,

1038 867 584 762 1083 1611 899 702 33 597 98 560 433 300 114 184 216 1067

400

NOTES: * Sizes 150-400 - Dimension E varies with motor selection and belt adjustment.

** Dimensions H and K are the heater suspension points.

CLEARANCES

UDBS

30-125

150-400

Top* Fl ue Conn ector Access Pa nel *Non-Acce ss Sid e

inches mm inches mm inches mm inches mm inches mm inches mm

6 152 6 152 18 457 24 610 1 25 18 457

14 356 6 152 18 457 24 610 1 25 18 457

Bottom Rear

Top clearance is from top

of the heater cabinet.

Non access side

clearance is

from side of the

heater cabinet.

Refer to page 42 & 43 for venting/inlet air

requirements for

Reznor Separated Combustion Units

REZNOR

Form RZ-NA-C-UH Page 13

Page 16

CQS

CSA 2.6

ANSI Z83.8

DESCRIPTION

Reznor® Series Model UDBP gas-fired unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input. Model UDBP heaters are designed for 82-83% thermal efficiency and are approved for commercial/industrial installations in the United States and Canada by the Canadian Standards Association (CSA).

Reznor appearance with a glossy white cabinet finish and less visible hardware. Each size cabinet is easily suspended from four suspension points. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a “G” terminal to the strip, along with the new design of the circuit board, allows for blower only operation (without adding relays). All units have a factory installed gas line nipple to the exterior of the cabinet for easy gas service connection.

The preeminent new internal feature is the TCORE heat exchanger and single burner combustion system. Other standard features include a single-stage gas valve, multi-try direct spark ignition with 100% lockout, pressure switch to verify vent flow, resiliently isolated venter motor, venter wheel with improved housing, and a high temperature limit control. Sizes 30-125 are equipped with a centrifugal blower and direct drive motor with multispeed taps. Sizes 30 and 45 are capable of handling up to .5” w.c. of external static pressure; Sizes 60-125 will handle up to .75” w.c. of external static pressure. Sizes 150-400 are equipped with a centrifugal blower with an adjustable belt drive and motor. All units are designed for use with optional 30° and 60° downturn nozzles with horizontal and vertical louvers. Operation is controlled through an integrated circuit board. The circuit board monitors heater operation and has LED diagnostic indicator lights to identify abnormalities in control functions.

The new vide all the features you expect in a Reznor heater plus improved efficiency, easier installation, and a new look

both inside and out.

Form RZ-NA-C-UH Page 14

Series unit heaters have a refreshing new

2 ®

Series unit heaters are designed to pro-

Page __________ of __________

Model UDBP

Power Vented, High Static Blower Type Unit

Heaters for Commercial/Industrial Use

STANDARD FEATURES

● Certified for commercial/industrial heating applications

● 82-83% Thermal efficient ~

● 45-75°F Rise range - Sizes 30-350

50-80°F Rise range - Size 400

●

NEW NEW

2 ®

TCORE

titanium stabilized aluminized steel heat exchanger

patented** TCORE

one-piece burner assembly

● 115/1/60 Supply voltage

● 115 Volt open dripproof blower motor with internal overload protection -

Sizes 30-125

● 115 Volt open dripproof blower motor with internal overloads and definite

purpose motor contactor - Sizes 150-400

● Direct drive blower with multispeed taps - Sizes 30-125

● Adjustable belt drive blower - Sizes 150-400

● Transformer for 24-volt controls

● Integrated circuit board with diagnostic indicator lights

● Blower relay (included on the circuit board)

● Multi-try direct spark ignition with 100% lockout

● Single-stage natural gas valve (field adjustable for operation to 6,000 ft

elevation)

● Vibration/noise isolated venter motors ~

designed for low noise operation

● 4-pt Suspension

● External terminal strip for 24-volt wiring

● External gas connection

● Improved cabinet design with less visible hardware and a

appearance

OPTIONAL FEATURES - FACTORY INSTALLED

● Equipped for propane gas

● Single-stage propane gas valve (field adjustable for operation to 6,000 ft

elevation)

● Two-stage (70% low fire) natural or propane gas valve - Sizes 60-400

● 409 or 316 Stainless steel heat exchangers

● 208 and 230 Single phase voltage; 208, 230, 480, and 575 Three phase

voltage - Sizes 150-400 (step down transformer shipped separate for field installation for 480 and 575 units)

● Adjustable belt drive and motor for up to .5” w.c. external static pressure

- Sizes 150-400

● Totally enclosed blower motor - Sizes 150-400

● Belt and blower guards

ACCESSORIES - FIELD INSTALLED

● Vent cap

● Thermostat

● Thermostat guard with locking

cover

● Vertical louvers ~

● Downturn nozzle (30° or 60°

deflection, with and without vertical louvers) ~

● Gas conversion kits (natural

and propane)

** U.S. Patent No. 6,889,686

new design

TOP in its class!

2 ®

single burner combustion system including a

● High altitude kits (above 6,000 ft

to 9,000 ft)

● Master/Slave controls for

zoning up to six units

● Duct flange

● Polytube adapters

● Blower and belt guards

● Hanger kits for 1” pipe

● Stepdown transformer for 230

or 460 voltage - Sizes 30-125

● Manual shutoff valves

NEW

Reznor

Page 17

Page __________ of __________

MODEL UDBP TECHNICAL DATA - Sizes 30 - 125

Size 30 45 60 75 100 125

Input Heat ing Capacity

BTUH 30,000 45,000 60,000 75,000 105,000 120,000

kw/h 8.8 13.2 17.6 2 2.0 30.8 35.2

Thermal Efficiency (%) 828282828383 Out put Heati ng Capacity

Gas Connection (inches) V ent Connection Size

(inches diameter)

BTUH 24,600 36,900 49,200 61,500 87,150 99,600

kw/h 7.2 10.8 14.4 1 8.0 25.6 29.2

Natural 1/2 1/2 1/2 1/2 1/2 1/2

Propane 1/2 1/2 1/2 1/2 1/2 1 /2

444444 Control Amps (24 volt) 1.0 1.0 1.0 1.0 1.0 1.0 Full Load A mps (with standard HP 115V motor) 3.7 3.7 7.1 7.1 13.0 13.0 Maximum Over Current Pr ot ec tion (115V)

15 15 15 15 30 30 Normal Power Consumption (watt s @ full load, medium speed) 215 215 447 447 537 537 Minimum Discharge Air Temperature Rise °F 45 45 45 45 45 45 Maximum Discharge Air Temperature Rise °F 75 75 75 75 75 75

Maximum Air Volume

Min imum Air Vol ume

Discharge Air O pening A rea

Maximum Outp ut Veloc i ty

Min imum Output Vel ocity

CFM

M3/minute

CFM

M3/minute

FPM 527 791 810 1012 892 1020

M/minute 159 239 239 299 267 305

FPM 316 475 486 607 535 612

M/minute 96 143 143 179 160 183

Standard Blower Motor HP Blower Siz e inches

A pproximate Net Weight

A pproximate Ship Weight

lbs

506 759 1012 1265 1793 2049

14.3 21.5 28.7 35.8 50.8 58.0 304 456 607 759 1076 1230

8.6 12.9 17.2 21.5 30.5 34.8

0.96 0.96 1.25 1.25 2.01 2.01

0.09 0.09 0.12 0.12 0.19 0.19

1/6 1/6 1/3 1/3 3/4 3/4

9 X 6 9 X 6 9 X 6 9 X 6 10 X 10 10 X 10

72 77 89 94 131 136 33 35 40 43 59 62 90 95 110 115 176 181 41 43 50 52 80 82

MODEL UDBP TECHNICAL DATA Sizes 150 - 400

Size 150 175 200 225 250 300 350 400

Input Heat ing Capacity Thermal Efficiency (%) 8383838383838382 Out put Heati ng Capacity

Gas Connection (inches) V ent Connection Size

(inches diameter) Control Amps (24 v olt) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Full Load A mps (w/std HP 115V motor) 5.9 9.6 10.5 12.7 12.7 17.7 27.3 27.3

Maximum Over Current Pr ot ec tion (115V) Normal Power Consumption (watt s) 230 415 485 675 675 1260 1635 1635 Minimum Discharge Air Temperature Rise (°F) Maximum Dischar ge Ai r Tempe rature Rise (°F)

Maximum Air Volume

Min imum Air Vol ume

Discharge Air O pening A rea

Maximum Outp ut Veloc i ty

Min imum Output Vel ocity Standard Open 115V Blower M ot or HP 1/4 1/2 1/2 3/4 3/4 1-1/2 2 2

Blower Siz e inches 12 x 12 12 x 12 12 x 12 15 x 11 15 x 11 15 x 15 15 x 15 15 x 15 A pproximate Net Weight

A pproximate Ship Weight

CSA rating for altitudes to 2000 ft. B Size shown is for gas connection to a single stage gas valve, not supply line size. C Smaller or larger vent pipe diameters may be allowed; refer to the Venting Installation Manual, Form I-V-PV. If vent diameter is different from vent connection, reducer/enlargers will be field-required. D MODP = 2.25 x (largest motor FLA) + smallest motor FLA. Answer is rounded to the nearest commercially available circuit breaker.

BTUH 150,000 175,000 200,000 225,000 250,000 300,000 350,000 400,000

kw/h 43.9 51.2 58.6 65.9 73.2 8 7.8 102.5 117.1

BTUH 124,500 145,250 166,000 186,750 207,500 249,000 290,500 328,000

kw/h 36.4 42.5 48.6 54.7 60.8 7 2.9 85 .1 96.0

Natural 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

Propane 1/2 1/2 1/2 3/4 3/4 3/4 3/4 3/4

55555666

15 20 25 30 30 40

60 60

45 45 45 45 45 45 45 50 75 75 75 75 75 75 75 80

CFM 2562 2989 3416 3843 4270 5123 5977 6185

/minute

CFM 1537 1793 2049 2306 2562 3074 3586 4100

/minute

72.5 84.6 96.7 108.8 120.9 145.1 169.2 175.1

43.5 50.8 58.0 65.3 72.5 8 7.0 101.5 11 6.1

2.56 2.56 2.56 3.51 3.51 4.79 4.79 4.79

0.24 0.24 0.24 0.33 0.33 0.45 0.45 0.45

FPM 1001 1168 1334 1095 1217 1070 1248 1291

M/minute 305 356 407 334 371 326 380 393

FPM 600 700 800 657 730 642 749 856

M/minute 183 213 244 200 223 196 228 261

lbs 255 275 275 320 335 375 410 425

kg 116 125 125 145 152 170 186 193

lbs 315 335 335 400 415 475 510 525

kg 143 152 152 181 188 215 231 238

Form RZ-NA-C-UH Page 15

Page 18

Model UDBP - GENERAL ARRANGEMENT AND DIMENSIONS

Combustion Air Inlet

Thermostat Connection

(30-125 vertical;

150-400 horizontal)

K**

TOP VIEW

3/8-16 Female

Thread - four

suspension points

in Hanger Bars

H**

Blower attached to

Direct Drive

the Cabinet

- Sizes 30-75

Page __________ of __________

REAR VIEW

Vent Connection (see Technical Data for size)

1/2 NPT External Gas Connection

Direct Drive

Blower with

Blower Back

on the Cabinet

- Sizes 100-125

Hanger Bar

2-1/2

FRONT

VIEW

1-1/4

T (Hanger Bar Length)

RIGHT SIDE VIEW

(Access Panel)

Belt Drive Blower with Blower Back on the Cabinet

- Sizes 150-400

Form RZ-NA-C-UH Page 16

Page 19

Page __________ of __________

Model UDBP - GENERAL ARRANGEMENT AND DIMENSIONS (cont'd)

MODEL UDBP DIMENSIONS (± 1/16")

Size A B C D E F G H J K L M N P Q R S T

30, 45

26-5/8 12-1/8 13-13/16 10 16-3/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 6-1/2 9-3/16 5-3/16 2-11/16 2-7/8 3-7/8 6-1/2 31

26-5/8 15-1/8 13-13/16 13 17-7/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 6-1/2 11-7/8 7-7/8 5-1/2 2-7/8 3-7/8 6-1/2 31

26-5/8 15-1/8 13-13/16 13 17-7/8 36-1/8 21-9/16 17-3/8 11/16 22-1/2 5-1/2 11-7/8 7-7/8 5-1/2 2-7/8 3-7/8 6-1/2 31

100

26-5/8 23-1/8 13-13/16 21 23-1/4 43-5/8 21-9/16 17-3/8 11/16 22-1/2 8-1/2 18-1/2 14-1/2 8-3/4 2-7/8 3-7/8 6-7/16 31

125

26-5/8 23-1/8 13-13/16 21 23-1/4 43-5/8 21-9/16 17-3/8 11/16 22-1/2 7-1/2 18-1/2 14-1/2 8-3/4 2-7/8 3-7/8 6-7/16 31

150,

38-1/8 20-1/8 23 16 30-9/16 60-1/8 35-3/8 25-5/8 1-5/16 24-1/2 3-7/8 13-1/2 8-1/2 5-7/16 4-1/4 6-1/2 8-1/4 42

175 200

38-1/8 20-1/8 23 16 30-9/16 60-1/8 35-3/8 25-5/8 1-5/16 24-1/2 3-7/8 14-9/16 9-9/16 5-7/16 4-5/16 6-1/2 8-5/16 42

225,

38-1/8 26-1/8 23 22 39-5/8 63-7/16 35-3/8 25-5/8 1-5/16 24-1/2 5-7/8 18-1/16 13-1/16 9 4-5/16 6-1/2 8-5/16 42

250

300,

40-7/8 34-1/8 23 30 42-5/8 63-7/16 35-3/8 27-5/8 1-5/16 23-1/2 3-7/8 22-1/16 17-1/16 11-13/16 4-1/2 7-1/4 8-1/2 42

350,

400

MODEL UDBP DIMENSIONS (± 2mm)

Size A B C D E* F G H** J K** L M N P Q R S T

30, 45

NOTES:

* Sizes 150-400 - Dimension E varies with motor selection and belt adjustment. ** Dimensions H and K are the heater suspension points.

676 308 351 254 416 918 548 441 17 572 165 233 132 68 73 98 165 787

676 384 351 330 454 918 548 441 17 572 165 302 200 140 73 98 165 787

676 384 351 330 454 918 548 441 17 572 140 302 200 140 73 98 165 787

100

676 587 351 533 591 1108 548 441 17 572 216 470 368 222 73 98 164 787

125

676 587 351 533 594 1108 548 441 17 572 191 470 368 222 73 98 164 787

150,

968 511 584 406 776 1527 899 651 33 622 98 343 216 138 108 165 210 1067

175 200

968 511 584 406 776 1527 899 651 33 622 98 370 243 138 110 165 211 1067

225,

968 664 584 559 1006 1611 899 651 33 622 149 459 332 229 110 165 211 1067

250 300, 350,

1038 867 584 762 1083 1611 899 702 33 597 98 560 433 300 114 184 216 1067

400

CLEARANCES

UDBS

30-125

150-400

*Clearances are measured from the heater cabinet.

Top* Fl ue Connec tor Access Pa nel *Non -Acce ss Sid e

inches mm inches mm inches mm inches m m inches m m inches mm

6 152 6 152 18 457 24 610 1 25 18 457

14 356 6 152 18 457 24 610 1 25 18 457

Non access side

clearance is

from side of the

heater cabinet.

Bottom Rear

Top clearance is from top

of the heater cabinet.

REZNOR

Form RZ-NA-C-UH Page 17

Page 20

Page __________ of __________

MODEL SHE

GAS FIRED, HIGH EFFICIENCY

SEPARATED COMBUSTION, CONDENSING

UNIT HEATERS

ANSI Z83.8

DESCRIPTION

The Reznor® Model SHE Series gas-fired, power-vented, separated combustion, fan-type, high efficiency condensing unit heaters are available in three sizes -- 220,000, 304,000 and 394,000 BTUH gas input -- for use with either natural or propane gas. Model SHE unit heaters are designed to provide better than 90% thermal efficiency.

Standard features include an aluminized steel primary heat exchanger, a special corrosion-resistant alloy secondary heat exchanger, a burner rack assembly of die-formed burners, a power venter, a fan and motor with full fan guard, and a horizontal condensate drain connection. Standard controls include a single-stage gas valve, automatic hot surface ignition with 100% shutoff, a combustion air pressure switch, and a safety limit switch.

The heater is designed for suspension from four 3/8"-16 threaded hanger connections in the heater base. A condensate drain must be attached to the horizontal connection provided on the heater. Combustion air inlet/vent may be either vertical or horizontal using a specially designed concentric adapter/terminal.

Model SHE line of heaters is approved for installation in The United States and Canada by the Canadian Standards Association (CSA).

CAN/CGA 2.6-M96

STANDARD FEATURES

● Orifices for natural gas

● Primary heat exchanger of aluminized steel

● Secondary heat exchanger of corrosion resistant alloy

● Aluminized steel burner rack with die-formed burners

● Hot surface ignition with 100% lockout

● Single-stage combination gas valve

● 115/1/60 supply voltage

● 115 volt fan motor with internal overload protection

● Fan and limit controls

● Pressure switch to verify vent flow

● Power venter

● 24-volt control voltage transformer

● Horizontal flue and combustion air connections

● Horizontal condensation drain connection with 1-1/2",

threaded fitting

● Individually adjustable horizontal louvers

● Full safety fan guard

● 4-point 1/2"-16 threaded hangers

ACCESSORIES - Field Installed

● Horizontal or Vertical vent/combustion air intake

concentric adapter/terminal, 4" or 6" (installation required)

● Thermostat

● Gas conversion kits

Warm Air

Discharge

High Efficiency

Operating Principle

Form RZ-NA-C-UH Page 18

Burner

Combustion

Air

Primary

Heat

Exchanger

Secondary

Heat

Exchanger

Supply Air Intake

Power Venter

Flue Gas Outlet

Page 21

Page __________ of __________

all

TECHNICAL DATA - Model SHE

Size 225 300 400 Hea ting I nput - BTUH (kW) 220,000 (64.5) 304,000 (89.1) 394,000 (115.5) The rmal Output 205,000 (60.1) 283,000 (82.9) 365,000 (107.0) Thermal Efficiency 93% 93% 93% Control Amps (24-volt) 1.1 1.1 1.1 Full-Load Amps (115 volt) 6.6 5.8 7.8 Motor HP 1/2 1/2 1.0 Motor RPM 1,000 1,000 1,000 Fian Diameter - in. (mm) 24 (610) 28 (711) 28 (711)

Air Vo lume - CFM (M Gas Connection - Natural Gas or Propane (inches) 3/4 3/4 3/4 Condensation 0.9 (3.4) 1.2 (4.5) 1.6 (6.0) Approximate Net Weigh t 375 (170) 463 (210) 595 (270) Approximate Shipping W ei ght 463 (210) 563 (255) 728 (330)

DIMENSIONS, + or - 1/8" (3mm)

/hr) 3,320 (5,640) 4,197 (7,130) 5,656 (9,610)

52-1/8 (1,324mm)

26 (662mm) 26 (662mm)





7-7/8

(20mm)

A G

6 (150mm)

35-1/4

(895mm)

4 (100mm)

1-3/4

(44mm)

1-3/4

(44mm)

5-3/4

(147mm)

25-3/8

(645mm)

Burner and

Control Access

Panel



Side View

Wall





6-3/4

(171mm)

61-3/8 (1,559mm)

59-1/2 (1,512mm)



Front View



3 (77mm)





Top

View



3-1/4

(81mm)











17

(433mm)

13-1/2

(342mm)

225 300 400

Size in. mm in. mm in. mm A - Width of hea tin g section 34 1/4 (870 ) 4 2 1/ 2 (1, 08 0) 53 9 / 1 6 (1, 3 60 ) B - Width of fan cabi net 39 7/8 (1 , 0 1 3) 4 8 1/8 (1 ,223) 59 3/1 6 (1, 5 03) C - Cente r of fan to opposite side 15 15/16 (405) 20 1/16 (510) 25 9/16 (650) D - Width overa l l of ba se fram e 34 7/16 (874) 42 11/16 (1,084) 53 11/16 (1,364) E - Wi dth of suspension poi nts 30 15/16 (786) 39 3/16 (996) 50 1/4 (1,276) F - Opposite side clea rance 5 7/8 (150) 5 7/8 (150) 5 7/8 (150) G - Minimum service clearance 35 7/16 (900) 43 5/16 (1,100) 55 1/8 (1,400)

Rear View

Dimensions/Key:

1 Combustion Air Intake Collar - 6" (170 mm)

PVC Pipe

2 Flue Outlet Collar - 6" (170 mm) PVC Pipe

3 Inlet Gas Service Connection - 3/4" (19 mm)

4 Electrical Supply and Controls Inlets

5 Suspension Points 1/2" (13 mm) diameter --

E x 59-1/2" (1,512mm)

6 Condensation Drain Connection - 1-1/2" ID

(41 mm OD)

Form RZ-NA-C-UH Page 19

Page 22

ANSI Z83.8

CAN/CGA 2.6

DESCRIPTION

Reznor® Series 100, Model F gas-fired, gravity-vented unit heaters are designed for 80% thermal efficiency and are designed for use with natural or propane gas, as specified, in sizes from 25,000 to 400,000 BTUH gas input. .

Model F unit heaters are designed for ceiling suspension with a propeller fan for air delivery.

Standard features include a manual match-lit pilot with 100% shutoff and a single-stage, 24-volt gas valve. A terminal strip connector facilitates field connection to a remote 24-volt thermostat for automatic operation. Each unit is provided with a fan control and all required limit safety controls, including an energy cutoff (ECO) device and a blocked vent switch.

These units are approved for installation in The United States and Canada by the Canadian Standards Association (CSA).

NOTE: Model F units for California require the addition

of spark pilot Option AH2 or AH3.

STANDARD FEATURES

● Orifices for natural gas

● Aluminized steel heat exchanger

● Aluminized steel burner rack with stainless steel insert

● Manual match-lit pilot with 100% shutoff

● Single-stage combination gas valve (field adjustable for

high altitude operation)

● 115/1/60 supply voltage

● 115 volt fan motor with internal overload protection

● Fan and limit safety controls

● Energy cutoff (ECO) device

● Blocked vent shutoff system

● 24-volt control voltage transformer

● Individually adjustable horizontal louvers

● Full safety fan guard

Page __________ of __________

CQS

GAS-FIRED, GRAVITY-VENTED,

FAN-TYPE UNIT HEATER FOR

MODEL F

COMMERCIAL/INDUSTRIAL USE

● Terminal strip connector for 24-volt field wiring

● Convenient bottom burner access

● 2-point 3/8"-16 threaded hanger connections

● Horizontal/vertical vent outlet

OPTIONAL FEATURES - Factory Installed

● Equipped for propane gas

● E-3 (409) stainless steel heat exchanger and burner

● Two-stage gas control (50% low fire) - Sizes 75-400

● Spark ignited, intermittent safety pilot with electronic flame

supervision with or without timed lockout (timed lockout is required for propane gas)

● Manual summer/winter switch

● Burner air shutters

● 208/230 single phase supply voltage

● 220/240 volt/50 Hertz electrical operation

● Totally enclosed 115V motor

● Low ambient fan control relay

ACCESSORIES - Field Installed

● Power venter

● Vertical louvers

● Downturn air nozzle, 25-65° or 50-90° variable air deflector

range (includes 4-point suspension kit)

● Thermostat and relay kits

● Air recirculation kits

● Manual summer/winter switch

● Multiple heater control

● 4-point suspension kit

● Unit-mounted thermostat bracket

● Step down transformer 230/115 or 460/115

● Burner air shutters

● Low ambient fan control relay kit

● Hanger kit to suspend from 1" pipe (2 or 4 point suspen-

sion)

● Single-stage and two-stage thermostats

● Thermostat guard with locking cover

● Manual shutoff valve and union

● Gas conversion kit

NOTE: Not certified for residential use.

WARNING: Gas-fired appliances are not designed for use in hazardous atmospheres containing flammable vapors or combustible dust, or atmospheres containing chlorinated or halogenated hydrocarbons.

Installations in public garages or airplane hangars are permitted when in accordance with ANSI Z223.1 and NFPA 54 Codes or CAN1-B149 Codes and enforcing authorities.

NOTE: Regulated combination redundant gas valve consists of combination pilot solenoid valve, electric gas valve, pilot filter,

pressure regulator, pilot shutoff, and manual shutoff, all in one body. Gas supply pressure must not exceed 0.5 psi (8 oz. or 14" w.c.). Minimum inlet pressure for natural gas is 5" w.c.; minimum inlet pressure for propane gas is 11" w.c.

Form RZ-NA-C-UH Page 20

Page 23

Page __________ of __________

Combustible Surface

Top Clearance

TECHNICAL DATA - Model F

Size 25 50 75 100 125 165 200 250 Heating Input - BTUH (kW) The rma l Ou tp ut - BTUH (kw) (80%)* Vent Outlet Diameter Gas Connection - Natura l Gas** Control Amps (24-volt) Full-Load Amps (115 volt) Normal Consumption (watts) Throw at 8' (2.4M) Mntg Ht - ft (M)*** Motor HP**** S ta nda rd

Motor RPM Fan Diameter - in. (mm) Air Volum e - CFM (M Outle t Veloc ity - FPM ( M / s) Approximate Net Wt - lbs (kg) Approximate Shipping Wt - lbs (kg)

Optional Enclosed

/hr)

25,000 (7.3) 50,000 (14.7) 75,000 (22.0) 100,000 (29.3) 125,000 (36.6) 165,000 (48.4) 200,000 (58.6) 250,000 (73.3) 20,000 (5.9) 40,000 (11.7) 60,000 (17.6) 80,000 (23.4) 100,000 (29.3) 132,000 (38.7) 160,000 (46.9) 200,000 (58.6)

4" R d 4" Rd 5" O val 6"Oval 7" Oval 8" Oval 8" Oval 10" O val

1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"

0.33 0.33 0.33 0.33 0.33 0.23 0.23 0.23

0.8 1.3 1.9 2.8 2.9 4 4 2.5 60 95 135 195 205 275 300 280

35 (11) 39 (12) 48 (15) 60 (18) 73 (22) 78 (24) 85 (26) 96 (29)

1/50 1/35 1/15 1/30 1/30 1/20 1/20 1/6

-- 1/15 1/15 1/8 1/8 1/8 1/6 1/6

1550 1550 1550 1050 1050 1050 1050 850

10 (254) 10 (254) 12 (305) 14 (356) 16 (406) 16 (406) 20 (508) 22 (559) 380 (646) 650 (1,104) 980 (1,665) 1,250 (2,124) 1,600 (2,718) 2,200 (3,738) 2,800 (4,757) 3,360 (5,708) 423 (2.1) 853 (4.3) 1,166 (5.9) 1,358 (6.9) 1,330 (6.8) 1,100 (5.6) 1,217 (6.2) 1,182 (6.0)

72 (33) 79 (36) 88 (40) 97 (44) 127 (58) 149 (68) 170 (77) 204 (93)

89 (40) 96 (44) 107 (49) 118 (54) 150 (68) 172 (78) 196 (89) 232 (105)

300 400

300,000 (87.9) 400,000 (117.2) 240,000 (70.3) 320,000 (93.8)

10" Oval 12" Oval

3/4" 3/4"

0.2 0.2 47

375 565

108 (33) 120 (37)

1/4 1/2 1/2 1/2

850 850

22 (559) 24 (610) 3,800 (6,456) 4,940 (8,393) 1,426 (7.2) 1,420 (7.2)

221 (100) 276 (125) 249 (113) 311 (141)

*For U.S. installations, ratings for altitudes to 2000 ft. Above 2000 ft, derate

by 4% for each 1000 ft above sea level.

*For Canadian installations, ratings for altitudes to 2000 ft. High altitude units

(2001-4500 ft) are derated by 10% of maximum input.

**Gas connection for propane is 1/2" for all sizes. Sizes shown are for gas

connection to a single-stage gas valve; NOT gas supply line size. ***Additional mounting heights shown later in this catalog. ****All other information in this table is based on a heater equipped with a

standard 115v motor. (The standard motor for a Model 25 is an enclosed

motor; all other standard motors are open motors. Optional enclosed

motors are available in 115v only.)

DIMENSIONS + or - 1/8" (3mm)

RIGHT SIDE

13/16 21mm

SUSPENSION POINTS (2 OR 4) 3/8 - 16 FEMALE THREAD SEE SUSPENSION NOTE 1

13/16 21mm

OPTIONAL VERTICAL POSITION

2-1/4 57mm

Required Clearances (inches)

Sizes Top Flue Sides Bottom Rear

* Connector ** ***

25-125 2 6 18 12 24 165-400 6 6 18 12 24

*Measure top

clearance as illustrated →

**When supplied

with optional

downturn nozzle, bottom clearance is 42". For service purposes on standard units, bottom clearance exceeding 12" minimum is not required but may be desirable.

***For service purposes only, rear must have 24"

clearance.

3/4

19mm

ELECTRIC

SUPPLY

CONNECTION

B÷2

J = VENT

SIZE

OPTIONAL

FRONT VIEW

VERTICAL LOUVERS

RIGHT SIDE VIEW

3mm

SUSPENSION NOTES:

1) Use dimension "G" for 2-point suspension and "E" and "F" for 4-point suspension.

2) Factory equipped with 2-point suspension; 4-point is optional.

Size in mm in mm in mm in mm in m m in mm in mm in mm in 25,50 75 100 125 165 200 250 300 400

A BCDEFGHJ

30 1/8 (765) 13 1/2 (343) 27 (686) 31 1/2 (800) 5 7/8 (149 ) 14 1/2 (368) 14 (356) 19 (483) 4 Round 30 1/8 (765) 15 1/2 (394) 27 (686) 31 1/2 (800) 5 7/8 (149 ) 14 1/2 (368) 14 (356) 19 (483) 5 Oval 30 1/8 (765) 17 1/2 (445) 30 1/2 (775) 31 1/ 2 (800) 5 7/8 (149) 14 1/ 2 (368) 14 (356) 19 (483) 6 Oval 32 (813) 23 1/4 (591) 30 1/2 (775) 31 1/2 (800) 5 7/8 (149) 14 1/2 (368) 14 (356) 19 (483) 7 Oval 40 1/8 (1,019) 20 1/4 ( 514) 35 1/2 (902) 36 (914) 4 7/ 8 (124) 19 1/ 2 (495) 15 3/4 (400) 23 3/8 (594) 8 Oval 40 1/8 (1,019) 23 1/4 ( 591) 36 1/4 (921) 36 (914) 4 7/ 8 (124) 19 1/ 2 (495) 15 3/4 (400) 23 3/8 (594) 8 Oval 43 1/2 (1,105) 28 3/4 ( 730) 36 1/4 (921) 36 (914) 4 7/ 8 (124) 19 1/ 2 (495) 15 3/4 (400) 21 3/4 (552) 10 O val 43 1/2 (1,105) 28 3/4 ( 730) 36 3/4 (933) 36 (914) 4 7/ 8 (124) 19 1/ 2 (495) 15 3/4 (400) 21 3/4 (552) 10 O val 43 1/2 (1,105) 37 (940) 37 1/ 4 (946) 36 (914) 4 7/8 (124) 19 1/2 (495) 15 3/4 (400) 21 3/4 (552) 12 Oval

1/8

4-1/4

108mm

1-11/16

43mm

M = GAS CONN.

(NOT SUPPLY LINE)

REAR VIEW

KLMN P

in mm in mm Nat P ro in mm in mm

10 1/4 (260) 16 (406) 1/2 1/2 21 1/2 (546) 27 5/ 8 (702) 10 1/2 (267) 16 (406) 1/2 1/2 21 1/2 (546) 27 5/ 8 (702) 12 7/8 (327) 16 (406) 1/2 1/2 21 1/2 (546) 27 5/ 8 (702) 14 1/2 (368) 16 (406) 1/2 1/2 21 1/2 (546) 28 1/ 2 (724) 14 1/4 (362) 24 (610) 1/2 1/2 27 (686) 36 3/4 (933) 14 3/8 (365) 24 (610) 1/2 1/2 27 (686) 36 3/4 (933) 12 3/8 (314) 24 (610) 1/2 1/2 27 (686) 38 3/8 (975) 12 3/8 (314) 24 (610) 3/4 1/2 27 (686) 38 3/8 (975) 13 (330) 24 (610) 3/4 1/2 27 (686) 38 3/8 (975)

Form RZ-NA-C-UH Page 21

Page 24

Page __________ of __________

MODEL B

GAS-FIRED, GRAVITY-VENTED,

ANSI Z83.8

CQS

CAN/CGA 2.6

DESCRIPTION

Reznor® Series 100, Model B gas-fired gravity-vented unit heaters are designed for 80% thermal efficiency and are designed for use with natural or propane gas, as specified, in sizes from 25,000 to 400,000 BTUH gas Input.

Model B unit heaters are designed for ceiling suspension with a centrifugal blower for air delivery. Sizes 25-100 are equipped with a direct drive blower motor with multi-speed taps capable of handling up to .50" w.c. of external static pressure. Sizes 125-400 are standardly equipped with a blower using an adjustable belt drive and motor capable of handling external static pressure up to .25" w.c. Optional motors and drives are available to increase the blower capability to handle up to .50" w.c. of external static pressure.

Standard features on the Model B Series units include a manual match-lit pilot with 100% shutoff and a single-stage, 24-volt gas valve. A terminal strip connector facilitates field connection to a remote 24-volt thermostat for automatic operation. Each unit is provided with a fan control and all required limit safety controls, including an energy cutoff (ECO) device and a blocked vent switch.

These units are approved for installation in The United States and Canada by the Canadian Standards Association (CSA). Canadian units require the selection of a totally enclosed motor. (An open motor may be selected for a heater to be installed in Canada only when the heater will be equipped with a Reznor

field-installed blower cabinet.)

NOTE: Model B units for California require the addition

of spark pilot Option AH2 or AH3.

STANDARD FEATURES

● Orifices for natural gas

● Aluminized steel heat exchanger

● Aluminized steel burner rack with stainless steel insert

● Manual match-lit pilot with 100% shutoff

● Single-stage combination gas valve (field adjustable for high

altitude operation)

● 115/1/60 supply voltage - Sizes 25-300

● 230/1/60 supply voltage - Size 400

● ODP motor with internal overload (U.S. installations)

● Totally enclosed blower motor (Canadian installations)

● Motor contactor - Sizes 300 and 400

● Direct drive blower with multi-speed taps - Sizes 25-100

● Adjustable belt drive blower - Sizes 125 - 400

● Fan and limit safety controls

● Blocked vent shutoff system

● Energy cutoff (ECO) device

NOTE: Regulated combination redundant gas valve consists of combination pilot solenoid valve, electric gas valve, pilot filter, pressure regulator, pilot shutoff, and manual shutoff, all in one body. Gas supply pressure must not exceed 0.5 psi (8 oz. or 14" w.c.). Minimum inlet pressure for natural gas is 5" w.c.; minimum inlet pressure for propane gas is 11" w.c.

Form RZ-NA-C-UH Page 22

BLOWER-TYPE UNIT HEATER FOR

COMMERCIAL/INDUSTRIAL USE

● 24-volt control voltage transformer

● Horizontal/Vertical vent outlet

● Horizontal louvers or Duct adapter

● Terminal strip connector for 24-volt field wiring

● Convenient bottom burner access

● 4-point 3/8"-16 threaded hanger connections

OPTIONAL FEATURES - Factory Installed

● Equipped for propane gas

● E-3 (409) stainless steel heat exchanger and burner

● Two-stage gas control (50% low fire) - Sizes 75-400

● Spark ignited, intermittent safety pilot with electronic flame

supervision and with or without timed lockout (timed lockout is required for propane gas)

● Burner air shutters

● 208/230 single phase supply voltage - Sizes 125-400

● 208/230 three phase supply voltage - Sizes 125-400

● 460 three phase supply voltage - Sizes 125-400

● 575 three phase supply voltage - Sizes 125-400

● Alternate motor HP and drive - Sizes 50-400

● Totally enclosed blower motor

OPTIONS/ACCESSORIES - Field Installed

● Power venter

● Vertical louvers

● Downturn air nozzle, 25-65° or 50-90° variable air deflector range

● Thermostat and relay kits

● Air recirculation kits

● Manual summer/winter

switch

● Filter cabinet with 1" or 2"

filters

● Polytube adapter - Models

75-400

● Multiple heater control

● Hanger kits to suspend from

1" pipe or to use with vibration isolation suspension

● Unit-mounted thermostat

bracket

● Step down transformer 230/

115 or 460/115 - Sizes 25100

WARNING: Gas-fired appliances are not designed for use in hazardous atmospheres containing flammable vapors or combustible dust, or atmospheres containing chlorinated or halogenated hydrocarbons.

Installations in public garages or airplane hangars are permitted when in accordance with ANSI Z223.1 and NFPA 54 Codes or CAN1-B149 Codes and enforcing authorities.

● Burner air shutters

● Low ambient fan control

relay kit

● Belt guard and/or blower inlet

guard

● Single-stage and two-stage

thermostats

● Thermostat guard with

locking cover

● Manual shutoff valve and

union

● Gas conversion kit

NOTE: Not certified for residential use.

Page 25

TECHNICAL DATA - Model B

Size 25 50 75 100 125 165 200 He atin g Inp ut - BTUH (kW) BTUH Therma l Output (80%)* Vent Outlet Diameter Gas Conne c tion - Natural G as** Control Amps (24-volt) Full-Load Amps (115 volt) Normal Co nsumption (watts)

(60°F rise and .25" w.c. ESP) Maxi mum Air Volume - CFM (M Minimum Air Volume - CFM (M Standa rd Mo tor Horsepowe r Blower Size (inches) Appr o xima te Net W t - lbs (kg) Approximate S hipping Wt - lbs (kg)

*For U.S. installations, ratings for altitudes to

2000 ft. Above 2000 ft, derate by 4% for each 1000 ft above sea level.

*For Canadian installations, ratings for altitudes

to 2000 ft. High altitude units (2001-4500 ft) are derated by 10% of maximum input.

**Gas connection for propane is 1/2" for all sizes.

Sizes shown are for gas connection to a single-stage gas valve; NOT gas supply line size.

***See Blower Chart and Blower Curve Section.

DIMENSIONS + or - 1/8" (3mm)

13/16

21mm*

25,000 (7.3) 50,000 (14.7) 75,000 (22.0) 100,000 (29.3) 125,000 (36.6) 165,000 (48.4) 200,000 (58.6) 20,000 (5.9) 40,000 (11.7) 60,000 (17.6) 80,000 (23.4) 100,000 (29.3) 132,000 (38.7) 160,000 (46.9)

4" R d 4" Rd 5" Oval 6"Oval 7" O val 8" Oval 8" Oval

1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"

0.33 0.33 0.33 0.33 0.33 0.23 0.23

2.92.95.35.3699

/hr) ***

140 175 340 430 500 710 750

410 (697) 820 (1,393) 1,230 (2,090) 1,645 (2,795) 2,055 (3,491) 2,715 (4,613) 3,290 (5,590)

/hr)***

245 (416) 490 (832) 740 (1,257) 985 (1,673) 1,235 (2,098) 1,625 (2,761) 1,975 (3,355)

1/6 1/6 1/3 1/3 1/3 1/2 1/2

9x6 9x6 9x6 9x9 10x10 12x9 15x11

93 (42) 100 (45) 114 (52) 126 (57) 176 (80) 201 (91) 235 (107)

193 (88) 206 (93) 229 (104) 241 (109) 318 (144) 343 (156) 385 (175)

Filters for Optional Blower Cabinet

Model Qty *Filter Size 25-125 1 20x20 165-200 1 16x25

1 20x25

250-300 2 16x20

2 20x20

400 2 16x25

2 20x25

*1" or 2" permanent filters

(4) SUSPENSION POINTS 3/8 - 16 FEMALE THREADS

13/16

21mm*

3/4

19mm

RIGHT SIDE

OPTIONAL VERTICAL POSITION

E* F*

2 1/4

57 mm**

ELECTRIC SUPPLY

CONNECTION

Required Clearances

Page __________ of __________

250 300 400

250,000 (73.3) 300,000 (87.9) 400,000 (117.2) 200,000 (58.6) 240,000 (70.3) 320,000 (93.8)

10" Oval 10" Oval 12" Oval

1/2" 3/4" 3/4"

0.23 0.2 0.2 11 13 230V-9.1

1320 16501000

4,115 (6,991) 4,935 (8,384) 6,500 (11,043) 2,465 (4,188) 2,960 (5,029) 3,900 (6,626)

3/4 1 1 1/2

15x11 15x11 15x15 273 (124) 296 (134) 390 (177) 431 (196) 454 (206) 561 (254)

Top & Flue Connector 6" Sides 18" Bottom 12"

(when supplied with optional downturn nozzle, bottom clearance is 42"). For service purposes, in standard units, bottom clearance exceeding 12" minimum is not required, but may be desirable.

Rear 24"

For service purposes the back of the unit must have 24" clearance.

3/4

19 mm**

B÷2

J = VENT

SIZE

OPTIONAL

BLOWER CABINET

Size A B C

100

125

165

200

250

300

400

30 1/8 13 1/2 43 1/2 31 1/2 5 7/8 14 1/2 61 1/2 19 4 Rnd 10 1/4 15 7/8 1/2 1/2

(765) (343) (1,105) (800) (149) (368) (1,562) (483) -- (260) (403) -- --

30 1/8 13 1/2 50 31 1/2 5 7/8 14 1/2 61 1/2 19 4 Rnd 10 1/4 15 7/8 1/2 1/2

(765) (343) (1,270) (800) (149) (368) (1,562) (483) -- (260) (403) -- --

30 1/8 15 1/2 50 31 1/2 5 7/8 14 1/2 61 1/2 19 5 Oval 10 1/2 15 7/8 1/2 1/2

(765) (394) (1,270) (800) (149) (368) (1,562) (483) -- (267) (403) -- --

30 1/8 17 1/2 50 31 1/2 5 7/8 14 1/2 61 1/2 19 6 Oval 12 7/8 15 7/8 1/2 1/2

(765) (445) (1,270) (800) (149) (368) (1,562) (483) -- (327) (403) -- --

32 23 1/4 47 1/2 31 1/2 5 7/8 14 7/8 6 6 18 7 Oval 14 1/2 15 7/8 1 /2 1 /2

(813) (591) (1,207) (800) (149) (378) (1,676) (457) -- (368) (403) -- --

40 1/8 20 1/4 61 36 4 7/8 19 1/2 76 1/8 23 3/ 8 8 Oval 14 1/4 23 7/8 1 /2 1 /2

(1,019) (514) (1,549) (914) (124) (495) (1,934) (594) -- (362) (606) -- --

40 1/8 23 1/4 66 1/2 36 4 7/8 19 1/2 7 6 1/8 23 3/8 8 Oval 14 3/8 23 7/8 1 /2 1 /2

(1,019) (591) (1,689) (914) (124) (495) (1,934) (594) -- (365) (606) -- --

43 1/2 28 3/4 66 1/2 36 4 7/8 19 1/2 7 6 1/8 21 7/8 10 Oval 12 3/8 23 7/8 1 /2 1 /2

(1,105) (730) (1,689) (914) (124) (495) (1,934) (556) -- (314) (606) -- --

43 1/2 28 3/4 66 1/2 36 4 7/8 19 1/2 7 6 1/8 21 7/8 10 Oval 12 3/8 23 7/8 3 /4 1 /2

(1,105) (730) (1,689) (914) (124) (495) (1,934) (556) -- (314) (606) -- --

43 1/2 37 66 1 /2 36 4 7/8 19 1/2 76 1/8 21 7/8 12 Oval 13 23 7/ 8 3/4 1 /2

(1,105) (940) (1,689) (914) (124) (495) (1,934) (556) -- (330) (606) -- --

FRONT

DEF4G

OPTIONAL VERTICAL LOUVERS

1 3

HJKL

RIGHT SIDE

1/8

3mm

1 2

*Suspension Point Centerline ** Electrical Supply Centerline

4-1/4

108mm

Nat Pro

3 3/4 21 17 3 /4 5 1/4 1 0 3/4 8 1/2 14 3/4 6 1/4 31 1/4 21 1/2 27 5/8

2 3/4 21 17 3 /4 5 1/4 1 2 3/4 8 1/2 14 3/4 6 1/4 31 1/4 21 1/2 27 5/8

1 3/4 21 17 3 /4 5 1/4 1 4 3/4 8 1/2 14 3/4 6 1/4 31 1/4 21 1/2 27 5/8

1 3/8 21 17 3 /4 5 1/4 2 0 1/2 8 1/2 20 1/2 6 1/4 35 3/4 21 1/2 28 1/2

2 7/8 26 25 1 /4 7 1/4 1 7 1/2 11 1/2 20 1/2 8 36 3/4 27 36 3 /4

1 3/8 26 25 1 /4 7 1/4 2 0 1/2 11 1/2 20 1/2 8 36 3/4 27 36 3 /4

5 7/8 40 1/2 25 1/4 7 1/4 26 11 1/2 26 8 36 3 /4 27 38 3/8 (149) (1,029) (641) (184) (660) (292) (660) (203) (933) (686) (975) 5 7/8 40 1/2 25 1/4 7 1/4 26 11 1/2 26 8 36 3 /4 27 38 3/8 (149) (1,029) (641) (184) (660) (292) (660) (203) (933) (686) (975) 6 3/4 50 1/2 25 1/4 7 1/4 34 1/4 11 1/2 34 1/4 8 36 3/ 4 27 38 3 /8 (171) (1,283) (641) (184) (870) (292) (870) (203) (933) (686) (975)

OPTIONAL

BLOWER CABINET

N1P1R1S1T2U2V1W1X5YZ

(95) (533) (451) (133) (273) (216) (375) (159) (794) (546) (702)

(70) (533) (451) (133) (324) (216) (375) (159) (794) (546) (702)

(44) (533) (451) (133) (375) (216) (375) (159) (794) (546) (702)

(35) (533) (451) (133) (521) (216) (521) (159) (908) (546) (724)

(73) (660) (641) (184) (445) (292) (521) (203) (933) (686) (933)

(35) (660) (641) (184) (521) (292) (521) (203) (933) (686) (933)

1-11/16

43 mm

M = GAS CONNECTION

(NOT SUPPLY LINE)

REAR

NOTES: 1) When equipped with optional blower cabinet. 2) When equipped with optional duct flange. 3) Dimension includes a 3/4" flange on rear of blower cabinet. 4) Use with 4-point suspension without blower cabinet. 5) Use with 4-point suspension with blower cabinet. 6) Contactor is standard on Models 300 & 400. 7) Contactor location with optional 3 phase motors on Models 50, 75, 100 & 125. 8) Deduct 6-5/8" on Models 50, 75 & 100 when equipped with direct drive motor.

Form RZ-NA-C-UH Page 23

Page 26

CQS

DESCRIPTION

The Model OH/OB Series oil-fired unit heaters are available in inputs of 118,000, 173,000, and 229,000 BTUH with 82% efficiency output. These completely packaged unit heaters burn No. 2 fuel oil.

Model OH heaters are equipped with a propeller fan. The fan is enclosed in an OSHA-type full safety fan guard.

Model OB heaters are equipped with a centrifugal blower. The blower has an adjustable belt drive and is capable of handling external pressure of .25" w.c. Blower models are equipped with a belt guard and a blower inlet guard.

All units feature a low-stress, 18-gauge steel exchanger and a heavy, 13-gauge combustion chamber with large, easily accessible, service panels. The oil burner assembly has a pressure-atomizing gun type burner that provides excellent flame retention and an integral fuel pump. The burner has an electric spark ignition system with an electronic cad-cell flame safety system with manual reset. All models have a flame observation port.

Standard features include fan and limit controls. The fan control prevents circulation of cold air at start-up and provides heat dissipation while the unit is hot after the burner shuts off. The safety limit control provides unit protection from high temperature caused by an airflow restriction or motor failure. All units are wired for 115 volt, 60 Hz power supply and can be controlled with a 24V thermostat.

Model OH/OB oil-fired unit heaters are approved for installation in The United States and Canada by the Canadian Standards Association (CSA).

NOTE: Not certified for residential use.

Page __________ of __________

MODEL OH & OB

OIL-FIRED, FAN AND

BLOWER-TYPE UNIT HEATERS

STANDARD FEATURES

● Full automatic, thermostatically controlled operation

● Low stress, 18-gauge steel heat exchanger

● Heavy, 13-gauge steel combustion chamber

● 115/1/60 supply voltage

● 24-volt control voltage

● Atomizing power burner with single-stage fuel pump

● Electric spark ignition with cad-cell flame safety system

● Fan and limit safety controls

● Toggle disconnect switch

● Propeller fan - OH Models

Centrifugal blower with adjustable belt drive - OB Models

● Full safety fan guard - OH Models

Belt guard and blower inlet guard - OB Models

● Totally enclosed, permanently lubricated PSC motor

with internal overload protection - OH Models Total enclosed, permanently lubricated split-phase motor with internal overload protection - OB Models

● Built-in burner service tray

● Large easily accessible service panels for combustion

chamber and heat exchanger maintenance

● Observation port

● Individually adjustable horizontal louvers

● 4-point suspension (1/2" threaded connectors)

● Draft regulator - CSA Models

OPTIONAL FEATURES - Field Installed

● Vertical louvers

● Atomizing burner with two-stage fuel pump

● 30 GPH booster pump assembly with motor and two-stage

fuel pump

● 70 GPH booster pump assembly with motor and two-stage

fuel pump

● Booster pump pressure switch - used for intermittent pump

operation in pressurized system

● Oil safety valve - recommended for all systems -- prevents

siphoning and over pressure

● Draft Regulator - UL listed model

● Draft inducer relay

● Hanger kit to suspend from 1" pipe

● Outside combustion air adapter (not available with CSA

models)

● Thermostat, single stage, 24-volt (40-90°F)

● Thermostat guard with locking cover

A UL Listed (or equivalent) oil supply tank must be used with Reznor® oil-fired heaters.

●●

●UL Listed

●●

For additional information, refer to Options and Accessories Section.

Form RZ-NA-C-UH Page 24

Model OT-250 fuel tank is available from Reznor.

●●

●250-gallon capacity

●●

●Bench top

●●

Page 27

Page __________ of __________

TECHNICAL DATA - Models OH and OB

Size OH95 OB95 OH140 OB140 OH190 OB190 Therm al I n p u t - BTUH (kW) 118,000 (34.6) 118,000 (34.6) 173,000 (50.7) 173,000 (50.7) 229,000 (67.1) 229,000 (67.1) Ther mal Ou t pu t - BT UH (k W) 97,000 (28.4) 97,000 (28.4) 142,000 (41.6) 142,000 (41.6) 188,000 (55.1) 188,000 (55.1) Noz zle I n p u t - GP H (l /hr ) 0.85 (3.22) 0.85 (3.22) 1.25 (4.73) 1.25 (4.73) 1.65 (6.25) 1.65 (6.25) Full-Load Amps (115 volt) 611711716 Fan Motor RPM 1,050 -- 850 -- 850 -- Blower Motor RPM - - 1,725 -- 1,725 -- 1,725 Motor HP 1/8 1/2 1/4 1/4 1/4 3/4

Air Volu me (Free Air) - CFM (M Air Volume @ .25" ESP - CFM (M

Throw at 9 ' (3M) M ntg Ht - ft (M) 50 (15) 50 (15) 65 (20) 65 (20) 65 (20) 65 (20) Flue Diameter - inches 778888 Blo wer S iz e - i n c hes -- 12-5/ 8 x 9-1/2 - - 15 x 11-1/8 -- 15 x 11- 1/8 Fan Diameter (inches) and Pitch (°) 18 - 3 3 -- 22 - 3 6 -- 22 - 36 -- Approximate Net Wt (lbs) 290 (132) 355 (161) 345 (156) 410 (186) 345 (156) 410 (186) Approxim a te Shipping Wt 340 (154) 420 (191) 405 (184) 495 (225) 405 (184) 495 (225)

4-7/32

29-1/16

17

/hr) 2,000 (3,398) 2,000 (3,398) 3,200 (5,437) 3,200 (5,437) 3,200 (5,437) 3,200 (5,437)

/hr) -- 1,450 (2,463) -- 2,140 (3,636) -- 2,140 (3,636)

ABCD

2-9/16

Model inmminmminmminmm

8 (203) 27 3/ 8 (695) 33 (8 38) 7 (178)

18 3/ 4 (476) 27 3/8 (695) 33 (8 38) 7 (178)

9 1/2 (241) 37 3/ 8 (949) 43 (1,092) 8 (2 03)

22 (559) 37 3/ 8 (949) 43 (1,092) 8 (2 03)

OH 95 OB 95 OH140/190 OB140/190

22-1/8

14-7/16

Draft Regulator Requirement - ALL Model OH/OB installations require a draft regulator (barometric draft control device) in the vent.

•Model OH/OB with a CSA Label - A draft regulator is

factory-supplied and must be installed.

•Model OH/OB with a UL Label - a Factory-supplied draft regulator is available as an option (Option BV2 or DB1). Either the optional draft regulator or a field supplied, UL-

approved draft regulator must be installed.

CLEARANCE: An 18" clearance is required from the top of the draft control to a combustible ceiling.

ELECTRICAL CONNECTION

FLUE CONNECTION BENEATH SERVICE TRAY

Required Clearances

To p 2 " 6 " Front 48" 48" Burner Side (for service) 18" 18" Side Opposite Burner (for service) 18" 18" Rear 24" 6" Bottom 6" 6" Flue pipe - units with UL label 18" 18" Flue pipe - units with CSA label 9" 9"

Diameter D

7-19/32

Discharge Duct Opening

Dimensions - Model OB

OB Width Height

95 30" 16-1/4"

140/190 40" 16-1/4"

OH OB

Form RZ-NA-C-UH Page 25

Page 28

Throw/Floor Coverage at Various

Mounting Heights

*Louver angle listed in the table is relative to the top of the heater.

Page __________ of __________

Z**

**Z is the point when the air velocity drops below 50 feet per minute (254mm/sec).

Applies to both Model UDAS and Model UDAP

Dime nsions given in fe e t.

Size Mounting Louver Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

5 6 14 30 -21° 7 16 40 -20° 8 18 45 -16° 9 20 57 -14° 9 20 59 -18° 10 22 65 -14° -- -- -- --

8 7 13 26 -39° 9 16 37 -34° 10 18 42 -29° 12 22 54 -25° 11 21 56 -28° 12 23 63 -24° 13 24 73 -26° 10 6 11 22 -52° 9 15 33 -43° 10 17 39 -37° 12 22 52 -32° 12 20 52 -36° 13 24 60 -30° 14 24 69 -32° 12 -- -- -- -- 8 12 27 -55° 10 16 34 -46° 12 21 48 -39° 11 19 47 -44° 14 23 57 -36° 14 24 64 -39° 14 -- -- -- -- -- -- -- -- 9 14 29 -56° 12 19 44 -46° 11 17 42 -51° 14 22 53 -43° 14 22 59 -45° 16 -- -- -- -- -- -- -- -- -- -- -- -- 11 17 38 -54° 10 14 34 -58° 13 20 47 -50° 13 20 53 -51° 18 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 11 17 40 -57° 11 17 44 -58°

Size Mounting Louver Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

8 15 28 90 -22° 16 30 93 -20° 14 27 86 -24° 16 29 93 -21° 15 28 94 -24° 17 31 105 -20° 18 34 113 -17° 10 17 29 87 -27° 17 31 91 -25° 15 27 82 -30° 17 30 90 -26° 16 28 89 -29° 18 32 103 -25° 20 35 110 -21° 12 18 29 84 -32° 18 31 88 -30° 16 27 78 -35° 18 30 87 -31° 17 28 85 -34° 19 32 98 -30° 21 36 108 -25° 14 18 28 79 -37° 19 30 84 -34° 16 26 73 -41° 18 30 83 -36° 17 27 80 -40° 20 32 95 -34° 23 35 105 -29° 16 18 27 74 -42° 19 29 79 -39° 16 24 67 -47° 19 28 78 -41° 17 25 74 -45° 21 31 90 -38° 23 35 101 -33° 18 17 26 68 -48° 19 28 74 -44° 14 22 60 -53° 18 27 72 -46° 16 24 66 -51° 20 30 85 -43° 23 35 97 -37°

Dime nsions given in m e te rs.

Size Mounting Louver Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

1.5 1.8 4.3 9.1 -21° 2.1 4.9 12.2 -20° 2.4 5.5 13.7 -16° 2.7 6.1 17.4 -14° 2.7 6.1 18.0 -18° 3.0 6.7 19.8 -14° -- -- -- --

2.4 2.1 4.0 7.9 -39° 2.7 4.9 11.3 -34° 3.0 5.5 12.8 -29° 3.7 6.7 16.5 -25° 3.4 6.4 17.1 -28° 3.7 7.0 19.2 -24° 4.0 7.3 22.3 -26°

3.0 1.8 3.4 6.7 -52° 2.7 4.6 10.1 -43° 3.0 5.2 11.9 -37° 3.7 6.7 15.8 -32° 3.7 6.1 15.8 -36° 4.0 7.3 18.3 -30° 4.3 7.3 21.0 -32°

3.7 -- -- -- -- 2.4 3.7 8.2 -55° 3.0 4.9 10.4 -46° 3.7 6.4 14.6 -39° 3.4 5.8 14.3 -44° 4.3 7.0 17.4 -36° 4.3 7.3 19.5 -39°

4.3 -- -- -- -- -- -- -- -- 2.7 4.3 8.8 -56° 3.7 5.8 13.4 -46° 3.4 5.2 12.8 -51° 4.3 6.7 16.2 -43° 4.3 6.7 18.0 -45°

4.9 -- -- -- -- -- -- -- -- -- -- -- -- 3.4 5.2 11.6 -54° 3.0 4.3 10.4 -58° 4.0 6.1 14.3 -50° 4.0 6.1 16.2 -51°

5.5 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 3.4 5.2 12.2 -57° 3.4 5.2 13.4 -58°

Size Mounting Louver Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

2.4 4.6 8.5 27.4 -22° 4.9 9.1 28.3 -20° 4.3 8.2 26.2 -24° 4.9 8.8 28.3 -21° 4.6 8.5 28.7 -24° 5.2 9.4 32.0 -20° 5.5 10.4 34.4 -17°

3.0 5.2 8.8 26.5 -27° 5.2 9.4 27.7 -25° 4.6 8.2 25.0 -30° 5.2 9.1 27.4 -26° 4.9 8.5 27.1 -29° 5.5 9.8 31.4 -25° 6.1 10.7 33.5 -21°

3.7 5.5 8.8 25.6 -32° 5.5 9.4 26.8 -30° 4.9 8.2 23.8 -35° 5.5 9.1 26.5 -31° 5.2 8.5 25.9 -34° 5.8 9.8 29.9 -30° 6.4 11.0 32.9 -25°

4.3 5.5 8.5 24.1 -37° 5.8 9.1 25.6 -34° 4.9 7.9 22.3 -41° 5.5 9.1 25.3 -36° 5.2 8.2 24.4 -40° 6.1 9.8 29.0 -34° 7.0 10.7 32.0 -29°

4.9 5.5 8.2 22.6 -42° 5.8 8.8 24.1 -39° 4.9 7.3 20.4 -47° 5.8 8.5 23.8 -41° 5.2 7.6 22.6 -45° 6.4 9.4 27.4 -38° 7.0 10.7 30.8 -33°

5.5 5.2 7.9 20.7 -48° 5.8 8.5 22.6 -44° 4.3 6.7 18.3 -53° 5.5 8.2 21.9 -46° 4.9 7.3 20.1 -51° 6.1 9.1 25.9 -43° 7.0 10.7 29.6 -37°

30 45 60 75 100 125 150

175 200 225 250 300 350 400

30 45 60 75 100

175 200 225 250 300 350 400

125 150

Form RZ-NA-C-UH Page 26

Page 29

Page __________ of __________

Throw/Floor Coverage at Various

Mounting Heights (cont'd)

Applies to both Model UDBS and Model UDBP

See illustration on previous page.

Dimensions given i n feet.

Size Mounting Louver Louver Louver Louver Louver Louve r Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

5 7 15 38 -27° 7 17 44 -20° 11 26 78 -15° 11 24 74 -13° 10 23 74 -16° 10 22 69 -14°

8 7 13 32 -44° 9 17 40 -34° 14 26 76 -23° 13 26 72 -23° 13 25 72 -25° 12 24 65 -24° 10 7 11 25 -56° 9 16 37 -42° 15 27 72 -29° 15 25 69 -28° 14 25 69 -31° 13 24 62 -31° 12 -- -- -- -- 9 14 31 -52° 16 26 70 -34° 15 25 65 -34° 14 24 66 -37° 14 23 58 -37° 14 -- -- -- -- -- -- -- -- 16 25 65 -40° 15 24 62 -40° 14 23 62 -43° 14 21 54 -43° 16 -- -- -- -- -- -- -- -- 15 24 60 -46° 15 23 56 -46° 14 21 57 -49° 12 19 47 -51° 18 -- -- -- -- -- -- -- -- 14 22 53 -52° 14 21 50 -52° 12 18 51 -56° 11 17 40 -57°

Size Mounting Louver Louver Louver Louver Louver Louve r Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

5 7 16 43 -24° 9 21 60 -15° 12 28 91 -13° 11 27 84 -11° 11 27 86 -13° 12 29 96 -10°

8 9 16 38 -38° 11 23 57 -26° 16 30 89 -21° 15 29 82 -19° 15 28 83 -21° 16 31 94 -18° 10 8 14 33 -48° 13 22 54 -32° 17 30 86 -26° 16 30 79 -25° 17 29 81 -26° 18 32 92 -23° 12 8 12 28 -56° 13 21 51 -39° 18 31 83 -31° 17 30 77 -30° 17 29 78 -32° 19 32 89 -27° 14 -- -- -- -- 12 20 46 -46° 18 30 79 -36° 18 29 74 -34° 18 29 74 -37° 20 32 87 -32° 16 -- -- -- -- 11 17 40 -53° 19 29 75 -41° 18 28 70 -39° 18 27 70 -42° 20 31 83 -36° 18 -- -- -- -- -- -- -- -- 17 28 69 -46° 18 26 65 -44° 17 26 64 -47° 20 30 78 -40°

Size Mounting Louver Louver Louver Louver Louver Louve r Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

5 8 19 51 -20° 11 28 81 -11° 13 30 105 -11° 12 30 97 -09° 13 32 110 -10° 13 33 113 -7°

8 10 19 48 -31° 15 29 79 -19° 17 33 103 -19° 17 33 95 -16° 18 34 108 -17° 19 36 111 -13° 10 11 19 44 -39° 16 30 78 -24° 19 34 100 -23° 19 33 94 -20° 20 36 106 -21° 21 37 109 -17° 12 11 17 40 -46° 17 30 75 -29° 21 35 98 -27° 20 34 92 -25° 22 36 104 -25° 23 39 107 -21° 14 9 15 33 -56° 18 30 72 -34° 22 34 95 -31° 21 34 89 -29° 23 36 102 -29° 24 39 105 -25° 16 -- -- -- -- 19 29 69 -39° 23 33 91 -35° 22 33 86 -33° 24 36 99 -33° 25 40 103 -29° 18 -- -- -- -- 18 28 64 -44° 21 33 86 -40° 22 33 83 -37° 23 36 95 -37° 26 39 101 -32°

30 45 60 75

Low Speed

Medi um Spee d

High Speed

100 125

100 12530 45 60

75°F Rise

150

Louver

XY ZAngle

-- -- -- -91644 -39° 91438 -48° 71130 -58°

-- -- -- --

60°F Rise

150

Louver

XY ZAngle

-- -- -- --

13 24 74 -28° 13 22 62 -35° 13 21 57 -42° 12 19 51 -49° 11 16 43 -57°

-- -- -- --

45°F Rise

150

Louver

XY ZAngle

-- -- -- --

18 32 107 -19° 19 34 104 -24° 21 34 102 -28° 22 34 98 -32° 22 33 94 -36° 21 33 89 -41°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

8 12 22 69 -30° 13 24 76 -27° 13 24 82 -29° 14 27 95 -26° 12 21 70 -32° 13 25 82 -27° 10 12 22 65 -37° 14 24 72 -33° 12 21 66 -38° 16 27 91 -31° 12 21 65 -39° 14 25 77 -33° 12 13 21 59 -43° 14 23 68 -39° 12 20 60 -45° 16 27 86 -37° 12 19 58 -47° 14 24 72 -40° 14 11 19 52 -51° 14 22 62 -46° 11 18 53 -52° 16 25 80 -43° 10 17 50 -55° 14 22 66 -46° 16 -- -- -- -- 12 20 53 -53° -- -- -- -- 16 23 73 -49° -- -- -- -- 13 20 57 -53° 18 -- -- -- -- -- -- -- -- -- -- -- -- 14 21 64 -56° -

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

8 15 29 92 -22° 16 31 100 -21° 16 29 100 -24° 19 34 127 -20° 16 28 100 -24° 18 33 119 -20° 10 16 29 89 -28° 18 31 97 -25° 16 30 96 -29° 20 35 123 -24° 17 29 96 -29° 19 34 116 -25° 12 17 29 85 -33° 19 31 93 -30° 17 30 92 -34° 21 36 120 -28° 18 29 92 -34° 21 34 113 -29° 14 17 28 80 -38° 20 30 89 -34° 18 28 87 -38° 22 35 116 -32° 18 28 87 -39° 22 34 109 -33° 16 17 27 75 -43° 20 29 84 -39° 18 27 80 -44° 23 35 111 -37° 18 27 81 -44° 22 33 104 -37° 18 17 25 69 -48° 19 29 79 -44° 17 26 74 -49° 23 34 106 -41° 17 25 73 -50° 22 32 98 -41°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

8 22 41 146 -15° 23 43 157 -13° 23 43 168 -16° 26 48 198 -14° 21 39 146 -17° 24 45 169 -14° 10 24 43 144 -19° 25 46 155 -17° 26 45 166 -19° 29 50 196 -17° 23 41 143 -21° 26 47 167 -18° 12 26 43 141 -22° 27 47 152 -20° 28 45 163 -22° 31 52 194 -20° 25 42 140 -25° 28 48 165 -21° 14 28 44 137 -25° 29 48 150 -23° 30 46 160 -25° 32 54 191 -22° 26 42 137 -28° 30 49 162 -24° 16 29 44 134 -28° 31 48 147 -26° 31 47 157 -29° 34 53 189 -25° 27 42 133 -31° 32 48 159 -26° 18 29 44 131 -32° 31 49 144 -29° 31 47 153 -32° 34 54 185 -28° 28 41 129 -34° 33 49 156 -29°

175 200 225 250 300 350

75°F Rise

-- -- -- -- ---- --

60°F Rise

45°F Rise

80°F Rise

400

XY ZAngle

15 28 95 -24° 16 28 92 -29° 17 28 88 -34° 17 27 82 -39° 17 26 76 -45° 16 24 69 -50°

XY ZAngle

17 31 111 -21° 18 32 107 -26° 19 32 103 -31° 20 31 99 -35° 20 31 93 -40° 20 29 88 -44°

XY ZAngle

24 44 169 -14° 26 46 167 -17° 28 48 165 -20° 31 48 162 -23° 32 49 159 -26° 32 49 156 -29°

Louver

70°F Rise

400

Louver

50°F Rise

400

Louver

Form RZ-NA-C-UH Page 27

Page 30

Page __________ of __________

Throw/Floor Coverage at Various

Mounting Heights (cont'd)

Applies to both Model UDBS and Model UDBP

See illustration on page 26.

Dimensions given i n meters.

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

1.5 2.1 4.6 11.6 -27° 2.1 5.2 13.4 -20° 3.4 7.9 23.8 -15° 3.4 7.3 22.6 -13° 3.0 7.0 22.6 -16° 3.0 6.7 21.0 -14°

2.4 2.1 4.0 9.8 -44° 2.7 5.2 12.2 -34° 4.3 7.9 23.2 -23° 4.0 7.9 21.9 -23° 4.0 7.6 21.9 -25° 3.7 7.3 19.8 -24°

3.0 2.1 3.4 7.6 -56° 2.7 4.9 11.3 -42° 4.6 8.2 21.9 -29° 4.6 7.6 21.0 -28° 4.3 7.6 21.0 -31° 4.0 7.3 18.9 -31°

3.7 -- -- -- -- 2.7 4.3 9.4 -52° 4.9 7.9 21.3 -34° 4.6 7.6 19.8 -34° 4.3 7.3 20.1 -37° 4.3 7.0 17.7 -37°

4.3 -- -- -- -- -- -- -- -- 4.9 7.6 19.8 -40° 4.6 7.3 18.9 -40° 4.3 7.0 18.9 -43° 4.3 6.4 16.5 -43°

4.9 -- -- -- -- -- -- -- -- 4.6 7.3 18.3 -46° 4.6 7.0 17.1 -46° 4.3 6.4 17.4 -49° 3.7 5.8 14.3 -51°

5.5 -- -- -- -- -- -- -- -- 4.3 6.7 16.2 -52° 4.3 6.4 15.2 -52° 3.7 5.5 15.5 -56° 3.4 5.2 12.2 -57°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

1.5 2.1 4.9 13.1 -24° 2.7 6.4 18.3 -15° 3.7 8.5 27.7 -13° 3.4 8.2 25.6 -11° 3.4 8.2 26.2 -13° 3.7 8.8 29.3 -10°

2.4 2.7 4.9 11.6 -38° 3.4 7.0 17.4 -26° 4.9 9.1 27.1 -21° 4.6 8.8 25.0 -19° 4.6 8.5 25.3 -21° 4.9 9.4 28.7 -18°

3.0 2.4 4.3 10.1 -48° 4.0 6.7 16.5 -32° 5.2 9.1 26.2 -26° 4.9 9.1 24.1 -25° 5.2 8.8 24.7 -26° 5.5 9.8 28.0 -23°

3.7 2.4 3.7 8.5 -56° 4.0 6.4 15.5 -39° 5.5 9.4 25.3 -31° 5.2 9.1 23.5 -30° 5.2 8.8 23.8 -32° 5.8 9.8 27.1 -27°

4.3 -- -- -- -- 3.7 6.1 14.0 -46° 5.5 9.1 24.1 -36° 5.5 8.8 22.6 -34° 5.5 8.8 22.6 -37° 6.1 9.8 26.5 -32°

4.9 -- -- -- -- 3.4 5.2 12.2 -53° 5.8 8.8 22.9 -41° 5.5 8.5 21.3 -39° 5.5 8.2 21.3 -42° 6.1 9.4 25.3 -36°

5.5 -- -- -- -- -- -- -- -- 5.2 8.5 21.0 -46° 5.5 7.9 19.8 -44° 5.2 7.9 19.5 -47° 6.1 9.1 23.8 -40°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

1.5 2.4 5.8 15.5 -20° 3.4 8.5 24.7 -11° 4.0 9.1 32.0 -11° 3.7 9.1 29.6 -09° 4.0 9.8 33.5 -10° 4.0 10.1 34.4 -7°

2.4 3.0 5.8 14.6 -31° 4.6 8.8 24.1 -19° 5.2 10.1 31.4 -19° 5.2 10.1 29.0 -16° 5.5 10.4 32.9 -17° 5.8 11.0 33.8 -13°

3.0 3.4 5.8 13.4 -39° 4.9 9.1 23.8 -24° 5.8 10.4 30.5 -23° 5.8 10.1 28.7 -20° 6.1 11.0 32.3 -21° 6.4 11.3 33.2 -17°

3.7 3.4 5.2 12.2 -46° 5.2 9.1 22.9 -29° 6.4 10.7 29.9 -27° 6.1 10.4 28.0 -25° 6.7 11.0 31.7 -25° 7.0 11.9 32.6 -21°

4.3 2.7 4.6 10.1 -56° 5.5 9.1 21.9 -34° 6.7 10.4 29.0 -31° 6.4 10.4 27.1 -29° 7.0 11.0 31.1 -29° 7.3 11.9 32.0 -25°

4.9 -- -- -- -- 5.8 8.8 21.0 -39° 7.0 10.1 27.7 -35° 6.7 10.1 26.2 -33° 7.3 11.0 30.2 -33° 7.6 12.2 31.4 -29°

5.5 -- -- -- -- 5.5 8.5 19.5 -44° 6.4 10.1 26.2 -40° 6.7 10.1 25.3 -37° 7.0 11.0 29.0 -37° 7.9 11.9 30.8 -32°

30 45 60 75

Low Spe ed

100 125

Medium Speed

100 125

High Spe ed

100 125

24°C Rise

150

Louver

X Y Z Angle

-- -- -- --

2.7 4.9 13.4 -39°

2.7 4.3 11.6 -48°

2.1 3.4 9.1 -58°

-- -- -- --

16°C Rise

150

Louver

X Y Z Angle

-- -- -- --

4.0 7.3 22.6 -28°

4.0 6.7 18.9 -35°

4.0 6.4 17.4 -42°

3.7 5.8 15.5 -49°

3.4 4.9 13.1 -57°

-- -- -- --

7°C Rise

150

Louver

X Y Z Angle

-- -- -- --

5.5 9.8 32.6 -19°

5.8 10.4 31.7 -24°

6.4 10.4 31.1 -28°

6.7 10.4 29.9 -32°

6.7 10.1 28.7 -36°

6.4 10.1 27.1 -41°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

2.4 3.7 6.7 21.0 -30° 4.0 7.3 23.2 -27° 4.0 7.3 25.0 -29° 4.3 8.2 29.0 -26° 3.7 6.4 21.3 -32° 4.0 7.6 25.0 -27°

3.0 3.7 6.7 19.8 -37° 4.3 7.3 21.9 -33° 3.7 6.4 20.1 -38° 4.9 8.2 27.7 -31° 3.7 6.4 19.8 -39° 4.3 7.6 23.5 -33°

3.7 4.0 6.4 18.0 -43° 4.3 7.0 20.7 -39° 3.7 6.1 18.3 -45° 4.9 8.2 26.2 -37° 3.7 5.8 17.7 -47° 4.3 7.3 21.9 -40°

4.3 3.4 5.8 15.8 -51° 4.3 6.7 18.9 -46° 3.4 5.5 16.2 -52° 4.9 7.6 24.4 -43° 3.0 5.2 15.2 -55° 4.3 6.7 20.1 -46°

4.9 -- -- -- -- 3.7 6.1 16.2 -53° -- -- -- -- 4.9 7.0 22.3 -49° -- -- -- -- 4.0 6.1 17.4 -53°

5.5 ------ -- ------ -- ------ -- 4.36.419.5-56°------ -- ------ --

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

2.4 4.6 8.8 28.0 -22° 4.9 9.4 30.5 -21° 4.9 8.8 30.5 -24° 5.8 10.4 38.7 -20° 4.9 8.5 30.5 -24° 5.5 10.1 36.3 -20°

3.0 4.9 8.8 27.1 -28° 5.5 9.4 29.6 -25° 4.9 9.1 29.3 -29° 6.1 10.7 37.5 -24° 5.2 8.8 29.3 -29° 5.8 10.4 35.4 -25°

3.7 5.2 8.8 25.9 -33° 5.8 9.4 28.3 -30° 5.2 9.1 28.0 -34° 6.4 11.0 36.6 -28° 5.5 8.8 28.0 -34° 6.4 10.4 34.4 -29°

4.3 5.2 8.5 24.4 -38° 6.1 9.1 27.1 -34° 5.5 8.5 26.5 -38° 6.7 10.7 35.4 -32° 5.5 8.5 26.5 -39° 6.7 10.4 33.2 -33°

4.9 5.2 8.2 22.9 -43° 6.1 8.8 25.6 -39° 5.5 8.2 24.4 -44° 7.0 10.7 33.8 -37° 5.5 8.2 24.7 -44° 6.7 10.1 31.7 -37°

5.5 5.2 7.6 21.0 -48° 5.8 8.8 24.1 -44° 5.2 7.9 22.6 -49° 7.0 10.4 32.3 -41° 5.2 7.6 22.3 -50° 6.7 9.8 29.9 -41°

Size Mounting Louver Louver Louver Louver Louver Louver Height X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle X Y Z Angle

2.4 6.7 12.5 44.5 -15° 7.0 13.1 47.9 -13° 7.0 13.1 51.2 -16° 7.9 14.6 60.4 -14° 6.4 11.9 44.5 -17° 7.3 13.7 51.5 -14°

3.0 7.3 13.1 43.9 -19° 7.6 14.0 47.2 -17° 7.9 13.7 50.6 -19° 8.8 15.2 59.7 -17° 7.0 12.5 43.6 -21° 7.9 14.3 50.9 -18°

3.7 7.9 13.1 43.0 -22° 8.2 14.3 46.3 -20° 8.5 13.7 49.7 -22° 9.4 15.8 59.1 -20° 7.6 12.8 42.7 -25° 8.5 14.6 50.3 -21°

4.3 8.5 13.4 41.8 -25° 8.8 14.6 45.7 -23° 9.1 14.0 48.8 -25° 9.8 16.5 58.2 -22° 7.9 12.8 41.8 -28° 9.1 14.9 49.4 -24°

4.9 8.8 13.4 40.8 -28° 9.4 14.6 44.8 -26° 9.4 14.3 47.9 -29° 10.4 16.2 57.6 -25° 8.2 12.8 40.5 -31° 9.8 14.6 48.5 -26°

5.5 8.8 13.4 39.9 -32° 9.4 14.9 43.9 -29° 9.4 14.3 46.6 -32° 10.4 16.5 56.4 -28° 8.5 12.5 39.3 -34° 10.1 14.9 47.5 -29°

175 200 225 250 300 350

24°C Rise

16°C Rise

7°C Ri se

250 300175 200 225

250 300 350175 200 225

350

27°C Rise

400

Louver

X Y Z Angle

4.6 8.5 29.0 -24°

4.9 8.5 28.0 -29°

5.2 8.5 26.8 -34°

5.2 8.2 25.0 -39°

5.2 7.9 23.2 -45°

4.9 7.3 21.0 -50°

21°C Rise

400

Louver

X Y Z Angle

5.2 9.4 33.8 -21°

5.5 9.8 32.6 -26°

5.8 9.8 31.4 -31°

6.1 9.4 30.2 -35°

6.1 9.4 28.3 -40°

6.1 8.8 26.8 -44°

10°C Rise

400

Louver

X Y Z Angle

7.3 13.4 51.5 -14°

7.9 14.0 50.9 -17°

8.5 14.6 50.3 -20°

9.4 14.6 49.4 -23°

9.8 14.9 48.5 -26°

9.8 14.9 47.5 -29°

Form RZ-NA-C-UH Page 28

Page 31

STANDARD LOUVER

HEIGHT

MOUNTING

60° NOZZLE

Page __________ of __________

30° DOWNTURN NOZZLE

60° DOWNTURN NOZZLE

Throw/Floor Coverage at Various

Mounting Heights (cont'd)

Applies to Model F Sizes 125-400

XYZ

30° NOZZLE

XYZ

STANDARD LOUVER

Dimension in feet.

With Standard Horizontal Louvers

Mounting HeightXYZXYZXYZXYZXYZXYZ

8 14 24 65 14 35 75 13 38 83 12 44 94 12 36 105 12 55 118 10 16 22 58 16 32 72 15 36 78 15 40 88 14 38 96 14 53 112 12 18 20 54 18 30 66 17 34 72 17 38 84 16 35 90 16 49 108 14 -- -- -- -- -- -- 20 31 68 19 33 77 18 30 85 18 45 100 16 -- -- -- -- -- -- -- -- -- 22 30 72 20 27 80 20 40 92 18 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 23 35 85

With Downturn Nozzle with 25-65° Range of Air Deflection (30° Nozzle)

Mounting HeightXYZXYZXYZXYZXYZXYZ

10 10 22 28 10 24 33 10 31 45 8 40 53 8 38 51 -- -- -12 13 18 26 12 22 30 12 29 43 10 38 50 10 36 48 10 50 70 14 16 16 22 15 20 25 14 26 40 12 36 47 13 34 44 12 47 66 16 -- -- -- -- -- -- 16 23 36 14 33 42 15 31 40 14 43 62 18 -- -- -- -- -- -- 18 20 30 16 28 36 18 26 34 16 38 58 20 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 18 34 53 22 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 21 30 46

With Downturn Nozzle with 50-90° Range of Air Deflection (60° Nozzle)

Mounting HeightXYZXYZXYZXYZXYZXYZ

12 0 8 20 0 8 22 0 8 25 0 12 30 0 10 28 -- -- -16 0 10 18 0 10 20 0 10 23 0 14 28 0 12 26 0 12 32 20 0 14 16 0 14 18 0 12 21 0 16 26 0 14 24 0 14 30 24 -- -- -- -- -- -- 0 14 18 0 18 24 0 16 20 0 16 28 28 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0 18 26 32 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0 20 24 36 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0 22 22

Dimension in meters.

With Standard Horizontal Louvers

Mounting HeightXYZXYZXYZXYZXYZXYZ

2.4 4.3 7.3 19.8 4.3 10.7 22.9 4.0 11.6 25.3 3.7 13.4 28.7 3.7 11.0 32.0 3.7 16.8 36.0

3.0 4.9 6.7 17.7 4.9 9.8 21.9 4.6 11.0 23.8 4.6 12.2 26.8 4.3 11.6 29.3 4.3 16.2 34.1

3.7 5.5 6.1 16.5 5.5 9.1 20.1 5.2 10.4 21.9 5.2 11.6 25.6 4.9 10.7 27.4 4.9 14.9 32.9

4.3 -- -- -- -- -- -- 6.1 9.4 20.7 5.8 10.1 23.5 5.5 9.1 25.9 5.5 13.7 30.5

4.9 -- -- -- -- -- -- -- -- -- 6.7 9.1 21.9 6.1 8.2 24.4 6.1 12 .2 28 .0

5.5 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 7.0 10.7 25.9

With Downturn Nozzle with 25-65° Range of Air Deflection (30° Nozzle)

Mounting HeightXYZXYZXYZXYZXYZXYZ

3.0 3.0 6.7 8.5 3.0 7.3 10.1 3.0 9.4 13.7 2.4 12.2 16.2 2.4 11.6 15.5 -- -- --

3.7 4.0 5.5 7.9 3.7 6.7 9.1 3.7 8.8 13.1 3.0 11.6 15.2 3.0 11.0 14.6 3.0 15.2 21.3

4.3 4.9 4.9 6.7 4.6 6.1 7.6 4.3 7.9 12.2 3.7 11.0 14.3 4.0 10.4 13.4 3.7 14.3 20.1

4.9 -- -- -- -- -- -- 4.9 7.0 11.0 4.3 10.1 12.8 4.6 9.4 12.2 4.3 13.1 18.9

5.5 -- -- -- -- -- -- 5.5 6.1 9.1 4.9 8.5 11.0 5.5 7.9 10.4 4.9 1 1 .6 17 .7

6.1 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 5.5 10.4 16.2

6.7 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 6.4 9.1 14.0

With Downturn Nozzle with 50-90° Range of Air Deflection (60° Nozzle)

Mounting HeightXYZXYZXYZXYZXYZXYZ

3.7 0.0 2.4 6.1 0.0 2.4 6.7 0.0 2.4 7.6 0.0 3.7 9.1 0.0 3.0 8.5 -- -- --

4.9 0.0 3.0 5.5 0.0 3.0 6.1 0.0 3.0 7.0 0.0 4.3 8.5 0.0 3.7 7.9 0.0 3.7 9.8

6.1 0.0 4.3 4.9 0.0 4.3 5.5 0.0 3.7 6.4 0.0 4.9 7.9 0.0 4.3 7.3 0.0 4.3 9.1

7.3 -- -- -- -- -- -- 0.0 4.3 5.5 0.0 5.5 7.3 0.0 4.9 6.1 0.0 4.9 8.5

8.5 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0.0 5.5 7.9

9.8 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0.0 6.1 7.3

11.0 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 0.0 6.7 6.7

KEY:

O-X = Feet from heater to start of

floor coverage

O-Y = Feet to end of floor coverage O-Z = Feet to end of throw (50 ft

per minute velocity)

NOTES: Data based on 80oF enter- ing air and 60oF rise through the unit. Standard louvers set at maximum deflection are effective as indicated when ceiling height above heater is not over 4 ft. For higher mounting height or where spot heating is required, choose outlet and mounting height giving coverage to floor. Mounting close to the ceiling provides maximum heat utilization.

Form RZ-NA-C-UH Page 29

Page 32

Page __________ of __________

Throw/Floor Coverage at Various

Mounting Heights (cont'd)

Applies to Model B Sizes 125-400

Floor Coverage with 50-90 degree

Variable Air Deflection Downturn Nozzle

Dimension in fee t.

Mounting Height - H Blower 12 ft 16 ft 20 ft 24 ft 28 ft 32 ft 36 ft 40 ft ModelCFM ABAB ABABABABABAB 125 1545 20 22 18 20 16 18 -- -- -- -- -- -- -- -- -- -165 2090 24 26 22 24 20 22 -- -- -- -- -- -- -- -- -- -200 2470 -- -- 26 28 24 26 20 22 -- -- -- -- -- -- -- -250 3090 -- -- 30 32 28 30 24 26 -- -- -- -- -- -- -- -300 3710 -- -- -- -- 32 34 30 32 28 30 26 28 24 26 -- -400 4950 -- -- -- -- 36 38 34 36 32 34 30 32 28 30 24 26

Dimension in me te rs.

Mounting Height - H Blower 3.7M 4.9M 6.1M 7.3M 8.5M 9.8M 11.0M 12.2M Model ABAB ABABABABABAB 125 2625 6.1 6.7 5.5 6.1 4.9 5.5 -- -- -- -- -- -- -- -- -- -165 3551 7.3 7.9 6.7 7.3 6.1 6.7 -- -- -- -- -- -- -- -- -- -200 4196 -- -- 7.9 8.5 7.3 7.9 6.1 6.7 -- -- -- -- -- -- -- -250 5250 -- -- 9.1 9.8 8.5 9.1 7.3 7.9 -- -- -- -- -- -- -- -300 6303 -- -- -- -- 9.8 10.4 9.1 9.8 8.5 9.1 7.9 8.5 7.3 7.9 -- -400 8410 -- -- -- -- 11.0 11.6 10.4 11.0 9.8 10.4 9.1 9.8 8.5 9.1 7.3 7.9

KEY:

A = Throw B = Spread (Side to side coverage with standard louvers) H = Mounting Height

NOTES: Data based on 80°F entering air temperature and 60°F rise through the unit. Standard horizontal louver set for maximum

down deflection. Table and drawing show approximate floor coverage at various mounting heights. NOTE that throw "A" and sideward spread "B" are increased as mounting height is reduced, due to floor bounce effect. Conversely the floor coverage reduces as mounting height increases. Horizontal louvers can be used to spread throw area "A" forward from the heater, and vertical louvers can be used to increase sideward spread "B". Vertical louvers set at maximum deflection will increase spread "B" approximately 10 feet, but will reduce maximum mounting height 4 feet. EXAMPLE: B200 at 20 ft. mounting height with standard louver setting gives a floor coverage of "A" = 24' x "B" = 26'. Using vertical louvers set at maximum sideward spread, the maximum mounting height would be 16 feet, and the floor coverage would be "A" = 26' and "B" = 28' plus 10' or 38'.

/hr

Form RZ-NA-C-UH Page 30

Page 33

Page __________ of __________

Sound Data

Sound (in dBA) from Models UDAP and UDAS

at various distances.

5 Feet 10 Feet 15 Feet

Si z e 1.5 me te r s 3. 0 m ete rs 4.6 m e ters

30 59 47 40 45 59 47 40 60 59 47 40

75 69 55 49 100 N/A 58 54 125 N/A 59 55

150 N/A 55 51 175 N/A 55 52 200 N/A 56 53

225 N/A 59 56 250 N/A 59 56 300 N/A 62 59

350 N/A 64 61 400 N/A 65 62

Sound (in dBA) from Models UDBP and UDBS

at a distance of 15 feet (4.6 meters).

Size

Blower Sp eed 30 45 60 75 100 125 Low 57 50 59 60 59 59

Medium 58 53 62 63 63 63 High 60 57 64 64 66 66

Size

Tem p er atur e Rise 150 175 200 225 250 300 350 400 * 75°F (24°C) 51 56 58 61 63 64 65 67

60°F (16°C) 56 59 62 63 66 70 72 71 45°F (7°C) 62 69 71 71 75 76 78 79

* Note: The temperature rises of the Model 400 are 80°F (27°C), 70°F (21°C), and 50°F (10°C).

Form RZ-NA-C-UH Page 31

Page 34

BLOWER CHARTS - Models UDBP and UDBS

Blower Curves for Sizes 30 - 45 (Direct Drive Blower Motors)

UDBP/UDBS 30

Page __________ of __________

TEMPERATURE RISE (DEG. F.)

0.00 0.10 0.20 0.30 0.40 0.50

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

LOW

HIGH

MED

304

325

350

380

414

456

506

569

CFM

UDBP/UDBS 45

LOW

MED.

TEMPERATURE RISE (DEG. F.)

0.00 0.10 0.20 0.30 0.40 0.50

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

HIGH

456

488

526

569

621

683

759

854

CFM

Form RZ-NA-C-UH Page 32

Page 35

BLOWER CHARTS - Models UDBP and UDBS (cont'd)

Blower Curves for Sizes 60 - 75 (Direct Drive Blower Motors)

UDBP/UDBS 60

Page __________ of __________

LOW

MED

HIGH

TEMPERATURE RISE (DEG. F.)

0.00 0.25 0.50 0.75

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

607

651

701

759

828

911

1012

1139

CFM

UDBP/UDBS 75

LOW

MED

HIGH

TEMPERATURE RISE (DEG. F.)

0.00 0.25 0.50 0.75

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

759

813

876

949

CFM

1035

1139

1265

Form RZ-NA-C-UH Page 33

Page 36

BLOWER CHARTS - Models UDBP and UDBS (cont'd)

Blower Curves for Sizes 100 - 125 (Direct Drive Blower Motors)

UDBP/UDBS 100

Page __________ of __________

LOW

MED

HIGH

TEMPERATURE RISE (DEG. F.)

0.00 0.25 0.50 0.75

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

1076

1153

1241

1345

CFM

1467

1614

1793

2017

UDBP/UDBS 125

LOW

MED

TEMPERATURE RISE (DEG. F.)

0.00 0.25 0.50 0.75

TOTAL EXTERNAL STATIC PRESSURE (IN. W.C.)

HIGH

1230

1317

1419

1537

CFM

1677

1844

2049

Form RZ-NA-C-UH Page 34

Page 37

Blower Chart for Sizes 150 - 400

Standard motor and drive shown shaded.

Page __________ of __________

BLOWER CHARTS - Models UDBP and UDBS (cont’d)

UDBP a n d

UDBS

150

175

200

225

250

300

350

400

TEMP

RISE

°F

EXTERNAL Static P ressure

.50"

CFM

Nozzle Option with Louvers

0" .25"

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2562 730 0.43 730 0.43 730 0.43 840 0.55 930 0.68 1921 520 0.25 520 0.25 520 0.25 655 0.35

780 0.43

1537 405 0.17 405 0.17 405 0.17 2989 910 0.68 910 0.68 910 0.68 960 0.83 1055 0.98

2242 660 0.44 660 0.44 660 0.44 775 0.51 865 0.63 1793 545 0.28 545 0.28 545 0.28 665 0.38

3416 1020 0.91 1020 0.91 1020 0.91 1090 1.07 1160 1.24 2562 730 0.49 730 0.49 730 0.49 885 0.63 935 0.76 2049 600 0.34 600 0.34 600 0.34 720 0.45 830 0.51

3843 740 1.05 740 1.05 740 1.05 845 1.22 885 1.40 2882 530 0.60 530 0.60 530 0.60 670 0.74 730 0.89 2306 430 0.42 430 0.42 430 0.42 565 0.54 640 0.66

4270 900 1.30 900 1.30 900 1.30 935 1.49 980 1.69 3202 660 0.73 660 0.73 660 0.73 730 0.88 790 1.04 2562 570 0.56 570 0.56 570 0.56 610 0.69 685 0.83

5123 990 2.04 990 2.04 990 2.04 1020 2.29 1070 2.55 3843 735 1.29 735 1.29 735 1.29 795 1.49 865 1.71 3074 600 0.95 600 0.95 600 0.95

5977 1040 2.95 1040 2.95 1040 2.95 1075 3.24 1130 3.54 4483 800 1.80 800 1.80 800 1.80 850 2.04 930 2.28 3586 630 1.33 630 1.33 630 1.33

6185

1055 3.56 1055 3.56 1055 3.56

720 1.45

1090 3.86 1170 4.17

4392 790 1.98 790 1.98 790 1.98 875 2.17 1020 2.42 4100 675 1.76 675 1.76 675 1.76 750 1.99

Form RZ-NA-C-UH Page 35

Page 38

Page __________ of __________

Blower Chart

Model B with Belt Drive Motor

Model B and BE unit heaters are designed to handle up to .5" w.c. of static pressure with temperature rises as shown from 45oF to 75oF. The following chart indicates the CFM, the motor HP, and the optional drive required to achieve the desired temperature rise with external pressures from 0 to .5" w.c.

Drive Option Key (see chart on next page):

AM __

N.R.

The "AM" drive will provide the selected CFM and temperature rise when installed with the total external static pressure listed but

MAY

require field-adjustment of the blower speed (CFM). Check the temperature rise and the motor amps. If adjustment is needed, follow "Blower Speed Adjustment" instructions in the heater installation manual.

The temperature rise and static pressure combination is not recommended for the heater size.

STD

The standard drive as set at the factory provides the selected CFM and temperature rise when installed with the external static pressure listed.

The standard drive will provide the selected CFM and temperature rise when installed with the total external static pressure listed but

REQUIRES

field-adjustment of the blower speed (CFM). Follow the "Blower Speed Adjustment" instructions in the heater installation manual.

NOTES: (1) Sizes 50-100 do not show a standard drive because they have a standard direct drive blower motor. For a

Size 50-100 with an optional belt-driven motor and blower, an "AM" option must be selected.

(2) If the unit includes an optional blower cabinet, see the chart below for pressure drop information.

Heater Size

25 50 75 100 125 165 200 250 300 400 Temp. Filter Thickness Rise 1" 2" 1" 2" 1" 2" 1" 2" 1" 2" 1" 2" 1" 2" 1" 2" 1" 2" 1" 2"

0.004 0.007 0.01 0.015 0.018 0.032 0.032 0.055 0.05 0.075 0.018 0.03 0.026 0.045 0.017 0.028 0.024 0.038 0.026 0.045

75°F

0.004 0.008 0.01 0.018 0.023 0.034 0.036 0.058 0.055 0.1 0.021 0.035 0.03 0.052 0.019 0.031 0.027 0.045 0.03 0.052

70°F

0.005 0.009 0.011 0.019 0.024 0.04 0.041 0.069 0.065 0.12 0.024 0.04 0.035 0.06 0.023 0.036 0.03 0.053 0.035 0.06

65°F

0.005 0.009 0.014 0.023 0.028 0.047 0.052 0.087 0.085 0.14 0.028 0.047 0.041 0.07 0.025 0.042 0.035 0.061 0.041 0.07

60°F

0.006 0.01 0.016 0.027 0.034 0.057 0.065 0.105 0.1 0.16 0.033 0.057 0.047 0.08 0.03 0.051 0.041 0.072 0.047 0.08

55°F

0.006 0.01 0.018 0.029 0.041 0.069 0.07 0.12 0.13 N.R. 0.04 0.068 0.057 0.095 0.035 0.062 0.04 0.085 0.057 0.095

50°F

0.007 0.011 0.024 0.04 0.05 0.086 0.092 0.16 0.18 N.R. 0.049 0.082 0.07 0.14 0.043 0.074 0.065 0.12 0.07 0.14

45°F

(3) Key to Drive Options

AM1 401-450 RPM AM6 651-700 RPM AM10 851-900 RPM AM14 1051-1100 RPM AM2 451-500 RPM AM7 701-750 RPM AM11 901-950 RPM AM15 1101-1150 RPM

AM3 501-550 RPM AM8 751-800 RPM AM12 951-1000 RPM AM16 1151-1200 RPM AM4 551-600 RPM AM9 801-850 RPM AM13 1001-1050 RPM AM17 1201-1250 RPM AM5 601-650 RPM

Form RZ-NA-C-UH Page 36

Optional Blower/Filter Cabinet for Models B

● Shipped separately for field

assembly and installation

● Filter Rack (less filters)

● Filter Rack with 1" or 2"

Permanent Filters

Page 39

Page __________ of __________

Blower Chart - Models B with Belt Drive Motor

Total External Static Pressure ("w.c.)

Model Temp 0 0.1 0.2 0.3 0.4 0.5

B & BE Rise ° F CFM D r iv e HP Drive HP Drive HP Driv e HP Drive HP Drive HP

75 1235 AM4 1/3 AM4 1/3 STD 1/3 STD 1/3 AM7 1/3 AM8 1/3

Size 70 1320 STD 1/3 STD 1/3 STD 1/3 AM7 1/3 AM8 1/3 AM9 1/2

125 60 1540 STD 1/3 STD 1/3 AM7 1/3 AM8 1/2 AM9 1/2 AM10 1/2

50 1850 AM7 1/2 AM8 1/2 AM9 1/2 AM9 1/2 AM10 1/2 AM11 3/4 45 2055 AM8 1/2 AM9 3/4 AM10 3/4 AM11 3/4 AM11 3/4 AM13 3/4 75 1630 AM3 1/2 STD 1/2 STD 1/2 STD 1/2 AM7 1/2 AM8 1/2

Size 70 1750 AM3 1/2 STD 1/2 STD 1/2 AM6 1/2 AM7 1/2 AM8 1/2

165 60 2040 STD 1/2 STD 1/2 AM7 1/2 AM7 3/4 AM8 3/4 AM8 3/4

50 2440 AM7 3/4 AM7 3/4 AM8 3/4 AM9 3/4 AM10 1 AM11 1 45 2715 AM9 1 AM9 1 AM10 1 AM11 1 AM11 1 AM12 1 75 1975 STD 1/2 STD 1/2 STD 1/2 STD 1/2 AM4 1/2 AM5 3/4

Size 70 2115 STD 1/2 STD 1/2 STD 1/2 STD 1/2 AM4 1/2 AM5 3/4

200 60 2470 STD 1/2 STD 1/2 AM3 1/2 AM4 3/4 AM5 3/4 AM6 3/4

50 2960 AM3 3/4 AM4 3/4 AM4 3/4 AM5 1 AM6 1 AM6 1 45 3290 A M4 1 A M4 1 AM5 1 A M6 1 A M6 1 AM7 1 1/2 75 2470 AM2 1/2 AM2 1/2 STD 3/4 STD 3/4 AM5 3/4 AM5 3/4

Size 70 2645 AM2 1/2 STD 3/4 STD 3/4 STD 3/4 AM5 3/4 AM6 3/4

250 60 3085 STD 3/4 STD 3/4 AM5 3/4 AM5 1 AM6 1 AM7 1

50 3700 A M5 1 A M5 1 1/ 2 AM 6 1 1/2 AM 7 1 1/2 A M7 1 1/2 A M 8 1 1/ 2 45 4115 A M6 1 1/2 A M7 1 1/2 A M7 2 AM8 2 AM 8 2 A M 8 2 75 2960 STD 1 STD 1 STD 1 STD 1 AM6 1 AM6 1

Size 70 3170 STD 1 STD 1 STD 1 STD 1 AM6 1 AM7 1 1/2

300 60 3700 STD 1 STD 1 A M 6 1 1/2 AM 7 1 1/2 A M7 1 1/2 A M 8 1 1/ 2

50 4440 AM7 2 AM8 2 AM8 2 AM9 2 AM9 3 AM10 3 45 4935 AM9 3 AM9 3 AM9 3 AM10 3 AM11 3 AM11 3 75 3950 A M2 1 1/2 S TD 1 1/2 S TD 1 1/2 STD 1 1/2 S TD 1 1/2 AM 6 1 1/2

Size 70 4230 STD 1 1/2 S TD 1 1/2 STD 1 1/2 STD 1 1/ 2 AM6 1 1/ 2 AM 6 1 1/2

400 60 4935 S TD 1 1/2 S TD 1 1/2 STD 1 1/2 AM6 2 AM7 2 AM7 2

50 5925 AM7 3 AM8 3 AM8 3 AM9 3 AM9 3 AM9 3 45 6580 AM9 5 AM9 5 AM10 5 AM11 5 AM11 5 AM12 5

B & BE Rise ° F CFM D r iv e HP Drive HP Drive HP Driv e HP Drive HP Drive HP

Model Temp 0 0.1 0.2 0.3 0.4 0.5

Total External Static Pressure ("w.c.)

Form RZ-NA-C-UH Page 37

Page 40

Page __________ of __________

Blower Curves

Model B with Direct Drive Motor

The blower curves for Models B (Sizes 25, 50, 75 and 100) with direct drive motors indicate the temperature rise available for each size of heater at a given total external static pressure. These units are designed and certified for total external static pressures up to .5" w.c. and temperature rises from 45°-75°F.

The direct drive motors are equipped with multispeed taps for speed adjustment as indicated on the curve charts. Models 25 and 75 are factory-wired to the medium speed tap; Models 50 and 100 are factory-wired to the high-speed tap.

NOTE: If the heater includes a blower cabinet, refer to appropriate pressure drop chart.

RISE

TEMPERATURE

75°F

70°F

65°F

60°F

55°F

50°F

45°F

40°F

35°F

30°F

75°F

B25

Low-speed Tap

Medium-speed Tap

0 .10 .15 .20 .25 .35 .50

Total External Static Pressure (Inches W.C.)

B50

245

260

280

305

335

CFM

370

410

460

525

615

490

70°F

65°F

60°F

55°F

RISE

50°F

TEMPERATURE

45°F

40°F

35°F

30°F

Form RZ-NA-C-UH Page 38

Medium-speed Tap

High-speed Tap

0 .10 .15 .20 .25 .35 .50

Total External Static Pressure (Inches W.C.)

525

565

615

670

CFM

740

820

925

1055

1230

Page 41

Page __________ of __________

Blower Curves (cont'd)

Apply to Models B with Direct-Drive Motor

RISE

TEMPERATURE

75°F

70°F

65°F

60°F

55°F

50°F

45°F

40°F

35°F

30°F

B75

Low-speed Tap

Medium-speed Tap

0 .10 .15 .20 .25 .35 .50

Total External Static Pressure (Inches W.C.)

High-speed Tap

740

790

850

925

1010

CFM

1110

1230

1385

1585

1850

RISE

TEMPERATURE

75°F

70°F

65°F

60°F

55°F

50°F

45°F

40°F

35°F

30°F

B100

Low-speed Tap

Medium-speed Tap

High-speed Tap

0 .10 .15 .20 .25 .35 .50

Total External Static Pressure (Inches W.C.)

985

1055

1135

1230

1345

CFM

1480

1645

1850

2115

2465

Form RZ-NA-C-UH Page 39

Page 42

Page __________ of __________

MOTOR FULL LOAD AMP TABLE

HP Type FLA RPM V PH

0.25 Open 5.1 1750 120 1

2.1 1750 208 1

2.3 1750 230 1

1.1 1750 208 3

1.4 1750 230 3 .75 1750 460 3

0.25 TEFC 3.6 1750 120 1

2.2 1750 208 1

1.9 1750 230 1

1.6 1750 208 3

1.4 1750 230 3

0.7 1750 460 3

0.33 Open 5.5 1750 120 1

3.2 1750 208 1

2.8 1750 230 1

1.4 1750 208 3

1.6 1750 230 3

0.8 1750 460 3

0.33 TEFC 4.6 1750 120 1

2.3 1750 208 1

2.4 1750 230 1

1.2 1750 208 3

1.2 1750 230 3

0.6 1750 460 3

0.50 Open 8.8 1750 120 1

5.1 1750 208 1

4.4 1750 230 1

3.0 1750 208 3

2.5 1750 230 3

1.0 1750 460 3

0.50 TEFC 7.0 1750 120 1

3.4 1750 208 1

3.5 1750 230 1

2.3 1750 208 3

2.0 1750 230 3

HP Type FLA RPM V PH

1.0 1750 460 3

0.7 1750 575 3

0.75 Open 11.0 1750 120 1

6.3 1750 208 1

5.5 1750 240 1

2.9 1750 208 3

2.6 1750 240 3

1.3 1750 460 3

0.75 TEFC 11.0 1750 120 1

5.4 1750 208 1

5.5 1750 230 1

2.0 1750 208 3

2.2 1750 230 3

1.1 1750 460 3

0.8 1750 575 3

1.0 Open 13.0 1750 120 1

7.5 1750 208 1

6.5 1750 240 1

3.7 1750 208 3

3.2 1750 240 3

1.6 1750 460 3

1.1 1750 575 3

1.0 TEFC 13.0 1750 120 1

6.5 1750 230 1

3.3 1750 208 3

3.4 1750 230 3

1.7 1750 460 3

1.4 1750 575 3

1.5 Open 15.0 1750 120 1

8.3 1750 208 1

7.5 1750 230 1

5.6 1750 208 3

5.0 1750 230 3

HP Type FLA RPM V PH

2.7 1750 460 3

1.6 1750 575 3

1.5 TEFC 16.4 1750 120 1

9.5 1750 208 1

8.2 1750 230 1

4.3 1750 208 3

4.4 1750 230 3

2.2 1750 460 3

1.6 1750 575 3

2.0 Open 20.4 1750 120 1

10.0 1750 208 1

10.2 1750 230 1

7.0 1750 208 3

6.6 1750 230 3

3.5 1750 460 3

2.1 1750 575 3

2.0 TEFC 24.0 1750 120 1

12.0 1750 230 1

6.5 1750 208 3

5.8 1750 230 3

2.9 1750 460 3

2.3 1750 575 3

3.0 Open 14.0 3600 208 1

12.4 3600 230 1

9.0 3600 208 3

8.6 3600 230 3

4.3 3600 460 3

3.6 3600 575 3

3.0 TEFC 30.0 3600 120 1

15.0 3600 230 1

8.5 3600 208 3

8.2 3600 230 3

4.1 3600 460 3

3.0 3600 575 3

Form RZ-NA-C-UH Page 40

Page 43

Page __________ of __________

Installation Procedures

WARNING: Gas-fired appliances are not designed for use in hazardous atmospheres containing flammable vapors or combustible dust, or atmospheres containing chlorinated or halogenated hydrocarbons.

Installations in public garages or airplane hangars are permitted when in accordance with ANSI Z223.1 and NFPA 54 codes or CAN1-B149 and enforcing authorities.

FOR YOUR SAFETY

What to do if you smell gas:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, immediately call your fire department.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

Requirements for installation vary depending on the model of heater and the type of installation. Follow the manufacturer's

instructions and comply with all applicable codes.

Some venting requirements that apply to specific gas-fired models are shown on the following pages.

OPTIONAL POWER VENTING OF GRAVITY VENTED UNITS - Models F and B

Use only the Reznor® power venter designed for the particular model and size of heater.

Understand the operation before installing. When a venter is used with a heater, the room thermostat turns the venter on and off, and the venter turns the gas controls on and off. When the space calls for heat, the room thermostat contacts close the circuit which starts the venter. When the venter starts, air from the venter blower closes an air switch that is built into the venter.

Closing of the air flow switch sends an electric current to the burner controls, opening the gas valve and sending gas to the burners. When the thermostat is satisfied, the thermostat turns off the venter and the gas controls. As the venter blower stops, the airflow switch resets to the open position.

Form RZ-NA-C-UH Page 41

Page 44

Venting/Inlet Air for Separated

Combustion Models - Applies to

Models UDAS, UDBS and SHE

Separated-combustion principles used in these Reznor

products.

● Air for combustion is mechanically induced from

outside the building, preventing dirt, lint, dust or other contaminants in the indoor atmosphere from entering the burner or combustion zone of the furnace.

● The airflow is metered to provide optimum and efficient

combustion that is unaffected by negative building pressure or wind.

● After combustion, the air is exhausted back to the

outdoor atmosphere.

Reznor these benefits while requiring only one building penetration. See the venting illustrations.

IMPORTANT NOTE: The following illustrations do not accurately picture all models, but the fundamental principle is the same. Refer to the heater installation manual for specific vent/inlet air requirements.

separated combustion products provide all of

Page __________ of __________

Model UDAS - VENT/COMBUSTION AIR INLET ARRANGEMENTS FOR A REZNOR SEPARATED COMBUSTION HEATER

A Model UDAS heater requires installation of either the horizontal or vertical vent/combustion air arrangement illustrated below. A horizontal or vertical kit must be selected. The installer must comply with all instructions provided with the heater.

Model UDBS - VENT/COMBUSTION AIR INLET ARRANGEMENTS FOR A REZNOR SEPARATED COMBUSTION HEATER

A Model UDBS heater requires installation of either the horizontal or vertical vent/combustion air arrangement illustrated below. A horizontal or vertical kit must be selected. The installer must comply with all instructions provided with the heater.

Typical installation of a horizontal vent/inlet air terminal and concentric adapter

Typical installation of a vertical vent terminal and concentric adapter

Pi pe Diam e te r a n d Ma x imu m Pi pe Leng th from Heate r to Conce ntric Ada pter

Pipe Diameter Maximum Equivalent Straight Length for

Vent Pi p e In let Air Pip e Pipe Length 90° Elbow 45° Elbow

Model Size inches mm inches mm feet M feet M feet M

30 45 60 75 100

UDAS/ 125

UDBS 150

175 200 225 250 300 350 400

225

SHE 300

400

Form RZ-NA-C-UH Page 42

3 76 3 76 15 4.6 2 0.6 1 0.3 3 76 3 76 15 4.6 2 0.6 1 0.3 3 76 3 76 25 7.6 3 0.9 1.5 0.5 4 102 4 102 25 7.6 3 0.9 1.5 0.5 4 102 4 102 35 10.7 4 1.2 2 0.6 4 102 4 102 35 10.7 4 1.2 2 0.6 5 127 6 152 30 9.1 3 0.9 1.5 0.5 5 127 6 152 30 9.1 3 0.9 2 0.6 5 127 6 152 40 12.2 4 1.2 2 0.6 5 127 6 152 40 12.2 4 1.2 2 0.6 5 127 6 152 40 12.2 4 1.2 2 0.6 6 152 6 152 45 13.7 4 1.2 2 0.6 6 152 6 152 45 13.7 5 1.5 2.5 0.8 6 152 6 152 45 13.7 5 1.5 2.5 0.8

4 102 4 102 27 8.2 5 1.5 3.5 1.1 6 152 6 152 30 9.1 5 1.5 3.5 1.1 6 152 6 152 30 9.1 5 1.5 3.5 1.1

Page 45

Page __________ of __________

Venting/Inlet Air for Separated

Combustion Models (cont'd)

Maximum

60 (1,524mm)

Side View of a Horizontal

Vent/Combustion Air

System for a Separated

Combustion Unit

A horizontal vent/combustion

air kit is identified

as Option CC6.

Screened

6 ft (1.8M)

Minimum

Adjoining Building

Exhaust

Cap

Building Overhang

3 ft (1M)

minimum

6-15/16

(176mm)

3 ft (1M)

minimum

Building Projection

Exhaust (Vent) Cap IMPORTANT: Install exhaust cap so the baffles are positioned at 12:00, 3:00, 6:00, and 9:00 oclock.

Minimum

2 (51mm)

Vent Pipe -

Pitch to

Drain

Inlet Air

Guard

16 (406mm)

Minimum

24 (610mm)

Maximum

1 (25mm)

Minimum

48

(1,143mm)

Maximum

Wall

Minimum 6 (152mm) if wall is combustible (Attach box to wall with field-supplied brackets.)

Combustion Air Pipe - Pitch to Drain

Distance between the

Concentric Adapter Box

6

(152mm)

Thimble

If a vent pipe dimension change is required, install a taper-type connector no more than 6 (152mm) from the box.

and the Heater

See Vent Table

Combustion Air (seal joints)

Vent (Flue Exhaust) Pipe

(seal joints)

Concentric Adapter Box

Heater

Side View of a Vertical Vent/

Combustion Air System for a

Separated Combustion Unit

A vertical vent/combustion air kit is

identified as Option CC2.

Vent (flue

6 ft (1.8M) minimum

Wall or Adjoining Building

6 (152mm) if roof is combustible (Attach box to roof with field-supplied brackets.)

*Inlet air cap must be at least 6

higher than anticipated snow depth.

exhaust) Pipe

Combustion

Air Inlet

Flashing

(field-supplied)

Roof

Concentric

Adapter Box

Vent (flue

exhaust) Terminal

9-3/8 (238mm)

12 (305mm)

minimum

Seal with high temperature silicone sealant supplied with the kit.

11 (279mm)

*18 (457mm) minimum

Sizes 30, 45, 60, 300, 350, and 400, install a taper-type connector no more than 6 (152mm) from the box.

5 ft (1.5M)

maximum

Distance between the Concentric Adapter Box and the Heater See Vent Table

Form RZ-NA-C-UH Page 43

Page 46

Page __________ of __________

Pilot, Gas Control, and Air Control

Descriptions

PILOT IGNITION SYSTEMS

Manual Pilot: Manual match lit pilots with 100% shutoff, pilot remains on 100% of time until pilot gas flow is

●

shut off (Models F & B Only).

● Intermittent Spark Pilot: Automatic lighting of pilot with an electronic spark on a call for heat. Pilot gas flow

is shutoff between heat cycles. Approved for use in the United States with the natural gas supply only on indoor and outdoor units (Models F & B Only).

● Intermittent Spark Pilot with Timed Lockout: Automatic lighting of pilot with an electronic spark on a call for

heat. Pilot gas flow is shutoff between heating cycles. Locked device stops gas flow to the pilot if the pilot fails to light in 120 seconds. Reset of lockout requires manual interruption of the thermostat circuit. Approved for use in the Unites States and Canada with natural or propane gas on indoor and outdoor applications (Models F & B Only).

● Direct Spark Ignition with Timed Lockout. Automatic lighting of the burner with an electronic spark on a

call for heat by the thermostat. There is no pilot. Trial for ignition is ten seconds after which, if flame is not sensed, the unit tries for ignition again. If ignition is not proven after three attempts the unit will lockout and then automatically retry after a one hour down period (Models UDAP, UDAS, UDBP & UDBS Only).

GAS CONTROL SYSTEMS

Single Stage: Single-stage gas valve which cycles on at 100% fire on a call for heat.

●

● Two-Stage: Two stage gas valve which fires at 100% or 50% on Models F & B; 100% or 70% on Models

UDAP, UDAS, UDBP & UDBS, as required by a remote two-stage thermostat. (Note: Two-Stage gas valve not available on Models F & B [sizes 25 & 50 MBH] or Models UDAP, UDAS, UDBP & UDBS [sizes 30 & 45 MBH])

AIR CONTROL SYSTEMS

Air Recirculation Kit (Single-stage units only): First stage control of thermostat energizes unit fan to

●

recirculate warm stratified ceiling air. Second stage control of thermostat opens single-stage gas valve.

● Special Air Recirculation Kit (Single-stage units only): Same as the basic kit, with the addition of a manual

summer switch on thermostat for summer fan operation.

Gas-Fired Unit Heaters

Options and Accessories

Apply to Unit Heater Models as Listed

 Optional Stepdown Transformers - Apply to Models F and B

Unit Size

Model 25 50 75 100 125-200 250 300 400

F (heater only) .25 .25 .25 .50 .50 .50 .50 1.00 F with Field-installed Optional Venter .25 .50 .50 .50 .75 .50 .75 1.00 B (heater only) .50 .50 1.0 1.0 B with Field-installed Optional Venter .50 .50 1.0 1.0

Form RZ-NA-C-UH Page 44

Page 47

Options and Accessories (cont'd)

Apply to Unit Heater Models as Listed

Optional Polytube Outlet Adapter - Apply to Models UDBP/UDBS

Description

The optional polytube adapter is designed to adapt suspended Model UDBP and UDBS blower type unit heaters for use with polytube ductwork. Directly in line with the heater discharge, the adapter is installed on the front of the heater and is equipped with a collar for attaching the field-supplied polytube.

The most common application of polytube ductwork for distribution of tempered air is in greenhouses. Polytubes are also used in industrial buildings to improve operating efficiency by recovering stratified air and reducing the need for complete area heating.

Discharge

Panel Assy

Page __________ of __________

Sheetmetal Screw

CFM at

Size

60°F T emp

Rise

75* 960 18 115 Diameter (inches)11111

100* 1345 18 160 Diamete r (inches) 1 1/2 1 1/ 2 1 1/2 1 1/2 1 1/2

125* 1540 18 185 Diamete r (inches) 1 1/2 1 1/ 2 1 1/2 1 1/2 1 1/2

150 1920 24 230 Diameter (inches)22221 7/8

175 2240 24 270 Diameter (inches) 1 7/8 1 7/ 8 1 1/2 1 1/2 1 1/2

200 2560 24 300 Diameter (inches)22222

225 2880 24 340

250 3200 24 380 Diameter (inches) 2 1/4 2 1/ 4 2 1/4 2 2

300 3840 24 460

350 4480 24 540 Diameter (inches) 2 1/2 2 1/ 2 2 1/2 2 1/2 2 1/2

400 5120 24 600

Polytube

Diameter

(inches)

Approximate

Free Ar ea

(squ ar e inches )

Sugge sted Hole S ize s and Loca tions

Holes

Qua ntit y 75 pairs 75 pairs 75 pair s 75 pairs 75 pairs

Spaci n g (inche s) 8 12 16 20 24 Qua ntit y 48 pairs 48 pairs 48 pair s 48 pairs 48 pairs

Spaci n g (inche s) 12 1/2 18 3/4 25 31 1/4 37 1/2 Qua ntit y 50 pairs 50 pairs 50 pair s 50 pairs 50 pairs

Spaci n g (inche s) 1 2 18 24 30 36 Qua ntit y 40 pairs 40 pairs 40 pair s 40 pairs 45 pairs

Spaci n g (inche s) 1 5 22 1/2 30 Qua ntit y 50 pairs 50 pairs 80 pair s 80 pairs 80 pairs

Spaci n g (inche s) 1 2 18 15 18 3/4 22 1/2 Qua ntit y 50 pairs 50 pairs 50 pair s 50 pairs 50 pairs

Spaci n g (inche s) 1 2 18 24 30 36 Qua ntit y 42 pairs 42 pairs 42 pair s 42 pairs 42 pairs Diameter (inches) 2 1/4 2 1/ 4 2 1/4 2 1/4 2 1/4 Spaci n g (inche s) 1 4 21 28 35 42 Qua ntit y 50 pairs 50 pairs 50 pair s 60 pairs 60 pairs

Spaci n g (inche s) 1 2 18 24 25 30 Qua ntit y 60 pairs 60 pairs 75 pair s 75 pairs 75 pairs Diameter (inches) 2 1/4 2 1/ 4 2 2 2

Spaci n g (inche s) 1 0 15 16 20 24 Qua ntit y 50 pairs 50 pairs 50 pair s 50 pairs 50 pairs

Spaci n g (inche s) 1 2 18 24 30 36 Qua ntit y 60 pairs 60 pairs 75 pair s 75 pairs 75 pairs Diameter (inches) 2 1/2 2 1/ 2 2 1/4 2 1/4 2 1/4

Spaci n g (inche s) 1 0 15 16 20 24

50 Ft 75 Ft 100 Ft 125 Ft 150 Ft

Le ngth of Polytube

37 1/2 40

* Required direct drive

Form RZ-NA-C-UH Page 45

blower speed.

Size Speed 75 Low 100 Low 125 Medium

Page 48

Options and Accessories (cont'd)

Apply to Unit Heater Models as Listed

Optional Polytube Outlet Adapter - Apply to Model B

Description

The optional outlet nozzle is designed to allow the attachment of polytubetype air distribution for use in greenhouse and industrial buildings. Outlet on suspended heater may be either above, below, or directly in line with the heater discharge. A kit is available to floor mount the heater with outlet below the heater discharge (see illustration). Model B standard blower and drive are designed to handle rated CFM at .25 w.c. ESP, and will inflate a 24" tube up to 150 ft long. See table for proper free area, minimum number of holes and sizes. Units may be used for greenhouse heating and ventilating or in industrial applications requiring high mounting heights or spot heating by means of polytube distribution.

The total open or free area of the polytube is important. Polytube suppliers have a great deal of flexibility in placement and sizing of holes. Too small of a free area will cause overheating. Excessive open area may not permit the tube to inflate. See the table below for a guide in hole size and location. Spacing and hole size may be varied, but free area must not be less than shown for the heater being installed.

Greenhouse Application - For greenhouse use, the number of units required is generally based on an airflow volume of 1-1/2 to 2 CFM per square foot of house floor area. Depending on the heat loss requirements of the house type, location, and desired temperature above ambient, the ventilation requirements determine the number of distribution systems required and the heat loss determines the BTUH heater size required. As a general rule, a single system will serve a maximum house width of 30 ft and a length of 150 ft.

CFM at Polytube Minimum Free

Size .25" Diameter Area (square Le ngth of Polytube

ESP (inches) Inches)

75 925 18 110 Diameter 1-1/2" 1" 1"

100 1235 18 145 Diameter 1-1/2" 1-1/2" 1" 1"

125 1540 18 185

130 1600 24 190

165 2035 24 240 Diameter 1-7/8" 1-7/8" 1-1/2" 1-1/2" 1-1/2"

200 2465 24 300 Diameter 2-1/4" 2-1/4" 1-7/8" 1-7/8" 1-1/2"

250 3085 24 360

300 3700 24 425 Diameter 2" 2" 2" 2" 2"

400 4935 24 550 Diameter 2-1/2" 2-1/2" 2-1/2" 1-7/8" 1-7/8"

Form RZ-NA-C-UH Page 46

Number 37pairs 75 pai r s 75 pairs

Spacing 16" 12" 16" Number 50 pairs 50 pairs 100 pairs 94 pairs

Spacing 12" 18" 12" 16" Number 40 pairs 60 pairs 60 pa i r s 125 pai r s Diameter 1-7/8" 1-1/2" 1-1/2" 1"

Spacing 15" 15" 20" 12" Number 40 pairs 60 pairs 60 pa i r s 125 pai r s Diameter 1-7/8" 1-1/2" 1-1/2" 1"

Spacing 15" 15" 20" 12" Number 50 pairs 50 pairs 75 pa i r s 75 pair s 75 pairs

Spacing 12" 18" 16" 20" 24" Number 42 pairs 42 pairs 60 pa i r s 60 pair s 100 p air s

Spacing 14" 21" 20" 25" 18" Number 40 pairs 60 pairs 60 pa i r s 60 pair s 60 pairs Diameter 2-1/2" 2" 2" 2" 2"

Spacing 15" 15" 20" 25" 30" Number 75 pairs 75 pairs 75 pa i r s 75 pair s 75 pairs

Spacing 9" 12" 16" 20" 24" Number 60 pairs 60 pairs 60 pa i r s 100 pai r s 100 pairs

Spacing 10" 15" 20" 15" 18"

Sugge sted Hole S iz es and Loca tions

Holes

50 Ft 75 Ft 100 Ft 125 Ft 150 Ft

Page __________ of __________

Photograph shows polytube outlet. The

outlet nozzle requires field assembly and installation on the standard unit in place of the top front panel and louvers. The heater

manufacturer does not supply tubing.

Tubing can be ordered from a local

greenhouse supply distributor. Two such

suppliers are FOF Products, Inc. P. O. Box

E, 1505 Racine Street, Delevan, WI 53115 and ACME Engineering Co., P. O Box 978,

Muskogee, OK 74402.

CAUTION: To prevent overheating of the blower unit heater and to ensure correct air distribution, the minimum hole area must be provided as shown in the table for each size. If more holes are used, do not exceed 1.25 times the minimum area shown to ensure proper tube inflation.

Conversion Table (Diameter to Area)

Diameter Area

of the of the

Hole Hole (inches) (square inches) 2-1/2 4.91 2-1/4 3.98 2 3.14 1-7/8 2.76 1-1/2 1.76 1 0.785

Page 49

Page __________ of __________

4

5

31

15

1-1/2

1 DRAIN

2 GAUGE

2 FILL

2 VENT

4 EMERGENCY

VENT

Optional Downturn Nozzles - Apply to Models UDAP, UDAS, UDBP, UDBS, F and B

Optional Downturn Nozzle with 25°-65° Range of Air Deflection

• Shipped separately for field assembly and installation

Model OT Oil Tank - Apply to Models OH and OB

DESCRIPTION

The Model OT250 fuel tank is a 250-gallon, single-wall, indoor, UL-listed fuel oil tank. Oil tanks often eliminate needed work and storage space, but the Model OT-250 oil tank is designed with a work bench top that allows the tank itself to be used as a work area. The tank has a large (12-1/ 2 sq ft) work surface with 2" side and rear retainer lips and 3" legs for "toe space".

Tank construction is of 12-gauge carbon steel with all welded seams. The painted exterior coordinates with Reznor

tate installation. The support legs provide convenient space for forklift handling. Each tank has the following connection ports -- 2" supply; 2" gauge' 2" vent' 4" emergency vent; and 1" drain. Each port has heavy duty forged threads.

oil-fired heaters.

The Reznor® OT-250 fuel tank is also engineered to facili-

Model OT-250 tank is UL listed to UL142 Standard.

Optional Downturn Nozzle with 50°-90° Range of Air

IMPORTANT: On fan Models UDAP,

UDAS and F, vertical louvers in combination with a nozzle with 50-90° range of air deflection.

Deflection

DIMENSIONS - Model OT Fuel Tank

FRONT VIEW

60

do not

use optional

33

OPTIONS/ACCESSORIES - Field Installed

· Heater stand for Model OT tank used with Model OH

heater only

Model OH Oil Heater

Model

OT-250

Oil

Tank

Heater Stand

(Option ST1)

SIDE VIEW

30

Port Locations

Form RZ-NA-C-UH Page 47

Page 50

Page __________ of __________

Sample Specifications (cont'd)

GAS-FIRED, SEPARATED COMBUSTION UNIT HEATERS

Provide (82%, 83%) high-efficiency , separated-combustion, power vented, gas-fired unit heaters manufactured as Reznor® brand units. The unit shall be designed for use in a building with negative pressures up to 0.15 “ w .c. and for use in building where a non-explosive atmosphere exist that is dust laden and/or contains mildly corrosive fumes.

Model UDAS

Each of the 14 sizes in the Model UDAS series shall be equipped for use with (natural) (propane) gas. Gas connection shall be external to the cabinet.

Heat Exchanger

The heater shall be equipped with a multicell, 4 pass serpentine style steel heat exchanger. Heat exchanger tubes shall be press fabricated of (titanium stabilized, corrosion resistant aluminized steel) (409 stainless steel) (316 stainless steel). All heat exchangers shall be fabricated with no welding or brazing, only tool pressed mechanical joints. All heat exchanger cells shall be designed with an aerodynamic cross section to provide maximum airflow.

Burner

The units shall incorporate a single, one piece burner assembly with a single orifice. The burner shall have a continuous wound close pressed stainless steel ribbon separating the flame from the burner interior. All units shall have a single venturi tube and orifice supplying fuel to a onepiece burner housing. Each heat exchanger cell shall use balanced draft induction to maintain optimum flame control.

Controls

All controls shall be enclosed in the sealed control compartment to protect them from accidental damage, dust, and atmospheric corrosion.

Combustion Air and Venting

The unit shall have a factory-installed power venter device to draw combustion air from outside of the building. The outside air shall enter the unit through a factory-installed round inlet air terminal on the rear of the heater. The control compartment shall be sealed and the access door shall be gasketed to prevent dirt, lint, dust, or other contaminants present in the heated space from entering the unit. The control compartment door shall be equipped with a safety interlock switch to prevent operation when the door is open.

The combustion air supply pipe and flue exhaust pipe shall be run in parallel from the heater to a factory supplied concentric adapter assembly , which allows for a single wall or roof penetration, to the (horizontal) (vertical) air inlet and vent terminal.

Electrical

Operation shall be controlled by an integrated circuit board that includes LED diagnostic indicator lights. Supply voltage connections shall be made in a sealed junction box. 24-volt control connections shall be made on an externally mounted terminal strip with connections (W1, W2, R, and G). All internal wiring, both line and control voltages, shall be terminated by insulated terminal connectors to minimize shock hazard during service.

Each unit shall be equipped for use with (115/1) (208/1) (230/1) volt power supply. (Stepdown transformers shall be available to be field installed for use with (230/3) (460/3) volt power supply.)

All units will be equipped with a built-in disconnect switch.

Cabinet

The cabinet shall be low profile with a pre-coat or powdercoat RAL 1001 white paint finish. Finish shall be a minimum 80 gloss on G30 galvanized steel. The cabinet shall be constructed so that screws are not visible from the bottom, front, or sides, except for service panel and accessories. Unit construction shall incorporate a beveled front corner on control side for additional cabinet rigidity. All units shall be manufactured with a tooled drawn supply air orifice on the rear panel to reduce fan inlet noise.

The unit shall be designed for ceiling suspension featuring 3/8”-16 female threads (hanger kits for 1” pipe) at both 2-point and 4point locations with no additional adapter kits. (Hanger kit for ceiling mounting shall be available for Sizes 30-125.)

The cabinet shall be equipped with RAL 3005 burgundy painted, rollformed horizontal louvers. Louvers shall be spring held and adjustable for directing airflow. (Vertical louvers) (downturn nozzles) (downturn nozzles with vertical louvers) shall be available.

The cabinet shall be equipped with a full safety fan guard with no more than ½ inch grill spacing on Sizes 30-125 or no more than 1 inch on Sizes 150-400. The (open dripproof) (enclosed) motor and fan assembly shall be resiliently mounted to the cabinet to reduce vibration and noise.

The unit shall be designed with a full opening service access panel complete with screw closure attachment and lifting handle for removal. Service panel shall be fully gasketed and equipped with a safety interlock switch. All components in the gas train, all standard electrical controls, and the power venter shall be within the sealed service compartment.

Minimum top clearance from combustibles shall be 1” for Sizes 30125 and 4” for Sizes 150-400. Minimum bottom clearance from combustibles shall be 1” for all sizes. Minimum clearance from combustibles on non-service side shall be 1” for Sizes 30-125 and 2” for Sizes 150-400.

Certifications

Model sizes 30, 45, 60, 75, 100 and 125 MBH shall be certified to CSA International Requirement 10-96 U.S. for RESIDENTIAL INSTALLATION. All sizes shall be design certified by the Canadian Standards Association to ANSI Z83.8b and CSA 2.6b for commercial/industrial installation.

Units shall be manufactured in an ISO 9002 certified facility. Manufacturer must have a minimum of 50 years experience in the manufacture of gas fired unit heaters.

Form RZ-NA-C-UH Page 48

Page 51

Page __________ of __________

Sample Specifications (cont'd)

GAS-FIRED, SEPARATED COMBUSTION HIGH STATIC UNIT HEATERS

Provide (82%, 83%) high-efficiency, separated-combustion, power vented, gas-fired unit heaters manufactured as Reznor® brand units. The unit

shall be designed for use in a building with negative pressures up to 0.15 “ w.c. and for use in building where a non-explosive atmosphere exist that is dust laden and/or contains mildly corrosive fumes.

Model UDBS

Each of the 14 sizes in the Model UDBS series shall be equipped for use with (natural) (propane) gas. Gas connection shall be external to the cabinet.

Heat Exchanger

Burner

Controls

Controls shall include a (single-stage) (two-stage) gas valve; direct spark multi-try ignition with electronic flame supervision with 100% lockout integrally controlled via a printed circuit control board. The control board shall also incorporate diagnostic lights, DIP switches for blower overrun settings, and a relay (definite purpose 3 pole contactor) for blower only operation. All open (TEFC) blower motors shall have automatic thermal overload protection or be equipped with a factory installed motor starter with adjustable thermal overloads. All units shall be equipped with a safety limit switch.

All controls shall be enclosed in the sealed control compartment to protect them from accidental damage, dust, and atmospheric corrosion.

Combustion Air and Venting

The combustion air supply pipe and flue exhaust pipe shall be run in parallel from the heater to a factory supplied concentric adapter assembly, which allows for a single wall or roof penetration, to the (horizontal) (vertical) air inlet and vent terminal.

The combustion air/venting system shall include a vibration isolated power venter motor and wheel assembly and a combustion air pressure switch.

Electrical

Operation shall be controlled by an integrated circuit board that includes LED diagnostic indicator lights. Supply voltage connections shall be made in a sealed junction box. 24-volt control connections shall be made on an externally mounted terminal strip with connections W1, W2, R, and G. All internal wiring, both line and control voltages, shall be terminated by insulated terminal connectors to minimize shock hazard during service.

Size 30,000 to 125,000 BTUH units shall be equipped with a 115V power supply (Stepdown transformers shall be available to be field installed for use with a (230) (460) volt power supply.)

Size 150,000 to 400,000 BTUH units shall be equipped for use with 115/1 (208/1) (230/1) (208/3) (230/3) (460/3) (575/3) volt power supply.

All units will be equipped with a suitably rated, factory installed builtin disconnect switch.

Blower

Size 30,000-125,000 BTUH units shall be equipped with a centrifugal blower with direct drive from an open dripproof motor with internal overloads. Size 30,000 and 45,000 BTUH units must be able to handle .5” w.c. of external static pressure. Size 60,000-125,000 BTUH units must be able to handle .75” w.c. of external static pressure. (Size 30,000-125,000 BTUH units may be equipped with a blower inlet guard.)

Size 150,000-400,000 BTUH units shall be equipped with a centrifugal blower and adjustable belt drive and an (open dripproof) (totally enclosed) blower motor with internal overloads. Size 150,000-400,000 BTUH units must be able to handle .5” w.c. of external static pressure. (Size 150,000-400,000 BTUH units may be equipped with an OSHAtype belt guard and blower inlet guard.)

Cabinet

The cabinet shall be low profile with a pre-coat or powdercoat RAL 1001 white paint finish. Finish shall be a minimum 80 gloss on G30 galvanized steel. The heat exchanger/control compartment cabinet shall be constructed so that screws are not visible from the bottom, front, or sides, except for service panel and accessories. Cabinet shall have a beveled front corner on the control side for additional cabinet rigidity.

The unit shall be designed for ceiling suspension featuring 3/8”-16 female threads (hanger kits for 1” pipe) at 4-point locations.

The cabinet shall be equipped with RAL 3005 burgundy painted, rollformed horizontal louvers (duct flange). Louvers shall be spring held and adjustable for directing airflow. (Vertical louvers) (downturn nozzles) (downturn nozzles with vertical louvers) shall be available.

The unit shall be designed with a full opening service access panel complete with captive screw closure attachment and lifting handle for removal. Service panel shall be fully gasketed and equipped with a safety interlock switch. All components in the gas train, all standard electrical controls, and the power venter shall be within the sealed service compartment.

Minimum top clearance from combustibles shall be 6” (152mm) for Size 30,000-125,000 BTUH units and 14” (356mm) for Size 150,000400,000 BTUH units. Minimum bottom clearance from combustibles shall be 1” (25mm) for all size units. Minimum clearance on access

side shall be 18” (457mm) for all sizes. Minimum clearance on nonaccess side shall be 24” (610mm) for all sizes. Minimum rear clear-

ance for all sizes is 18” (457mm).

Certifications

All sizes shall be design certified by the Canadian Standards Association to ANSI Z83.8 and CSA 2.6 for commercial/industrial installation.

Units shall be manufactured in an ISO 9001 certified facility. Manufacturer must have a minimum of 50 years experience in the manufacture of gas fired unit heaters.

Form RZ-NA-C-UH Page 49

Page 52

Page __________ of __________

Sample Specifications (cont'd)

GAS-FIRED, POWER VENTED UNIT HEATERS

Provide (82%, 83%) high-efficiency, power vented, gas-fired unit heaters manufactured as Reznor® brand units designed for use in building areas

where higher reliability is required and venting is either vertical or horizontal.

Model UDAP

Each of the 14 sizes in the Model UDAP series shall be equipped for use with (natural) (propane) gas. Gas connection shall be external to the cabinet.

Heat Exchanger

Burner

Controls

All controls shall be enclosed in the unit housing to protect them from accidental damage that could be caused by factors in the building that would adversely affect external controls.

Combustion Air and Venting

The unit shall have a factory-installed power venter device to draw combustion air through an inlet in the rear of the cabinet.

The combustion air/venting system shall include a vibration isolated power venter motor and wheel assembly and a combustion air pressure switch. Unit Sizes 30-125 shall include a flame rollout switch. (The unit shall be equipped with an approved common vent option to allow venting with another gravity vented Category I gas appliance).

(A vent cap shall be available.)

Electrical

Operation shall be controlled by an integrated circuit board that includes LED diagnostic indicator lights. Supply voltage connections are made at the circuit board. 24-volt control connections shall be made on an externally mounted terminal strip with connections (W1, W2, R, and G). All internal wiring, both line and control voltages, shall be terminated by insulated terminal connectors to minimize shock hazard during service.

Each unit shall be equipped for use with (115/1) (208/1) (230/1) volt power supply. (Stepdown transformers shall be available to be field installed for use with (230/3) (460/3) volt power supply.)

Cabinet

The unit shall be designed with a full opening service access panel complete with screw closure attachment and lifting handle for removal. All components in the gas train, all standard electrical controls, and the power venter shall be within the service compartment.

Certifications

Units shall be manufactured in an ISO 9002 certified facility. Manufacturer must have a minimum of 50 years experience in the manufacture of gas fired unit heaters.

Form RZ-NA-C-UH Page 50

Page 53

Page __________ of __________

Sample Specifications (cont'd)

GAS-FIRED, POWER VENTED HIGH STATIC UNIT HEATERS

Provide (82%, 83%) high-efficiency, power vented, gas-fired unit heaters manufactured as Reznor® brand units designed for use in building areas

where higher reliability is required and venting is either vertical or horizontal.

Model UDBP

Each of the 14 sizes in the Model UDBP series shall be equipped for use with (natural) (propane) gas. Gas connection shall be external to the cabinet.

Heat Exchanger

Burner

Controls

All controls shall be enclosed in the sealed control compartment to protect them from accidental damage, dust, and atmospheric corrosion.

Combustion Air and Venting

The unit shall have a factory-installed power venter device to draw combustion air through an inlet in the rear of the cabinet.

The combustion air/venting system shall include a vibration isolated power venter motor and wheel assembly and a combustion air pressure switch.

(An approved vent cap shall be available.)

Electrical

Operation shall be controlled by an integrated circuit board that includes LED diagnostic indicator lights. Supply voltage connections are made at the circuit board. 24-volt control connections shall be made on an externally mounted terminal strip with connections W1, W2, R, and G. All internal wiring, both line and control voltages, shall be terminated by insulated terminal connectors to minimize shock hazard during service.

Size 30,000 to 125,000 BTUH units shall be equipped with a 115V power supply (Stepdown transformers shall be available to be field installed for use with a (230) (460) volt power supply.)

Size 150,00 to 400,000 BTUH units shall be equipped for use with 115/1 (208/1) (230/1) (208/3) (230/3) (460/3) (575/3) volt power supply.

Blower

Size 150,000-400,000 BTUH units shall be equipped with a centrifugal blower and adjustable belt drive and an (open dripproof) (totally enclosed) blower motor with internal overloads. Size 150,000-400,000 BTUH units must be able to overcome .5” w.c. of external static pressure. (Size 150,000-400,000 BTUH units may be equipped with an OSHA-type belt guard and blower inlet guard.)

Cabinet

The unit shall be designed for ceiling suspension featuring 3/8”-16 female threads (hanger kits for 1” pipe) at 4-point locations.

The unit shall be designed with a full opening service access panel complete with captive screw closure attachment and lifting handle for removal. All components in the gas train, all standard electrical controls, and the power venter shall be within the service compartment.

side shall be 18” (457mm) for all sizes. Minimum clearance on nonaccess side shall be 24” (610mm) for all sizes. Minimum rear clear-

ance for all sizes is 18” (457mm).

Certifications

All sizes shall be design certified by the Canadian Standards Association to ANSI Z83.8 and CSA 2.6 for commercial/industrial installation.

Units shall be manufactured in an ISO 9001 certified facility. Manufacturer must have a minimum of 50 years experience in the manufacture of gas fired unit heaters.

Form RZ-NA-C-UH Page 51

Page 54

Page __________ of __________

Sample Specifications (cont'd)

GAS FIRED, HIGH EFFICIENCY, POWER-VENTED

Model SHE - Propeller fan, separated-combustion model, unit heater

Provide high-efficiency - greater than 90% efficient - gas-fired unit heaters manufactured as Reznor® brand units.

Each Model SHE series unit shall be equipped for use with (natural) (propane) gas and 115/1 volt power supply. The heater shall be equipped with an aluminized steel primary heat exchanger and secondary heat exchanger of corrosion resistant alloy. The heater shall be equipped with an aluminized steel burner rack with die-formed burners.

Standard controls include hot surface ignition with 100% lockout, a single-stage combination gas valve, a 115V fan motor with internal overload protection, a power venter motor, a pressure switch to verify vent flow, fan and limit controls, 24-volt control voltage transformer, horizontal flue and combustion air connections, and horizontal condensation drain connection. Supply air to be dispersed through horizontal louvers.

Units are to be provided for field installation with (horizontal) (vertical) vent/combustion air intake concentric adapter/terminal so that only one (wall) (roof) penetration will be necessary.

Model SHE line of heaters is approved for installation in The United States and Canada by the Canadian Standards Association (CSA). Model SHE units are manufactured in an ISO 9001 facility.

GAS-FIRED, GRAVITY-VENTED UNIT HEATERS

Provide gravity-vented, high-efficiency, gas-fired unit heaters manufactured as Reznor® brand units. Units are designed to take combustion air from the indoor space and vent to the outdoors.

Model F - Gas-fired, propeller fan, gravityvented model

Each Model F series unit shall be equipped for use with (natural) (propane) gas and (120/1/60) (208/1/60) (230/1/60) (220-240/1/50) volt power supply. The heat exchanger shall be aluminized (E-3 stainless) (409 stainless) steel. Die-formed burners shall be of aluminized steel and include flared ports and a stainless steel insert. The units shall be designed to provide 80% thermal efficiency.

Controls include a 24-volt control transformer; single-stage (twostage) gas control system; a manual match-lit pilot (intermittent spark pilot with electronic flame supervision) (intermittent spark pilot with electronic flame subversion and timed lockout); fan and limit safety controls; an open, drip-proof (totally enclosed) fan motor with internal overloads; and a blocked vent switch system. The cabinet is equipped with a full safety fan guard and horizontal (vertical) louvers (downturn nozzles) for directing airflow. The unit is arranged for ceiling suspension with 2-point (4-point) threaded hanger connections (hanger kits).

Model F unit heaters are design certified to ANSI and CAN/CGA Standards by the Canadian Standards Association for installation in the United States and Canada.

Model B - Gas-fired, blower, gravity-vented model

Each Model B series unit shall be equipped for use with (natural) (propane) gas and (120/1) (230/1) (460/3) (575/3) volt power supply. The heat exchanger shall be aluminized (E-3 stainless) (409 stainless) steel. Die-formed burners shall be of aluminized steel and include flared ports and a stainless steel insert. The units shall be designed to provide 80% thermal efficiency.

Controls include a 24-volt control transformer; single-stage (twostage) gas control system; manual match-lit pilot (intermittent spark pilot with electronic flame supervision) (intermittent spark pilot with electronic flame supervision and timed lockout); fan and limit safety controls; a centrifugal blower with adjustable belt drive; and an open, drip-proof (totally enclosed) blower motor with internal overloads. Each unit must be able to overcome .25" w.c. (.5" w.c.) of external static pressure (and may be equipped with an OSHA-type belt and/or blower inlet guard). The cabinet is equipped with horizontal (vertical) louvers (downturn nozzles) for directing airflow or with a duct flange. The unit is arranged for ceiling suspension with 4-point threaded hanger connections (hanger kits).

Model B unit heaters are design certified to ANSI and CAN/CGA Standards by the Canadian Standards Association for installation in the United States and Canada.

OIL-FIRED, GRAVITY-VENTED UNIT HEATERS

Provide oil-fired unit heaters manufactured as Reznor® brand units. The units shall be completely packaged and arranged for ceiling suspension with four-point threaded suspension sockets. They shall be equipped for use with #2 oil using a pressure-atomizing gun-type power burner, a singlestage fuel pump, and an electric spark ignition with an automatic cad-cell flame safety system with manual reset.

Heaters are to be equipped with a heavy, 13-gauge combustion chamber and low stress 18-gauge steel heat exchanger. All sizes shall include flame observation port, CO2 sample port, and service and cleanout access panels.

Each unit is to be equipped with a combination fan and limit switch with manual fan switch for safety and comfort control. The units are to be used with 115-volt supply and have a 24-volt control transformer.

Model OH - Oil-Fired, propeller fan model

Model OH heaters are provided with a propeller fan and a totally enclosed fan motor with internal overloads. Each unit is to be equipped with a burner service tray, an OSHA-type fan guard, and horizontal (vertical) air directional louvers.

Model OH unit heaters are design certified by Underwriters Laboratories (UL) or certified by the Canadian Standards Association (CSA).

Form RZ-NA-C-UH Page 52

Model OB - Oil-Fired, centrifugal blower model

Model OB heaters are provided with a centrifugal blower with an adjustable belt drive and a totally enclosed, split-phase motor with internal overloads. Each unit is to be equipped with a burner service tray, an OSHA-type belt and blower inlet guard, and horizontal (vertical) air directional louvers.

Model OB unit heaters are design certified by Underwriters Laboratories (UL) or certified by the Canadian Standards Association (CSA).

Page 55

Page __________ of __________

REZNOR® PRODUCT LIMITED WARRANTY

Thomas & Betts Corporation warrants to the original owner-user that this Reznor product will be free from defects in material or workmanship. This warranty is limited to twelve (12) months from the date of original installation, whether or not actual use begins on that date, or eighteen (18) months from date of shipment by Thomas & Betts Corporation, whichever occurs first.

EXTENDED WARRANTY

Models UDAP, UDAS, UDBP, and UDBS — Extended nine (9)-year, non-prorated warranty on the heat

exchanger, burners, and flue collection box assembly. Extended four (4)-year, non-prorated warranty on all electrical and mechanical operating components (with the exception of blower belts on Models UDBP and UDBS).

Models F and B — Extended nine (9)-year, non-prorated warranty on the heat exchanger, burners, draft

hood, and flue baffle assembly. Extended four (4)-year, non-prorated warranty on all electrical and mechanical operating components (with the exception of blower belts on Model B).

Model SHE — Extended four (4)-year, non-prorated warranty on the primary heat exchanger. Extended two

(2)-year, non-prorated warranty on the secondary heat exchanger and burners.

Models OH and OB — Extended four (4)-year, non-prorated warranty on the heat exchanger and combus-

tion chamber.

Application NOTE: Extended four (4)-year warranty on electrical and mechanical operating components excludes any

Reznor® HVAC equipment installed in a corrosive or highly humid atmosphere such as a greenhouse.

LIMITATIONS AND EXCLUSIONS

Thomas & Betts Corporation’s obligations under this warranty and the sole remedy for its breach are limited to repair, at its

manufacturing facility, of any part or parts of its Reznor products which prove to be defective; or, in its sole discretion, replacement of such products. All returns of defective parts or products must include the product model number and serial number, and must be made through an authorized Reznor distributor or arranged through Reznor Customer Service. Authorized returns must be shipped prepaid. Repaired or replacement parts will be shipped by Thomas & Betts F.O.B. shipping point.

1. The warranty provided herein does not cover charges for labor or other costs incurred in the troubleshooting, repair, removal, installation, service or handling of parts or complete products.

2. All claims under the warranty provided herein must be made within ninety (90) days from the date of discovery of the defect. Failure to notify Thomas & Betts of a warranted defect within ninety (90) days of its discovery voids Thomas & Betts's obligations hereunder.

3. The warranty provided herein shall be void and of no effect in the event that (a) the product has been operated outside its designed output capacity (heating, cooling, airflow); (b) the product has been subjected to misuse, neglect, accident, improper or inadequate maintenance, corrosive environments, environments containing airborne contaminants (silicone, aluminum oxide, etc.), or excessive thermal shock; (c) unauthorized modifications are made to the product; (d) the product is not installed or operated in compliance with the manufacturer’s printed instructions; (e) the product is not installed and operated in compliance with applicable building, mechanical, plumbing and electrical codes; or (f) the serial number of the product has been altered, defaced or removed.

4. The warranty provided herein is for repair or replacement only. Thomas & Betts Corporation shall not be liable for any loss, cost, damage, or expense of any kind arising out of a breach of the warranty. Further, Thomas & Betts Corporation shall not be liable for any incidental, consequential, exemplary, special, or punitive damages, nor for any loss of revenue, profit or use, arising out of a breach of this warranty or in connection with the sale, maintenance, use, operation or repair of any Reznor product. In no event will Thomas & Betts be liable for any amount greater than the purchase price of a defective product. The disclaimers of liability included in this paragraph 4 shall remain in effect and shall continue to be enforceable in the event that any remedy herein shall fail of its essential purpose.

5. THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY FOR REZNOR PRODUCTS, AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES. THOMAS & BETTS CORPORATION SPECIFICALLY DISCLAIMS ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No person or entity is authorized to bind Thomas & Betts Corporation to any other warranty, obligation or liability for any Reznor product. Installation, operation or use of the Reznor product for which this warranty is issued shall constitute acceptance of the terms hereof.

Form RZ-NA-C-UH Page 53

Page 56

Reznor® is your global source for heating,

ventilating and air conditioning equipment.

Global Headquarters Manufacturing or Warehouse Facility Corporate Sales Office Representative Sales Office

For more information on Reznor HVAC Equipment,

contact your local Reznor Representative by calling

800-695-1901.

Or, find us on the internet at

www.RezSpec.com

MANUFACTURER OF GAS, OIL, ELECTRIC HEATING AND VENTILATING SYSTEMS

0705 OG POD Form RZ-NA-C-UH (Version F.9)

Reznor UNIT HEATER CATALOG

Specifications and Main Features

Frequently Asked Questions

User Manual
