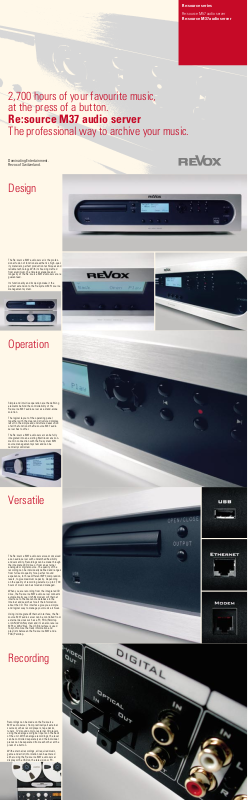

Revox RECOURCE M37 User Manual
2,700 hours of your favourite music,
at the press of a button.
Re:source M37 audio server
The professional way to archive your music.
Re:source series
Re:source M57 audio server
Re:source M37 audio server
Dominating Entertainment.
Revox of Switzerland.
Design
The Re:source M37 audio ser ver is the professional fusion of functional aesthetics, high-quality materials, perfect production techniques and
reliable technology. With its housing crafted
from aluminium, the timeless elegance and
longevity of the Re:source M37 audio server are
guaranteed.
Its functionality and its design make it the
perfect ex tension to the Re:system M51 source
management system.
The Re:source M37 audio ser ver was conceived
as an audio server with unmatched flexibility
and versatilit y. Recordings can be made through
the integrated CD drive or from an external
analogue or digital source. The quality of the
recording can be individually defined and ranges
from full audio quality for a perfect sound
experience, to three different MP3 compression
levels, to give maximum capacity. Depending
on the quality of recording selec ted, up to 2,700
hours of music can be stored and managed.
When you are recording from the integrated CD
drive, the Re: source M37 audio server connects
automatically over its 56k modem or Ethernet
inter face to the Gracenote database in the
Internet and searches for all the information
about the CD. This interface give you a simple
and logical way to manage your music archives.
Using its integrated Ethernet interface, the Re:
source M37 audio server can be controlled from
external devices such as a PC, PDA/Palmtop
or LAN/WLAN system and it can also receive
MP3 or WAV files. The USB inter face is used
to synchronise the track information and
play list s between the Re:source M37 and a
PDA/Palmtop.
Versatile
Operation
Simple and intuitive operation are the defining
elements behind the controllability of the
Re:source M37 audio server as a stand-alone
solution.
The logical layout of the operating panel
together with the clear and structured display,
result in the simple and uncluttered execution
of all the functions the Re :source M37 audio
server has to offer.
The Re:source M37 audio ser ver can be fully
integrated into an existing Multiroom environment in connection with the Re:system M51
source management system and can be
centrally controlled.
Recording
Recordings can be made on the Re: source
M37 audio server, from practically all external
sources such as record players, tape decks,
tuners, TVs (sound only) or ex ternal CD players,
using the analogue or digital inputs on the back
of the unit. With analogue recordings, the level
can be controlled separately and the individual
pieces can be separated from each other at the
press of a button.
With external recordings, all required music,
genre and artist information can be entered
either using the Re:source M37 audio server
display or the OSD on the television or PC.
Revox has established a distinctive brand image through its unique, systematic and
modular products. The basic concepts of compatibility between different systems and the
scalability of functionality and technology are what set the brand apart from the competition.
At the heart of it all, is the principle of controllability. Simple operation, unique solutions
and technological professionalism are the maxims behind the development of Revox products.
Revox has turned simple entertainment into a fascinating experience.
Dominating Entertainment.
Revox GmbH
Am Krebsgraben 15
D-780 48 VS-Villingen
Tel.: +49 7721 8704-0
info @revox.de
Revox ( Schweiz) AG
Althardstrasse 146
CH-8105 Regensdor f
Tel.: +41 44 871 66 11
info @revox.ch
Art.- Nr. 10.29.60 60
Änderun gen von Kons truktion u nd Aussta ttung sow ie Irrtüm er vorbehal ten.
Gedruck t in Deutsch land.
PC
The integrated Ethernet
inter face gives you
compatibility with all
computers to transfer all MP3
data onto the server simply
and quickly, centralising the
control of your home audio
enter tainment
Internet
As soon as a CD is inserted
into the drive, the Re:source
M37 automatically searches
through the Internet-based
Gracenote database for
all the data relating to the
artist(s), the album and the
tracks, using it s integrated
56k modem or its Ethernet
inter face.
TV
The Re:source M37 audio
server can also be controlled
and managed ver y simply as a
stand-alone unit.
The On-Screen-Display
that can be shown on any
television gives you simple
handling of the Re:source
M37 as well as allowing you
to program and manage all
your track information.
Analogue (Phono/Tape)
Recordings can be made
on the Re :source M37 audio server, from external
sources such as record
players, tape decks or
tuners, using the analogue
inputs on the back of
the unit.
The level can be controlled separately and the
individual pieces can be
separated from each other
at the press of a button.
Digital (CD/ DVD)
Recordings can be made from
external sources, such as a
CD or a DVD player over the
Re:source M37 audio server‘s
digital input.
The quality of the recording
can be individually defined
and ranges from full audio
quality for a per fect sound
experience, to three different
MP3 compression levels to
give maximum capacity.
Input
Output
Technical
data
Operation
The logical layout of the operating panel
together with the clear and structured display
result in the simple and uncluttered execution
of all the functions the Re :source M37 audio
server has to offer.
Revox offers a wide selection of simple and
intuitive options for the external control of the
Re:source M37 audio server. Independently
of the different user interfaces, tracks can be
searched for by artist, album, genre, customised
playlists or by presets.
The Re:source M37 audio
server can be fully integrated
into an existing Multiroom environment in connection with
the Re:system M51 source
management system and can
be centrally controlled.
As par t of the Revox
Multiroom system, each
additional room can access
the Re:source M37 using the
Re:control M217 display.
You can have a uniform user
concept throughout the
complete system, using the
same principles as those
embodied in the Re:system
M51 source management
system.
With the Re: control M231
software, the Re:source
M37 audio server can be
controlled from any location
in the building with a Palm
or Pocket PC, using a WLAN
connection.
(Only in conjunction with
a Re:system M51 source
management system)
Re:system M51 Re:control M217 Pocket PC
460 mm
371 mm
110 mm
460 mm
The Re:source M37 audio ser ver was conceived
as an audio server with unmatched flexibility
and versatilit y. It can do much more than just
transmit digital audio for mats from a CD or from
another PC. It also allows you to record from
almost all analogue information carriers.
General data
AC supply voltage
Fuse rating
Power consumption
Stand-by
Weight
Modem
Ethernet
Controller
Audio data
Frequency response
Noise voltage
Distortion factor
Channel separation
Digital input
Analogue input
Input impedance
Video output
100/230 V, ~ 50/60 Hz
4 A/8 A
Max. 4 4 watt
2 watt
15,6 kg
56 k analogue
10 Base T/100 Base T
USB/ IR/RS 232
20 Hz–20 kHz, +/–0,5 dB
100 dB (A ) at 1 kHz
0,00 3% at 1 kHz
110 dB at 1 kHz
32 kHz, 4 4,1 kHz, 48 kHz
Max. 2 V RMS
10 kOhm
VGA, S-Video, Video
Organisation
An On-Screen-Display has
been developed for the Re:
source especially for use
outside a Revox Multiroom
environment. This enables
you to control your device
through any television, even
without any additional Revox
accessories.
TV
With the Re: control M230
software (Windows 2000/
XP) , the Re:source M37 audio
server can be controlled from
a PC, using a LAN, WLAN or
RS232 (COM1) connection.
(Only in conjunction with
a Re:system M51 source
management system)
PC
PC
Re:source M37
Re:system M51 source
management system/
Pocket PC
Re:control M217
Playlis t
Operational concept
All the tracks stored on the Re:source M37 can be sor ted,
grouped and played by genre, album and artis t. Using the
playlist function, you can group together an unlimited number
of tracks, independently of their category, store them and then
play them at the press of a button.
A clear and defined organisational struc ture is
the defining element behind the operation and
control of the Re:source M37 audio server. This
structure is mirrored in all the user interfaces
and in the simple yet flexible operational
concept.
TV
User interfaces
The design and the functionalit y of all user inter faces are
matched logically one with another and they all follow a
uniform operational concept.
The track information shown on the display, such as ar tist,
album, genre or playlist are lis ted alphabetically. For each
control device, tracks can easily be found and selected using
a simple, fast and transparent search function.
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Titel
Interpret
Album
Genre
