Revo REHB0309-1 Quick Installation Guide

REHB0309-1, Quick Installation Guide

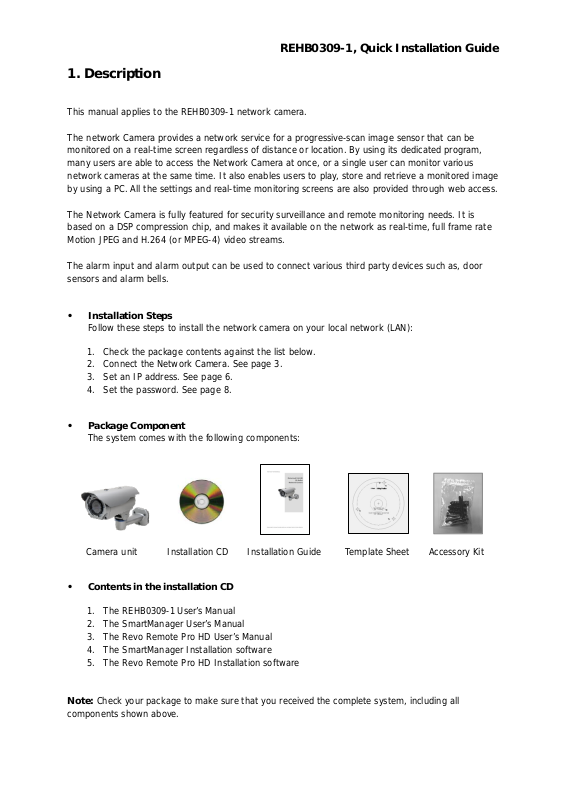

1. Description

This manual applies to the REHB0309-1 network camera.

The network Camera provides a network service for a progressive-scan image sensor that can be
monitored on a real-time screen regardless of distance or location. By using its dedicated program,
many users are able to access the Network Camer a at once, or a single user can monitor various
network cameras at the same time. It also enables users to play, store and retrieve a monitored image
by using a PC. All the settings and real-time monitoring screens are also provided through web access.

The Network Camera is fully featured f or security surveillance and remote monitoring needs. It is
based on a DSP compression chip, and makes it available on the network as rea l -time, full frame rate
Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices such as, door
sensors and alarm bells.

• Installation Steps
Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the Network Camera. See page 3.

3. Set an IP address. See page 6.

4. Set the password. See page 8.

• Package Component

The system comes with the following components:

amera unit Installation CD Installation Guide Template Sheet Accessory Kit

C

• Contents in the installation CD

1. The REHB0309-1 User’s Manual

2. The SmartManager User’s Manual

3. The Revo Remote Pro HD User’s Manual

4. The SmartManager Installation software

5. The Revo Remote Pro HD Installation software

Note: Check your package to make sure that you received the complete system, including all
components shown above.

REHB0309-1, Quick Installation Guide

• Connection Cable

NO Wire Color Description

1
2

Red: DC12V
White: GND

Black

Main Power, 2pin terminal, DC12V 700mA(8.4W)

Ethernet, RJ-45 port compatible with 10/100Mbps having PoE

functionality. Modular Jack

 Parts and Description

Carefully remove the contents from the box, and verity that nothing was damaged

during shipment.

2

REHB0309-1, Quick Installation Guide

 Camera Dimension

See the diagrams below for the exact dimension of the REHB0309-1, IR Bullet network cameras.

Dimension

s Unit: mm

 Base Installation(Cable through the wall with the mount base)

There are two ways of installing the camera.

3

REHB0309-1, Quick Installation Guide

1) Installation1 (Cable through the wall with the mount base)

A. Drill the mou

template.
B. Insert the plastic anchors into the hole which has just been drilled.
C. Connect connection cable and network lines.
D. Fit the screw holes of the mount base into the plastic anchors.

E. Screw up the mount screws (M5x20).
F. Adjust the camera suitably, and fasten the mount screws (M6x16) to fix the camera.

2) Installation 2 (Using the conduit knockout punched with Mount Base)

A. Drill the mounting location, using the template sheet (or the bottom of the mount base) as a

template.

B. Insert the plastic anchors into the hole which has just been drilled.

nting location, using the template sheet (or the bottom of the mount base) as a
