B-24D LIBERATOR

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome
plated plastic.

* For better paint and decal adhesion, wash

the plastic parts in a mild detergent solution.
Rinse and let air dry.

* Check the fit of each piece before

cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas

to be cemented.
* Allow paint to dry thoroughly before

handling parts.
* Any unused parts may be discarded.

DECAL APPLICATION INSTRUCTIONS

1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds.

3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing.

5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth.

7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any

excess adhesive.

8. Do not touch decal until fully dry.

9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with

setting solutions or solvents.

* REPEAT PROCEDURE

* REPETEZ LE PROCEDE

* OPTIONAL PARTS

`` ` ` ` `

* PIECES EN OPTION

* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants,

laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.

* Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes.

3. Placer l'autocollant mouillé sur une serviette en papier.

4. Attendez que l'autocollant puisse être déplacé sur son

support en papier.

5. Mettre l'autocollant en position sur le modèle face sur

le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.

7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au

séchage. Essuyer pour enlever tout excédent d'adhésif.

8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.

9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec

* DECAL

* DECAL COMANIE

les solutions de fixage ou les solvants.

*ATTENTION D ASSEMBLEE

* ASSEMBLY CAUTION

* CEMENT TOGETHER

* A COLLER

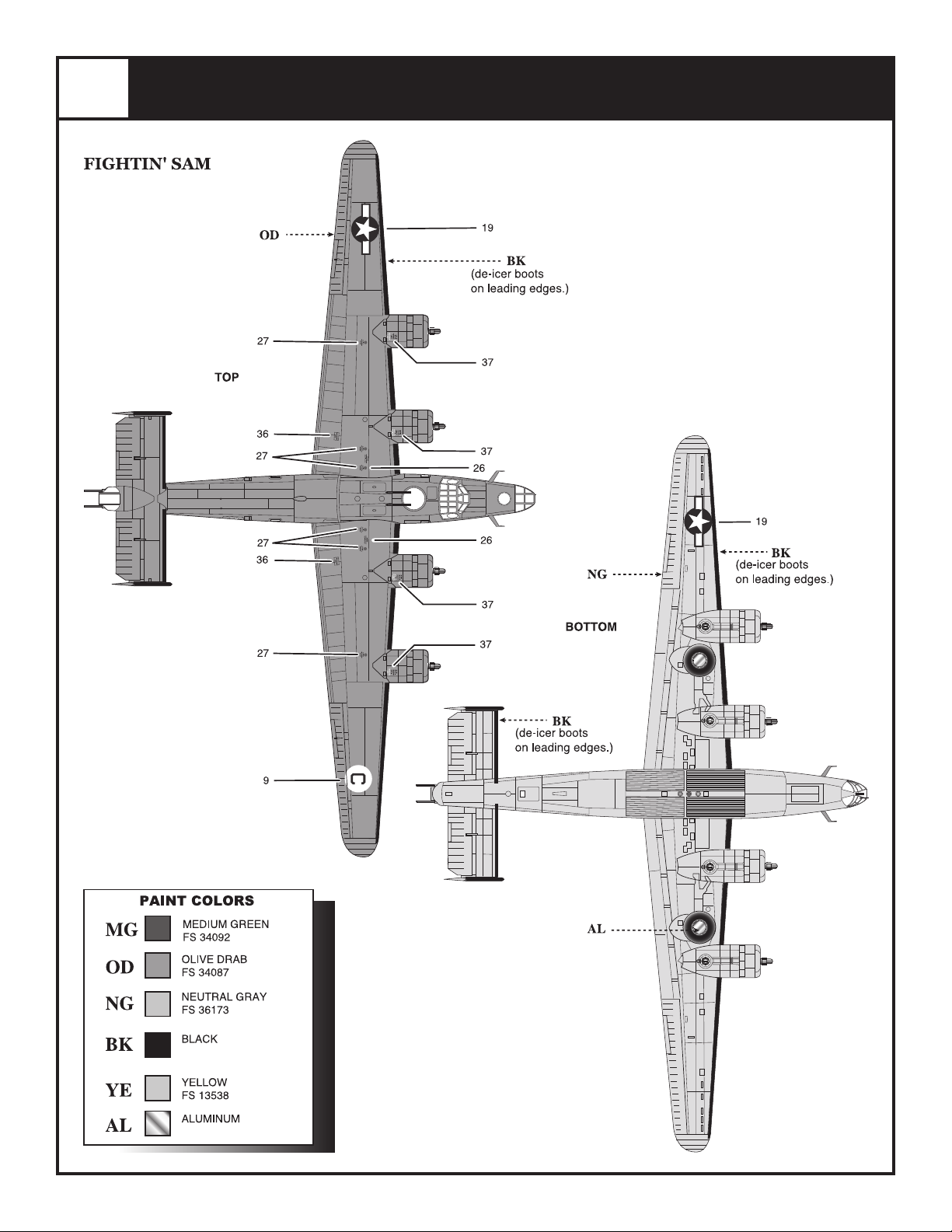

This paint guide is provided to complete this kit

Ce guide de peintures est fourni pour reproduire le modèle

Semi Gloss Black

Olive Drab

Red

Medium Green

Aluminum

Zinc Chromate

Green

Yellow

Neutral Gray

Wood

* REMOVE AND THROW AWAY

* A RETIRER ET JETER

as shown on the box.

réduit qui apparaît sur la boîte.

Noir satiné

Gris vert

Rouge

Vert moyen

Aluminum

Vert de zinc

Vert

Jaune

Gris neutre

Bois

* DO NOT CEMENT

* NE PAS COLLER

If you have any questions or comments, call our hotline at: [phone]

or, please write to:

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85562510200), part number, description, your return address and phone number.

Visit our website: www.revell.com

Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.

1

COCKPIT ASSEMBLY

104

SEAT

50

SIGHT

BOMBARDIER IN POSITION

SEE PAGE 9 FOR ASSEMBLY

FLAT WHITE : STRAPS, BOTH

FLESH : HANDS AND FACE, BOTH

BROWN : GOGGLES WITH CLEAR LENS, BOTH

TAN

(COLLARS)

GRAY

KHAKI

BROWN

114

PILOT

113

CO-PILOT

INSTRUMENT PANEL

BOMBARDIER'S SEAT

CROMATE GREEN WITH SEAT

BOMB SIGHT

SEAT SUPPORT

CHROMATE GREEN

104

MILITARY BROWN

50

FLAT BLACK

CHROMATE GREEN

54

53

SEAT

52

FLAT BLACK WITH

FLAT WHITE DETAIL

CONTROL

YOKE

FLAT BLACK

41

CONTROL

YOKE

FLAT BLACK

CONSOLE

(FLAT BLACK WITH

41

FLAT WHITE DETAIL)

19

FLOOR

CHROMATE GREEN

2

WAIST DOOR

CHROMATE GREEN

1000 LB. BOMB

60R

WINDOW

CLEAR

9

INSIDE

9 OR 20

BOMB RACK

CHROMATE GREEN

LEFT BOMB BAY ASSEMBLY

75

RACK SUPPORT

CHROMATE GREEN

60L

35

38

AFT

BOMB BAY

CHROMATE GREEN

36

SUPPORT

21L

LEFT WAIST

AMMUNITION BOX

NATURAL WOOD

FORWARD RACK

SUPPORT

CHROMATE

GREEN

WINDOW

37

75

CLEAR

1L

LEFT

FUSELAGE

HALF

37 & 38

BOMB RACK

SUPPORTS

35

BOMB RACK

CHROMATE GREEN

PAINT NOTE:

INSIDE

FUSELAGE

CHROMATE

GREEN

500 LB. BOMB

61B

61T

Kit 5625 - Page 2

3

RIGHT BOMB BAY ASSEMBLY

37 & 38

BOMB RACK

SUPPORTS

PAINT NOTE:

INSIDE

FUSELAGE

CHROMATE

GREEN

61T

35

BOMB RACK

CHROMATE

GREEN

61B

1R

RIGHT

FUSELAGE

HALF

ANTENNA

FLAT BLACK

37

FORWRD

RACK

SUPPORT

CHROMATE

GREEN

8

HOUSING

75

WINDOWS

CLEAR

38

AFT

RACK

SUPPORT

CHROMATE GREEN

36

BOMB BAY

SUPPORT

CHROMATE GREEN

21R

RIGHT

WAIST

AMMUNITION

BOX

NATURAL WOOD

9

WAIST DOOR

INSIDE ONLY

CHROMATE GREEN

12 OR 23

KHAKI

20

AFT

BULKHEAD

CHROMATE

GREEN

35

BOMB RACK

CHROMATE GREEN

500 LB. BOMB

4

*

WAIST GUN

11

GUN YOKE

CHROMATE

GREEN

10R

GUN MOUNT

CHROMATE GREEN

46

FLAT BLACK

11

GUN YOKE

CHROMATE

GREEN

10L

GUN

MOUNT

CHROMATE GREEN

*

22

WAIST GUN

PLATFORM

CHROMATE GREEN

60R

1000 LB. BOMB

WAIST GUN ASSEMBLY

46

WAIST GUN

FLAT BLACK

*

REAR ANTENNA

GUNNERS IN POSITION

SEE PAGE 9 FOR ASSEMBLY

7

SILVER

60L

Kit 5625 - Page 3

5

FORWARD FUSELAGE ASSEMBLY

RIGHT

6

75

WINDOW

CLEAR

83

WINDOW

CLEAR

4R
RIGHT
NOSE

WHEEL

DOOR

INSIDE ONLY

ZINC CHROMATE

LEFT

WINDOW

CLEAR

NOSE WHEEL

INSIDE ONLY

ZINC CHROMATE

83

4L

LEFT

DOOR

BOMBARDIER'S PANEL

SEMI GLOSS BLACK WITH

GRAY KNOBS AND ALUMINUM

75

WINDOW

CLEAR

108

SWITCHES

106

LEFT NOSE

WINDOW

CLEAR

FRAME IS FUSELAGE

COLOR

NOSE GEAR / FUSELAGE ASSEMBLY

55L

NOSE WHEEL

LEFT HALF

SEMI GLOSS BLACK

24

NOSE GEAR

STRUT SUPPORT

57

RETAINER

55R

NOSE WHEEL

RIGHT HALF

SEMI GLOSS BLACK

FUSELAGE

COMPLETED

COCKPIT

1R

RIGHT

NEUTRAL

GRAY

25
FENDER
BOTTOM

NEUTRAL

GRAY

23

NOSE GEAR

STRUT

FORWARD

BULKHEAD

ZINC CHROMATE

56

NOSE GEAR

BULKHEAD

INSIDE ONLY

ZINC CHROMATE

32

1L

LEFT

FUSELAGE

Kit 5625 - Page 4

7

WING ASSEMBLY

RIGHT

31

ENGINE

FRONT

14R

RIGHT WING

BOTTOM

PROPELLER

SHAFTS

13R

RIGHT WING

TOP

49

31

ENGINE FRONT

FUEL VENT

PAINT NOTE

FOR ENGINES:

CYLINDERS - STEEL

RODS - GRAY OR BLACK

59

FUEL VENT

31

ENGINE FRONT

59

49

PROPELLER

SHAFTS

13L

LEFT WING

TOP

LEFT

31

ENGINE

FRONT

14L

LEFT WING

BOTTOM

48

PROPELLERS

RIGHT WING TO FUSELAGE

12

COWL RINGS

PAINT NOTE

FOR PROPELLERS:

SEMI GLOSS BLACK

WITH ALUMINUM

HUB AND YELLOW

TIPS

12

COWL RINGS

48

PROPELLERS

LEFT WING TO FUSELAGE

Kit 5625 - Page 5

8

STRUT TO WING ASSEMBLY

LEFT MAIN LANDING GEAR RIGHT MAIN LANDING GEAR

26L

MAIN WHEEL

STRUT

28L
STRUT
BRACE

27L

STRUT

DOOR

58L

MAIN GEAR TIRE

OUTER HALF

FLAT BLACK

PAINT NOTE:

STRUT ASSEMBLIES

AND WHEEL WELLS ARE

PAINTED FUSELAGE

COLOR

9

TAIL GUN ASSEMBLY

58R

MAIN GEAR TIRE

INNER HALF

FLAT BLACK

NEUTRAL

GRAY

26R

MAIN WHEEL

STRUT

28R

STRUT

BRACE

27R

STRUT

DOOR

10

81

TAIL TURRET

FRONT

CLEAR

STABILIZER ASSEMBLY

HORIZONTAL STABILIZER

HORIZONTAL STABILIZER

15T

TOP

15B

BOTTOM

81

TAIL TURRET

REAR

CLEAR

47

TAIL GUNS

GUNMETAL

75

WINDOW

CLEAR

Kit 5625 - Page 6

10

STABILIZER ASSEMBLY CONTINUED

RIGHT VERTICAL

STABILIZER INNER

16R

RIGHT VERTICAL

STABILIZER OUTER

11

PAINT NOTE:

FRAMES ON WINDOWS,

CANOPY AND TURRET

IS FUSELAGE COLOR

78R

RIGHT

COCKPIT WINDOW

CLEAR

16R

END VIEW

COMPLETED

HORIZONTAL

STABILIZER

AFT END OF FUSELAGE

16L

LEFT VERTICAL

STABILIZER INNER

16L

LEFT VERTICAL

STABILIZER OUTER

FRONT FUSELAGE ASSEMBLY

77

CANOPY

CLEAR

78L

LEFT

COCKPIT WINDOW

CLEAR

79

TURRET DOME

CLEAR

42

GUN RING

ZINC CHROMATE

74

ASTRODOME

CLEAR

5

PITOT PROBE

5

PITOT PROBE

44

GUNS

GUNMETAL

43

RETAINER RING

ZINC CHROMATE

ANGLE FOR PITOT PROBES

Kit 5625 - Page 7

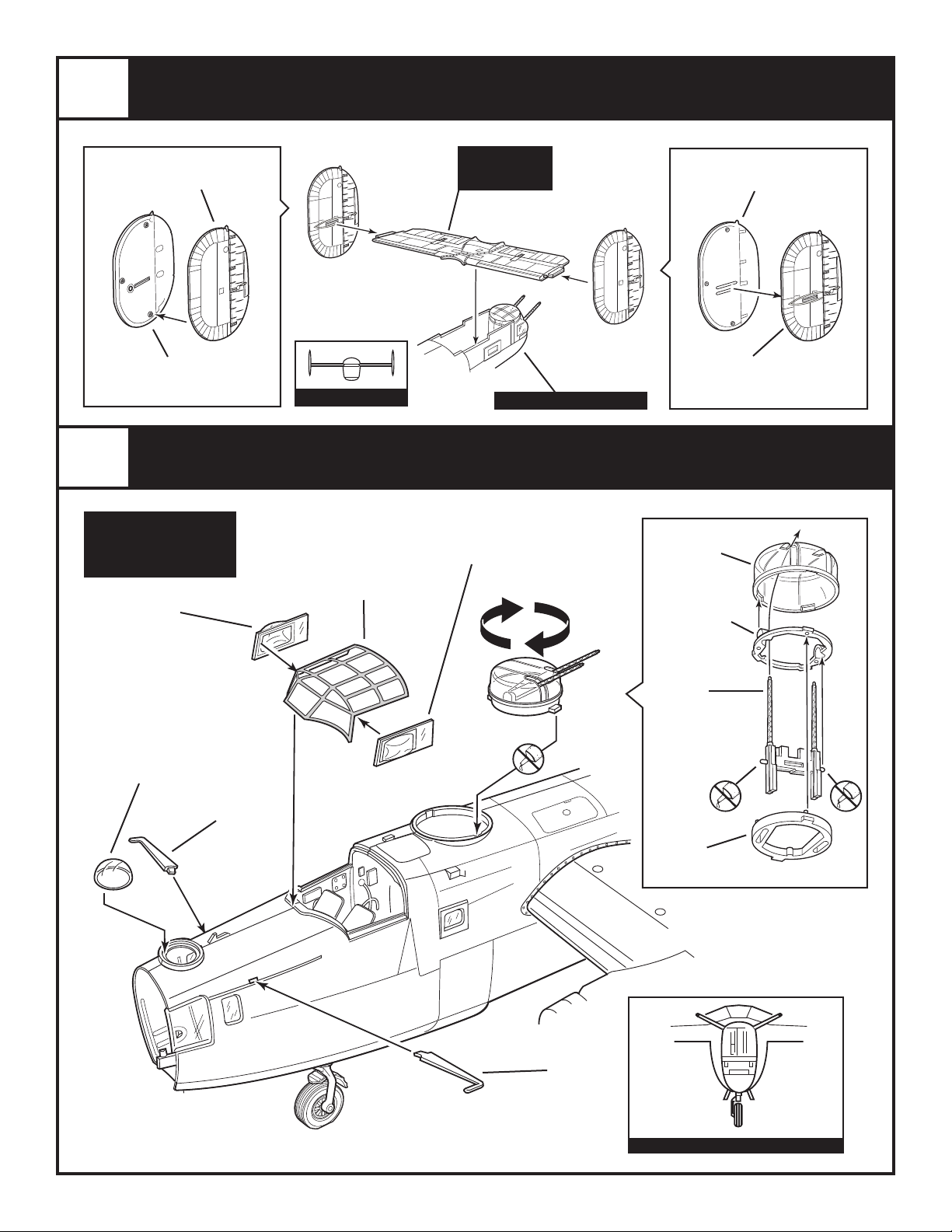

12

BOMB BAY DOOR ASSEMBLY

CLOSED

34A

FORWARD LEFT

DOOR

ZINC CHROMATE

(INSIDE ONLY)

FORWARD

13

34B

FORWARD

RIGHT DOOR

ZINC CHROMATE

(INSIDE ONLY)

34C

AFT RIGHT

DOOR

ZINC CHROMATE

(INSIDE ONLY)

34D

AFT LEFT DOOR

ZINC CHROMATE

(INSIDE ONLY)

DEATAILS OMITTED FOR CLARITY

OPEN

33D

FORWARD

RIGHT DOOR

ZINC CHROMATE

(INSIDE ONLY)

FORWARD

FORWARD LEFT

DOOR

ZINC CHROMATE

(INSIDE ONLY)

33A

AFT RIGHT

DOOR

ZINC CHROMATE

(INSIDE ONLY)

33C

BELLY PANEL

AFT LEFT DOOR

ZINC CHROMATE

(INSIDE ONLY)

FRONT NOSE / FINAL ASSEMBLY

102

33B

A

NOSE GUN

GUNMETAL

C

103

B

105

NOSE

CLEAR

(FRAME IS FUSELAGE

COLOR)

UNDERSIDE OF AFT FUSELAGE

39

TAIL SKID

FUSELAGE COLOR

ALUMINUM

3

REAR

BOARDING

DOOR

NEUTRAL GRAY

103

NOSE GUN

GUNMETAL

103

NOSE GUNS

GUNMETAL

ZINC

CROMATE

Kit 5625 - Page 8

6

BOARDING

LADDER

CHROMATE GREEN

14

TRACTOR ASSEMBLY

69L

LEFT TRACKS

STEEL WITH FLAT

BLACK RUBBER

SHOES

62

FENDERS

OLIVE DRAB

72

SEAT

OLIVE DRAB

WITH OLIVE GREEN

CUSHIONS

68

GUARD

OLIVE DRAB

70

TRACTOR

BOTTOM

OLIVE DRAB

69R

RIGHT TRACKS

STEEL WITH FLAT

BLACK RUBBER

SHOES

65

WINDSHIELD

OLIVE DRAB

RIGHT HALF

OLIVE DRAB

63

GRILLE

OLIVE DRAB

64

LIGHT

SHADED AREA

SILVER

67

COMPRESSOR

GRAY WITH FLAT

BLACK CYLINDERS

66R

HOOD

71

TOW BAR

OLIVE DRAB

66L

HOOD

LEFT HALF

OLIVE DRAB

64

LIGHT

SHADED AREA

SILVER

15

117

RIGHT

ARM

KHAKI

LEGS

KHAKI

115

TORSO

KHAKI

118

BOMBARDIER

FIGURE ASSEMBLY

FLIGHT CREW
Uniforms - kahki,
Jackets - dark brown,
Llife Vests - yellow,
Straps - dirty white , light gray,
or tan,
Buckles - silver,
Caps - brown,
Boots - brown leather with an
off-white fleece lining at the
top.

122

RIGHT

ARM

KHAKI

120

BACK

KHAKI

STANDING WAIST GUNNER

116

LEFT

ARM

KHAKI

GRAY

(HOSE)

FLAT WHITE

(STRAPS)

BROWN

(GLOVES,BOOTS,GOGGLES

WITH CLEAR LENS)

SERVICE MECHANICS Coveralls - Olive drab, gray, or khaki,
Jackets - Olive green, Caps - olive drab, Boots - brown leather.
Wrench - silver or dark gray

126

LEFT

ARM

KHAKI

GRAY

(HOSE)

FLAT WHITE

(STRAPS)

123

FRONT

KHAKI

GRAY

(HOSE)

FLAT WHITE

(STRAPS)

119

FRONT

KHAKI

121

LEFT

ARM

KHAKI

124

BACK

KHAKI

125

RIGHT

ARM

KHAKI

BROWN

(GLOVES,BOOTS,GOGGLES

WITH CLEAR LENS)

SQUATING WAIST GUNNER

Kit 5625 - Page 9

16

DECAL PLACEMENT

Kit 5625 - Page 10

17

DECAL PLACEMENT

Kit 5625 - Page 11

18

DECAL PLACEMENT

Kit 5625 - Page 12
