Your Revell B-1B features detailed
cockpit and nose radar plus movable swing wings and tailplanes,
optional open or closed bomb bay
doors with 16 AGM-69A SRAM missiles on rotary launchers, detailed
main landing gear, removable
emergency exit hatch and authentic decal markings for two versions.
KIT 5714 85571400200
B-1B LANCER
* REPEAT SEVERAL TIMES
* A REPETER PLUSIEURS FOIS
READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
* OPTIONAL PARTS
* PIECES EN OPTION
* DECAL
* DECAL COMANIE
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente peu
concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son
support en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
* ALTERNATIVE ASSEMBLY
* ENSEMBLAGE ALTERNATIVE
les solutions de fixage ou les solvants.
* CEMENT TOGETHER
* A COLLER
* REMOVE AND THROW AWAY
* A RETIRER ET JETER
This paint guide is provided to complete this kit
Ce guide de peintures est fourni pour reproduire le modèle
Gunship Gray
Dark Gray
Steel
Gloss White
Zinc Chromate
Flat Light Gray
Red
Flat Black
Gold
Green
Silver
as shown on the box.
réduit qui apparaît sur la boîte.
* DO NOT CEMENT
* NE PAS COLLER
Gris hélicoptére
Gris Foncé
Acier
Blanc brilliant
Chromate de zinc
Gris clair mat
Rouge
Noir mat
Or
Vert
Argent
If you have any questions or comments, call our hotline at: (800) 833-3570
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85571400200), part number, description, your return address and phone number.
Revell Inc Elk Grove Village, IL. Copyright © 2009. All rights reserved.
or, please write to:
Visit our website: www.revell.com
NOTE: THE LETTERS BEFORE THE PART NUMBERS
REFER TO THE TREE THAT THE PART IS LOCATED ON.
REFER BACK TO THIS STEP ONLY IF YOU CHOOSE TO BUILD YOUR
B-1B WITH THE LANDING GEAR AND BAY DOORS CLOSED
B46
LEFT
NOSE GEAR DOOR
EXTENDED PARTS
FROM NOSE GEAR BAY
PANELS
1
A5
A
NOSE GEAR BAY
LATCH
GLOSS WHITE
DRAG BRACE
B47
RIGHT
NOSE GEAR DOOR
NOSE GEAR DOOR
C129
LEFT
DOOR
B48
REAR
LEFT MAIN GEAR
OUTSIDE DOOR
B2
LADDER
DOOR
C86
C112
WEAPON BAY
DOORS
C107
LEFT
MAIN GEAR
INSIDE DOOR
RIGHT MAIN GEAR
OUTSIDE DOOR
C128
RIGHT
DRAG BRACE
DOOR
COCKPIT ASSEMBLY
A9
NOSE GEAR BAY
B
WISHBONE BRACE
GLOSS WHITE
A7
NOSE GEAR BAY
REAR PANEL
GLOSS WHITE
C112
WEAPON BAY
DOORS
C87
C110
RIGHT MAIN GEAR
INSIDE DOOR
A10
NOSE GEAR BAY
LEFT PANEL
GLOSS WHITE
A6
NOSE GEAR BAY
TOP PANEL
GLOSS WHITE
C
Kit 5714 - Page 2
A11
NOSE GEAR BAY
FRONT PANEL
GLOSS WHITE
A12
LADDER BAY
REAR PANEL
GLOSS WHITE
A8
NOSE GEAR BAY
RIGHT PANEL
GLOSS WHITE
1
COCKPIT ASSEMBLY CONTINUED
D
1st
FLAT
RED
B15
RIGHT
SEAT SIDE
FLAT LIGHT GRAY
2nd
B21
OPERATORS
INSTRUMENT PANEL
FLAT LIGHT GRAY
DECAL
31
FLAT
RED
YELLOW
B13
SEAT
FLAT LIGHT GRAY
FLAT
RED
B14
LEFT
SEAT SIDE
FLAT LIGHT GRAY
GREEN
FLAT BLACK
B23
RIGHT
OPERATORS DECK
FLAT LIGHT GRAY
E
1st
FLAT
RED
B15
RIGHT
SEAT SIDE
FLAT LIGHT GRAY
2nd
INSTRUMENT
SHROUD
FLAT BLACK
FLAT RED
B16
CONTROL STICK
FLAT BLACK
B19
DECAL
3
FLAT
RED
YELLOW
DECAL
2
B13
SEAT
FLAT LIGHT GRAY
FLAT
RED
B14
LEFT
SEAT SIDE
FLAT LIGHT GRAY
GREEN
FLAT BLACK
B18
PILOTS
INSTRUMENT PANEL
FLAT LIGHT GRAY
FLAT RED
DECAL
1
B22
LEFT
OPERATORS DECK
FLAT LIGHT GRAY
PILOTS DECK
FLAT LIGHT GRAY
3rd 3rd
B25
REAR
BULKHEAD
B24
CENTER
BULKHEAD
FLAT LIGHT GRAY
4th
COMPLETED
NOSE GEAR
BAY
FLAT LIGHT GRAY
4th
B17
B20
PILOTS BULKHEAD
FLAT LIGHT GRAY
DECAL
3
B16
CONTROL STICK
FLAT BLACK
Kit 5714 - Page 3
WEIGHT
2
B28
RIGHT
FUSELAGE FRONT
HALF

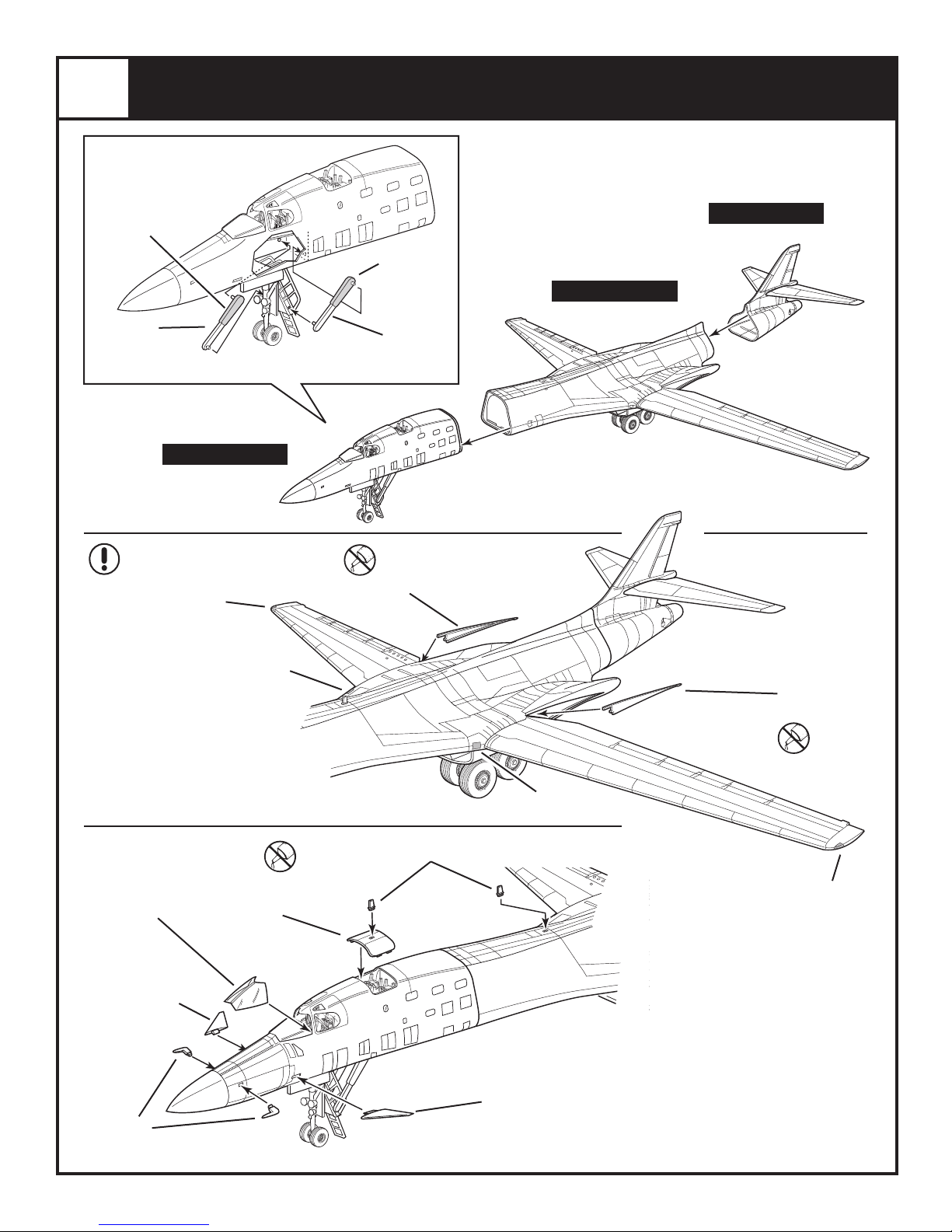

FRONT FUSELAGE ASSEMBLY
27
26
PILOTS WINDOW
CLEAR
FLAT LIGHT GRAY
(INSIDE ONLY)
1ST
CO-PILOTS WINDOW
29
CLEAR
1ST
NOSE WEIGHT
(50gr OR 1.8 oz. )
NOT INCLUDED
1ST
PILOTS WINDOW
1ST
CLEAR
PORTHOLE WINDOW
27
CLEAR
B30
LEFT
FUSELAGE FRONT
HALF
FLAT LIGHT GRAY
(INSIDE ONLY)
3
RADAR BULKHEAD
RADAR ANTENNA
A32
GOLD
(BOLT HEADS)
A31
GOLD
RADAR / LADDER ASSEMBLY
WHITE
GOLD
(BOLT HEADS)
FLAT BLACK
B2
LADDER DOOR
WHITE
(INSIDE ONLY)
B33
FORWARD RADOME
RIGHT
LADDER RAIL
FLAT LIGHT GRAY
GRAY
A1
Kit 5714 - Page 4
FLAT
BLACK
GRAY
A3
LADDER
FLAT LIGHT GRAY
A4
LEFT
LADDER RAIL
FLAT LIGHT GRAY
4
NOSE STRUT ASSEMBLY
A36
NOSE GEAR
LEFT AXLE STRUT
WHITE
A37
NOSE GEAR
RIGHT AXLE STRUT
WHITE
NOSE GEAR LINKAGE
A42
WHITE
A38
NOSE GEAR
FRONT HALF
WHITE
SILVER
NOSE GEAR CYLINDER
A41
FRONT HALF
WHITE
NOSE GEAR CYLINDER
REAR HALF
A39
NOSE GEAR
REAR HALF
WHITE
A40
WHITE
130
NOSE TIRE
OUTER HALF
FLAT
BLACK
A34A
NOSE WHEEL
OUTER
WHITE
FIRST
SMALL TIRE
(ASSEMBLED)
A34
NOSE WHEEL INNER
WITH AXLE
WHITE
131
NOSE TIRE
INNER HALF
FLAT
BLACK
45
SMALL
TAXI LIGHT
CLEAR
TAXI LIGHT HOUSING
A44
WHITE
A35
NOSE WHEEL
INNER
WHITE
SMALL TIRE
(ASSEMBLED)
NOSE WHEEL
OUTER
A34A
WHITE
43
TAXI LIGHT LENS
CLEAR
SILVER
Kit 5714 - Page 5
5
NOSE DOOR ASSEMBLY
6
B46
NOSE GEAR DOOR
(WHITE INSIDE ONLY)
B47
RIGHT
NOSE GEAR DOOR
(WHITE INSIDE ONLY)
LEFT
NOSE GEAR DOOR
(WHITE INSIDE ONLY)
SPINDLE / SRAM ASSEMBLY
B48
REAR
C61
WEAPON SPINDLE
TOP HALF
WHITE
A59
SRAM
BOTTOM HALF
WHITE
C62
WEAPON SPINDLE
BOTTOM HALF
WHITE
A60
SRAM
TAIL
WHITE
C63
WEAPON SPINDLE
COLLAR
WHITE
Kit 5714 - Page 6 Kit 5714 - Page 11
A58
SRAM
TOP HALF
WHITE
7
GUNMETAL
GUNMETAL
A65
WEAPON BAY
RIGHT PANEL
WHITE
BAY ASSEMBLY
A64
WEAPON BAY
LEFT PANEL
WHITE
A66
WEAPON BAY
SHELL
WHITE
A67
WEAPON BAY
FRONT PANEL
WHITE
COMPLETED
SPINDLE
A68
WEAPON BAY
REAR PANEL
WHITE
8
A51
MAIN GEAR BAY
RIGHT CENTER
PANEL
WHITE
A54
MAIN GEAR BAY
TOP PANEL
WHITE
C50
FUSELAGE BOTTOM
MIDDLE HALF
WHITE
MAIN GEAR BAY ASSEMBLY
A56
MAIN GEAR BAY
LEFT PANEL
WHITE
MAIN GEAR BAY
A52
MAIN GEAR BAY
LEFT CENTER PANEL
WHITE
A53
MAIN GEAR BAY
FRONT PANEL
WHITE
A55
MAIN GEAR BAY
RIGHT PANEL
WHITE
A57
REAR PANEL
WHITE
9
C70
FUEL TANK
TOP
CHROMATE GREEN
FUEL TANK / MAIN BAY ASSEMBLY
GUNMETAL
C69
FUEL TANK
BOTTOM
CHROMATE GREEN
FUEL TANK
BAY PANELS
A72
WHITE
COMPLETED
MAIN GEAR BAY
A73
FUEL TANK
BAY SHELL
WHITE
A71
FUEL TANK BAY
REAR PANEL
WHITE
10
RIGHT
D74
RIGHT
WING TOP
Kit 5714 - Page 8 Kit 5714 - Page 9
WING ASSEMBLY
D75
RIGHT
WING BOTTOM
LEFT
D76
LEFT
WING TOP
D77
LEFT
WING BOTTOM
11
RIGHT
WING / FUSELAGE ASSEMBLY
C78
FUSELAGE TOP
MIDDLE HALF
LEFT
COMPLETED BOTTOM
MIDDLE HALF
12
B83
INTAKE DUCT
BOTTOM
B82
INTAKE DUCT
TOP
NACELLE ASSEMBLY
D49
ENGINE NACELLE
TOP
D81
TURBINE FANS
STEEL
D84
ENGINE NACELLE
BOTTOM
13
ENGINE NACELLES
D85
INTAKE
ENGINE NACELLES
WHITE
COMPLETED
LEFT MAIN GEAR
OUTSIDE DOOR
C86
WHITE
(INSIDE ONLY)
EXHAUST ASSEMBLY
D79
EXHAUST NOZZLE
D80
AFTERBURNER
GUNMETAL
(INSIDE ONLY)
C87
RIGHT MAIN GEAR
OUTSIDE DOOR
WHITE
(INSIDE ONLY)
STEEL
GUNMETAL
14

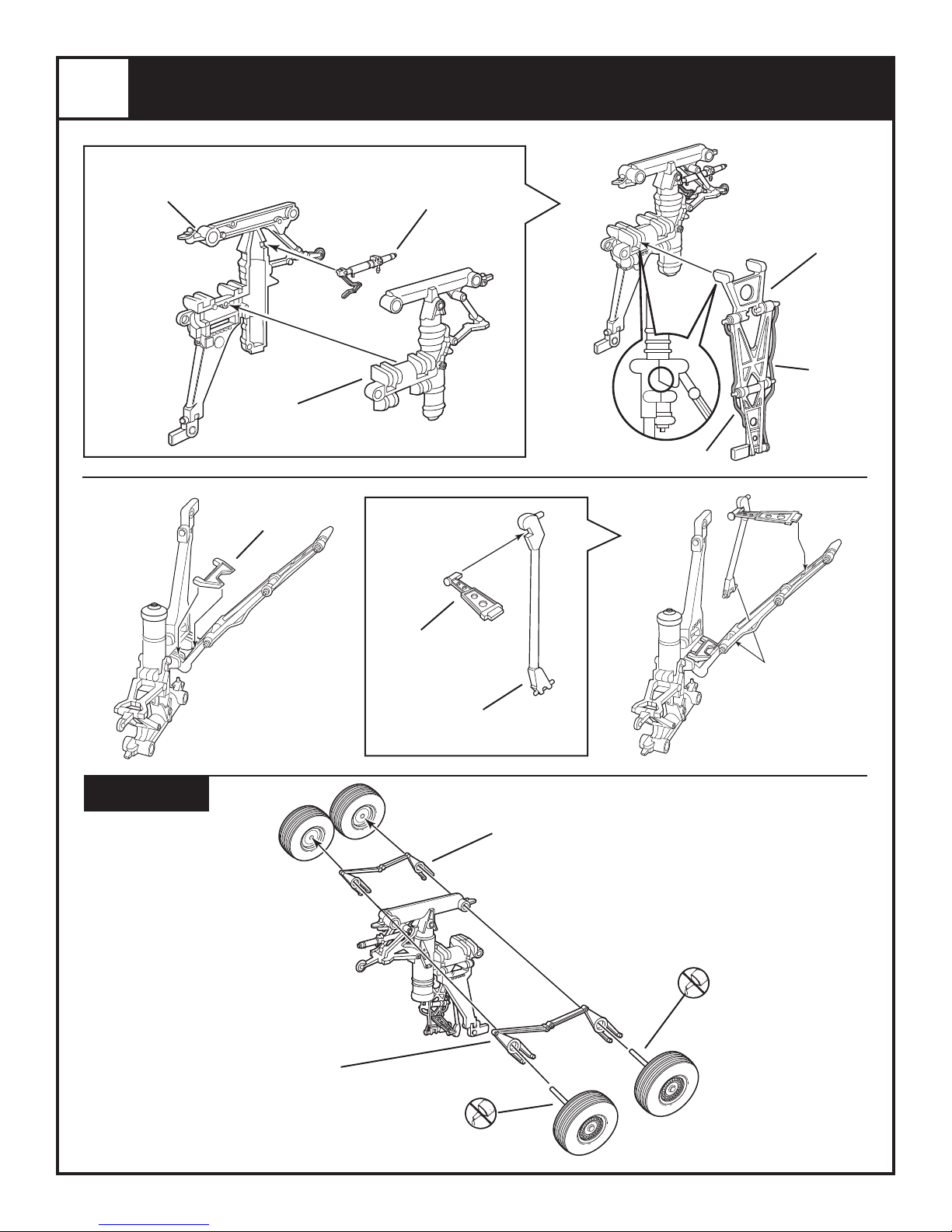

LOWER CYLINDER LINK
RIGHT LANDING GEAR
Kit 5714 - Page 10 Kit 5714 - Page 7
A93
LEFT HALF
WHITE
RIGHT MAIN STRUT ASSEMBLY
A91
WHITE
RIGHT LANDING GEAR
A92
RIGHT HALF
WHITE
GUNMETAL
A94
RIGHT
SIDE BRACE
WHITE
GUNMETAL
14
SIDE BRACE LINK
RIGHT STRUT ASSEMBLY CONTINUED
A97
WHITE
A95
RIGHT
JURY BRACE
WHITE
A96
RIGHT
PARALLEL BRACE
WHITE
132
MAIN GEAR
OUTER TIRE
HALF
FLAT
BLACK
FIRST
LARGE ASSEMBLED
TIRE
MAIN GEAR
INNER TIRE
HALF
BLACK
A89
MAIN GEAR
INNER WHEEL
WITH AXLE
WHITE
133
FLAT
A88
MAIN GEAR
OUTER WHEEL
WHITE
LEFT DRAG LINK
A99
MAIN GEAR
WHITE
LARGE ASSEMBLED
TIRE
A90
MAIN GEAR
INNER WHEEL
WHITE
A88
MAIN GEAR
OUTER WHEEL
WHITE
A98
MAIN GEAR
RIGHT DRAG LINK
WHITE
15
LEFT LANDING GEAR
A100
LEFT HALF
WHITE
LEFT MAIN STRUT ASSEMBLY
A91
WHITE
SIDE BRACE
GUNMETAL
GUNMETAL
A101
LEFT LANDING GEAR
RIGHT HALF
WHITE
A97
SIDE BRACE LINK
WHITE
LOWER CYLINDER LINK
A102
LEFT
WHITE
GUNMETAL
TIRES FROM STEP
#14
A99
MAIN GEAR
LEFT DRAG LINK
WHITE
A103
LEFT
JURY BRACE
WHITE
PARALLEL BRACE
A104
LEFT
WHITE
A98
MAIN GEAR
RIGHT DRAG LINK
WHITE
Kit 5714 - Page 12
16
LEFT
COMPLETED STRUT
A105
LEFT
DRAG BRACE
STRUT ASSEMBLY
C107
LEFT
MAIN GEAR
INSIDE DOOR
WHITE
C106
LEFT
DRAG BRACE DOOR
WHITE
(INSIDE 0NLY)
(INSIDE ONLY)
DRAG BRACE
17
RIGHT
COMPLETED STRUT
108
RIGHT
WEAPONS BAY DOOR ASSEMBLY
C111
BAY DOOR LINKAGE
WHITE
MAIN GEAR INSIDE DOOR
C109
RIGHT
DRAG BRACE DOOR
WHITE
(INSIDE 0NLY)
C110
RIGHT
WHITE
(INSIDE ONLY)
C112
WEAPONS BAY DOOR
WHITE
(INSIDE 0NLY)
Kit 5714 - Page 13
18
COMPLETED BAY DOORS
BAY DOORS TO FUSELAGE ASSEMBLY
RIGHT STRUT AND NACELLE
OMITTED FOR CLARITY
19
FUSELAGE
REAR HALF
FUSELAGE
REAR HALF
RIGHT
STABILIZER TOP
D118
RIGHT
D117
LEFT
RIGHT
D115
REAR FUSELAGE ASSEMBLY
D119
AFT RADOME
LEFT
D114
LEFT
STABILIZER BOTTOM
D113
LEFT
STABILIZER TOP
D116
RIGHT
STABILIZER BOTTOM
Kit 5714 - Page 14
20
FINAL ASSEMBLY
GUNMETAL
A120
LADDER DOOR
LINKAGE
WHITE
FRONT FUSELAGE
GLOSS
GREEN
LIGHT
GUNMETAL
A120
LADDER DOOR
LINKAGE
WHITE
B127
SWING WING FILLER PANEL
RIGHT
REAR FUSELAGE
MIDDLE FUSELAGE
121
WINDSHIELD
CLEAR
(PAINT SHADED
AREA
FUSELAGE COLOR)
B123
RIGHT
CANARD VANE
B125
PITOT TUBES
GLOSS
GREEN
B122
OPERATORS
ESCAPE HATCH
A126
TACAN ANTENNAS
CANARD VANE
B124
LEFT
GLOSS RED
B128
SWING WING FILLER PANEL
LEFT
GLOSS RED
LIGHT
Kit 5714 - Page 15
21
DECAL PLACEMENT
Kit 5714 - Page 16
Loading...
