Response WLA9026 User Manual

-1-

3G GPS Vehicle Tracker

User Manual

LA-9026

-2-

Read before using the product:

1. Power ON / OFF

Turn the switch to the on position beside the tracker, the tracker will power on, if the tracker battery is low, the

power & GND wire connect to car battery is OK, after the tracker is powered on, the LED will flash, if the Green

LED flash once every 4 seconds, it means the tracker work well, please refer the following 3 for detail LED flash

indicator.

2. Install SIM card (Micro SIM Card)

Open the SIM card room cover, the SIM card holder can be seen, put & push the SIM card to the SIM card

holder, there will be a click sound when the SIM card is locked properly, if the SIM card is not installed properly, the

tracker can not find the mobile phone network signal, please pull out the SIM card and change the SIM card face to

other side and try again. (Pay attention to that the SIM card metal contact pin need face down to the socket, please

refer the following diagram). And then put the SIM card room cover properly.

Note:

1> This tracker use 2G GSM & 3G WCDMA network (Please confirm this 3G module frequency can be used in

the SIM card 3G network, the frequency band is list in the end of this manual), and it upload tracking only

through internet, it can not work in CDMA network or CDMA2000 network. (Many 4G SIM card have 2G

GSM & 3G WCDMA network, this kind of SIM card can be used in this tracker).

2> Enable the SIM card data service (some SIM card need send SMS or USSD command to enable GPRS

function), order a data package (20-30M/month) can save data charge (Normally most of the tracker every

month data cost is lower than 20MB).

3> Please confirm the PIN code of the SIM card is disabled.

4> Before installing or uninstalling the SIM card, please power off the tracker.

3. LED flash indicator

GREEN LED Flash once : GSM & GPS working well

GREEN LED Flash twice : GSM working well and no GPS signal

GREEN LED Flash three times : GSM & GPS working well but battery low

GREEN LED Flash four times : GSM working well, battery low and no GPS signal

GREEN LED ON continuously : GSM searching network

GREEN LED OFF : Power off

RED LED Flash once : uploading tracking is ok

-3-

RED LED Flash twice : can not upload tracking

4. Power supply

For CCTR-805, the tracker uses the 9-40V DC power supply, too high voltage or AC voltage may damage the

tracker or even cause accidents, it is necessary connecting to car battery all the time, after the backup battery is

full, the built in recharging circuit will stop recharging, and if the tracker is not move, the tracker will go to sleep,

then the tracker will cost few power to protect the car battery, this will not make the car battery can not start car

engine.

RED or BROWN----------12V/24V car battery

BALCK------GND (Car Body)

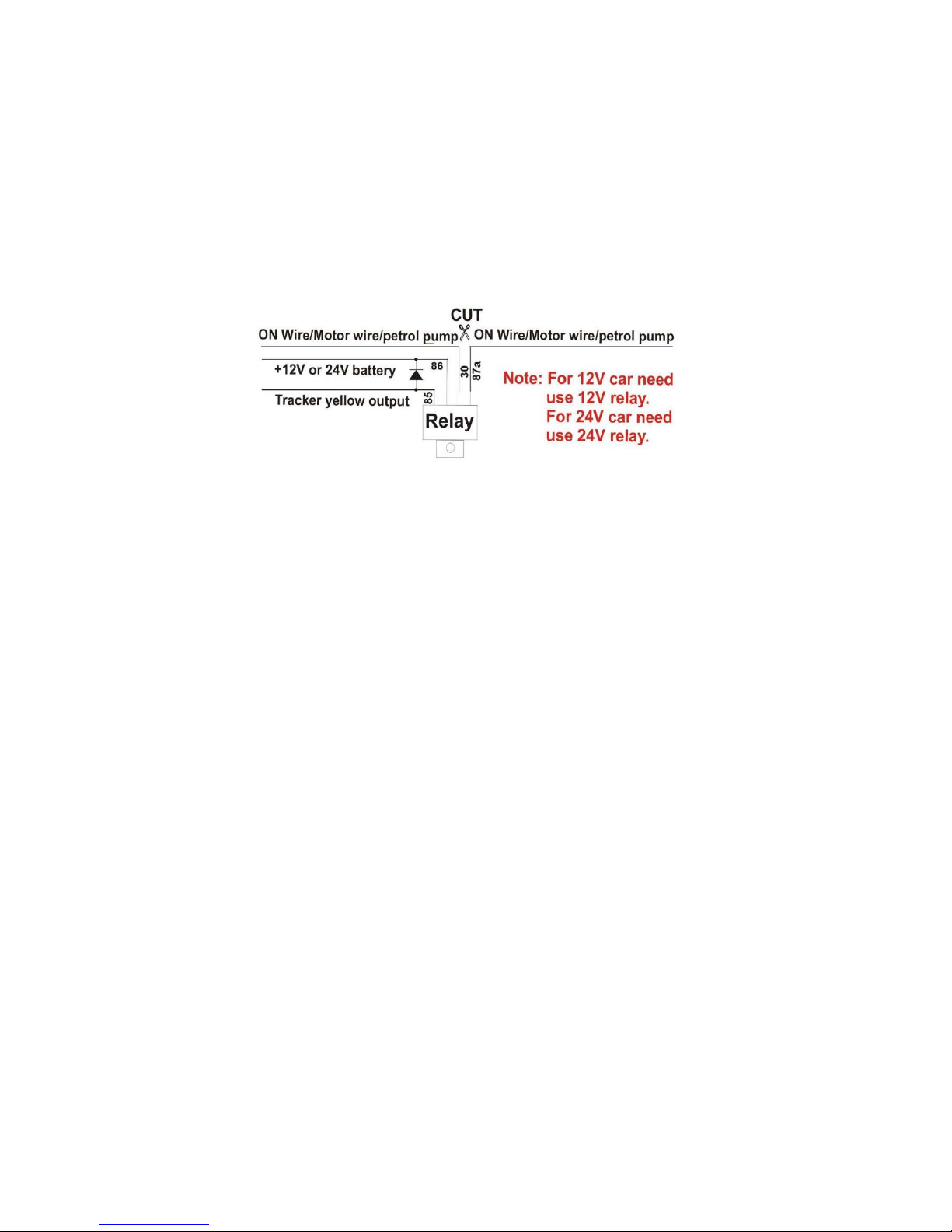

YELLOW----Turn off Engine Negative Output (Connect to Relay)

WHITE or GREY-------External SOS button Negative Input

GREEN-------ON Signal(Engine Running) Positive Input

Note: ON signal is used to indicator the engine is running (Positive means engine is running), if ON signal is

positive then the tracker will begin to upload location to server, if the ON signal is open the tracker will stop to

upload location to server. If the GREEN wire is not connected to ON signal, the uploading will be controlled by

shock sensor, if the car begin to move the tracker will begin to upload location to server, after the car stop moving 2

minutes the tracker will stop to upload location to server.

The SOS function need installing the external SOS button, install the external SOS button in a hidden place that

driver can press the button, connect one wire of the SOS button to GND (car body), another wire of the SOS button

to the tracker SOS wire is OK.

The external microphone need insert to the socket beside the wires on the case, and install the microphone in

hidden place near the driver so that the tracker can have clear voice

For car security the tracker need be installed in hidden place, normally the back of the seat or arm rest box or

under the back window or room on the panel etc. please note that the install location of the tracker must can

receive the GSM & GPS signal, before recovery the cover panel please try to locate the tracker (send sms to locate

or check location on app or PC) after installation, and confirm the locating is ok, if the location is not right and lost

points very often, please try to change a place to install.

5. Power Down Alarm:

When the tracker power supply is off or the voltage is too low, the GREEN LED of the tracker will flash 3 times,

and then the tracker will send power down alarm SMS to the authorized number. This means the tracker power is

removed or the tracker is removed, please confirm.

Power Down Alarm

Battery:88%

-4-

6. Back to Factory Setting

Send the SMS command to the tracker can reset the tracker setting to the factory mode (just like new tracker).

The SMS command is FACTROY*123456. FACTORY is command, 123456 is tracker password.

7. ANTENNA

The Antenna of GPS is built in the tracker, and the Antenna of 2G/3G is external, please leave the tracker

away from big metal, that will reduce the 2G/3G and GPS signal.

8. Using Condition

The working temperature is -20 to 60, over this range the specification maybe can not reach the standard

level. the storage temperature can reach to -40 to 80.

Simply Using Step

1.

First to buy a 2G GSM or 3G WCDMA mobile phone SIM card and enable data service, order a data

package 20-30M (Normally most of the tracker every month data cost is lower than 20MB), install in the tracker,

please refer Before Using 2. Some SIM card need send SMS to active internet data service, please call the SIM

card supplier to confirm.

2.

Connect the tracker power wire to the car battery and switch the ON/OFF to on position, the Green LED will

be on continuously, the tracker is powered on, put the tracker outdoor for easy get GPS & mobile phone network

signal.

3.

Check LED flash, refer Before Using 3 for detail, If Green LED flash once means mobile phone and GPS

signal are well. And Red LED flash once means the location has been uploaded to the server.

4.

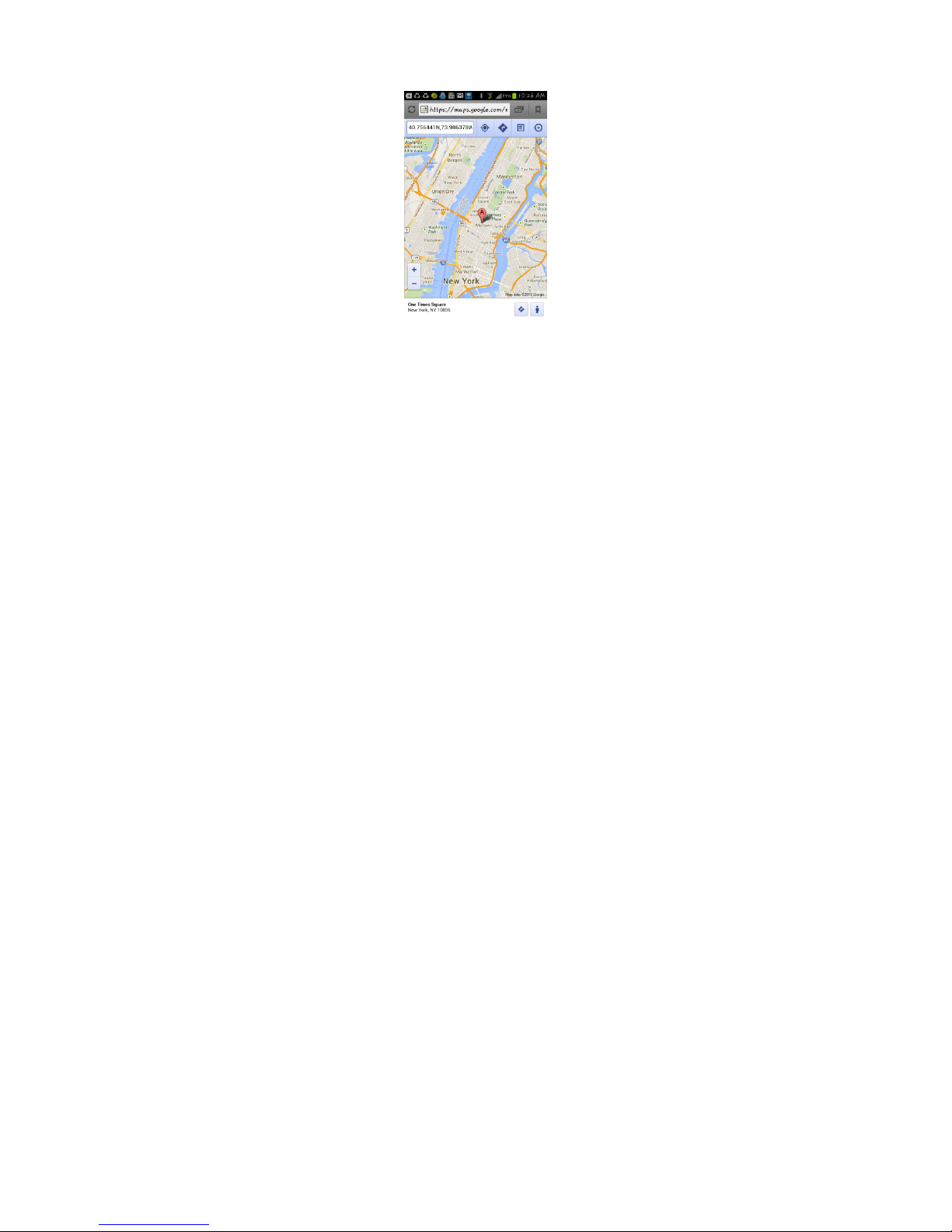

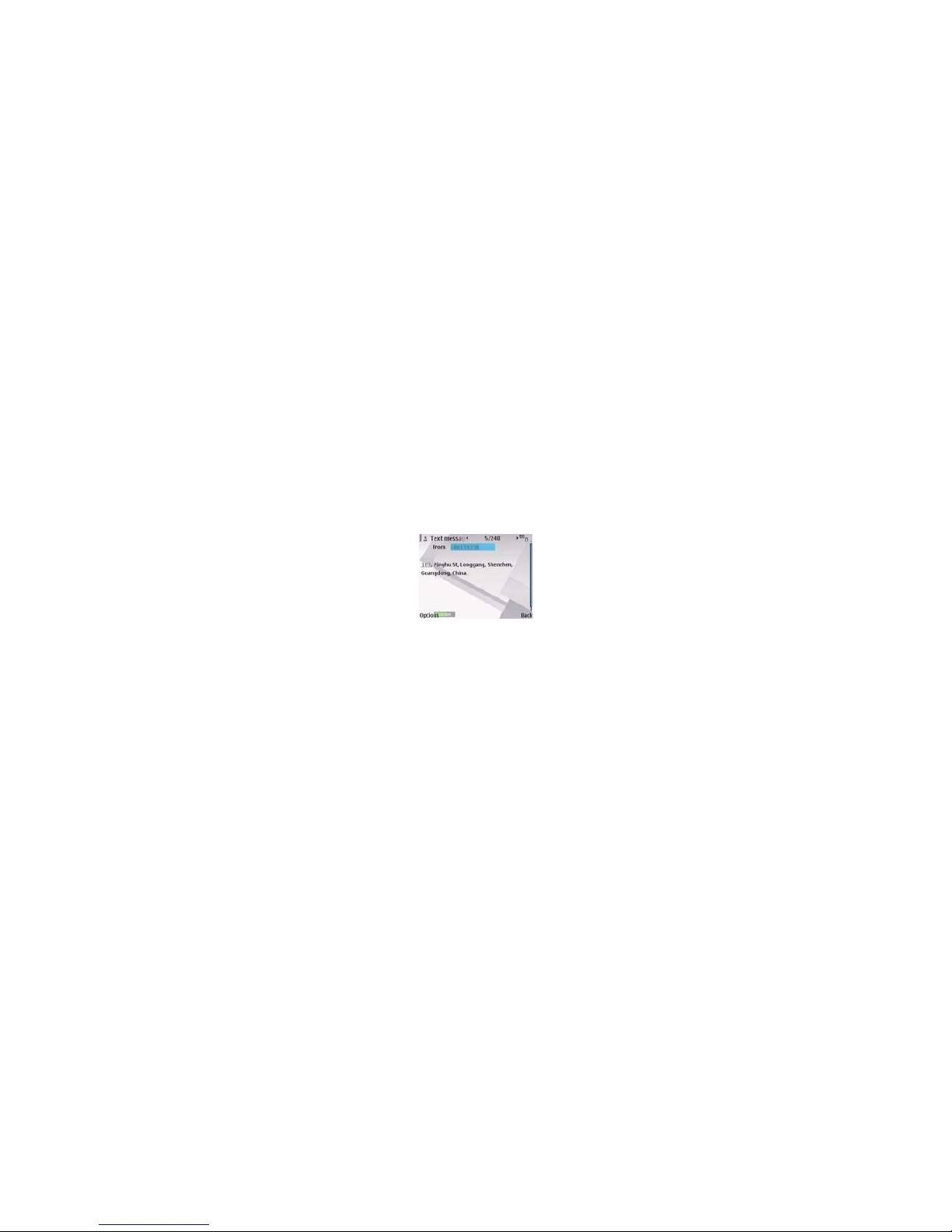

Call the tracker or send SMS “LOCATE*123456” or “URL*123456” to the tracker, the tracker will reply the

tracker location with text description or Google map link by SMS.

5. Visit & login the tracking platform

www.999gps.net, click can select different

language, check current location, playback history tracking etc can be operated, platform user name and password

is the last 7 digital numbers of the tracker’s ID (for example ID is : 805201512345678, the user name is : 2345678,

password is :2345678 or 123456, user can change the password, send SMS “ID*123456” to tracker can check

tracker ID).

6.

iPhone Android App,Wap,WeChat also use the same user name and password with website login, visit

www.999gps.net with mobile phone, click the app icon on the login page, or scan the QR code on login page, the

iPhone & Android app can be download & installed, please refer the platform operation guide.

7.

Fleet user can be created for easy fleet management, call your distributor to create a fleet.

-5-

8. This tracker can auto configure APN & GPRS user name & password, if the auto configuration is not right,

the tracker can not visit internet, so the tracker location can not update on the server, and the red LED will flash

twice, then you need send SMS to tracker to change the APN & GPRS manually, please send SMS

“CHECK*123456” to tracker to check the APN auto configuration, call the tracker SIM card supplier to confirm the

APN & GPRS is right. Send “APN*123456*apnname” and “USERNAME*123456*username*password” to tracker

can change the APN & GPRS setting, please refer the following for detail.

Tracker Setting Command

1. Add / Delete / Check authorized number:

The authorized phone number is used to send alarm information by SMS, or use mobile phone to locate the

tracker without platform, if the authorized phone number is not set, then the alarm information can not send to user

by SMS (alarm, battery low, SOS, etc). The Add command please see “Basic Locate Operation & Setting”.

Add authorized phone number

Send SMS “ADDPHONE*123456*A*number”(Not including the quotation marks “ ”, Number means the

telephone number you want preset, the following is same) to tracker is OK, “ADDPHONE” is a command; “123456”

is password; “A” is authorized number location, every tracker have 3 authorized phone number locations, A and B,

and C, so you can set 3 phone numbers, if the add operation is success, the tracker will send back the information

”Add Preset Phone OK”, if the password is not right, the operation is fault, the tracker will send back information

“Wrong Password”.

Delete authorized phone number by SMS

Send SMS “DELETEPHONE*123456*A” to the tracker, “DELETEPHONE” is a command; “123456” is

password; “A” is authorized phone number location, there are 3 locations “A” and “B” and “C”; if the delete

operation is success, the tracker will send back the information ”Delete Preset Phone OK”, if the password is not

right, the operation is fault, the tracker will send back information “Wrong Password”.

Check authorized phone number by SMS

Send SMS “CHECKPHONE*123456” to tracker, “CHECKPHONE” is a command; “123456” is password; if the

operation is success, the tracker will send back the information “Preset Phone A:13987654321; B:13876543210;

C:13765432100 , the phone number is just an example. if the password is not right, the operation is fault, the

tracker will send back information or “Wrong Password”.

2. Change / Check Tracker Password

The tracker password is used to protect the tracker only can be operated by owner, every SMS command need

follow tracker password, the default tracker password is 123456, for higher security please change the tracker

password.

Change tracker password

-6-

Send SMS “CHANGEPASSWORD*123456*888888” to tracker, “CHANGEPASSWORD” is a command;

“123456” is old password; “888888” is new password; if the operation is success, the tracker will send the

information “ New Password: 888888” to every preset phone number, if the password is not right, the operation is

fault, the tracker will send back information “Wrong Password”.

Note: Only The authorized phone can change the password.

Check tracker password

Send SMS “CHECKPASSWORD” to the tracker, “CHECKPASSWORD” is a command, if the operation is

success, the tracker will send back the information “Password:888888”; “888888”is an example.

Note: Only The authorized phone can check the password.

3. Alarm Notice by Calling ON/OFF:

Send SMS “CALLON*123456” to tracker, in which, “CALLON” is the fixed command and “123456”is the

password. Having successfully been made, there will be a reply sms to indicate the alarm will be noticed by making

a call. Send SMS “CALLOFF*123456” to tracker, in which, “CALLOFF” is the fixed command and “123456”is the

password. Having successfully been made, there will be a reply sms to indicate the alarm will not be noticed by

making a call. If the alarm notice is set to CALLOFF, then the tracker only sending sms or sending information to

platform when the alarm is triggered.

4. Alarm Notice by SMS ON/OFF:

Send SMS “SMSON*123456” to tracker, in which, “SMSON” is the fixed command and “123456”is the password.

Having successfully been made, there will be a reply sms to indicate the alarm will be noticed by sending a sms.

Send SMS “SMSOFF*123456” to tracker, in which, “SMSOFF” is the fixed command and “123456”is the password.

Having successfully been made, there will be a reply sms to indicate the alarm will not be noticed by sending a

sms. If the alarm notice is set to SMSOFF, then the tracker only making a call or sending information to platform

when the alarm is triggered.

5. Set GPRS Mode: KEEPONLINE / SHOCKCONTROL

Send SMS “KEEPONLINE*123456” (Keep online all the time even the tracker stop moving) or

“SHOCKCONTROLGPRS*123456” (Turn off GPRS after the tracker stop moving 10 minutes) to the tracker,

“KEEPONLINE” or “SHOCKCONTROLGPRS” is a command, “123456” is the tracker password, if the operation is

success, the tracker will send back the information “GPRS: Keep Online” or “GPRS: Shock Control”, if the

password is not right, the operation is fault, the tracker will send back information “Wrong Password”. the default

setting is Shock Control, when the tracker begin to move, the tracker begin upload the tracking, the tracker status

on the platform will change to online immediately. if the tracker stop moving, the tracker will stop upload the

tracking and turn off GPS & GPRS to go to sleep mode , a few minutes later the tracker status on the platform also

will change to offline.

If the tracker is always online, the tracker will send tracker status to platform all the time, but this will cost more
