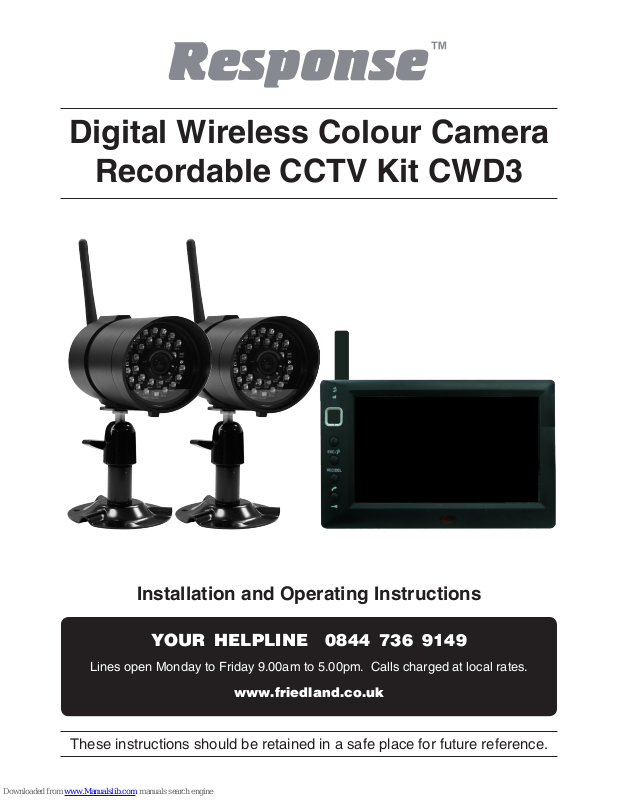

Response CWD3 Installation And Operating Instructions Manual
Digital Wireless Colour Camera
Recordable CCTV Kit CWD3
Installation and Operating Instructions
YOUR HELPLINE 0844 736 9149
www.friedland.co.uk
Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.
These instructions should be retained in a safe place for future reference.
2
CONTENTS
1. INTRODUCTION—3
2. KIT CONTENTS—6
3. INSTALLATION—8
3.1 Contents and Connections 8
3.2 Powering up the system 9
3.3 Setting the Camera Channel (Optional) 10
3.4 Pairing the Camera to Receiver (Optional) 10
3.5 Camera Installation 11
4. MONITOR PANEL INTRODUCTION—12
5. SYSTEM INTRODUCTION—13
5.1 Icon Functions 13

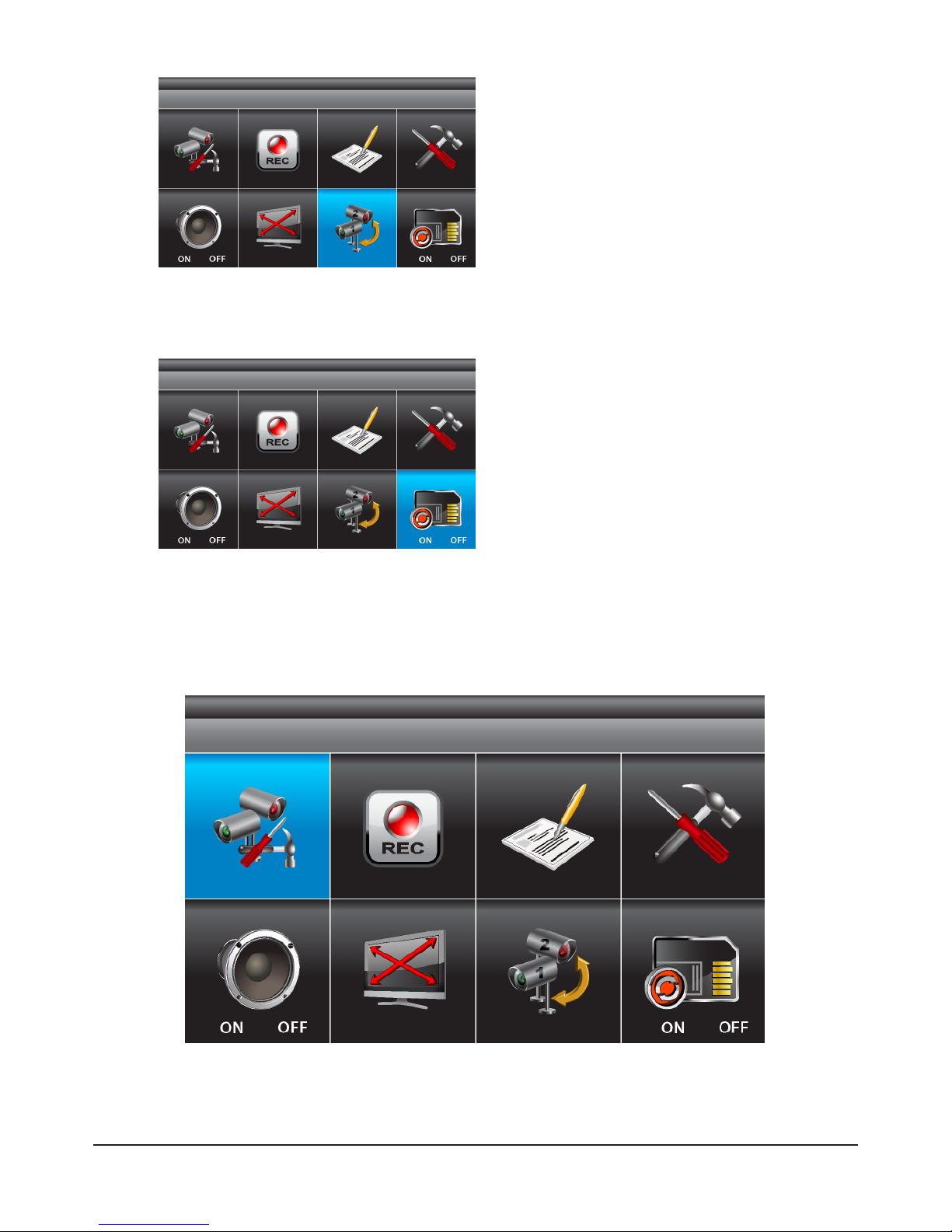

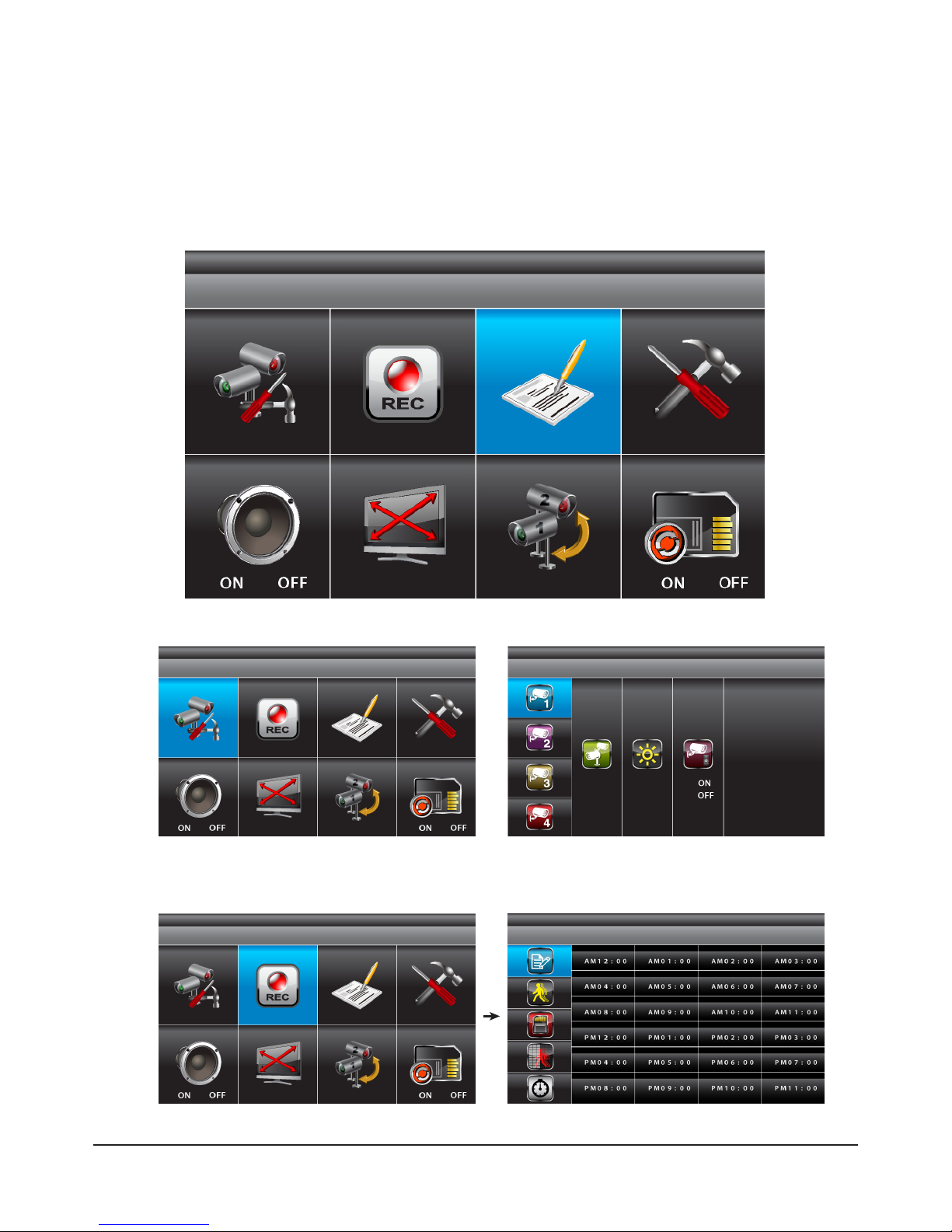

5.2 System Menu 14
6. System Operation —16
6.1 Camera Setup 16

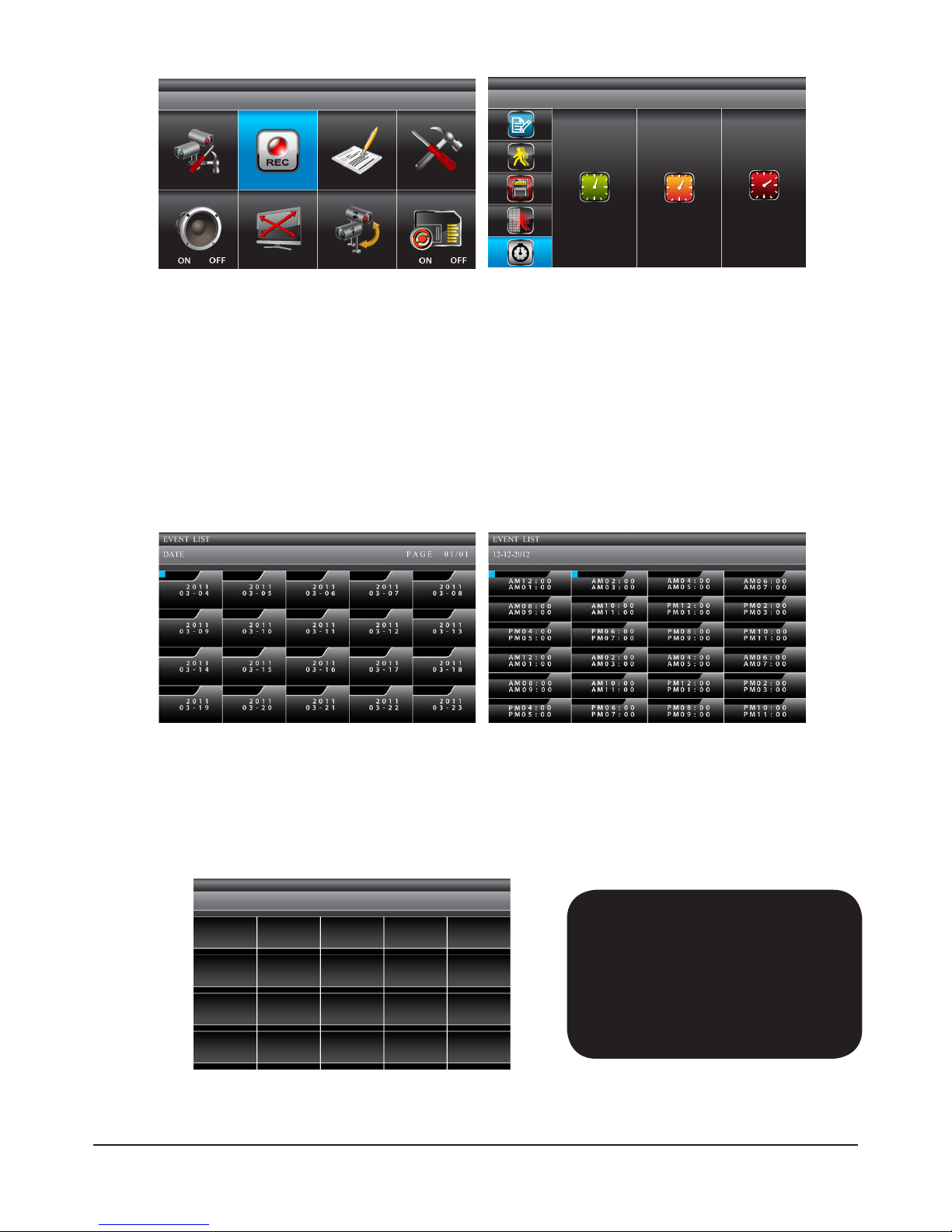

6.2 Recorder Setup 19
6.3 Event List 21

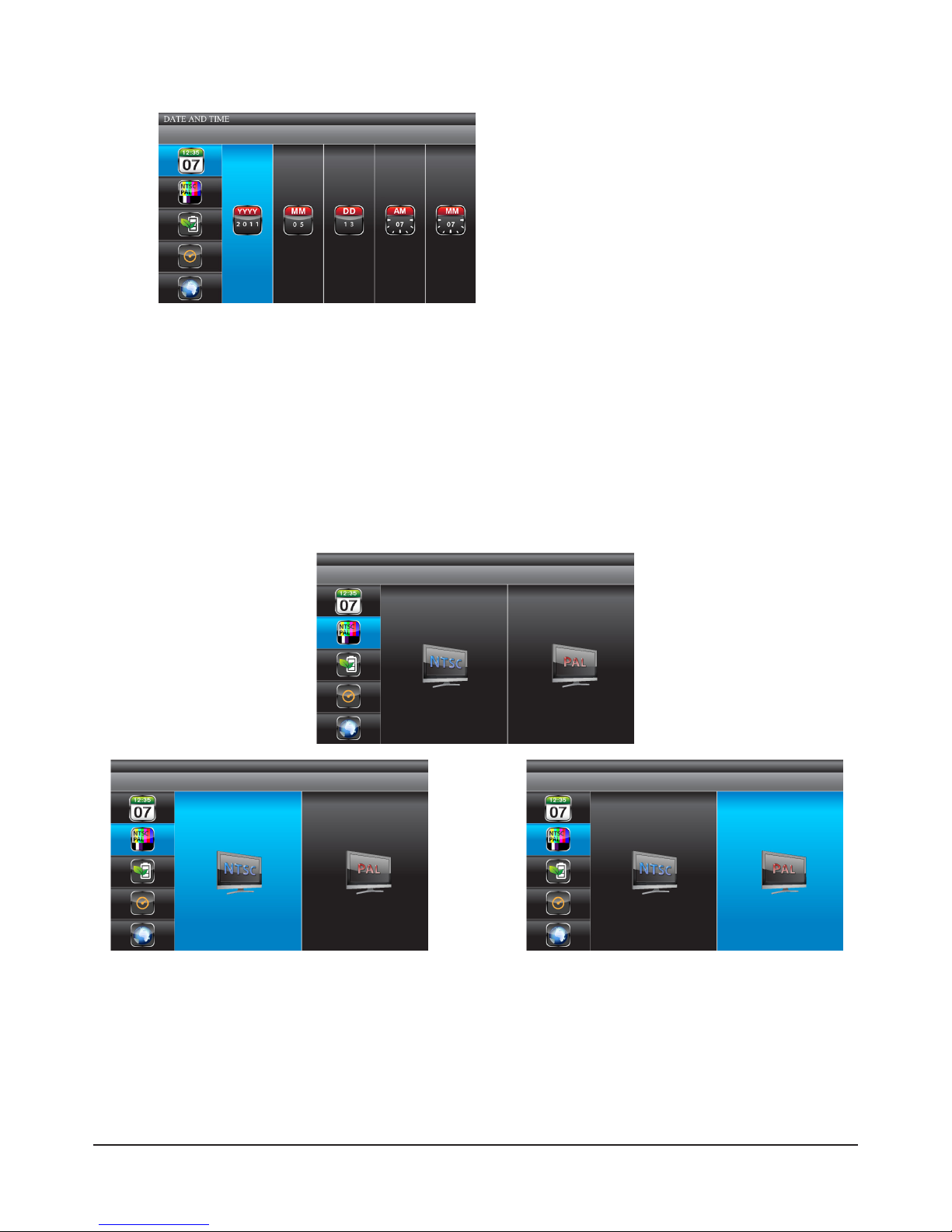

6.4 System Setup 23
6.5 Alarm Buzzer 26
6.6 Pan Tilt Zoom 27
6.7 Memory Card Overwrite 28
7.PC PLAYBACK SOFTWARE—29

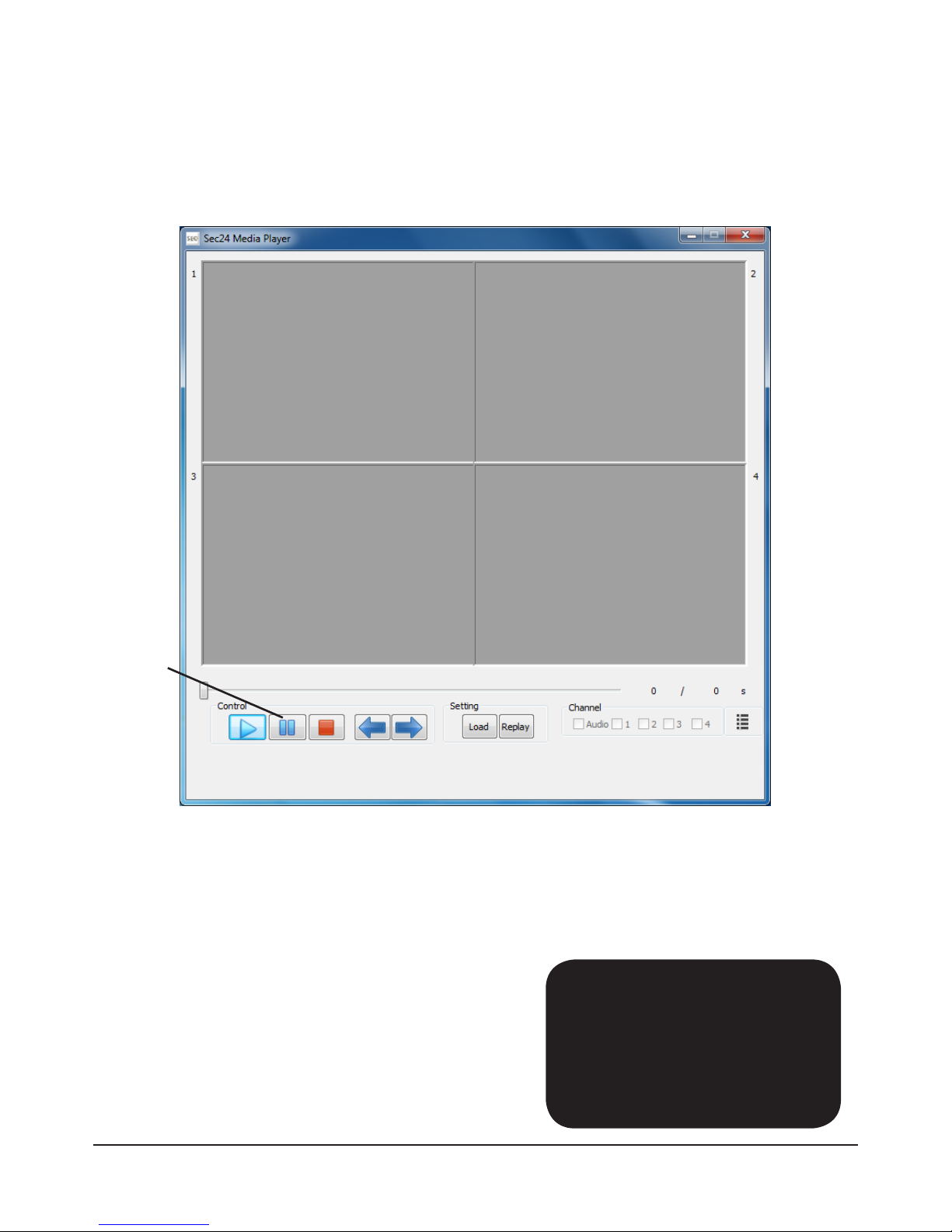

7.1 Sec24 Media Player Introduction 29

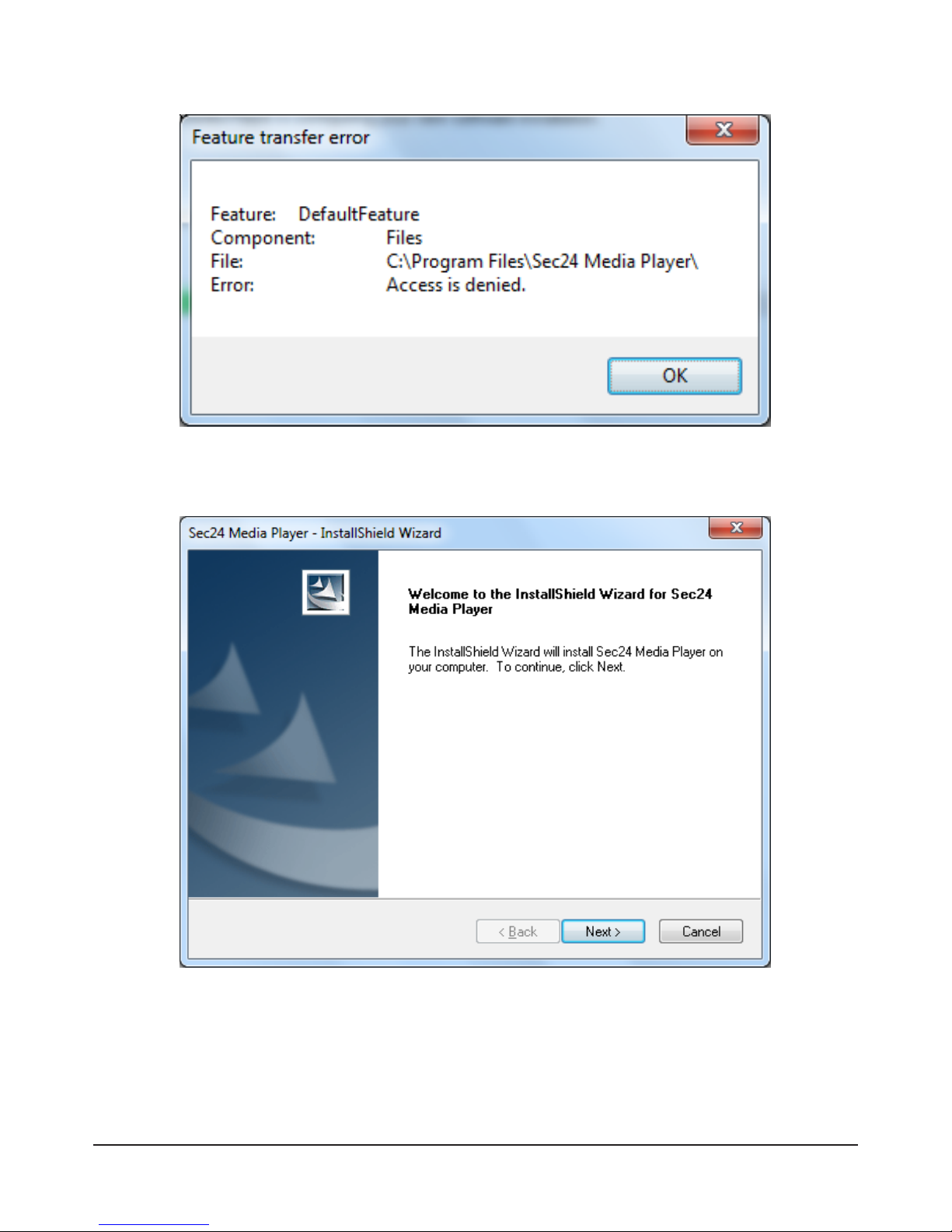

7.2 Installation 30
7.3 Playback recorded le(s) 33

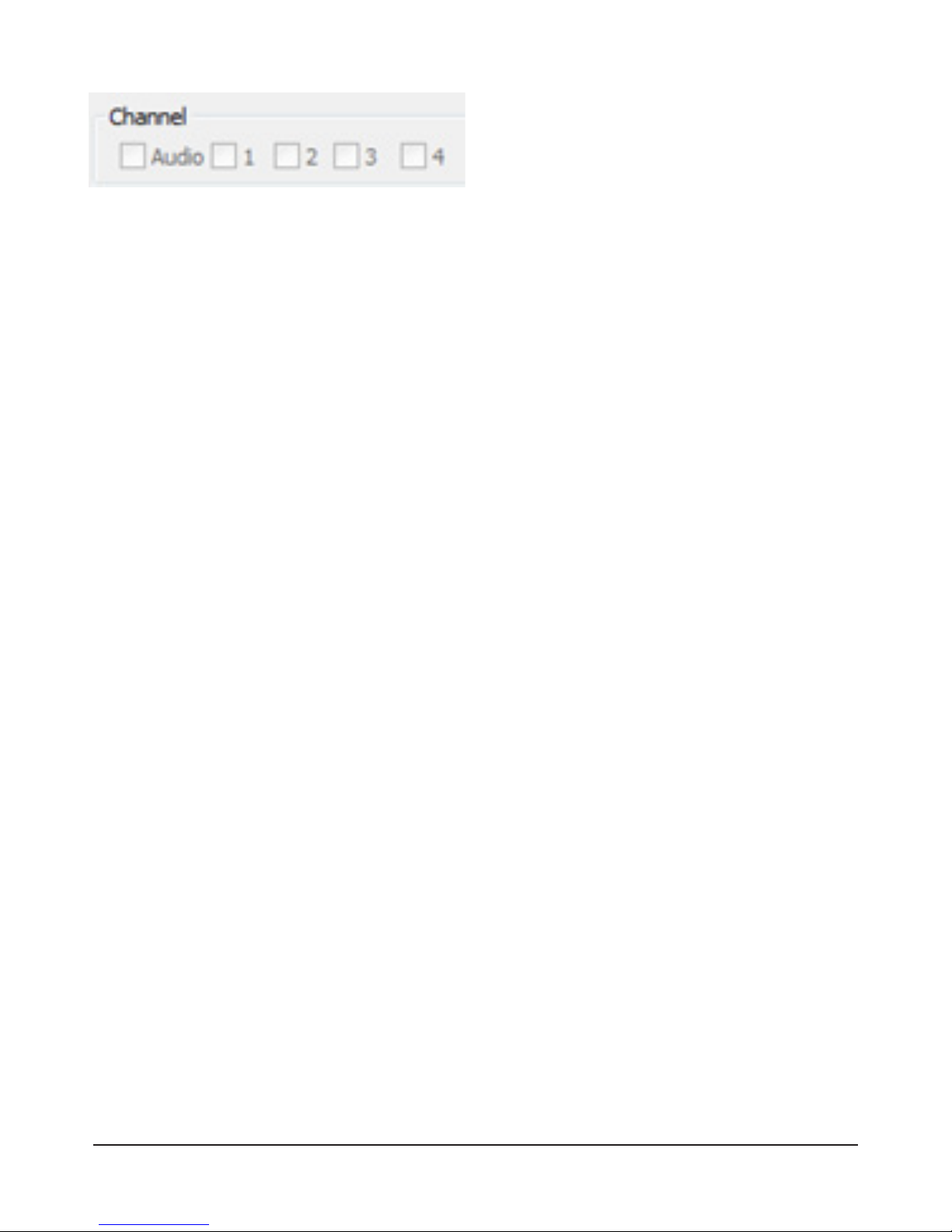

7.4 Channel Disable / Enable Select 35
8. System Conguration—36
9.Product Specication—37
10.Total Recording Time for Memory Cards (32GB max.)—37
11.Battery used in the 7" LCD monitor—37
3
1. INTRODUCTION
The Digital Wireless Colour Camera Recordable CCTV Kit is a wireless security system
designed to view and capture video clips of any motion viewed by the wireless camera
and store them in on a micro SD memory card. The wireless camera supplied is colour,
weatherproof and suitable for day/night use for the protection of your home or ofce, etc.
Please read before you start:
Always use discretion when installing CCTV survillance equipment especially
when there is perceived policy. Enquire regarding local regulations applicable
to the lawful installation of video recording/surveillance. Third party consent
may be required.
WIRELESS DEVICES OPERATING RANGE:
Ensure the signal reception viewed from the wireless camera is the best
possible reception (i.e. no interference lines viewed on the TV) between the
camera and receiver. If necessary reduce the distance between the camera
and receiver to improve overall system performance.
The Wireless Colour Camera Recordable CCTV Kit operating on a secure
digital 2.4GHz frequency can greatly reduce interference from products such
as wireless routers, cordless phones, microwave ovens, concrete walls, large
scale metal objects, and furniture.
YOUR HELPLINE 0844 736 9149
www.friedland.co.uk
If you have any problems installing this CCTV system please refer to the
Trouble Shooting sections on page 9 which should help solve any common
problems, or call the Customer Helpline, available Monday to Friday 9.00am
to 5.00pm.
Calls are charged at local rates. Network charges for mobiles may
vary depending on your network and call plan.
4
Camera 2
Camera 1
Front Door
cable hole
(to allow camera
cable and connector
to pass through)
Receiver
TV/Monitor
Ensure the distance from camera to power
outlet does not exceed the length of the
camera power adapter cable
PLANNING YOUR LAYOUT:
SAFETY AND INSTALLATION TIPS:
7" LCD DVR Receiver
• keep away from heat sources and high temperature places
• Avoid direct sunlight
• Avoid humid places
• Avoid vibration
• Install in a ventilated environment
• The supplied 2GB micro SD memory card can be replaced with up to a 32GB
capacity one if required.
• Do not use in wet conditions if operated on battery power
YOUR HELPLINE 0844 736 9149
www.friedland.co.uk
Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.
NOTE:
The camera has an open eld RF operating range of up to 150m.
7" LCD DVR
20mm diameter
5
Camera(s) and DVR
NIGHT VISION:
Do not attempt to open the units with the power adaptor plug connected to avoid any risk
of personal injury.
When installing CCTV camera(s), always follow manufacturer's advice when using power
tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles)
when drilling holes. Before drilling holes through walls check for hidden electricity cables
and water pipes. The use of cable/pipe detector is advisable.
It is also advisable to avoid exposing any cameras to extreme weather conditions (e.g,
under a gutter which is prone to any water leaks). When installing any cameras with this
unit, it is advisable to use cable conduit to protect any video/power extension cables
from being exposed externally and to prevent/reduce the chances of the cables being
tampered with. After drilling any hole though an external wall for a cable, ensure the hole
is sealed up around the cable using a sealant to prevent drafts.
To prevent a re or electrical shock hazard, do not attempt to open the housing while
the unit is exposed to rain, water or wet conditions. There are no user serviceable
parts inside. Refer servicing to qualified service personnel. Avoid pointing the
camera(s) directly at the sun or any bushes, tree branches or moving objects that might
unnecessary cause the DVR to record due to winds for example. The system also
provides "Masking" function, and the user may screen out motion detection area in parts
of the picture which motion detection is not required.
The camera has built-in infra-red LEDs to allow you to view at night for 24hrs
surveillance. The LEDs will automatically activate at night and the picture viewed will turn
to black and white. The night viewing range is up to 5-8m.
6
A
1 x 7" LCD Monitor (Receiver)
2 x Digital Wireless Cameras
B
C
3 x 5V/1A Power Adapter for Camera and Receiver
D
2 x Camera Stands
E
2 x Fixings Pack
F
1 x Video Playback PC Software(CD-ROM)
G
1 x AV Cable for TV Output
H
I
J
K
L
2 x Power Supply Adaptor Extension Cable for Cameras (1.8m)
2 x Camera Antennas
1 x 2 GB Micro SD Memory Card and adaptor
1 x Manual
1 x Window Sticker
2. KIT CONTENTS
YOUR HELPLINE
0844 736 9149
www.friedland.co.uk
Trouble Shooting page 9 or call the
Customer Helpline available Monday to
Friday 9.00 am to 5.00pm.
If any parts are missing contact your helpline 0844 7369149
Tools Required:
Memory card reader for a PC if using playback software (only if your PC has no built
in memory card reader) Safety Glasses Hammer Bradawl Electric drill
No. 2 Philips screwdriver 5mm masonry drill bit 20mm masonry drill bit
7
A
B
Digital Wireless Camera
C
5V/1A Power Adapter for
Camera and Receiver
D
H
Camera Stand
Power Supply Extension
Cable for Cameras (1.8m)
Fixings Pack
Video Playback PC
Software (CD-ROM)
Window Sticker
E
J
F
L
G
AV Cable
I
K
Camera Antenna
Manual
YOUR HELPLINE 0844 736 9149
www.friedland.co.uk
Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.
Digital Wireless Receiver
Digital Wireless Colour Camera
Recordable CCTV Kit CWD3
Installation and Operating Instructions
YOUR HELPLINE 0844 736 9149
www.friedland.co.uk
Lines open Monday to Friday 9.00am to 5.00pm. Calls charged at local rates.
These instructions should be retained in a safe place for future reference.
C C T V
2GB Micro SD Memory
Card and Adaptor
8
3. INSTALLATION
3.1 Contents and Connections
NOTE:
"If the wireless camera is located within 1m to 1.5m from the wireless receiver and the
camera's volume on the receiver is turned on , then you may hear a whistling noise on
the monitor which if feedback picked up by the microphone. In this case please locate
the camera further away from the receiver to prevent this noise."
"If the power connection to the camera is kept outdoors, ensure the connection is
suitably protected."
TV / MONITOR
Receiver
Power Supply
Adaptor
WIRELESS CAMERA
Camera Power
Supply Adaptor
WIRELESS
RECEIVER
Turn power
on here
Video Signal
to RCA Input
Connect to
DC 5V/1A port
on Wireless
Receiver
to Wireless Cam mera
WIRELESS CAMERA
Camera Power
Screw the Camera Bracket
Screw the Camera Antenna
clockwise on to the back of the Camera
clockwise on to the lower
body of the Camera
Screw the Camera Bracket
Screw the Camera Antenna
clockwise on to the back of
the Camera
clockwise on to the lower
body of the Camera
to Wireless Cam mera
Connect to
3.5mm Phone
Jack on Wireles s
Receiver
Wireless
Receiver
Connector Cable
(Optional for 7 ”
LCD DVR receive r)
Connect to Audio Input on TV
Yellow = Video
White = Audio
YOUR HELPLINE
0844 736 9149
www.friedland.co.uk
Trouble Shooting page 9 or call the Customer Helpline
available Monday to Friday 9.00 am to 5.00pm.
9
3.2 Powering up the system
Insert the memory card into the DVR if not already tted
Press and Hold power key for one second to power hold the power. Press and hold the power
key for two seconds to power off the system.
After system power on, adjust the camera viewing position again if necessary.
The 7" LCD monitor DVR is fitted with a rechargeable battery and
can operate for up to 4 hours (in power save mode) on battery power
once fully charged. The monitor can be carried around anywhere
within operating range of the cameras, but should be used in a dry
environment as it is not weatherproof.
ON/OFF
power button
Micro SD card slot
on 7" LCD DVR
Trouble Shooting
PROBLEM SOLUTION
No camera picture The power supply adaptor for the monitor
camera(s) is not plugged in.Camera out
of range. Locate camera closer to the
receiver.
Poor picture quality Clean the camera lens.
A white image
appears at night
The camera's in fra- red LEDs shine
invisible light that reects of surfaces such
as glass causing white light. Place the
camera on the other side of windows to
try to improve the night vision or place in a
well lit area.
The system will
not record under
SCHEDULE/
MOTION detection setting
Ensure correct DATE AND TIME has
been set and the Record Schedule setup
correctly.
Ensure the memory card is inserted into
DVR and formatted.
10
3.3 Setting the Camera Channel (Optional)
3.4 Pairing the Camera to Receiver (Optional)
The wireless cameras will be supplied preset to channel 1 and channel 2.
The wireless monitor supports up to 4 wireless cameras. Follow the step below to set or
change the monitor channel of the camera. If you are adding another camera to link with the
supplied monitor in this kit, then ensure its channel is set to a different channel to the existing
camera(s).
Follow the steps in 6.1 Camera Setup (p.16) SETUP section to set or change the channel
of the camera. If you are adding another camera to link with the supplied receiver in this kit,
then ensure its channel is set to a different channel to the existing camera(s).
Pairing Key
YOUR HELPLINE
0844 736 9149
www.friedland.co.uk
Trouble Shooting page 9 or call the
Customer Helpline available Monday to
Friday 9.00 am to 5.00pm.
11
3.5 Camera Installation
Attach Stand to Mounting Surface
A.Secure camera stand on the wall
B. Loosen the thumb screw
C.Adjust the camera to the correct viewing position then secure the joint with
T-bolt.
C
B
12
4. MONITOR PANEL INTRODUCTION
1
2
3
4
5
6
7
8
9
10
11
12
Display Menu Playback REC Mode Other
1 Link indicator
2 Power indicator
3 Switch Channel Cursor UP Fast Forward
4 VOL Down Cursor Left VOL Down Switch
Display CH
5 Menu OK / ENTER PLAY / PAUSE
6 VOL Up Cursor Right VOL Up
Switch Display CH
7 Switch Channel Cursor Down Fast Backward
8 ESC EXIT Previous
9 REC/STOP Next STOP
10 ZOOM
11 ALARM
12 Power Button
YOUR HELPLINE
0844 736 9149
www.friedland.co.uk
Trouble Shooting page 9 or call the
Customer Helpline available Monday to
Friday 9.00 am to 5.00pm.
Loading...
