ResMed AirSense 10 AutoSet for Her Plus, AirSense 10 AutoSet Plus, AirSense 10 Elite Plus Clinical Manual
Clinical guide
English
i
Contents
Welcome ................................................................................................................................... 1
Indications for use ................................................................................................................ 1
AirSense 10 AutoSet Plus .............................................................................................. 1
AirSense 10 AutoSet for Her Plus .................................................................................. 1
AirSense 10 Elite Plus .................................................................................................... 1
Contraindications.................................................................................................................. 1
Adverse effects .................................................................................................................... 2
At a glance ................................................................................................................................ 2
About the control panel ........................................................................................................... 3
Therapy information................................................................................................................. 4
AutoSet mode ...................................................................................................................... 4
Normal airway ................................................................................................................ 4
Flow limitation ............................................................................................................... 5
Snore ............................................................................................................................. 5
Apnea ............................................................................................................................ 5
AutoSet for Her mode .......................................................................................................... 7
CPAP mode.......................................................................................................................... 7
Reporting ............................................................................................................................. 8
Central sleep apnea detection ........................................................................................ 8
Cheyne-Stokes respiration detection .............................................................................. 8
Respiratory effort related arousals reporting .................................................................. 9
Comfort features ..................................................................................................................... 10
Ramp ................................................................................................................................. 10
Expiratory Pressure Relief .................................................................................................. 10
AutoSet Response ............................................................................................................. 11
Climate Control .................................................................................................................. 11
Climate Control Auto .................................................................................................... 11
Tube Temperature ....................................................................................................... 11
Climate Control Manual ................................................................................................ 11
Tube Temperature ....................................................................................................... 11
Humidity Level ............................................................................................................. 12
Setup ....................................................................................................................................... 13
Supplemental oxygen ......................................................................................................... 14
Antibacterial filters ............................................................................................................. 14
Accessing and exiting the Clinical Menu............................................................................... 14
Adjusting the clinical settings ............................................................................................. 15
Setting the date and time ............................................................................................. 15
Settings menu .................................................................................................................... 16
Therapy ........................................................................................................................ 16
Comfort ....................................................................................................................... 16
Accessories ................................................................................................................. 17
Options ........................................................................................................................ 17
Configuration ............................................................................................................... 18
Starting therapy ...................................................................................................................... 19
Stopping therapy .................................................................................................................... 19
Viewing the Sleep Report ................................................................................................... 19
Sleep Report screen parameters ........................................................................................ 20
Cleaning and Maintenance .................................................................................................... 21
Disassembling .................................................................................................................... 21
ii
Cleaning ............................................................................................................................ 21
Checking ........................................................................................................................... 22
Reassembling .................................................................................................................... 22
Reprocessing .......................................................................................................................... 22
Surface disinfection ........................................................................................................... 23
Reprocessing the air tubing and Air10 tubing elbow .......................................................... 23
Disconnecting ............................................................................................................. 23
Decontaminating ......................................................................................................... 24
Disinfecting ................................................................................................................. 24
Inspecting ................................................................................................................... 25
Reconnecting the air tubing ......................................................................................... 25
Packaging and storage................................................................................................. 25
Reprocessing the humidifier and air outlet ......................................................................... 26
Disassembling ............................................................................................................. 26
Decontaminating ......................................................................................................... 27
Disinfecting ................................................................................................................. 27
Inspecting ................................................................................................................... 28
Reassembling .............................................................................................................. 28
Packaging and storage................................................................................................. 29
Data management and therapy compliance ........................................................................ 29
SD card .............................................................................................................................. 29
Data storage ...................................................................................................................... 30
Managing patient care ........................................................................................................... 30
Patient menu ..................................................................................................................... 30
Traveling ............................................................................................................................ 30
Traveling by plane........................................................................................................ 31
Troubleshooting ..................................................................................................................... 31
General troubleshooting .................................................................................................... 31
Device messages .............................................................................................................. 33
General warnings and cautions ............................................................................................ 34
Technical specifications ......................................................................................................... 35
Symbols ............................................................................................................................ 39
Servicing ............................................................................................................................ 39
Limited warranty................................................................................................................ 40
English 1
Welcome
The AirSense™ 10 AutoSet™ Plus and AirSense 10 AutoSet for Her Plus are ResMed's premium
auto-adjusting pressure devices. The AirSense 10 Elite Plus is ResMed's Continuous Positive Airway
Pressure (CPAP) devices.
WARNING
• Read this entire guide before using the device.
• Use the device according to the intended use provided in this guide.
• The advice provided by your prescribing doctor should be followed ahead of the
information provided in this guide.
Indications for use
AirSense 10 AutoSet Plus
The AirSense 10 AutoSet Plus self-adjusting device is indicated for the treatment of obstructive
sleep apnea (OSA) in patients weighing more than 30 kg. It is intended for home and hospital use.
The humidifier is intended for single patient use in the home environment and re-use in a
hospital/institutional environment.
AirSense 10 AutoSet for Her Plus
The AirSense 10 AutoSet for Her Plus self-adjusting device is indicated for the treatment of
obstructive sleep apnea (OSA) in female patients with mild to moderate OSA weighing more than
30 kg. It is intended for home and hospital use.
The humidifier is intended for single patient use in the home environment and re-use in a
hospital/institutional environment.
AirSense 10 Elite Plus
The AirSense 10 Elite Plus device is indicated for the treatment of obstructive sleep apnea (OSA) in
patients weighing more than 30 kg. It is intended for home and hospital use.
The humidifier is intended for single patient use in the home environment and re-use in a
hospital/institutional environment.
Contraindications
Positive airway pressure therapy may be contraindicated in some patients with the following
pre-existing conditions:
• severe bullous lung disease
• pneumothorax
• pathologically low blood pressure
• dehydration
• cerebrospinal fluid leak, recent cranial surgery, or trauma.
2
Adverse effects
Patients should report unusual chest pain, severe headache, or increased breathlessness to their
prescribing physician. An acute upper respiratory tract infection may require temporary
discontinuation of treatment.
The following side effects may arise during the course of therapy with the device:
• drying of the nose, mouth, or throat
• nosebleed
• bloating
• ear or sinus discomfort
• eye irritation
• skin rashes.
At a glance
The AirSense 10 Plus includes the following:
• Device
• HumidAir
™
humidifier
• Air tubing
• Power supply unit
• Travel bag
• SD card (already inserted).
A range of accessories are available for use with the device including:
• Air tubing (heated and non-heated): ClimateLineAir
™
, SlimLine™, ClimateLineAir Oxy, Standard
• Side cover for use without the humidifier
• Filter: Hypoallergenic filter, standard filter
• Air10
™
DC/DC converter (12V/24V)
• SD card reader
• Air10 oximeter adapter
• Air10 USB adapter
• Power Station II
• Air10 tubing elbow.
Note: Make sure all parts and accessories used with the device are compatible. For compatibility
information, refer to www.resmed.com.
English 3
1
Air outlet
5
HumidAir humidifier
2
Air filter cover
6
Screen
3
Power inlet
7
Adapter cover
4
Serial number and device number
8
SD card cover
About the control panel
Start/Stop button
Press to start/stop therapy.
Press and hold for three seconds to enter power save
mode.
Dial
Turn to navigate the menu and press to select an option.
Turn to adjust a selected option and press to save your
change.
Home button Press to return to the Home screen.
Different icons may be displayed on the screen at different times including:
Ramp Time
Wireless signal strength (green)
Ramp Time Auto
Wireless transfer not enabled (gray)
Humidity
No wireless connection
Humidifier warming
Airplane Mode
Humidifier cooling
4
Therapy information
The following modes are available on the AirSense 10 Plus device:
Device
Modes available
AutoSet
AutoSet for Her
CPAP
AirSense 10 AutoSet Plus
AirSense 10 AutoSet for Her
Plus
AirSense 10 Elite Plus
AutoSet mode
The treatment pressure required by the patient may vary due to changes in sleep state, body
position and airway resistance. In AutoSet mode, the device provides only that amount of pressure
required to maintain upper airway patency.
The device analyzes the state of the patient’s upper airway on a breath-by-breath basis and delivers
pressure within the allowed range according to the degree of obstruction. The AutoSet algorithm
adjusts treatment pressure as a function of three parameters: inspiratory flow limitation, snore, and
apnea.
Normal airway
When the patient is breathing normally, the inspiratory flow measured by the device as a function of
time shows a typically rounded curve for each breath.
English 5
Flow limitation
As the upper airway begins to collapse, the shape of the inspiratory flow-time curve changes. The
AirSense 10 Plus recognizes and treats traditional as well as less common flow-limited breath wave
forms.
Snore
Snoring is sound generated by vibrations of the walls of the upper airway. It is often preceded by
flow limitation or a partial obstruction of the airway.
Apnea
The enhanced AutoSet algorithm detects both obstructive and central apneas. If an apnea occurs,
the device responds appropriately.
6

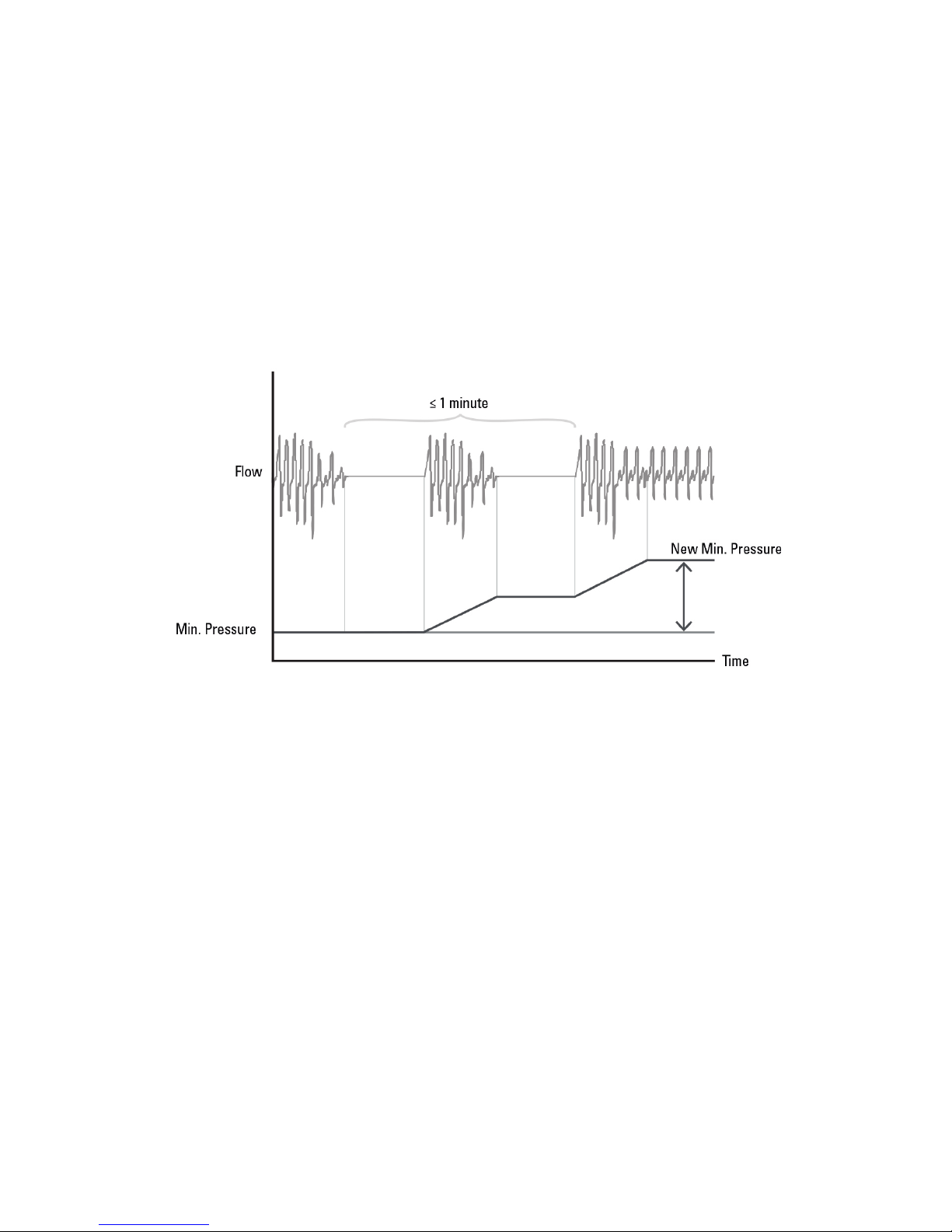

Obstructive apnea
An obstructive apnea is when the upper airway becomes severely limited or completely obstructed.
AutoSet generally prevents obstructive apneas from occurring by responding to flow limitation and
snoring. If an obstructive apnea occurs, the device will respond by increasing pressure.
Central apnea
During a central apnea, the airway will remain open, but there is no flow. When a central apnea is
detected, the device responds appropriately by not increasing pressure.
English 7
AutoSet for Her mode
AutoSet for Her mode is based on key aspects of ResMed’s AutoSet algorithm and delivers
therapeutic responses tailored to the characteristics of female OSA patients.
The AutoSet for Her is similar to ResMed’s AutoSet algorithm with the following modifications:
• Reduced rate of pressure increments designed to help prevent arousals.
• Slower pressure decays.
• Treats apneas up to 12 cm H
2
O (12 hPa) and continues to respond to flow limitation and snore up
to 20 cm H
2
O (20 hPa).
• Minimum pressure (Min. Pressure) that adjusts according to the frequency of apneas:
If two apneas occur within a minute, the pressure reached in response to the second apnea will
become the new minimum treatment pressure until the next treatment session.
Patients who use AutoSet for Her will still get the benefits of ResMed's AutoSet technology
including improved sensitivity to flow-limitation and Central Sleep Apnoea Detection with Forced
Oscillation Technique.
CPAP mode
In CPAP mode, a fixed pressure is delivered—with optional Expiratory Pressure Relief (EPR™).
8
Reporting
The AirSense 10 detects Central Sleep Apnea (CSA) and Cheyne-Stokes Respiration (CSR). The
Summary and Detailed Data of these parameters are available to view on ResMed patient
compliance software (data availability depends on device mode and parameter measured).
Central sleep apnea detection
Available in all modes on the AirSense 10 AutoSet Plus, AirSense 10 AutoSet for Her Plus and the
AirSense 10 Elite Plus.
The device detects both obstructive and central sleep apneas (CSA). CSA detection uses the Forced
Oscillation Technique (FOT) to determine the state of the patient’s airway during an apnea. When an
apnea has been detected, small oscillations in pressure [1 cm H
2
O (1 hPa) peak-to-peak at 4 Hz] are
added to the current device pressure. The CSA detection algorithm uses the resulting flow and
pressure (determined at the mask) to measure the airway patency.
Cheyne-Stokes respiration detection
Available in all modes on the AirSense 10 AutoSet Plus, AirSense 10 AutoSet for Her Plus and the
AirSense 10 Elite Plus.
Cheyne-Stokes respiration (CSR) is a form of sleep-disordered breathing characterized by a periodic
waxing and waning of respiration. The waxing periods (hyperpneas, typically 40 seconds in length)
can include large gasping breaths that tend to arouse the patient while the waning periods
(hypopneas or apneas, typically 20 seconds in length) cause blood oxygen desaturations.
The following example shows a typical CSR period.
English 9
The following example suggests periodic breathing due to the frequently occurring apneas.
However, when looking closely at the shape of the hyperpneas it can be seen that it is a typical OSA
period.
The AirSense 10 Plus device reports the time during therapy in which it detected breathing patterns
indicative of CSR. It analyzes the patient's respiratory flow for apnea/hypopnea events, calculates
the time between these events, and characterizes the shape of breathing between them.
Respiratory effort related arousals reporting
Respiratory Effort Related Arousals (RERA) reporting is available on the AirSense 10 AutoSet for Her
Plus in all modes.
RERAs are periods of increasing respiratory effort which are terminated by an arousal. Increasing
respiratory effort will be seen as airflow limitation.These flow-based RERA events are logged and
stored as summary and/or detailed data and can then be viewed in one of ResMed's patient
management systems.
10
Comfort features
Ramp
Designed to make the beginning of treatment more comfortable, ramp is available in all modes.
In AutoSet mode, ramp time defines the period during which the pressure gradually increases from
a lower more comfortable start pressure to the minimum treatment pressure before the
auto-adjusting algorithm commences.
In CPAP mode, the pressure increases from a low pressure (Start Pressure) to the prescribed
treatment pressure.
Ramp Time can be set to Off, 5 to 45 minutes or Auto. When Ramp Time is set to Auto, the device
will detect sleep onset and then gradually increase from the start pressure to the minimum
treatment pressure at a rate of 1 cm H
2
O (1 hPa) per minute. However, if sleep onset is not
detected, the device will reach the target pressure within 30 minutes.
Expiratory Pressure Relief
Designed to make therapy more comfortable, Expiratory Pressure Relief (EPR) maintains optimal
treatment for the patient during inhalation and reduces the delivered mask pressure during
exhalation.
EPR
On—EPR is enabled.
Off—EPR is disabled.
The following settings are only available if EPR is On:
EPR Type
Full Time—If set to Full Time, EPR is enabled for the whole therapy session.
Ramp Only—If set to Ramp Only, EPR is only enabled during ramp time.
EPR Level
1, 2, 3 cm H2O (1, 2, 3 hPa)
When EPR is enabled, the delivered pressure will not drop below a minimum pressure of 4 cm H2O
(4 hPa), regardless of the settings.
English 11
AutoSet Response
AutoSet mode (AirSense 10 AutoSet Plus device only).
For patients who are sensitive to faster changes in pressure during therapy, AutoSet Response can
be set to either Standard or Soft. If set to soft, patients will receive gentler pressure rises during
therapy.
Patients who use the AutoSet Response feature will still get the benefits of ResMed's AutoSet
technology including improved sensitivity to flow-limitation and CSA Detection with Forced
Oscillation Technique.
Climate Control
Climate Control is an intelligent system that controls the humidifier and the ClimateLineAir heated
air tubing to deliver constant, comfortable temperature and humidity levels during therapy.
Designed to prevent dryness of the nose and mouth, it maintains the set temperature and relative
humidity while you sleep. Climate Control can be set to either Auto or Manual and is only available
when both the ClimateLineAir and the HumidAir humidifier are attached.
Climate Control Auto
Climate Control Auto is the recommended and default setting. Climate Control Auto is designed to
make therapy as easy as possible, so there is no need to change the temperature or humidity
settings.
Climate Control adjusts the humidifier output to maintain a constant, comfortable humidity level of
85% relative humidity while protecting against rainout (water droplets in the air tubing and mask).
Tube Temperature
In Climate Control Auto there is no need to change any settings, but if the air in the mask is too
warm or cold for the patient, the tube temperature can be adjusted. The Tube Temperature can be
set to anywhere between 16–30°C, or turned off completely.
Climate Control Manual
Designed to offer more flexibility and control over settings, Climate Control Manual lets the patient
adjust the temperature and humidity to the setting which is most comfortable for them.
In Climate Control Manual, the Tube Temperature and the Humidity Level can be set independently
however, rainout protection is not guaranteed. If rainout does occur, first try increasing the tube
temperature. If the air temperature becomes too warm and rainout continues, try decreasing the
humidity.
Tube Temperature
If the air in the mask feels too warm or too cold, the patient can adjust the temperature to find what
is most comfortable or turn it off completely. The Tube Temperature can be set to anywhere
between16–30°C.
The temperature sensor located at the mask end of the ClimateLineAir heated air tubing enables the
system to automatically control the temperature of the air delivered to the patient. This ensures the
temperature of the air delivered to the patient does not fall below the set minimum temperature,
therefore maximizing breathing comfort for the patient.
12
Humidity Level
The humidifier moistens the air and is designed to make therapy more comfortable. If the patient is
getting a dry nose or mouth, turn up the humidity. If the patient is getting moisture in their mask,
turn down the humidity.
The Humidity Level can be set to Off or between 1 and 8, where 1 is the lowest humidity setting
and 8 is the highest humidity setting.
For each humidifier setting, the Climate Control system delivers a constant amount of water vapor,
or absolute humidity (AH), to the patient’s upper airway.
Automatic adjustment
The humidifier and ClimateLineAir heated air tubing are controlled by the Climate Control algorithm
to deliver constant humidity and temperature outputs. The system adjusts automatically to changes
in:
• ambient room temperature and humidity values
• flow due to pressure changes
• flow due to mask or mouth leak.
English 13
Setup
CAUTION
Do not overfill the humidifier as water may enter the device and air tubing.
1. Place the device on a stable level surface.
2. Plug the power connector into the rear of the device. Connect one end of the power cord into
the power supply unit and the other end into the power outlet.
3. Connect the air tubing firmly to the air outlet located on the rear of the device.
4. Open the humidifier and fill it with water up to the maximum water level mark.
Do not fill the humidifier with hot water.
5. Close the humidifier and insert it into the side of the device.
6. Connect the free end of the air tubing firmly onto the assembled mask.
See the mask user guide for detailed information.
Recommended masks are available on www.resmed.com.
14
Supplemental oxygen
The AirSense 10 Plus device is designed to be compatible with up to 4 L/min of supplemental
oxygen in all modes.
At a fixed rate of supplemental oxygen flow, the inhaled oxygen concentration will vary depending
on the pressure settings, patient breathing pattern, mask selection and the leak rate.
To connect supplemental oxygen to the device you need to connect an oxygen connector port. For
more information on how to set up the device with supplemental oxygen, refer to the user guide
supplied with that accessory.
Notes:
• Adding oxygen may affect the delivered pressure and the accuracy of the displayed leak and
minute ventilation.
• Before adding oxygen, familiarize yourself and your patient with the specific warnings relating to
the use of supplemental oxygen. These can be found at the end of this guide.
Antibacterial filters
Antibacterial filters increase resistance in the air circuit and may affect accuracy of displayed and
delivered pressure, particularly at high flows.
ResMed recommends using an antibacterial filter with a low impedance [eg, 2 cm H
2
O (2 hPa) at
60 L/min], such as PALL (BB50T), Filter without Luer Port (4222/702) or the Filter with Side Port
24966 (4222/701). If using the Filter with Side Port, an Oxygen Connector Port is required.
Accessing and exiting the Clinical Menu
You can access, view and set parameters relating to a patient's therapy and device configuration in
the Clinical Menu.
To access the Clinical Menu:
• Press and hold the dial and the Home button for three seconds.
The Home screen is displayed with an unlock icon
in the top right corner of the screen.
To exit the Clinical Menu:
• Press and hold the dial and the Home button for three seconds.
• Select Exit Clinical Menu from the Home screen.
The device will automatically exit the Clinical Menu after 20 minutes of inactivity.
English 15
Adjusting the clinical settings
1. Access the Clinical Menu, highlight Settings and press the dial.
The Settings menu is displayed.
2. Turn the dial to highlight the setting you want to adjust and then press the dial.
3. Turn the dial to adjust the setting and press the dial to save the change.
The settings can be changed in different ways depending on the type of screen:
Turn the dial to edit live in the
menu.
Turn the dial to change the
setting.
Select from a list of options.
Setting the date and time
Before you set up a new patient and start therapy for the first time, make sure you set the correct
local date and time on the device. If you set the date and time after starting therapy, you may lose
patient data.
1. In Settings menu, select Date and change the setting to the correct date.
2. Select Time and change it to the correct local time.
3. Make sure the correct local time and date has been applied.
16
The AirSense 10 Plus settings must be configured for each individual patient. The settings should be
periodically reassessed to ensure optimal therapy.
Settings menu
You set all parameters relating to a patient's therapy and device configuration in the Settings menu.
Therapy
Parameter
Description
Mode
Range
AutoSet
AutoSet
for Her
CPAP
Mode Sets the therapy mode available
on the device.
Min Pressure Sets the lower limit of treatment
pressure.
4–Max cm H2O (hPa),
0.2 cm H
2
O (hPa) increments
Max Pressure Sets the upper limit of treatment
pressure.
Min–20 cm H2O (Min–20 hPa),
0.2 cm H
2
O (0.2 hPa)
increments
Set Pressure Sets the fixed treatment
pressure.
4–20 cm H2O (4–20 hPa),
0.2 cm H
2
O (0.2 hPa)
increments
Mask Select the type of mask used by
the patient. Refer to Mask Device
Compatibility List on
www.resmed.com.
Full Face / Nasal / Pillows
Comfort
Parameter
Description
Mode
Range
AutoSet
AutoSet
for Her
CPAP
Response Sets the rate of pressure rises
during therapy.
Standard / Soft
Ramp Time If Auto is selected, the device
will detect sleep onset and
automatically rise to the
prescribed treatment pressure.
Off / 5–45 mins / Auto
Start
Pressure
Set the pressure at the start of
ramp, up to treatment pressure.
4–Set pressure, 0.2 cm H2O
(0.2 hPa) increments
EPR Enable / disable EPR.
On / Off
EPR Type Available when EPR is enabled.
Full Time / Ramp Only
EPR Level Set the EPR value.
1 / 2 / 3 cm H2O (1 / 2 / 3 hPa)
Climate Ctrl Available when water tub is used
and ClimateLineAir heated air
tubing is connected.
Manual / Auto
English 17
Parameter
Description
Mode
Range
AutoSet
AutoSet
for Her
CPAP
Tube Temp. Set the minimum temperature of
air delivered by heated air tubing
such as ClimateLineAir.
Off /16–30°C, 1° increments
Humidity
Level
Set the humidity level.
Off / 1–8
Accessories
Parameter
Description
Range
Tube Select the type of air tubing used by the patient. ClimateLineAir air tubing
is automatically detected when connected to the device.
SlimLine / Standard
AB filter Select Yes if you attach an antibacterial filter. No / Yes
View
oximeter
Displayed at all times when an oximeter is connected. 18-300 BPM
0-100% SpO
2
Options
Parameter
Description
Range
Essentials Set the level of access available to the patient. On / Plus
SmartStart™ Enable / disable the SmartStart feature. If you enable the SmartStart
feature, the device will start automatically when the patient breathes into
the mask and then stop automatically when the patient removes the
mask.
Off / On
Reminders
Mask Set a recurring reminder to the patient to replace the mask. Off / 1– 24 mths, 1 month
increments
Humidifier Set a recurring reminder to the patient to replace the humidifier. Off / 1–24 mths, 1 month
increments
Tube Set a recurring reminder to the patient to replace the air tubing. Off / 1–24 mths, 1 month
increments
Filter Set a recurring reminder to the patient to replace the air filter. Off / 1–24 mths, 1 month
increments
18
Configuration
Parameter
Description
Selection
Language Set the display language.
(Not all languages available in all regions.)
English /简体中文 /
繁體中文
Date Set the current date.
If you set a new date that occurs in the past then an error message is
displayed. Before this change can be made, erase the compliance data
available under the Configuration menu.
DD Mmm YYYY
Time Set the current time.
If you set a new time that occurs in the past then an error message is
displayed. Before this change can be made, erase the compliance data
available under the Configuration menu.
24 hours
Press. Units Set the unit of pressure in which pressure is displayed. cm H2O / hPa
Temp. Units Set the temperature units. °C
Restore
Defaults
Reset to default settings (except for language, date and time). Yes / No
Erase Data Erase all data stored on the device and the SD card. Settings, date, time
and device run hours are not affected.
Yes / No
About View Run Hours, SN, SW, provider, type, service and signal strength of
the device, CX number, humidifier and internal modem.
English 19
Starting therapy
1. Direct the patient to fit their mask.
2. Direct the patient to press Start/Stop, or if the SmartStart feature is enabled, direct them to
breathe into their mask.
Therapy will begin and the Sleep Report screen is displayed.
The current treatment pressure is shown in green.
During ramp time the pressure is gradually increasing and you will see a
spinning circle. Once the prescribed treatment pressure is reached, the entire
circle will be green.
The screen will go black automatically after a short period of time. You can press Home or the dial to
turn it back on. If power is interrupted during therapy, the device will automatically restart therapy
when power is restored.
The AirSense 10 device has a light sensor that adjusts the screen brightness based on the light in
the room.
Stopping therapy
1. Direct the patient to remove the mask.
2. Direct the patient to press Start/Stop, or if SmartStart is enabled, therapy will stop automatically
after a few seconds.
The Sleep Report now provides a summary of the therapy session.
Viewing the Sleep Report
The Sleep Report screen shows sleep quality and mask seal status for the most recent therapy
session. Turn the dial to scroll down to view more detailed usage data. The parameters displayed
will depend on the therapy mode.
20
Sleep Report screen parameters
Parameter Description
Usage hours Number of hours the device has been used during the last session.
Events (AHI) per hour Apneas and hypopneas measured per hour for one day. An apnea is when the
respiratory flow decreases by more than 75% for at least 10 sec. A hypopnea is when
the respiratory flow decreases to 50% for at least 10 sec. The Apnea Index (AI) and
Apnea-Hypopnea Index (AHI) are calculated by dividing the total number of events that
occurred by the total mask-on therapy period in hours.
Note: Under conditions of high leak with EPR enabled, AHI detection may not be
optimal.
Mask Seal
Good—if the 70th percentile leak is less than 24 L/min.
Mask needs adjustment.
Humidifier
Humidifier attached and functional.
Humidifier fault; refer to troubleshooting section.
More Info
Period
Set the time interval covered by the Sleep Report.
The options are: 1 Day / 1 Week / 1 Month / 3 Months / 6 Months / 1 Year
Days Used Number of days the device has been used during the selected period or since the last
compliance data was reset.
Days 4hrs+ Number of days the device has been used for more than 4 hours during the selected
period or since the last compliance data was reset.
Avg. Usage Average number of hours per day the device has been used during the selected period.
Used Hrs Number of hours the device has been used during the selected period or since the last
compliance data reset.
Pressure Average pressure during the selected period (95th percentile for each day; average of
the 95
th
percentile values for periods >1 day).
Leak Average of the 95
th
percentile values of leak during the selected period for days with
usage only.
AHI Apnea-Hypopnea Index—average AHI during the selected period. AHI and AI are
calculated for times of low leak only.
Total AI Apnea Index—average total AI during the selected period.
Central AI Central Apnea Index—average CAI of the Days Used in the selected period.
English 21
Cleaning and Maintenance
It is important that the AirSense 10 Plus device is cleaned regularly to ensure optimal therapy. The
following sections will help with disassembling, cleaning, checking and reassembling the device.
WARNING
Regularly clean the tubing assembly, humidifier and mask for optimal therapy and to prevent
the growth of germs that can adversely affect the patient's health.
Disassembling
1. Hold the humidifier at the top and bottom, press it gently and pull it away from the device.
2. Open the humidifier and discard any remaining water.
3. Hold the cuff of the air tubing and gently pull it away from the device.
4. Hold both the cuff of the air tubing and the swivel of the mask, then gently pull apart.
Cleaning
You should clean the device weekly as described. Refer to the mask user guide for detailed
instructions on cleaning the mask.
1. Wash the humidifier and air tubing in warm water using mild detergent.
2. Rinse the humidifier and air tubing thoroughly and allow to dry out of direct sunlight and/or heat.
3. Wipe the exterior of the device with a dry cloth.
Notes:
• The humidifier may be washed in a dishwasher on the delicate or glassware cycle (top shelf only).
It should not be washed at temperatures higher than 65ºC.
• Do not wash the air tubing in a dishwasher or washing machine.
• Empty the humidifier daily and wipe it thoroughly with a clean, disposable cloth. Allow to dry out
of direct sunlight and/or heat.
22
Checking
You should regularly check the humidifier, air tubing and the air filter for any damage.
1. Check the humidifier:
• Replace it if it is leaking or has become cracked, cloudy or pitted.
• Replace it if the seal is cracked or torn.
• Remove any white powder deposits using a solution of one part household vinegar to
10 parts water.
2. Check the air tubing and replace it if there are any holes, tears or cracks.
3. Check the air filter and replace it at least every six months. Replace more often if there are any
holes or blockages by dirt or dust.
To replace the air filter:
1. Open the air filter cover and remove the old air filter.
The air filter is not washable or reusable.
2. Place a new air filter onto the air filter cover and then close it.
Make sure the air filter is fitted at all times to prevent water and dust from entering the device.
Reassembling
When the humidifier and air tubing are dry, you can reassemble the parts.
1. Connect the air tubing firmly to the air outlet located on the rear of the device.
2. Open the humidifier and fill it with room temperature water up to the maximum water level
mark.
3. Close the humidifier and insert it into the side of the device.
4. Connect the free end of the air tubing firmly onto the assembled mask.
Reprocessing
When the device is used for multiple patients, for example, in a sleep lab, clinic, hospital or at a
health care provider, the cleanable humidifier, air outlet and air tubing should be reprocessed
between each patient use.
If the cleanable humidifier or the air tubing are being used for a single user in the home, refer to the
cleaning instructions in this guide or in the User Guide.
Described here are ResMed’s recommended and validated procedures for cleaning and disinfecting
the cleanable humidifier, air outlet and air tubing. However, the steps for disinfection vary regionally
and each healthcare facility should consult its own procedures before carrying out those within this
guide.
English 23
WARNING
• ResMed cannot give any assurance that deviations from the procedures listed in this guide,
and their effect on the performance of the product, will be acceptable.
• When using detergents, disinfectants or sterilization agents, always follow the
manufacturer's instructions.
• Beware of electrocution. Do not immerse the device, power supply or power cord in water.
If liquids are spilled into or onto the device, unplug the device and let the parts dry. Always
unplug the device before cleaning and make sure that all parts are dry before plugging it
back in.
Surface disinfection
1. Wipe the exterior of the device including display, externally accessible ports, side cover, power
supply unit and accessories with a disposable cloth and mild detergent or alcohol disinfectant
(see list below).
2. Remove any excess disinfectant with a disposable dry cloth.
Agents recommended for surface disinfection and cleaning:
• Warm water and mild detergent eg, Teepol
™
multipurpose detergent
• Window cleaner or other premixed surface detergent
• Methyl alcohol solution
• 70% Ethyl alcohol solution
• 70-90% Isopropanol solution
• 10% Bleach solution
• Isopropyl wipes
• CaviCide
™
• Mikrozid
®
• Actichlor
™
Plus
• Terralin
®
.
Note: Agents may not be available in all regions.
Reprocessing the air tubing and Air10 tubing elbow
Disconnecting
1. Hold the cuff of the air tubing and gently pull it away from the device.
2. Hold both the cuff of the air tubing and the swivel of the mask, then gently pull apart.
24
Decontaminating
Before the disinfection process, each component must be cleaned and rinsed so no visible
contamination is present.
1. Clean all components with a soft bristled brush for one minute while soaking in detergent
solution (see table below). Pay particular attention to all crevices and cavities.
2. Run the detergent solution through the air tubing repeatedly until no contamination is visible.
3. Thoroughly rinse each component according to the detergent manufacturer's instructions.
ResMed has tested the following detergents according to the manufacturer’s instructions:
Detergent
Water temperature
SlimLine /
Standard
ClimateLineAir
ClimateLineAir
Oxy
Air10
tubing
elbow
Alconox™ (diluted at
1%)
Hot water (approx 60°C)
Warm water (approx 45 to 60°C)
Room temperature water
(approx 21°C)
Neodisher
MediZyme (diluted at
2.0%)
Warm water
(approx 45 °C)
Gigazyme® (diluted
at 1.0%)
Room temperature water (approx
or 21°C)
Disinfecting
In the procedures below, only one disinfection process needs to be performed.
High level thermal disinfection
Part
Validated number of cycles
Hot water:75°C for 30 minutes OR 70°C for 100 minutes.
SlimLine 100
ClimateLineAir 26
ClimateLineAir Oxy 20
Standard 20
Air10 tubing elbow 26
1. Immerse the air tubing in a water bath.
Take care that no air bubbles are trapped inside the air tubing.
2. Increase the water bath temperature to 70°C for 100 minutes, or a maximum of 75ºC for 30
minutes. Higher temperatures may damage the tubing.
3. Air dry out of direct sunlight and/or heat.
English 25
High level chemical disinfection
Part
Validated number of cycles
CIDEX® OPA Ortho-phthalaldehyde
0.55% for 12 minutes
Gigasept FF
®
5% for 15 minutes
SlimLine 100 –
ClimateLineAir 26 26
ClimateLineAir Oxy 20 20
Standard 100 –
Air10 tubing elbow 26 26
1. Soak the air tubing/Air10 tubing elbow in a commercially available solution of a chemical sterilant.
Take care that no air bubbles are trapped inside the air tubing.
2. Thoroughly rinse the air tubing/Air10 tubing elbow in drinking quality water (five liters per
assembly) by immersing it completely for a minimum of one minute in duration.
3. Repeat the rinse procedure two additional times using fresh water for a total of three rinses.
4. Air dry out of direct sunlight and/or heat.
Inspecting
Perform a visual inspection of the components. If any visible deterioration is apparent (holes, tears
or cracks etc), the components should be discarded and replaced. Slight discoloration may occur and
is acceptable.
Reconnecting the air tubing
When the air tubing is dry, you can reconnect it to the device.
1. Connect the air tubing firmly to the air outlet located on the rear of the device.
2. Connect the free end of the air tubing firmly onto the assembled mask.
Packaging and storage
Store in a dry, dust-free environment away from direct sunlight.
Storage temperature: -20°C to 60°C.
26
Reprocessing the humidifier and air outlet
Disassembling
The following instructions provide guidance on how to correctly disassemble the cleanable
humidifier and the air outlet.
1. Remove the humidifier from the device, open it and discard any remaining water.
2. Hold the humidifier base and then fully open the humidifier lid and pull it away so that it easily
detaches from the base.
3. Remove the humidifier seal from the humidifier lid by pulling it away.
4. Align the swivel so that the connector port is on the right. If the swivel is not in this position you
will not be able to remove the air outlet.
5. Locate the air outlet on the inside of the device and release it by pressing the clip firmly.
6. Remove the air outlet by pulling it out through the air outlet socket at the rear of the device.
English 27
Decontaminating
Before the disinfection process, each component must be cleaned and rinsed so no visible
contamination is present.
1. Clean all components with a soft bristled brush for one minute while soaking in detergent
solution (see table below). Pay particular attention to all crevices and cavities.
2. Thoroughly rinse each component according to the detergent manufacturer's instructions.
ResMed has tested the following detergents according to the manufacturer’s instructions:
Detergent
Water temperature
Cleanable
humidifier
Air outlet
Alconox (diluted at 1%) Hot water (approx 60°C)
Warm water (approx 45 to 60°C)
Room temperature water (approx 21°C)
Gigazyme (diluted at 1.0%) Room temperature water (approx 21°C)
Aniosyme DD1
Disinfecting
In the procedures below, only one disinfection process needs to be performed.
High level thermal disinfection
Part
Validated number of cycles
Hot water: 90°C for 1 minute OR 75°C for 30 minutes OR 70°C for 100 minutes.
Due to specific regional requirements, ResMed cleanable humidifiers have been tested
for disinfection (100 cycles) at 93°C for 10 minutes
Cleanable humidifier 130
Air outlet 130
1. Soak the disassembled components in a hot water bath at pasteurizing temperature.
Take care that no air bubbles are trapped against the components.
2. Air dry out of direct sunlight and/or heat.
High level chemical disinfection
Part
Validated number of cycles
CIDEX OPA Ortho-phthalaldehyde 0.55% for 12 minutes
Gigasept FF 5% for 15 minutes
Anioxide
Cleanable humidifier 130 130
Air outlet 130 -
1. Soak the disassembled components in a commercially available solution of a chemical sterilant.
Take care that no air bubbles are trapped against the components.
2. Thoroughly rinse the cleanable humidifier in drinking quality water (five liters per assembly) by
immersing it completely for a minimum of one minute in duration.
3. Repeat the rinse procedure two additional times using fresh water for a total of three rinses.
4. Air dry out of direct sunlight and/or heat.
28
Inspecting
Perform a visual inspection of all components. If any visible deterioration is apparent (cracking,
crazing, tears, etc), the humidifier should be discarded and replaced. Slight discoloration of the
silicone components may occur and is acceptable.
Reassembling
The following instructions provide guidance on how to correctly reassemble the air outlet and the
humidifier.
To reassemble the air outlet
1. Hold the air outlet with the seal pointing to the left and the clip pointing forward.
2. Make sure that the air outlet is correctly aligned and insert the air outlet into the socket. It will
click in place.
3. Check if the air outlet is inserted correctly as shown.
To insert the humidifier seal:
1. Place the seal into the lid.
2. Press down along all edges of the seal until it is firmly in place.
English 29
To reassemble the humidifier lid:
1. Insert one side of the lid into the pivot hole of the base.
2. Slide the other side down the ridge until it clicks into place.
Packaging and storage
Store in a dry, dust-free environment away from direct sunlight.
Storage temperature: -20°C to 60°C.
Data management and therapy compliance
The AirSense 10 Plus device stores data on the SD Card. This data can be transferred via an SD
Card Reader.
SD card
Every AirSense 10 Plus device comes with an SD card already inserted and ready to be used. Once
the data is loaded into a compatible software application via the SD Card Reader, you can review
and analyze data. Some software applications may also enable you to update the therapy settings
and transfer them via the SD card to the device.
To remove the SD card:
1. Open the SD card cover.
2. Push in the SD card to release it. Remove the SD card from the device.
Do not remove the SD card from the device when the SD light is flashing.
30
To insert the SD card:
1. Open the SD card cover.
2. Push the SD card into the device until it clicks.
The following message is briefly displayed: Preparing SD card, do not remove power or your
card.
Data storage
The AirSense 10 Plus device stores summary data such as AHI, Total Hours Used and Leak.
Detailed data such as snore and pulse rate, as well as high resolution flow and pressure data are
stored on the SD card.
Data can be transmitted to compliance management software via SD card. The different ways of
transmitting data are detailed in the table below.
Type of data
Transmission method
SD Card
Sessions stored
Summary data (compliance data)
365
Detailed data
Limited by usage and SD card
storage capacity
High resolution flow and pressure data
(25 Hz - every 40 ms)
Managing patient care
The following section has been provided to assist you with managing your patients' care.
Patient menu
In the patient menu there are two types of access levels, Essentials and Essentials Plus.
Essentials is designed to make the device interaction and menu navigation easier for patients. It is a
simple choice for patients who do not want to worry about settings or menu navigation. It provides
access to the most important comfort features such as Ramp Time, Humidity Level (if water tub
available) and Run Mask Fit.
However, by enabling Essentials Plus you can allow highly engaged patients to access additional
features for control over more of their therapy settings, including changing their mask type, EPR (if
available), SmartStart and Run Warmup (if water tub available).
Essentials Plus can be enabled via the Settings menu. For more information on the patient menu,
see the User Guide.
Traveling
Patients can take their AirSense 10 Plus device wherever they go. Advise patients of the following:
• Use the travel bag provided to prevent damage to the device.
• Empty the humidifier and pack it separately in the travel bag.
• Make sure the patient has the appropriate power cord for the region of travel. For information on
purchasing, contact your ResMed representative.
• When using an external battery, turn off the humidifier in order to maximize battery life. Do this
by turning the Humidity Level to Off.
English 31
Traveling by plane
The AirSense 10 Plus device may be taken on board as carry-on luggage. Medical devices do not
count toward the carry-on luggage limit.
The AirSense 10 Plus device can be used on a plane as it meets the Federal Aviation Administration
(FAA) requirements. Air travel compliance letters can be downloaded and printed from
www.resmed.com.
When using the device on a plane:
• Make sure the humidifier is completely empty and inserted into the device. The device will not
work without the humidifier inserted.
• Turn on Airplane Mode (for instructions refer to the User Guide).
CAUTION
Do not use the device with water in the humidifier on a plane due to the risk of inhalation of
water during turbulence.
Troubleshooting
If there is a problem, try the following suggestions. If you are not able to fix the problem, contact
your local ResMed dealer or ResMed office. Do not open the device.
General troubleshooting
Problem/possible cause
Solution
Air is leaking from around the mask
Mask may be fitted incorrectly. Make sure the mask is fitted correctly. See mask user guide
for fitting instructions or use the Mask Fit function to check
mask fit and seal.
The patient is getting a dry or blocked nose
Humidity level may be set too low. Adjust the Humidity Level.
If you have ClimateLineAir heated air tubing, see the
ClimateLineAir user guide.
There are droplets of water in the mask and air tubing
Humidity level may be set too high. Adjust the Humidity Level.
If you have ClimateLineAir heated air tubing, see the
ClimateLineAir user guide.
The patient is getting a very dry mouth
Air may be escaping through the patient's mouth. Increase the Humidity Level.
The patient may need a chin strap to keep the mouth closed
or a full face mask.
The patient feels that too much air is being delivered from the device
Ramp may be turned off. Use the Ramp Time option.
32
Problem/possible cause
Solution
The patient feels that not enough air is being delivered from the device
Ramp may be in progress. Wait for air pressure to build up or turn Ramp Time off.
Ramp start pressure may be too low. Increase Ramp start pressure.
No display
Backlight on the screen may have turned off. It turns off
automatically after a short period of time.
Press Home or the dial to turn it back on.
Power may not be connected. Connect the power supply and make sure the plug is fully
inserted.
Therapy has stopped, but the device is still blowing air
Device is cooling down. Device blows a small amount of air in order to avoid
condensation in the air tubing. It will stop automatically after
30 minutes.
Humidifier is leaking
Humidifier may not be assembled correctly. Check for damage and reassemble the humidifier correctly.
Humidifier may be damaged or cracked. Replace the humidifier.
Sleep report for the humidifier indicates
.
Humidifier fault Contact your local ResMed dealer or ResMed office.
SmartStart is enabled, but the device does not automatically start when the patient breathes into their mask
Breath is not deep enough to trigger SmartStart. To start therapy, take a deep breath in and out through the
mask, before breathing normally.
Press Start.
There is excessive leak. Adjust the mask and headgear.
Air tubing may not be connected properly. Connect firmly at
both ends.
SmartStart is enabled, but the device does not automatically stop when the patient removes their mask
Incompatible mask being used. Only use equipment recommended by ResMed.
Contact ResMed or see www.resmed.com for more
information.
If the patient is using a nasal pillows mask with set pressure
less than 7 cm H
2
O (7 hPa), SmartStart will not work and
should be disabled.
English 33
Device messages
Device message/possible cause
Solution
High leak detected, check your water tub, tub seal or side cover
Humidifier may not be inserted properly. Make sure the humidifier is correctly inserted.
Humidifier seal may not be inserted properly. Open the humidifier and make sure that the seal is correctly
inserted.
High leak detected, connect your tubing
Air tubing may not be connected properly. Make sure the air tubing is firmly connected at both ends.
Mask may be fitted incorrectly. Make sure the mask is fitted correctly. See mask user guide
for fitting instructions or use the Mask Fit function to check
mask fit and seal.
Tubing blocked, check your tubing
Air tubing may be blocked. Check the air tubing and remove any blockages. Press the
dial to clear the message and then press Start/Stop to
restart the device.
Read only card, please remove, unlock and re-insert SD card
SD card switch may be in the lock (read-only) position.
Move the switch on the SD Card from the lock position
to the unlock position
and then re-insert it.
Date and time can not be set in the past
Date and time were not set before data was recorded.
Select Erase Data in Settings. Once the data is erased, set
the correct local date and time.
System fault, refer to user guide, Error 004
Device may have been left in a hot environment. Allow to cool before re-use. Disconnect the power supply
and then reconnect it to restart the device.
Air filter may be blocked. Check the air filter and replace it if there are any blockages.
Disconnect the power supply and then reconnect it to restart
the device.
Air tubing may be blocked. Check the air tubing and remove any blockages. Press the
dial to clear the message and then press Start/Stop to
restart the device.
There may be water in the air tubing. Empty the water from the air tubing. Disconnect the power
supply and then reconnect it to restart the device.
All other error messages, for example, System fault, refer to user guide, Error 0XX
An unrecoverable error has occurred on the device. Contact your local ResMed dealer or ResMed office. Do not
open the device.
34
General warnings and cautions
WARNING
• Make sure that you arrange the air tubing so that it will not twist around the head or neck.
• Make sure the power cord and plug are in good condition and the equipment is not
damaged.
• Keep the power cord away from hot surfaces.
• If you notice any unexplained changes in the performance of the device, if it is making
unusual sounds, if the device or the power supply are dropped or mishandled, or if the
enclosure is broken, discontinue use and contact your care provider or your ResMed
Service Center.
• Do not open or modify the device. There are no user serviceable parts inside. Repairs and
servicing should only be performed by an authorized ResMed service agent.
• Beware of electrocution. Do not immerse the device, power supply or power cord in water.
If liquids are spilled into or onto the device, unplug the device and let the parts dry. Always
unplug the device before cleaning and make sure that all parts are dry before plugging it
back in.
• Supplemental oxygen must not be used while smoking or in the presence of an open
flame.
• Always make sure that the device is turned on and airflow generated before the oxygen
supply is turned on. Always turn the oxygen supply off before the device is turned off, so
that unused oxygen does not accumulate within the device enclosure and create a risk of
fire.
• Do not perform any maintenance tasks while the device is in operation.
• The device should not be used adjacent to or stacked with other equipment. If adjacent or
stacked use is necessary, the device should be observed to verify normal operation in the
configuration in which it will be used.
• The use of accessories other than those specified for the device is not recommended. They
may result in increased emissions or decreased immunity of the device.
• Regularly check the antibacterial filter for signs of moisture or other contaminants,
particularly during nebulization or humidification. Failure to do so could result in increased
breathing system resistance.
CAUTION
• Use only ResMed parts and accessories with the device. Non-ResMed parts may reduce the
effectiveness of the treatment and/or damage the device.
• Use only vented masks recommended by ResMed or by the prescribing doctor with this
device. Fitting the mask without the device blowing air can result in rebreathing of exhaled
air. Make sure that the mask vent holes are kept clear and unblocked to maintain the flow
of the fresh air into the mask.
• Be careful not to place the device where it can be bumped or where someone is likely to
trip over the power cord.
• Blocking the air tubing and/or air inlet of the device while in operation could lead to
overheating of the device.
• Keep the area around the device dry, clean and clear of anything (eg, clothes or bedding)
that could block the air inlet or cover the power supply unit.
• Do not place the device on its side as water might get into the device.
• Incorrect system setup may result in incorrect mask pressure reading. Ensure the system is
correctly set up.
English 35
• Do not use bleach, chlorine, alcohol, or aromatic-based solutions, moisturizing or
antibacterial soaps or scented oils to clean the device, the humidifier or air tubing. These
solutions may cause damage or affect the humidifier performance and reduce the life of
the products.
• If you use the humidifier, always place the device on a level surface lower than the
patient's head to prevent the mask and air tubing from filling with water.
• Do not overfill the humidifier as water may enter the device and air tubing.
• Leave the humidifier to cool for ten minutes before handling to allow the water to cool and
to make sure that the humidifier is not too hot to touch.
• Make sure that the humidifier is empty before transporting the device.
Technical specifications
Units are expressed in cm H2O and hPa. 1 cm H2O is equal to 0.98 hPa.
90W power supply unit
AC input range:
100–240V, 50–60Hz 1.0–1.5A, Class II
115V, 400Hz 1.5A, Class II (nominal for aircraft use)
DC output:
24V 3.75A
Typical power consumption:
53W (57VA)
Peak power consumption:
104W (108VA)
Environmental conditions
Operating temperature:
+5°C to +35°C
Note: The air flow for breathing produced by this therapy
device can be higher than the temperature of the room.
Under extreme ambient temperature conditions (40°C) the
device remains safe.
Operating humidity:
10 to 95% relative humidity, non-condensing
Operating altitude:
Sea level to 2,591 m; air pressure range 1013 hPa to
738 hPa
Storage and transport temperature:
-20°C to +60°C
Storage and transport humidity:
5 to 95% relative humidity, non-condensing
Electromagnetic compatibility
The AirSense 10 complies with all applicable electromagnetic compatibility requirements (EMC) according to
IEC 60601-1-2:2014, for residential, commercial and light industry environments. It is recommended that mobile
communication devices are kept at least 1 m away from the device.
Information regarding the electromagnetic emissions and immunity of this ResMed device can be found on
www.resmed.com/downloads/devices
Classification: IEC 60601-1:2005+A1:2012
Class II (double insulation), Type BF, Ingress protection IP22.
Sensors
Pressure sensor: Internally located at device outlet, analog gauge pressure
type, -5 to +45 cm H
2
O (-5 to +45 hPa)
Flow sensor:
Internally located at device inlet, digital mass flow type, -70
to +180 L/min
Maximum single fault steady pressure
Device will shut down in the presence of a single fault if the steady state pressure exceeds:
30 cm H2O (30 hPa) for more than 6 sec or 40 cm H2O (40 hPa) for more than 1 sec.
36
Sound
Pressure level measured according to ISO 80601-2-70:2015 (CPAP mode):
SlimLine:
25 dBA with uncertainty of 2 dBA
Standard:
25 dBA with uncertainty of 2 dBA
SlimLine or Standard and humidification:
27 dBA with uncertainty of 2 dBA
Power level measured according to ISO 80601-2-70:2015 (CPAP mode):
SlimLine:
33 dBA with uncertainty of 2 dBA
Standard:
33 dBA with uncertainty of 2 dBA
SlimLine or Standard and humidification:
35 dBA with uncertainty of 2 dBA
Declared dual-number noise emission values in accordance with ISO 4871:1996.
Physical - device and humidifier
Dimensions (H x W x D): 116 mm x 255 mm x 150 mm
Air outlet (complies with ISO 5356-1:2004):
22 mm
Weight (device and cleanable humidifier): 1208 g
Housing construction:
Flame retardant engineering thermoplastic
Water capacity: To maximum fill line 380 mL
Cleanable humidifier - material:
Injection molded plastic, stainless steel and silicone seal
Temperature
Maximum heater plate:
68°C
Cut-out:
74°C
Maximum gas temperature:
≤ 41°C
Air filter
Standard: Material: Polyester non woven fiber
Average arrestance: >75% for ~7 micron dust
Hypoallergenic:
Material: Acrylic and polypropylene fibers in a polypropylene
carrier
Efficiency: >98% for ~7-8 micron dust; >80% for ~0.5 micron
dust
Aircraft use
ResMed confirms that device meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 21,
category M) for all phases of air travel.
Declaration of Conformity (DoC to the R&TTE Directive)
ResMed declares that the AirSense 10 device is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the declaration of conformity (DoC) can be found on
www.ResMed.com/ProductSupport.
Operating pressure range
AutoSet, AutoSet For Her, CPAP:
4 to 20 cm H2O (4 to 20 hPa)
Supplemental oxygen
Maximum flow: 4 L/min
English 37
Pneumatic flow path
1. Flow sensor
2. Blower
3. Pressure sensor
4. Mask
5. Air tubing
6. Humidifier
7. Device
8. Inlet filter
Design life
Device, power supply unit:
5 years
Cleanable humidifier: 2.5 years
Air tubing:
6 months
Humidifier performance
Mask Pressure
cm H2O (hPa)
RH output % at 17°C
ambient
temperature
RH output % at 22°C
ambient
temperature
Nominal system output AH1, BTPS2
Setting 4
Setting 8
Setting 4
Setting 8
4 85 100 6 >10
10
85
100 6 >10
20 85 90 6 >10
1
AH - Absolute Humidity in mg/L
2
BTPS - Body Temperature Pressure Saturated
Air tubing
Air tubing
Material
Length
Inner diameter
ClimateLineAir Flexible plastic and electrical components 2 m 15 mm
ClimateLineAir Oxy
Flexible plastic and electrical components
1.9 m
19 mm
SlimLine Flexible plastic 1.8 m 15 mm
Standard
Flexible plastic
2 m
19 mm
Heated air tubing temperature cut-out: ≤ 41°C
Notes:
• The manufacturer reserves the right to change these specifications without notice.
• The electrical connector end of the heated air tubing is only compatible with the air outlet at the device end and should
not be fitted to the mask.
• Do not use electrically conductive or antistatic air tubing.
• The temperature and relative humidity settings displayed are not measured values.
38
Displayed values
Value
Range
Display resolution
Pressure sensor at air outlet:
Mask pressure
4–20 cm H20 (4–20 hPa)
0.1 cm H2O (0.1 hPa)
Flow derived values:
Leak
0–120 L/min
1 L/min
Value
Accuracy
Pressure measurement1:
Mask pressure2
±[0.5 cm H20 (0.5 hPa) + 4% of measured value]
Flow and flow derived values1:
Flow
±6 L/min or 10% of reading, whichever is greater, at 0 to 150 L/min positive flow
Leak2
±12 L/min or 20% of reading, whichever is greater, 0 to 60 L/min
1
Results are expressed as STPD (Standard Temperature and Pressure, Dry).
2
Accuracy may be reduced by the presence of leaks, supplemental oxygen, tidal volumes <100 mL or minute ventilation <3 L/min.
Measurement system uncertainties
In accordance with ISO 80601-2-70:2015 the measurement uncertainty of the manufacturer's test equipment is:
For measures of flow ± 1.5 L/min or ± 2.7% of reading (whichever is greater)
For measures of volume (< 100 mL)
± 5 mL or 6% of reading (whichever is greater)
For measures of volume (≥ 100 mL) ± 20 mL or 3% of reading (whichever is greater)
For measures of pressure
± 0.15 cm H2O (0.15 hPa)
For measures of time ± 10 ms
Pressure accuracy
Maximum static pressure variation at 10 cm H2O (10 hPa) according to
ISO 80601-2-70:2015
Standard air tubing
SlimLine air tubing
Without humidification
± 0.5 cm H2O (± 0.5 hPa)
± 0.5 cm H2O (± 0.5 hPa)
With humidification
± 0.5 cm H2O (± 0.5 hPa)
± 0.5 cm H2O (± 0.5 hPa)
Maximum dynamic pressure variation according to ISO 80601-2-70:2015
Device without humidification and Standard air tubing / Device with humidification and Standard air tubing
Pressure [cm H2O (hPa)]
10 BPM
15 BPM
20 BPM
4
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
8
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
12 0.5 / 0.5 0.5 / 0.5 0.8 / 0.8
16 0.5 / 0.5 0.5 / 0.5 0.8 / 0.8
20
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
Device without humidification and SlimLine air tubing / Device with humidification and SlimLine air tubing
Pressure [cm H2O (hPa)]
10 BPM
15 BPM
20 BPM
4
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
8
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
12
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
16
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
20
0.5 / 0.5
0.5 / 0.5
0.8 / 0.8
English 39
Flow (maximum) at set pressures
The following are measured accordingly to ISO 80601-2-70:2015 at the end of the specified air tubing:
Pressure
AirSense 10 Plus
and Standard
AirSense 10 Plus,
humidification and
Standard
AirSense 10 Plus
and SlimLine
AirSense 10 Plus,
humidification and
ClimateLineAir
cm H2O (hPa)
L/min
L/min
L/min
L/min
4
180
143
162
151
8
168
135
151
142
12
157
136
140
135
16
144
134
128
121
20
131
123
117
109
Symbols
The following symbols may appear on the product or packaging.
Read instructions before use. Indicates a warning or caution. Follow instructions before
use.
Manufacturer. European Authorized Representative. Batch code.
Catalog number. Serial number. Device number. On / Off. Device weight.
Protected against finger sized objects and against dripping water when tilted up to 15 degrees
from specified orientation.
Direct current. Type BF applied part. Class II
equipment.
Humidity limitation. Temperature limitation. Non-ionising radiation.
Contains no China environmental hazardous substances 10/20 years of China
environmental protection use period.
Prescription only (In the US, Federal law restricts
these devices to sale by or on the order of a physician).
Maximum water level.
Use distilled water only. Operating altitude. Atmospheric pressure limitation.
Complies with RTCA DO-160 section 21, category M.
Environmental information
This device should be disposed of separately, not as unsorted municipal waste. To dispose of your
device, you should use appropriate collection, reuse and recycling systems available in your region.
The use of these collection, reuse and recycling systems is designed to reduce pressure on natural
resources and prevent hazardous substances from damaging the environment.
If you need information on these disposal systems, please contact your local waste administration.
The crossed-bin symbol invites you to use these disposal systems. If you require information on
collection and disposal of your ResMed device please contact your ResMed office, local distributor
or go to ResMed.com/environment.
Servicing
The AirSense 10 Plus device is intended to provide safe and reliable operation when operated in
accordance with the instructions provided by ResMed. ResMed recommends that the AirSense 10
Plus device be inspected and serviced by an authorized ResMed Service Centre if there is any sign
of wear or concern with device function. Otherwise, service and inspection of the products
generally should not be required during their design life.
40
Limited warranty
ResMed Ltd (hereafter 'ResMed') warrants that your ResMed product shall be free from defects in
material and workmanship from the date of purchase for the period specified below.
Product Warranty period
•
Mask systems (including mask frame, cushion, headgear and tubing)—excluding
single-use devices
• Accessories—excluding single-use devices
• Flex-type finger pulse sensors
• Humidifier water tubs
90 days
• Batteries for use in ResMed internal and external battery systems
6 months
• Clip-type finger pulse sensors
• CPAP and bilevel device data modules
• Oximeters and CPAP and bilevel device oximeter adapters
• Humidifiers and humidifier cleanable water tubs
• Titration control devices
1 year
•
CPAP, bilevel and ventilation devices (including external power supply units)
• Battery accessories
• Portable diagnostic/screening devices
2 years
This warranty is only available to the initial consumer. It is not transferable.
If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the
defective product or any of its components.
This Limited Warranty does not cover: a) any damage caused as a result of improper use, abuse,
modification or alteration of the product; b) repairs carried out by any service organization that has
not been expressly authorized by ResMed to perform such repairs; c) any damage or contamination
due to cigarette, pipe, cigar or other smoke; and d) any damage caused by water being spilled on or
into an electronic device.
Warranty is void on product sold, or resold, outside the region of original purchase.
Warranty claims on defective product must be made by the initial consumer at the point of
purchase.
This warranty replaces all other expressed or implied warranties, including any implied warranty of
merchantability or fitness for a particular purpose. Some regions or states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to you.
ResMed shall not be responsible for any incidental or consequential damages claimed to have
resulted from the sale, installation or use of any ResMed product. Some regions or states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation may
not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
region to region. For further information on your warranty rights, contact your local ResMed dealer
or ResMed office.
ResMed Ltd
1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia
See www.resmed.com for other ResMed locations worldwide. For patent and other intellectual property information, see www.resmed.com/ip.
Air10, AirSense, AutoSet, ClimateLine, EPR, HumidAir, SlimLine and SmartStart are trademarks and/or registered trademarks of the ResMed family of
companies. Actichlor is a trademark of Ecolab US Inc. Alconox is a trademark of Alconox Inc. Cavicide is a registered trademark of Metrex Research,
LLC. CIDEX is a registered trademark of Advanced Sterilization Products, Division of Ethicon US, LLC. Mikrozid and Terralin are trademarks of Schülke
& Mayr GmbH. Neodisher MediZym is a trademark of Chemische Fabrik Dr Weigert GmbH & Co. KG. SD Logo is a trademark of SD-3C, LLC. Teepol is
a trademark of Shell Chemical Co. © 2017 ResMed Ltd. 378759/4 2017-11
ResMed.com
Loading...
