Model RLC-423
Image Sensor 1/2.7" CMOS Sensor
Effective Pixels 2560x1920 (5.0 Megapixels)
Lens f=2.7-12 mm Auto-Focus, F=1.6
Angle of View Horizontal: 87°~31°, Vertical: 65°~24°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 60 Meters (190ft)
Backlight Compensation Support
Noise Reduction 3D DNR
Pan &Tilt Range Pan: 360°, Tilt: 0°~90°
Pan Speed 2.5°-180°/s (Speed can be set)
Tilt Speed 1.5°-90°/s (Speed can be set)
Preset 128
Patrol 1 Patrol; Up to 16 Presets per Patrol
Power Memory Support
Compression H.264
Resolution Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480
Bitrate Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps
Frame Rate Mainstream@25fps; Substream@6fps
Audio Input/Output 1ch Audio Input
Compression Rate 16-64Kbps
Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).
Storage Micro SD card socket; support motion recording
Power Supply DC12V & PoE (IEEE 802.3at)
Power Consumption <20W
Working Environment -10°C~+55°C (14°F~131°F), Humidity: 10%~90%
Ingress Protection IP66
Dimensions Φ136 x 201mm
Weight 1.70kg

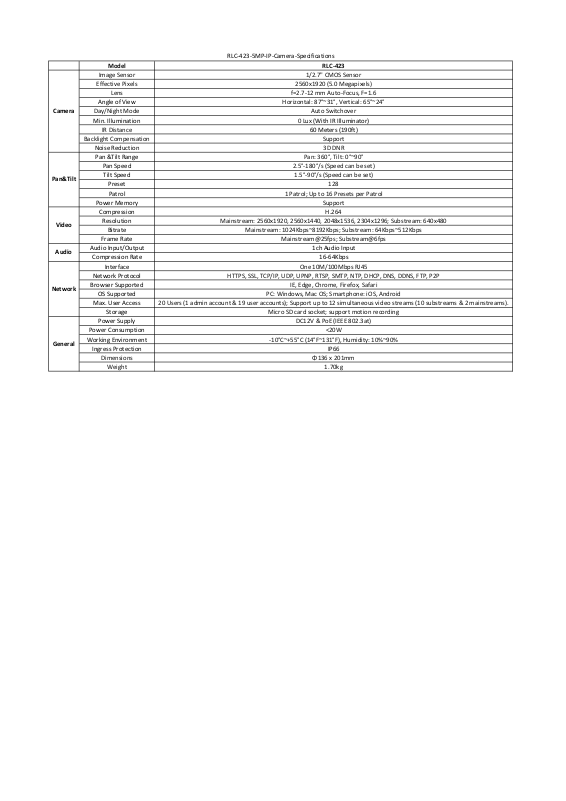

RLC-423-5MP-IP-Camera-Specifications
General
Video
Camera
Pan&Tilt
Audio
Network
