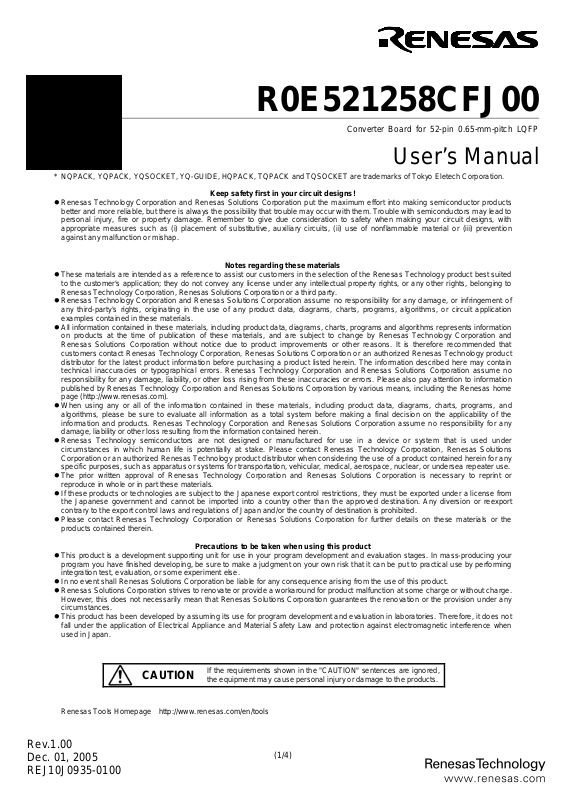

Page 1
R0E521258CFJ00
Converter Board for 52-pin 0.65-mm-pitch LQFP
User’s Manual
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK and TQSOCKET are trademarks of Tokyo Eletech Corporation.
Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products
better and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to
personal injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention
against any malfunction or mishap.
These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited
to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corporation, Renesas Solutions Corporation or a third party.
Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of
any third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application
examples contained in these materials.
All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information
on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation and
Renesas Solutions Corporation without notice due to product improvements or other reasons. It is therefore recommended that
customers contact Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product
distributor for the latest product information before purchasing a product listed herein. The information described here may contain
technical inaccuracies or typographical errors. Renesas Technology Corporation and Renesas Solutions Corporation assume no
responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information
published by Renesas Technology Corporation and Renesas Solutions Corporation by various means, including the Renesas home
page (http://www.renesas.com).
When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and
algorithms, please be sure to evaluate all information as a total system before making a final decision on the applicability of the
information and products. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any
damage, liability or other loss resulting from the information contained herein.
Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under
circumstances in which human life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions
Corporation or an authorized Renesas Technology product distributor when considering the use of a product contained herein for any
specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or
reproduce in whole or in part these materials.
If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from
the Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport
contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.
Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the
products contained therein.
This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your
program you have finished developing, be sure to make a judgment on your own risk that it can be p ut to practical use by performing
integration test, evaluation, or some experiment else.
In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge.
However, this does not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any
circumstances.
This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not
fall under the application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when
used in Japan.
CAUTION
Renesas Tools Homepage http://www.renesas.com/en/tools
Keep safety first in your circuit designs!
Notes regarding these materials
Precautions to be taken when using this product
If the requirements shown in the "CAUTION" sentences are ignored,
the equipment may cause personal injury or damage to the products.
Rev.1.00
Dec. 01, 2005
REJ10J0935-0100
(1/4)
Page 2
1. Outline
The R0E521258CFJ00 is a converter board for connecting the
emulation probe R0E521000EPB00 and the compact emulator
R0E521000CPE00 for R8C/Tiny Series to a foot pattern for
52-pin 0.65-mm-pitch LQFP (PLQP0052JA-A, formerly
52P6A-A) of R8C/24 and 25 Groups.
2. Package Components (See Figure 1)
Table 1 Package Components
Item Quantity
R0E521258CFJ00
(Base board R0E521000CIF00 and 150mm
1 pc.
FFC cable included)
YQPACK052SB
(made by Tokyo Eletech Corporation)
NQPACK052SB
(made by Tokyo Eletech Corporation)
YQ-GUIDE
(made by Tokyo Eletech Corporation)
1 pc.
1 pc.
4 pcs.
R0E521258CFJ00 User's Manual (This manual) 1 pc.
3. Specifications
Table
2 Specifications
PLQP0052JA-A,
Applicable package
formerly 52P6A-A
(52-pin 0.65-mm-pitch LQFP)
Between R0E521258CFJ00 and
YQPACK052SB:
Insertion/removal
iterations of
connector
100 times
Between R0E521000EPB00 or
R0E521000CPE00 and
guaranteed
R0E521258CFJ00:
50 times
guaranteed
4. Usage (See Figure 2)
The R0E521258CFJ00 can be used for debugging and board
mounted evaluation in common by mounting the
NQPACK052SB on the user system.
(1) For debugging
Mount the NQPACK052SB and YQPACK052SB on the
foot pattern of the user system in that order. And fix them
with the YQ-GUIDE’s (do not use the screws included
with the YQPACK052SB).
After connecting the R0E521000EPB00 or
R0E521000CPE00 and R0E521258CFJ00, connect the
R0E521258CFJ00 to the YQPACK052SB.
(2) For onboard evaluation
Mount an R8C/24 and 25 Groups MCU and
HQPACK052SB (separately available) in that order on the
NQPACK052SB on the user system. And fix them using a
screw included with the HQPACK052SB.
Before using the R0E521258CFJ00, be sure to read "7.
Precautions" on page 4 and the R0E521000EPB00 or
R0E521000CPE00 User’s Manual.
R0E521258CFJ00
YQ-GUIDE(x4)YQPACK052SB NQPACK052SB
Figure 1 Package components of the R0E521258CFJ00
(1) Debugging
R0E521000EPB00
or
R0E521000CPE00
R0E521258CFJ00
YQ-GUIDE(x4) *
YQPACK052SB *
(2) On-board evaluation
HQPACK052SB
(Not included)
MCU with on-chip
flash memory etc.
NQPACK052SB *
●: No.1 pin
*: These products are included with the R0E521258CFJ00 package.
52-pin 0.65-mm-pitch
(PLQP0052JA-A) foot pattern
Figure 2 Usage of the R0E521258CFJ00
(2/4)
Page 3
5. Connection Procedure (See Figure 3)
The procedure for connecting the R0E521258CFJ00 is shown
below.
(1) Mount the NQPACK052SB on the user system.
(2) Attach the YQPACK052SB on the NQPACK052SB.
(3) Secure the four corners of the YQPACK052SB with the
YQ-GUIDE's.
● Do not use the screws included with the
YQPACK052SB for fixing the YQPACK052SB.
● The screwdriver included with the NQPACK052SB is
used for fixing the HQPACK052SB. Do not use it for
fixing the YQ-GUIDE's.
(4) Attach the R0E521000EPB00 or R0E521000CPE00 to the
R0E521258CFJ00.
(5) Attach the R0E521258CFJ00 to the YQPACK052SB.
R0E521000EPB00
or
R0E521000CPE00
R0E521258CFJ00
(4)
V
(5)
YQ-GUIDE(x4)
Be sure to use a
flathead screwdriver.
(3)
YQPACK052SB
(2)
NQPACK052SB
(1)
52-pin 0.65-mm-pitch
(PLQP0052JA-A) foot pattern
Figure 3 Connection procedure of the R0E521258CFJ00
6. External Dimensions and a Sample Foot Pattern (See Figure 4)
37.0
0.4
CN1150
R0E521258CF J00 REV .A
MAD E IN JAPA N
Figure 4 External dimensions and a sample foot pattern of the R0E521258CFJ00
IC1
0.65
16.5 32.0
9.0
13.0
9.0
13.0
Unit: mm
(3/4)
Page 4
7. Precautions
CAUTION
Cautions to Be Taken for This Product:
Do not pull or excessively flex the cable. The cable may cause a break.
When connecting the YQPACK052SB, be sure to use the included YQ-GUIDE's.
Do not use the screws included with the YQPACK052SB to fix it.
IMPORTANT
Notes on This Product:
We cannot accept any request for repair.
For purchasing the NQPACK052SB, YQPACK052SB and HQPACK052SB, contact the following:
Daimaru Kogyo Ltd. http://www.daimarukogyo.co.jp/
Tokyo Eletech Corporation http://www.tetc.co.jp/e_tet.htm
For inquiries about the product or the contents of this manual, contact your local distributor.
Renesas Tools Homepage http://www.renesas.com/en/tools
(4/4)
