Operating
Instructions
®
482-1
IMPORTANT:
Read this manual and all labels carefully before operating your powder actuated tool. This manual should
always accompany the tool and be transferred with it
upon change of ownership.
INDEX
Warning: Safety Precautions............................................................ 3-11
Why A Power Fastener Holds ............................................................. 12
Selecting Power Fasteners and Power Loads .................................... 13
Operation ....................................................................................... 14-15
Parts List ........................................................................................ 16-17
Cleaning and Maintenance ................................................................. 17
Tool Disassembly ........................................................................... 18-21
Tool Assembly................................................................................ 22-25
Troubleshooting Guide ........................................................................ 26
Replacement Parts and Accessories .................................................. 27
Technical Service ................................................................................ 27
Repair Service..................................................................................... 27
Parts Centrals ..................................................................................... 28
Fasteners ............................................................................................ 28
Application Chart ................................................................................. 29
Warranty................................................................................ Back Cover
REMINGTON
®
Power Pro™ Semi-automatic Model 500V
The Remington® Power Pro™ Model 500V is designed for use with
Remington® .27 caliber power load strips and Remington® power
fasteners which are no longer than 3". Remington® power fasteners
are manufactured from special steel and heat treated to produce a
very hard yet ductile fastener.
Power
Indicator
Adjustment
Wheel
*Not supplied with tool
Trigger
10-Shot
Power Load
Strip*
Maximum 3"
Power Fastener*
Barrel
Assembly
Recommended
Approved
Goggles
2
Spall
Shield
Muzzle/
Guide
106763
Warning: Safety Precautions
IMPORTANT: Read these operating instructions carefully and completely before trying to operate or service this tool. Improper use of
this tool can cause serious injury or death from firing fastener into
body or from flying debris. We expressly disclaim any liability for any
injury to persons or damage to property which result from your failure
to take the precautions contained in this manual.
WARNING: This tool is designed only for use by qualified operators.
Qualification is obtained through a thorough understanding of the Safety
Warnings and operating instructions as defined in this operating manual.
NOTE: The labor regulations of many states require that the operator of this
tool on a job site be thoroughly trained and certified for competence prior
to operating this tool. For certification procedures, call: DESA Specialty
Products™ Technical Services Department, 1-800-858-8501 or visit
www.desatech.com (U.S.A.) or 1-905-826-8010 (Canada).
BEFORE USING
1. ALWAYS handle the tool as if it were loaded. Before starting work, check that the tool
is unloaded and the muzzle is clear. NEVER load a tool unless it is going to be used.
DEFECTIVE
2. ALWAYS inspect to make sure the tool is working properly. If the tool does not
work properly, remove from service and tag “DEFECTIVE.” DO NOT use the
tool again until it has been properly repaired.
G 018
3. Operators and bystanders must ALWAYS wear goggles and hearing protection
which meet or exceed the accepted standards for adequate protection in your
country. In the USA, refer to ANSI standards. In Canada, refer to CSA standards.
106763
3
Continued
Safety Precautions
WARNING
POWDER
ACTUATED
TOOLS
!
IN USE
4. ALWAYS clear the work area on all sides and post appropriate warning signs
on job sites.
G 018
5. ALWAYS make sure the work area is clean from loose material and debris.
HANDLING THE TOOL
G 018
1. NEVER place your hand over the muzzle. Accidental discharge can cause
serious injury.
G 018
2. NEVER place your finger on the trigger until the tool’s muzzle is against the work
surface.
4
106763
Safety Precautions
P
O
W
D
P
O
W
D
E
R
L
O
A
D
L
O
A
D
S
G 018
3. ALWAYS store UNLOADED powder actuated tool and power loads in a locked
container. Keep power loads of different power levels in separate containers.
G 018
4. NEVER carry or pass a loaded powder actuated tool. NEVER point a powder
actuated tool at anyone.
G 018
5. If the tool is dropped, inspect for damage and repair it before continuing to work.
NEVER use a damaged tool.
G 018
6. ALWAYS take precaution to maintain your balance while operating a powder
actuated tool.
106763
5
Continued
Safety Precautions
?
?
?
G 018
7. An operator taking medication should take extra precautions while handling the
tool. NEVER drink alcoholic beverages or take medications which impair your
vision, balance or judgement before using a powder actuated tool.
KNOW YOUR FASTENING BASE MATERIAL
Point
flattens
TOO HARD
G 018
?
?
?
?
CENTER
PUNCH TEST
Surface
shatters
TOO BRITTLE
G 018
Sinks in
with
average
hammer
blow
TOO SOFT
G 018
1. ALWAYS know the thickness and type of base material into which you are
fastening. NEVER GUESS. Test the base material by using the Center Punch
Test. The Center Punch Test is performed by using a hammer to test drive the
particular power fastener to be used into the material. If the point penetrates
easily, the material is too soft. If the point becomes blunt, the material is too
hard. If the material fractures, cracks or shatters, the material is too brittle. Test
fastenings can be made if the material shows a clear fastener impression and
the fastener point is not blunted. ALWAYS use test fastenings to determine the
correct power load level and the tool’s power indicator setting (see
and Power Indicator Setting,
page 13). Operators and bystanders must always
Power Loads
wear goggles and ear protection which meet or exceed the accepted standards
for adequate protection in your country. In the USA, refer to ANSI standards.
In Canada, refer to CSA standards.
6
106763
Safety Precautions
G 018
BRICK
482-33
TILE
CAST IRON GLASS
G 018
2. NEVER attempt to drive power fasteners into very hard or brittle materials
including, but not limited to cast iron, glass, tile, stone, brick, or hardened steel.
Materials of this type tend to shatter and create hazards from flying particles.
G 018
3. NEVER make fastenings in spalled or cracked areas.
G 018
4. NEVER drive power fasteners into thin or easily penetrated materials unless it
is backed by concrete or steel. When in doubt, such as when base material is
concealed, conduct a Center Punch Test (See page 6). Check continually to
avoid fastening into unsuitable material, especially in older buildings.
G 018
5. DO NOT fasten through or within 1/2" of predrilled or pre-punched holes.
106763
7
Continued
Safety Precautions
3"
3"
3"
1X
3X
6. DO NOT drive power fasteners into concrete less than three times as thick as
the intended fastener penetration, within 3" of the edge, within 3" of another
power fastener or within 3" of a failed power fastener.
WELD
3"
1/2"
1"
TOO THIN
G 018
3/16" MIN
7. DO NOT drive power fasteners into steel base material less then 3/16" thick,
within 2" of a weld, within 1/2" of the edge or within 1" of another power fastener.
G 018
8. When fastening into masonry walls, always drive into horizontal mortar joints,
never into vertical mortar joints. BE CAREFUL. A poorly laid joint may permit
too much penetration, and/or unsatisfactory holding power.
OPERATING THE TOOL
1. ALWAYS hold tool perpendicular to work surface.
8
106763
Safety Precautions
WATER

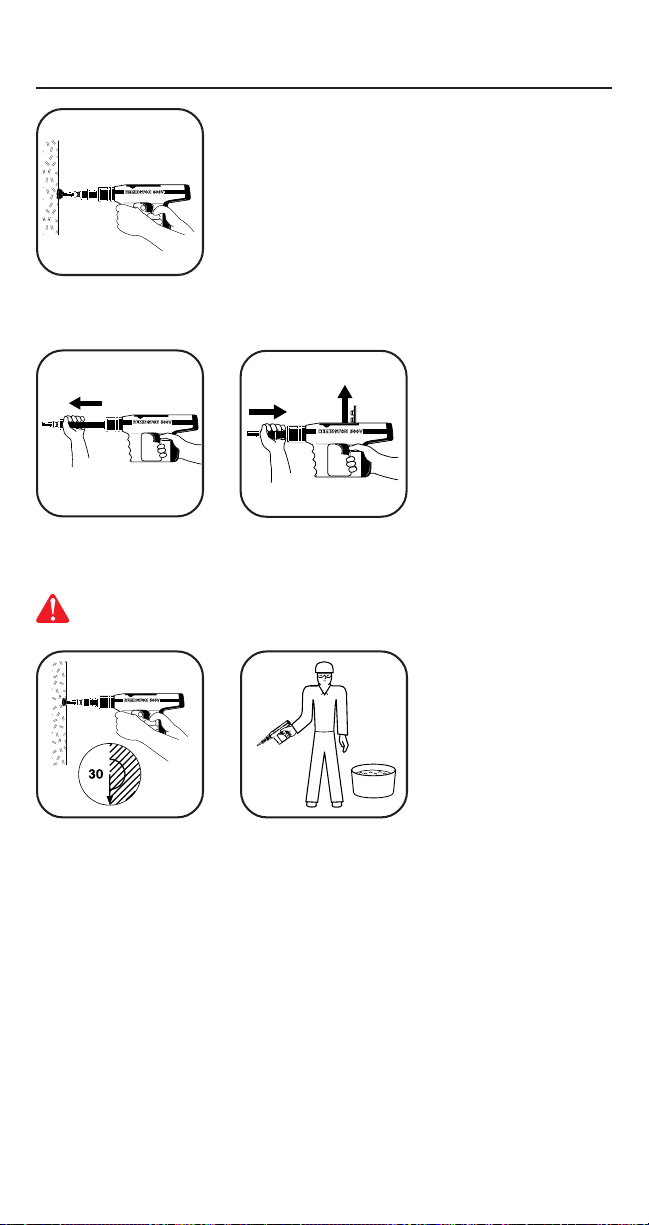

2. Should the tool fail to fire, hold the muzzle firmly against the work surface for 30
seconds. Release the trigger and remove pressure on the tool while holding the
muzzle against the work surface. Again press the tool firmly against the work
surface and pull the trigger. If the tool still fails to fire, hold the tool firmly against
the work surface for another 30 seconds before advancing the power load strip.
Use remaining loads in strip. Discard power load strip into water or oil.
G 018
Spall
Shield
3. ALWAYS use the spall shield when driving directly into concrete or steel.
Always wear goggles.
GAS
OLINE
G 018
GASOLINE
G 018
4. NEVER use a powder actuated tool in an explosive or flammable atmosphere
or when non-sparking tools are required.
POWER LOADS AND FASTENERS
POWER
LOADS
G 018
1. NEVER leave unfired power load strips on floors or work surfaces.
POWER
LOADS
G 018
106763
9
Continued
Safety Precautions
22
27
B
E
I
L
R
A
Start
GREEN
POWER
LEVEL 3
YELLOW
POWER
LEVEL 4
RED
POWER
LEVEL 5
C
6
5
S
S
4
A
R
3
B
2
7
N
8
I
C
9
1
1
K
E
L
10
11
12
2. Remington® power load strips are available in three power levels – green (level
3), yellow (level 4) and red (level 5). Green is lowest power level, red is highest
power level. Always use test fastenings to determine the correct power load
level and the tool’s power indicator setting (see
Indicator Setting,
page 13).
IMPORTANT:
Purple (level 6) power load strips
will not function in model 500V tool.
G 018G 018
3. NEVER use power loads in firearms.
NOTE:
Failure to start with
the lowest power level
can result in overdrive
condition and will result in damage to tool
(See page 13).
Power Loads and Power
POWER
POWER
LOAD
LOADS
STRIPS
ONLY
ONLY
4. NEVER carry fasteners or other hard objects in the same pocket or container
with power load strips.
G 018
5. A color blind person must take extra precautions to prevent the chance of
mixing the power load strips of various levels.
10
106763

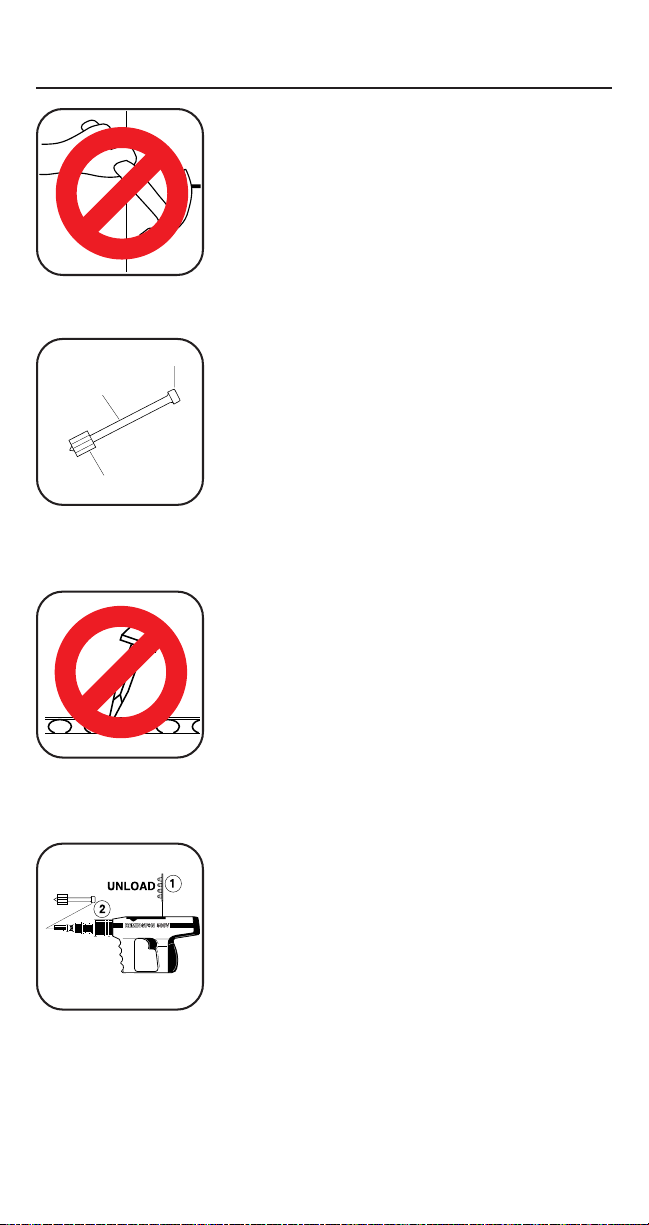

Safety Precautions
G 018
6. Power fasteners are a permanently installed fixture. An act of demolition is
required for their removal. Appropriate safety precautions must be taken.
Head
Shank
Plastic Flute
7. Never use common nails or other materials as fasteners. Remington® Power
Fasteners are manufactured from special steel and heat treated to produce a
very hard yet ductile fastener.
G 018
8. Never pry a power load out of the strip. Prying can discharge the load causing
serious injury (See
Troubleshooting Guide,
page 26). Never attempt to reload
used strips.
9. If work is interrupted for any reason, remove the power load strip before
removing the power fastener.
106763
11
Why A Power Fastener Holds
WHY A POWER FASTENER HOLDS
IN CONCRETE

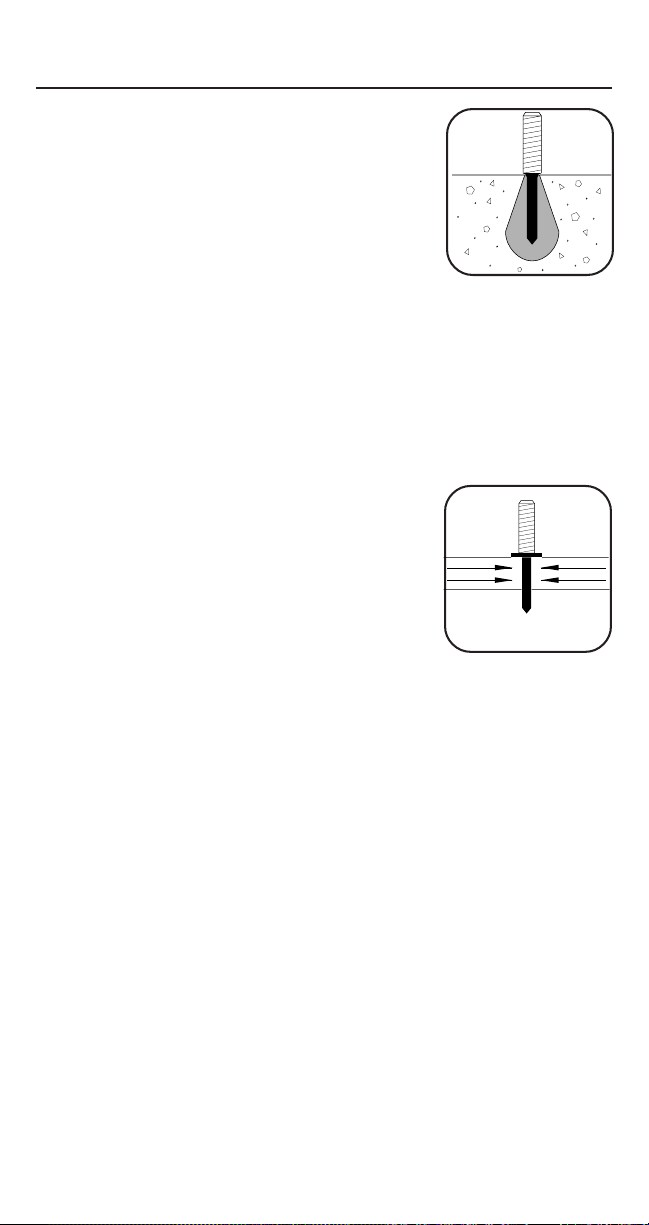

The compression bond of the concrete to the power
fastener accounts for the majority of the holding power.
The fastener displaces the concrete which tries to return
to its original form causing a squeezing effect.
Maximum holding power is achieved when the depth of
penetration produces a bond on the power fastener equal
to the strength of the concrete. As a general rule, penetration should be approximately 1" to 1 1/4" into the base
concrete. Make sure the concrete is at least three times
as thick as the intended fastener penetration. Never have
the power fastener point protrude through the concrete.
NOTE: Concrete needs to cure for 28 days before
maximum fastening holding power will be achieved.
WHY A POWER FASTENER HOLDS IN
STEEL
Holding power in steel depends on the elasticity of the
steel. The steel pushes back on the shank of the power
fastener.
Drop a marble into water; the water parts, the marble
continues down, the water closes back. This is similar to
the reaction when a power fastener penetrates steel.
In steel, the point of the power fastener must penetrate
completely through for highest holding power. If the fastener
does not penetrate, the spring action of the steel pushes
back on the point and tends to force the fastener out.
Recommended applications are between 3/16-3/8" steel.
NOTE: When fastening in steel be sure the point goes
through the steel.
12
106763
OVERDRIVE
Selecting Power Fasteners
Wood or Non-Metals
To Concrete
and Power loads
FASTENING INTO CONCRETE
The proper power fastener length can be determined by
adding the thickness of the material to be fastened and
the amount of fastener that will actually penetrate the
concrete. The concrete must be three times as thick as
the intended fastener penetration. In most cases, penetration should be approximately 1" to 1 1/4" into the base
concrete material.
FASTENING INTO STEEL
The proper fastener length can be determined by adding
the thickness of the material to be fastened and the
thickness of the steel. The point of the power fastener
must go completely through the steel.
POWER LOADS AND POWER
INDICATOR SETTING
Proper fastening requires the correct combination of power
load level and the tool’s power indicator setting to match the
fastener length for a given application. A general estimate
for the power load level needed for a given application can
be found in the application chart on page 29. For a given
power load level, always start with the lowest power
indicator setting on the tool. If the first test fastening does
not penetrate to the desired depth, increase the tool’s
power indicator setting until a proper fastening is made.
IMPORTANT: Damage to the tool will result if the above
instructions are not followed (see illustrations to right
and lower right).
Wood or Non-Metals
To Steel
RIGHT
Flush With Surface
OVERDRIVEN POWER FASTENERS
AND PISTON
An overdriven power fastener results when the combination of power load level and the tool’s power indicator
setting is too strong causing the piston to extend past the
muzzle. Decrease the tool’s power indicator setting.
Repeated overdrive will damage the tool. By avoiding
overdrive, the tool’s life can be extended considerably
and costly repairs can be avoided.
NOTE: Never fire the tool without a power fastener. This
can damage the tool and/or cause possible injury to the
operator.
106763
13
G 018
Piston Extended
Out of Muzzle
Operation
1. Grasp barrel assembly and slide forward rapidly until it stops. Push barrel
assembly back into tool to the closed position. This sets piston into firing position.
2. Insert power fastener into muzzle of tool, head end first. Push the fastener until
point is even with end of muzzle.
NOTE:
Failure to start with
the proper power
level and power setting can result in overdrive condition and
will result in damage
to tool (See page 13).
3. Select the proper power level of power load strips and power indicator setting
(see
Power Loads and Power Indicator Setting,
load strips through bottom of handle. Push power load strip in until even with
bottom of handle.
4. Place the muzzle of tool perpendicular to work surface without tilting the tool.
Push tool against work surface until sliding action of barrel stops.
14
page 13). Always insert power
106763
Operation
5. Squeeze trigger to set power fastener. Be sure to keep pressure on tool during
this operation.
6. Grasp muzzle cap and slide barrel forward rapidly until it stops. Push barrel
assembly back into tool to the closed position. This advances the power load
strip and resets the piston for the next fastening.
WARNING: Do not depress barrel assembly past the closed position
when loading new power fastener. Live power load is in firing position.
WATER
7. Should the tool fail to fire, hold the muzzle firmly against the work surface for 30
seconds. Release the trigger and remove pressure on the tool while holding the
muzzle against the work surface. Again press the tool firmly against the work
surface and pull the trigger. If the tool still fails to fire, hold the tool firmly against
the work surface for another 30 seconds before advancing the power load strip.
Use remaining loads in strip. Discard power load strip into water or oil.
106763
15

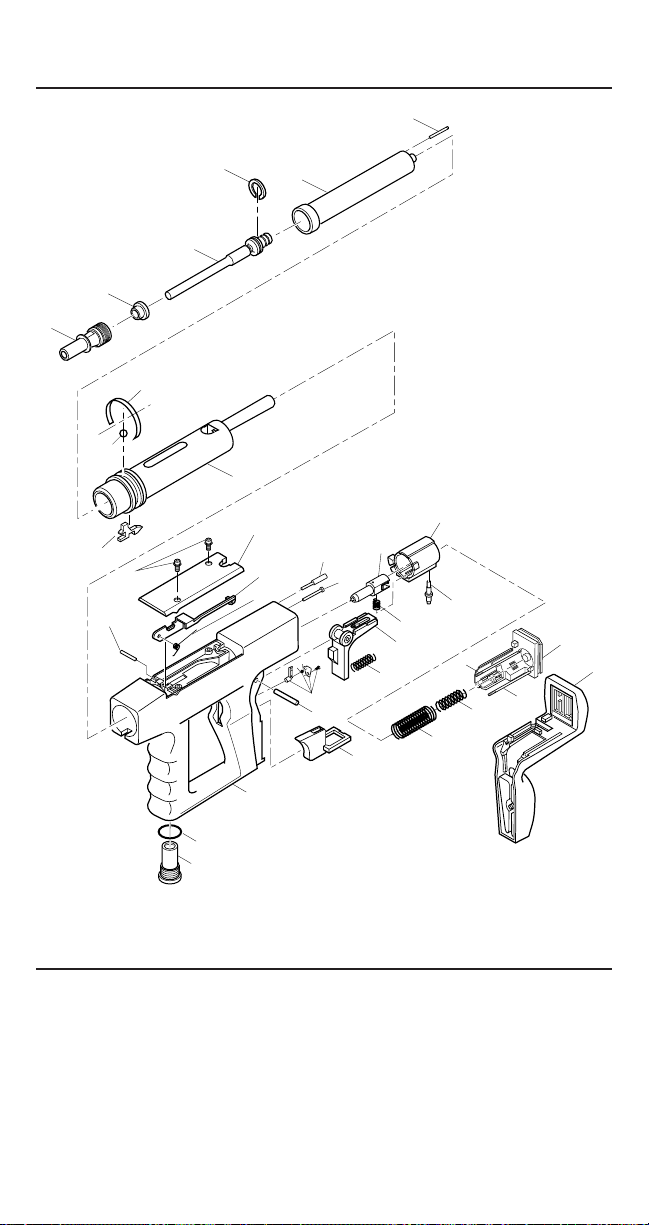

Parts List 500V
Key Part
No. No. Description Qty.
1 SF901011 Housing 1
2 450108 O-Ring 1
3 SF901800 Baffle Assembly 1
4 SF901010 Pawl Assembly 1
5 450005 Trigger 1
6 455000 Rocker Arm Assembly 1
7 455041 Rocker Arm Spring 1
8 455042 Rocker Arm Pin 1
9 456048 Screw 2
10 SF901700 Handle Pad Assembly 1
11 SF901600 Rear Pad and Power Indicator Assembly 1
12 SF901002 Cover 1
13 SF901005 Screw 2
14 SF901301 Advance Bar 1
15 SF901302 Advance Spring 1
16 SF901303 Advance Pin 1
17 SF901205 Piston Assembly (Includes Ring) 1
18 452220 Piston Ring 1
19 SF901208 Muzzle Cap 1
20 TA4087 Plastic Buffer (5 Pack) 1
21 SF901105 Transfer Pin 1
22 SF901104 Push Pin 1
23 SF901100 Outer Liner Assembly 1
24 301013 Ball Detent 1
25 SF901106 Annular Spring 1
26 306012 Key Stop 1
27 SF901200 Barrel 1
28 SF901213 Power Adjustment Pin and Ring 1
29 SF901403 Spring 1
30 454037 Firing Pin Spring 1
31 454100 Firing Pin Assembly (Includes
32 454034 Sear Spring 1
33 454033 Sear 1
34 454035 Firing Pin Guide 1
101320-02 Spall Shield 1
056486 Brush 1
IMPORTANT: Do not use key numbers when ordering service parts. Always order
components by part number and description. Include model number and serial
number of tool.
Pin, Spring, Washer, and Screw) 1
Optional Accessory
16
106763
Parts List 500V
28
18
17
20
19
25
24
26
13
16
27
23
12
14
15
4
8
31
21
22
5
34
33
32
6
7
9
30
29
11
10
9
1
2
3
Cleaning and Maintenance
Clean tool after each days use. Disassemble and clean the barrel assembly with the
wire brush provided with tool. Notice: Do not attempt to clean power load strip
channel with wire brush.
Apply good quality penetrating lubricant spray (such as WD-40) sparingly and wipe
dry.
106763
17
Tool Disassembly
WARNING: Always unload a powder actuated tool before disassembling,
replacing barrel, cleaning, or assembling.
A. REMOVING BARREL ASSEMBLY
1. Using screwdriver, lift end of annular spring and rotate spring until key stop is
uncovered (see Figure 1).

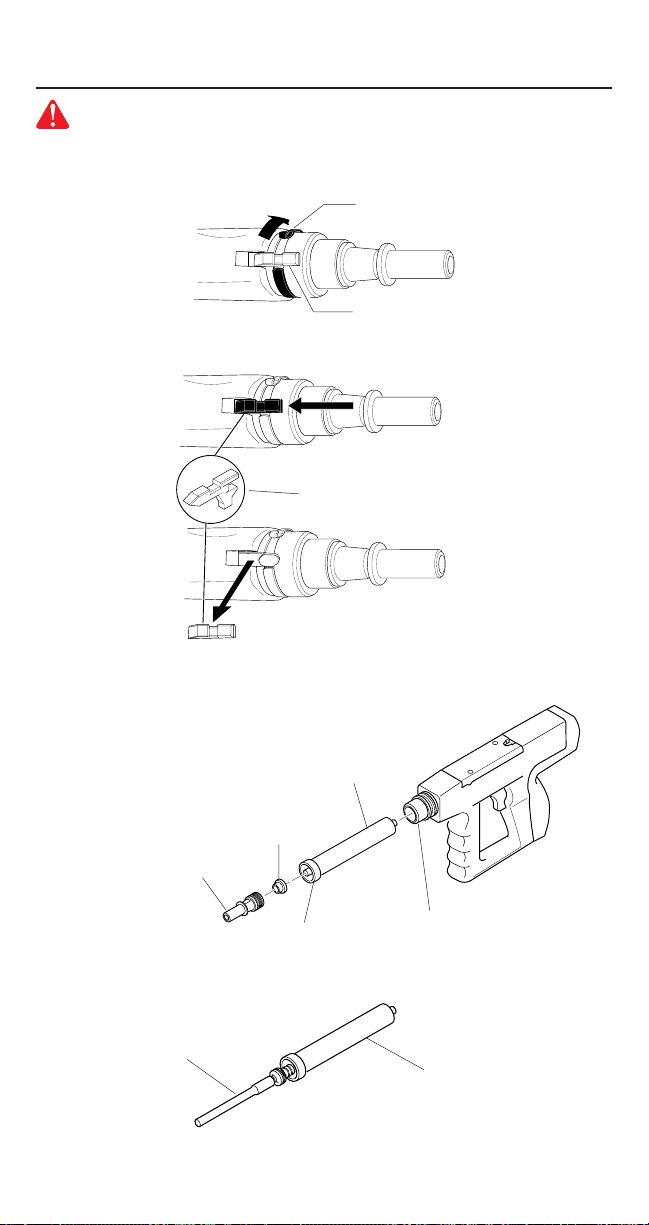

Figure 1 - Rotating Annular Spring to Uncover Key Stop
2. Push key stop towards rear of tool and remove (see Figure 2).
Annular Spring
Key Stop
Key Stop
Figure 2 - Removing Key Stop
3. Firmly grip and pull barrel assembly from the outer liner assembly.
4. Unscrew muzzle cap.
5. Pull plastic buffer out of muzzle cap (see Figure 3).
Barrel
Assembly
Plastic
Buffer
Muzzle Cap
Piston
Figure 3 - Separating Barrel Assembly from Housing
6. Pull piston assembly, using moderate force, from barrel (see Figure 4).
Piston
Assembly
Figure 4 - Removing Piston Assembly from Barrel
18
Outer Liner
Assembly
Barrel
106763
B. REMOVING HANDLE PAD ASSEMBLY
1. Loosen screw on back of handle pad assembly with 3mm hex wrench. Do not
remove the screw from the assembly (see Figure 5).
2. Remove handle pad assembly.
Handle Pad Assembly
3mm Hex Wrench
Figure 5 - Removing Handle Pad Assembly
C. REMOVING REAR PAD AND POWER INDICATOR ASSEMBLY
1. Keeping pressure against the back of the rear pad and power indicator assembly,
loosen screws using a 3mm hex wrench. Slowly release pressure.
pad and power indicator assembly is spring loaded. Pressure should be kept on
the assembly at all times while loosening screws to avoid loosing parts.
2. Pull rear pad and power indicator assembly out of housing (see Figure 6).
Screws
Rear Pad and Power
Indicator Assembly
Housing
Note:
Rear
Figure 6 - Removing Rear Pad and Power Indicator Assembly
D. REMOVING ROCKER ARM ASSEMBLY
1. Remove the larger spring from the outside of the outer liner assembly and the
firing pin spring from inside the outer liner assembly (see Figure 7).
2. Remove rocker arm pin with hammer and punch.
3. Remove rocker arm assembly from housing (see Figure 7).
Rocker Arm Assembly
Rocker Arm Spring
Housing
Rocker Arm Pin
Firing Pin Spring
Spring
Figure 7 - Removing Rocker Arm Assembly from Housing
106763
19
Continued
Tool Disassembly (Cont.)
E. REMOVING FIRING PIN
1. Slide firing pin guide back so the slot in the firing pin guide lines up with the slot
in the outer liner assembly.
2. Pull the sear out of the aligned holes (see Figure 8).
3. Slide firing pin guide off of the outer liner assembly (see Figure 9). Pull the firing
pin assembly with sear spring out of the outer liner assembly. Remove sear
spring from firing pin assembly (see Figure 9).
4. Remove transfer pin and push pin from outer liner assembly (see Figure 9).
Sear
Firing Pin
Guide
Outer Liner Assembly
Figure 8 - Removing Sear
Transfer Pin
Figure 9 - Removing Firing Pin
Guide, Firing Pin Assembly, Sear
Spring, Transfer Pin, and Push Pin
Outer Liner
Assembly
Sear Spring
Firing Pin
Guide
Push Pin
Firing Pin
Assembly
F. REMOVING TRIGGER AND PAWL ASSEMBLY
1. Slide trigger out of housing (see Figure 10).
2. Using a phillips head screw driver, loosen screw and remove pawl assembly
components from housing (see Figure 10).
Housing
Pawl
Assembly
Trigger
Figure 10 - Removing Trigger and Pawl Assembly
20
106763
G. REMOVING ADVANCE BAR
1. Using a 3mm hex wrench, loosen screws on cover and remove.
2. Remove advance pin with hammer and punch.
3. Remove advance bar and spring.
Screws
Cover
Advance Pin
Figure 11 - Removing Advance Bar
Advance Bar and Spring
Housing
H. REMOVING BAFFLE ASSEMBLY
1. Loosen and remove baffle assembly and o-ring.
Housing Handle
Baffle Assembly
Figure 12 - Removing Baffle
O-Ring
I. REMOVING OUTER LINER ASSEMBLY FROM HOUSING
1. Grasp outer liner assembly and firmly pull from housing.
Outer Liner Assembly
Housing
Figure 13 - Removing Outer Liner Assembly
Tool Assembly
WARNING: Always unload a powder actuated tool before disassembling,
replacing barrel, cleaning, or assembling.
A. INSERTING OUTER LINER ASSEMBLY
1. Firmly push outer liner assembly into housing (see Figure 14).
Housing
Outer Liner Assembly
106763
Figure 14 - Inserting Outer Liner Assembly
21
Continued
Tool Assembly (Cont.)
B. INSERTING BAFFLE ASSEMBLY

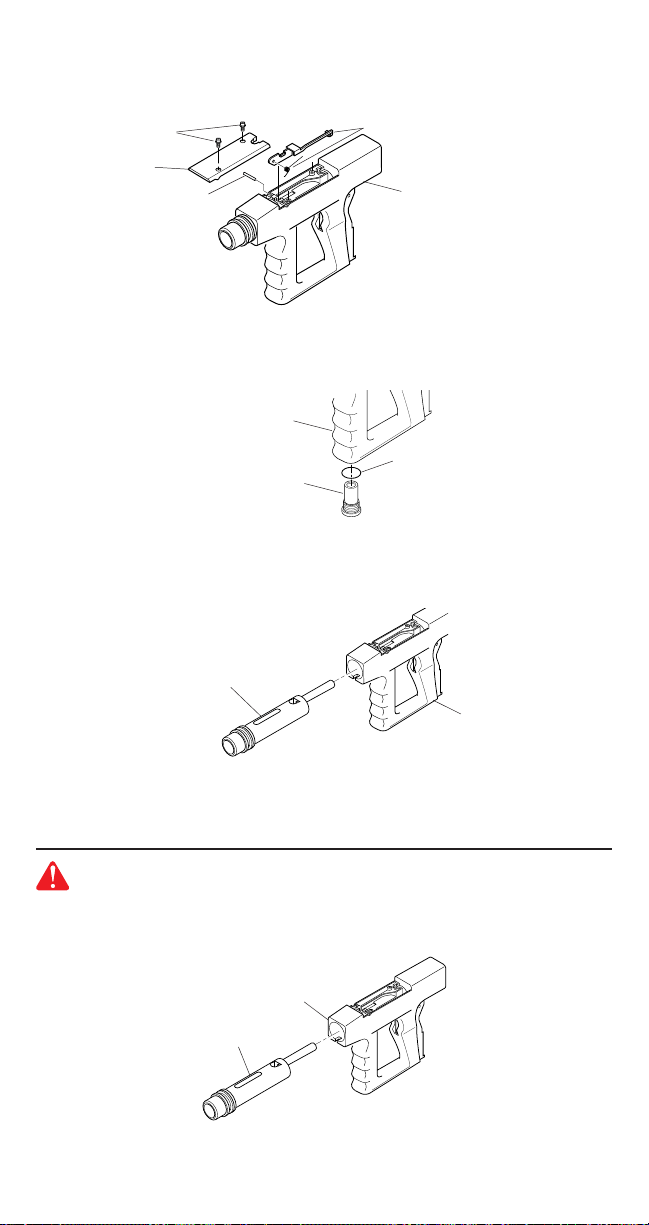

1. Insert baffle assembly with o-ring into handle and tighten (see Figure 15).
Housing Handle
Baffle Assembly
Figure 15 - Inserting Baffle Assembly
O-Ring
C. REPLACING ADVANCE BAR
1. Place advance bar and spring into housing (see Figure 16).
2. Secure advance bar by inserting the advance pin through the housing, advance
bar, and spring.
3. Place cover onto housing and align holes. Insert screws into cover and tighten
with 3mm hex wrench (see Figure 16).
Screws
Cover
Advance Pin
Figure 16 - Replacing Advance Bar
Advance Bar and Spring
Housing
D. REPLACING TRIGGER AND PAWL ASSEMBLY
1. Assemble pawl components and screw into housing using a phillips head
screwdriver (see Figure 17).
2. Slide trigger into housing (see Figure 17).
Housing
Trigger
Figure 17 - Replacing Trigger and Pawl Assembly
22
Note:
Spring and plate
are NOT reversible.
Bent arm on spring must
be toward plate.
Pawl
Assembly
106763
E. REPLACING FIRING PIN
1. Insert transfer pin and push pin into outer liner assembly (see Figure 18).
2. Place sear spring into firing pin assembly. Slide firing pin assembly into outer liner
assembly (see Figure 18). Slide the firing pin guide onto the outer liner assembly.
Align the holes in the firing pin guide, the outer liner assembly, and firing pin
assembly so that the sear can pass easily through all three (see Figure 19).
3. Depress sear spring with sear and slide the sear and firing pin guide toward the
front of the tool.
Outer Liner Assembly
Sear
Sear
Spring
Firing Pin
Assembly
Firing Pin
Guide
Transfer Pin
Firing Pin
Guide
Push Pin
Figure 18 - Replacing Firing Pin
Guide, Firing Pin Assembly, Spring,
Outer Liner Assembly
Figure 19 - Replacing Sear
Transfer Pin, and Push Pin
F. REPLACING ROCKER ARM ASSEMBLY
1. Place rocker arm assembly, with rocker arm spring attached, into housing. The
rocker arm assembly will sit on top of the firing pin guide.
2. Push rocker arm pin through the housing and rocker arm assembly with a punch
and hammer.
3. Insert firing pin spring into outer liner assembly. Slide larger spring onto the
outer liner assembly.
Rocker Arm Assembly
Housing
Figure 20 - Replacing Rocker Arm Assembly into Housing
106763
Rocker Arm Pin
Sear
Firing Pin Guide
Rocker Arm Spring
Firing Pin Guide
Firing Pin Spring
23
Spring
Continued
Tool Assembly (Cont.)
G. ATTACHING REAR PAD ASSEMBLY
1. Push the rear pad and power indicator assembly onto housing, aligning screws
with holes in housing.
2. Holding pressure on rear pad and indicator assembly, tighten screws with 3mm
hex wrench. Note: Rear pad and power indicator assembly is spring loaded.
Pressure should be kept on the assembly at all times while tightening screws
to avoid loosing parts.
Screws
Rear Pad and Power
Housing
Figure 21 - Attaching Rear Pad and Power Indicator Assembly
H. ATTACHING HANDLE PAD ASSEMBLY
1. Place handle pad assembly onto housing body and tighten screw with 3mm hex
wrench. Make sure rocker arm spring stays tight against the handle pad
assembly while tightening screw.
Rocker Arm
Spring
Indicator Assembly
Handle Pad
Assembly
3mm Hex
Wrench
Figure 22 - Attaching Handle Pad Assembly
I. ASSEMBLING BARREL ASSEMBLY
1. Using moderate force, insert piston assembly into barrel (see Figure 23).
Piston
Assembly
Barrel
Figure 23 - Inserting Piston Assembly into Barrel
24
106763
2. Insert plastic buffer into muzzle cap.
3. Screw muzzle cap to barrel assembly.
4. Firmly insert barrel into outer liner assembly with slot side down (see Figure 24).
Barrel
Assembly
Plastic Buffer
Muzzle Cap
Outer Liner Assembly
Piston
Figure 24 - Separating Barrel Assembly from Housing
5. Insert key stop into slot on outer liner assembly (see Figure 25).
6. Push stop towards front of tool (see Figure 25).
7. Rotate annular spring until key stop is covered (see Figure 26).
Key Stop
106763
Figure 25 - Replacing Key Stop
Annular Spring
Key Stop
Figure 26 - Rotating Annular Spring to Cover Key Stop
25
Troubleshooting Guide
PROBLEM
Piston hangs out of
muzzle.
Overdriven fastener.
Piston jammed.
Power load strip will not
advance.
Reduction or loss of
power.
Tool does not completely depress.
Tool does not fire.
Opening and closing of
barrel or pushing down
on tool, etc. is not
smooth but is rough or
binds.
POSSIBLE CAUSE
Tool overdriven.
Piston not properly assembled in
relation to stop.
Broken piston or piston ring.
Excessive power.
Overdriving of fastener (see
above).
Advance bar or spring damaged
Tool dirty.
Piston not returning to full rear
position.
Worn piston ring or broken piston.
Misassembled or damaged sear,
firing pin parts, or guide.
Failure of tool to depress completely.
Piston not fully reset.
Dirt buildup on sear not allowing
proper penetration of firing pin or
worn firing pin.
Lack of proper cleaning.
REMEDY
Tap piston on hard surface until
piston is pushed back into the
guide. (See
below).
Remove barrel assembly (see
pages 18-21). Replace all damaged or missing parts.
Replace piston or piston ring or
take tool to your distributor.
Change to next lower power indicator setting and/or power load
level (see page 13) or use next
longer length fastener.
Remove barrel assembly (see
pages 18-21). Replace other
parts if damaged.
Replace advance bar or springs.
Clean tool. Notice: Do not at-
tempt to clean power load strip
channel with wire brush. You may
damage tool.
Barrel must be opened to the full
extended position to properly
position piston.
Replace piston and/or piston ring
or take tool to your distributor.
Remove firing pin guide and
check all parts for correct fit assembly.
See data listed under T
completely depress,
Fully reset piston. See step 1 under
Check firing pin mark on power
load. Clean firing pin guide, sear
and firing pin. Replace worn or
damaged parts. Notice: Do not
attempt to clean power load strip
channel with wire brush. You may
damage tool.
Inspect and clean complete tool.
Replace worn or damaged parts.
Notice: Do not attempt to clean
power load strip channel with wire
brush. You may damage tool.
Over-driven Fastener
Operation,
pages 14 and 15.
ool does not
above.
26
106763
Replacement Parts And
Accessories
WARNING: Use only replacement parts and accessories described in
this manual. Use of other parts or accessories could damage saw or
injure operator.
For original replacement parts and accessories, contact your nearest Authorized Dealer
or Authorized Service Center for this product. If they can not supply the part or accessory,
contact your nearest Parts Central listed on page 28. Each Authorized Dealer,
Authorized Service Center, and Parts Central is independently owned and operated.
See pages 16 and 17 for an Illustrated Parts List.
If you need additional referral information, contact our Technical Service Department
(see
Technical Service
In Canada call 1-800-561-3372 for parts information.
).
Technical Service
You may have further questions about assembling, operating, or maintaining this
product. If so, you can visit our Technical Service web site at www.desatech.com
or contact our Technical Service Department at 1-800-858-8501 (English Only). You
may also write to:
DESA Specialty Products™
P.O. Box 90004
Bowling Green, KY 42102-9004
ATTN: Technical Service Specialty Products
When contacting DESA Specialty Products™, have ready
•Your Name
•Your Address
•Your Phone Number
• Model Number of Product
• Date of Purchase (Include copy of receipt for written requests).
Repair Service
Note:
Only use original replacement parts. This will protect your warranty coverage
for parts replaced under warranty.
Each Authorized Service Center is independently owned and operated.
WARRANTY SERVICE
If product requires warranty service, return it to nearest Authorized Service Center. You
must show proof of purchase. If faulty materials or workmanship caused damage, we will
repair or replace product without charge.
accidental damage is not covered under warranty.
NON-WARRANTY SERVICE
If product requires service, return it to nearest Authorized Service Center. Repairs
will be billed to you at regular repair list prices.
For additional Service Center or warranty information, call 1-800-858-8501 or visit
our Technical Service web site at www.desatech.com.
106763
Note:
Normal wear, misuse, abuse, neglect, or
27
Parts Centrals
482-80
Wood or Non-Metals
To Concrete
Ray’s Portable Heater Service
3191 Myers Road
Camino, CA 95709-9550
530-644-7716
Baltimore Electric
5 Manila Drive
Hamden, CT 06514-0322
203-248-7553
1-800-397-7553
Eckley’s Small Engine
31617 Spruce Drive
Eustis, FL 32726-9592
352-357-6764
Parts Company of America
1657 Shermer Road
Northbrook, IL 60062-5362
708-498-5900
1-800-323-0620
www.grainger.com
Portable Heater Parts
342 North County Road 400 East
Valparaiso, IN 46383-9704
219-462-7441
1-800-362-6951
www.portableheaterparts.com
sales@portableheaterparts.com
techservice@portableheaterparts.com
FBD
1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
franktalk@aol.com
Lyons & Lyons Sales Co. Inc.
Glen Arm Road
Glen Arm, MD 21057-9454
410-665-6500
1-800-333-5966
lyonsco@erols.com
Master Part Distributors
1251 Mound Avenue NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
www.masterparts.net
Hance Distributors, Inc.
12795 16th Avenue North
Plymouth, MN 55441-4556
763-559-2299
www.hanceco.com
Automotive Equipment Service
3117 Holmes
Kansas City, MO 64109-1716
816-531-9144
1-800-843-3546
www.aes-lawnparts.com
Bowden Electric Motor Service
1681 S. Wesleyan Blvd.
Rocky Mount, NC 27803
252-446-4203
East Coast Energy
10 East Route 36
West Long Branch, NJ 07764-1501
1-800-755-8809
Forrest Lytle and Sons, Inc.
740 West Galbraith Road
Cincinnati, OH 45231-6002
513-521-1464
Bortz Chain Saw Shop
Road #2, Box 64A
Oley, PA 19547-9412
610-987-6452
21st Century
2950 Fretz Valley Road
Perkasie, PA 18944-4034
215-795-0400
1-800-325-4828
Laportes
2444 N 5th Street
Hartsville, SC 29550-7704
843-332-0191
MTA Distributors
555 Hickory Hills Blvd.
Nashville, TN 37189-9244
615-299-8777
1-800-264-0225
Webbs Appliance Center
1519 Church Street
Nashville, TN 37203-3004
615-329-4079
1-800-899-4079
Industrial Hardware
4109 Bainbridge Blvd.
Chesapeake, VA 23324-1403
804-543-2232
1-800-788-0008
catatem@erols.com
Mills Lawn and Garden
928 Commonwealth Place
Virginia Beach, VA 23464
757-361-9293
www.mills-parts.com
Tuco Industrial Products
5223 180th Street SW
Suite 4A-1
Lynnwood, WA 98037-4506
425-743-9533
1-800-735-1268
www.tucoheat.com
Fasteners
SP FASTENERS
Wood or Non-Metals
To Steel
482-79
Fasten wood or nonmetals to concrete or steel.
Power load and power fastener application information.
For fastening this
Two by Fours
Furring Strips
Application Chart
power fastener
to this
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
length
2 1/2"
2 1/2"
2"
1
1
1 1/2"
1 1/2"
/2"
power load
color
Yellow
Yellow
Yellow/Red
Yellow
Yellow
Yellow/Red
Electrical
Junction Boxes
Conduit Clips
Shelf Brackets
1/4" Plywood or
Pegboard
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
1"
1"
1"
1"
1"
1"
1"
1"
1
1
1 1/4"
1 1/4"
Yellow
Green
Yellow/Red
Yellow
Green
Yellow/Red
Yellow
Green
/4"
Yellow
Yellow
Yellow/Red
Power load listings are recommendations only. If you are in doubt, try a test fastening
using the next lightest power load.
IMPORTANT
• Recommended for use with Remington® power load strips and power fasteners.
• If power fastener goes below the top surface of the board, use penetrating con-
trol disc (* see illustration below).
• Always wear approved goggles and hearing protection.
*
Use power fastener with penetration control disc, part number 015549.
.27 CALIBER
strip loads for
powder actuated
tools
482-90
Load Color Code
Level Load Case
Number Strength Body Head
3 medium brass Green
4 heavy brass Yellow
5 extra heavy brass Red
NOTES
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
30
106763
NOTES
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
____________________
106763
31
Limited Warranty Agreement
DESA Specialty Products™ warrants the Remington® Power Pro™ Model 500V
against defects in materials and workmanship for a period of one (1) year from the
date of purchase.
If within one (1) year from the purchase date this Powder Actuated Tool fails due to
a defect in material or workmanship, DESA Specialty Products™ will repair or
replace the tool at DESA Specialty Products’™ option. To obtain service under this
warranty, contact DESA Specialty Products™ at the number/address listed below.
You must have the Serial Number, Model Number, date of purchase and indicate the
type of problem being experienced. DESA Specialty Products™ will send replacement part(s), repair or replace the tool at DESA Specialty Products’™ option.
However, this warranty does not cover failures caused by misusing or abusing the
product (for proper use of this product, read and understand the operating instructions in this owners manual). Repairs made because of misuse, abuse, negligence
or accident will be charged for at regular repair prices.
This express and limited warranty is the only warranty on this product, and to the full
extent permitted by law there are no other warranties, express or implied, including
warranties of merchantability and/or fitness for a particular purpose which extend
beyond the terms of this express and limited warranty.
To the full extent permitted by law, the liability of DESA Specialty Products™ for
personal injury, property damage or any other damage whatsoever, including
consequential and incidental damages, arising from the sale or use of this product
shall not exceed the purchase price of this product.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
For information about this warranty write:
Printed in Taiwan
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
U.S.A. ONLY
For Technical Assistance on Your
Remington® Powder Actuated Tool Or
For Certification Procedures, Call
Technical Services Department
1-800-858-8501 Or
Visit www.desatech.com
106763-01
REV. C
08/03
Loading...
