Reloop BEATMIX 4 User Manual [en, es]

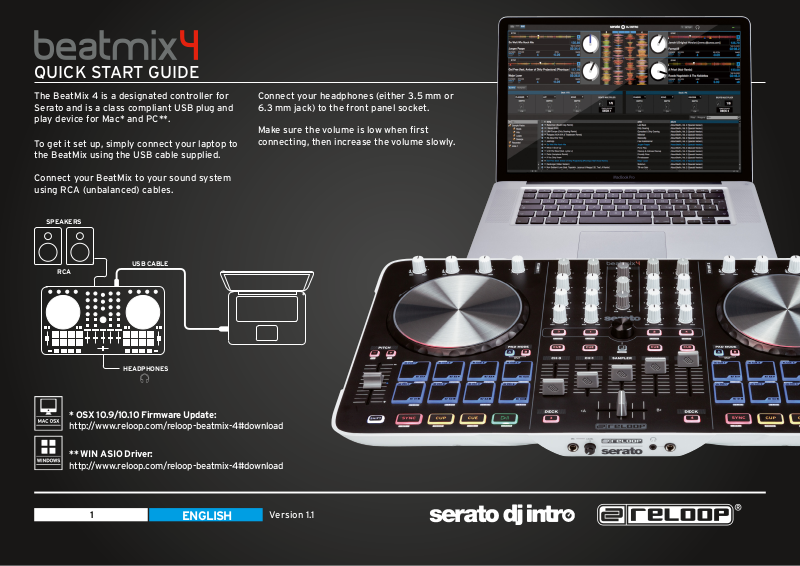

QUICK START GUIDE
The BeatMix 4 is a designated controller for
Serato and is a class compliant USB plug and
play device for Mac* and PC**.
To get it set up, simply connect your laptop to
the BeatMix using the USB cable supplied.
Connect your BeatMix to your sound system
using RCA (unbalanced) cables.
SPEAKERS
USB CABLE
RCA
HEADPHONES
Connect your headphones (either 3.5 mm or
6.3 mm jack) to the front panel socket.
Make sure the volume is low when rst
connecting, then increase the volume slowly.
* OSX 10.9/10.10 Firmware Update:
http://www.reloop.com/reloop-beatmix-4#download
** WIN ASIO Driver:
http://www.reloop.com/reloop-beatmix-4#download
1 Version 1.1
ENGLISH
QUICK START GUIDE
MIXER SECTION
1
MASTER
Controls the master volume to your
main sound system.
2 9
PHONES
Controls your headphones volume.
3 10
CUE MIX
Mixes the headphones CUE signal
between your selected channel and the
master output.
4
TRAX SELECT
Use the trax select encoder to navigate
through your song library.
12
5
TRACK LOAD
Press 1 - 4 to load tracks on either
channel.
13
6
FADER-START
Press SHIFT + track load 1 - 4 to enable
and launch a track using your linefader.
8
SAMPLER VOLUME
Controls the master volume of your
sampler section.
LINEFADERS
Controls your channel volume.
CROSSFADER
Enables you to fade between your
decks.
11
GAIN
Fine adjust the input volume for each
deck.
EQ
Tweak the high, mid or low frequencies
when mixing your track.
DECK
Press the deck button to swap between
decks 1 - 3 and 2 - 4.
11
1
2
12
5
6
3
4
7
9
8
7
BACK
Moves you back one step in your track
menu.
2 Version 1.1
ENGLISH
10
13
QUICK START GUIDE
TRANSPORT SECTION
PLAY/PAUSE
Press to launch and pause your track.
SHIFT PL AY + PAUSE
This reverses the direction of the
track playing.
CUE
Cue sets a temporary CUE point. It is
set by pausing the track and pressing
the CUE button. Whilst the track is
playing, press CUE to return to that
point, where it will pause.
SHIFT+ CUE
Takes you back to the start of your
track.
SHIFT + CUP
Changes the pitch range.
SYNC
Sync automatically matches a track
to the BPM of the other deck.
SHIFT + SYNC
Turns SYNC off.
FX SECTION
Turning the FX knob will activate and
increase the effect parameter.
SHIFT + turning allows you to browse
through your effect selection.
Turning the Beats encoder sets the
parameter length of the chosen effect.
SHIFT + pressing Beats sets a manual
TAP tempo for the effects.
Pressing SHIFT + Pitch Bend +/– will
activate FX 1 and 2 for the corresponding
deck.
JOG WHEEL
CUP
Pressing CUP takes you directly to
your temporary CUE point, starting
playback instantly.
If no CUE point is set, it will jump to
the beginning of the track.
3 Version 1.1
ENGLISH
Touch and move the jog wheel to scratch.
Hold SHIFT and turn the jog wheel to
quick search through your track.
QUICK START GUIDE
DRUM PAD SECTION
There are two Pad modes, A + B.
Pressing SHIFT in either mode
deletes or effects that function
PAD MODE A
1 1
Top Row 4 Pads - CUE Points
Press an unlit pad to set a new CUE point.
2
Top Row 4 Pads - SHIFT + DRUM PAD
Deletes CUE points.
3
Lower Row 4 Pads - LOOP
Press the Drum Pad to activate a loop.
4
Lower Row 4 Pads + SHIFT - LOOP ADJUST
A
Drum Pad 1 - Sets a loop length.
B
Drum Pad 2 - Shortens the LOOP.
C
Drum Pad 3 - Lengthens the LOOP.
D
Drum Pad 4 - Replays the LOOP.
SPLIT MODE
Press A + B simultaneously to
split both modes across the top
and bottom of the drum pads.
Top Row 4 Pads - CUE
Lower Row 4 Pads - SAMPLE PLAY
Top Row 4 Pads + SHIFT = DELETE CUE
Lower Row 4 Pads + SHIFT = STOP SAMPLE
PAD MODE B
Top Row 4 Pads - SAMPLER PLAY
Pressing drum pads 1-4 launches a
sample.
2
Lower Row 4 Pads - SAMPLER STOP
Pressing drum pads 5-8 stops the
sample.
3
Top Row 4 Pads + SHIFT - CYCLE
Pressing 1 - 4 cycles through sampler
play types.
4
Lower Row 4 Pads + SHIFT - EJECT
Pressing drum pads 5-8 ejects the
sample.
4 Version 1.1
ENGLISH
QUICK START GUIDE
FRONT AND BACK
5 Version 1.1
ENGLISH
Unbalanced RCA
Mic plug
USB
Headphones jack 3.5/6.3 mm
QUICK START GUIDE
Der BeatMix 4 ist ein dedizierter Controller für
Serato und ist ein Class Compliant USB-Plug
and Play Gerät für Mac* und PC**.
Zum Aufbau einfach Ihren Laptop mittels des
mitgelieferten USB-Kabels mit dem BeatMix
verbinden.
Verbinden Sie mittels Cinch Kabel (asymmetrisch) Ihren BeatMix mit Ihrer Anlage.
LAUTSPRECHER
USB-KABEL
CINCH
KOPFHÖRER
Verbinden Sie Ihren Kopfhörer (3,5 oder 6,3
mm Klinke) mit der entspechenden Buchse an
der Vorderseite des Gerätes.
Vergewissern Sie sich, dass beim Anschließen
die Lautstärke ganz herunter gedreht ist und
erhöhen Sie diese danach im Betrieb vorsichtig.
* OSX 10.9/10.10 Firmware Update:
http://www.reloop.com/reloop-beatmix-4#download
** WIN ASIO Driver:
http://www.reloop.com/reloop-beatmix-4#download
6
DEUTSCH
Version 1.1
