Regency F2100M, S2100M User Manual

Freestanding Woodstoves

Medium Freestanding Woodstove
with optional Gold Legs.

Owners &

Installation Manual

Tested by:

908-288

Medium Freestanding Step Stove
with Pedestal Base.

FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

MODELS: F1100S F2100M F3100L S2100M S3100L

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

01/13/03

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have
any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

SAFETY NOTE: If this woodstove is not properly installed, a house fire may result. For your safety, follow the installation
instructions, contact local building or fire officials about restrictions and installation inspection requirements in your area.

Modular Parts

2

Regency Freestanding Woodstove

TABLE OF CONTENTS

THE REGENCY FREESTANDING STOVE

SAFETY LABEL

Small Freestanding Stove F1100S ..................................... 4

Medium Freestanding Stove F2100M ................................. 5

Large Freestanding Stove F3100L ..................................... 6

Medium Freestanding Step Stove S2100M ........................ 7

Large Freestanding Step Stove S3100L ............................. 8

INSTALLATION

Residential Installation ....................................................... 9

Room Air.............................................................................. 9

Modular Installation Options ............................................... 9

Minimum Clearance to Combustibles.............................. 10

Residential "C" Vent Single Wall ....................................... 10

Residential Close Clearance ........................................... 10

Mobile Home Close Clearance ........................................ 10

Minimum Alcove Clearances ............................................ 1 1

Floor Protection ................................................................. 1 1

Stove Assembly Prior to Installation ................................. 12

Airmate Assembly ............................................................. 12

Rear Heat Deflector Assembly .......................................... 12

Side Shield Adjustment for the S2100 & S3100 ............... 1 2

Pedestal Assembly ........................................................... 12

Leg and Bottom Shield Assembly .................................... 13

Chimney & Connector Installation .................................... 1 3

Flue Height Table .............................................................. 14

Recommended Height for Woodstove Flue ..................... 1 4

Mobile Home Installation .................................................. 14

Listed Components for Mobile Home Installation

- U.S. Installations ...................................................... 1 5

- Canadian Installations............................................. 15

Brick Flue Baffle & Secondary Air Tube Installation

- Large Stove F3100L & S3100L................................ 15

- Medium Stove F2100M/S2100 ................................. 16

- Small Stove F1100S ................................................ 16

Brick Installation ................................................................ 17

Door Handle ...................................................................... 17

Glass Installation .............................................................. 17

Optional Accessories

- Pedestal Ash Drawer Kit .......................................... 1 7

- Bottom Shield Ashdrawer Kit ................................... 17

- Blower/Fan ............................................................... 1 8

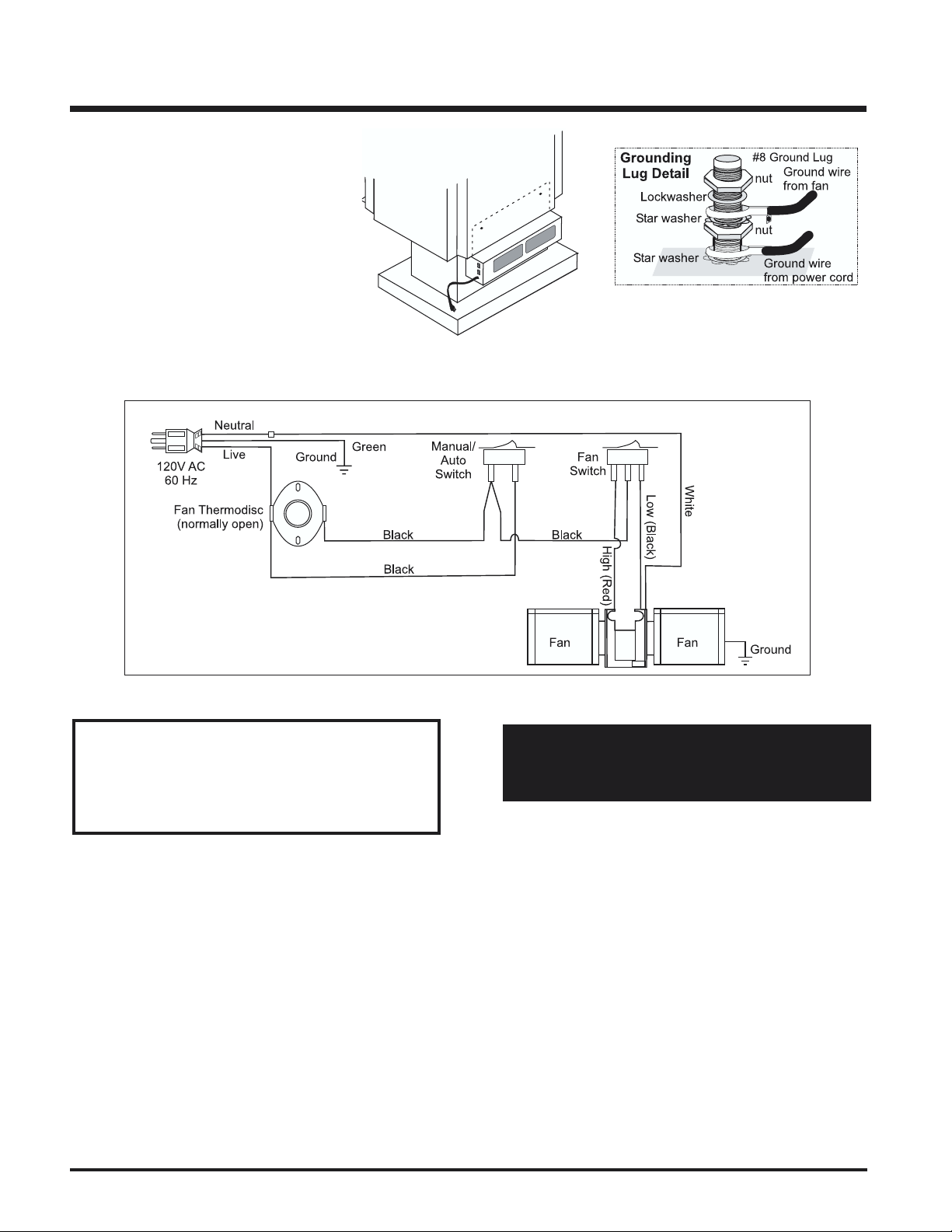

- Blower/Fan Wiring Diagram .................................... 18

OPERATING INSTRUCTIONS

Operating Instructions....................................................... 19

Draft Control ...................................................................... 19

First Fire............................................................................. 19

Fan Operation .................................................................... 19

Ash Disposal ..................................................................... 20

- Ash Drawer Operating Guidelines ........................... 20

Safety Guidelines .............................................................. 2 0

MAINTENANCE

Maintenance ...................................................................... 20

Creosote............................................................................ 21

- Ways to Prevent & Keep Units Free of Creosote..... 21

Maintenance of Gold Doors .............................................. 21

Latch Adjustment ............................................................... 21

Door Gasket ...................................................................... 21

Glass Maintenance ........................................................... 21

- Glass Replacement ................................................. 21

Parts List - F1100, F2100, F3100 ..................................... 22

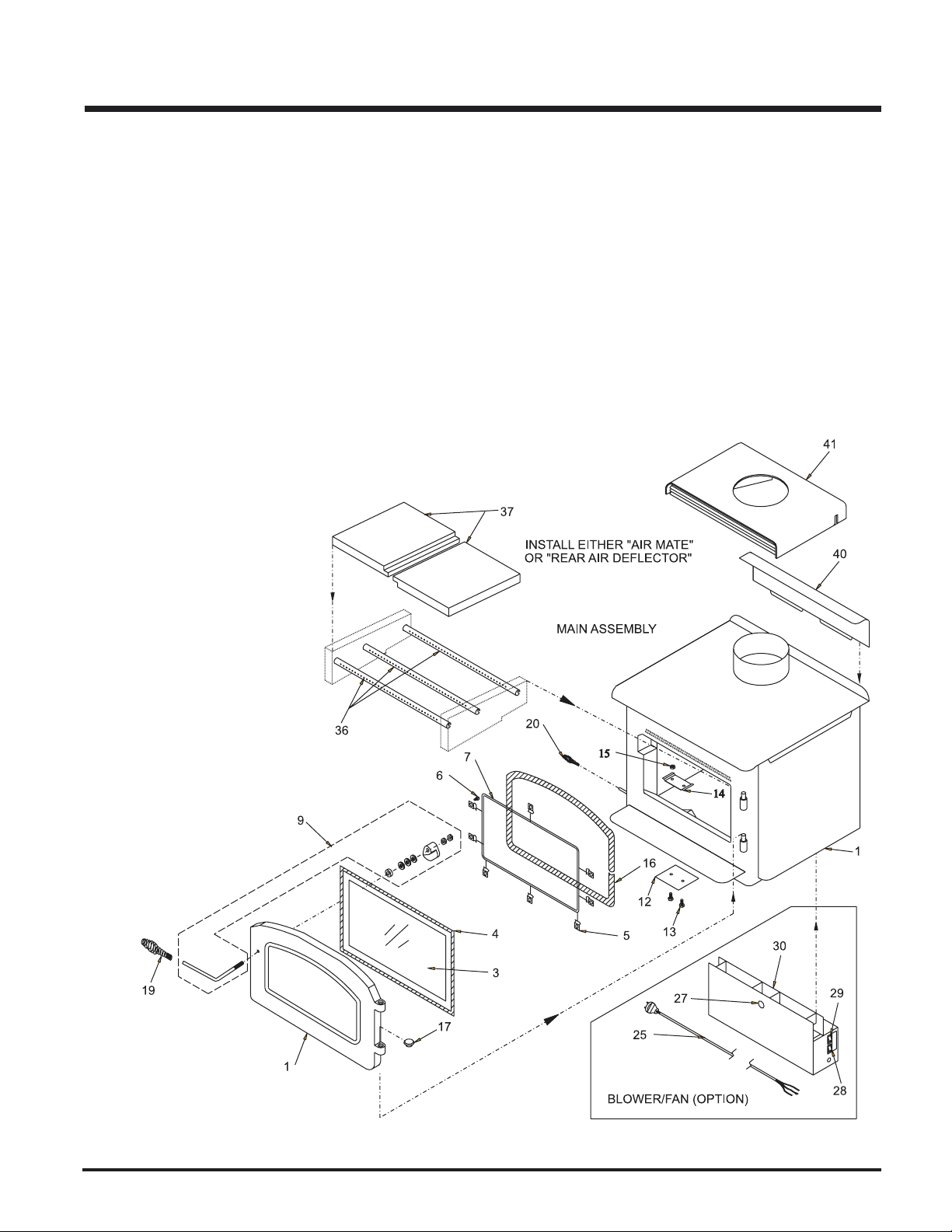

Parts List - S2100, S3100 ................................................. 23

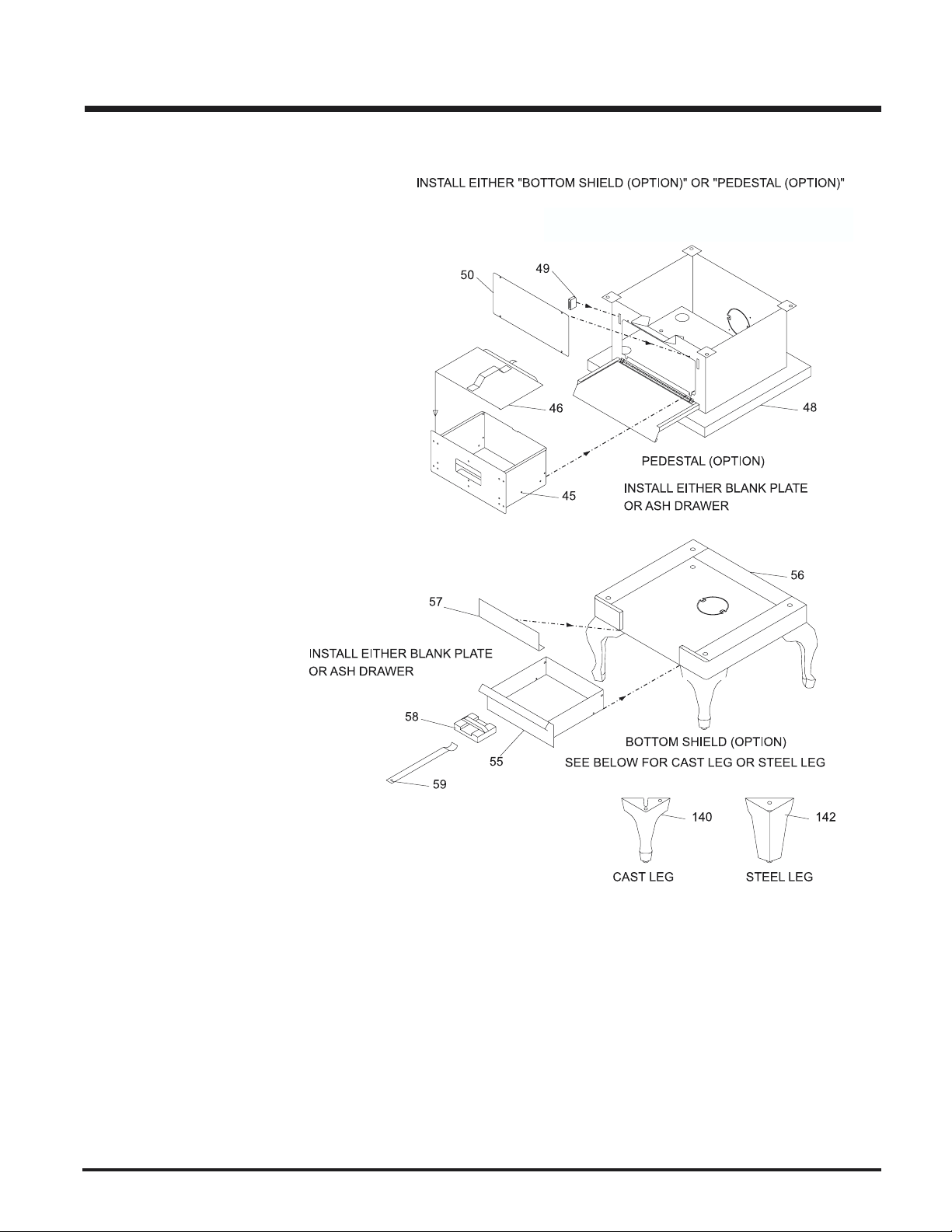

Parts List - Pedestal, Bottom Shield and Legs ................ 24

Parts List - Firebrick .......................................................... 25

WARRANTY

Warranty............................................................................. 27

Regency Freestanding Woodstove

3

A

D

BACKWALL

SIDEWALL

B

E

G

G

I

BACKWALL

SIDEWALL

SIDEWALL

HJ

F

ADJACENT WALL

SIDEWALL

C

100

SAFETY LABEL

This is a copy of the label that accompanies
each Regency Small Freestanding Woodstove
(F1100S). It is located in the upper right corner

LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION

MODEL: REGENCY SMALL FREESTANDING STOVE - F1100S
TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6621 (MAY 1993)

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND
OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG
BLACK OR 26 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT CHIMNEY SUITABLE FOR
USE WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED

F1100S WITH

AIRMATE SHIELD

F1100S WITHOUT
AIRMATE SHIELD

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

F1100S WITH AIRMATE SHIELD F1100S WITHOUT AIRMATE SHIELD

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING

SIDEWALL A 330 mm / 13 in D 635 mm / 25 in
BACKWALL B 280 mm / 11 in E 445 mm / 17.5in
CORNER C 205 mm / 8 in F 510 mm / 20 in

SIDEWALL A 280 mm / 11 in D 585 mm / 23 in
BACKWALL B 150 mm / 6 in E 320 mm / 12.5in
CORNER C 150 mm / 6 in F 460 mm / 18 in

SIDEWALL A 230 mm / 9 in D 535 mm / 21 in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 75 mm / 3 in F 380 mm / 15 in

SIDEWALL G 280 mm / 11 in I 585 mm / 23 in
BACKWALL H 180 mm / 7 in J 345 mm / 13.5in

MINIMUM ALCOVE CEILING HEIGHT: 2.15 M / 7 FT MAXIMUM ALCOVE DEPTH 915 MM / 36 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 455 MM / 18"
THE SPACE BENEATH THE HEATER MUST NOT BE OBSTRUCTED. OPERATE ONLY WITH FIREBRICKS IN PLACE.

FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE
ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR
GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE
BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH
NEOCERAM GLASS. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO
THE FRONT AND SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS

COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100 .
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA
VENT MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS
SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL­FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.

SINGLE WALL CONNECTOR

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE

FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY
CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

of the back of the stove. We have printed a copy
of the contents here for your review.

DO NOT REMOVE THIS LABEL

100

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING

SIDEWALL A 380 mm /15 in D 685 mm / 27 in
BACKWALL B 265 mm / 10.5in E 430 mm / 17 in
CORNER C 280 mm / 11 in F 585 mm / 23 in

SIDEWALL A 330 mm / 13 in D 635 mm / 25 in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 230 mm / 9 in F 535 mm / 21 in

SIDEWALL A 345 mm / 13.5in D 650 mm / 25.5in
BACKWALL B 125 mm / 5 in E 290 mm / 11.5in
CORNER C 125 mm / 5 in F 430 mm / 17 in

SIDEWALL G 330 mm / 13 in I 635 mm / 25 in
BACKWALL H 125 mm / 5 in J 290 mm / 11.5in

SINGLE WALL CONNECTOR

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE

NOTE: Regency units are constantly being
improved. Check the label on the unit and if there
is a difference, the label on the unit is the correct
one.

M

FLOOR

PROTECTION*

K 405 mm / 16 in
L 150 mm / 6 in
M 150 mm / 6in

* In Canada, floor protection must
extend 18" to the front and 8" to
each side of the stove.

BACK

SIDE

K

FRONT

L

SIDE

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

MANUFACTURED BY: FIREPLACE PRODUCTS INTERNATIONAL LTD.

UNITED STATES ENVIRONMENTAL

PROTECTION AGENCY

CERTIFIED TO COMPLY WITH JULY 1990,

PARTICULATE EMISSION STANDARDS.

CAUTION

6988 VENTURE ST.
DELTA, BC V4G 1H4

MADE IN CANADA

2003

2002

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,

CLOTHING AND FURNITURE AW A Y. CONT ACT MAY CAUSE

4

SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

908-281 01/03

Regency Freestanding Woodstove

WD

DA TE OF MANUFACTURE

2001

SAFETY LABEL

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,

CLOTHING AND FURNITURE AW AY . CONTACT MAY CAUSE

SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

DO NOT REMOVE THIS LABEL

101

CERTIFIED TO COMPLY WITH JULY 1990,

PARTICULATE EMISSION STANDARDS.

UNITED STATES ENVIRONMENTAL

PROTECTION AGENCY

MADE IN CANADA

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

CAUTION

DA TE OF MANUFACTURE

WD

908-282

rev. 01/03

LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION

MODEL: REGENCY MEDIUM FREESTANDING STOVE - F2100M
TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6622 (FEB.1993)

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

F2100M WITH AIRMATE SHIELD F2100M WITHOUT AIRMATE SHIELD

RESIDENTIAL INSTALLATION USING

SINGLE WALL CONNECTOR

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING

SINGLE WALL CONNECTOR
SIDEWALL A 430 mm / 17 in D 735mm / 29in
BACKWALL B 280 mm / 11 in E 445mm / 17.5in
CORNER C 230 mm / 9 i n F 53 5 m m / 2 1 in

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME
SIDEWALL A 460 mm / 18 in D 775 mm / 30.5 in
BACKWALL B 215 mm / 8.5in E 395 mm / 15.5in
CORNER C 215 mm / 8.5in F 535 mm / 21 in

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL A 355 mm / 14 in D 675 mm / 26.5 in
BACKWALL B 180 mm / 7 in E 355 mm / 14 in
CORNER C 215 mm / 8.5in F 535 mm / 21 in

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE

SIDEWALL A 3 55 mm / 14 in D 6 60 mm / 26 in
BACKWALL B 255 mm / 10 in E 420 mm / 16.5 in
CORNER C 190 mm / 7.5 in F 510 mm / 20 in

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME
SIDEWALL A 405 mm / 16 in D 725 mm / 28.5in
BACKWALL B 215 mm / 8.5in E 395 mm / 15.5in
CORNER C 190 mm / 7.5in F 510 mm / 20 in

SIDEWALL A 255 mm / 1 0 in D 550 mm / 22.5 in
BACKWALL B 115 mm / 4.5 in E 290 mm / 11.5 in
CORNER C 150 mm / 6 in F 44 5 mm / 17.5 in

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE
SIDEWALL G 355 mm / 14 in I 675 mm / 26.5in
BACKWALL H 180 mm / 7 in J 355 mm / 14 in

MINIMUM ALCOVE CEILING HEIGHT: 2.15 M / 7 FT MAXIMUM ALCOVE DEPTH 915 MM / 36 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 455 MM / 18"
THE SPACE BENEATH THE HEATER MUST NOT BE OBSTRUCTED. OPERATE ONLY WITH FIREBRICKS IN PLACE.

FLOOR

PROTECTION*

F2100M WITHOUT
AIRMATE SHIELD

F2100M WITH

AIRMATE SHIELD

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING
INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR
26 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT CHIMNEY SUITABLE FOR USE WITH
SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED
FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY
CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.

FRONT

BACK

L

K

M

SIDE

SIDE

K 405 mm / 16 in
L 150 mm / 6 in
M 150 mm / 6 in

FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE
ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR
GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE
BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH
NEOCERAM GLASS. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO
THE FRONT AND SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS

COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA
VENT MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS
SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL­FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.

MEASURE FLUE
FROM HEATER CENTER-LINE

MANUFACTURED BY: FIREPLACE PRODUCTS INTERNATIONAL LTD.

6988 VENTURE ST.
DELTA, BC V4G 1H4

SIDEWALL G 255 mm / 10 in I 570 mm / 22.5in
BACKWALL H 115 mm / 4.5in J 290 mm / 11.5 in

2001 20032002

* In Canada, floor protection must
extend 18" to the front and 8" to
each side of the stove.

This is a copy of the label that accompanies
each Regency Medium Freestanding Wood-

corner of the back of the stove. We have printed
a copy of the contents here for your review.

stove (F2100M). It is located in the upper right

NOTE: Regency units are constantly being
improved. Check the label on the unit and if there
is a difference, the label on the unit is the correct
one.

BACKWALL

B

E

A

SIDEWALL

D

BACKWALL

HJ

SIDEWALL

G

I

ADJACENT WALL

SIDEWALL

F

SIDEWALL

G

C

Regency Freestanding Woodstove

5

FRONT

BACK

L

K

M

SIDE

SIDE

SAFETY LABEL

This is a copy of the label that accompanies
each Regency Large Freestanding Woodstove
(F3100L). It is located in the upper right corner

of the back of the stove. We have printed a
copy of the contents here for your review.

NOTE: Regency units are constantly being
improved. Check the label on the unit and if there
is a difference, the label on the unit is the correct
one.

LISTED SPACE HEATER, SOLID FUEL TYPE, SUITABLE FOR
MOBILE HOME INSTALLATION

MODEL: REGENCY LARGE FREESTANDING STOVE - F3100L

TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6623 (MAY 93)

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERAT­ING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR
26 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT CHIMNEY SUITABLE FOR USE WITH
SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED

F3100L WITH

AIRMATE SHIELD

F3100L WITHOUT
AIRMATE SHIELD

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

F3100L WITH AIRMATE SHIELD

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING

SIDEWALL A 460 mm / 18 in D 810 mm / 32 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5in
CORNER C 215 mm / 8.5in F 560 mm / 22 in

SIDEWALL A 460 mm / 18 in D 810 mm / 32 in
BACKWALL B 240 mm / 9.5in E 405 mm / 16 in
CORNER C 255 mm / 10 in F 595 mm / 23.5in

SIDEWALL A 405 mm / 16 in D 760 mm / 30 in
BACKWALL B 240 mm / 9.5in E 405 mm / 16 in
CORNER C 215 mm / 8.5in F 560 mm / 22 in

SIDEWALL G 405 mm / 16 in I 760 mm / 30 in
BACKWALL H 240 mm / 9.5in J 405 mm / 16 in

MINIMUM CLEARANCE BETWEEN HORIZONTAL CHIMNEY CONNECTOR AND COMBUSTIBLE MATERIALS - 460 MM (18 IN.). CLEARANCE MAY BE
REDUCED BY THE USE OF LISTED PIPE SHIELDS, WALL PROTECTORS OR OTHER MEANS APPROVED BY LOCAL BUILDING OR FIRE OFFICIALS.
COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE FRONT AND SIDES
AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.

FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE
ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR
GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE
BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH
NEOCERAM GLASS.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS

COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA
VENT MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS
SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL­FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.

SINGLE WALL CONNECTOR

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE

FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY
CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.

F3100L WITHOUT AIRMATE SHIELD

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING

SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 355 mm / 14 in E 520 mm / 20.5 in
CORNER C 265 mm / 10.5in F 610 mm / 24 in

SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5in
CORNER C 255 mm / 10 in F 595 mm / 23.5in

SIDEWALL A 510 mm / 20 in D 860 mm / 34 in
BACKWALL B 305 mm / 12 in E 470 mm / 18.5in
CORNER C 215 mm / 8.5in F 560 mm / 22 in

SINGLE WALL CONNECTOR

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

ALCOVE INSTALLATION

REQUIRES AIRMATE SHIELD

DO NOT REMOVE THIS LABEL

102

BACKWALL

B

A

SIDEWALL

D

BACKWALL

HJ

SIDEWALL

G

I

ADJACENT WALL

SIDEWALL

F

FLOOR

PROTECTION*
K 405 mm / 16 in
L 150 mm / 6 in
M 150 mm / 6 in

* In Canada, floor protection must
extend 18" to the front and 8" to
each side of the stove.

E

SIDEWALL

G

C

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

UNITED STATES ENVIRONMENTAL

PROTECTION AGENCY

MANUFACTURED BY: FIREPLACE PRODUCTS INTERNATIONAL LTD.

CERTIFIED TO COMPLY WITH JULY 1990,

PARTICULATE EMISSION STANDARDS.

6988 VENTURE ST.
DELTA, BC V4G 1H4

MADE IN CANADA

2003

2002

CAUTION

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,

CLOTHING AND FURNITURE AWA Y. CONTACT MAY CAUSE

SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

6

908-351

01/03

Regency Freestanding Woodstove

WD

DA TE OF MANUFACTURE

2001

SAFETY LABEL

This is a copy of the label that accompanies each
Regency Medium Freestanding Step Woodstove
(S2100M). It is located in the upper right corner

of the back of the stove. We have printed a copy
of the contents here for your review.

NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

107

LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION

MODEL: REGENCY MEDIUM FREESTANDING STEP STOVE - S2100M

TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6622 (FEB.1993)

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. USE
150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR 26 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY-BUILT
CHIMNEY SUITABLE FOR USE WITH SOLID FUELS OR MASONRY CHIMNEY.

S2100M

S2100 MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

MEASURE FLUE
FROM HEATER CENTER-LINE

RESIDENTIAL INSTALLATION USING SINGLE WALL CONNECTOR
SIDEWALL A 355 mm / 14 in D 660 mm / 2 6 in
BACKWALL B 255 mm / 10 in E 420 mm / 16.5 in
CORNER C 1 50 mm / 6 in F 445 m m / 17.5 in

INSTALLATION USING LISTED DOUBLE WALL CONNECTOR - MOBILE HOME
SIDEWALL A 405 mm / 16 in D 725 mm / 28.5 in
BACKWALL B 215 mm / 8.5 in E 395 mm / 15.5 in
CORNER C 1 90 mm / 7. 5 i n F 51 0 m m / 20 i n

INSTALLATION USING LISTED DOUBLE WALL CONNECTOR ­RESIDENTIAL CLOSE CLEARANCE
SIDEWALL A 255 mm / 10 in D 550 mm / 22.5 in
BACKWALL B 115 mm / 4.5 in E 290 mm / 11.5 in
CORNER C 1 90 mm / 7. 5 i n F 51 0 m m / 20 i n

INSTALLATION USING LISTED DOUBLE WALL CONNECTOR - ALCOVE
SIDEWALL G 2 55 mm / 10 in I 570 mm / 22.5 in
BACKWALL H 115 mm / 4.5 in J 290 mm / 11.5 in

FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT
COMBUSTION AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY.
DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR GLOWS YOU
ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR
RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH NEOCERAM GLASS.
COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE FRONT AND SIDES AS
INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS

COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM:
SECURITY MODEL S2100, ICC EXCEL 2100.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA VENT
MODEL DVL, GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS SECURITY
MODEL S2100 OR MODEL ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL-FAB TEMP/
GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.

SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED FOR PASSING A CHIMNEY
THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT PASS CHIMNEY CONNECTOR THROUGH COMBUSTIBLE WALL OR
CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

BACKWALL

B

A

SIDEWALL

D

BACKWALL

HJ

SIDEWALL

G

I

ADJACENT WALL

C

SIDEWALL

F

DO NOT REMOVE THIS LABEL

107

E

SIDEWALL

G

FLOOR PROTECTION*

M

BACK

SIDE

K

FRONT

MINIMUM ALCOVE CEILING HEIGHT:

MAXIMUM ALCOVE DEPTH:

MINIMUM CLEARANCES FOR HORIZONTAL
CONNECTOR TO CEILING:

THE SPACE BENEATH THE HEATER MUST
NOT BE OBSTRUCTED. OPERATE ONLY
WITH FIREBRICKS IN PLACE.

K 405 mm / 16 in
L 150 mm / 6 i n

L

SIDE

M 150 mm / 6 in

* In Canada, floor protec­tion must extend 18" to
the front and 8" to each
side of the stove.

2.15 M / 7 FT

915 MM / 36 IN.

455 MM / 18"

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

Note: Hard copy - exact size 8" x 5-3/4". On disc, print at 65% to achieve actual size.

Everything printed black on grey except what is highlighted in yellow is printed red on gray.

UNITED STATES ENVIRONMENTAL

PROTECTION AGENCY

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,

Regency Freestanding Woodstove

MANUFACTURED BY: FIREPLACE PRODUCTS INTERNATIONAL LTD.

6988 VENTURE ST.
DELTA, BC V4G 1H4

MADE IN CANADA

CERTIFIED TO COMPLY WITH JULY 1990,

PARTICULATE EMISSION STANDARDS.

CAUTION

CLOTHING AND FURNITURE AWA Y. CONTACT MAY CAUSE

SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

WD

908-733

rev. 01/03

2004

2003

DATE OF MANUFACTURE

2002

system . No other changes.

Feb. 14/02: Updated serial number

7

SAFETY LABEL

This is a copy of the label that accompanies
each Regency Large Freestanding Step Wood­stove (S3100L). It is located in the upper right

corner of the back of the stove. We have printed
a copy of the contents here for your review.

NOTE: Regency units are constantly being
improved. Check the label on the unit and if there
is a difference, the label on the unit is the correct
one.

8

Regency Freestanding Woodstove

INSTALLATION

RESIDENTIAL

INSTALLATION

1) Read all instructions before installing your

Regency Stove. Install and use only in
accordance with these installation and
operating instructions. Be aware that local
Codes and Regulations may override some
items in this manual. Check with your local
inspector.

2) Select a position for your Regency Stove.
Consult the minimum clearance chart for
your model and set the stove in place. For
close clearance installation use listed dou­ble wall connector systems (see page 15).

3) To insure vertical alignment, suspend a
plumb bob from the ceiling over the exact
center of your stove flue and mark a spot on
the ceiling to indicate the center of the
chimney.

4) Check that the area above the ceiling is clear
for cutting. Re-confirm the clearance from
the stove to combustibles to insure that they
are within the prescribed limits.

5) Install chimney according to chimney man­ufacturers instructions. The performance
of your woodstove is governed to a very
large part by the chimney system. Too short
a chimney can cause difficult start-up, dirty
glass, backsmoking when door is open, and
even reduced heat output. Too tall a chim­ney may prompt excessive draft which can
result in very short burn times and exces­sive heat output. The use of an inexpensive
flue pipe damper may be helpful in reducing
excessive draft.

CAUTION: The chimney should be the same
size as the flue outlet on the stove. The

chimney must be listed as suitable for use
with solid fuels. For other types of chim­neys check with your local building code
officials. Do not confuse a chimney with a
type “B” Venting System used for gas
appliances as suitable for a wood burning
appliance. For Mobile Home installations
refer to that section on page 14.

6) Mark the location of the pedestal base or
legs on the floor, then move the stove aside
and mark the position of the floor protector.

7) The floor protector must be of non-combus­tible material and must extend 16" in front of
the door opening and 6" to the sides and
rear of the unit. Some areas may require a
larger size floor protector. See your local
inspector. For outside air installation refer
to Mobile Home installation instructions on
page 14.

NOTE: In Canada, floor protection must

extend 18" to the front and 8" to
each side of the stove.

8) When the floor protection is complete, po-

sition the stove with the flue collar centered
under the installed chimney.

9) In seismically active areas, Regency rec­ommends that your unit is secured to the
floor by using the bolt down holes inside the
pedestal (the same ones used in Mobile
Home installations).

10)For residential installations using "C" Vent
(single wall) the chimney connector must
be at least 24 gauge steel. Do not use
galvanized pipe. For Mobile Home installa­tion refer to the Mobile Home installation
instructions on page 14.

11)Do not connect this unit to a chimney serv­ing another appliance unless approved by

your local building authority.

12)A chimney connector cannot pass through
an attic or roof space, closet or similar
concealed space, or a floor, ceiling, wall or
partition of combustible construction. In
Canada, if passage through a wall, or par­tition of combustible construction is de­sired, the installation shall conform to CAN/
CSA-B365, Installation Code for Solid-Fuel­Burning Appliances and Equipment.

13)Your Regency Woodstove is not to be
connected to any air distribution duct.

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

ROOM AIR

IMPORTANT

For installation using room air for combustion,
remove knockout from the pedestal, and/or
from the bottom if using a heat shield.

Mobile home installations require the use of
outside air.

On pedestal units there are two locations where
outside air may be adapted to the unit. If using
the bottom of the pedestal, do not remove
knockout from the rear of the pedestal. Only
remove rear knockout if outside air will be
brought in from the rear.

On leg units outside air can only be brought in
from the bottom of the heat shield.

Note: Once the knockout is removed

there are two tabs remaining. Bend
both tabs out for ease of installa­tion when attaching outside air.

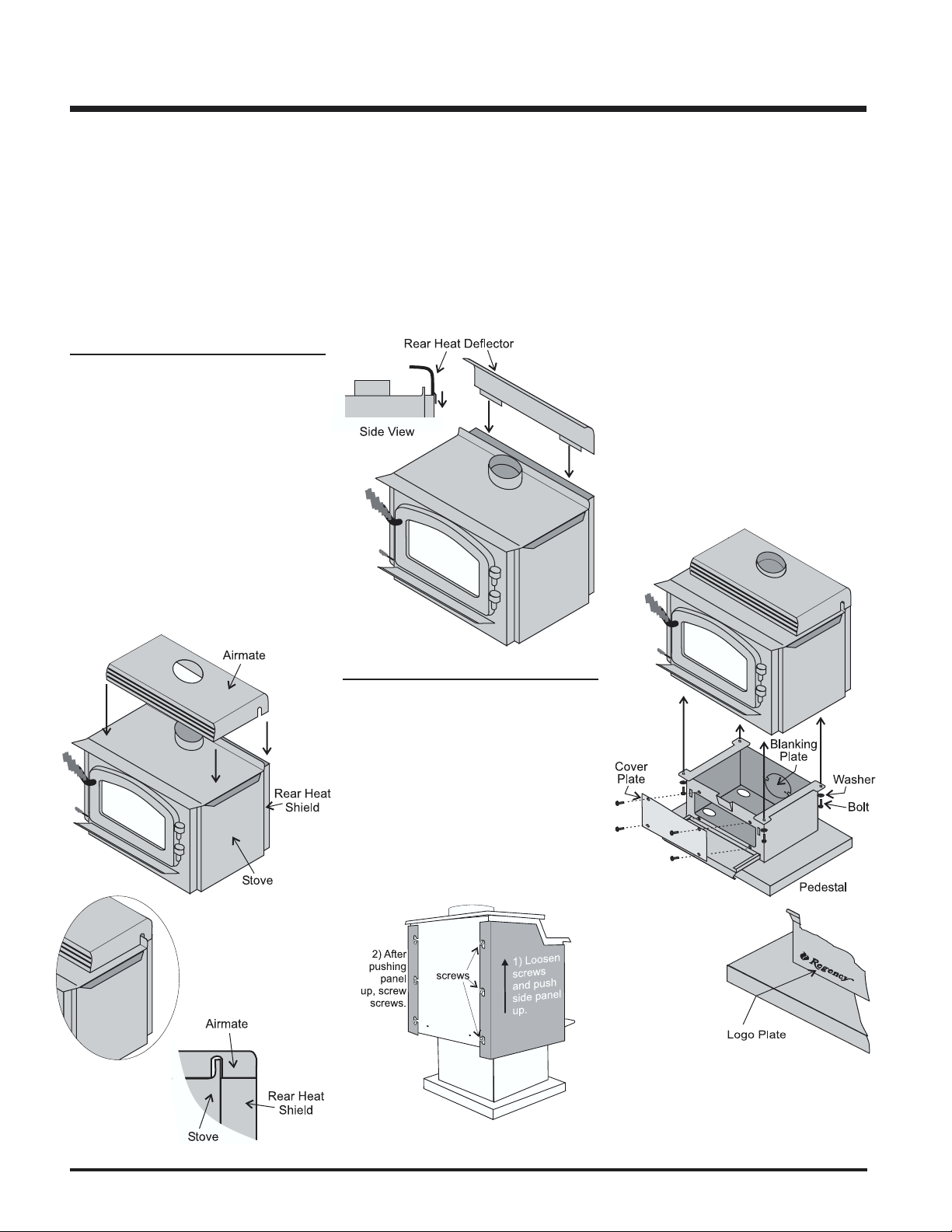

MODULAR INSTALLATION OPTIONS

The following items are required when assembling your Regency Stove. F1100, F2100, and F3100 units - the Rear Heat Deflector is supplied with
the stove, but if you choose not to use it you must use the Airmate instead.

Modular Part

F1100, F2100 and

F3100 only:
Airmate OR

Rear Heat Deflector

(all units)

Pedestal OR

Legs

Clearances are different. See the chart on pages 10 and 11. Generally you can get closer clearances with the airmate
than with the rear heat deflector.

Convection heat with Airmate vs. Radiant Heat with Rear Heat Deflector. The airmate pushes heat forward and into
the room, the rear heat deflector deflects the heat upward. See installation instructions on pages 11 and 12.

There are no performance differences with either the pedestal or legs. It is primarily a personal preference. Legs
can be either painted steel, painted cast, or gold plated cast.

Leg installation requires the bottom shield. See installation instructions on page 13.

OPTIONS: These can be installed at time of installation or added later:

Modular Option

Blower/Fan

Ash Drawer Kit

Regency Freestanding Woodstove

Adding the blower will increase the area heated by the stove, it can move warm air beyond the room where the stove
is installed. Installation instructions on page 18.

Adding the Ash Drawer Kit makes cleaning ashes out of the stove easier and cleaner. Installation instructions on page

17.

Things to consider when choosing options:

Things to consider when choosing options

9

INSTALLATION

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS

Please read the section below carefully as clearances depend on whether the airmate or the
rear heat deflector is installed on the stove.

Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner,
and from the rear heat shield to a back wall.

Residential Installation “C” Vent (Single Wall)

Unit From Unit From Corner From Flue Center-line

ABCDEF

Small F1100S with Airmate 13" 11" 8" 25" 17.5" 20 "

with Rear Deflector 15" 10.5" 11" 27" 17" 23"

Medium F2100M with Airmate 14" 10" 6" 26" 16.5" 17.5"

Medium S2100M Step Stove 14" 10" 6" 26" 16.5" 17.5"
Large F3100L with Airmate 18" 12" 8.5" 32" 18.5" 22"

Large S3100L Step Stove 18" 12" 8.5" 32" 18.5" 22"

with Rear Deflector 17" 11" 9" 29" 17.5" 21"

with Rear Deflector 20" 14" 10.5" 34" 20.5" 24"

Residential Close Clearance (To be installed with required pipe components)

When the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove
collar to the ceiling level.

Unit From Unit From Corner From Flue Center-line

ABCDEF

Small F1100S with Airmate 9" 5" 3" 21" 11.5" 15 "

with Rear Deflector 13.5" 5" 5" 25.5" 11.5" 17"

Medium F2100M with Airmate 10" 4.5" 7.5" 22.5" 11.5" 20"

Medium S2100M Step Stove 10" 4.5" 7.5" 22.5" 11.5" 20"
Large F3100L with Airmate 16" 9.5" 8.5" 30" 16" 22"

Large S3100L Step Stove 16" 9.5" 8.5" 30" 16" 22"

with Rear Deflector 14" 7" 8.5" 26.5" 14" 21 "

with Rear Deflector 20" 12" 8.5" 34 " 18.5" 22"

Mobile Home Close Clearance (To be installed with required pipe components)

"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)

Unit From Unit From Corner From Flue Center-line

ABCDEF

Small F1100S with Airmate 11" 6 " 6" 23" 12.5" 18"

with Rear Deflector 13" 5 " 9" 25" 11.5" 21"

Medium F2100M with Airmate 16" 8.5" 7.5" 28.5" 15.5" 20"

with Rear Deflector 18" 8.5" 8.5" 30.5" 15.5" 21"
Medium S2100M Step Stove 16" 8.5" 7.5" 28.5" 15.5" 20"
Large F3100L with Airmate 18" 9.5" 10" 32" 16" 23.5"

with Rear Deflector 20" 12" 10" 34" 18.5" 23.5"
Large S3100L Step Stove 18" 9.5" 10" 32" 16" 23.5"

10

Regency Freestanding Woodstove

INSTALLATION

Minimum Alcove Clearance to Combustible Materials

The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.

Note: Minimum alcove ceiling height - 84"

Maximum depth of alcove - 36"

From From Flue Min. Min.Hearth

Unit Unit Center-line Width to Rear Wall

GH I J K L

Small F1100S with Airmate 11" 7" 23" 13.5" 46" 39"

with Rear Deflector 13" 5" 25" 11.5" 50" 37"

Medium F2100M with Airmate 10" 4.5" 22" 11.5" 44" 41.5"

Medium S2100M Step Stove 10" 4.5" 2 2" 11.5" 44" 41.5"
Large F3100L with Airmate 16" 9.5" 30" 16" 60" 46.5"

Large S3100L Step Stove 16" 9.5" 30 " 16" 60" 46.5"

with Rear Deflector 14" 7" 26.5" 14" 52" 44"

with Rear Deflector (not approved for Alcove)

Floor Protection

A combustible floor must be protected by a non-combustible material (like tile,
concrete board, or certified to UL-1618 or as defined by local codes) extending
beneath the heater and a minimum of 6" from each side and minimum 16" from
the front face of the stove and minimum 6" (or the rear clearance to
combustibles whichever is smaller) from the rear of the stove.

Minimum Overall Width (X) of Floor
Protector for all installations:

Small Stove F1100S 36"
Medium Stove F2100M 36"
Medium Step Stove S2100M 36"
Large Stove F3100L 40"
Large Step Stove S3100L 40"

NOTE: In Canada, floor protection must extend 18" to the front and 8" to each side of the stove.

Minimum Overall Depth (Y) of Floor Protector

Residential Residential Mobile Home Alcove

Unit "C" Vent Close Clearance Close Clearance

YZ Y Z Y Z Y Z

Small F1100S with Airmate 38" 6" 37"* 5" 38" 6" 38" 6"

with Rear Deflector 38" 6" 37"* 5" 37"* 5" 37"* 5 "

Medium F2100M with Airmate 43" 6" 41.5"* 4.5" 43" 6" 41.5"* 4.5"

Medium S2100M Step Stove 43" 6" 41.5"* 4.5" 43" 6" 41.5"* 4.5"
Large F3100L with Airmate 43" 6 " 43" 6" 43" 6" 43" 6"

Large S3100L Step Stove 43" 6" 43" 6" 43" 6" 43" 6"

with Rear Deflector 43 6" 43" 6" 43" 6" 43" 6"

with Rear Deflector 43" 6" 43" 6" 43" 6" n/a n/a

*The rear clearance to combustibles is less than 6", for corner installations the rear corners may be angled to take advantage of the closer clearances.

Regency Freestanding Woodstove

11

INSTALLATION

STOVE ASSEMBLY

PRIOR TO

INSTALLATION

All units require either the pedestal or 4 legs
attached to the base. The F1100, F2100, and
F3100 stoves require either the Airmate or Rear
Heat Deflector on top of the stove. Clearances
to combustible materials vary depending on
whether the airmate or rear heat deflector is
installed, so be sure to check the clearance
information on pages 10 and 11.

Airmate Assembly for F1100,

F2100, and F3100

Small & Medium 850-105
Large 850-305

1) The airmate sits on top of the stove with the

slots in the sides fitting over the curved
deflector on the rear stove top. See diagram

1. Discard the Rear Heat Deflector that is
supplied with the unit, it is not required if the
airmate is installed.

2) Center the airmate and push it forward to the
front of the stove. The back of the airmate
should be level with the back and sides of
the rear heat shield. See diagrams 2 & 3.

Rear Heat Deflector Assembly for

F1100, F2100, and F3100

Small & Medium 815-555
Large 815-556

The rear heat deflector is supplied with the
stove and must be installed unless the optional
airmate has been selected. It stops the heat
radiated from the flue collar from overheating
the rear wall. The rear heat deflector is installed
on top of the rear heat shield, as shown in
diagram 4.

Pedestal Assembly

Small 850-115
Medium 850-215
Large 850-315

1) For easier assembly, tip the stove on its

back (onto a soft surface to prevent scratch­ing).

Hint: If you have chosen the Ash Drawer
option, remove the ash dump cover plates
before attaching the pedestal. See page 17
"Ashdrawer Kit Installation".

2) Remove the blanking plate if
a) you are not installing outside combus-

tion air or

b) outside air is to be brought in from the

rear of the stove.

3) Unscrew the 4 bolts in the under-side of the

stove. Align the holes in the corners of the
pedestal top with the corresponding holes
in the base of the stove. Fasten using a bolt
and washer for each corner.

Diagram 2

Diagram 4

S2100M & S3100L Side Shield

Adjustment

The left and right side shields are lowered for
shipping and handling. It allows for a handhold
on the top of the stove. Before placing in the Step
Stove in its final position, the side shields must
be raised.

Loosen the screws on the rear on the stove (3
per side), slide the side panel up as far as
possible and then secure by tightening the
screws.

Diagram 1

4) Push the Regency logo
into the two holes
in the front bot­tom left corner
of the pedestal
cover plate.

Note: Any paint touch up should be done

prior to placing logo on pedestal.

12

Diagram 3

5) If not using ash drawer, then cover plate must
be installed. If using ash drawer, then disre­gard cover plate.

Regency Freestanding Woodstove

INSTALLATION

Leg and Bottom Shield Assembly

Bottom Shield

Small 850-121
Mediu m 850-221
Large 850-321

Legs (set of 4)

Steel - Painted Black 850-125
Cast - Painted Black 850-126
Cast - Gold Plated 850-127

The instructions below apply to the steel leg,
painted cast leg and the gold plated cast leg. It
will be easier to attach the legs to the stove if
it is tipped on its back (preferably on a soft
surface to prevent scratching).

1) Remove the 4 bolts in the underside of the
base and discard.

2) Line up the bottom of the heat shield (with
cover plate facing front) with the bottom of
the unit.

3) Start threading the bolt and washer (sup­plied with the bottom shield) for about 1/4
of the way through the leg.

4) Place the spacers into position in the 4
corners of the bottom shield on top of the
bolts.

STEP BY STEP

CHIMNEY AND

CONNECTOR

INSTALLATION:

Note: These are a generic set of chim-

ney installation instructions. Al­ways follow the manufacturers
own instructions explicitly. Check
Table 1 on page 14 for the Mini­mum Recommended Flue Heights.

1) With your location already established, cut

and frame the roof hole. It is recommended
that no ceiling support member be cut for
chimney and support box installation. If it is
necessary to cut them, the members must
be made structurally sound.

2) Install radiant shield and support from above.

3) Stack the insulated pipe onto your finish

support to a minimum height of 3 feet above
the roof penetration, or 2 feet above any
point within 10 feet measured horizontally.
There must be at least 3 feet of chimney
above the roof level.

8) To complete your chimney installation, in­stall the double wall connector pipe from
the stove’s flue collar to the chimney sup­port device.

9) If you are using a horizontal connector, the
chimney connector should be as high as
possible while still maintaining the 18" min­imum distance from the horizontal connec­tor to the ceiling.

10) NOTE: Residential Close Clearance
and Alcove installations require a list­ed double wall connector from the
stove collar to the ceiling level.

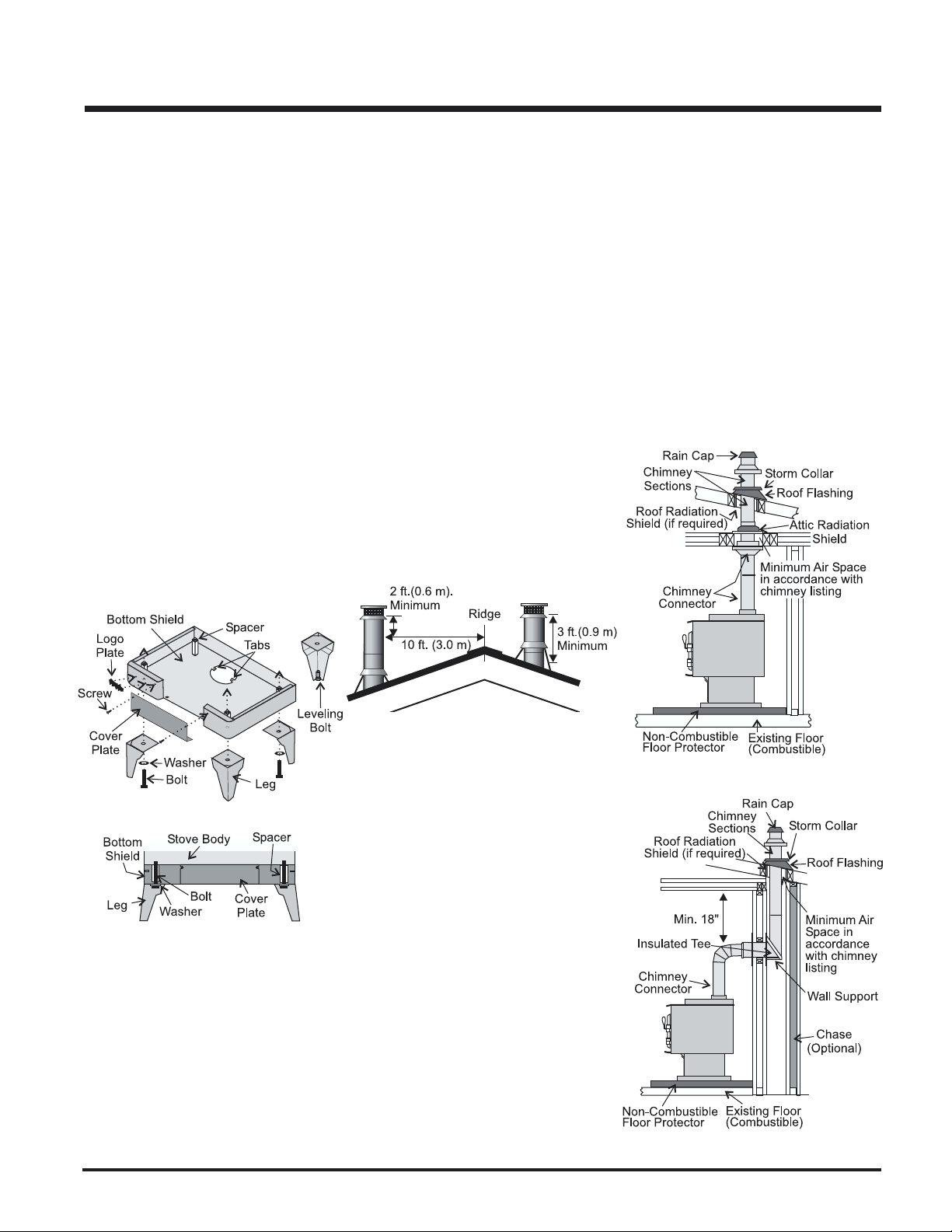

The diagrams below illustrate one way to install
your unit into a standard ceiling or with a
horizontal connector. Check with your dealer
or installer for information on other options
available to you.

5) Install all 4 legs with the washer underneath
the leg and tighten the bolts.

6) Level the stove by adjusting the levelling
bolts in the bottom of each leg.

Note: Increasing the chimney height

above this minimum level will
sometimes help your unit to
“breathe” better by allowing a
greater draft to be created. This
greater draft can decrease prob­lems such as, difficult start-ups,
back-smoking when door is open,
and dirty glass. It might be suffi­cient to initially try with the mini­mum required height, and then if
problems do arise add additional
height at a later date.

4) Slide the roof flashing over your chimney

and seal the flashing to the roof with
roofing compound. Secure the flashing to
your roof with nails or screws.

5) Place the storm collar over the flashing,
sealing the joints with a silicone caulking.

6) Fasten the raincap with spark screens (if
required) to the top of your chimney.

7) For optimum efficiency when installing into
a masonry chimney, size accordingly, i.e.
the 6" flue dia. is 28.28 sq.in.

Standard Ceiling Installation

Horizontal Installation

Regency Freestanding Woodstove

13

INSTALLATION

TABLE 1

MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET

(Measured from the top of the unit)

ELEVATION (FT)
ABOVE SEA LEVEL 0 2 x 15o 4 x 15o 2 x 30o 4 x 30o 2 x 45o 4 x 45

0-1000 12.0 13.0 14.0 15.0 18.0 16.0 20.0
1000-2000 12.5 13.5 14.5 15.5 19.0 16.5 21.0
2000-3000 13.0 14.0 15.0 16.0 19.5 17.0 21.5
3000-4000 13.5 14.5 15.5 17.0 20.0 18.0 22.5
4000-5000 14.0 15.0 16.0 17.5 21.0 18.5 23.0
5000-6000 14.5 15.5 17.0 18.0 21.5 19.0 24.0
6000-7000 15.0 16.0 17.5 18.5 22.5 20.0 25.0
7000-8000 15.5 16.5 18.0 19.0 23.0 20.5 25.5
8000-9000 16.0 17.0 18.5 20.0 24.0 21.0 26.5

9000-10000 16.5 17.5 19.0 20.5 24.5 22.0 27.0

NOTE: No more than two offsets (four elbows) allowed. Two 45o elbows equal one 90o elbow.

RECOMMENDED

HEIGHTS FOR

WOODSTOVE FLUE

Simple rules on draft. See Table 1.

1) At sea level minimum height is 12' straight.

2) Add the following vertical height to com-

pensate for:
45 deg. elbow = 1 ft.
90 deg. elbow = 2 ft.
"T" = 3 ft.
Each foot of horizontal run = 2 ft.

3) Add 4% overall for each 1000' above sea
level.

Example: a)

1-1/2 ft. of horizontal run = 3 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 6 ft.

Example: b)

One 90 deg. elbow = 2 ft.
2 ft. of horizontal run = 4 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 9 ft.

# OF ELBOWS

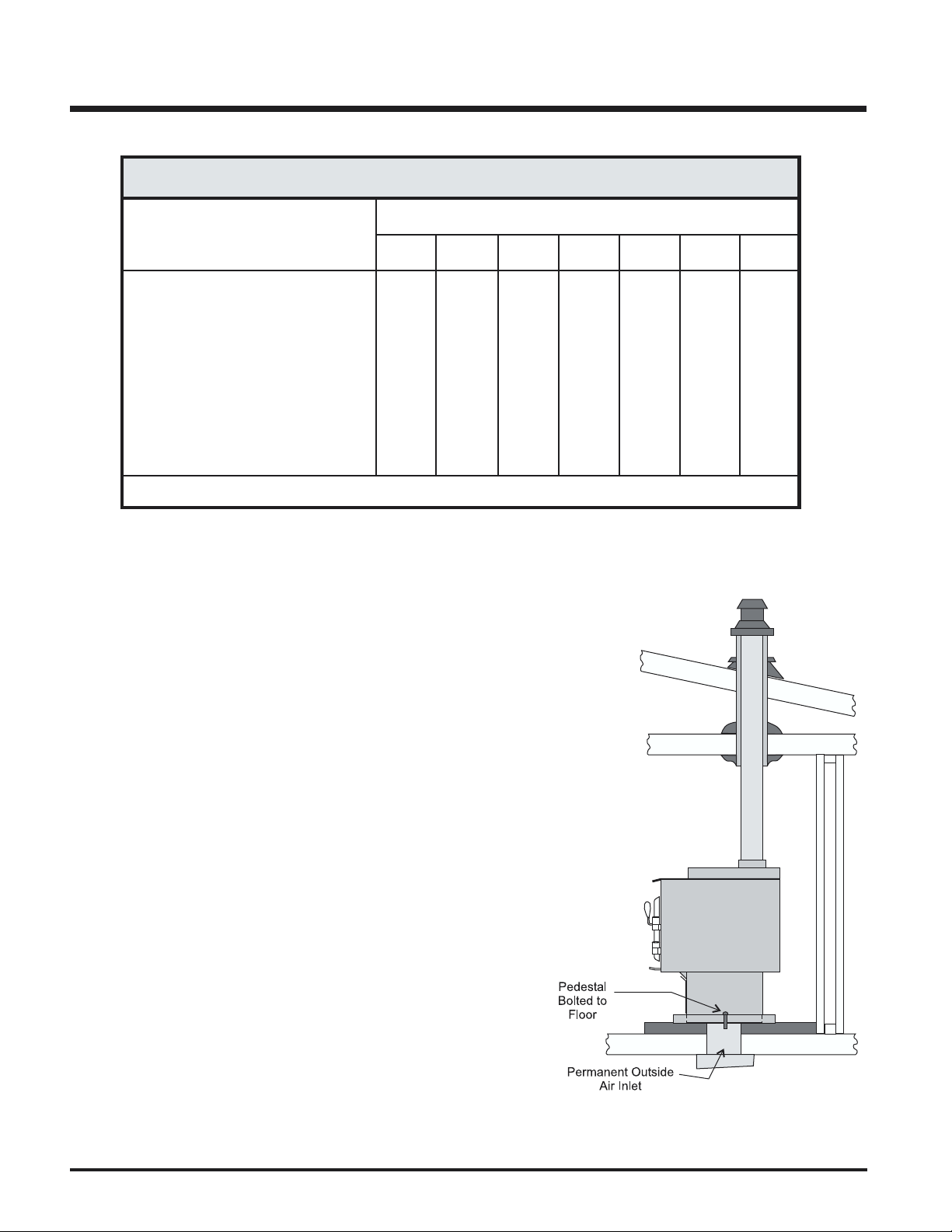

MOBILE HOME INSTALLATION

Once you have properly marked the position of
your unit and the floor protection as outlined in
the Residential Installation items #1 through #8,
a supply of fresh air has to be supplied to your
unit. Cut a minimum 4 inch diameter hole through
your floor protector and the floor directly under
your pedestal base to the outside. Use 4" duct
pipe with a mesh grill to pipe fresh air into the
pedestal area. Block off the hole in the back of
the pedestal with the square plate and the two
1/2" screws provided.

Place your unit in position and secure it to the
floor using two lag bolts 3/8" x 3-1/2" through
the two holes inside the pedestal base. It is
important to maintain the structural integrity of
the Mobile Home floor, walls and roof when
installing your unit.

For Mobile Home units installed in the U.S. the
unit must be grounded using a #8 ground wire
with approved termination and star washer.

o

Recommended Flue Height

Elevation Example a) Example b)

0' 18' 21'
1000' 18.72' 21.84'
2000' 19.44' 22.68'
5000' 21.60' 25.20'
8000' 23.76' 27.72'

14

Regency Freestanding Woodstove

INSTALLATION

LISTED COMPONENTS

FOR MOBILE HOME

INSTALLATION

The Regency Small, Medium, Medium Step and
Large Freestanding pedestal units are ap­proved for installation in a Mobile Home if one of
the following pipe systems is used.

U.S. Installation*

METALBESTOS SSII

Qty. Part # Des c r i p t i o n
1 6DS-VK Connector Kit
1 6TMH Shield/Support
1 6TAF-6 Flashing
1 6T-36 Chimney Length
1 6T-18 Chimney Length
1 6T-CT Rain Cap

PRO-JET 3103

Qty.Part # De s cr i p ti o n
1 PV06-TK Connector
1 CSB Shield/Support
1 RRS Radiation Shield
1 LFR03 Flashing
1 SL3 Chimney Length
1 SL1 Chimney Length
1 RCSA Rain Cap

SECURITY ASHT

Qty.Part # De s cr i p ti o n
1 DL42A-6 Connector Kit
1 6SS Shield/Support
1 6FAMH Flashing
1 6L3 Chimney Length
1 6L1 Chimney Length
1 CP E Rain Cap

SECURITY S2100

Qty.Part # De s cr i p ti o n
1 DL42A-6 Connector Kit
1 6XSF Support
1 6XFA Flashing
1 6XL3 Chimney Length
1 6XL18 Chimney Length
1 6XC PE Rain Cap

METAL-FAB TEMP/GUARD 2100

Qty.Part # De s cr i p ti o n
1 6DWBK Connector
1 6TGRS Roof Support
1 6TGG36 Chimney Length
1 6TGG12 Chimney Length
1 6TGF Flashing
1 6TGC Rain Cap

AMERI-TEC HS

Qty.Part # De s cr i p ti o n
1 6DCC Connector
1 6HSRS-12 Roof Support (6PLRS-12-BK)
1 6F Flashing
1 6HS-36 Chimney Length
1 6HS-18 Chimney Length
1 6HS-RCS Rain Cap (6PL-MPC)

SIMPSON DURA-PLUS

Qty.Part # Description
1 6DVL8693 Connector Kit
1 6DP-MH9096 Mobile Home Kit

ICC EXCEL 2100

Qty.Part # Description
1 6CL48 48" Chimney length (also in 12",

18", 24" lengths.
1 6RC Rain Cap
1 6RCS Spark Screen (for rain cap)
1 6RDS/SQS Round/Square support box
1 6VF Flashing
1 6UBA "Ultrablack" Close Clearance

Connector

Canadian Installations*

SECURITY S2100 (see above for details)

ICC EXCEL 2100 (see above for details)

*The use of alternate pitch flashings, support
box extensions, additional chimney lengths, and
additional chimney bracing, may be used on
each of the previously listed systems. These
parts though must be from the same system as
listed, and must be a similar and/or complimen­tary part.

CAUTION: At no time use unlabelled
parts, or substitute parts made for
another chimney system.

Install as per chimney manufacturer's installa­tion instructions.

BRICK FLUE BAFFLE &
SECONDARY AIR TUBE

INSTALLATION

The flue baffle system located in the upper area
of the firebox is removable to make cleaning
your chimney system easier. The brick baffles
must be installed prior to your first fire. Smoke

spillage and draft problems may occur if
the baffles are improperly positioned.

Check the position of the brick baffles on a
regular basis as they can be dislodged if too
much fuel is forced into the firebox.

The Large Stoves F3100L and S3100L are
shipped with two of the secondary air tubes
loose inside the firebox. They need to be in­stalled after the brick baffle are installed. Follow
the directions below.

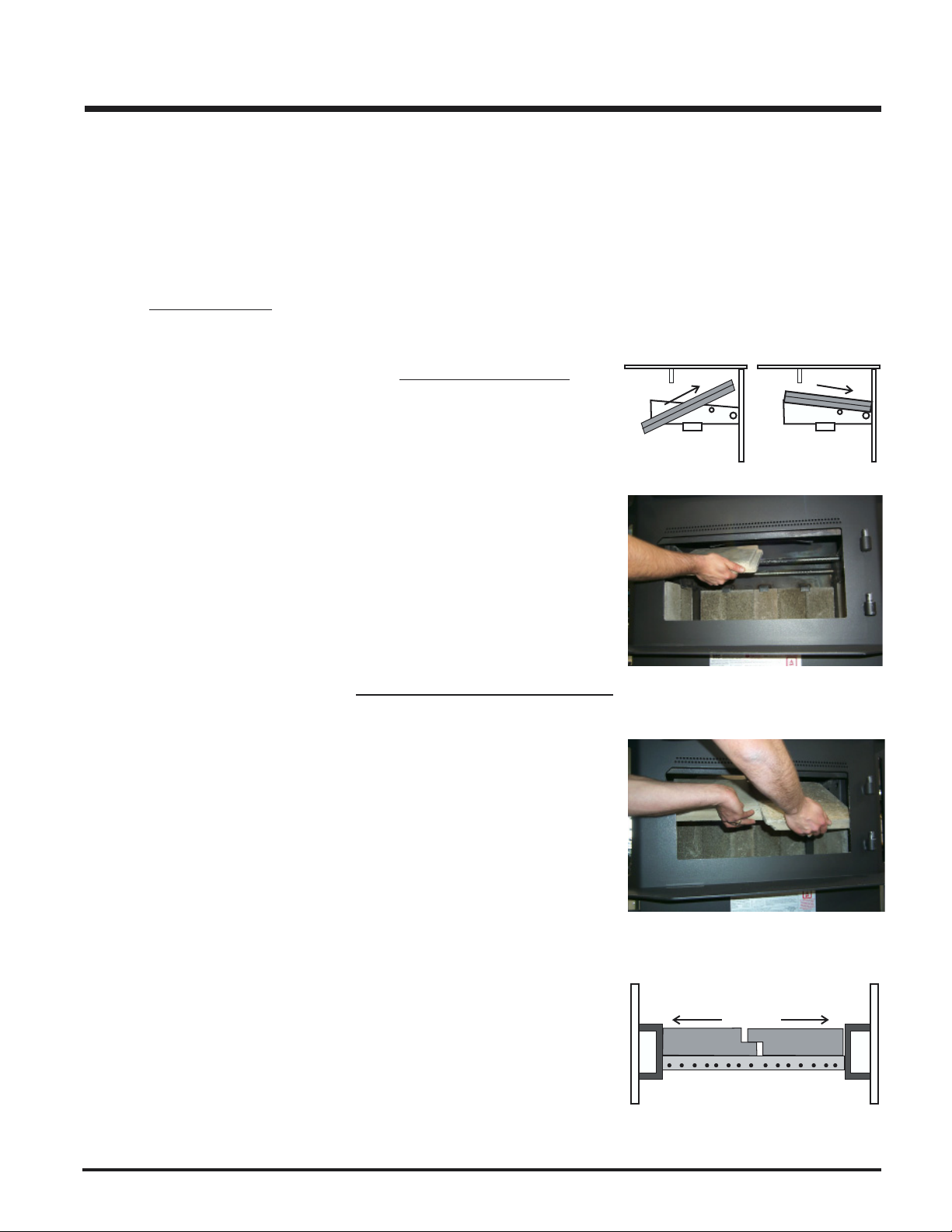

Large Stoves F3100L and S3100L

The unit arrives with the first two air tubes (from
the front) and the 2 baffle bricks on the floor of
the firebox. The baffle bricks are positioned
first and then the air tubes are installed.

NOTE: If the first 2 airtubes are already

installed in the stove, they must
be removed in order to install the
Brick Baffles.

1) Slide the left baffle brick over the two rear

air tubes and then push it all the way to the
left side of the firebox.

Side View

2) Tilt the first Baffle Brick down and then slide
the 2nd Baffle Brick up and back. Reposi­tion both baffle bricks flat on the air tubes.

3) Important: push both baffle bricks so
they are tight against the side walls.

Front View

Regency Freestanding Woodstove

15

INSTALLATION

4) Install the two front air tubes into the holes

on the side channels. The notch goes on
the right hand side with the air holes facing
forward toward the door opening. If the
tube will not slide in easily, simply use a pair
of vise grips or pliers and tap it into place
with a hammer. A tighter fit will ensure the
tube will not move when the unit is burning.

Note: When cleaning the chimney re-

verse the above procedures, re­moving the air tube and baffle
bricks and then replace them when
cleaning is completed.

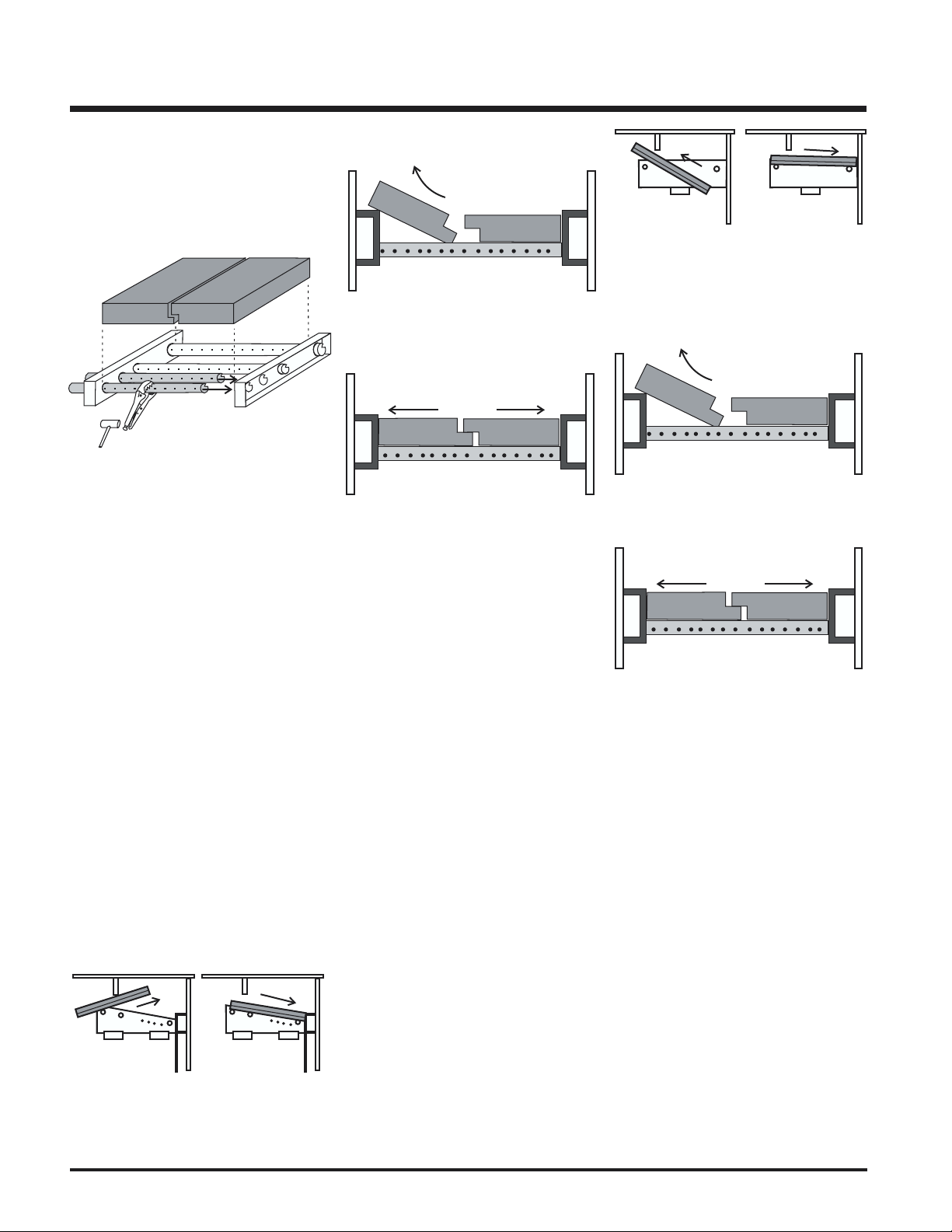

Medium Stoves

F2100M and S2100M

The unit arrives with the 2 baffle bricks on the
floor of the firebox.

1) If all 3 air tubes are installed continue on to
Step 2), if not, follow the instructions be­low. Install the air tube into the holes in the
side channels. The notch goes on the right
hand side with the air holes facing toward
the door. Slide the tube into the left hand
side, as far as possible and then bring it
back into the hole on the right hand side until
it locks into position. If the tube will not slide
in easily, simply use a pair of vise grips or
pliers and tap it into place with a hammer. A
tighter fit will ensure the tube will not move
when the unit is burning. See the diagram
for the large air tube installation (page 15),
though there are only three air tubes in the
medium units.

2) Slide the left baffle brick over the air tubes
from the front and then push it to the back.

manner as Step 1) above. Then reposition
the left baffle brick flat on the air tubes.

Front View

4) Important: push both baffle bricks so
they are tight against the side walls.

Front View

Note: When getting the chimney cleaned,

push the brick baffles forward
toward the front of the stove, this
should leave sufficient access to
the flue. If it is not enough space
then remove the middle air tube
(reverse the procedure in step 1)
above), and baffle bricks and then
replace everything when cleaning
is completed.

Small Stoves F1100S

1) If the two air tubes are installed continue on

to Step 2), if not, follow the instructions
below. Install the air tube into the holes in the
side channels. The notch goes on the right
hand side with the air holes facing toward
the door. Slide the tube into the left hand
side, as far as possible and then bring it
back into the hole on the right hand side until
it locks into position. If the tube will not slide
in easily simply use a pair of vise grips or
pliers and tap it into place with a hammer. A
tighter fit will ensure the tube will not move
when the unit is burning. See the diagram
for the large air tube installation (page 15),
though there are only two air tubes in the
small units.

Side View

3) Tilt the left baffle brick up on top of the side
channel and it will leave enough room to
position the right baffle brick in the same
manner as Step 1) above. Then reposition
the left baffle brick flat on the air tube.

Front View

4) Important: push both baffle bricks so
they are tight against the side walls.

Front View

Note: When getting the chimney cleaned,

remove the baffle bricks for ac­cess to the flue, then replace them
when cleaning is completed.

Side View

3) Tilt the left baffle brick up on top of the side
channel and it will leave enough room to
position the right baffle brick in the same

16

2) Slide the left baffle brick over the front air
tube and then slide it back over the rear air
tube.

Regency Freestanding Woodstove

INSTALLATION

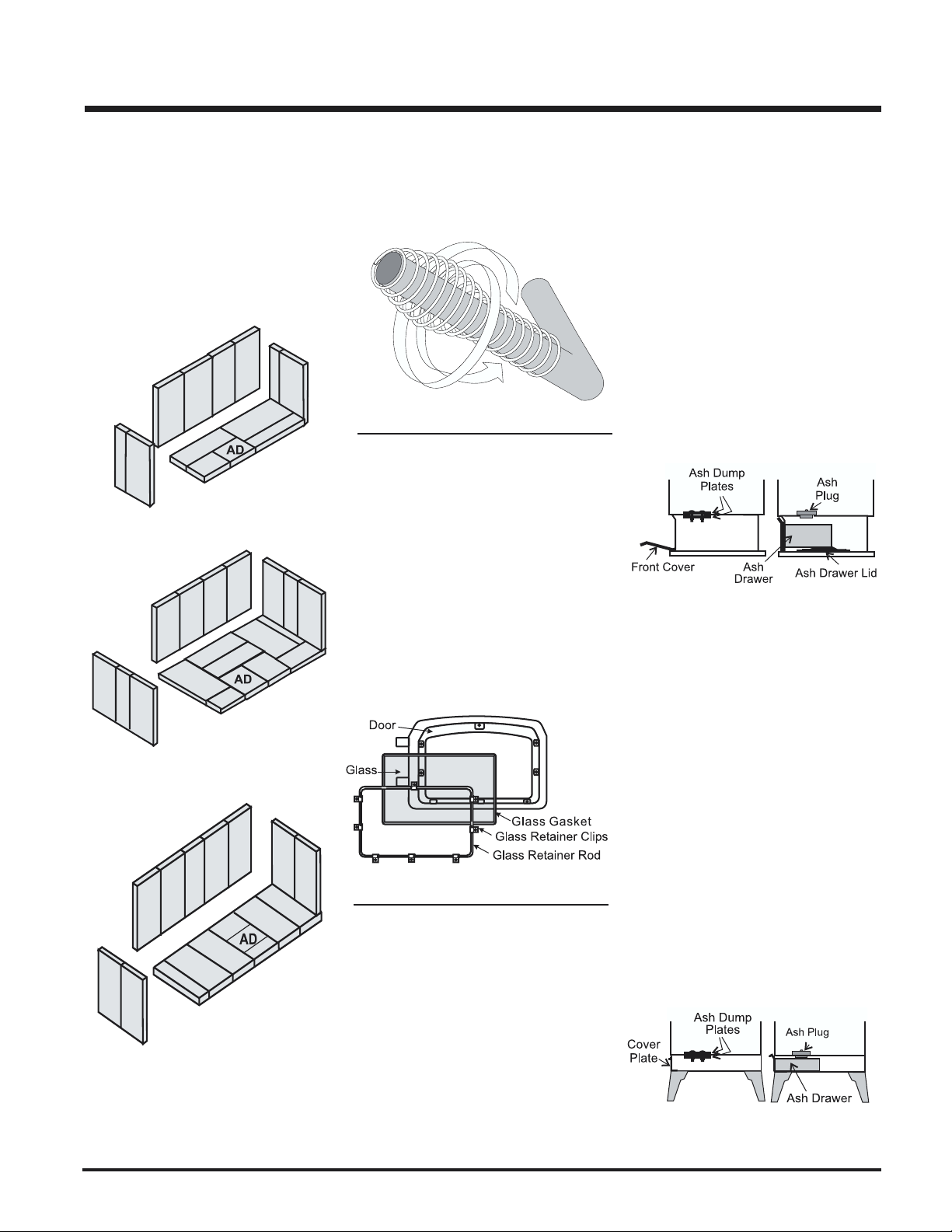

BRICK INSTALLATION

Firebrick is included to extend the life of your
stove and radiate heat more evenly. Check to
see that all firebricks are in their correct posi­tions and have not become misaligned during
shipping.

The "AD" brick in the drawings above is the brick
covering the Ash Dump hole that is used when
the Ash Drawer Kit is installed. See page 17 for
more information.

Freestanding - Small F1100

DOOR HANDLE

Attach spring handle by rotating counter clock­wise onto rod. Ensure that the rod fits into the
entire length of the spring handle. See Diagram
below.

GLASS INSTALLATION

Your Regency stove is supplied with 5 mm
Neoceram ceramic glass that will withstand the
highest heat that your unit will produce. In the
event that you break your glass by impact,
purchase your replacement from an authorized
Regency dealer only.

Pedestal Ash Drawer Kit (850-100)

1) Remove the bricks from the floor of the

firebox.

2) If using ashdrawer, discard cover plate.

3) Remove the ash dump cover plates (one

inside the firebox and one on the underside
of the firebox) by removing the two nuts
and bolts holding the 2 plates together from
inside the firebox.

4) Push the ash plug into the hole inside the
firebox and replace all the bricks except for
the brick over the ash plug. See the brick
diagrams on page 17.

5) Place the ash drawer lid inside the pedes­tal, and the ash plug tool beside the lid, then
slide the ash drawer inside so it sits on top
of the lid.

Freestanding - Medium

F2100 & S2100

Remove the door from the stove and remove
the glass retainer. Position the glass in the door,
make sure that the glass gasketing will properly
seal your unit, and replace the retainer, it should
rest on the gasket not the glass. Tighten secure­ly, but do not wrench down on the glass as this
may cause the glass to break.

OPTIONAL

ACCESSORIES

The pieces listed below can be purchased and
installed during the initial installation or added on
later.

See page 20 for Ash Drawer Operating in­structions.

Bottom Shield Ash Drawer Kit

(850-101 )

1) Remove the bricks from the floor of the

firebox.

2) Remove and discard the cover plate by
removing the two screws on the front of
the Bottom Shield.

3) Remove the ash dump cover plates (one
inside the firebox and one on the underside
of the firebox) by removing the two nuts
and bolts holding the 2 plates together from
inside the firebox.

4) Push the ash plug into the hole inside the
firebox and replace all the bricks except for
the brick over the ash plug. See the brick
diagrams on page 16.

5) Place the ash plug tool beside the lid, then
slide the ash drawer inside.

Freestanding - Large F3100

Regency Freestanding Woodstove

See page 20 for Ash Drawer Operating in­structions.

17

INSTALLATION

Blower/Fan (846-515)

1) Remove the two screws from the top of the

fan housing.

2) Slide the fan up into the rear heat shield.

3) After aligning holes, secure the fan to the

rear heat shield using the two screws
removed earlier.

Note: The connection cord should not

be in contact with any hot surfac­es.

Read the operating instructions for the fan
before using. See Page 19.

Blower/Fan Wiring Diagram

WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (ground­ing) plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the ground­ing prong from this plug.

CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.

18

Regency Freestanding Woodstove

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

With your unit now correctly installed and
safety inspected by your local authority, you
are now ready to start a fire. Before establish­ing your first fire, it is important that you fully
understand the operation of your draft control.

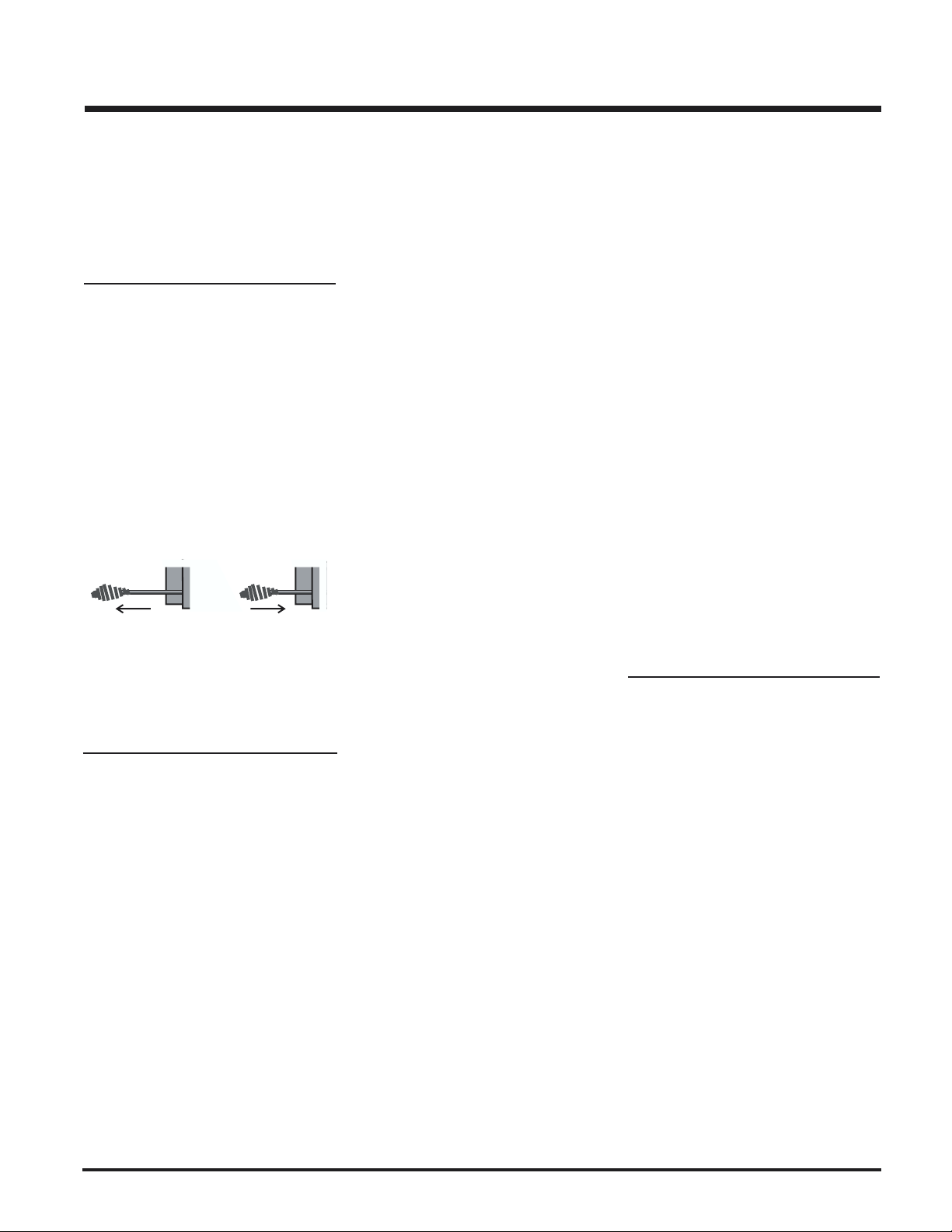

DRAFT CONTROL

Both the primary and air wash drafts are
controlled by the control rod located on the left
side of the unit (when facing the unit). To
increase your draft - pull open, and to decrease

- push closed. All units have a secondary draft
system that continually allows combustion air
to the induction ports at the top of the firebox,
just below the flue baffle.

Important: If you are using room air for
combustion, make sure that the back cover
plate at the rear of the pedestal is not installed.
The cover plate must be installed on the unit if
your stove is located in a mobile home or if using
outside air.

Pull - Open Push - Closed

WARNING: To build a fire in ignorance or
to disregard the information contained in
this section can cause serious perma­nent damage to the unit and void your
warranty!!

FIRST FIRE

When your installation is completed and in­spected you are ready for your first fire.

1) Open control fully.

2) Open firebox door and build a small fire

using paper and dry kindling. Secure door
on the firebox and wait a few minutes for
a good updraft in the flue to establish the
fire. (Leaving the door slightly open will help
your fire start more rapidly.)

CAUTION: Never leave unit unattend­ed if door is left open. This procedure
is for fire start-up only, as unit may
overheat if door is left open for too
long.

3) With the draft still in the fully open position

add two or three seasoned logs to your fire.
Form a trench in the ash bed to allow air to
reach the rear of the firebox prior to closing
the door.

4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the fire at
a moderate level.

WARNING: Never build a roaring fire in
a cold stove. Always warm your
stove up slowly!

5) Once a bed of coals has been established,

you may adjust the draft control to a low
setting to operate the unit at its most effi­cient mode.

6) During the first few fires, keep the com­bustion rate at a moderate level and avoid
a large fire. Only after 5 or 6 such fires can
you operate the stove at its maximum
setting, and only after the metal has been
warmed.

7) For the first few days, the stove will give
off an odour from the paint. This is to be
expected as the high temperature paint
becomes seasoned. Windows and/or
doors should be left open to provide ade­quate ventilation while this temporary con­dition exists. Burning the stove at a very
high temperature the first few times may
damage the paint. Burn fires at a moderate
level the first few days.

8) Do not place anything on the stove top
during the curing process. This may result
in damage to your paint finish.

9) During the first few days it may be more
difficult to start the fire. As you dry out your
firebrick and your masonry flue, your draft
will increase.

10)For those units installed at higher eleva­tions or into sub-standard masonry fire­places, drafting problems may occur. Con­sult an experienced dealer or mason on
methods of increasing your draft.

11)Some cracking and popping noises may be
experienced during the heating up proc­ess. These noises will be minimal when
your unit reaches temperature.

12)Before opening your door to reload, open
draft fully for approximately 10 to 15 sec­onds until fire has been re-established.
This will minimize any smoking.

13)All fuel burning appliances consume oxy­gen during operation. It is important that
you supply a source of fresh air to your unit
while burning. A slightly opened window
is sufficient for the purpose. If you also
have a fireplace in your home, a downdraft
may be created by your Regency Stove
causing a draft down your chimney. If this
occurs, slightly open a window near your
unit.

CAUTION: If the body of your unit,
flue baffle or any part of the chim­ney connector starts to glow, you
are overfiring. Stop loading fuel
immediately and close the draft
control until the glow has com­pletely subsided.

14)Green or wet wood is not recommended

for your unit. If you must add wet or green
fuel, open the draft control fully until all
moisture has been dispersed by the in­tense fire. Once all moisture has been
removed, the draft control may be adjusted
to maintain the fire.

15)If you have been burning your stove on a
low draft, use caution when opening the
door. After opening the damper, open the
door a crack, and allow the fire to adjust
before fully opening the door.

16)The controls of your unit or the air supply
passages should not be altered to increase
firing for any reason.

17)If you burn the unit too slowly or at too low
a setting your unit will not be operating as
efficiently as it can. An easy rule of thumb
says that if your glass is clean, then your
flue is clean and your exhaust is clean.
Burn the stove hot enough to keep your
glass clean and you won't need to clean
your flue as often.

FAN OPERATION

Automatic

To operate the fan automatically, push the
bottom switch on the side of the fan housing to
"AUTO" and the top switch to either "HIGH" or
"LOW" for fan speed.

This will allow the fan to turn on as the stove
has come up to operating temperature. It will
also shut the fan system off after the fire has
gone out and the unit cooled to below a useful
heat output range.

Manual

To manually operate the fan system push the
bottom switch to "MAN" and the top switch to
either "HIGH" or "LOW". This will bypass the
sensing device and allow full control of the fan.

Switching from "AUTO" to "MAN" or "HIGH" to
"LOW" may be done anytime.

Regency Freestanding Woodstove

19

OPERATING INSTRUCTIONS

ASH DISPOSAL

During constant use, ashes should be removed
every few days. The Ash Drawer option fea­tures a convenient ash dump for easy removal
of ash, see "Modular Options" on page 9.

Safety Precautions

1) Do not allow ashes to build up to the loading

doors! Only remove ashes when the fire
has died down. Even then, expect to find
a few hot embers.

2) Please take care to prevent the build-up of
ash around the start-up air housing located
inside the stove box, under the loading door
lip.

3) Never start a fire if the ash plug and ash
drawer are not in place. This will cause
overfiring which can cause excessive
warping of the stove. Evidence of overfir­ing can void the warranty on your stove.

4) The firebricks are brittle and can be dam­aged if the plug is replaced carelessly or
pieces that are too large are forced through
the hole.

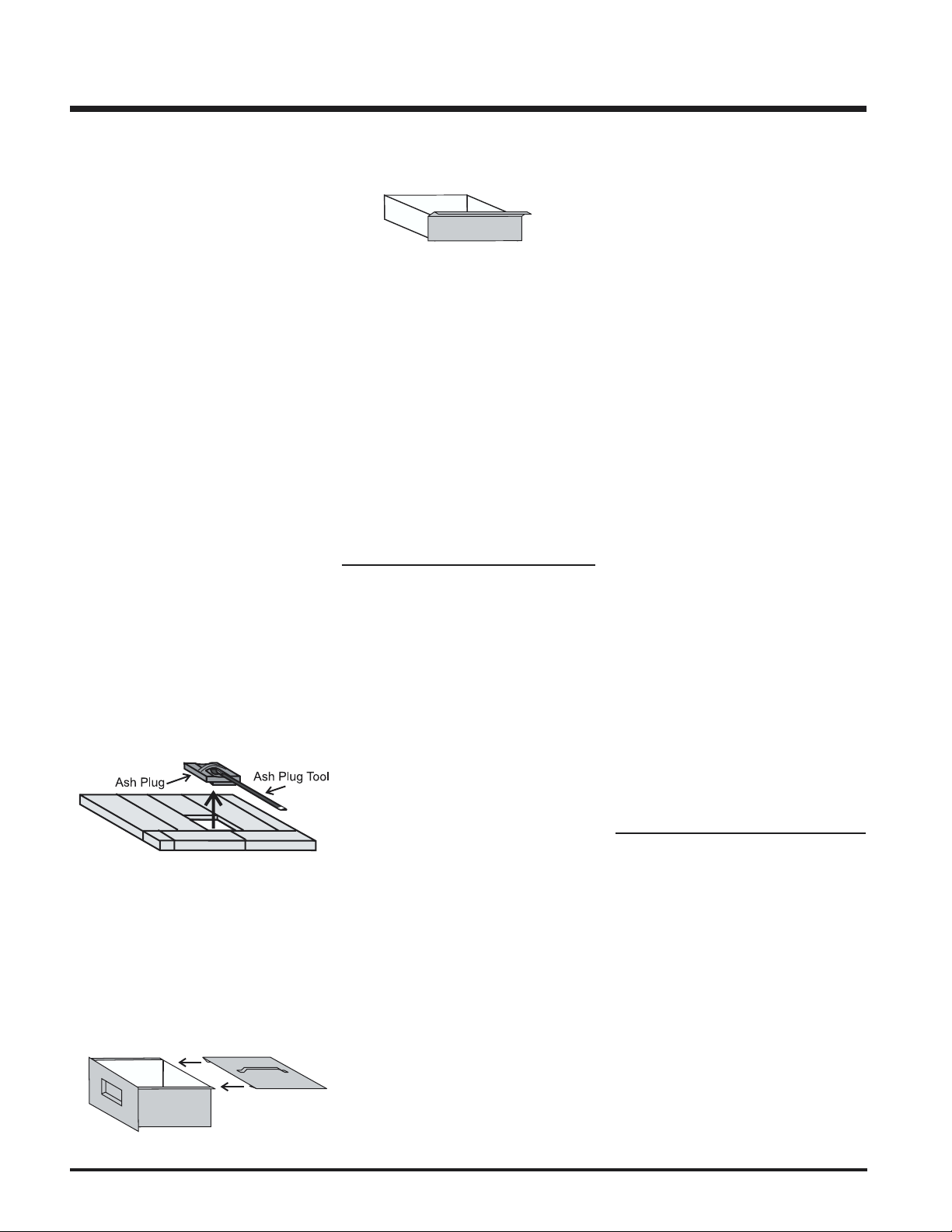

Ash Drawer Operating Guideline

1) Only clean ashes out of the stove when the

unit has cooled down. Remove the plug by
lifting on the handle using the tool provided.
The plug may still be warm, use caution.
Push the ashes down the hole into the ash
drawer, the large pieces can be left in the
firebox and burned during the next fire or
removed through the door opening.

Bottom Shield (with Legs) Units:

To remove the drawer, lift slightly and slide
it out, and carry it away.

4) When emptying the ash drawer, make sure
the ashes are cold. Ashes should be placed
in a metal container with a tight fitting lid. The
closed container of ashes should be placed
on a non-combustible floor or on the ground,
well away from all combustible materials,
pending final disposal. If the ashes are
disposed of by burial in soil or otherwise
locally dispersed, they should be retained
in the closed container until all cinders have
thoroughly cooled. Other waste should not
be placed in the ash container.

5) Before putting the ash drawer back into
place, make sure the ash plug is back in
place.

Pedestal Units: make sure the cover lid is
off.

SAFETY GUIDELINES

AND WARNINGS

1) Never use gasoline, gasoline type lantern

fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a fire
in your heater. Keep all such liquids well
away from the heater while it is in use.

2) Keep the door closed during operation and
maintain all seals in good condition.

3) Do not burn any quantities of paper, gar­bage, and never burn flammable fluids such
as gasoline, naptha or engine oil in your
stove.

clothing and furniture away. Warn chil­dren of the burn hazard.

8) The stove consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the stove is
in use.

9) Do not connect this unit to a chimney flue
serving another appliance.

10)Do not use grates or andirons or other
methods for supporting fuel. Burn directly
on the bricks.

11)Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fire.

12)Do not connect your unit to any air distribu­tion duct.

13)Your woodstove should burn dry, stand­ard firewood only. The use of cut lumber,
plywood, “mill ends”, etc. is discouraged
as this fuel can easily overheat your
woodstove. Evidence of excessive over­heating will void your warranty. As well,
a large portion of sawmill waste is chem­ically treated lumber, which is illegal to burn
in many areas. Salt drift wood and chem­ically treated fire logs also must not be
burned in your woodstoves.

14)Do not store any fuel closer than 2 feet from
your unit. Do not place wood, paper, fur­niture, drapes or other combustibles near
the appliance.

15) WARNING: Do not operate without
either the Ash Plug properly seated
or the Ash Dump Plates screwed in
place, excessive temperatures will
result.

16)Do not operate with broken glazing.

2) Always leave 1/2 to 1 inch of ash in the

bottom of the firebox. This helps in easier
starting and a more uniform burn of your
fire. Replace ash plug when ashes have
been removed.

3) Pedestal Units:

To remove the drawer, lift slightly and slide
it out. When the drawer is completely out,
slide the cover plate over the ash drawer
and carry away.

20

4) If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.

5) Do not overfire heater. If the chimney con­nector, flue baffle or the stove top begin to
glow, you are overfiring. Stop adding fuel
and close the draft control. Overfiring can
cause extensive damage to your stove
including warpage and premature steel
corrosion. Overfiring will void your war­ranty.

6) Do not permit creosote or soot build-up in
the chimney system. Check and clean chim­ney at regular intervals. Failure to do so can
result in a serious chimney fire.

7) Your Regency stove can be very hot. You
may be seriously burned if you touch the
stove while it is operating, keep children,

MAINTENANCE

It is very important to carefully maintain your
fireplace stove, including burning seasoned
wood and maintaining a clean stove and chim­ney system. Have the chimney cleaned before
the burning season and as necessary during
the season, as creosote deposits may build up
rapidly. Moving parts of your stove require no
lubrication.

Regency Freestanding Woodstove

MAINTENANCE

CREOSOTE

When wood is burned slowly, it produces tar
and other organic vapours, which when com­bined with moisture, form creosote. The creo­sote vapours condense in the relatively cool
chimney flue of a slow burning fire. As a result,
creosote residue accumulates on the flue lin­ing. When ignited, this creosote can result in an
extremely hot fire.

WARNING: Things to remember in case of a
chimney fire:

1. Close all draft and damper controls.

2. CALL THE FIRE DEPARTMENT.

Ways to Prevent and Keep Unit

Free of Creosote

1) Burn stove with the draft control wide open

for about 10-15 minutes every morning
during burning season.

2) Burn stove with draft control wide open for
about 10 - 15 minutes every time you apply
fresh wood. This allows the wood to
achieve the charcoal stage faster and burns
up any unburned gas vapours which might
otherwise be deposited within the system.

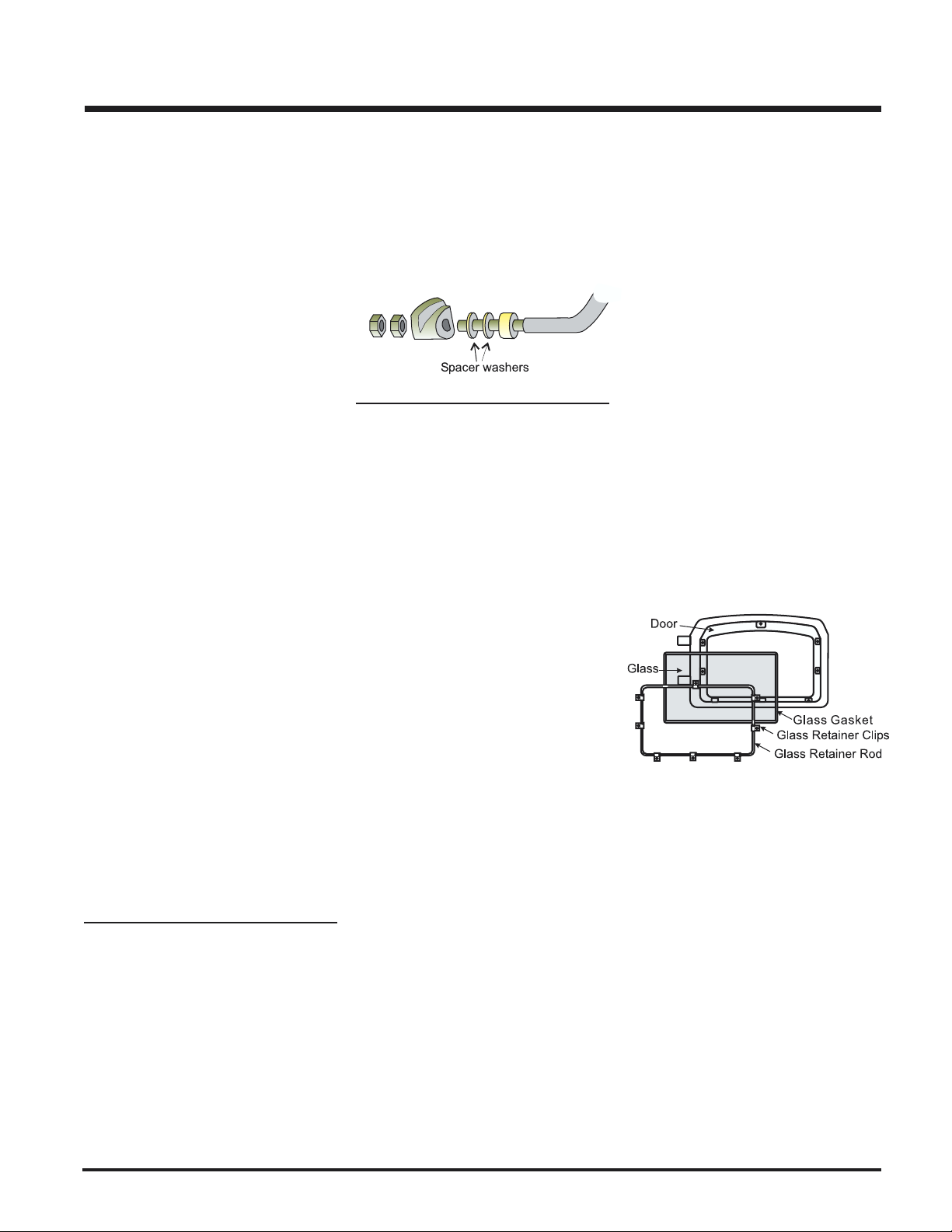

LATCH ADJUSTMENT

The door latch may require adjustment as the
door gasket material compresses after a few
fires. Removal of the spacer washer, shown
in the diagram below, will allow the latch to be
moved closer to the door frame, causing a
tighter seal. Remove and replace the nuts,
washer and spacer as shown.

DOOR GASKET

If the door gasket requires replacement 7/8" diam­eter material must be used. Regency uses AMA­TEX # 10-863KR 7/8" dia. gasket. A proper high
temperature gasket adhesive is required. See your
Regency Dealer.

GLASS MAINTENANCE

Your Regency stove is supplied with 5 mm
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact,
purchase your replacement from an author­ized Regency dealer only, and follow our step­by-step instructions for replacement.

Allow the stove to cool down before cleaning
the glass, do not clean the glass when it is hot.
Do not use abrasive cleaners.

Glass Replacement

Allow the stove to cool before removing or
replacing glass. Remove the door from the
stove and remove the glass retainer. Use
caution when removing broken glass to avoid
injury. When placing the replacement glass in
the door, make sure that the glass gasketing
will properly seal your unit. Replace the retain­er, it should rest on the gasket not the glass, and
tighten securely, but do not wrench down on
the glass as this may cause breakage.

Do not use substitute materials. If your glass
does break, do not continue to use your unit
until it has been replaced.

3) Only burn seasoned wood! Avoid burn­ing wet or green wood. Seasoned wood
has been dried at least one year.

4) A small hot fire is preferable to a large
smouldering one that can deposit creosote
within the system.

5) Check the chimney at least twice a month
during the burning season for creosote
build-up.

6) Have chimney system and unit cleaned by
competent chimney sweeps twice a year
during the first year of use and at least once
a year thereafter or when a significant
layer of creosote has accumulated (3 mm/
1/8" or more) it should be removed to reduce
the risk of a chimney fire.

MAINTENANCE OF

GOLD-PLATED DOORS

The gold electroplated finish on the door re­quires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abra­sive materials or chemical cleaners, as they
may harm the finish and void the warranty.

Regency Freestanding Woodstove

21

PARTS LIST

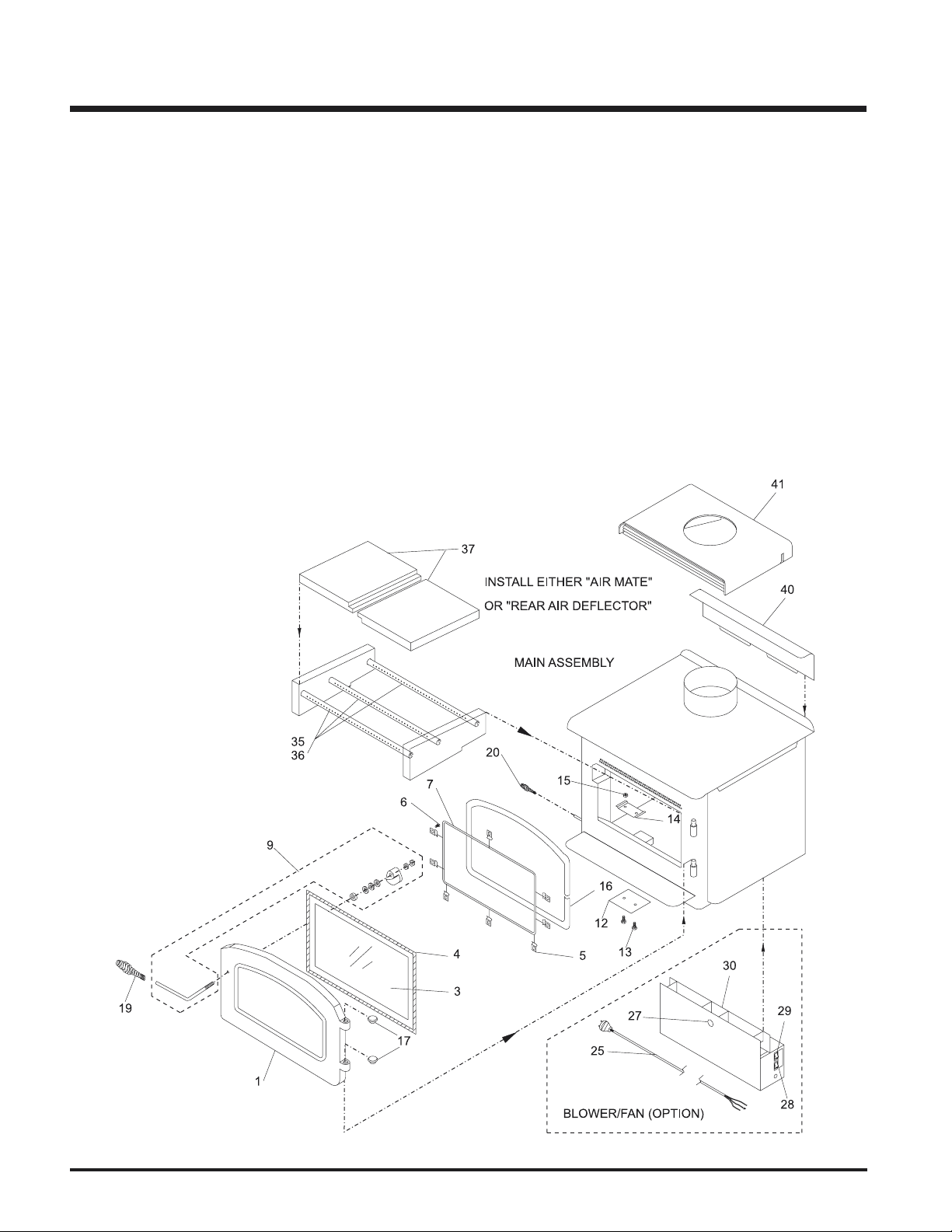

F1100 & F3100 STOVE MAIN ASSEMBLY

Part # Description Part # Description

1) 846-913 Door Assy-Sm/Med Gold F1100 (no glass)
846-915 Door Assy-Sm/Med Black F1100 (no glass)
846-910 Door Assy-Large Gold F3100 (no glass)
846-916 Door Assy-Large Black F3100 (no glass)

3) 846-302 Glass - Replacement - Small/Medium F1100
846-304 Glass - Replacement - Large F3100

4) 936-243 7/8" Adhesive Tape Gasket

5) 846-920 Glass Retainer Clips (8/set)

6) * Screw - 1/4 - 20 x 3/8"

7) 948-170/P Small Glass Retainer F1100
948-172/P Large Glass Retainer F3100

9) 846-973 Door Handle Assembly

12) 820-375 Ash Hole Cover Plate

13) * Bolt 1/4 - 20 x 1/2 Hex Head

14) 820-376 Retainer Plate - Ash Dump - Top

15) * Nut - 1/4 - 20 Hex

16) 846-570 7/8" Door Gasket Repair Kit

17) 846-918 Hinge Cap - Gold (2/set)

19) 948-101 Spring Handle - Large

20) 948-102 Spring Handle - Small
846-515 Complete Fan/Blower Assy (120 V)

25) 910-684 Power Cord (120 V)

27) 910-142 Thermodisc Fan AutoON/OFF

28) 910-138 Manual/Auto Switch (2-way)

29) 910-140 Fan Speed Switch HI/OFF/LOW (3-way)

30) 910-157/P Fan/Blower Motor (120 V)

35) 063-954 Air Tube - 1" F3100 (Qty:1)
074-954 Air Tube - 1" F1100 (Qty: 1)

36) 033-953 Air Tube - 3/4" F1100 (Qty: 1)
063-953 Air Tube - 3/4" F3100 (Qty: 3)

37) 073-955 Baffle (set) F1100
063-955 Baffle (set) F3100

40) 815-557 Rear Air Deflector- F1100
815-558 Rear Air Deflector - F3100

41) 850-105 Airmate - Sm/Med. F1100
850-305 Airmate - Large F3100

908-288 Manual

*Not available as a replacement part.

22

Regency Freestanding Woodstove

F2100 STOVE MAIN ASSEMBLY

Part # Description Part # Description

PARTS LIST

1) 846-913 Door Assy-Med Gold F2100 (no glass)
846-915 Door Assy-Med Black F2100 (no glass)

3) 846-302 Glass - Replacement - Medium F2100

4) 936-243 7/8" Adhesive Tape Gasket

5) 846-920 Glass Retainer Clips (8/set)

6) * Screw - 1/4 - 20 x 3/8"

7) 948-170/P Small Glass Retainer F2100

9) 846-973 Door Handle Assembly

12) 820-375 Ash Hole Cover Plate

13) * Bolt 1/4 - 20 x 1/2 Hex Head

14) 820-376 Retainer Plate - Ash Dump - Top

15) * Nut - 1/4 - 20 Hex

16) 846-570 7/8" Door Gasket Repair Kit

17) 846-918 Hinge Cap - Gold (2/set)

19) 948-101 Spring Handle - Large

20) 948-102 Spring Handle - Small

846-515 Complete Fan/Blower Assy (120 V)

25) 910-684 Power Cord (120 V)

27) 910-142 Thermodisc - Fan AutoON/OFF

28) 910-138 Manual/Auto Switch (2-way)

29) 910-140 Fan Speed Switch HI/OFF/LOW (3-way)

30) 910-157/P Fan/Blower Motor (120 V)

36) 033-953 Air Tube - 3/4" F2100 (Qty: 3)

37) 033-957 Baffle (set) F2100

40) 815-557 Rear Air Deflector- F2100

41) 850-105 Airmate - Medium .F2100
908-288 Manual

*Not available as a replacement part.

Regency Freestanding Woodstove

23

PARTS LIST

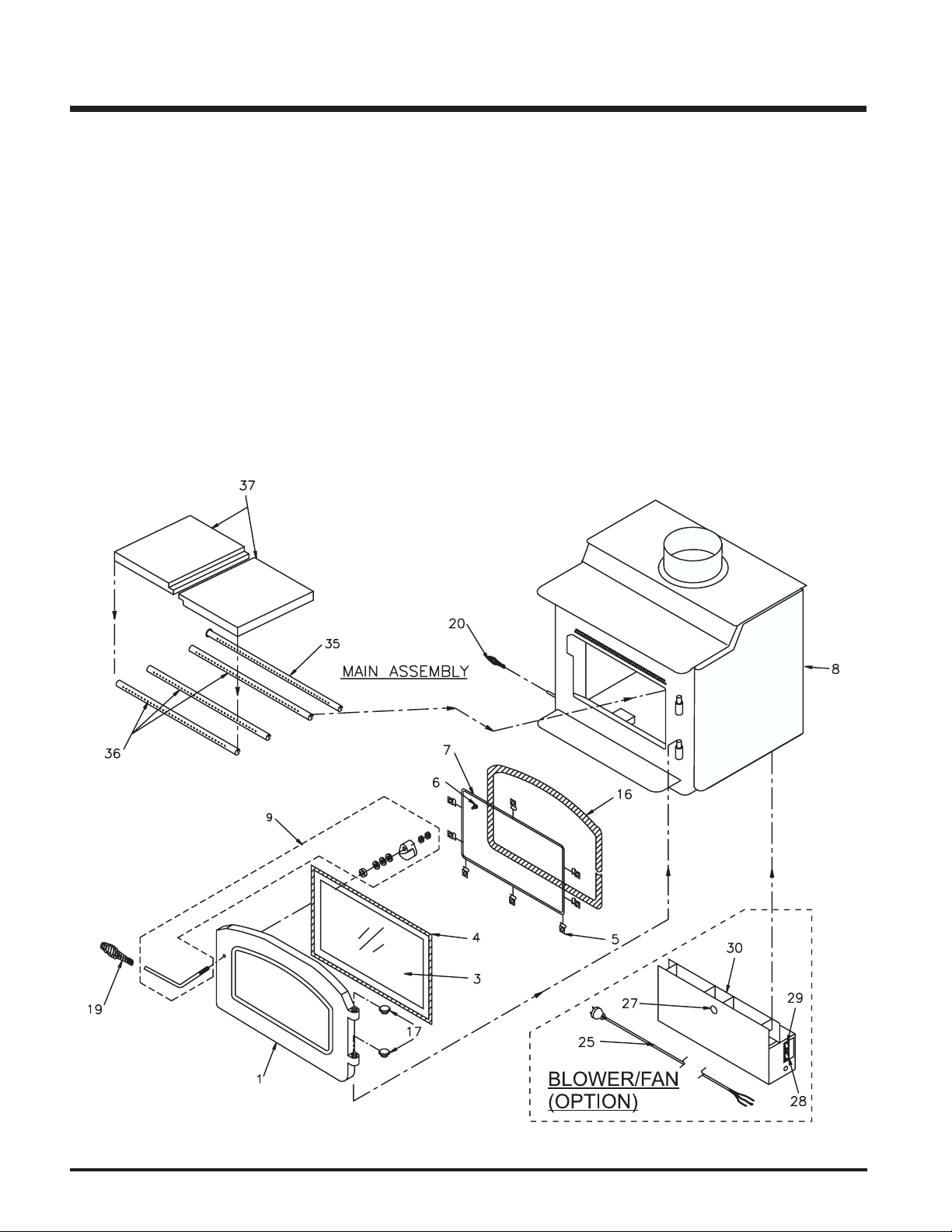

S2100 & S3100 STEP STOVE MAIN ASSEMBLY

Part # Description Part # Description

1) 846-913 Door Assy- Medium Gold S2100 (no glass)
846-915 Door Assy-Medium Black S2100 (no glass)
846-910 Door Assy-Large Gold S3100 (no glass)
846-916 Door Assy-Large Black S3100 (no glass)

3) 846-302 Glass - Replacement - Medium - S2100
846-304 Glass - Replacement - Large - S3100

4) 936-243 7/8" Adhesive Tape Gasket

5) 846-920 Glass Retainer Clips (8/set)

6) * Screw - 1/4 - 20 x 3/8"

7) 948-170/P Small Glass Retainer - S2100
948-172/P Large Glass Retainer - S3100

8) 130-006 Side Panel - Right - S2100
130-005 Side Panel - Left - S2100
150-006 Side Panel - Right - S3100
150-005 Side Panel - Left - S3100

9) 846-973 Door Handle Assembly

16) 846-570 7/8" Door Gasket Repair Kit

17) 846-918 Hinge Cap - Gold (2/set)

19) 948-101 Spring Handle - Large

20) 948-102 Spring Handle - Small
846-515 Complete Fan/Blower Assy (120 V)

25) 910-684 Power Cord (120 V)

27) 910-142 Thermodisc Fan Auto ON/OFF

28) 910-138 Manual/Auto Switch (2-way)

29) 910-140 Fan Speed Switch HI/OFF/LOW (3-way)

30) 910-157/P Fan/Blower Motor (120 V)

35) 063-954 Air Tube - S3100 (Qty:1)

36) 033-953 Air Tube - 3/4" S2100 (Qty: 3)
063-953 Air Tube - 1" S3100 (Qty: 3)

37) 033-955 Baffle (set) S2100
063-955 Baffle (set) S3100

908-288 Manual

*Not available as a replacement part.

24

Regency Freestanding Woodstove

PEDESTAL, BOTTOM SHIELD & LEG OPTIONS

Part # Description

48) 850-115 Pedestal - Small
850-215 Pedestal - Medium
850-315 Pedestal - Large

49) 904-257 Large Magnet Catch

50) * Blanking Plate - Pedestal
850-100 Ashdrawer Kit - Pedestal

45) * Ashdrawer - Pedestal

46) * Ashdrawer Lid Assy

58) 942-110 Ash Plug

59) 820-249 Ash Plug Tool Handle

56) 850-121 Bottom Shield - Small
850-221 Bottom Shield - Medium
850-321 Bottom Shield - Large

57) * Blanking Plate - Btm Shield
850-101 Ashdrawer Kit - Btm Shield

55) * Ashdrawer - Bottom Shield

58) 942-110 Ash Plug

59) 820-249 Ash Plug Tool Handle

PARTS LIST

140) 850-126 Legs - Cast Black
850-127 Legs - Cast Gold

142) 850-125 Legs - Steel Black
948-216 Logo - Regency

*Not available as a replacement part.

Regency Freestanding Woodstove

25

PARTS LIST

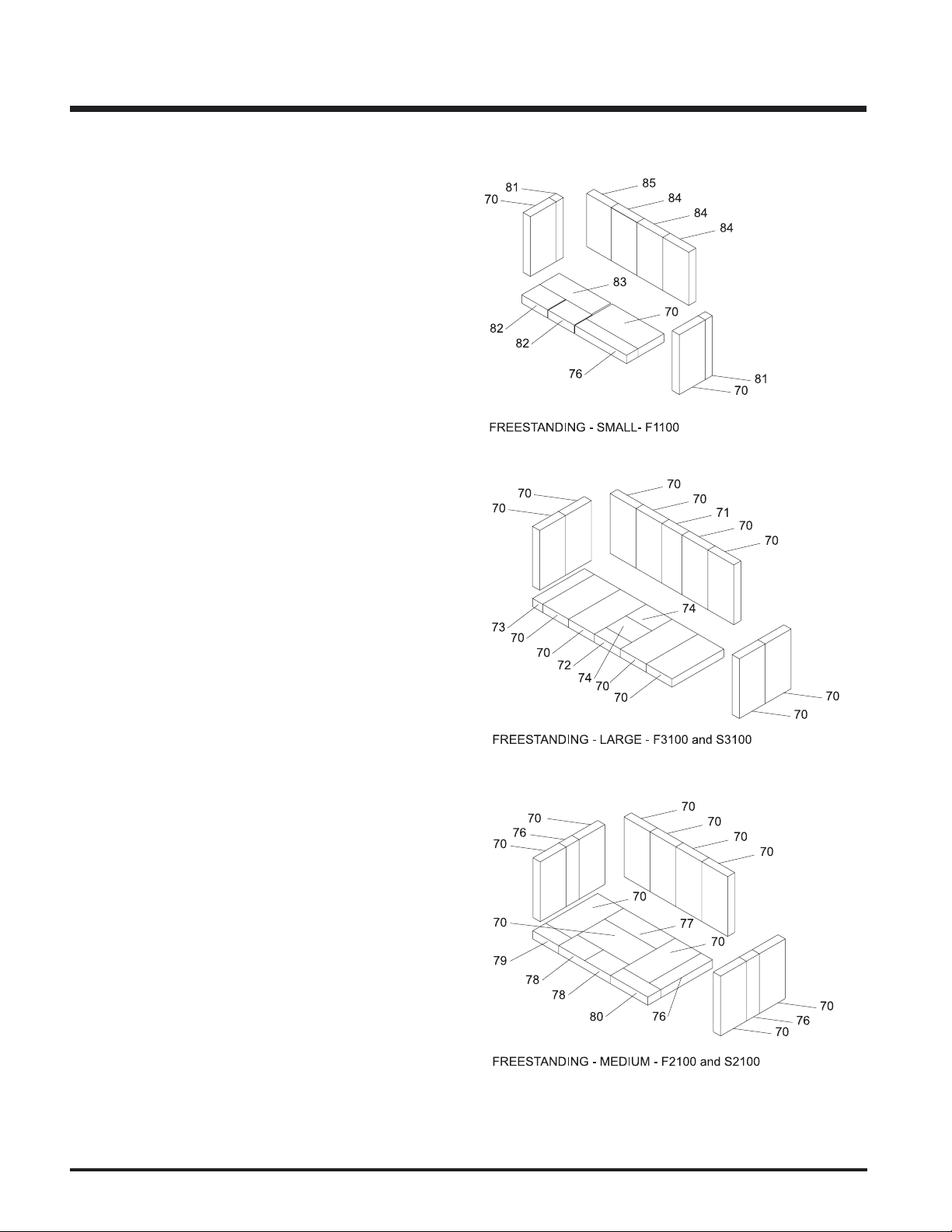

FIREBRICK

Part # Description

70) 902-111 Brick - Regular Full Size: 1-1/4" x 4-1/2" x 9"

71) 802-104 Brick Partial: 1-1/4" x 4" x 9"

72) 802-122 Brick Partial: 1-1/4" x 2" x 4-1/2"

73) 802-146 Brick Partial: 1-1/4" x 1-3/4" x 9"

74) 802-147 Brick Partial: 1-1/4" x 4-1/2" x 3-1/2"

76) 802-152 Brick Partial: 1-1/4" x 2" x 9"

77) 802-145 Brick Partial: 1-1/4" x 3-1/4" x 9"

78) 802-149 Brick Partial: 1-1/4" x 4-1/2" x 3-1/4"

79) 802-153 Brick Partial: 1-1/4" x 4-1/2" x 2-1/4"

80) 802-154 Brick Partial: 1-1/4" x 6-1/2" x 2-1/4"

81) 802-135 Brick Partial: 1-1/4" x 1-1/4" x 9"

82) 802-155 Brick Partial: 1-1/4" x 3-1/8" x 4-1/2"

83) 802-138 Brick Partial: 1-1/4" x 3-3/8" x 9"

84) 802-107 Brick Partial: 1-1/4" x 4-1/2" x 8"

85) 802-156 Brick Partial: 1-1/4" x 4-1/4" x 8"

26

Regency Freestanding Woodstove

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance
Team carefully inspects each unit thoroughly before it leaves our door. Regency Industries Ltd. is pleased to extend this limited
lifetime warranty to the original purchaser of a Regency Product.

The Warranty: Lifetime

Covered under the agreement are the following components:
Firebox, ceramic baffle, convector airmate, castings, ashdrawer, glass (thermal breakage) and all gold plating (against defective

manufacture).
The above will be covered for parts and labour for the first five years and parts only thereafter.
Electrical components such as blowers and switches are covered for one year from the date of purchase.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at Regency's option,
through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation

Prepaid, if requested.

Exclusions:

This limited Lifetime Warranty does not extend to include paint, door or glass gasketing, firebrick or trim. It does not cover installation
and operational related problems such as over-firing, use of corrosive driftwood, downdrafts or spillage caused by environmental
conditions, nearby trees, buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, negative air pressures
caused by mechanical systems such as furnaces, fans, clothes dryers etc.

It is essential that all submitted claims provide all of the necessary information including purchase date, serial #, type of unit and
part or parts requested.

Regency Freestanding Woodstove

27

Regency fireplace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assurance

Team carefully inspects each unit thor-

oughly before it leaves our door .

Fireplace Products International

Ltd. is pleased to extend this Limited

Lifetime Warranty to the original pur-

chaser of a Regency Product.

See the inside back cover for details.

Register your Regency online at

http://www.regency-fire.com

Installer: Please complete the following information

Dealer Name & Address:______________________________________________

__________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: _________________________________________________________

Regency and Classic are trademarks of FPI Fireplace Products International Ltd.
© FPI Fireplace Products International Ltd. 2003

Printed in Canada
