Regency IG35-NG, IG35-ULPG, IG35-LPG User Manual
Owners &
Installation
IG35 Gas Inbuilt
Models: IG35-NG
IG35-LPG
IG35-ULPG
Manual
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553-2000, NZS 5262
and have been certifi ed by the Australian
Gas Association for installation and operation as described in these Installation and
Operating Instructions.
Your unit should be serviced annually by
an authorised service person.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional information consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other fl am-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.
918-448b
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas supplier's instructions.
If you cannot reach your
gas supplier, call the fi re
department.
06/23/08
REGENCY
GAS INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by FPI. The Regency
Gas Fireplace Series of appliances has been designed to provide you with all the warmth and
charm of a fi replace, at the fl ick of a switch. The model IG35 of this series has been approved
by Australian Gas Association for both safety and effi ciency. As it also bears our own mark, it
promises to provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.
UNIT DIMENSIONS
2
Regency IG35 Gas Inbuilt Fireplace
TABLE OF CONTENTS
REGENCY GAS FIREPLACE INSERT
DATA BADGE
Data Badge....................................................................5
INSTALLATION
Important Message ........................................................5
For Your Safety ..............................................................5
Before You Start ............................................................5
Installation Checklist ......................................................5
Materials Required ........................................................5
Minimum Fireplace Dimensions ....................................6
Minimum Clearances to Combustibles ..........................6
Gas ConnectioN ...........................................................6
Flueing ........................................................................... 7
Gas Pipe Pressure Testing ............................................7
Aeration Settings ...........................................................8
Test For Flue Spillage ....................................................8
Optional Brick Panel ......................................................8
Conversion Kit #486-968 for NG to LPG .......................9
Conversion Kit #486-967 for NG to ULPG................... 11

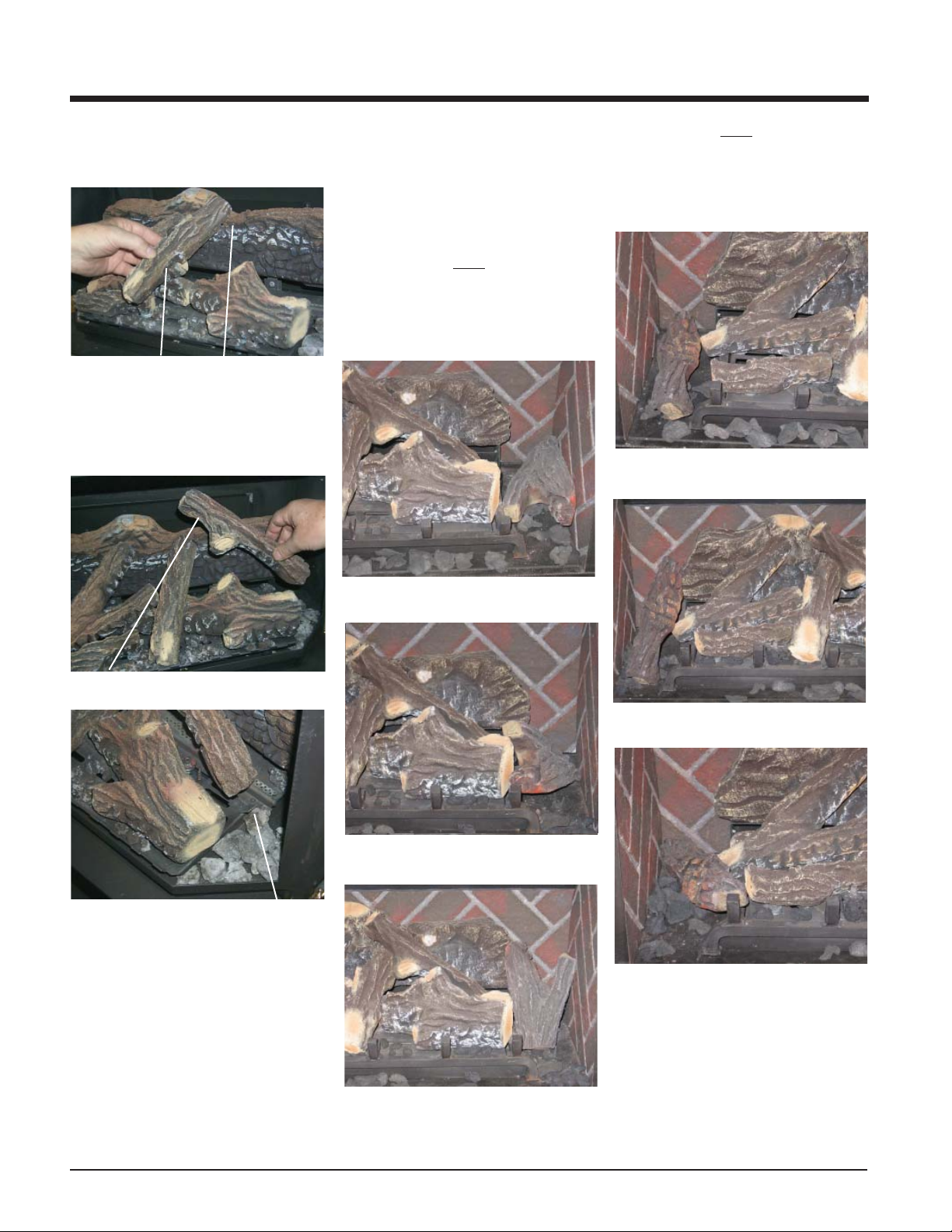

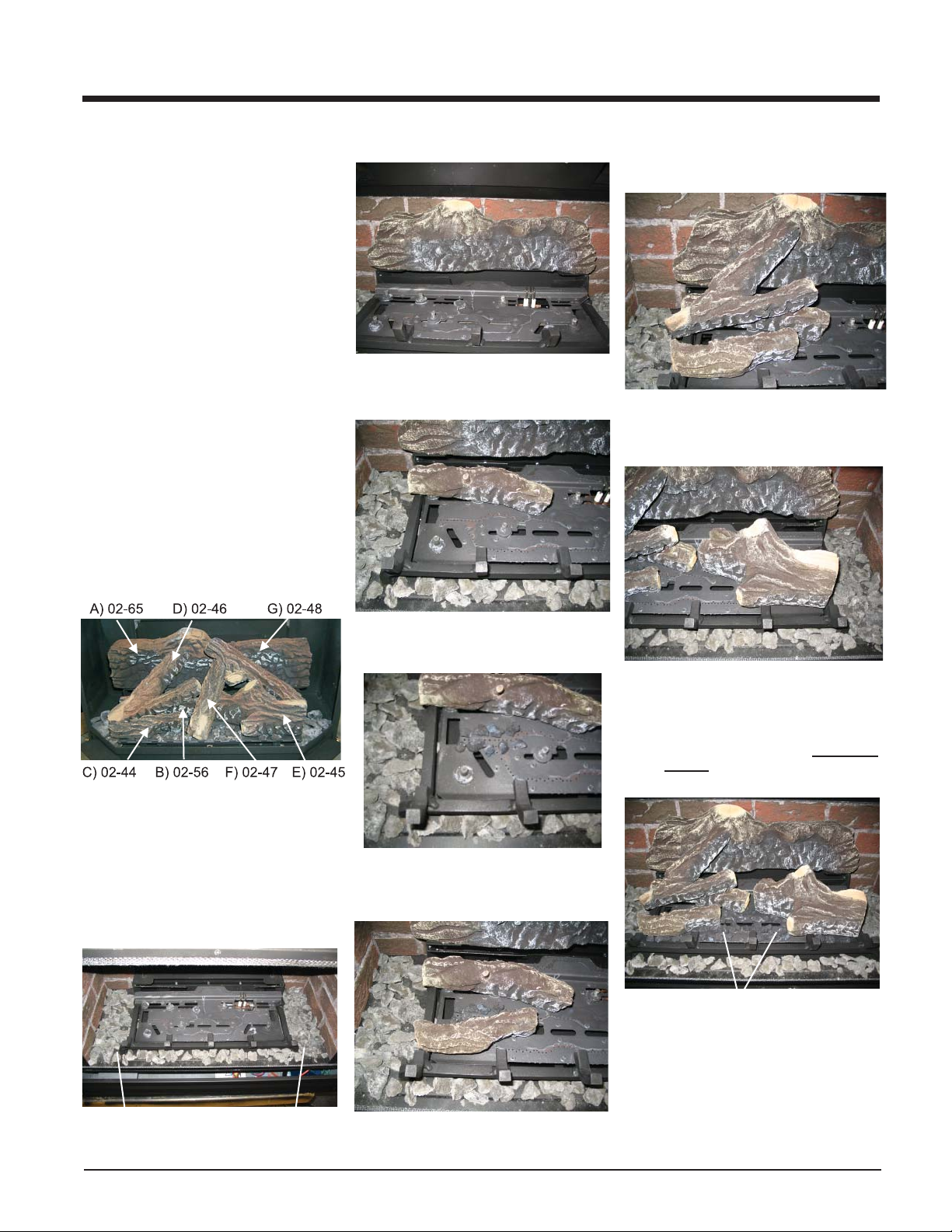

Log Set Installation ......................................................13

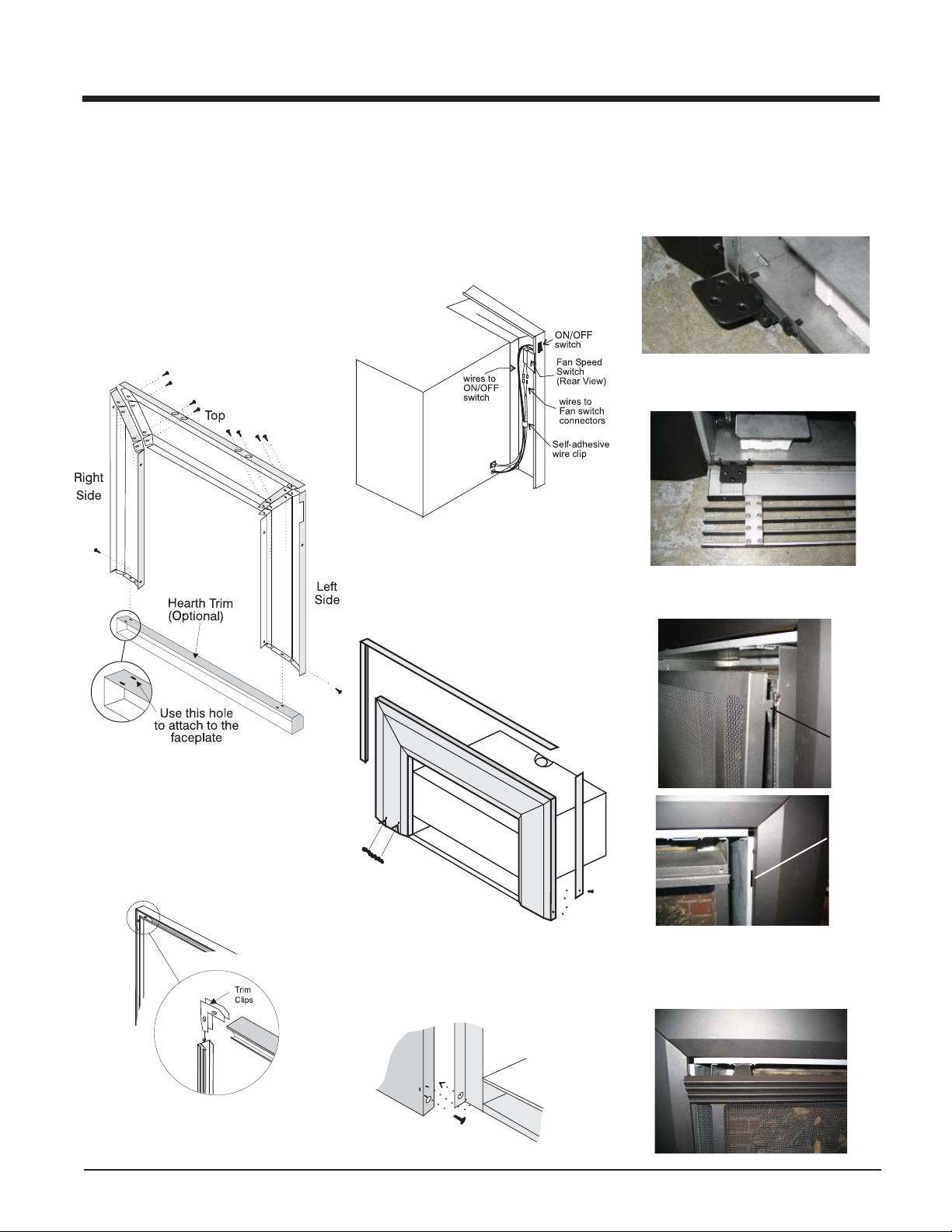

Faceplate, Trim & Louver Installation ..........................15
Premium Flush Front Installation .................................16
Remote Control ..........................................................21
Final Check..................................................................21

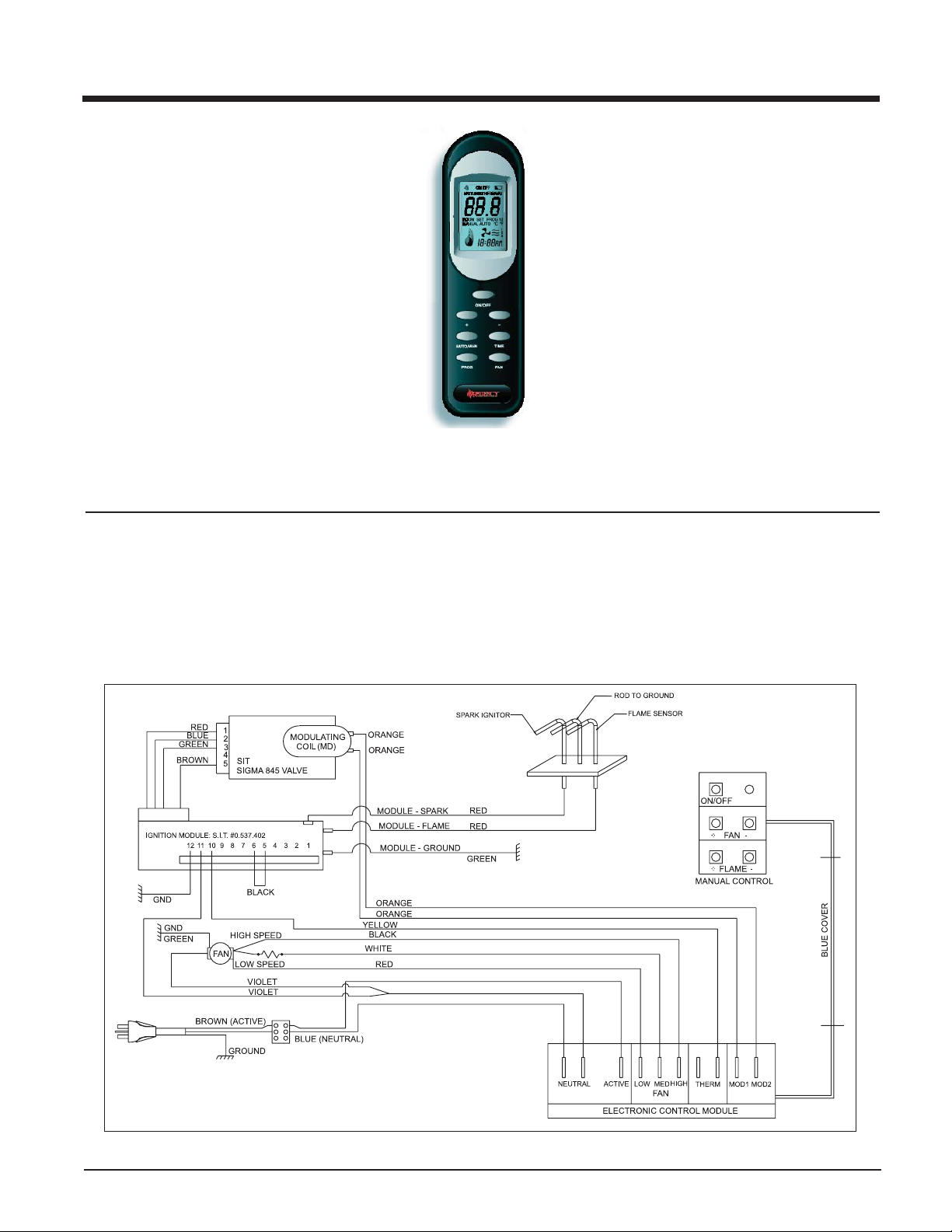

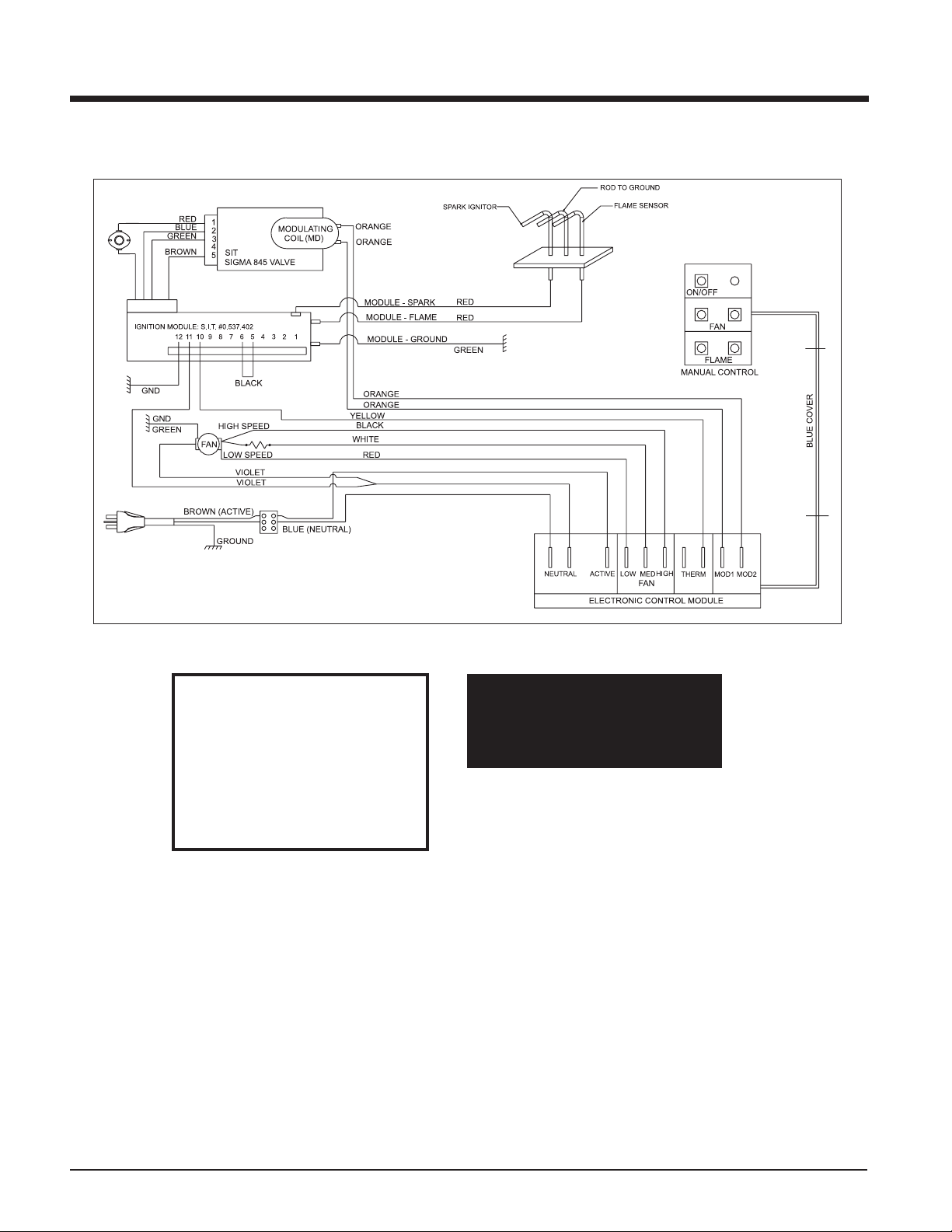

Standard Wiring ...........................................................21
Wiring with Premium Flush Front Option .....................22
OPERATING INSTRUCTIONS
Operating Instructions ................................................23
Lighting Instructions.....................................................23
Shutdown Instructions .................................................23
First Fire ......................................................................23
Fan Operation..............................................................23

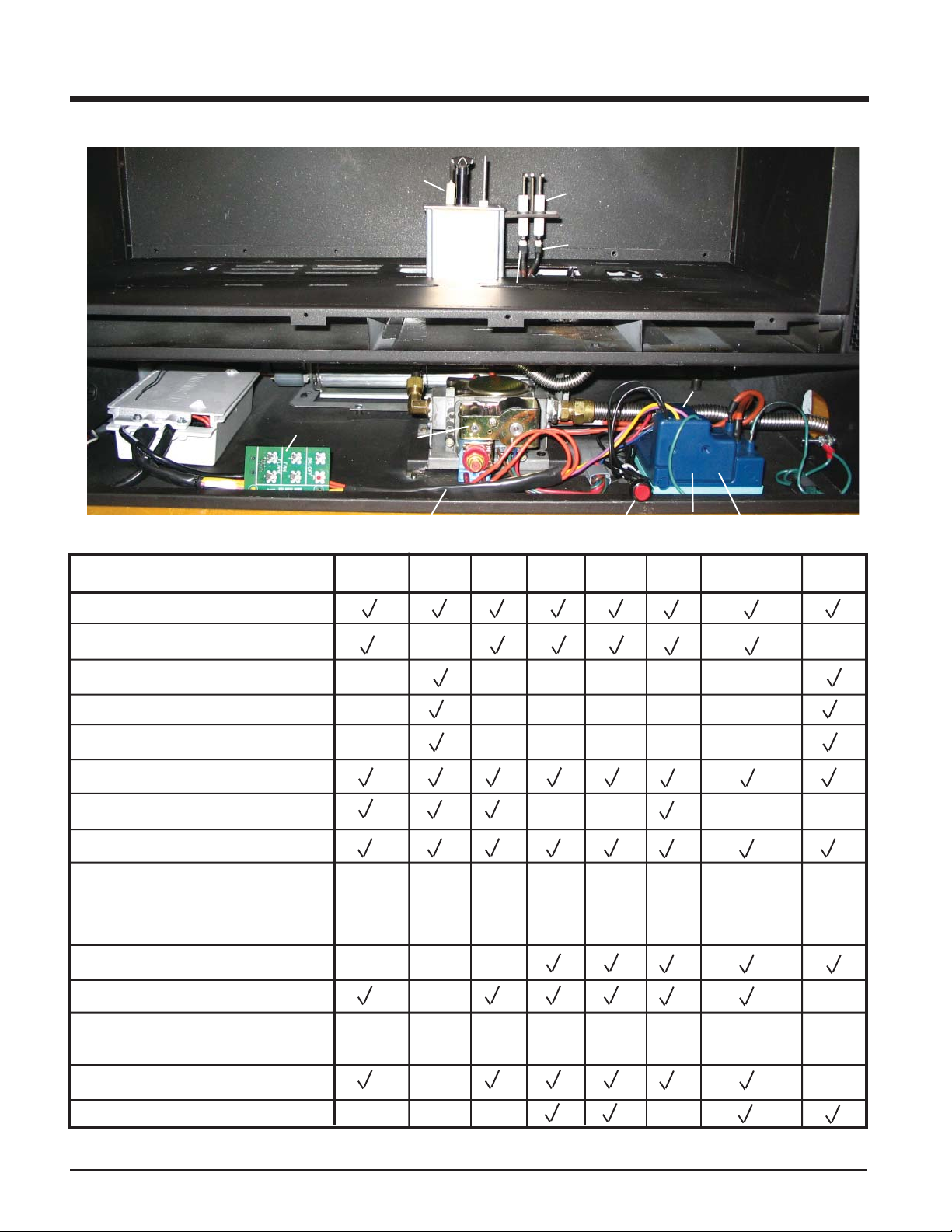

Summary Of Controls .................................................23
Copy of Lighting Instruction Plate ................................24
Normal Operating Sounds of Gas Appliances .............24
MAINTENANCE
Door Glass ..................................................................25
Replacement ...............................................................25
Glass Gasket ...............................................................25
Fan Maintenance .........................................................26
Removing ....................................................................27
Valve Tray ....................................................................27
PARTS LIST
Electronic Components Parts List ...............................28
Main Assembly ............................................................29
Burner Assembly & Log Set.........................................29
Faceplate Assembly ....................................................30
Premium Flush Front Assembly...................................30
Regency IG35 Gas Inbuilt Fireplace
WARRANTY
Warranty ......................................................................31
3
DATA BADGE
This is a copy of the label that accompanies
each Regency IG35 Gas Inbuilt fi replace. We
have printed a copy of the contents here for
your review.
DATA BADGE NOTE: Regency units are constantly being improved. Check the label on the
unit and if there is a difference, the label on the
unit is the correct one.
(Australia Only)
4
Regency IG35 Gas Inbuilt Fireplace
INSTALLATION
IMPORTANT
MESSAGE
The Regency Gas Fireplace must be installed
in accordance with these instructions. Carefully
read all the instructions in this manual fi rst.
Note: Failure to follow these instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or property damage. Failure to follow these
instructions may also void your fi re
insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion. Always provide adequate combustion and
ventilation air. Follow instructions and information in the current AS5601-2004, NZS 5261
or local codes. Consult the "authority having
jurisdiction" to determine the need for a permit
prior to starting the installation.
MATERIALS REQUIRED
A 240 Volt AC power cord is hooked up to the
unit. Plug 3 wire cord into a suitable receptacle.
Do not cut the ground terminal off under any
circumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance
with local codes.
This unit is polarity sensitive and will not operate if polarity is incorrect.
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions, local gas fi tting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations,
with AS5601-2004. (AGA gas installation
code) NZS 5261(New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning may
be required due to excessive lint from carpeting, bedding material, etc. It is imperative
that control compartments, burners and
circulating air passageways of the appliance
be kept clean and free from excessive lint
from carpeting.
4) See general construction and assembly
instructions. This appliance may only be installed in a fl ued, non-combustible fi replace.
The appliance and fl ue should be enclosed
when installed or passing through a living
area, where children may come in contact
with it.
This appliance can also be installed into the
approved Zero Clearance Kit #486-900 in a
combustible situation.
5) Always connect this space heater to a chimney and fl ue to the outside of the building
envelope. Never fl ue to another room. Make
sure that the fl ue is properly sized and is
of adequate height to provide the proper
draft.
6) Inspect the fl ueing system annually for
blockage and any signs of deterioration.
7) Any safety glass removed for servicing
must be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fi replace.
INSTALLATION
CHECKLIST
The Regency Gas Insert is installed as listed
below.
1) Unit Location - refer to "Clearances to
Combustibles" section.
2) Make the gas connections. Refer to "Gas
Connections" section.
3) Install the fl ue or liner to the fl ue collar. Refer
to "Flueing" section.
4) Slide the unit into the fi replace.
5) Test gas pressure, refer to "Gas Pipe Pres-
sure Testing" section. Check aeration, refer
to "Aeration Settings" section.
6) Test for fl ue spillage, refer to "Test for Flue
Spillage" section.
7) Install the optional brick panels. Refer to
"Optional Brick Panels" section.
8) Install the log set. Refer to "Log Set installation" section.
9) Assemble and install the faceplate and trim
and louvres. Refer to "Faceplate, Trim &
Louvre" section.
10) Optional Premium Flush Front installation.
Refer to "Premium Flush Front Installation"
section.
11) Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is fi ring correctly. This includes:
a) Clocking the appliance to ensure the
correct fi ring rate.
b) Adjusting the primary air, if required,
to ensure that the fl ame does not car-
bon.
c) Ensuring that the appliance is fl ueing
correctly. Refer to "Test for Flue Spillage"
section.
Regency IG35 Gas Inbuilt Fireplace
9) Installer must mechanically attach the supplied label to the inside of the fi rebox of the
fi replace into which the gas fi replace insert
is installed.
"WARNING: This fi replace has been converted
for use with a gas fi replace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fi replace re-approved by the authority
having jurisdiction."
5
INSTALLATION
MINIMUM FIREPLACE
DIMENSIONS
The minimum fi replace dimensions for the
Regency gas space heater are shown in the
following diagrams:
MINIMUM
CLEARANCES TO
COMBUSTIBLES
The minimum fi replace clearances for the
Regency gas space heater are shown in the
following diagrams:
From Unit:
Sides A 250 mm
Ceiling B 1220 mm
Mantel C see Mantel
Clearances
From Surround (660 mm x 1016 mm):
Sides D 96 mm
Ceiling E 1066 mm
Max. Mantle Depth G 305 mm
Hearth Height H 0 mm
Hearth Depth I 300 mm*
Hearth Width J 1100 mm
Min. Alcove Width K 1262 mm
Max. Alcove Depth L 915 mm
* NOTE: No hearth required with screen. Floor
fi nishing material must not be any higher then
the base of the fi replace.
Mantel Clearances
Note: A non-combustible mantel may be
installed at a lower height if the framing is made of metal studs covered
with a non-combustible board.
GAS CONNECTION
Premium Flush Front Framing
When installing the Premium Flush Front, the
walls surrounding the zero clearance kit must
be made of non-combustible material. See
Diagram below.
GAS CONNECTION WARNING:
Only persons licensed to work
with gas piping may make the
necessary gas connections to this
appliance.
1) If the appliance is to be installed into an
existing chimney system or Zero Clearance
Box, thoroughly clean the masonry or factory
built fi replace.
2) The gas connection is 1/2" BSP.
3) Locate the center point where the fl ue will
pass through the chimney above the appliance. Move the appliance into the exact
location where it is to be installed. Ensure
that the Insert is level.
CAUTION: If the glass is removed for servicing, it must be replaced and closed prior to
operating the appliance.
6
Regency IG35 Gas Inbuilt Fireplace
INSTALLATION
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 100
mm diameter twin skin or listed gas fuel type
fl ue liner running the full length of the chimney. A
minimum fl ue height of 1.5 m. is recommended.
The Regency Inbuilt Fireplace incorporates
its own internal draft diverter, so no additional
external draft diverter is required.
Periodically check that the fl ue is unrestricted
and an adequate draft is present when the unit
is in operation.
Before installing fl ue system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.
Install to AS5601-2004,(Australia) NZS 5261
(New Zealand).
Combustion and Ventilation Air
WARNING: This appliance needs
fresh air for safe operation and must
be installed with provisions for adequate combustion and ventilation
air available to the room in which it
is to be operating.
Air for combustion is drawn in through the front
of the unit, therefore, the front of the unit must
be kept clear of any obstructions.
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 1/2 psig.
(3.45 kPa). Disconnect piping from valve at
pressures over 3.45 kPa (14" w.c.).
The manifold pressure is controlled by a
regulator built into the gas control, and should
be checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
1) Make sure the valve is in the "OFF"
position.
2) Loosen the "IN" (# 3) and/or "OUT" (# 4)
pressure tap(s), turning counterclockwise
with a 1/8" wide fl at screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" (8mm) ID
hose.
4) Seal and or check the pilot outlet (# 8)
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specifi ed on the safety
label.
6) When fi nished reading manometer, turn
off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
fl at screwdriver. Screw should be snug,
but do not over tighten.
S.I.T. Valve Description
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/
Combustion Chamber Compensation
6) Pressure Regulator for Minimum and
Maximum Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
10) Side Outlet
Regency IG35 Gas Inbuilt Fireplace
7
g
INSTALLATION
System Data
IG35
IG35-NG: For 0 to 610 meters altitude
IG35-LPG: For 0 to 610 meters altitude
IG35-ULPG: For 0 to 610 meters altitude
Burner Inlet Orifi ce Sizes:
NG LPG ULPG
Burner #33 #51 #53
Max. Input
NG 33.5 mj
LPG 34 mj
ULPG 28 mj
Min. Input
NG 19.6 mj
LPG 18.5 mj
ULPG 14 mj
Supply Pressure
NG 1.13 kPa
LPG 2.75 kPa
ULPG 2.75 kPa
Manifold Pressure
NG 0.87 kPa
LPG 2.61 kPa
ULPG 2.61 kPa
Electrical: 240 V. 50Hz.
Circulation: High/Off/LO speed fan,
150/89 CFM.
Log Set: Ceramic fi ber, 7 per set.
TEST FOR FLUE
SPILLAGE
A " spillage" test must be made before the
installed unit is left with the customer. Follow
the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After fi ve minutes, test that there is a “pull” on
the fl ue by placing a smoke match, cigarette
or similar device which gives off smoke, in
both sides of the unit. See diagram 1.
OPTIONAL
BRICK PANEL
1) Unwrap the brick panels from the protective
wrapping.
2) Remove the glass front and log set if already
installed.
3) Place the rear brick panel fl at against the
back of the unit, by carefully slipping it between the back wall of the fi rebox and the
rear log tray.
4) Remove the screw on the inside top left and
right side of the fi rebox.
Left Side
of Firebox
Rem ove
screw
5) Slide the left and right side brick panels in
place and secure using the brick retaining
clips provided and the screws removed in
step 4 as shown in the diagram below.
Aeration Setting
NG 15mm fully open
LPG 15mm fully open
ULPG 15mm fully open
AERATION SETTINGS
The burner aeration is factory set but may need
adjusting due to either the local gas supply, air
supply or altitude. This adjustment is performed
by the installer. (Close the aeration for a more
yellow fl ame, or open it to make the fl ame
bluer).
NG: 15mm fully open
LPG: 15mm fully open
ULPG: 15mm fully open
Note: Any damage due to carboning result-
ing from improperly setting the aeration controls is NOT covered under
warranty.
Diagram 1
The smoke should be drawn into the unit. If the
smoke is still not drawn into the spill tube, turn
the unit off and check for the cause of the lack
of draft. If necessary, rectify.
For wind turbulent sites, a wind cap may remedy the problem. These caps are not included
with the standard fl ue kit and will need to be
purchased separately.
Back
brick
panel
Screw
Brick
Retainin
Clip
Side
brick
panel
8
Regency IG35 Gas Inbuilt Fireplace
INSTALLATION

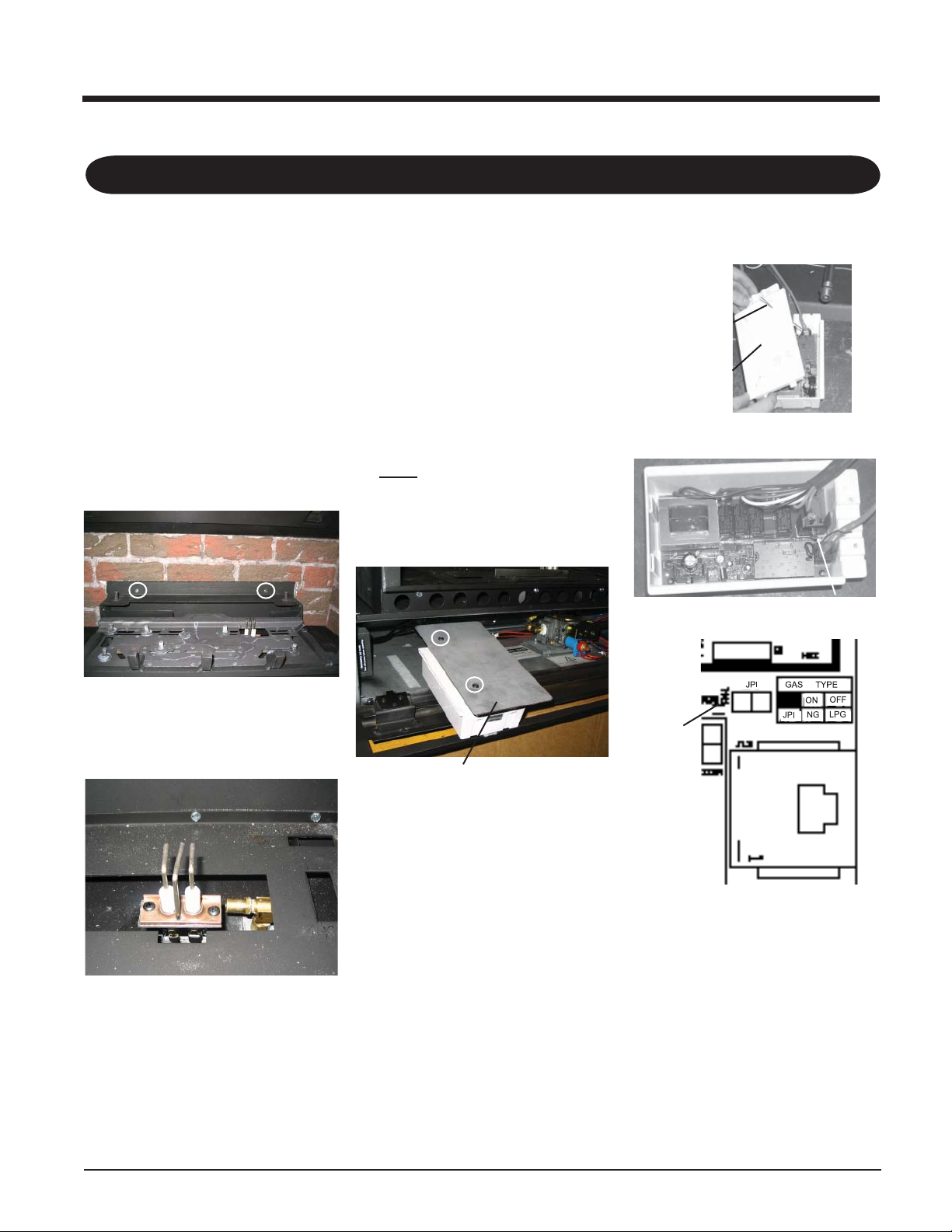

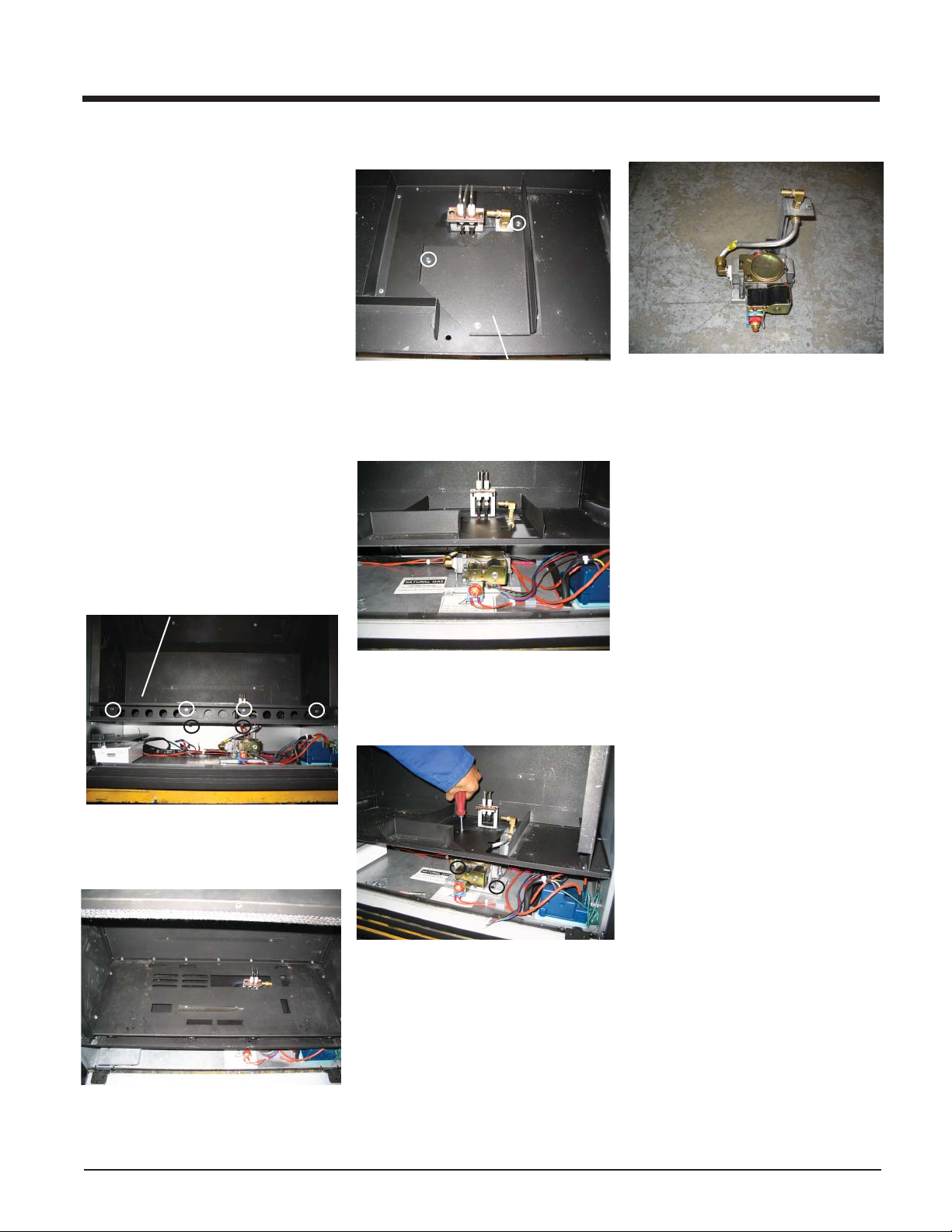

Conversion Kit #486-968 for NG to LPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit 486-968 Contains:
Qty. Part # Description
1 904-645 Burner Orifi ce #51
1 908-528 Red "LPG" label
1 918-590 Label "Converted to LPG"
1 918-541 Instruction Sheet
1) Shut off the gas supply and unplug the power
cord.
2) Remove the front door.
3) Remove logs.
4) Remove the rear log tray by removing the 2
screws. (Log tray must be rotated to clear
the burner.)
7) Remove burner orifi ce with a 1/2" wrench
and discard. Use a wrench to hold on to the
elbow behind the orifi ce.
8) Reinstall new burner orifi ce LPG stamped
#51 and tighten.
9) Stick the conversion label "This unit has
been converted to LPG" over top of the serial
number decal.
10) Replace the yellow "NG" label with the red
"LPG" label.
11) Carefully pull out the control box.
NOTE: The control box is held in place with
velcro.
12) Remove the heat shield from the control
box by removing the 2 screws.
13) Remove the control box cover by undoing the
3 screws. Maneuver through antenna.
Antenna
Control Box
Cover
14) Remove the jumper using a plier.
Jumper Location
5) Remove the grate.
6) Remove the burner and adjust the aeration
setting to 15 mm fully open.
Jumper
Heat Shield
15) Reverse steps 13, 12, 11, 6, 5, 4, 3 & 2.
Regency IG35 Gas Inbuilt Fireplace
9
INSTALLATION
16) Turn on gas supply and plug in power
cord.

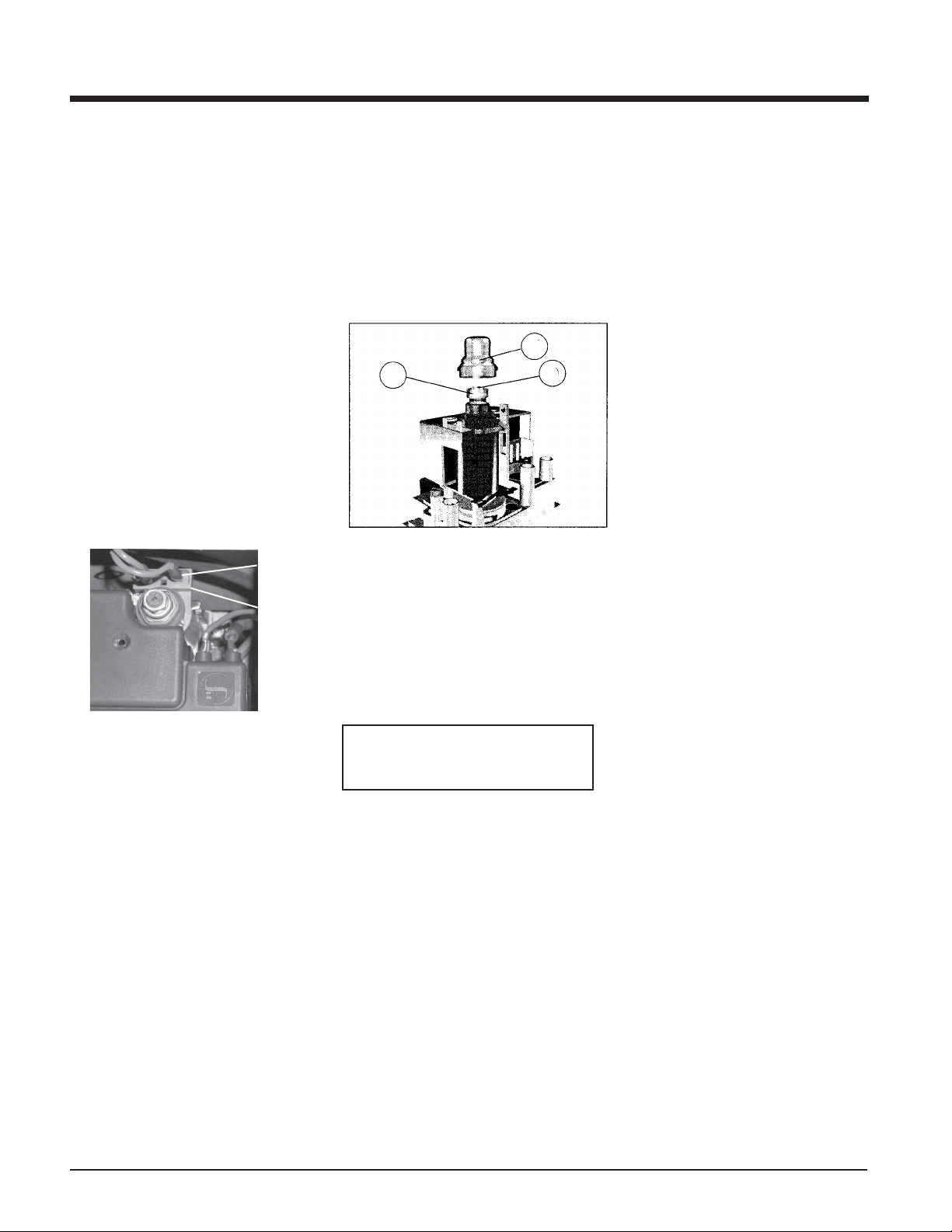

17) Adjusting the Outlet Pressure
All the adjustments must be carried out
in the following order:
Remove the modulator plastic cap (A) using
needle nose pliers.
Maximum pressure: Turn the unit ON to
its highest input rating. Screw in the nut (B)
to increase the outlet pressure and screw it
out to decrease it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to
maximum 2.61 kPa.
Minimum pressure: Remove one of the
cables connected to the electric modulator.
While holding the nut (B) with a wrench,
screw in the screw (C) to increase the
pressure and screw it out to decrease it.
Use a screwdriver 6 x 1 blade.
NOTE: The outlet pressure must be set to
minimum 0.75 kPa.
Cable
Electric
Modulator
After carrying out all adjustments, block
the setting screws with paint, taking care
not to obstruct the breather orifi ce of the
pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct opera-
tion of the modulator it is necessary that
the plastic cap (A) is returned to its original
location.
A
B
18) At the end of all setting and adjustment
operations, check electrical installation and
gas leaks.
19) Check operation of fl ame control.
C
20) Check for proper fl ame appearance and
glow on logs.
Installer Notice:
These instructions must be left
with the appliance.
10
Regency IG35 Gas Inbuilt Fireplace
Loading...
