Owners &
Installation
I31-3 Gas Inbuilt
Model: I31-NG3
I31-LPG3
Manual
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553-2000, NZS 5262
and have been certified by the Australian
Gas Association for installation and
operation as described in these Installation
and Operating Instructions.
Your unit should be serviced annually
by an authorised service person.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional information consult an authorised installer, service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this
or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.
918-001b
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical
switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas supplier's instructions.
If you cannot reach your
gas supplier, call the fire
department.
06/01/07
REGENCY
GAS FIREPLACE INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by Regency
Industries. The Regency Gas Fireplace Series of hand crafted appliances has been designed
to provide you with all the warmth and charm of a fireplace, at the flick of a switch. The model
I31-3 of this series has been approved by Australian Gas Association for both safety and
efficiency. As it also bears our own mark, it promises to provide you with economy, comfort
and security for many trouble free years to follow. Please take a moment now to acquaint
yourself with these instructions and the many features of your Regency Fireplace.
2
Regency I31-3 Gas Fireplace Inbuilt
TABLE OF CONTENTS
REGENCY GAS FIREPLACE INSERT
Page
Unit Dimensions ........................................................... 2
Safety Label ................................................................. 4
Installation
For Your Safety ............................................................ 5
Specifications ...............................................................5
Installation Checklist ....................................................5
Materials Required ........................................................ 5
Minimum Fireplace Dimension .....................................6
Clearances to Combustibles .........................................6
Gas Connection ............................................................ 6
Draft Diverter Connection .............................................. 7
Flueing ................................................................. 7
- Combustion & Ventilation ......................................... 7
Gas Pressure Test .......................................................7
Test for Flue Spillage .................................................... 7
Optional Brick Panel ..................................................... 8
Log Installation .............................................................8
Faceplate & Trim ........................................................ 10
Glass Front Installation
- Standard Flush Door (1 panel) ................................ 10

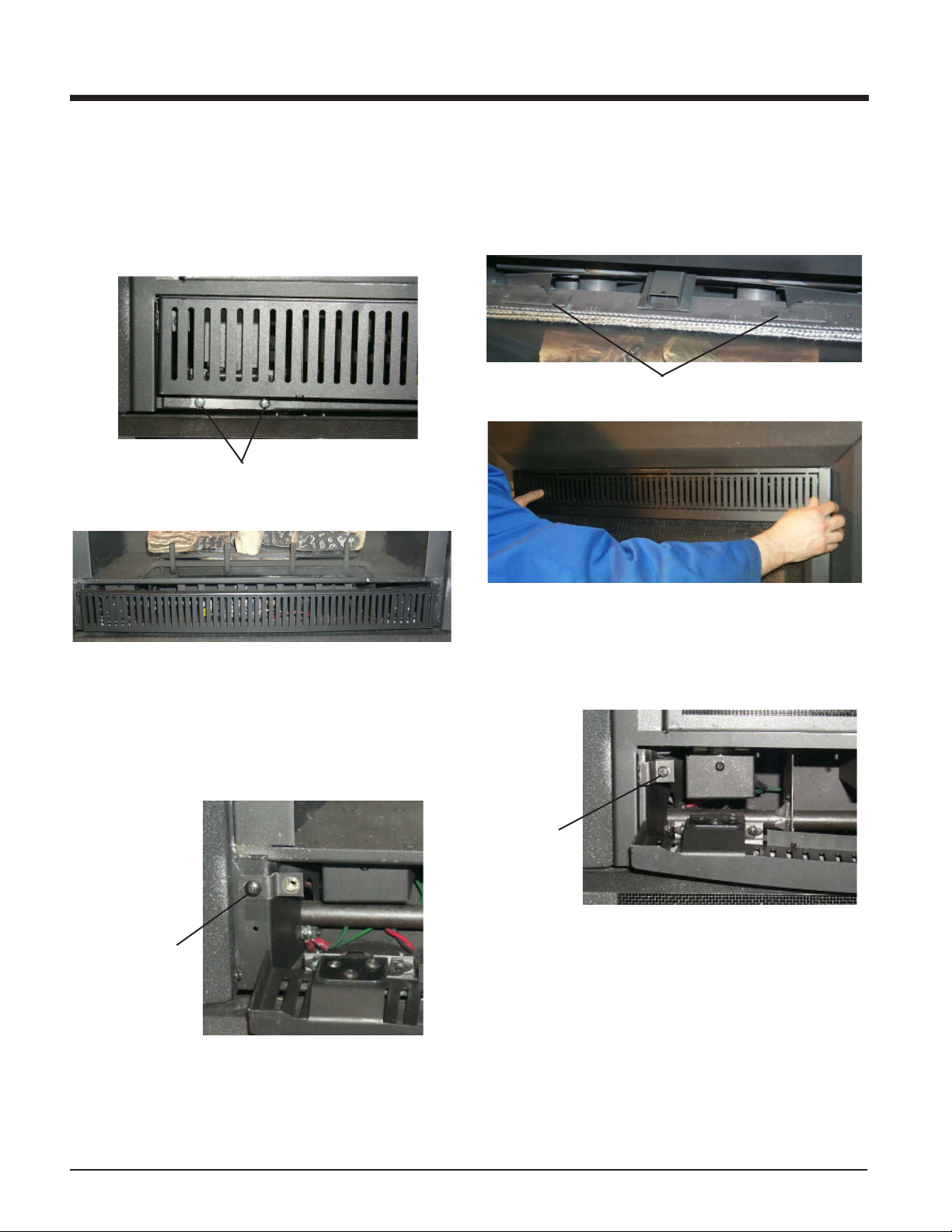

- Flush Louvres .........................................................10
- Optional Bay Door (3 panel) ................................... 11
- Bay Louvres ........................................................... 11

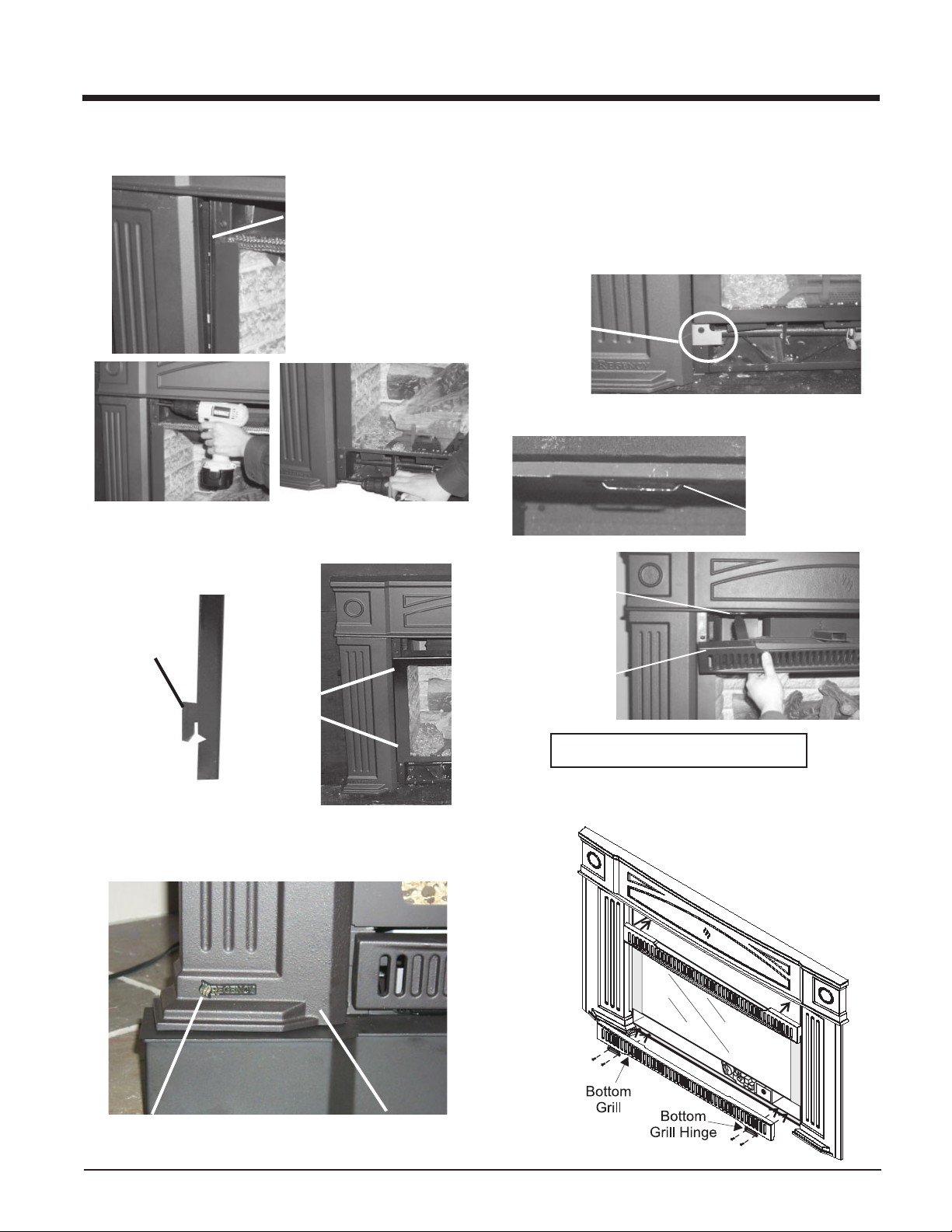

Hampton Cast Faceplate Installation .......................... 12
Hampton Cast Grill Installation ................................... 13
Barossa Curved Front ................................................. 14

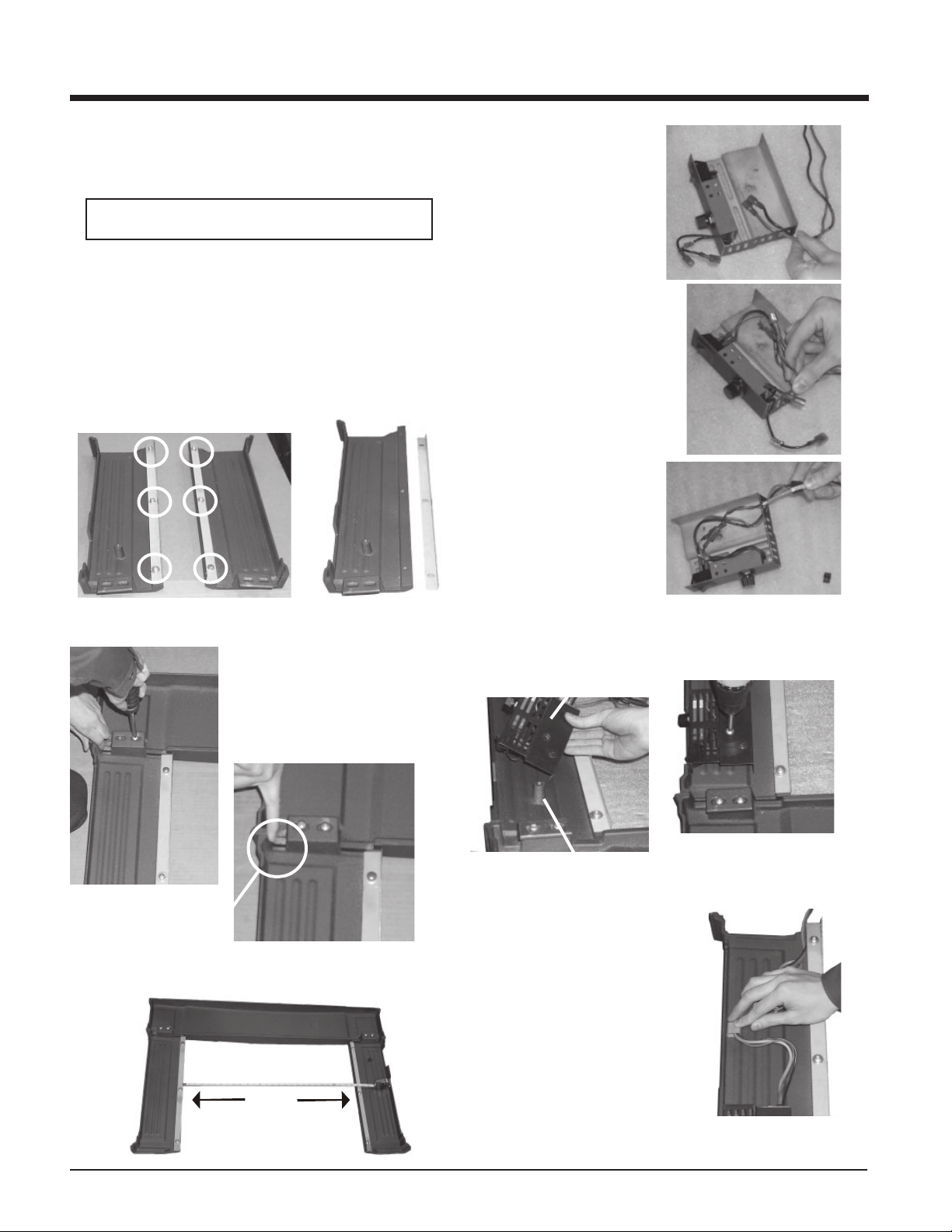

Optional Remote Control ............................................ 15
Optional Wall Thermostat ........................................... 15

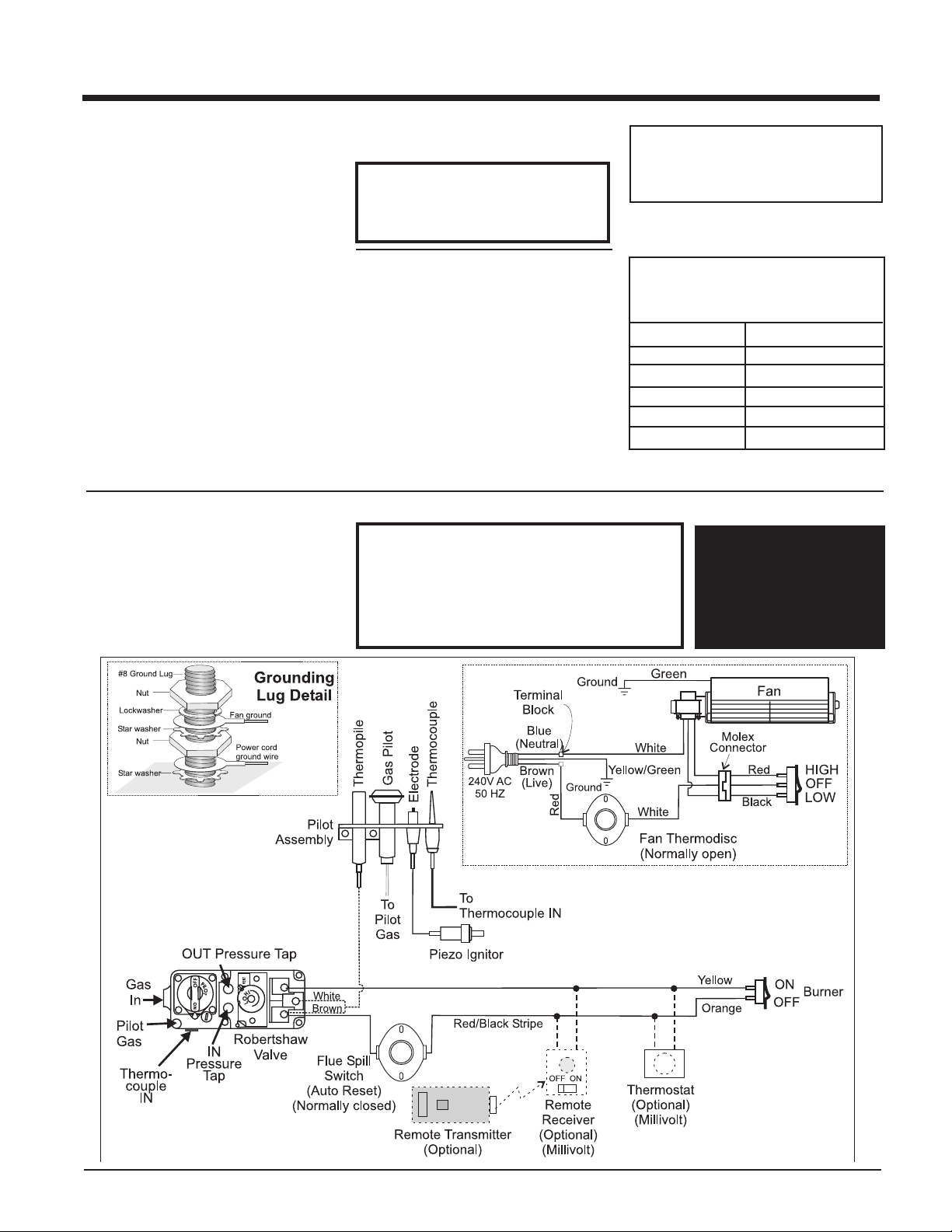

Wiring Diagram ........................................................... 15
Page
Operating Instructions
Operating Instructions ................................................ 16
Lighting Procedure ...................................................... 16
Shutdown Procedure .................................................. 16
First Fire ............................................................... 16
Automatic Convection Fan Operation ......................... 16
Normal Operating Sounds of Gas Appliances ............ 16
Copy of Lighting Instruction Plate ............................... 17
Maintenance
Maintenance ............................................................... 18
- Gold Plated Trim ................................................18
- Log Replacement ............................................... 18
- Door Glass Replacement ................................... 18
- Bay Glass Removal ........................................... 18
- Flush Glass Replacement ................................. 18
- Glass Gasket ..................................................... 19

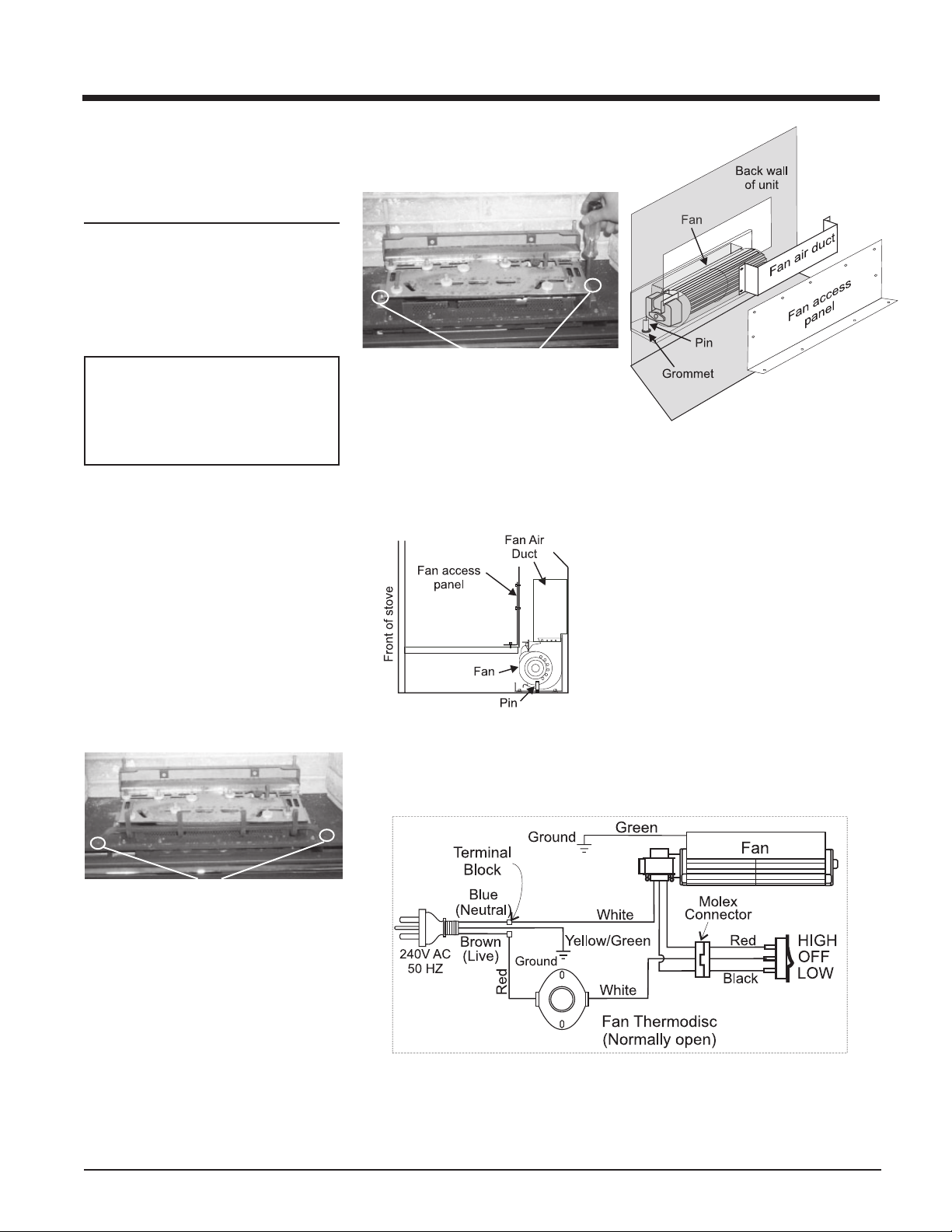

- Fan Maintenance ............................................... 19
Trouble Shooting ......................................................... 20

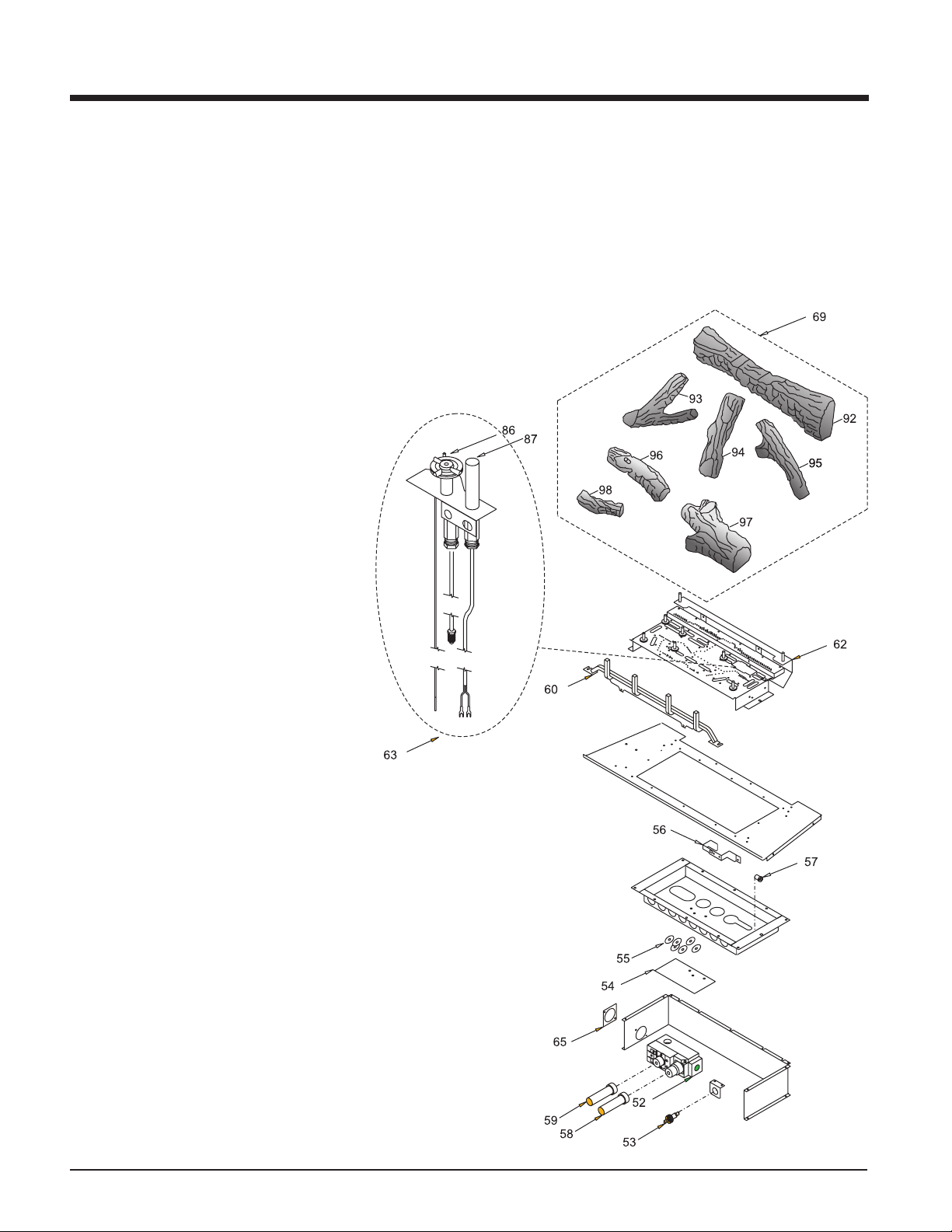

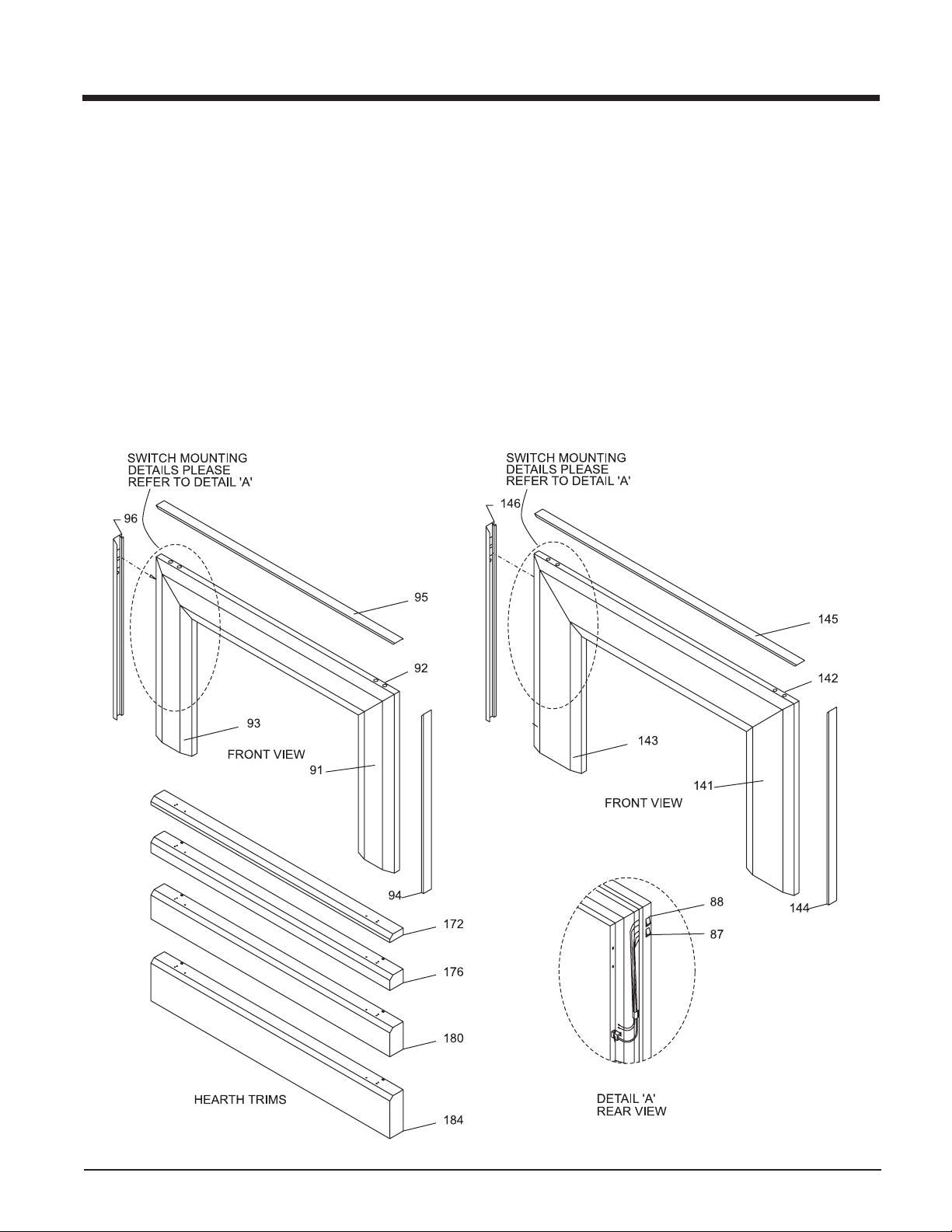

Parts List ............................................................... 21
Warranty
Warranty ............................................................... 27
Regency I31-3 Gas Fireplace Inbuilt
3
DATA BADGE
This is a copy of the label that accompanies
each Regency I31-3 Gas Inbuilt fireplace. We
have printed a copy of the contents here for
your review.
DATA BADGE NOTE: Regency units are constantly being improved. Check the label on the
unit and if there is a difference, the label on the
unit is the correct one.
(Australia Only)
4
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency Gas Fireplace must be installed in
accordance with these instructions. Carefully
read all the instructions in this manual first.
Note: Failure to follow these instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or property damage. Failure to follow these
instructions may also void your
fire insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion. Always provide adequate combustion
and ventilation air. Follow instructions and information in the current AS5601-2004, NZS
5261 or local codes. Consult the "authority
having jurisdiction" to determine the need for a
permit prior to starting the installation.
GAS PIPE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 3.45 kPa.
Specifications:
Fuel: NG or LPG (see page 7)
Electrical: 240 volt 50 hz system
Fan/Blower:2-speed, 127 CFM
Log Sets: Ceramic fibre
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer'sinstallation
instructions,local gas fitting regulations,
municipal building codes, water supply
regulations,electrical wiring regulations,
with AS5601-2004.(AGA gas installation
code) NZS 5261(New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning
may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that control compartments, burners
and circulating air passageways of the
appliance be kept clean and free from
excessive lint from carpeting.
4) See general construction and assembly
instructions. This appliance may only be
installed in a flued, non-combustible fireplace. The appliance and flue should be
enclosed when installed or passing through
a living area, where children may come in
contact with it.
5) Always connect this space heater to a
chimney and flue to the outside of the
building envelope. Never flue to another
room. Make sure that the flue is properly
sized and is of adequate height to provide
the proper draft.
6) Inspect the flueing system annually for
blockage and any signs of deterioration.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Installer must mechanically attach the
supplied label to the inside of the firebox of
the fireplace into which the gas fireplace
insert is installed.
“WARNING: This fireplace has been converted
for use with a gas fireplace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fireplace re-approved by the authority
having jurisdiction.”.
INSTALLATION
CHECKLIST
The Regency Gas Insert is installed as listed
below.
1) Unit Location - check Clearances to Combustibles on page 6.
2) Make the gas connections (see page 6).
3) Install the flue or liner to the sliding draft
diverter. See page 7.
4) Install Flueing, page 7. Slide the unit into the
fireplace. Attach draft diverter to the insert.
5) Test gas pressure, page 7. Check aeration,
page 7.
6) Test for flue spillage, page 7.
7) Install the optional brick panels. See page
8.
8) Install the log set. See page 8.
9) Assemble and install the faceplate and trim.
See page 10.
10) Install the glass front (page 10) and optional
Bay Front (page 11).
11) Install both louvres, flush (page 10) or Bay
(page 11).
12) Install Optional Remote Control and Optional Wall Thermostat, page 15.
13) Final check: Before leaving this unit with
the customer, the installer must ensure that
the appliance is firing correctly. This includes:
a) Clocking the appliance to ensure the
correct firing rate.
b) Adjusting the primary air, if required, to
ensure that the flame does not carbon.
See page 7.
c) Ensuring that the appliance is flueing
correctly. See page 7.
MATERIALS REQUIRED
No electric power supply is required for the gas
control to operate. A 240 Volt AC power cord
is hooked up to the fan switch and blower. Plug
3 wire cord into a suitable receptacle. Do not
cut the ground terminal off under any circumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance
with local codes.
Note: This unit is equipped with a heat
sensor thermodisc which will
prevent the blower from operating until the unit reaches the correct temperature.
Regency I31-3 Gas Fireplace Inbuilt
5
INSTALLATION
MINIMUM FIREPLACE
DIMENSIONS
The minimum fireplace dimensions for the Regency gas space heater are shown in the
following diagrams:
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work with
gas piping may make the necessary gas connections to this appliance.
1) If the appliance is to be installed into an
existing chimney system, thoroughly clean
the masonry or factory built fireplace.
2) The gas connection is 12" BSP.
Mantel Clearances with
Bay and Flush Louvres in
Masonry Installation
3) Locate the center point where the flue will
pass through the chimney above the appliance. Move the appliance into the exact
location where it is to be installed. Ensure
that the Insert is level.
MINIMUM
CLEARANCES TO
COMBUSTIBLES
The minimum fireplace clearances for the Regency gas space heater are shown in the
following diagrams:
From Unit
Sides A 255 mm
Ceiling B 1205 mm
Mantle C see Mantel
Clearances
From Surround
(660 mm x 1016 mm)
Max. Mantle Depth G 305 mm
Hearth Height H 0 mm
Hearth Depth I 405 mm
Hearth Width J 1015 mm
Min. Alcove Width K 1220 mm
Max. Alcove Depth L 915 mm
NOTE: Mantel clearances for Installation
into a Zero Clearance Kit are different. Please refer to the Zero Clearance Kit Manual for details.
Note: A non-combustible mantel may
be installed at a lower height if the
framing is made of metal studs
covered with a non-combustible
board.
4) The installer must provide a valve with a
plugged tapping, accessible for test gauge
connection, immediately upstream of the
gas supply connection to the appliance.
CAUTION: If the glass is removed or
opened for servicing, it must be replaced and closed prior to operating the
appliance. The glass must be fixed in the
door when operating.
SPECIFICATIONS
NG LPG
INJECTOR #3 7 #5 2
SIZE 2.65mm 1.6mm
INPUT Min. 17 mj/h Min. 17 mj/h
RATING Max. 31 mj/h Max. 31 mj/h
MANIFOLD
PRESSURE Max. 0.9 kPa Max. 2.59 kPa
6
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
DRAFT DIVERTER
CONNECTION
1) Attach the flue to the flue collar on the
detachable draft diverter. The flue collar of
the appliance will fit inside a standard flue
and may be fastened directly to the flue by
sheet metal screw. Diagram 1.
Diagram 1
2) Before pushing the appliance into position
inside the fireplace, align the draft diverter
with the guides on the insert top and push
forward. While pushing the unit back into
place keep pulling the draft diverter forward
until the screw hole in the spill tube aligns
with the screw hole in the top of the firebox.
The screw is secured through the inside top
of the firebox into the bottom of the spill tube.
(If screw holes do not line up then draft
diverter is not positioned correctly.)
Diagram 2.
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 100 mm
diameter twin skin or listed gas fuel type flue
liner running the full length of the chimney. A
minimum flue height of 3.6 m. is recommended.
The Regency Inbuilt Fireplace incorporates its
own internal draft diverter, so no additional
external draftdiverter is required.
Periodically check that the flue is unrestricted
and an adequate draft is present when the unit
is in operation. (See page 7 for spillage test.)
Before installing flue system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.
Install to AS5601-2004,(Australia) NZS 5261
(New Zealand).
Combustion and Ventilation Air
WARNING: This appliance needs
fresh air for safe operation and must
be installed with provisions for adequate combustion and ventilation
air available to the room in which it
is to be operating.
Air for combustion is drawn in through the front
of the unit, therefore, the front of the unit must
be kept clear of any obstructions.
GAS PRESSURE TEST
TEST FOR FLUE
SPILLAGE
A " spillage" test must be made before
the installed unit is left with the customer. Follow the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After five minutes, test that there is a “pull”
on the flue by placing a smoke match,
cigarette or similar device which gives off
smoke, in front of the spill tube. To ensure
a valid test, place a scrap piece of sheet
metal (or other noncombustible material)
between the spill tube and the upper louvre,
this will prevent the natural convection of
the unit from interfering with the test. See
diagram 1.
Diagram 2
NOTE: Final gas connection should be af-
ter unit is in place to avoid damage
to line when pushing the unit into
position.
Regency I31-3 Gas Fireplace Inbuilt
The unit is preset to give the correct gas input
at the specified manifold pressures shown on
the label. The maximum gas manifold pressure
is:
NG 0.9 kPa
LPG 2.65 kPa
The manifold pressure is controlled by a regulator built into the gas control, and should be
checked at the pressure test point. The pressure check should be carried out with the unit
burning and the setting should be within the
limits specified.
Diagram 1
7
INSTALLATION
The smoke should be drawn into the spill tube.
If the smoke is still not drawn into the spill tube,
turn the unit off and check for the cause of the
lack of draft. If necessary, rectify.
For wind turbulent sites, a wind cap may remedy the problem.
Note: The thermally activated safety
switch will sense the change in temperature and shut down the gas valve in the
event of a severe downdraft or a blocked
or disconnected flue. The switch acts as
a safety shut-off to prevent a build-up of
carbon monoxide. If the flue is blocked or
has no "draw", the switch will automatically shut off the supply of gas within 5 10 minutes. Tampering with the switch
can result in carbon monoxide (CO) poisoning and possible death.
If the heater turns off because of lack of
draft during the spillage test, check for
the cause and if necessary, rectify.
OPTIONAL
BRICK PANEL
1) Unwrap the brick pattern panels from the
protective wrapping.
2) Remove the glass front if it is already
installed (see manual).
3) Put the rear brick panel flat against the back
of the unit.
4) Before installing the side brick panels, loosen the screws for the brick tabs enough so
that you can slide the brick tabs on to the
screws easily but that the tabs are secure.
For the location of the side brick tab screws
see diagram 1.
Diagram 1
5) Remove the brick tabs and slide the side
brick panels into position. See diagram 3.
Install the brick tabs. See diagram 2.
LOG SET
INSTALLATION
Read the instructions below carefully and
refer to the diagrams. If logs are broken
do not use the unit until they are replaced.
Broken logs can interfere with the pilot
operation.
The gas log kit contains the following:
a) 02-43 Rear Log 902-227
b) 02-45 Front Right Log 902-229
c) 02-56 Middle Left Log 902-230
d) 02-46 Left Top Log 902-231
e) 02-47 Center Log 902-232
f) 02-48 Middle Right Log 902-226
g) 02-44 Front Left Log 902-228
h) Embers and Rockwool
i) Vermiculite and Ember combination
Note: Install Optional Brick Panels prior
to installing logs.
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.
The thermally actuated safety switch will
automatically reset after it has cooled off.
The switch will continue to cycle until the
draft problem is corrected. DO NOT BYPASS OR DISCONNECT THIS SWITCH.
8
Diagram 2
Diagram 3
1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinkle the vermiculite and ember combination around the firebox base.
Vermiculite and
embers.
3) Place Rear Log A)02-43 on the two pins on
the rear log support.
Vermiculite and
embers.
Regency I31-3 Gas Fireplace Inbuilt
Vermiculite and
embers.
A)02-43
D)02-46
A)02-43
INSTALLATION
A)02-43
F)02-48
B)02-45
Pins on Rear Log Support
4) Place Front Right Log B)02-45 on the two
pins as shown.
B)02-45
5) Place the Middle Left Log C)02-56 on the
two pins as shown.
C)02-56
C)02-56
Pin
7) Place the notch in Center Log E)02-47 over
Log B)02-45 and across the cutout on Log
A)02-43.
E)02-47
Notch
Cutout
A)02-43
B)02-45
Cutout
Side View
Bracket
The bottom right edge of Log F)02-48 must
sit snugly against the bracket and the front
edge of the rear burner.
9) Place Front Left Log G)02-44 onto the 2
front pins as shown.
G)02-44
10) Place the embers and Rockwool on the
exposed front burner tray.
Front edge of
rear burner
Logs A)02-43, C)02-56, and
B)02-45 in position
6) Place the Left Top Log D)02-46 on the pin
on Log C)02-56 and on top of the cutout
on Log A)02-43.
Regency I31-3 Gas Fireplace Inbuilt
Logs D)02-46 and E)02-47 in position.
8) Position notch in Front Right Log F)02-48 on
Log E)02-47 and push the bottom right edge
against the bracket on the burner tray and
the front edge of the rear burner.
F)02-48
E)02-47
Notch
B)02-45
Bracket
11) Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
burner to the other. If there is any flame
hesitation, check that area for any blockage
of the burner port.
12) Install flush glass and optional bay glass as
per instructions in this manual.
A)02-43
F)02-48
C)02-56
D)02-46
G)02-44
E)02-47
B)02-45
9
INSTALLATION

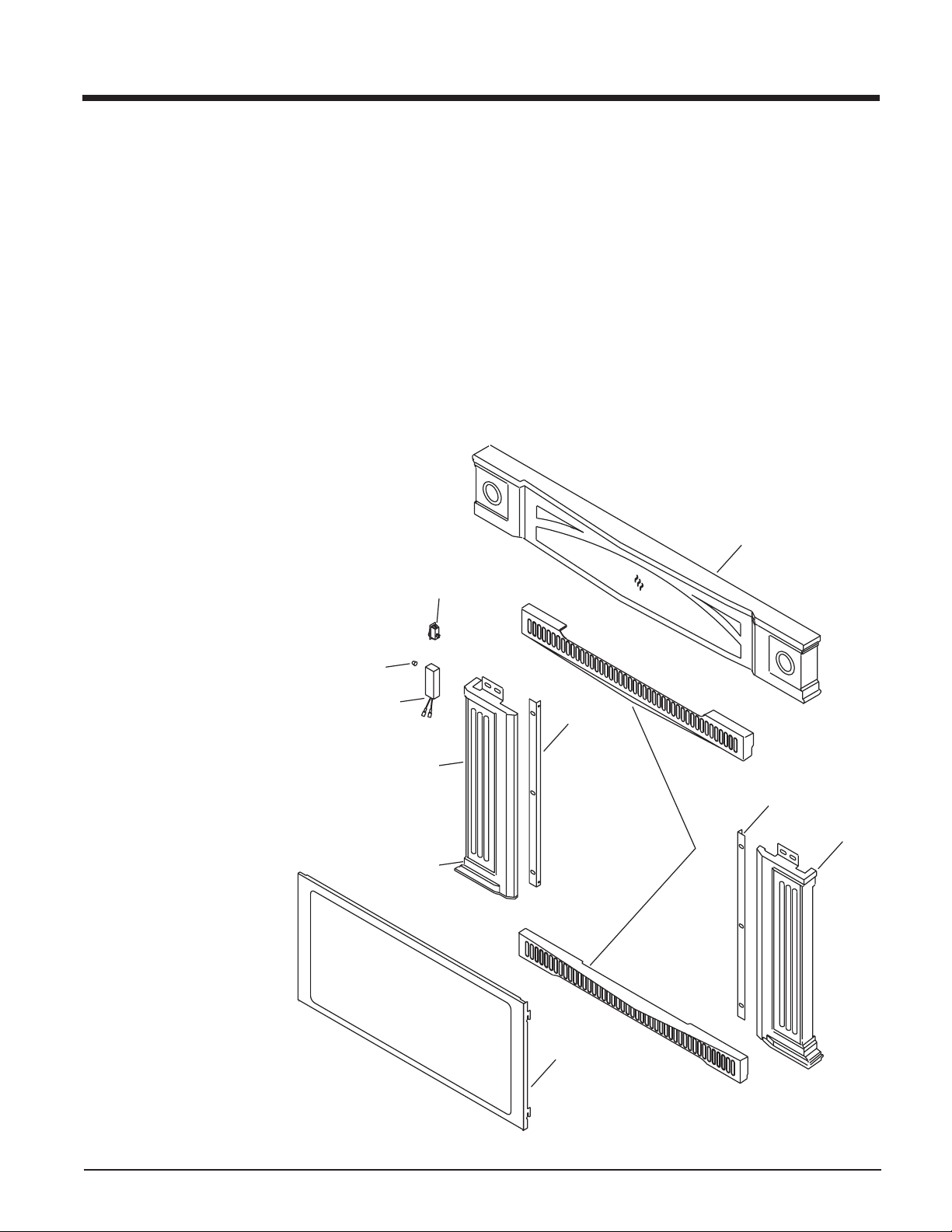

FACEPLATE & TRIM
INSTALLATION
1) Lay the faceplate panels flat, face down on
something soft so they don't scratch.
2) Take the top faceplate and align the holes
in it with the holes in the side panels. Using
the screws provided, attach from the top
of the panel (the holes in the top panel are
slightly larger than the holes in the side
panel to facilitate easier installation). See
diagram 1.
4) Place the trim on the assembled faceplate
panels, aligning the wire connections from
the switches with the notch on the left side
panel.
5) Hookup the 3 Fan Switch wires to the fan
switch on the left side trim. Diagram 3.
WARNING: The 3 wires are to the
Fan and the 2 wires are to the ON/
OFF burner switch. DO NOT connect to the wrong switch.
Diagram 4
Diagram 1
Hint: Don't tighten the trim to the bottom of
the faceplate side panels with the screws
provided. See diagram 1.
3) Using the connectors provided, join the left
side trim (with the ON/OFF switch) to the top
trim. Connect the right side trim to the top
trim.See diagram 2.
Diagram 3
WARNING:
Ensure that the wires do NOT
touch the firebox
6) Connect the 2 burner ON/OFF switch wires
by taking the yellow and orange wires with
the female ends and connecting them to the
burner ON/OFF switch.
7) Tuck the wires into the faceplate to keep
them away from the inbuilt fireplace using
the clip provided. Attach the clip to the rear
of the faceplate to ensure that the wires do
not touch the side of the unit. See diagram
3.
8) The power cord should be run behind the
faceplate panel.
9) Attach the brass trim to the faceplate by
drilling a 1/8" hole through into the faceplate
using the hole in the trim as a guide. Fasten
the trim to the faceplate panels using the
plated screws. See diagram 4.
Diagram 5
FLUSH FRONT
INSTALLATION
1) Install Logs before going on to the next
step. See the Log Installation instruction
sheet or page 8 in the manual.
2) Install the bottom glass trim by hooking the
trim into the lip on the firebox base. The trim
will not fit into place if the glass is installed
first.
10
Diagram 2
Rear View: Trim Assembly
10) Attach the faceplate panels* to the inbuilt
fireplace body using the 4 remaining black
screws. See diagram 5.
11) Push the Regency logo plate into the two
holes in the bottom left corner of the faceplate. See diagram 4.
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
3) Place the bottom of the flush glass behind
the bottom glass trim.
4) Secure the glass with the two glass clips
at the top corners of the glass. Secure
glass clips with the screws provided. Do
not over tighten as this could break the
glass.
5) Slide in the top glass trim under the spring
clips.
6) Install safety screen (only in Australia) by
inserting the 4 brackets into the 4 slots.
Note: Top and bottom louvres and brack-
ets are different.
2) The bottom louvre has a hinge that is
attached (2 screws per hinge) to the lip on
bottom of the unit.
BAY FRONT
INSTALLATION
1) Place the bay door onto the 2 pins on the top
of the unit.
2) Position 2 magnets on the back of each trim
piece close to the ends. Place the top and
bottom trim pieces on the bay front.
BAY LOUVRES
1) Install top louvre by sliding the two bracket
clips into the brackets located on top of the
bay door. See below. The fitted louvre
leaves a small gap between faceplate bottom and louvre top.
2) Install bottom louvre by sliding the two
bracket clips into the brackets located underneath the bay door and secure with 2
screws into the bracket on the bottom of the
Bay Front as per diagram above.
3) Slide the valve extension knobs onto the
valve knobs. match the correct ext. knob
with the valve knob.
Note: Optional safety screen only in
Australia.
FLUSH LOUVRES
1) The top louvre is held in place by friction fit,
if the louvre needs to be adjusted; bend the
bracket out as shown in the diagram.
Regency I31-3 Gas Fireplace Inbuilt
Note: The top and
bottom trim pieces are different,
check diagrams
above and below.
3) Install top and bottom louvres.
11
INSTALLATION
HAMPTON CAST
FACEPLATE INSTALLATION
NOTE: Do not install Cast Faceplate when unit is installed into
a Zero Clearance Unit.
1) Lay the faceplate panels flat, face down on something soft so they
don't scratch.
2) Attach the side filler brackets to the left and right sides using 3
screws and washer per side.
NOTE: There are filler brackets specifically for each side. The
way to differentiate this is that on the side of the brackets
there are 2 mounting holes. The side where there is a 7/16"
gap from the top of the bracket to the mounting hole, must
face the top.
5) Connect the ON/OFF switch
wires by taking the black and
red wires with the blue female
ends thru the hole provided
and connecting them to the
ON/OFF switch.
6) Connect the fan switch wires
by taking the black and red
wires with the male ends (in
the grey harness) thru the
hole provided and connect
them with the wire connectors from the fan speed control.
7) Insert wires into the strain relief and install into switch box
assembly.
3) Attach the right and left cast sides to the top using 2 screws per
side.
Ensure that the top
and sides are
aligned.
4) Use a measuring tape to ensure that the distance between the left
and right side pieces is 28" (711mm).
8) Place the switch box assembly over the boss on the rear left side
piece and secure with one screw.
Switch Box Assembly
Boss on rear left side
piece.
9) Tuck the wires into the faceplate to keep
them away from the insert using the clip
provided. Attach the clip to the rear of the
faceplate to ensure that the wires do not
touch the side of the unit.
10) The power cord should be run behind the
faceplate panel.
12
28"
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
11) Mount the cast faceplate panels onto the insert body, sliding the
side filler brackets into the space between the glass and the
firebox. Secure using the 4 remaining black screws, 2 per side.
Slide side filler
bracket into gap
between glass and
fire box.
12) Install the glass trim by inserting the side hooks on the glass trim
into the 4 slots between the faceplate and the glass. Push the glass
trim down firmly with both hands to lock into place.
HAMPTON CAST
GRILL INSTALLATION
Before the grills are installed, a grill stop bracket needs to be put in
place.
1) The grill stop bracket is installed in the bottom left corner just under
the firebox with the screw supplied as shown below.
Grill Stop
Bracket
2) Place top grill into brackets located inside top of firebox as shown.
Bracket inside
top of firebox.
Side Hook
Slots
13) To put on the Regency logo, peel the sticker from the back of the
logo and place it centered on the bottom left hand corner of the
faceplate.
Bracket
Top Grill
Note: The top louver should be placed
with the curved cut-out facing up.
3) The bottom louver, shown in the diagram below, has 2 hinges that
are attached to the lip on bottom of the unit. Secure using 2 screws
per hinge.
Regency Logo
Regency I31-3 Gas Fireplace Inbuilt
Left Hand
Side Faceplate
13
INSTALLATION
BAROSSA CURVED
FRONT INSTALLATION
1) Install bottom louver by matching the holes in louver bracket with holes
in firebox frame and secure using 2 screws on each side.
Secure louver by using 2 screws.
4) Fit plates on back of screen into brackets on top of firebox. Press
in to secure from top.
Brackets on firebox.
5) Secure bottom of screen using 1 screw on each side into the
brackets fixed onto the firebox in step 3.
2) Pull down louver.
3) Fix brackets onto firebox, one on each side using 1 screw per side.
Secure bracket
with screw.
Secure
with screw.
6) Close louver.
14
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
OPTIONAL REMOTE
CONTROL
Use the Optional Remote Control Kit approved
for this unit. Use of other systems may void your
warranty.
The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting
plate.
1) Choose a convenient location on the wall to
install the receiver and the receptacle box
(protection from extreme heat is very important). Run wires from the fireplace to that
location. Use Thermostat Wire Table.
2) Connect the two wires to the gas valve.
3) Install a 9V alkaline battery in both receiver
and the transmitter. Install the receiver and
No electrical power supply is required for the
gas control to operate. However, a 240V A.C.
power supply is needed for the fan/blower
operation.
Caution: Ensure that the wires do not
touch any hot surfaces and are away
from sharp edges.
cover in the wall. The remote control is now
ready for operation.
CAUTION
Do not connect the millivolt
remote control wires to
the 240V wires.
OPTIONAL WALL
Recommended Maximum Lead Length
THERMOSTAT
A wall thermostat may be installed if desired.
Use chart below to determine thermostat wire
length.
Note: Preferable if the thermostat is in-
stalled on an interior wall.
Use a CSA, UCL or UL approved millivolt thermostat, 250-750 millivolt rated. A non-anticipator
type thermostat must be used.
WIRING
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong
from this plug.
CAUTION
Do not connect the millivolt
wall thermostat wires
to the 240 V wires.
Thermostat Wire Table
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
Label all wires prior to
disconnection when
servicing controls.
Wiring errors can cause
improper and dangerous
15.24 m
9.75 m
6.10 m
3.66 m
2.71 m
CAUTION:
operation.
Regency I31-3 Gas Fireplace Inbuilt
15
OPERATING INSTRUCTIONS
OPERATING
INSTRUCTIONS
Before operating this appliance, proceed
through the following check list.
1) Read and understand these Instructions
before operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the glass door is in place. Never
operate the appliance with the door glass
removed.
5) Verify that all flueing and the cap is unobstructed.
6) Verify log placement. If the pilot cannot be
seen when lighting the unit - the logs or the
embers have been incorrectly positioned.
7) The unit should never be turned off and on
again without a minimum of a 60 second
wait.
8) When lighting the appliance, the inside of
the glass may fog up. This will burn off after
a few minutes of operation.
DO NOT BURN THE APPLIANCE
WITH THE GLASS ASSEMBLY REMOVED.
LIGHTING
PROCEDURE

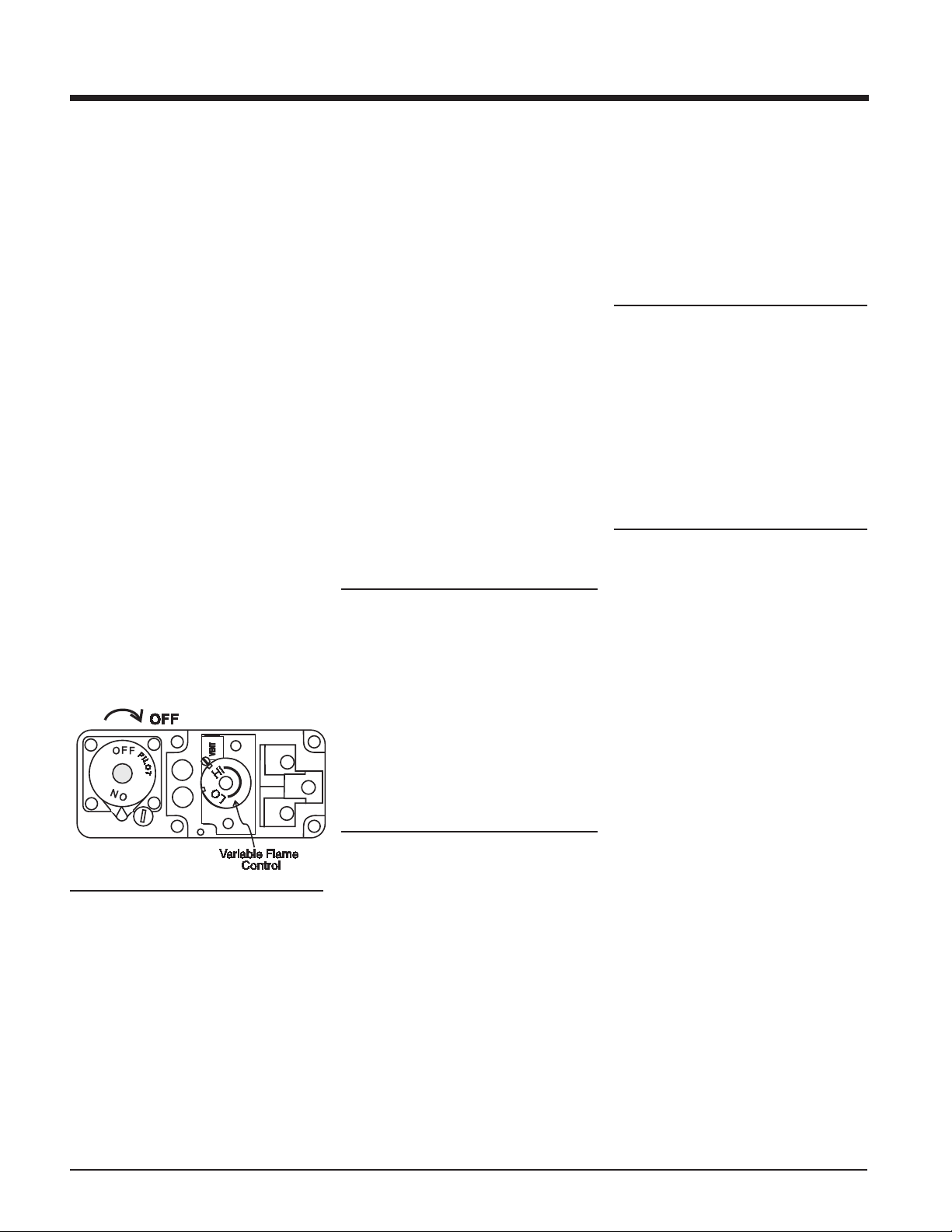

IMPORTANT: Gas cock knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.
1) Open the bottom louvre assembly
2) If the control knob is in the "OFF" position
proceed to Step 5.
3) Push in gas control knob slightly and turn
clockwise to "OFF". Knob cannot be turned
from "PILOT" to "OFF" unless knob is pushed
in slightly. Do not force.
4) Wait five minutes to allow gas, that may have
accumulated in the main burner compartment, to escape. If you do smell gas, follow
the instructions on the front of this manual.
If you don't smell gas continue on to the next
step.
5) Turn the gas control counter clockwise to
"PILOT".
6) Push in control knob all the way and hold in.
Continually push and release the black button on spark igniter until pilot lights. Continue
to hold the control knob in for approximately
one minute, then release the gas control
knob. The pilot flame should continue to
burn. If the pilot does not remain lit, repeat
operation allowing a longer period before
releasing gas control knob.
7) Turn gas control knob counter clockwise to
"ON".
8) Use the rocker switch to operate main
burner.
9) Rotate the variable flame control to adjust
the flame height higher or lower.
10) Close the bottom louvre assembly.
SHUTDOWN
PROCEDURE
1) Use the rocker switch to turn off the main
burner.
2) Open the bottom louvre assembly.
3) Push in the gas control knob slightly and turn
clockwise to "OFF". Do not force.
4) Disconnect all electric power and gas to the
appliance if service is to be performed.
FIRST FIRE
The first fire in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you burn
your fireplace for at least four (4) hours the first
time you use it with the fan on. When first
operated, the unit will release an odour caused
by the curing of the paint, the burning off of any
oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open
a few windows to ventilate the room for a
couple of hours.
The glass panel may require cleaning after the
unit has cooled down.
DO NOT ATTEMPT TO CLEAN THE GLASS
WHILE IT IS HOT.
Note: When the glass is cold and the
appliance is lit, it may cause condensation and fog the glass. This
condensation is normal and will
disappear in a few minutes as the
glass heats up.
DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.
AUTOMATIC
CONVECTION
FAN OPERATION
The fan operates automatically, press the
High/Low Fan switch on the side of the faceplate to adjust to the desired speed. The fan will
turn on as the stove comes up to operating
temperature. After the unit has been turned off
and the unit cooled to below a useful heat output
range the fan will shut off automatically.
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds
from your gas appliance. This is perfectly
normal due to the fact that there are various
gauges and types of steel used within your
appliance. Listed below are some examples. All
are normal operating sounds and should
not be considered as defects in your appliance.
Blower:
Regency gas appliances use high tech blowers to push heated air farther into the room. It
is not unusual for the fan to make a "whirring"
sound when ON. This sound will increase or
decrease in volume depending on the speed
setting of your fan speed control.
Burner Tray:
The burner tray is positioned directly under the
burner tube(s) and logs and is made of a
different gauge material from the rest of the
firebox and body. Therefore, the varying thicknesses of steel will expand and contract at
slightly different rates which can cause "ticking" and "cracking" sounds. You should also be
aware that as there are temperature changes
within the unit these sounds will likely re-occur.
Again, this is normal for steel fireboxes.
Blower Thermodisc:
When this thermally activated switch turns ON
it will create a small "clicking" sound. This is the
switch contacts closing and is normal.
16
Regency I31-3 Gas Fireplace Inbuilt
OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
DO NOT REMOVE THIS INSTRUCTION PLATE
LIGHTING INSTRUCTIONS
TO TURN OFF GAS APPLIANCE
1) Push in the gas control knob slightly and turn
clockwise to OFF. Do not force.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to the owners information manual provided
with this appliance. For assistance or additional information consult a qualified installer, service agency
or gas supplier.
Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 3) and 4). If
knob does not pop up when released, stop and
immediately call your service technician or gas
supplier. If the pilot will not stay lit after several
tries, turn the gas control knob to OFF and call
your service technician or gas supplier.
5) Turn gas control knob counterclockwise to
ON.
6) Use rocker switch to operate main burner.
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or Natural Gas and Propane Installations Codes, CSA B149.1. (Australia: AS5601-2004/ New Zealand: NZS 5261)
2) Turn off all electric power to the appliance if
service is to be performed.
a qualified service technician. Force or attempted
repair may result in a fire or explosion.
D) Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
908-401c
STOP! Read the safety information above on this
label.
1) Push in gas control knob slightly and turn
clockwise to OFF. Knob cannot be turned
from PILOT to OFF unless knob is pushed in
slightly. Do not force.
2) Wait five (5) minutes to clear out any gas. If you
then smell gas STOP! follow B in the safety
information above on this label. If you do not
smell gas, go to the next step.
3) Turn knob on gas control counterclockwise
to PILOT .
4) Push in control knob all the way and hold in.
Immediately push black button on spark igniter
until pilot lights. Continue to hold the control
knob in for about 1/2 minute after the pilot is lit.
A ) This appliance has a pilot which must be lighted
by hand, following the instructions below
exactly.
B) BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any
phone in your building.
- Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
- If you cannot reach your gas supplier, call the
fire department.
C) Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call
This appliance needs fresh air for safe operation and
must be installed so there are provisions for
adequate combustion and ventilation air.
CAUTION: Hot while in operation. Do not touch.
Severe Burns may result. Due to high surface
temperatures keep children, clothing and furniture,
gasoline and other liquids having flammable vapors
away. Keep burner and control compartment clean.
See installation and operating instructions
accompanying appliance.
You may shut off the pilot during prolonged non use periods to conserve fuel.
COPY OF LIGHTING INSTRUCTION PLATE
Pilot Flame:
While the pilot flame is on it can make a very
slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.
Regency I31-3 Gas Fireplace Inbuilt
ANY SERVICING OR
REPAIRS SHOULD
BE CARRIED
OUT ONLY BY AN
AUTHORISED
PERSON.
MAINTENANCE
INSTRUCTIONS
1) Always turn the gas valve to off
before cleaning. For relighting, refer to lighting instructions. Keep the
burner and control compartment
clean by brushing and vacuuming
at least once a year.
When cleaning the logs, use a clean
soft paint brush as the logs are
fragile and easily damaged.
2) Clean (never when unit is hot) appliance, door and louvres with a
damp cloth. Never use an abrasive
cleaner. The gold louvres (and
optional gold door) may be
scratched if abrasives are used to
clean them.
The heater is finished in a heat
resistant paint and should only be
refinished with heat resistant paint
(not with wall paint). Regency uses
StoveBrite Paint - Metallic Black
#6309.
3) Make a periodic check of burner for
proper position and condition. Visually check the flame of the burner
periodically, making sure the flames
are steady; not lifting or floating. If
there is a problem, call an authorised service person.
4) The appliance and flueing system
must be inspected before use, and
at least annually, by an authorised
field service person, to ensure that
the flow of combustion and ventilation air is not obstructed.
During the annual service call, the
burners should be removed from
the burner tray and cleaned. Replace the embers but do not block
the pilot.
5) Keep the area near the appliance
clear and free from combustible
materials, gasoline and other flammable vapours and liquids.
WARNING: CHILDREN AND
ADULTS SHOULD BE ALERTED
TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
17
MAINTENANCE
CAUTION: ANY SAFETY SCREEN
OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERATING THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLIANCE.
6) Each time the appliance is lit, it may cause
condensation and fog the glass. This
condensation and fog is normal and will
disappear in a few minutes as the glass
heats up.
Never operate the appliance without
the glass properly secured in place,
with broken glass or with the door
open.
7) Verify proper operation after servicing.

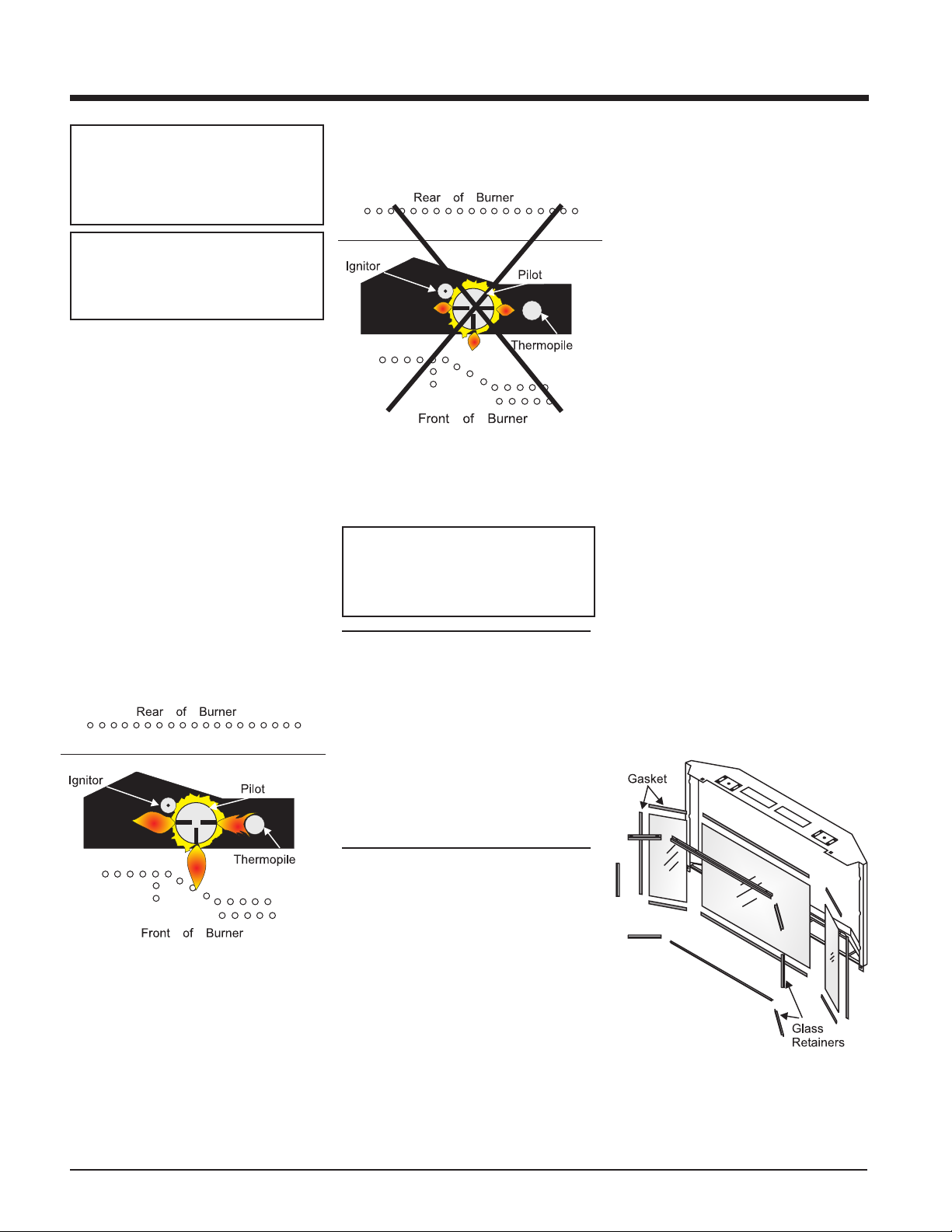

8) Periodically check the pilot flames, there
should be three strong blue flames approx.
3/4" long - 1 flame to the front burner, and
1 to the thermopile and one to the left. See
diagrams below.
Correct flame pattern has two strong
blue flames: 1 flowing around the thermopile and 1 reaching towards the rear
burner (it does not have to be touching
the burner).
Incorrect flame pattern will have small,
probably yellow flames, not coming into
proper contact with the rear burner or
thermopile.
Top View of pilot flame
If you have an incorrect flame pattern, contact your Regency dealer for further instructions.
WARNING
Do not spray aerosols in the
vicinity of this appliance while
in operation.
GOLD-PLATED TRIM
The 24 carat gold plated finish on the trim
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they
may harm the finish and void the warranty.
DOOR GLASS
REPLACEMENT
Your Regency stove is supplied with high
temperature, 5 mm Neoceram ceramic glass
that will withstand the highest heat that your
unit will produce. In the event that you break
your glass by impact, purchase your replacement from an authorised Regency dealer only,
and follow our step-by-step instructions for
replacement.
WARNING: do not operate appliance with the glass front removed,
cracked or broken. Replacement of
the glass should be done by a licensed or authorised service person.
Bay Glass Removal
1) Remove the door from the unit and place on
a soft surface to prevent scratching.
2) Remove the nuts holding the glass retainers
in place.
3) Remove the glass retainers (sides, top and
bottom).
4) Replace the glass. The glass must have
gasketing around it.
5) Reverse the previous steps, replace the
retainers and fasten with the nuts but do not
over tighten, as this can break the glass.
6) Replace door on the stove and check the
seal.
18
Top View of pilot flame
Clean any fingerprints off before turning the unit on. If the top louvres start
to discolour, check the door gasket seal
and replace if necessary.
LOG REPLACEMENT
The unit should never be used with broken
logs. Turn off the gas valve and allow the unit
to cool before opening door to carefully remove the logs. The pilot light generates enough
heat to burn someone. If for any reason a log
should need replacement, you must use the
proper replacement log. The position of these
logs must be as shown in the diagram under
Log Installation.
NOTE: Improper positioning of logs may
create carbon build-up and will
alter the unit’s performance
which is not covered under warranty.
Flush Glass Replacement
Slide old glass out of the side frames and
replace with new glass.
Regency I31-3 Gas Fireplace Inbuilt
MAINTENANCE
GLASS GASKET
If the glass gasket requires replacement use
7/8" flat glass gasket (Part # 936-243) for the
Bay Front and for the Flush Front.
FAN MAINTENANCE
If your fan requires maintenance or replacement, access to the fan is through the plate on
the rear wall of the firebox. NOTE: the unit
MUST NOT be operated without the fan
access panel securely in place.
CAUTION: Label all wires prior to
disconnection when servicing
controls. Wiring error can cause
improper and dangerous operation.
To remove fan:
1) Turn the unit off and allow it to cool to room
temperature.
2) Unplug or disconnect power source to
stove.
3) Remove glass front (see page 10).
4) Remove logs.
5) Remove brick panels.
6) Remove the Grate by removing the screws
on each side of the grate.
7) Remove the Burner Tray by removing the
screws on each side of the tray. Push the
tray to the left and lift up.
Remove the 2 screws,
push Burner Tray to the left, and lift off.
8) Remove the 11 screws holding the Access
Panel in place.
9) Remove the Fan Air Duct by removing 4
screws, 2 per side.
10) Unplug the black wires from the fan motor
(from inside the stove).
11) Lift Fan Assembly off of the 2 pins, tip
forward and pull through firebox opening.
12) Disconnect green wire from power cord.
Replacing fan:
Reverse above steps. Hint for pushing fan
down onto pins - rub a bit of dish soap on the
grommet so it will slide more easily onto the pin.
Check to make sure the fan is seated properly
on the pins, this is very important- try to move
the fan back and forth, there should be no
noise, if there is check that the grommets
haven't come loose.
Remove the 2 screws holding the
grate in position.
Regency I31-3 Gas Fireplace Inbuilt
19
MAINTENANCE
TROUBLE SHOOTING REGENCY GAS SPACE HEATER
SYMPTOM
1) Thin black coating [soot]forms on viewing glass.
2) A change in flame appearance or burner operations
3) No air flow
4) Burners will not light.
5) Pilot goes out.
SERVICE SHOULD BE CARRIED OUT BY AUTHORIZED PERSONNEL ONLY
PROBABLE CAUSE
a) Incorrect gas pressure
b) Not enough combustion
air
a) A change in gas pressure
b) Carbon dirt or lint
a) Fan failure
a) Pilot flame out
b) Control knob on pilot
c) Low voltage from Thermopile.
*280mil volts on pilot
*120mil volts when main burner is on
a) Check thermocouple voltage
CORRECTIVE ACTION
Check and correct gas pressure if sooting
continues open aeration shutter on burner.
Note: To clean glass, remove and wipe with
cloth or paper towel
Check gas pressure.
Clean out carbon, spider webs, lint etc. from
burner area.
Check and replace fan assembly
Check and replace fan switch
Check and replace thermodisc
Relight [follow lighting procedure completely]
Adjust pilot.
Thermopile, check and replace if faulty
Replace thermocouple.
ABNORMAL OPERATION
If main burner does not light but pilot stays
on, shut down heater and contact your
dealer. If excessive carbon on logs or
glass contact your dealer for service.
THE MAJOR CAUSE OF
OPERATING PROBLEMS WITH
GAS HEATERS IS IMPROPER
GAS PRESSURE
Such problems as changes in flame colour or configuration, burner outages, intermittent operations, changes in heat
output, excessive burner noise, are nearly
always the result of changes in gas pressure or improper gas pressure at time of
installation.
THE MOST IMPORTANT ITEM TO CHECK
DURING THE INSTALLATION AND THE
FIRST THING TO CHECK WHEN PROBLEMS OCCUR IS GAS PRESSURE.
CHECK DATA PLATE FOR COR-
RECT PRESSURE SETTINGS
INCORRECT INSTALLATION OR GAS
PRESSURE SETTINGS ARE NOT COVERED BY WARRANTY, A SERVICE OR
CALLOUT FEE WILL BE CHARGED IN
THESE CIRCUMSTANCES
20
Regency I31-3 Gas Fireplace Inbuilt
MAIN ASSEMBLY
Part # Description Part # Description
PARTS LIST
1) 400-011 Fan Opening Cover
2) 910-169/P Fan Motor (240 V)
4) 910-714 Power Cord 240 Volts
910-707 Wire Harness (Fan end)
910-771 Wire Harness (Faceplate)
5) 400-068 Thermodisc Cover Mounting Plate
6) 400-023 Thermodisc Bracket
7) 910-142 Thermodisc-Fan Auto ON/OFF
8) 910-006 Terminal Block
10) 400-540 Draft Diverter Assembly
11) * Spill Switch Bracket
12) 910-220 Spill Switch
13) * Levelling Bolts 5/16 x 3 Hex Head
948-216 Logo Plate
918-001 Manual - Regency
400-945 Brick Panel (Set)
33) 902-255 Brick Panel - Back
34) 902-176 Brick Panel - Left Side
35) 902-177 Brick Panel - Right Side
36) 400-090 Brick Clips
38) 402-046 Glass Support Trim - Black
159) 936-233 3/4" Rope Gasket
*Not available as a replacement part.
22) 402-920 Flush Louvre set - Black (Top & Bottom)
402-922 Flush Louvre set - Gold/Black (Top & Bottom)
402-924 Flush Louvre set - Steel/Black (Top & Bottom)
26) 400-990 Bay Louvre set - Black (Top & Bottom)
400-992 Bay Louvre set - Gold/Black (Top & Bottom)
400-993 Bay Louvre set - Steel/Black (Top & Bottom)
Regency I31-3 Gas Fireplace Inbuilt
21
PARTS LIST
BURNER ASSEMBLY & LOG SET
Part # Description
402-565/P Valve Assembly - NG
402-566/P Valve Assembly - LPG
52) 910-026 RobertShaw Valve - NG
910-027 RobertShaw Valve - LPG
53) 910-190 Piezo Ignitor and nut
54) * Valve Heat Shield
55) 904-702 Gasket - Valve Heat Shield
56) * Pilot Bracket
57) 904-240 Burner Orifice NG #37
904-390 Burner Orifice LPG # 52
58) 910-424 Pilot ON/OFF Extension Knob
59) 910-426 Flame HI/LOW Extension Knob
60) 402-019 Grate Assembly
62) 402-537 Burner Assembly - NG/LPG
63) 910-034 Pilot Assy (NG) - 3 flame convertible top
910-035 Pilot Assy (LPG) - 3 flame convertible top
65) * Burner Shroud Gasket
69) 402-935 Log Set
402-572 Ember Package
86) 910-386 Thermocouple
87) 910-341 Thermopile
92) 902-267 Rear Log
93) 902-231 Left Top Log
94) 902-232 Center Log
95) 902-226 Middle Right Log
96) 902-230 Middle Left Log
97) 902-229 Front Right Log
98) 902-228 Front Left Log
*Not available as a replacement part.
22
Regency I31-3 Gas Fireplace Inbuilt
FACEPLATE ASSEMBLY
Part # Description Part # Description
PARTS LIST
87) 910-140 Fan HI/OFF/LOW Switch
88) 910-246 Burner ON/OFF Switch
403-912 Faceplate & Trim Complete - Regular
91) * Faceplate Side Right - Regular
92) * Faceplate Top - Regular
93) * Faceplate Side Left - Regular
401-522 Trims Packaged - Regular
94) * Faceplate Trim Right - Regular
95) * Faceplate Trim Top - Regular
96) * Faceplate Trim Left Assy - Regular
403-913 Faceplate & Trim Compelte - Oversize
141) * Faceplate Side Right - Oversize
142) * Faceplate Top - Oversize
143) * Faceplate Side Left - Oversize
401-524 Trims Packaged - Oversize
144) * Faceplate Trim Right - Oversize
145) * Faceplate Trim Top - Oversize
146) * Faceplate Trim Left Assy - Oversize
172) 400-950 Hearth Trim 1" - Regular
320-940 Hearth Trim 1" - Oversize
176) 400-926 Hearth Trim 2" - Regular
320-942 Hearth Trim 2" - Oversize
180) 400-928 Hearth Trim 4" - Regular
320-944 Hearth Trim 4" - Oversize
184) 400-959 Hearth Trim 6" - Regular
320-946 Hearth Trim 6" - Oversize
*Not available as a replacement part.
Regency I31-3 Gas Fireplace Inbuilt
23
PARTS LIST
BAY & FLUSH FRONT ASSEMBLY
Part # Description Part # Description
Bay Door
400-988 Complete Bay Front c/w Black Trim
102) * Glass Retainer Side (Top & Btm)
103) * Glass Retainer Front (Top & Btm)
106) 940-315/P Side Glass
107) 936-243 Gasket
108) 940-314/P Center Glass
110) 902-183 Bay Brick Panel
400-935 Bay Door Trim Set - Gold
400-989 Bay Door Trim Set - Steel
111) * Bay Door Trim Top
112) 904-196 1" Round Ceramic Magnet
113) * Bay Door Trim Bottom
Flush Door
149) 400-531/P Flush Screen - Packaged (Aust. Only)
402-515/P Complete Flush Front Assembly
107) 936-243 Gasket
153) * Glass Side Trim
154) * Flush Glass
156) 936-238 Flush Glass Gasket
157) * Screw #10-24 x 1/2" Truss Hd Machine
158) * Flush Glass Bracket
160) 403-927 Barossa Curved Front
*Not available as a replacement part.
24
Regency I31-3 Gas Fireplace Inbuilt
HAMPTON CAST FACEPLATE ASSEMBLY
202
205
187
189
188
203
195
194
194
207
201
Part # Description
403-911 Cast Faceplates (Set) - Black Metallic
403-916 Cast Faceplates (Set) - Black Enamel
187) * Burner On/Off Switch
188) * Fan Speed Control
189) * Knob - Black Cast Surround
201) * Cast Faceplate - Right
202) * Cast Faceplate - Top
203) * Cast Faceplate - Left
205) * Flush Glass Frame
194) * Mounting Flange
207) 402-981 Cast Grill (Set) - Top & Bottom - Black Metallic
402-986 Cast Grill (Set) - Top & Bottom - Black Enamel
*Not available as a replacement part.
PARTS LIST
Regency I31-3 Gas Fireplace Inbuilt
25
NOTES
_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________
26
Regency I31-3 Gas Fireplace Inbuilt
WARRANTY
Regency fireplace products are designed with reliability and
simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it
leaves our door. Regency Industries Ltd. is pleased to
extend this limited lifetime warranty to the original purchaser
of a Regency Product.
The Warranty: Lifetime
Covered under the agreement are the following components:
Combustion chamber, heat exchanger, burner tubes, logs,
embers, glass (thermal breakage) and all gold plating (against
defective manufacture).
The above will be covered for parts and labour for the first five
years and parts only thereafter.
Electrical components such as blowers, switches, wiring,
thermodiscs, remote control, thermopiles, thermocouples
and gas valves are covered for one year from the date of
purchase.
Conditions:
All installations must be performed by an authorised gas
fitter and installed according to all applicable local and
national codes. Also, all service work must be carried out by
an authorised gas service person. It is the responsibility of
the installer to ensure that the appliance is firing as per rating
plate. Any part or parts of this unit which in our judgement
show evidence of such defect will be repaired or replaced at
Regency's option, through an accredited distributor or agent
provided that the defective part be returned to the distributor
or agent Transportation Prepaid, if requested. In areas
where there is not an approved service agent or the closest
approved service agent is situated more than twenty-five (25)
kilometres from the installation, Australian Heating Distributors are not obliged to arrange warranty repairs and travel
and/or additional labour charges will apply.
Exclusions:
This limited Lifetime Warranty does not extend to or include
paint, door or glass gasketing or trim. It does not cover
installation and operational related problems such as overfiring, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate flueing or ventilation, excessive offsets, negative air
pressures caused by insufficient make up air, mechanical
systems such as furnaces, fans, clothes dryers etc.
The warranty does not extend to any part or parts which show
evidence of misuse or abuse, neglect, accident or lack of
maintenance.
Products made by other manufacturers and used in conjunction with the operation of this appliance without authorization
from Regency, may nullify your warranty on this product.
Regency Industries Ltd., shall in no event be liable for any
special, indirect consequential damages of any nature
whatsoever which are in excess of the original purchase
price of the product. Any alteration to the unit which causes
sooting or carboning that results in damage to the exterior
facia is not the responsibility of Regency Industries Ltd.
General:
It is essential that all submitted claims provide all of the
necessary information including purchase date, serial #,
type of unit and part or parts requested.
DISTRIBUTORS: Western Australia Eastern Australia
AUSTRALIAN HEATING DISTRIBUTORS FIREPLACE PRODUCTS AUSTRALIA PTY. LTD.
31 CLUNE STREET 21-23 SOUTH LINK BLVD.
BAYSWATER, WA 6053 DANDENONG, VIC 3175
SERVICE AGENTS:
HEARTH HOUSE SERVICE
31 CLUNE STREET
BAYSWATER, WA 6053
NOTE: PLEASE RETAIN YOUR INVOICE AS PROOF OF PURCHASE FOR WARRANTY VERIFICATION
INCORRECT INSTALLATION OR GAS PRESSURE SETTINGS ARE NOT COVERED BY WARRANTY
A SERVICE OR CALLOUT FEE WILL BE CHARGED IN THESE CIRCUMSTANCES.
Regency I31-3 Gas Fireplace Inbuilt
27
© Copyright 2007, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Loading...
