Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
11/12/08
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this Insert is not properly installed, a house fi re may result. For your safety,
follow the installation instructions, contact local building, fi re offi cials, or authority having jurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.
This is a copy of the label that accompanies
your Regency Insert. We have printed a copy
of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
2009
2010
Jan Feb Mar Apr May June
CAUTION
2011
MANUFACTURE
DATE OF
SIGNATURE
HOT WHILE IN OPERATION
CLOTHING AND FURNITURE AWAY.
DO NOT TOUCH. KEEP CHILDREN,
(Duplicate Serial #) 246
July Aug Sept Oct Nov Dec
MANUFACTURED BY FPI LTD.
EMISSION STANDARDS.
July 1990, PARTICULATE
CERTIFIED TO COMPLY WITH
PROTECTION AGENCY
UNITED STATES ENVIRONMENTAL
:
Manufactured By
READ ABOVE INSTRUCTIONS.
6988 VENTURE ST., DELTA, BC V4G 1H4
FIREPLACE PRODUCTS INTERNATIONAL LTD.
CONTACT MAY CAUSE SKIN BURNS.
MADE IN CANADA918-176c
246
DO NOT REMOVE THIS LABEL
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 0.5IN / 13MM ABOVE AN
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: I2400M
TESTED TO: ULC-S628-93 / UL-1482 / UL-737
REPORT NO.: 219-S-03-2

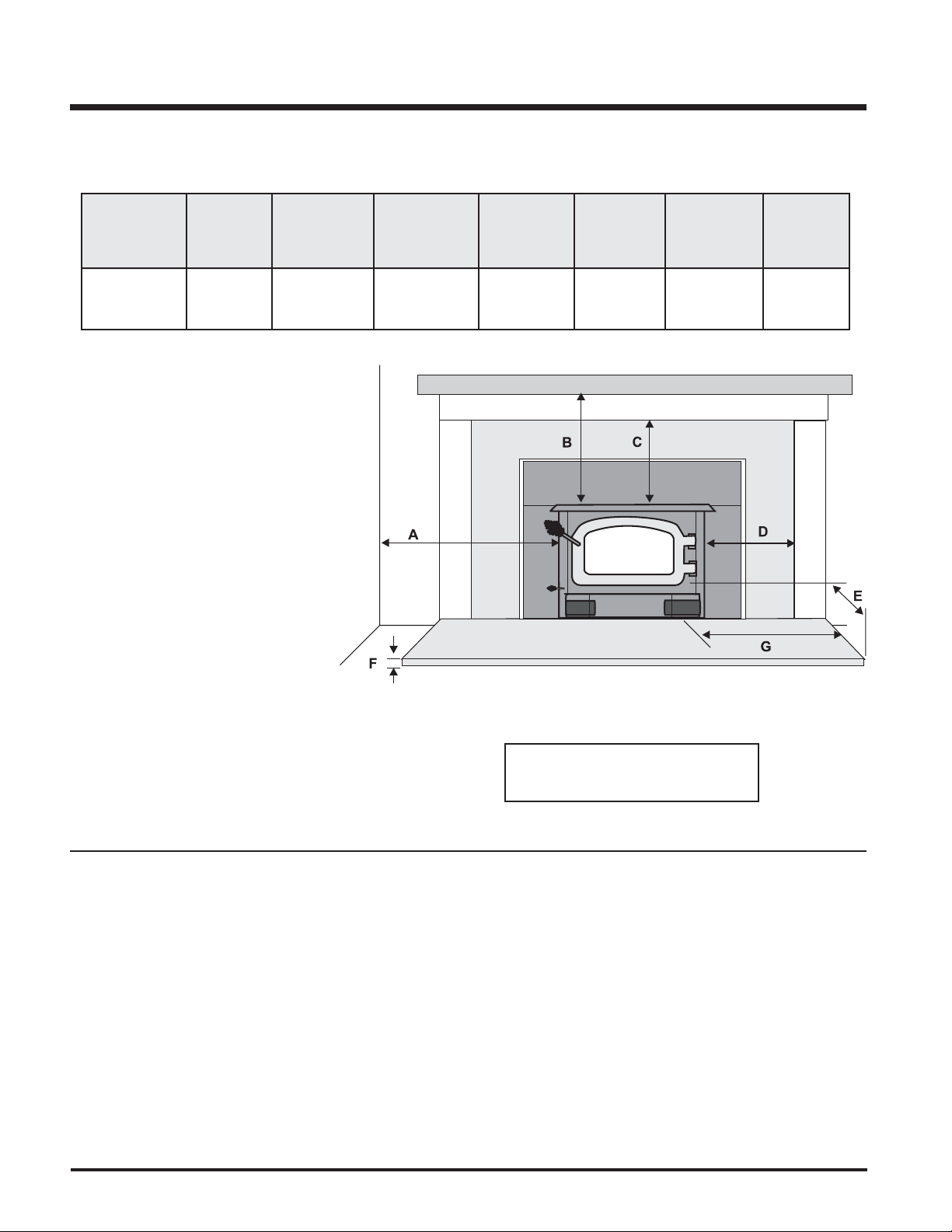

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
THE I2400M MEETS UL-737 STANDARD FOR FIREPLACE STOVES WHEN A FIRESCREEN IS PROVIDED.
ADJACENT SIDEWALL A) 11 in / 280 mm
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY
FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN
YOUR AREA.
ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-
COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 457 MM TO FRONT AND (G) 8 IN / 205 MM
TO SIDES FROM FUEL DOOR. 0.5" FLOOR PROTECTION NEEDS TO BE WITH k=0.84.
MANTLE B) 20 in / 508 mm
TOP FACING C) 12 in / 305 mm
SIDE FACING D) 8 in / 200 mm
COMPONENTS REQUIRED FOR INSTALLATION: 6IN / 150MM STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN (142-917), ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR (846-102)
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE. DO NOT CONNECT THIS UNIT
TO A CHIMNEY FLUE SERVICING ANOTHER APPLIANCE. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. RISK OF SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY OPEN OR FULLY CLOSED. IF INSTALLED IN
A MOBILE HOME OPERATE ONLY WITH DOORS FULLY CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. WHEN OPERATED WITH DOORS OPEN THE MANUFACTURER SUPPLIED SCREEN
MUST BE USED. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY
OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
Regency I2400M 4
UNIT DIMENSIONS
Regency I2400M5
INSTALLATION
Regency Inserts are constructed with the highest quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thoroughly and fully understand the safe installation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experience from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Please read this entire manual before you
install and use your new wood insert. Failure
to follow instructions may result in property
damage, bodily injury or even death. Install
and use only in accordance with manufacturer’s installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
you plan to install a fi replace insert or hearth
heater.
4) Your fi replace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishandling.
5) If your existing fi replace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open position.
6) Inspect your fi replace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry fi replace.
7) Do not connect the insert to a chimney
system servicing another appliance or
an air distribution duct.
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condition, seek professional advice. Your Regency
Insert is designed for installation into a masonry
fi replace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Appliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.

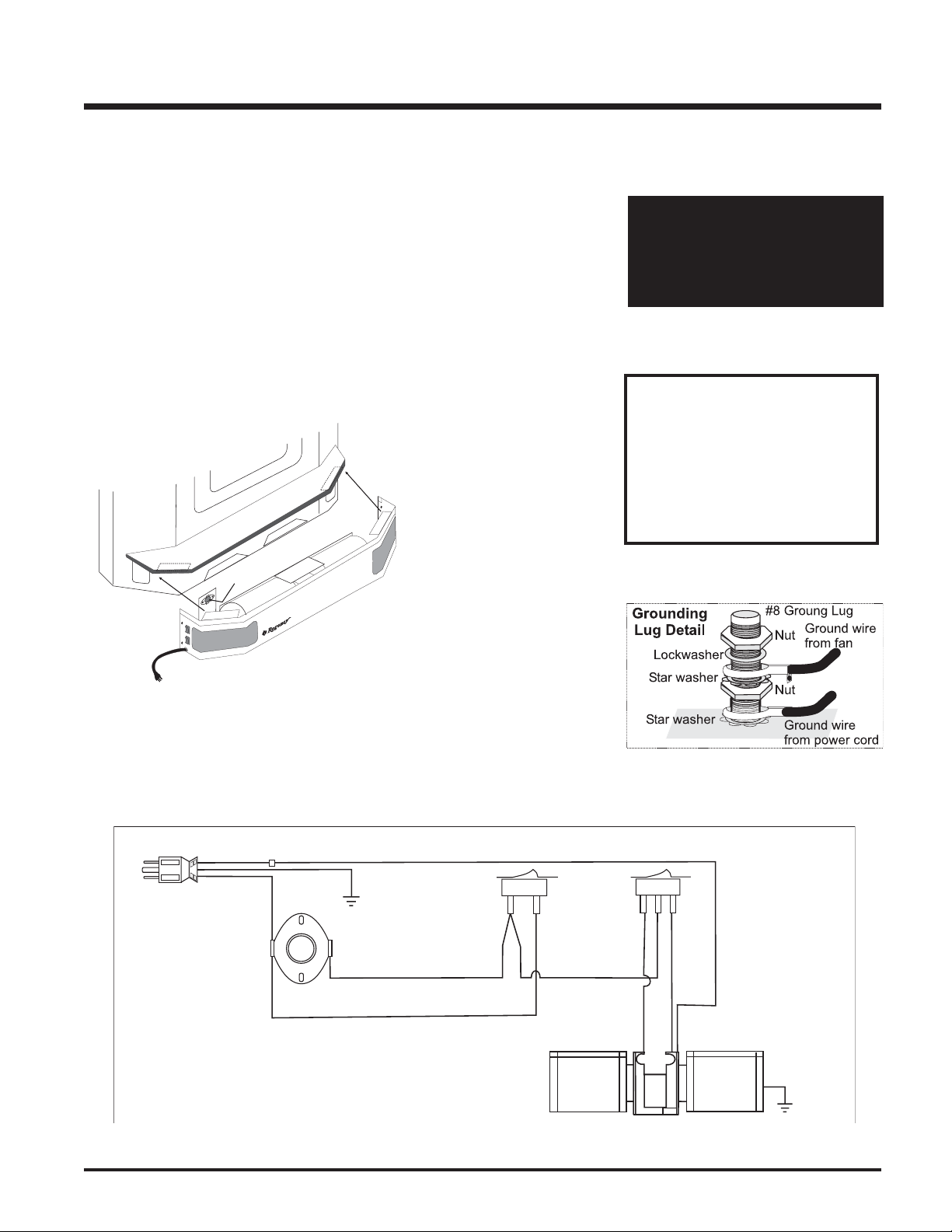

The appliance, when installed, must be electrically grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed with a 6" (152mm)
fl ue.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
fi replace built per ULC S628.
2) The factory-built fi replace must be listed per
UL 127 or ULC S610.
3) Clearances obtained from the masonry fi re-
place tests are also relevant for installation
in factory-built fi replaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert fl ue collar and the
chimney top.
5) Means must be provided to prevent room
air passage to the chimney cavity of the
fi replace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the fi replace front.
6) Alteration of the fi replace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not affect
the operation of the fi replace may be
removed providing they can be stored
on or within the fi replace for re-assembly
if the insert is removed.
7) Circulating air chambers (i.e. in a steel
fi replace liner or metal heat circulator) shall
not be blocked.
8) Means must be provided for removal of the
insert to clean the chimney fl ue.
9) Inserts that project in front of the fi replace
must be supplied with appropriate supporting
means.
10) Installer must mechanically attach the supplied label to the inside of the fi rebox of the fi replace into which the insert is installed.
"WARNING: This fi replace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
fi replace re-approved by the authority having
jurisdiction."
In order for a solid-fuel insert to be certifi ed
for use in factory-built fi replaces, the above
information must be clearly stated in the installation manual and appropriate markings. Final
approval is contingent on the authority having
jurisdiction.
WOOD INSERT
SPECIFICATIONS
Your fi replace opening requires the following
minimum sizes:
Height: 21.5"
Width: 25"
Depth: 17"

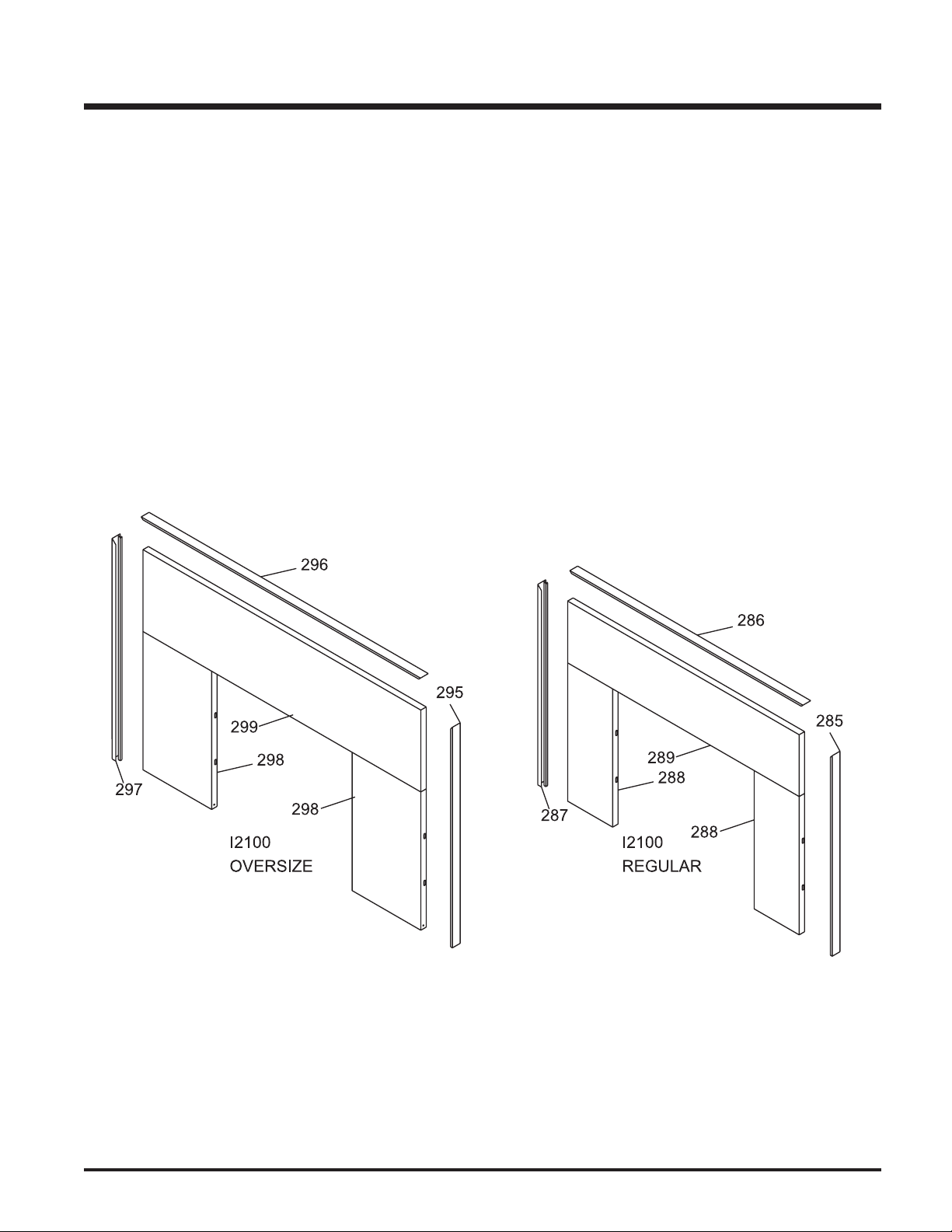

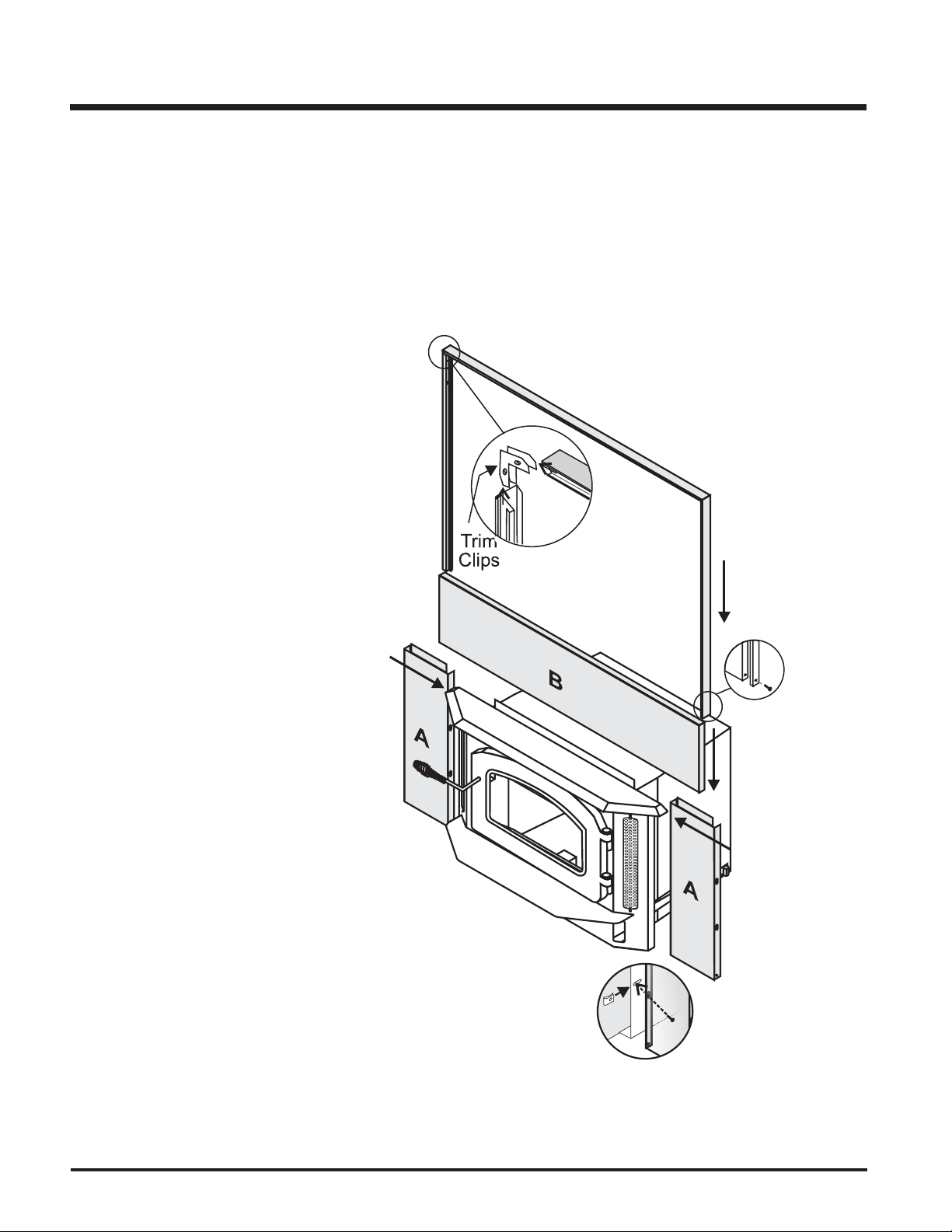

Two faceplates are available to seal the fi replace
opening:
Standard Oversize
40" W x 30" H 48" W x 33" H
Emissions from burning wood or gas could
contain chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.
b. the chimney damper may be removed
to install the chimney liner.
Regency I2400M 6
