Regency Horizon
Gas Fireplace
™
HZO42 Outdoor
Owners &
Installation Manual
MODELS: HZO42-NG
HZO42-LP
Horizon HZO42 Product Video
www.regency-fi re.com
WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
WARNING: FOR OUTDOOR USE ONLY
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapours and
liquids in the vicinity of this or any other appliance.
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
If you cannot reach your gas
supplier, call the fi re department.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Read the installation, operating and maintenance instructions thoroughly before installing
or servicing this equipment.
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
918-882f
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
09/11/13
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY
®
. The Horizon™ HZO42
Outdoor fi replace has been designed to provide you with all the warmth and charm of a fi re at the
fl ick of a switch. The Horizon™ HZO42 Outdoor fi replace has been approved by Warnock Hersey/
Intertek for both safety and effi ciency. As it also bears our own mark, it promises to provide you
with economy, comfort and security for many trouble free years to follow. Please take a moment
now to acquaint yourself with these instructions and the many features of your Regency
®
Fireplace.
Regency Horizon
Gas Inserts Benefi ts Video
2
2
Horizon HZO42 Product Video
Regency Horizon™ HZO42 Gas Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal .....................................................4
DIMENSIONS
Unit Dimensions ............................................................5
INSTALLATION
Important Message ......................................................6
Before You Start ............................................................6
General Safety Information............................................6
Installation Checklist .....................................................7
Locating Your Gas Fireplace .........................................7
Outdoor appliance installation summary .......................8
Minimum Clearances to combustibles ...........................9
Framing Dimensions....................................................10
Mantel Clearances.......................................................11
Non-Combustible Requirements .................................11
Finishing ......................................................................12
High Elevation .............................................................13
Gas Line Installation ....................................................13
Pilot Adjustment ...........................................................13
Gas Pipe Pressure Testing ..........................................13
880 S.I.T. Valve Description .........................................13
Aeration Adjustment ....................................................13
Unit Assembly Prior to Installation ...............................14
Standoff Assembly ...............................................14
Nailing Strips ........................................................14
Drain Installation (Recommended) ..............................15
Wall switch and battery installation ..............................16
Wiring Diagram ............................................................17
Inner panel installation.................................................18
Glass crystal installation .............................................19
volcanic stone installation ...........................................20
Optional Log Set Installation........................................21
Heat defl ector installation ............................................23
Faceplate installation ...................................................24
Glass wind shield installation.......................................25
Weather cover installation / removal ...........................25
Operating Instructions .................................................31
Lighting Procedure ......................................................31
Shutdown Procedure ...................................................31
First Fire ......................................................................31
Aeration Adjustment ....................................................31
Copy of Lighting Plate Instructions ..............................32
MAINTENANCE
Maintenance Instructions.............................................33
Valve assembly Replacement .....................................34
PARTS
Main Assembly ............................................................37
Burner Assembly .........................................................38
Accessories .................................................................39
WARRANTY
Limited Warranty: ......................................................43
Regency Horizon™ HZO42 Gas Fireplace
3
33
SAFETY LABEL
This is a copy of the label that accompanies each
HZO42 Outdoor Fireplace. We have printed a copy
of the contents here for your review.
NOTE: Regency
®
units are constantly being
improved. Check the label on the unit and if there is
a difference, the label on the unit is the correct one.
364
Duplicate S/N
Side Walls
A 11” (279mm)
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
364
B 36” (914mm)
C 18”(457mm)
Ceiling
Min. Mantel Height
F
B
D
é
Pression d'allimentation maximum
QUIP A L'UISINE POUR GAZ PROPANE
ÉÉ
CONCU POUR ETRE POELE: Mod le HZO42
D 12” (305mm)
E 57" (1448mm)
Max. Mantel Depth
Alcove Width
A
E
C
ééé
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Grandeur de l'injecteur
WC/C.E.
F 36" (914mm)
Alcove Depth
Calorifique
é
D bit maximum selon
l'altitude
FPI Fireplace Products International Ltd.
6988 Venture St.
Delta, BC, Canada V4G 1H4
.
NOT FOR USE WITH SOLID FUELS. /
918-888b
Made in Canada/ Fabrique au Canada
NE PAS UTILISER AVEC DES COMBUSTIBLES SOLIDE.
HZO42-LPHZO42-NG
For the State of Massachusetts, installation and
repair must be done by a plumber or gas fi tter
licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, fl exible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances
individual manual shut-off must be a t-handle
type valve.
COPY OF SAFETY DECAL
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
FOYER À GAZ EXTÉRIEUR
IAS 4-96 (US) / CGA CR97-003 (CAN)
CANADA and U.S.A.
é
4001172
CAN/CGA-2.17-M91 /
OUTDOOR GAS FIREPLACE /
14" WC/C.E. (3.49 kPa)
PROPANE GAS: Model HZO42-LP
Maximum supply pressure
Pression d'allimentation maximum
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE: Mod le HZO42é
14” WC/C.E. (3.49 kPa)
11” WC/C.E. (2.74 kPa)
43,500 Btu/h (12.74 kW)
10" (2.49 kPa)
#47 DMS
Minimum supply pressure
Manifold pressure high
Orifice size
Maximum input
ééé
Calorifique
é
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Grandeur de l'injecteur
D bit maximum selon
WC/C.E.
5" WC/C.E. (1.25 kPa)
44,500 Btu/h (13.04 kW)
3.5" (0.87 kPa)
#29 DMS
0-4500 ft/pi (0-1372 m)
Altitude
CAN/CSA-B149.1, Natural Gas and Propane Installation Code or ANSI Z223.1/NFPA 54.
l'altitude
0-4500 ft/pi (0-1372 m)
Listed:
Certified for/Certifi e pour:
Tested to:
NATURAL GAS: Model HZO42-NG
Minimum supply pressure
Manifold pressure high
Orifice size
Maximum input
Maximum supply pressure
4
Regency Horizon™ HZO42 Gas Fireplace
Altitude
The installation must conform with local codes or, in the absence of local codes, with The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of
local codes, with the Canadian Electrical Code, CSA C22.1 or with the National Electrical Code, ANSI/NFPA 70.
This applianceis onlyfor use withthe typeof gas indicatedon therating plate .See owner'smanual for details.
L'installation doitêtre conforme auxcodes locaux ou,en l'absence decodes locaux, avecCAN/CSA-B149.1, gaz naturelet dupropane ou duCode d'installation au ANSI Z223.1/NFPA54. L'appareil, unefois installé, doitêtre connectéélectriquement à laterre conformément auxcodes locauxou,en
l'absence decodes locaux,avec le Codecanadien del'électricité, CSAC22.1 ou avecle NationalElectrical Code,ANSI / NFPA70.
FOR OUTDOOR USE ONLY / POUR USAGE EXTÉRIEUR SEULEMENT
Cet appareilest àutiliser uniquement avecle typede gaz indiquésur laplaque signalétique. Voir lemanuel dupropriétaire pour lesdétails.
UNIT DIMENSIONS
37 - 13/16” (960mm)
41 - 11/16” (1059mm)
DIMENSIONS
17” (432mm)
12 - 3/4” (324mm)
43 - 11/16” (1110mm)
39 - ½” (1003mm)
35 - 1/4” (895mm)
16 - 1/8” (410mm)
15 - 9/16” (395mm)
13 - 3/4” (349mm)
5/8” (16mm)
10” (254mm)
32 - 7/16” (824mm)
23 - 5/16” (592mm)
6 - 5/16” (160mm)
Regency Horizon™ HZO42 Gas Fireplace
5
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The HZO42 Gas Fireplace must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual fi rst. Consult the
"authority having jurisdiction" to determine the need
for a permit prior to starting the installation. It is the
responsibility of the installer to ensure this fi replace
is installed in compliance with manufacturers
instructions and all applicable codes.
BEFORE YOU ST ART
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
ANY GUARD OR OTHER PROTECTIVE
DEVICE REMOVED FOR SERVICING
THE APPLIANCE MUST BE REPLACED
PRIOR TO OPERATING THE APPLIANCE
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS FIRE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGH SURFACE TEMPERATURES,
ESPECIALLY THE FIREPLACE GLASS
AND FACEPLATE, AND SHOULD STAY
AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
DO NOT USE THIS APPLIANCE IF
ANY PART HAS BEEN UNDER WATER.
IMMEDIATELY CALL A QUALIFIED
SERVICE TECHNICIAN TO INSPECT
THE APPLIANCE AND TO REPLACE
ANY PART OF THE CONTROL SYSTEM
AND ANY GAS CONTROL WHICH HAS
BEEN UNDER WATER.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL
IN THE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
GENERAL SAFETY
INFORMATION
1) The installation must conform with local
codes or, in the absence of local codes, with
CAN/CSA-B149.1, Natural Gas and Propane
Installation Code or CAN/CSA-B149.2, Propane
installation code the Natural Gas Fuel Code,
ANSI Z223.1/NFPA 54.
2) The appliance when installed, must be
electrically grounded in accordance with local
codes, or in the absence of local codes with the
Canadian Electrical Code CSA C22.1or with
the National Electrical Code, ANSI/NFPA 70.
5) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fi replace.
6) Wear gloves and safety glasses for protection
while doing required maintenance.
7) Maximum gas inlet pressure = 1/2 psig.
8) Under no circumstances should this appliance
be modifi ed. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
9) Installation and any repairs to this appliance
should be done by a qualifi ed service person.
A professional service person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
10) Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
11) The appliance and its individual shutoff valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at test pressures in excess of 1/2
psi (3.5kPa).
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
12) The appliance area must be kept clear and
free of combustible materials, (gases and other
fl ammable vapours and liquids).
It is highly recommended to protect the
interior from moisture (rain, snow). Cover
the enclosure opening when not in use. This
fi replace is only for use with the type of gas
indicated on the rating plate. This fi replace
is not convertible for use with other gases,
unless a certifi ed kit is used.
13) Cover must be removed when burner is in
operation.
14) When not using appliance for extended periods
of time - turn off gas supply.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
THIS APPLIANCE SHALL BE USED
ONLY OUTDOORS IN A WELL-VENTILATED SPACE AND SHALL NOT BE
USED IN A BUILDING, GARAGE OR ANY
OTHER ENCLOSED AREA.
6
3) See general construction and assembly
instructions. The appliance should be enclosed.
4) Inspect the burner before each use of the
appliance for blockage and any signs of
deterioration.
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance:
a) Refer to "Locating Your Gas fi replace" section
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantel Clearances (Refer to "Combustible
Mantel Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)

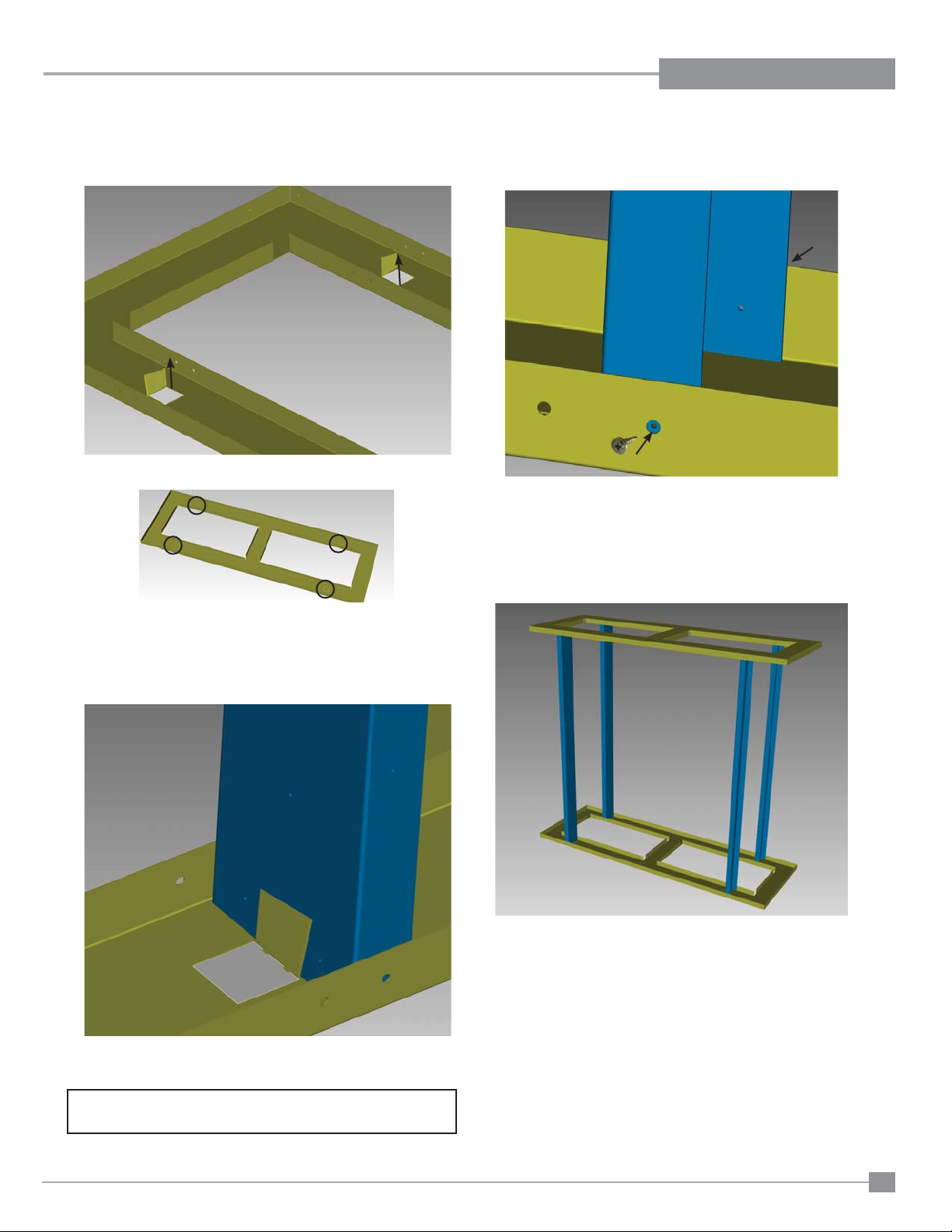

2) Top Facing Support and Side Nailing Strips
(Refer to "Unit Assembly Prior to Installation"
Section). Note: Must be done before installing
unit into place.

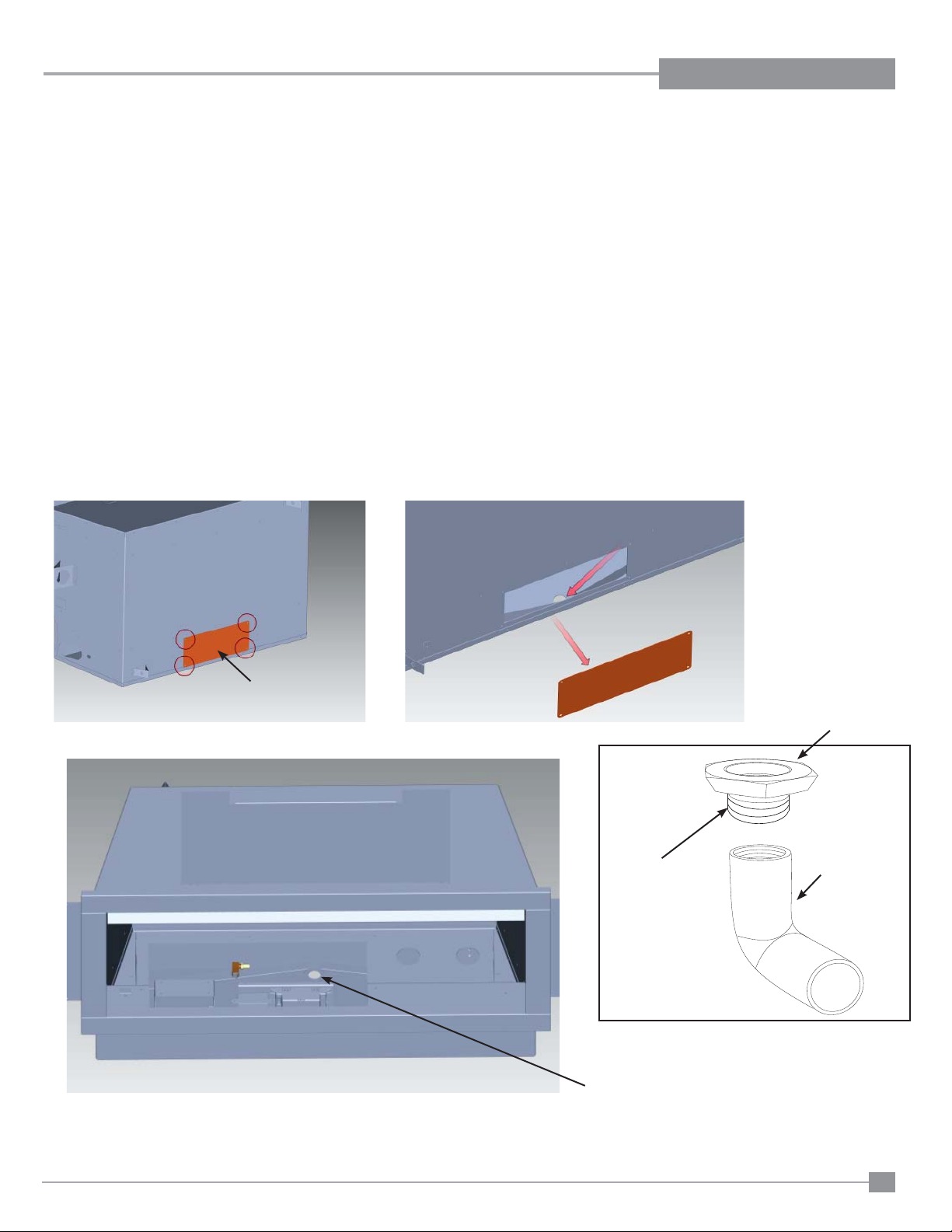

3) Drain Installation.

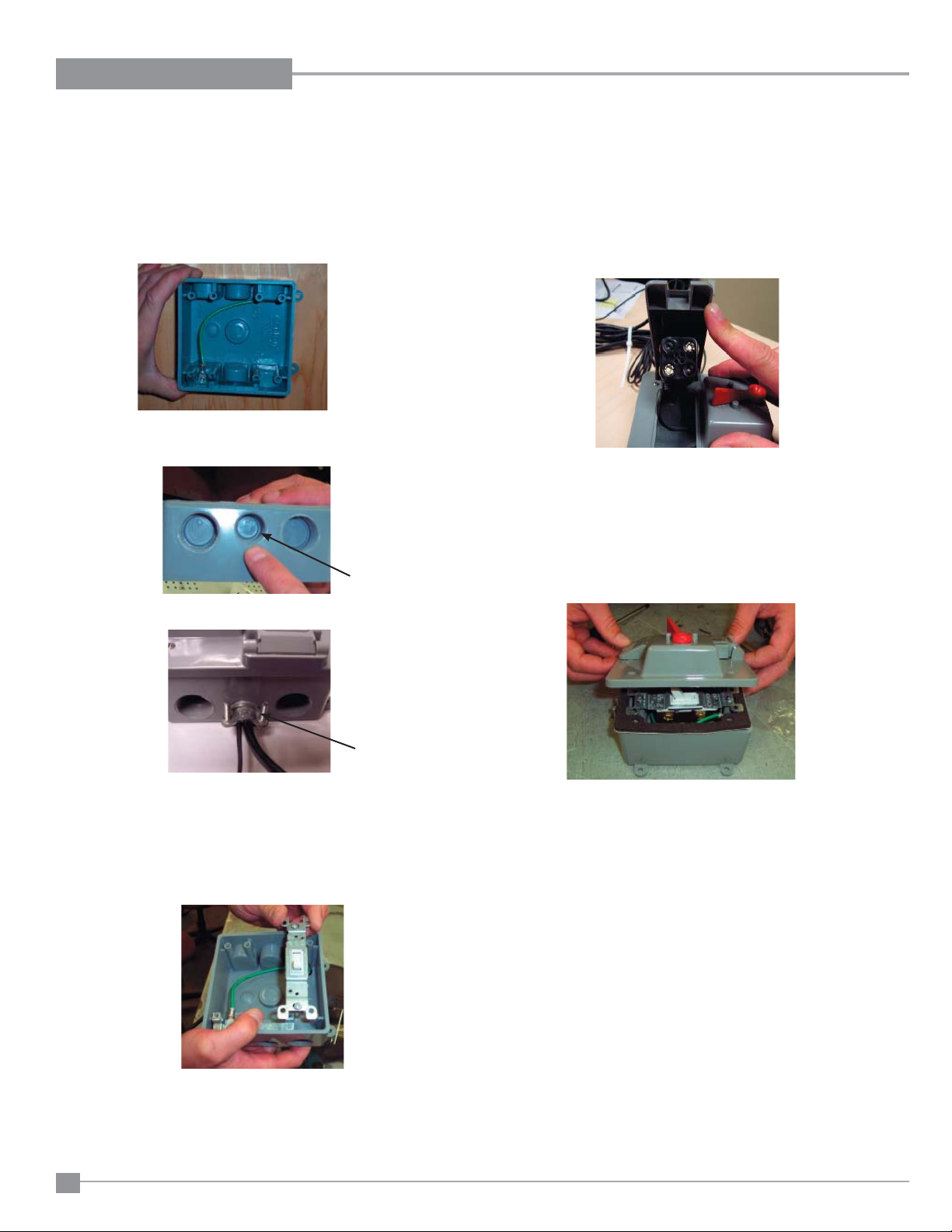

4) Install ON/OFF switch - ensure it is in the OFF
position.
5) Make gas connections - test for leaks.
6) Install 4 "AA" batteries
7) Install standard and optional features. Refer to
the following sections:
a. Inner Panel

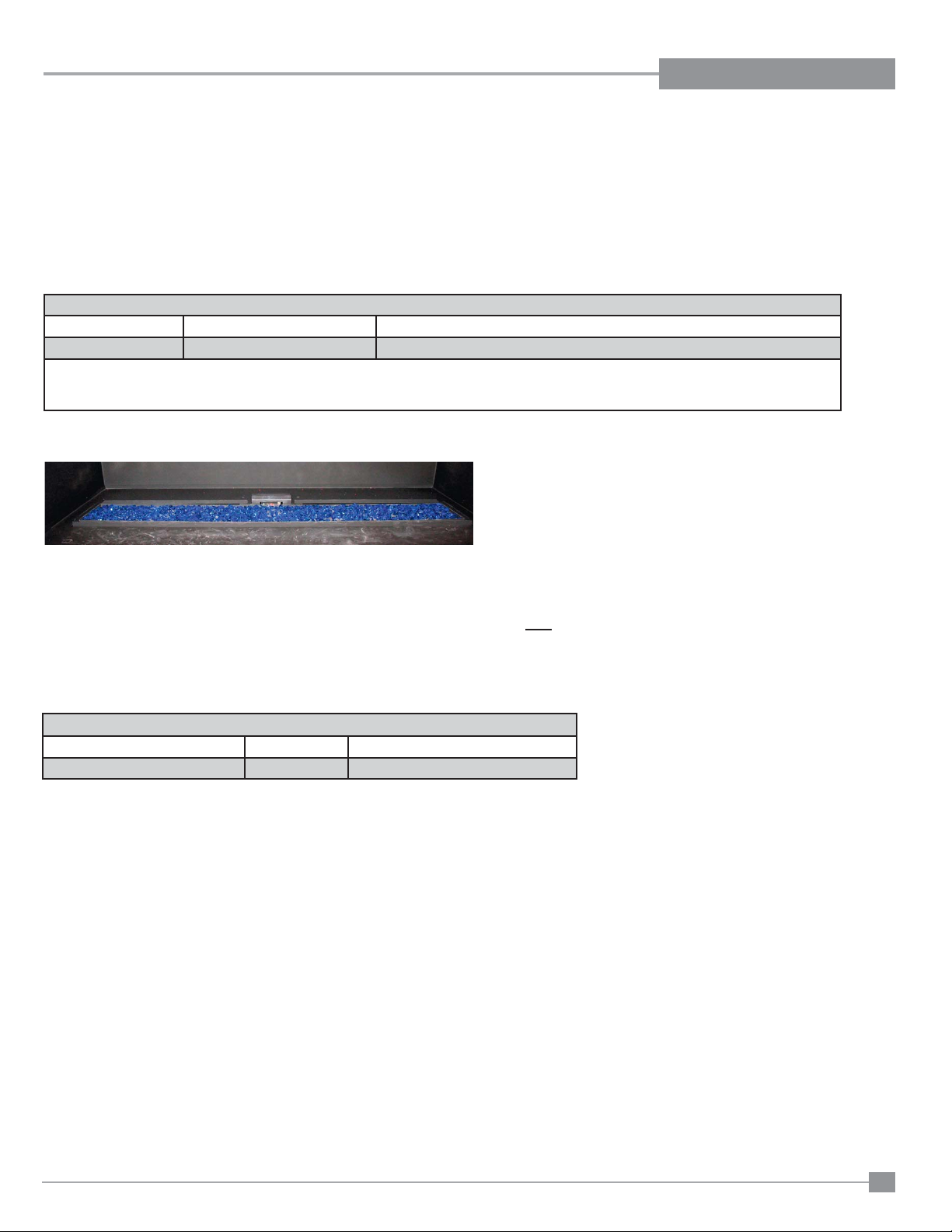

b. Glass Crystals
c. Pebble Installation (optional)
d. Garden Stone Installation (optional)
e. Log Installation (optional)
f. Glass Wind Shield Installation
g. Heat Defl ector Installation
h. Faceplate Installation
i. Weather Cover Installation
8) Final check.
LOCATING YOUR
GAS FIREPLACE
1) When selecting a location for your fi replace, ensure that the clearances are met.
2) This appliance must be installed in an open-air situation with natural ventilation, without stagnant
areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural
convection.
3) Certain materials or items, when placed under or near the appliance, will be subjected to radiant
heat and could become damaged.
4) Typically an outdoor space is not enclosed but, any enclosure in which the appliance is used shall
comply with one of the following:
An enclosure with walls on all sides, but at least one permanent opening at ground level and no
overhead cover.
Within a partial enclosure that includes an overhead cover and no more that two walls.
This includes:
1) Clocking the appliance to ensure the correct
fi ring rate (rate noted on label), after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the fl ame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results in damage is not the responsibility of the manufacturer.
NOTE: In order to function correctly, these
types of appliances require at least 50% open
access for permanent ventilation/airfl ow.
Open ventilation/airfl ow space comes from
walls and roof/ceiling.
Open fl oor space around the unit must not be
considered ventilation/airfl ow space.
Regency Horizon™ HZO42 Gas Fireplace
Within a partial enclosure that includes an overhead cover and more than two walls, the following
shall apply:
• At least 25% of the total wall area is completely open, and
• At least 30% of the remaining wall area is open and unrestricted
30% or more in total of the remaining wall
area is open and unrestricted.
Open side at least 25% of total wall area
*SEE IMPORTANT INSTALLATION NOTES NEXT PAGE
7
INSTALLATION
IMPORTANT INFORMATION FOR OUTDOOR FIREPLACE INSTALLATIONS
• Never insulate around the body of the unit
• Excessive heat retention in the fi rebox will lead to component failure
and fi replace malfunction
• Excessive heat retention will also increase the risk of fi re inside the
chase
• Heat retention can cause “Oil-canning” and damage the fi replace due
to overheating
• Do not build up a wall of any type in front or to the sides of the appliance, higher than the fi rebox opening. This will create a pressure zone
at the fi rebox and will prevent the unit from venting
• This is an outdoor appliance with a built-in drain. This drain should be
installed and connected in all applications as per the instructions in
this manual
• Inadequate drainage will cause rust and reduce the life of your appliance, this is not protected by warranty
COMPONENTS IN OUTDOOR APPLIANCES
• Outdoor units use the same consistent, reliable Electronic components
used in most Regency “E” units
• Installed correctly, these components will be subjected to far lower
temperatures than indoor units, which have been certifi ed as safe from
heat etc
• Working gas pressures are as critical in outdoor products as they are
in indoor products, even more important in Electronic systems
COMMON MISCONCEPTIONS REGARDING
OUTDOOR FIREPLACES
• There is a common misconception that being outdoors, an Outdoor
Fireplace will function, regardless of circumstances,
• Outdoor fi replaces require the same amount of ventilation as indoor
units, often more
• Outdoor units require adequate ventilation to the atmosphere, which in
turn provides ongoing circulatory combustion air
• This type of Appliance Vents.
• All Outdoor Fireplace Products have the same need for Air/Oxygen,
and an ability to Vent
• Even though the appliance is outdoors, this doesn’t mean it is getting
adequate air
• Requirements are not specifi c to Regency units
• Read and follow critical location guidelines in this manual
UNDERSTANDING OUTDOOR APPLIANCE
REQUIREMENTS
• Don’t overlook the obvious
• Widen your margin for error
• Combustion always requires the same three elements
• Only the quantities and volumes change
IMPORTANT THINGS TO REMEMBER
• Correct Working Gas pressure is critical on “E” units
• Wherever possible avoid locating on a fl at wall in a tight corner
• Floor space doesn’t count as “open area”
• Install to the manual specs for framing and do not insulate unit or
enclosure
• Framing enclosure must at least meet minimum dimensional specs as
per the installation manual
• Only Regency approved media should be used in the fi rebox (i.e.
stones/glass)
• Be aware of pressure zones due to location (i.e. facing the ocean)
• Open walls and doorways to outside air are benefi cial to the performance of an outdoor appliance
• Fixed roof/ceiling open areas count towards the total open area overall
requirement
• Screens create 40% or more air restriction
• Screened areas are restrictions and reduce open air space, calculate
area based on a closed screen
• The biggest problems are created by lack of airfl ow for the appliance
• Outdoor fi replaces are often built-in systems and incorrect installation
can result in high repair costs
• Units must not be modifi ed or altered in any way
ANTICIPATED ISSUES CAUSED BY
INCORRECT LOCATION OR INSTALLATION
• Unit shutting down intermittently
• Overheating of components leading to failure
• Lifting fl ame
• Poor fl ame package (i.e. all to one side, lazy fl ame)
• Failure to ignite
• Excess carbon
• Safety issues and concerns created from the byproducts of combustion
OUTDOOR APPLIANCES REQUIRE VENTING
• Outdoor appliances must be installed in: open-air situations with natural ventilation and without stagnant areas
• Any gas leakage and products of combustion need to be rapidly dispersed by wind and natural convection
• Typically outdoor spaces are not enclosed, however, failure to adhere
to installation guidelines, may cause the outdoor fi replace to be affected by wind or air pressure inside the enclosure
• ANY enclosure in which the appliance is used shall comply with one of
the diagrams on the previous page.
OUTDOOR APPLIANCE INSTALLATION SUMMARY
• All walls + overhead cover = 100% total area
• One of four walls or full overhead area must be totally open, plus—one
of remaining walls must have a fi xed opening
• All outdoor fi replaces/fi re tables require total natural ventilation of 50%
open space
8
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
MINIMUM CLEARANCES TO COMBUSTIBLES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of fi res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this
fi replace be installed only in accordance with these instructions.
The top, back and sides of the fi replace are defi ned by
Caution Requirements
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
HZO42 Clearance Requirements
Clearance: Dimension Measured From:
A: Sidewall
B: Ceiling
C: Mantel Height (min.)
D: Mantel Depth (max.)
E: Alcove Width
F: Alcove Depth
Notes:
11" (203mm) Side of Fireplace Opening
36" (914mm) Top of Fireplace Opening
18" (457mm) Top of Fireplace Opening
12" (304mm) From Wall
57"(1148mm) Wall to Wall (Minimum)
36" (914mm) Front to Back Wall (Maximum)
0" No Hearth Required
Fire hazard is an extreme risk
WARNING
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fi replace be
installed only in accordance with these instructions.
WARNING:
When installing this appliance; do not cover or surround
with insulation.
This appliance can overheat and cause malfunction
and component failure, if covered, or partially covered.
If the appliance is installed inside a chase, insulation
must be installed on the walls of the chase, not on the
appliance.
B
D
F
C
A
E
B
A
E
F
Alcove
Regency Horizon™ HZO42 Gas Fireplace
9
INSTALLATION
H
J
FRAMING DIMENSIONS
Note: All other framing may
be of wood construction.
Framing
Dimensions
A Header Height 32-11/16” (30mm)
B Side Stud Width 42 - 3/16" (1072mm)
C Minimum framing depth 20" (508mm)
D Minimum Height to Combustibles 52 - 1/2" (1334mm)
E Minimum framing width 60" (1524mm)
F Corner Wall Depth 40 - 7/16" (1027mm)
G Corner Facing Wall Width 54 - 3/16" (1376mm)
H Gas Connection Opening Height 2" (51mm)
I Gas Connection Height 3-7/8 " (98mm)
J Gas Connection Inset 3/4" (73mm)
K Gas Connection Opening Width 3-7/8 " (98mm)
Description HZO42
* Framing depth measurement is noted with the nailing strips set as far forward on the fi rebox as possible.
The nailing strips can be adjusted back up to 1” to allow for varying thicknesses in non-combustible
material & wall fi nishes.
Metal Stud
on edge
A
B
C
D
K
E
F
J
G
Important Note: Two (2) ventilation grills are highly recommended for all enclosures.
This is to alleviate moisture and allow for air to circulate. Minimum recommended size: 20" sq (508 mm²) ea.
10
Regency Horizon™ HZO42 Gas Fireplace
I
MANTEL CLEARANCES
INSTALLATION
Due to the extreme heat this fi replace emits, the mantel
clearances are critical. Combustible mantel clearances from
top of front facing are shown in the diagram on the right.
Note: Ensure the paint that is used on the mantel and the
facing is "heat resistant" or the paint may discolour.
26
20
10
0
To Unit
14
Base
12
26-1/2”
810
23”
6
4
2
12" (305mm)
1" (25mm)
To p o f
Fireplace
Opening
18”
0
Combustible Material
Metal Stud
(On Edge)
Non-combustible
Facing
11”
Standoff
10-7/8”
(276mm)
Non-combustible Material
2-7/8”
(3mm)
7
Regency Horizon™ HZO42 Gas Fireplace
NON-COMBUSTIBLE REQUIREMENTS
43-11/16” (1110mm)
Non-combustible
Material
38-1/16” (767mm)
16” (406mm)
Non-combustible Material
16”
6-9
/
(167mm)
11
INSTALLATION
FINISHING
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into fi nal position - it is important to know the total thickness / height of fi nished hearth. The base of the fi replace should be
level or higher than the fi nished hearth height.
If material such as brick, stone, etc extends past the faceplate depth (1-1/2"), when fi nishing around the faceplate, the minimum opening dimensions
noted below must be adhered to ensuring for the removal of the faceplate and for the safe operation of this appliance.
41-1/2”
”
18”
For material such as brick, stone, etc that extend up to 1-1/2" , the minimum opening dimensions noted below must be adhered, when fi nishing around
the faceplate. This is to ensure the removal of the faceplate and for the safe operation of this appliance.
18”
38-1/16”
”
”
16
Unit shown without faceplate
For facing material is over 1” (25mm)thick, use the outer cut out for your
faceplate template.
40 1/4”
HZO42
For facing material is under 1” (25mm) thick, use the inner cut out
to keep construction material out of the fi rebox.
16”
12
38”
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
HZO42 SYSTEM DATA
Max. Supply Pressure 14" WC (3.49 kpa)
Min. Supply Pressure 5" WC (1.25 kpa)
Manifold Pressure 3.5" WC (0.87 kpa)
Orifi ce Size #29 DMS
Maximum Input 44,500 Btu/h
(13.04 kW)
HZO42-LP SYSTEM DATA
Max. Supply Pressure 14" WC (3.49 kpa)
Min. Supply Pressure 11" WC (2.73 kpa)
Manifold Pressure 10" WC (2.49 kpa)
Orifi ce Size #47 DMS
Maximum Input 43,500 Btu/h
(12.74 kW)
HIGH ELEVATION
This unit is approved for altitude 0 to 4500 ft. (CAN1
2.17-M91).
GAS LINE
INSTALLATION
Since some municipalities have additional local
codes it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.
For USA installations follow local codes and/or the
current National Fuel Gas Code, ANSI Z223.1.
When using copper or fl ex connectors use only
approved fi ttings. Always provide a union so that
gas lines can be easily disconnected for servicing.
Flare nuts for copper lines and fl ex connectors are
usually considered to meet this requirement.
NOTE: A shutoff / dante valve should be supplied in or near the unit (or as per local codes)
for ease of servicing this appliance.
IMPORTANT: Always check for gas leaks with
a soap and water solution or gas leak detector.
Do not use open fl ame for leak testing.
PILOT ADJUSTMENT
Periodically check the pilot fl ames. Correct fl ame
pattern has two strong blue fl ames: 1 fl owing
around the fl ame sensor and 1 fl owing across
the burner (it does not have to be touching the
burner).
Burner
Flame Sensor
Pilot
Note: If you have an incorrect fl ame pattern,
contact your Regency® dealer for further
instructions.
Incorrect fl ame pattern will have small, probably
yellow fl ames, not coming into proper contact
with the rear burner or fl ame sensor.
Ignitor
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas supply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide fl at screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with
the unit burning and the setting should be within
the limits specifi ed on the safety label.
880 S.I.T. VALVE
DESCRIPTION
1) Pilot adjustment
2) Outlet Pressure Tap
3) Inlet Pressure Tap
4) Pilot Outlet
5) Main Gas Outlet
6) Main Gas Inlet
3
2
1
6
4
5
AERA TION ADJUSTMENT
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue fl ame or
close for a more yellow fl ame.
Minimum Air Shutter Opening:
1/8" NG
1/4" LP
Note: Any damage due to carboning resulting
from improperly setting the aeration
controls is NOT covered under warranty.
Regency Horizon™ HZO42 Gas Fireplace
6) When fi nished reading manometer, turn off the
gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" fl at screwdriver .
Note: Screw should be snug, but do not over
tighten.
13
INSTALLATION
UNIT ASSEMBLY PRIOR TO INSTALLATION
The 6 Standoffs must be correctly positioned and attached before unit is slid
into position.
ST ANDOFF ASSEMBLY
The standoffs are shipped in a fl at position and must be folded into shape
and attached.
1) Remove the standoffs from the fi replace.
2) Take each standoff and bend into the correct shape. Bend up at the bend
lines until the screw holes in the standoff and the pre-punched screw holes
on the fi replace top line up.
3) Attach the standoff securely to the unit with 2 screws per standoff (on
opposite corners).
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side
and 1 on the top that can be folded out as required.
Secure the top and side nailing strips to the framing.
Nailing Strips
Finished
Material
Nailing Strip
Position
1/2" 1"
Standoffs installed.
Note:
Depending on the material used for fi nishing, the nailing strips must
be set accordingly so that the fi nished material is always at the 1-1/2"
edge of the fl ange.
Nailing Strip
1” Forward
Unit
1" 1/2"
Nailing Strip
½” Forward
Unit
1-1/2" 0" (fl ush)
Nailing Strip
Flush w/unit
Factory Set
14
Unit
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
DRAIN INSTALLATION (RECOMMENDED)
Although this fi replace is designed to operate outdoors safely, rain and other sources of moisture may enter the hearth area, which will cause water to collect inside the base of the unit.
To prevent excessive water collection, the installer must provide a way to drain the water from the base of the unit by building or installing a
water collector before positioning the fi replace in its location.
INSTALLATION INSTRUCTIONS
When planning for the installation of the unit, the framing height must be increased by 3/4", when installing a drain pan. Additional space below the unit will
also be required to plumb a drain line.
1) Remove 4 screws to remove the rear access panel from the back of the unit - this will allow access to the drain hole at the base of the unit.
2) On the exposed drain hole (see location below), install a PVC 3/4" threaded coupling reducer going from the top of the pan, down through the hole.
Apply a silicone-based sealant around the base and threads before installation.
3) Holding the reducer coupling with a wrench, thread a 90° PVC elbow (from the underside of the unit) to the reducer until it is tight to the metal.
Note: To assure proper drainage, that fi replace must be installed on a leveled surface
4) Add additional piping to route the drain to an appropriate location.
Rear access panel
Drain hole
Threaded
Reducer
(PVC)
Cut notches into the top
of the coupling reducer to
prevent water pooling.
Threaded
Elbow
@ 90°
(PVC)
Regency Horizon™ HZO42 Gas Fireplace
Reducer and elbow can be purchased from your local
hardware store.
Drain hole location at
base of the unit
15
INSTALLATION
WALL SWITCH AND BATTERY INSTALLATION
(INCLUDED WITH UNIT)
The unit comes with low voltage wire and a battery extension wire installed.
1) Run supplied wire to desired location - to a max. of 9 feet.
2) Install supplied electrical box in desired location.
3) Remove center knock out from electrical box and install strain relief
(strain relief nut not required).
Center knock out
6) Install supplied 4-AA batteries into the battery holder. Using velcro install
battery holder to the backside of the battery compartment door. Connect
battery terminal.
7) Using silicone, completely seal strain relief to protect from water or moisture.
8) Place supplied gasket on top of electrical box.
9) Fasten cover to electrical box using supplied screws.
10) Place switch in OFF position until fi nal installation is complete.
Strain Relief
4) Route low voltage wire and battery extension wire through the strain
relief.
5) Connect low voltage wire to supplied switch, fasten switch to right side of
electrical box (polarity not important).
16
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
WIRING DIAGRAM
This heater does not require a 120V A.C. supply for operation. (Do not cut the ground terminal off under any circumstances.)
NOTE: 4 AA batteries must be installed in the battery pack to operate the burner switch.
Profl ame
880
SureFire™ Switch
0.886.001
880
Proflame Valve
Standard Main On/Off Switch
Standard Wall Switch
or Optional Wall Switch
Remove the protective coating from the following components before proceeding. Carefully follow stainless handling instructions on following page.
Regency Horizon™ HZO42 Gas Fireplace
17
INSTALLATION

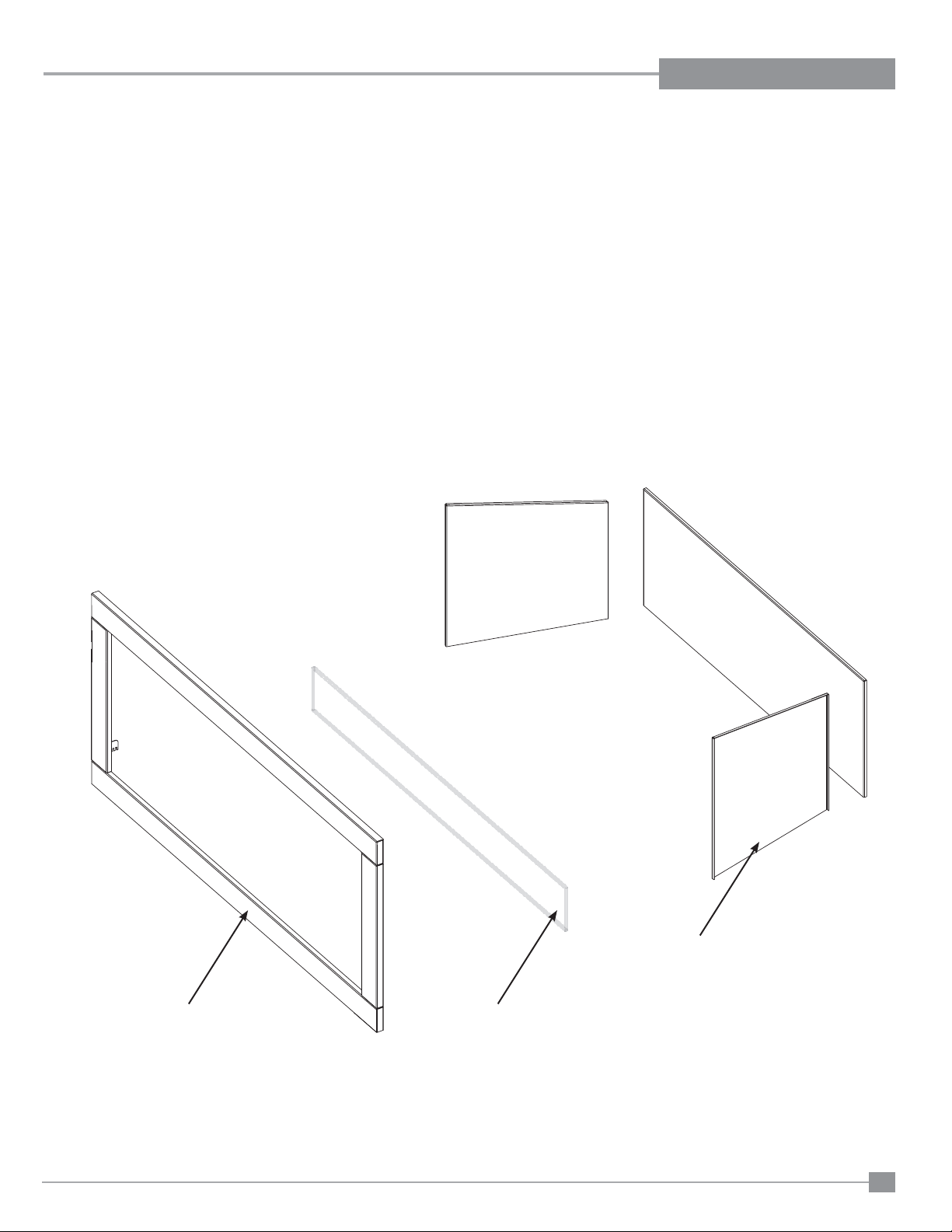

INNER PANEL INSTALLATION
Before installation, panels must be handled and cleaned as per instructions noted below:
Stainless Steel Panels
• Stainless panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time.
Claims for damage after installation will not receive consideration.
• To protect the fi nish during installation and handling - cotton gloves MUST be worn at all times while handling the panels (even when
removing protective coating).
• Use a hair dryer or similar device to remove the protective coating from the panels.
• Stainless panels will discolor a little during normal operation.
This is normal and should not be considered a defect.
All hand and fi nger marks MUST be cleaned off with a soft cloth and a stainless steel cleaner. Most stainless steel cleaners leave a fi lm/
*
residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this fi lm before applying heat to the unit.
Failure to do this will result in burn stains on panels which you will be unable to remove. Not protected by product warranty.

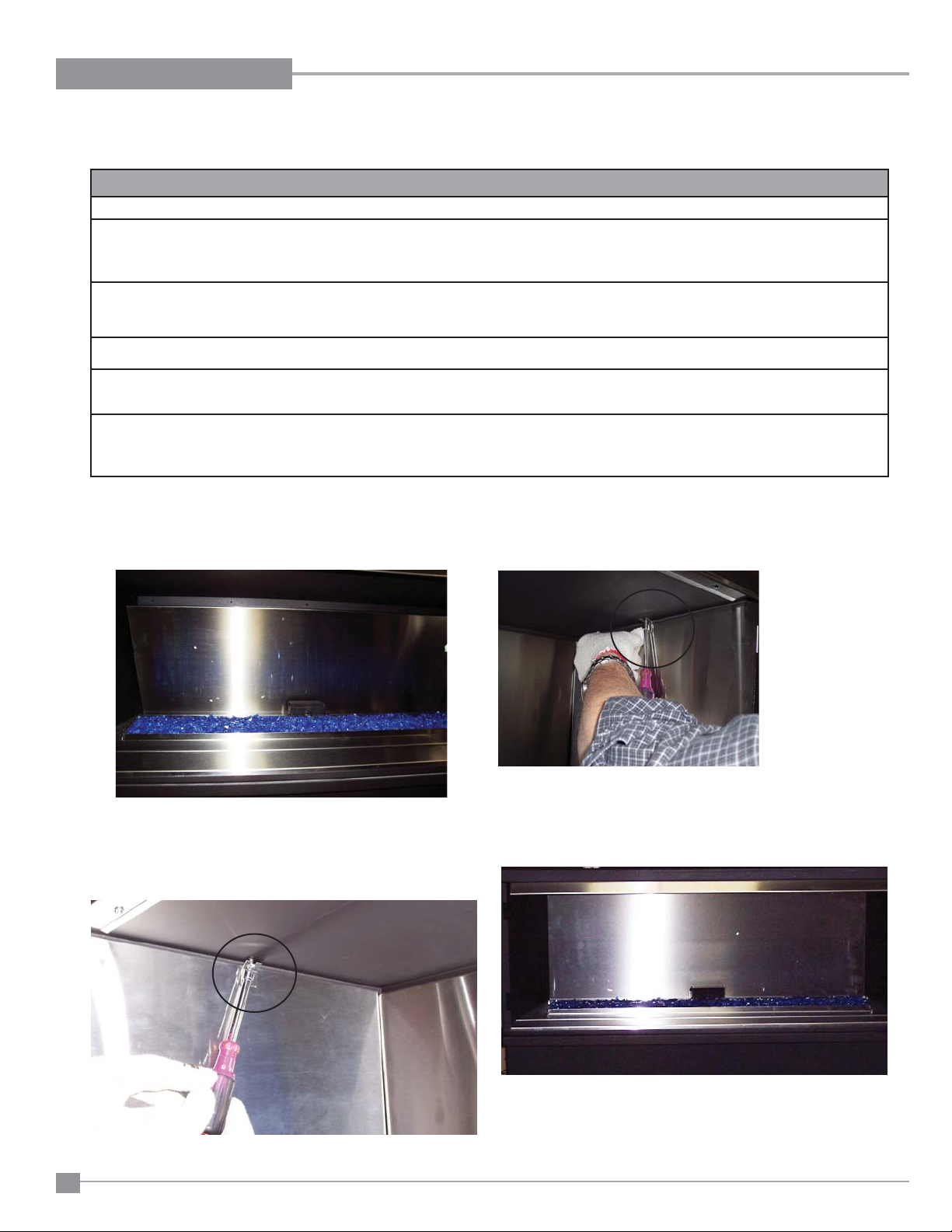

1) Install the back panel fi rst - to maneuver the panel into position - tilt
the top of the panel forward and position the bottom of the panel
in fi rst. Use care - do not scratch the panel when clearing the pilot
hood.
2) Install a side panel next (not important which side goes in fi rst).
Position the panel with the bend in the panel facing towards the
outside or wall of the unit. Position side panel and secure with a clip
and one screw.
3) Install other side panel next. Position side panel and secure with a
clip and one screw.
4) Final install - shown below.
18
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
GLASS CRYSTAL INSTALLATION
Spread the Glass Crystals or Stones evenly over the burner. Ensure the crystals/stones do not overlap excessively as this will affect the fl ame pattern.
IMPORTANT NOTE:
Only the supplied approved Glass Crystals and Stones are to be used with these fi replaces. Use of any other type of glass crystals or stones can
alter the unit's performance, any damage caused by the use of any unapproved glass or stones will not be covered under warranty.
When using Ceramic Spa/Volcanic Stones DO NOT cover burner ports or pilot light that lead to pilot fl ame.
BURNER PACKAGES
Unit *Glass Crystals Stones - Spa / Ceramic / Volcanic
HZO42 3 lbs 3 lb Glass + 35 Volcanic stones
NOTE: * Glass Crystals are not supplied with the unit. Must purchase separately - see quantities above.
Glass Crystals are available in 1lb and 5lb bags.
There are 2 optional packages to choose from to cover the fi rebox base:
1) Natural River Pebbles
2) Glass Crystals (4 colors available)
Spread the pebbles / crystals evenly on the exposed base of the fi rebox. Pebbles are NOT to be placed anywhere on the burner or over top of the Glass
Crystals or optional Stones.
IMPORTANT NOTE: Only the supplied and approved pebbles / glass crystals are to be used with these fi replaces. Use of any other type of pebbles, glass
crystals or other material can create a danger and will void the warranty.
Firebox (Around Burner) Packages
Unit Glass Crystals Pebbles
HZO42 3 lbs 1 package (3 x bags pebbles)
Regency Horizon™ HZO42 Gas Fireplace
19
INSTALLATION
VOLCANIC STONE INSTALLATION
Evenly spread the glass crystals and volcanic stones over the burner. Ensure the stones do not overlap too much as this will effect the fl ame
pattern.
IMPORTANT NOTE:
Only the supplied approved Volcanic Stones are to be used with these fi replaces. Use of any other type of stones can alter the unit's performance,
any damage caused by the use of any unapproved glass or stones will not be covered under warranty.
When using Volcanic Stones DO NOT cover burner ports or pilot light that lead to pilot fl ame. Ensure the stones do not overlap excessively as this
will effect the fl ame pattern.
OUTDOOR VOLCANIC STONE BURNER PACKAGES
Unit Volcanic Stones
Ivory/Tan
HZO42/HZO42 (AUS) 35 stones w/3lbs glass 35 volcanic stones w/3lbs glass 50 garden stones w/3lbs glass (AUS Only)
PTO30 */ Plateau Series 50 stones w/5lbs glass 50 volcanic stones w/5lbs glass
PTO60 100 stones w/10lbs glass 100 stones w/10lbs glass
NOTE: * Basalt Volcanic stones are measured by weight not quantity. Each bag contains 15lbs
of stones, however the exact quantity and size will vary.
Size varies between 2" - 3".
Volcanic Stones
Slate/Grey
White Garden Stones
Volcanic Stones + Glass Crystals
For the PTO30, PTO60
& Plateau Series only
Volcanic Stones Ivory /Tan + Glass Crystals
For the HZO42 & HZO42AUS
only
Volcanic Stones Slate /Grey + Glass Crystals
For the HZO42 & HZO42AUS
only
20
Regency Horizon™ HZO42 Gas Fireplace
OPTIONAL LOG SET INSTALLATION
Installation of Refl ective Panels must be completed before installing the log set.
Read the instructions below carefully and refer to the images. If
the logs are broken do not use the unit until they are replaced.
Broken logs can interfere with pilot operation.
Install 3lbs of glass crystal on the burner (follow glass crystal
instruction sheet) before installing logs.
Improper positioning of the logs may create carbon build-up
and can alter the unit's performance which is not covered
under warranty.
Log kit # 326-930 contains the following pieces:
INSTALLATION
A
B
D
E
Part # Description
A x 1 Log
B x 1 Log
C x 1 Log
D x 1 Log
E x 1 Log
1) Install logs A and C on the burner as shown below. Orient the logs in the same way and in a similar location on the left side of the burner as
depicted in Diagram 2.
C
Diagram 1
F
A
C
Diagram 2
2) Install log B on the burner as shown below. Orient log B across log A in the same way and in a similar position as depicted in Diagram 3.
A
B
3) Install log E on the right side of the burner as shown below. Orient log E in the same way and in a similar position as depicted in Diagram 4.
Diagram 3
E
Diagram 4
Regency Horizon™ HZO42 Gas Fireplace
21
INSTALLATION
4) Install log D on the burner as shown below. Orient log D across log E in the same way and in a similar position as depicted in Diagram 5- log
D will rest up against the back panel.
D
E
Diagram 5
5) Install log F on the right side of the burner as shown below. Orient log F in the same way and in a similar position as depicted in Diagram 6.
Diagram 6
Final Install
F
22
Regency Horizon™ HZO42 Gas Fireplace
HEAT DEFLECTOR INSTALLATION
1) Install the heat defl ector to the top inside of the fi rebox with 4 screws as shown below.
INSTALLATION
Heat Defl ector
Regency Horizon™ HZO42 Gas Fireplace
Heat Defl ector
Installed
23
INSTALLATION
FACEPLATE INSTALLATION
Remove the protective coating from the faceplate before installation - see
handling instructions in panel install section.
1) To install the faceplate - line up the tabs on the faceplate with the 'C'
shaped openings on the left and right sides of the unit. There are 3
slots on each tab so the faceplate to accommodate different fi nishing
materials.
3) For installations where thicker fi nishing material is used - the optional
trim piece may be installed to fi ll the gap.
Install the trim between the bottom access panel and the faceplate as
shown below.
2) Install logo onto faceplate.
Trim Piece
4) To remove - reverse steps.
Final Install
24
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
GLASS WIND SHIELD INSTALLATION
1) To install the glass wind shield - slot it into the space between the burner tray cover and the bottom access panel.
Burner Tray Cover
Glass Wind Shield
Bottom Access panel
WEATHER COVER INSTALLATION / REMOVAL
1) The unit should be covered when not in use for extended periods of time. The soft fabric cover is made of weather resistant material - to protect the unit
from the elements. Starting from one corner - slide the cover over the corner, then stretch the cover until it is fi tted over all four corners.
Regency Horizon™ HZO42 Gas Fireplace
CAUTION:
Never start the unit with the cover on.
Let the unit cool before installing the cover.
Turn off gas supply to unit before installing cover.
Weather Cover Installed
25
INSTALLATION
ASSEMBLY INSTRUCTIONS FOR A STEEL STUD FRAMING KIT FOR HZO42
Follow these instructions to construct a steel stud frame for the Outdoor fi replace;
Overall dimensions = 60" W x 20" D x 52-1/2" H.
**Non-combustible fi nishing board not supplied with kit. Board may be purchased at your local hardware/building supply store.
Tools Required
1 power
drill
+ #2 phillips bit
1 hand
#2 screwdriver
(Phillips)
1 level
1
tape
measure
326-900 CONTENTS:
Top / Bottom (A) x 2
Vertical Supports - Tall (B) x 8
Vertical Supports - Short (C) x 6
Base (D) x 1
Header (E) x 1
Corner Brace (F) x 2
Vertical Support (G) x 1
Wafer Screws 80
26
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
1) Place top/bottom (A) on the ground - fl at side down. Bend
the tabs up to a 90° angle.
(A)
Bend tabs inward to 90°angle.
3) Line up the screw holes of (A) with (B). Secure
each (B) with 2 wafer screws (one on each side) as shown
below.
(B)
(A)
4) With all 4 - (B) pieces secured to the bottom with 2 screws
(1 on each side) (A) can be placed into position, as shown
below. Ensure all tabs on the (A) are bent to 90° and oriented
to each (B) as shown in step 2.
(A)
Tab locations
2) Position 4 of the (B) pieces with the fl at side of (B)
contacting the tab as shown below.
(B)
(A)
Part B positioned fl at side fl ush with A tab.
5) Line up top (A) screw holes with (B) screw holes and secure
with (B) to (A) with 2 wafer screws (1 on each side - 8 in total).
Note: Securing inner (B) pieces to top (A) will add rigidity,
making it easier to lineup and install outer (B) pieces.
Important: (B) - (tall vertical supports) must be positioned as
shown to ensure the correct installation of (C).
Regency Horizon™ HZO42 Gas Fireplace
27
INSTALLATION
6) Manoeuvre remaining (B) pieces and position in each corner
of the frame - fl at side facing out - see 2 diagrams below.
7) LIne up screw holes on top / bottom (A) with each (B)- secure
with 3 wafer screws each on top and bottom - 6 screws in
total for each outer (B) (3 top- 3 bottom).
9) Position remaining 2 - (C) pieces offset from center rib as
shown below.
(C)
10) Position (D) on top of (C) pieces - line up screw holes and
secure (D) to (C) with 12 wafer screws.
(D)
(B)
(A)
8) Position 4 - (C) pieces with the fl at side back to back with the
fl at side of each inner Part B as shown below. Secure each
(C) to bottom (A) with 3 wafer screws (one on each side and
one at top as shown below.
(C)
11) Measure 44-11/16" from fl oor (bottom of the header
location) line up (E) (header) with appropriate screw holes.
(E)
44-11/16"
28
(C)Screw
locations
(B)+ (C) - fl at sides back to back
Regency Horizon™ HZO42 Gas Fireplace
INSTALLATION
12) LIne up screw holes on (E) (header) and (B) (inner vertical
support). Secure with 2 wafer screws on each side (4 total)
as shown below. This will now be the front of the frame.
(E)
13) On the back side of the frame. Install both (F) pieces (corner
brace) on opposite corners.
14) Line screw holes on 1 (F) (corner brace) with (B) + (A) and
secure with 4 wafer screws. as shown below.
(A)
(B)
(F)
15) Repeat step 14 for opposite corner as shown below.
Important: (F) parts must be installed opposite from one
another for rigidity as shown below.
(F) corner brackets
positioned in opposite corners
(F)
(B)
(D)
16) Install vertical back support to back of assembly with 2
screws at top and bottom in locations shown below.
Regency Horizon™ HZO42 Gas Fireplace
Note: Confi rm assembly is level and square before
proceeding with further materials.
29
INSTALLATION
REMOTE PROPANE / LP GAS ENCLOSURES INSTALLATION GUIDELINES
If the unit is permanently connected to a gas piping system
from a remote supply tank, installation must be in accordance with local codes or, in absence of local codes, with the
National fuel Gas codes ANSI Z223/1.NFPA 54.
If constructing an enclosure to conceal the propane / LP cylinder- the enclosure must adhere to the following construction requirements:
Enclosures may be constructed with one side completely
open OR if the enclosure is built with four (4) sides, a top
and a bottom:
• A Propane / LP gas cylinder enclosure requires four
(4) ventilation openings at the top and bottom of the
enclosure. The openings must adhere to the minimum requirements according to the capacity of the
cylinder (see Diagram 1).
• Each opening in the enclosure must be equally sized
and spaced at a minimum of 180°. Openings must
remain unobstructed.
• Top ventilation openings are required on the side
walls of the enclosure within 5" (127mm) of the top
of the enclosure. They need to be of equal size,
unobstructed and spaced 180° apart. The openings
need to be a total area of 1 in² /lb (14.2 cm²/kg) of
fuel storage capacity.
• Bottom opening must provide a minimum of 1/2
square inches (3.23 cm²) for each pound of pro-
• Every opening must have minimum dimensions to
• Ventilation openings in side walls must not communi-
• The cylinder valve must be easily accessible by
• The enclosure needs to isolate the cylinder from the
• The enclosure needs to allow connection, discon-
• The enclosure should allow testing of any connec-
pane/LP contained in the tank (see example below).
allow entrance of a 1/8" (3.2mm) diameter rod.
cate directly with other enclosures of the appliance.
hand. Connections should be easy to leak test
inside the enclosure. A door on the enclosure is
acceptable only if easily opened without the use of
tools and is non locking.
burner compartment and provide protection from
radiation, act as a flame barrier and protect the cylinder from foreign material.
nection and inspection of the connection of the LP
- gas cylinder.
tion on the LP cylinder that might be disturbed during installation.
Propane / LP Tank Enclosure Specifi cations
A Opening 180° apart from each other
B Minimum of 2" (50.8mm) from fl oor/ground to base of tank
C Maximum of 1" (25.4mm) from to base of tank to bottom of opening
5” Max.
5” Max.
Diagram 1
A
1” Max.
2” Min.
C
B
30
Regency Horizon™ HZO42 Gas Fireplace
OPERATING INSTRUCTIONS
INSTALLATION
OPERATING
INSTRUCTIONS
1) Read and understand these instructions before
operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Ensure that the stainless panels are installed.
5) Verify log placement. If the pilot cannot be
seen when lighting the unit, the logs have been
incorrectly positioned.
6) The unit should never be turned off, and on
again without a minimum of a 60 second wait.
LIGHTING PROCEDURE
1) Turn on ON/OFF switch.
2) Press and release on ON/OFF button once.
FIRST FIRE
The fi rst fi re in your fi replace is part of the paint
curing process. T o ensure that the paint is properly
cured, it is recommended that you burn your fi replace
for at least four (4) hours the fi rst time you use it
.
When fi rst operated, the unit will release an odour
caused by the curing of the paint, the burning off of
any oils remaining from manufacturing.
The glass panel may require cleaning after the unit
has cooled down.
DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS HOT.
Note: When the glass is cold and the appliance
is lit, it may cause condensation and fog
the glass. This condensation is normal
and will disappear in a few minutes as
the glass heats up.
AERATION
ADJUSTMENT
Open the air shutter for a blue fl ame or close for a
yellower fl ame. The burner aeration is factory set
but may need adjusting due to either the local gas
supply or altitude.
Minimum Air Shutter Opening:
1/8" Natural Gas
1/4" Propane
CAUTION: Carbon will be produced if air shutter
is closed too much.
Note: Any damage due to carboning resulting from
improperly setting the aeration controls is NOT
covered under warranty.
Note: Aeration Adjustment should only be per-
formed by an authorized FPI Installer at the
time of installation or service.
3) After approximately 4 seconds the spark igni-
tion system will spark for 60 seconds to light
the main burner.
4) The unit will turn on.
Note: The fi rst try for ignition will last approximately
60 seconds. If there is no fl ame ignition (rectifi -
cation) the board will stop sparking for approximately 35 seconds. After wait time , the board
will start second try for ignition by sparking for
approximately 60 seconds . If there is still no
positive ignition the board will go into lock out.
The system will need to be reset as follows:
a) Turn the system off using ON/OFF switch.
b) After approximately 2 seconds turn on ON/
OFF switch.
c) Unit will repeat step 2.
SHUTDOWN
PROCEDURE
1) Turn ON/OFF switch.
2) If service is to be performed - you must discon-
nect both sources of power to the unit, the main
power and battery.
Regency Horizon™ HZO42 Gas Fireplace
3131
OPERATING INSTRUCTIONS
COPY OF LIGHTING PLATE INSTRUCTIONS
The lighting plate is located on the underside of the front access panel in the unit.
FOR YOUR SAFETY READ BEFORE LIGHTING
This appliance must be installed in accordance with local codes, if any;
if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
WARNING: If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal injury or
loss of life. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to the owner’s
information manual provided with this appliance. For assistance or
additional information consult a qualified installer, service agency
or gas supplier.
AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions
dans la présente notice risquede déclencher un incendie ou une explosion
entraînant des dommages, des blessures ou la mort.
Une installation, d'ajustement, de modifi cation, de service ou
d'entretien peut provoquer des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de l'information fournie
avec cet appareil. Pour obtenir de l'aide ou des informations supplémentaires consulter un installateur qualifi é, une agence de service ou
fournisseur de gaz.
CAUTION:
Hot while in
operation. Do not
touch. Severe
Burns may result.
Due to high surface
temperatures
s.
keep children,
clothing and
furniture, gasoline
and other liquids
having flammable
vapors away. Keep
burner and control
compartment clean.
See installation
and operating
instructions
accompanying
appliance.
Natural Gas and Propane Installation Codes, CSA B149.1.
LIGHTING INSTRUCTIONS
STOP! Read the safety information on this label.
1) Turn on ON/OFF switch
2) After approximately 4 seconds the spark ignition system will spark
for 60 seconds to light the main burner.
3) The unit will turn on.
Note: The fi rst attempt to ignition will last approximately 60 seconds.
If there is no fl ame ignition (rectifi cation) the board will stop sparking
for approximately 35 seconds. After this wait time, the board will start
a second try for ignition by sparking for approximately 60 seconds.
If there is still no positive ignition after the second attempt the board
will go into lock out.
The system will need to be reset as follows (after going
into lock out mode):
a) Wait 5 minutes - turn the system off using ON/OFF
b) After approximately 2 seconds turn on ON/OFF switch.
c) Unit will repeat step 2.
switch.
A) This appliance is equipped with an ignition device which automatically lights the pilot.
Do not try to light the pilot by hand.
B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to
the fl oor because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier ’s instructions
- If you cannot reach your gas supplier, call the fi re department.
A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.
Ne tentez pas d’allumer la veilleuse manuellement.
B) AVANT DE FAIRE FONCTIONNER, renifl ez tout autour de l’appareil pour déceler une odeur
de gaz. Renifl ez près du plancher, car certains gaz sont pluslourds que l’air et peuvent
s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil
• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans le
bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les
instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies
1) Appuyez le bouton ON / OFF
2) Attendre 4 secondes. Le système d’allumage produira
des étincelles pendant 60 secondes afi n d’amorcer le
brûleur principal.
3) Les fl ammes s’allumeront.
Remarque : Au premier allumage, le système tente
d’allumer les fl ammes pendant 60 secondes. Si l’essai est
infructueux, le système fait une pause de 35 secondes.
C’est ce qu'on appelle l'étape de rectifi cation. Ce délai
écoulé, le système tente à nouveau d'allumer les fl ammes
en produisant des étincelles pendant 60 secondes. Si les
fl ammes ne s’allument toujours pas, le système se met
en mode verrouillage.
Il faut alors le réinitialiser en suivant les
étapes ci-dessous (pour le déverrouiller) :
a) Attendre 5 minutes et éteindre l’appareil en
b) Attendre 2 secondes et rallumer le système
c) L'unité répétera l'étape 2.
réglant l’interrupteur à la position « OFF »;
à l’aide de l’interrupteur.
TO TURN OFF
GAS APPLIANCE
1) Turn off ON/OFF switch
2) If service is to be performed you must disconnect power to
the unit, from the battery pack,
refer to manual
Appuyez sur le bouton ON /
1)
OFF
2) Si le service est effectuée,
vous devez débrancher
l'appareil, du bloc-piles, voir le
manuel d'instruction pour plus
de détails.
DO NOT REMOVE
THIS INSTRUCTION PLATE
918-892a
32
32
Regency Horizon™ HZO42 Gas Fireplace
MAINTENANCE
MAINTENANCE INSTRUCTIONS
1) Always turn off the gas valve and unplug the batteries before cleaning. For relighting, refer to lighting instructions. Keep the burner and control compartment
clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.
2) Clean appliance with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas fi replace glass cleaner.
3) Hand and fi nger marks should be cleaned off with a soft cloth and a stainless steel cleaner. Most stainless steel cleaners leave a fi lm/
residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this fi lm before applying heat to the unit.
Failure to do this will result in burn stains on panels which you will be unable to remove.
4) The heater is fi nished in a heat resistant paint and should only be refi nished with heat resistant paint. Regency
#6309.
5) Make a periodic check of burner for proper position and condition. Visually check the fl ame of the burner periodically, making sure the fl ames are steady;
not lifting or fl oating. If there is a problem, call a qualifi ed service person.
6) The appliance must be inspected before use, and at least annually, by a qualifi ed fi eld service person, to ensure that the fl ow of combustion and ventilation
air is not obstructed.
7) Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician to inspect the appliance and to replace any
part of the control system and any gas control which has been under water. This is not covered under the terms of the warranty policy.
9) Verify operation after servicing.
®
uses StoveBright Paint - Metallic Black
Regency Horizon™ HZO42 Gas Fireplace
33
MAINTENANCE
V ALVE ASSEMBLY REPLACEMENT
1) Turn the unit off and allow it to cool down to room temperature.
2) Turn off the gas supply to the unit.
3) Remove trim.
4) Remove the faceplate by lifting it up and off the unit.
9) Remove the front access panel by lifting up and out.
10) Remove the burner tray by lifting up and out.
5) Remove the glass wind shield by lifting it up and out- place on a soft
surface.
6) Remove the screw and panel clip on the right side. Remove the right
side panel once the clip has been removed.
11) Remove left and right screws from the burner legs.
7) Remove the screw and panel clip on the left side. Remove the left
side panel once the clip has been removed.
8) Remove the back panel once the 2 side panels have been removed.
34
Regency Horizon™ HZO42 Gas Fireplace
12) Slide the burner to the right and lift up and out of the fi rebox.
13) Remove 6 screws in locations shown below to access DFC.
6th screw located at back
MAINTENANCE
14) Remove 6 screws an lift out valve tray.
16) Replace with new valve tray and reverse steps. Inspect gasket condition,
replace if necessary.
Regency Horizon™ HZO42 Gas Fireplace
35
MAINTENANCE
DIGITAL FIREPLACE BURNER CONTROL REMOVAL
1 Remove 6 screws in locations shown below to access DFC.
6th screw located at back
2. Remove the DFC from the fl oor of the fi rebox by removing 2 screws in
locations shown below to release DFC bracket.
5. Disconnect the Black sparker wire with black spade connector from CN3.
See Diagram 2 below.
Diagram 2
Sparker Wire
6. Disconnect the white and green On/Off switch wires.
See Diagram 3 below.
White
Green
4. Disconnect the Black Pilot sensor wire with Red Spade connector from
the 'ON' on DFBC (Digital fi replace burner control) box.
See Diagram 1 below.
Pilot Sensor
Wire
Diagram 1
Diagram 3
7. Disconnect the yellow ground wire with green diagonal stripe for pilot
(CN2). See Diagram 4 below.
Ground wire
8. Disconnect the three valve wires (yellow wire with green stripe).
See Diagram 5 below.
Diagram 4
ON/OFF wires
36
Valve wire
Diagram 5
Regency Horizon™ HZO42 Gas Fireplace
PARTS LIST
Part # Description
1) 326-552 Faceplate Assembly
2) 326-009 Heat Defl ector
3) 940-368/P Wind Shield
4) 326-525 Burner Assembly NG
326-525 Burner Assembly LP
5) 904-777 Orifi ce # 29 (NG)
904-434 Orifi ce # 47 (LP)
6) 326-574/P Valve Assembly NG
326-576/P Valve Assembly LP
7) 326-007/P Front access panel
8) 326-048 Burner Tray Cover
MAIN ASSEMBLY
326-028 Pilot Hood
326-036 Top nailing strip
326-037/F Side nailing strip
948-223 Logo Plate
326-940 Weather Cover
910-363 Wall switch
918-882 Manual
2
8
7
4
3
1
5
6
Regency Horizon™ HZO42 Gas Fireplace
37
PARTS LIST
BURNER ASSEMBLY
Part # Description
9) 326-525 Burner Assembly NG
326-525 Burner Assembly LP
10) 911-024 Valve NG SIT 880
911-025 Valve LP SIT 880
11) 326-008 Burner Tray Cover
12) 911-006 Pilot Assembly - NG
911-007 Pilot Assembly - LP
Flame Sensor
Igniter
9
Part # Description
904-777 Orifi ce #29 NG
904-434 Orifi ce #47 LP
326-930 Log Set
38
12
10
11
Regency Horizon™ HZO42 Gas Fireplace
Part # Description
13) 326-907 Refl ective Stainless Steel Inner Panels
14) 940-368/P Glass windshield
15) 326-552 Faceplate Brushed Stainless
946-676 Copper Glass Crystals
946-695 Garden Stones
PARTS LIST
ACCESSORIES
15 14
Regency Horizon™ HZO42 Gas Fireplace
13
39
NOTES
40
Regency Horizon™ HZO42 Gas Fireplace
NOTES
Regency Horizon™ HZO42 Gas Fireplace
41
NOTES
42
Regency Horizon™ HZO42 Gas Fireplace
WARRANTY
Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly
before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited warranty to the original purchaser of a Regency® Product. This warranty
is not transferable.
Limited Warranty:
The gas valve, burner tube, pilot assembly, fl ame sensor, electrode, control modules, switches and wiring for battery compartment are all covered for (2) two years on parts and (1) one year
on subsidized* labor only against defect in manufacture, from date of purchase.
Ceramic logs, volcanic stones, glass crystals, and tempered glass wind shield carry a (1) one year warranty against manufacturing defect, on parts, with no labor allowance, from date of
purchase.
Special fi nishes such as stainless steel components are not covered against environmental damage including corrosion, misuse, cleaning or handling issues that cause discoloration. To
receive consideration any damage claim against stainless steel components must be submitted at the time of installation. Damage from abrasive cleaners and discolouration to stainless
components caused by heat, are not covered under warranty. Damage reported after installation will not be covered.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid only with a receipt. Any item shown to
be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the
defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer
defect.
The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency
service persons or dealers.
At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date,
serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
Batteries are not covered under warranty policy.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as
products evolve, fi eld modifi cations or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or problems
caused by environmental or geographical conditions, inadequate ventilation.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Malfunction | damage of this appliance due to mother nature (wind, rain, snow, etc.) is not covered under the terms of the warranty policy.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may create a danger and nullify your
warranty on this product.
Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.
* Subsidy according to job scale as predetermined by FPI.
®
product. FPI will not be liable for results or costs of workmanship from unauthorized
Regency Horizon™ HZO42 Gas Fireplace
43
Register your Regency® warranty online
www.regency-fi re.com
Reasons to register your product online today!
• View and modify a list of all your registered products.
• Request automatic email notifi cation of new product updates.
• Stay informed about the current promotions, events, and special
offers on related products.
Installer: Please complete the following information
Dealer Name & Address: ______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: __________________________________________________________
Regency Horizon is a trademark of FPI Fireplace Products International Ltd.
© Copyright 2014, FPI Fireplace Products International Ltd. All rights reserved.
Horizon HZO42 Product Video
Printed in Canada
Loading...
