Regency Horizon
™
HZ54EPV
Owners &
Installation Manual
Gas Fireplace
MODELS: HZ54EPV-NG Natural Gas
HZ54EPV-LP Propane
WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
Tested by:
918-947a
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fi re.com
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fi re department.
06/29/11
To the New Owner:
Congratulations!
®
You are the owner of a state-of-the-art Gas Fireplace by REGENCY
. The HZ54EPV has been
designed to provide you with all the warmth and charm of a wood fi replace at the fl ick of a switch.
The model HZ54EPV has been approved by Warnock Hersey/Intertek for both safety and effi ciency .
As it also bears our own mark, it promises to provide you with economy , comfort and security for
many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency
®
Fireplace.
2
2
Regency Horizon HZ54EPV Gas Fireplace
Regency Horizon HZ54EPV Gas Fireplace
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
®
This Regency
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88a-2007 / CSA 2.33a-2007 and GAS-FIRED APPLIANCES
FOR USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance can only be used with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
Ensure that structural members are not cut or weakened during installation.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
Regency Horizon HZ54EPV Gas Fireplace
Regency Horizon HZ54EPV Gas Fireplace
3
3
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal .....................................................5
REQUIREMENTS
MA Code - CO Detector.................................................6
(for the State of Massachusetts only) ............................6
DIMENSIONS
Unit Dimensions ............................................................7
Faceplate & Door frame overlay Dimensions ................7
INSTALLATION
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist ......................................................9
Locating Your Gas Fireplace .........................................9
Clearances ..................................................................10
Non-Combustible Requirements .................................10
Non-combustible facing board .....................................11
Non combustible facing installation .............................11
Mantel Clearances.......................................................12
Mantel Leg Clearances................................................12
Framing & Finishing.....................................................13
Framing dimensions ....................................................14
Framing with a negative vent run ................................15
Unit Assembly Prior To Installation ..............................16
Standoff Assembly ...............................................16
Nailing Strips ........................................................16
Venting Introduction .....................................................16
Vent Restrictor Position ...............................................17

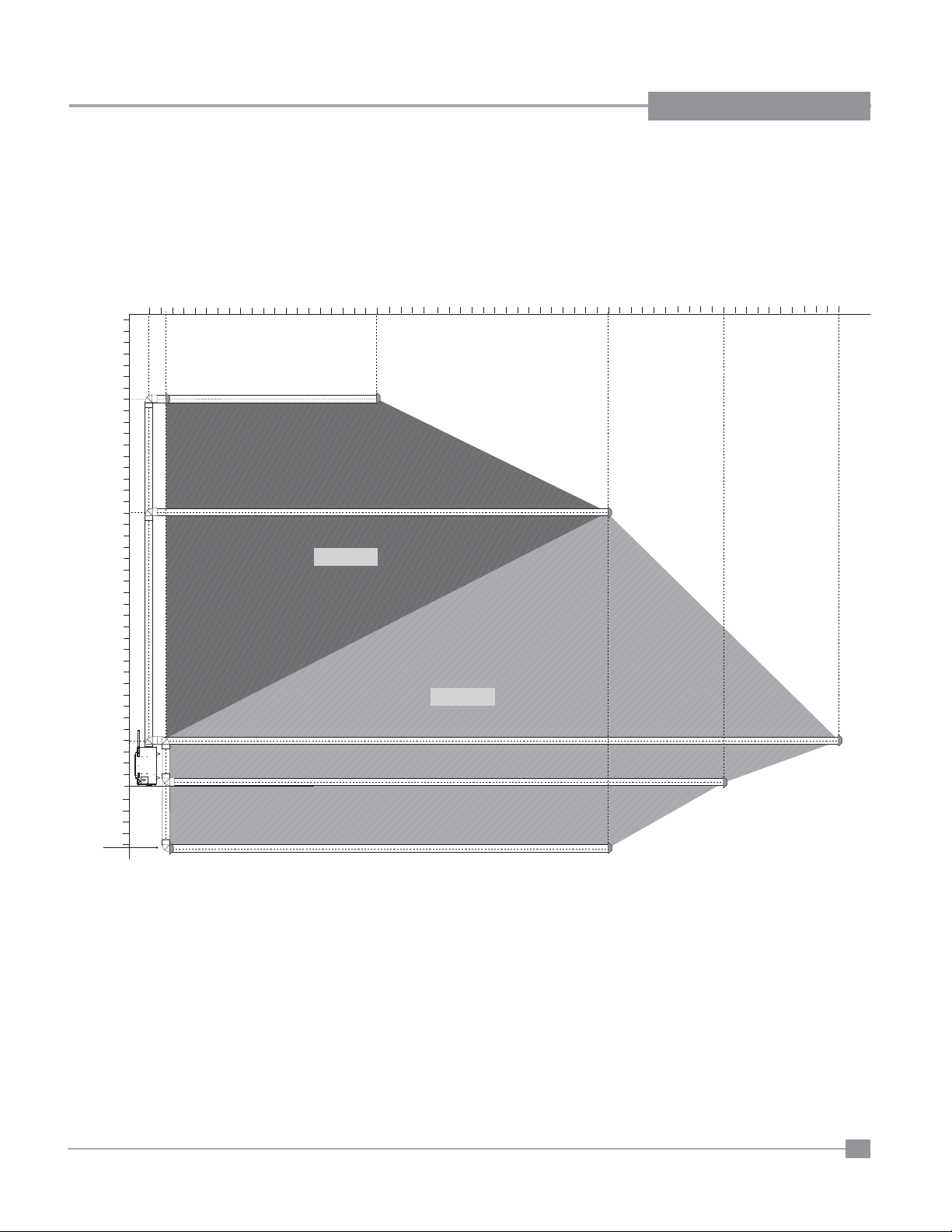

Gas Power Vent Installation Rigid Pipe only ...............18
5” x 8” Rigid Pipe Cross Reference Chart ...................19
Venting Arrangements for Horizontal Terminations .....21

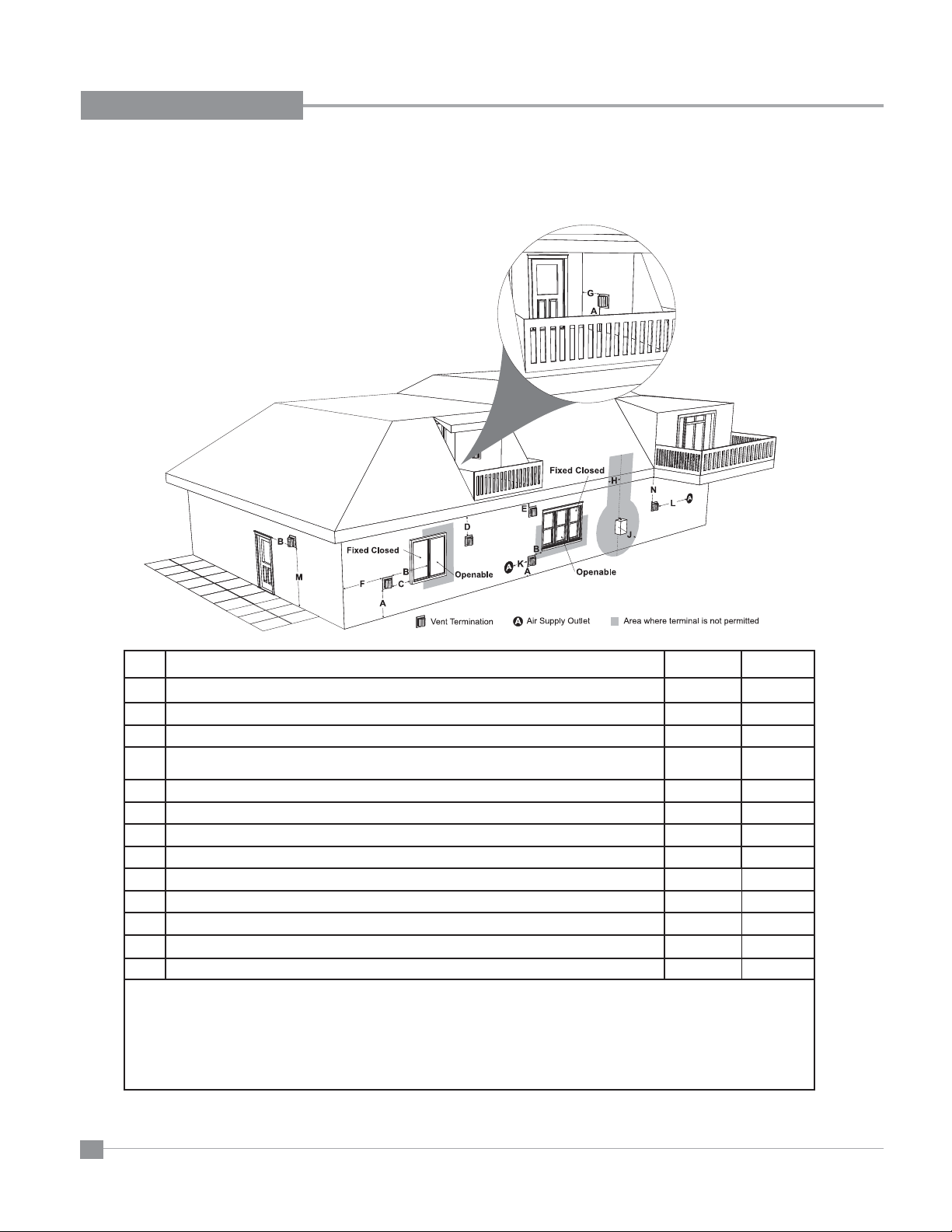

Exterior Vent Termination Requirements .....................22
Clearances to the power..............................................25
vent termination ...........................................................25

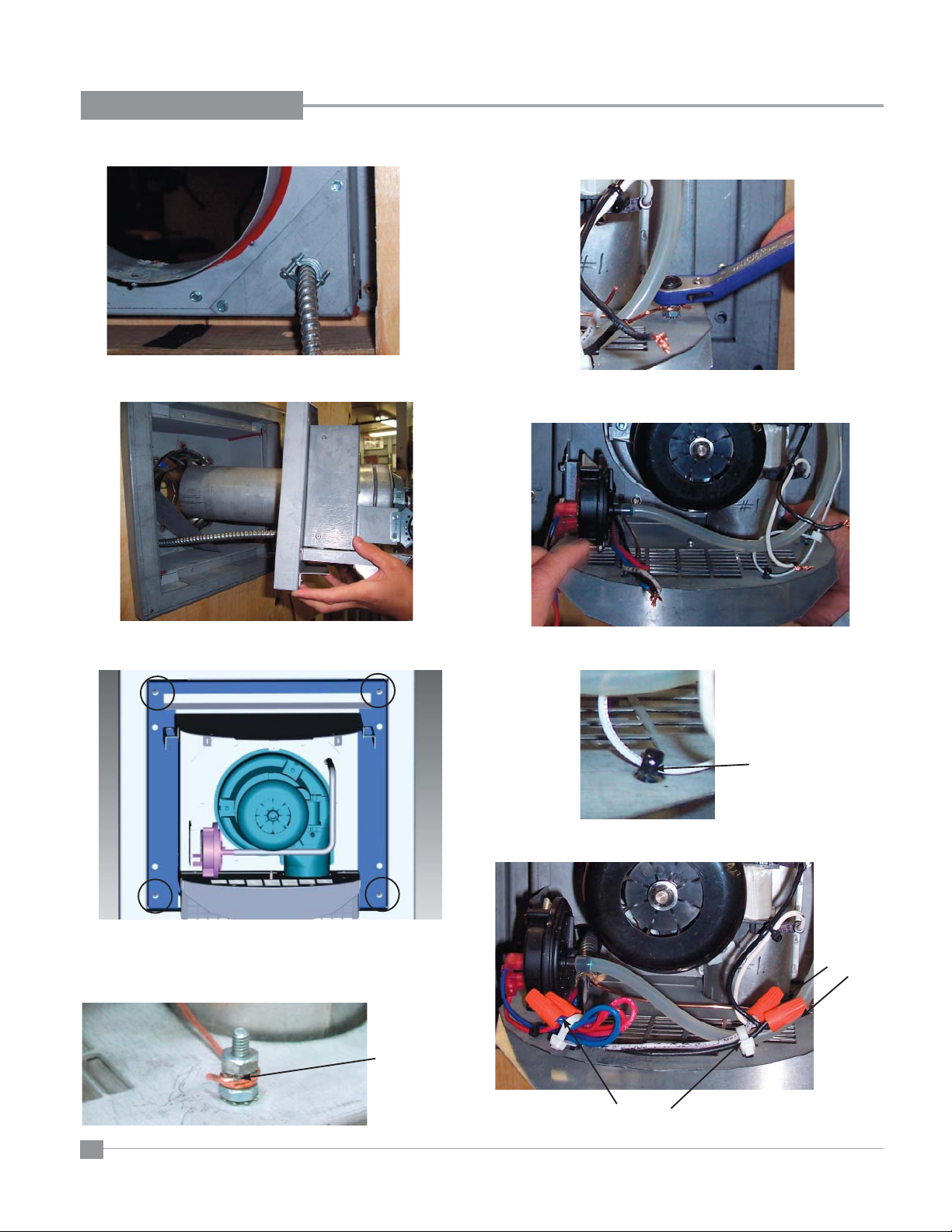

PIPe connection from terminal to unit..........................25

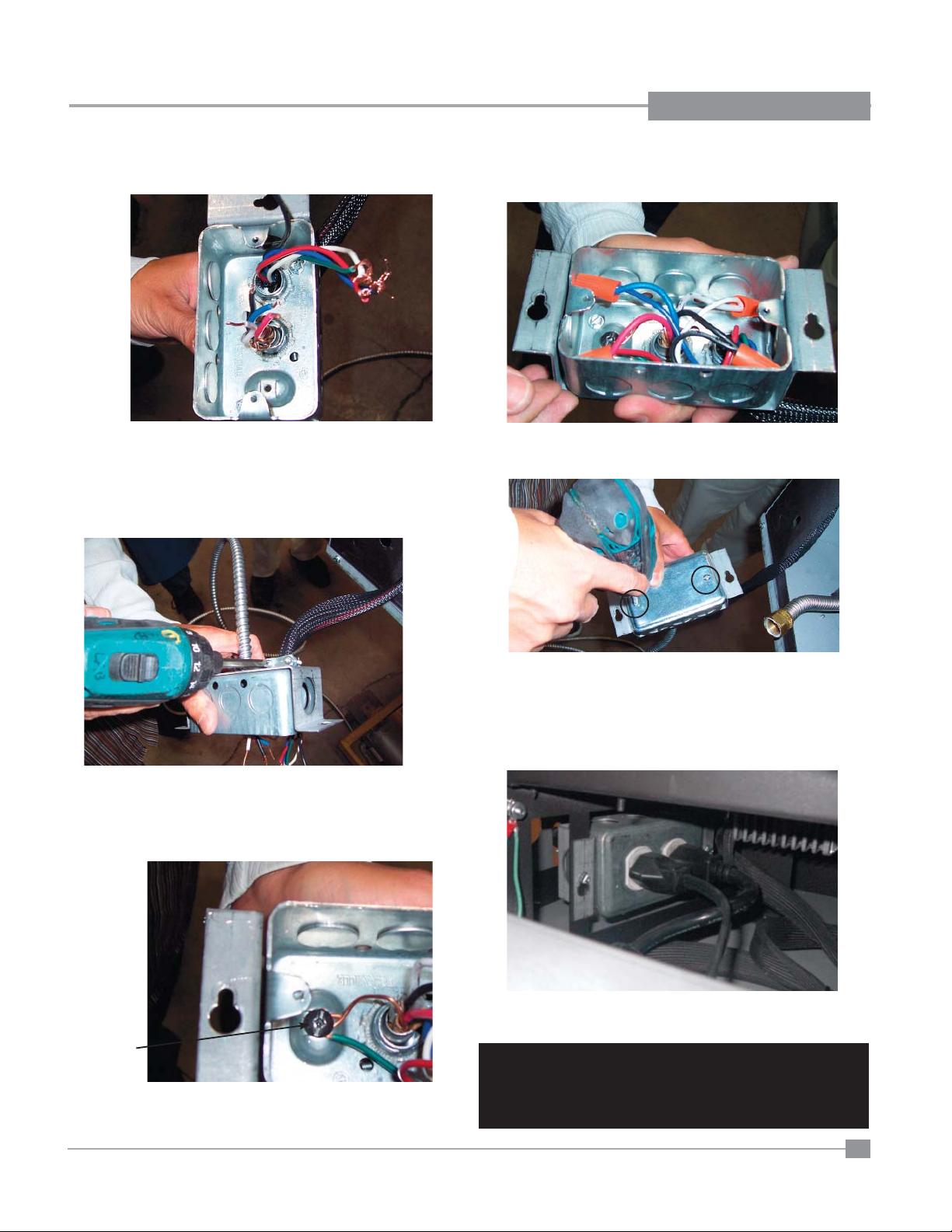

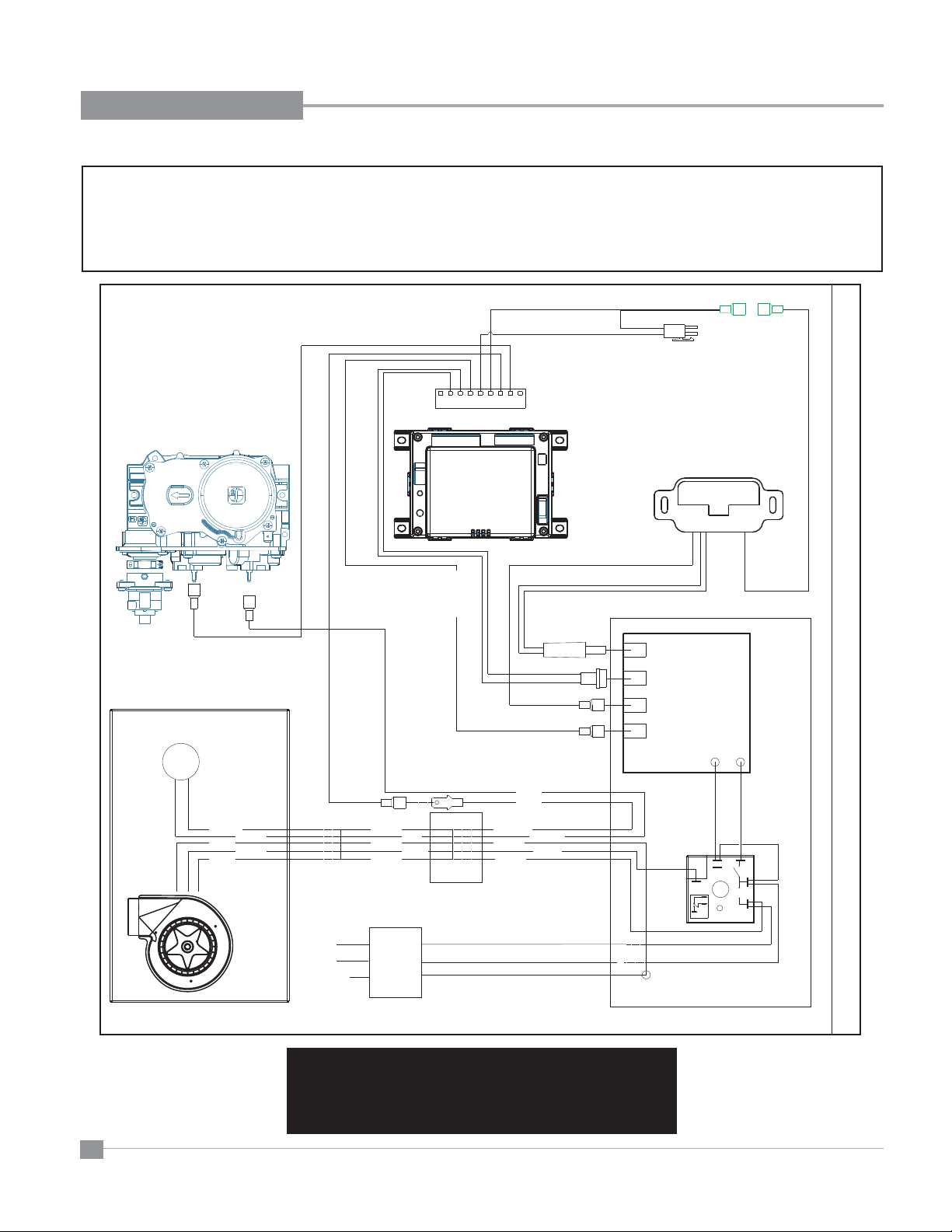

power vent wiring diagram...........................................28
Aeration Adjustment ....................................................29
High Elevation .............................................................30
Gas Line Installation ....................................................30
Pilot Adjustment ...........................................................30
Gas Pipe Pressure Testing ..........................................30
886 S.I.T. Valve Description .........................................30
Valve cover removal ....................................................31

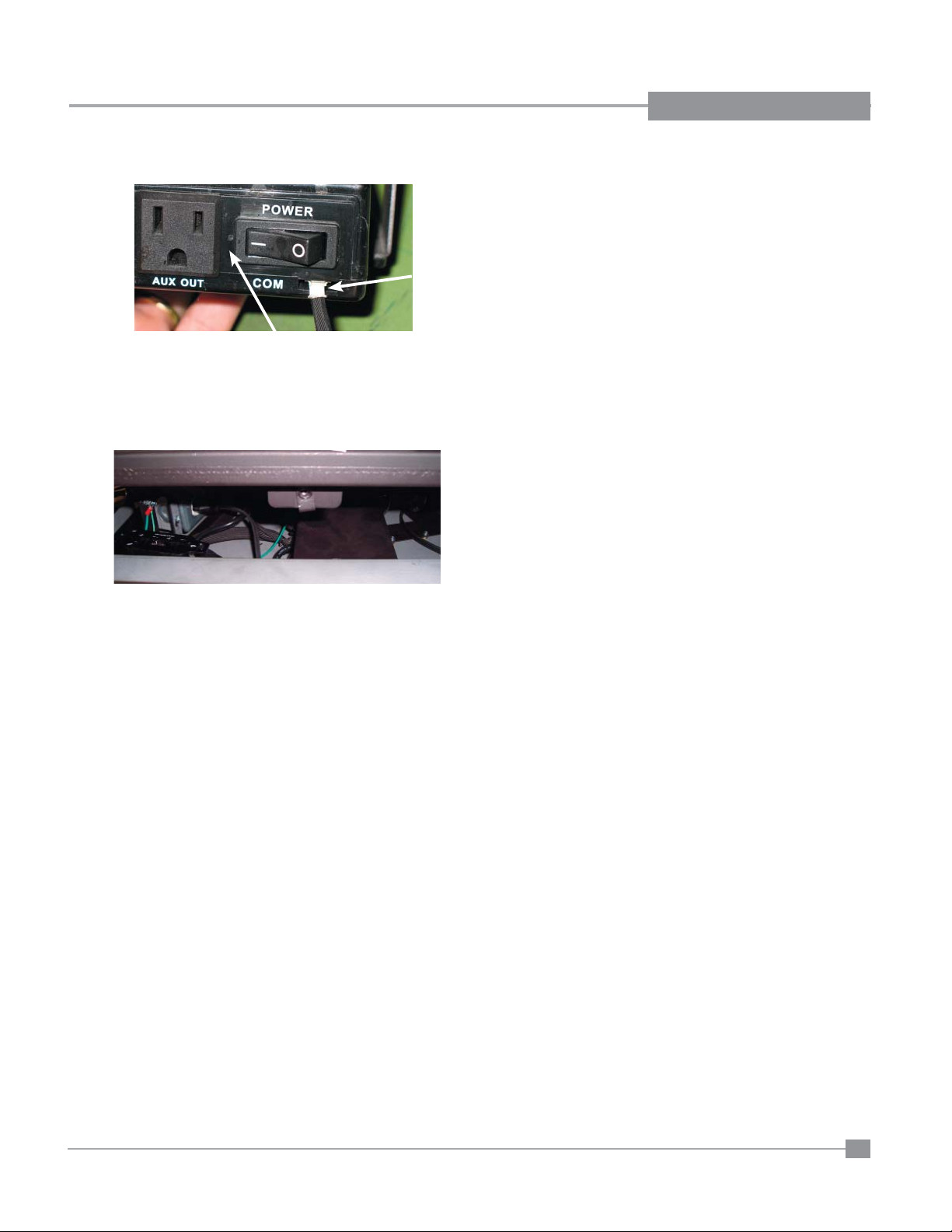

Optional fan Wiring Diagram ......................................32
Optional Remote Control .............................................33
Receiver Wall Switch ...................................................33
Wall mount receiver installation ...................................34
Battery installation .......................................................36
GT remote Installation .................................................36
GTM remote installation ..............................................37
GTMF remote installation ............................................38
OptionaL Refl ective Panel Installation .........................40

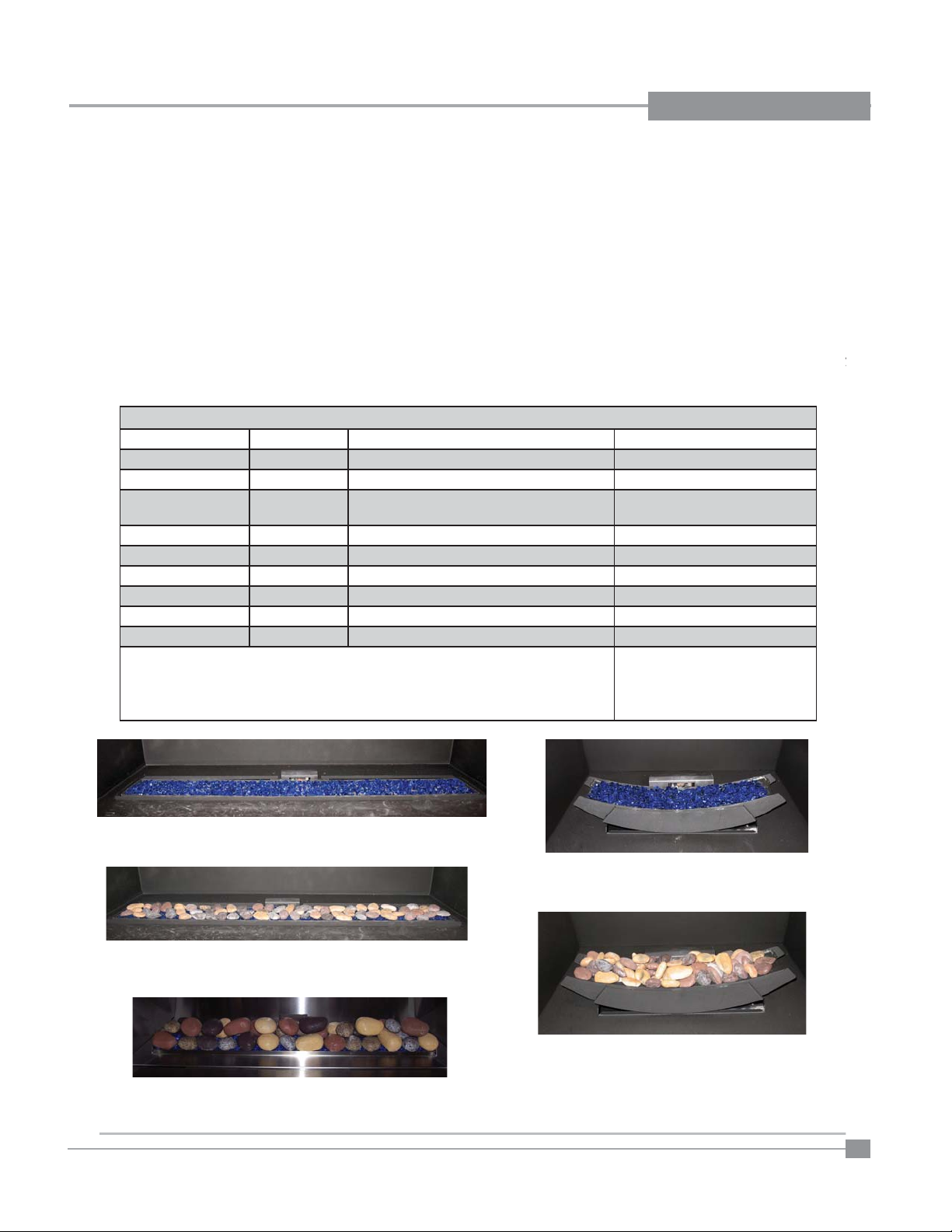

Glass Crystals or optional ceramic stones ..................41
Installation On Burner ..................................................41
Glass Crystals or optional pebbles ..............................42
Installation On fi rebox base .........................................42

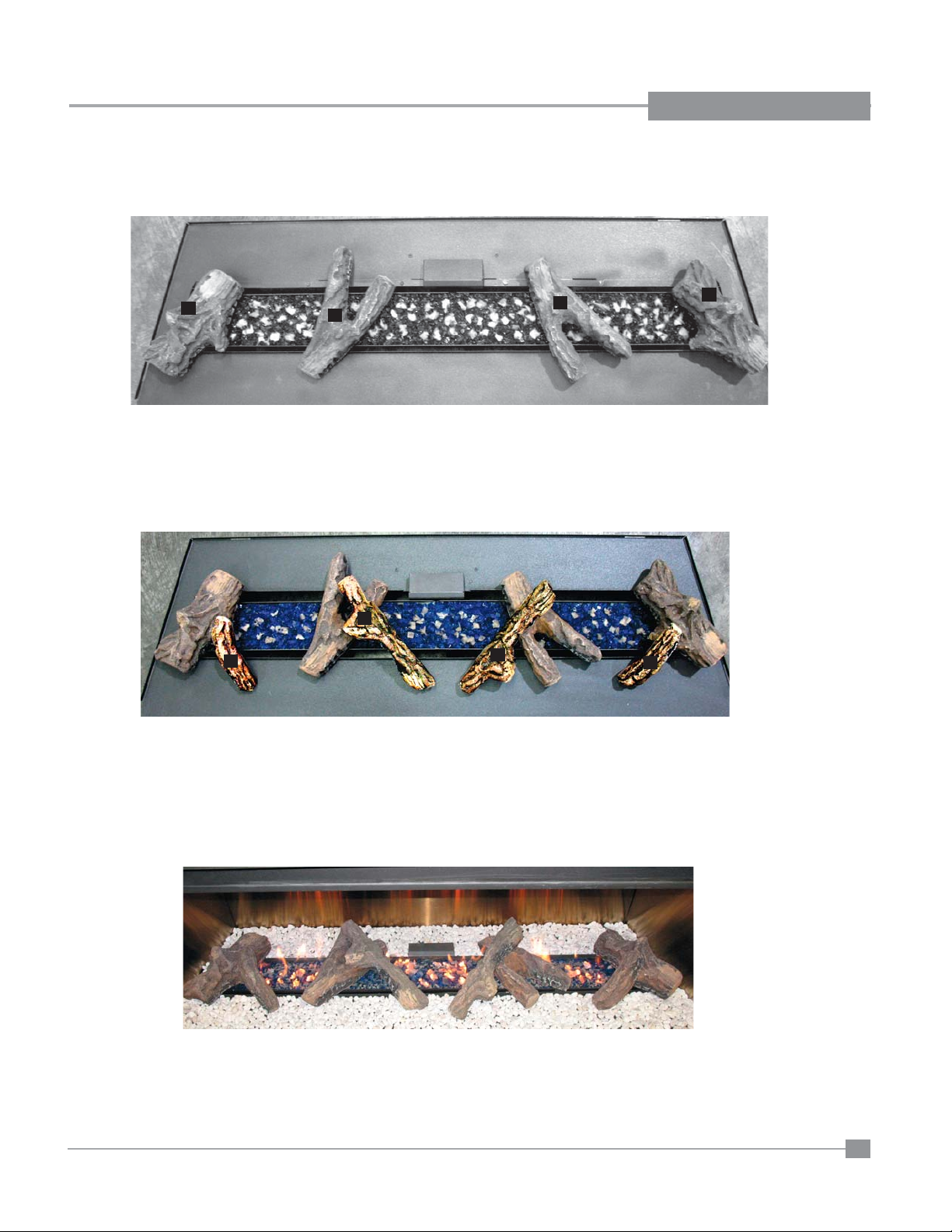

Optional Log set Installation ........................................43

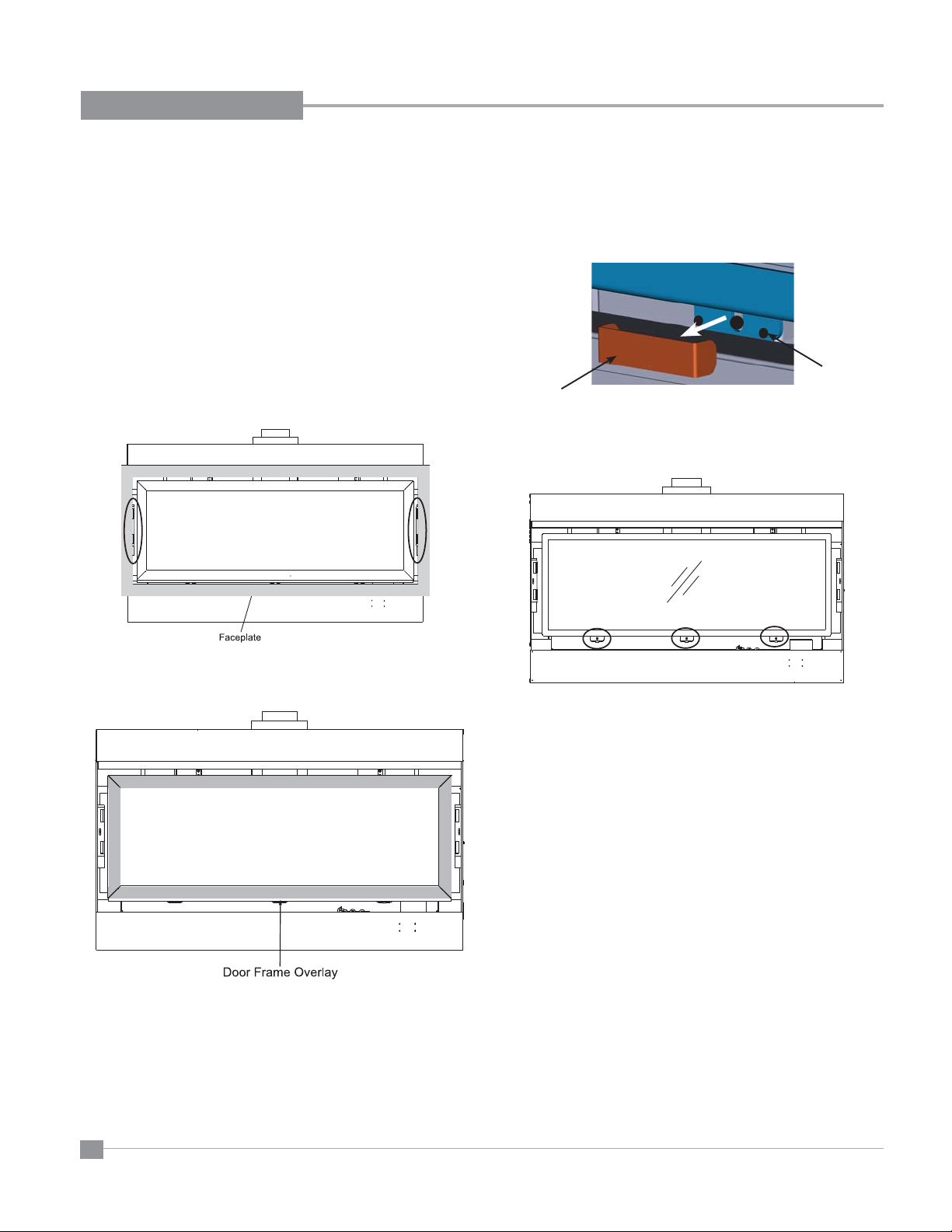

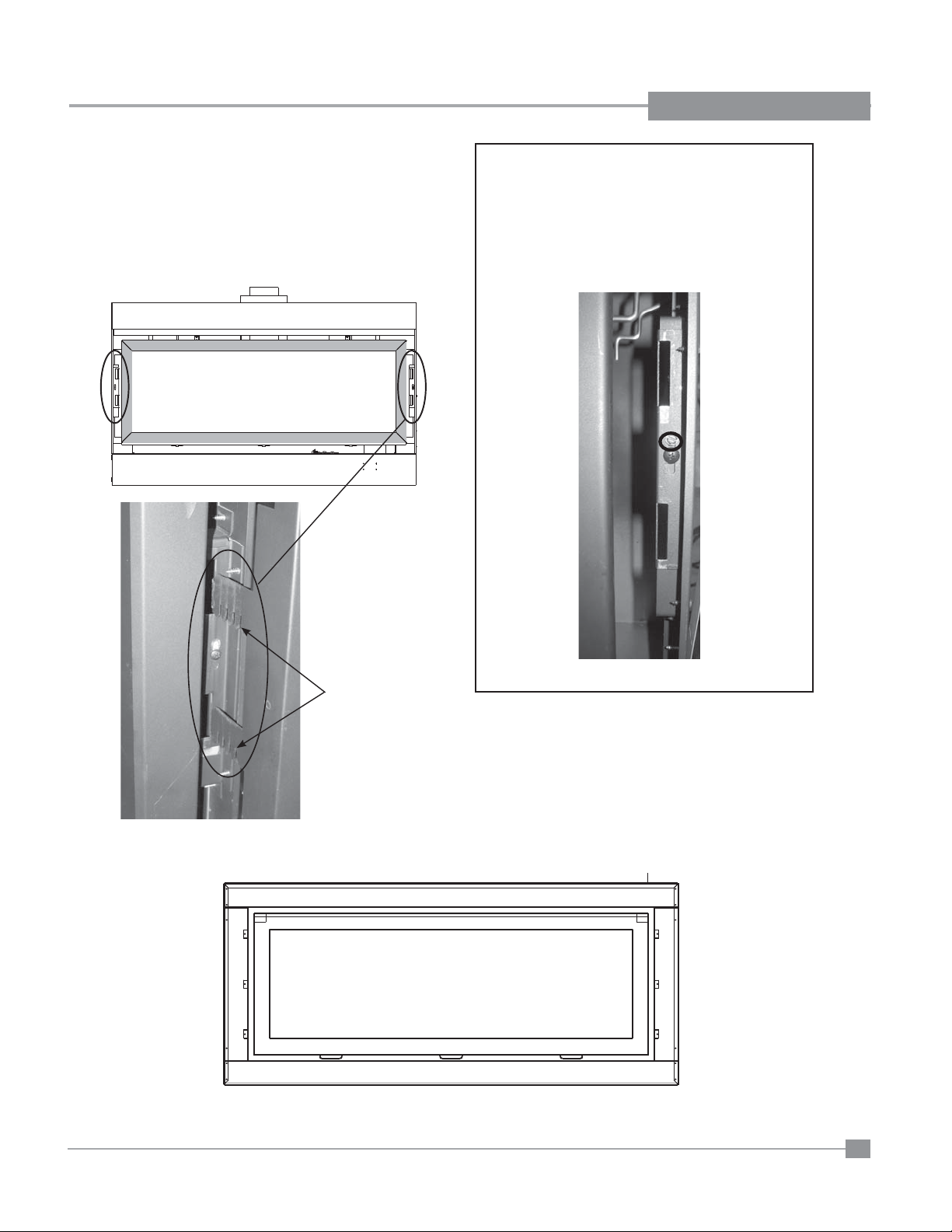

Faceplate & Door frame overlay Installation................46
optional fan installation ................................................48
OPERATING INSTRUCTIONS
Operating Instructions .................................................51
First Fire ......................................................................51
Lighting Procedure ......................................................51
Shutdown Procedure ...................................................51
Normal Operating Sounds of Gas Appliances .............51
Copy of Lighting Plate Instructions ..............................52
MAINTENANCE
Maintenance Instructions.............................................53
General Vent Maintenance ..........................................53
Glass Gasket ...............................................................53
Glass Door...................................................................53
Glass Replacement .............................................53
Glass Door Removal ...................................................54
V alve Tray Replacement ..............................................55
PARTS
Main Assembly ............................................................57
Accessories .................................................................58
WARRANTY
The Warranty: Limited Lifetime ...................................59
4
Regency Horizon HZ54EPV Gas Fireplace
This is a copy of the label that accompanies
each HZ54EPV-NG and HZ54EPV-LP Direct
Vent Gas Fireplace. We have printed a copy of
the contents here for your review.
NOTE: Regency
®
units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL
Duplicate S/N
Listed:
VENTED GAS FIREPLACE HEATER /
Certified for/Certifi e pour:
Tested to:
4001172
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
NATURAL GAS: Model HZ54EPV-NG
Min. Supply Pressure 5“ WC (1.25 kpa)
Low Setting Man. Pressure 1.6"WC (0.40 kpa)
Max. Manifold Pressure 3.5"WC (0.87 kpa)
Orifice Size #30DMS
Minimum Input 29,000Btu/h
Maximum Input 41,500 Btu/h (12.16 kW)
Altitude
PROPANE GAS: Model HZ54EPV-LP
Min. Supply Pressure 12“WC (2.98 kpa)
Low Setting Man. Pressure 6.4"WC (1.59 kpa)
Max. Manifold Pressure 10"WC (2.49 kpa)
Orifice Size #49 DMS
Minimum Input 30,000Btu/
Maximum Input 37,000Btu/h (10.84 kW)
Altitude
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliancemust be installed inaccordance with theStandard CAN/CSAZ240 MH, MobileHousing, in Canada,or with the ManufacturedHome Construction andSafety Standard,Title 24 CFR,Part 3280, in
the UnitedStates, orwhen such astandard isnot applicable,ANSI/NCSBCS A225.1/NFPA501A, ManufacturedHome InstallationsStandard orANSIA119.2ou NFPA501C Standardfor RecreationalVehicles
This applianceis only foruse with the typeof gas indicatedon the ratingplate and may beinstalled in anaftermarket, permanently located,manufactured (mobile) home wherenot prohibitedby local codes.See
owner's manualfor details.Listed for usewith PowerVent Kit #946-705.
Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon lescodes d'installationANSI Z223.1,National Fuel GasCode ouCSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si cesnormes ne sont pas pertinentes,utilisez la normeANSI/NCSBCS A225.1/NFPA501A, Manufactured Home InstallationsStandard, ou ANSIA119.2 ou NFPA501C Standard for Recreational
Vehicles.Homologué avec terminaisonà évacuationmécanique 946-705.
Cet appareildoit être utilize uniquement avecle type de gaz indiqué surla plaque signalétique. Cetappareil peut être installé dans unemaison préfabriquée ou mobile(É.-U. seulement) installée à demeure si
les règlementslocaux lepermettent. Voirla notice del'utilisateur pourplus de renseignements.
This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation.
FOR USEWITH GLASSDOORS CERTIFIED WITHTHE APPLIANCEONLY
Electrical supply / Électrique 115VAC, 2.5 A, 60Hz.
.
NOT FOR USE WITH SOLID FUEL. / NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.
CAN/CGA-2.17-M91,ANSI Z21.88a-2007/CSA 2.33a-2007
(8.50 kW)
0-4500 ft/pi (0-1372 m)
0-4500 ft/pi (0-1372 m)
é
(8.79 kW)
CANADA and U.S.A.
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR CET POELE: Mod le
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
é
D bit minimum selon
é
D bit maximum selon
l'altitude
ÉÉ
QUIP A L'USINE POUR GAZ PROPANE
CONCU POUR CET POELE: Mod le HZ54EPV-LP
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
é
D bit minimum selon
é
D bit maximum selon
l'altitude
FOYER AU GAZ À ÉVACUATION
ééé
é
Calorifique
Calorifique
ééé
é
Calorifique
Calorifique
POUR UTILISATION UNIQUEMENT AVECLES PORTES ENVERRE CERTIFIÉESAVEC L'APPAREIL
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
Minimum Clearances to Combustibles /
HZ54EPV-NG
é
é
Degagement Minimum De Materiaux Combustibles
D
C
DOOR SEAL: Please
check that the door is
properly sealed
(See Instruction Manual for
detailed instructions)
FPI Fireplace Products International Ltd. Delta, BC, Canada
373
Serial No./ No de serie
373
Side Walls
B
A
E
Made in Canada/ Fabrique au Canada
A 4” (102mm)
Ceiling
F
B 40-7/8” (1038mm)
Min. Mantel Height
C 20" (508mm)
Max. Mantel Depth
D 13” (330mm)
Alcove Width
E 83" (2108mm)
Alcove Depth
F 36" (914mm)
918-940
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfi tter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, fl exible con-
nectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
Regency Horizon HZ54EPV Gas Fireplace
5
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
MA Code - CO Detector
(for the State of Massachusetts only)
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
6
Regency Horizon HZ54EPV Gas Fireplace
52-5/8” (1337mm)
59” (1499mm)
UNIT DIMENSIONS
DIMENSIONS
19-3/4” (502mm)
10-5/8”
(270mm)
17-1/8” (435mm)
46-3/8” (1178mm)
31-5/8” (803mm)
48-1/2” (1232mm)
22-3/8” (568mm)
5-11/16”
(144mm)
1-1/2”
(38mm)
FACEPLATE & DOOR FRAME OVERLAY DIMENSIONS
35-1/4” (895mm)
20-1/2” (521mm)
Regency Horizon HZ54EPV Gas Fireplace
7
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The HZ54EPV Direct Vent Fireplace must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual
fi rst. Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting the
installation. It is the responsibility of the installer to
ensure this fi replace is installed in compliance with
manufacturers instructions and all applicable codes.
BEFORE YOU ST ART
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL
IN THE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with lo-
cal codes or, in the absence of local codes, with
the current Canadian or National Gas Codes,
CAN1-B149 or ANSI Z223.1 Installation Codes.
2) The appliance when installed, must be electrically grounded in accordance with local codes,
or in the absence of local codes with the current
National Electrical Code, ANSI/NFP A 70 or CSA
C22.1 Canadian Electrical Code.
3) See general construction and assembly instructions. The appliance and vent should be
enclosed.
4) This appliance must be connected to the specifi ed vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fi tted as per Venting instructions.
5) Inspect the venting system annually for blockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fi replace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
and ceilings when cutting holes for termination.
11) Under no circumstances should this appliance
be modifi ed. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service person. A professional service person should be
called to inspect this appliance annually. Make
it a practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and other
fl ammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
8
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Y our Gas
fi replace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
f) Clearances to terminal
2) Make electrical connections for Power Vent
System and for unit. 120V power is required
to operate unit / power vent system.
3) Assemble Top and Side Standoffs (Refer to
"Unit Assembly Prior to Installation).
4) Slide unit into place.
5) Install vent (Refer to "Venting Arrangement"
sections).
7) Make gas connections (Refer to "Gas Line
Installation section).
8) Install 4 AA batteries into battery pack.
This includes:
1) Clocking the appliance to ensure the correct
fi ring rate (rate noted on label 41,500 Btu/h
(NG), after burning appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the fl ame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results in damage is not the responsibility of the manufacturer.
LOCATING YOUR
GAS FIREPLACE
1) When selecting a location for your fi replace,
ensure that the clearances are met.
2) The appliance must be installed on a fl at, solid,
continuous surface For example a wood, metal
or concrete fl oor or in a raised (on the wall) ap-
plication. The appliance must be installed on
a metal or wood panel extending the full width
and depth of the appliance.
3) The HZ54EPV Gas Fireplace can be installed
in a recessed position or framed out into the
room as in A, B, C and D.
See Diagram 1.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivolt thermostat system). Some areas may
have further requirements, check local codes
before installation.
5) The HZ54EPV Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6) We recommend that you plan your installation
on paper using exact measurements for
clearances and fl oor protection before actually
installing this appliance. Have an authorized
inspector, dealer , or installer review your plans
before installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.
9) Test the pilot (Refer to "Pilot Adjustment"
section).
10) T est Gas Pressure (Refer to "Gas Pipe Pressure
Testing" section).
11) Install standard and optional features. Refer to
the following sections:
a) Optional Log Set Installation
b) Glass Crystals/ Optional Ceramic
Stones
c) Optional Firebox Base Pebbles
d) Optional Refl ective Panels
e) Faceplate / Door Frame Overlay
f) Remote Control
g) Wall Switch
12) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is fi ring
correctly and operation fully explained to
customer.
Diagram 1
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Regency Horizon HZ54EPV Gas Fireplace
9
INSTALLATION
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fi res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fi replace and vent system be installed only in accordance with these instructions.
The top, back and sides of the fi replace are defi ned by
Caution Requirements
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
Fire hazard is an extreme risk if these clearances (air space) to combustible materials
are not adhered to. It is of greatest importance that this fi replace and vent system be
installed only in accordance with these instructions.
WARNING
Clearance: Dimension Measured From:
A: Mantel Height (min.) 20" (508mm) Top of Fireplace Opening
B: Sidewall (on one side) 4" (102mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove)
D: Mantel Depth (max.) 13" (330mm) 30" Above Fireplace Opening
E: Alcove Width 83" (2108mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: To Floor 28 - 7/8" (733mm) Top of Fireplace Opening
Note 0" No hearth required
D
A
G
40-7/8" (1038mm) Top of Fireplace Opening
F
B
E
Installed Close
to Floor
Flue Clearances to Combustibles
Horizontal - Top 3"
Horiztonal - Side 2"
Horiztonal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
fi restop is used.
C
F
B
Installed Close
to Ceiling
1-1/2"
10
NON-COMBUSTIBLE REQUIREMENTS
Metal Stud (header)
Non-combustible Material
(140mm)
Wood Stud
19-7/8"
(505mm)
mm)
22-1/2”
(572
(
99mm)
Non-combustible Material
3-7/8"
60-1/2" (1537mm)
Non-combustibl
Material
”
22-5/8
Non-combustible Material
e
52-7/8”
Wood Stud
1079mm)
(
42-3/8”
5-1/2”
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
NON-COMBUSTIBLE FACING BOARD
All four pieces (top, 2 sides, bottom) are now supplied to meet the non combustible requirements. Previously only the top was supplied.
If fi nishing the wall above the unit with paint the non-combustible board (shipped separately
Wood Stud
61-1/2" (1537mm)
from the unit) should be installed. Facing board
must be ordered when ordering the unit.
Calcium silicate board is a high - grade material
with cement, quartz, natural and selected
20"
(508mm)
Non-combustible
Facing Board
minerals as the main raw materials. It is widely
used for partitions and ceilings in buildings.
It is fi re proof and earthquake proof.
If fi nishing the wall above the unit with materials
such as tile, brick, marble, etc. non-combustible
board available from the building supply store
can be used.
5-5/8”
(143mm)
22-3/8”
(568mm)
Non-combustible Facing Board
4"
(102mm)
Non-combustible Facing Board
52-5/8”
21-3/4”
Note: Calcium Silicate is 1/2' thick
61-1/2" (1537mm)
NON COMBUSTIBLE FACING INSTALLATION
Metal Stud (header)
Wood Stud
Non-combustible Facing Board
Caution: This non-combustible board can be damaged if
dropped or struck. Handle with care.
Inspect board prior to installation. Do not install if cracked.
1) Using drywall screws - secure non combustible material
around unit, framing and top nailing strip every 6 inches.
Important Note: To avoid cracking the board - pre-drill holes prior to
securing to unit/ framing.
2) Wipe any debris/dust from the non combustible
material and drywall.
3) Prior to taping and mudding it is highly recommended
to prime the facing and edges using a quality primer. This will
ensure proper adhesion of both the tape and mud.
The optional board is very porous. During dry fi t, ensue that both
surfaces being taped are even.
4) Tape the seams using a mesh type tape.
5) Mud seams as normal We recommend using a
product called Durabond high strength compound - for the fi rst coat
This product can be found at any hardware store.
Mud must be cured as per manufacturer’s recommendations.
6) Prime wall for a second time for proper adhesion of paint
7) Paint walls using a high quality paint which will withstand
the high temperatures being emitted from this appliance.
Note: Due to the high temperatures being emitted from
this appliance, incorrectly mudded joints may crack. Keep mud
thickness to a minimum.
Non- combustible board
(calcium silicate)
Non- combustible board
(calcium silicate)
Non-combustible board
MUST BE PRIMED.
Regency Horizon HZ54EPV Gas Fireplace
11
INSTALLATION
4"
7”
MANTEL CLEARANCES
Due to the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
0
2
Combustible Material
Drywall
the diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
non-combustible board.
30
12
6
810
4
13" (330mm)
3 ½" (89mm)
Note: Ensure the paint that is used on the mantel
and the facing is "heat resistant" or the
paint may discolour.
20
1" (25mm)
30”
21”
10
20”
0
28-1/8”
To Unit
To p of
Fireplace
Opening
Base Legs
MANTEL LEG CLEARANCES
Metal Stud
(On Edge)
Non-combustible
Facing
Standoff
Combustible mantel leg clearances as per diagram:
12
MANTEL LEG
Allowable mantel
leg projection
4”(102mm)
Non-Combustible
1.5" (38mm)
5-1/2” (140mm)
8” (203mm)
11” (279mm)
Regency Horizon HZ54EPV Gas Fireplace
FRAMING & FINISHING
INSTALLATION
1) Frame in the enclosure for the unit with framing material.
IMPORTANT: Header must be metal stud. All other framing may be of
combustible type such as 2x4 / 2x6 framing materials.
ote: When constructing the framed opening, please ensure there is ac-
cess to install the gas lines when the unit is installed.
2) For exterior walls, insulate the enclosure to the same degree as the rest
of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the fi replace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of
the exterior wall will result in operational and performance problems
including, but not limited to: excessive condensation on glass doors,
poor fl ame package, carbon, blue fl ames etc. These are not product
related issues.
3) The unit does not have to be completely enclosed in a chase. You must
maintain clearances from the vent to combustible materials: See "Clearances" section. Combustible materials can be laid against the side and
back standoffs and the stove base.
4) The combined total of non-combustible facing materials (ie. hardiboard
+ tile, slate, etc) may be brought up to and overlap the face of the unit
(top and bottom). The minimum thickness = 1/2"
to a maximum thickness = 1-1/2", as shown in the diagram below.
If material is thicker than 1-1/2" - it will not be possible to mount
the faceplace.
5) When fi nishing around the faceplate, if material such as brick, stone, etc.
extend past the faceplate depth - the minimum opening
dimensions noted below must be adhered to, this is to ensure removal
of the faceplate.
6) Determine the total thickness of facing material (eg. hardiboard + ceramic
tile) to ensure the fi nished surface is fl ush with the front edge of the
unit (see diagram below). If necessary, side and top nailing strips are
adjustable, loosen the 1/4" screws and adjust.
Total non-combustible facing allowable: Min. = 1/2"
Max. = 1- 1/2"
See diagram below.
Important:
Finished
facing
material to
be flush with
edge of unit.
½”
(13mm)
Min
1-1/2”
(38mm)
Max
Finished
Material
Nailing Strip
Position
Nailing Strips
1/2" 1"
Nailing Strip
1” Forward
For material such as brick, stone, etc that extends less than 1-1/2" , the
minimum opening dimensions noted below must be adhered to when
fi nishing around the unit. This is to ensure safe operation of this appliance and the longevity of the fi nishing material.
52-7/8 ”
22-5/8”
Unit shown without faceplate
Regency Horizon HZ54EPV Gas Fireplace
Unit
1" 1/2"
Nailing Strip
½” Forward
Unit
1-1/2" 0" (fl ush)
Nailing Strip
Flush w/unit
Factory Set
Unit
13
INSTALLATION
Framing
Dimensions
A Framing Height 46-5/8” (1184mm)
B Framing Width 60” (1524mm)
B1 (see next page) Framing Width (negative vent run) 70" (1778mm)
B2 (see next page) Framing Width (negative vent run) 80" (2032mm)
C
* Framing Depth*
* (see next page) Framing Depth* (negative vent run)
C1
D Minimum Height to Combustibles 51” (1295mm)
E Corner Wall Depth 72" (1829mm)
F Corner Facing Wall Width 101-7/8 (2586mm)
G Vent Centerline Height 44” (1118mm)
H Non-combustible facing height 20” (508mm)
I Gas Connection Opening Height 1-1/2” (38mm)
J Gas Connection Height 4” (102mm)
K Gas Connection Inset 7-1/4” (184mm)
L Gas Connection Opening Width 3-1/4” (83mm)
* Framing depth measurement is noted with the side nailing strips set as far forward on the fi rebox as possible.
The side nailing strips can be adjusted back up to 1” to allow for varying thicknesses in non-combustible material
& wall fi nishes.
Important: The minimum framing dimensions given for height, width and depth must be maintained even if using
non combustible materials.
Dangerous operating conditions will occur if minimum framing dimensions are not adhered to.
FRAMING DIMENSIONS
Description HZ54EPV
22” (559mm)
31” (787mm)
D
Metal Stud (Header)
on edge
H
Metal Stud
(Header)
on edge
A
B
Non-Combustible
Facing
G
C
E
I
J
14
L
K
F
(Located on the right side of the fireplace)
Regency Horizon HZ54EPV Gas Fireplace
FRAMING WITH A NEGATIVE VENT RUN
INSTALLATION
90° elbow 90° elbow
8" slip 18" length
70” (1778mm)
Framing width - offset to one side (left or right)
rigid pipe
adaptor
Parts required
1 rigid pipe adaptor
1 18" pipe length
1 8" slip
2 90° elbows
Note: Framing height and depth remain the same as
previous page.
80” (2032mm)
Framing width - equal on both sides (left or right) (pipe confi guration same as above).
rigid pipe
adaptor
Regency Horizon HZ54EPV Gas Fireplace
90° elbow
31” (787mm)
Framing depth
90° elbow
Note: Rigid pipe adaptor and 2 x 90° elbows required to achieve minimum clearances.
Note: Framing height and width remain the same as previous page.
15
INSTALLATION
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Standoff/ Nailing Strip, side nailing strips and standoffs must be
correctly positioned and attached to the unit before sliding the unit into position.
STANDOFF ASSEMBLY
The top, side, rear and bottom standoffs are shipped in a fl at position and
must be folded into shape and attached - see diagram 1.
1) Remove the standoffs from the unit.
2) Take each standoff and bend into the correct shape. Bend up at the bend
lines until the screw holes in the standoff and the pre-punched screw holes
on the unit line up.
Diagram 1
The top stand off / nailing strip is shipped attached to the back of the unit as
shown below.
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,1
on the top, and one on the bottom that can be folded out as required. The
top and side nailing strips are secured to the framing. The bottom nailing
strip is secured to the unfi nished fl oor - if installing the unit directly on the
fl oor.
Note: The bottom nailing strip will need to be bent on site and
adjusted to accommodate the thickness of the facing material.
Standoff
Standoff
1) Remove one screw in location shown below.
Replace the screw on the back the unit after removing the
standoff / nailing strip.
2) Bend the 3 tabs at the bottom of the stand off / nailing strip to 90°,
bend in the same direction as the top tabs.
3) Install on the top front of the unit as shown in diagram 3. Do not fully
tighten the screws when installing - until the facing thickness has been
determined.
Standoff
Remove this screw to
release top standoff / nailing
strip
Standoff
Diagram 2
Nailing Strips
Diagram 3
IMPORTANT NOTE
Framing depth measurement is noted with
the side nailing strips set as far forward on
the fi rebox as possible. The nailing strips can
be adjusted back up to 1” to allow for varying
thicknesses in non-combustible material & wall
fi nishes.
VENTING INTRODUCTION
The HZ54EPV uses the "balanced fl ue" technology Co Axial system. The
inner liner vents products of combustion to the outside while the outer liner
draws outside combustion air into the combustion chamber thereby eliminating
the need to use heated room air for combustion and losing warm room air
up the chimney.
Note: These fl ue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of
the building, and never be attached to a chimney serving a separate solid fuel
or gas burning appliance. Each direct vent gas appliance must use it's own
separate vent system. Common vent systems are prohibited.
16
Regency Horizon HZ54EPV Gas Fireplace
VENT RESTRICTOR POSITION
Vent restriction is required for certain venting installations, see the diagrams in the "Venting
Arrangements" section to determine if they are required for your installation.
The Vent Restrictor plate is located on the inside top of the fi rebox.
To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions;
1) Remove the glass door.
2) Remove the screws that hold the vent restrictor plate in place.
3) Adjust the vent restrictor plate to the required vent restrictor position as per the diagrams shown.
4) Once the vent restrictor plate is in the required position, secure with screws.
Vent Restrictor Settings for HZ54EPV NG & LP
INSTALLATION
THIS HOLE SETS THE
VENT RESTRICTOR
AT 3”
Factory Setting
3”
Vent Restrictor Set 2
2”
THIS HOLE SETS THE
VENT RESTRICTOR
AT 2”
Vent Restrictor Set 3
Regency Horizon HZ54EPV Gas Fireplace
17
INSTALLATION
GAS POWER VENT INSTALLATION
RIGID PIPE ONLY
The Power Vent System is a Direct Vent Terminal designed to allow installation of gas appliances where typical vent confi gurations cannot be achieved.
These installation instructions must be used in conjunction with the appliance and appropriate Power Vent components installation instructions.
120 Volt power supply is required to operate this system (see Electrical Installation section in this manual).
Clearances listed in these Instructions supersede those in the appliance's Installation Instructions.
Models Equipped with Surefi re Ignition
The power vent system can only be used with units that have been tested with the Regency Power Vent system.
Downward vertical vent runs are permitted with the Surefi re Ignition system. See vent confi guration in this manual.
Rigid Pipe Adaptor
(included w/unit
5" x 8" Rigid pipe lengths
(sold separately)
Slip Section
(sold separately)
Reducer 5" x 8" to 4 " x 6-5/8"
(included w/unit - Required)
Firestop Spacer
(included w/power vent kit)
Frame Assembly
(included w/power vent kit)
Power Vent Terminal
(946-705)
946-705 Power Vent Kit with Vent Terminal
Parts Required
1 770-994 Rigid Pipe adaptor included with unit
1 946-606 Reducer (required) included with unit
158
DVA-08A 8-1/2" Slip section - or sold separately
158
DVA-16A 16" Slip section sold separately
1 911-046 Power Vent Fan included w/power vent kit
1 Firestop included w/power vent kit
946-706 20' 5-wire BX cable or sold separately
946-707 60' 5-wire BX cable sold separately
amount required
for install
1 946-705 Power Vent Kit sold separately
5" x 8" Rigid Pipe sold separately
BX Cable
(sold separately)
POWER VENT SYSTEMS ARE FOR USE WITH RIGID PIPE ONLY.
See venting in this manual for detailed instructions.
18
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
5” X 8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
Description
6” Pipe Length-Galvanized 58DVA-06 5D6
6” Pipe Length-Black 58DVA-06B 5D6B
9” Pipe Length-Galvanized 58DVA-09 N/A
9” Pipe Length-Black 58DVA-09B N/A
12” Pipe Length-Galvanized 58DVA-12 5D12
12” Pipe Length-Black 58DVA-12B 5D12B
18” Pipe Length-Galvanized 58DVA-18 5D18
18” Pipe Length-Black 58DVA-18B - N/A from FPI 5D18B
24” Pipe Length-Galvanized 58DVA-24 5D24
24” Pipe Length-Black 58DVA-24B 5D24B
36” Pipe Length-Galvanized 58DVA-36 5D36
36” Pipe Length-Black 58DVA-36B 5D36B
48” Pipe Length-Galvanized 58DVA-48 5D48
48” Pipe Length-Black 58DVA-48B 5D48B
60” Pipe Length-Galvanized 58DVA-60 N/A
60” Pipe Length-Black 58DVA-60B - N/A from FPI N/A
Adjustable Length 3”-10”-Galvanized N/A 5DAL
Adjustable Length 3”-10”-Black N/A 5DALB
Adjustable Length 11”-14” -Galvanized Disc. - See 58DV-08A N/A
Adjustable Length 11”-14” -Black Disc. - See 58DV-08B N/A
Extension Pipe 17”-24” -Galvanized Disc. - See 58DV-16A N/A
Extension Pipe 17”-24” -Black Disc. - See 58DV-16AB N/A
Adjustable Length 8-1/2”-Galvanized 58DVA-08A - N/A from FPI N/A
Adjustable Length 8-1/2”-Black 58DVA-08AB N/A
Extension Pipe 16”-Galvanized 58DVA-16A - N/A from FPI N/A
Extension Pipe 16”-Black 46DVA-16AB N/A
Simpson
Direct Vent Pro
®
Metal-Fab™
Sure Seal
45º Elbow-Galvanized 58DVA-E45 5DT-EL45
45º Elbow-Black 58DVA-E45B 5DT-EL45B
45º Elbow Swivel-Galvanized
45º Elbow Swivel-Black
90º Elbow-Galvanized 58DVA-E90 5DT-EL90S
90º Elbow-Black 58DVA-E90B 5DT-EL90SB
90º Elbow, Swivel-Galvanized
90º Elbow, Swivel-Black
90º Starter Elbow, Swivel-Galvanized N/A N/A
Adaptor* N/A N/A
Ceiling Support 58DVA-DC 5DSP
Cathedral Support Box 58DVA-CS 5DRS
Wall Support/Band 58DVA-WS 5DWS
Offset Support
Wall Thimble-Black 58DVA-WT 5DWT
Wall Thimble Support/Ceiling Support 58DVA-DC
Firestop Spacer 58DVA-FS 5DFS
Trim Plate-Black 58DAV-WFS 5DCP
Disc. - See 58DVA-E45
Disc.-See 58DVA-E45B
Disc. - See 46DVA-E45
Disc. - See 46DVA-E45
58DVA-ES - N/A from FPI
- N/A from FPI N/A
Regency Horizon HZ54EPV Gas Fireplace
N/A
N/A
N/A
N/A
N/A
19
INSTALLATION
Description
Attic Insulation Shield 12” 58DVA-IS N/A from FPI N/A
Basic Horizontal Termination Kit (A) N/A N/A
Horizontal Termination Kit (B) 58DVA-KHA N/A
Vertical Termination Kit 58DVA-VHA N/A
High Wind Vertical Cap 58DVA-VCH N/A
High Wind Horizontal Cap N/A N/A
Horizontal Square Termination Cap N/A 5DHT
Vertical Termination Cap N/A 5DVT
Storm Collar 58DVA-SC 5DSC
Adjustable Flashing 0/12-6/12 58DVA-F6 5DF
Adjustable Flashing 6/12-12/12 58DVA-F12 5DF1-2
Vinyl Siding Standoff 58DVA-VSS 5DVS
Vinyl Siding Shield Plate N/A N/A
Snorkel Termination 14” 58DVA-SNK14 N/A
Snorkel Termination 36” 58DVA-SNK36 (N/A - FPI) N/A
Restrictor Disk 58DVA-RD N/A
Colinear Flex Connectors N/A N/A
Simpson
Direct Vent Pro
®
Metal-Fab™
Sure Seal
FPI
946-604/P Simpson Direct Vent -Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap
770-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-506/P Vent Guard (Optional)
946-606 Starter collar reducer 5” x 8” to 4” x 6-5/8” 946-625 Vinyl Siding Standoff - AstroCap XL
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
0” (0mm) 5-11/16” (144mm) 15-5/16” (389mm) Simpson Direct Vent Pro: www.duravent.com
9” (229mm) 10-15/16” (278mm) 20-9/16” (522mm) Metal-Fab Sure Seal: www.mtlfab.com
12” (305mm) 13” (330mm) 22-11/16” (576mm) Industrial Chimney Company: www.icc-rsf.com
24” (610mm) 21-7/16” (697mm) 31-1/16” (789mm) Note: Horizontal runs of vent must be level, or have a 1/4”
36” (914mm) 29-13/16” (757mm) 39-7/16” (1002mm)
48” (1219mm) 38-1/4” (972mm) 47-7/8” (1216mm)
5” x 8” Venting For specifi c instructions on venting components - visit the
Run (X) Rise (Y)
manufacturers website listed below.
rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high
temperatures and may present a possible fi re hazard.
20
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
8
8
406
12
16
18
14
20
24
-6
-4
-2
32
34
28
26
30
36
38
42
44
40
46
48
50
54
56
52
60
VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS
(RIGID PIPE 5" X 8" - MUST USE REDUCER #946-606 & RIGID PIPE ADAPTOR # 770-994)
The gas power vent systems is designed to allow the installation of a gas appliance when typical vent confi gurations (shown in this manual) are not
possible.
Note: Must be terminated horizontally. Vertical terminations are not permitted.
Horizontal (Feet)
101012
40
38
36
34
32
30
28
26
24
22
20
18
16
Vertical (Feet)
14
12
10
-6.25 Ft. max.
Maximum total vent length = 60' maximum of six - 90° elbows permitted.
One 90° elbow = two 45° elbows.
Maximum total negative vent length = 10'.
Regency Horizon HZ54EPV Gas Fireplace
-2
-4
-6
16
Restrictor Setting
#3 - 2” open
20
18
14
222224
26
Restrictor Setting
#2 - 3” open
46
30
34
32
28
36
40
38
44
42
48
54
52
50
56
585860
21
INSTALLATION
EXTERIOR VENT TERMINATION REQUIREMENTS
1
Minimum Clearance Requirements
A
Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
B
Clearance to window or door that may be opened 12"(30cm) 9" (23cm)
C
Clearance to permanently closed window **
D
Vertical clearance to ventilated soffi t located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
E
Clearance to unventilated soffi t 8"(20cm) 8"(20cm)
F
Clearance to outside corner: with Power Vent Termination Cap. 6"(15cm) 6(15cm)
G
Clearance to inside corner: with Power Vent Termination Cap 6"(15cm) 6"(15cm)
H
Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)
J
Clearance to service regulator vent outlet 36"(90cm) *
K
Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
L
Clearance to a mechanical air supply inlet 72"(1.8m) 36"(90cm)
M
Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)
N
Clearance under veranda, porch, deck, or balcony 12"(30cm)
1
In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2
In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼
A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the fl oor
Clearance in accordance with local installation codes and the requirements of the gas supplier
*
a
3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b
3 feet (91cm) above - if within 10 feet (3m) horizontally
Canada
12"(30cm) 12"(30cm)
USA
a
┼
*
*
‡
*
2
b
22
Regency Horizon HZ54EPV Gas Fireplace
POWER VENT TERMINAL INSTALLATION
INSTALLATION
WARNING:
ELECTRICAL CONNECTIONS SHOULD ONLY BE
CARRIED OUT BY A QUALIFIED AND LICENSED
ELECTRICIAN
Note: Optional 5 wire BX cable comes in 20' or 60' lengths as required.
Wires are color coded for ease of installation.
1) Frame in opening for the Power Vent Terminal by fi rst determining the
correct height - frame in an 11-3/4" x 11-3/4" opening.
11-3/4”
11-3/4”
Determine
the correct
height
2) Feed the BX cable through the fi restop - ensure protective grommet is in
place before feeding the cable through.
4) Remove the plate from the bottom right corner of the frame by removing
2 screws from the inside of the frame.
5) Install a strain relief grommet through the plate as shown below.
Strain Relief
6) Unravel the BX cable - to expose approx. 7" of wire. Install a wire
protector where the metal of the BX cable and the wire meet.
Firestop
Protective grommet
3) Install the Power Vent outer frame with 4 screws - screw locations
shown below.
Important: Orient the frame so the BX cable will pass through in the lower
left corner.
Wire protector
7 ) Feed a length of BX cable through - (approx. 18") the plate and tighten
the strain relief grommet to the plate.
Regency Horizon HZ54EPV Gas Fireplace
23
INSTALLATION
8 ) Reattach the plate to the inside of the Power Vent outer frame with 2
screws from step 3.
9) Feed the BX cable through the opening in the power vent terminal located in the lower left corner as shown below.
12) Tighten bolt to secure ground wire.
13) Connect all like colored wires - red to red, blue to blue, black to black
and white to white. Place marettes on all paired wire ends (supplied
with kit)
10) Secure the terminal to the outer frame with 4 screws - screw locations
shown below.
11) From the wire bundle (from BX cable) secure the copper ground to the
ground lug on the right side.
Important: Ground must be wrapped under star washer - prior to
tightening.
Star washer
14) Place cable tie guides in holes located on the base of the terminal.
Feed cable tie through the guide.
Cable tie guide
15) Tie down all wires with cable ties - away from the
edge of the terminal base and fan blade.
Marettes
24
Cable tie
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
16) Install cap over terminal with 4 screws.
Note: Cap may be painted to match building color.
17) Secure fi restop in place with 4 screws (see step 2).
18) Seal the outer frame with supplied sealant to prevent any water from
entering the building envelope.
Caution: Label all wires prior to disconnection when
servicing controls.
Wiring errors can cause improper and dangerous
operation.
PIPE CONNECTION FROM TERMINAL
TO UNIT
The rigid pipe and rigid pipe adaptor starting from the installed unit
must be installed prior to proceeding.
1) Install 8" or 16" slip section of pipe over fi nal length of rigid pipe.
Slip section
2) Install reducer to the end of 8" slip section.
Reducer
Connect to
Terminal
3) Connect reducer to Power vent terminal - adjust slip section for fi t.
Secure slip section with screws when optimal fi t is achieved.
Adjust to fi t
Regency Horizon HZ54EPV Gas Fireplace
25
INSTALLATION
ELECTRICAL INSTALLATION
WARNING
THIS INSTALLATION SHOULD ONLY BE CARRIED
OUT BY A QUALIFIED AND LICENSED ELECTRICIAN
Note: For ease of installation, the electrical installation must be completed
prior to adding any fi nishing materials.
1) Remove faceplate, inner door frame and glass door (if installed)- refer to
instructions in this manual.
2) Remove control board located on the lower right side of the unit,by
sliding board out as shown below.
3) Locate wiring harness from Power Vent Module - shown below.
5) Loosen 2 screws - one on either side of the electrical box. Slide box up
and push box back to release.
Electrical
Box
(Right side of
Unit)
6) Manoeuvre and angle electrical box to remove from the base of the unit.
7) Install strain relief grommets into opening in electrical box as shown
below.
Power Vent Module
4) Remove access panel - located on the outer right side of the unit, by
removing 4 screws in locations shown below.
Wiring harness from
Power Vent Module
Access panel
Strain relief grommet
8) Unravel BX cable to reveal wires - install wire protector where the metal
of the BX cable meets the wire.
Wire protector
26
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
12) Connect all like colored wires - blue to blue, red to red, white to white
9) Feed wires from the BX cable through into the box.
f
10) Tighten up the strain relief grommets on the outside of the box as
shown below.
and black to black. Finish wire ends with marettes as shown below.
13) Install the cover on the electrical junction box-secure with 2 screws.
11) Secure the ground wires from each wire bundle (BX cable + power
vent) to the box in the location shown below.
Ground
14) Reverse steps 6-1 to complete installation.
15) Plug in Power Vent Module to outlet located on the lower left base of
the unit.
Caution: Label all wires prior to disconnection when
servicing controls.
Wiring errors can cause improper and dangerous
operation.
Regency Horizon HZ54EPV Gas Fireplace
27
INSTALLATION
POWER VENT WIRING DIAGRAM
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
POWERHEAD
VACUUM SWITCH
EV2 EV1
GREEN
GREEN
ORANGE
BLACK
1
2
POWER
FDC BOARD
ON/OFF
43 65
WHITE
WHITE
MF
BLUE
IPI/CP
wire#911-013
87 9
COMMAND
VALVE
CN1
0.584.912
GREEN
wire#911-032(3000mm)
911-031(750mm)
0.584.907
0.584.223
RECEIVER
TH
TH/TP
WHITE
DCSUPPLY
RED
DCPOWEROUT
TOIPIBOARD
DCPOWERIN
F
POWERVENT
PCB
MODULE
M
28
NO
GREEN
BLACK
COM
WHITE
BLUE
GREEN
WHITE
RED
BLACK
BLUE
RED
GREEN
BLACK
WHITE
ELECTRICAL JUNCTION BOX
POWERCABLE
POWERCABLE
GROUND
ELECTRICAL BOX
BLUE
GREEN
WHITE
RED
BLUE
WHITE
BLACK
GREEN
RED
BLACK
WHITE
WHITE
RED
BLK
BLK
C
NC
(+)
NO
(-)
C
NC
NO
RED
1
V
2
Caution: Label all wires prior to disconnection when
servicing controls.
Wiring errors can cause improper and dangerous
operation.
Regency Horizon HZ54EPV Gas Fireplace
AERA TION ADJUSTMENT
INSTALLATION
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue fl ame or
close for a more yellow fl ame.
For instructions to remove the burner for access to
the venturi cap, see pages 46-47 in this manual.
Minimum Air Shutter Opening:
NG 1/2"
LP 1/2"
CAUTION: Carbon will be produced if air shutter
is tightly closed.
Note: Any damage due to carboning
resulting from improperly setting
the aeration controls is NOT covered
under warranty.
Venturi Cap
Regency Horizon HZ54EPV Gas Fireplace
29
INSTALLATION
HZ54EPV-NG SYSTEM DATA
Min. Supply Pressure 5" WC (1.25 kpa)
Low Setting Man.
Pressure
Max. Manifold
Pressure
Orifi ce Size #30 DMS
Minimum Input 29,000 Btu/h
Maximum Input 41,500 Btu/h
1.6" WC (0.40kpa)
3.5" WC (0.87 kpa)
(8.50 kW)
(12.16 kW)
HZ54EPV-LP SYSTEM DATA
Min. Supply Pressure 12" WC (2.98 kpa)
Low Setting Man.
Pressure
Max. Manifold
Pressure
Orifi ce Size #49 DMS
Minimum Input 30,000 Btu/h
Maximum Input 37,000 Btu/h
6.4" WC (1.59kpa)
10" WC (2.49 kpa)
(8.79 kW)
(10.84 kW)
HIGH ELEVATION
This unit is approved for altitude 0 to 4500 ft.
(CAN1 2.17-M91).
GAS LINE
INSTALLATION
Since some municipalities have additional
local codes it is always best to consult with
your local authorities and the CAN/CGA B149
installation code.
PILOT ADJUSTMENT
Periodically check the pilot fl ames. Correct fl ame
pattern has two strong blue fl ames: 1 fl owing
around the fl ame sensor and 1 fl owing across
the burner (it does not have to be touching the
burner).
Burner
Flame Sensor
Pilot
Note: If you have an incorrect fl ame pattern,
contact your Regency
instructions.
Incorrect fl ame pattern will have small, probably
yellow fl ames, not coming into proper contact
with the rear burner or fl ame sensor.
Ignitor
®
dealer for further
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide fl at screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with
the unit burning and the setting should be within
the limits specifi ed on the safety label.
6) When fi nished reading manometer , turn off the
gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" fl at screwdriver.
Note: Screw should be snug, but do not over
tighten.
886 S.I.T. VALVE
DESCRIPTION
1) Manual high/low adjustment
2) Pilot adjustment
3) Outlet Pressure Tap
4) Inlet Pressure Tap
5) Pilot Outlet
6) Main Gas Outlet
7) Main Gas Inlet
4
3
For USA installations follow local codes and/
or the current National Fuel Gas Code, ANSI
Z223.1.
When using copper or fl ex connectors use only
approved fi ttings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and fl ex
connectors are usually considered to meet this
requirement.
NOTE: A shutoff / dante valve should be
supplied in or near the unit (or as per local
codes) for ease of servicing this appliance.
IMPORTANT : Always check for gas leaks with
a soap and water solution or gas leak detector. Do not use open fl ame for leak testing.
30
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas supply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1
2
7
5
6
Regency Horizon HZ54EPV Gas Fireplace
VALVE COVER REMOVAL
INSTALLATION
The valve cover will need to be removed to access the valve tray (see valve
tray replacement) and also to access the DBFC (see Battery + ON/OFF
switch installation).
1) Remove Faceplate and glass door if installed.
2) The valve cover is located on the right side underneath the glass door -
loosen 2 screws securing the valve cover (see Diagram 1 below).
Valve cover
Diagram 1
4) Lift the cover up off the screws and out of the unit.
5) To install - reverse steps.
Diagram 3
3) Slide the valve cover upward.
Diagram 2
Regency Horizon HZ54EPV Gas Fireplace
31
INSTALLATION
~
~
OPTIONAL FAN WIRING DIAGRAM
WITHOUT PROFLAME GTMF SYSTEM
Lockwasher
Star washer
#8 Ground Lug
(for mobile home)
Nut
Fan
ground wire
Electrical Connection Alternative Scheme "A",
*Receptacle
(dedicated use
by stove fan only)
120 Volts
60 Hz
Power at Stove
Wall Junction Box
Wire Nuts
14 AWG wire
*Wire Clamp
*Receptacle Box
inside stove
Copper Ground
White (Neutral)
Black (Hot)
14 AWG wire
*Speed Control
Switch with
lead wires
(Regency)
Wire Nuts
120 VAC
60HZ
(*by others)
Green (Ground)
White (Neutral)
Black (Live)
(*by others)
Rotary Speed
White
Black
Black (Hot)
60 Hz
White (Neutral)
Copper Ground
Wire
120 Volts
* = supplied with fan kit
Other parts are to be supplied
by electrician or installer
Control
ON OFF
Electrical Connection Alternative Scheme "B",
Wall Junction Box
Caution: Ensure that the wires do not touch any
hot surfaces and are away from sharp edges.
(*by others)
Black
Power at Switch
*Speed Control
Switch with lead wires
Wire Nuts
14 AWG wire
(dedicated use
by unit fan only)
Thermodisc
*Receptacle Box
inside stove
*Receptacle
Green
Fan
White
Black
White
Ground
*Wire Clamp
Ground for
mobile home
Fan
Black
(*Supplied
by others
- install
according to
local code)
32
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
Optional
REMOTE CONTROL
Use the Regency® Remote Control approved for this unit. Use of other systems
may void your warranty.
The remote control comes with a hand held transmitter, a receiver and a wall
mounting plate.
1) Choose a convenient location on the wall to install the receiver and the
receptacle box (protection from extreme heat is very important). Run wires
from the fi replace to that location. Use Thermostat Wire Table.
CAUTION
Do not wire millivolt
wall thermostat wires
to 120V wire.
(Included with Unit)
RECEIVER WALL SWITCH
1) Run the supplied 10' of the wire harness through the right or left side gas
inlet opening- connect the ON/OFF wire harness. Be careful not to damage
wire.
2) Connect the wire to the receiver wall switch and install into the low voltage
receptacle box.
CAUTION
Do not wire millivolt
wall thermostat wires
to 120V wire.
Regency Horizon HZ54EPV Gas Fireplace
33
INSTALLATION
WALL MOUNT RECEIVER INSTALLATION
REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS
IMPORTANT INSTALLATION NOTE:
The Receiver must be placed inside the supplied (Low Voltage)
junction type wall box and installed into the wall only.
DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.
Wall Mounting
1. Install the junction box to the framing, at desired location within 10 ft. from fi replace.
2. Feed the 12 pin connector through the opening at back of junction box.
3. Connect the 12 pin connector to the back of the receiver.
4. Install the Receiver in the Low Voltage Junction box, supplied with HZ30E.
5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.
6. Place the slider into the cover plate.
7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.
8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.
9. Align the slider with the switch on the Receiver and couple the switch into the slider.
10. Align the screw holes.
11. Using the two (2) screws provided secure the cover plate to the Receiver.
Low Voltage Junction Box
34
Regency Horizon HZ54EPV Gas Fireplace
584 Proflame GT Series
Feature Sheet
111
INSTALLATION
(X) Indicates Included Feature
Note 1 ~ Profl ame Flame Modulator for GTM & GTMF Remote Controls are sold seperately. Choice of NG or
LP fl ame modulator (to match unit fuel type). See Regency Retail Price pages for complete details
Note 2 ~ FPI Profl ame Remote Controls come standard with white wall mount switch & cover plate.
Regency Horizon HZ54EPV Gas Fireplace
35
INSTALLATION
BATTERY INSTALLATION
1) Install 4 - AA batteries into the receiver, ensure correct polarity.
GT REMOTE INSTALLATION
1. GT remote installation -
see Profl ame remote instructions for coding remote to receiver as well as operating instructions.
12 pin connector - located
on outer right side of the
fi rebox.
Slider Switch
J-Box
Receiver
Wall Plate
36
Regency Horizon HZ54EPV Gas Fireplace
GTM REMOTE INSTALLATION
INSTALLATION
DFBC = digital fi replace burner control
1) Remove the faceplate and glass door to access to Receiver.
2) Remove the hi/lo knob from the valve head, if installed, by removing
2 screws as shown below.
5) Remove the module tray on the right side of the unit to access the DFBC
6) Plug receiver wires into the back of the receiver and bundle wires
with the wire clip as shown below.
Wire Clip
7) Connect GTM motor wire from the stepper motor to the wire connector
from the receiver wire harness.
3) Install the stepper motor in the same location the hi/lo knob was
removed from - with 2 screws as shown below.
4) Install 4 - AA batteries into the receiver, ensure correct polarity.
Regency Horizon HZ54EPV Gas Fireplace
8) Program Receiver and transmitter (refer to manual)
Note: DO NOT USE 4 AA batteries on the control module; the DFBC is now
powered by the receiver batteries in the wall.
37
INSTALLATION
GTMF REMOTE INSTALLATION
DFBC = digital fi replace burner control
1) Remove the faceplate and glass door to access to DFBC &
battery pack tray.
2) Lift DFBC and battery pack up and out.
3) Remove the hi/lo knob from the valve head, if installed, by removing
2 screws as shown below.
6) Remove the module tray on the right side of the unit to access the DFBC
7) Plug receiver wires into the back of the receiver and bundle wires
with the wire clip as shown below.
Wire Clip
8) Connect GTM motor wire from the stepper motor to the wire connector
from the receiver wire harness.
4) Install the stepper motor in the same location the hi/lo knob was
removed from - with 2 screws as shown below.
5) Install 4 - AA batteries into the receiver, ensure correct polarity.
38
9) Program Receiver and transmitter (refer to manual)
Note: DO NOT USE 4 AA batteries on the control module; the DFBC is now
powered by the receiver batteries in the wall.
Regency Horizon HZ54EPV Gas Fireplace
10) From the wire harness, plug the FCM wire into the fan control module.
FCM wire
Fan Control Module
11) Install the fan control module onto t the fl oor of the unit. Place it to the
right of the receiver.
INSTALLATION
12) Plug fan control module into receptacle located on the left hand side of
the unit.
13) Match the remote control to the receiver - see remote control
instructions.
14) Reverse step 1.
15) Check to ensure there are no gas leaks..
Regency Horizon HZ54EPV Gas Fireplace
39
INSTALLATION
OPTIONAL REFLECTIVE PANEL INSTALLATION
Before installation, panels must be handled and cleaned as per instructions noted below:
Stainless Steel Panels Black Enamel Panels
• Stainless panels must be inspected for scratches and dimples prior
to installation. All claims to be recorded at this time.
Claims for damage after installation will not receive consideration.
• Use a hair dryer to remove the protective coating from the panels.
• To protect the fi nish during installation and handling - cotton gloves
MUST be worn at all times while handling the panels.
• Black Enamel panels must be inspected for scratches and dimples
prior to installation. All claims to be recorded at this time.
Claims for damage after installation will not receive consideration.
• Stainless panels will discolor a little during normal operation.
This is normal and should not be considered a defect.
All hand and fi nger marks MUST be cleaned off with a soft cloth and
*
a stainless steel cleaner. Most stainless steel cleaners leave a fi lm/
residue on the surface of the panels. Use an ammonia based cleaner
(ie. glass cleaner) to remove this fi lm before applying heat to the unit.
Failure to do this will result in burn stains on panels which you
will be unable to remove. Not protected by product warranty.
1) Position the left side panel in place - top of panel in fi rst, then fi t the
bottom tab into the slot at the bottom of the fi rebox as shown below.
Repeat for right side panel.
90 degree
bend faces
towards center
of unit on both
Left Side
Panel
Shown
left and right
side panels
• Black Enamel panels will discolor a little during normal operation. This
is normal and should not be considered a defect.
All hand and fi nger marks MUST be cleaned off with a soft cloth. Use
*
an ammonia based cleaner (ie. glass cleaner) to remove any fi ngerprints
before applying heat to the unit.
Failure to do this will result in burn stain on panels which you
will be unable to remove. Not protected by product warranty.
Right side panel in position
2) Fit the back panel into position by clearing the pilot shield - bottom
of panel goes in fi rst.
Then fi t the tabs on the bottom left and right side of the back panel
into the slots at the base of the fi rebox.
Secure the back panel in place by placing the brackets over the
screws on the top of the inside left and right side of the fi rebox and
tighten the screw to hold the bracket against the back panel shown
below.
Left Side
Bracket
40
Fit side panel tab into slot
Left side panel in position
Right side back panel tab fi tted into slot
Bracket shown in place on right side of the fi rebox
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
o
d
y
GLASS CRYSTALS OR OPTIONAL CERAMIC STONES
INSTALLATION ON BURNER
Evenly spread the supplied Glass Crystals or optional Ceramic Spa or Garden Stones over the burner. Ensure the crystals (or stones) do not
overlap too much as this will effect the fl ame pattern.
IMPORTANT NOTE:
Only the supplied approved Cobalt Glass, Ceramic Spa Stones or Garden Stones are to be used with these fi replaces. Use of any other type
glass crystals or stones can alter the unit's performance, any damage caused by the use of any unapproved glass or stones will not be covere
under warranty.
When using Ceramic or Garden Stones, DO NOT cover burner ports that lead to pilot fl ame. Ensure the crystals or stones do not overlap excessivel
as this will effect the fl ame pattern.
Burner Packages
Unit Glass Crystals Ceramic Spa Stones Garden Stones
HZ54E / HZ54EPV 3 Bags 1 Bag Glass + 2 packages (140 spa stones)
HZ42 / HZ42E 2 Bags 1 Bag Glass + 1 package (70 spa stones)
HZ42 ST / HZ42STE
HZ42STEPV
HZO42/HZO42 (AUS) 3 Bags N/A 1 package (50 stones)
*HZ30E 1 bag 1 Bag Glass + 1 package (70 spa stones)
L676S 1 Bag 1 package = (70 spa stones)
**P33S/P33SE 1 Bag 1 package = (70 spa stones)
U32S / U32SE 1 Bag 1 package = (70 spa stones)
E33S 1 Bag 1 package = (70 spa stones)
NOTE: 1 Ceramic spa stone package contains 70 stones
1 Garden stone package contains 50 stones
*Recommended - use only 40 of the 70 ceramic stones on the HZ30E burner.
**Recommended - use only 50 of the 70 ceramic stones on the P33S/P33SE burner.
2 Bags 1 Bag Glass + 1 package (70 spa stones)
For Units HZ54E, HZ54EPV, HZ30E, HZ42ST, HZ42STE, HZ42E,
Glass Crystals shown on Burner
HZ42, HZO42 only
Optional Ceramic Spa Stones + Glass Crystals shown on burner.
For Units HZ54E, HZ54EPV, HZ30E, HZ42ST, HZ42STE, HZ42,
HZ42E only
Optional Garden Stones + Glass Crystals shown on burner.
For the HZO42 only
Regency Horizon HZ54EPV Gas Fireplace
For units P33S,P33SE L676S, U32S, U32SE,E33S,only
Glass Crystals shown on Burner
Optional Ceramic Spa Stones shown on burner.
For units P33S,P33SE L676S, U32S, U32SE, E33S only
41
INSTALLATION
GLASS CRYSTALS OR OPTIONAL PEBBLES
INSTALLATION ON FIREBOX BASE
Firebox Packages
Unit Glass Crystals Pebbles
HZ54E / HZ54EPV 6 Bags 2 packages (6 x bags pebbles)
HZ42 / HZ42E 5 Bags 2 packages (6 x bags pebbles)
HZ42 ST / HZ42STE 5 Bags 2 package (6 x bags pebbles)
HZO42 / HZO42 (AUS) 3 Bags 1 package (3 x bags pebbles)
HZ30E 2 bags 1 package (3 x bags pebbles)
P33S/P33SE 3 Bags 1 package (3 x bags pebbles)
U32S/U32SE 3 Bags 1 package (3 x bags pebbles)
E33S 3 Bags 1 package (3 x bags pebbles)
There are 3 optional packages to choose from to cover the fi rebox base:
1) White River Pebbles
2) Natural River Pebbles
3) Glass Crystals (4 colors available)
Spread the pebbles / crystals evenly on the exposed base of the fi rebox. Pebbles are NOT to be placed anywhere on the burner or over top of the
Glass Crystals or optional Ceramic Spa Stones.
NOTE: Only the supplied and approved pebbles / crystals are to be used.
Use of any other type of pebbles or material can create a danger and will void warranty.
White River Pebbles shown surrounding the Burner
White River Pebbles shown surrounding the Burner
Natural River Pebbles shown surrounding the Burner
Glass Crystals shown surrounding the Burner
42
Regency Horizon HZ54EPV Gas Fireplace
OPTIONAL LOG SET INSTALLATION
Installation of Refl ective Panels must be completed before installing the log set.
Read the instructions below carefully and refer to the images. If the
logs are broken do not use the unit until they are replaced.
Broken logs can interfere with pilot operation.
Improper positioning of the logs may create carbon build-up and can
alter the unit's performance which is not covered under warranty.
INSTALLATION
Log kit # 476-930 contains the following pieces:
Part # Description
A x 2 Log
B x 2 Log
C x 2 Log
D x 2 Log
476-103 x 12 Pin Clips
946-669 Platinum Embers
1) Remove the following if already installed:
a) Faceplate
b) Glass Door
c) Pebbles
d) Glass Crystals
e) Stones
Note: Aeration Setting is set at 1/2" from the factory. The following are recommended settings for NG and LP units when using the log set :
NG = 1/2"
LP = Full Open
2) Attach the 12 pin clips to the bottom cover (not the burner) in the exact locations indicated by an X, as shown in Diagram 2 below.
Note: Front and back measurements originate from the centre line of burner.
Side measurements originate from front edge of the bottom cover (see Diagram 3).
Note: Units may have dimples on the burner to indicate pin clip installation points.
If dimples are not present on the burner, follow the above directions.
19-3/16”
15-3/4”
x
7-3/4”
x
4-3/4”
x
C
A
6”
x
D
B
Diagram 1
All measurements along the front
and back edge originate from centre
line.
Centerline indicated by "V" cut out
on the rear edge of the burner.
19-3/16”
Back
D
B
C
A
17”
x
v
5-5/8”
x
1-1/2”
x
19”
20-5/8”
3) Pin clips are attached to the lip edge of the bottom cover (not the burner) see diagrams 3 & 4.
x
8-3/4”
C
L
Front
x
7-1/2”
11-3/8”
20-5/8”
x
Diagram 2
Measurements to
centre of pins.
x
x
19-1/2”
2”
Burner
Lip Edge
Regency Horizon HZ54EPV Gas Fireplace
Bottom Cover
Side measurements
from corner edge.
43
INSTALLATION
Pin clips installed - dots indicate dimple locations.
*Actual dimples/pin clips are black - not white as shown
4) Install the glass crystals (see glass crystal installation section in this manual).
Diagram 5
Diagram 6
5) Place platinum embers on glass crystals as shown in diagram 7.
6) If installing optional pebbles - install pebbles before log installation.
Diagram 7
Diagram 8
44
Regency Horizon HZ54EPV Gas Fireplace
7) Place logs A + B on the burner, rest logs on the pin clips, as shown in diagram 9.
Note: Logs should be oriented exactly as shown in diagram 9.
INSTALLATION
A
) Place logs C + D on logs A + B, as shown in diagram 10.
Note: Logs should be oriented exactly as shown in diagram 10.
C
B
D
B
D
C
A
Diagram 9
Diagram 10
9) Install the following:
a) *Glass door
b) *Faceplate and door frame
*Refer to these sections in the manual for detailed instructions.
Log Set Installed (shown with optional pebbles)
Regency Horizon HZ54EPV Gas Fireplace
Diagram 11
45
INSTALLATION
FACEPLATE &
DOOR FRAME OVERLAY INSTALLATION
1) Install the door frame overlay by hooking the top fl ange over top of
the glass door, push in the bottom of the door frame overlay to secure
in place.
Door Frame
Overlay
Glass Door
3) Secure the left side mounting bracket to the backside of the faceplate
as shown below. Use 3 screws supplied to secure the mounting
bracket in place. Repeat for right side.
Magnet Position
2) Place 2 of the supplied magnets on the lower corners of the Door
Frame Overlay, this will keep the Faceplate in position after it has
been installed.
46
Left Side
Mounting Bracket
NOTE: Ensure that the faceplate is positioned correctly when installing
the mounting brackets to the faceplate. There is a top and bottom,
the top of the faceplate has a full 1" return whereas the bottom only
has a 1/2" return as shown in the diagram below.
Regency Horizon HZ54EPV Gas Fireplace
Mounting Bracket
shown in place
INSTALLATION
4) Install the faceplate to the unit by hooking the left and right side
mounting brackets into the mounting slots at the side of the fi rebox
as shown below. It is recommended that you use the fi rst mounting
slot (the one closest to the door frame overlay) out of the 5 so that
the faceplate and door frame overlay are fl ush with one another. See
diagram below.
NOTE: There are 5 mounting slots available, this is to accomodate
any fi nishing that protrudes slightly beyond the faceplate.
IMPORTANT NOTE
To ensure the gap between the door frame and the faceplate
are equal from side to side you may need to slide the faceplate
slightly to the left or right accordingly.
Also if necessary, the faceplate may be adjusted up and down
by loosening the top screw as shown in the diagram below and
sliding the plate up or down as required.
First Mounting Slot
(recommended)
Faceplate Mounting Slots
Completed Faceplate & Door Frame Overlay Installation
Regency Horizon HZ54EPV Gas Fireplace
47
INSTALLATION
OPTIONAL FAN INSTALLATION
Important: 120 Volt AC power is needed for the fan switch and blower.
The receptacle box will be installed on the left hand side of the unit
and must be wired by a qualifi ed electrician prior to fan
assembly being installed. The neutral(wider) slot of the polarized
receptacle should be at the top.
1) Turn the unit off and allow it to cool down to room temperature.
2) Turn off the gas supply to the unit.
3) Remove the faceplate by lifting it up off the hinges on the sides of the
fi rebox.
4) Remove the door frame overlay by swinging out 45
lift up and out.
o
from the bottom and
5) Remove the glass door.
a) Remove cover plates from over each screw by pulling away from
magnets each as shown below.
Magnet
Cover Plate
b) Remove the 3 screws shown below at the bottom of the glass
door
.
c) Swing the door out 45o from the bottom and lift up and out.
Diagram 4
48
Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
6) Loosen 6 screws that secure the burner extenders. on burner tray,
located behind the burner on either side of the pilot assembly.
7)
Lift out the 2 burner tray extenders.
Burner tray extenders
Burner tray
Burner tray extenders
8) After extenders have been removed. Remove the 2 screws that
secure the burner tray, at the base of the fi rebox.
9) Slide the burner to the left and lift it out.
11) Manoeuvre the fan into position on the fl oor of the unit. Tilt the fan
to get through the fan access panel and into position.
12) Secure the fan to the fl oor of the unit with 2 screws.
*See wiring diagram in manual.
13) Attach the ground wire from the fan to the ground lug in the unit. The
ground lug is located just in front of the receptacle box on the left
side on the fl oor of the unit. Plug fan
If installing a GTMF system - go to step 20 before proceeding.
Location of screws securing burner
10) Remove 8 screws to remove the fan access panel cover - located on
the left hand side fl oor of the fi rebox.
Fan Access Panel
Regency Horizon HZ54EPV Gas Fireplace
Ground Lug
14) Slide the thermodisc into the bracket on the bottom side of the fan
access panel - check fan access panel gasket - replace if necessary.
49
INSTALLATION
15) Reverse Steps 8 through 5.
16) Install the fan air defl ector - it hooks to 2 brackets on to the bottom lip of
the unit, to the right of the receiver.
Air defl ector
Bracket
Air defl ector
17) Reverse Steps 4 through 1.
19) Attach the receiver to the unit with the velcro strip. Place the receiver
in front of the ground lug on the left side of the unit - inside the bottom
frame of the unit - follow steps 15-19 to complete installation.
TO REMOVE THE FAN
1) Turn the power off.
2) Reverse the above instructions.
Maintenance: The sealed bearings are lubricated, there is no need to lu-
bricate them further. (Extra lubricant will cause more lint and dust buildup
- causing the bearings to prematurely fail).
Regular cleaning and vacuuming of the fan area will add to the life of the
motor.
18) FOR GTMF INSTALLATIONS ONLY: Install the fan control module into
the unit through the open fan access panel. Plug the fan control module
into the receptacle in the unit (left side - fl oor of unit). Plug the fan into
the fan control module and connect GTMF remote (see GTMF installation
instructions in this manual).
FAN
6-1/2”
RECEIVER
7”
10”
FCM
CONTROL PANEL
Top View
IMPORTANT:
These fans collect a lot of dust from within your home. Ensure you
maintain these fan motors on a regular basis by vacuuming
the fan blades and housing using a soft brush nozzle.
50
Regency Horizon HZ54EPV Gas Fireplace
OPERATING INSTRUCTIONS
INSTALLATION
OPERATING
INSTRUCTIONS
1) Read and understand these instructions before
operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the glass in the glass door frame
is properly positioned. Never operate the
appliance with the glass removed.
5) Verify that the venting and cap are unobstructed.
6) The unit should never be turned off, and on
again without a minimum of a 60 second wait.
FIRST FIRE
The FIRST FIRE in your heater is part of the paint
curing process. To ensure the paint is properly
cured, it is recommended you burn your fi replace
for at least four (4) hours the fi rst time with the fan on.
When fi rst operated, the unit will release an odour
caused by the curing of the paint and the burning off
of any oils remaining from manufacturing. Smoke
detectors in the house may go off at this time. Open
a few windows to ventilate the room for a couple of
hours. The glass may require cleaning.
NOTE: When the glass is cold and the appliance
is lit, it may cause condensation and fog
the glass. This condensation is normal and
will disappear in a few minutes as the glass
heats up.
DO NOT A TTEMPT TO CLEAN THE GLASS
WHILE IT IS STILL HOT!
LIGHTING
PROCEDURE
1) Turn on the wall switch or press and release on
ON/OFF button once on the remote control.
2) After approximately 4 seconds the spark ignition
system will spark for 60 seconds to light the
main burner.
3) The unit will turn on.
Note: The fi rst try for ignition will last approxi-
mately 60 seconds. If there is no fl ame ignition
(rectifi cation) the board will stop sparking for
approximately 35 seconds. After wait time ,
the board will start second try for ignition by
sparking for approximately 60 seconds . If
there is still no positive ignition the board will
go into lock out.
The system will need to be reset as follows:
a) Turn the system off using ON/OFF switch or
press ON/OFF button - if using optional remote.
b) After approximately 2 seconds turn on ON/
OFF switch or press ON/OFF button if using
optional remote.
c) Repeat step 2.
SHUTDOWN
PROCEDURE
1) Turn ON/OFF switch or press and release the
ON/OFF button once if using optional Remote
Control.
2) If service is to be performed - you must disconnect the battery.
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds from
your gas appliance. This is perfectly normal due
to the fact that there are various gauges and types
of steel used within your appliance. Listed below
are some examples. All are normal operating
sounds and should not be considered as defects
in your appliance.
Burner Tray:
The burner tray is positioned directly under the
burner and is made of a different gauge material
from the rest of the fi rebox and body. Therefore, the
varying thicknesses of steel will expand and contract
at slightly different rates which can cause "ticking"
and "cracking" sounds. You should also be aware
that as there are temperature changes within the
unit these sounds will likely re-occur. Again, this is
normal for steel fi reboxes.
Pilot Flame:
While the pilot fl ame is on it can make a very slight
"whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will expand
and contract at different rates resulting in some
"cracking" and "ticking" sounds will be heard
throughout the cycling process.
Blower Thermodisc:
When this thermally activated switch turns ON it will
create a small "clicking" sound. This is the switch
contacts closing and is normal.
DO NOT BURN THE UNIT WITHOUT THE
GLASS DOOR IN PLACE.
During the fi rst few fi res, a white fi lm
may develop on the glass front as part of
the curing process. The glass should be
cleaned after the unit has cooled down
or the fi lm will bake on and become very
diffi cult to remove. Use a non-abrasive
cleaner and DO NOT A TTEMPT TO CLEAN
THE GLASS WHILE IT IS HOT.
Regency Horizon HZ54EPV Gas Fireplace
5151
OPERATING INSTRUCTIONS
COPY OF LIGHTING PLATE INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
This appliance must be installed in accordance with local codes, if any;
if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage. Refer to the owner’s
information manual provided with this appliance. For assistance or additional information
consult a qualified installer, service agency or gas supplier.
AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice
risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou
la mort.
Une installation, d'ajustement, de modifi cation, de service ou d'entretien peut provoquer
des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de
l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémentaires consulter un installateur qualifi é, une agence de service ou fournisseur de gaz.
A) This appliance is equipped with an ignition device which automatically lights the pilot.
Do not try to light the pilot by hand.
B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the fl oor
because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fi re department.
C) Do not use this appliance if any part has been under water. Immediately call a qualifi ed service
technician to inspect the appliance and replace any part of the control system and any
gas control which has been underwater.
A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.
Ne tentez pas d’allumer la veilleuse manuellement.
B) AVANT DE FAIRE FONCTIONNER, renifl ez tout autour de l’appareil pour déceler une odeur
de gaz. Renifl ez près du plancher, car certains gaz sont pluslourds que l’air et peuvent
s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil
• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans le
bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les
instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies
C) N’utilisez pas cet appareil s’il a été plongé dansl’eau, même partiellement. Faites inspecter l’appareil par un tech-
nicien qualifi é et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.
CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface
temperatures keep children, clothing and furniture, gasoline and other liquids having fl ammable
vapors away. Keep burner and control compartment clean. See installation and operating
instructions accompanying appliance.
1) Manually slide the three position slider switch on the Receiver to the ON position.
2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main
burner.
3) The unit will turn on.
Note: The fi rst attempt to ignition will last approximately 60 seconds. If there is no fl ame ignition (rectifi cation) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a
second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the
second attempt the board will go into lock out.
The system will need to be reset as follows (after going into lock out mode):
a) Wait 5 minutes - turn the system off using manual slide switch.
b) After approximately 2 seconds manually move slider to on or press ON/OFF button if using
c) Unit will repeat step 2.
1) Glisser le commutateur à trois positions sur le récepteur à la position ON.
2) Attendre 4 secondes. Le système d’allumage produira des étincelles pendant 60 secondes afi n d’amorcer
3) Les fl ammes s’allumeront.
Remarque : Au premier allumage, le système tente d’allumer les fl ammes pendant 60 secondes. Si l’essai
est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectifi cation.
Ce délai écoulé, le système tente à nouveau d'allumer les fl ammes en produisant des étincelles pendant 60
secondes. Si les fl ammes ne s’allument toujours pas, le système se met en mode verrouillage.
Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) :
a) Attendre 5 minutes - éteindre le système en utilisant un interrupteur à glissière manuelle.
b) Après environ 2 secondes pour déplacer manuellement curseur ou appuyez sur la touche ON /
c) L'unité répétera l'étape 2.
1) Manually slide the three position slider switch on the Receiver to the OFF position.
2) If service is to be performed - you must disconnect power to the unit, from the battery pack, refer to
Faites glisser le commutateur à trois positions sur le récepteur à la position OFF.
1)
2) Si le service est effectuée, vous devez débrancher l'appareil, du bloc-piles, voir le manuel d'instruction
optional remote.
le brûleur principal.
OFF si vous utilisez télécommande en option.
manual.
pour plus de détails.
DO NOT REMOVE THIS INSTRUCTION PLATE
Natural Gas and Propane Installation Codes, CSA B149.1.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS APPLIANCE
918-948
52
52
Regency Horizon HZ54EPV Gas Fireplace
MAINTENANCE
MAINTENANCE
INSTRUCTIONS
1) Always turn off the gas valve before cleaning.
For relighting, refer to lighting instructions. Keep
the burner and control compartment clean by
brushing and vacuuming at least once a year.
2) Clean appliance and door with a damp cloth
(never when unit is hot). Never use an abrasive
cleaner. The glass should be cleaned with a
gas fi replace glass cleaner. The glass should
be cleaned when it starts looking cloudy.
3) The faceplate is fi nished in a heat resistant
paint and should only be refi nished with heat
resistant paint. Regency
Paint - Metallic Black #6309.
Note: Faceplates and inner panels made from
stainless steel will naturally change
color over time.
4) Make a periodic check of burner for proper
position and condition. Visually check the
fl ame of the burner periodically, making sure
the fl ames are steady; not lifting or fl oating.
If there is a problem, call a qualifi ed service
person.
5) The appliance and venting system must be
inspected before use, and at least annually,
by a qualifi ed fi eld service person, to ensure
that the fl ow of combustion and ventilation air
is not obstructed.
Note: Never operate the appliance without the
glass properly secured in place.
®
uses StoveBright
GENERAL VENT
MAINTENANCE
Conduct an inspection of the venting system semiannually. Recommended areas to inspect as follows:
1) Check the Venting System for corrosion in areas
that are exposed to the elements. These will
appear as rust spots or streaks, and in extreme
cases, holes. These components should be
replaced immediately.
2) Remove the Cap, and shine a fl ashlight down the
Vent. Remove any bird nests, or other foreign
material.
3) Check for evidences of excessive condensation,
such as water droplets forming in the inner
liner, and subsequently dripping out the joints,
Continuous condensation can cause corrosion
of caps, pipe, and fi ttings. It may be caused
by having excessive lateral runs, too many
elbows, and exterior portions of the system
being exposed to cold weather.
4) Inspect joints, to verify that no pipe sections or
fi ttings have been disturbed, and consequently
loosened. Also check mechanical supports such
as Wall Straps, or plumbers' tape for rigidity.
GLASS GASKET
If the glass gasket requires replacement use a
tadpole glass gasket (Part # 936-159).
GLASS DOOR
Your Regency® fi replace is supplied with high
temperature 5mm-Ceramic glass. If your glass
requires cleaning, we recommend using an
approved glass cleaner available at all authorized
dealers. Do not use abrasive materials.
CAUTION & WARNINGS:
* Do not clean when the glass is hot.
* The use of substitute glass will void all product
warranties.
* Care must be taken to avoid breakage of the
glass.
* Do not strike or abuse the glass.
* Do not operate this fi replace without the glass
front or with a cracked or broken glass front.
* Wear gloves when removing damaged or broken
glass.
* Replacement of the glass panel(s) should be
done by a licensed or qualifi ed service per son.
GLASS REPLACEMENT
In the event that you break your glass by impact,
purchase your replacement from an authorized
Regency
Replacement glass is shipped already installed
into the door frame.
®
dealer only.
CAUTION: Wear gloves when
removing damaged or broken glass.
6) Do not use this appliance if any part has been
under water. Immediately call a qualifi ed service
technician to inspect the appliance and to
replace any part of the control system and any
gas control which has been under water.
7) In the event this appliance has been serviced
check that the vent-air system has been properly
resealed & reinstalled in accordance with the
manufacturer's instructions.
8) Verify operation after servicing.
Regency Horizon HZ54EPV Gas Fireplace
WARNING: Do not operate the
appliance with the glass panels
removed, cracked or broken.
Replacement of the glass panels
should be done by a licensed or
qualifi ed service person.
53
MAINTENANCE
GLASS DOOR REMOVAL
1) Turn the unit off and allow it to cool down to room temperature.
2) Turn off the gas supply to the unit.
3) Remove the faceplate by lifting it up off the hinges on the sides of the
fi rebox.
4) Remove the door frame overlay by swinging out 45
and lift up and out.
o
from the bottom
5) Remove the glass door.
a) Remove the 3 screws shown below at the bottom of the glass
door
.
b) Swing the door out 45o from the bottom and lift up and out.
6) Remove valve cover - (see valve cover removal section in this manual).
54
Regency Horizon HZ54EPV Gas Fireplace
VALVE TRAY REPLACEMENT
MAINTENANCE
1) Turn the unit off and allow it to cool down to room temperature.
2) Turn off the gas supply to the unit.
3) Remove the faceplate by lifting it up off the hinges on the sides of the
fi rebox.
4) Remove the door frame overlay by swinging out 45
and lift up and out.
o
from the bottom
5) Remove the glass door.
a) Remove cover plates from over each screw by pulling away from 2
magnets each as shown below.
Magnet
Cover Plate
b) Remove the 3 screws shown below at the bottom of the glass
.
door
c) Swing the door out 45o from the bottom and lift up and out.
Diagram 4
Regency Horizon HZ54EPV Gas Fireplace
Note: See next pages for specifi c instructions for NG / LP units.
Prior to removing burner - remove the following (if installed):
-crystals
-pebbles
-spa stones
-logs
-Inner panels
55
MAINTENANCE
1) Loosen 6 screws that secure the burner extenders. on burner tray,
located behind the burner on either side of the pilot assembly.
2)
Lift out the 2 burner tray extenders.
Burner tray extenders
Burner tray
Burner tray extenders
4) After extenders have been removed. Remove the 2 screws that
secure the burner tray, at the base of the fi rebox.
5)
Slide the burner to the left and lift it out.
7) Disconnect the green and orange wires from the valve.
Green Wire Blue Wire
8) Disconnect the green ground wire from the valve bracket.
Green ground wire
9) Remove the valve tray by undoing 12 screws.
Location of screws securing burner
Burner Bracket
6) With burner removed - lift out burner tray.
56
10) Partially lift out valve tray.
11) Disconnect the inlet gas line.
Gas Inlet Line
12) Replace valve and reverse steps.
Regency Horizon HZ54EPV Gas Fireplace
MAIN ASSEMBLY
PARTS LIST
Part # Description
1) 476-151 Bottom Cover (False Tray) NG
476-152 Bottom Cover (False Tray) LP
2) 476-525 Burner Assembly -NG
476-530 Burner Assembly-LP
3) 476-574E/P Valve Assembly -NG
476-576E/P Valve Assembly-LP
4) 911-004 886 SIT Valve - NG
911-005 886 SIT Valve - LP
5) 911-006 Pilot Assembly - NG
911-007 Pilot Assembly - LP
910-363 White Wall Switch
910-366 White Switch Plate Wire
6) 904-660 Burner Orifi ce # 30 (NG)
904-431 Burner Orifi ce # 49 (LP)
904-658 Inlet Gas Flex Line SS
Part # Description
7) 476-101 Burner Extenders (LP unit only)
476-042f LH / RH Nailing Strips
8) 476-915 Optional Fan
9) 946--705 Power Vent Kit
911-045 Pressure Switch
911-046 Exhaust Fan 115V
370-055 Flue Collar Gasket
476-023 Plate Relief Gasket
476-055 Valve Tray Gasket
521-035 Inner Flue Collar Gasket
940-359/P Flush Glass
476-011 Flush Door
911-019 Wire (Valve to Burner ON/OFF)
948-409 Flue Collar
476-080 Lifting Handle
918-947 Manual
7
5
6
4
Regency Horizon HZ54EPV Gas Fireplace
9
1
8
2
3
57
PARTS LIST
Part # Description
30) 476-907 Refl ective Stainless Steel Panels
476-908 Black Enamel Inner Panels
31) 476-924 Faceplate & Door Frame Overlay - Black
476-927 Faceplate & Door Frame Overlay - Stainless Steel
476-926 Faceplate & Door Frame Overlay - Sunset Bronze
946-671 Cobalt Blue Glass Crystals
946-672 Natural River Pebbles
946-673 White River Pebbles
946-674 Stones
476-930 Log Set
946-690 GT remote
946-691 GTM remote
946-692 GTMF remote
910-576 Cover Wall Mount
910-572 Receiver GTM SIT w/ Batt & Cover
ACCESSORIES
30
31
58
Regency Horizon HZ54EPV Gas Fireplace
WARRANTY
Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly
before it leaves our facility.
not transferable.
The Warranty: Limited Lifetime
The combustion chamber, heat exchanger, burner tubes/pans, logs, glass crystals, ceramic spa stones, pebbles, brick panels and gold plating (against defective manufacture only) are
covered under the Limited Lifetime Warranty for fi ve (5) years for parts and subsidized labour* and parts only thereafter.
Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for fi ve (5) years and parts only thereafter from date of purchase.
External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date of purchase
and parts only thereafter.
Special Finishes - One year on stainless steel panels, nickel overlays,nickel faceplates, brushed nickel and antique copper full screens and doors. You can expect some changes in color
as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not
cover changing colors and marks, ie. fi nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.
Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and
gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue
as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.
FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.
Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to
be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the
defective part be returned to the distributor or agent Transportation Prepaid, if requested.
Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation.
Reported damage after this time will be subject to rejection.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer
defect.
The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency
service persons or dealers.
At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date,
serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as
products evolve, fi eld modifi cations or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident,
spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as
furnaces, fans, clothes dryer, etc.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.
Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.
* Subsidy according to job scale as predetermined by FPI.
Regency Fireplace Products is pleased to extend this limited lifetime warranty to the original purchaser of a Regency
®
product. FPI will not be liable for results or costs of workmanship from unauthorized
®
Product. This warranty is
Regency Horizon HZ54EPV Gas Fireplace
59
Register your Regency® warranty online
www.regency-fi re.com
Reasons to register your product online today!
• View and modify a list of all your registered products.
• Request automatic email notifi cation of new product updates.
• Stay informed about the current promotions, events, and special
offers on related products.
Installer: Please complete the following information
Dealer Name & Address: ______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: __________________________________________________________
Regency Horizon and SureFire™ are trademarks of FPI Fireplace Products International Ltd.
© Copyright 201133, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Loading...
