Regency F39-NG, F39-LPG User Manual

Owners & Installation

Freestanding Gas Stove

Models: F39-NG F39-LPG

Manual

LISTINGS AND CODE APPROVALS

These gas appliances have been tested in accordance with AG 103, NZS 5262 and have been certiﬁ ed by the Australian Gas Association for installation and operation as described in these Installation and Operating Instructions.

Your unit should be serviced annually by an authorised service person.

PLEASE KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorized installer, service agency or the gas supplier.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapours and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by an authorized installer, service agency or the gas supplier.

918-535

FOR YOUR SAFETY What to do if you smell gas: Do not try to light any appli-

ance

Do not touch any electri-

cal switch: do not use any phone in your building.

Immediately call your gas

supplier from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your

gas supplier, call the ﬁ re department.

05/18/06

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Regency® Room Sealed Gas Stove by FPI Fireplace Products

International Ltd. The Regency® Gas Series of hand crafted appliances has been designed to provide you with all the

warmth and charm of a woodstove, at the ﬂ ick of a switch. The models F39-NG and F39-LPG of this series has been

approved by Warnock Hersey for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you

with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself

with these instructions and the many features of your Regency Room Sealed Freestanding Gas Stove.

UNIT SPECIFICATIONS

Regency

F39 Room Sealed Freestanding Gas Stove

TABLE OF CONTENTS

Unit Speciﬁ cations .........................................................2

SAFETY LABEL

Safety Label ..................................................................4

INSTALLATION

Important .......................................................................5

Speciﬁ cations ................................................................5

Before You Start ............................................................5

General Safety Information ...........................................5

Installation Checklist ...................................................... 6

Exterior Flue Termination Locations ..............................8

Fluing Arrangements .....................................................9

DV Stove Horizontal Flue Kit .......................................10

Dura-Flue Termination Kit ............................................12

Gas Connection ........................................................... 15

Gas Pipe Pressure Testing ..........................................15

Aeration Adjustment ....................................................16

Conversion Kit #731-968 from NG To LPG .................17

Conversion to Lower BTU Rating ................................18

Log Set Installation ......................................................18

Front Door Installation .................................................20

Optional Wall Thermostat ...........................................20

Optional Remote Control ............................................20

Final Check .................................................................20

Wiring ..........................................................................21

OPERATING INSTRUCTIONS

Operating Instructions ................................................22

Lighting Instructions ....................................................22

Shutdown Instructions .................................................22

First Fire ......................................................................22

Automatic Convection Fan Operation .........................22

Adjusting Flame Height ...............................................22

Copy of the Lighting Plate Instructions .......................23

Normal Operating Sounds of Gas Appliances ............. 23

MAINTENANCE

Maintenance Instructions ............................................24

General Flue Maintenance ..........................................24

Gold-Plated Doors .......................................................24

Log Replacement ........................................................25

Door Gasket ...............................................................25

Latch Adjustment .........................................................25

Glass Replacement .....................................................25

MAINTENANCE

Fan Maintenance ......................................................... 26

Removing Valve ...........................................................27

PARTS LIST

F39 Main Assembly .....................................................28

F39 Burner & Log Assembly ........................................29

F39 Door Assemblies ..................................................30

Regency® F39 Room Sealed Freestanding Gas Stove

WARRANTY

Warranty ......................................................................31

SAFETY LABEL

This is a copy of the label that accompanies each REGENCY F39 Room Sealed Freestanding Gas Stove. We have printed a copy of the contents

here for your review. The data plat is located on the inside of the drop down pedestal door.

NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

(Australia Only)

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

IMPORTANT

SAVE THESE

INSTRUCTIONS

The REGENCY Room Sealed Freestanding Gas Stove must be installed in accordance AG601 and NZS 5261 and with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the building authority having jurisdiction to determine the need for a permit prior to starting the installation.

Note: Failure to follow the instructions

could cause a malfunction of the heater which could result in death, serious bodily injury, and/or property damage. Failure to follow these instructions may also void your ﬁ re insurance and/or warranty.

Note: These instructions take precedence

over Simpson Dura-Flue instructions.

SPECIFICATIONS

Fuels: F39-NG is approved for use with NG.

F39-LPG is approved for use with lique-

ﬁ ed petroleum gases (LPG).

Electrical: 240V A.C. system.

Circulation Fan: Variable speed, 125/75.

COMPARTMENT, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

tured home installations, see page 9 for the required ﬂ ue arrangements. If installed into a manufactured home the unit must be bolted down to the ﬂ oor.

4) This appliance is Listed for bedroom instal-

lations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

5) This appliance is Listed for Alcove installa-

tions, maintain minimum Alcove clearances as follows, minimum width of 48" (1219mm), a maximum depth of 36" (914mm), and minimum ceiling height of 64"(1626mm).

6) We recommend that you plan your instal-

lation on paper using exact measurements for clearances and ﬂ oor protection before actually installing this appliance. Have an authorized building inspector review your plans before installation.

GENERAL SAFETY

INFORMATION

1) The appliance shall be installed in accord-

ance with the manufacturer's installation instructions,local gas ﬁ tting regulations, municipal building codes, water supply regulations, electrical wiring regulations, with AG 601 (AGA gas installation code) NZS 5261 (New Zealand)

Log Sets: Ceramic ﬁ bre, 7 per set.

Flue System: Coaxial (6-5/8" outer / 4" inner

liner) rigid ﬂ ue and termination cap.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIRS SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THIS APPLIANCE SHOULD BE INSTALLED, REPAIRED, INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY AN AUTHORIZED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, ETC. IT IS IMPERATIVE THAT THE CONTROL

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

1) Provide adequate clearances for servicing,

proper operation and around the air openings into the combustion chamber.

2) The appliance may be installed on a ﬂ at,

solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or it can be raised up on a platform to enhance its visual impact. The appliance may be installed on carpeting, tile, wood ﬂ ooring or other combustible material, because the appliance's metal pedestal base extends the full width and depth of the appliance. The Regency Room Sealed Freestanding Gas Stove can be installed in a wide variety of ways and will ﬁ t nearly any room layout. It may be installed in a recessed position, framed out into the room, or across a corner.

3) The Regency® Room Sealed Freestanding

Gas Stove is approved for alcove installations, which meet the clearances listed on page 7. This unit is approved for manufac-

2) Installation and repair should be done ONLY by an authorised person.

3) DO NOT CONNECT TO MASONARY FLUE.

4) This appliance must be connected to the speciﬁ ed ﬂ ue and termination cap to the outside of the building envelope. Never ﬂ ue to another room or inside a building. Make sure that the ﬂ ue is ﬁ tted as per Flueing instructions.

5) Inspect the ﬂ ueing system annually for block-

age and any signs of deterioration.

6) Flueing terminals shall not be recessed into a wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

Regency® F39 Room Sealed Freestanding Gas Stove

INSTALLATION

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for termination.

11) Under no circumstances should this ap-

pliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance

should be done by an authorised service person. An authorised service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

INSTALLATION

CHECKLIST

1) Check Clearances to Combustibles. Refer to

the "Clearance to Combustibles" section.

2) Install Louvers. Refer to "Louver Installation"

section.

3) Install ﬂ ueing. Refer to the "Flueing" sec-

tion.

4) Make gas connections. Refer to the "Gas

Connection" section. Test the pilot. Must be as per diagram in the "Pilot Adjustment" section.

5) If necessary, convert NG to LPG. Refer to

the "Conversion from NG to LPG" section.

6) Test Gas Pressure. Refer to the "Gas Pipe

Pressure Testing" section.

7) Install log set. Refer to the "Log Set Instal-

lation" section

8) Install Front Door. Refer to the "Front Door

Installation" section.

9) Install Optional Features. Refer to the

following sections where applicable:

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly and operation fully explained

to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

CLEARANCES TO

COMBUSTIBLES

The clearances listed are MINIMUM distances. Measure the clearance to both the appliance and the chimney connector. The farthest

distance is correct if the two clearances do not coincide.

For example, if the appliance is set as indicated in one of the ﬁ gures but the connector is too close, move the stove until the correct clearance to the connector is obtained.

This appliance may be installed only with the clearances as shown in the situations pictured.

Do not combine clearances from one type of installation with another in order to achieve closer clearances.

This unit can be installed on a solid combustible surface like a wood ﬂ oor. This unit can also be installed directly on carpeting or vinyl when the bottom pedestal cover plate (provided with unit) is installed.

Use the minimum clearances shown in the diagrams below:

F39-NG & F39-LPG Clearances

A Side Wall to Unit 190 mm B Back Wall to Unit 150 mm E Side Wall to Unit 50 mm

F39-NG & F39-LPG Reference Dimensions

C Back Wall to Flue Centerline 11" / 280 mm D Side Wall to Flue Centerline 521 mm F Side Wall to Flue Centerline 280 mm

Minimum ceiling height is 914 mm from top of unit.

LOCATING YOUR

REGENCY® GAS STOVE

When selecting a location for your stove, ensure that the clearances listed above are met as well as ensuring that there is adequate accessibility for servicing and proper operation.

A) Cross Corner B) Room Divider C) Island D) Flat on Wall E) Flat on Wall Corner F) Flush with Wall/ Alcove

a. Optional Wall Thermostat b. Optional Remote Control

10) Final check. Refer to the "Final Check"

section.

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

For ﬂ ue termination requirements, refer to "Exterior Flue Termination Location" section.

COMBUSTION AND

VENTILATION AIR

The combustion air from this appliance is drawn from outside the building through the outer ﬂ ue.

Extra provision for combustion air inside the room is not required.

LOUVER

INSTALLATION

1) Attach the top & bottom louvres to the

side stove panel using 2 screws per side.

FLUEING

INTRODUCTION

The DV Stove Horizontal Flue Kit and the Simpson Dura-Flue Room Sealed System Model DV-GS ﬂ ueing systems, in combination with the Regency® Room Sealed Freestanding Gas Stove, F39-NG, and F39-LPG, have been tested and listed as direct ﬂ ue heater systems by AGA.

These units use the "balanced ﬂ ue" technology Co-Axial system. The inner liner ﬂ ues products of combustion to the outside while the outer pipe draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These ﬂ ue pipes must not be con-

nected to any other appliance.

The gas appliance and ﬂ ue system must be ﬂ ueed directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct ﬂ ue gas appliance must use it's own separate ﬂ ue system. Common ﬂ ue systems are prohibited.

IMPORTANT

Read all instructions carefully before starting the installation. Failure to follow these instructions may create a ﬁ re or other safety hazard, and will void the warranty. Be sure to check the ﬂ uing and clearance to combustible requirements. Consult your local building codes before beginning installation.

The location of the termination cap must conform to the requirements in the Exterior Flue Terminal Locations diagram, refer to "Exterior Flue Termination Location" section.

4) Installation other than as instructed by

Simpson Dura-Flue and Fireplace Products International Ltd.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a fire hazard. Do not ﬁ ll air spaces with insulation.

Be sure to check the ﬂ ue termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the Exterior Flue Terminal Locations on page 8 and in your local building codes.

The gas appliance and ﬂ ue system must be ﬂ ueed directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct ﬂ ue gas appliance must use

it's own separate ﬂ ue system. Common ﬂ ue systems are prohibited.

SAFETY PRECAUTIONS

FOR THE INSTALLER

1) Wear gloves and safety glasses for

protection.

2) Exercise extreme caution when using

ladders or on roof tops.

3) Be aware of electrical wiring locations

in walls and ceilings.

INSTALLATION PRECAUTIONS

These ﬂ uing systems are engineered products that have been designed and tested for use with the F39-NG, and F39-LPG. The warranty will be voided and serious ﬁ re, health or other safety hazards may result from any of the following actions:

1) Installation of any damaged Room Sealed

component

2) Unauthorized modiﬁ cation of the Room

Sealed System

3) Installation of any component part not manu -

factured or approved by Simpson Dura-Flue or Fireplace Products International Ltd.

Regency® F39 Room Sealed Freestanding Gas Stove

INSTALLATION

EXTERIOR FLUE TERMINATION LOCATIONS

Minimum clearances required for balanced ﬂ ue terminals or

according to AG 601 (AGA gas installation code) or NZS 5261 (New Zealand)

the ﬂ ue terminals of outdoor appliances

Minimum Clearance (mm) a Below eaves, balconies or other projections:

- Appliances up to 50 MJ/h input 300

- Appliances over 50 MJ/h input 500 b From the ground or above a balcony 300 c From a return wall or external corner 500 d From a gas meter (M) 1000 e From an electricity meter or fuse box (P) 500 f From a drain or soil pipe 150 g Horizontal from any building structure (unless appliance is approved for closer installation) or obstruction facing a terminal 500 h From any other ﬂ ue terminal, cowl or combustion air intake 500 j Horizontally from an openable window, door, or non-mechanical air inlet, or any other opening into a building, with the exception of sub-ﬂ oor ventilation (see also Note (I)):

- Appliances up to 150 MJ/h input 500

- Appliances over 150 MJ/h input 1500 k Vertically below an openable window, door, or non-mechanical air inlet, or any other opening into a building, with the exception of sub-ﬂ oor ventilation (see also Note (I)): see table below

Clearance 'k' in mm

Space Heaters All Other Appliances

Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input

input to 150 MJ/h input

150 500 1000 1500

NOTES:

(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.

(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.

(III) Prohibited area below electricity meter or fuse box extends to ground level.

(IV) A ﬂ ue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and a free ﬂ ow

of air at the appliance is achieved.

Regency

F39 Room Sealed Freestanding Gas Stove

FLUING ARRANGEMENTS

INSTALLATION

Horizontal Terminations for All Fluing Systems

The shaded areas in the diagram below show all allowable combinations of vertical runs with horizontal terminations. Maximum one 90O elbow (two 45o elbows equal one 90o elbow).

LPG and NG:

Residential, Manufactured and Mobile

Homes Installations

The ﬂ uing arrangements diagrammed below, have a min. of 75% (ﬂ ue loss) efﬁ ciency with Fan Off, as required for manufactured homes. (Actual efﬁ ciency may be as high as 85%)

May be installed in Manufactured (Mobile) Homes after ﬁ rst sale.

Vertical Terminations Using

Dura-Flue Fluing System for

Residential Manufactured and Mobile Homes

The shaded area in the diagram below shows all allowable combinations of straight vertical and offset to vertical runs with vertical terminations. Maximum two 45o elbows.

If the ﬂ ue is ENCLOSED in a chase (min. size 9" x 9") maintain a 1-1/4" clearance to combustibles.

May be installed in Manufactured (Mobile) Homes after ﬁ rst sale.

Flue Restrictor Position

To set the Flue restriction as indicated in the diagram, simply loosen the screws and push the ﬂ ue restrictor plate to the correct position. Tighten the screws.

Regency® F39 Room Sealed Freestanding Gas Stove

Flue Restrictor setting at

40 Mj/h

Flue Restrictor setting at

31 Mj/h

INSTALLATION

DV STOVE HORIZONTAL FLUE KIT

Horizontal Stove Flue Kit (Part # 946-112) includes all the parts needed to install the F39 Freestanding Gas unit with minimum horizontal and vertical vent dimensions. For installations that require longer vertical and/or horizontal vents use the Dura-Vent system as shown in your manual.

Qty. Description

1) 2 Rigid Pipe Section 1.2m length, 165mm inside diameter

2) 1 Flex Liner, compressed aluminium 2 ply liner, 102mm inside diameter

3) 4 spring spacers

4) 1 90 deg. Elbow

5) 1 Decorative Wall Trim

6) 1 Adapter

7) 1 AstroCap Termination Cap

8) 2 Trim Collar

9) 1 tube of Mill-Pac, high temperature sealant

10) 12 Screws, #8 x 1/2" Self tapping, Stainless Steel

11) 14 Screws, #8 x 1/2" Self tapping, Black

12) 4 Screws #8 x 1-1/2" Drill Point, Stainless Steel

Optional:

946-206 Vinyl Siding Standoff for AstroCap

DV STOVE HORIZONTAL FLUE KIT (# 946-112) INSTALLATION

Review the following sequence of instructions which are typical of most installations. The sequence may vary depending on wall thickness. Refer to ﬂ ue location, see "Exterior

Flue Termination Location" section. and clearance dimensions, see to "Clearances to Combustibles" section.

1) Set the unit in its desired location. Check to determine if wall studs will be in the way of the ﬂ uing system, adjust location until all clearances are met and there are no obstructions.

Note: A 1-1/2"(38mm) clearance around

the outer pipe must be maintained except that only a 1" (25mm) clearance is needed at the termination end.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check ﬂ ue termination area after snow falls, and clear to prevent accidental blockage of ﬂ uing system. When using

Note: a) Liner sections should be continuous

without any joints or seams.

b) This is an approved system, therefore

components in this system must not be substituted for any other manufacturer's products.

c) Wall Thimble is required when installing

through a combustible wall.

snow blowers, make sure snow is not directed towards ﬂ ue termination area.

2) Assemble a trial ﬁ t to determine the verti-

cal center-line for the ﬂ ue termination.

a) Cut a 241mm round hole on both the

interior and exterior wall.

b) Attach the 2 ft. pipe section to the ﬂ ue

terminal and slide into position from the exterior. The larger diameter end

of the adjustable pipe goes to the ﬂ ue terminal.

c) Install the 90o elbow onto the adjust-

able pipe to determine the vertical centerline of the starter collar on the unit.

Note: if the centerline cannot be

met, the adjustable sections will

Minimum Installation Height:

F39: 59-3/4" ( 1518mm)

have to be cut.

d) Cut the 2 ft. section of rigid pipe to

length. Ensure that the pipe length

Regency

F39 Room Sealed Freestanding Gas Stove

when cut will seat onto both the starter collar and the 90o elbow. Crimped

section of rigid pipe seats into the 90o elbow. Only cut the uncrimped side of pipe.

Dismantle all pipe sections including ﬂ ue

terminal.

3) Attach the 4" dia. ﬂ ex liner to the ﬂ ue terminal ensuring that the ﬂ ex overlaps the collar of the ﬂ ue terminal by a minimum of

1-3/8"(35mm). Use Mill-Pac to seal and

secure with 3 of the #8 x 1/2" screws (stainless steel).

4) Attach the 2 ft. pipe section to the ﬂ ue terminal using Mill-Pac and/or high temperature silicone and attach with 3 of the #8 x 1/2" screws (stainless steel).

Hint: Apply the

sealant (MillPac and/or high temperature silicone) to the outer pipe before connecting the inner pipe.

Note: The pipe seam should be facing

down.

Note: To make the installa-

tion more aesthetically pleasing, we recommend framing out a square that the cap can be mounted on.

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. For vinyl siding standoff installation refer to the Dura-Flue Termination instructions.

5) Slide the partially connected pipe and ﬂ ue terminal assembly through the wall (from the exterior into the interior) and secure the cap to the exterior wall with 4 of the supplied screws (#8 x 1-1/2" drill point, stainless steel).

Note: The four screws provided for the

ﬂ ue cap should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

6) A bead of non-hardening mastic should be run around both the termination and vinyl siding standoff to prevent water from entering and to make a tight seal between the cap and the standoff.

7) Stretch the 4" dia. ﬂ ex liner out fully and get a trial ﬁ t of the liner onto the 4" dia. starter collar.

8) Cut the 4" dia. ﬂ ex liner to the desired size.

Hint: leave an extra 12" to 16" of length, this

will make the ﬁ nal assembly easier to work with.

9) Secure the 4" dia. ﬂ ex liner to the 4" adapter with Mill-Pac and 3 of the #8 x 1/2" screws (stainless steel).

10) Slide the Decorative Wall Cover over the pipe sections.

11) Slide the 90 2 ft. pipe section (crimp end up) over the 4" dia. ﬂ ex liner.

12) Slide the trim collar over the pipe section to cover the joint.

13) Install the spring spacers onto the pipe sections.

elbow (crimp end up) and the

INSTALLATION

#8 x ½" (13mm) Self Tapping, Stainless Steel

#8 x ½" Self Tapping, Black(13mm)

#8 x 1½" (38mm) Drill Point, Stainless Steel

14) Secure the 4" dia. ﬂ ex liner with adapter onto the stove collar. Put a bead of Mill-Pac around the appliance adapter and secure with 3 screws (#8 x 1/2, stainless steel).

15) Attach the pipe section onto the starter collar by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" (black) screws. Pipe seams should be facing the wall.

16) Attach the 90o elbow onto the pipe section by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" screws (black).

17) Slide the 2 ft. pipe section onto the 90o elbow. The ﬂ ex may have to be compressed back in order for the pipe to properly mate to the elbow. Seal with Mill-Pac and/or high temperature silicone and secure with 3 of the #8 x 1/2" screws (black). Pipe seams facing down.

18) Install the trim collar over the starter collar and secure with a #8 x 1/2" screw (black).

If the pipe needs to be touched up, use only Stove Brite High Temperature Metallic Black Stove Paint.

NOTE: All inner joints must be sealed with

Mill-Pac.

Regency® F39 Room Sealed Freestanding Gas Stove

All outer joints may be sealed with

high temperature silicone.

INSTALLATION

DURA-FLUE

TERMINATION KIT

Planning Your Dura-Flue

Installation

There are two basic types of Dura-Flue Room Sealed System installations: horizontal termination and vertical termination. Conﬁ rm the maximum horizontal run and maximum vertical rise from the diagrams, refer to "Fluing Arrangements" section.

When planning your installation, it will be necessary to select the proper length of ﬂ ue pipe for your particular requirements. For horizontal installations, determine the minimum clearance from the rear of the unit to the wall. It is also important to note the wall thickness. (The wall thimble is suitable for 2 x 4 or 2 x 6 wall construction.) Select the amount of vertical rise desired for "vertical-to-horizontal" type installations.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a ﬁ re hazard. Do not ﬁ ll air spaces with insulation.

The minimum clearance requirements between the outer wall of the ﬂ ue pipe and nearby combustible surfaces is 1-1/4 inch. Be sure to check the ﬂ ue termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the Exterior Flue Terminal Locations on page 8 and in your local building codes.

To determine the length of ﬂ ue pipe required for vertical installations, measure the distance from the unit ﬂ ue outlet to the ceiling, the ceiling thickness, the vertical rise in an attic or second storey, and allow for sufﬁ cient vertical height above the roof line.

For multi-storey applications, ﬁ re stops are required at each ﬂ oor level. If an offset is needed, additional pipe, elbows and supports will be required.

Do not exceed the maximum number of elbows. One 90o for horizontal terminations and two 45o for vertical termination.

DURA-FLUE FLUING

COMPONENTS

Note: These are the minimum pieces re-

If installing termination on a siding covered wall, a vinyl siding standoff or furring strips can be used in order to ensure that the termination is not recessed into siding.

The vinyl siding standoff is required for walls with vinyl siding.

Minimum components for a Dura-Flue Horizontal Installation:

A) Dura-Flue Horizontal Termination Kit B) Wall Thimble (required for combus tible walls)

Minimum components for a Dura-Flue Vertical Termination:

C) Dura-Flue Vertical Termination Kit See page 12 for pipe lengths.

The Simpson Dura-Flue Room Sealed System offers a complete line of component parts for installation of both horizontal and vertical installation. Many items are offered in decorative black, as well as galvanized ﬁ nish. The galvanized pipe

Box/Wall Thimble

quired. Other parts may be required for your particular installation. See page 12 for a list of ﬂ ue parts.

Vertical

Terminal

Storm Collar

Part # 953

Flashing

943 or 943S

Ceiling Firestop

(Part # 963)

Round Support

(Part # 940)

Pipe Length

90 Elbow

24" (610mm)

Pipe Length

Round Support Box/ Wall Thimble

(Part # 940)

Adj.Pipe Length

11" - 14-5/8"

(279mm - 372mm)

and ﬁ ttings are used for concealed locations such as attics or where corrosion is a factor, such as above the roof line. Decorative brass trim kits are available for both wall thimbles and ceiling support boxes.

Part # Description

971 Horiz. Termination Kit includes:

90 black elbow, wall thimble cover, horiz. square termination cap, 24" black pipe, 11" -14" 5/8" adjustable black pipe 970 Basic Horiz. Termination Kit includes: 90o black elbow, wall thimble cover, horiz. square termination cap 978 Vert. Termination Kit includes 0/12 - 6/12 pitch adjustable ﬂ ashing, storm collar, low proﬁ le term. cap 908B 6" Pipe Length-Black 907B 9" Pipe Length-Black 906 12" Pipe Length Galv. 906B 12" Pipe Length-Black 904 24" Pipe Length Galv. 904B 24" Pipe Length-Black 903 36" Pipe Length Galv. 903B 36" Pipe Length-Black 902 48" Pipe Length Galv. 902B 48" Pipe Length-Black 911B 11"-14 5/8" Adj. Pipe LengthBlack 917B 17"- 24" Adj. Pipe Length Black 945 45O Elbow Galv.

Vinyl Siding

Standoff (Optional)

Part #950

AstroCap

Termination Cap

(Part# 946-523)

Wall Thimble

Part # 942

Dura-Flue Basic

Horizontal Kit # 970

1 90o Elbow 1 Wall Thimble Cover 1 Astro Cap

You will require the following components with your new Regency® Room Sealed Freestanding Gas Stove. Please review your product to make sure you have everything you need. In the eﬂ ue that you are missing any part, contact your dealer.

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

945B 45O Elbow-Black 945G 45 945BG 45O Elbow-Swivel-Black 990 90O Elbow Galv. 990B 90O Elbow-Black 990G 90O Elbow-Swivel Galv. 990BG 90O Elbow-Swivel-Black 991 High Wind Term. Cap (Vertical) 980 Vertical Term. Cap 982 Snorkel-14" Rise Term.Cap 981 Snorkel-36" Rise Term.Cap 940 Wall Thimble-Support/Box 941 Cathedral/Ceiling-Support/Box 3951 Brass Trim-Wall Thimble/ Ceiling Support 963 Firestop Spacer 943 Flashing 0/12-6/12 943S Flashing 7/12-12/12 953 Storm Collar 950 Vinyl Siding Standoff 988 Wall Strap 942 Wall Thimble

Parts not supplied by Dura-Flue

946-506/P Flue Guard (Optional)

Elbow-Swivel Galv.

DURA-FLUE

HORIZONTAL

INSTALLATIONS

(diagram 1). Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs will not be visible from the outside on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends. Apply sealant "Mill-Pac" to inner pipe and high temp silicone sealant to outer pipe on every twist-lock joint.

Hint: Apply silicone to female end.

b) Horizontal runs of ﬂ ue must be supported

every three feet. Wall straps are available for this purpose.

3) With the pipe attached to the stove, slide

the stove into its correct location, and mark the wall for a 10" x 10" (inside dimensions) square hole. The center of the square hole should line up with the centerline of the

b) The location of the horizontal ﬂ ue termi-

nation on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. For External Flue Terminal Locations diagram, refer to "Exterior Flue Termination Location" section.

4) If installing the ﬂ ue termination to a wall with

vinyl siding, the Vinyl Siding Standoff must be used. Attach the Vinyl Siding Standoff to the Horizontal Flue Termination, but ﬁ rst run a bead of non-hardening mastic around its outside edges, so as to make a seal between ﬂ ue cap and the standoff. Install the Vinyl Siding Standoff (Part # 950) between the ﬂ ue cap and the exterior wall and attach with the four wood screws provided. Seal around the Vinyl Siding Standoff on all four sides. Diagram 5. The arrow on the ﬂ ue cap should be pointing up. Insure that the 1-1/4" clearances to combustible materials are maintained. See diagram 5.

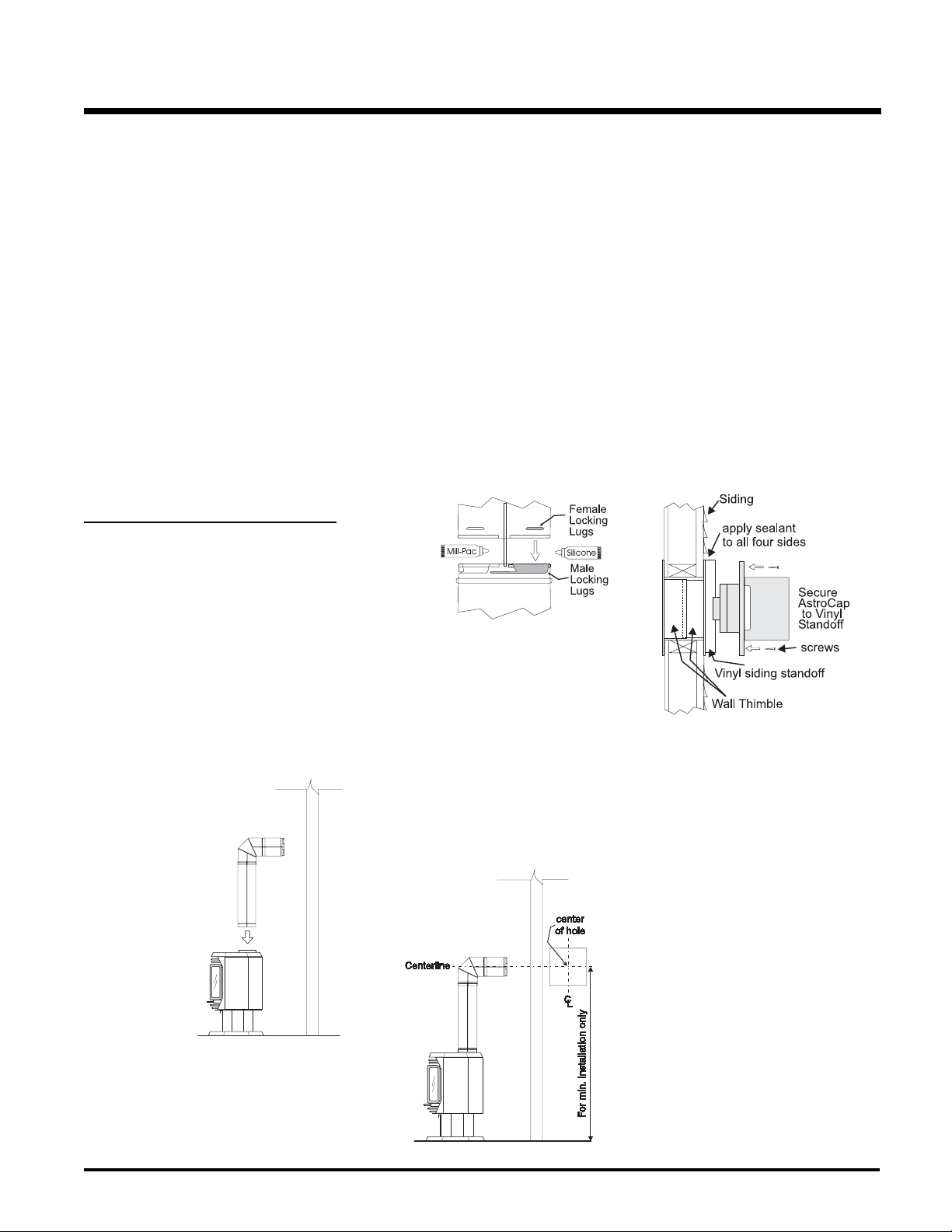

1) Set the unit in its desired location. Check to

determine if wall studs or roof rafters are in the way when the ﬂ uing system is attached. If this is the case, you may want to adjust the location of the unit.

2) Room Sealed pipe and ﬁ ttings are designed

with special twist-lock connections to connect the ﬂ uing system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is installed on the unit at the factory. Assemble the desired combination of pipe and elbows to the appliance adaptor with pipe seams oriented towards the wall or ceiling, as much out of view as possible. The ﬁ nal positioning of the pipe and 90o elbow assembly is determined by the mounting orientation of the adaptor on the stove and twistlocked for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends

Diagram 1

horizontal pipe, as shown in diagram 2. Cut and frame the 10 inch square hole in the exterior wall where the ﬂ ue will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 7" diameter hole is acceptable.

Note: a) The horizontal run of ﬂ ue should have a 1/4

inch rise for every 1 foot of run towards the termination. Never allow the ﬂ ue to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

Diagram 2

Diagram 5

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

5) Before connecting the horizontal run of ﬂ ue

pipe to the ﬂ ue termination, slide the black decorative wall thimble cover over the ﬂ ue pipe, then slide the Wall Thimble (Part #

942) over the ﬂ ue pipe.

6) Slide the appliance and ﬂ ue assembly

towards the wall carefully inserting the ﬂ ue pipe into the ﬂ ue cap assembly. It is important that the ﬂ ue pipe extends into the ﬂ ue cap a sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the ﬂ ue pipe and the ﬂ ue cap using sheet metal screws provided. See diagram 6.

F39: 59-3/4" (1518mm)

7) Install the Wall Thimble in the center of the

10" square and attach with wood screws.

Regency® F39 Room Sealed Freestanding Gas Stove

INSTALLATION

Diagram 6

8) Slide the decorative wall thimble up to the

wall surface being careful not to scratch the paint and attach with screws provided. Apply decorative brass or chrome trim if desired. See diagram 7.

Diagram 9

3) To install the Round Support Box/Wall Thim-

ble in a ﬂ at ceiling, cut a 10 inch square hole in the ceiling centred on the hole drilled in Step 2. Frame the hole as shown in diagram

10.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the ﬂ ue pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose. See diagram 7.

Galvanized pipe and elbows may be utilized

in the attic as well as above the rooﬂ ine. The galvanized ﬁ nish is desirable above the rooﬂ ine due to its higher corrosion resistance.

Continue to add pipe sections through the

ﬂ ashing until the height of the ﬂ ue cap meets the minimum height requirements speciﬁ ed in diagram 12 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the ﬂ ue height may solve the problem.

Diagram 7

DURA-FLUE VERTICAL

TERMINATION

1) Maintain the 1-1/4" clearances

(air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check page 9 for the maximum vertical rise of the ﬂ uing system and the maximum horizontal offset limitations.

2) Set the gas appliance in

its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the ﬂ ue will penetrate the ceiling. Drill a small hole at his point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the

spot where the ﬂ ue will penetrate the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the ﬂ uing system. You may wish to relocate the appliance or to offset, as shown in diagram 9 to avoid cutting load bearing members.

Diagram 8

Diagram 10

4) Assemble the desired lengths of black pipe

and elbows necessary to reach from the appliance adaptor up though the Round Support Box. Insure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centred on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/4". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per diagram 11.

Diagram 11: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

Diagram 12

Roof Pitch Minimum Flue Height

Feet Meters

ﬂ at to 7/12 2

0.61

over 7/12 to 8/12 2 0.61

over 8/12 to 9/12 2 0.61

over 9/12 to 10/12 2.5 0.76

over 10/12 to 11/12 3.25 0.99

over 11/12 to 12/12 4 1.22

over 12/12 to 14/12 5 1.52

over 14/12 to 16/12 6 1.83

over 16/12 to 18/12 7 2.13

over 18/12 to 20/12 7.5 2.29

7) Ensure ﬂ ue is vertical and secure the base

of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twist

locking it.

Notes:

a) For multistorey vertical installations, a

Ceiling Fire stop (Part # 963) is required at the second ﬂ oor, and any subsequent ﬂ oor. Diagram 13. The opening should be framed to 10 " x 10" inside dimen-

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

sions, in the same manner as shown in diagram 10.

Diagram 13

Offset Chart

b) Any occupied areas above the ﬁ rst ﬂ oor,

including closets and storage spaces, through which the vertical ﬂ ue passes, must be enclosed.

CATHEDRAL CEILINGS

Round Support (RDS) &

Square Support (SQS)

If your home has a cathedral ceiling (no attic space between the ceiling and the roof), install the chimney and support as follows.

1) Situate the chimney in a convenient loca-

tion as near as possible to the appliance outlet. Cut and frame a hole in the roof for the support. The sides of this hole must be vertical with 1 1/4" clearance.

2) Place the support in the opening. Lower it

to the correct height as determined by the table and diagram below.

Slope "X"

0/12 - 2/12 4"

2/12 - 7/12 5-1/2"

7/12 - 12/12 6-3/4"

12/12 - 24/12 7-1/2"

24/12+ 12-1/2"

Using a level, make sure the support is

vertical. If the support extends above the roof, cut it ﬂ ush with the top of the roof. Nail the support to the frame opening using (8) 3" spiral nails or #8 x 1-1/2" screws.

Note: If you are using a 6" square support

you may ﬁ nd it difﬁ cult to screw it in place because it is fairly small inside.

Simpson Dura-Flue has provided angle

brackets with this support which can be screwed to the outside of the support box and nailed to surrounding framing as required. Use a minimum of four #8 x 1/2" screws per bracket. In some cases these brackets may need to be trimmed (e.g.: to ﬁ t under a ﬂ ashing). Place the Finish Collar around the support and fasten it to the ceiling using the screws provided.

3) Use appropriate roof ﬂ ashing. Place the

ﬂ ashing under the upper shingles and on top of the lower shingles approximately half of the ﬂ ashing should be under the shingles.

4) Assemble the desired lengths of Black Pipe

and Elbows necessary to reach from the appliance adaptor up through the support box and ﬂ ashing to proper height as per Dia. 12, local codes or page 9. Ensure that all pipe and elbow connections are in their fully twist lock position.

5) Ensure ﬂ ue is vertical and secure ﬂ ashing

to the roof with rooﬁ ng nails. Slide the storm collar over the pipe section and seal with a mastic.

6) Twist lock the ﬂ ue cap on to the last sec-

tion.

Support Extensions - Round

(RDSE) or Square (SQSE)

Steep pitched cathedral ceilings may require the use of a support extension. This piece ﬁ ts down inside the support and can be adjusted to increase the support's length by up to 22". The extension is attached to the support using the eight metal screws provided. Be sure there is at least a 2 inch overlap where the extension joins the support.

GAS CONNECTION

The gas connection is a 3/8" NPT 90o elbow. The gas line can be rigid pipe or to make installation easier, use a listed ﬂ exible connector and/or copper tubing if allowed by local codes. Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation codes.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for burner and/or valve servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

Note: Prior to any pressure testing of

the gas supply piping system that exceeds test pressures of 3.45 kPa, this appliance must be disconnected from the piping system. If test pressures equal to or less than 3.45 kPa are used then this appliance must be isolated from the piping system by closing its individual manual shut-off valve during the testing.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 3.45 kPa. Disconnect piping from valve at pressures over 3.45 kPa.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Regency® F39 Room Sealed Freestanding Gas Stove

INSTALLATION

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" posi-

tion.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position. Read manometer.

5) The pressure check should be carried out

with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn

off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten

Valve Description

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection

5) Main Operator

6) Outlet Pressure Tap (Manifold

Pressure)

7) Inlet Pressure Tap (Supply Pressure)

8) Pilot Outlet

9) Main Gas Outlet

10) Flange Securing Screw Holes

11) Alternative TC Connection Point

12) Thermoelectric Unit

13) Additional Valve Mounting Hole

System Data

F39 with 40mj

Burner Inlet Oriﬁ ce Sizes: NG LPG Burner #32 #50

2.95mm 1.78mm

Max. Input NG 40 Mj/h LPG 38 Mj/h

Min. Input NG 20 Mj/h LPG 19 Mj/h

Supply Pressure NG min. 1.13 kPa LPG min. 2.75 kPa

Manifold Pressure

NG .94 kPa LPG 2.55kPa

Electrical: 240 V. 1.13A 60Hz. Circulation: 2 speed fan, 125/75 CFM. Log Set: Ceramic ﬁ ber, 7 per set.

System Data

F39 Converted to 31mj

Burner Inlet Oriﬁ ce Sizes: NG #37 2.65mm LPG #52 1.6mm

AERATION

ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.

F39 with 40mj F39-NG NG: Full open F39-LPG LPG: Full open

F39 with 31mj

F39-NG NG 6mm open F39-LPG LPG 10mm open

Note: Any damage due to carboning resulting

from improperly setting the aeration controls is NOT covered under warranty.

Max. Input - NG/LPG

31 Mj/h

Min. Input - NG/LPG 16 Mj/h

Supply Pressure NG min. 1.13 kPa LPG min. 2.75 kPa

Manifold Pressure

NG .89 kPa LPG 2.55kPa

Electrical: 240 V. 1.13A 60Hz. Circulation: Variable speed fan, 125/75 CFM. Log Set: Ceramic ﬁ ber, 7 per set.

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

CONVERSION KIT #731-968 FROM NG TO LPG

THIS CONVERSION MUST BE DONE BY AN AUTHORIZED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!

Conversion Kit Contains:

Qty. Part # Description

1 904-390 Burner Oriﬁ ce #52 1 904-529 5/32" Allen Key 1 918-590 Label "Converted to LPG" 1 908-528 Red "LPG" label 1 910-037 LPG Injector (Pilot Oriﬁ ce) 1 918-484 Instruction Sheet

1) Shut off the gas supply.

2) Remove the louvers (and bay door if it is

installed).

3) Open the ﬂ ush door and remove the

door.

4) Remove the logs and embers (if used).

5) Remove the 2 screws holding the Burner

Assembly to the ﬁ rebox base. Push the Burner Assembly to the left and lift out.

8) Remove burner oriﬁ ce with a 1/2" wrench.

Use another wrench to hold on to the elbow behind the oriﬁ ce. Discard oriﬁ ce.

Burner Oriﬁ ce

9) Reinstall new burner oriﬁ ce LPG stamped

#52 and tighten.

10) Turn control knob to the “OFF” position.

11) Remove the black

protection cap by hand from the hi-low knob (Fig.1).

Fig.1

WARNING!

Do not over tighten the screw.

Recommended to

grip the wrench by the short side.

16) Verify that if the conversion is from NG to

LPG, the screw must be re-assembled with the red o-ring visible (Fig. 5).

Red o-ring visible

LPG Configuration

Fig.5

17) Re-assemble the black protection cap

(Fig. 6).

Remove the 2 screws, push Burner

Assembly to the left and lift out.

6) Pull off the pilot cap to expose the pilot

oriﬁ ce.

7) Unscrew the pilot oriﬁ ce with the allen key;

then replace with the LPG pilot oriﬁ ce and the pilot cap, provided in the kit.

12) Insert a 5/32” or 4mm

Allen wrench into the hexagonal key-way of the screw (Fig. 2), rotate it counter-clockwise until it is free and extract it.

Fig.2

13) Check that the screw is clean and if

necessary remove dirt.

14) Flip the screw (Fig. 3).

Fig.3

15) Using the Allen wrench

as shown in Fig.4, rotate the screw clockwise until snug, do not overtighten.

Fig.4

Fig. 6

18) Reverse step 2).

WARNING!

Also check that the pilot and main

burner injectors are appropriate for

the gas type.

19) Attach the label "This unit has been

converted to LPG" near or on the serial # decal.

20) Replace yellow "NG" label with red "LPG"

label.

21) Check for gas leaks.

22) Check inlet and outlet pressures.

23) Check operation of ﬂ ame control.

24) Check for proper ﬂ ame appearance and

glow on logs.

Regency® F39 Room Sealed Freestanding Gas Stove

INSTALLATION

CONVERSION TO LOWER BTU RATING

THIS CONVERSION MUST BE DONE BY AN AUTHORIZED GAS

FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!

NG Conversion Kit 730-920 Contains:

Qty. Part # Description 1 904-240 Burner Oriﬁ ce #37 (NG) 1 918-034 Decal "Converted to 30,000 Btu" 1 918-033 Instruction Sheet

LPG Conversion Kit 730-922 Contains:

Qty. Part # Description 1 904-390 Burner Oriﬁ ce #52 (LPG) 1 918-034 Decal "Converted to 30,000 Btu" 1 918-033 Instruction Sheet

Additional Piece (pkg. with unit:

1 Log Bracket Restrictor

1) Shut off the gas supply.

2) Open the front door. Carefully remove the logs and lava rock.

3) Remove burner. See diagram below.

6) Remove burner oriﬁ ce with a 1/2" spanner and discard.

Burner Oriﬁ ce

7) Reinstall new burner oriﬁ ce (NG stamped #37 or LPG stamped #52) and tighten.

8) Reverse steps 3) and 2).

9) Adjust Flue restrictor setting: To set the Flue restriction as indicated in the diagram, simply loosen the screws and push the ﬂ ue restrictor plate to the correct position. Tighten the screws.

Unit Btu/h Restrictor Opening

F39 40 Mj/h A 45mm

31 Mj/h B 35mm

LOG SET

INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The gas log kit contains the following:

a) 02-65 Rear Log b) 02-56 Middle Left Log c) 02-44 Front Left Log d) 02-46 Left Top Log e) 02-45 Front Right Log f) 02-47 Center Log g) 02-48 Middle Right Log h) Embers 902-151 i) Lava 902-154

Note: Install Optional Brick Panels prior to

installing logs.

Note: Use a magnetic

type screwdriver if

possible.

4) Unscrew the 2 Rear

Log Pins and move to the front hole position.

5) Remove Rear Log

Bracket and slide the Log Bracket Restrictor between the Rear Log Bracket and the burner, secure with the 2 screws.

Position the Log Bracket Restrictor between

the Rear Log Bracket and the burner.

Flue Restrictor set-

ting at High Btu/h

10) Attach the label "This unit has been converted to..." on top of the data badge over the higher Btu information.

11) Check for gas leaks.

12) Check inlet and outlet pressures.

13) Check operation of ﬂ ame control. Check for proper ﬂ ame appearance on logs.

Flue Restrictor set-

ting at Low Btu/h

The "02" refer numbers (i.e. 02-65) are

molded into the rear of each log.

1) Carefully remove the logs from the box and

unwrap them. The logs are fragile, handle with care - do not force into position.

2) Sprinkle the embers on the left and right

sides of the ﬁ rebox base.

Embers Embers

Regency

F39 Room Sealed Freestanding Gas Stove

INSTALLATION

3) Place Rear Log A)02-65 on the two pins on

the rear log support.

A)02-65

Pins on Rear Log Support

4) Place the Middle Left Log B)02-56 on the

two pins as shown.

B)02-56

7) Place the Left Top Log D)02-46 on the pin

on Log B)02-56 and on top of the cutout on Log A)02-65.

A)02-65

D)02-46

B)02-56

C)02-44

8) Place Front Right Log E)02-45 on the two

pins as shown.

Cutout

E)02-45

11) Position notch in Front Right Log G)02-48

on Log F)02-47 and push the bottom right edge against the bracket on the burner tray.

G)02-48

A)02-65

E)02-45

F)02-47

Notch

G)02-48

E)02-45

5) Sprinkle some lava rock just in front of B) 02-56 on the burner holes.

B)02-56

lava rock

6) Place Front Left Log C)02-44 onto the 2

front pins as shown.

C)02-44

9) Place the lava rock in the area between

the left and right logs, leaving a space in the middle for log (F) 02-47.

10) Place the notch in Center Log F)02-47 over

Log E)02-45 and across the cutout on Log A)02-65.

F)02-47

A)02-65

E)02-45

Side View

Bracket

The bottom right edge of Log G)02-48 must

sit snugly against the bracket

12) Test ﬁ re to ensure proper light off (make

sure ﬂ ame ﬂ ows smoothly from one end of burner to the other. If there is any ﬂ ame hesitation, check that area for any blockage of the burner port.

A)02-65

G)02-48

2-46

D)0

B)02-56

C)02-44

F)02-47

E)02-45

Regency® F39 Room Sealed Freestanding Gas Stove

CutoutNotch

INSTALLATION

FRONT DOOR

INSTALLATION

(packaged separately)

1) Open the two side panels.

2) Slide the door

onto the two hinge pins making sure the two pieces are ﬂ ush togeth- er. See diagram 1.

3) Close the door.

The latch plate must be centered around the alignment pin. See diagram

2. If the latch plate interferes with the corner of the stove you may want to angle the plate slightly so the door closes easier.

4) The latches should already be at the proper

setting. If they are too hard or too easy to close, you may want to adjust them by loosening the latch catch. See diagram 3.

Diagram 1

OPTIONAL

WALL THERMOSTAT

A wall thermostat may be installed if desired. Connect the wires as per the wiring diagrams. Note that the wires are connected to the "TH" on the gas valve. Use table below to determine the maximum wire length:

Note: Preferable if the thermostat is installed on an interior wall.

Regency® offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not connect the millivolt

wall thermostat wires

to the 240V wires.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

15.24 m

9.75 m

6.10 m

3.66 m

2.71 m

CAUTION

Do not connect the millivolt re-

mote control wires to

the 240V wires.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly. This includes:

1) Clocking the appliance to ensure the cor-

rect ﬁ ring rate (rate noted on label) at 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow the unit to burn for 15 min. to stabilize.

3) Check for proper draft.

CAUTION Any alteration to the product that causes sooting or carboning that results in damage to the exterior facia is not the responsibility of the manufacturer.

Diagram 2

5) Remove the blue plastic protective coating

from the glass.

6) Test the seal around the door by placing

a piece of paper between the unit and the door, close the door and try to pull the paper out. If it slips out easily, then the door is not properly sealed. Tighten or loosen the latch. See diagram 3.

Diagram 3

Note: The door latch may require adjust-

ment as the door gasket material compresses after a few ﬁ res and after glass replacement. Turn the latch catch inward or outward to loosen or tighten.

OPTIONAL REMOTE

CONTROL

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall

to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location, use Thermostat Wire Table.

2) Connect the wires as per the wiring diagram

above.

Regency

F39 Room Sealed Freestanding Gas Stove

WIRING

INSTALLATION

This heater does not require a 240V A.C. supply for the gas control to operate. A 240V A.C. power supply is needed for the fan/blower operation.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

WARNING: Electrical Grounding Instructions This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from

Regency® F39 Room Sealed Freestanding Gas Stove

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

Before operating this appliance, proceed through the following check list.

1) Read and understand these Instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the three pieces of door glass

are properly positioned. Never operate the appliance with any of the glass removed or with the door open.

5) Verify that all ﬂ uing and the cap is unob-

structed.

6) Verify log placement. If the pilot cannot be

seen when lighting the unit - the logs or the embers have been incorrectly positioned.

7) The unit should never to turned off and on

without a minimum of a 60 second wait.

LIGHTING

INSTRUCTIONS

4) Turn the PILOT knob counterclockwise to

pilot and align it with the arrow as shown in diagram above.

5) Push in PILOT knob all the way in and hold.

Immediately push IGNITOR button until pilot lights. Continue to hold the PILOT knob in for approximately one minute, then release the PILOT knob. The pilot ﬂ ame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing PILOT knob.

6) Turn PILOT knob counter clockwise to on.

7) Use the Burner ON/OFF switch to turn on

the burner.

8) Rotate the HEAT control to adjust the ﬂ ame

height higher or lower.

SHUTDOWN

INSTRUCTIONS

1) Use the Burner ON/OFF switch, thermostat

or remote control to turn off the burner.

2) Push in the PILOT knob slightly and turn

clockwise to off. Do not force.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

AUTOMATIC

CONVECTION

FAN OPERATION

Set the fan speed on control panel at the top rear of the unit to adjust to the desired speed. The fan will turn on as the stove comes up to operating temperature. After the unit has been turned off and the unit cooled to below a useful heat output range the fan will shut off automatically.

IMPORTANT: The PILOT knob cannot be turned from pilot to off unless it is partially depressed.

Note: Open the pedestal door of the unit

before lighting the pilot. Once the pilot is lit, close the door. You should never operate the unit with the door open.

1) If the PILOT knob is in the off position

proceed to Step 4.

2) Push in PILOT knob slightly and turn clock-

wise to off. Knob cannot be turned from pilot to off unless knob is pushed in slightly. Do not force.

3) Wait ﬁ ve minutes to allow gas, that may

have accumulated in the main burner compartment, to escape. If you smell gas, follow the instructions on the front of this manual. If you don't smell gas continue on to the next step.

3) Turn off all electric power to the appliance if

service is to be performed.

FIRST FIRE

The FIRST FIRE in your stove is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time you use it with the fan on. When ﬁ rst operated, the unit will release an odour caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours. The glass may require cleaning.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS STILL HOT!

Note: When the glass is cold and the appli-

ance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

Regency

ADJUSTING FLAME

HEIGHT

Your heater has an adjustable ﬂ ame to tailor the look and heat output to your speciﬁ c needs. It is adjusted by turning the ﬂ ame adjustment dial on the gas control valve.

Turn clockwise to adjust the ﬂ ame higher, counterclockwise for a lower ﬂ ame.

F39 Room Sealed Freestanding Gas Stove

OPERATING INSTRUCTIONS

COPY OF THE LIGHTING PLATE INSTRUCTIONS

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. (Australia: AS5601-2004, New Zealand: NZS 5261)

WARNING:

property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owners information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted

by hand, following the instructions below exactly.

B) BEFORE LIGHTING smell all around the appliance

area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any phone in your building

- Immediately call your gas supplier from a neighbors phone. Follow the gas suppliers instructions.

- If you cannot reach your gas supplier, call the fire department.

C) Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not push in or turn by hand, dont try to repair it, call

STOP! Read the safety information above on this

label. Push in gas control knob slightly and turn

1) clockwise from PILOT to OFF unless knob is pushed in slightly. Do not force.

2) Wait five (5) minutes to clear out any gas. If you then smell gas STOP! follow B in the safety information above on this label. If you dont smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to PILOT.

4) Push in control knob all the way and hold in. Immediately push black button on spark igniter until pilot lights. Continue to hold the control knob in for about 1/2 minute after the pilot is lit.

1) Push in the gas control knob slightly and turn clockwise to OFF. Do not force.

If you do not follow these instructions exactly, a fire or explosion may result causing

You may shut off the pilot during prolonged non use periods to conserve fuel.

DO NOT REMOVE THIS INSTRUCTION PLATE

FOR YOUR SAFETY READ BEFORE LIGHTING

a qualified service technician. Force or attempted repair may result in a fire or explosion.

D) Do not use this appliance if any part has been under

water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has

been under water. This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having fammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

LIGHTING INSTRUCTIONS

Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 3) and 4).

to OFF. Knob cannot be turned

If knob does not pop up when released, stop and immediately call your service technician or gas supplier. If the pilot will not stay lit after several tries, turn the gas control knob to OFF and call your service technician or gas supplier.

5) Turn gas control knob counterclockwise to ON.

6) Use rocker switch to operate main burner.

PILOT BURNER VEILLEUSE

THERMOPILE

ELEMENT

THERMO-

ELECTRIQUE

TO TURN OFF GAS APPLIANCE

2) Turn off all electric power to the appliance if

service is to be performed.

OFF

Gas Inlet

908-649c

NORMAL

OPERATING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency® gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Regency® F39 Room Sealed Freestanding Gas Stove

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

MAINTENANCE

INSTRUCTIONS

1) Always turn off the valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean glass (never when unit is hot), appli-

ance, louvres, and door with a damp cloth. Never use an abrasive cleaner. The gold louvres (and optional gold door) may be scratched if abrasives are used to clean them.

The heater is ﬁ nished in a heat resistant

paint and should only be reﬁ nished with heat resistant paint (not with wall paint). Regency® uses StoveBright Paint - Metallic Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call an authorized service person.

4) Caution: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause improper and dangerous operation.

5) The appliance and ﬂ uing system must be

inspected before use, and at least annually, by an authorized ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray and cleaned. Replace the embers but do not block the pilot.

6) Keep the area near the appliance clear and

free from combustible materials, gasoline, and other ﬂ ammable vapours and liquids.

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL AN AUTHORIZED SERVICE TECHNICIAN TO INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.

CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

7) Each time the appliance is lit, it may cause

condensation and fog the glass. This condensation and fog is normal and will disappear in a few minutes as the glass heats up.

Never operate the appliance without the

glass properly secured in place or with the door open.

8) Periodically check the pilot ﬂ ames. Correct

ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile and 1 around the thermocouple, and 1 ﬂ owing across the rear of the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pat-

tern, contact your Regency® dealer for further instructions.

Top View of pilot ﬂ ame

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear of the burner or thermopile.

Top View of pilot ﬂ ame

GENERAL FLUE

MAINTENANCE

Conduct an inspection of the ﬂ uing system semi-annually. Recommended areas to inspect as follows:

1) Check the Fluing System for corrosion in ar-

eas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down

the Flue. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive condensa -

tion, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections

or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

GOLD-PLATED DOORS

The 24 carat gold plated ﬁ nish on the door requires little maintenance, and need only be cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they may harm the ﬁ nish and void the warranty. Clean any ﬁ ngerprints off before turning the unit on. If the

door starts to discolour, check the gasket seal and replace if necessary.

Regency

F39 Room Sealed Freestanding Gas Stove

MAINTENANCE

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door to carefully remove the logs. The pilot light generates enough heat to burn someone. If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagram under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will alter the unit’s performance which is not covered under warranty.

DOOR GASKET

If the door gasket requires replacement use 7/8" diameter oval door gasket (Part # 650-920).

LATCH ADJUSTMENT

The door latch may require adjustment as the door gasket material compresses after a few ﬁ res and after glass replacement. Turn the adjustable catch to tighten or loosen the latch.

Note: Wearing gloves will protect your hands

while handling glass.

Panel Glass Replacement

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the nuts holding the glass retainers

in place.

4) Remove the glass retainers (sides, top and

bottom) and the door catch plate.

5) Replace the glass. The glass must have gasketing around it.

6) Reverse the previous steps, replace the

retainers and fasten with the nuts but do not overtighten, as this can break the glass. Note: the door catch plate ﬁ ts on top of the left side retainer.

7) Put gasket glue on the retainers, but do not put glue on the screws. Replace the door gasket, the two ends butt tight together on the bottom edge of the door.

8) Replace door on the stove and check the seal.

Mitred Glass Replacement

Removing Glass

1) Remove the door from the unit and place

on a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the 24 nuts holding the glass

retainers in place. Do not remove the nuts underneath the retainers.

4) Remove the door catch plate.

5) Remove glass retainers on sides ﬁ rst (3 each

side) then remove two center retainers.

Note: Center glass retainers are glued to

center glass.

6) Remove glass from extrusions. When re-

moving center glass, leave white insulation in place.

GLASS REPLACEMENT

Your Regency® stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the eﬂ ue that you break your glass by impact, purchase your replacement door from an authorized Regency our step-by-step instructions for replacement. The glass is not sold separately, as it must be properly sealed in the door frame.

Replacement Part # 940-325/P F39 Wraparound Glass 940-322/P F39 Panel Center Glass 940-323/P F39 Panel Side Glass

WARNING: Do not operate appliance with glass panels removed, cracked or broken. Replacement of the glass should be done by a licensed or qualiﬁ ed service person.

Regency® F39 Room Sealed Freestanding Gas Stove

dealer only, and follow

Wraparound Assembly Door (same glass retainers as the

Panel Glass Door Assembly

Panel Assembly)

Installing Glass

1) Install both center

and side glass onto extrusions as per diagram.

2) Place glass assembly into door frame.

3) Install retainers by placing 1 drop of glue

where previously glued and put in place.

4) Install side retainers.

5) Install door catch plate.

6) Install the 24 nuts loosely, do not tighten

yet.

MAINTENANCE

7) Tighten side panels nuts using the following

procedure:

a. tighten top & bottom outside corner nuts

(2) b. tighten inside nuts (3) c. tighten top & bottom inside corners (2)

8) Tighten the 10 nuts on center glass re-

tainer.

9) Repeat step 7 for other side panel.

10) Replace new gasket by gluing it in place.

11) Install door onto stove and check the seal.

FAN MAINTENANCE

If your fan requires maintenance or replacement, access to the fan is through the plate on the rear wall of the ﬁ rebox. NOTE: the unit MUST NOT

be operated without the fan access panel securely in place and correctly sealed.

If the fan is damaged or needs repair, it shall be repaired by the manufacturer or its service agent or similiarily qualiﬁ ed person to avoid a hazard.

IMPORTANT: These fans collect a lot of

dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan squirrel cages, around the motor, and around the grills on the back of the stove.

To remove F39 fan:

1) Unplug or disconnect power source to

stove.

2) Remove all logs and the rear log support,

then remove the 10 screws holding the access panel in place.

3) Unclip the black and white wires from the

fan motor.

4) Open both side doors and gently pull the

ﬂ ex pipe away from the center, otherwise the fan can catch on the ﬂ ex pipe during installation and tear the pipe. Do not tear or damage the ﬂ ex pipe.

Alternate Fan Access:

If the rear access cover is accessible, it can be removed to provide access to the fan.

Replacing F39 Fan:

Reverse the above steps (1 - 5). If necessary install a new gasket before replacing the fan access panel. Make sure the fan wires and the ground wire are reattached.

Hint for pushing fan down onto pins - rub a bit of dish soap on the grommet so it will slide more easily onto the pin. Check to make sure the fan is seated properly on the pins - try to move the fan back and forth, there should be no noise, if there is check that the grommets haven't come loose.

IMPORTANT

Disconnect power supply

before servicing

WARNING:

Electrical Grounding Instruc-

tions This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

5) Lift fan off of the 2 pins, tip back and pull

through ﬁ rebox opening. Disconnect the green ground wire from the right side of the fan as soon as you can reach it.

Regency

F39 Room Sealed Freestanding Gas Stove

REMOVING VALVE

MAINTENANCE

If your valve requires maintenance or replacement, use the following instructions:

Note: Always close off the gas supply

before removing the valve.

1) Open front pedestal door. You may want

to put a soft cloth on the base of the unit so that when the pedestal door is open it doesn't scratch the paint.

2) Undo the six screws holding the control

panel in place.

3) Disconnect all wires from the back of the

panel and then remove panel. You should lay the panel on a soft cloth so it doesn't get marked up. See diagram below.

4) Remove the two outside frame pieces by

removing two screws per side. See diagram below.

5) At this point you should disconnect the gas

at the valve. You can access it through the front now that the control panel is off, or you can access it through the rear pedestal cover plate.

6) Carefully remove the logs and lava rock.

7) Remove burner.

10) To replace the burner tray assembly, simply

reverse these instructions.

Note: Use a magnetic type screwdriver if

possible.

8) Remove all 18 screws holding the burner

tray assembly in place.

9) Carefully lift the burner tray assembly out.

Regency® F39 Room Sealed Freestanding Gas Stove

PARTS LIST

F39 MAIN ASSEMBLY

Part # Description Part # Description Part# Description

1) 560-920 Louver Assy - Gold (Set)

4) 730-038 Door Screen (Austraila only)

8) 730-560 Relief Door Assembly (with gasket)

10) 730-034 Mounting Plate Gasket

11) 730-519/P Fan Assembly (240 Volt) 910-169/P Fan Motor (240 Volt)

12) 910-714 Power Cord (240 Volt)

15) 560-525 Pedestal Assembly

16) 730-039 Pedestal Door

17) 904-257 Pedestal Door Magnet

18) 560-025 Pedestal Back

19) 730-530 Side Panel Door Assy (Right Side)

20) 730-525 Side Panel Door Assy (Left Side)

21) 560-031 Side Panel Door Hinge

23) 904-258 Side Panel Door Magnet

24) 948-255 Door Latch

25) * Flex Pipe (3" ID)

26) * Clamp for Flex Pipe

27) 910-233 Fan Auto On/Off Thermodisc

28) * Mounting Bracket

-Thermodisc

29) * Air Deﬂ ector

30) 730-044 Rear Panel

31) 630-021 Fan Access Panel

32) 730-028 Firebox Bafﬂ e

33) 630-520 False Top Assembly

36) 936-194 Gasket - Starter Collar/ Air Passage

37) 936-197 Gasket - Flue Collar/ Starter Collar

38) 820-058 Pedestal Base Cover

39) 730-036 Gasket - Air Passage

40) 730-042 Thermodisc Cover

41) 904-185 Cable Tie - High Temperature

42) 904-186 Cable Tie Mounting Button

910-033 Heat Resistant Sleeve

45) 750-031 Rear Control Panel

50) 910-140 Fan Hi/Off/Low Switch

51) 910-246 Burner On/Off Switch 918-089 Decal Top Rear Control Panel 731-968 Conversion Kit to LPG 948-216 Logo Plate 918-535 Manual

*Not available as a replacement part.

Regency

F39 Room Sealed Freestanding Gas Stove

F39 BURNER & LOG ASSEMBLY

Part # Description

52) 910-190 Piezo Ignitor & Nut

54) 910-373 Knob - Pilot Valve Extension

55) 910-372 Flame Adjusting Knob

56) 918-088 Control Plate Decal

57) * Switch Plate

730-574/P Valve Assembly - NG

60) 910-378 Valve - S.I.T. - NG 904-688 #32 Oriﬁ ce - N.G. 936-170 Oriﬁ ce Gasket

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG 910-039 Pilot Assy - S.I.T. - 3 Flame LPG

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

71) 730-528 Log Stand 904-641 Pilot Oriﬁ ce #50 - NG

75) 730-935 Log Set

78) 730-550 Burner Assembly

82) 630-009 Gasket-Burner Tray/Air Passage

83) 630-008 Gasket - Burner Tray/ Firebox

PARTS LIST

90) 910-386 Thermocouple

91) 910-341 Thermopile

92) * Rear Log

93) * Left Top Log

94) * Center Log

95) * Middle Right Log

96) * Middle Left Log

97) * Front Right Log

98) * Front Left Log

*Not available as a replacement part.

Regency® F39 Room Sealed Freestanding Gas Stove

PARTS LIST

F39 DOOR ASSEMBLIES

Part # Description

730-924 Gold Mitred Door - Complete 730-926 Black Mitred Door - Complete 730-932 Gold Wrap Door - Complete 730-928 Gold Panel Door - Complete

101) 650-920 Door Gasket Kit

105) * Ceramic Paper

106) 940-323/P Side Glass

107) 936-243 Glass Gasket

108) 940-322/P Centre Glass

111) * Door Frame Fibre Paper

112) 750-015 Door Glass Extrusion

208) 940-325/P Wrap Glass

*Not available as a replacement part.

Regency

F39 Room Sealed Freestanding Gas Stove

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. Regency Industries Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product.

The Warranty: Lifetime

Covered under the agreement are the following components: Combustion chamber, heat exchanger, burner tubes, logs, embers, glass (thermal breakage) and all gold plating (against defective manufacture). The above will be covered for parts and labour for the ﬁ rst ﬁ ve years and parts only thereafter. Electrical components such as fans, switches, wiring, thermodiscs, remote control, thermopiles, thermocouples and gas valves are covered for one year from the date of purchase.

Conditions:

All installations must be performed by an authorised gas ﬁ tter and installed according to all applicable local and national codes. Also, all service work must be carried out by an authorised gas service person. It is the responsibility of the installer to ensure that the appliance is ﬁ ring as per rating plate. Any part or parts of this unit which in our judgement show evidence of such defect will be repaired or replaced at Regency's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested. In areas where there is not an approved service agent or the closest approved service agent is situated more than twenty-ﬁ ve (25) kilometres from the installation, Australian Heating Distributors are not obliged to arrange warranty repairs and travel and/or additional labour charges will apply.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. It does not cover installation and operational related problems such as over-ﬁ ring, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate ﬂ ueing or ventilation, excessive offsets, negative air pressures caused by insufﬁ cient make up air, mechanical systems such as furnaces, fans, clothes dryers etc. The warranty does not extend to any part or parts which show evidence of misuse or abuse, neglect, accident or lack of maintenance. Products made by other manufacturers and used in conjunction with the operation of this appliance without authorization from Regency, may nullify your warranty on this product. Regency Industries Ltd., shall in no event be liable for any special, indirect consequential damages of any nature whatsoever which are in excess of the original purchase price of the product. Any alteration to the unit which causes sooting or carbonning that results in damage to the exterior facia is not the responsibility of Regency Industries Ltd.

General:

It is essential that all submitted claims provide all of the necessary information including purchase date, serial #, type of unit and part or parts requested.

Regency F39-NG, F39-LPG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
