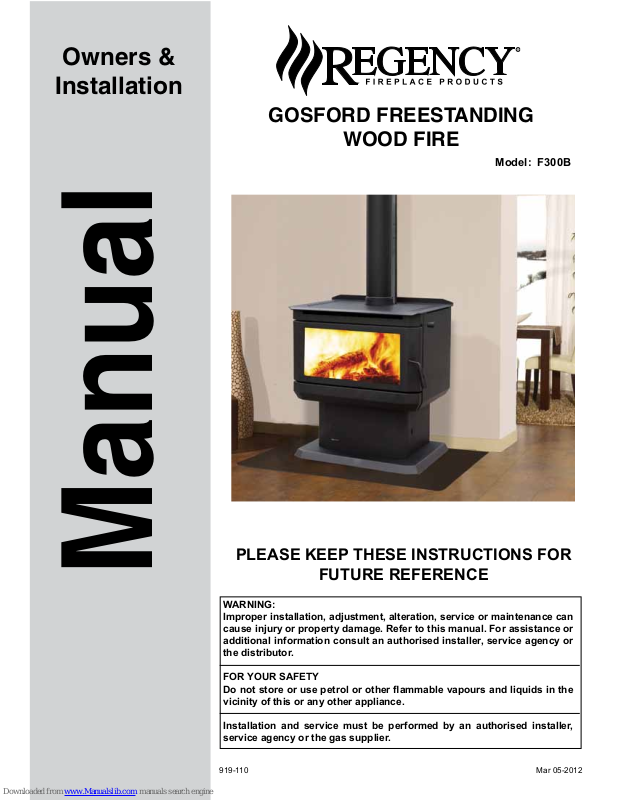

Page 1

Owners &

Installation

GOSFORD FREESTANDING

WOOD FIRE

Model: F300B

Manual

PLEASE KEEP THESE INSTRUCTIONS FOR

FUTURE REFERENCE

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorised installer, service agency or the distributor.

FOR YOUR SAFETY

Do not store or use petrol or other ammable vapours and liquids in the

vicinity of this or any other appliance.

Installation and service must be performed by an authorised installer, service agency or the gas supplier.

919-110

Mar 05-2012

Page 2

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

SAFETY NOTE: If this wood re is not properly installed, a house re may result. For your safety, follow the installation instructions, contact local building, re ofcials, or authority having jurisdiction

about restrictions and installation inspection requirements in your area.

The authority having jurisdiction should be consulted before installation to determine the need to obtain a permit

Regency Gosford Freestanding Wood Fire

Page 3

TABLE OF CONTENTS

Compliance Label ..................................................................4

Unit Dimensions ....................................................................5

INSTALLATION

Residential Installation...........................................................6

Safety Guidelines and Warnings ...........................................6

Brick & Cast Installation.........................................................6

Clearance to Combustibles ...................................................7

Floor Protection .....................................................................7

OPERATING INSTRUCTIONS

Operating Instructions ...........................................................8

Air Slide Control.....................................................................8

First Fire ................................................................................8

MAINTENANCE

Maintenance ..........................................................................9

Creosote ................................................................................9

- Ways to Prevent & Keep Units Free of Creosote .........9

Glass Maintenance ................................................................9

Door Latch Adjustment ..........................................................9

Wood Storage ........................................................................9

PARTS LIST

Stove Assembly ...................................................................10

WARRANTY

Warranty .............................................................................. 11

Regency Gosford Freestanding Wood Fire

Page 4

COMPLIANCE LABEL

This is a copy of the label that accompanies each F300B Freestanding Wood Fire. We have printed a copy of the contents here for your review.

Regency Freestanding Woodfire

Model: Gosford (F300B)

TESTED TO AS/NZS 4013:1999

TEST REPORT NUMBER: HCMG/07/003

TESTED BY HRL TECHNOLOGY PTY LTD. TRAMWAY ROAD MORWELL VICTORIA 3840 (2007)

Date of Manufacture:

JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2012 2013 2014

NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

Fireplace Products

Australia Pty. Ltd.

21-23 South Link

Dandenong, VIC 3175

Serial

404

Number

919-111

Regency Gosford Freestanding Wood Fire

Page 5

35mm

GOSFORD (F300B )

102mm

285mm

407mm

561mm

898mm

UNIT DIMENSIONS

39mm

342mm

902mm

770mm

794mm

333mm

153mm ID

167mm

570mm

Regency Gosford Freestanding Wood Fire

Page 6

INSTALLATION

RESIDENTIAL

INSTALLATION

1) Please read this entire manual before you

install and use your new wood re. Failure

to follow instructions may result in property damage, bodily injury or even death. Be aware that local Codes and Regulations may override some items in this manual. Check with your local inspector.

2) THE APPLIANCE AND FLUE-SYSTEM

SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918:2001 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.

APPLIANCES INSTALLED IN ACCORD-

ANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULATORY AUTHORITY.

ANY MODIFICATION OF THE APPLIANCE

THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED FOR COMPLIANCE WITH AS/NZS 4013.

CAUTION: MIXING OF APPLIANCE OR

FLUE-SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.

3) Select a position for your Regency Stove.

Consult the minimum clearance chart for your model and set the stove in place. For close clearance installation use listed double wall connector systems.

4) To insure vertical alignment, suspend a plumb bob from the ceiling over the exact center

of your stove ue and mark a spot on the

ceiling to indicate the center of the chimney.

5) Check that the area above the ceiling is clear

for cutting. Re-conrm the clearance from

the stove to combustibles to insure that they are within the prescribed limits.

6) Mark the location of the pedestal base on the

oor, then move the stove aside and mark the position of the oor protector.

7) Install chimney according to chimney manufacturers instructions. The performance of

your wood re is governed to a very large

part by the chimney system. Too short a

chimney can cause difcult start-up, dirty

glass, backsmoking when door is open, and

even reduced heat output. Too tall a chimney

may prompt excessive draft which can result in very short burn times and excessive heat output.

8) The oor protector must be of non-combustible material. Refer to page 7 for oor

protector clearances.

9) When the oor protection is complete, position the stove with the ue collar centered

under the installed chimney.

10) In seismically active areas, Regency recom-

mends that your unit is secured to the oor

by using the bolt down holes inside the pedestal.

11) Do not connect this unit to a chimney serving another appliance.

SAFETY GUIDELINES

AND WARNINGS

1) Never use petrol, petrol type lantern fuels,

kerosene, charcoal lighter fuel, or similar

liquids to start or ‘freshen up’ a re in your

heater. Keep all such liquids well away from the heater while it is in use.

2) Keep the door closed during operation and maintain all seals in good condition.

3) Do not burn any quantities of paper, garbage,

and never burn ammable uids such as

petrol, naptha or engine oil in your stove.

4) If you have smoke detectors, prevent smoke spillage as this may set off a false alarm.

5) Do not overre heater. If the chimney connector, ue bafe or the stove top begin to glow, you are overring. Stop adding fuel and close the draft control. Overring can cause

extensive damage to your stove including warpage and premature steel corrosion.

Overring will void your warranty.

6) Do not permit creosote or soot build-up in the chimney system. Check and clean chimney at regular intervals. Failure to do

so can result in a serious chimney re.

7) Your Regency stove can be very hot. You may be seriously burned if you touch the stove while it is operating, keep children, clothing and furniture away. Warn children of the burn hazard. For safety reasons a

guard around the re is recommended.

8) The stove consumes air while operating, provide adequate ventilation with an air duct or open a window while the stove is in use.

9) Do not connect this unit to a chimney ue

serving another appliance.

10) Do not use grates or andirons or other methods for supporting fuel. Burn directly on the base or bricks where supplied.

11) Open the draft control fully for 10 to 15 seconds prior to slowly opening the door

when refuelling the re.

12) Do not connect your unit to any air distribution duct.

13) Your wood re should burn dry, standard rewood only. The use of cut timber, ply-

wood, “mill ends”, etc. is not allowed as this

fuel can easily overheat your wood re.

Evidence of excessive overheating will void your warranty. As well, a large portion of sawmill waste is chemically treated timber, which is illegal to burn in many areas. Salt

drift wood and chemically treated re logs also must not be burned in your wood re.

14) No combustible material should be closer

than the clearances as specied on page

15) DO NOT OPER ATE WITH BROK EN GLASS.

BRICK & CAST INSTALLATION

Insert the rear cast plate rst and then the side plates ensuring the cut out sections lock in rmly.

The bricks can then be placed on the base of the

rebox between the cast side and rear plates.

Firebrick is included to extend the life of your stove and radiate heat more evenly.

Regency Gosford Freestanding Wood Fire

Page 7

INSTALLATION

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS

Universal

Default Kit

*(1)

Universal

Default Kit

*(2)

Universal

Default Kit

*(3)

AHD Special Insulated Kit

*(3)

A 390mm 390mm 390mm 420mm

B 280mm 160mm 220mm 220mm

C 200mm 200mm 200mm 200mm

D 280mm 160mm 220mm 220mm

E 123mm 123mm 123mm 123mm

F 380mm 380mm 380mm 380mm

G 1015mm 1015mm 1015mm 1015mm

H 1200mm 1080mm 1140mm 1140mm

Floor Protection

A combustible oor must be protected by non-combustible material (like tile, concrete board, or as dened by local codes) extending beneath

the heater as follows;

E E

From Sides:123mm From Front: 380mm From Back: As per D above.

The oor protector should consist of 12mm thick cement bre sheet

which has a thermal resistance of 0.8m2 k/w for 4mm sheets of cement

bre sheet.

IMPORTANT

* (1) The Universal Triple Skin Default Kit when tted with either 1 or 2 lengths of 130 degree solid back 900mm decromesh.

* (2) The Universal Triple Skin Default Kit with 2 x 900mm 130

degree solid back decromesh and 1 x 450mm stainless shield tted between active ue and decromesh.

* (3) The Universal Triple Skin Default Kit with 1 x 130 degree stainless shield x 900mm or 1 x 900mm 130 degree solid back

decromesh + 1 x 450 mm stainless shield tted between active ue

and decromesh.

* (4) The AHD Special Insulated Flue Kit must be installed with a

40mm air gap around the ue to any combustible surfaces and the

ceiling ring must be spaced as such to provide an air gap of 10mm to the ceiling. The AHD Special Insulated ue kit must be installed with a perforated ceiling plate with 15 x 11mm holes and a 250mm diameter x 150mm high heat shield positioned directly above the ceiling plate.

The ue pipe shall extend not less

than 4.6m above the top of the

oor protector.

NOTE: Installation must be carried

out by a licensed installer in

accordance

with AS/NZS 2918:2001.

Regency Gosford Freestanding Wood Fire

Page 8

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

With your unit now correctly installed and safety inspected by your local authority, you are now

ready to start a re. Before establishing your rst re, it is important that you fully understand

the operation of your draft control.

CAUTION: THIS APPLIANCE MUST BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS.

CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS.

WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS

4013.

WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE.

WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHEN IT IS OPERATING.

WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.

WARNING: OPEN AIR CONT ROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR.

For safety reasons and in order to avoid

over ring of your unit do not burn your re with the door open or ajar.

AIR SLIDE CONTROL

Both the primary and air wash drafts are controlled by the control rod located on the right side of the unit (when facing the unit). To increase your draft - pull open, and to decrease - push closed. All units have a secondary draft system that continually allows combustion air to the

induction ports at the top of the rebox, just below the ue bafe.

Pull - Open

Push - Closed

WARNING: To build a re in ignorance

or to disregard the information contained in this section can cause serious permanent damage to the unit and void your warranty!!

FIRST FIRE

When your installation is completed and in-

spected you are ready for your rst re.

1) Open control fully.

2) Open rebox door and build a small re us-

ing paper and dry kindling on the rebrick hearth. Secure door on the rebox and wait a few minutes for a good updraft in the ue to establish the re. (Leaving the door slightly open will help your re start more rapidly.)

CAUTION: Never leave unit unattended

if door is left open. This procedure is for

re start-up only, as unit may overheat

if door is left open for too long.

3) With the draft still in the fully open position

add two or three seasoned logs to your re.

Form a trench in the ash bed to allow air to

reach the rear of the rebox prior to closing

the door.

4) After about 45 minutes, when your wood has begun to burn strongly, adjust your draft

control down to keep the re at a moderate

level.

WARNING: Never build a roaring re in

a cold stove. Always warm your stove up slowly!

5) Once a bed of coals has been established

on the base of the rebox, you may adjust

the draft control to a low setting to operate

the unit at its most efcient mode.

6) During the rst few res, keep the combus- tion rate at a moderate level and avoid a

large re. Only after 5 or 6 such res can

you operate the stove at its maximum setting, and only after the metal has been warmed.

7) For the rst few days, the stove will give

off an odour from the paint. This is to be expected as the high temperature paint becomes seasoned. Windows and/or doors should be left open to provide adequate ventilation while this temporary condition exists. Burning the stove at a very high

temperature the rst few times may damage the paint. Burn res at a moderate level the rst few days.

8) Do not place anything on the stove top

during the curing process. This may result

in damage to your paint nish.

Regency Gosford Freestanding Wood Fire

Page 9

MAINTENANCE

9) During the rst few days it may be more

difcult to start the re. As you dry out your rebrick and your masonry ue, your draft

will increase.

10) For those units installed at higher elevations

or into sub-standard masonry replaces,

drafting problems may occur. Consult an experienced dealer or mason on methods of increasing your draft.

11) Some cracking and popping noises may be experienced during the heating up process. These noises will be minimal when your unit reaches temperature.

12) Before opening your door to reload, open draft fully for approximately 10 to 15 seconds

until re has been re-established. This will

minimize any smoking.

13) All fuel burning appliances consume oxygen during operation. It is important that you supply a source of fresh air to your unit while burning. A slightly opened window is

sufcient for the purpose. If you also have a replace in your home, a downdraft may

be created by your Regency Stove causing a draft down your chimney. If this occurs, slightly open a window near your unit.

CAUTION: If the body of your unit, ue bafe

or any part of the chimney connector starts

to glow, you are overring. Stop loading fuel

immediately and close the draft control until

the glow has completely subsided.

14) Green or wet wood is not recommended for

your unit. If you must add wet or green fuel, open the draft control fully until all moisture

has been dispersed by the intense re.

Once all moisture has been removed, the draft control may be adjusted to maintain

the re.

15) If you have been burning your stove on a low draft, use caution when opening the door. After opening the damper, open the

door a crack, and allow the re to adjust

before fully opening the door.

16) The controls of your unit or the air supply passages should not be altered to increase

ring for any reason.

17) If you burn the unit too slowly or at too low a setting your unit will not be operating as

efciently as it can. An easy rule of thumb

says that if your glass is clean, then your

ue is clean and your exhaust is clean.

Burn the stove hot enough to keep your glass clean and you won't need to clean

your ue as often.

CREOSOTE

When wood is burned slowly, it produces tar and other organic vapours, which when combined with moisture, form creosote. The creosote vapours condense in the relatively

cool chimney ue of a slow burning re. As a result, creosote residue accumulates on the ue

lining. When ignited, this creosote can result

in an extremely hot re.

WARNING: Things to remember in case

of a chimney re:

1. Close all draft and damper controls.

2. CALL THE FIRE AUTHORITY.

Ways to Prevent and Keep Unit

Free of Creosote

1) Burn stove with the draft control wide open

for about 10-15 minutes every morning during burning season.

2) Burn stove with draft control wide open for about 10 - 15 minutes every time you apply fresh wood. This allows the wood to achieve the charcoal stage faster and burns up any unburned gas vapours which might otherwise be deposited within the system.

3) Only burn seasoned wood! Avoid burning wet or green wood. Seasoned wood has been dried at least one year.

4) A small hot re is preferable to a large

smouldering one that can deposit creosote within the system.

5) The chimney and chimney connector should be inspected at least once every two months during the heating season to determine is a creosote buildup has occurred.

6) Have chimney system and unit cleaned by competent chimney sweeps twice a

year during the rst year of use and at

least once a year thereafter or when a signicant layer of creosote has accumulated (3 mm/1/8" or more) it should be removed to reduce the risk of a chimney

re.

WOOD STORAGE

Store wood under cover, such as in a shed, or covered with a tarp, plastic, tar paper, sheets of scrap plywood, etc., as uncovered wood can absorb water from rain or snow, delaying the seasoning process.

MAINTENANCE

It is very important to carefully maintain your

replace stove, including burning seasoned

wood and maintaining a clean stove and chimney system. Have the chimney cleaned before the burning season and as necessary during the season, as creosote deposits may build up rapidly. Moving parts of your stove require no lubrication.

GLASS MAINTENANCE

Your Regency stove is supplied with 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only, and follow our step-by-step instructions for replacement.

Allow the stove to cool down before cleaning the glass, do not clean the glass when it is hot. Do not use abrasive cleaners.

DOOR LATCH

ADJUSTMENT

The door latch may require adjustment as the door gasket material compresses over time.

Follow the steps below to allow the latch to be moved closer to the door frame, causing a tighter seal;

1) Remove split pin and roller sleeve.

2) Spin door handle anti-clockwise to tighten.

3) Replace split pin and roller sleeve.

* Set screw with Allen key provided.

Set

Screw

Roller

Sleeve

Split

Regency Gosford Freestanding Wood Fire

Rear View of Door shown

Page 10

PARTS LIST

Part# Description

1 ) 1160106 Baffle Top

2 ) 1160118 Securing Pins 3 ) 1404003 Panel Outer Side Left 4 ) 1404002 Panel Outer Side Right 5 ) 1405000 Top Plate/Panel 6 ) 1404001 Rear Panel 7 ) 8010301 Bricks Set (Set 9) 8 ) 8010302 Liner Cast Iron (Set) 9 ) 8010303 Liner Cast Iron Sides (L & R)

10) 8010305 Liner Cast Iron Back

11) 8010306 Air Bar Stainless Steel

12) 8010307 Glass Neoceram With Gasket

13) 8010313 Door Assembly (Without handle)

14) 8010309 Air Slide

15) 8010310 Ash Lip Panel

16) 8010114 Door Handle Set

17) F250-917 Fan Assembly

18) Pedestal Assembly

19) 1406000 Front Panel

20) 936-060 Door rope seal 5 ft.6"(not shown)

Part # Description

1) 1160106 Bafe Top

2) 1160118 Securing Pins

3) 140403 Panel Outer Side Left

4) 140402 Panel Outer Side Right

5) 1405000 Top Plate/ Panel

6) 1404001 Rear Panel

7) 8010301 Bricks Set (Set 9)

8) 8010302 Liner Cast Iron (Set)

9) 8010303 Liner Cast Iron Sides (L & R)

10) 8010305 Liner Cast Iron Back

STOVE ASSEMBLY

11) 8010306 Air Bar Stainless Steel

12) 8010307 Glass Neoceram With Gasket

13) 8010313 Door Assembly (without handle)

14) 8010309 Air Slide

15) 8010310 Ash Lip Panel

16) 8010114 Door Handle Set

17) F250-917 Fan Assembly

18) Pedestal Assembly

19) 1406000 Front Panel

20) 936-060 Door rope seal 5 ft .6" (not shown)

1213

3 4

1718

Regency Gosford Freestanding Wood Fire

Page 11

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. Fireplace Products Australia Pty. Ltd. ("FPI") is pleased to

extend this warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty:

Covered under the agreement against manufacturer's defects from the date of purchase are the following components:

The Firebox for 10 years;

Steel Bafes for 12 months; Cast Iron Liners / Bafes for 2 years;

Electrical components (ie. fans, switches) for 12 months.

FPI is not liable for freight or labor on any wood burning appliance replaced in eld.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-eld service work carried out on your Regency product. FPI will not be liable for results or costs

of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This warranty does not extend to or include paint, door or glass gasketing, neo-ceramic glass, rebrick or trim. It does not cover installation and operational related problems such as over-ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate ueing or ventilation, excessive offsets, negative air pressures caused by mechanical systems

such as furnaces, fans, clothes dryers etc.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify

any unit once manufactured. ie. as products evolve, eld modications or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

* Subsidy according to job scale as predetermined by FPI.

Regency Gosford Freestanding Wood Fire

Page 12

FIREPLACE PRODUCTS AUSTRALIA PTY. LTD.

21-23 SOUTH LINK, DANDENONG SOUTH

VICTORIA, 3175

AUSTRALIA

NOTE: PLEASE RETAIN YOUR INVOICE AS PROOF OF PURCHASE FOR WARRANTY VERIFICATION

INCORRECT INSTALLATION IS NOT COVERED BY WARRANTY

A SERVICE OR CALLOUT FEE WILL BE CHARGED IN THESE CIRCUMSTANCES.
