Regency B41XTCE User Manual

Download

Regency Bellavista

™

B41XTCE

Owners &

Installation Manual

Gas Fireplace

MODELS: B41XTCE-NG

B41XTCE-LP

www.regency-ﬁ re.com

Bellavista B41XTCE Video

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

919-162

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

FOR YOUR SAFETY What to do if you smell gas: Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁ re department.

04/03/13

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY

. The Bellavista™ B41XTCE has been designed to provide you with all the warmth and charm of a wood ﬁ replace at the ﬂ ick of a switch. The Bellavista™ B41XTCE has been approved by W arnock Hersey/Intertek for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy , comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of

your Regency

Fireplace.

B41XTCE Video

Bellavista VideoBellavista

Regency Bellavista™ B41XTCE Gas Fireplace

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009 / CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any . In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFP A 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited by local codes.

This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

Ensure that structural members are not cut or weakened during installation.

Regency Bellavista™ B41XTCE Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Decal .....................................................5

REQUIREMENTS

MA Code - CO Detector.................................................6

DIMENSIONS

Unit Dimensions ............................................................7

INSTALLATION

Important Message ......................................................8

Before You Start ............................................................8

General Safety Information............................................8

Installation Checklist .....................................................9

Locating Your Gas Fireplace .........................................9

Clearances ..................................................................10

Mantel Clearances.......................................................11

Mantel Leg Clearances................................................12

Non-Combustible Requirements .................................12

Framing ......................................................................13

Framing & Finishing.....................................................14

Tile Finish ............................................................14

Clean Finish .........................................................14

Unit Assembly Prior to Installation ...............................16

Top Standoff Assembly ........................................16

Nailing strips ........................................................16

Venting Introduction .....................................................19

Vent Restrictor & Bafﬂ e Installation .............................19

Exterior Vent Termination Requirements .....................20

5" x 8" Rigid Pipe .......................................................21

Cross Reference Chart only ........................................21

Venting Arrangements for horizontal terminations ......23

Flex Vent or RIGID PIPE 5" x 8" ..........................23

Rear Venting Deﬂ ector Installation ......................23

For rear vented horizontal terminations ...............23

Horizontal Terminations ...............................................24

Flex Vent 5" x 8" .................................................24

RIGID PIPE 5" x 8" ..............................................25

AstroCap XL & Rigid rear vent kit- corner installations 26

Rigid pipe 5" x 8" .................................................26

Venting arrangements ..........................................27

For Horizontal TerminationS ................................27

Rigid Pipe Venting Systems ........................................28

Basic Horizontal & Vertical Terminations .............28

Horizontal terminations ................................................29

Two (2) 90o Elbows (Rigid Pipe 5" x 8") ...............29

Horizontal terminations ................................................29

Three (3) 90o Elbows (Rigid Pipe 5" x 8") ............29

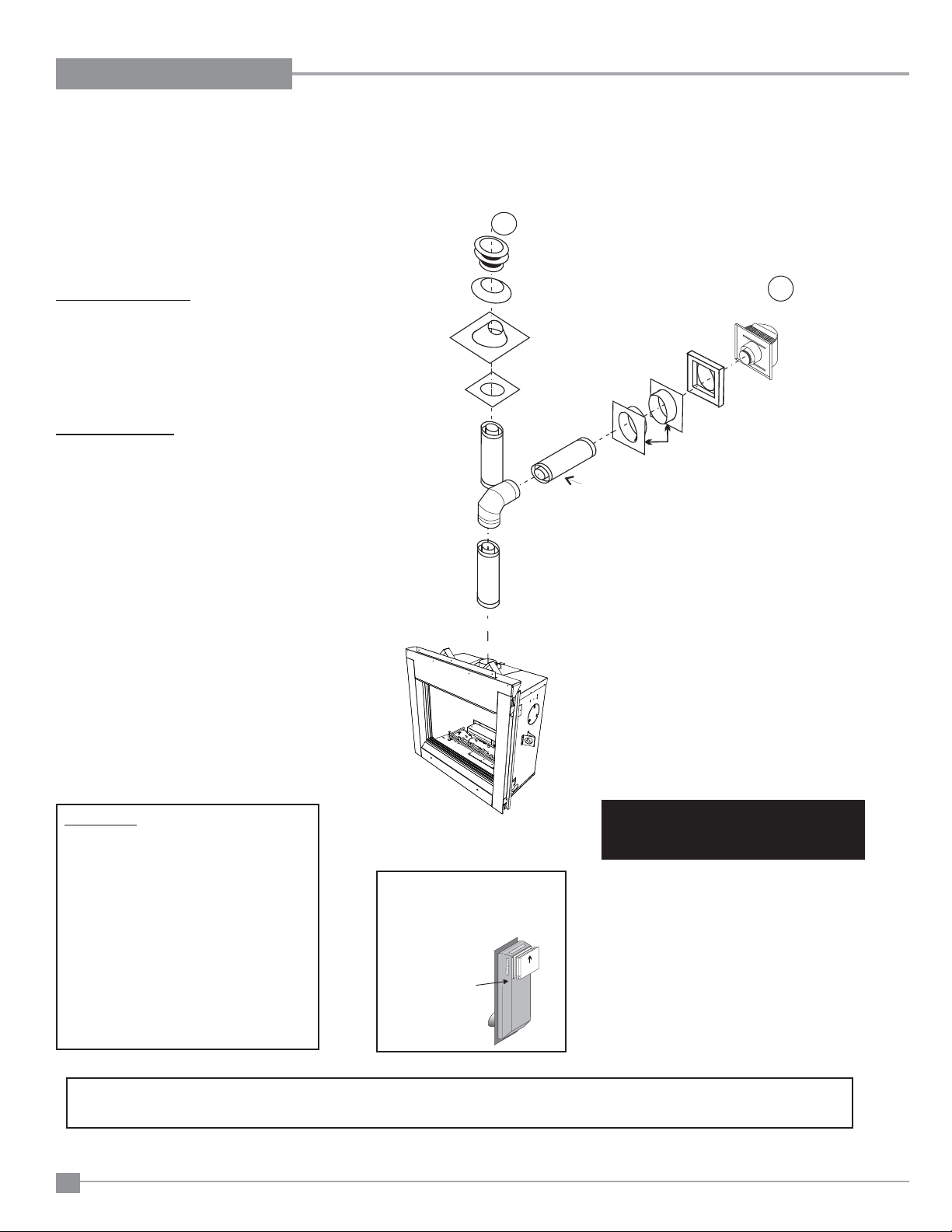

Venting arrangements ..........................................30

For Vertical TerminationS .....................................30

Vertical terminations ...................................................31

Three (3) 90

Unit Installation with Horizontal Termination ...............32

Gas Line Installation ....................................................34

Pilot Adjustment ...........................................................35

High Elevation .............................................................35

886 S.I.T. Valve Description .........................................35

Gas Pipe Pressure Testing ..........................................35

Brick panel installation .................................................36

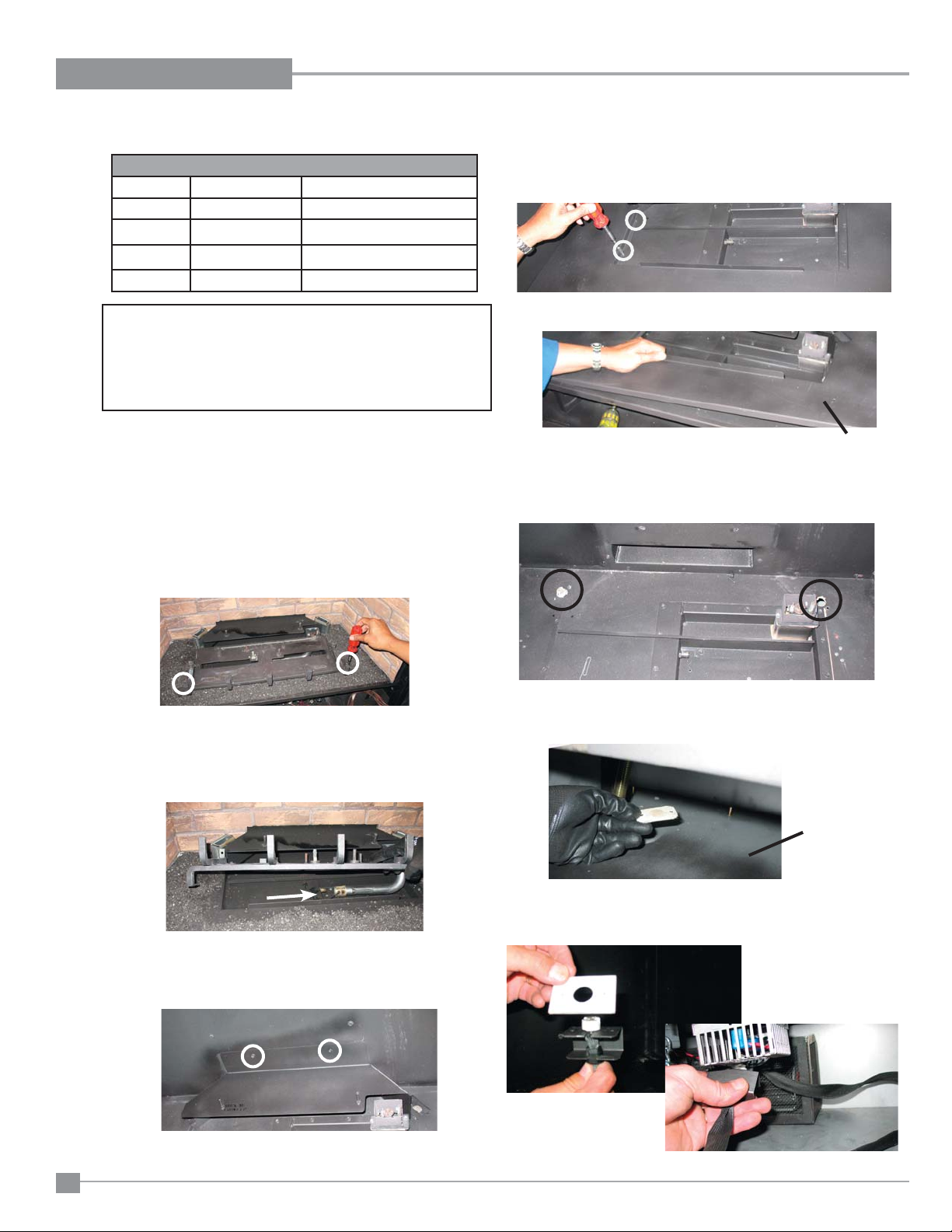

Optional black enamel panel installation .....................37

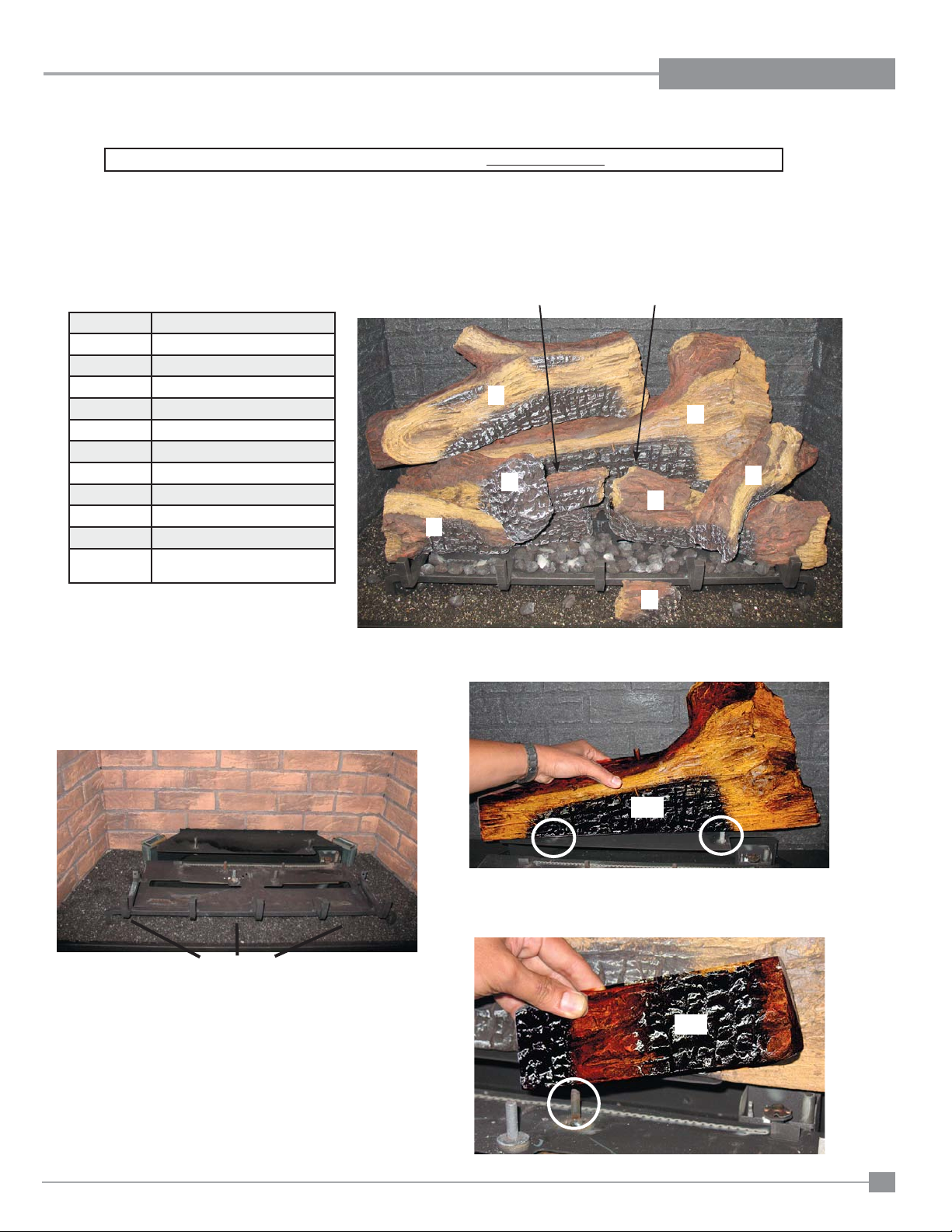

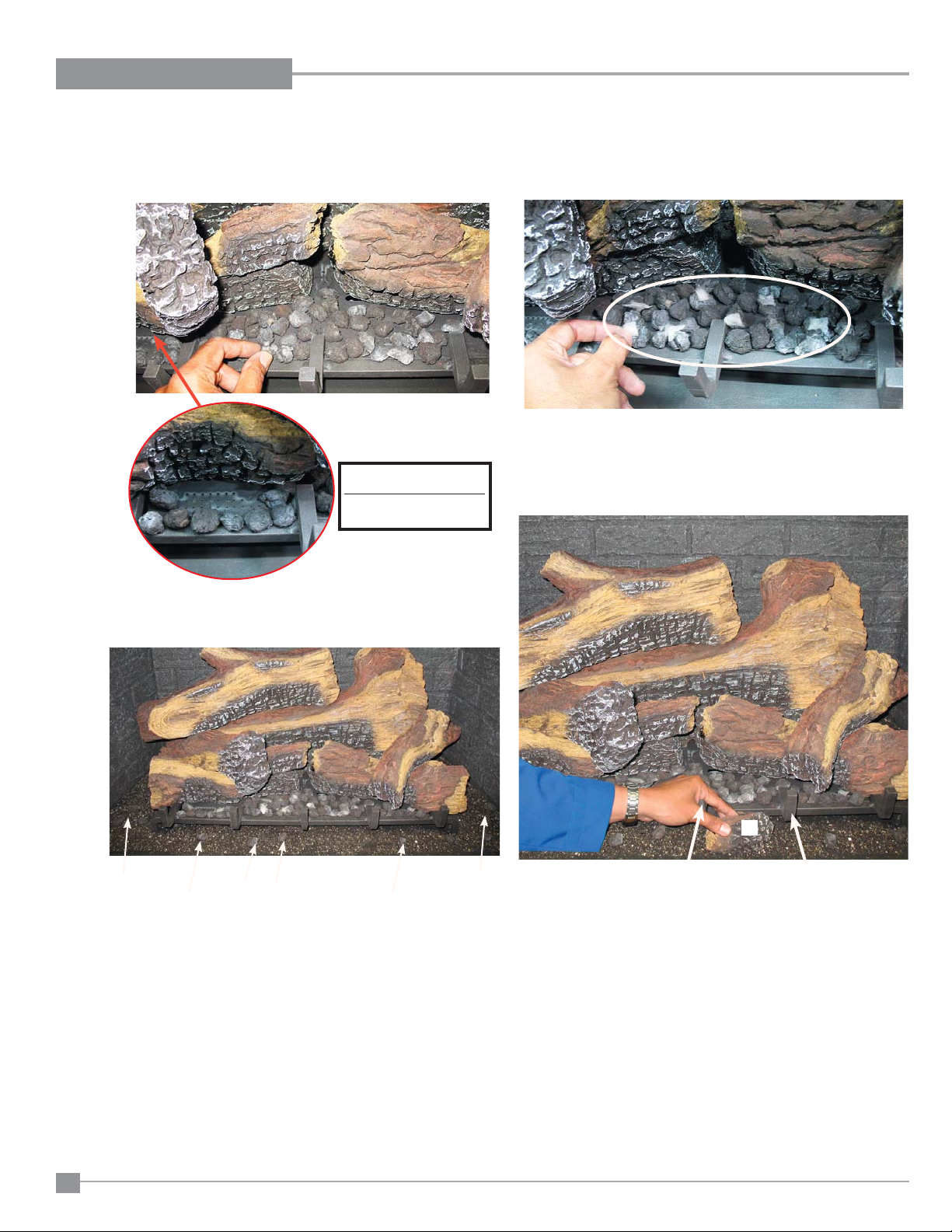

Log set installation .......................................................39

Optional Fan installation ..............................................43

Optional Wall Thermostat ...........................................45

Optional Remote Control .............................................45

Optional Wall Switch ....................................................45

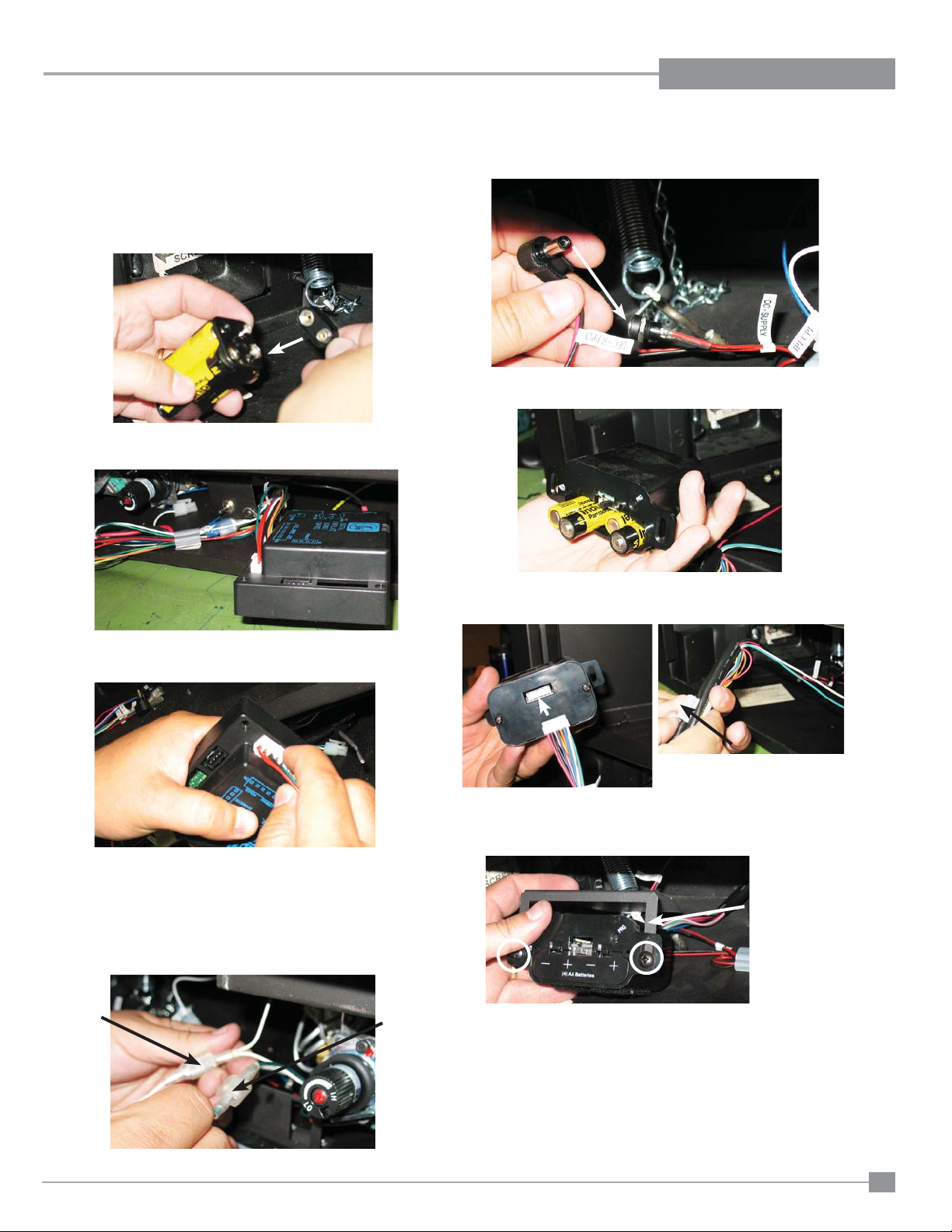

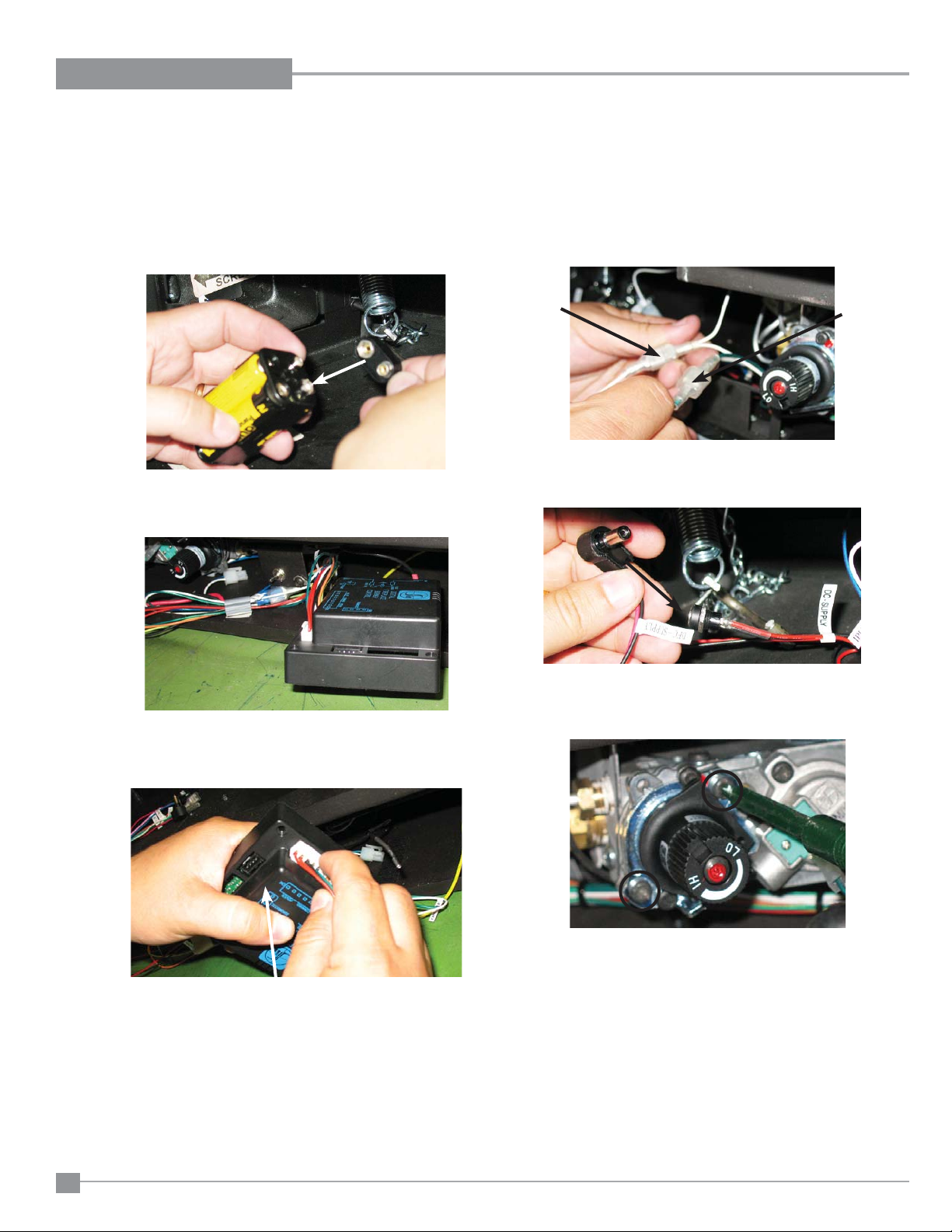

GT Remote installation ................................................47

GTM Remote installation .............................................48

GTMF Remote installation ...........................................50

Wiring Diagram ............................................................52

Line voltage wiring to receptacle in unit.......................52

Proﬂ ame system wiring diagram .................................53

Optional accent light Installation ..................................54

Mesh guard Installation ...............................................56

Flush glass door Installation ........................................57

Elbows (Rigid Pipe 5" x 8") ............31

OPERATING INSTRUCTIONS

Operating Instructions .................................................58

Lighting Procedure ......................................................58

Shutdown Procedure ...................................................58

First Fire ......................................................................58

Normal Operating Sounds of Gas Appliances .............58

Aeration Adjustment ....................................................58

Copy of Lighting Plate Instructions ..............................59

Maintenance Instructions.............................................60

Log Replacement ........................................................60

Door Glass...................................................................60

Accent Light Bulb Replacement ..................................61

Valve Replacement ......................................................62

Installing Valve .............................................................62

PARTS LIST

Main Assembly ............................................................63

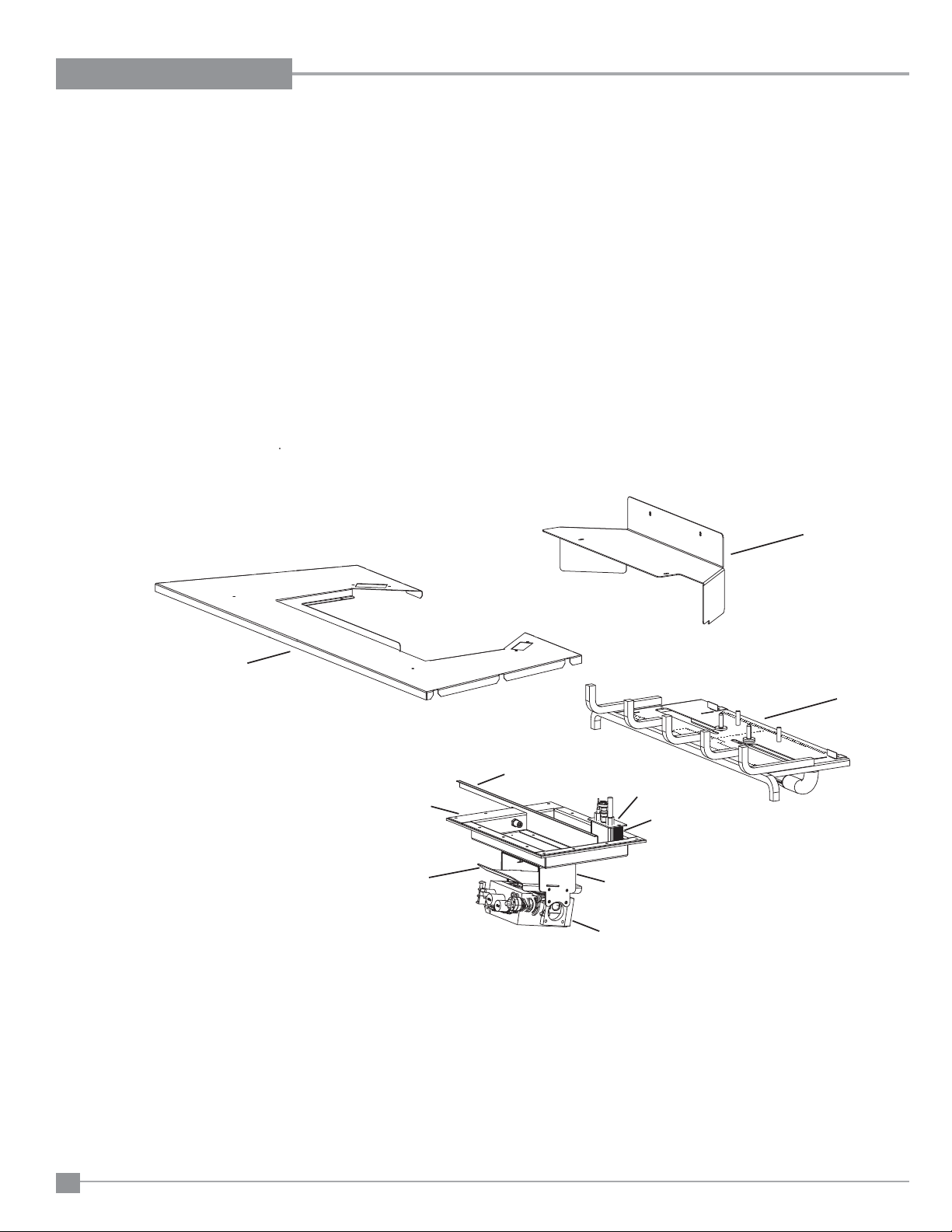

Burner Assembly .........................................................64

WARRANTY

The Warranty: Limited Lifetime ...................................67

Regency Bellavista™ B41XTCE Gas Fireplace

This is a copy of the label that accompanies each Bellavista™ B41XTCE Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.

NOTE: Regency

units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

SAFETY LABEL

Duplicate S/N

Listed:

VENTED GAS FIREPLACE HEATER

Certified for/Certifi e pour: Tested to:

ANSI Z21.88-2009/CSA 2.33-2009

4001172

NATURAL GAS: Model B41XTCE-NG

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

PROPANE GAS: Model B41XTCE-LP

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliancemust be installed in accordancewith the StandardCAN/CSA Z240 MH,Mobile Housing, inCanada, or withthe ManufacturedHome Construction andSafety Standard, Title24 CFR, Part3280, in the United States,or whensuch a standardis notapplicable, ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installations Standard. This appliance is onlyfor use withthe type ofgas indicated onthe rating plateand may beinstalled in anaftermarket, permanently located,manufactured (mobile) homewhere not prohibitedby local codes.See owner's manualfor details. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon les codesd'installation ANSIZ223.1, NationalFuelGasCode ou CSA-B149.1en vigueur. Installer l'appareilselon la norme CAN/CSA-Z240,Série MM, Maison mobiles ou CAN/CSA-Z240VC, Véhicules de camping, oula norme 24 CFR Part 3280,Manufactured Home Construction and SafetyStandard. Si cesnormes nesont pas pertinentes,utilisez lanorme ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installations Standard, ouANSI A119.2 ouNFPA501C Standard for Recreational Vehicles. Cet appareil doitêtre utilizeuniquement avecle typede gazindiqué surla plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée oumobile (É.-U. seulement) installée àdemeure siles règlements locauxle permettent.Voir lanotice de l'utilisateurpour plusde renseignements. Cetappareil nepeut pas êtreutilisé avecd'autresgaz sauf siune troussedeconversion certifiée estfournie.

This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation.

For usewith glassdoors certified withthe applianceonly

Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

CAN/CGA-2.17-M91(R2009)

WC/C.E.

5.0" (1.25 kPa) WC/C.E.

3.5" (0.87 kPa) WC/C.E.

1.6" (0.40 kPa)

#30 DMS 30,000 Btu/h (8.79 kW) 42 ,500 Btu/h (12.45 kW) 0-4500 ft/pi (0-1372 m)

WC/C.E.

11" (2.74 kPa)

WC/C.E.

10" (2..49 kPa)

WC/C.E.

6.4" (1.60 kPa) #49 DMS 29,500 Btu/h (8.65 kW) 37 ,500 Btu/h (10.99 kW) 0-4500 ft/pi (0-1372 m)

CANADA and U.S.A.é

APPAREIL FONCTIONNANT AU NATURAL GAS CONCU POUR ETRE POELE: Mod le B41XTCE-NG

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

Calorifique

D bit maximum selon l'altitude

ÉÉ

QUIP A L'UISINE POUR GAZ PROPANE

CONCU POUR ETRE POELE: Mod le B41XTCE-LP

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

Calorifique

D bit maximum selon l'altitude

Pour utilisationuniquement avecles portes enverre certifiéesavec l'appareil

Made in Canada/ Fabrique au Canada

ééé é

VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

Ceiling

DOOR SEAL: Please

check that the door is

properly sealed

(See Instruction Manual for

detailed instructions)

411

Serial No./ No de serie

411

Mantel Clearances from Fireplace Opening:

(A) Min. 17-9/16" (446mm)

Wall

Side Wall Clearance from Fireplace Opening

Floor

FPI Fireplace Products International Ltd.

B) Min. 9” (229mm)

Ceiling from Top of Fireplace Opening:

C) 36-5/8” (930mm)

Mantel Depth:

D) Max. 12” (304mm)

Alcove Clearances:

E) Min. Width 60" (1524mm), F) Max. Depth 36" (914mm)

Minimum Vent Clearances:

Horizontal Top 3" (76mm) Horizontal Side 2" (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Delta, BC, Canada

919-163

For the State of Massachusetts, installation and repair must be done by a plumber or gas ﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Regency Bellavista™ B41XTCE Gas Fireplace

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

MA Code - CO Detector

(for the State of Massachusetts only)

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

Regency Bellavista™ B41XTCE Gas Fireplace

16-7/16"

[417mm]

46-11/16"

[1185mm]

38-3/8"

[974mm]

UNIT DIMENSIONS

25-9/16"

22.674

[649mm]

DIMENSIONS

44-1/4"

[1123mm]

23-7/16"

[594mm]

46-11/16"

[1185mm]

35"

[889mm]

38-7/16"

[976mm]

29-1/8"

[738mm]

3-5/8"

[92mm]

49-1/4"

[1251mm]

11-5/8"

[294mm]

32-5/8"

[829mm]

7-5/16"

[185mm]

3-1/4"

26-3/16"

[664mm]

1-1/2"

[38mm]

1-9/16"

28-1/2"

[39mm]

36-3/8"

[923mm]

[724mm]

38-1/4"

[971mm]

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The B41XTCE Gas Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturers instructions and all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL IN THE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

IF THE BARRIER BECOMES DAMAGED, THE BARRIER SHALL BE REPLACED WITH THE MANUFACTURER'S BARRIER FOR THIS APPLIANCE.

ANY SAFETY SCREEN, GUARD, OR BARRIER REMOVED FOR SERVICING THE APPLIANCE, MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local codes, with the current Canadian or National Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/ NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly instructions. The appliance and vent should be enclosed.

5) Inspect the venting system annually for blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into a wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

10) Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.

11) Under no circumstances should this appliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance should be done by a qualiﬁ ed service person. A professional service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

4) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Your

Gas ﬁ replace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Combustible

Mantel Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "V enting"

section)

2) Assemble Top Standoffs and Top Facing Support and Side Nailing Strips (Refer to "Unit Assembly Prior to Installation" Section). Note: Must be done before installing unit into place.

3) Install vent (Refer to "Venting" sections).

4) Make gas connections. T est the pilot. Must be

as per diagram (Refer to "Pilot Adjustment" section).

5) Make electrical connections to receptacle supplied with unit (recommended).

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label), after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances are met.

2) The appliance must be installed on a ﬂ at, solid, continuous surface For example a wood, metal or concrete ﬂ oor or in a raised (on the wall) application. The appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

4) This appliance is Listed for bedroom installations using the standard Remote (millivolt thermostat system). Some areas may have further requirements, check local codes before installation.

5) The B41XTCE Gas Fireplace are approved for alcove installations, see "Clearances" section for details.

6) We recommend that you plan your installation on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have an authorized inspector, dealer, or installer review your plans before installation.

Note: For vent terminations refer to

"Exterior Vent Termination Locations" section.

6) Install standard and optional features. Refer

to the following sections:

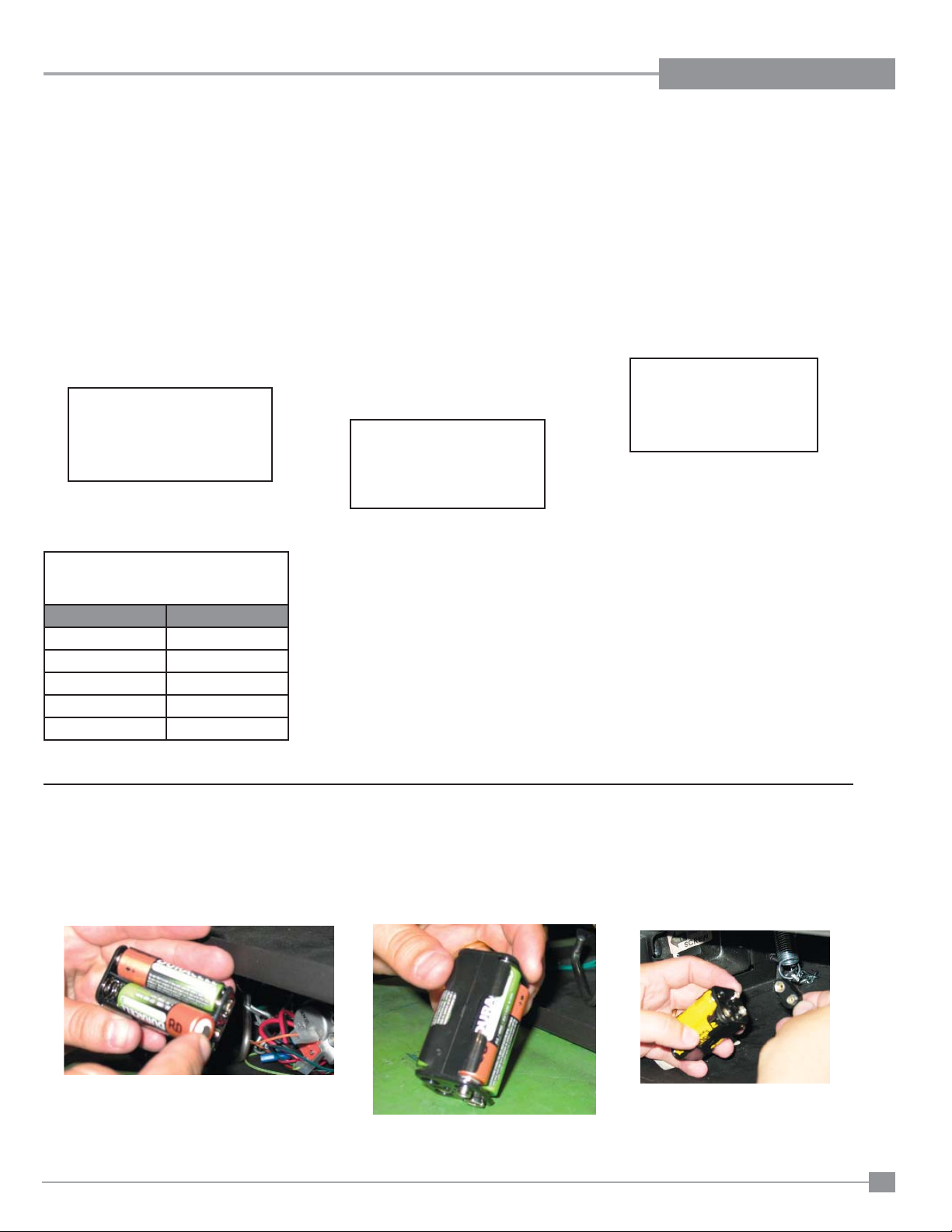

a. Install 4AA batteries into battery pack b. Inner Panels or Brick Panels (Required) c. Log Set Installation d. Standard Flush Door e. Remote Control f. Wall Switch g. Wall Thermostat h. Fan Installation (Optional) i. Light Installation (Optional)

7) Final check.

3) The B41XTCE Gas Fireplace can be installed

in a recessed position or framed out into the room as in A, B, C and D. See Diagram 1.

Diagram 1

A) Flat on Wall B) Flat on Wall Corner C) Recessed into Wall/Alcove D) Corner

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

The top, back and sides of the ﬁ replace are deﬁ ned by

standoffs. The metal ends of the standoff may NOT be

Caution Requirements

recessed into combustible construction.

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁ replace and vent

system be installed only in accordance with these instructions.

B41XTCE Clearance Requirements

Clearance: Dimension Measured From:

A: Mantel Height (min.) 17-9/16" (446mm) Top of Fireplace Opening B: Sidewall 9" (229mm) Side of Fireplace Opening

C: Ceiling 36-5/8" (930mm) Top of Fireplace Opening D: Mantel Depth (max.) 12" (304mm) 25-13/16" (651mm)

E: Alcove Width 60" (1524mm) Wall to Wall (Minimum) F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum) Notes: 0" No Hearth Required

from Top of Fireplace Opening

Fire hazard is an extreme risk

WARNING

NOTE: A 16" deep non-combustible hearth pad is

recommended for hardwood ﬂ ooring and carpet.

Minimum Vent Clearances

Close to Ceiling

to Combustibles

Alcove

Horizontal Top 3" (76mm) Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

MANTEL CLEARANCES

Due to the extreme heat this ﬁ replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are

shown in the diagram on the right.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible

board.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

Mantel Clearances

Combustible

Non-combustible

Header

(steel stud)

on edge

12”

810

7”

Inches

Mantel Clearances B41XT

From Top of Fireplace Opening

To Floor

6”

Non-combustible

Standoff

Top of

Fireplace

Opening

ABCD

32-11/16"

(830mm)

25-13/16"

(656mm)

22-1/16"

(560mm)

17-9/16"

(446mm)

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

MANTEL LEG CLEARANCES

9” Side Wall

(Measured from side of

Fireplace Opening)

Mantel leg

1-1/2"

4”

7”

Allowable mantel leg

projection.

Mantel leg

NON-COMBUSTIBLE REQUIREMENTS

46-11/16" [1186mm]

NON-COMBUSTIBLE BOARD SUPPLIED W/UNIT

No Combustible

Materials in this Area

[1276mm]

50-1/4"

4-1/8"

[105mm]

NO FACING OR

FINISHING MATERIAL

IN THIS AREA

38-7/16" 976mm

6" [152mm]

11-5/8"

[295mm]

[737mm]

29"

3-9/16" [91mm]

[1124mm]

44-1/4"

NOTE: The 6" x 46-11/16" supplied with the unit is secured directly above the unit as shown above. **All other non-combustible material is supplied by others.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

FRAMING

Framing Dimensions Description B41XTCE

M Framing Width 47-1/4"(1200mm) N Framing Height 49-1/2" (1257mm) O (Rear Vent) Framing Depth - Rear Vent 26-1/2" (673mm) O (Top Vent) Framing Depth - Top Vent 25-7/8" (657mm) P Corner Facing Wall Width 65-1/4" (1657mm) Q Corner Facing Wall Width 91-11/16" (2329mm) R (Rear Vent) Framed Chase Ceiling - Rear 49-1/2" (1257mm) R (Top Vent) Framed Chase Ceiling - Top 54-1/2" (1384mm) S (Rear Vent) Vent Centerline Height - Rear 28-1/2" (724mm) S (Top Vent) Vent Centerline Height - Top 47-1/2" (1207mm) Rigid / Flex T Gas Connection Height 1-1/2" (38mm) U Gas Connection Inset 5" (127mm) V Gas Connection Width 3-1/4" (82mm) W Non-Combustible Top Height 13-1/2" (343mm)

** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.

Non-Combustible

Header

(steel stud)

on edge

Drywall

(or other

facing)

Non-Combustible

Header

(steel stud) on edge

Non-Combustible Facing

11" (279mm)

dia. Hole through

wall Vent.

Opening for gas

connection

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

FRAMING & FINISHING

1. Frame in the enclosure for the unit with framing material.

Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.

2. For exterior walls, insulate the enclosure to the same degree as the rest of the house; apply vapour barrier and drywall, as per local installation codes.

(Do not insulate the ﬁ replace itself.)

WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems

including, but not limited to: excessive condensation on glass doors, poor ﬂ ame package, carbon, blue ﬂ ames etc. These are not product related issues.

3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"

section. Combustible materials can be laid against the side and back standoffs and the stove base.

4. Tile Finish Option 1: Drywall may be installed onto the unit as shown below to create a surface to apply ﬁ nishing materials such as tile, slate, etc. Drywall cannot extend beyond the metal surface of the unit.

5. Tile Finish Option 2: If applying a non-combustible ﬁ nishing material (tile,slate,etc) the material can be installed directly onto the metal surface (clean front) of the unit in the area shown below.

TILE FINISH

38-7/16"

976mm

[737mm]

29"

Non-combustible

Finishing Material (ie. tile)

Ensure finished material is brought to lip

Non-combustible Finishing Materia

l(ie. tile)

Combustible Material

Non-combustible Material (6" x 46-11/16")

Nailing Strip

-1/2" back from unit face

1-1/2

(38mm)

Combustible Material

CLEAN FINISH

6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below.

Combustible Material

Non-combustible Material (6" x 46-11/16")

Nailing Strip

-flush with unit face

[152mm]

NON COMBUSTIBLE BOARD SUPPLIED W/UNIT

46-11/16"

[1186mm]

WOOD STUD

1/2" DRYWALL

DO NOT EXTEND DRYWALL ONTO METAL SURFACE OF UNIT.

NON-COMBUSTIBLE FACING

FOR CLEAN LOOK (ie. painted finish) (SUPPLIED BY OTHERS)

Non-combustible Finishing Material

Supplied with Unit

Ensure finished material is brought to lip

Non-combustible Finishing Material

1-1/2

Combustible Material

(38mm)

44-1/4"

[1124mm]

Combustible and Non-combustible Facing and Finishing

1/2" DRYWALL

Materials around unit.

NOTE: The 6" x 46-11/16" non combustible material supplied with this unit can be replaced if trying to achieve a clean ﬁ nish. A large piece of non

combustible material (ie. 4' x 8' x 1/2" can be used to eliminate taped seams on or near unit.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

7. Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this will assure ease of glass door removal and access to the lower panel.

NOTE: Non-combustible ﬁ nishing materials may be of any thickness desired.

46-11/16" [1186mm]

NON-COMBUSTIBLE BOARD SUPPLIED W/UNIT

No Combustible

Materials in this Area

[1276mm]

50-1/4"

4-1/8"

[105mm]

Minimum Clearances for Finishing Materials

NO FACING OR

FINISHING MATERIAL

IN THIS AREA

38-7/16" 976mm

6" [152mm]

11-5/8"

[295mm]

[737mm]

29"

3-9/16" [91mm]

[1124mm]

44-1/4"

No Combustible

Materials in this Area

J Style trim or metal corner bead may be used to finish edges

38-7/16"

976mm

Trim materials

[737mm]

29"

IMPORTANT FINISHING DETAIL NOTE:

Before placing unit into ﬁ nal position - it is important to know the total thickness / height of ﬁ nished hearth (tile, carpet, etc.) The base of the

ﬁ replace, 4 sided faceplate or mantel should be level or higher than the ﬁ nished hearth height.

Note: All non-combustible facing material should butt up cleanly

to the ﬂ anges around the ﬁ rebox opening.

Rough edges may be visible from an angle.

To maintain a clean ﬁ nished edge - facing material edges

may be ﬁ nished with a J-style trim or metal cornerbead (both materials available at your local building or hardware store).

IMPORTANT: Materials used must be NON-COMBUSTIBLE.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

UNIT ASSEMBLY PRIOR TO INSTALLATION

BEFORE YOU START

The T op Nailing Support, the Side Nailing Strips, the 2 Top Standoffs and the Flue Collar must be correctly positioned and attached before the ﬁ replace is moved into position.

TOP STANDOFF ASSEMBLY

The top standoffs are shipped in a ﬂ at position and must be folded into shape and attached.

1) Remove the standoffs from the ﬁ replace top.

2) T ake each standoff and bend into the correct shape. Bend up at the bend lines until the screw holes in the standoff and the pre-punched screw holes on the ﬁ replace top line up.

3) Attach the standoff securely to the top with 2 screws per standoff (on opposite corners).

NAILING STRIPS

1. There are 8 (eight) side nailing strips and one top nailing strip available on the unit. One set of four (4) are for a clean ﬁ nish installation, the other

set are for a tile ﬁ nish installation as they are set back 1/2" (13mm). The top nailing strip is adjustable to 1/2" (13mm).

2. Bend the required four (4) nailing strips to 90º.

3. Attach top nailing strip with one (1) screw (located at the back of the nailing strip). Adjust to required position, flush or back 1/2" and tighten screw.

Adjustable Top

Nailing Strip

Nailing strip for

Clean Finish (set

ﬂ ush with unit)

Nailing strip for

Nailing strip for Tile Finish (set

back 1/2")

Tile Finish (set

back 1/2")

Nailing strip for

Clean Finish (set

ﬂ ush with unit)

Regency Bellavista™ B41XTCE Gas Fireplace

CONVERSION TO TOP VENT

INSTALLATION

The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.

Note: This conversion must be done prior to the unit being placed in position.

Top Collar Assembly Kit Includes:

1 Intake Collar Assembly with Gasket 1 Intake Cover Plate with Gasket 1 Top/Rear Exhaust Assembly with Gasket 1 Bafﬂ e Plate 29 1/4" x 1/2" Screws (4 spares) 1 Restrictor 1 Intake Collar Gasket (spare) 1 Exhaust Assembly Gasket (spare)

1 Insulation Plate Cover 1 Insulation Filling

1) Remove the door by releasing the spring hooks at the bottom and lifting the door up off the door frame.

3) From the inside of the ﬁ rebox, remove the exhaust assembly by removing the 10 screws.

4) From the outside rear of the ﬁ rebox, remove the intake collar assembly. Remove the 4 - 1/4" x 1/2" screws.

Exhaust

Assembly

Swing door out

from the bottom

and lift up off

of door frame

Flush

Door

2) From inside the ﬁ rebox, remove the bafﬂ e plate by removing 4 screws - remove top front screw ﬁ rst.

Intake Collar

Assembly

5) From the outside top of the ﬁ rebox - remove top insulation cover plate - by removing 2 screws as shown and discard.

6) From the outside top of the ﬁ rebox - slide the square piece of insulation out and discard.

Bafﬂ e Plate

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

7) From the outside top of the ﬁ rebox - remove the intake cover plate by removing the 4 - 1/4" x 1/2 " screws.

Before proceeding to Step 8, inspect condition of all gaskets. DO NOT install parts with damaged gaskets. Replace if necessary

with spare gaskets supplied.

8) From the outside top of the ﬁ rebox - completely remove the insula- tion under the cover plate as shown and discard.

10) From the inside of the ﬁ rebox, place the exhaust assembly into position as shown in Diagram 1 and secure with 10 - 1/4" x 1/2" screws (Diagram 2). Ensure all screws are tight, but do not over tighten.

All 10 screws must be used.

Diagram 1

Diagram 2

9) From the outside back of the ﬁ rebox - locate the insulation deﬂ ector and bend completely upwards ﬂ at against the back of ﬁ rebox.

IMPORTANT: If the insulation deﬂ ector is not bent ﬂ at against the

back of the ﬁ rebox this will block air intake which will affect the unit's performance.

Insulation Deﬂ ector

11) From the outside top of the ﬁ rebox, install the intake collar as- sembly. Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over tighten. All 4 screws must be used.

Exhaust

Assembly

Intake Collar

Assembly

12) From the outside rear of the ﬁ rebox, install the intake cover plate with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over tighten. All 4 screws must be used.

View Front of Firebox

13) Set vent restrictor accordingly - see next page.

14) From inside the ﬁ rebox, re-install the bafﬂ e plate from step 2.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

VENTING INTRODUCTION

The B41XTCE uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These ﬂ ue pipes must not be connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

VENT RESTRICTOR & BAFFLE INSTALLATION

NOTE: THE VENT RESTRICTOR & BAFFLE MUST BE INSTALLED PRIOR TO OPTIONAL PANEL INSTALLATION.

1) Determine the venting conﬁ guration.

2) Go to venting arrangements section to determine if a vent restrictor

setting is required.

Note: The vent restrictor does not apply to rear vent applications.

3) Remove bafﬂ e plate. See Diagram 3.

4) Align the vent restrictor plate to the required vent restrictor position

as per diagram 1.

NO VENT RESTRICTOR

Factory setting

5) Once the vent restrictor plate is in the required position, secure with 2 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over

tighten. (See diagram 2).

Diagram 2: Vent Restrictor installed on

Top Exhaust Assembly

6) From inside the ﬁ rebox, install the bafﬂ e plate with 4 - 1/4" x 1/2 " screws. Ensure all screws are tightly secure, but do not over tighten.

SET 1

THIS HOLE SETS THE

VENT RESTRICTOR

AT 3-1/2”

SET 2

THIS HOLE SETS THE

VENT RESTRICTOR

AT 2-1/2”

SET 3

THIS HOLE SETS THE

VENT RESTRICTOR

AT 1-1/2”

Bafﬂ e Plate

Regency Bellavista™ B41XTCE Gas Fireplace

Diagram 1

Diagram 3

INSTALLATION

EXTERIOR VENT TERMINATION REQUIREMENTS

Minimum Clearance Requirements

A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

C Clearance to permanently closed window **

D Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm)

from the center line of the terminal (check with the local code)

E Clearance to unventilated sofﬁ t 19-1/2"(50cm) 20"(51cm)

F Clearance to outside corner: with AstroCap XL Termination Cap. 13"(33cm) 13"(33cm)

Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)

G Clearance to inside corner: with AstroCap XL Termination Cap 5-1/2"(14cm) 5-1/2"(14cm)

Clearance to inside corner: with all other approved Termination Caps. 7"(18cm) 7"(18cm)

H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

J Clearance to service regulator vent outlet 36"(90cm) *

K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

L Clearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)

M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

N Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

24"(60cm) 24"(60cm)

┼

‡

USA

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

5" X 8" RIGID PIPE

CROSS REFERENCE CHART ONLY

Components from different Manufacturers may not be mixed. Not all Rigid Pipe components are available directly from FPI.

Description

6” Pipe Length-Galvanized 58DVA-06 5DT-6 5D6 TC-5DL6

6” Pipe Length-Black 58DVA-06B 5DT-6B 5D6B TC-5DL6B

9” Pipe Length-Galvanized 58DVA-09 5DT-9 N/A N/A

9” Pipe Length-Black 58DVA-09B 5DT-9B N/A N/A

12” Pipe Length-Galvanized 58DVA-12 5DT-12 5D12 TC-5DL1

12” Pipe Length-Black 58DVA-12B 5DT-12B 5D12B TC-5DL1B

18” Pipe Length-Galvanized 58DVA-18 5DT-18 5D18 TC-5DL18

18” Pipe Length-Black 58DVA-18B - N/A from FPI 5DT-18B 5D18B TC-5DL18B

24” Pipe Length-Galvanized 58DVA-24 5DT-24 5D24 TC-5DL2

24” Pipe Length-Black 58DVA-24B 5DT-24B 5D24B TC-4DL2B

36” Pipe Length-Galvanized 58DVA-36 5DT-36 5D36 TC-5DL3

36” Pipe Length-Black 58DVA-36B 5DT-36B 5D36B TC-5DL3B

48” Pipe Length-Galvanized 58DVA-48 5DT-48 5D48 TC-5DL4

48” Pipe Length-Black 58DVA-48B 5DT-48B 5D48B TC-5DL4B

60” Pipe Length-Galvanized 58DVA-60 N/A N/A N/A

60” Pipe Length-Black 58DVA-60B - N/A from FPI N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A 5DAL TC-5DLT

Adjustable Length 3”-10”-Black N/A N/A 5DALB TC-5DLTB

Adjustable Length 11”-14” -Galvanized Disc. - See 58DV-08A 5DT-AJ N/A N/A

Adjustable Length 11”-14” -Black Disc. - See 58DV-08B 5DT-AJB N/A N/A

Extension Pipe 17”-24” -Galvanized Disc. - See 58DV-16A N/A N/A N/A

Extension Pipe 17”-24” -Black Disc. - See 58DV-16AB N/A N/A N/A

Adjustable Length 8-1/2”-Galvanized 58DVA-08A - N/A from FPI N/A N/A N/A

Adjustable Length 8-1/2”-Black 58DVA-08AB N/A N/A N/A

Extension Pipe 16”-Galvanized 58DVA-16A - N/A from FPI N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

Metal-Fab™

Sure Seal

ICC Excel

Direct

45º Elbow-Galvanized 58DVA-E45 5DT-EL45 5DT-EL45 TE-5DE45

45º Elbow-Black 58DVA-E45B 5DT-EL45B 5DT-EL45B TE-5DE45B

45º Elbow Swivel-Galvanized

45º Elbow Swivel-Black

90º Elbow-Galvanized 58DVA-E90 5DT-EL90S 5DT-EL90S TE-5DE90

90º Elbow-Black 58DVA-E90B 5DT-EL90SB 5DT-EL90SB TE-5DE90B

90º Elbow, Swivel-Galvanized

90º Elbow, Swivel-Black

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A N/A

Adaptor* N/A N/A N/A N/A

Ceiling Support 58DVA-DC 5DT-CS 5DSP TE-5DE45

Cathedral Support Box 58DVA-CS 5DT-CSS 5DRS TE-5DE45B

Wall Support/Band 58DVA-WS 5DT-WS/B 5DWS N/A

Offset Support

Wall Thimble-Black 58DVA-WT 5DT-WT 5DWT TE-5DE90

Wall Thimble Support/Ceiling Support 58DVA-DC

Firestop Spacer 58DVA-FS 5DT-FS 5DFS N/A

Trim Plate-Black 58DAV-WFS 5DT-TP 5DCP N/A

Regency Bellavista™ B41XTCE Gas Fireplace

Disc. - See 58DVA-E45

Disc.-See 58DVA-E45B

Disc. - See 46DVA-E45

58DVA-ES - N/A from FPI

- N/A from FPI N/A N/A TE-5DE90B

N/A N/A N/A

5DT-OS N/A N/A

INSTALLATION

Description

Attic Insulation Shield 12” 58DVA-IS N/A from FPI N/A N/A N/A

Basic Horizontal Termination Kit (A) N/A 5DT-HKA N/A N/A

Horizontal Termination Kit (B) 58DVA-KHA 5DT-HKB N/A N/A

Vertical Termination Kit 58DVA-VHA 5DT-VKC N/A N/A

High Wind Vertical Cap 58DVA-VCH N/A N/A TM-5VT

High Wind Horizontal Cap N/A N/A N/A TM-5DHT

Horizontal Square Termination Cap N/A 5DT-HHC 5DHT TM-5HT

Vertical Termination Cap N/A 5DT-HVC 5DVT TM-5VT

Storm Collar 58DVA-SC 5DT-SC 5DSC TM-SC

Adjustable Flashing 0/12-6/12 58DVA-F6 5DT-AF6 5DF TF-5FA

Adjustable Flashing 6/12-12/12 58DVA-F12 5DT-AF12 5DF1-2 TF-5FB

Vinyl Siding Standoff 58DVA-VSS 5DT-VS 5DVS TM-VSS

Vinyl Siding Shield Plate N/A 5DT-VSP N/A N/A

Snorkel Termination 14” 58DVA-SNK14 N/A N/A TM-5ST14

Snorkel Termination 36” 58DVA-SNK36 (N/A - FPI) N/A N/A TM-5ST36

Restrictor Disk 58DVA-RD N/A N/A TM-5DS

Colinear Flex Connectors N/A N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

Metal-Fab™

Sure Seal

ICC Excel

Direct

FPI

946-604/P Simpson Direct Vent -Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap

770-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-506/P Vent Guard (Optional)

946-606 Starter collar reducer 5” x 8” to 4” x 6-5/8” 946-625 Vinyl Siding Standoff - AstroCap XL

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 5-11/16” (144mm) 15-5/16” (389mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8-13/16” (224mm) 18-7/16” (468mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-15/16” (278mm) 20-9/16” (522mm) Metal-Fab Sure Seal: www.mtlfab.com

12” (305mm) 13” (330mm) 22-11/16” (576mm) Industrial Chimney Company: www.icc-rsf.com

24” (610mm) 21-7/16” (697mm) 31-1/16” (789mm) Note: Horizontal runs of vent must be level, or have a 1/4”

36” (914mm) 29-13/16” (757mm) 39-7/16” (1002mm)

48” (1219mm) 38-1/4” (972mm) 47-7/8” (1216mm)

5” x 8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

manufacturers website listed below.

rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS

FLEX VENT OR RIGID PIPE 5" X 8"

The diagrams show all allowable combinations of vent runs with 5" x 8" venting using the Regency direct vent system or rigid vent system. A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

For horizontal terminations the Regency Direct Vent Flex System may be used for installations upto a maximum continuous vent length of 10ft (3.0m).

Note: Must use optional rigid pipe adaptor (Part # 770-994) when using Rigid Pipe vent systems.

• Maintain clearance to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

Vertical Height (Feet)

Horizontal (Feet)

Max. 36”(0.9m)

Vent Restrictor - Set 1

Rigid or Flex

47-1/2" (1.2m)

Horizontal (Feet)

Max. 36"(0.9m)

Vertical Height (Feet)

28 - 1/2"(0.7m)

Factory Setting - No Restrictor Required

IMPORTANT

Must use Rear Venting Deﬂ ector packaged with unit in

rear vent horizontal termination applications.

REAR VENTING DEFLECTOR INSTALLATION

The Rear Vent Deﬂ ector comes with the unit. When the unit is shipped the deﬂ ector is slightly tucked underneath the top nailing strips located at the top of the ﬁ rebox.

NOTE: The Rear Venting Deﬂ ector must be installed before the unit is put in place.

1) Secure the rear venting deﬂ ector to the wall thimble using 2 screws as shown. Ensure to use the same screw holes as the wall thimble.

Regency Bellavista™ B41XTCE Gas Fireplace

FOR REAR VENTED HORIZONTAL TERMINATIONS

Rear Venting

Deflector

Rear Venting Deﬂ ector

INSTALLATION

HORIZONTAL TERMINATIONS

FLEX VENT 5" X 8"

These venting systems, in combination with the B41XTCE Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section.

Regency® Direct Vent (Flex) System 4 foot Termination Kit (Part# 946-615) or 10 foot Termination Kit (Part# 946-616) includes all the parts needed to install the B41XTCE with a either a top or rear vent.

FPI Kit # Length Contains:

#946-615 4 Feet 1) 8” ﬂ exible liner (Kit length)

2) 5” ﬂ exible liner (Kit length)

3) spring spacers

#946-618 6 Feet

#946-616 10 Feet

4) thimble

5) AstroCap XL termination cap

6) screws

7) tube of Mill Pac

8) plated screws

9) S.S. screws #8 x 1-1/2” drill point

10) vinyl siding standoff

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from Regency may be used for Flex installations.

3) Regency

NOTE: If longer runs are required the FPI Direct Vent system (Flex) #946-616 includes all parts needed to install the B41XTCE with a maximum 10' run.

Direct Vent System (Flex) is only approved for horizontal terminations.

Must use Rear Venting Deﬂ ector

IMPORTANT

packaged with unit in rear vent

horizontal termination applications.

Regency Bellavista™ B41XTCE Gas Fireplace

Horizontal Termination

A Top Vent - No Vertical Rise

• When venting with a 90° elbow directly off the unit Flex vent or approved Rigid Vent System

• Max. 3 ft. horizontal run

B Rear Vent w/ Horizontal Termination

• Max. 3ft. horizontal run

Vinyl Siding

Standoff (Optional)

Wall Thimble

Pipe Length

90 Elbow

Rigid Pipe Adaptor

HORIZONTAL TERMINATIONS

RIGID PIPE 5" X 8"

Horizontal

Termination

Cap

INSTALLATION

l S

Pipe Length

Rigid Pipe Adaptor

f (

tio

Must use Rear Venting Deﬂ ector packaged with unit in

rear vent horizontal termination applications.

IMPORTANT

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

HORIZONTAL TERMINATIONS

ASTROCAP XL & RIGID REAR VENT KIT

FOR CORNER INSTALLATIONS

RIGID PIPE 5" X 8"

Designed for a minimum vent conﬁ guration when using a rear vent application with a horizontal termination in a corner installation.

Kit# 946-612 Includes: 1 AstroCap XL 946-623/P

1 Rigid Pipe Adaptor 770-994 1 Vinyl Siding Standoff (Optional) 946-625 1 Wall Thimble 58DVA-WT 1 6" Galvanized Rigid Pipe 58DVA-06 1 8-1/2" Galvanized Pipe Extension 58DVA-08A 1 45º Galvanized Elbow 58DVA-E45 1 90ml MillPac 948-128

Vinyl Siding

Standoff

(Optional)

Astrocap

Wall Thimble

Placement of the Unit into the Corner

Back Top Corner of Unit to Wall 3" Inside Corner out along the Wall 65-1/4" Across the Face of the Unit, Wall to Wall 91-11/16" A - Clearance to Outside Corner 13" B - Clearance to Inside Corner 5-1/2"

3”

-1 /4

”

91-11/16”

45 elbow

Rigid Pipe Adaptor

Pipe Length

IMPORTANT

Must use Rear Venting Deﬂ ector packaged with unit in

rear vent horizontal termination applications.

28-1/2” (724mm)

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

10 14 16

18 20

VENTING ARRANGEMENTS

FOR HORIZONTAL TERMINATIONS

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o (two 45o elbows equal one 90o elbow).

• Maintain clearances to combustibles as listed in "Clearances" section

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• A wall thimble is mandatory for all horizontal terminations due to high temperatures.

Horizontal (Feet)

Vertical Height (Feet)

Restrictor 1-1/2” Open

Restrictor 2-1/2” Open

Set 2

Set 3

Restrictor 3-1/2” Open

Set 1

47-1/2" (1207mm) Minimum Height Requirement

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

Pipe Length

Vertical

Termination

Cap

Storm Collar

Flashing

Ceiling Firestop

Rigid Pipe Adaptor

Pipe

Length

Pipe Length

90 Elbow

Astrocap

(946-623/P)

Wall Thimble

Vinyl Siding

Standoff (Optional)

RIGID PIPE VENTING SYSTEMS

BASIC HORIZONTAL & VERTICAL TERMINATIONS

Rigid Pipe Vent Systems offer a complete line of component parts for installation of both horizontal and vertical installations. Many items are offered in decorative black, as well as galvanized ﬁ nish.

The minimum components required for a basic Horizontal Termination are:

1 AstroCap XL Termination Cap 1 90o Elbow 1 Rigid Pipe Adaptor 1 Wall Thimble 1 Length of rigid pipe to suit wall thickness

The minimum components required for a basic Vertical Termination are:

1 Vertical Termination Cap 1 Rigid Pipe Adaptor 1 Lengths of pipe to adequately penetrate roof 1 Ceiling Firestop 1 Flashing 1 Storm Collar

Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl, furring strips may be used, instead of a vinyl siding standoff, to create a level surface to mount the vent terminal. The T erminal must not be recessed into siding. Measure the wall thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.

WARNING:

Do not combine venting components from different venting systems.

Exception: However, use of the the AstroCap XLTM is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with Simpson DV Pro, Metal-Fab Sure-Seal, ICC Excel and Selkirk Direct-Temp systems. Use of these systems with the Rigid Pipe adaptor is deemed acceptable and does not affect the Warnock Hersey/Intertek listing of components.

The FPI AstroCap XL Direct-Temp. AstroCap XLTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

is certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent Pro, ICC Excel and Selkirk

Alternate

Horizontal Termination

Caps

Alternate Snorkel

Termination Cap

HOT

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

Regency Bellavista™ B41XTCE Gas Fireplace

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 0' Min. 2' Max.

B) 1' Min. 3' Max. C) 2' Min. 4' Max. D) 3' Min. 5' Max.

E) 4' Min. 6' Max.

F) 5' Min. 7' Max. G) 6' Min. 8' Max.

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use rigid pipe adaptor #770-994.

HORIZONTAL TERMINATIONS

TWO (2) 90O ELBOWS (RIGID PIPE 5" X 8")

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

INSTALLATION

One 90o elbow = Two 45o elbows.

Option V

V + V1 H + H1

A) 0' Min. 1' Max. 1' Min. 2' Max. B) 1' Min. 2' Max. 3' Min. 3' Max. C) 2' Min. 2' Max. 5' Min. 4' Max. D) 3' Min. 2' Max. 7' Min. 5' Max. E) 4' Min. 3' Max. 9' Min. 6' Max. F) 5' Min. 4' Max. 10' Min. 7' Max. G) 6' Min. 5' Max. 11' Min. 8' Max. H) 7' Min. 6" Max. 12' Min. 9' Max.

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use rigid pipe adaptor #770-994.

Regency Bellavista™ B41XTCE Gas Fireplace

HORIZONTAL TERMINATIONS

THREE (3) 90O ELBOWS (RIGID PIPE 5" X 8")

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

INSTALLATION

VENTING ARRANGEMENTS

FOR VERTICAL TERMINATIONS

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbows, with Rigid Pipe Venting Systems for Propane and Natural Gas. Two 45

elbows equal to one 90o elbow. Maximum of four 45o elbows allowed.

Horizontal (Feet)

Restrictor 1-1/2” Open

ertical Height (Feet) V

Set 3

Restrictor 2-1/2” Open

Set 2

Restrictor 3-1/2” Open

m)8

35.5 ft. (10.

Maximum:

Set 1

• Vent must be supported at offsets.

Maximum 10’ Centerline to Centerline

Min. 47-1/2”

(1.2m)

8’ (2.4m)

Minimum

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting to 3-1/2" opening, 2-1/2"opening and to 1-1/2" opening.

Note: Must use optional ﬂ ue adapter when using Rigid Pipe (Part # 770-994).

Regency Bellavista™ B41XTCE Gas Fireplace

One 90o elbow = Two 45o elbows.

Option V V + V1 H + H1

A) 0' Min. 2' Min. 2' Max. B) 1' Min. 3' Min. 2' Max. C) 2' Min. 4' Min. 3' Max. D) 3' Min. 6' Min. 4' Max. E) 4' Min. 7' Min. 5' Max.

F) 5' Min. 8' Min. 6' Max.

G) 6' Min. 9' Min. 7' Max.

H) 7' Min

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use rigid pipe adaptor #770-994

10' Min. 8' Max.

INSTALLATION

VERTICAL TERMINATIONS

THREE (3) 90O ELBOWS (RIGID PIPE 5" X 8")

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

5" X 8" VENTING

(Rigid Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

Horizontal Top* 3" (76mm)* Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Below are the recommended framing dimensions (inside measurements) for the 5" x 8" rigid vent terminations - for use with a ﬁ restop or wall thimble.

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct V ent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is required.

3) In conjunction with the Approved V ent system, install the adaptor after the unit is set in its desired location. Slip the adapter over the existing inner and outer ﬂ ue collar. Fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier).

4) Level the ﬁ replace and fasten it to the framing using nails or screws through the top and side nailing strips.

5) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.

Note: For best results and optimum

performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

Horizontal runs of vent must be supported every 3 feet (0.9meter). Wall straps are available for this purpose.

6) Mark the wall for a square hole.-see chart to

left for size. The center of the square hole should line up with the center-line of the horizontal pipe. Cut and frame the square hole in the exterior wall where the vent will be terminated. See diagram 2 for center line requirements.

If the wall being penetrated is constructed of

non-combustible material, i.e. masonry block or concrete, an 8" (203mm) diameter hole is acceptable.

Note:

a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. See "Exterior Vent Termination Locations" section for more details.

center

of hole

7) Ensure that the pipe clearances to combustible materials are maintained (Diagram 5). Install the termination cap.

Note: If installing termination on a vinyl

siding covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

Diagram 5

The four wood screws provided should be re-

placed with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

8) Before connecting the horizontal run of vent pipe to the vent termination, slide the Wall Thimble over the vent pipe. The wall thimble is required for all horizontal terminations.

9) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches (32mm). Secure the connection between the vent pipe and the vent cap.

10) Install wall thimble in the center of the framed hole and attach with wood screws (Diagram

7).

Diagram 1

”x8”)

” (1207mm)

Rear Vent

47-1/2

Min. height (5

28-1/2” (724mm)

Diagram 2

Must use Rear Venting Deﬂ ector packaged with unit

in rear vent horizontal termination applications.

IMPORTANT

Diagram 7

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

5" X 8" VENTING

(Flex Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

Horizontal Top 3" (76mm) Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Below are the recommended framing dimensions (inside measurements) for the 5" x 8" rigid vent terminations - for use with a ﬁ restop or wall thimble.

Recommended Framed

Opening Size

Vent Size Framing Size

5" x 8" 11" x 11"

1) Locate the unit in the framing, rough in the

gas (preferably on the right side of the unit). Locate the centerline of the termination and mark wall accordingly. Cut an square hole in the wall - see chart (inside dimension).

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or vinyl furring strips must be used to ensure that the termination is not recessed into the siding.

NOTE: Horizontal sections must be sup-

ported at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls.

5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which wayis up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre inner and outer ﬂ ex liner out enough to slip over the ﬂ ue collars of the ﬁ replace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than 90

slip over the collars a minimum of 1-3/8".

7) Apply Mill Pac over the ﬁ replace inner ﬂ ue collar and slip the inner ﬂ ex liner down over it and attach with 3 supplied screws.

8) Do the same with the outer ﬂ ue collar and outer ﬂ ex liner.

9) Apply a bead of silicone between the thimble and termination and around the outer edge of the terminal at the wall in order to keep the water out.

. The liners must

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

ASTROCAP XL

DIMENSIONS (946-623/P)

center

of hole

”x8”)

” (1207mm)

Rear Vent

IMPORTANT

Must use Rear Venting Deﬂ ector

packaged with unit in rear vent

horizontal termination applications.

47-1/2

Min. height (5

28-1/2” (724mm)

2) Level the ﬁ replace and fasten it to the fram- ing using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying Mill Pac to the inner ﬂ ue collar of the termi- nation and slipping the inner ﬂ ex liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the outer ﬂ ex pipe and slip it over the outer ﬂ ue collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

Regency Bellavista™ B41XTCE Gas Fireplace

5” dia. flue pipe with spring spacer

8" dia. air intake

Screws

2”x4”or2”x6”

AstroCap XL

Termination Cap

Screws

Vinyl Siding

Wall Thimble

INSTALLATION

UNIT INSTALLATION

WITH VERTICAL

TERMINATION

5" X 8" VENTING

(Rigid Vent Systems)

MUST USE RIGID PIPE

ADAPTOR #770-994

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

1) Maintain the 2" clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check "Venting" Sections for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof.

3) A Firestop spacer must be installed in the ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 11 inch square hole. Frame the hole as shown in Diagram 2 and install the ﬁ restop.

Note: All vertical terminations are vented using 5" x 8" venting and rigid pipe adaptor #770-994.

11“(279mm) square hole

framing

Diagram 2

11”

Diagram 1

firestop spacer

4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

NOTE: For best results and optimum perform-

ance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 3.

Diagram 3: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose.

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Dia. 4 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

Diagram 4

Roof Pitch Minimum Vent Height Feet Meters ﬂ at to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twistlocking it.

Note: Any closets or storage spaces, which the

vent passes through must be enclosed.

GAS LINE

INSTALLATION

The gas line is brought through the right side of the appliance. The gas valve is situated on the right hand side of the unit and the gas inlet is on the right hand side of the valve.

The gas line connection may be made of rigid pipe, copper pipe or an approved ﬂ ex connector . (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation code.

For USA installations follow local codes and/ or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has two strong blue ﬂ ames: 1 ﬂ owing around the ﬂ ame sensor and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Burner

Flame Sensor

Pilot

Note: If you have an incorrect ﬂ ame pattern,

contact your Regency® dealer for further instructions.

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or ﬂ ame

sensor.

Ignitor

HIGH ELEVATION

This unit is approved in Canada for altitude to 4500 ft. (CAN/CGA-2.17-M91). For Natural Gas installations above 4500 ft. follow current CAN/ CGA-B149.1.

B41XTCE -NG System Data

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #30 Max. Input Rating 42,500 Btu/h

Min. Input Rating 30,000 Btu/h Supply Pressure min.5.0" w.c.

Manifold Pressure

(High) 3.5"+/- 0.2" w.c.

Manifold Pressure

(Low) 1.6"+/- 0.2" w.c.

B41XTCE - LP System Data

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #49 Max. Input Rating 37,500 Btu/h

Min. Input Rating 29,500 Btu/h Supply Pressure min.11.0" w.c.

Manifold Pressure

(High) 10"+/- 0.2"w.c.

Manifold Pressure

(Low) 6.4"+/- 0.2"w.c.

GAS PIPE

PRESSURE TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure tap(s), turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position.

5) The pressure check should be carried out with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten.

1) Manual high/low adjustment

2) Pilot adjustment

3) Outlet Pressure Tap

4) Inlet Pressure Tap

5) Pilot Outlet

6) Main Gas Outlet

7) Main Gas Inlet

Regency Bellavista™ B41XTCE Gas Fireplace

886 S.I.T. VALVE DESCRIPTION

INSTALLATION

Must install one of the following: Brick Panels, Stainless Steel or Black Enamel Panels.

BRICK PANEL INSTALLATION

Dangerous operating conditions may occur if the panels are not installed or if installed with broken panels.

1) Unwrap the Brick Panels from the protective wrapping.

Top Panel

Left Panel

2) Ensure that the logs are not in the unit.

3) Prior to installation of the brick panels, remove the top panel bracket

currently ﬁ tted into the bafﬂ e opening on the inside top of the ﬁ rebox. See diagram below.

4) Install the back brick panel ﬁ rst - use caution when clearing the

burner assembly and rear log tray so that the panel does not get damaged.

Handle with care. DO NOT FORCE INTO POSITION.

Right PanelBack Panel

Top Panel Bracket

6) Slide the top brick panel under the left or right side panel (which ever

is installed ﬁ rst - right side panel shown here) and back brick panel, use care not to damage panel.

7) Install the remaining side panel (left or right), following the same

instructions as step 5.

8) Carefully position and ﬁ t the top bracket in place by ensuring the tabs

of the bracket ﬁ t into the bafﬂ e openings as shown in the diagram 1 below. Push downwards to secure the bracket to the top panel.

Note: Ensure that the back panel is centered.

Back Panel Installed

5) Install either the left or right side brick panel by removing the screw

and brick clip on the upper side of the ﬁ rebox wall (left side shown).

Position the left brick panel in place and secure with the brick panel

clip and screw removed from the ﬁ rebox as shown below.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

OPTIONAL BLACK ENAMEL PANEL INSTALLATION

Black Enamel Panels

• Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for damage after installation will not receive consideration.

• Black Enamel panels will discolor a little during normal operation. This is normal and should not be considered a defect.

All hand and ﬁ nger marks MUST be cleaned off with a soft cloth. Use an ammonia based cleaner (ie. glass cleaner) to remove any

ﬁ ngerprints before applying heat to the unit.

Failure to do this will result in burn stains on panels which you will be unable to remove. Not protected by product warranty.

Note: Panels must be installed prior to the installation of the log set and vermiculite.

TOP

LEFT

1) Prior to installation of the reﬂ ective panels, remove the top panel

bracket currently ﬁ tted into the bafﬂ e opening on the inside top of the ﬁ rebox. See diagram below.

Top Panel Bracket

BACK

RIGHT

2) Install the back stainless panel ﬁ rst - be careful not to scratch the panel on the burner or log tray when installing. Ensure the back

panel is centered when installed.

3) Install the right side panel - secure with panel clip and 1 screw. See step 3.

Regency Bellavista™ B41XTCE Gas Fireplace

Back Panel

Right Side Panel

INSTALLATION

4) Remove 1 screw (see inset A), position right side panel in ﬁ rebox -

position panel clip in place and secure with 1 screw (see inset B).

Tighten the screw.

Location of hex

head screw

5) Slide top panel under the top of the back and right side panels as

shown below.

7) Carefully position and ﬁ t the top bracket in place by ensuring the

tabs of the bracket ﬁ t into the bafﬂ e openings as shown below. Push downwards to secure the bracket to the top panel.

Top panel bracket shown installed

with Stainless Steel Panels

6) Install left side panel - repeat step 4.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

LOG SET INSTALLATION

Installation of Brick or Stainless Steel / Black Enamel Panels must be completed before installing the log set.

Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation.

Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty.

Log Kit# 506-930 contains the following pieces:

A Rear Bottom Right Log

B Rear Top Left Log

C Right Top Cross Log

D Front Log Piece

E Left Top Cross Log

F Center Right Log

G Front Bottom Left Log

H Front Bottom Right Log

I Center Left Log

902-156 Lava Rocks

902-179 Vermiculite

946-669 Platinum Embers

(supplied w/packaged manual)

1) Carefully remove the logs from the packaging and unwrap them. The logs are fragile, handle with care - do not force into position.

2) Spread vermiculite along the base of the ﬁ rebox.

3) Place Log A on the rear log support pins with the ﬂ at side to the back.

Vermiculite

Regency Bellavista™ B41XTCE Gas Fireplace

4) Place Log F on the right side of the burner, directly in front of Log A.

Position Log F so it ﬁ ts into the pin on the burner as shown below.

INSTALLATION

5) Place Log I on the left side of the burner, directly in front of Log A.

Position Log I so it ﬁ ts into the pin on the burner as shown below.

6) When Log F and I are in position - make sure they positioned all the

way back and touch the tabs on the burner as shown below.

8) Slide the left side of Log G back until it touches the tab on the burner

shown below.

Tab on Burner

Back of Log G

9) Place Log H on the right front side of the burner in front of log F. Position Log G so it ﬁ ts into the pin on the burner as shown below. There is a notch on the bottom of log H - position the log so the notch ﬁ ts over the 5th burner grate tab as shown below.

Location of back

tabs on Burner

7) Place Log G on the left front side of the burner in front of log I. Position Log G so it ﬁ ts into the pin on the burner as shown below.

Notch - Log H Burner Grate Tab

10) Slide the right side of Log H back until it touches the tab on the burner

shown below.

Tab on Burner

Back of Log H

Regency Bellavista™ B41XTCE Gas Fireplace

11) Position Log E on top of Log G - ﬁ t Log E into the pin on Log G as shown below.

12) With Log E in position on Log G - ensure that Log E touches the

back corner of Log A as shown below.

INSTALLATION

14) Position Log C on top of Log H. Log C ﬁ ts into the pin in Log H.

as shown below.

13) Position Log B on top of Log A. Log B ﬁ ts into the pin in Log A.

Ensure Log B sits upright 90 degrees with the left side of the log

resting on the notch in Log E. See next 2 diagrams.

15) With Log C in position on Log H - assure that Log C contacts the

back corner of Log A as shown below.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

16) Place the lava rocks on the burner in front of the logs as shown below.

Be careful not to overlap the lava rock and ensure the burner ports are left exposed in front of Logs E and H as shown below.

IMPORTANT:

Do not cover burner ports with lava rocks as this will change the ﬂ ame pattern.

17) Separate platinum embers and place on the front burner on and around the lava rocks. Avoid stacking platinum embers. Platinum embers may be placed over burner ports.

Platinum Embers

18) Place Log D on the base of the ﬁ rebox in between burner grate posts

3 and 4.

Note: Extra lava rocks can be placed on the vermiculite on the ﬂ oor

of the ﬁ rebox - see below.

Extra Lava Rocks

Burner Grate Post 3 Burner Grate Post 4

19) Test ﬁ re to ensure proper lighting (make sure ﬂ ame ﬂ ows smoothly from one end of the burner to the other).

If there is any ﬂ ame hesitation, check that area for any blockage of the burner ports.

Regency Bellavista™ B41XTCE Gas Fireplace

OPTIONAL FAN INSTALLATION

120 Volt AC

mportant: The receptacle box will be installed on the left hand side of the unit and must be wired by a qualiﬁ ed electrician prior to fan assembly being installed. The neutral(wider) slot of the polarized receptacle should be at the top.

Ground terminal must not be removed. Unit must be grounded at all times.

1) Turn the power off, unplug accent lights if installed.

2) Remove bottom access panel or louver, if necessary. Remove the

standard ﬂ ush door.

3) Remove fan assembly from box, locate green ground wire and pull

out of fan assembly - taking care not to damage or cut wire casing.

power is needed for the fan switch and blower.

INSTALLATION

6) Position the fan base with the motor end towards the rear of the

ﬁ rebox and then slide the fan in towards the rear of the unit. Turn the fan housing slightly to the left and make the fan assembly parallel to the rear wall.

7) Lift the fan housing upwards and slip it over the two mounting

studs. (use of dish soap will help the rubber grommets slide down over the pins)

4) Connect the Black wire to the left side terminal of the fan motor.

Slide the black wire and the green ground wire into grommet and push grommet into the fan assembly housing.

5) Connect the Red wire onto the right side terminal of the fan motor,

Connect the red wire into the grommet and push grommet into the fan assembly housing.

BLACK RED

NOTE: If optional accent lights are installed,take care when sliding the

fan into position. Fan must be maneuvered around the right side of the light.

8) Connect and secure fan ground cable to ground lug.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

9) Slide the thermodisc/cover assembly onto the bracket clip on the

left underside of the ﬁ rebox. Ensure that no wires will touch hot surfaces.

10) Slide the the Fan control box under the clip on the ﬂ oor of the ﬁ rebox.

Slightly open clip with ﬂ at head screw driver if necessary. Caution: If clip is opened too wide it will not hold the Fanspeed Control Box.

11) To provide the maximum clearance from the louvers, plug the fan

power cord into the rear end of the receptacle box

*Ensure that there is no interference with the wires when the louver is closed and that no wire will touch the hot metal surfaces or sharp edges.

12) Important: Secure the fan wires and power cord by attaching

one of the adhesive backed wire holder clips (Part #910-199) onto the unit base.

TO REMOVE THE FAN

1) Turn the power off.

2) Reverse the above instructions.

Maintenance: The sealed bearings are lubricated, there is no need

to lubricate them further. (Extra lubricant will cause more lint and dust buildup - causing the bearings to prematurely fail). Regular cleaning and vacuuming of the fan area will add to the life of the motor.

IMPORTANT:

These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming the fan blades and housing using a soft brush nozzle.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

Optional

WALL THERMOSTAT

A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Use table below to determine the maximum wire length.

Note: Preferable if the thermostat is

installed on an interior wall.

Regency® offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not wire millivolt

wall thermostat wires

to 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 50 Ft. 16 GA. 32 Ft. 18 GA. 20 Ft. 20 GA. 12 Ft. 22 GA. 9 Ft.

Optional

REMOTE CONTROL

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location.

2) Connect the two wires to the gas valve. See wiring diagrams. Optional wall switch GT/ GTM/GTMF using wire 0.584.907

CAUTION

Do not wire millivolt

remote control wires

to 120V wire.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

Optional

WALL SWITCH

1) Run the supplied 10' of wire through the

right or left side gas inlet opening. Be careful not to damage wire.

Note: We recommend a maximum of 10'

of wire but if you wish to go with a longer run, use the Thermostat Wire Table.

2) Connect the wire to a wall switch and install

into the receptacle box. Also attach wires to the valve as shown on wiring diagrams.

CAUTION

Do not wire millivolt

wall switch wire

to 120V wire.

BATTERY INSTALLATION

1) 4 AA batteries must be installed in the battery pack to operate the burner switch.

2) Install 2 AA batteries per side and connect as shown below. The battery pack will be located near the gas controls at the base of the unit.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

584 Proflame GT Series

Feature Sheet

111

(X) Indicates Included Feature

Note 1 ~ Proﬂ ame Flame Modulator for GTM & GTMF Remote Controls are sold seperately. Choice of NG or LP ﬂ ame modulator (to match unit fuel type). See Regency Retail Price pages for complete details

Note 2 ~ FPI Proﬂ ame Remote Controls come standard with white wall mount switch & cover plate.

Regency Bellavista™ B41XTCE Gas Fireplace

GT REMOTE INSTALLATION

INSTALLATION

1) Shut off the gas supply and disconnect all power to the unit.

2) Remove the louvers, bay door or faceplate if installed.

3) Disconnect battery pack - located on the ﬂ oor of the unit, as shown

below and discard.

4) Remove DFC (digital ﬁ rebox control box) from the ﬂ oor of the unit.

8) Plug in receiver DC supply wire - as shown below.

9) Install 4 - AA batteries into the receiver, ensure correct polarity.

10) Plug receiver wires into the back of the receiver and bundle wires

with the wire clip as shown below.

5) Disconnect wire harness, ground wire and spark wire from DFC.

See attached wiring diagram for details.

6) Identify wires in the GT remote wiring harness. (see wiring diagram.)

7) Connect the TPTH and TH wires - green to green and white to white as shown below. See attached wiring diagram for details.

TPTH

(white)

(green)

Wire Clip

11) Install the heat shield to the receiver with two screws and attach to

the ﬂ oor of the unit with a velcro pad.

Heat Shield

12) Reverse steps 5 and 4.

13) Match the remote control to the receiver - see remote control

instructions.

Regency Bellavista™ B41XTCE Gas Fireplace

14) Reverse steps 2 and 1.

15) Check to ensure there are no gas leaks.

INSTALLATION

GTM REMOTE INSTALLATION

1) Shut off the gas supply and disconnect all power to the unit.

2) Remove the louvers, bay door or faceplate if installed.

3) Disconnect battery pack - located on the ﬂ oor of the unit, as shown

below and discard.

4) Remove DFC (digital ﬁ rebox control box) from the ﬂ oor of the unit.

6) Identify wires in the GTM/GTMF remote wiring harness.

(see wiring diagram.)

7) Connect the TPTH and TH wires - green to green and white to white as shown below.

TPTH

8) Plug in receiver DC supply wire - as shown below.

5) Disconnect wire harness, ground wire and spark wire from DFC.

DFC

9) Remove the hi/lo knob if installed by removing 2 screws as shown below.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

10) Install the stepper motor in the same location the hi/lo knob was removed from - with 2 screws as shown below.

11) Remove the receiver if installed - unplug the motor wire from the

back of the receiver - as shown below.

15) Install 4-AA batteries into the receiver.

16) Bundle all wires together and clip with supplied wire clip - as

shown below.

17) Install the heat shield to the receiver with two screws and attach

to the ﬂ oor of the unit with a velcro pad - also peel off paper on back side of wire clip and place wires conveniently in appliance.

12) Reattach wires from step 5.

13) Plug the stepper motor into the ‘motor wire as shown below.

Motor wire

14) To unattach these wires - un-clip from the wires on the stepper

motor side as shown below.

Press down this tab

Heat shield

18) Match the remote control to the receiver - see remote control instructions.

19) Reverse steps 2 and 1.

20) Check to ensure there are no gas leaks.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

GTMF REMOTE INSTALLATION

1) Shut off the gas supply and disconnect all power to the unit.

2) Remove the louvers, bay door or faceplate, if installed.

3) Disconnect battery pack - located on the ﬂ oor of the unit, as shown

below and discard.

4) Identify wires in the GTM/GTMF remote wiring harness. (see wiring diagram.)

5) Remove DFC (digital ﬁ rebox control box) from the ﬂ oor of the unit.

7) Connect the TPTH and TH wires - green to green and white to

white as shown below.

TPTH

8) Plug in receiver DC supply wire - as shown below.

6) Disconnect wire harness, ground wire and spark wire from DFC.

DFC

9) Remove the hi/lo knob by removing 2 screws as shown below.

10) Install the stepper motor in the same location the hi/lo knob was

removed from - with 2 screws as shown below.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

11) Install 4 - AA batteries into the receiver.

12) Plug ‘motor’ wires into the back of the receiver and bundle wires

with the wire clip - as shown below.

14) Reinstall the DFC box onto the velcro pad on the ﬂ oor of the unit.

15) Install the heat shield to the receiver with two screws and attach

to the ﬂ oor of the unit with a velcro pad.

Heat shield

16) From the wire harness, plug the FCM wire into the fan control

module.

FCM wire

13) Reattach wires from step 5.

Fan Control Module

17) Install the heat shield onto the fan control module - then install onto the velcro pad located on the ﬂ oor of the unit located left of the receiver.

18) Plug fan control module into recepticle located on the left hand

side of the unit.

19) Match the remote control to the receiver - see remote control instructions.

20) Reverse steps 2 and 1.

21) Check to ensure there are no gas leaks..

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

WIRING DIAGRAM

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

(Do not cut the ground terminal off under any circumstances.)

NOTE: Even if the fan is not purchased with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in

case the fan is installed at a later date.

LINE VOLTAGE WIRING TO RECEPTACLE IN UNIT

TO MAKE OUTLETS INDEPENDENT OF EACH OTHER

Lockwasher

Star washer

Fan

ground wire

#8 Ground Lug

(mobile home

Nut

approved)

120V AC 60 Hz

Neutral

Live

Ground

ON OFF

Rotary Speed

Control

Optional Fan

Fan

Green

Black Red Red

Minimum Convection

Air Temp. Switch

Ground

Black

Light

Switch

Fan

Switch

Red

Break Tab

Copper terminals

Black

Receptacle

in Unit

Ground

To Fan (see above)

Do Not Break Tab

on Neutral (silver terminals)

Optional Accent Light

Green

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

Proflame System Configuration 886 GTMF Wire Diagram

PROFLAME SYSTEM WIRING DIAGRAM

CONFIGURATION: 886 ON/OFF STAND ALONE

SureFire™ Switch

0.886.001

Proflame Valve

Standard Main On/Off Switch or Optional Wall Switch

Note: 4 AA batteries must be installed to operate the burner switch. Do not use a 9 volt battery.

IMPORTANT:

batteries in the receiver now operate the unit. Having AA batteries in both the battery holder and receiver will damage the gas valve.

If the optional remote control is used, the AA batteries normally installed into the battery holder must be removed. The AA

PROFLAME SYSTEM WIRING DIAGRAM

GT, GTM, GTMF

Option

PROFLAME REMOTE SERIES

946-690 GT Remote System 946-691* GTM Remote System 946-692* GTMF Remote

CONFIGURATION: 886 GTMF

GTM Option

GTMF Option

SureFire™ Switch

* Must also order a 946-693-NG or 946-694 modulator if using the noted remote controls.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

OPTIONAL ACCENT LIGHT INSTALLATION

B41XT Accent Light Assembly Kit

1 910-814 Plug wiring + gasket

2 910-997 Halogen Bulb

2 940-363 Amber Glass

1 Light Assembly Includes gaskets (x 2)

1 918-864 Instruction Sheet

Important: 120 Volt AC power is required for the optional light. The receptacle box will be installed on the lower left corner of the unit and will need to be wired by a qualiﬁ ed electrician prior to the optional light installation. The neutral (wider) slot of the polarized receptacle should be at the top. A wall mounted switch should be installed to turn the accent lighting on/off. See wiring diagram in the instruction manual.

1) Shut off electrical supply.

2) Remove Full Screen Door and bottom Louver if installed.

3) Remove the glass door - see instructions in manual.

4) Remove the logs, lava rock and vermiculite if installed.

5) Remove the brick or inner panels if installed - see instructions in manual.

6) Remove the burner and rear log tray - see below.

9) Remove the 2 screws securing the base tray - lift base tray up and

out. Diagram 4a and 4b.

Diagram 4a

Diagram 4b

10) Remove the 2 cover plates from the ﬂ oor of the ﬁ rebox by removing

2 screws from each plate.

Base Tray

Diagram 1: Remove the left and right screws.

7) Slide the burner assembly to the right to release it from the oriﬁ ce,

then lift it out.

Diagram 2: Slide burner assembly to the right

and then remove.

8) Remove the 2 screws securing the rear log tray and lift out. Diagram 3

Diagram 3

11) Remove the cover plate and gasket from the underside of the ﬂ oor of

the ﬁ rebox.

Firebox Base

12) Install gaskets onto light assembly mounting plates and feed wires

thru the underside of the ﬁ rebox base. Left side shown, repeat for right side.

Regency Bellavista™ B41XTCE Gas Fireplace

INSTALLATION

13) Install each light assembly from the underside of the ﬂ oor of the ﬁ rebox. Secure with 2 screws as shown below.

15) Install two light diffusers on to the base tray.

16) Secure diffusers onto base tray from the backside of the tray

with 2 screws.

NOTE: The ground wire will need to be pulled back out of the protective

casing to be able to reach the ground lug. Gently pull the end of the green wire backwards exposing enough wire to reach ground lug.

14) Install a bulb into each light assembly.

Note: Oils from hands will shorten the life of the bulbs,

do not handle bulbs with bare hands.

17) Reinstall base tray with light diffusers - use caution when installing do not damage the bulb.

18) Install amber glass on to light diffusers.

Note: Glass is longer than diffuser for ease of removal.

Regency Bellavista™ B41XTCE Gas Fireplace

19) Reverse steps 9 - 1.

INSTALLATION

MESH GUARD INSTALLATION

1) Hook mesh guard frame over top of ﬂ ush glass door frame as shown in Diagram 1.

Push bottom part of mesh frame over ﬂ ush glass door frame until tabs snaps into place.

2) Install mesh guard and ﬂ ush glass together - following ﬂ ush glass door installation instructions.

Regency Bellavista™ B41XTCE Gas Fireplace

FLUSH GLASS DOOR INSTALLATION

INSTALLATION

The standard ﬂ ush door comes with a black frame. To install the frame, simply hook the top door ﬂ ange onto the top of the unit and swing the door towards the unit, see Diagram 1.

Diagram 1

Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit, see Diagram 2.

Diagram 2

Use the hook to pull the spring out until you can put the hook into the slot on the bottom door bracket. Repeat for 2nd spring. See Diagram 3.

Diagram 3

To remove the ﬂ ush door, reverse the above steps.

Regency Bellavista™ B41XTCE Gas Fireplace

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have been incorrectly positioned.

8) The unit should never be turned off, and on again without a minimum of a 60 second wait.

LIGHTING PROCEDURE

1) Plug the power cord into a power outlet.

Turn on ON/OFF switch if optional Remote is used.

2) Press and release on ON/OFF button once on the remote control.

3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

4) The unit will turn on.

SHUTDOWN

PROCEDURE

1) Turn ON/OFF switch or press and release

the ON/OFF button once if using optional Remote Control.

2) If service is to be performed - you must disconnect both sources of power to the unit, the main power and battery.

FIRST FIRE

The ﬁ rst ﬁ re in your ﬁ replace is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time you use it with the fan on. When ﬁ rst operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

Burner Tray:

The burner tray is positioned directly under the burner and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. Y ou should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Pilot Flame:

While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

AERATION

ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude. Open the air shutter for a blue ﬂ ame or close for a more yellow ﬂ ame.

Minimum Air Shutter Opening:

NG: 1/4" LP: 1/2"

Note: The ﬁ rst try for ignition will last approxi-

mately 60 seconds. If there is no ﬂ ame igni- tion (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After wait time , the board will start second try for ignition by sparking for approximately 60 seconds . If there is still no positive ignition the board will go into lock out.

The system will need to be reset as follows:

a) Turn the system off using ON/OFF switch

or press ON/OFF button - if using optional remote.

b) After approximately 2 seconds turn on ON/

OFF switch or press ON/OFF button if using optional remote.

c) Repeat step 2.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

CAUTION: Carbon will be produced if air shutter

is tightly closed.

Note: Any damage due to carboning

resulting from improperly setting the aeration controls is NOT covered under warranty.

Air shutter rod: located to the left

of the valve assembly.

Regency Bellavista™ B41XTCE Gas Fireplace

OPERATING INSTRUCTIONS

COPY OF LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any;

if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or gas supplier. AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Une installation, d'ajustement, de modiﬁ cation, de service ou d'entretien peut provoquer des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémentaires consulter un installateur qualiﬁ é, une agence de service ou fournisseur de gaz.

A) This appliance is equipped with an ignition device which automatically lights the pilot.

Do not try to light the pilot by hand.

B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department.

C) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and replace any part of the control system and any gas control which has been underwater.

A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse manuellement.

B) AVANT DE FAIRE FONCTIONNER, reniﬂ ez tout autour de l’appareil pour déceler une odeur de gaz. Reniﬂ ez près du plancher, car certains gaz sont pluslourds que l’air et peuvent s’accumuler au niveau du sol. QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil

• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies

C) N’utilisez pas cet appareil s’il a été plongé dansl’eau, même partiellement. Faites inspecter l’appareil par un tech-

nicien qualiﬁ é et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having ﬂ ammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

1) Turn on ON/OFF switch

2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

3) The unit will turn on.

Note: The ﬁ rst attempt to ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the second attempt the board will go into lock out. The system will need to be reset as follows (after going into lock out mode): a) Wait 5 minutes - turn the system off using ON/OFF switch. b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using optional

c) Unit will repeat step 2.

1) Appuyez le bouton ON / OFF

2) Attendre 4 secondes. Le système d’allumage produira des étincelles pendant 60 secondes aﬁ n d’amorcer

3) Les ﬂ ammes s’allumeront. Remarque : Au premier allumage, le système tente d’allumer les ﬂ ammes pendant 60 secondes. Si l’essai est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectiﬁ cation. Ce délai écoulé, le système tente à nouveau d'allumer les ﬂ ammes en produisant des étincelles pendant 60 secondes. Si les ﬂ ammes ne s’allument toujours pas, le système se met en mode verrouillage. Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) : a) Attendre 5 minutes et éteindre l’appareil en réglant l’interrupteur à la position « OFF »; b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande. c) L'unité répétera l'étape 2.

1) Turn off ON/OFF switch

2) If service is to be performed - you must disconnect power to the unit, from the battery pack, refer to

Appuyez sur le bouton ON / OFF

2) Si le service est effectuée, vous devez débrancher l'appareil, du bloc-piles, voir le manuel d'instruction

remote.

le brûleur principal.

manual.

pour plus de détails.

Natural Gas and Propane Installation Codes, CSA B149.1.

LIGHTING INSTRUCTIONS

TO TURN OFF GAS APPLIANCE

INSTALLATION

DO NOT REMOVE THIS INSTRUCTION PLATE

Regency Bellavista™ B41XTCE Gas Fireplace

918-628b

5959

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas ﬁ replace glass cleaner.

The glass should be cleaned when it starts looking cloudy.

3) The heater is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resistant paint. Regency® uses StoveBright Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without

the glass properly secured in place.

6) Do not use this appliance if any part has been

under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

3) Check for evidences of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will severely alter the unit's performance which is not covered under warranty.

GLASS GASKET

If the glass gasket requires replacement use a tadpole glass gasket (Part # 936-155).

DOOR GLASS

Your Regency® ﬁ replace is supplied with high temperature 5mm-Ceramic glass. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials.

CAUTION & WARNINGS:

* Do not clean when the glass is hot. * The use of substitute glass will void all product warranties. * Care must be taken to avoid breakage of the glass. * Do not strike or abuse the glass. * Do not operate this ﬁ replace without the glass front or with a cracked or broken glass front. * Wear gloves when removing damaged or broken glass. * Replacement of the glass panels should be done by a licensed or qualiﬁ ed service per son.

GLASS REPLACEMENT

In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only. Replacement glass (Part #940-362/P) is shipped already installed into the door frame. Reinstall as per Glass Door Installation in the "Glass Door Removal" section.

7) In the event this appliance has been serviced check that the vent-air system has been properly resealed & reinstalled in accordance with the manufacturer's instructions.

8) Verify operation after servicing.

General Vent Maintenance

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any bird nests, or other foreign material.

Regency Bellavista™ B41XTCE Gas Fireplace

ACCENT LIGHT BULB REPLACEMENT

MAINTENANCE

1) Shut off electrical supply.

2) Remove Full Screen Door and bottom Louver if installed.

3) Remove the glass door - see instructions in manual.

4) Remove the logs, lava rock and vermiculite if installed.

5) Remove the brick or inner panels if installed - see instructions in manual.

6) Remove the burner and rear log tray - see below.

Diagram 1: Remove the left and right screws.

7) Slide the burner assembly to the right to release it from the oriﬁ ce,

then lift it out.

9) Remove the 2 screws securing the base tray - lift base tray up and

out. Diagram 4a and 4b.

Diagram 4a

Diagram 4b

10) Replace the bulbs as necessary.

Note: Oils from hands will shorten the life of the bulbs,

do not handle bulbs with bare hands.

Base Tray

Diagram 2: Slide burner assembly to the right

and then remove.

8) Remove the 2 screws securing the rear log tray and lift out. Diagram 3

Diagram 3

Regency Bellavista™ B41XTCE Gas Fireplace

11) Reverse steps 9 - 1.

MAINTENANCE

VALVE REPLACEMENT

1) Shut off the gas and electrical supply.

2) Remove the louvers

3) Open the ﬂ ush door and remove the door.

4) Remove the logs.

5) Remove the burner/grate assembly by

removing the 2 screws.

Diagram 1: Remove the left and right screws.

6) Slide the burner assembly to the right to release it from the oriﬁ ce, then lift it out.

8) Remove the 2 screws securing the burner tray - lift burner tray up and out. Diagram 4a and 4b.

Diagram 4a

Diagram 4b

9) Disconnect the inlet gas line. See Diagram

INSTALLING VALVE

1) Place new valve tray and gasket into position.

2) Reinstall the 14 hold down screws.

3) Connect the EV1, EV2 and ground wires to

the appropriate connections on the valve.

4) Reinstall the rear log tray.

5) Install burner/grate assembly

6) Hook up the gas line and check for gas leaks

with a soap and water solution or a gas leak detector. (Do not use open ﬂ ame for leak testing.)

7) Fire up the unit temporarily

8) Check the manifold pressure.

9) Reinstall the logs and brick panels as

needed.

10) Reinstall the door and replace the louvers.

11) Fire up the unit again and check for proper

ﬂ ame appearance and glow on logs.

Diagram 2: Slide burner assembly to the right

and then remove.

7) Remove the 2 screws securing the rear log tray and lift out. Diagram 3

Diagram 3

Diagram 5

10) Disconnect the EV1, EV2, and ground wires from the valve - as shown below.

Ground

EV1 EV2

11) Remove the 14 screws securing the valve tray assembly in place (Diagram

7) and then lift the entire assembly out Also remove the valve gasket.

Diagram 7

Regency Bellavista™ B41XTCE Gas Fireplace

MAIN ASSEMBLY

PARTS LIST

Part # Description

1) 506-086 Top Insulation Plate

2) 506-074 Top Insulation

3) 506-513 Flue Collar Outer Assembly

4) 556-095 Flue Collar Gasket

5) 506-000 Exhaust Gasket

6) * Flue Collar Inner Assembly

7) 596-042F Top Relief Plate

8) 476-023 Relief Gasket - Door Top

10) 820-389 Thermodisc Bracket 911-012 Ignition Module

12) 948-259 Spring Handle Lever

13) 948-025 Spring Door Extension

14) 940-362/P Ceramic Glass

15) 506-083 Door Frame

16) * Outerbox Assembly

17) * Firebox Assembly

18) 506-917 Fan Assembly

19) 910-215/P Fan Motor (120 Volts) 432-966 Fan Switch Assy (120 Volts)

20) 910-813 Power Cord (120 Volts)

Part # Description

21) 910-330 Fan Speed Control

22) 904-586 Knob - Speed Control

23) 910-142 Thermodisc - Fan Auto ON/OFF

24) 946-000 Round Duct Adaptor

25) 910-367 Box - Plastic Switch Receptacle

26) 910-412 Fan Speed Controller

27) 910-417 Knob - White

28) 910-366 Switch Cover Plate - White

29) 946-006 Grill Plate - White

30) 946-005 Wall Adaptor Plate - White

31) 946-002 Round to Oval Adaptor

32) 946-001 Oval Duct Adaptor

33) 946-007 Angle Bracket

34) 946-517/P Fan Assembly - Heat Wave

35) 946-004 Junction Box

36) Lower access panel

37) Mesh Guard 506-959 Optional Accent Light

36) 919-162 Manual * Not available as a replacement part.

Regency Bellavista™ B41XTCE Gas Fireplace

PARTS LIST

BURNER ASSEMBLY

Part # Description

1) 506-070 Rear Log Tray 506-525 B41XTCE Burner Assembly NG

506-530 B41XTCE Burner Assembly LP

4) 506-531 B41XTCE Grate Assembly

6) 911-004 Valve NG SIT 886 911-005 Valve LP SIT 886

7) 506-072 Valve Shield

8) Valve Mounting

9) 506-055 Valve Tray Plate

10) 506-075 Air Deﬂ ector

11) 380-013 Pilot Holder Extruded

12) 911-006 Pilot Assembly - NG 911-007 Pilot Assembly - LP Flame Sensor Igniter

Part # Description

904-660 Oriﬁ ce #30 NG 904-431 Oriﬁ ce #49 LP

506-574 E/P Valve Assembly - NG 506-576 E/P Valve Assembly - LP

506-003 Valve Assembly Gasket

15) 506-062 Base Tray 506-930 Log Set

Regency Bellavista™ B41XTCE Gas Fireplace

NOTES

Regency Bellavista™ B41XTCE Gas Fireplace

NOTES

Regency Bellavista™ B41XTCE Gas Fireplace

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency® Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase. External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date of

purchase and parts only thereafter. Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant heating and

cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase. Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty. Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item

shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective. All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase

date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.

ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed. FPI will not be liable for travel costs for service work. Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy. Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy. Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy. The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence

or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer. FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on

this product. Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

product. FPI will not be liable for results or costs of workmanship from

Regency Bellavista™ B41XTCE Gas Fireplace

ƔZ

SƔ8B8BSSBOUZƔBOEƔCFƔBVUPNBUJDB

MMZƔFOUFSFEƔUP

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and spe-

cial offers on related products.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

7).Ɠ!Ɠ&)2%4!",%

2EGISTERƓONLINEƓATƓ

IUUQSFHFODZGJSFDPNƔ $VTUPNFS$BSFBTQY

4FFƔXFCTJUFƔGPSƔTXFFQTUBLFTƔSVMFT

Bellavista

B41XTCE Video

Printed in Canada

Regency B41XTCE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
