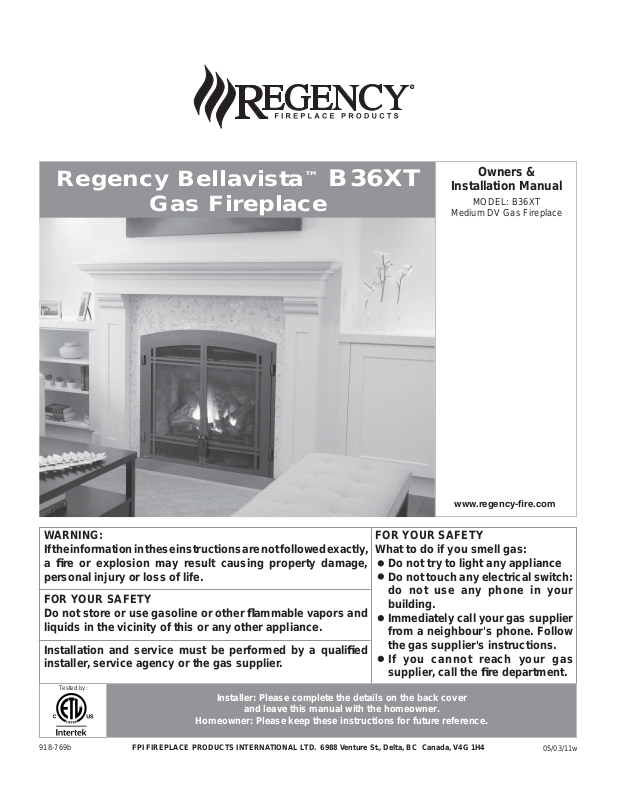

B36XT

Owners &

Installation Manual

MODEL: B36XT

Medium DV Gas Fireplace

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

918-769b

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

www.regency-ﬁ re.com

FOR YOUR SAFETY What to do if you smell gas: Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁ re department.

05/03/11w

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by REGENCY

. The Bellavista™ B36XT has been designed to provide you with all the warmth and charm of a wood ﬁ replace at the ﬂ ick of a switch. The Bellavista™ B36XT has been approved by Warnock Hersey/Intertek for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now

to acquaint yourself with these instructions and the many features of your Regency

Fireplace.

Regency Bellavista™ B36XT Gas Fireplace

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88a-2007 / CSA 2.33a-2007 and GAS-FIRED APPLIANCES FOR USE A T HIGH ALTITUDES CAN / CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFP A 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited by local codes.

This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

Ensure that structural members are not cut or weakened during installation.

Regency Bellavista™ B36XT Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Decal .....................................................5

REQUIREMENTS

MA Code - CO Detector.................................................6

DIMENSIONS

Unit Dimensions ............................................................7

INSTALLATION

Important Message ......................................................8

Before You Start ............................................................8

General Safety Information............................................8

Installation Checklist .....................................................9

Locating Your Gas Fireplace .........................................9

Clearances ..................................................................10

Mantel Clearances.......................................................11

Mantel Leg Clearances................................................12

Non- Combustible Requirements: ...............................12

Framing ......................................................................13

Finishing ......................................................................14

Unit Assembly Prior to Installation ...............................15

Venting Introduction .....................................................17

Vent Restrictor, Bafﬂ e & Heat Deﬂ ector Installation ....18

Exterior Vent Termination Requirements .....................19

Venting Arrangements horizontal terminations.....24

Flex Vent or RIGID PIPE 5" x 8" ..........................24

Horizontal Terminations ...............................................25

Flex Vent 5" x 8" .................................................25

RIGID PIPE 5" x 8" ..............................................26

AstroCap XL & Rigid rear vent kit corner installations .27

Rigid pipe 5" x 8" .................................................27

Venting arrangements Horizontal Terminations ...28

RIGID PIPE 4" x 6-5/8" ........................................28

Horizontal or vertical terminationS .......................29

Rigid pipe 4" x 6-5/8" ...........................................29

Horizontal terminations ................................................30

Two (2) 90

Horizontal terminations ................................................30

Three (3) 90

Vertical terminations ...................................................32

Three (3) 90

Unit Installation with Horizontal Termination ...............35

4" x 6-5/8" or 5" x 8" venting .......................................35

Elbows (Rigid Pipe 4" x 6 - 5/8") ..............30

Elbows (Rigid Pipe 4" x 6 - 5/8") ............30

venting arrangements For Vertical TerminationS .31

RIGID PIPE 4" x 6-5/8" ........................................31

Elbows (Rigid Pipe 4" x 6 - 5/8") ............32

venting arrangements ..........................................33

With Co-linear Flex System .................................33

Vertical Terminations ...........................................34

Co-linear Flex System Into Masonry Fireplaces .34

Unit Installation with Horizontal Termination ...............36

5" x 8" venting unit installation w/ Vertical Termination 37

4" x 6-5/8" venting .......................................................37

Gas Line Installation ....................................................37

Pilot Adjustment ...........................................................38

High Elevation .............................................................38

Gas Pipe Pressure Testing ..........................................38

S.I.T. Valve Description ................................................38

Conversion from NG to LP ..........................................39

DC Sparker battery replacement .................................41

Brick panel installation .................................................42

Optional stainless steel / black enamel .......................43

Log set installation .......................................................45

Optional Wall Thermostat ...........................................48

Optional Remote Control .............................................48

Optional Wall Switch ....................................................48

Optional Fan installation ..............................................49

Aeration Adjustment ....................................................50

Wiring Diagram ............................................................50

Wiring diagram for GTMF remote ...............................51

Optional accent light Installation ..................................53

Flush glass door Installation ........................................56

Optional ﬁ nishing trim Installation ................................57

Flush Louvers and Flush Panel installation .................57

Full Screen Arch Door and Frame Installation .............58

OPERATING INSTRUCTIONS

Operating Instructions .................................................59

First Fire ......................................................................59

Lighting Procedure ......................................................59

Shutdown Procedure ...................................................59

Normal Operating Sounds of Gas Appliances .............59

Copy of Lighting Plate Instructions ..............................60

MAINTENANCE

Maintenance Instructions.............................................61

Log Replacement ........................................................61

Thermopile / Thermocouple .........................................61

Bulb Replacement .......................................................61

Removing Valve ...........................................................62

Installing Valve .............................................................62

PARTS LIST

Main Assembly ............................................................63

Burner Assembly .........................................................65

WARRANTY

The Warranty: Limited Lifetime ...................................67

Regency Bellavista™ B36XT Gas Fireplace

This is a copy of the label that accompanies each Bellavista™ B36XT Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.

NOTE: Regency

units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

SAFETY LABEL

COPY OF SAFETY DECAL

Duplicate S/N

Listed:

NATURAL GAS: Model B36XT-NG

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

PROPANE GAS: Model B36XT-LP

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliancemust be installed inaccordance with theStandard CAN/CSAZ240 MH, MobileHousing, in Canada, orwith the Manufactured HomeConstruction and SafetyStandard, Title24 CFR, Part3280, in the UnitedStates, orwhen such astandard isnot applicable,ANSI/NCSBCS A225.1/NFPA501A, ManufacturedHome InstallationsStandard orANSI A119.2 ouNFPA501C Standard forRecreational Vehicles This applianceis only foruse with the typeof gas indicatedon the rating plateand may beinstalled in an aftermarket,permanently located, manufactured(mobile) home wherenot prohibited by localcodes. See owner's manualfor details.This appliance is notconvertible foruse with othergases, unlessa certified kitis used.(Kit #556-969).

Fan Part# 576-917. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon les codesd'installation ANSIZ223.1, NationalFuel Gas Codeou CSA-B149.1en vigueur. Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si cesnormes ne sont pas pertinentes,utilisez la norme ANSI/NCSBCSA225.1/NFPA 501A,Manufactured Home Installations Standard, ouANSI A119.2ou NFPA 501C Standard forRecreational Vehicles. Cet appareildoit êtreutilize uniquementavec letype de gaz indiquésur la plaque signalétique.Cet appareil peut êtreinstallé dans une maisonpréfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlementslocaux lepermettent. Voirla notice del'utilisateur pourplus de renseignements.Cet appareilne peut pasêtre utiliséavec d'autres gazsauf siune trousse deconversion certifiéeest fournie.

This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation. FOR USEWITH GLASSDOORS CERTIFIED WITHTHE APPLIANCEONLY

Electrical supply/Électrique 115VAC, 1.13 A, 60Hz. NOT FOR USE WITH SOLID FUELS. /

VENTED GAS FIREPLACE HEATER /

Certified for/Certifi e pour: Tested to: 4001172

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

CAN/CGA-2.17-M91,ANSI Z21.88a-2007/CSA 2.33a-2007

WC/C.E.

5.0" (1.25 kPa) WC/C.E.

3.5" (0.87 kPa) WC/C.E.

1.6" (0.40 kPa)

#35 DMS 21,500 Btu/h (6.3 kW) 31 ,000 Btu/h (9.09 kW) 0-4500 ft/pi (0-1372 m)

WC/C.E.

11" (2.74 kPa)

WC/C.E.

10" (2..49 kPa)

WC/C.E.

6.4" (1.60 kPa) #51 DMS 25,000 Btu/h (7.33 kW) 31 ,000 Btu/h (9.09 kW) 0-4500 ft/pi (0-1372 m)

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.

CANADA and U.S.A.

APPAREIL FONCTIONNANT AU NATURAL GAS CONCU POUR ETRE POELE: Mod le B36XT-NG

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur D bit minimum selon D bit maximum selon l'altitude

ÉÉ

QUIP A L'UISINE POUR GAZ PROPANE

CONCU POUR ETRE POELE: Mod le B36XT-LP

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

D bit minimum selon

D bit maximum selon l'altitude

FOYER AU GAZ À ÉVACUATION

ééé é

Calorifique

ééé é

Calorifique Calorifique

POUR UTILISATION UNIQUEMENTAVECLES PORTESEN VERRE CERTIFIÉESAVEC L'APPAREIL

FPI Fireplace Products International Ltd. Delta, BC, Canada

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

DOOR SEAL: Please

check that the door is

properly sealed

(See Instruction Manual for

detailed instructions)

353

Serial No./ No de serie

353

0" Clearance to combustibles from:

Top, sides, bottom and rear of unit

Mantel Clearances from Fireplace Opening:

(A) Min. 13" (330mm)

Side Wall Clearance from Fireplace Opening

B) Min. 12” (305mm)

Ceiling from Top of Fireplace Opening:

C) 36-3/4” (933mm)

Mantel Depth:

D) Max. 12” (304mm)

Alcove Clearances:

E) Min. Width 84" (2134mm), F) Max. Depth 36" (914mm)

Minimum Vent Clearances:

Horizontal Top 2" (51mm) Horizontal Side 1-1/2" (38mm) Horizontal Bottom 1-1/2" (38mm) Vertical Vent 1-1/2" (38mm)

Made in Canada/ Fabrique au Canada

(on one side)

918-763b

For the State of Massachusetts, installation and repair must be done by a plumber or gas ﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Regency Bellavista™ B36XT Gas Fireplace

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Regency Bellavista™ B36XT Gas Fireplace

11-7/16”

(291mm)

33” (838mm)

40-5/16” (1024mm)

UNIT DIMENSIONS

1”(25.4mm)

21”(533mm)

30-3/8” (762mm)

36” (914mm)

DIMENSIONS

35-1/4”

(895mm)

41-5/16”

(1049mm)

17-5/16” (440mm)

20-1/4” (514mm)

38-1/16” (967mm)

26-1/2” (673mm)

35-1/2” (902mm)

20-5/16” (516mm)

33-1/16”

(840mm)

35-1/4”

(895mm)

Regency Bellavista™ B36XT Gas Fireplace

39-1/2” (1003mm)

Full Screen Doors

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The B36XT Gas Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturers instructions and all applicable codes.

BEFORE YOU ST ART

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL IN THE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes, with the current Canadian or National Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly instructions. The appliance and vent should be enclosed.

4) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

5) Inspect the venting system annually for blockage and any signs of deterioration.

6) V enting terminals shall not be recessed into a wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

10) Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.

11) Under no circumstances should this appliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance should be done by a qualiﬁ ed service person. A professional service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Your

Gas ﬁ replace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Combustible

Mantel Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "V enting"

section)

2) Assemble Top Standoffs and Top Facing Support and Side Nailing Strips (Refer to "Unit Assembly Prior to Installation" Section). NOTE: Must be done before installing unit into place.

3) Install vent (Refer to "Venting" sections).

4) Make gas connections. Test the pilot. Must

be as per diagram (Refer to "Pilot Adjustment " section).

Convert to propane if desired (Refer to "Gas

Line Installation" and "Conversion Kit from NG to LPG" sections).

5) Make electrical connections to receptacle supplied with unit (recommended).

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label 31,000 Btu/h, after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances are met.

2) The appliance must be installed on a ﬂ at, solid, continuous surface For example a wood, metal or concrete ﬂ oor or in a raised (on the wall) application. The appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

3) The B36XT Gas Fireplace can be installed in a recessed position or framed out into the room as in A, B, C and D. See Diagram 1.

4) This appliance is Listed for bedroom installations using the standard Remote (millivolt thermostat system). Some areas may have further requirements, check local codes before installation.

5) The B36XT Gas Fireplace are approved for alcove installations, see "Clearances" section for details.

6) We recommend that you plan your installation on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have an authorized inspector, dealer, or installer review your plans before installation.

Note: For vent terminations refer to

"Exterior Vent T ermination Locations" section.

6) Install standard and optional features. Refer

to the following sections:

a. Inner/Brick Panels (Optional) b. Log Set Installation c. Standard Flush Door d. Remote Control (Optional) e. Wall Switch f. Wall Thermostat (Optional) g. Fan Installation (Optional) h. Light Installation (Optional)

7) Final check.

Diagram 1

A) Flat on Wall B) Flat on Wall Corner C) Recessed into Wall/Alcove D) Corner

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

The top, back and sides of the ﬁ replace are deﬁ ned by

Caution Requirements

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

Clearance: Dimension Measured From:

A: Mantel Height (min.) 13" (330mm) Top of Fireplace Opening B: Sidewall 12" (304mm) one side

C: Ceiling 36-3/4" (933mm) Top of Fireplace Opening D: Mantel Depth (max.) 12" (304mm) 21 " (533mm) from

E: Alcove Width 84" (2134mm) Wall to Wall (Minimum) F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum) Notes: 0" No Hearth Required

Fire hazard is an extreme risk

WARNING

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁ replace and vent

system be installed only in accordance with these instructions.

B36XT Clearance Requirements

Side of Fireplace Opening

only

Top of Fireplace Opening

Alcove

Minimum Vent Clearances

to Combustibles

Horizontal Top 2" (51mm) Horizontal Side 1-1/2 " (38mm) Horizontal Bottom 1-1/2" (38mm) Vertical Vent 1-1/2" (38mm)

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

MANTEL CLEARANCES

Due to the extreme heat this ﬁ replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in

the diagram on the right.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

Mantel Clearances

12”

810

Combustible

7”

Non-combustible

Header

(steel stud)

on edge

Non-combustible

Standoff

Inches

To Floor

Mantel Clearances B36XT

From Top of Fireplace Opening

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

(813mm)

To p o f

Side View

Fireplace

Opening

ABCD

32"

21"

(533mm)

17-1/2""

(445mm)

13"

(330mm)

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

MANTEL LEG CLEARANCES

12” Side Wall

(Measured from side of

Fireplace Opening)

Mantel leg

1-1/2"

3.5”

6.5"

Allowable mantel leg

projection.

Mantel leg

NON- COMBUSTIBLE REQUIREMENTS:

Non-combustible

Header

(steel stud)

on edge

Min. 7"

(178mm)

Non-combustible

(1073mm)

42-1/4"

Min. 3”

(76mm)

42"

(1067mm)

Non-combustible

Material

35-1/4"

(895mm)

36"

(914mm)

40 - 5/8"

(1032mm)

Framing

Min. 3”

(76mm)

See framing dimensions on next page.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

FRAMING

Framing Dimensions Description B36XT

M Framing Width 40-5/8"(1032mm) N Framing Height 42" (1067mm) O (Rear Vent) Framing Depth - Rear Vent 20-3/4" (527mm) O (Top Vent) Framing Depth - Top Vent 20-1/2" (521) P (Top Vent) Corner Facing Wall Width 48 - 5/8" (1235mm) P (Rear Vent) Corner Facing Wall Width 53" (1346mm) AstroCapXL

Q (Top Vent) Corner Facing Wall Width 68-3/4" (1746mm) Q (Rear Vent) Corner Facing Wall Width 75" (1905mm) AstroCapXL

R (Rear Vent) Framed Chase Ceiling - Rear 41-12" (1054mm) R (Top Vent) Framed Chase Ceiling - Top 50-1/2" (1283mm) S (Rear Vent) Vent Centerline Height - Rear 26-1/2" (673mm) S (Top Vent) (5" x 8") Vent Centerline Height - Top 42-1/8" (1070mm) Flex 44-1/4" (1123mm) Rigid S (Top Vent) (4" x 6-5/8") Vent Centerline Height - Top - 49" (1245mm) Rigid T Gas Connection Height 1-1/2" (38mm) U Gas Connection Inset 4-1/8" (105mm) V Gas Connection Width 3-1/4" (82mm) W Non-combustible Height 7" (178mm)

61-1/2" (1562mm) - other approved caps

87" (2209mm) - other approved caps

** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.

Non-Combustible

Header

(steel stud)

on edge

Drywall

(or other

facing)

Non-Combustible

Header

(steel stud) on edge

Non-Combustible Facing

11" (279mm)

dia. Hole through

wall Vent.

Regency Bellavista™ B36XT Gas Fireplace

Opening for gas

connection

INSTALLATION

FINISHING

IMPORTANT FINISHING DETAIL NOTE:

Before placing unit into ﬁ nal position - it is important to know the total thickness / height of ﬁ nished hearth (tile, carpet, etc.) The base of the ﬁ replace should be level or higher than the ﬁ nished hearth height.

Diagram 1

Note: All non-combustible facing material should butt up cleanly

to the ﬂ anges around the ﬁ rebox opening.

Rough edges will be visible from the front view with the ﬂ ush

louvers or ﬂ ush panels - if not using the optional ﬁ nishing trim.

To maintain a clean ﬁ nished edge - it is recommended to install

the non-combustible facing material with the ﬁ nished edge against the ﬁ replace / nailing strips.

Important:

Finishing materials such as tile, river rock, etc, must not protrude

beyond the front facing ﬂ anges the sides and top of the ﬁ rebox

opening. Full Screen Doors Only: If ﬁ nishing with any material thicker than 1-1/4" - a 3/4" gap must

be maintained between the full screen doors and the ﬁ nishing

material. This gap is necessary to facilitate the installation and removal of the

full screen doors.

Alternatively, you can use J Style Trim or Metal Corner Bead to cover cut edges of the non-combustible facing material.

Non-combustible

Material

Non-combustible

Material

J-style Trim or metal corner bead

Material

may be used to finish these edges

Non-combustible

Diagram 2

Full Screen

Door

Diagram 4

3/4"

Finishing material - thicker

than 1-1/4"

Diagram 3 Shown with optional ﬁ nishing trim

Diagram 5

Note: Full Screen Door Dimensions - page 6.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

Top Facing Support

Screw holes for

Top Facing

Support

Top Facing Support

is reversed

for “C” hole position

Top Facing

Support

UNIT ASSEMBLY PRIOR TO INSTALLATION

BEFORE YOU ST ART

The T op Facing Support, the Side Nailing Strips, the 2 Top Standoffs and the Flue Collar must be correctly positioned and attached before the ﬁ replace is moved into position.

TOP STANDOFF ASSEMBLY

The top standoffs are shipped in a ﬂ at position and must be folded into shape and attached.

1) Remove the standoffs from the ﬁ replace top.

2) Take each standoff and bend into the correct shape. Bend up at the bend lines until the screw holes in the standoff and the pre-punched screw holes on the ﬁ replace top line up.

3) Attach the standoff securely to the top with 2 screws per standoff (on opposite corners).

Determine the total thickness of facing material (e.g. drywall or wood plus ceramic tiles) to allow the ﬁ nished surface to be ﬂ ush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.

The Top Facing Support can be mounted in 3 different positions depending on the thickness of the facing material.

Screw Facing Material Position Depth

A 1/2" / 13mm B 7/8" / 22mm C* 1-1/4" / 32mm

* For "C" screw position the top facing support is reversed.

1) Mount Top Facing Support using the 3 supplied screws into the three pre-punched

screw holes on the top front of the unit. Use hole positions A, B, or C depending on your facing depth.

TOP FACING SUPPORT

SIDE NAILING STRIPS

The side nailing strips come attached to the unit. There are 2 plates, one on the top and bottom that can be folded out as required.

Regency Bellavista™ B36XT Gas Fireplace

"C" Screw Position:

For a facing material depth of 1-1/4" (32mm), the top facing support must be reversed.

INSTALLATION

Intake Collar Assembly

w/gasket

The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.

Top Collar Assembly Kit

1 Intake Collar Assembly with Gasket 1 Intake Cover Plate with Gasket 1 Top/Rear Exhaust Assembly with Gasket 1 Heat Deﬂ ector 1 Bafﬂ e Plate 29 1/4" x 1/2" Screws (4 spares) 1 Restrictor 1 Intake Collar Gasket (spare) 1 Exhaust Assembly Gasket (spare)

1 Insulation Plate Cover 1 Insulation Filling

1) Remove the door assembly by releasing the adjustable latches and lifting up off the door frame assembly.

Note: This conversion must be done prior to the unit being placed in position.

Exhaust Assembly

w/ gasket

Intake Collar Assembly

w/gasket

Insulation cover

plate

Note: Components shown are installed on unit.

CONVERSION TO TOP VENT

Intake Cover Plate

w/gasket

Insulation ﬁ lling

Adjustable Tension

Latch location

2) From inside the ﬁ rebox, remove the top heat deﬂ ector by removing 2 screws.

Heat Deﬂ ector

Diagram 2

3) From inside the ﬁ rebox, remove the bafﬂ e plate by removing 4 screws

- remove top front screw ﬁ rst. See Diagram 3.

Bafﬂ e Plate

Diagram 3

Diagram 1

4) From the inside of the ﬁ rebox, remove the exhaust assembly by removing the 8 screws. See Diagram 4.

Diagram 4

Regency Bellavista™ B36XT Gas Fireplace

5) From the outside rear of the ﬁ rebox, remove the intake collar assembly. Remove the 4 - 1/4" x 1/2" screws. See Diagram 5.

Exhaust

Assembly

INSTALLATION

Diagram 9

Intake Collar

Assembly

Diagram 5

6) From the outside top of the ﬁ rebox - remove top insulation cover plate and insulation ﬁ lling - by removing 4 screws. See Diagram 6.

Discard cover plate and insulation ﬁ lling.

Diagram 6

7) From the outside top of the ﬁ rebox - remove the intake cover plate by removing the 4 - 1/4" x 1/2 " screws. See Diagram 7.

9) From the outside top of the ﬁ rebox, install the intake collar assembly. Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over tighten. All 4 screws must be used.

Exhaust

Assembly

Diagram 10

10) From the outside rear of the ﬁ rebox, install the intake cover plate with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over tighten. All 4 screws must be used.

Diagram 11

Intake Collar

Assembly

Diagram7

Before proceeding to Step 8, inspect condition of all gaskets. DO NOT install parts with damaged gaskets. Replace if necessary

with spare gaskets supplied.

8) From the inside of the ﬁ rebox, place the exhaust assembly into position as shown in Diagram 8 and secure with 8 - 1/4" x 1/2" screws (Diagram 9). Ensure all screws are tight, but do not over tighten.

All 8 screws must be used.

Diagram 8

Regency Bellavista™ B36XT Gas Fireplace

11) Set vent restrictor accordingly - see next page.

12) From inside the ﬁ rebox, re-install the bafﬂ e plate and heat

deﬂ ector - reverse steps 2 & 3.

VENTING

INTRODUCTION

The B36XT uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These ﬂ ue pipes must not be connected to any other

appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

INSTALLATION

VENT RESTRICTOR, BAFFLE & HEAT DEFLECTOR INSTALLATION

NOTE: THE VENT RESTRICTOR & BAFFLE MUST BE INSTALLED PRIOR TO OPTIONAL PANEL INSTALLATION.

1) Determine the venting conﬁ guration.

2) Remove top heat deﬂ ector and bafﬂ e plate (reverse of steps 5 & 6).

3) Go to venting arrangements section (in the manual) to determine if

a vent restrictor setting is required.

Note: The vent restrictor does not apply to rear vent applications.

4) Align the vent restrictor plate to the required vent restrictor position

as per the diagrams shown.

5) Once the vent restrictor plate is in the required position, secure with 2 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over

tighten. (See diagram 2).

Diagram 2 Vent restrictor installed on top exhaust assembly

6) From inside the ﬁ rebox, install the bafﬂ e plate with 4 - 1/4" x 1/2 " screws. Ensure all screws are tight, but do not over tighten.

Bafﬂ e Plate

Note: If installing brick/optional panels, see brick/optional panel

instructions before proceeding to next step.

7) From inside the ﬁ rebox, install the top heat deﬂ ector with 2 -

1/4" x 1/2" screws. Ensure all screws are tight, but do not over

tighten.

Heat Deﬂ ector

Diagram 3

Diagram 4

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

EXTERIOR VENT TERMINATION REQUIREMENTS

Minimum Clearance Requirements

A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

C Clearance to permanently closed window **

D Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm)

from the center line of the terminal (check with the local code)

E Clearance to unventilated sofﬁ t 19"(48cm) 19"(48cm)

F Clearance to outside corner: with AstroCap Termination Cap. 13"(33cm) 13"(33cm)

Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)

G Clearance to inside corner: with AstroCap Termination Cap 11"(28cm) 11"(28cm)

Clearance to inside corner: with all other approved Termination Caps. 11"(28cm) 11"(28cm)

H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

J Clearance to service regulator vent outlet 36"(90cm) *

K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

L Clearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)

M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

N Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

24"(60cm) 24"(60cm)

┼

‡

USA

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

4" X 6-5/8" RIGID PIPE

CROSS REFERENCE CHART ONLY

Components from different Manufacturers may not be mixed. Not all Rigid Pipe components are available directly from FPI.

Description

6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6

6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B

7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A

7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A

9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A

9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A

12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1

12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B

18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18

18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B

24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2

24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B

36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3

36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B

48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4

48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B

60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A

60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT

Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB

Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A

Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A

Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A

Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A

Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A

45º Elbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45

45º Elbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B

45º Elbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A

45º Elbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A

90º Elbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90

90º Elbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B

90º Elbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A

90º Elbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A

Adaptor* N/A N/A N/A 4D90L N/A N/A

Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45

Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B

Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A

Offset Support

Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90

Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B

Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A

Trim Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A

46DVA-ES (N/A - FPI)

4DT-OS N/A N/A SV4SU N/A

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

Description

Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A

Attic Insulation Shield -

Basic Horizontal Termination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A

Horizontal Termination Kit (B) 46DVA-KHA

Vertical Ter mination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A

High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT

High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT

Horizontal Square Termination Cap See

Vertical Ter mination Cap 46DVA-VC 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT

Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC

Adjustable Flashing 0/12-6/12 46DVA-F6 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA

Adjustable Flashing 6/12-12/12 46DVA-FLA 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB

Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS

Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A

Snorkel Termination 14” 46DVA-SNKL N/A N/A N/A N/A TM-4ST14

Snorkel Termination 36” N/A N/A N/A N/A N/A TM-4ST36

Restrictor Disk N/A N/A N/A N/A N/A TM-4DS

Extended Vertical Ter mination Cap N/A N/A N/A N/A N/A N/A

Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6

Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7

Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8

Chimney Conversion Kit Masonry (USA only)

Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR

Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A

Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS

Simpson

Direct Vent Pro

(Changed Components)

46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT

46DVA-KMC N/A N/A N/A N/A N/A

Selkirk

Direct Temp™

4DT-HKB 4DHTK1 4DHTKB SV-HK N/A

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

FPI

946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcor p.com

9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com

12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com

24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com

36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com

48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

4” x 6-5/8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

Regency Bellavista™ B36XT Gas Fireplace

manufacturers website listed below.

INSTALLATION

Components from different Manufacturers may not be mixed. Not all Rigid Pipe components are available directly from FPI.

5" X 8" RIGID PIPE

CROSS REFERENCE CHART ONLY

Description

6” Pipe Length-Galvanized 58DVA-06 5DT-6 5D6 TC-5DL6

6” Pipe Length-Black 58DVA-06B 5DT-6B 5D6B TC-5DL6B

9” Pipe Length-Galvanized 58DVA-09 5DT-9 N/A N/A

9” Pipe Length-Black 58DVA-09B 5DT-9B N/A N/A

12” Pipe Length-Galvanized 58DVA-12 5DT-12 5D12 TC-5DL1

12” Pipe Length-Black 58DVA-12B 5DT-12B 5D12B TC-5DL1B

18” Pipe Length-Galvanized 58DVA-18 5DT-18 5D18 TC-5DL18

18” Pipe Length-Black 58DVA-18B - N/A from FPI 5DT-18B 5D18B TC-5DL18B

24” Pipe Length-Galvanized 58DVA-24 5DT-24 5D24 TC-5DL2

24” Pipe Length-Black 58DVA-24B 5DT-24B 5D24B TC-4DL2B

36” Pipe Length-Galvanized 58DVA-36 5DT-36 5D36 TC-5DL3

36” Pipe Length-Black 58DVA-36B 5DT-36B 5D36B TC-5DL3B

48” Pipe Length-Galvanized 58DVA-48 5DT-48 5D48 TC-5DL4

48” Pipe Length-Black 58DVA-48B 5DT-48B 5D48B TC-5DL4B

60” Pipe Length-Galvanized 58DVA-60 N/A N/A N/A

60” Pipe Length-Black 58DVA-60B - N/A from FPI N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A 5DAL TC-5DLT

Adjustable Length 3”-10”-Black N/A N/A 5DALB TC-5DLTB

Adjustable Length 11”-14” -Galvanized Disc. - See 58DV-08A 5DT-AJ N/A N/A

Adjustable Length 11”-14” -Black Disc. - See 58DV-08B 5DT-AJB N/A N/A

Extension Pipe 17”-24” -Galvanized Disc. - See 58DV-16A N/A N/A N/A

Extension Pipe 17”-24” -Black Disc. - See 58DV-16AB N/A N/A N/A

Adjustable Length 8-1/2”-Galvanized 58DVA-08A - N/A from FPI N/A N/A N/A

Adjustable Length 8-1/2”-Black 58DVA-08AB N/A N/A N/A

Extension Pipe 16”-Galvanized 58DVA-16A - N/A from FPI N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

Metal-Fab™

Sure Seal

ICC Excel

Direct

45º Elbow-Galvanized 58DVA-E45 5DT-EL45 5DT-EL45 TE-5DE45

45º Elbow-Black 58DVA-E45B 5DT-EL45B 5DT-EL45B TE-5DE45B

45º Elbow Swivel-Galvanized

45º Elbow Swivel-Black

90º Elbow-Galvanized 58DVA-E90 5DT-EL90S 5DT-EL90S TE-5DE90

90º Elbow-Black 58DVA-E90B 5DT-EL90SB 5DT-EL90SB TE-5DE90B

90º Elbow, Swivel-Galvanized

90º Elbow, Swivel-Black

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A N/A

Adaptor* N/A N/A N/A N/A

Ceiling Support 58DVA-DC 5DT-CS 5DSP TE-5DE45

Cathedral Support Box 58DVA-CS 5DT-CSS 5DRS TE-5DE45B

Wall Support/Band 58DVA-WS 5DT-WS/B 5DWS N/A

Offset Support

Wall Thimble-Black 58DVA-WT 5DT-WT 5DWT TE-5DE90

Wall Thimble Support/Ceiling Support 58DVA-DC

Firestop Spacer 58DVA-FS 5DT-FS 5DFS N/A

Trim Plate-Black 58DAV-WFS 5DT-TP 5DCP N/A

Disc. - See 58DVA-E45

Disc.-See 58DVA-E45B

Disc. - See 46DVA-E45

58DVA-ES - N/A from FPI

- N/A from FPI N/A N/A TE-5DE90B

N/A N/A N/A

5DT-OS N/A N/A

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

Description

Attic Insulation Shield 12” 58DVA-IS N/A from FPI N/A N/A N/A

Basic Horizontal Termination Kit (A) N/A 5DT-HKA N/A N/A

Horizontal Termination Kit (B) 58DVA-KHA 5DT-HKB N/A N/A

Vertical Ter mination Kit 58DVA-VHA 5DT-VKC N/A N/A

High Wind Vertical Cap 58DVA-VCH N/A N/A TM-5VT

High Wind Horizontal Cap N/A N/A N/A TM-5DHT

Horizontal Square Termination Cap N/A 5DT-HHC 5DHT TM-5HT

Vertical Ter mination Cap N/A 5DT-HVC 5DVT TM-5VT

Storm Collar 58DVA-SC 5DT-SC 5DSC TM-SC

Adjustable Flashing 0/12-6/12 58DVA-F6 5DT-AF6 5DF TF-5FA

Adjustable Flashing 6/12-12/12 58DVA-F12 5DT-AF12 5DF1-2 TF-5FB

Vinyl Siding Standoff 58DVA-VSS 5DT-VS 5DVS TM-VSS

Vinyl Siding Shield Plate N/A 5DT-VSP N/A N/A

Snorkel Termination 14” 58DVA-SNK14 N/A N/A TM-5ST14

Snorkel Termination 36” 58DVA-SNK36 (N/A - FPI) N/A N/A TM-5ST36

Restrictor Disk 58DVA-RD N/A N/A TM-5DS

Colinear Flex Connectors N/A N/A N/A N/A

FPI

946-604/P Simpson Direct Vent -Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap

770-994 Rigid Pipe Adaptor (Must use with all r igid piping) 946-506/P Vent Guard (Optional)

946-606 Star ter collar reducer 5” x 8” to 4” x 6-5/8” 946-625 Vinyl Siding Standoff - AstroCap XL

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 5-11/16” (144mm) 15-5/16” (389mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8-13/16” (224mm) 18-7/16” (468mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-15/16” (278mm) 20-9/16” (522mm) Metal-Fab Sure Seal: www.mtlfab.com

12” (305mm) 13” (330mm) 22-11/16” (576mm) Industrial Chimney Company: www.icc-rsf.com

24” (610mm) 21-7/16” (697mm) 31-1/16” (789mm) Note: Horizontal runs of vent must be level, or have a 1/4”

36” (914mm) 29-13/16” (757mm) 39-7/16” (1002mm)

48” (1219mm) 38-1/4” (972mm) 47-7/8” (1216mm)

5” x 8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

Metal-Fab™

Sure Seal

manufacturers website listed below.

rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

ICC Excel

Direct

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

648

VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS

FLEX VENT OR RIGID PIPE 5" X 8"

The diagrams show all allowable combinations of vent runs with 5" x 8" venting using the Regency direct vent system or rigid vent system. A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

For horizontal terminations the Regency Direct Vent Flex System may be used for installations with a maximum continuous vent length of 3ft (0.9m).

Note: Must use optional rigid pipe adaptor (Part # 770-994) when using Rigid Pipe vent systems.

• Maintain clearance to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

Horizontal (Feet)

Vertical Height (Feet)

Max. 36”(0.9m)

Factory Setting - No Restrictor Required

Flex 42-1/8"(1.0m)

Rigid 44-1/4"(1.1m)

Factory Setting - No Restrictor Required

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

HORIZONTAL TERMINATIONS

FLEX VENT 5" X 8"

These venting systems, in combination with the B36XT Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by W arnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section.

Regency top or rear vent.

Note: If top venting this unit, the 5" x 8" venting may only be used if venting to the minimum of 42-1/3" to centerline. No other application is approved.

Direct Vent (Flex) System 4 foot Termination Kit (Part# 946-615) includes all the parts needed to install the B36XT with a either a

FPI Kit # Length Contains: #946-615 4 Feet 1) 8” ﬂ exible liner (Kit length)

2) 5” ﬂ exible liner (Kit length)

3) spring spacers

4) thimble

5) AstroCap termination cap

6) screws

7) tube of Mill Pac

8) plated screws

9) S.S. screws #8 x 1-1/2” drill point

10) vinyl siding standoff

1) 8" dia. ﬂ exible liner (4 ft. length)

2) 5" dia. ﬂ exible liner (4 ft. length)

3) spring spacers (4)

4) thimble

5) AstroCapXL termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point,

Stainless Steel (4)

10) vinyl siding standoff

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from Regency may be used for Flex installations.

3) Regency

Note: If longer runs are required - rigid pipe must be used.

Regency Bellavista™ B36XT Gas Fireplace

Direct Vent System (Flex) is only approved for horizontal terminations.

INSTALLATION

Pipe Length

90 Elbow

Rigid Pipe Adaptor

HORIZONTAL TERMINATIONS

Vinyl Siding

Standoff (Optional)

Wall Thimble

RIGID PIPE 5" X 8"

Horizontal

Termination

Cap

Vinyl Siding

Standoff (Optional)

Pipe Length

Rigid Pipe Adaptor

Wall Thimble

Horizontal

Termination

Cap

Horizontal Termination

A Top Vent - No Vertical Rise

• When venting with a 90° elbow directly off the unit, must use 5" X 8" AstroCapXL™ Flex vent or approved Rigid Vent System

• Max. 3 ft. horizontal run

B Rear Vent w/ Horizontal Termination

• Can only use 5" x 8" venting

• Max. 3ft. horizontal run

Regency Bellavista™ B36XT Gas Fireplace

HORIZONTAL TERMINATIONS

ASTROCAP XL & RIGID REAR VENT KIT FOR CORNER INSTALLATIONS

RIGID PIPE 5" X 8"

Designed for a minimum vent conﬁ guration when using a rear vent application with a horizontal termination in a corner installation.

INSTALLATION

Kit 946-612 Includes

1 AstroCap XL 946-623/P

1 Rigid Pipe Adaptor 770-994

1 Vinyl Siding Standoff (Optional) 946-625

1 Wall Thimble 58DVA-WT

1 6" galvanized rigid pipe 58DVA-06

1 8-1/2" galvanized pipe extension 58DVA-08A

1 45º galvanized elbow 58DVA-E45

1 90 ml MillPac 948-128

Vinyl Siding

Standoff

(Optional)

Wall Thimble

Pipe Length

45 elbow

Rigid Pipe Adaptor

Astrocap

4”

53”

75”

Placement of the unit into the corner

Back top corner of unit to wall 4"

Inside corner out along the wall 53"

Across the face of the unit, wall to wall 75"

Inside corner to front face of the unit 37-1/2"

37-1/2”

Regency Bellavista™ B36XT Gas Fireplace

26-1/2” (673mm)

INSTALLATION

10 14 16

18 20

VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

(MUST USE REDUCER PART # 946-606 & 770-994 RIGID PIPE ADAPTOR)

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o two 45o elbows equal one 90o elbow).

Horizontal (Feet)

Vertical Height (Feet)

Restrictor 2-1/4” Open

Set 1

No Vent Restrictor

49" (1245mm) Minimum Height

ALL RIGID PIPE SYSTEMS

4" INNER DIAMETER

6-5/8" OUTER DIAMETER

Requirement

• Maintain clearances to combustibles as listed in "Clearances" section

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• A wall thimble is mandatory for all horizontal terminations due to high temperatures.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

HORIZONTAL OR VERTICAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

(MUST USE REDUCER PART # 946-606 & 770-994 RIGID PIPE ADAPTOR)

The minimum components required for a basic horizontal termination using 4" x 6-5/8" are: 1 Rigid Pipe Adaptor (770-994)

1 Reducer (946-606) 1 90 1 Wall Thimble 1 Length of pipe to suit wall thickness 1 Horizontal Termination Cap

Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding. Measure the wall thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches. Note: The 4" x 6-5/8" Regency Flex Kits (946-515 & 946-516) are not approved for use with this ﬁ replace. Only rigid pipe may be used

when 4" x 6-5/8" is used.

Elbow

Vertical

Termination

Cap

ASTROCAP # 946-523/P

DIMENSIONS

Storm Collar

Flashing

Ceiling Firestop

Pipe Length

43”

(1092 mm)

Pipe Length

90 Elbow

Pipe

Length

Reducer

(4” x 6-5/8” venting)

Rigid Pipe Adaptor

Vinyl Siding

Standoff (Optional)

Wall Thimble

Astrocap

(946-523/P)

11”

(279mm)

11”

(279mm)

WARNING:

Do not combine venting components from different venting systems.

Exception: However, use of the AstroCap FPI Riser is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with DuraVent Direct V ent, Selkirk Direct-T emp, Ameri Vent Direct Vent, Security Secure Vent and ICC Excel Venting Systems. Use of these systems with the Rigid Pipe Adaptor is deemed acceptable and does not affect the Intertek WHI listing of components.

and

The FPI AstroCap American Metal Products, Security Secure Vent International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

Regency Bellavista™ B36XT Gas Fireplace

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent,

, AmeriVent Direct Vent, ICC Excel. AstroCapTM is the proprietary trademark of FPI Fireplace Products

INSTALLATION

HORIZONTAL TERMINATIONS

TWO (2) 90O ELBOWS (RIGID PIPE 4" X 6 - 5/8")

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 0' Min. 2' Max. B) 1' Min. 3' Max. C) 2' Min. 4' Max. D) 3' Min. 5' Max. E) 4' Min. 6' Max. F) 5' Min. 7' Max. G) 6' Min. 8' Max

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use reducer # 946-606 and rigid pipe adaptor #770-994.

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90 is required.

elbows

HORIZONTAL TERMINATIONS

THREE (3) 90O ELBOWS (RIGID PIPE 4" X 6 - 5/8")

One 90o elbow = Two 45o elbows.

Option V H V + V1 H + H1

A) 0' Min. 1' Max. 1' Min. 2' Max. B) 1' Min. 2' Max. 3' Min. 3' Max. C) 2' Min. 2' Max. 5' Min. 4' Max. D) 3' Min. 2' Max. 7' Min. 5' Max. E) 4' Min. 3 Max. 9' Min. 6' Max. F) 5' Min. 4' Max. 10' Min. 7' Max. G) 6' Min. 5' Max. 11' Min. 8' Max. H) 7' Min. 6' Max. 12' Min. 9' Max.

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use reducer # 946-606 and rigid pipe adaptor #770-994.

With these options, max. total pipe length is 30 feet with min. of 12 feet total vertical and max. 9 feet total horizontal.

Please note min. 1 foot between 90 elbows is required.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

204 10

VENTING ARRANGEMENTS FOR VERTICAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

(MUST USE REDUCER PART # 946-606 & 770-994 RIGID PIPE ADAPTOR)

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbows, with Rigid Pipe Venting Systems for Propane and Natural Gas. Two 45

Restrictor 1-1/16” Open

Set 3

elbows equal to one 90o elbow. Maximum of four 45o elbows allowed.

Horizontal (Feet)

Maximum: 35.5 ft. (10. m)8

Vertical Height (Feet)

Restrictor 1-5/8” Open

Set 2

No Restrictor

Maximum 10’ Centerline to Centerline

(1.2m)

Min. 49”

Maximum 8’ Centerline to Centerline

8’ (2.4m)

Minimum

Restrictor 2-1/4” Open

Set 1

Maximum: 25 ft. (7.6m)

• Vent must be supported at offsets.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting to 2-14" opening ,1-5/8"opening and to 1-1/16" opening.

Note: Must use optional ﬂ ue adapter when using Rigid Pipe (Part # 770-994).

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

VERTICAL TERMINATIONS

THREE (3) 90O ELBOWS (RIGID PIPE 4" X 6 - 5/8")

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1 A) 0' Min. 2' Max. 2' Min. B) 1' Min. 2' Max. 3' Min. C) 2' Min. 3' Max. 4' Min. D) 3' Min. 4' Max. 6' Min. E) 4' Min. 5' Max. 7' Min. F) 5' Min. 6' Max. 8' Min. G) 6' Min. 7' Max. 9' Min. H) 7' Min. 8' Max. 10' Min.

No Vent Restrictor Installed

Lengths do not include elbow indicated. Must use reducer # 946-606 and rigid pipe adaptor #770-994

With these options, max. total pipe length is 30 feet with min. of 10 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90 required.

elbows is

Regency Bellavista™ B36XT Gas Fireplace

VENTING ARRANGEMENTS

WITH CO-LINEAR FLEX SYSTEM

INSTALLATION

THE APPLIANCE MUST NOT BE

CONNECTED TO A CHIMNEY FLUE

SERVING A SEPARATE SOLID FUEL

BURNING APPLIANCE.

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium ﬂ ex running the full length of the chimney. See the Venting Arrangements on next page for minimum and maximum heights.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap 948-305 3" Flex - 35 ft. 946-563 Co-Axial to Co-Linear Adapter Kit which contains the following: Co-linear Flex Adapter Outer Pipe Inner Pipe Adapter 770-994 Rigid Pipe Adaptor 946-606 Vent Reducer

Alternate Approved Caps

46dva-VC Vertical Termination Cap 46dva-VCH High Wind Cap 46dva-GK

NOTE: See detailed venting arrangements,

vertical terminations, co-linear ﬂ ex system

into masonry ﬁ replaces in this manual.

3" Co-linear Adapter with ﬂ ashing

Masonry chimneys may take various contours which the ﬂ exible liner will accommodate. However, keep the ﬂ exible liner as straight as possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Co-linear DV

Vertical Termination

Cap # 946-529

A maximum

of two certified

joiner kits

may be used

per length.

Flex Liner

#948-305 (35 ft)

Exhaust

Flue

Outer

Pipe with Kit# 946-563

Air Intake

Pipe Length

Co-Linear

Reducer #946-606

(4 x 6-5/8 venting)

Rigid Pipe Adapter

# 770-994

90 Degree

Elbow

Inner Pipe

Adapter

with Kit# 946-563

Adapter with Kit# 946-563

Flex

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

CO-LINEAR FLEX SYSTEM INTO MASONRY FIREPLACES

VERTICAL TERMINATIONS

FOR BOTH RESIDENTIAL & MANUFACTURED HOMES

The shaded area in the diagrams show the allowable vertical terminations.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

4" X 6-5/8" OR 5" X 8"

VENTING

(Rigid Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

Horizontal Top* 2" (51mm)* Horizontal Side 1-1/2 " (38mm) Horizontal Bottom 1-1/2" (38mm) Vertical Vent 1-1/2" (38mm)

Below are the recommended framing dimensions (inside measurements) for the 4" x 6-5/8" and 5" x 8" rigid vent terminations for use with a ﬁ restop or wall thimble.

Recommended Framed Opening

Vent Size Framing Size

4" x 6 - 5/8" 10" x 10"

5" x 8" 11" x 11"

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct Vent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is required.

3) In conjunction with the Approved Vent system, install the adaptor after the unit is set in its desired location. Put a bead of high temperature silicone inside the outer section of the adapter and a bead of Mill Pack on the inner collar. Slip the adapter over the existing inner and outer ﬂ ue collar. Fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier).

4) Level the ﬁ replace and fasten it to the framing using nails or screws through the top and side nailing strips.

Size

5) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.

Note: For best results and optimum

performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

Horizontal runs of vent must be supported every 3 feet (0.9meter). Wall straps are available for this purpose.

6) Mark the wall for a square hole.-see chart to

left for size. The center of the square hole should line up with the center-line of the horizontal pipe. Cut and frame the square hole in the exterior wall where the vent will be terminated. See diagram 2 for center line requirements.

If the wall being penetrated is constructed of

non-combustible material, i.e. masonry block or concrete, an 8" (203mm) diameter hole is acceptable.

Note: a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. See "Exterior Vent Termination Locations" section for more details.

center

of hole

49” (1245mm)

44-1/4” (1124mm)

Rear Vent

Min. height (5” x 8”)

26-1/2” (673mm)

Min. height (4” x 6-5/8”)

7) Ensure that the pipe clearances to combustible materials are maintained (Diagram 5). Install the termination cap.

Note: If installing termination on a vinyl

siding covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

Diagram 5

The four wood screws provided should be re-

placed with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

8) Before connecting the horizontal run of vent pipe to the vent termination, slide the Wall Thimble over the vent pipe. The wall thimble is required for all horizontal terminations.

9) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches (32mm). Secure the connection between the vent pipe and the vent cap.

10) Install wall thimble in the center of the framed hole and attach with wood screws (Diagram

7).

Diagram 7

Diagram 1

Regency Bellavista™ B36XT Gas Fireplace

Diagram 2

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

5" X 8" VENTING

(Flex Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

Horizontal Top 2" (51mm) Horizontal Side 1-1/2 " (38mm) Horizontal Bottom 1-1/2" (38mm) Vertical Vent 1-1/2" (38mm)

Below are the recommended framing dimensions (inside measurements) for the 4" x 6-5/8" and 5" x 8" rigid vent terminations for use with a ﬁ restop or wall thimble.

Recommended Framed Opening

Vent Size Framing Size

5" x 8" 11" x 11"

Size

NOTE: Horizontal sections must be sup-

ported at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls.

5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which wayis up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre inner and outer ﬂ ex liner out enough to slip over the ﬂ ue collars of the ﬁ replace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than 90

slip over the collars a minimum of 1-3/8".

7) Apply Mill Pac over the ﬁ replace inner ﬂ ue collar and slip the inner ﬂ ex liner down over it and attach with 3 supplied screws.

. The liners must

ASTROCAPXL

DIMENSIONS (946-623/P)

center

of hole

1) Locate the unit in the framing, rough in the gas (preferably on the right side of the unit). Locate the centerline of the termination and mark wall accordingly. Cut an square hole in the wall - see chart (inside dimension).

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or vinyl furring strips must be used to ensure that the termination is not recessed into the siding.

2) Level the ﬁ replace and fasten it to the fram-

ing using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying Mill Pac to the inner ﬂ ue collar of the termi- nation and slipping the inner ﬂ ex liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the outer ﬂ ex pipe and slip it over the outer ﬂ ue collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

8) Do the same with the outer ﬂ ue collar and outer ﬂ ex liner.

9) Apply a bead of silicone between the thimble and termination and around the outer edge of the terminal at the wall in order to keep the water out.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

5” dia. flue pipe with spring spacer

Screws

8" dia. air intake

Wall Thimble

Rear Vent

Min. height (Flex)

42-1/8” (1070mm)

26-1/2” (673mm)

2”x4”or2”x6”

AstroCap XL

Termination Cap

Screws

Vinyl Siding

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH VERTICAL

TERMINATION

4" X 6-5/8" VENTING

(Rigid Vent Systems)

(MUST USE REDUCER

#946-606 AND RIGID PIPE ADAPTOR

#770-994)

1) Maintain the 1-1/2" clearances

(air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check "Venting" Sections for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof.

3) A Firestop spacer must be installed in the ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 10 inch square hole. Frame the hole as shown in Diagram 2 and install the ﬁ restop.

Note: All vertical terminations are vented using 4" x 6-5/8" venting and reducer #946-606 and rigid pipe adaptor #770-994.

Diagram 2

Diagram 1

4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

NOTE: For best results and optimum performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 3.

Diagram 3: The upper half of the ﬂ ashing is installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose.

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Dia. 4 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

Diagram 4

Roof Pitch Minimum Vent Height Feet Meters ﬂ at to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twistlocking it.

Note: Any closets or storage spaces, which

the vent passes through must be enclosed.

GAS LINE

INSTALLATION

The gas line is brought through the right side of the appliance. The gas valve is situated on the right hand side of the unit and the gas inlet is on the right hand side of the valve.

The gas line connection may be made of rigid pipe, copper pipe or an approved ﬂ ex connector . (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation code.

For USA installations follow local codes and/ or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile, 1 around the thermocouple and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pattern, contact your FPI dealer for further instructions.

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or thermopile or thermocouple.

B36XT -NG System Data

Conversion Kit # 576-969 For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #35 Max. Input Rating 31,000 Btu/h

Min. Input Rating 21,500 Btu/h Supply Pressure min.5.0" w.c.

Manifold Pressure (High) 3.5"+/- 0.2" w.c.

Manifold Pressure (Low) 1.6"+/- 0.2" w.c.

B36XT - LP System Data

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #51 Max. Input Rating 31,000 Btu/h

Min. Input Rating 25,000 Btu/h Supply Pressure min.11.0" w.c.

Manifold Pressure (High) 10"+/- 0.2"w.c.

Manifold Pressure (Low) 6.4"+/- 0.2"w.c.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure tap(s), turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position.

5) The pressure check should be carried out with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten.

HIGH ELEVATION

This unit is approved in Canada for altitude to 4500 ft. (CAN/CGA-2.17-M91). For Natural Gas installations above 4500 ft. follow current CAN/ CGA-B149.1.

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection Point

S.I.T. VALVE DESCRIPTION

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

CONVERSION KIT# 576-969 FROM NG TO LP

for B36XT using SIT 820 NOVA Gas Valve

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LP Conversion Kit # 576-969

Conversion Kit Contains: Qty. Part # Description

1 904-645 Burner Oriﬁ ce #51 1 904-529 5/32" Allen Key 1 918-590 Decal "Converted to LPG" 1 908-528 Red "LP" label 1 910-037 LP Injector (Pilot

Oriﬁ ce)

1 918-820 Instruction Sheet

Installation of LP Conversion Kit:

1) Shut off the gas and electrical supply.

2) Remove the louvers (and Arch screen

doors if they are installed).

3) Open the ﬂ ush door and remove the

door.

4) Remove the logs and embers (if already

installed).

5) Loosen the 2 screws holding the Burner

Assembly to the ﬁ rebox base. Slide the Burner Assembly to the left to release it from the oriﬁ ce and lift out.

6) Remove the pilot shield by removing 2

screws.

7) Remove the wire clip below the pilot cap.

8) Pull off the pilot cap to expose the pilot

oriﬁ ce.

9) Unscrew the pilot oriﬁ ce with the allen

key; then replace with the LPG pilot oriﬁ ce, provided in the kit.

10) Re-install pilot cap and pilot shield.

11) Remove burner oriﬁ ce with a 1/2"

wrench. Use another wrench to hold on to the elbow behind the oriﬁ ce. Discard oriﬁ ce.

Remove the 2 screws, push Burner Assembly

to the left and lift out.

Regency Bellavista™ B36XT Gas Fireplace

12) Reinstall new burner oriﬁ ce LPG

stamped #51 and tighten.

13) Reinstall burner assembly.

14) Adjust aeration accordingly.- see

manual for details.

INSTALLATION

15) Turn control knob to the “OFF” position.

16) Remove the black protection cap by hand from the hi-low knob

(Fig.1).

Fig. 1

Cap

17) Insert a 5/32” or 4mm Allen wrench into the hexagonal key-way

of the screw (Fig. 2), rotate it counter-clockwise until it is free and extract it.

Fig.2

18) Check that the screw is clean and if necessary remove dirt.

20) Verify that if the conversion is from NG to LPG, the screw must

be re-assembled with the red o-ring visible (Fig. 5).

21) Re-assemble the black protection cap (Fig. 6).

Red o-ring visible

LPG Configuration

Fig.5

Fig. 6

22) Reverse steps 8 - 1.

23) Attach the label "This unit has been converted to LPG" near or on

top of the serial # decal.

18) Flip the screw (Fig. 3).

Red O-ring

19) Using the Allen wrench as shown in

Fig.4, rotate the screw clockwise until snug, do not overtighten.

WARNING!

Do not over tighten the screw.

Recommended to

grip the wrench by the short side.

WARNING!

Also check that the pilot and main

burner injectors are appropriate for

the gas type.

24) Replace yellow "NG" label with red "LPG" label.

Fig.3

Fig.4

Regency Bellavista™ B36XT Gas Fireplace

DC SPARKER BATTERY REPLACEMENT

DC Sparker Battery Replacement

1) Remove the battery cover from the DC Sparker - remove the AA

battery.

2) Replace with a new 'AA' battery and reinstall battery cover.

INSTALLATION

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

BRICK PANEL INSTALLATION

Dangerous operating conditions may occur if the panels are broken.

1) Unwrap the Brick Panels from the protective wrapping.

2) Ensure that the logs are not in the unit.

Top Panel

Back Panel

Left Panel

3) Remove the heat deﬂ ector (if installed) by removing the 2 screws securing the heat deﬂ ector from the top of the ﬁ rebox.

Handle with care. DO NOT FORCE INTO POSITION.

Right Panel

5) Remove the hex head screw on the upper left side of the ﬁ rebox wall. Position left brick panel in place and secure with the brick panel clip and screw.

Heat deﬂ ector

4) Install the back brick panel ﬁ rst - use caution when clearing the burner assembly and rear log tray so the panel is not damaged.

Note: Ensure that an equal space (gap) is maintained on both the right and left side - when installing the back panel.

Back Panel Installed

6) Slide top brick panel under left and back brick panel, use care not to damage panel.

7) Right brick panel is installed last, follow the same procedure as for left panel (see step 5).

Final Brick Panel Installation

8) Reinstall top heat deﬂ ector (reverse Step 3).

Regency Bellavista™ B36XT Gas Fireplace

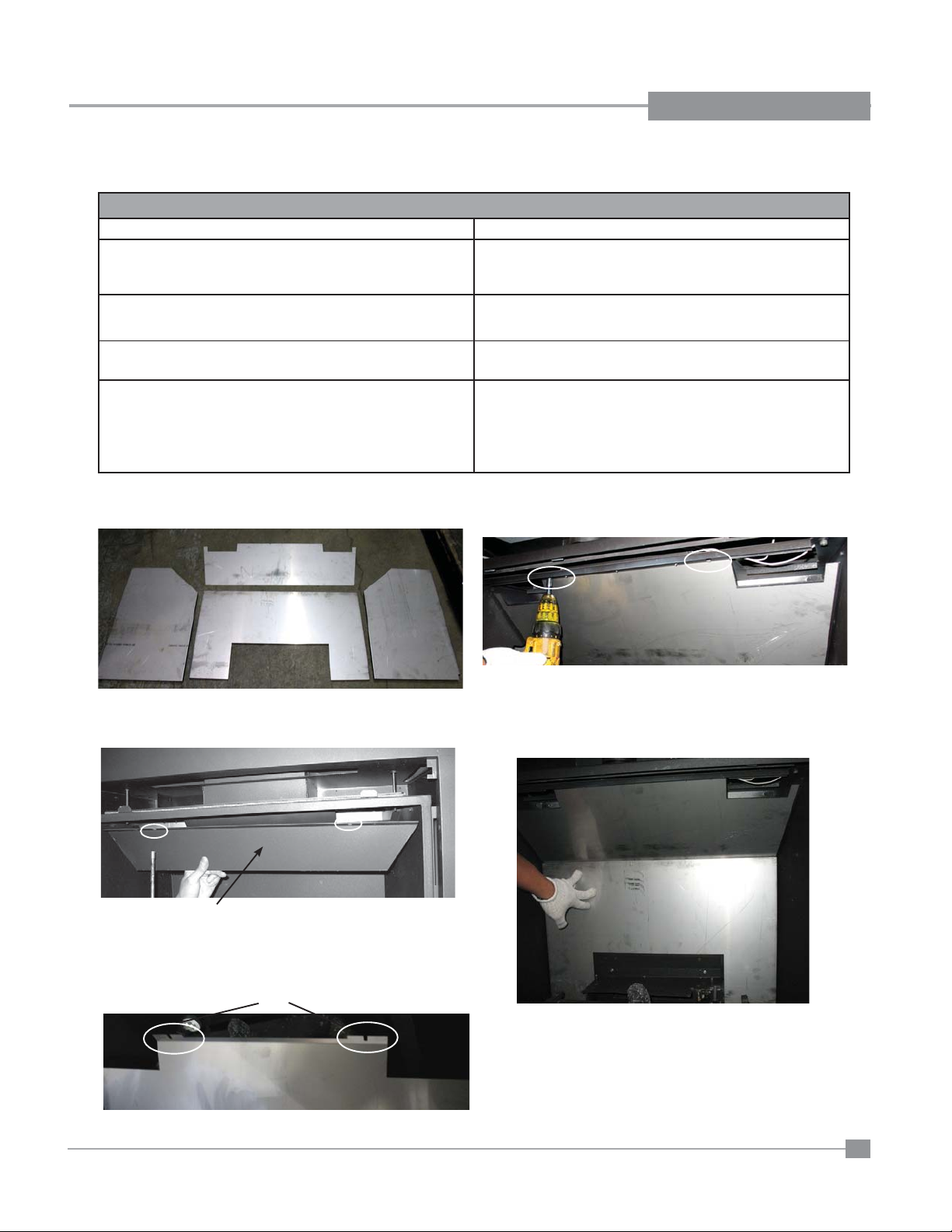

OPTIONAL STAINLESS STEEL / BLACK ENAMEL

PANEL INSTALLATION

Before installation, panels must be handled and cleaned as per instructions noted below:

Stainless Steel Panels Black Enamel Panels

• Stainless panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for damage after installation will not receive consideration.

• To protect the ﬁ nish during installation and handling - cotton gloves MUST be worn at all times while handling the panels (even when removing protective coating).

•Stainless panels will discolor a little during normal operation. This is normal and should not be considered a defect.

INSTALLATION

• Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for damage after installation will not receive consideration.

• Black Enamel panels will discolor a little during normal operation. This is normal and should not be considered a defect.

All hand and ﬁ nger marks MUST be cleaned off with a soft cloth and

a stainless steel cleaner. Most stainless steel cleaners leave a ﬁ lm/ residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this ﬁ lm before applying heat to the unit.

Failure to do this will result in burn stains on panels which you will be unable to remove. Not protected by product warranty.

All hand and ﬁ nger marks MUST be cleaned off with a soft cloth. Use

an ammonia based cleaner (ie. glass cleaner) to remove any ﬁ ngerprints before applying heat to the unit.

Failure to do this will result in burn stains on panels which you will be unable to remove. Not protected by product warranty.

STAINLESS STEEL PANEL INSTALLATION

Note: Panels must be installed prior to the installation of the log set and vermiculite.

TOP

LEFT

1) Remove the heat deﬂ ector by removing the 2 screws securing the heat deﬂ ector to the top of the ﬁ rebox (see Diagram 2).

BACK

Diagram 1

RIGHT

3) Slide back panel in over burner - be careful not to scratch panel on back log tray, burner, or top panel when positioning.

Diagram 4

Heat deﬂ ector

2) Loosen the 2 bafﬂ e screws - position the top panel inside the ﬁ rebox shown in Diagram 4. Slide slots of top panel into position under loosened screws, retighten the screws.

Slots on Top Panel

Regency Bellavista™ B36XT Gas Fireplace

Diagram 2

Diagram 3

Diagram 5

INSTALLATION

4) Remove 1 screw (see inset A), position right side panel in ﬁ rebox position panel clip in place and secure with 1 screw (see inset B). Tighten the screw.

Location of hex

head screw

22"

Diagram 6

5) Repeat step 4 for left side panel.

6) Reverse step 1.

2) Install the back panel ﬁ rst - use care when clearing the burner assembly and rear log tray, so panel is not scratched.

Diagram 3

3) Install the top panel next - slide the panel in over top of the back panel

- orient the panel so the fold in the metal faces in (see inset A).

Fold

Diagram 4

4) Remove 1 screw (see inset A), position right side panel in ﬁ rebox position panel clip in place and secure with 1 screw (see inset B). Tighten the screw.

Final Installation

Diagram 7

BLACK ENAMEL PANEL INSTALLATION

TOP

RIGHT

1) Remove the heat deﬂ ector by removing the 2 screws securing the heat deﬂ ector to the top of the ﬁ rebox (see Diagram 2).

Heat deﬂ ector

BACK

LEFT

Diagram 1

Diagram 2

Diagram 5

5) Repeat step 4 for left side panel.

6) Reverse step 1.

Final Installation

Diagram 6

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

LOG SET INSTALLATION

Installation of Optional Panels must be completed before installing the log set.

Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation.

Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty.

Log Kit #576-930 contains the following pieces:

A Right Front Log

B Left Front Log

C Top Middle Log

D Top Right Log

E Rear Log

902-156 Lava Rocks

902-179 Vermiculite

946-669 Platinum Embers

(supplied w/packaged manual)

2) Spread vermiculite along the base of the ﬁ rebox.

Vermiculite

3) Place Log E on the rear log support pins with the ﬂ at side to the back.

1) Carefully remove the logs from the packaging and unwrap them. The logs are fragile, handle with care - do not force into position.

Regency Bellavista™ B36XT Gas Fireplace

4) Place Log B on the front left side of the burner. Position the notch

on the bottom left side of the log into the left side of the grate.

Slide Log B back towards Log E until the ﬂ at surface on Log B rests

up against the tabs on the burner and grate - this maintains a

necessary gap between Logs B & E.

Tabs on

burner &

grate

Notch

Note: See ﬁ nal positioning of Log B on next page.

INSTALLATION

5) Place Log A on the front right side of the burner. Position the notch

on the bottom right side of the log into the right side of the grate.

Slide Log A back towards Log E until the ﬂ at surface on Log A rests

up against the tabs on the burner and grate - this maintains a

necessary gap between Logs A & E.

Note: Use the notch on the bottom of Log A as a guide -see below.

Tabs on

burner &

grate

6) Position Log D with the ﬂ at side toward Log E.

Fit Log D into right peg on Log E.

Right Peg - Log E

7) The notch on the bottom of Log D rests against the knot on Log A (as shown below).

Back of Log A

Notch location on underside

of Log A

(runs from back - front)

Regency Bellavista™ B36XT Gas Fireplace

8) Place the lava rocks on the front of the burner tray in the places shown in the photo.

Separate platinum embers and place on the front of the burner tray in and around the lava rocks. Avoid stacking platinum embers. Platinum embers may be placed over burner ports.

INSTALLATION

Lava Rocks

9) Position Log C with the ﬂ at side toward Log E.

Fit Log C onto left peg on Log E - the notch on the bottom of Log C rests against the 3rd (from the left) grate post.

Platinum Embers

10) Test ﬁ re to ensure proper light off (make sure ﬂ ame ﬂ ows

smoothly from one end of the burner to the other). If there is any ﬂ ame hesitation, check that area for any blockage of the burner ports.

Notch in log C

Left Peg - Log E

Regency Bellavista™ B36XT Gas Fireplace

3rd Grate Post

INSTALLATION

Optional

WALL THERMOSTAT

A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Use table below to determine the maximum wire length.

Note: Preferable if the thermostat is

installed on an interior wall.

Regency thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

offers an optional programmable

CAUTION

Do not wire millivolt

wall thermostat wires

to 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 50 Ft.

16 GA. 32 Ft.

18 GA. 20 Ft.

20 GA. 12 Ft.

22 GA. 9 Ft.

Optional

REMOTE CONTROL

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location. Use Thermostat Wire Table.

2) Connect the two wires to the gas valve. See diagram below.

CAUTION

Do not wire millivolt

remote control wires

to 120V wire.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

Optional

WALL SWITCH

1) Run the supplied 10' of wire through the

right or left side gas inlet opening. Be careful not to damage wire.

Note: We recommend a maximum of 10'

of wire but if you wish to go with a longer run, use the Thermostat Wire Table.

2) Connect the wire to a wall switch and install

into the receptacle box. Also attach wires to the valve as shown below.

CAUTION

Do not wire millivolt

wall switch wire

to 120V wire.

DC SPARKER BATTERY INSTALLATION

1) The DC Sparker requires 1 AA battery to operate. Note: Pilot cannot be lit without battery in place.

2) Remove the battery cover from the DC Sparker.

3) Insert 1 AA battery, as illustrated below. Replace the battery cover.

Regency Bellavista™ B36XT Gas Fireplace

OPTIONAL FAN INSTALLATION

INSTALLATION

Important: 120 Volt AC power is needed for the fan switch and blower. The receptacle box will be installed on the left hand side of the unit and will need to be wired by a qualiﬁ ed electrician prior to fan assembly being installed. The neutral (wider) slot of the polarized receptacle should be at the top.

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

1) Shut the power off.

2) Open the bottom louver. Remove the

standard ﬂ ush door.

3) Attach the red and black wires

to fan motor as shown in diagram 1.

Black wire

Diagram 1

4) Turn the fan base on its side (with the base facing towards you) and then slide the fan in towards the rear of the unit. Turn the fan upright and slip it over the two mounting studs. Take care not to damage the insulation on the fan base. Ensure that the fan blades do not rub against the valve tubing.

Red wire

6) Slide the thermodisc/cover assembly into

the bracket clip on the underside of the ﬁ rebox. Check that no wire will touch the hot surfaces. Diagram 3 and 4.

7) Plug the fan power cord into the rear end of

the receptacle box to provide the maximum clearance from the louvers.

*Ensure that there is no interference with

the wires when the louver is closed and that no wire will touch the hot metal surfaces or sharp edges.

Diagram 3

9) Secure the fan wires and power cord by attaching one of the adhesive backed wire

holder clips (Part #910-199) onto the unit base. Use the second clip to bundle up the wires approximately 4" from the control box.

Diagram 6

TO REMOVE THE FAN

1) Shut the power off.

2) Reverse the above instructions.

Note: The bearings are lubricated for life.

Do not lubricate them. Make sure you vacuum the fan area on a regular basis.

IMPORTANT: These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and housing using a soft brush nozzle.

Diagram 2

5) Connect fan ground cable to ground lug. Refer to wiring diagram.

Electrical

Receptacle

Push Fan down

on mounting pins

Plug fan power cord

Regency Bellavista™ B36XT Gas Fireplace

Ground Lug

Diagram 4

8) Slide the the Fan control box under the clip on the ﬂ oor of the ﬁ rebox. (See Diagram 5)

Diagram 5

Clip

INSTALLATION

AERA TION ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude. Open the air shutter for a blue ﬂ ame or close for a more yellow ﬂ ame.

CAUTION: Carbon will be produced if air shutter

is tightly closed.

Note: Any damage due to carboning

resulting from improperly setting

Minimum Air Shutter Opening:

the aeration controls is NOT covered under warranty.

NG 1/4"

Air shutter rod - located to the left

of the valve assembly.

LP 3/8"

WIRING DIAGRAM

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation, Proﬂ ame GTMF, and light options.

(Do not cut the ground terminal off under any circumstances.) NOTE: Even if the fan, GTMF system or light options are not purchased with the unit, it is still a good idea to bring power to the receptacle box (pro-

vided with the unit) in case the optional fan or light is installed at a later date.

LINE VOLTAGE WIRING TO RECEPTACLE IN UNIT

TO MAKE OUTLETS INDEPENDENT OF EACH OTHER

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Ground

Star washer

Lockwasher

Fan

ground wire

#8 Ground Lug

(mobile home

Nut

Light

Switch

approved)

Black

Fan

Switch

Red

Break Tab

Copper terminals

Black

120V AC 60 Hz

Receptacle

in Unit

Optional Fan

Ground

Neutral

Live

Green

Ground

ON OFF

Black Red Red

Rotary Speed

Control

ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN

Ground

To Fan (see above)

Do Not Break Tab

on Neutral (silver terminals)

Fan

Minimum Convection

Air Temp. Switch

Optional Accent Light

Green

Regency Bellavista™ B36XT Gas Fireplace

WIRING DIAGRAM FOR NG AND LP UNITS

INSTALLATION

Star washer

Burner

Lockwasher

Fan

ground wire

ON OFF

Nut

#8 Ground Lug

(for mobile home)

Thermopile

Gas Pilot

Thermocouple

Electrode

120V AC 60 Hz

Neutral

Live

Pilot

Assembly

DC Spark

Box

Brown White

White Black

Ground

(To THTP)

(To TH)

To Thermocouple IN

T-Stat

(To TH)

WIRING DIAGRAM FOR GTMF REMOTE

Ground

Green

Ground

ON OFF

Rotary Speed

Control

"S.I.T" Valve

Optional Fan

Fan

Black Red Red

Minimum Convection

Air Temp. Switch

P I

Gas In

Regency Bellavista™ B36XT Gas Fireplace

2 ft. wiring harness

INSTALLATION

584 Proflame GT Series

Feature Sheet

111

(X) Indicates Included Feature

Note 1 ~ Proﬂ ame Flame Modulator for GTM & GTMF Remote Controls are sold seperately. Choice of NG or LP ﬂ ame modulator (to match unit fuel type). See Regency Retail Price pages for complete details

Note: Regency Proﬂ ame systems include a white and black wall cover & switch.

Regency Bellavista™ B36XT Gas Fireplace

OPTIONAL ACCENT LIGHT INSTALLATION

INSTALLATION

B36XT/B36XTE Accent Light Kit # 576-959

1 Light Assembly -includes cable tie/ gasket.

1 910-997 Halogen Bulb

1 940-363 Amber glass

1 910-199 Adhesive wire clip

1 918-821 Instruction Sheet

Important: 120 Volt AC power is required to operate the light. The receptacle box will be installed on the left hand side of the unit and will need to be wired by a qualiﬁ ed electrician prior to the light installation. The neutral (wider) slot of the polarized receptacle should be at the top. A wall mounted switch should also be installed to turn the accent light on and off.

Note: Receptacle Box is switch operated. Refer to wiring diagram in the manual.

1) Shut off electrical supply.

2) Remove the louvers / full screen doors - if installed.

3) Remove the glass door.

4) Remove the logs - if installed.

5) Remove the rear log tray by removing 2 screws (locations shown

below) then lifting out.

8) When light assembly has been fully seated secure in place with 2 screws that were removed from the cover plate

9) From underneath the ﬁ rebox - slide back the protective sheath on the plug wiring to reveal connectors.

Connectors

10) Plug the red light assembly wiring into the blue plug wiring - as shown below.

NOTE: The ground wire will need to be pulled back out of the protective

casing to be able to reach the ground lug. Gently pull the end of the green wire backwards exposing enough wire to reach ground lug.

Protective Sheath

Rear Log Tray

6) Remove the 2 screws securing the cover plate to the ﬁ rebox base. Discard cover plate - keep the 2 screws.

Cover plate

7) From inside the ﬁ rebox - feed the wires from the bottom of the light assembly

- through the opening exposed after the removal of the cover plate.

Light assembly

wiring

Regency Bellavista™ B36XT Gas Fireplace

11) Slide protective sheath back over connectors until it meets the underside of the ﬁ rebox base - to protect wires. Secure end of sheath with a cable tie.

Cable Tie

INSTALLATION

2) After the wiring has been connected, secure green ground wire to ground lug as shown below.

Ground lug is located on the lower left corner inside the bottom of the unit.

Ground

Lug

3) Using the adhesive wire holder, neatly secure the loose wiring to the base of the unit.

Ensure wiring does not come into contact with the fan blades or any sharp metal edges.

15) Install the halogen bulb supplied with the kit.

Important: Use caution - do not touch the bulb during

installation. Use the plastic packaging as a protective covering while installing the bulb.

16) Install a gasket over top of the bulb.

Gasket

17) Install the light diffuser by securing it to the rear log tray with 2 screws - see below.

Wire Clip

4) Reinstall the rear log tray - secure with 2 screws.

Installed diffuser shown below with 2 options:

a) With amber glass plate - for use with units without panels or with brick panels. Left and right side tabs to be bent down 90

degrees as shown below (Image A).

b) Amber glass plate covered - for use with units using stainless steel / black enamel panels as show below in Image B.

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

18) Reinstall the logs.

19) Reinstall glass door and bottom louver / full screen doors.

20) Plug the light assembly into the receptacle located on the

bottom left side of the unit.

Ground Wire Receptacle

21) Turn on electrical supply - test lights.

BULB REPLACEMENT

1) Follow steps 1- 4 from previous page.

2) Remove 2 screws to remove light diffuser plus gasket.

3) Replace the bulb - do not touch bulb with bare hands, use gloves or bulb

packaging to protect bulb.

Ground

Star washer

4) Reinstall the gasket and light diffuser.

5) Reverse steps 4-1.

LINE VOLTAGE WIRING TO RECEPTACLE IN UNIT

TO MAKE OUTLETS INDEPENDENT OF EACH OTHER

Lockwasher

Fan

ground wire

#8 Ground Lug

(mobile home

Nut

Light

Switch

approved)

Black

Fan

Switch

Red

Break Tab

Copper terminals

Black

120V AC 60 Hz

Receptacle

in Unit

Ground

Neutral

Live

Ground

ON OFF

Rotary Speed

ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN

Ground

Do Not Break Tab

on Neutral (silver terminals)

Optional Fan

Green

Black Red Red

Control

To Fan (see above)

Fan

Minimum Convection

Air Temp. Switch

Optional Accent Light

Green

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

FLUSH GLASS DOOR INSTALLATION

1) Line up slots on ﬂ ush glass door with tabs in ﬁ rebox. Hook slots on to tabs and lower door slowly (See Diagram 1).

Tabs in Firebox

Diagram 1

2) Lower the ﬂ ush door, then hook the 2 adjustable tension latches - close the latches to secure the ﬂ ush door(See Diagram 2).

Adjustable Tension

Latch location

Diagram 2

Note: To remove Flush Glass door reverse Steps 1 and 2.

Regency Bellavista™ B36XT Gas Fireplace

Finishing

Trim Top

Finishing

Trim Side

OPTIONAL FINISHING TRIM INSTALLATION

NOTE: Install the Finishing Trim prior to installing the Flush Louvers.

Install the Finishing Trim sides as shown in the diagram; line up the holes in the

side trim with the holes in the ﬁ rebox side.

2) Secure with 2 screws per side.

3) Loosen the 2 screws in the top inside edge of the ﬁ rebox.

4) Slide the Finishing Trim Top over the Side Trim pieces and ﬁ t the

bottom bracket slots over the screws. Tighten the 2 screws to secure in place.

B41XT B36XT

43-3/8" 40-1/2"

Finishing Trim

Edge of Unit

37-5/8" 35-3/4"

INSTALLATION

FLUSH LOUVERS AND FLUSH PANEL INSTALLATION

To install the top and bottom louvers or ﬂ ush panels:

1) Locate the tabs on louvers/ﬂ ush panels.

2) Line up the tabs on louvers/ﬂ ush panels with the brackets on the unit.

3) Hook the tabs up over the brackets to attach.

Tabs on Louver/Flush Panel

Installation of upper

Louver/Flush Panel

Bracket on unit for lower

Louver/Flush Panel

Installation of lower

Louver/Flush Panel

Bracket on unit for upper

Louver/Flush Panel

Regency Bellavista™ B36XT Gas Fireplace

INSTALLATION

FULL SCREEN ARCH DOOR AND FRAME INSTALLATION

1) Remove glass door (refer to glass door removal in the manual).

2) Install 4 Phillips screws (supplied with packaging) to the inside walls of the unit (see Diagram 1 for locations).

Do not tighten the screws - leave them loose for the next step.

Diagram 1

3) Lift screen doors off of door frame to reduce the weight during installation.

4) Mount the door frame onto 4 loosened screws and retighten.

Note: The door frame is adjustable up by 3/4" to accommodate for ﬁ nished ﬂ ooring.

The door frame can also be adjusted out 3/4" from the unit to accommodate ﬁ nishing materials. See Diagram 2

5) Reinstall glass door.

6) Install bottom mesh door .

a) Locate tabs on bottom mesh door.

b) Locate bracket on lower ﬂ oor of unit.

c) Hook the tab on the bottom mesh door over the bracket to install

Tabs on bottom mesh door.

Diagram 3b

Bracket on unit for bottom mesh

door.

b) Line up the tabs on top louver with the brackets on the unit.

c) Hook the tab on the top louver over the bracket to install.

Diagram 5b

Bracket on unit for top louver

Diagram 5cDiagram 3a

Diagram 6

8) Rehang screen doors on frame See Diagram 7.

Diagram 2

Diagram 4

7) Install top louver.

a) Locate tabs on top louver

Tab on top louver.

Diagram 5a

Diagram 7

Final Screen Install

Regency Bellavista™ B36XT Gas Fireplace

OPERATING INSTRUCTIONS

INSTALLATION

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the glass door frame

is properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) The unit should never be turned off, and on again without a minimum of a 60 second wait.

FIRST FIRE

The FIRST FIRE in your heater is part of the paint curing process. To ensure the paint is properly cured, it is recommended you burn your ﬁ replace for at least four (4) hours the ﬁ rst time.

When ﬁ rst operated, the unit will release an odour caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours. The glass may require cleaning.

NOTE: When the glass is cold and the appliance

is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS STILL HOT!

LIGHTING

PROCEDURE

IMPORTANT To ignite or reignite the pilot, you must ﬁ rst remove the glass door.

NOTE: The Gas ON/OFF knob cannot be turned from "ON", "PILOT" or "OFF" unless it is partially depressed.

1) Ensure the wall mounted switch or remote

is in the "OFF" position.

2) Turn the gas control knob so the indicator points to the "OFF" position and wait 5 minutes for any gas in the combustion chamber to escape.

3) Turn the gas control knob counterclockwise so the indicator points to the "PILOT" position. Depress the gas control knob fully until the pilot lights. After approximately one minute, release the gas control knob. The pilot ﬂ ame should continue to burn.

Only when the pilot holds, without pressure

being applied to the gas control knob, re-install the glass door to the unit. The unit must not be operated without the glass door in place.

If the pilot does not remain lit, repeat opera-

tion allowing a longer period before releasing gas control knob.

4) When the pilot stays lit, turn the gas control knob to the "ON" position.

5) Use the wall switch or remote control to turn the unit ON.

NOTE: When using the remote control refer to

the remote manual.

NOTE: If there is no spark present at the pilot

when depressed, the AA battery may be weak. Refer to "DC Spark Battery Replacement" section.

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Burner Tray:

The burner tray is positioned directly under the burner and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. Y ou should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Pilot Flame:

While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

DO NOT BURN THE UNIT WITHOUT THE GLASS DOOR IN PLACE.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned after the unit has cooled down or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and DO NOT A TTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.

Regency Bellavista™ B36XT Gas Fireplace

SHUTDOWN

PROCEDURE

1) Turn the wall mounted switch or remote to

the "OFF" position.

2) Press "OFF" on the remote control.

3) Turn the gas control knob to the "OFF" posi-

tion to turn off the pilot.

5959

OPERATING INSTRUCTIONS

COPY OF LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any; if none, follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes,

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these

instructions exactly.

B) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor

because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department.

C) Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not

push in or turn by hand, don’t try to repair it, call a qualiﬁ ed service technician. Forced or attempted repair may result in a ﬁ re or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service

technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

E) This appliance needs fresh air for safe operation and must be installed so there are provisions for

adequate combustion and ventilation air.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having ﬂ ammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

CSA B149.1. (Australia: AS5601-2004, New Zealand: NZS 5261)

LIGHTING INSTRUCTIONS

STOP! Read the safety information above on this label.

1) Push in gas control knob slightly and turn clockwise to “OFF”. Knob cannot be turned from “PILOT” to “OFF” unless knob is pushed in slightly. Do not force.

PILOT BURNER VEILLEUSE

THERMOPILE

ELEMENT THERMOELECTRIQUE

2) Wait ﬁ ve (5) minutes to clear out any gas. If you then smell gas STOP! Follow step “B” in the Safety

Information above on this label. If you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to“PILOT”.

4) Push in control knob all the way and hold in until the pilot lights up. Continue to hold the control

knob in for about 20 seconds after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 1) to 4). If knob does not pop up when released, stop and immediately call your service technician or gas supplier. If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclock-wise to “ON”.

6) Turn the unit on.

OFF

TO TURN OFF GAS APPLIANCE

1) Turn off the unit.

2) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force.

3) Turn off all electric power to the appliance if service is to be performed.

You may shut off the pilot during prolonged non use periods to conserve fuel.

DO NOT REMOVE THIS INSTRUCTION PLATE

918-583

Regency Bellavista™ B36XT Gas Fireplace

MAINTENANCE

MAINTENANCE INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas ﬁ replace glass cleaner. The glass should

be cleaned when it starts looking cloudy.

3) The heater is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resistant paint. Regency Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without the

glass properly secured in place.

6) Do not use this appliance if any part has been

under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

7) In the event this appliance has been serviced check that the vent-air system has been properly resealed & reinstalled in accordance with the manufacturer's instructions.

8) Verify operation after servicing.

General Vent Maintenance

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

uses StoveBright

liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.

Note: Improper positioning of logs may create

carbon build-up and will severely alter the unit's performance which is not covered under warranty.

THERMOPILE /

THERMOCOUPLE

1) Open the Bottom Louvers or Grills. Remove the Top Louver or Grill.

2) Remove the Trim Kit, Glass Door, Log Set, Grate and Burner Assembly (see the "Log Installation" & "Glass Door Removal" sections).

3) Disconnect thermocouple by loosening nut from the valve with a 9mm wrench. Disconnect thermopile by loosening 2 screws marked TP on the valve.

4) Remove 2 screws from the pilot assembly and pull up far enough to be able to loosen the thermocouple or thermopile with a 7/16" wrench. NOTE: the pilot line is very fragile, use caution when pulling it up.

5) Drop the thermocouple or thermopile down through the extrusion and pull it out of the unit.

6) Reinstall the new ones in reverse order.

DOOR GLASS

Your Regency® ﬁ replace is supplied with high temperature 5mm-Ceramic glass. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials.

CAUTION & WARNINGS:

* Do not clean when the glass is hot. * The use of substitute glass will void all product warranties. * Care must be taken to avoid breakage of the glass. * Do not strike or abuse the glass. * Do not operate this ﬁ replace without the glass front or with a cracked or broken glass front. * Wear gloves when removing damaged or broken glass. * Replacement of the glass panels should be done by a licensed or qualiﬁ ed service per son.

GLASS REPLACEMENT

In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only. Replacement glass (Part #940-357/P) is shipped already installed into the door frame. Reinstall as per Glass Door Installation in the "Glass Door Removal" section.

BULB REPLACEMENT

1) Follow steps 1- 4 on page 53.

2) Remove 2 screws to remove light diffuser

plus gasket.

3) Replace the bulb - do not touch bulb with bare hands, use gloves or bulb packaging to protect bulb.

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive condensation, such as water droplets forming in the inner

Regency Bellavista™ B36XT Gas Fireplace

GLASS GASKET

If the glass gasket requires replacement use a tadpole glass gasket (Part # 936-155).

4) Reverse steps.

MAINTENANCE

REMOVING VALVE

1) Shut off the gas and electrical supply.

2) Remove the louvers

3) Open the ﬂ ush door and remove the door.

4) Remove the logs.

5) Remove the burner/grate assembly by

removing the 2 Phillips head screws.

Diagram 1: Remove the left and right screws.

6) Slide the burner assembly to the left to release it from the oriﬁ ce, then lift it out.

8) Disconnect the inlet gas line. (see Diagram 4)

Diagram 4

9) Disconnect the wall switch wires from the valve. (see Diagram 5)

Diagram 5

10) Remove the 8 Phillips head screws securing

the valve tray assembly in place (Diagram

6) and then lift the entire assembly out (Diagram 7).

Diagram 8

INSTALLING VALVE

1) Place new valve tray into position

2) Reinstall the 8 hold down screws.

3) Hook up the 2 TP and 2 TH wires to the ap-

propriate connections on the valve.

4) Reinstall the rear log tray.

5) Install burner/grate assembly

6) Hook up the gas line and check for gas leaks

with a soap and water solution or a gas leak detector. (Do not use open ﬂ ame for leak testing.)

7) Fire up the unit temporarily

Oriﬁ ce

Diagram 2: Slide burner assembly to the left

and then remove.

7) Remove the 2 screws securing the rear log tray and lift out. Diagram 3

Diagram 3

8) Check the manifold pressure.

9) Reinstall the logs and brick panels as

needed.

10) Reinstall the door and replace the louvers.

11) Fire up the unit again and check for proper

ﬂ ame appearance and glow on logs.

Diagram 6

Diagram 7

Regency Bellavista™ B36XT Gas Fireplace

MAIN ASSEMBLY

PARTS LIST

Part # Description

1) 576-084F Top Insulation Plate

2) 576-099 Top Insulation

3) 556-524 Flue Collar Outer Assembly

4) 556-095 Flue Collar Gasket

5) 556-097 Exhaust Gasket

6) 556-513 Flue Collar Inner Assembly

7) 556-088F Top Relief Plate

8) 556-094 Relief Gasket - Door Top

9) 576-901 Brick Panel - Standard Brown 576-902 Brick Panel - Standard Red 576-904 Brick Panel - Castle Stone 576-907 Stainless Steel Panels 576-908 Black Enamel Panels

10) 820-389 Thermodisc Bracket

11) 910-073 Spark Generator Battery Holder

12) 948-165 Adjustable Tension Latch

13) 904-731 Capscrew 1/4 - 20 x 3.5 NC Gr5

14) 940-357/P Ceramic Glass

15) 556-012 Door Frame

16) * Outerbox Assembly

17) * Firebox Assembly

Part # Description

18) 576-917 Fan Assembly

19) 910-331/P Fan Motor (120 Volts) 432-966 Fan Switch Assy (120 Volts)

20) 910-813 Power Cord (120 Volts)

21) 910-330 Fan Speed Control

22) 904-586 Knob - Speed Control

23) 910-142 Thermodisc - Fan Auto ON/OFF

24) 946-000 Round Duct Adaptor

25) 910-367 Box - Plastic Switch Receptacle

26) 910-412 Fan Speed Controller

27) 910-417 Knob - White

28) 910-366 Switch Cover Plate - White

29) 946-006 Grill Plate - White

30) 946-005 Wall Adaptor Plate - White

31) 946-002 Round to Oval Adaptor

32) 946-001 Oval Duct Adaptor

33) 946-007 Angle Bracket

34) 946-517/P Fan Assembly - Heat Wave

35) 946-004 Junction Box

36) 918-769 Manual * Not available as a replacement part.

Regency Bellavista™ B36XT Gas Fireplace

PARTS LIST

FAN SWITCH ASSEMBLY

MAIN ASSEMBLY

FAN SWITCH ASSEMBLY

Regency Bellavista™ B36XT Gas Fireplace

BURNER ASSEMBLY

PARTS LIST

Part # Description

1) 576-077 Rear Log Tray

3) 576-525 B36XT Burner Assembly

4) 576-057 B36XT Grate Assembly

5) 904-644 Oriﬁ ce # 35 NG 904-645 Oriﬁ ce # 51 LP

6) 910-568 Valve NG/LP SIT High/Low 820

7) * Valve Tray - B36XT

Part # Description

9) 576-574/P Valve Assembly - NG 576-576/P Valve Assembly - LP

10) 910-038 Pilot Assembly - NG 910-039 Pilot Assembly - LP 910-386 Thermocouple 910-341 Thermopile

Regency Bellavista™ B36XT Gas Fireplace

NOTES

Regency Bellavista™ B36XT Gas Fireplace

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance T eam carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase. External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date of

purchase and parts only thereafter. Special Finishes - One year on brushed nickel and antique copper full screens and doors. Y ou can expect some changes in color as the product "ages" with constant heating and

cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase. Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty. Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item

shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective. All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase

date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.

ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed. FPI will not be liable for travel costs for service work. Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy. Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy. Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy. The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence

or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer. FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on

this product. Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

product. FPI will not be liable for results or costs of workmanship from

Product.

Regency Bellavista™ B36XT Gas Fireplace

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and special offers on related products.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

Printed in Canada

Regency B36XT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
