Reflexion Reflexion Soundbar User manual

Reflexion Soundbar

AIO-1000

SAFETY INFORMATION

CAUTION: To reduce the risk of fire and electric shock, do not remove
the cover of this product. Refer all maintenance requests to authorized
personnel only.

This lighting flash arrow symbol in a triangle alerts users to the
presence of non-insulated high voltage within the product's enclosure
that present an electrical shock hazard.

The exclamation point symbol in a triangle alerts users to the presence
of important operating and maintenance instructions in the literature
accompanying this product.

1. Caution: To reduce the risk of electric shock, do not remove the cover.
There are no user-serviceable parts inside. Please refer servicing to a
qualified personnel.

2. Do not install the equipment in a place exposed to direct sunlight.

3. Do not install the equipment in a dusty, damp or poorly ventilated place.

4. To prevent damage to the equipment, please unplug from the mains
power outlet when not in use.

5. To unplug the equipment, always detach using the plug. Do NOT pull out
the plug by tugging the cord.

6. Avoid placing other objects on top of the speaker system.

7. Cleaning care: Use a soft, dry cloth for cleaning.

8. Please do not block the cooling vents to avoid overheating.

PACKAGING CONTENTS

1. 5.1 Speaker System

2. Remote Control.

3. Coaxial Cable

4. FM Aerial

5. Optical Cable

6. Wall Mounting brackets

FRONT AND BACK PANEL

Controls

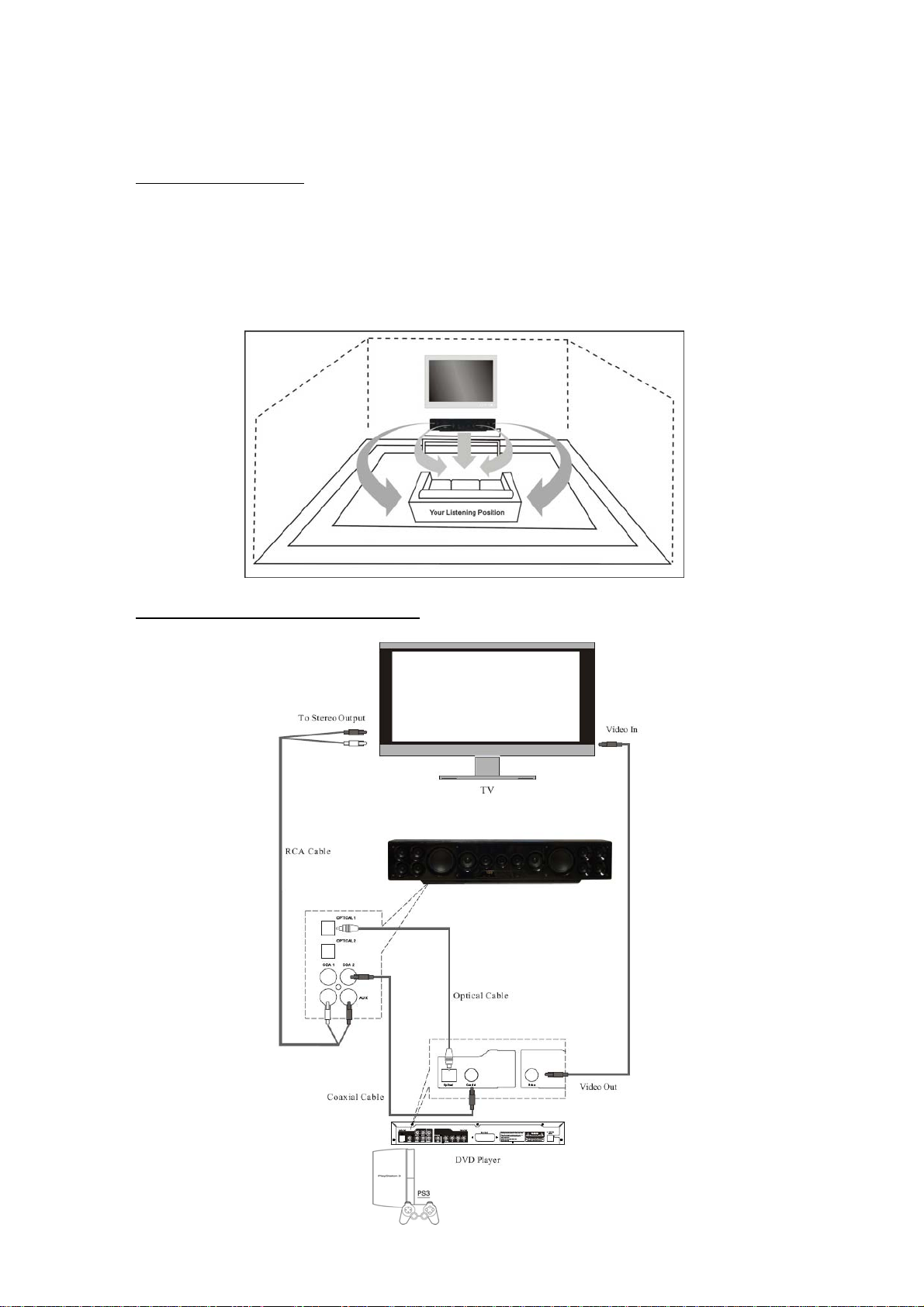

Inputs

1. ON/OFF STANDBY SWITCH

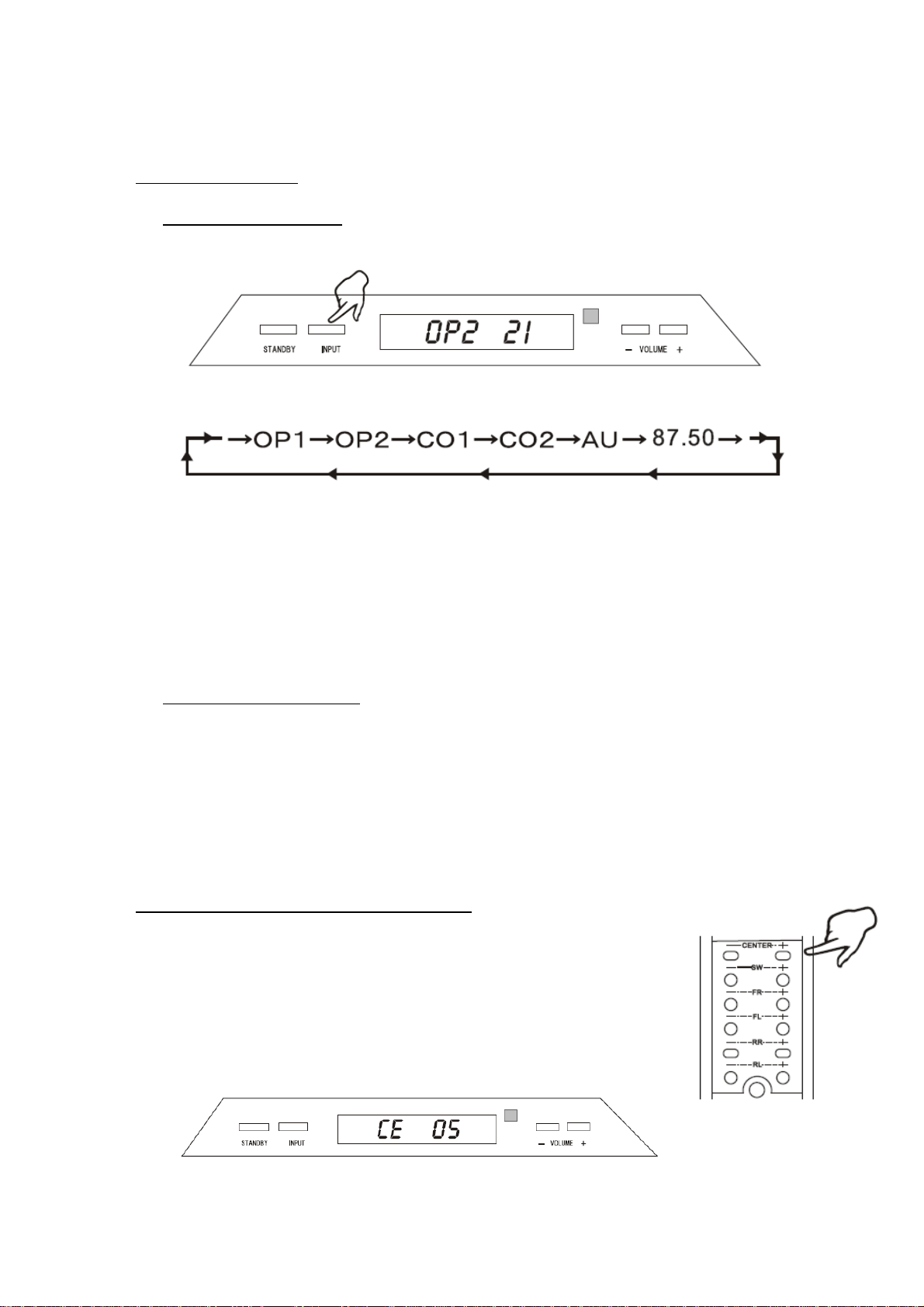

2. INPUT : Input Selection

3. LED Display

4. REMOTE CONTROL
SENSOR

5. VOLUME - : Volume DOWN

6. VOLUME + : Volume UP

7. POWER ON/OFF SWITCH

8. OPTICAL 1

9. OPTICAL 2

10. COAXIAL 2

11. AUX RIGHT

12. AUX LEFT

13. COAXIAL 1

14. FM ANTENNA

REMOTE CONTROL

1. STANDBY: Power Standby Button.

2. COAXIAL1/2: Coaxial Input Selection.

3. FM: FM Selection Button.

4. STEREO: Stereo or Mono FM Radio Selection.

5. MEMORY: Station Memory Button.

6. TU-CH : Preset Channel Down.

7. CENTER-: Center Volume Level Down Button

8. SW-: Subwoofer Volume Level Down Button

9. FR-: Front Right Volume Level Down Button.

10. FL-: Front Left Volume Level Down Button.

11. RR-: Rear Right Volume Level Down Button.

12. RL-: Rear Left Volume Level Down Button.

13. SRS: SRS Selection.

14. TEST: Noise Sequencer Button.

15. MODE: Mode Selection Button.

16. MAIN VOLUME-: Main Volume Down.

17. RESET: Location Retrieval.

18. OPTICAL1/2: Optical Input Selection.

19. AUX: AUX Input Select.

20. AUTO: Reception Selection.

21. SCAN : Frequency Tuning Down Button.

22. SCAN : Frequency Tuning Up Button.

23. TU-CH : Preset Channel Up Button.

24. CENTER+: Center Volume Level Up Button.

25. SW+: Subwoofer Volume Level Up Button.

26. FR+: Front Right Volume Level Up Button.

27. FL+: Front Left Volume Level Up Button.

28. RR+: Rear Right Volume Level Up Button.

29. RL+: Rear Left Volume Level Up Button.

30. MUTE: Mute Button.

31. DSP: DSP Sound Field Selection.

32. MAIN VOLUME+: Main Volume Up Button.

1. Insert 2 x AAA batteries into the battery compartment at the back of the
remote control.

Please ensure that the batteries are inserted correctly. If they are inserted
incorrectly, it may cause personal injury as well as damage to the remote
control.
WARNING: Do not mix batteries of different types and capacities in the
remote control. Do not drop or cause unnecessary shocks to the batteries.
Do not dispose of batteries in fire as they can rupture or leak. Please
remove the batteries from the compartment when not in use for long
periods.

2. The remote control has a 7 metre operating range at a 30 degree angle
left or right away from the Sound Bar.
