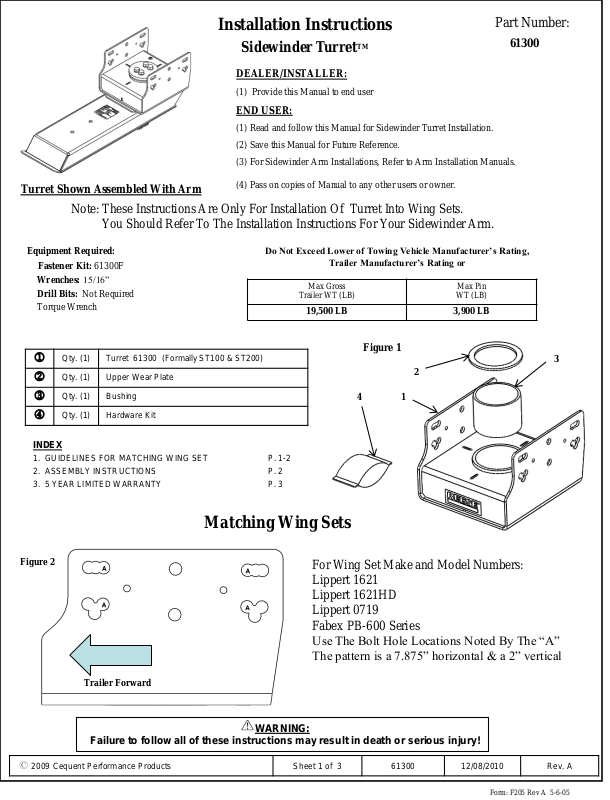

Reese 61300 User Manual
Installation Instructions
Sidewinder Turret
DEALER/INSTALLER:
(1) Provide this Manual to end user
END USER:
(1) Read and follow this Manual for Sidewinder Turret Installation.
(2) Save this Manual for Future Reference.
(3) For Sidewinder Arm Installations, Refer to Arm Installation Manuals.
TM
Part Number:
61300
Turret Shown Assembled With Arm
(4) Pass on copies of Manual to any other users or owner.
Note: These Instructions Are Only For Installation Of Turret Into Wing Sets.
You Should Refer To The Installation Instructions For Your Sidewinder Arm.
Equipment Required:
Fastener Kit: 61300F
Wrenches: 15/16”
Drill Bits: Not Required
Torque Wrench
Qty. (1) Turret 61300 (Formally ST100 & ST200)
j
Qty. (1) Upper Wear Plate
k
Qty. (1) Bushing
l
Qty. (1) Hardware Kit
m
INDEX
1. GUIDELINES FOR MATCHING WING SET P. 1-2
2. ASSEMBLY INSTRUCTIONS P. 2
3. 5 YEAR LIMITED WARRANTY P. 3
Do Not Exceed Lower of Towing Vehicle Manufacturer’s Rating,
Trailer Manufacturer’s Rating or
Max Gross
Trailer WT (LB)
19,500 LB 3,900 LB
Max Pin
WT (LB)
Figure 1
2
4
1
3
Figure 2
Trailer Forward
Failure to follow all of these instructions may result in death or serious injury!
z 2009 Cequent Performance Products
Matching Wing Sets
For Wing Set Make and Model Numbers:
Lippert 1621
Lippert 1621HD
Lippert 0719
Fabex PB-600 Series
Use The Bolt Hole Locations Noted By The “A”
The pattern is a 7.875” horizontal & a 2” vertical
WARNING:
Sheet 1 of 3 61300 12/08/2010 Rev. A
Form: F205 Rev A 5-6-05
Installation Instructions
Figure 3
Figure 4
Trailer Forward
Sidewinder Turret
TM
Matching Wing Sets
For Wing Set Make and Model Numbers:
Lippert 1716
Lippert 1116
Lippert 0115
Use The Bolt Hole Locations Noted By The “B”
The pattern is a 8.75” horizontal & a 2.5” vertical
Note: Spacer Kit 61301 Is Needed For These Model Wings
For Wing Set Make and Model Numbers:
Fabex PB-500 Series
Note: For the 500 series only one row is needed.
(2 Bolts per Side)
Fabex PB-700 Series
Use The Bolt Hole Locations Noted By The “C”
The pattern is a 9.5” horizontal & a 2” vertical
Trailer Forward
Note: Spacer Kit 61301 Is Needed For These Model Wings
Typical Bolting
Hardware Kit Contains: (8) 5/8-11x2 Gr.8 Bolts / (8) 5/8-11 Gr.8 Nuts / (8) 5/8 HD Flat Washers / (8) 5/8 Conical Lock Washers
Bolts & Flat Washers Are Installed From The Outside, Conical Lock Washers and Nuts On the Inside.
Torque All To 210 ft. lbs.
5/8-11 Gr.8 Nut
5/8 Conical Lock Washer
Typical Wing
5/8 HD Flat Washer
5/8-11x2 Gr.8 Bolt
z 2009 Cequent Performance Products
Sheet 2 of 3 61300 12/08/2010 Rev. A
Form: F205 Rev A 5-6-05
