Reese 33018 User Manual

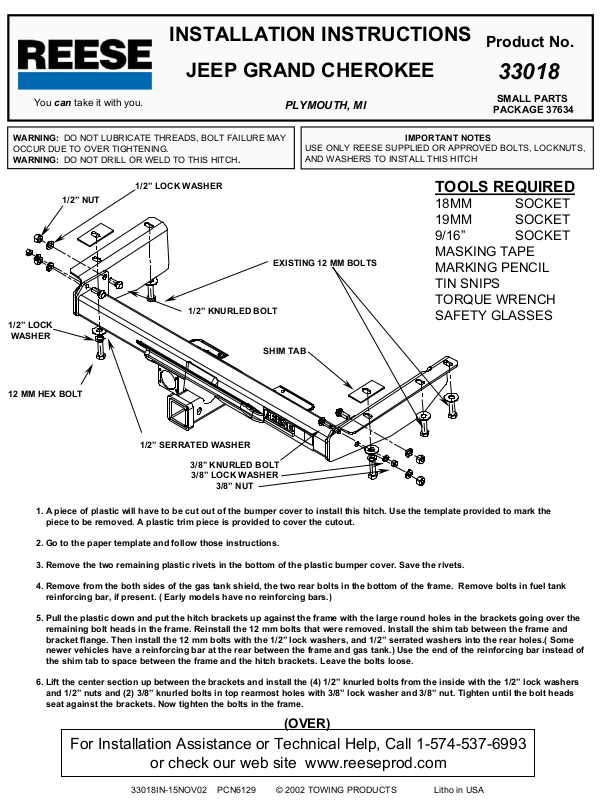

INSTALLATION INSTRUCTIONS

Product No.

JEEP GRAND CHEROKEE

You can take it with you.

WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY
OCCUR DUE TO OVER TIGHTENING.

WARNING: DO NOT DRILL OR WELD TO THIS HITCH.

1/2” LOCK WASHER

1/2” NUT

1/2” KNURLED BOLT

1/2” LOCK

WASHER

SHIM TAB

12 MM HEX BOLT

33018

PLYMOUTH, MI

USE ONLY REESE SUPPLIED OR APPROVED BOLTS, LOCKNUTS,
AND WASHERS TO INSTALL THIS HITCH

IMPORTANT NOTES

TOOLS REQUIRED

18MM SOCKET
19MM SOCKET
9/16” SOCKET

EXISTING 12 MM BOLTS

MASKING TAPE
MARKING PENCIL
TIN SNIPS
TORQUE WRENCH
SAFETY GLASSES

SMALL PARTS

PACKAGE 37634

1/2” SERRATED WASHER

3/8” KNURLED BOLT

3/8” LOCK WASHER

3/8” NUT

1. A piece of plastic will have to be cut out of the bumper cover to install this hitch. Use the template provided to mark the
piece to be removed. A plastic trim piece is provided to cover the cutout.

2. Go to the paper template and follow those instructions.

3. Remove the two remaining plastic rivets in the bottom of the plastic bumper cover. Save the rivets.

4. Remove from the both sides of the gas tank shield, the two rear bolts in the bottom of the frame. Remove bolts in fuel tank

reinforcing bar, if present. ( Early models have no reinforcing bars.)

5. Pull the plastic down and put the hitch brackets up against the frame with the large round holes in the brackets going over the
remaining bolt heads in the frame. Reinstall the 12 mm bolts that were removed. Install the shim tab between the frame and
bracket flange. Then install the 12 mm bolts with the 1/2” lock washers, and 1/2” serrated washers into the rear holes.( Some
newer vehicles have a reinforcing bar at the rear between the frame and gas tank.) Use the end of the reinforcing bar instead of
the shim tab to space between the frame and the hitch brackets. Leave the bolts loose.

6. Lift the center section up between the brackets and install the (4) 1/2” knurled bolts from the inside with the 1/2” lock washers
and 1/2” nuts and (2) 3/8” knurled bolts in top rearmost holes with 3/8” lock washer and 3/8” nut. Tighten until the bolt heads
seat against the brackets. Now tighten the bolts in the frame.

(OVER)

For Installation Assistance or Technical Help, Call 1-574-537-6993

or check our web site www.reeseprod.com

33018IN-15NOV02 PCN6129 © 2002 TOWING PRODUCTS Litho in USA

6. Torque the 12mm bolts to 75 ft*lb*.
Torque the 1/2” nuts to 75 ft*lb*.
Torque the 3/8” nuts to 35 ft*lb*.

7. Check the fit of the plastic trim piece. Be sure the holes in the trim piece align with the holes in the bumper. Trim a little more
if needed.

8.

The plastic bumper must be clean before attaching the trim piece. Avoid applying the trim piece at
temperatures below 65 deg. The adhesive strips won’t work well. Using the supplied cleaner, clean
the area of the bumper cover where the trim piece will make contact.

9. Loosely reattach the center two rivets through the trim piece and the bumper cover. Pull the top of the trim piece toward you
and remove the tape from the adhesive strips. Push the trim piece firmly against the bumper.

10. Reinstall any remaining rivets in the bottom of the bumper.

Remove these two plastic rivets to apply the cutting template.

For Installation Assistance or Technical Help, Call 1-574-537-6993

or check our web site www.reeseprod.com

THIS PRODUCT COMPLIES WITH SAFETY SPECIFICATION AND REQUIREMENTS FOR THE STATE OF NEW YORK AND VESC REGULATION V-5 FOR CONNECTING DEVICES AND
TOWING SYSTEMS. WEIGHT DISTR IBUTING HITCH RA TING IS 7500 LB. MAX. GROSS TRAILER WEIGHT AND 750 L B. MAX. TONGUE WEIGHT. WEIGH T CARRYING HITCH RATING IS
5000 LB MAX GROS S TRAILER WEIGHT AND 500 LB MAX TONGUE WEIGHT. CONSULT VEHICLE OWNERS MANUAL FOR TOWING RECOMMENDATIONS AND LIMITATIONS.
