Reece 2000 Deco User Manual

DECO 2000

TABLE OF CONTENTS

Main Frame Assembly .................................................................................................................................3-2

Cam and Gears ...........................................................................................................................................3-6

Upper Nedle Bar Mechanism ......................................................................................................................3-8

Presser Foot Mechanism ...........................................................................................................................3-10

Lower Needle Bar Mechanism ..................................................................................................................3-14

Lower Looper and Thread Drum Mechanism ............................................................................................. 3-16

Main Cam Shaft Assembly.........................................................................................................................3-20

Thread Gripper & Elevator Mechanism ...................................................................................................... 3-22

Pick Stitch & T ension Finger ......................................................................................................................3-24

T ension Finger Assembly............................................................................................................................3-28

Material Feed ............................................................................................................................................ 3-30

Angle Stitch Mechanism.............................................................................................................................3-34

Upper Looper ...........................................................................................................................................3-36

W ork Plate Assembly ................................................................................................................................ 3-40

Presser Foot &Swivel T oe Assembly .........................................................................................................3-42

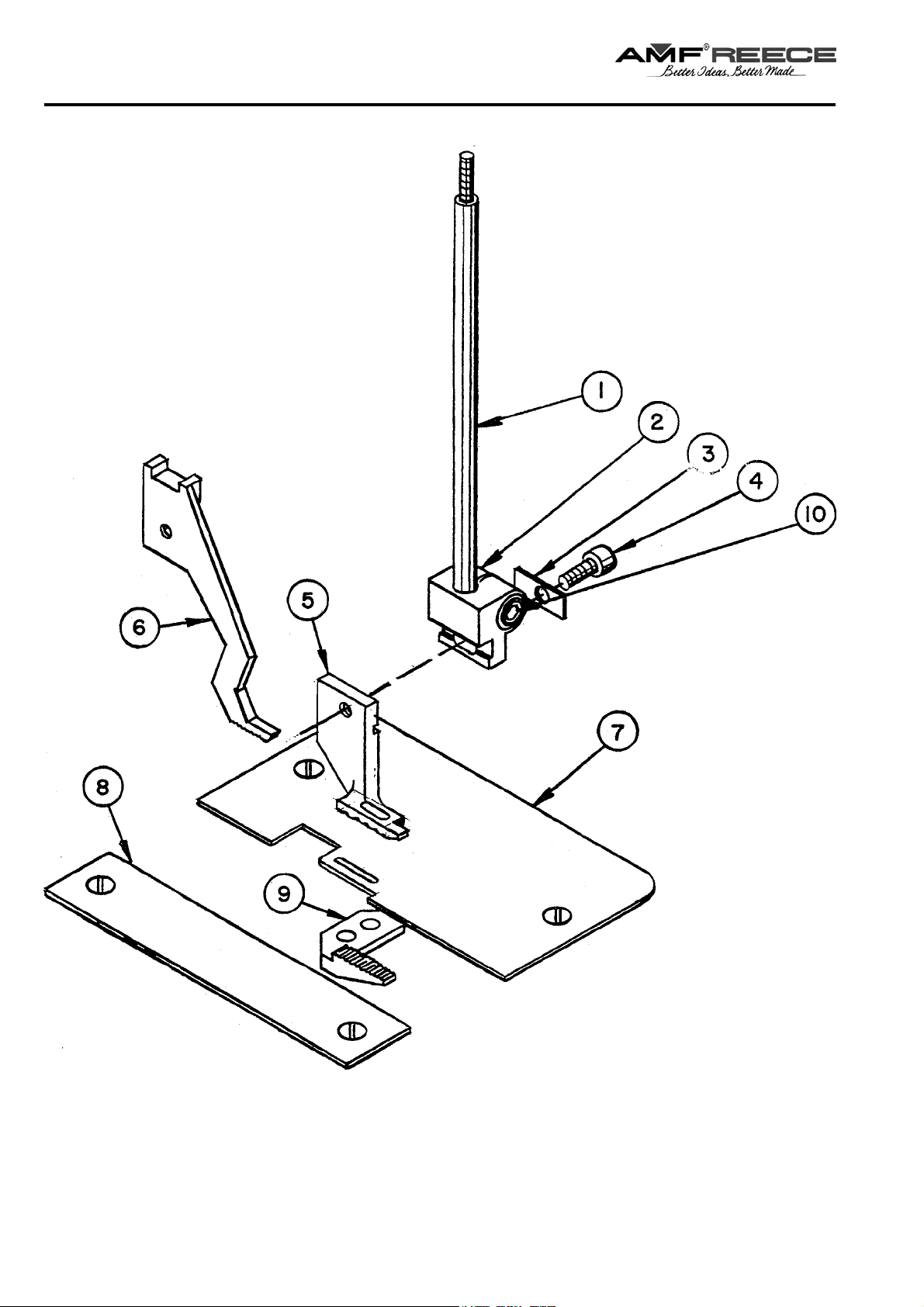

Presser Foot.............................................................................................................................................. 3-44

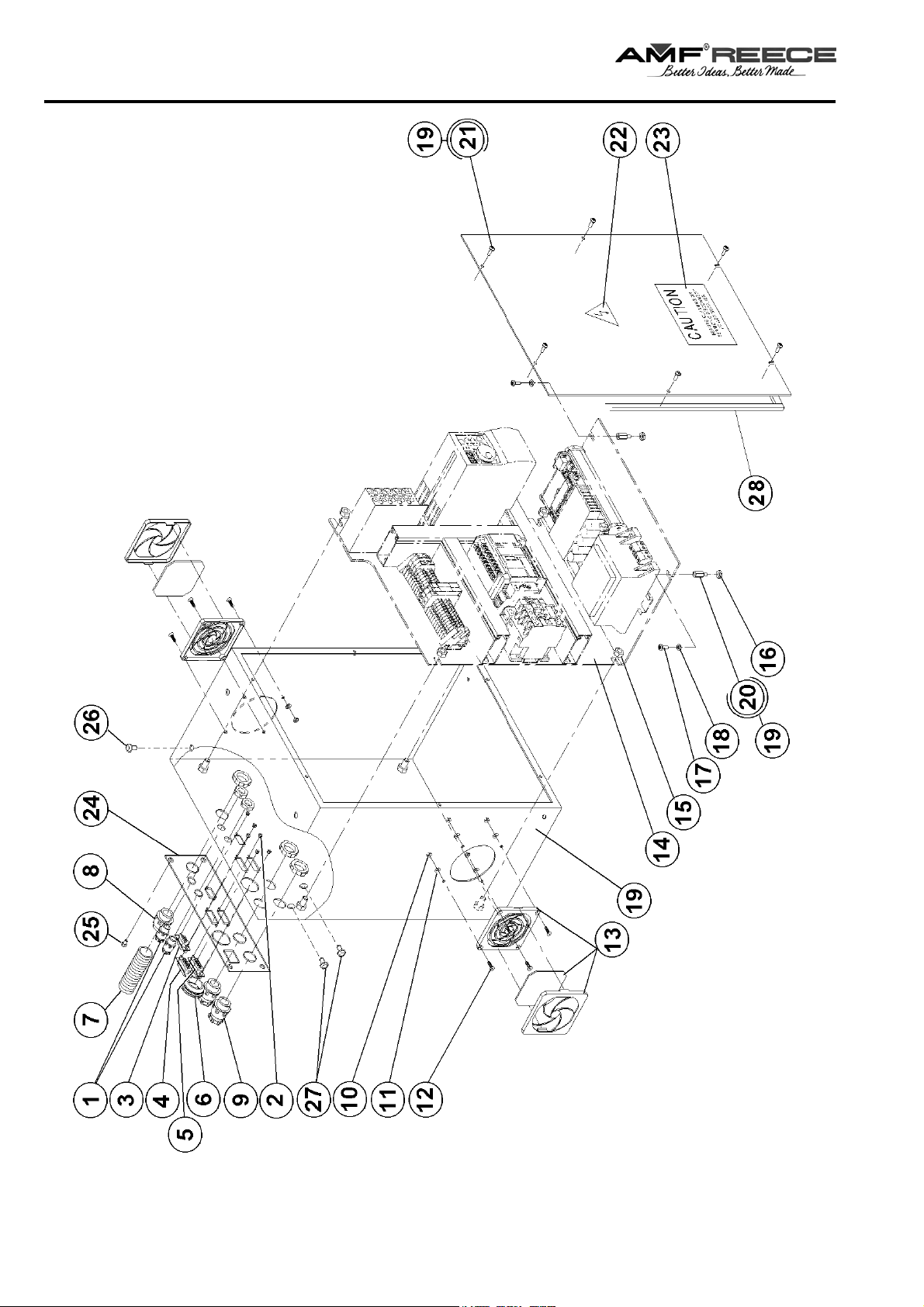

ELECTRICAL - I .....................................................................................................................................3-46

ELECTRICAL - II ....................................................................................................................................3-48

ELECTRICAL - III ................................................................................................................................... 3-50

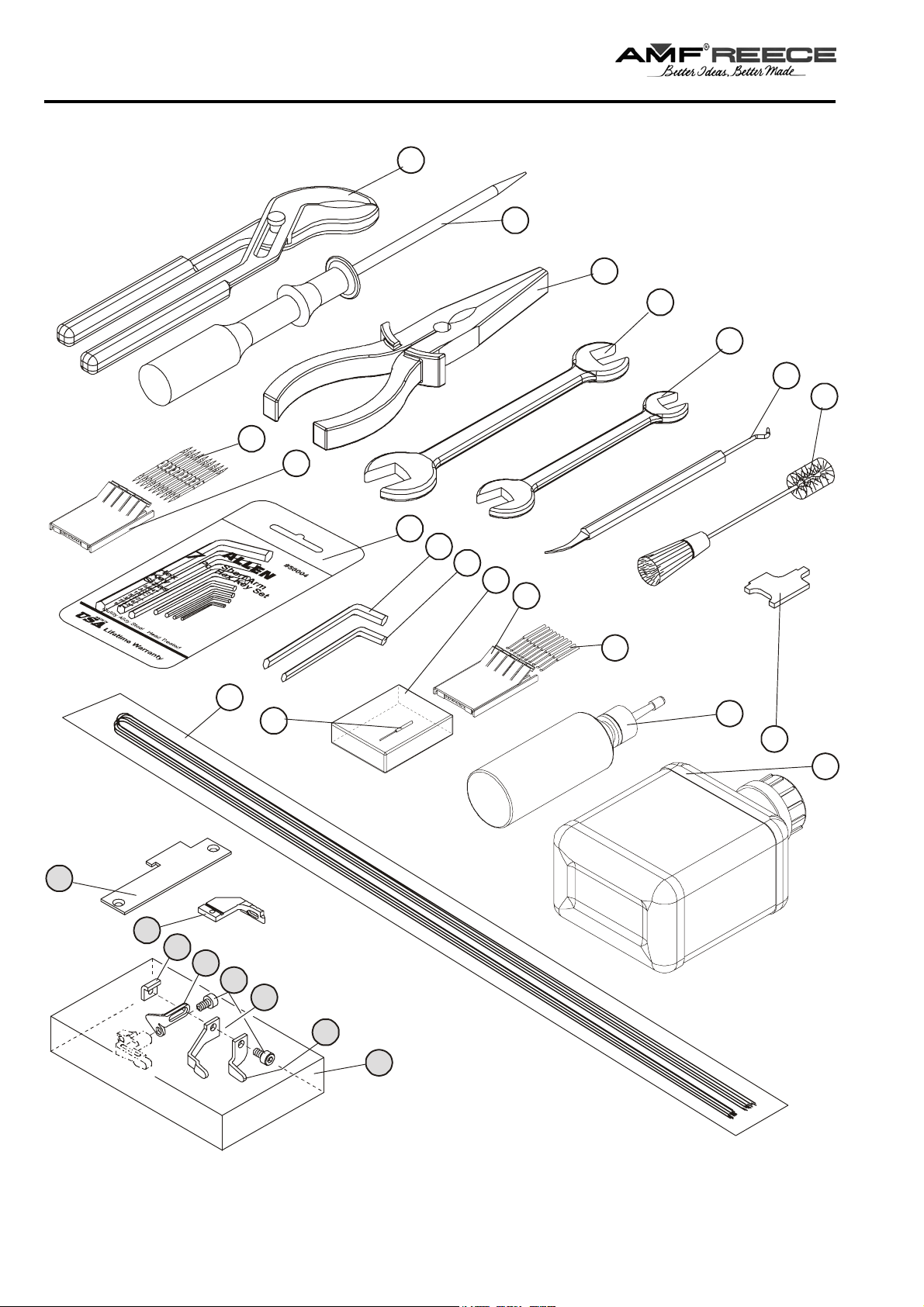

Accessories ............................................................................................................................................... 3-52

Thread Trim...............................................................................................................................................3-54

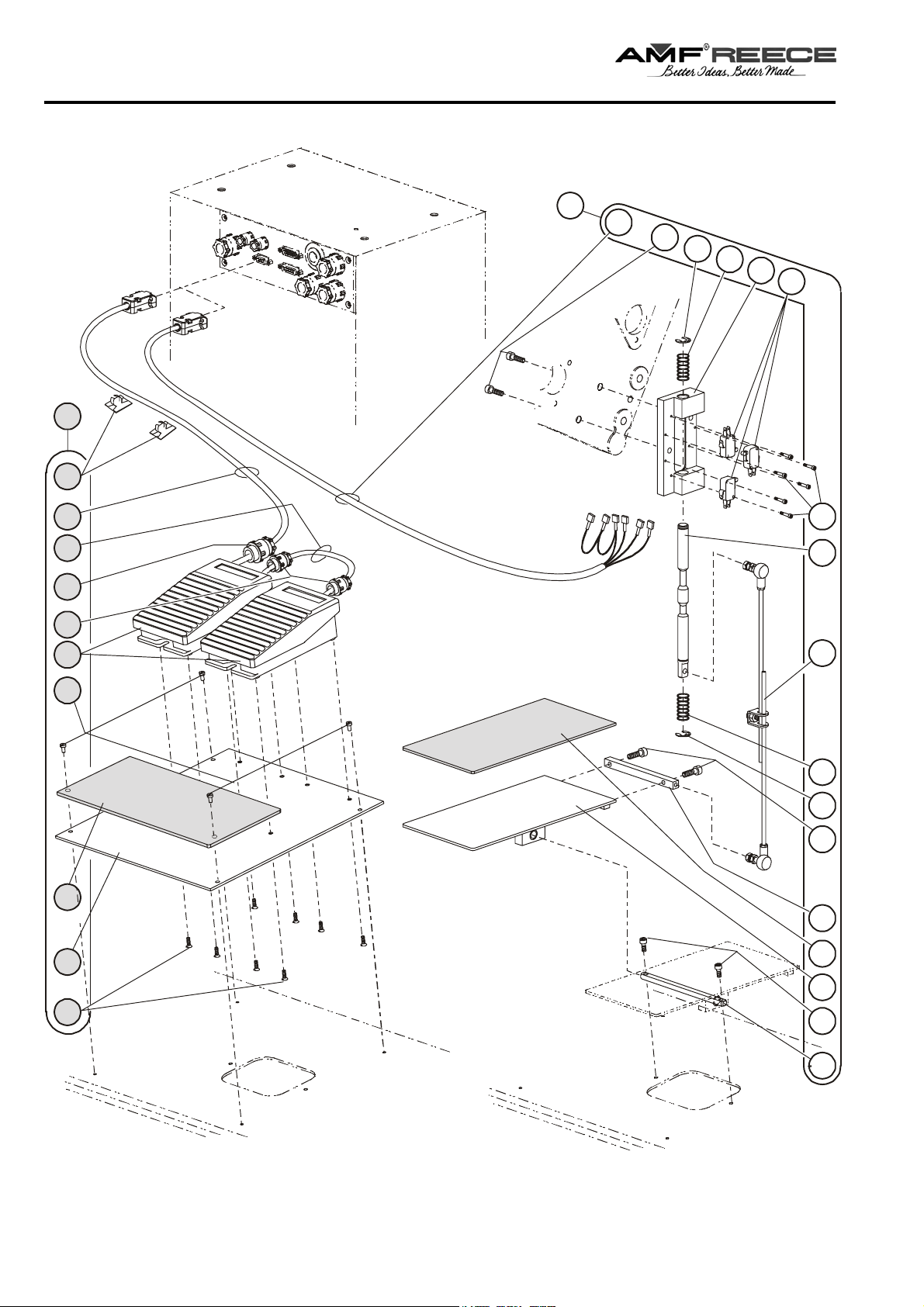

Foot Pedal ................................................................................................................................................3-56

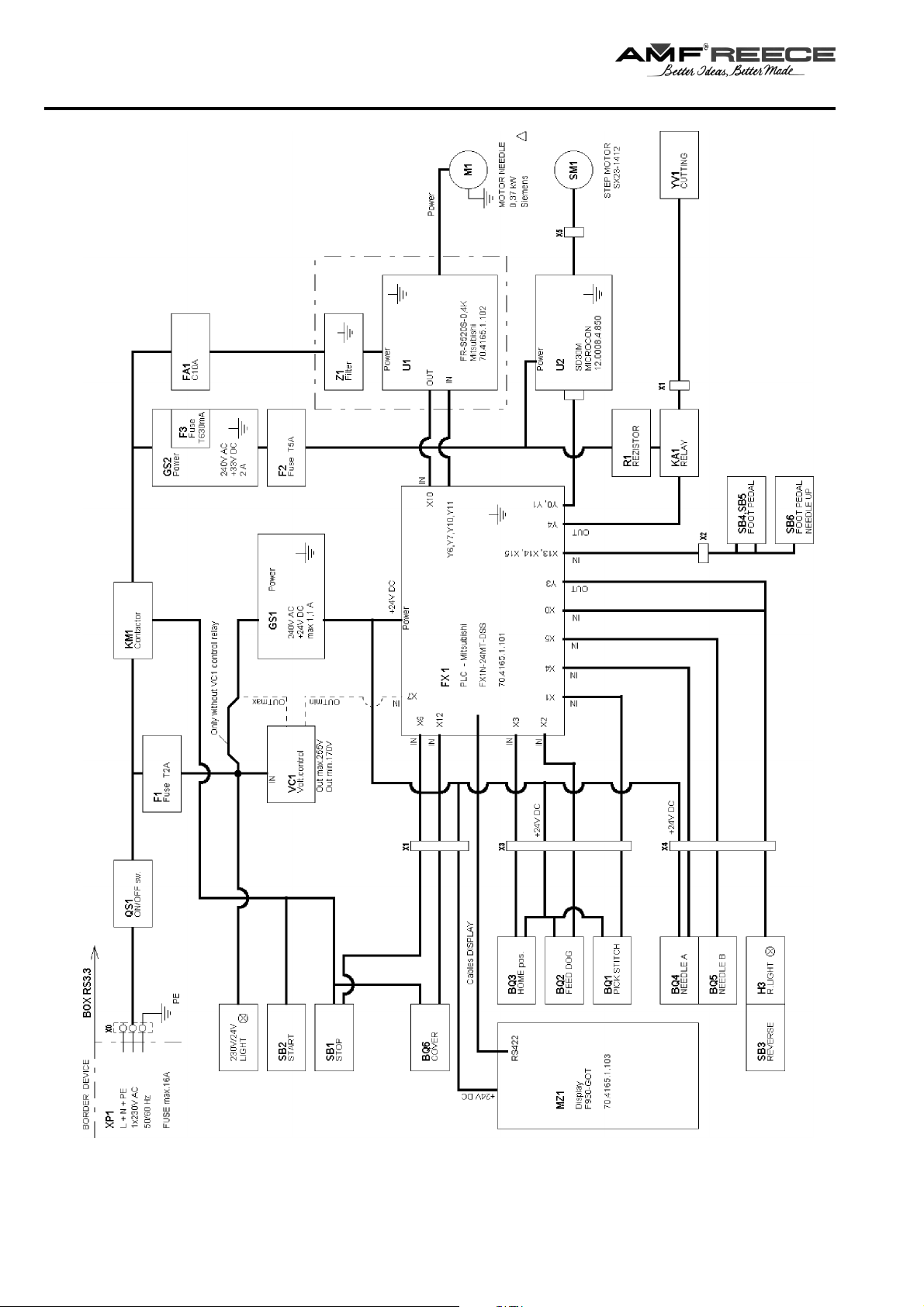

ELECTRICAL diagram ............................................................................................................................. 3-58

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-1

DECO 2000

MAIN FRAME ASSEMBLY

e-mail: [email protected]; [email protected]; website: www.amfreece.com

3 - 2

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

MAIN FRAME ASSEMBLY

DET PART NUMBER DESCRIPTION QTY

01 70.3532.8.074 Main Frame 1
02 41321019 Needle Bar Hd. Assembly 1

03 35371003 Front Spacer 1
04 35315013 Tie Frame 1

05 37711017 Name Plate 1
06 32711019 Sound Suppressor 2

07
08

09
10

11 32216086 Foot Plate Tread 1
12 41441060 Table Support 1

13* 70.3535.1.181 Table Top 1*

13** 35351180 Table Top 1**

15
16 70.3325.1.107 Motor Holder 1

17 32418075 Machine Support, Rear 1
18 41214006 Hinge 2

19 70.3535.1.182 Hook 1
20 35472011 Spacer, Rear, Tie Frame 1

21 01200024 Screw #3/8 - 16x1 3
22 06020015 Nut, Hex.Jam # 3/8 -16 3

23 01000047 Scr., Hex. Soc. Hd. Cap # 5/16 - 18 x1 2

24A 12.0008.6.523 Screw M12 4
24B 12.0008.6.524 Leveling Pad 4

25 12.0008.6.520 Castor Wheels 4
26 Rivet 2

27 Scr,, Rd.Hd. Mach. # 6 - 32 x 1/4 2
28 08.6000.0.025 Screw 4

29 22972010 Latch 'Camloc' # 51 L1-1- 1 AB - 1
30 04200003 Scr. Hex.Hd. # 3/8 - 16 x 1 6

31 07100009 Washer, Spring Lock # 3/8 4
32 07012003 Washer, Flat # 3/8 6

33 02060018 Scr. Pan Hd. ( Type A ) # 10 x 5/8 12
34 22911038 Scr., Asa Lock #1 A 1

35 Nut, Lock "ESNA"#21 NTE- 058- 1
36 04140040 Scr., Truss Hd. # 10 - 32 x 5/16 6

37 27571120 Drawer,Stl."Superior" # 333 Grey 1
38 Scr.. Fl.Hd. Wood # 8 x 3/4- 4

39 01200024 Scr. Hex .Soc .But.Hd.# 3/8 - 16 x 1 2
40 08200024 Spring Pin 1/4" x 1 2

41 04200027 Scr., Hex.Hd. # 5/16 - 18 x 1 2
42 08000019 Pin, Dowel # 1/4 x 1 1/4 4

43 04200004 Scr.Hex. Hd. # 3/8 - 16 x 1 1/2 5
44

45 34416044 Bracket, Switch Mount 1
46

47
48

* — Modificatioin Standard

** — Modificatioin Pick Stitch

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-3

DECO 2000

MAIN FRAME ASSEMBLY

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-4

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

MAIN FRAME ASSEMBLY

DET PART NUM BER DESCRIPTI ON Q T Y

51 Pin , Dowel # 5/16 x 3/4 4
52 04100052 Sc r. Bind. Hd.# 8 - 32 x 1/ 4 2
53 34268124 Angle, F il l er 1
54
55
56
57
58 70.3162. 5. 003 P ul l ey assembl y 1
59 06000014 Nut. Hex.# 3/8 -16 2
60 23522009 Counter Shaft B earing 1
61
62
63 24323130 "V " Belt 1
64 24423030 Pull ey , "V " B el t 1
65 35523026 Counter Shaft B rac ket 1
66 70.3100.0.042 Faci a Plate 1
67 70.3265.2.016 Cover 1
68 70.3532.8.073 Plate 1
69 12.0008.6.517 Caster 4
70 70.3165. 2. 002 S ensor Holder 1
71
72 24473075 Pulley 1
73 24383030 Belt 285L075 1
74 12.8000. 1. 010 Label (DECO) 1
75 12.1016. 0.001 Nail 2 ,6x6 2
76 70.3577.7.043 Cover Rear 1
77 70.3577.7.044 Cover Pul ley 1
78
79 08.6000.4.008 Screw 4

90 31852010 Alex Light Holder 1
100 70. 3100. 0. 017 F rame F ec i a 1
101 31000030 Hook Facia Plate 1
102 31000031 Loc k Faci a P l at e 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-5

DECO 2000

CAM AND GEARS

e-mail: [email protected]; [email protected]; website: www.amfreece.com

3 - 6

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

CAM AND GEARS

DET PART NUMBER DESCRIPTION QTY

01 35812049 Cover, Rear Drum 1

02 31766009 Drive Gear Stud 1

03 31523037 Cover, Handwheel 1

04 36224010 Small Intermediate Gear 2

05 36228020 Drive Gear 1

06 32652015 Guard, Belt 1

07 31838030 Gear Stud 3

08

09 70.3651.3.048 Left Upper Looper Cam 1

10 36516040 Needle BarCam 1

11 36713007 Needle BarHand Wheel 1

12

13 31652001 Sensor Drive Shaft 1

14

15 36226017 Large Intermediate Gear 1

16 36228009 Cam Shaft Drive Gear 1

17 36515032 Cam Shaft Bearing 1

18

19

20

21 04100054 Scr. Binding # Hd. 8- 32 x 3/8 2

22 01200005 Scr. , Hex. Soc. But. Hd.# 8 - 32 x 3/8 2

23 08200031 Pin, Roll # 3/16 x 3/8 1

24 23161140 Bearing,"Oilite" # FF - 1213-4 2

25 24116150 Collar, Set SC 100 1" I.D 1

26 04200057 Scr. Hex. Soc. Cap # 10 - 32 x 1/2 1

27 04200003 Scr.,.Hex.Hd.# 3/ 8 - 16 x 1 4

28 01200001 Scr. Hex. Soc. But. Hd. # 140- 32 x 1/2 2

29 01000099 Scr. Hex. Soc.Cap # 5/16 - 18 x 5/8 1

30

31 01002040 Scr. Hex. Soc.Cap # 5/16 - 18 x 3/4 1

32

33 03200023 Scr. Hex. Soc.Hd. Cup PT.# 1/4 - 20 x 1/2 1

34 23161063 Bushing, "Oilite" # FF - 707 - 2 1

35 04200013 Scr., Hex. Hd. # 1/4 - 20 x 5/8 1

36 04200012 Scr., Hex. Hd. # 1/4 - 20 x 1/2 1

37 04200267 Scr., Hex. Hd. # 3/8 - 24 x 1 1

38 01200083 Scr., But. Hex.Soc.# 3/8 - 24 x 1 1

39 07100009 Washer, Lock # 3/8 1

40 70.3165.2.003 Adaptor 1

41 19.0044.1.624 Ring Sensor 2

42 17.0011.2.013 Screw M6x0, 75 x 6 2

43 08.6400.4.008 Screw M4 - 8 1

44 36224009 Gear 1

45 70.3165.2.003 Adaptor 1

46 08.6400.4.006 Screw M4x6 1

47 17.0011.2.013 Screw (2)

48 19.0044.1.629 Ring Sensor 2

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-7

DECO 2000

UPPER NEEDLE BAR MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-8

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 09/2005

DECO 2000

UPPER NEEDLE BAR MECHANISM

DET PART NUMBER DESCRIPTION QTY

01 31674025 Sleeve Ex tens ion 1

02 31695011 Needle bar S pring Cap 1

03 36532021 Needle Bar Spring 1

04 36532022 Needle Lock S pring 1

05 36531010 Needle Stop Spring 1

06 36771021 Needle Stop 1

07 31566008 Needle Clamp Sleeve 1

08 35511021 Needle Support Sleeve 1
08* 35511081 Needle Support Sleeve 1*

08** 35511048 Needle S upport Sleeve 1**

09 31723007 Rock er Arm P ivot 1

10 42531081 Needle Bar Ass em bly 1
10* 70.4253.1.078 Needle Bar As sem bly 1*

10** 70.4253.1.079 Needle Bar As sem bly 1**

12 36691014 Needle Bar Rocker Arm 1

13 35521048 Rock er Arm B earing 1

15 31773015 Rock er Arm B earing Stud 1

16 36631031 As sem bly - Threader Lever 1

17 33215069 Threader Bearing 1

18 31996006 Threader Arm 1

19 37213001 Threader Needle 1

20 00103238 Round Needle 1
20* 00103228 Round Needle 1*

20** 00103249 Round Needle 1**

21 36518030 Bearing Block Stud 1

23 33182005 Needle Bar Bearing Block 1

24 35131002 Pin Retainer 1

25 31264001 Stop P in 1

26 36523022 Needle Bar Sm all Bush 1

27 31151001 (Locating Pin) = part of As sem bly 33441003 1

28 33441003 Needle Bar Clamp Upper 1

29 31697003 Needle Bar 1

30 31111009 Sleeve Ex t. Conn. P in 1

31 70.3652.3.023 Large B us hing 1

32 31412001 Spring Plunger Was her 1

33 31593007 Sleeve Adjust.N ut 1

34 36546023 Spring , Threader 1

35 04200011 Sc r.,Mac h. Hex. Hd #10 - 32 x 5/8 1

36 07106002 W as her. Lock. Hi - Collar # 10 1

37 22965006 Ball. Stl." New Depart"# 11{64 Dia 2

38 24116020 Collar 1

39 01200007 S c r. Hex. Soc . B ut. Hd.# 10 - 32 x 3/8 1

40 01000298 Sc r. Hex. Soc . Hd. Cap.# 5 - 40 x 1/8 1

41 23 1320 30 B us hing Oilit e #A A 3 09 (2)

42 03100008 Sc r. Set Hex. S oc . Cap Pt.# 1/4 - 20 x 1/4 1

43 06002001 Nut. Hex. S . S tl. # 10 - 32 1

44 01000039 Sc r. Hex. Soc . Hd. Cap # 5/16 - 18 x 3/4 3

45 23231030 Bearing , Ball (1)

46 06104001 Locknut, " E S NA " 29 NTE- 54- 1

47 22913039 Pin Groove "Drive Loc" #1/4 x 1 ( Type G) 1

48 01000013 Sc r. Hex.Soc .Hd.Cap# 8 - 32 x 1/2 1

49 03130001 Sc r., Hex. Soc . Cone P t.. # 8 - 32 x 1/2 2

50 06020019 Nut. Jam Hex. # 8 - 32 2

51 08. 6000. 4.012 Sc rew 2

52 70. 3652. 3.026 Block 1

53 12. 0008. 6.979 Ball 1

54 70. 3652. 3.025 Bar 1

55 12.3010.0.014 Spring 1

*— Extra Parts

** — Ext ra P arts

Revised 09/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-9

DECO 2000

PRESSER FOOT MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-10

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

PRESSER FOOT MECHANISM

DET PART NUM BER DESCRIPTI ON Q T Y

01 70.4223. 3. 029 A ss`y , Rt . Upper Looper Cam 1

02 36651001 Lifrer Lever. P. F . 1

03 36227019 As s`y, S haft Rt . Looper Cam 1

04 36271013 As s`y, P res ser Ft. Drive Gr. 1

05 32111012 Lifter Rod 1

06 36518077 Opreation S haft 1

07 36651002 Lifter Lever 1

08 36543018 Lever Spring 1

09

10 32731026 Sound Suppres sor 1

11 35521055 Pres s er Foot Bearing 1

12

13 31133018 Pres s er FT. Oper. S haft 1

14 70.3172. 1. 024 K nee Oper. S haft 1

15 31721040 Spring P os t 1

16

17

18 31721038 Spring P os t 1

19 32115013 Sound Suppres sor 1

20 36619044 Shaft/ P res s. Ft. Lifter 1

21

22 31571002 St at i onanry P res s. Foot Cap 1

23 32217002 Follower Si de Guide Plate 1

24 33242002 Retainer St rap 1

25 36621001 Connector Link 2

26 36672047 Lifting B ell Crank 1

27 34221010 Conn. Link Retai ner 1

28

29 31521001 Adjusting Collar 1

30 36543020 Tors i on S pring 1

31 36613036 Spring Lever 1

32 31718027 Lever Stud 1

33

34 31642007 Follow. P res s. Ft. S haft 1

35 35571021 Bell Crank S tud 1

36 31873013 Pres s er Foot Stud 1

37 33422001 Connector Link Block 1

38 33256011 Swivel Seat 1

39 31876011 Foot S wivel 1

40 36541005 Sprg. Tens. F oll ow. F t 2

41 32729001 Clip Spri ng 1

42 32732001 Swivel Seat Cover 1

43 34732023 Rear Cover 1

44 32221007 Bell Crank S tud Guide 4

45 35771051 As s`y Front Cover 1

46

47

48

49 70.2691. 1. 188 E ye Guard 1

50 04100070 Sc r. Bind. Hd. # 1/ 4 - 20 x 3/8 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-11

DECO 2000

PRESSER FOOT MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-12

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

PRESSER FOOT MECHANISM

DET PART NUM BE R DESCRIPTION QT Y

51

52

53

54 23132123 Bearing "Oilite" # AA 520 - 3 1

55 04200007 Scr. Hex. Hd. # 1/4 - 20 x 3/4 1

56 23132178 Bearing "Oilite" # AA 630 - 1 1

57 23132199 Bearing "Oilite" # AA 627 - 4 1

58

59 09020001 Key "Hi - Pro" 504 (1/8 x 5/8) 1

60 24117014 Collar 1

61 36773008 Nee Plate Pad 1

62 01000008 Scr. Hex. Soc. Hd. Cap. # 1/4 - 20 x 3/4 3

63 03100012 Scr. Set Hex. Soc. Cup Pt.#10 - 32 x 1/4 1

64

65 03100017 Scr. Set. Hex. Soc. Cup Pt.# 5/16 - 18 x 3/8 1

66 26913025 Knee Plate Retainer 1

67

68 01000059 Scr. Hex. Soc. Cap # 6 - 40 x 1/4 1

69

70 04000053 Scr. Flat Hd. # 5 - 40 x 3/8 1

71 23132297 Bushing "Oilite"# AA 807 / 3 1

72 06000002 Nut, Hex. # 10- 32 4

73 01000301 Scr. Hex. Soc. Cap # 6 - 40 x 5/16 1

74 01000004 Scr. Hex. Soc. Cap # 5 - 40 x 1/4 2

75 04120001 Scr. Fil. Hd. # 8 - 32 x 1/2 1

76 04200039 Scr. Hexl. Hd. # 10 - 32 x 3/8 1

77 01000013 Scr. Hex. Soc.Hd. Cap # 8 - 32 x 1/2 1

78 04120009 Scr. Fil. Hd. # 8 - 32 x 5/8 1

79 01000032 Scr. Hex. Soc.Hd. Cap # 10 - 32 x 3/8 3

80 04122093 Scr. Fil. Hd. # 8 - 32 x 1/4 8

81 04100054 Scr. Binding Hd. # 8 - 32 x 3/8 2

82 36773007 Knee Lever 1

83 31423006 Bushing 2

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-13

DECO 2000

LOWER NEEDLE BAR MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-14

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

LOWER NEEDLE BAR MECHANISM

DET PART NUM BER DESCRIPTI ON Q T Y

01 42531081 Needle Bar Assembl y 1
01* 70.4253.1. 078 Needle B ar Assem bly 1*

01** 70.4253. 1. 079 Needle B ar Assem bly 1**

02 31773015 Rock er A rm B earing Stud 1

03 35521048 Rock er A rm B earing 1

04 36691014 Rock er A rm 1

05 31723007 Rock er A rm P i vot 1

06 35521049 Rock er A rm B earing 1

07 36518030 Bearing Bl ock S t ud 1

08 00103238 Round Needle 1
08* 00103228 Round Needle 1

08** 00103249 Round Needle 1

09 35131002 Pin Ret ai ner 1

10 31697003 Needle Bar 1

11 32223045 Shim 1

12 31264001 St op P i n 1

13 36523022 Smal l B us hi ng 1

14 31151001 (Locati ng P i n) P art of Assem.33441002 1

15 33441002 Lower Clamp, Needle Bar 1

16 35511021 Needle Support S l eeve 1
16* 35511081 Needle Support S l eeve 1*

16** 35511048 Needle Support S l eeve 1**

17 31111009 Sleeve Ext . Conn. P i n 1

18 31566008 Needle Clamp Sl eeve 1

19 36771021 Needle Stop 1

20 36531010 Needle Stop Spring 1

21 33182005 Needle Bar Bearing B l oc k 1

23 31593007 Sleeve Adj. Nut 1

24 31412001 Spring P l unger W asher 1

25 36523021 Large Bus hing 1

26 31674025 Sleeve Ext ens i on 1

27 31695011 Spring Cap 1

28 36532021 Needle Bar Spring 1

29 36532022 Needle Lock S pri ng 1

32 03100066 Sc r. Set Hex. Soc. Cup Pt.# 1/4 - 20 x 5/ 16 2

33 23231030 Bearing , B al l P art of A 31773015. 1

34 06104001 Nut, Loc k "ES NA" # 29 NTE - 54 1

35 01000039 Sc r. , Hex. S oc. Hd. Cap # 5/ 16 - 18 x 3/4 5

37 08002028 Pin, Dowel # 3/ 16 x 7/8 1

40 01002106 Sc r. , Hex. S oc. Hd. Cap # 10 - 32 x 5/ 8 1

41 03130001 Sc r. Set Hex. Soc. Cone Pt # 8 - 32 x 1/ 2 2

42

43 06020019 Nut, Jam Hex.# 8 - 32 2

44 01000013 Sc r . , Cap. Hex. S oc.# 8 - 32 x 1/ 2 1

45 22965006 Ball . S tl. "New Departure" # 11/ 64 2

46 06002001 Nut, Hex. S. S t l . # 10 - 32 1

* — Extra Parts
** — Extra Parts

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-15

DECO 2000

LOWER LOOPER AND THREAD DRUM MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-16

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

LOWER LOOPER AND THREAD DRUM MECHANISM

DET PART NUMBER DESCRIPTION QTY

01 32533076 Drive Gib 2
02 31464002 Bearing Spacer 1
03 31715005 Bearing Stud 1
04 31845002 Gear Stud 1
05
06 36651008 Arm Crank 1
07 36271006 Arm Crank Drive Gear 1
08 70.3577.7.042 Crank Guard 1
09 35561001 Tie Bracket 1
10
11
12
13 34647001 Belt Tightener Arm 1
14 34111085 Belt Spring Fastener 2
15 36542017 Thread Tightener Spring 1
16 34372004 Lock Clip 1
17 35778014 R. S. Drum Cover 1
18 31718025 Brush Cam Lever Stud 1
19 31413030 Cam Roller 1
20 31612051 Roll Stud 1
21 70.3669.1.008 Brush Holder Cam Lever 1
22 35633040 Thread Separator 1
23 70.3727.4.013 Thread Brush 1
24 31721053 Spring Post 1
25 07.6440.0.050 Lever Spring 1
26 31721054 Spring Post 1
27 31781006 Loop Arm Shaft 1
28 41831082 Drum Cover Assembly 1
29 35812048 Rear Drum Guard 1
30 35633041 Drum 1
31 36653010 Lower Looper Arm 1
32 31572004 Locking Wedge 1
33
34 34585001 Belt Support 1
35 36518029 Lower Looper Hook Extn. 1
36 36341050 Lower Looper Hook Spacer 1
37 37211018 Lower Hook Assembly 1
38 36543019 Take - Up Spring 1
39 32241004 Take - Up Spring Lever 1
40 31838013 Belt Pulley Stud 2
41 70.3657.2.009 Thread Belt 1
42
43
44
45
46 37112030 Ass`y.,Separator Guide 1
47 35371004 Drum Rear Tie Bracket 1
48 35541070 Hook Arm Bearing 1
49
50

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

DECO 2000

3-17

DECO 2000

LOWER LOOPER AND THREAD DRUM MECHANISM

77

86

48

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-18

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

LOWER LOOPER AND THREAD DRUM MECHANISM

DET PART NUM BER DESCRIPTI ON Q T Y

51 09020001 Key , Hi - Pro # 1/ 8 x 5/8 1

52 23231217 Bearing, B al l , " New Depart" # Z 99503 2

53 01000026 Sc r. , Hex. S oc. Hd. Cap # 1/ 4 - 20 x 5/8 4

54 23231210 Bearing, B al l , " New Depart" # 77039 1

55 03100013 Scr., Set Hex. Soc. Hd. Cup Pt. # 1/4 - 20 x 3/8 1

56 04200027 Sc r. , Hex. Hd. # 5/ 16 - 18 x 1. 0 12

57 07002009 Washer, Flat # 5/8 1

58 06030014 Nut, Hex. # 5/8 - 11 1

59 04200031 Sc r. Hex . Hd. # 5/16 - 18 x 1 1/ 4 3

60 23914009 Hook "S" - Gerwin Corp.# 55 - 3/4 1

61 04100011 Sc r. Binding Hd.# 10 - 32 x 3/ 8 1

62 04100053 Sc r. Binding Hd.# 8 - 32 x 5/ 16 4

63 04202013 Sc r. Hex Hd. # 1/ 4 - 20 x 1 1/ 4 2

64 06000004 Nut, Hex # 1/ 4 - 20 3

65 04120005 Sc r. F il .Hd.# 5 - 40 x 3/8 2

66 23161073 Bearing , " Oi l i t e" # F F - 707 - 3 1

67 22967003 Knob w/1/ 4 - 20 Insert " Reid"# DK - 17 1

68 22914003 Rivet, Stl . # 4 x 580 (500) 3

69 08000016 Pin, Dowel # 3/ 16 x 3/4 4

70

71 01002015 Sc r. Hex S oc.Hd. Cap # 8 / 32 x 5/ 8 1

72 01200011 Sc r. Hex S oc.B ut . Hd. Cap # 8 / 32 x 1/ 4 2

73 06020019 Nut Hex. Jam # 8 - 32 4

74 04000020 Sc r. ,Flat Hd. # 10 - 32 x 1/ 2 2

75 07012010 Washer, Flat # 5/16 4

76 22912066 Plai n Washer, S. S t l."S DP " # 9 x 20- 51 1

77 23161095 Bus hi ng, " O il i t e" # FF 843 - 2 (2)

78 08000022 Pin, Dowel # 5/ 16 x 1 1/4 2

79 04200051 Sc r. , Hex. S oc.Cap # 5/16 - 18 x 1 1/ 2 4

80 03100012 Sc r. ,Set Hex . Soc . Cup # 10 - 32 x 1/ 4 1

81 01200019 Sc r. ,But.Hd. Hex. S oc. # 6 - 32 x 1/2 1

82 06000002 Nut, Hex. # 10 - 32 1

83 31838014 Bus hi ng Diameter 8 x 35 2

84 31423032 Spac er. " RA F " # 1223 - 25 - SS - O - 1

85 04200012 Sc r. Hex .Hd. # 1/4 - 20 x 1/ 2 1

86 17.0004.7.253 Oiler (1)

87 70.3441. 6. 045 S witch Holder 1

88 70.3441.6.046 Controller 1

89 01200011 Screw 2

90 06020019 Nut 2

91 70.3288.3.605 Holder 1

92 70.3288.3.604 Holder 1

93 01000002 Sc rew # 8-32x3/ 8 2

94 07102007 Spring Washer 2

95 12.0008. 4. 596 Lim i t Switch 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-19

DECO 2000

MAIN CAM SHAFT ASSEMBLY

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-20

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

MAIN CAM SHAFT ASSEMBL Y

DET PART NUMBER DESCRIPT ION QT Y

01 31734013 Cam Shaft 1

02

03

04 31000008 Flag A s sembly 1

05 36513046 Thread Lifter Hook Cam 1

06 36516014 Thread Clamp Cam 1

07 31751004 Clamp Finger Cam Hub 1

08 36223009 Tension Finger Drive Gear 1

09 36514046 Angle P l at e Cam 1

10 36515013 Brus h Operati ng Cam 1

11

12

13

14

15 09020001 Key , Hi - Pro # 1/ 8 x 5/8 2

16

17 03100012 Sc r. ,Set Hex . Soc . Cup P t . # 10 - 32 x 1/4 2

18 01.2548. 0.000 S cr. Hex. S o c.Cup Pt. # 1/4 - 20 x 1/4 1

19 22911037 Sc r. M ach..Cap P t. # 10 - 32 x 3/ 8 A N 3 - 3A 2

20 07012001 Washer, Flat # 10 2

21 24117012 Collar, Clam p " M axwell" # 1/ 2 I.D. (8 L) 1

22

23 22912058 Shim , Arbor "SDP" # 7C8 - E 16062 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-21

DECO 2000

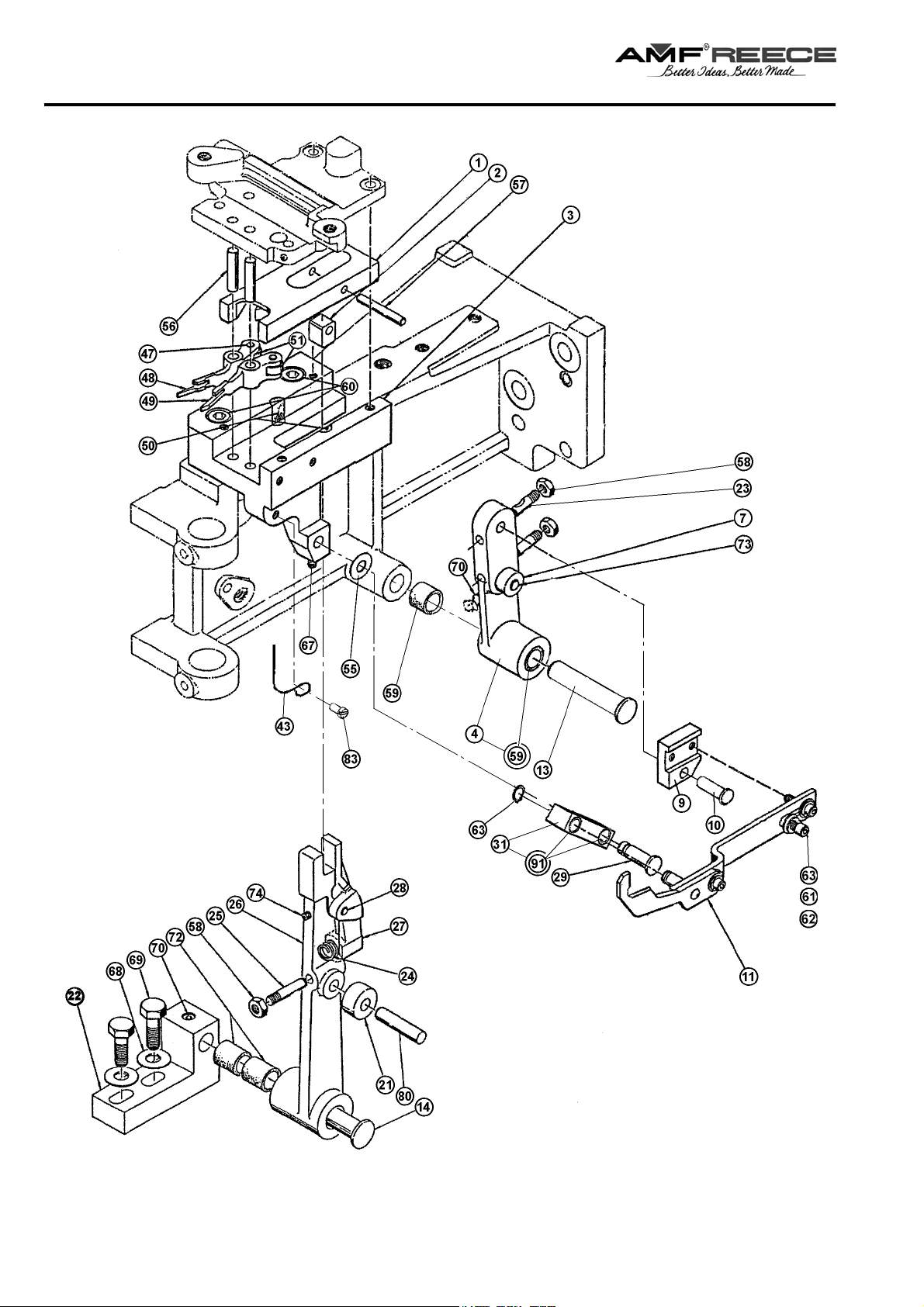

THREAD GRIPPER & ELEVATOR MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-22

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

THREAD GRIPPER & ELEVATOR MECHANISM

DET PART NUMBER DESCRIPT ION QT Y

01 33257001 Clamp Finger Cam S l ide 1

02 32434001 Thread Clamp P i vot Bloc k 1

03 35551002 Thread Clamp Fi nger B rk t . 1

04 36661001 Thread Lifter Hook Cam Lever 1

07 31413031 Cam Roller 1

09 33244009 Hook Adj ust Bl ock 1

10 31611010 Cam Lever St ud 1

11 70.3721. 1. 153 Lift er Hook Ass em bly 1

13 31641015 Cam Lever St ud 1

14 31641019 Cam Lever St ud 1

16

17 32739011 Support B rac ket A rm 1

19 34372002 Support B rac ket 1

21 31423068 Cam Roller 1

22 36613038 Clamp Pi vot Brac k et 1

24 36532025 Clamp Finger Lever Spri ng 1

25 31288023 Clamp Stud 3

26 36673028 Clamp Finger Lever 1

27 36647001 Spring P i ec e 1

28 31215008 Piece Pin 1

29 31641010 Thread Hook Li fter Lever St ud 1

31 33334012 Thread Hook Li fter Lever 1

43 70.3282.7.100 Divider

47 31112002 Roller Pi n 2

48 70.3664. 5. 007 Rear Finger 1

49 70.3664. 5.006 Fron t F inger 1

50 32121004 Sli de Wick Oiler 2

51 31413029 Cam Roller 2

56 08000044 Pin Dowel # 3/ 16 Dia x 1 2

57 08000109 Pin Dowel # 5/ 32 x 1 1

59 01.7305.0.900 Bearing (2)

60 01000047 Sc r. Hex . Soc. Hd. Cap # 5/16 - 18 x 1 2

61 07012005 Washer, Flat # 8 2

62 07102007 Washer, Loc k S pri ng # 8 2

63 25379218 Ring Retainer # 5100 - 25 (1/4) 1

65 01000002 Sc r. Hex . Soc. Hd. Cap # 8 - 32 x 3/8 2

67 03100012 Sc r. Set Hex. Soc. Cup Pt. # 10 - 32 x 1/ 4 1

68 07012002 Washer Flat # 1/ 4 2

69 01000037 Sc r. Hex . Hd. # 1/4 - 20 x 1. 0 2

70 03100066 Sc r. Set Hex. Soc. Cup Pt. # 1/4 - 20 x 5/ 16 2

72 23132142 Bearing " Oi li te " # AA - 521 - 1 2

73 08000110 Pin, Dowel # 7/ 32 Dia x 5/8 1

74 03140003 Sc r. Set Hex. Soc. Oval Pt. # 8 - 32 x 3/ 8 1

80 08000007 Pin, Dowel # 1/ 4 Dia x 1.0 1

83 04100054 Sc rew #8-32 1

91 23132056 Bearing (2)

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-23

DECO 2000

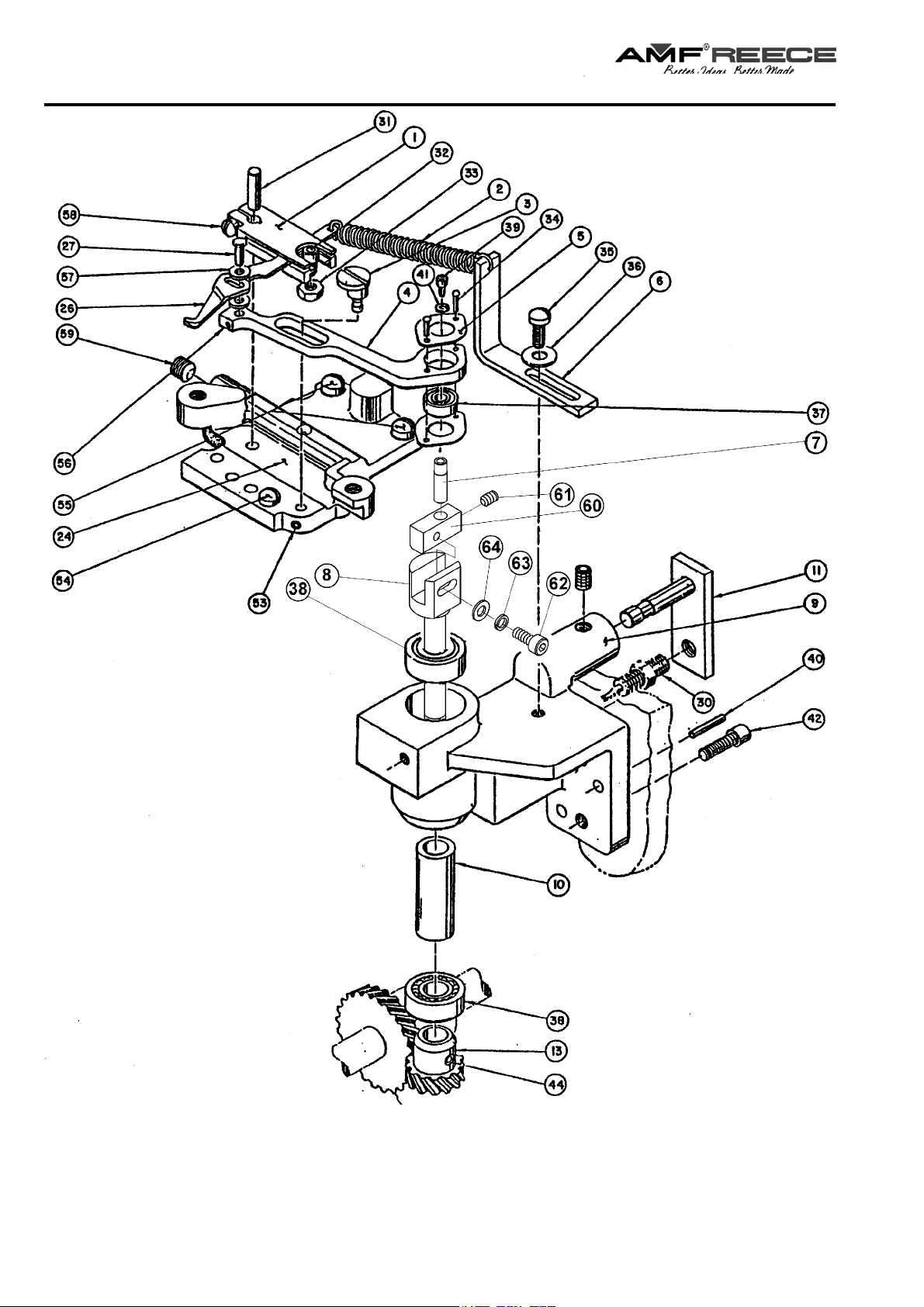

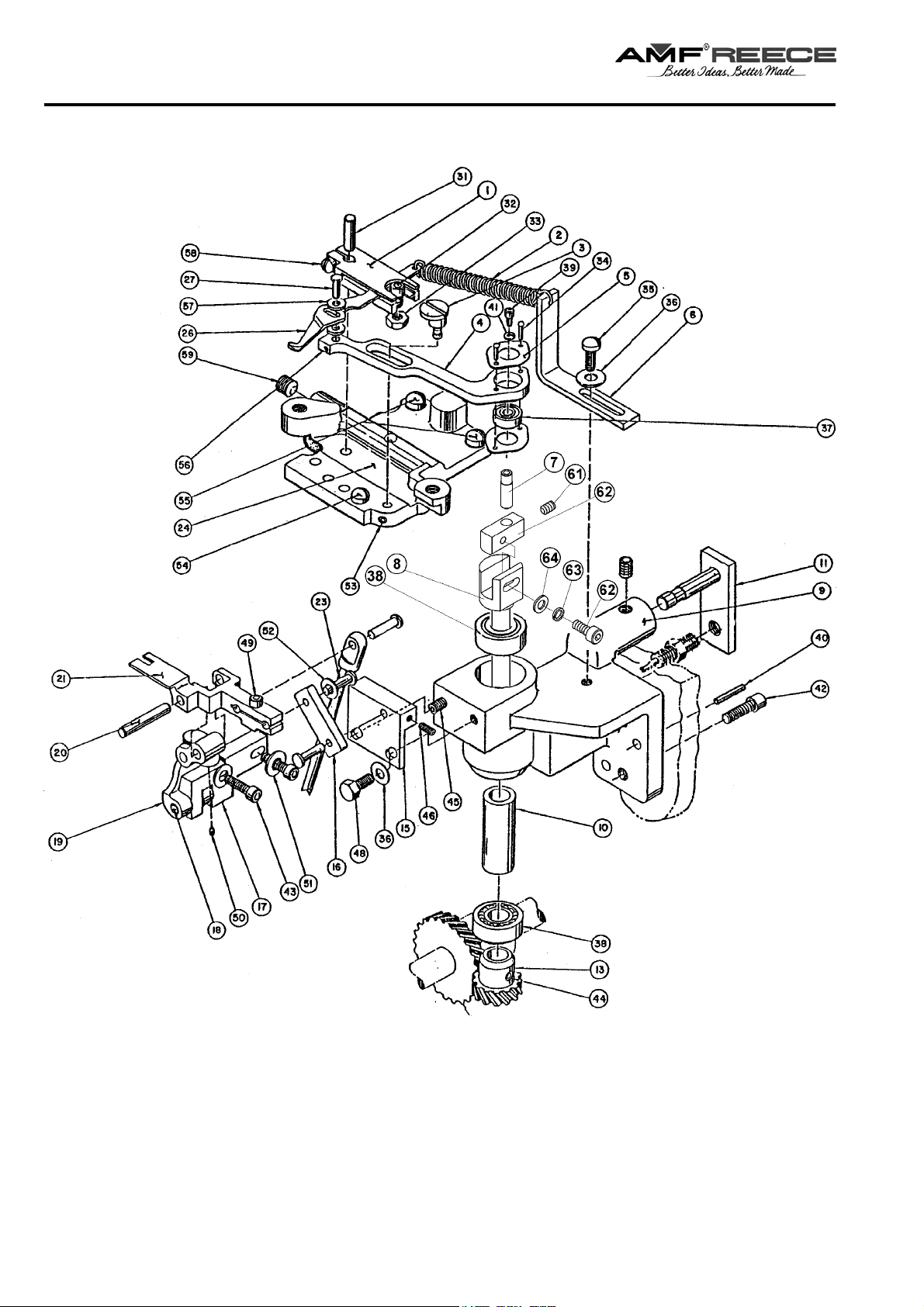

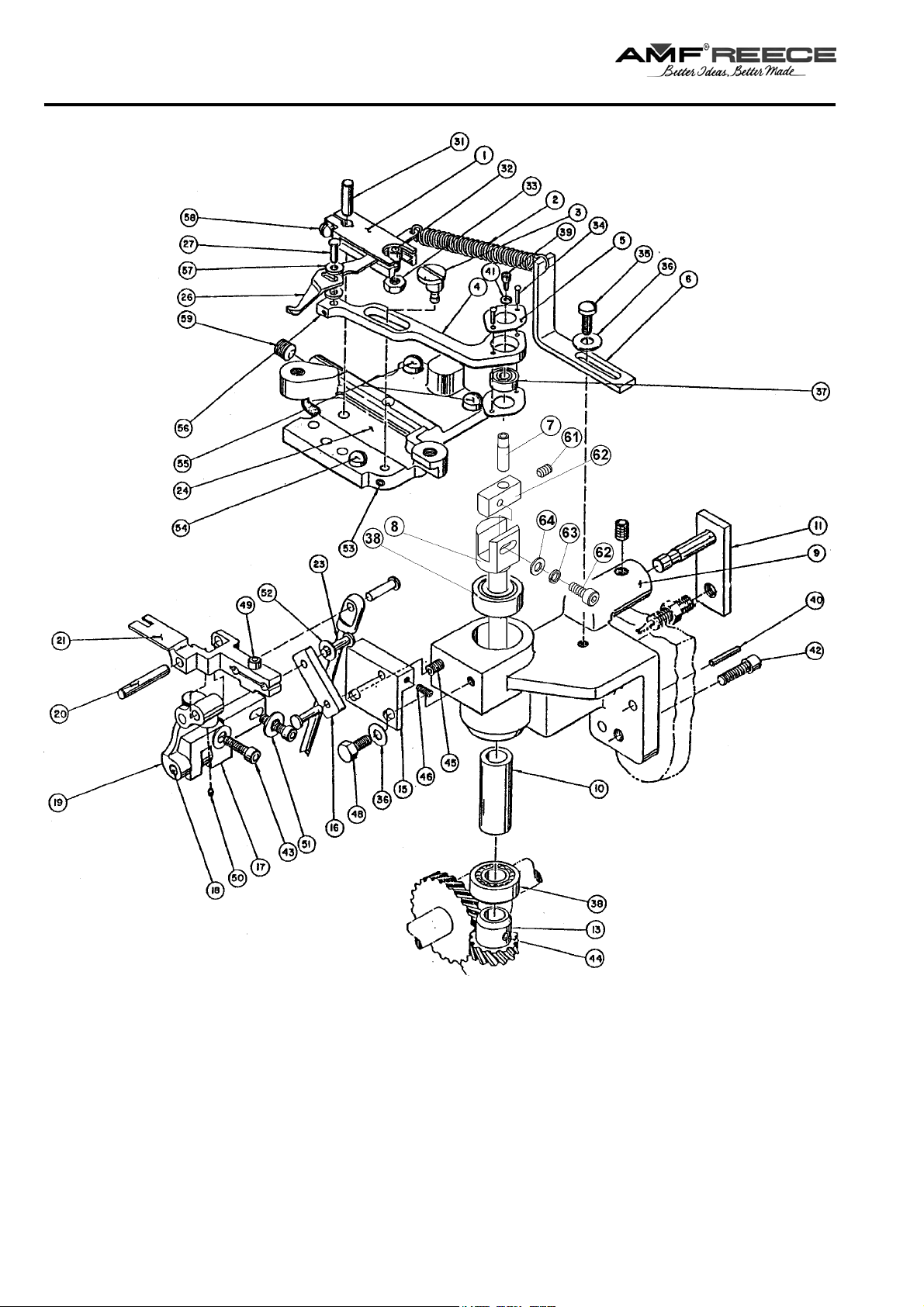

PICK STITCH & TENSION FINGER

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-24

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

PICK STITCH & TENSION FINGER

DET PART NUMBER DESCRIPT ION QT Y

01 35511045 Support B l ock 1

02 36542018 Finger Spring 1

03 36518027 St ud E ccent ric 1

04 35526005 Sli de S upport 1

05 32691001 Ball B earing Retai ner 2

06 34372042 Finger Spring Tension Holder 1

07 70.3651. 8.022 S uppo rt St ud 1

08 70.3651. 8. 020 E ccent ric Shaft 1

09 35542007 Tension Finger Bal l Bearing Bracket 1

10 31426015 Bearing Spacer 1

11 31000009 Sens or Holding A ssembl y 1

12

13 36221009 Driven Gear 1

14

15 33252029 Pus her P late 1

16 32643073 Link (Pick Stitch) 1

17 33258075 Plat e Brack et P i vot Arm S upport 1

18 31721022 Lower Finger 1

19 36677016 Pivot, Arm 1

20 31215012 Brac k et Pin 1

21 36691021 Bender Plate 1

22

23 31612045 10 - 6 Cam Roller St ud 3

24 35815007 Brac k et Cover 1

25

26 37211130 Thread Tension Finger 1

27 31611064 10 - 1 Plain S tud 1

28

29

30

31 08000015 Pin, Dowel #3/ 16 Dia x 5/8 Lg 1

32 01000058 Sc r. , Hex. S oc. Hd. Cap # 8 - 32 x 3/ 16 1

33 Nut , Square # 8 - 32 1

34 08504001 Rivet, Rd. Hd. (Al um.) # 1/16 x 5/ 16 2

35 04120002 Sc r., Fill. Hd. # 10 - 32 x 3/8 1

36 07012001 Washer, Flat # 10 2

37 23231040 Bearing , B al l " New Depart" # 77 R 3 1

38 23231226 Bearing 2

39 01000005 Sc r. , Hex. S oc. Hd. Cap # 6 - 32 x 1/ 4 1

40 08000044 Pin, Dowel # 3/ 16 x 1.0 2

41 07102007 Washer, Loc k # 8 1

42 01000047 Sc r. , Hex. S oc. Hd. Cap # 5/ 16 - 18 x 1.0 1

43 01002015 Sc r. , Hex. S oc. Hd. Cap # 8 - 32 x 5/ 8 2

44 03100154 Sc r. , Hex. S oc. Hd. Cup P t . # 10 - 32 x 3/16 2

45 03102026 Sc r. , Hex. S oc. Hd. Cup P t . # 10 - 32 x 1/2 1

46 Scr., Hex. Soc.Flat Pt. # 8 - 32 x 1/4 1

47

48 04200039 Sc r. , Hex. Hd. # 10 - 32 x 3/8 1

49 01000027 Sc r. , Cap Hex. Soc. # 6 - 40 x 3/8 1

50 03101038 Sc r. , Set S el f loc k Knurl. Cup # 6- 40 x 1/ 4 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-25

DECO 2000

PICK STITCH & TENSION FINGER

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-26

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

PICK STITCH & TENSION FINGER

DET PART NUMBER DESCRIPT ION QT Y

51 07002002 Washer , Flat # 8 2

52 07012004 Washer , Flat # 6 1

53 03100038 Scr., Set Hex. Soc. Cap # 5 - 40 x 3/16 1

54 04120012 Scr., Fill. Hd. # 8 - 32 x 5/16 1

55 04120001 Scr., Fill. Hd. # 8 - 32 x 1/2 2

56 03100147 Scr., Set Hex. Soc. Cup Pt. # 6 - 40 x 3/16 1

57 07016002 Washer, Flat (Brass) # 5 2

58 04120004 Scr., Fill. Hd. # 8 - 32 x 3/8 1

59 03100008 Scr., Hex. Soc.Cup. Pt. # 1/4 - 20 x 1/4 1

60 70.3651.8.021 Holder 1

61 08.6400.4.005 Screw M4x5 1

62 08.6000.4.010 Screw M4x10 1

63 08.6802.4.000 Spring Washer 4,1 1

64 08.6852.4.000 Washer 4,3 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-27

DECO 2000

TENSION FINGER ASSEMBL Y

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-28

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

TENSION FINGER ASSEMBL Y

DET PART NUMBER DESCRIPT ION QT Y

01 35511045 Support Block 1

02 36542018 Finger Spring 1

03 36518027 Stud Eccentric 1

04 35526005 Slide Support 1

05 32691001 Ball Bearing Retainer 2

06 34372042 Finger Spring Tension Holder 1

07 70.3651.8.022 Support Stud 1

08 70.3651.8.020 Eccentric Shaft 1

09 35542007 Tension Finger Ball Bearing Bracket 1

10 31426015 Bearing Spac er 1

11 31000009 Sensor Holding Assembly 1

12

13 36221009 Driven Gear 1

24 35815007 Bracket Cover 1

25

26 37211130 Thread Tension Finger 1

27 31611064 10 - 1 Plain Stud 1

28

29

30 12.0008.3.244 Sensor 1

31 08000015 Pin, Dowel # 3/16 Dia. X 5/8 Lg. 1

32 01000058 Scr., Hex. Soc.Hd. Cap. # 8 - 32 x 3/16 1

33 06000003 Nut. Mach. Scr. Hex. # 8 - 32 1

34 08504001 Rivet, Rd. Hd. (Alum.) # 1/16 x 5/16 2

35 04120002 Scr., Fil. Hd. # 10 - 32 x 3/8 1

36 7012001 Washer, Flat # 10 1

37 23231040 Bearing, Ball "New Depart" # 77 R 3 1

38 23231226 Bearing 2

39 01000009 Scr., Hex. Soc.Hd. Cap. # 8 - 32 x 1/4 1

40 08000044 Pin, Dowel # 3/16 x 1.0 1

41 07102007 Washer, Lock # 8 1

42 01000047 Scr., Hex. Soc.Hd. Cap. # 5/16 - 18 x 1.0 1

43

44 03100154 Scr., Set Hex. Soc.Cup Pt. # 10 - 32 x 3/16 1

45

46

47

53 03100038 Scr., Set Hex. Soc.Cup. # 5 - 40 x 3/16 1

54 04120012 Scr., Fil. Hd. # 8 - 32 x 5/16 1

55 04120001 Scr., Fil. Hd. # 8 - 32 x 1/2 2

56 03100147 Scr., Set Hex. Soc.Cup.Pt. # 6 - 40 x 3/16 1

57 07016002 Washer, Flat (Brass) # 5 2

58 04120004 Scr., Fil. Hd. # 8 - 32 x 3/8 1

59 03100008 Scr., Set Hex. Soc.Cup.Pt. # 1/4 - 20 x 1/4 1

60 70.3651.8.021 Holder 1

61 08.6400.4.005 Screw M4x5

62 08.6000.4.010 Screw M4x10

63 08.6802.4.000 Spring Washer 4,1

64 08.6852.4.000 Washer 4,3

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-29

DECO 2000

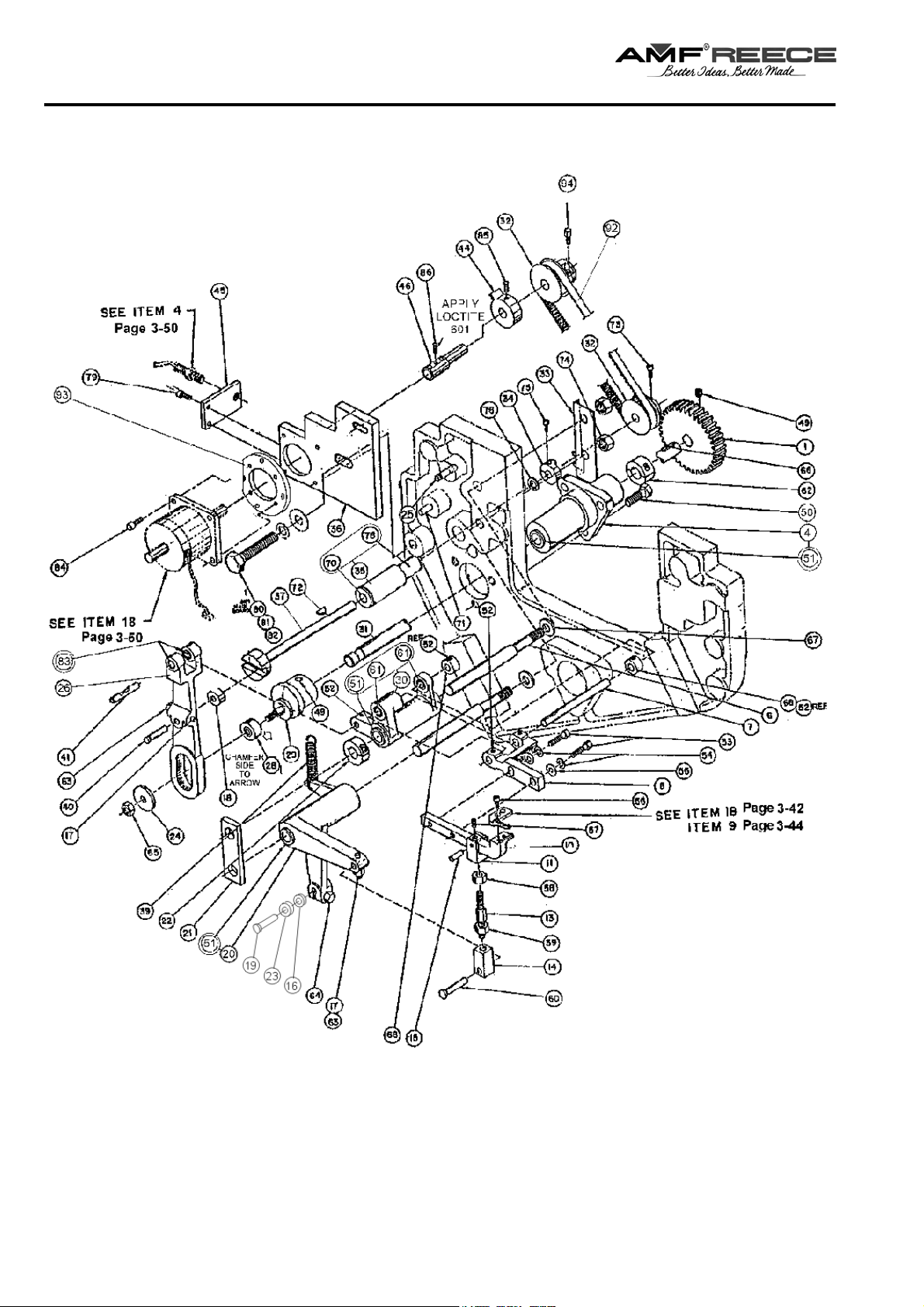

MA TERIAL FEED

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-30

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

MA TERIAL FEED

DET PART NUMBER DESCRIPT ION QT Y

01 36226011 Material F eed Drive Gear 1

02

03

04 31881004 Material F eed Drive S haft B earing 1

05

06 31773013 Feed Mot ion B rkt. S haft 2

07 31217001 Material F eeder Arm S upport B rac ket Shaft 1

08 35523018 Material F eeder Support B rac ket 1

09

10 36613034 Material F eeder Arm 1

11 32739004 Material F eeder Arm Fi ft, Fork 1

12

13 31852015 Feeder Lifter Rod 1

14 32428002 Feeder Lifter Rod Hd. 1

15 31215002 Lifter Fork Pin 1

16 08.6852.6.000 Washer 1

17 31288023 Clamp Stud 2

18

19 31612052 Cam Roller St ud 1

20 36691022 Feeder Lifter Bell Crank 1

21 32225017 Shaft S upport Plate 1

22 31511015 Feed Mt n. B rac ket S haft Coll ar 1

23 23231045 Bearing 1

24 31421005 Feed Mt n. E cc. S tud Was her 1

25 31721039 Pos t , Spring 1

26 36667012 Feed Eccentri c Arm 1

27

28 36344057 Feed Mot ion Cam rol ler 1

29 36515020 Material F eed Cam 1

30 36678019 Feed Mot ion B rac ket 1

31 31728003 Material F eed Drive S haft 1

32 36343061 Pull ey Stit ch Adj. S haft Drive 2

33 70.3462. 7.067 Limit Stop P late 1

34 36771079 Sli de B l oc k Limit Stop 1

35 35225010 Sli de B earing B l oc k 1

36 31000006 Motor M ount ing B racket 1

37 31644004 St i t ch Adj. S l i de B lock 1

38

39 36546024 Ex t. Spri ng 1

40 08000007 Pin Dowel #1/ 4 x 1 1

41 31215079 Feed Mot ion B rac ket P i n 1

42

43

44 31000018 Home Sens or Cam 1

45 31000019 Sens or Mtg. Pl at e 1

46 70.3100. 0. 041 E xtens ion Shaft 1

47

48

49 03100013 Sc r. , Set Hex . Soc . Cup. P t. # 1/4 - 20 x 3/ 8 2

50 04200030 Sc r. , Hex.Hd. Cap # 5/16 - 18 x 3/ 4 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-31

DECO 2000

MA TERIAL FEED

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-32

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

MA TERIAL FEED

DET PART NUMBER DESCRIPT ION QT Y

51 23161073 Bus hi ng" Oi li te"#FF - 707 - 3 (6)

52 03100051 Sc r. , Set Hex . Soc . Cup. P t. # 8 32 x 1/ 8 3

53 01000019 Sc r. , Hex. S oc. Hd.Cap. # 10 - 32 x 3/4 1

54 07100011 Washer, Loc k #10 2

55 07012001 Washer, Flat # 10 2

56 01000059 Sc r. , Hex. S oc. Hd.Cap. # 6 - 40 x 1/ 4 1

57 03100012 Sc r. , Hex. S oc.Cup.P t. # 10 - 32 x 1/ 4 1

58 06020004 Nut. Hex.Jam # 1/4 - 20 1

59 06020021 Nut. Hex.Jam L. H. # 1/ 4 - 20 1

60 31612054 St ud, Cam Roll er # 10 - 6 - 1A1 - 67 1

61 23132122 Bearing " Oi li te" # AA - 520 - 8 3

62 24117012 Collar "Holokrome" # 15014 1

63 06000002 Nut. Hex # 10 - 32 1

64 04200011 Sc r. , Hex. Hd. # 10 - 32 x 5/8 1

65 06000005 Nut. Hex # 1/ 4 - 28 1

66 09020001 Key , Hi - Pro # 1/ 8 x x 5 / 8 1

67 22912090 Washer "Reid`s " H. Duty # F W - 3 2

68 01.7435.1.000 Collar 2

69

70 23161048 Bus hi ng " Oi li te" # FF - 607 - 3 (1)

71 08000044 Pin. Dowel # 3/ 16 x 1 1

72

73 01000013 Sc r. , Hex. S oc. Hd. Cap # 8 - 32 x 1/ 2 2

74 06000014 Nut. Hex # 3/ 8 - 16 2

75 01000017 Sc r. , Hex. S oc. Hd. Cap # 6 - 32 x 3/ 8 1

76 23181235 Bearing, Thrust "Rulon"# DRT 0612 - 2 1

77

78 23132155 Bus hi ng " Oi li te" # AA - 507 - 2 (1)

79 01000026 Sc r. H. S . H. C. # 1/ 4 - 20 x 5/ 8 1

80 04200046 Sc r. , Hex. Hd. # 3/ 8 - 16 x 2 1

81 07100009 Washer, Spring Loc k # 3/8 1

82 07012003 Washer, Flat # 3/8 1

83 23161008 Bearing " Oi li te" # FF - 303 (2)

84 01000056 Sc r. , Hex. Hd. Cap # 10 - 24 x 1/ 2 4

85 03102026 Sc r. ,Set Hex .Soc . Cup P t . # 10 - 32 x 1/2 1

86 08.6400. 4. 008 S crew M 4 - 8 3

87

88

89

90

91

92 24381054 Belt Timm i ng " S DP " # 6 B 3085025 1

93 70.3100. 0. 040 M ot or Fl ange 1

94 08.6000. 4.010 S crew M 4 - 10 4

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-33

DECO 2000

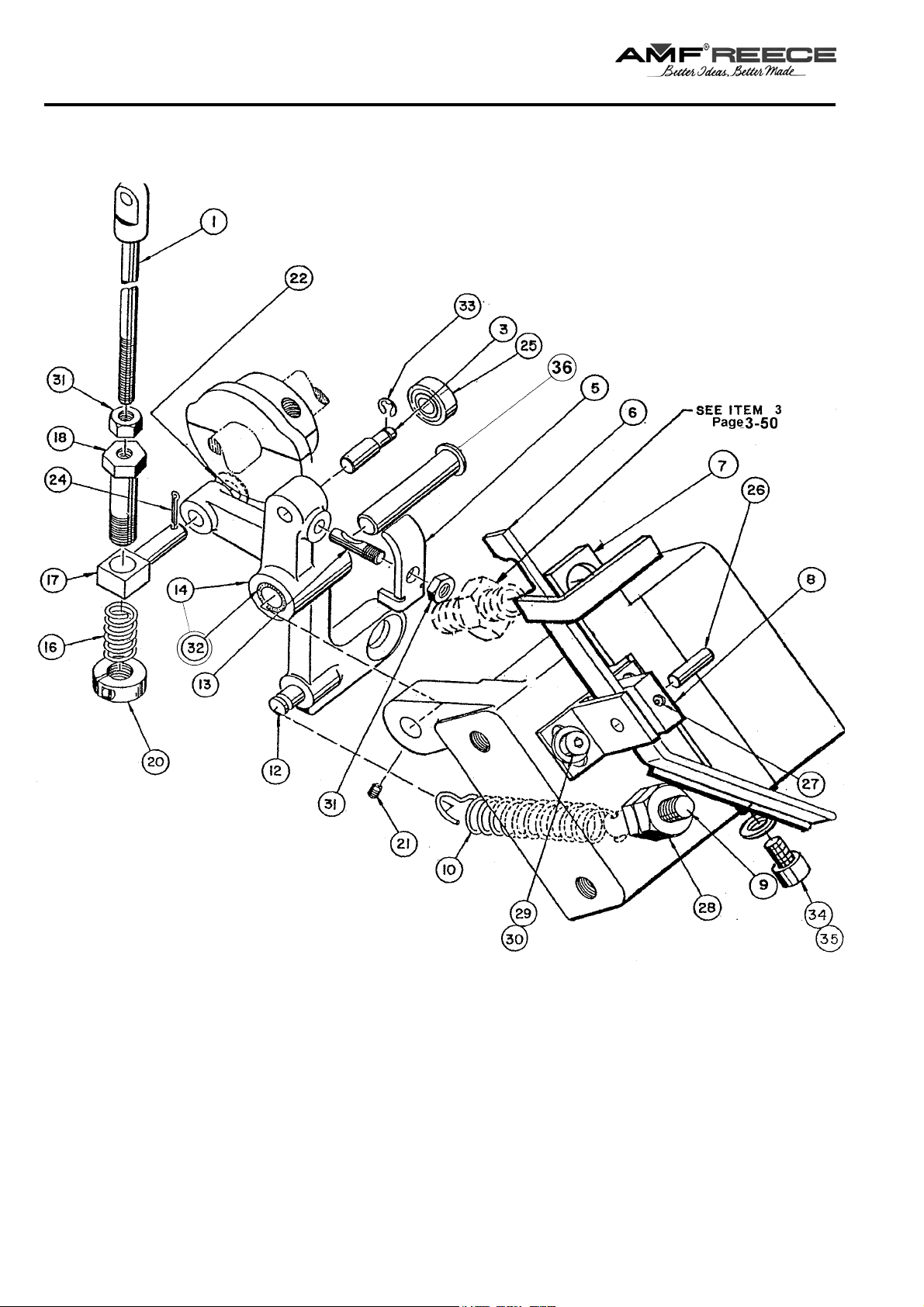

ANGLE STITCH MECHANISM

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-34

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

ANGLE STITCH MECHANISM

DET PART NUMBER DESCRIPT ION QT Y

01 35111007 Brac k et Rod 1

02

03 31613007 Roller St ud 1

04

05 34758001 Locking Latc h Cli p 1

06 31000032 Angle P l at e Lock. Latch 1

07 31000033 Sens or Mount 1

08 32769003 Locking Latc h B earing 1

09 31283001 Plat e Cam Lever Spring Stud 1

10 36543022 St i t ch Adj. Cam Lever Spring 1

11

12 31721038 Spring P os t 1

13 31288023 Clamp Stud 1

14 36674012 Cam Lever 1

15

16 36533015 Rod Spring 1

17 31873011 Pus her B lock 1

18 31839020 Adjusting B us hi ng 1

19

20 24117216 Collar, Clam p, Stl. # 5/ 16 - 24 Threaded 1

21 03100002 Sc r. ,Set Hex .Soc . Cup. # 8 - 32 x 3/ 16 1

22 07012002 Washer, Flat # 1/4 1

23

24 08322001 Pin. Cot ter # 1/16 x 1/ 2 1

25 23231040 Bearing, B al l " New Depart" # 77 R 3 1

26 08000015 Pin, Dowel # 3/ 16 x 5/8 1

27 03140005 Scr.,Set Hex.Soc. Oval Pt.. # 10 - 32 x 5/16 1

28 06130002 Nut, Hex. Lock # 5/ 16 - 18 2

29 01000032 Sc r. ,Set Hex .Soc . Cap. # 10 - 32 x 3/8 2

30 07012001 Washer, Flat # 10 2

31 06124010 Nut, Hex. Lock # 10 - 32 2

32 23132115 Bus hi ng " Oi li te" # AA - 401 - 1 (1)

33 25379273 E - Ring " Truarc" # 5133 - 18 1

34 01000025 Sc r. , Hex.S oc. Hd. Cap. . # 10 - 32 x 1/2 1

35 07102006 Washer, Spring Loc k # 10 1

36 31641017 Support B rac ket S haft 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-35

DECO 2000

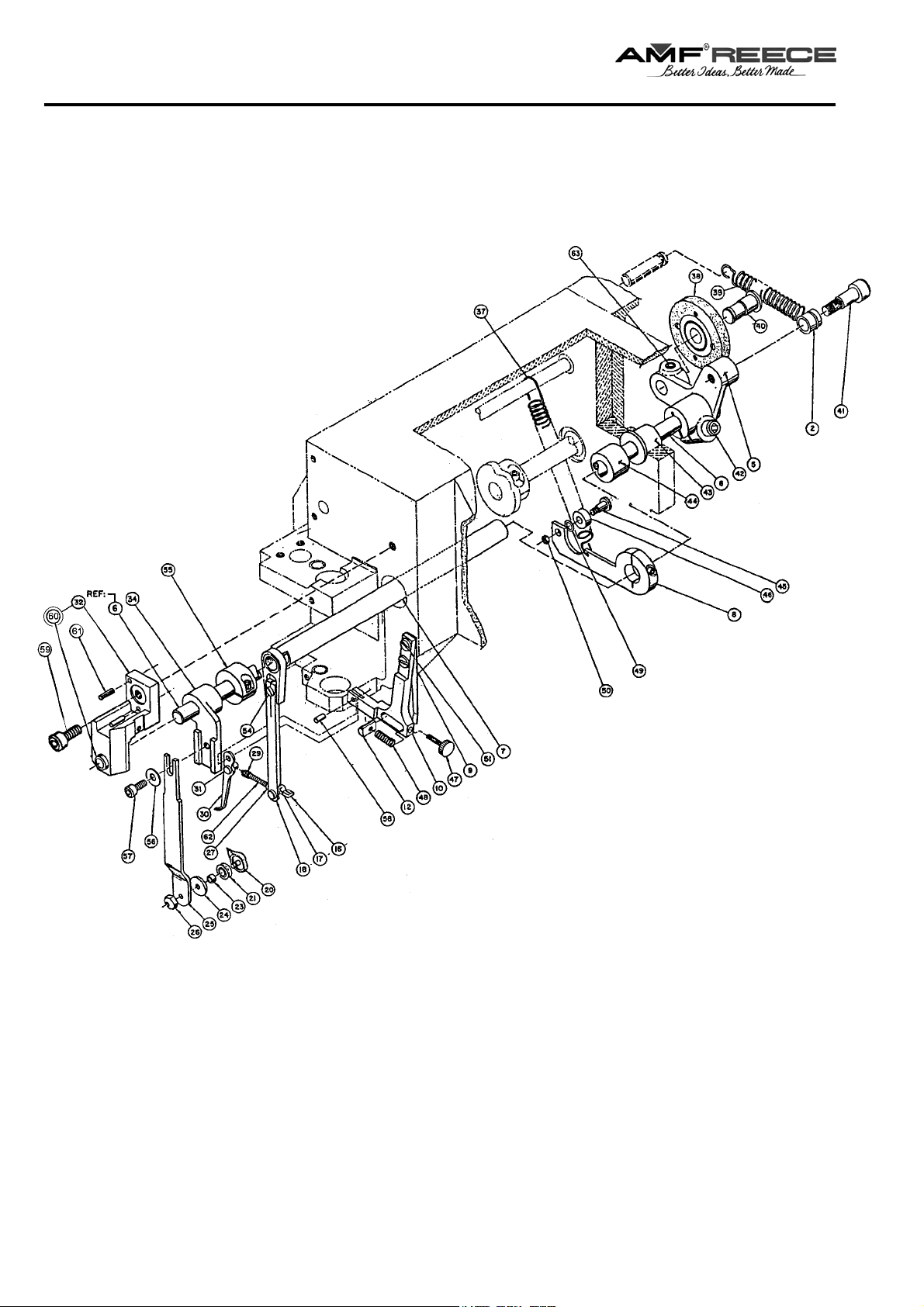

UPPER LOOPER

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-36

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

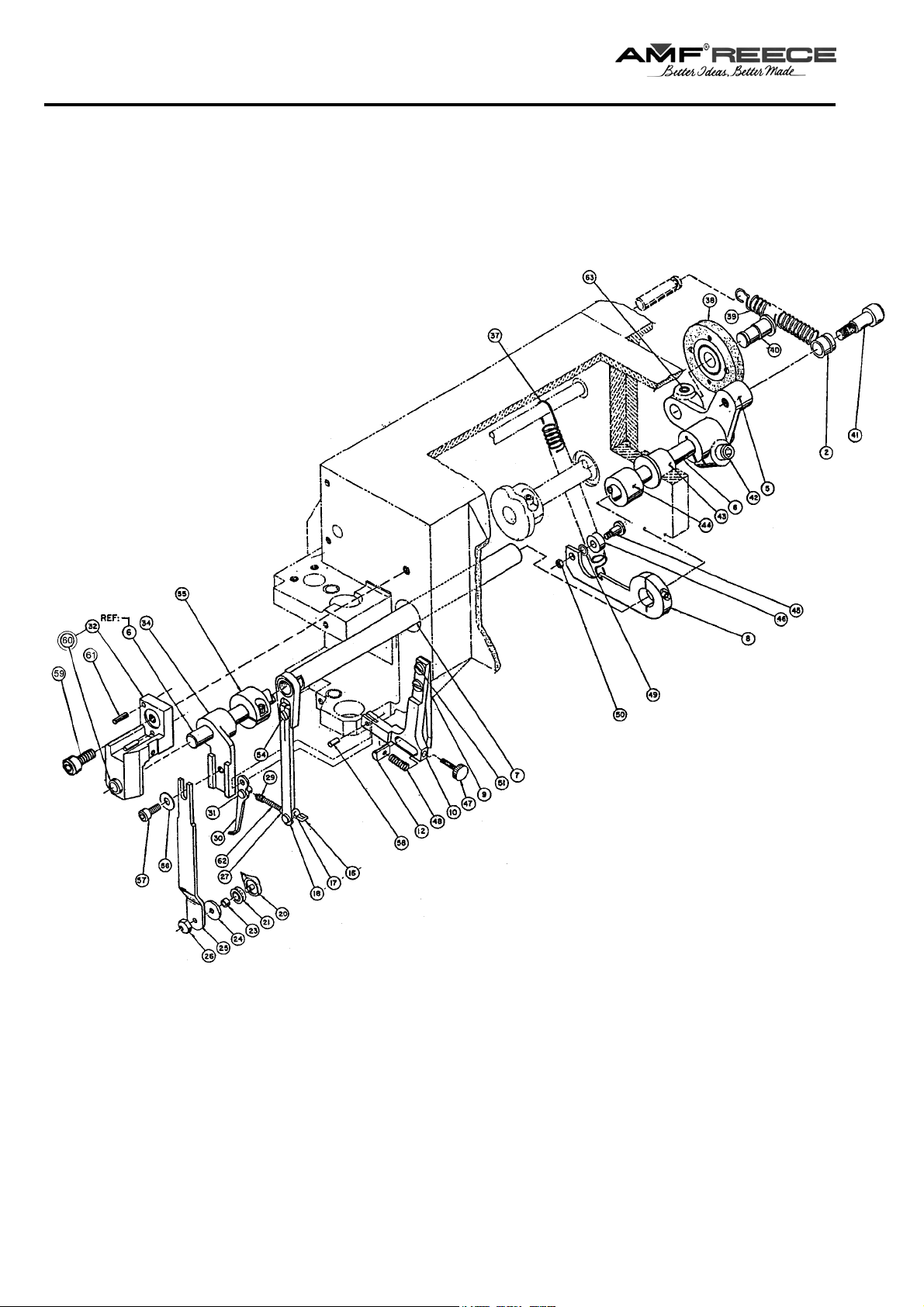

UPPER LOOPER

DET PART NUMBER DESCRIPT ION QT Y

01

02 31722031 Sleeve 1

03

04

05 36691024 Cam Lever 1

06 31268001 Left Upper Looper A rm S haft 1

07 36761031 As s`y. , Top Right Looper Shaft 1

08 36613099 As s`y. , Right Upper Looper Cam Lever 1

09 34378066 Knob Stop 1

10 33251105 Finger Support 1

11

12 31211015 Arm S top 1

13

14

15

16 31955003 Pus her Rod 1

17 31644003 Bearing Stud 1

18 32542111 Pus her Rod Arm 1

19

20 37231028 Upper Looper K nife 1

21 36341035 Looper Roller 1

22

23 31413002 St ud S pac er 1

24 70.3149. 1. 001 Left Looper Roller Seat 1

25 70.3662. 5. 002 Left Upper Looper Arm 1

26 31815017 Left Upper Looper Nut 1

27 31413001 Finger Pusher Rod Coll ar 1

28

29 31593001 Adj.Nut 1

30 37211045 Right Looper Finger 1

31 31613035 Rod Support 1

32 35521118 Bearing Bracket 1

33

34 35511040 Left Upper Looper B rac ket 1

35

36

37 36546022 Spring 1

38 42241009 Cam Roller Assembl y 1

39 36546025 Cam Lever Spring 1

40 31741013 Cam Roller 1

41 01300037 Sc r. ,Shldr. Hex . S oc.# 5/ 16 Dia x 5/ 8 Lg. 1

42 01000093 Scr.,. Hex. Soc. Hd.Cap.# 1/4 - 20 x 3/4 1

43 23132178 Bearing " Oi li te"# AA -630 -1 1

44

45 01300029 Sc r. Shldr. Hex. Soc . Hd. # 1/ 4 Dia x 1/4 Lg. 1

46 23231045 Bearing " New Depart"# 77 R 4 1

47 70.3121. 1. 016 K nurled K nob S cr." Shearloc" # 8 - 32 x 1. 0 Gy 1

48 24971056 Spring, Comp. , "Lee" # LC - 032 C - 8 1

49 07106001 Washer, Loc k Hi Col lar # 1/ 4 1

50 06220001 Nut, Fl ex Loc.Hex. # 21 FK - 1024 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-37

DECO 2000

UPPER LOOPER

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-38

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

UPPER LOOPER

DET PART NUMBER DESCRIPT ION QT Y

51 04100054 Sc r. , Bind. Hd. # 8 - 32 x 3/8 2

52

53

54 04000190 Sc r. , Flat. Hd. # 6 - 40 x 1/ 4 1

55 24117010 Collar, Clam p " Holokrome" # 15010 1

56 07012005 Washer, Flat # 8 1

57 01002014 Sc r. , Hex. S oc.Hd. Cap # 8 - 32 x 3/ 8 1

58 08000017 Dowel Pin # 1/ 8 Dia x 1/ 4 1

59 01000037 Sc r. , Hex. S oc.Hd. Cap # 1/ 4 - 20 x 1 1

60 23132165 Bearing " Oi li te" # AA - 516 - 6 (1)

61 08000018 Pin. Rol l # 1/8 x 1/ 2 2

62 24971021 Spring " Lee" # LC - 018 A - 8 1

63 03140006 Sc r. , Set Hex . Soc . Oval Pt. # 1/4 - 20 x 1/ 4 1

64 31721041 Spring P os t 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-39

DECO 2000

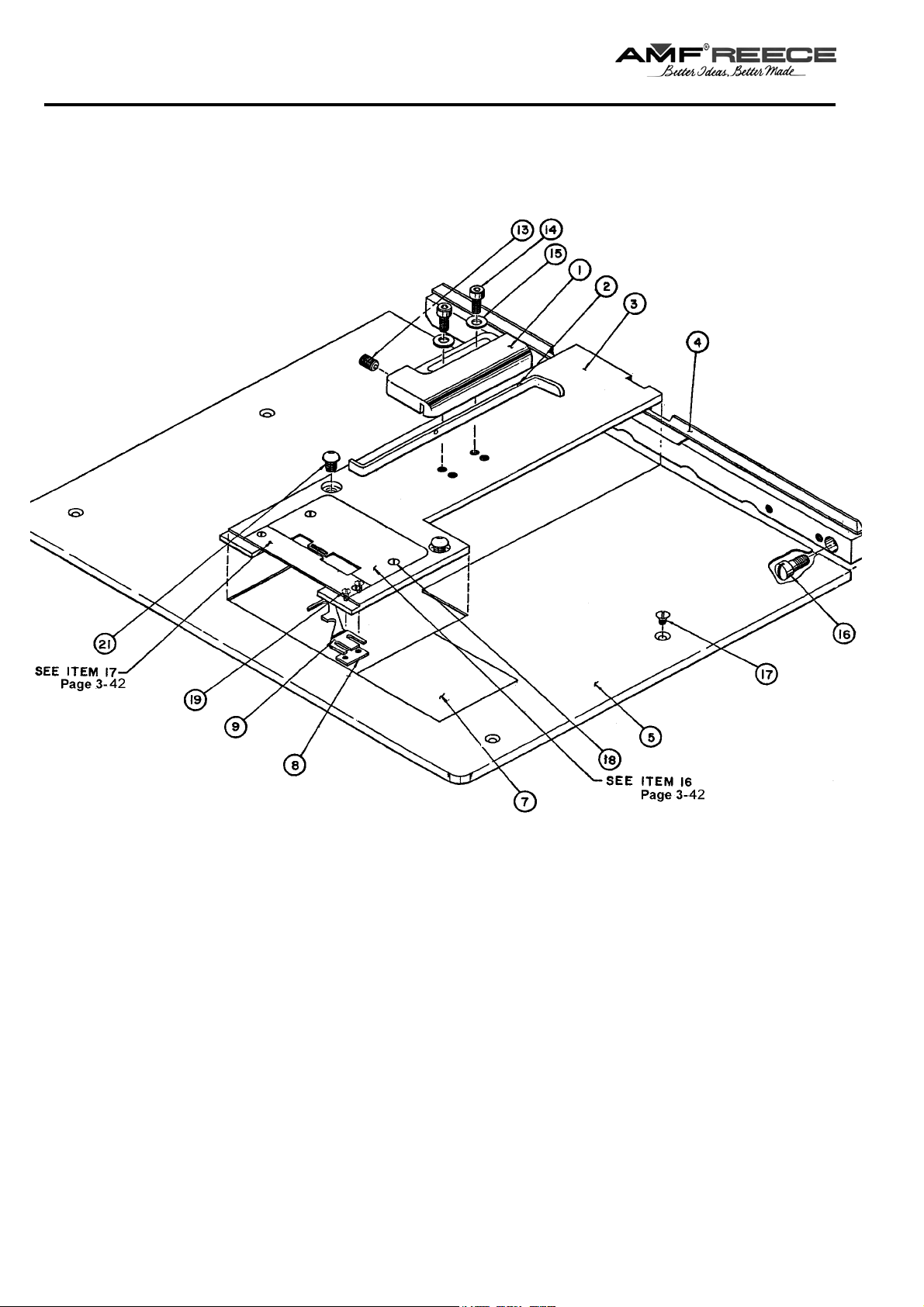

WORK PLA TE ASSEMBL Y

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-40

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

WORK PLA TE ASSEMBL Y

DET PART NUMBER DESCRIPTI ON QTY

01 36741109 Sli de M at erial Gauge 1

02 37771022 As s`y. - Rod Mat erial Gauge 1

03 33258076 Throat P l at e Holder 1

04 35421064 Table Res t As sembly 1

05 70.3541. 1. 112 M et al Table 1

06

07 35411121 Ass`y. - Access Plate 1

08 32233001 Clamp Strip 1

09 37211133 Thread Guide Fi nger 1

10

11

12

13 22966116 Plunger, B al l " V l i er" # B L - 54 N 1

14 01000032 Sc r. , Hex. S oc.Hd. Cap # 10 - 32 x 3/ 8 2

15 07012001 Washer, Fl at # 10 2

16 04120070 Sc r. , Fol. Hd. # 1/ 4 - 20 x 1/2 2

17 04002109 Sc r. , Flat. Hd.(S. S tl.) # 8 - 32 x 1/4 4

18 04002086 Sc r. , Flat. Hd.(S. S tl.) # 5 - 40 x 1/4 4

19 04002087 Sc r. , Flat. Hd.(S. S tl.) # 5 - 40 x 5/16 2

20

21 01200031 Scr.,. Hex. Soc.But. Hd..# 1/4 - 20 x 3/8 2

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-41

DECO 2000

PRESSER FOOT &SWIVEL TOE ASSEMBLY

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-42

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

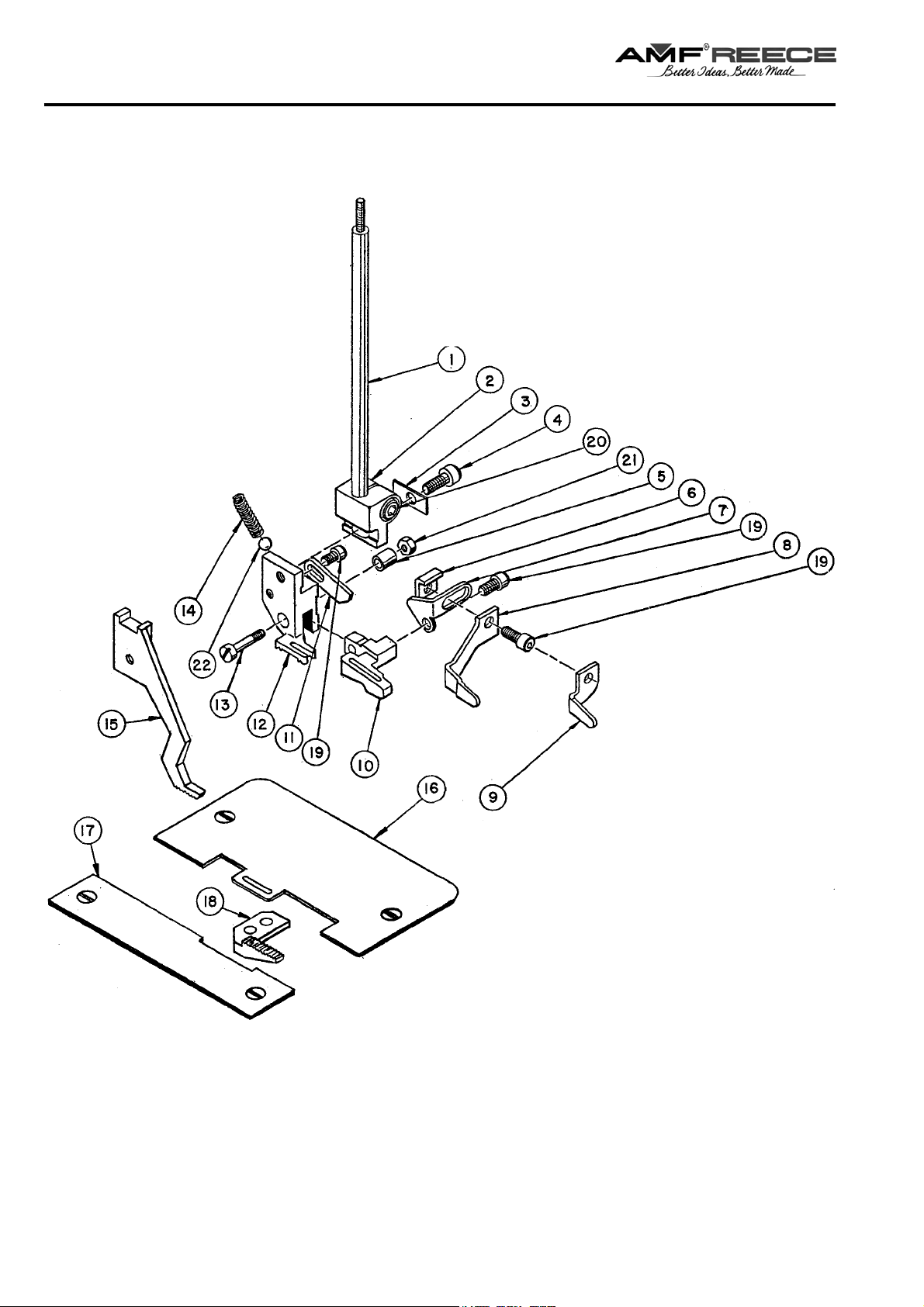

PRESSER FOOT &SWIVEL TOE ASSEMBLY

DET PART NUMBER DESCRIPT ION QT Y

01 31772035 St at i onary P res ser Foot S haft 1

02 35511080 Toe Holder 1

03 32215003 Holder Was her 1

04 01000301 Sc rew #6-40 x 5/ 16 1

05 31413003 Pin Sleeve 1

06 34264012 Material Gui de Nut 1

07 35414016 Material Gui de B rac kett 1

08 34658001 Material Gui de 1

09 34458002 Material Gui de 1

10 35511079 Swievel Toe 1

11 32631001 Swievel Toe St op 1

12 36615007 Pres s er Foot 1

13 31685012 Hinge Pin 1

14 36531018 Plunger Spri ng 1

15 70.3661. 1.042 Fol lower Presser F o ot 1

16 32764006 Throat Plate 1

17 32732021 Throat Plate Left 1

18 70.3661. 1. 037 M at erial F eeder 1

19 01000004 Sc r. , Hex. S oc.Hd. Cap # 5 - 40 x 1/ 4 3

20 01000002 Sc r. , Hex. S oc.Hd. Cap # 8 - 32 x 3/ 8 1

21 06000020 Nut. Hex # 4 - 48 1

22 22965005 Ball , S teel # 5/32 Dia. 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-43

DECO 2000

PRESSER FOOT

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-44

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

PRESSER FOOT

DET PART NUMBER DESCRIPT ION QT Y

01 31772035 St at i onary P res ser Foot S haft 1

02 35511080 Toe Holder 1

03 32215003 Holder Was her 1

04 01000301 Sc rew # 6 -40 x 5/ 16 1

05 31100035 Pres s er Foot 1

06 70.3661. 1.042 Walk ing Foot 1

07 32764006 Throat Plate, Right 1

08 70.3273. 2. 023 Throat Pl at e, Left 1

09 70.3661. 1. 037 F eed Dog 1

10 01000002 Sc r. , Hex. S oc.Hd. Cap # 8 - 32 x 3/ 8 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-45

DECO 2000

ELECTRICAL - I

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-46

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

ELECTRICAL - I

DET PART NUMBER DESCRIPTI ON QTY

01 12.0008.4.207 Bushing 2

02 12.0008.4.710 Screw 6

03 12.0008.4.708 Connector 1

04 12.0008.4.769 Connector 1

05 12.0008.4.766 Connector 1

06 12.0008.4.366 Plug 1

07 12.0008.4.783 Tu be 1

08 12.0008.4.795 Bushing 1

09 12.0008.4.231 Bushing 2

10 08.6700.4.000 Nut 8

11 08.6800.4.000 Washer 8

12 08.6100.4.014 Screw 8

13 12.0008.4.472 Fan 2

14 70.4165.1.097 Plate 1

15 08.6702.8.000 Nut 4

16 08.6702.5.000 Nut 2

17 08.6032.5.010 Screw 2

18 08.6852.5.000 Washer 2

19 70.4165. 1. 125 Cont rol B ox 1

20 - Part of As sembly 70. 4165. 1.096 (2)

21 - Part of As sembly 70. 4165. 1.096 (6)

22 12.0008.4.154 Label 1

23 00.2751. 3. 602 Label Caut i on 1

24 70.4165. 1. 124 Connec t ors Plate 1

25 08.6100.4.008 Screw 4

26 12.0008.4.215 Plug 2

27 12.0008.4.216 Plug 2

28 70.4165.1.126 Gasket 1

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-47

DECO 2000

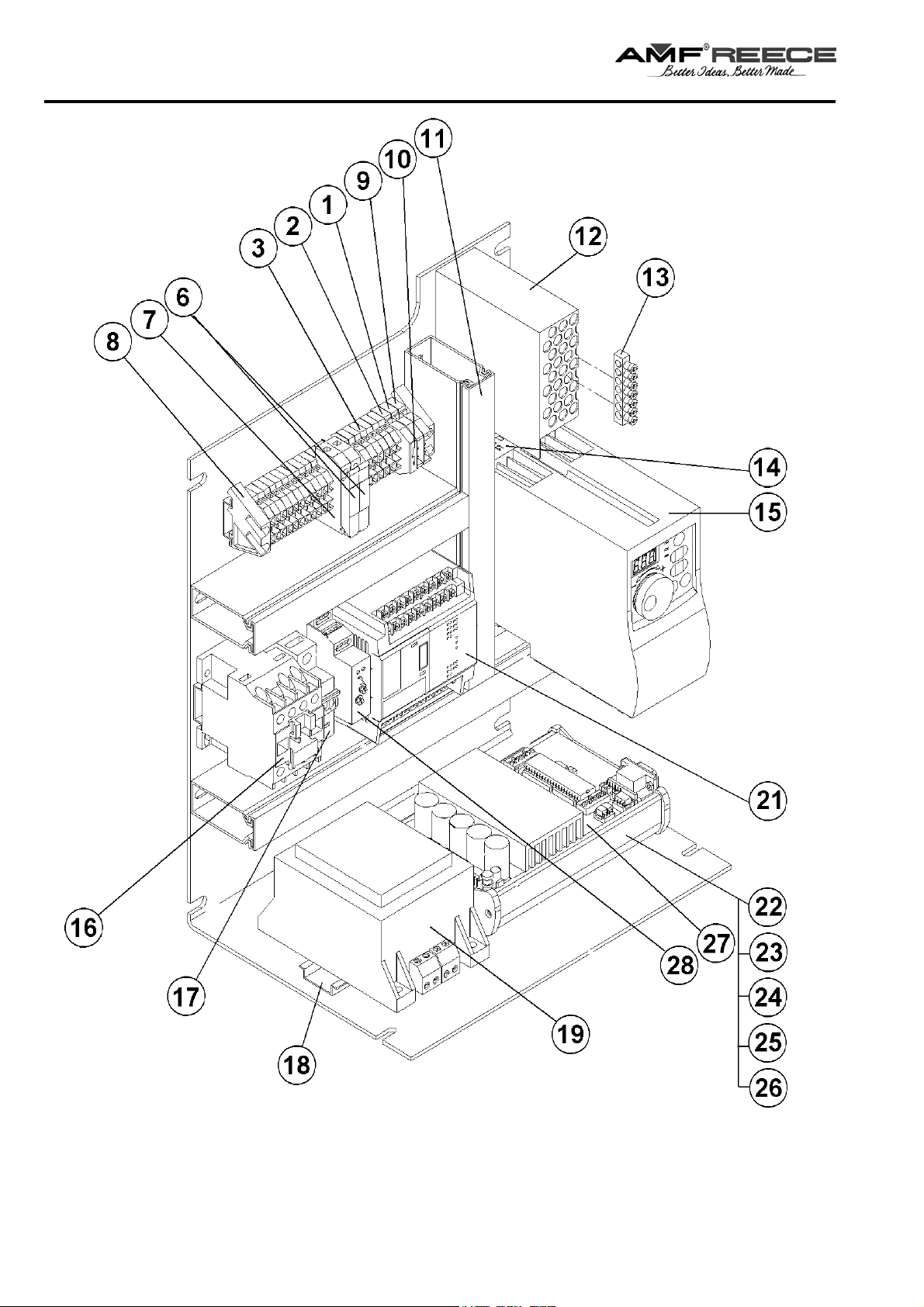

ELECTRICAL - II

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-48

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

ELECTRICAL - II

DET PART NUMBER DESCRIPTI ON QTY

01 12.0008.4.857 Te r minal 1

02 12.0008.4.856 Te r minal 1

03 12.0008.4.657 Te r minal 19

04

05

06 12.0008.4.063 Fuse 2

07 12.0008. 4.663 Fu s e B o x 5

08 12.0008.4.329 Connector 2

09 12.0008.4.327 Te r minal 1

10 12.0008. 4. 662 Cover Label 1

11 70.4165. 1. 100 Lat ch for Cable K i t 1

12 12.0008. 4.709 P ower Supply 1

13 12.0008. 4. 050 Grounding B ridge 1

14 12.0008.4.751 Filter 1

15 70.4165. 1. 102 F requency Invert er 1

16 12.0008.4.488 Contactor 1

17 12.0008. 4.484 Circuit Break er 1

18 70.4165. 1. 099 Din Rail 1

19 12.0008.4.781 Power 1

20

21 70.4165. 1.101 P LC - F X1N-24MT-DDS 1

22 70.4165.1.098 Holder 1

23 12.0008. 4. 826 S i de P l at e 2

24 12.0008. 4.827 Hol der F oot 2

25 12.0008.4.828 Screw 4

26 12.0008.4.829 Screw 4

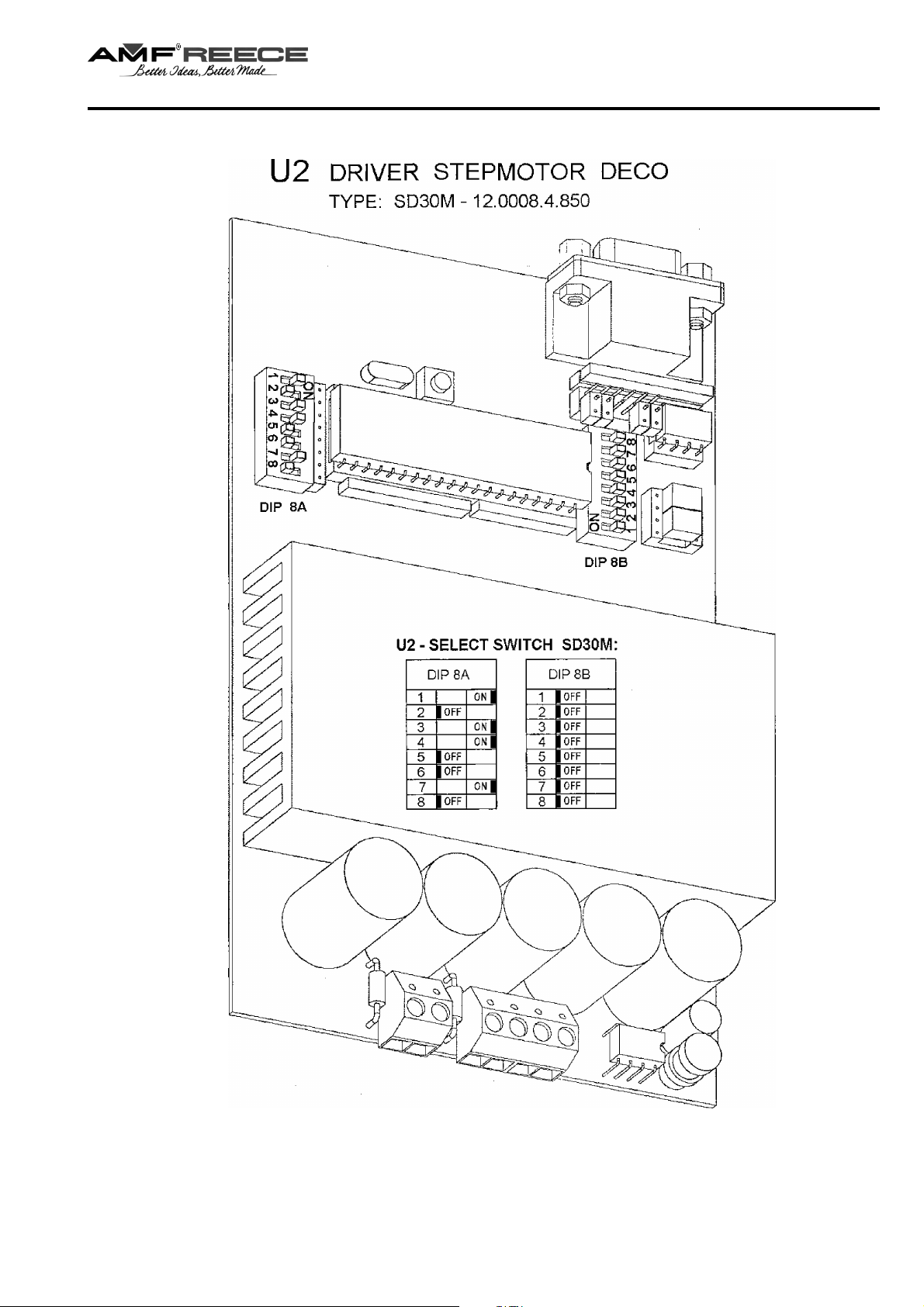

27 12.0008.4.850 Driver 1
28* 12.0008.4. 69 0 Un d ervolt a ge Rel a y HRN-3 1

* — Extra Parts

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-49

DECO 2000

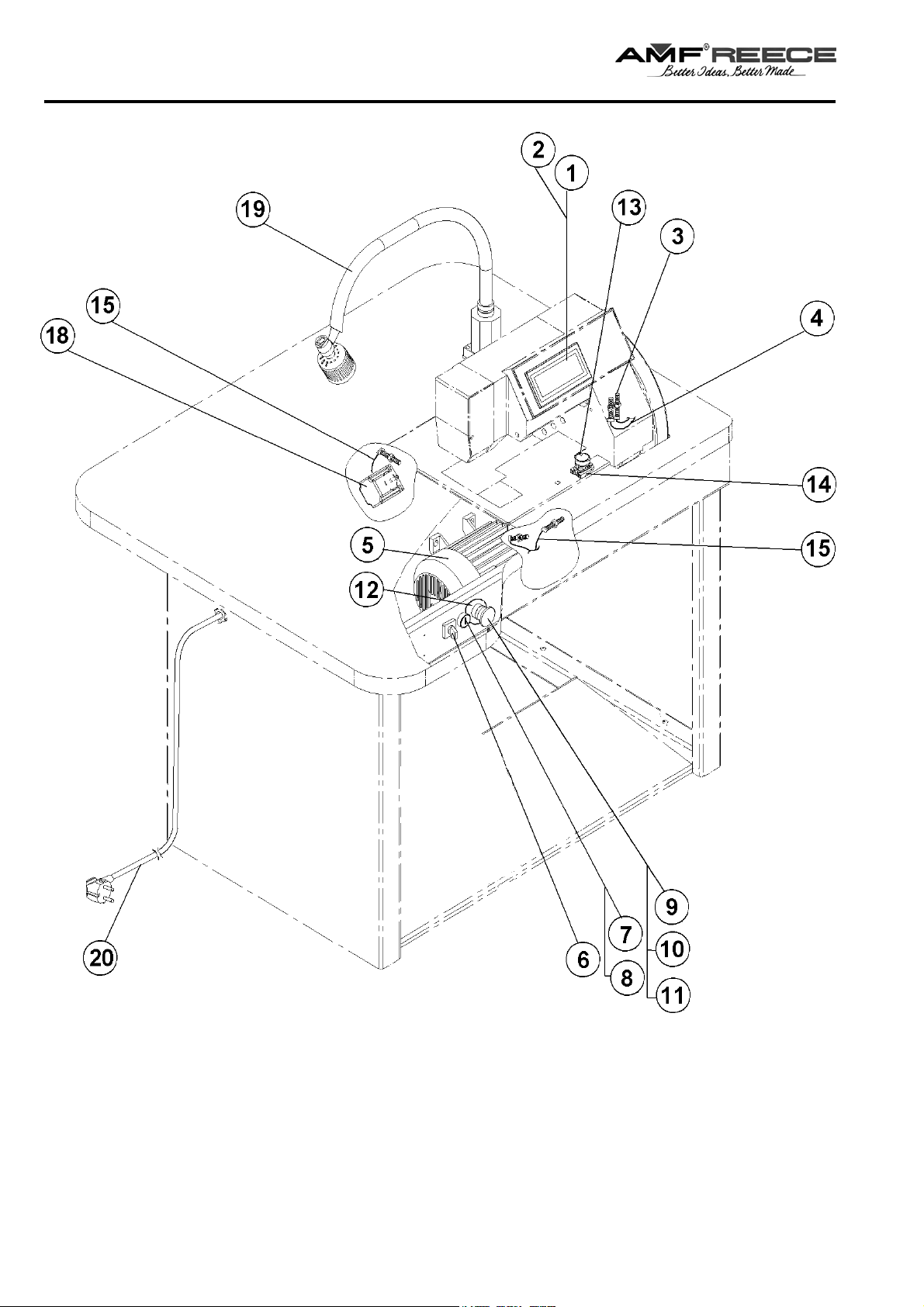

ELECTRICAL - III

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-50

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 09/2005

DECO 2000

ELECTRICAL - III

DET PART NUMBER DESCRIPT ION QT Y

01 70.4165.1.103 Display 1

02 70.4165. 1. 105 Display Cable 1

03 12.0010.4.025 Sensor 5

04 70.4165.1.110 Cable 1

05 12.0008.4.757 Motor 1

06 12.0008.4.835 Switch 1

07 12.0008. 4. 836 P ushbutton (Green) 1

08 12.0008. 4.837 S wi tch Uni t Assem b l y 1

09 12.0008. 4. 590 S top Switch 1

10 12.0008. 4.839 S wi tch Uni t Assem b l y 1

11 12.0008. 4. 842 S witch B l oc k NC 1

12

13 12.0008. 4. 591 P ushbutton (B l ue) 1

14 12.0008. 4.592 S wi tch Uni t Assem b l y 1

15 70.4165.1.109 Cable 1

16

17

18 70.4165. 1. 118 S tep Motor 1

19 12.0008. 4.403 Lam p, Halogen 1

20 12.0008. 4. 713 Cable, F lexo 1

Revised 09/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-51

DECO 2000

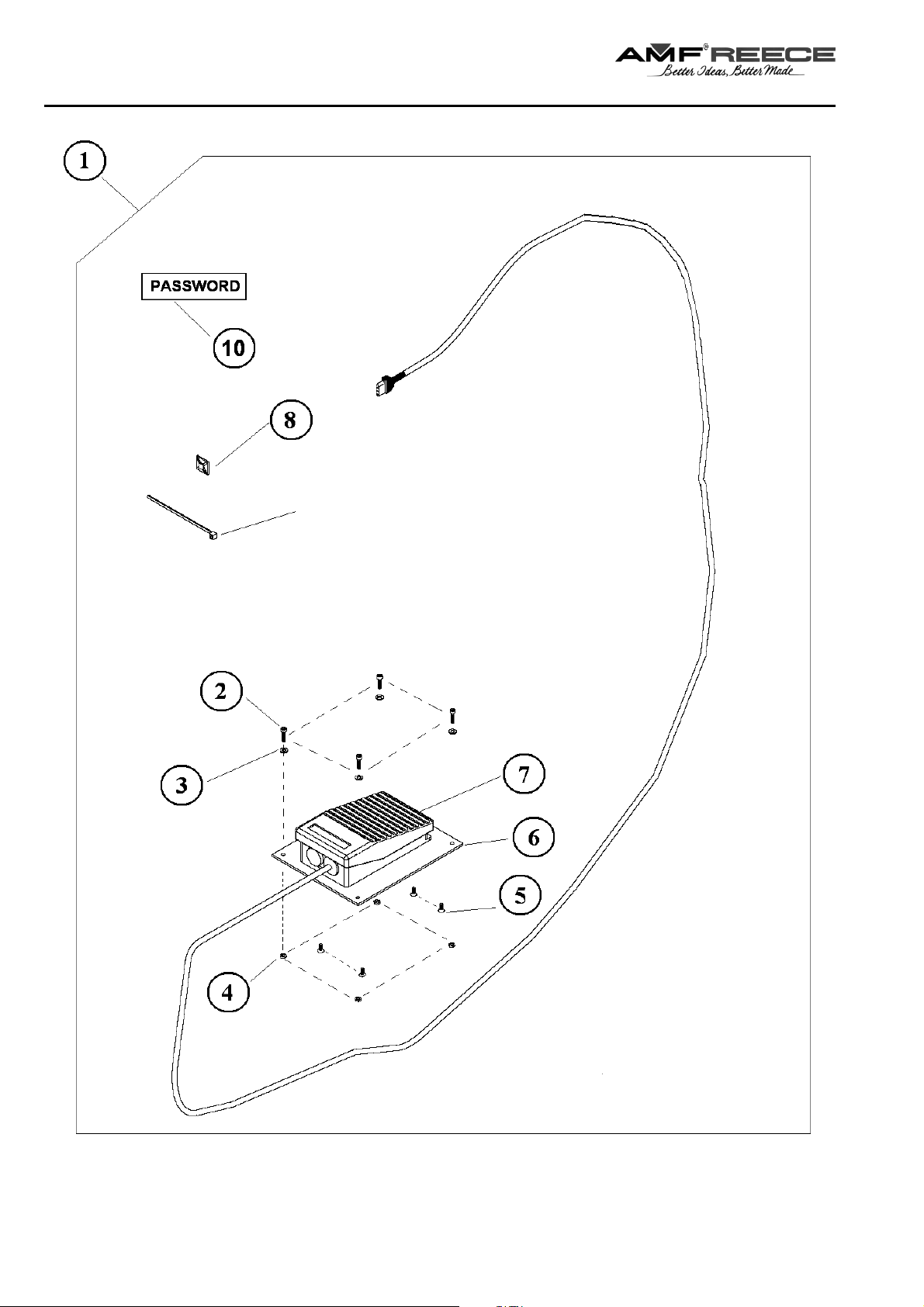

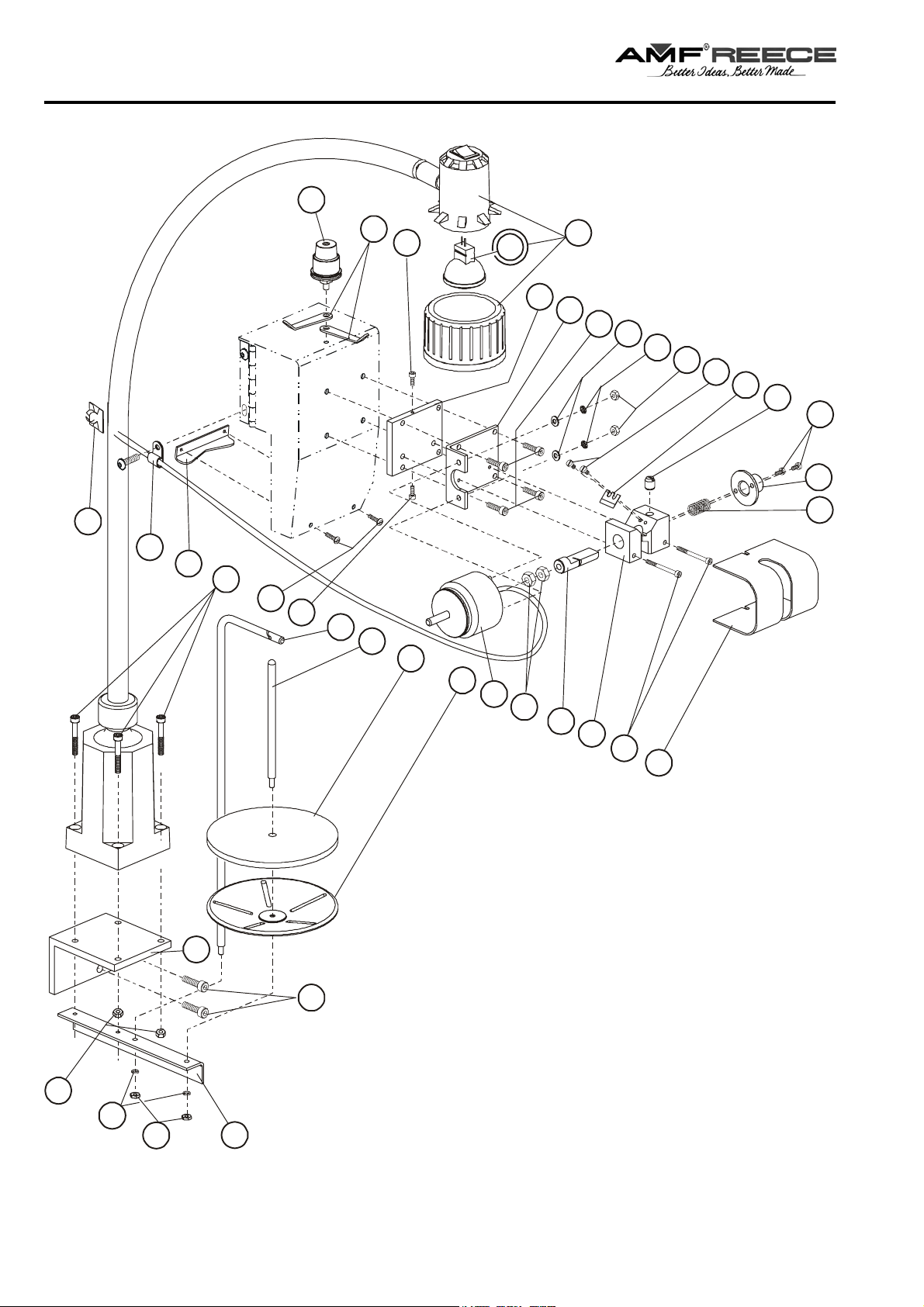

ACCESSORIES

1

2

3

4

5

6

7

8

9

20

10

11

12

13

9

14

18

19

15

16

17

*

*

21

22

*

23

*

24

*

*

25

*

26

*

27

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-52

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

ACCESSORIES

DET PART NUMBER DESCRIPTION QTY

01 26913004 Pliers 1

02 26913020 Screwdriver 1

03 12.0008.6.119 Pliers 1

04 12.0008.6.118 Wrench 7/16"x 1/2" 1

05 03.0018.0.000 Wrench 3/8" x 5/16" 1

06 49910018 Cleaner 1

07 12.0008.6.975 Perk Brush 1

08 00103238 Needle 11

09 12.0008.6.968 Box Needle Short 2

10 22979050 Wrench Set 1

11 22979048 Wrench, Short Arm 1

12 22979047 Allen Wrench 7/64" 1

13 — Box 1

14 37213001 Needle Threader 10

15 05.1322.0.000 Oil Can 1

16 37771023 Gage, Needle Bar 1

17 05.0090.1.000 OIL-8 OZ CAN-68 1

18 12.0008.6.xxx Thread Black 1

19 49910019 Barbed Broach 1

20* 70.3273.2.023 Throat Plate 2 - Left 1
21* 31100035 Presser Foot 1
22* 34264012 Material Guide Nut 1
23* 35414016 Material Guide Bracket 1
24* 01000059 Screw #6-40X1/4 2
25* 34658001 Material Guide 1
26* 34458002 Material Guide 1
27* — Box 1

*

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-53

DECO 2000

THREAD TRIM

1

29

15

16

33

17

2

3

34

35

4

5

6

7

8

9

10

11

12

17

13

14

3

18

19

20

21

22

23

24

25

26

27

32

31

30

8

9

3-54

28

e-mail: [email protected]; [email protected]; website: www .amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 03/2005

DECO 2000

THREAD TRIM

DET PART NUMBER DESCRIPTI ON QTY

01 23.2044. 0. 050 Large Tension A s sembly 1

02 70.3288. 2. 101 Thread Guide 2

03 08.6000. 3.008 S crew M3x8 2

04 70.3288.2.401 Plate 1

05 70.3288. 3. 601 S ol enoid Holder 1

06 08.6000. 4.015 S crew M4x15 4

07 08.6852. 4. 000 Washer 4, 3 2

08 08.6802. 4.000 S pri ng Was her 4,1 4

09 08.6702. 4.000 Nut M4 4

10 08.6012.3.006 Screw 2

11 39.0087.0.000 Blade 1

12 19.0011. 1.400 S crew M8x1-10 1

13 70.3284.4.101 Flange 1

14 12.3010.0.013 Spring 1

15 12.0008. 4. 280 P l asting Cable Fi t ting 1

16 70.3288. 2. 102 Thread Guide 1

17 08.6200. 3.008 S crew M3x8 4

18 70.3288. 2. 103 Thread Guide 1

19 17.0031.3.277 Pin 1

20 17.0095. 3. 042 Washer P ad 1

21 17.0083.9.031 Plate 1

22 70.4165. 1. 129 S ol enoid DC 1

23 08.6710. 6.000 Nut M6 2

24 70.3283. 2.601 Cut ting B a r 1

25 70.3286.4.501 Block 1

26 08.6000. 3.025 S crew M3x25 2

27 70.3288.2.104 Cover 1

28 70.3288.3.602 Holder 1

29 12.0008. 4.862 Cli ps - Metal 3

30 08.6702. 4.000 Nut M4 2

31 012000028 Sc rew 1/ 4 - 20 x 3/ 4 2

32 31852010 Alex Light Holder 1

33 08.6000. 4.025 S crew M4x25 4

34 12.0008. 4. 403 Halogen Lamp K i t 1

35 12.0008. 4. 679 B ul b 12V / 12W (1)

Revised 03/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-55

DECO 2000

*

17

*

18

FOOT PEDAL

1

2

3

4

5

6

7

19
20

21
22

23
24

27

25

26

*

8

*

9

*
*

*

10

*

5
4

11

*

12

*

13
14

*

15

e-mail: [email protected]; [email protected]; website: www .amfreece.com

3-56

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

16

Revised 03/2005

DECO 2000

FOOT PEDAL

DET PART NUMBER DESCRIPTION QTY

01 03.5570.0.011 Foot Switch Assembly 1

02 70.4165.1.114 Cable (1)

03 08.6000.6.018 Screw M6x18 (2)

04 07.6760.0.000 Retaining Ring (2)

05 07.6440.0.014 Spring (2)

06 70.3552.8.075 Mount (1)

07 06.0120.0.000 Switch (1)

08 08.6000.3.016 Screw M3x16 (6)

09 70.3532.8.076 Actuator (1)

10 04.1956.0.000 Pitman Rod Bal (1)

11 01000019 Screw (2)

12 70.3532.8.077 Lever (1)

13 32115005 Foot Pedal Tread (1)

14 36617003 Pedal (1)

15 08.6000.5.012 Screw M5x12 (2)

16 31225015 Shaft (1)
17* 03.5570.0.014 Foot Switch Assembly 1*

18* 12.0008.4.862 Clips - Metal (2)*
19* 70.4165.1.115 Cable (1)*
20* 70.4165.1.116 Cable (1)*

21* 12.0008.4.240 Bushing (1)*
22* 12.0008.4.231 Bushing (2)*
23* 12.0008.4.204 Pedal (2)*

24* 08.6012.4.010 Screw M4x10 (4)*
25* 70.3532.8.073 Plate (1)*
26* 08.6100.4.014 Screw M4x14 (8)*
27* — Foot Pedal Tread (1)*

* — Extra Parts

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-57

DECO 2000

CONDENSED STITCH KIT

e-mail: [email protected]; [email protected]; website: www.amfreece.com

3 - 5 8

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

CONDENSED STITCH KIT

DET PART NUMBER DESCRIPTION QTY

1 03.5570.0.013 Condensed stitch kit 1
2 08.6000.4.016 Screw M4x16 4
3 08.6852.4.000 Washer 4
4 08.6702.4.000 Nut - M4 4

5 08.6132.4.010 Screw M4x12 4
6 70.3532.8.078 Mounting Plate 1
7 70.4165.1.112 Foot Pedal Assembly 1

8 12.0008.4.058 Clip 8
9 12.0008.4.072 Cable Tie 8

10 12.8000.0.144 Password 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-59

DECO 2000

ELECTRICAL DIAGRAM

e-mail: [email protected]; [email protected]; website: www.amfreece.com

3 - 6 0

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

ELECTRICAL DIAGRAM

DECO 2000

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

3-61

DECO 2000

e-mail: [email protected]; [email protected]; website: www.amfreece.com

3 - 6 2

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 11/2005

DECO 2000

INDEX

PART NU M BER PAGE DET QTY PART NU M BER PAGE DET QTY PART N UM BER PAGE DET QTY

22911037

22911037 3-21 19 2 31151001 3-15 1 4 1 31723007 3-9 9 1
22911038 3-3 34 1 31215008 3-23 28 1 31723007 3-15 5 1
22912058 3-21 23 1 31215012 3-25 2 0 1 31734013 3-21 1 1
22912066 3-17 76 1 31225015 3-57 1 6 (1) 31751004 3-21 7 1
22914003 3-17 68 3 31264001 3-9 25 1 31766009 3-7 2 1
22965006 3-9 37 2 31264001 3-15 12 1 31773015 3-9 15 1
22965006 3-15 45 2 31288023 3-23 2 5 3 31773015 3-15 2 1
22967003 3-17 67 1 31412001 3-9 32 1 31781006 3-17 2 7 1
22972010 3-3 29 1 31412001 3-15 24 1 31838013 3-17 4 0 2
23132056 3-23 91 (2) 31413029 3-23 51 2 31838014 3-17 83 2
23132123 3-11 54 1 31413030 3-17 1 9 1 31838030 3-7 7 3
23132142 3-23 72 2 31413031 3-23 7 1 31845002 3-17 4 1
23132178 3-11 56 1 31423006 3-11 8 3 2 31852010 3-3 90 1
23132199 3-11 57 1 31423032 3-17 8 4 1 31852010 3-55 32 1
23132297 3-11 71 1 31423068 3-23 2 1 1 31873013 3-11 36 1
23161063 3-7 34 1 31426015 3-25 10 1 31876011 3-11 3 9 1
23161073 3-17 66 1 31464002 3-17 2 1 31996006 3-9 18 1
23161095 3-17 77 2 31521001 3-11 2 9 1
23161140 3-7 24 2 31523037 3-7 3 1
23231030 3-15 33 1 31566008 3-9 7 1 32111012 3-11 5 1
23231040 3-25 37 1 31566008 3-15 1 8 1 32115005 3-57 13 (1)
23231040 3-29 37 1 31571002 3-11 2 2 1 32115013 3-11 19 1
23231210 3-17 54 1 31572004 3-17 3 2 1 32121004 3-23 50 2
23231217 3-17 52 2 31593007 3-9 33 1 32216086 3-3 11 1
23231226 3-25 38 2 31593007 3-15 2 3 1 32217002 3-11 23 1
23231226 3-29 38 2 31611010 3-23 1 0 1 32221007 3-11 44 4
23522009 3-3 60 1 31611064 3-25 27 1 32223045 3-15 1 1 1
23914009 3-17 60 1 31611064 3-29 2 7 1 32241004 3-17 39 1
24116020 3-9 38 1 31612045 3-25 23 3 32418075 3-3 17 1
24116150 3-7 25 1 31612051 3-17 20 1 32434001 3-23 2 1
24117012 3-21 21 1 31641010 3-23 2 9 1 32533076 3-17 1 2
24117014 3-11 60 1 31641015 3-23 1 3 1 32643073 3-25 16 1
24323130 3-3 63 1 31641017 3-35 36 1 32652015 3-7 6 1
24383030 3-3 73 1 31641019 3-23 14 1 32691001 3-25 5 2
24423030 3-3 64 1 31642007 3-11 34 1 32711019 3-3 6 2
24473075 3-3 72 1 31652001 3-7 13 1 32729001 3-11 41 1
25379218 3-23 63 1 31674025 3-9 1 1 32731026 3-11 10 1
26913025 3-11 66 1 31674025 3-15 2 6 1 32732001 3-11 42 1
27571120 3-3 37 1 31695011 3-9 2 1 32739011 3-23 17 1

31000008

31000008 3-21 4 1 3169700 3 3-15 10 1 33215069 3-9 17 1
31000009 3-25 11 1 31715005 3-17 3 1 33242002 3-11 24 1
31000030 3-3 101 1 31718025 3-17 18 1 33244009 3-23 9 1
31000031 3-3 102 1 31718027 3-11 32 1 33252029 3-25 15 1
31111009 3-9 30 1 31721022 3-25 18 1 33256011 3-11 3 8 1
31111009 3-15 17 1 31721038 3-11 1 8 1 33257001 3-23 1 1
31112002 3-23 47 2 31721040 3-11 1 5 1 33258075 3-25 17 1
31133018 3-11 13 1 31721053 3-17 2 4 1 33334012 3-23 31 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

31151001 3-9 27 1 31721054 3-17 26 1

32111012

31695011 3-15 27 1 33182005 3-9 23 1
31697003 3-9 29 1 33182005 3-15 21 1

4-1

DECO 2000

INDEX

PART N UM BER PAGE DET QTY PART NUMBER P AG E DET QTY PART NUMBER PAGE DET Q T Y

33422001 3-11 37 1 36221009 3-29 13 1 36661001 3-23 4 1
33441002 3-15 15 1 36223009 3-21 8 1 36672047 3-11 26 1
33441003 3-9 28 1 36224009 3-7 44 1 36673028 3-23 26 1
34111085 3-17 14 2 36224010 3-7 4 2 36677016 3-25 19 1
34221010 3-11 27 1 36226017 3-7 15 1 36691014 3-9 12 1
34264012 3-53 22* 1 36227019 3-11 3 1 36691014 3-15 4 1
34268124 3-3 53 1 36228009 3-7 16 1 36691021 3-25 21 1
34372002 3-23 19 1 36228020 3-7 5 1 36713007 3-7 11 1
34372004 3-17 16 1 36271006 3-17 7 1 36771021 3-9 6 1
34372042 3-25 6 1 36271013 3-11 4 1 36771021 3-15 19 1
34416044 3-3 45 1 36341050 3-17 36 1 36773007 3-11 82 1
34585001 3-17 34 1 36513046 3-21 5 1 36773008 3-11 61 1
34647001 3-17 13 1 36514046 3-21 9 1 37112030 3-17 46 1
34732023 3-11 43 1 36515013 3-21 10 1 37211018 3-17 37 1
35131002 3-9 24 1 36515032 3-7 17 1 37211130 3-25 26 1
35131002 3-15 9 1 36516014 3-21 6 1 37211130 3-29 26 1
35315013 3-3 4 1 36516040 3-7 10 1 37213001 3-9 19 1
35351180 3-3 13** 1** 36518027 3-25 3 1 37711017 3-3 5 1
35371003 3-3 3 1 36518029 3-17 35 1
35371004 3-17 47 1 36518030 3-9 21 1
35472011 3-3 20 1 36518030 3-15 7 1 41214006 3-3 18 2
35511021 3-9 8 1 36518077 3-11 6 1 41321019 3-3 2 1
35511021 3-15 16 1 36523021 3-15 25 1 41441060 3-3 12 1
35511045 3-25 1 1 36523022 3-9 26 1 41831082 3-17 28 1
35511048 3-9 08** 1** 36523022 3-15 13 1 42531081 3-9 10 1
35511048 3-15 16** 1** 36531010 3-9 5 1 42531081 3-15 1 1
35511081 3-9 08* 1* 36531010 3-15 20 1
35511081 3-15 16* 1* 36532021 3-9 3 1
35521048 3-9 13 1 36532021 3-15 28 1 00.2751.3.602 3-47 2 3 1
35521048 3-15 3 1 36532022 3-9 4 1 00103228 3-9 20* 1*
35521049 3-15 6 1 36532022 3-15 29 1 00103228 3-15 08* 1
35521055 3-11 11 1 36532025 3-23 24 1 00103238 3-9 20 1
35523026 3-3 65 1 36541005 3-11 40 2 00103238 3-15 8 1
35526005 3-25 4 1 36542017 3-17 15 1 00103238 3-53 8 11
35541070 3-17 48 1 36542018 3-25 2 1 00103249 3-9 20** 1**
35542007 3-25 9 1 36543018 3-11 8 1 00103249 3-15 08** 1
35551002 3-23 3 1 36543019 3-17 38 1
35561001 3-17 9 1 36543020 3-11 30 1
35571021 3-11 35 1 36546023 3-9 34 1 01.2548.0.000 3-21 18 1
35633040 3-17 22 1 36613036 3-11 31 1 01.7305.0.900 3- 23 59 (2)
35633041 3-17 30 1 36613038 3-23 22 1 01.7435.1.000 3- 31 68 2
35771051 3-11 45 1 36617003 3-57 14 (1)
35778014 3-17 17 1 36619044 3-11 20 1
35812048 3-17 29 1 36621001 3-11 25 2 01000002 3-17 93 2
35812049 3-7 1 1 36631031 3-9 16 1 01000002 3-23 65 2
35815007 3-25 24 1 36647001 3-23 27 1 01000002 3-43 20 1
35815007 3-29 24 1 36651001 3-11 2 1 01000002 3-45 10 1

36651002 3-11 7 1 01000004 3-11 74 2

36221009

36221009 3-25 13 1 36653010 3-17 31 1 01000005 3-25 39 1

4-2

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

36651008 3-17 6 1 01000004 3-43 19 3

e-mail: [email protected]; [email protected]; website: www .amfreece.com

41214006

00.2751.3.602

01.2548.0.000

01000002

Revised 11/2005

DECO 2000

INDEX

PART N UM BER PAGE DET QTY PART NUMBER P AG E DET QT Y PART NUMBER P AG E DET Q T Y

01000008 3-11 62 3 01200031 3-41 21 2 04002109 3-41 17 4
01000009 3-29 39 1 01200083 3-7 38 1 04100011 3-17 61 1
01000013 3-9 48 1 01300029 3-37 45 1 04100052 3-3 52 2
01000013 3-11 77 1 01300037 3-37 41 1 04100053 3-17 62 4
01000013 3-15 44 1 02060018 3-3 33 12 04100054 3-7 21 2
01000013 3-31 73 2 04100054 3-11 81 2
01000017 3-31 75 1
01000019 3-31 53 1 03.0018.0.000 3-53 5 1 04100054 3-37 51 2
01000019 3-57 11 (2) 03.5570.0.011 3-57 1 1 04100070 3-11 50 1
01000025 3-35 34 1 03.5570.0.014 3-57 17* 1* 04120001 3-11 75 1
01000026 3-17 53 4 04120001 3-25 55 2
01000026 3-31 79 1
01000027 3-25 49 1 03100002 3-35 21 1 04120002 3-25 35 1
01000032 3-11 79 3 03100008 3-9 42 1 04120002 3-29 35 1
01000032 3-35 29 2 03100008 3-25 59 1 04120004 3-25 58 1
01000032 3-41 14 2 03100008 3-29 59 1 04120004 3-29 58 1
01000037 3-23 69 2 03100012 3-11 63 1 04120005 3-17 65 2
01000037 3-37 59 1 03100012 3-17 80 1 04120009 3-11 78 1
01000039 3-9 44 3 03100012 3-21 17 2 04120012 3-25 54 1
01000039 3-15 35 5 03100012 3-23 67 1 04120012 3-29 54 1
01000047 3-3 23 2 03100012 3-31 57 1 04120070 3-41 16 2
01000047 3-23 60 2 03100013 3-17 55 1 04122093 3-11 80 8
01000047 3-25 42 1 03100013 3-31 49 2 04140040 3-3 36 6
01000047 3-29 42 1 03100017 3-11 65 1 04200003 3-3 30 6
01000056 3-31 84 4 03100038 3-25 53 1 04200003 3-7 27 4
01000058 3-25 32 1 03100038 3-29 53 1 04200004 3-3 43 5
01000058 3-29 32 1 03100051 3-31 52 3 04200007 3-11 55 1
01000059 3-11 68 1 03100066 3-15 32 2 04200011 3-9 35 1
01000059 3-31 56 1 03100066 3-23 70 2 04200011 3-31 64 1
01000059 3-53 24* 2 03100147 3-25 56 1 04200012 3-7 36 1
01000093 3-37 42 1 03100147 3-29 56 1 04200012 3-17 85 1
01000099 3-7 29 1 03100154 3-25 44 2 04200013 3-7 35 1
01000298 3-9 40 1 03100154 3-29 44 1 04200027 3-3 41 2
01000301 3-11 73 1 03101038 3-25 50 1 04200027 3-17 56 12
01000301 3-43 4 1 03102026 3-25 45 1 04200030 3-31 50 1
01000301 3-45 4 1 03102026 3-31 85 1 04200031 3-17 59 3
01002014 3-37 57 1 03130001 3-9 49 2 04200039 3-11 76 1
01002015 3-17 71 1 03130001 3-15 41 2 04200039 3-25 48 1
01002015 3-25 43 2 03140003 3-23 74 1 04200046 3-31 80 1
01002040 3-7 31 1 03140005 3-35 27 1 04200051 3-17 79 4
01002106 3-15 40 1 03140006 3-37 63 1 04200057 3-7 26 1
01200001 3-7 28 2 03200023 3-7 33 1 04200267 3-7 37 1
01200005 3-7 22 2 04202013 3-17 63 2
01200007 3-9 39 1
01200011 3-17 72 2 04.1956.0.000 3-57 10 (1)
01200011 3-17 89 2 04000020 3-17 74 2 05.0090.1.000 3- 53 17 1
01200019 3-17 81 1 04000053 3-11 70 1 05.1322.0.000 3- 53 15 1
01200024 3-3 21 3 04000190 3-37 54 1
01200024 3-3 39 2 04002086 3-41 18 4
01200028 3-55 31 2 04002087 3-41 19 2 06.0120.0.000 3- 57 7 (1)

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

03.0018.0.000

03100002

04.1956.0.000

04100054 3-23 83 1

04120001 3-29 55 2

05.0090.1.000

06.0120.0.000

4-3

DECO 2000

INDEX

PART NU M BER PAGE DET QTY PART NU M BER PAGE DET QTY PART N UM BER PAGE DET QTY

06000002 3-11 72 4 07100011 3-31 5 4 2
06000002 3-17 82 1 07102006 3-35 3 5 1 08000007 3-23 80 1
06000002 3-31 63 1 07102007 3-17 9 4 2 08000007 3-31 40 1
06000003 3-29 33 1 07102007 3-23 6 2 2 08000015 3-25 31 1
06000004 3-17 64 3 07102007 3-25 4 1 1 08000015 3-29 31 1
06000005 3-31 65 1 07102007 3-29 4 1 1 08000015 3-35 26 1
06000014 3-3 59 2 07106001 3-37 49 1 08000016 3-17 69 4
06000014 3-31 74 2 07106002 3-9 36 1 08000017 3-37 58 1
06000020 3-43 21 1 08000018 3-37 61 2
06002001 3-9 43 1
06002001 3-15 46 1 08.6000.3.008 3-55 3 2 08000022 3-17 78 2
06020004 3-31 58 1 08.6000.3.016 3-57 8 (6) 08000044 3-23 56 2
06020015 3-3 22 3 08.6000.3.025 3-55 2 6 2 08000044 3-25 40 2
06020019 3-9 50 2 08.6000.4.008 3-3 79 4 08000044 3-29 40 1
06020019 3-15 43 2 08.6000.4.010 3-25 62 1 08000044 3-31 71 1
06020019 3-17 73 4 08.6000.4.010 3-29 62 08000109 3-23 57 1
06020019 3-17 90 2 08.6000.4.010 3-31 94 4 08000110 3-23 73 1
06020021 3-31 59 1 08.6000.4.012 3-9 51 2 08002028 3-15 37 1
06030014 3-17 58 1 08.6000.4.015 3-55 6 4 08200024 3-3 40 2
06104001 3-9 46 1 08.6000.4.025 3-55 3 3 4 08200031 3-7 23 1
06104001 3-15 34 1 08.6000.5.012 3-57 15 (2) 08322001 3-35 24 1
06124010 3-35 31 2 08.6000.6.018 3-57 3 (2) 08504001 3-25 34 2
06130002 3-35 28 2 08.6012.3.006 3-55 10 2 08504001 3-29 34 2
06220001 3-37 50 1 08.6012.4.010 3-57 24* ( 4) * 09020001 3-11 59 1

07.6440.0.014

07.6440.0.014 3-57 5 (2) 08.6100.4.014 3-47 12 8 09020001 3-31 66 1

07.6440.0.050 3-17 2 5 1 08.6100.4.014 3-57 26* (8)*

07.6760.0.000 3-57 4 (2) 08.6200.3.008 3-55 17 4
07002002 3-25 51 2 08.6400.4.005 3-25 61 1 12.0008.3.244 3-29 3 0 1
07002009 3-17 57 1 08.6400.4.005 3-29 61 12.0008.4.050 3-49 1 3 1
07012001 3-21 20 2 08.6400.4.006 025 46 1 12.0008.4.063 3-49 6 2
07012001 3-25 36 2 08.6400.4.008 3-7 43 1 12.0008.4.154 3-47 22 1
07012001 3-29 36 1 08.6400.4.008 3-31 86 3 12.0008.4.204 3-57 2 3* (2)*
07012001 3-31 55 2 08.6700.4.000 3-47 10 8 12.0008.4.207 3-47 1 2
07012001 3-35 30 2 08.6702.4.000 3-55 9 4 12.0008.4.215 3-47 26 2
07012001 3-41 15 2 08.6702.4.000 3-55 30 2 12.0008.4.216 3-47 2 7 2
07012002 3-23 68 2 08.6702.5.000 3-47 16 2 12.0008.4.231 3-47 9 2
07012002 3-35 22 1 08.6702.8.000 3-47 15 4 12.0008.4.231 3-57 2 2* (2)*
07012003 3-3 32 6 08.6710.6.000 3-55 2 3 2 12.0008.4.240 3- 57 21* (1)*
07012003 3-31 82 1 08.6800.4.000 3-47 11 8 12.0008.4.280 3-55 1 5 1
07012004 3-25 52 1 08.6802.4.000 3-25 63 1 12.0008.4.327 3-49 9 1
07012005 3-23 61 2 08.6802.4.000 3-29 63 12.0008.4.329 3-49 8 2
07012005 3-37 56 1 08.6802.4.000 3-55 8 4 12.0008.4.366 3-47 6 1
07012010 3-17 75 4 08.6852.4.000 3-25 64 1 12.0008.4.403 3-51 1 9 1
07016002 3-25 57 2 08.6852.4.000 3-29 64 12.0008.4.403 3-55 3 4 1
07016002 3-29 57 2 08.6852.4.000 3-55 7 2 12.0008.4.472 3-47 13 2
07100009 3-3 31 4 08.6852.5.000 3-47 1 8 2 12.0008.4.484 3- 49 17 1
07100009 3-7 39 1 08.6852.6.000 3-31 1 6 1 12.0008.4.488 3- 49 16 1
07100009 3-31 81 1 12.0008.4.590 3- 51 9 1

4-4

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

08.6000.3.008

08.6032.5.010 3-47 1 7 2 09020001 3-17 51 1

08.6100.4.008 3-47 2 5 4 09020001 3-21 15 2

e-mail: [email protected]; [email protected]; website: www .amfreece.com

08000007

08000019 3-3 42 4

12.0008.3.244

Revised 11/2005

DECO 2000

INDEX

PART N UM BER PAGE DET QTY PART NUMBER P AG E DET QT Y PART NUMBER P AG E DET Q T Y

12.0008.4.591 3-51 13 1 17.0011.2.013 3-7 47 2 31000009 3-29 11 1

12.0008.4.592 3-51 14 1 17.0031.3.277 3-55 19 1 31000018 3-31 44 1

12.0008.4.596 3-17 95 1 17.0083.9.031 3-55 21 1 31000019 3-31 45 1

12.0008.4.657 3-49 3 19 17.0095.3.042 3-55 20 1 31000032 3-35 6 1

12.0008.4.662 3-49 10 1 31000033 3-35 7 1

12.0008.4.663 3-49 7 5

12.0008.4.679 3-55 35 (1) 19.0011.1.400 3-55 12 1 31100035 3-53 21* 1

12.0008.4.690 3-49 28 * 1 19.0044.1.624 3-7 41 2 31211015 3-37 12 1

12.0008.4.708 3-47 3 1 19.0044.1.629 3-7 48 2 31215002 3-31 15 1

12.0008.4.709 3-49 12 1 31215079 3-31 41 1

12.0008.4.710 3-47 2 6

12.0008.4.713 3-51 20 1 22912090 3-31 67 2 31268001 3-37 6 1

12.0008.4.751 3-49 14 1 22913039 3-9 47 1 31283001 3-35 9 1

12.0008.4.757 3-51 5 1 22965005 3-43 22 1 31288023 3-31 17 2

12.0008.4.766 3-47 5 1 22966116 3-41 13 1 31288023 3-35 13 1

12.0008.4.769 3-47 4 1 22979047 3-53 12 1 31413001 3-37 27 1

12.0008.4.781 3-49 19 1 22979048 3-53 11 1 31413002 3-37 23 1

12.0008.4.783 3-47 7 1 22979050 3-53 10 1 31413003 3-43 5 1

12.0008.4.795 3-47 8 1 31421005 3-31 24 1

12.0008.4.826 3-49 23 2

12.0008.4.827 3-49 24 2 23.2044.0.050 3-55 1 1 31511015 3-31 22 1

12.0008.4.828 3-49 25 4 23132030 3-9 41 (2) 31593001 3-37 29 1

12.0008.4.829 3-49 26 4 23132115 3-35 32 (1) 31612052 3-31 19 1

12.0008.4.835 3-51 6 1 23132122 3-31 61 3 31612054 3-31 60 1

12.0008.4.836 3-51 7 1 23132155 3-31 78 (1) 31613007 3-35 3 1

12.0008.4.837 3-51 8 1 23132165 3-37 60 (1) 31613035 3-37 31 1

12.0008.4.839 3-51 10 1 23132178 3-37 43 1 31644003 3-37 17 1

12.0008.4.842 3-51 11 1 23161008 3-31 83 (2) 31644004 3-31 37 1

12.0008.4.850 3-49 27 1 23161048 3-31 70 (1) 31685012 3-43 13 1

12.0008.4.856 3-49 2 1 23161073 3-31 51 (6) 31721038 3-35 12 1

12.0008.4.857 3-49 1 1 23181235 3-31 76 1 31721039 3-31 25 1

12.0008.4.862 3-55 29 3 23231030 3-9 45 (1) 31721041 3-37 64 1

12.0008.4.862 3-57 18 * (2)* 23231040 3-35 25 1 31722031 3-37 2 1

12.0008.6.118 3-53 4 1 23231045 3-31 23 1 31728003 3-31 31 1

12.0008.6.119 3-53 3 1 23231045 3-37 46 1 31741013 3-37 40 1

12.0008.6.517 3-3 69 4 31772035 3-43 1 1

12.0008.6.968 3-53 9 2

12.0008.6.975 3-53 7 1 24117010 3-37 55 1 31773013 3-31 6 2

12.0008.6.979 3-9 53 1 24117012 3-31 62 1 31815017 3-37 26 1

12.0008.6.xxx 3-53 18 1 24117216 3-35 20 1 31839020 3-35 18 1

12.0010.4.025

12.0010.4.025 3-51 3 5 24971056 3-37 48 1 31881004 3-31 4 1

12.1016.0.001 3-3 75 2 25379273 3-35 33 1 31955003 3-37 16 1

12.3010.0.013 3-55 14 1 25973108 3-17 86 1

12.3010.0.014 3-9 55 1 26913004 3-53 1 1

12.8000.1.010 3-3 74 1 26913020 3-53 2 1 32215003 3-43 3 1

17.0011.2.013 31000006

17.0011.2.013 3-7 42 2 31000006 3-31 36 1 32233001 3-41 8 1

19.0011.1.400

22912090

23.2044.0.050

24117010

24381054 3-31 92 1 31852015 3-31 13 1
24971021 3-37 62 1 31873011 3-35 17 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

31100035 3-45 5 1

31217001 3-31 7 1

31426015 3-29 10 1

31772035 3-45 1 1

32215003

32215003 3-45 3 1
32225017 3-31 21 1

4-5

DECO 2000

INDEX

PART NU M BER PAGE DET QTY PART NU M BER PAGE DET QTY PART N UM BER PAGE DET QTY

32428002 3-31 14 1 36615007 3-43 1 2 1 70.3288.3.605 3-1 7 91 1
32542111 3-37 18 1 36667012 3-31 2 6 1 70.3325.1.107 3-3 16 1
32631001 3-43 11 1 36674012 3-35 1 4 1 70.3441.6.045 3-1 7 87 1
32691001 3-29 5 2 3667801 9 3-31 30 1 70.3441.6.046 3-1 7 88 1
32732021 3-43 17 1 36691022 3-31 2 0 1 70.3462.7.067 3-3 1 33 1
32739004 3-31 11 1 36691024 3-37 5 1 70.3532.8.073 3-3 68 1
32764006 3-43 16 1 36741109 3-41 1 1 70.3532.8.073 3-57 2 5* (1)*
32764006 3-45 7 1 3676103 1 3-37 7 1 70.3532.8.074 3-3 1 1
32769003 3-35 8 1 3677107 9 3-31 34 1 70.3532.8.076 3-5 7 9 (1)
33251105 3-37 10 1 37211045 3-37 3 0 1 70.3532.8.077 3-5 7 12 (1)
33258076 3-41 3 1 3721113 3 3-41 9 1 70.3535.1.181 3-3 13* 1*
34264012 3-43 6 1 3721300 1 3-53 14 10 70.3535.1.182 3-3 19 1
34372042 3-29 6 1 3723102 8 3-37 20 1 70.3541.1.112 3-4 1 5 1
34378066 3-37 9 1 3777102 2 3-41 2 1 70.3552.8.075 3-57 6 (1)
34458002 3-43 9 1 3777102 3 3-53 16 1 70.3577.7.042 3-1 7 8 1
34458002 3-53 26* 1 39.0087.0.000 3-55 11 1 70.3577.7.043 3-3 76 1
34658001 3-43 8 1 70.3577.7.044 3-3 77 1
34658001 3-53 25* 1
34758001 3-35 5 1 4224100 9 3-37 38 1 70.3651.8.020 3-2 5 8 1
35111007 3-35 1 1 4991001 8 3-53 6 1 70.3651.8.020 3-29 8 1
35225010 3-31 35 1 49910019 3-53 1 9 1 70.3651.8.021 3-2 5 60 1
35411121 3-41 7 1 70.3651.8.021 3-29 60 1
35414016 3-43 7 1
35414016 3-53 23* 1 70.2691.1.188 3-11 49 1 70.3651.8.022 3-29 7 1
35421064 3-41 4 1 70.3100.0.017 3-3 100 1 70.3652.3.023 3-9 31 1
35511040 3-37 34 1 70.3100.0.040 3-31 93 1 70.3652.3.025 3-9 54 1
35511045 3-29 1 1 70.3100.0.041 3-31 46 1 70.3652.3.026 3-9 52 1
35511079 3-43 10 1 70.3100.0.042 3-3 66 1 70.3657.2.009 3-17 41 1
35511080 3-43 2 1 70.3121.1.016 3-37 47 1 70.3661.1.037 3-43 18 1
35511080 3-45 2 1 70.3149.1.001 3-37 24 1 70.3661.1.037 3-45 9 1
35521118 3-37 32 1 70.3162.5.003 3-3 58 1 70.3661.1.042 3-43 15 1
35523018 3-31 8 1 70.3165.2.002 3-3 70 1 70.3661.1.042 3-45 6 1
35526005 3-29 4 1 70.3165.2.003 3-7 40 1 70.3662.5.002 3-37 2 5 1
35542007 3-29 9 1 70.3165.2.003 3-7 45 1 70.3664.5.006 3-23 4 9 1
36226011 3-31 1 1 70.3172.1.024 3-11 14 1 70.3664.5.007 3-23 48 1
36341035 3-37 21 1 70.3265.2.016 3-3 67 1 70.3669.1.008 3-17 21 1
36343061 3-31 32 2 70.3273.2.023 3-45 8 1 70.3721.1.153 3-23 11 1
36344057 3-31 28 1 70.3273.2.023 3-53 20 1 70.3727.4.013 3-17 2 3 1
36515020 3-31 29 1 70.3282.7.100 3-23 43 70.4165.1.097 3-47 14 1
36518027 3-29 3 1 70.3283.2.601 3-55 24 1 70.4165.1.098 3-49 22 1
36531018 3-43 14 1 70.3284.4.101 3-55 13 1 70.4165.1.099 3-49 1 8 1
36533015 3-35 16 1 70.3286.4.501 3-55 25 1 70.4165.1.100 3-49 1 1 1
36542018 3-29 2 1 70.3288.2.101 3-55 2 2 70.4165.1.101 3-49 21 1
36543022 3-35 10 1 70.3288.2.102 3-55 16 1 70.4165.1.102 3-49 1 5 1
36546022 3-37 37 1 70.3288.2.103 3-55 18 1 70.4165.1.103 3-51 1 1
36546024 3-31 39 1 70.3288.2.104 3-55 27 1 70.4165.1.105 3-51 2 1
36546025 3-37 39 1 70.3288.2.401 3-55 4 1 70.4165.1.109 3-51 15 1
36611036 3-31 9 1 70.3288.3.601 3-55 5 1 70.4165.1.110 3-51 4 1
36613034 3-31 10 1 70.3288.3.602 3-55 28 1 70.4165.1.114 3-57 2 (1)
36613099 3-37 8 1 70.3288.3.604 3-17 92 1 70.4165.1.115 3-57 19* (1)*

4-6

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

42241009

70.2691.1.188

e-mail: [email protected]; [email protected]; website: www .amfreece.com

70.3651.3.048 3-7 9 1

70.3651.8.022 3-25 7 1

Revised 11/2005

DECO 2000

INDEX

PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY

70.4165.1.116 3-57 20* (1)*

70.4165.1.118 3-51 18 1

70.4165.1.124 3-47 24 1

70.4165.1.125 3-47 19 1

70.4165.1.126 3-47 28 1

70.4165.1.129 3-55 22 1

70.4223.3.029 3-11 1 1

70.4253.1.078 3-9 10* 1*

70.4253.1.078 3-15 01* 1*

70.4253.1.079 3-9 10** 1**

70.4253.1.079 3-15 01** 1**

12.0008.6.521 3-3 24 4

12.0008.6.520 3-3 25 4

03.5570.0.013 3-59 01 1

08.6000.4.016 3-59 02 4

08.6852.4.000 3-59 03 4

08.6702.4.000 3-59 04 4

08.6132.4.010 3-59 05 4

70.3532.8.078 3-59 06 1

70.4165.1.112 3-59 07 1

12.0008.4.058 3-59 08 8

12.0008.4.072 3-59 09 8

12.8000.0.144 3-59 10 1

Revised 11/2005
e-mail: [email protected]; [email protected]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

4-7

DECO 2000

INDEX

PART NU M BER PAGE DET QTY PART NU M BER PAGE DET QTY PART N UM BER PAGE DET QTY

e-mail: [email protected]; [email protected]; website: www .amfreece.com

4-8

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 11/2005
