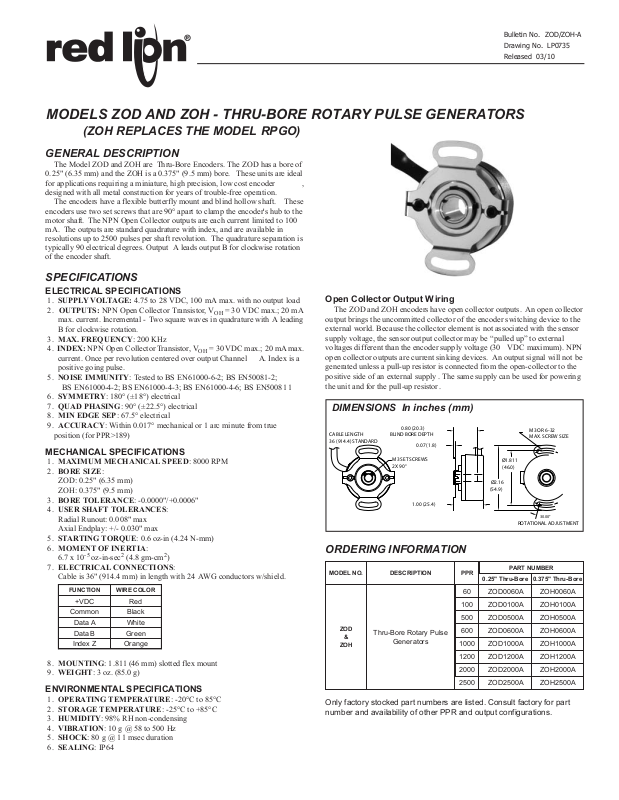

Red Lion ZOD Data Sheet

M3 OR 6-32 MAX. SCREW SIZE

M3 SET SCREWS 2X 90°

ROTATIONAL ADJUSTMENT

30.00°

1.00 (25.4)

0.07 (1.8)

0.80 (20.3)

BLIND BORE DEPTH

Ø1.811 (46.0)

Ø2.16

(54.9)

CABLE LENGTH 36 (914.4) STANDARD

Bulletin No. ZOD/ZOH-A

Drawing No. LP0735

Released 03/10

MODELS ZOD AND ZOH - THRU-BORE ROTARY PULSE GENERATORS

GENERAL DESCRIPTION

0.25" (6.35 mm) and the ZOH is a 0.375" (9.5 mm) bore. These units are ideal for applications requiring a miniature, high precision, low cost encoder , designed with all metal construction for years of trouble-free operation.

encoders use two set screws that are 90° apart to clamp the encoder's hub to the motor shaft. The NPN Open Collector outputs are each current limited to 100 mA. The outputs are standard quadrature with index, and are available in resolutions up to 2500 pulses per shaft revolution. The quadrature separation is typically 90 electrical degrees. Output A leads output B for clockwise rotation of the encoder shaft.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

1. SUPPLY VOLTAGE: 4.75 to 28 VDC, 100 mA max. with no output load

2. OUTPUTS: NPN Open Collector Transistor, V

3. MAX. FREQUENCY: 200 KHz

4. INDEX: NPN Open Collector Transistor, V

5. NOISE IMMUNITY: Tested to BS EN61000-6-2; BS EN50081-2;

6. SYMMETRY: 180° (±18°) electrical

7. QUAD PHASING: 90° (±22.5°) electrical

8. MIN EDGE SEP: 67.5° electrical

9. ACCURACY: Within 0.017° mechanical or 1 arc minute from true

MECHANICAL SPECIFICATIONS

1. MAXIMUM MECHANICAL SPEED: 8000 RPM

2. BORE SIZE:

3. BORE TOLERANCE: -0.0000"/+0.0006"

4. USER SHAFT TOLERANCES:

5. STARTING TORQUE: 0.6 oz-in (4.24 N-mm)

6. MOMENT OF INERTIA:

7. ELECTRICAL CONNECTIONS:

8. MOUNTING: 1.811 (46 mm) slotted flex mount

9. WEIGHT: 3 oz. (85.0 g)

ENVIRONMENTAL SPECIFICATIONS

1. OPERATING TEMPERATURE: -20°C to 85°C

2. STORAGE TEMPERATURE: -25°C to +85°C

3. HUMIDITY: 98% RH non-condensing

4. VIBRATION: 10 g @ 58 to 500 Hz

5. SHOCK: 80 g @ 11 msec duration

6. SEALING: IP64

(ZOH REPLACES THE MODEL RPGO)

The Model ZOD and ZOH are Thru-Bore Encoders. The ZOD has a bore of

The encoders have a flexible butterfly mount and blind hollow shaft. These

= 30 VDC max.; 20 mA max. current. Incremental - Two square waves in quadrature with A leading B for clockwise rotation.

current. Once per revolution centered over output Channel A. Index is a positive going pulse.

BS EN61000-4-2; BS EN61000-4-3; BS EN61000-4-6; BS EN50081 1

position (for PPR>189)

ZOD: 0.25" (6.35 mm) ZOH: 0.375" (9.5 mm)

Radial Runout: 0.008" max Axial Endplay: +/- 0.030" max

-5

6.7 x 10

oz-in-sec2 (4.8 gm-cm2)

Cable is 36" (914.4 mm) in length with 24 AWG conductors w/shield.

FUNCTION

+VDC

Common Black

Data A White

Data B Green

Index Z Orange

WIRE COLOR

Red

= 30 VDC max.; 20 mA max.

Open Collector Output Wiring

The ZOD and ZOH encoders have open collector outputs. An open collector output brings the uncommitted collector of the encoder switching device to the external world. Because the collector element is not associated with the sensor supply voltage, the sensor output collector may be “pulled up” to external voltages different than the encoder supply voltage (30 VDC maximum). NPN open collector outputs are current sinking devices. An output signal will not be generated unless a pull-up resistor is connected from the open-collector to the positive side of an external supply . The same supply can be used for powering the unit and for the pull-up resistor.

DIMENSIONS In inches (mm)

ORDERING INFORMATION

MODEL NO.

ZOD

ZOH

DESCRIPTION

Thru-Bore Rotary Pulse

Generators

PPR

60 ZOD0060A

100 ZOD0100A ZOH0100A

500 ZOD0500A ZOH0500A

600 ZOD0600A ZOH0600A

1000 ZOD1000A ZOH1000A

1200 ZOD1200A ZOH1200A

2000 ZOD2000A ZOH2000A

2500 ZOD2500A ZOH2500A

Only factory stocked part numbers are listed. Consult factory for part number and availability of other PPR and output configurations.

PART NUMBER

0.25" Thru-Bore

0.375" Thru-Bore

ZOH0060A
