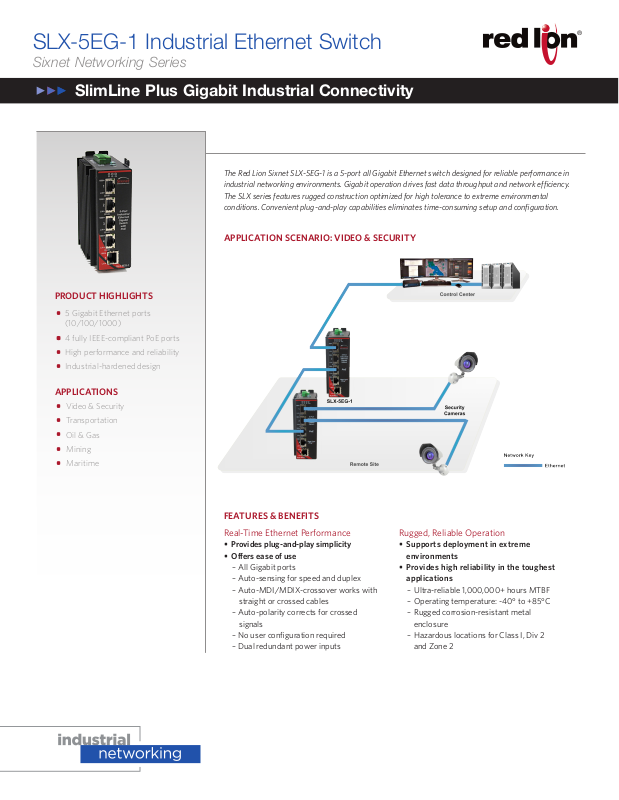

Red Lion SLX-5EG-1 Data Sheet

SLX-5EG-1 Industrial Ethernet Switch

CONNECT. MONITOR. CONTROL.

The Red Lion Sixnet SLX-5EG-1 is a 5-port all Gigabit Ethernet switch designed for reliable performance in

industrial networking environments. Gigabit operation drives fast data throughput and network efciency.

The SLX series features rugged construction optimized for high tolerance to extreme environmental

conditions. Convenient plug-and-play capabilities eliminates time-consuming setup and conguration.

PRODUCT HIGHLIGHTS

•

5 Gigabit Ethernet ports

(10/100/1000)

•

4 fully IEEE-compliant PoE ports

•

High performance and reliability

•

Industrial-hardened design

APPLICATIONS

•

Video & Security

•

Transportation

•

Oil & Gas

•

Mining

•

Maritime

DATASHEET

SLX-5EG-1 Industrial Ethernet Switch

SlimLine Plus Gigabit Industrial Connectivity

FEATURES & BENEFITS

Real-Time Ethernet Performance

• Provides plug-and-play simplicity

• Offers ease of use

– All Gigabit ports
– Auto-sensing for speed and duplex
– Auto-MDI/MDIX-crossover works with

straight or crossed cables

– Auto-polarity corrects for crossed

signals

– No user conguration required

– Dual redundant power inputs

APPLICATION SCENARIO: VIDEO & SECURITY

Sixnet Ethernet Series

Rugged, Reliable Operation

• Supports deployment in extreme
environments

• Provides high reliability in the toughest
applications

– Ultra-reliable 1,000,000+ hours MTBF
– Operating temperature: -40° to +85°C
– Rugged corrosion-resistant metal

enclosure

– Hazardous locations for Class I, Div 2

and Zone 2

Sixnet Networking Series

SlimLine Plus Gigabit Industrial Connectivity

SLX-5EG-1 Specifications

About Red Lion

As the global experts in
communication, monitoring
and control for industrial
automation, Red Lion has been
delivering innovative solutions
to customers for forty years.
Our award-winning technology
enables companies worldwide
to gain real-time data visibility
that drives productivity. Product
brands include Red Lion, Sixnet
and N-Tron. With headquarters in
York, Pennsylvania, the company

has ofces across the Americas,
Asia-Pacic and Europe. Red Lion

is a Spectris company.

For more information,
visit www.redlion.net/sixnet,
call [phone] or
email [e-mail]

SLX-5EG-1 Industrial Ethernet Switch

SlimLine Plus Gigabit Industrial Connectivity

SPECIFICATIONS

Ethernet Performance

• Type: unmanaged

• Operation: store and forward wire-speed
switching, non-blocking

• Modes: full or half duplex operation with

ow control on all ports

• MAC addresses: 1,024

• Memory bandwidth: 32 Gbps

• Typical latency

• – 3 μS for 1000 Mbps

– 5 μS for 100 Mbps
– 16 μS for 10 Mbps

• Jumbo frames: up to 10K

• Ethernet isolation: 1,500 Vrms 1 minute

RJ45 Copper Ports

• 5 RJ45 ports fully IEEE 802.3 compliant

• Speed (10/100/1000) and duplex settings
(full or half): auto-detecting

• Auto-MDI/MDIX-crossover automatically
supports either straight or crossed cables

• Auto-polarity for automatic correction of
crossed TD and RD pairs

Environmental

• Operating temperature: -40° to +85°C

• Cold startup: -40°C

• Storage temperature: -40° to +85°C

• Humidity: 5 to 95% RH
(non-condensing; conformal coating optional)

• Shock and vibration: IEC60068-2-6 and -27

• Maximum Operating Altitude: 30,000 ft.

Power Input

• Redundancy: dual power input terminals with
reverse polarity protection

• Power input

– 10-44 VDC with no PoE output
– 45-52 VDC for PoE output

• Switch power consumption (without PoE)

– 4.3 W (all copper) typical
– Typical is with all ports active at 1000 Mbps

• PoE power consumption: up to 15.4 W per port

• Max. power consumption (with PoE)
– 66W with 4 fully loaded PoE ports

• Transient protection: 15,000 watts peak

• Spike protection: 5,000 watts (10 times for 10 μS)

PoE Output (Ports 1-4)

• PoE compliance: 100% IEEE 802.3af
compliant

• PoE classication: PSE

(Power Sourcing Equipment)

• PoE voltage: 45 to 48 VDC depending
on power input

• PoE power: up to 15.4 watts per channel

• PoE RJ45: pin assignments TX/V- (3, 6);
RX/V+ (1, 2)

• PoE operation: automatic detection and
power management

• PoE disconnect mode: AC disconnect

• PoE protection: over-temperature, over­current, over/under-voltage and transient

Standards & Compliance

• Standards: IEEE 802.3, 802.3u, 802.3x

• Electrical safety: UL508, CSA C22.2/14;
EN61010-1, CE

• EMC: FCC part 15, ICES-003;
EN610006-2/4, CE

• Hazardous locations: UL1604, CSA
C22.2/213 (Class I, Div 2); EN60079-15
(Zone 2; Category 3), CE (ATEX)

• Marine/maritime/offshore compliance

• MTBF: >2MM hours GB @ 40°C per
MIL-HNDBK-217F2

• RoHs and WEEE compliant

Mechanical

• Material: corrosion-resistant aluminum

• Ingress protection: IP40

• Mounting: DIN-rail or direct-to-panel

• Weight: 15.2 oz (0.43 kg)

• Dimensions: 3.8” x 1.77” x 5.26”
(9.71cm x 4.48cm x 13.37cm)

Warranty

• 5 years on design and manufacturing
defects

All specications are subject to change.

Contact Sixnet to learn more.

ORDER GUIDE

PART NUMBER DESCRIPTION

SLX-5EG-1

www.redlion.net

Connect. Monitor. Control.

5 ports, unmanaged 4GE RJ45 PoE + 1 GE RJ45
