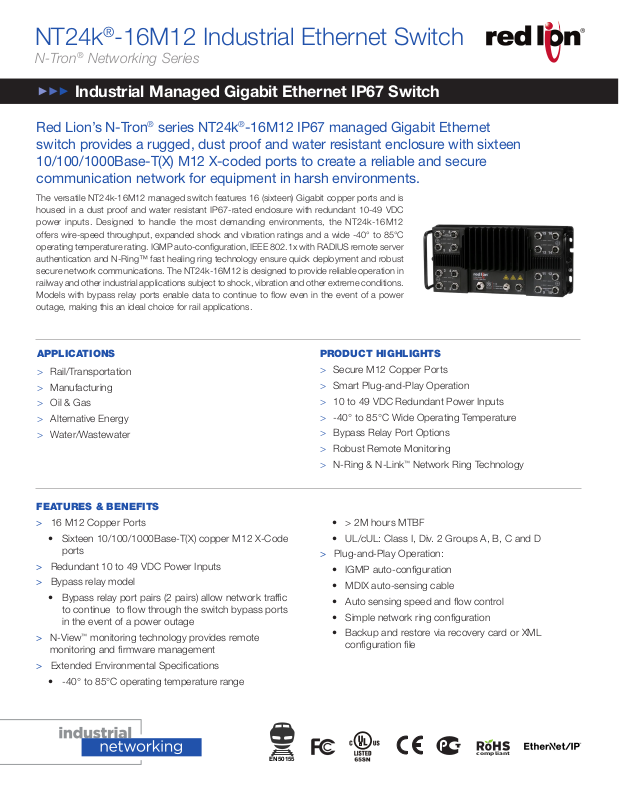

Red Lion NT24K-16M12 Data Sheet

NT24k®-16M12 Industrial Ethernet Switch

N-Tron® Networking Series

Industrial Managed Gigabit Ethernet IP67 Switch

Red Lion’s N-Tron® series NT24k®-16M12 IP67 managed

Gigabit Ethernet switch provides a rugged, dust proof and water resistant enclosure with sixteen 10/100/1000Base-T(X) M12 X-coded

ports to create a reliable and secure

communication network for equipment in harsh environments.

The versatile NT24k-16M12 managed switch features 16 (sixteen) Gigabit copper ports and is housed in a dust proof and water resistant IP67-rated enclosure with redundant 10-49 VDC power inputs. Designed to handle the most demanding environments, the NT24k-16M12 offers wire-speed throughput, expanded shock and vibration ratings and a wide -40° to 85°C operating temperature rating. IGMP auto-conﬁguration, IEEE 802.1x with RADIUS remote server authentication and N-Ring™ fast healing ring technology ensure quick deployment and robust secure network communications. The NT24k-16M12 is designed to provide reliable operation in railway and other industrial applications subject to shock, vibration and other extreme conditions. Models with bypass relay ports enable data to continue to ﬂow even in the event of a power outage, making this an ideal choice for rail applications.

APPLICATIONS

> Rail/Transportation

> Manufacturing

> Oil & Gas

> Alternative Energy

> Water/Wastewater

PRODUCT HIGHLIGHTS

> Secure M12 Copper Ports

> Smart Plug-and-Play Operation

> 10 to 49 VDC Redundant Power Inputs

> -40° to 85°C Wide Operating Temperature

> Bypass Relay Port Options

> Robust Remote Monitoring

> N-Ring & N-Link™ Network Ring Technology

FEATURES & BENEFITS

> 16 M12 Copper Ports

• Sixteen 10/100/1000Base-T(X) copper M12 X-Code ports

> Redundant 10 to 49 VDC Power Inputs

> Bypass relay model

• Bypass relay port pairs (2 pairs) allow network trafﬁc to continue to ﬂow through the switch bypass ports in the event of a power outage

> N-View™ monitoring technology provides remote

monitoring and ﬁrmware management

> Extended Environmental Speciﬁcations

• -40° to 85°C operating temperature range

EN50155

• > 2M hours MTBF

• UL/cUL: Class I, Div. 2 Groups A, B, C and D

> Plug-and-Play Operation:

• IGMP auto-conﬁguration

• MDIX auto-sensing cable

• Auto sensing speed and ﬂow control

• Simple network ring conﬁguration

• Backup and restore via recovery card or XML conﬁguration ﬁle

compliant

NT24k-16M12

FEATURES & BENEFITS (CONT.)

> Fully Managed Features Include:

• Jumbo frame support

• SNMP v1, v2, v3

• Web browser management

• Detailed ring map and fault location charting

• RSTP - 802.1d, 802.1w, 802.1D

• Trunking and port mirroring

• 802.1Q tag VLAN and port VLAN

• IEEE 802.1x with RADIUS remote server authentication

• 802.1p QoS, port QoS and DSCP

SPECIFICATIONS

SWITCH PROPERTIES

Operation: Managed IP67-rated hardened metal enclosure

Dustproof Protection against low/high pressure water jets

Safe for temporary immersion in water Number of MAC Addresses: 16,000 IEEE Compliance: 802.3, 802.3u, 802.3ab, 802.3x,

802.1d/D/w, 802.1p, 802.1Q, 802.1x Latency (Typical): 1.6 μs Switching Method: Store-and-Forward LED Status Indicators Onboard Temperature Sensor Supports Full/Half Duplex Operation Maximum Throughput: Up to 32 Gb/s MDIX Auto Sensing Cable Auto Sensing Speed and Flow Control Communications: Full Wire Speed MTBF: >2 million hours Bypass relay connection (model speciﬁc) Optional recovery device

POWER INPUT

Input Voltage: 10-49 VDC Standard Model Steady Input Current: 0.70A @ 24 VDC

Inrush: 37A/0.022 ms @ 24VDC BTU 58

Bypass Relay Model Steady Input Current: 0.85A @ 24VDC

Inrush: 37A/0.022ms @ 24VDC BTU 70

CONNECTORS

10/100/1000BASE-T: Sixteen (16) M12 X-Code

connectors (wiring shown at right) ESD and surge protection diodes on all copper ports

Configuration Port: One (1) USB Type B

NETWORK MEDIA

10Base-T: ≥ CAT3 cable 100Base-TX: ≥ CAT5 cable 1000Base-T: ≥ CAT5e cable

RECOMMENDED WIRING CLEARANCE

Front: 4” (10.16 cm)

1 8

A-code power

X-code M12

• DHCP client

• Conﬁgurable event log

• Syslog

• SNTP (Simple Network Time Protocol)

• Multi-Member N-Ring technology with ~30ms healing

• N-Link redundant ring technology

• N-View monitoring and ﬁrmware management technology

• EtherNet/IP™ CIP™ messaging

ENVIRONMENTAL

Operating Temperature: -40°C to 85°C Storage Temperature: -40°C to 85°C Operating Humidity: 10% to 95% (non condensing) Operating Altitude: 0 to 10,000 ft. Shock: 200 g @ 10 ms (bulkhead mounted) Vibration: 50 g @ 5-200 Hz, Triaxial (bulkhead mounted)

CERTIFICATION & COMPLIANCE

Product Safety:

ANSI/ISA-12.12.01-2015 - Nonincendive Electrical Equipment for Use in Class I and II, Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified) Locations, Groups A, B, C and D Hazardous Locations UL 61010-1 Edition 3 - Revision Date 2016/04/29

CAN/CSA C22.2 No. 213-16 - Nonincendive Electrical Equipment for

Use in Class I and II, Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified) Locations, Groups A, B, C and D Hazardous

Locations CSA C22.2 NO. 61010-1-12 Emissions:

FCC 47 CFR Part 15, Radio Frequency Devices, Subpart B, ANSI

C63.4-2014; ISED Canada ICES-003 Issue 6, EN 55011, EN 61000-

3-2, EN61000-3-3, EN 55032 Immunity:

EN 55024, IEC 61000-4-2 (ESD), IEC 61000-4-3 (RFAM), IEC 61000-

4-4 (EFT), IEC 61000-4-5 (SURGE), IEC 61000-4-6 (RFCM), IEC

61000-4-11 (VDI) Rail:

EN 50155, EN 50121, EN 61373 and EN 45545-2 Designed to Comply with:

IEEE 1613 (Electric Utility Substations), NEMA TS1/TS2 (Traffic Control) Other:

EMC Directive 2014/30/EU; LV Directive 2014/35/EU, GOST-R, RoHS

Compliant

MECHANICAL

Case Dimensions:

Height: 5.90” (14.99 cm)

Width: 12.84” (32.61 cm)

Depth: 3.19” (8.10 cm)

Depth with handles: 3.60” (9.14 cm) Weight: 5 lbs (2.27kg) Mount: Bulkhead

WARRANTY

3 Years on Design and Manufacturing Defects

ORDERING GUIDE

PART NUMBER DESCRIPTION

NT24K-16M12 IP67 rated 16-Port Gigabit Managed Industrial Ethernet Switch with M12 8-pin X-coded female connectors

NT24K-16M12-R IP67 rated 16-Port Gigabit Managed Industrial Ethernet Switch with M12 8-pin X-coded female connectors, with bypass relay

NTCD-CFG-M12 NT24k Configuration Recovery Device, M12

NTPS-24-1.3 DIN-Rail Power Supply 1.3 Amp @ 24 VDC
