Red Lion GMTC, GMRTD User Manual

Bulletin No. GM8-C

C

. EQ.

Drawing No. LP0919

Released 04/14

Tel [phone]

Fax [phone]

www.redlion.net

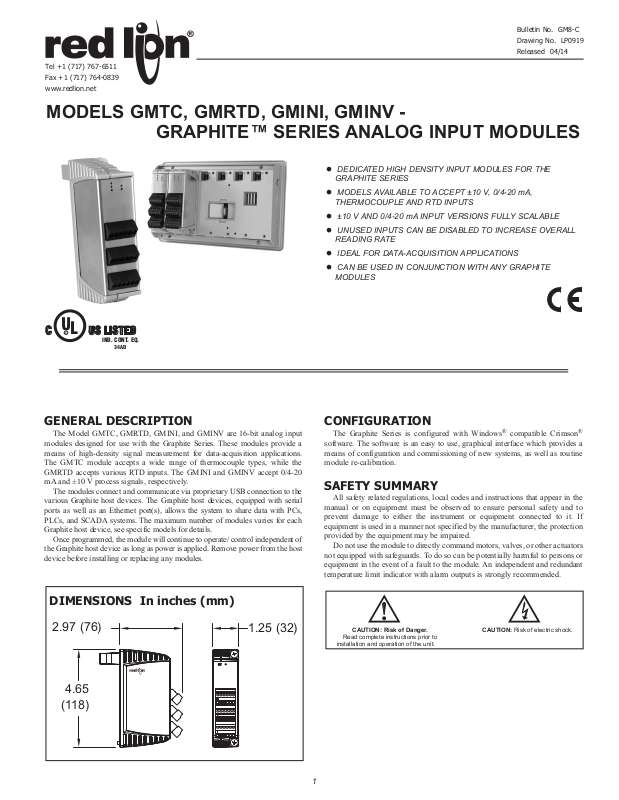

MODELS GMTC, GMRTD, GMINI, GMINV ­ GRAPHITE™ SERIES ANALOG INPUT MODULES

 DEDICATED HIGH DENSITY INPUT MODULES FOR THE

GRAPHITE SERIES

 MODELS AVAILABLE TO ACCEPT ±10 V, 0/4-20 mA,

THERMOCOUPLE AND RTD INPUTS

 ±10 V AND 0/4-20 mA INPUT VERSIONS FULLY SCALABLE

 UNUSED INPUTS CAN BE DISABLED TO INCREASE OVERALL

READING RATE

 IDEAL FOR DATA-ACQUISITION APPLICATIONS

 CAN BE USED IN CONJUNCTION WITH ANY GRAPHITE

MODULES

U

R

US LISTED

L

IND. CONT

34AD

GENERAL DESCRIPTION

The Model GMTC, GMRTD, GMINI, and GMINV are 16-bit analog input
modules designed for use with the Graphite Series. These modules provide a
means of high-density signal measurement for data-acquisition applications.
The GMTC module accepts a wide range of thermocouple types, while the
GMRTD accepts various RTD inputs. The GMINI and GMINV accept 0/4-20
mA and ±10 V process signals, respectively.

The modules connect and communicate via proprietary USB connection to the
various Graphite host devices. The Graphite host devices, equipped with serial
ports as well as an Ethernet port(s), allows the system to share data with PCs,
PLCs, and SCADA systems. The maximum number of modules varies for each
Graphite host device, see specific models for details.

Once programmed, the module will continue to operate/ control independent of
the Graphite host device as long as power is applied. Remove power from the host
device before installing or replacing any modules.

DIMENSIONS In inches (mm)

CONFIGURATION

The Graphite Series is configured with Windows® compatible Crimson®
software. The software is an easy to use, graphical interface which provides a
means of configuration and commissioning of new systems, as well as routine
module re-calibration.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not use the module to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the module. An independent and redundant
temperature limit indicator with alarm outputs is strongly recommended.

2.97 (76)

1.25 (32)

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

CAUTION: Risk of electric shock.

4.65

(118)

1

GENERAL SPECIFICATIONS

1. POWER: Power will be supplied by the Graphite host device.

2. LEDs:

STS - Status LED shows module condition.
ALM - Alarm LED is lit during any internal alarm condition.

3. MEMORY: Non-volatile memory retains all programmable parameters.

4. ISOLATION LEVEL: 500 Vrms @ 50/60 Hz for 1 minute between the
Signal Inputs and the Host Power Supply Input.

5. COMMUNICATIONS: Provided by the Graphite host device

6. CERTIFICATIONS AND COMPLIANCES:

CE Approved

EN 61326-1 to Industrial Locations
IEC/EN 61010-1
RoHS Compliant

UL Listed: File #E302106

7. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -40 to +75 °C; limited to host
Storage Temperature Range: -40 to +85 °C
Operating and Storage Humidity: 85% max relative humidity, non-

condensing, from -40 to +75 °C

Altitude: Up to 2000 meters

8. CONSTRUCTION: Case body is all metal construction. For indoor use only.
Installation Category II, Pollution Degree 2.

9. CONNECTIONS: Removable wire clamp screw terminal blocks
Wire Gage: 28-16 AWG terminal gage wire
Torque: 6.0 lbf-inch (96 oz-inch)

10. MOUNTING: Screws to host

11. WEIGHT: 8 oz (224 g)

GMTC8 SPECIFICATIONS

12. INPUTS:
Channels: 8 single-ended
Effective Resolution: Full 16-bit
Sample Time: 50 msec - 400 msec, depending on number of enabled inputs.

ENABLED

INPUTS

1 50 msec (20 Hz)

2 100 msec (10 Hz)

3 150 msec (6.7 Hz)

4 200 msec (5 Hz)

5 250 msec (4 Hz)

6 300 msec (3.3 Hz)

7 350 msec (2.9 Hz)

8 400 msec (2.5 Hz)

Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >90 dB, 50/60 Hz
Temperature Coefficient: 0.01%/°C
Step Response Time: One scan time (to within 99% of final value)
Types: T, E, J, K, R, S, B, N, C
Slope & Offset: Provides sensor error correction
Input Impedance: 20 M Ω
Lead Resistance Effect: 0.25 µV/Ω
Cold Junction Compensation: Less than ±1 °C typical (±1.5 °C max) over -40

to 75 °C ambient temperature

SCAN TIME

(READING RATE)

Resolution: 0.1°

TYPE

T

E

J

K

R

S

B

N

C

W5/W6

Millivolt

MEASUREMENT

RANGE

-200 to +400 °C

-328 to +752 °F

-200 to +730 °C

-328 to +1346 °F

-200 to +760 °C

-328 to +1400 °F

-200 to +1350 °C

-328 to +2462 °F

0 to +1768 °C

+32 to +3214 °F

0 to +1768 °C

+32 to +3214 °F

+149 to +1820 °C
+300 to +3308 °F

-200 to +1300 °C

-328 to +2372 °F

0 to +2315 °C

+32 to +4199 °F

-10.00 to +56.00 mV

No Standard

No Standard

No Standard

No Standard

ANSI

(+) Blue

(-) Red

(+) Violet

(-) Red

(+) White

(-) Red

(+) Yellow

(-) Red

(+) Orange

(-) Red

WIRE COLOR

BS 1843

(+) White

(-) Blue

(+) Brown

(-) Blue

(+) Yellow

(-) Blue

(+) Brown

(-) Blue

(+) White

(-) Blue

(+) White

(-) Blue

No StandardNo Standard

(+) Orange

(-) Blue

No Standard

No Standard

13. TEMPERATURE INDICATION ACCURACY: ± (0.3% of span, +1 °C).
Includes NIST conformity, cold junction effect, A/D conversion errors,
temperature coefficient and linearization conformity at 23 °C after 20 minute
warm up.

14. PROBE BREAK RESPONSE: Upscale drive, Input Fault Alarm bit set high,
ALM LED illuminates.

GMRTD6 SPECIFICATIONS

15. RTD INPUTS:
Channels: 6 single-ended
Effective Resolution: Full 16-bit
Sample Time: 67 msec - 400 msec, depending on enabled inputs.

ENABLED

INPUTS

1 67 msec (14.9 Hz)

2 133 msec (7.5 Hz)

3 200 msec (5 Hz)

4 267 msec (3.8 Hz)

5 333 msec (3 Hz)

6 400 msec (2.5 Hz)

Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >90 dB, 50/60 Hz
Temperature Coefficient: 0.01%/°C
Step Response Time: One scan time (to within 99% of final value)
Type: 2 or 3 wire
Excitation: 150 µA

SCAN TIME

(READING RATE)

Lead Resistance: 15 Ω Max
Resolution: 0.1°
Slope & Offset: Provides sensor error correction

TYPE INPUT TYPE RANGE

100 Ω platinum,

385 ± (0.2% of span)± (0.1% of span)

Alpha = .00385

100 Ω platinum,

392 ± (0.2% of span)± (0.1% of span)

Alpha = .003919

120 Ω nickel,

672

Alpha = .00672

Ohms Linear resistance

50 Ω copper,

428

Alpha = .00428

-200 to +600 °C

-328 to +1100 °F

-200 to +600 °C

-328 to +1100 °F

-80 to +215 °C

-112 to +419 °F

0 Ω to 300 Ω

-50 to +200 °C

-58 to +392 °F

ACCURACY

18 TO 28°C

ACCURACY

-40 TO 75°C

± (0.2% of span)± (0.1% of span)

± (0.2% of span)± (0.1% of span)

± (1.2% of span)± (0.6% of span)

16. TEMPERATURE INDICATION ACCURACY: Includes NIST conformity,
A/D conversion errors, temperature coefficient and linearization conformity at
23 °C after 20 minute warm up.

17. PROBE BREAK RESPONSE: If channel is enabled: upscale drive, Input
Fault Alarm bit set high, ALM LED illuminates.

2

GMINI8 SPECIFICATIONS

18. INPUTS:
Channels: 8 single-ended
Ranges: 0-20 mA or 4-20 mA
Effective Resolution: Full 16-bit
Programmable Scaling: ±30,000
Sample Time: 50 msec - 400 msec, depending on number of enabled inputs.

ENABLED

INPUTS

1 50 msec (20 Hz)

2 100 msec (10 Hz)

3 150 msec (6.7 Hz)

4 200 msec (5 Hz)

5 250 msec (4 Hz)

6 300 msec (3.3 Hz)

7 350 msec (2.9 Hz)

8 400 msec (2.5 Hz)

SCAN TIME

(READING RATE)

GMINV8 SPECIFICATIONS

21. INPUTS:
Channels: 8 single-ended
Ranges: 0-10 VDC or ±10 VDC
Effective Resolution: Full 16-bit
Programmable Scaling: ±30,000
Sample Time: 50 msec - 400 msec, depending on number of enabled inputs.

ENABLED

INPUTS

1 50 msec (20 Hz)

2 100 msec (10 Hz)

3 150 msec (6.7 Hz)

4 200 msec (5 Hz)

5 250 msec (4 Hz)

6 300 msec (3.3 Hz)

7 350 msec (2.9 Hz)

8 400 msec (2.5 Hz)

SCAN TIME

(READING RATE)

Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >90 dB, 50/60 Hz
Step Response Time: One scan time (to within 99% of final value)
Input Impedance: 10 Ω
Max. Continuous Overload: 100 mA

19. ACCURACY: ±0.1% of span

20. INPUT FAULT RESPONSE: Upscale Drive, Input Fault Alarm bit set
high, ALM LED illuminates below -3 mA, and above 23 mA for 0-20 mA
range; below +3 mA and above 23 mA for 4-20 mA signals.

Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >90 dB, 50/60 Hz
Step Response Time: One scan time (to within 99% of final value)
Input Impedance: 10 M Ω
Max. Continuous Overload: 50 V

22. ACCURACY: ±0.1% of span

23. INPUT FAULT RESPONSE: Upscale Drive, Input Fault Alarm bit set
high, ALM LED illuminates below -10.4 VDC and above +10.4 VDC.

24VDC

+

-

BLOCK DIAGRAM FOR

GMTC8, GMRTD6, GMINI8 & GMINV8

PORT 1

PROGRAMMING

A

POWER
SUPPLY

A

ISOLATED

PORT 3

ETHERNET

GRAPHITE HMI

PORT 2

COMMUNICATIONS

A

B

3

ISOLATED

INPUTS

C

POWER
SUPPLY

GMTC8, GMRTD6, GMINI8, GMINV8

EMC INSTALLATION GUIDELINES

Although Red Lion Controls Products are designed with a high degree of
immunity to Electromagnetic Interference (EMI), proper installation and wiring
methods must be followed to ensure compatibility in each application. The type
of the electrical noise, source or coupling method into a unit may be different
for various installations. Cable length, routing, and shield termination are very
important and can mean the difference between a successful or troublesome
installation. Listed are some EMI guidelines for a successful installation in an
industrial environment.

1. A unit should be mounted in a metal enclosure, which is properly connected

to protective earth.

2. Use shielded (screened) cables for all Signal and Control inputs. The shield

(screen) pigtail connection should be made as short as possible. The

connection point for the shield depends somewhat upon the application.

Listed below are the recommended methods of connecting the shield, in order

of their effectiveness.

a. Connect the shield to earth ground (protective earth) at one end where the

unit is mounted.

b. Connect the shield to earth ground at both ends of the cable, usually when

the noise source frequency is over 1 MHz.

c. Connect the shield to common of the module and leave the other end of the

shield unconnected and insulated from earth ground.

3. Never run Signal or Control cables in the same conduit or raceway with AC

power lines, conductors, feeding motors, solenoids, SCR controls, and

heaters, etc. The cables should be run through metal conduit that is properly

grounded. This is especially useful in applications where cable runs are long

and portable two-way radios are used in close proximity or if the installation

is near a commercial radio transmitter. Also, Signal or Control cables within

an enclosure should be routed as far away as possible from contactors, control

relays, transformers, and other noisy components.

4. Long cable runs are more susceptible to EMI pickup than short cable runs.

Therefore, keep cable runs as short as possible.

5. In extremely high EMI environments, the use of external EMI suppression

devices such as Ferrite Suppression Cores for signal and control cables is

effective. The following EMI suppression devices (or equivalent) are
recommended:

Fair-Rite part number 0443167251 (RLC part number FCOR0000)
TDK part number ZCAT3035-1330A
Steward part number 28B2029-0A0

Line Filters for input power cables:

Schaffner # FN2010-1/07 (Red Lion Controls # LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3

Note: Reference manufacturer’s instructions when installing a line filter.

6. To protect relay contacts that control inductive loads and to minimize radiated
and conducted noise (EMI), some type of contact protection network is
normally installed across the load, the contacts or both. The most effective
location is across the load.
a. Using a snubber, which is a resistor-capacitor (RC) network or metal oxide

varistor (MOV) across an AC inductive load is very effective at reducing
EMI and increasing relay contact life.

b. If a DC inductive load (such as a DC relay coil) is controlled by a transistor

switch, care must be taken not to exceed the breakdown voltage of the
transistor when the load is switched. One of the most effective ways is to
place a diode across the inductive load. Most RLC products with solid state
outputs have internal zener diode protection. However external diode
protection at the load is always a good design practice to limit EMI.
Although the use of a snubber or varistor could be used.

RLC part numbers: Snubber SNUB0000

Varistor ILS11500 or ILS23000

Note: Reference manufacturer’s instructions when installing any EMI

suppression device.

7. Also care should be taken when connecting input and output devices to the
instrument. When a separate input and output common is provided, they
should not be mixed. Therefore a sensor common should NOT be connected
to an output common. This would cause EMI on the sensitive input common,
which could effect the instrument’s operation.

Visit RLC’s web site at www.redlion.net for more information on EMI

guidelines, Safety and CE issues as they relate to Red Lion Controls products.

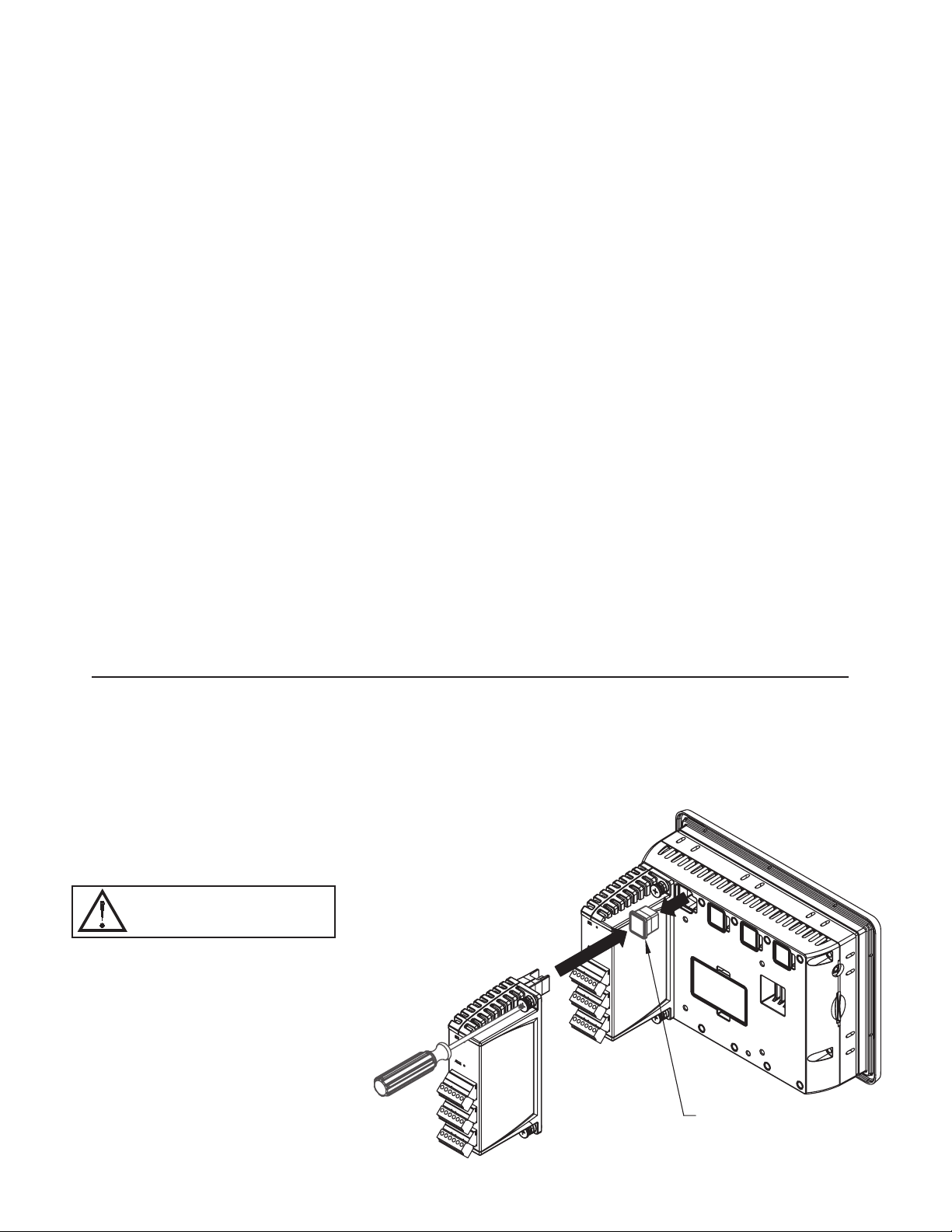

HARDWARE INSTALLATION

Modules must be installed beginning with slot 1 (left-most slot), with no
empty slots between the modules, and the order must match the modules order
in Crimson. Torque screws to 6.0 pound-force inch (96 ounce-force inch)

WARNING: Disconnect all power
to the unit before installing or
removing modules.

REMOVE RUBBER
MODULE PLUG

4

WIRING

46

56

46

56

23

56

WIRING CONNECTIONS

All conductors should meet voltage and current ratings
for each terminal. Also, cabling should conform to
appropriate standards of good installation, local codes and
regulations and be suitably rated for the temperatures of
the environment to which it is being installed. When
wiring the module, use the numbers on the label to identify
the position number with the proper function. Strip the
wire, leaving approximately 1/4" (6 mm) of bare wire
exposed. Insert the wire into the terminal, and tighten.

INPUT CONNECTIONS

GMTC

-TC

+

+TC

321

-TC

+TC

5

-TC

+TC

1

2

3

78

-TC

+TC

9

-TC

+TC

1110 12

-TC

+TC

Terminals 13 to 18

Terminals 7 to 12

Terminals 1 to 6

13

4

14
15

1716 18

-TC

+TC

-TC

+TC

N/C

N/C

7

8

GMRTD

SENSE
SENSE

EXC./
JUMPER

GMINI

POWER

GMINV

COMM.

+/-10V

321

COMM.

+/-10V

COMM.

645

+/-10V

123

COMM.

+SIG

+EXC

COMM.

5

+SIG

+EXC

_
+

+

LOAD

1

_

7 8

9

1110 12

312

54 6

COMM.

+/-10V

COMM.

+/-10V

COMM.

+/-10V

1

2

COMM.

0-20mA

COMM.

0-20mA

COMM.

0-20mA

4

87 109 1211

COMM.

+SIG

+EXC

COMM.

+SIG

+EXC

1

2

3

13 14

COMM.

+/-10V

15

COMM.

+/-10V

1716 18

N/C

N/C

3

4

78

COMM.

0-20mA

9

COMM.

0-20mA

1110 12

COMM.

0-20mA

COMM.

1413 1615 1817

+SIG

+EXC

COMM.

+SIG

+EXC

4

78

5

6

13 14

15

1716 18

COMM.

0-20mA

COMM.

0-20mA

N/C

N/C

7

8

5

LEDS

STS – STATUS LED

The Status LED is a green LED that provides information regarding the state
of the module. This includes indication of the various stages of the start-up
routine (power-up), as well as any errors that may occur.

Startup Routine

Off

Flashing Green Module switching to configuration.

Green Module performing normally.

Module is currently running the boot loader and/or
being flash upgraded by Crimson.

ALM – ALARM LED

The Alarm LED indicates the presence of an input fault condition. When one
or more Input Fault Alarm bits is high, the LED turns on. The alarms may be
disabled for unused inputs.

FIRMWARE UPGRADE

The module’s firmware is stored in flash memory so that software/hardware
conflicts are avoided, and so features can be added in the future.

During a download, Crimson compares its own library of firmware files with
those stored in the module. If they do not match, Crimson will download the
necessary firmware.

Error States

Flashing Green

Module is controlling properly, but has lost
communication with the Host.

CONFIGURATION

Programming is done via Crimson® software, a Windows® compatible
configuration interface. Please see the Crimson manual for more information.

ORDERING INFORMATION

TYPE DESCRIPTION PART NUMBER

Graphite 7" Color Touch Screen, Indoor, 24 VDC Powered G07C0000

Graphite 7" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered G07S0000

Graphite 9" Color Touch Screen, Indoor, 24 VDC Powered G09C0000

Graphite 9" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G09C1000

Graphite 10" Color Touch Screen, Indoor, 24 VDC Powered G10C0000

Graphite 10" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G10C1000

Operator

Interface Panels

Input Modules

Graphite 10" High Resolution Display, Color Touch Screen, Indoor, 24 VDC Powered G10R0000

Graphite 10" High Resolution Display, Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G10R1000

Graphite 10" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered G10S0000

Graphite 10" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered, Additional Ethernet Port G10S1000

Graphite 12" Color Touch Screen, Indoor, 24 VDC Powered G12C0000

Graphite 12" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet And Serial Port G12C1100

Graphite 15" Color Touch Screen, Indoor, 24 VDC Powered G15C0000

Graphite 15" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet And Serial Port G15C1100

Graphite Module, 8 DC Current Inputs GMINI800

Graphite Module, 8 DC Voltage Inputs GMINV800

Graphite Module, 8 Thermocouple Inputs GMTC8000

Graphite Module, 6 RTD Inputs GMRTD600

6

This page intentionally left blank

7

The Company warrants the products it manufactures against defects in materials and workmanship

LIMITED WARRANTY

for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.

The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.

No warranties expressed or implied are created with respect to The Company’s products except
those expressly contained herein. The Customer acknowledges the disclaimers and limitations
contained herein and relies on no other warranties or affirmations.

Red Lion Controls
Headquarters
20 Willow Springs Circle
York PA 17406
Tel [phone]
Fax [phone]

Red Lion Controls

Europe

Softwareweg 9
NL - 3821 BN Amersfoort
Tel [phone]
Fax [phone]

Red Lion Controls

India
201-B, 2nd Floor, Park Centra
Opp 32 Mile Stone, Sector-30

Gurgaon-122002 Haryana, India

Tel [phone]

Red Lion Controls

China

Unit 302, XinAn Plaza

Building 13, No.99 Tianzhou Road

ShangHai, P.R. China 200223

Tel [phone]

Fax [phone]
