MODEL GMPID – GRAPHITE™ SERIES PID MODULES

 DEDICATED SINGLE AND DUAL PID MODULES FOR THE

GRAPHITE SERIES

 FULLY ISOLATED DESIGN PROVIDES RELIABLE OPERATION

 PID CONTROL WITH REDUCED OVERSHOOT

 UNIVERSAL INPUTS ACCEPT TC, RTD, 0-10 V and 0/4-20 mA

SIGNALS

 ON DEMAND AUTO-TUNING OF PID SETTINGS

 DC ANALOG OUTPUT (OPTIONAL, GMP1 ONLY)

 HEATER CURRENT INPUT (OPTIONAL) ENSURES DETECTION

OF HEATER CIRCUIT FAILURE

 WINDOWS® CONFIGURATION SOFTWARE

U

R

US LISTED

L

IND. CONT. EQ.

34AD

Bulletin No. GMPID-C

Drawing No. LP0922

Released 04/14

GENERAL DESCRIPTION

The Model GMPID series modules are full featured PID controllers designed
for use with the Graphite Series. The GMP1 is a single loop controller, while the
GMP2 is a dual loop controller. The design of the system provides a true
modular PID control platform for multi-zone control applications. The modules
can accept a wide range of thermocouple, RTD, 0-10 V, 0/4-20 mA signals. With
multiple discrete outputs, plus an optional analog output (GMP1 only), the
GMPID modules can perform virtually any combination of time-proportioning
or linear control for heat, cool, or heat/cool applications. The discrete outputs
may also be assigned to one of seven internal soft alarms. The GMP1’s optional
linear output can be assigned to transmit virtually any internal variable.

The modules connect and communicate via proprietary USB connection to
the various Graphite host devices. The Graphite host devices, equipped with
serial ports as well as an Ethernet port(s), allows the system to share data with
PCs, PLCs, and SCADA systems. The maximum number of modules various for
each Graphite host device, see specific models for details.

Once programmed, the module will continue to operate/control independent
of the Graphite host device as long as power is applied. Remove power from the
host device before installing or replacing any modules.

The GMPID modules are available with various discrete output combinations,
including relays, and open drain MOSFETs. For applications requiring large
loads to be controlled, several DIN rail mount relays are available.

The modules can operate in On/Off, P, PI, or PID control mode, and use an
on-demand Auto-Tune that establishes the tuning constants. The PID constants
may be fine-tuned through the serial or Ethernet interface. The modules employ
a unique overshoot suppression feature, which allows the quickest response
without excessive overshoot. The modules can also be operated in manual mode,
providing the operator with direct control of the output.

ANALOG OUTPUT OPTION (GMP1 ONLY)

The optional DC Analog Output (10 V or 20 mA) can be independently

configured and scaled for control or re-transmission purposes.

HEATER CURRENT MONITOR OPTION

The optional Heater Current Monitor input is useful for early warning of
heater degradation, or heater circuit failure. The input connects to a current
transformer with an output of 100 mA AC to ensure that proper heater current is
present when the control output is on, and that little or no current is present when
the output is off. This provides immediate warning of a circuit short or open,
instead of waiting for a high or low temperature shutdown alarm.

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

CAUTION: Risk of electric shock.

DIMENSIONS In inches (mm)

2.97 (76) 1.25 (32)

CONFIGURATION

The Graphite Series is configured with Windows® compatible Crimson®
software. The software is an easy to use, graphical interface which provides a
means of communication configuration, as well as commissioning and
calibration of new systems.

4.65

(118)

This terminal
GMP2 only

ALARMS

Each loop within the modules has seven internal “soft” alarms, which can be
assigned to trigger any output. This includes four process alarms, two heater
current, and one input fault alarm.

1

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller. An independent
and redundant temperature limit indicator with alarm outputs is strongly
recommended.

SPECIFICATIONS

1. POWER: Power will be supplied by the Graphite host device.

2. LEDs*:

STS - Status LED shows module condition
OP1, OP2, OP3, OP4 - Indicate status of outputs 1, 2, 3, and 4
ALM, or AL1 and AL2 - Alarm LEDs are lit during any internal alarm

condition
* Default configuration.

3. MEMORY: Non-volatile memory retains all programmable parameters.

4. INPUT:

GENERAL:

Sample Time: 50 msec (20 Hz)
Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >50 dB, 50/60 Hz
Temperature Coefficient: 0.01%/°C
Step Response Time: 100 msec typ., 200 msec max

THERMOCOUPLE INPUTS:

Types: T, E, J, K, R, S, B, N, C
Input Impedance: 20 M Ω
Lead Resistance Effect: 0.25 µV/Ω
Cold Junction Compensation: Less than ±1°C typical (±1.5°C max) over

-40 to 75 °C ambient temperature

Resolution: 0.1°

TYPE

T

E

J

K

R

S

B

N

C

W5/W6

mV 0 mV to 50 mV N/A N/A

MEASUREMENT

RANGE

-200 to +400°C

-328 to +752°F

-200 to +730°C

-328 to +1346°F

-200 to +760°C

-328 to +1400°F

-200 to +1350°C

-328 to +2462°F
0 to +1768°C

+32 to +3214°F

0 to +1768°C

+32 to +3214°F

+149 to +1820°C
+300 to +3308°F

-200 to +1300°C

-328 to +2372°F
0 to +2315°C

+32 to +4199°F

RTD INPUTS:

Type: 2 or 3 wire
Excitation: 150 µA
Lead Resistance: 15 Ω Max

Resolution: 1 or 0.1°

TYPE INPUT TYPE RANGE

385 100 Ω platinum, Alpha = .00385

392 100 Ω platinum, Alpha = .003919

672 120 Ω nickel, Alpha = .00672

PROCESS INPUT:

INPUT

RANGE

10 V 0.1% span 1 M Ohm 50 V 16 bit

20 mA 0.1% span 10 Ohm 100 mA 16 bit

ACCURACY IMPEDANCE

5. PROBE BREAK RESPONSE: Upscale drive, Input Fault Alarm bit set high,
ALx LED illuminates.

WIRE COLOR

ANSI BS 1843

(+) Blue

(-) Red

(+) Violet

(-) Red

(+) White

(-) Red

(+) Yellow

(-) Red

No Standard

No Standard

No Standard No Standard

(+) Orange

(-) Red

No Standard No Standard

MAX CONTINUOUS

OVERLOAD

(+) White

(-) Blue

(+) Brown

(-) Blue

(+) Yellow

(-) Blue

(+) Brown

(-) Blue

(+) White

(-) Blue

(+) White

(-) Blue

(+) Orange

(-) Blue

-200 to +600°C

-328 to +1100°F

-200 to +600°C

-328 to +1100°F

-80 to +215°C

-112 to +419°F

RESOLUTION

6. TEMPERATURE INDICATION ACCURACY: ± (0.3% of span, +1°C).
Includes NIST conformity, cold junction effect, A/D conversion errors,
temperature coefficient and linearization conformity at 23 °C after 20 minute
warm up.

7. ISOLATION LEVEL: 500 Vrms @ 50/60 Hz for 1 minute between the
following:

OP1
OP2
OP3
OP4
Linear Output (GMP1 only)
Signal Input 1 and HCM
Signal Input 2 and HCM (GMP2 only)
Power Supply Input

8. COMMUNICATIONS: Provided by the graphite host device

9. A/D CONVERTER: 16 bit resolution

10. DISCRETE OUTPUTS:
GMP1: Outputs 1 and 2 available as Solid State NFET or Form A relay.

Output 3 is an SSR NFET or Form C relay.

GMP2: Outputs 1 through 4 available as Form A relay or Solid State NFET.
Solid State Output:

Type: Switched DC, N Channel open drain MOSFET
Current Rating: 1 A max
VDS ON: 0.3 V @ 1 A
VDS MAX: 30 VDC
Offstate Leakage Current: 0.5 mA max

Form A Relay Output:

Type: N.O.
Current Rating: 3 Amps @ 125 VAC or 30 VDC (resistive load)

1/10 HP @ 125 VAC

Life Expectancy: 200,000 cycles at maximum load rating. (Decreasing

load, increasing cycle time, and use of surge suppression such as RC
snubbers increases life expectancy.)

Form C Relay Output:

Type: SPDT
Current Rating: 5 Amps @ 125 VAC or 28 VDC (resistive load)

1/8 HP @ 125 VAC

Life Expectancy: 100,000 cycles at maximum load rating. (Decreasing

load, increasing cycle time, and use of surge suppression such as RC
snubbers increases life expectancy.)

11. CONTROL MODES:
Control: On/Off, P, PI, or PID
Output: Time proportioning or linear (GMP1 only)
Cycle Time: Programmable from 0.0 to 60.0 sec
Auto-Tune: When selected, sets proportional band, integral time, derivative

time values, and output dampening time
Probe Break Action: Programmable response
Sensor Fail Response: Upscale

12. ALARMS:
Modes:

Manual
Absolute High Acting
Absolute Low Acting
Deviation High Acting
Deviation Low Acting
Inside Band Acting

Outside Band Acting
Reset Action: Programmable; automatic or latched
Standby Mode: Programmable; enable or disable
Hysteresis: Programmable
Sensor Fail Response: Upscale

13. ANALOG DC OUTPUT (optional, GMP1 only):
Selectable/programmable for 0-10 VDC, 0-20 mA, or 4-20 mA
Resolution:

Voltage: 500 µV
Current: 1 µA

Accuracy:

0.1% of full scale (18 to 28 °C)

0.2% of full scale (-40 to 75 °C)
Update Time: 0.0 to 60.0 sec
Compliance (for current output only): 500 Ω max.
Minimum load (voltage output only): 10 KΩ min.
Outputs are software selectable for either 10 V or 20 mA. The output range
may be field calibrated to yield approximate 10% overrange and a small
underrange (negative) signal.

2

14. HEATER CURRENT MONITOR INPUT (optional):

V

Type: 300 V max, 50 A max. Single phase, full wave monitoring of load

currents
Input: 100 mA max. input for use with external current transformers
Input Resistance: 5 Ω
Accuracy: ±3.0% full scale, 5 to 100% of range
Frequency: 50 to 400 Hz
Minimum output on time for break alarm: 350 msec

Note: To ensure isolation to SELV circuits, use a UL Listed current

transformer.

15. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -40 to +70 °C; limited to host
Storage Temperature Range: -40 to +85 °C
Shock to IEC 68-2-27: Operational 40 g (10 g, modules w/relays)
Operating and Storage Humidity: 85% max relative humidity, non-

condensing, from 0 to +50°C

Altitude: Up to 2000 meters

16. CERTIFICATIONS AND COMPLIANCES:

CE Approved

EN 61326-1 to Industrial Locations
IEC/EN 61010-1
RoHS Compliant

UL Listed: File #E302106

17. CONSTRUCTION: Case body is all metal construction. For indoor use
only. Installation Category II, Pollution Degree 2.

18. CONNECTIONS: Removable wire clamp screw terminal blocks.
Wire Gage: 28-16 AWG terminal gage wire
Torque: 6.0 lbf-inch (96 oz-inch)

19. MOUNTING: Screws to host.

20. WEIGHT: GMP1: 8 oz (224 g)

GMP2: 8 oz (224 g)

DC

+

-

BLOCK DIAGRAM

PORT 1

PROGRAMMING

A

PORT 2

COMMUNICATIONS

A

POWER

SUPPLY

A

ISOLATED

PORT 3

ETHERNET

B

GRAPHITE HOST GMP1 - PID MODULE

ISOLATED

TC

RTD

0-10V

0-20mA

HCM

POWER

SUPPLY

SSR

OUTPUTS

E

INPUTS

ISOLATED

C

OP1-SSR1

OP2-SSR2

OP3-SSR3

RELAY

OUTPUTS

D

ISOLATED

LINEAR

OUTPUT

F

OP1-RELAY

OP2-RELAY

OP3-RELAY

ISOLATED

0-10V

0-20mA

RTD

0-10V

0-20mA

HCM

RTD

0-10V

0-20mA

HCM

ISOLATED

TC

POWER

SUPPLY

ISOLATED

TC

INPUTS
INPUT 1

G

INPUTS
INPUT 2

G

RELAY

OUTPUTS

GMP2 - PID MODULE

ISOLATED

H

SSR

OUTPUTS

I

OP1-RELAY

OP2-RELAY

OP3-RELAY

OP4-RELAY

ISOLATED

OP1-SSR1
OP2-SSR2
OP3-SSR3
OP4-SSR4

3

EMC INSTALLATION GUIDELINES

Although Red Lion Controls Products are designed with a high degree of
immunity to Electromagnetic Interference (EMI), proper installation and wiring
methods must be followed to ensure compatibility in each application. The type
of the electrical noise, source or coupling method into a unit may be different
for various installations. Cable length, routing, and shield termination are very
important and can mean the difference between a successful or troublesome
installation. Listed are some EMI guidelines for a successful installation in an
industrial environment.

1. A unit should be mounted in a metal enclosure, which is properly connected

to protective earth.

2. Use shielded (screened) cables for all Signal and Control inputs. The shield

(screen) pigtail connection should be made as short as possible. The

connection point for the shield depends somewhat upon the application.

Listed below are the recommended methods of connecting the shield, in order

of their effectiveness.

a. Connect the shield to earth ground (protective earth) at one end where the

unit is mounted.

b. Connect the shield to earth ground at both ends of the cable, usually when

the noise source frequency is over 1 MHz.

c. Connect the shield to common of the module and leave the other end of the

shield unconnected and insulated from earth ground.

3. Never run Signal or Control cables in the same conduit or raceway with AC

power lines, conductors, feeding motors, solenoids, SCR controls, and

heaters, etc. The cables should be run through metal conduit that is properly

grounded. This is especially useful in applications where cable runs are long

and portable two-way radios are used in close proximity or if the installation

is near a commercial radio transmitter. Also, Signal or Control cables within

an enclosure should be routed as far away as possible from contactors, control

relays, transformers, and other noisy components.

4. Long cable runs are more susceptible to EMI pickup than short cable runs.

Therefore, keep cable runs as short as possible.

5. In extremely high EMI environments, the use of external EMI suppression

devices such as Ferrite Suppression Cores for signal and control cables is

effective. The following EMI suppression devices (or equivalent) are

recommended:

Fair-Rite part number 0443167251 (RLC part number FCOR0000)
TDK part number ZCAT3035-1330A
Steward part number 28B2029-0A0

Line Filters for input power cables:

Schaffner # FN2010-1/07 (Red Lion Controls # LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3

Note: Reference manufacturer’s instructions when installing a line filter.

6. To protect relay contacts that control inductive loads and to minimize radiated
and conducted noise (EMI), some type of contact protection network is
normally installed across the load, the contacts or both. The most effective
location is across the load.
a. Using a snubber, which is a resistor-capacitor (RC) network or metal oxide

varistor (MOV) across an AC inductive load is very effective at reducing
EMI and increasing relay contact life.

b. If a DC inductive load (such as a DC relay coil) is controlled by a transistor

switch, care must be taken not to exceed the breakdown voltage of the
transistor when the load is switched. One of the most effective ways is to
place a diode across the inductive load. Most RLC products with solid state
outputs have internal zener diode protection. However external diode
protection at the load is always a good design practice to limit EMI.
Although the use of a snubber or varistor could be used.

RLC part numbers: Snubber SNUB0000

Varistor ILS11500 or ILS23000

Note: Reference manufacturer’s instructions when installing any EMI

suppression device.

7. Also care should be taken when connecting input and output devices to the
instrument. When a separate input and output common is provided, they
should not be mixed. Therefore a sensor common should NOT be connected
to an output common. This would cause EMI on the sensitive input common,
which could effect the instrument’s operation.

Visit RLC’s web site at www.redlion.net for more information on EMI

guidelines, Safety and CE issues as they relate to Red Lion Controls products.

HARDWARE INSTALLATION

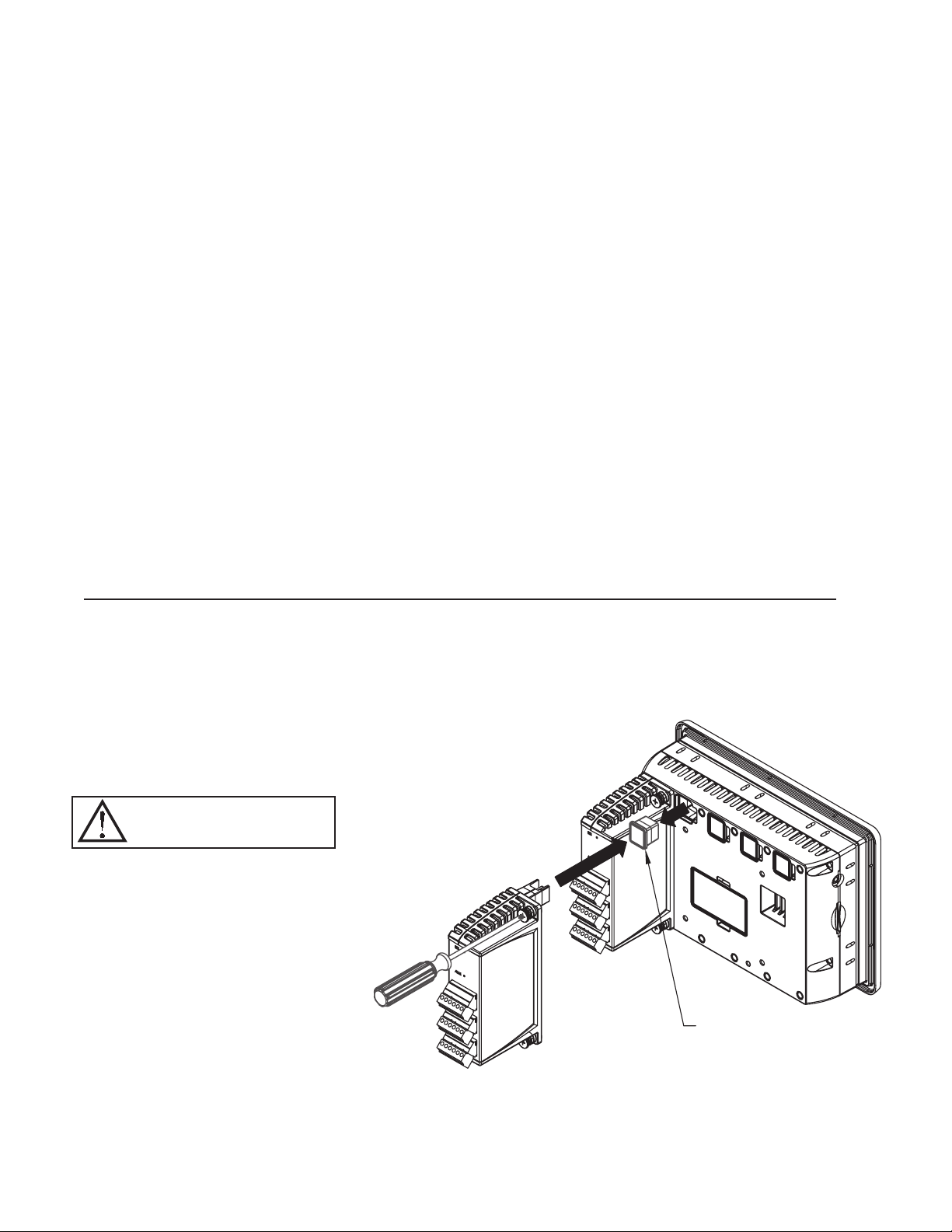

Modules must be installed beginning with slot 1 (left-most slot), with no
empty slots between the modules, and the order must match the modules order
in Crimson. Torque screws to 6.0 pound-force inch (96 ounce-force inch)

WARNING: Disconnect all power
to the unit before installing or
removing modules.

REMOVE RUBBER
MODULE PLUG

4

WIRING

WIRING CONNECTIONS

All conductors should meet voltage
and current ratings for each terminal.
Also, cabling should conform to
appropriate standards of good installation,
local codes and regulations and be
suitably rated for the temperatures of the
environment to which it is being installed.
When wiring the module, use the numbers
on the label to identify the position
number with the proper function. Strip
the wire, leaving approximately 1/4" (6
mm) of bare wire exposed. Insert the wire
into the terminal, and tighten.

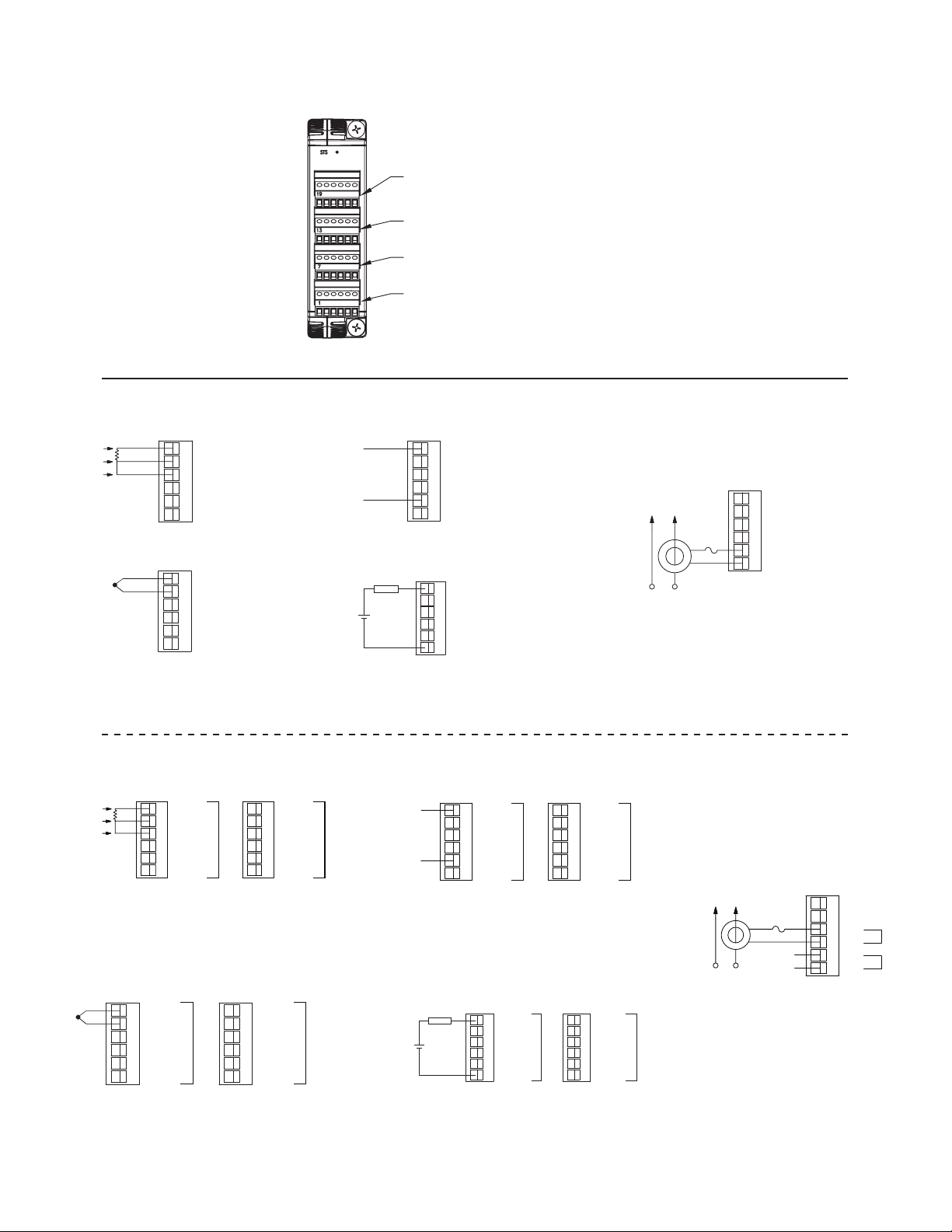

GMP1 INPUT CONNECTIONS

1 32 54 6

RTD

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

4-20 mA

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

654321

4-20 mA

SENSE
SENSE

EXC./
JUMPER

+

Thermocouple and Millivolt

VDC-

VDC+

POWER

Terminals 19 to 24

(GMP2 Only)

Terminals 13 to 18

Terminals 7 to 12

Terminals 1 to 6

INPUT COM.

TC/RTD+

RTD +EXE

N/C

654321

0-10 V

4-20 mA

Heater Circuit

Voltage

_

+

LOAD

+
_

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

654321

4-20 mA

AC

Heater Current Monitor

Current

OP2 COM

HCM (OPT)

121110987

HCM (OPT)

OP1 +

OP1 COM

OP2 +

GMP2 INPUT CONNECTIONS

1 32 54 6

SENSE
SENSE

EXC./
JUMPER

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

4-20 mA

RTD

INPUT COM.

654321

TC/RTD+

RTD +EXE

N/C

0-10 V

4-20 mA

+

INPUT 1

Thermocouple and Millivolt

7 98 1110 12

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

121110987

4-20 mA

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

4-20 mA

INPUT 1

INPUT 2

VDC-

VDC+

POWER

+

+
_

INPUT 2

LOAD

_

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

654321

4-20 mA

Voltage

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

654321

4-20 mA

INPUT 1

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

121110987

4-20 mA

INPUT 2

242322212019

OP4 +

OP4 COM

HCM

HCM

HCM

HCM

1

2

Heater Circuit

AC

SAME AS

HCM 1

{

Heater Current Monitor

INPUT 1

INPUT COM.

TC/RTD+

RTD +EXE

N/C

0-10 V

121110987

4-20 mA

INPUT 2

Current

5

Load

Load

GMP1 OUTPUT CONNECTIONS

Load

Power

Power

OP1 +

OP1 COM

OP2 +

10 11 12987

OP2 COM

HCM (OPT)

HCM (OPT)

Outputs 1 and 2 - Relay Version

Load

+

Power

Power

+

-

+

-

-

+

­10 1211789

HCM (OPT)

OP1 +

OP1 COM

OP2 +

OP2 COM

HCM (OPT)

Outputs 1 and 2 - Solid State Version

OP3 N.O.

OP3 COM

OP3 N.C.

16 181713 14 15

Recorder,
Controller,
Valve, etc

+

-

N/C

ANALOG+ (OPT)

ANALOG- (OPT)

Analog Output

Load

Power

or

Power

OP3 N.O.

OP3 COM

OP3 N.C.

16 17 18151413

N/C

ANALOG+ (OPT)

ANALOG- (OPT)

Output 3 - Relay Version

Power

+

-

­OP1 +

OP1 COM

N/C

16 181713 14 15

N/C

ANALOG+ (OPT)

ANALOG- (OPT)

+

Output 3 - Solid State Version

GMP2 OUTPUT CONNECTIONS

16 181713 14 15

19

23222120

24

OP1 +

OP1 COM

OP2 +

OP2 COM

OP3 +

OP3 COM

OP4 +

OP4 COM

HCM

HCM

HCM

HCM

Power

Power

Power

Power

Outputs 1- 4 - Relay Version

Load

+

+

Power

-

+

Power

-

+

Power

-

+

Power

-

1

2

-

+

-

+

-

+

-

151413

181716

19 21 2220

23 24

OP1 +

OP1 COM

OP2 +

OP2 COM

OP3 +

OP3 COM

OP4 +

OP4 COM

HCM

HCM

HCM

HCM

1

2

Outputs 1- 4 - Solid State Version

6

LEDS

STS – STATUS LED

The Status LED is a green LED that provides information regarding the state
of the module. This includes indication of the various stages of the start-up
routine (power-up), as well as any errors that may occur.

Startup Routine

Off

Flashing Green Module switching to configuration.

Green Module performing normally.

Module is currently running the boot loader and/or
being flash upgraded by Crimson.

ALM OR AL1 & AL2 – ALARM LED

The Alarm LEDs are factory configured to indicate the presence of an alarm.

Whenever one of the seven alarms is active, the LED turns on.

These LEDs may be remapped to various other module properties.

FIRMWARE UPGRADE

The module’s firmware is stored in flash memory so that software/hardware

conflicts are avoided, and so features can be added in the future.

During a download, Crimson compares its own library of firmware files with
those stored in the module. If they do not match, Crimson will download the
necessary firmware.

Error States

Flashing Green

Module is controlling properly, but has lost
communication with the Host.

CONFIGURATION

Programming is done via Crimson® software, a Windows® compatible
configuration interface. Please see the Crimson manual for more information.

OP1, OP2, OP3, OP4* – OUTPUT STATUS LED

The OP1, OP2, OP3, and OP4* LEDs are factory configured to indicate the

status of the outputs. The LEDs turn on when the output is active.

These LEDs may be remapped to various other module properties.
*GMP2 only

ORDERING INFORMATION

TYPE DESCRIPTION PART NUMBER

Graphite 7" Color Touch Screen, Indoor, 24 VDC Powered G07C0000

Graphite 7" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered G07S0000

Graphite 9" Color Touch Screen, Indoor, 24 VDC Powered G09C0000

Graphite 9" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G09C1000

Graphite 10" Color Touch Screen, Indoor, 24 VDC Powered G10C0000

Graphite 10" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G10C1000

Operator

Interface Panels

Input Modules

Accessories

Graphite 10" High Resolution Display, Color Touch Screen, Indoor, 24 VDC Powered G10R0000

Graphite 10" High Resolution Display, Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet Port G10R1000

Graphite 10" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered G10S0000

Graphite 10" Color Touch Screen, Indoor/Outdoor, 24 VDC Powered, Additional Ethernet Port G10S1000

Graphite 12" Color Touch Screen, Indoor, 24 VDC Powered G12C0000

Graphite 12" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet and Serial Port G12C1100

Graphite 15" Color Touch Screen, Indoor, 24 VDC Powered G15C0000

Graphite 15" Color Touch Screen, Indoor, 24 VDC Powered, Additional Ethernet and Serial Port G15C1100

Graphite Module, Single PID, Relay and Analog Outputs GMP1RA00

Graphite Module, Single PID, Relay and Heater Current Monitor GMP1RM00

Graphite Module, Single PID, SSR and Analog Outputs GMP1SA00

Graphite Module, Single PID, SSR and Heater Current Monitor GMP1SM00

Graphite Module, Dual PID, Relay Outputs GMP2R000

Graphite Module, Dual PID, Relay and Heater Current Monitor GMP2RM00

Graphite Module, Dual PID, SSR Outputs GMP2S000

Graphite Module, Dual PID, SSR and Heater Current Monitor GMP2SM00

50 Amp Current Transformer (For Heater Current Models) UL Recognized component, Instrument
Transformers, Inc. Part #2SFT500-0.1

CT005001

7

The Company warrants the products it manufactures against defects in materials and workmanship

LIMITED WARRANTY

for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.

The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.

No warranties expressed or implied are created with respect to The Company’s products except
those expressly contained herein. The Customer acknowledges the disclaimers and limitations
contained herein and relies on no other warranties or affirmations.

Red Lion Controls
Headquarters
20 Willow Springs Circle
York PA 17406
Tel [phone]
Fax [phone]

Red Lion Controls

Europe

Softwareweg 9

NL - 3821 BN Amersfoort

Tel [phone]

Fax [phone]

Red Lion Controls

India
201-B, 2nd Floor, Park Centra
Opp 32 Mile Stone, Sector-30

Gurgaon-122002 Haryana, India

Tel [phone]

Red Lion Controls

China

Unit 302, XinAn Plaza

Building 13, No.99 Tianzhou Road

ShangHai, P.R. China 200223

Tel [phone]

Fax [phone]
